| Product Type | Electric Single-Stage Snow Blower |
| Brand | Snow Joe |
| Model | SJ623E-RM |
| Power Source | Electric Corded (110-120V, 15A) |
| Clearing Width | 18 inches |
| Intake Height | 10 inches |
| Chute Rotation | 180 degrees (manual) |
| Weight | 35 lbs (approx.) |
| Dimensions (L x W x H) | 50 x 20 x 40 inches (approx.) |
| Motor | 15-Amp electric motor |
| Auger Type | Rubber-edged steel auger |
| Collection System | Single-stage |
| Max Snow Depth | 8 inches (recommended) |
| Features | Electric start, foldable handle, LED headlight |
| Maintenance | Clean after each use, check auger for debris, store indoors |
| Safety | GFCI protection, keep cord away from moving parts, wear eye protection |
| Spare Parts | Replacement auger belt, shear pins, chute control rod |
| Repairability | User-serviceable with common tools; detailed manual available |
| General Information | Designed for light to moderate snowfall on paved surfaces |
Frequently Asked Questions - SJ623E-RM Snow Joe
How do I start the Snow Joe SJ623E-RM?
Plug the unit into a grounded GFCI outlet, ensure the chute is clear, then press the safety lock switch and squeeze the start lever. The electric start will engage immediately.
What type of extension cord should I use?
Use a heavy-duty outdoor-rated extension cord of at least 14 AWG and no longer than 100 feet. Always use a GFCI-protected outlet.

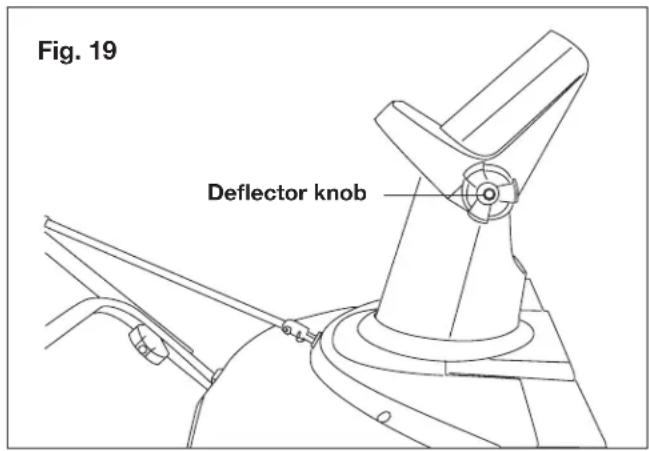

How do I adjust the chute direction?
Loosen the chute adjustment knob, rotate the chute to the desired direction (up to 180 degrees), then retighten the knob.
Can this snow blower handle wet snow?
The SJ623E-RM is best for light, fluffy snow. For wet or heavy snow, it may clog. Clear the auger and chute frequently if needed.
How do I clean and maintain the snow blower?
After each use, unplug and remove any snow and debris from the auger, chute, and housing. Wipe dry and store indoors. Periodically check the auger for wear.
What should I do if the auger stops turning?
Unplug the unit and check for obstructions in the auger. Also inspect the shear pins; if broken, replace them with the supplied pins. Never use non-standard pins.
Is the Snow Joe SJ623E-RM covered by warranty?
Yes, it comes with a 2-year limited warranty for residential use. Register online to activate warranty.
Can I use this on gravel driveways?
Yes, but adjust the skid shoes to keep the auger slightly above the gravel to prevent picking up stones. Use caution on loose surfaces.
Why does the motor stop during use?
The motor has a thermal overload protector. If it shuts off, let it cool for 10-15 minutes. Ensure the cord is not damaged and the GFCI has not tripped.
Where can I find spare parts or the manual?
Spare parts like shear pins, belts, and cables are available at snowjoe.com or authorized retailers. The manual can be downloaded for free from notice-facile.com.
