Product Type	3-Phase CEE Power Distributor
Brand	Varytec
Model	PCS 6
Phases	3
Input Connector	1 × 16 A CEE plug (male)
Output Connectors	1 × 16 A CEE socket (female), 6 × Power Twist sockets
Output Configuration	2 × Power Twist per phase, arranged vertically
Maximum Load per Phase	16 A
Total Maximum Load	48 A (3 × 16 A)
Mounting Points	2 × M10 internal threads on top
Enclosure Material	Industrial grade plastic/metal
Dimensions (approx.)	250 × 200 × 150 mm
Weight (approx.)	3 kg
Operating Temperature	-20°C to +40°C
Protection Rating	IP20
Safety Features	Do not connect in series; zero-potential only when mains plug disconnected
Intended Use	Distribution of mains power in professional environments
Maintenance	Regular inspection for damage; keep clean and dry
Disposal	Comply with local WEEE regulations; do not dispose with household waste
Color	Black with red outputs

Frequently Asked Questions - PCS 6 Varytec

Can I connect multiple PCS 6 units together?

No, do not connect in series. Each unit must be connected directly to a mains supply.

What is the maximum current per phase?

Each phase can handle up to 16 A. Total load should not exceed 48 A across all three phases.

What type of connectors does the PCS 6 use?

It has one 16 A CEE inlet (male), one 16 A CEE outlet (female), and six Power Twist outlets.

Can I use this distributor outdoors?

The IP rating is IP20, meaning it is not protected against water. Use only in dry indoor locations.

How do I mount the PCS 6?

It features two M10 internal threads on the top side for mounting with appropriate bolts.

Is it safe to touch the connectors when powered?

No. The device is only zero-potential when the mains plug is disconnected. Always disconnect before touching.

What cable cross-section should I use?

Use a cable rated for at least 16 A per phase, typically 2.5 mm² or larger, depending on local regulations.

Can I use the Power Twist outlets for single-phase devices?

Yes, each Power Twist outlet provides the respective phase voltage relative to neutral. Ensure the total phase load does not exceed 16 A.

What should I do if the unit gets wet?

Immediately disconnect from mains and do not use. Allow to dry completely and inspect for damage before reuse.

How do I dispose of this product?

Do not dispose with household waste. Follow WEEE regulations and take it to an approved recycling facility.

USER MANUAL PCS 6 Varytec

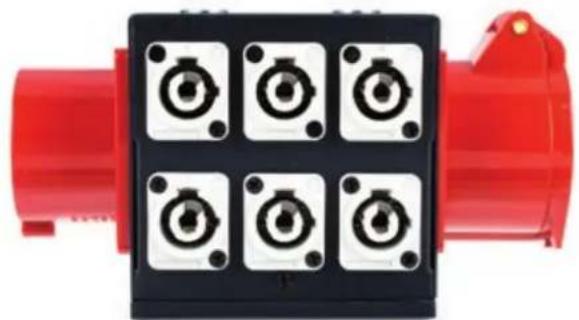

■ 3-phase CEE power distributor with each 2 × Power Twist outlet per phase
■ Outputs of one phase are arranged one above the other
■ Maximum load capacity per phase 16 A

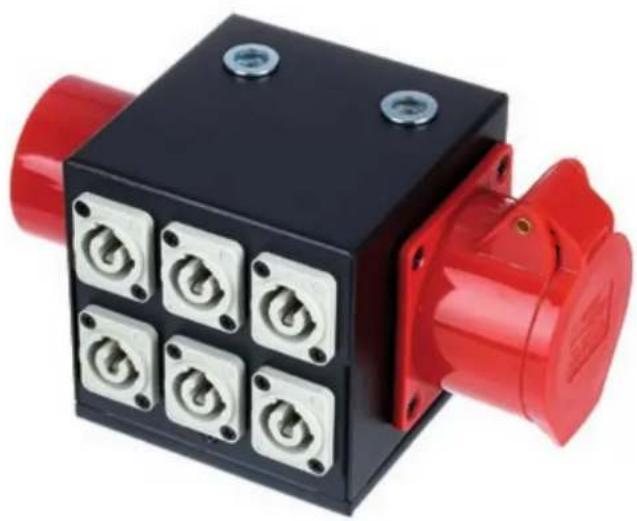

1 × 16 A CEE inlet plug

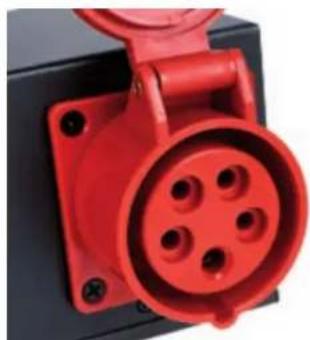

1 × 16 A CEE outlet plug
6 × Power Twist outlet plug in total
2 × M10 inside thread on top side

Close-up of a black industrial electrical switch with multiple circular components and red connectors (no visible text or symbols)

Close-up of a black electrical plug with multiple switches and terminal blocks, no visible text or symbols.

Do not connect in series! Zero-potential only with disconnected mains plug.

Close-up of a red square electrical connector with four gold pins (no text or symbols visible)

Close-up of a red industrial electrical connector with six circular components (no visible text or symbols)

Close-up of a red and black electrical outlet connector (no visible text or symbols)

This device is intended to be used to distribute mains power. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.

Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts from the product. They could swallow the pieces and choke! Never let children use electrical devices unattended.

For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose of your old device with your normal household waste. Dispose of this product through an approved waste disposal firm or through your local waste facility. Comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
