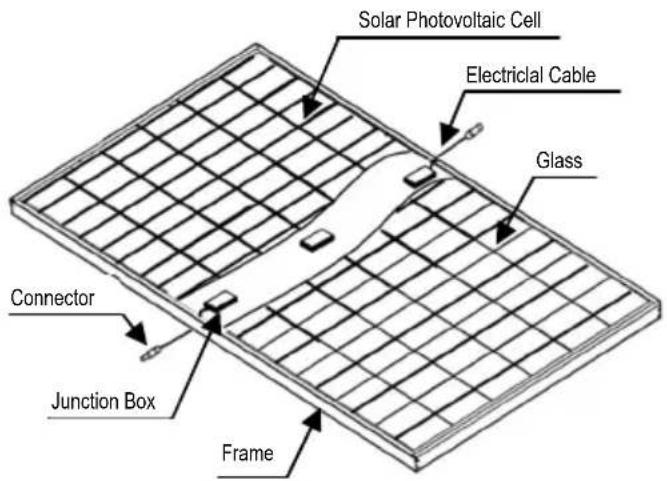

| Product Type | Solar Panel |
| Brand | Sharp |
| Model | NBJD540 |
| Maximum Power (Pmax) | 540 W |
| Open Circuit Voltage (Voc) | 49.6 V |
| Short Circuit Current (Isc) | 13.9 A |
| Panel Efficiency | 21.5% |
| Cell Type | Monocrystalline |
| Number of Cells | 144 (6x24) |
| Dimensions (L x W x H) | 2278 x 1134 x 35 mm |
| Weight | 27 kg |
| Frame Material | Anodized aluminum alloy |
| Front Glass | 3.2 mm tempered glass |
| Connector Type | MC4 compatible |
| Bypass Diodes | Integrated (3 pcs) |
| Operating Temperature Range | -40 to +85 °C |
| Max System Voltage | 1500 VDC |
| Power Output Warranty | 25 years (linear) |
| Product Warranty | 12 years |
| Certifications | IEC 61215, IEC 61730 |
| Cleaning | Use soft cloth and water; avoid abrasive cleaners |
| Safety | Do not touch terminals under load; install with appropriate grounding |
| Repairability | Contact certified installer for replacement or repair |
Frequently Asked Questions - NBJD540 SHARP
How do I install the Sharp NBJD540 solar panel?
Installation must be done by a certified professional. Ensure the mounting structure is compatible and the panel is oriented towards the sun with optimal tilt (typically 30-40 degrees depending on location). Follow local electrical codes and use appropriate MC4 connectors.
What is the maximum power output of the NBJD540?
The NBJD540 has a maximum power output of 540 watts under Standard Test Conditions (STC: 1000 W/m² irradiance, 25°C cell temperature). Actual output may vary depending on sunlight and temperature.
What is the warranty coverage for this panel?
Sharp provides a 12-year product warranty and a 25-year linear power output warranty. The power warranty guarantees at least 90% of nominal power after 10 years and 80% after 25 years.
How should I clean the solar panel?
Clean the panel early in the morning or late in the evening to avoid thermal shock. Use soft cloth or sponge with clean water. Avoid abrasive cleaners, hard brushes, or high-pressure washers that may damage the glass or frame.
Can I replace a single panel in my array?
Yes, but ensure the new panel has similar electrical characteristics (voltage and current) as the others in the string. Mixing different models may reduce system efficiency. Consult a professional for compatibility.
What are the operating temperature limits?
The NBJD540 can operate in temperatures from -40°C to +85°C. Performance degrades slightly at high temperatures; the temperature coefficient for power is typically -0.35%/°C above 25°C.
How do I connect multiple panels?
Panels can be connected in series (to increase voltage) or parallel (to increase current). Use an appropriate inverter and ensure the combined voltage does not exceed the inverter's maximum input voltage (1500V for this panel).
Is the panel compatible with 1000V or 1500V systems?
The NBJD540 is certified for a maximum system voltage of 1500 VDC, making it suitable for both 1000V and 1500V systems. Always check inverter and combiner box ratings.
What certifications does the panel have?
It complies with IEC 61215 (design qualification) and IEC 61730 (safety standard). It also meets local regulations for grid connection; check with your installer.
What should I do if the panel is damaged?
If the glass or frame is cracked, the panel may pose an electrical hazard. Disconnect the system immediately and contact a certified technician for inspection and replacement. Do not attempt to repair the panel yourself.
