DSF1626W - Household Fan Defy - Free user manual and instructions

Product Type	Domestic Pedestal Fan
Brand	Defy
Model	DSF1626W
Dimensions (Height)	Approximately 135 cm
Dimensions (Base Diameter)	Approximately 40 cm
Fan Blade Diameter	16 inches (approx. 40 cm)
Weight	Approximately 4.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	60 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, wide-angle oscillation
Tilt Adjustment	Adjustable tilt for directional airflow
Height Adjustment	Adjustable telescopic pole
Control Type	Manual push buttons on base
Safety Features	Stable base, safety grille, overheat protection
Maintenance	Clean grille and blades with a damp cloth; do not immerse in water
Spare Parts Availability	Contact Defy service center for replacement parts
Warranty	Standard 1-year manufacturer warranty
Color	White
Noise Level	Approximately 55 dB (A) at high speed

Frequently Asked Questions - DSF1626W Defy

How do I assemble the Defy DSF1626W fan?

Refer to the included manual. Generally, attach the base to the pole, then mount the motor unit and fan blades. Secure with screws and attach the grille.

Can I adjust the height of the fan?

Yes, the DSF1626W has a telescopic pole that can be adjusted to your desired height.

How do I clean the fan?

Unplug the fan. Use a damp cloth to clean the grille and blades. Do not use abrasive cleaners or immerse in water.

The fan is wobbling. What should I do?

Ensure all parts are securely tightened. Check that the base is on a level surface. If wobbling persists, inspect the blade for damage.

How many speed settings does the fan have?

It has 3 speed settings: Low, Medium, and High, controlled by buttons on the base.

Does the fan oscillate?

Yes, it features wide-angle oscillation to circulate air throughout the room.

What is the power consumption?

The fan consumes approximately 60 W at maximum speed.

Is the fan noisy?

On the highest setting, noise level is around 55 dB (A), which is typical for a pedestal fan.

Can I tilt the fan to direct airflow?

Yes, the fan head can be tilted upward or downward for directional airflow.

Where can I find spare parts?

Contact Defy customer service or an authorized service center for replacement parts such as blades or grille.

USER MANUAL DSF1626W Defy

Line drawing of a standard 16-inch outdoor fan with a circular grille and stand (no text or symbols)

DSF 1626 W

INSTRUCTION MANUAL

PEDESTAL FAN

Read this manual before operation of the appliance!

Dear Customer,

Congratulations on the purchase of your new Defy appliance!

Please read this manual carefully before using your appliance for the first time and then store it within easy reach for future reference. We trust you will enjoy years of trouble free use.

The user manual:

• This manual will provide you with information on how to safely operate and care for your appliance in order that you gain the maximum benefit from it.
• Pay particular attention to any safety instructions.

Controls and parts

The manufacturer strives for continuous improvement. For this reason, technical specifications, text and illustrations in this manual are subject to change without notice.

Figures in this manual are schematic and may not match your appliance exactly.

1 Safety and set-up

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

• This appliance is intended for private domestic use only. It should not be used for commercial use.
• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the appliance comes to a complete stop.
  • Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
• Do not wrap the power cord around the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  • To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

• Do not immerse the appliance, power cord or power plug in water or in other liquids.

• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.
• Keep the cord away from hot surfaces and open flames.
• When the fan was assembled, the rotor blade guard shall not be taken off anymore
  • Prior cleaning ∅nplug the fan.
• The rotor guard shall not be dissembled/opened to clean the rotor blades.
• Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.
• Never insert fingers, pencils, or any other object through the grille when fan is running.
• Do not use an extension cord with the appliance.
• Never use the appliance if the power cord or the appliance is damaged.
• Our Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
• Disconnect fan when moving from one location to another

Safety and set-up

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Before using the appliance for the first time, carefully clean parts which come into contact with food. See details in the “Cleaning and Care” section.
• Never place the appliance, attachments, power cord or plug on hot surfaces such as gas or electric burners or hot oven surfaces.
• Avoid contact with moving parts.
• Do not use the appliance for anything other than its intended use.
• Never use the appliance with damp or wet hands.
  • Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Position the appliance in such a way that the plug is always accessible.
• Do not use outdoors.
• Be sure fan is on a stable surface when operating to avoid overturning.
• DO NOT use fan in window, rain may create electrical hazard.
  • Household use only.
• Save these instructions.

The manufacturer strives for continuous improvement. For this reason, the text and illustrations in this manual are subject to change without notice.

If the appliance is damaged in any way do not use it. Report the damage to your dealer who will take the necessary corrective action.

Record in the space below the listed information for future reference.

SERIAL NUMBER......

DATE OF PURCHASE......

PURCHASED FROM......

Please register your product at

www.defy.co.za

DEFY APPLIANCES (PTY) LTD

P.O.BOX 12004

JACOBS

DURBAN

4026

SOUTH AFRICA

Assembly of chassis & column unit

1. Unscrew the 7-shape Bolt from the Extension Pole. (Fig.1)
2. Insert the extension pole into the chassis and tighten the 7-shape Bolt (Fig.2)
3. From the extension pole loosen the height adjustment ring and adjust the internal pole to the desired height. (Note: If you can't find the internal pole, it must inside the extension pole. You can pull it out from the extension pole.) (Fig.3)
4. To attach the head unit to the internal pole, loosen the thumb screw on the bottom of the head unit. Place the head unit on the internal pole and tighten the thumb screw in alignment with the groove on the internal pole. (Fig.4)

CAUTION: Height adjustment ring must be fully fastened before the assembly of the motor section to the internal pole.

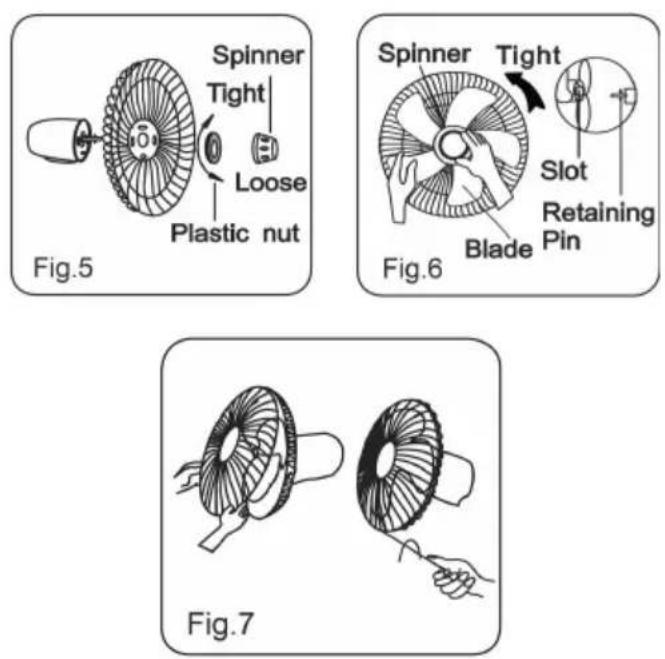

1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counter clockwise to remove both. Fix the rear grill to the motor then tighten the plastic nut. (Fig. 5)
2. Insert the blade onto the shaft, and make sure the rotor shaft pin is fitted into the groove of the blade. Turn the spinner counter clockwise to tighten the blade. (Fig. 6)
3. Fasten the front grill and the rear grill by means of the grill clip and then tighten the fan grill locking screw and nut. (Fig. 7)

1. Speed control

Speed is controlled by the piano switch: 0---Off 1---Low 2---Medium 3---High

2. Automatic 120 minute timer

Turn the knob of time switch to the right and set the time, the timer switch is cut at the time within 120 minutes. In case the time switch is not use, set the time switch to "ON".

3. Oscillation control

To make the fan oscillate, press the clutch knob located on the top of the motor housing. To get the directional airflow, pull the clutch knob up to its initial position.

4. Tilt adjustment

To adjust the air flow upward or downward, push the grilles lightly to the desired direction.

5. Height adjustment

The height of the fan can be adjusted by loosening the height adjustment ring carefully raising or lowering the fan and firmly re-tightening the height adjustment ring.

Maintenance

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, the fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth moistened with a mild detergent. Thoroughly remove any soap with a dry cloth.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinners.
5. Do not allow water or any other liquid into the motor housing or interior parts.

Cleaning

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap.
   Thoroughly remove soap film with dry cloth.

Environmental note

This appliance has been made from high quality materials and parts which can be reused and are suitable for recycling. Do not dispose of the appliance with normal household waste at the end of its service life. Consult your local authorities for disposal information and facilities available.

Help protect the environment by recycling used appliances.

Technical data

Power supply: 220-240V\~, 50 Hz

Technical and design modifications reserved.
