Product Type	Microwave Oven
Brand	Electrolux
Model	EMS3085X
Capacity	30 liters
Dimensions (W x H x D)	595 x 385 x 400 mm
Weight	18 kg
Power Supply	230 V, 50 Hz, 10 A
Microwave Power Output	900 W
Grill Power	1000 W
Convection Power	1600 W
Number of Power Levels	10
Functions	Microwave, Grill, Convection, Combi Cooking, Defrost, Keep Warm
Display Type	LED touchscreen
Turntable Diameter	360 mm
Interior Light	Yes
Child Lock	Yes
Quick Start	Yes
Auto Cook Menus	12 preset programs
Cleaning Type	Stainless steel interior, easy-clean enamel
Spare Parts Availability	Turntable, glass tray, roller ring, fuse, door seal, magnetron available
Repairability Index	7.5 / 10
Energy Efficiency Class	A
Noise Level	52 dB(A)
Warranty	2 years

Frequently Asked Questions - EMS3085X ELECTROLUX

How do I set the clock on the Electrolux EMS3085X?

Press the Clock button, then use the numeric keypad to enter the time, and press Start to confirm. The clock uses a 24-hour format.

Can I use metal containers in this microwave?

No, metal containers or aluminum foil can cause sparks and damage the appliance. Use only microwave-safe glass, ceramic, or plastic.

What is the defrost function and how do I use it?

The defrost function uses low power to thaw frozen food evenly. Place the food on the turntable, press Defrost, enter the weight, and press Start. Turn food occasionally for best results.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and mild detergent after each use. For stubborn stains, heat a bowl of water with lemon juice for 5 minutes, then wipe. Do not use abrasive cleaners.

What does the child lock feature do?

The child lock prevents accidental operation by disabling the control panel. To activate, press and hold the Stop/Cancel button for 3 seconds until a lock icon appears. Repeat to deactivate.

Why is the turntable not rotating?

Ensure the glass tray and roller ring are correctly positioned. Check if the turntable motor is obstructed. If the issue persists, the motor may need replacement.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Using the microwave without it may result in uneven heating and potential damage.

How do I reset the microwave after a power outage?

Press the Stop/Cancel button to clear any residual settings, then reprogram as needed. The clock will need to be reset manually.

What should I do if the microwave smells like burning?

Immediately stop the program and unplug the appliance. Check for food residue or packaging that may be burning. Clean the interior thoroughly. If the smell persists, contact customer support.

How long is the warranty and what does it cover?

The Electrolux EMS3085X comes with a 2-year warranty covering manufacturing defects. Excludes wear and tear, misuse, and consumable parts like filters.

USER MANUAL EMS3085X ELECTROLUX

EN Free-standing Microwave Oven

ID Free-standing Microwave Oven

中文 独立式微波炉

instruction manual

คุ่มือการใช้งาน

Precautions to Avoid Possible Exposure to Excessive Microwave Energy ____ 2

Important Safety Instructions ____ 2

Installation Guide 4

Radio Interference 6

Before Calling For Service 7

Operation Instructions 11

Auto menu 16

EMS3087X

Product Diagram 17

Control Panel 18

Operation Instructions 19

Auto menu 25

Specifications 26

Cleaning and Care 27

Consumer care center 28

Precautions to Avoid Possible Exposure to Excessive Microwave Energy

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the a) Door (Including any dents),
   b) Hinges and latches (broken or loosened),
   c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.

Important Safety Instructions

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!—To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for Industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING!--When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

6. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

Remove wire twist-ties from paper or plastic bags before placing bag in oven.
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is Intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The microwave oven is only used in freestanding.
14. WARNING!--Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
15. The accessible surface may be hot during operation.
16. The microwave oven shall not be placed in a cabinet.
17. The door or the outer surface may get hot when the appliance is operating.
18. The temperature of accessible surfaces may be high when the appliance is operating.

19. The appliance shall be placed against a wall.

20. WARNING! If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

21. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
22. The microwave oven is for household use only and not for commercial use.
23. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
24. Please secure the turn table before you move the appliance to avoid damages.
25. CAUTION: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
26. The microwave oven is intended for defrosting, cooking and steaming of food only.
27. Use gloves if you remove any heated food.
28. Caution! Steam will escape, when opening lids or wrapping foil.
29. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
30. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to test if
31. Prohibit to put the whole egg for cooking under any cooking mode.

Installation Guide

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING! Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

Grounding Instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING!--Improper use of the grounding plug can result in a risk of electric shock. Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Radio Interference Cooking Utensils

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: 1. Clean door and sealing surface of the oven.

1. Reorient the receiving antenna of radio or television.
2. Relocate the microwave oven with respect to the receiver.
3. Move the microwave oven away from the receiver.
4. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Before Calling For Service

Before asking for service, please check each item below:

• Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure the control panel is programmed correctly and the timer is set.
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Cooking Techniques

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

6. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

7. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
8. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
9. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
10. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave Grill Convection				Combination*
Heat-Resistant Glass	Yes	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray (optional)	No	Yes	Yes	No
Metal Rack	No	Yes	Yes	No
Aluminum Foil & Foil Containers	No	Yes	Yes	No
Steam Pot (optional) Yes No No No

Combination: applicable for both "microwave + grill", and "microwave + convection" cooking.

Accessory (Optional)

1. Cover
2. Plate
3. Inner pot
4. Rice spoc
5. Nice spoon
6. Measuring Cup
7. Base pot

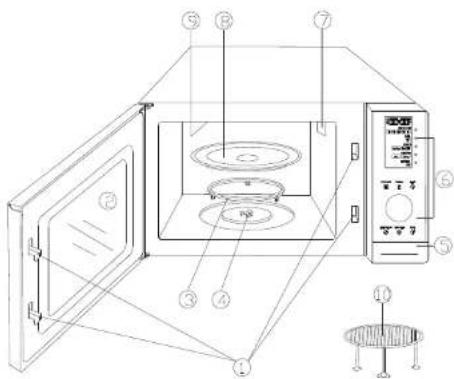

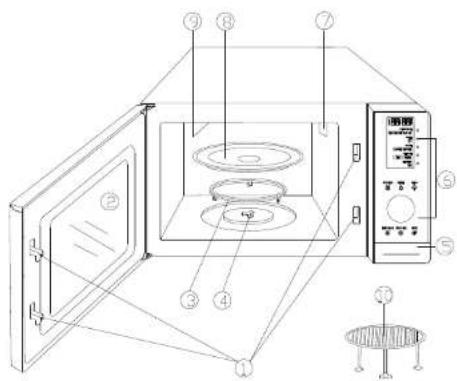

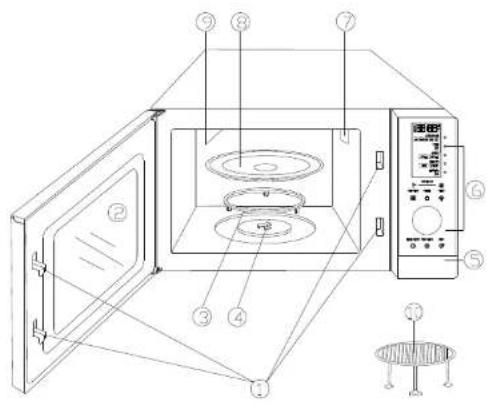

Product Diagram Control Panel

EMS3085X

① Door Safety Lock System
② Oven Window
③ Roller Ring
④ Shaft
⑤ Door Release Button
⑥ Control Panel
⑦ Wave Guide (Please do not remove the mica plate covering the wave guide)
⑧ Glass Turntable
⑨ Grill Heater
⑩ Metal Rack

• DISPLAY
Cooking time, power, indicators and clock time are
displayed
- MICROWAVE
Use to select microwave power level.
• COMBI
Use to select microwave and grill combination
cooking temperature.
• GRILL
Use to set grill cooking
• DEFROST
Use to set time or weight defrost program.
• FERMENT
Use to set ferment program.
- AUTO MENU
Use to set auto menu cooking.
- WEIGHT
Use to set food weight
• STEAM
Use to set steam menu cooking.
- STOP/CLEAR
Use to pause a cooking, cancel all settings or set child lock.
• TIMER/CLOCK
Use to set the oven clock and kitchen timer.
• DIAL
Use to set time or select food weight.
- START
Use to start the oven or set quick start program.

Operation Instructions

• During cooking, if press STOP/CLEAR button once or open the door, the program will be paused, then press START button to resume, but if press STOP/CLEAR button twice, the program will be canceled.
• After ending cooking, the system will sound beeps to remind user every two minutes until user press STOP/CLEAR button or open the door.

Setting Clock

This is a 24 hour clock. During cooking, the current time can be seen by touching TIMER/CLOCK pad twice.

1. Touch TIMER/CLOCK button twice.
2. Turn dial to set the hour digit.
3. Touch TIMER/CLOCK button to confirm.
4. Turn dial to set the minute digit
5. Touch TIMER/CLOCK button again to confirm.

Setting Kitchen Timer

You could set the oven timer to remind you the cooking time. The longest time you can set is 95 minutes.

Suppose you want to set the kitchen timer for 30 minutes:
1. Press TIMER/CLOCK button once.
2. Rotate the digital dial to set 30:00.
3. Press START button to confirm.
Note: 1. If you omit step 2, the timer will count time from 0:00 to 95:00.

1. When the timer is counting, you can press TIMER/CLOCK to see the timer.

2. When setting timer in standby mode, the display shows timer, and you can set cooking program. If press STOP/CLEAR button once, the counting will be paused, then press START button to resume, but if press STOP/CLEAR button twice, the counting will be canceled. During cooking, the timer can be canceled.

Microwave Cooking

1. Touch MICROWAVE button repeatedly to select microwave power level.

Power Level 10	0% 80% 60% 40% 20%
Display	HI M-HI MED		M-LO L0

1. Turn dial to enter cooking time. The longest time is 95 minutes.
2. Touch START button.

Note: The new power level will remain whenever you touch MICROWAVE until you reset it or cut the power.

Grill Cooking

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

1. Touch GRILL button once.
2. Turn dial to enter cooking time.
3. Touch START button.

Grill + Microwave Cooking

The maximum cooking time here is 95 minutes.
Suppose you want to set combination cooking for 25 minutes.
1. Open the door and place the food into the oven, close it.
2. Press COMBI button once or twice.

Press COMBI pad	Combination	Cooking time
		Microwave Grill
once	M+GRILL	30%	70%
twice	LO+GRILL	55% 45%

1. Turn the dial to enter 25:00.

2. Touch START to start.

Note: The power level you set up here will remain until you reset it or cut the power.

Quick Start

In standby state, press START button repeatedly to enter cooking time, the longest time is 95 minutes, and the oven will start automatically at 100% high power level

Multistage Cooking

First stage	Defrost / Microwave cooking / Grill cooking / Steam menu/ Microwave+Grill cooking
Second stage	Microwave cooking / Grill cooking /Steam menu/ Microwave+Grill cooking

1. Set the first stage cooking program. DO NOT TOUCH START.
2. Set the second stage cooking program.
3. Touch START button.

Time Defrost

The longest defrosting time is 95 minutes.

1. Touch DEFROST button repeatedly to select time defrost.

2. Enter desired defrosting time by turning dial.

3. Touch START

Note: After two-thirds of the defrosting time the system will pause and sound beeps to remind user to turn food over, then close the door and press START to resume.

Weight Defrost

The defrosting time and power level are adjusted automatically once the weight is

programmed. The range weight of frozen food varies between 100g and 1000g.

1. Touch DEFROST button repeatedly to select weight defrost.

2. Turn the dial to enter food weight.

3. Touch START button to start

Note: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START button to resume.

Note: The defrosting way you set up here will remain until you reset it or cut the power.

Ferment

It helps you to ferment food easily. The default setting is working at 30^ temperature.

1. Place a larger and covered container with food into the oven.

2. Touch FERMENT button once.

3. Turn the dial to enter desired time. (recommended from 60 minutes to 95 minutes)

4. Press START button.

Steam Menu (can only be used with steam pot accessory)

1. Touch STEAM button once.

2. Turn the dial to select steam menu code.

3. Touch WEIGHT button.

4. Turn the dial to select the weight or amount of food.

5. Press START button.

Steam menu:

Code	Menu	Code	Menu
S-1	Steam Fish (g)	S-4	Steam Dim Sum-Reheat (g)
S-2	Steam Vegetable (g)	S-5	Steam Rice-Reheat(g)
S-3	Steam Egg (Portion)

S-1 Steam Fish (g)

Ingredient: fish 200g-400g

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: marinate the fish and put it into the pot

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically

as below:

Weight (g)	time	power
200	6:00	M-HI
300	8:00
400	10:00

S-2 Steam Vegetable (g)

Ingredient: vegetables 200g-400g

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: get them washed and put into the pot

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically as below:

Weight (g)	time	power
200	6:00	HI
300	7:00
400	8:00

S-3 Steam Egg (portion)

Ingredient: 2 eggs

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: crack eggs and put in a pot, add 200ml water with a bit salt, beat the egg mixture together

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically as below:

Weight (portion)	time	power
1	7:00	MED

S-4 Steam Dim Sum (g) -reheat

Ingredient: dim sum

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: put the dim sum into the pot

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically

as below:

Weight (g)	time	power
100	2:00	MED
200	3:30
300	5:00

5-5 Steam Rice (g) --reheat

Ingredient: rice 200-400g

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: cooked rice which need to reheat

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically

as below:

Weight (g)	time	power
200	3:00	HI
300	4:00
400	5:00

Note: 1.Steam cooking can only be used together with steam pot.

1. The menu you set up here will remain until you reset it or cut the power.

Setting Child Lock

The lock prevents unsupervised operation by children.

- To set the child lock: In standby mode, press STOP/ CLEAR button for 3 seconds, then a beep will sound. In the lock state, the oven can't be operated.

- To cancel the child lock: Press STOP/ CLEAR button for 3 seconds, then a beep will sound, and the oven can be operated.

Auto Menu

It is not necessary to program the cooking time and power level.

1. Touch AUTO MENU button once.
2. Turn the dial to select menu code.
3. Touch WEIGHT button.
4. Turn the dial to select the weight or amount of food.
5. Touch START button.

Auto cook menus:

Code	Menu
A-1	Grill Chicken (g)
A-2	Roast beef/lamb (g)
A-3	Roast pork (g)
A-4	Baked Fish (g)
A-5	Baked Potato (230g/each)
A-6	Pasta (g)
A-7	Rice (g)
A-8	Congee/Porridge (g)
A-9	Toast (piece)
A-10	Popcorn (100g)
A-11	Dim Sum (reheat) (g)
A-12	Beverages(200ml/each)

Product Diagram Control Panel

EMS3087X

① Door Safety Lock System
② Oven Window
③ Roller Ring
④ Shaft
⑤ Door Release Button
⑥ Control Panel
⑦ Wave Guide (Please do not remove the mica plate covering the wave guide)
⑧ Glass Turntable
⑨ Grill Heater
⑩ Metal Rack

• DISPLAY
Cooking time, power, indicators and clock time are
displayed
- MICROWAVE
Use to select microwave power level.
• COMBI
Use to select microwave and convection
combination cooking temperature
• GRILL
Use to set grill cooking
• DEFROST
Use to set time or weight defrost program.
• FERMENT
Use to set ferment program.
- AUTO MENU
Use to set auto menu cooking.
• CONVECTION
Use to select convection cooking temperature and cooking time.
• WEIGHT
- WEIGHT Use to go
• STEAM
STEAM
Use to set steam menu cooking.
- STOP/CLEAR
Use to pause a cooking, cancel all settings or set
child lock.
• TIMER/CLOCK
Use to set the oven clock and kitchen timer.
• DIAL
Use to set time or select food weight.
- START
Use to start the oven or set quick start program.

Operation Instructions

• During cooking, if press STOP/CLEAR button once or open the door, the program will be paused, then press START button to resume, but if press STOP/CLEAR button twice, the program will be canceled.
• After ending cooking, the system will sound beeps to remind user every two minutes until user press STOP/CLEAR button or open the door.

Setting Clock

This is a 24 hour clock. During cooking, the current time can be seen by touching TIMER/CLOCK button twice.

1. Touch TIMER/CLOCK button twice.
2. Turn dial to set the hour digit.
3. Touch TIMER/CLOCK button to confirm.
4. Turn dial to set the minute digit
5. Touch TIMER/CLOCK button again to confirm.

Setting Kitchen Timer

You could set the oven timer to remind you the cooking time. The longest time you can set is 95 minutes.

Suppose you want to set the kitchen timer for 30 minutes:

1. Press TIMER/CLOCK button once.

2. Rotate the digital dial to set 30:00.

3. Press START button to confirm.

Note: 1. If you omit step 2, the timer will count time from 0:00, up to 95:00.

1. When the timer is counting, you can press TIMER/CLOCK to see the timer.

2. When setting timer in standby mode, the displayer shows timer, and you can set cooking program. If press STOP/CLEAR button once, the counting will be paused, then press START button to resume, but if press STOP/CLEAR pad twice, the counting will be canceled. During cooking, the timer can be canceled.

Microwave Cooking

1. Touch MICROWAVE button repeatedly to select microwave power level.

Power Level 100% 80% 60% 40% 20%
Display HI M-H	MED	M-LO	L0

1. Turn dial to enter cooking time. The longest time is 95 minutes.
2. Touch START button.

Note: The power level you set up here will remain until you reset it or cut the power.

Grill Cooking

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

1. Touch GRILL button once.
2. Turn dial to enter cooking time.
3. Touch START button.

Quick Start

In standby state, press START button repeatedly to enter cooking time, the longest time is 95 minutes, and the oven will start automatically at 100% high power level.

Convection Cooking

During convection cooking, hot air is circulated throughout the oven cavity to make crisp foods quickly and evenly. This oven has ten different cooking temperatures from 110°C to 200°C. The longest cooking time is 95 minutes. During cooking, the set temperature can be seen by touching 📋 button.

To Cook with Convection:

1. Touch Pc button once and turn the dial to select desired temperature.
2. Touch the ⏻ button once.
3. Turn the dial to enter cooking time.
4. Touch START button.

To Preheat and Cook with Convection:

Your oven can be programmed to combine preheating and convection cooking operations.

1. Touch 📄 button once.
2. Turn the dial to select desired temperature.
3. Touch START button. When the oven reaches the programmed temperature, beeps will sound.
4. Open the door and place container of food at the center of the turntable.
5. Turn the dial to enter cooking time.
6. Touch START button.

Note: The maximum auto reheat time is 30 minutes, and the preheat time cannot be set. When the temperature reaches the preheat temperature, it will keep for 30 minutes. If you don't open the oven door within the 30 minutes, the system will stop automatically.

Microwave + Convection Cooking

This oven has two different combination cooking temperatures 170^ C + HI and 200^ C + HI.
1. Touch COMBI button repeatedly to select desired combination temperature.
2. Turn the dial to enter cooking time. The longest cooking time is 95 minutes.
3. Touch START button.

Note: The power level you set up here will remain until you reset it or cut the power.

Multistage Cooking

First stage	Defrost / Microwave cooking / Grill cooking /Steam menu/ Convection cooking (without preheating) / Microwave+Convection cooking
Second stage	Microwave cooking / Grill cooking /Steam menu/Convection cooking (without preheating) / Microwave+Convection cooking

1. Set the first stage cooking program. NOT TOUCH START.
2. Set the second stage cooking program.
3. Touch START button.

Time Defrost

The longest defrosting time is 95 minutes.
1. Touch DEFROST button repeatedly to select time defrost.
2. Enter desired defrosting time by turning dial.
3. Touch START

Note: After two-thirds of the defrosting time the system will pause and sound beeps to remind user to turn food over, then close the door and press START to resume.

Weight Defrost

The defrosting time and power level are adjusted automatically once the weight is

programmed. The range weight of frozen food varies between 100g and 1000g.

1. Touch DEFROST button repeatedly to select weight defrost.
2. Turn the dial to enter food weight.
3. Touch START button to start.
   Note: During defrosting program, the system will pause and sound beeps to remind user to
   turn food over, and then press START button to resume.
   Note: The defrosting way you set up here will remain until you reset it or cut the power.

Ferment

It helps you to ferment food easily. The default setting is working at 30°C temperature.
1. Place a larger and covered container with food into the oven.
2. Touch FERMENT button once.
3. Turn the dial to enter desire time.(recommended from 60 minutes to 95 minutes)
4. Press START button.

Steam Menu (can only be used with steam pot accessory)

1. Touch STEAM button once.
2. Turn the dial to select steam menu code.
3. Touch WEIGHT button.
4. Turn the dial to select the weight or amount of food.
5. Press START button.

Steam menu:

Code	Menu	Code	Menu
S-1	Steam Fish (g)	S-4	Steam Dim Sum-Reheat (g)
S-2	Steam Vegetable (g)	S-5	Steam Rice-Reheat(g)
S-3	Steam Egg (Portion)

S-1 Steam Fish (g)

Ingredient: fish 200g-400g

Steps:

1. Base pot: add 200ml of water into the base plate
2. Inner pot: marinate the fish and put it into the pot
3. Put the inner pot into the base pot and lock up the cover.
4. Select weight as below then time and power will follow default setting automatically as below:

Weight (g)	time	power
200	6:00	M-HI
300	8:00
400	10:00

S-2 Steam Vegetable (g)

Ingredient: vegetables 200g-400g

Steps:

1. Base pot: add 200ml of water into the base plate
2. Inner pot: get them washed and put into the pot
3. Put the inner pot into the base pot and lock up the cover.
4. Select weight as below then time and power will follow default setting automatically as below:

Weight (g)	time	power
200	6:00	HI
300	7:00
400	8:00

S-3 Steam Egg (portion)

Ingredient: 2 eggs

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: crack eggs and put in a pot, add 200ml water with a bit salt, beat the egg mixture together

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically as below:

Weight (portion)	time	power
1	7:00	MED

S-4 Steam Dim Sum (g) --reheat

Ingredient: dim sum

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: put the dim sum into the pot

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically as below;

Weight (g)	time	power
100	2:00	MED
200	3:30
300	5:00

S-5 Steam Rice (g) –reheat

Ingredient: rice 200-400g

Steps:

1. Base pot: add 200ml of water into the base plate

2. Inner pot: cooked rice which need to reheat

3. Put the inner pot into the base pot and lock up the cover.

4. Select weight as below then time and power will follow default setting automatically as below;

Weight (g)	time	power
200	3:00	HI
300	4:00
400	5:00

Note: 1. Steam cooking can only be used together with steam pot.

2.The menu you set up here will remain until you reset it or cut the power.

Setting Child Lock

The lock prevents unsupervised operation by children.

To set the child lock: In standby mode, press STOP/ CLEAR button for 3 seconds, then a beep will sound. In the lock state, the oven can't be operated.

To cancel the child lock: Press STOP/CLEAR button for 3 seconds, then a beep will sound, and the oven can be operated.

Automatic Protection Mechanism

High Temperature Protection: while entering into super high temperature protection status, the system sounds beeps and the display shows "E01" until user press STOP/CLEAR button to return normal condition. Please open the door to cool the oven cavity or call for consumer service to check.

Low Temperature Protection: while entering into super low temperature protection status, the system sounds beeps and the display shows "E02" until user press STOP/CLEAR button to return normal condition. Please call for consumer service to check.

Sensor Malfunction Protection: when the sensor is short circulted, the system enters into protection mode and sound beeps, the display shows "E03" until user press STOP/CLEAR pad to return normal condition. Please call for consumer service to check and replace the faulty sensor.

Auto Menu

It is not necessary to program the cooking time and power level.
1. Touch AUTO MENU button once.
2. Turn the dial to select menu code.
3. Touch WEIGHT button.
4. Turn the dial to select the weight or amount of food.
5. Touch START button.

Auto cook menus:

Code	Menu
A-1	Grill Chicken (g)
A-2	Roast beef/lamb (g)
A-3	Roast pork (g)
A-4	Baked Fish (g)
A-5	Baked Potato (230g/each)
A-6	Frozen Pizza (g)
A-7	Pasta (g)
A-8	Rice (g)
A-9	Congee/Porridge (g)
A-10	Cake (475g)
A-11	Toast (piece)
A-12	Popcorn (100g)
A-13	Dim Sum (reheat) (g)
A-14	Beverages (200ml/each)

Specifications

Model EMS3085X EMS3087X
Power Consumption	Please refer to rating label	Please refer to rating label
Output	900W	900W
Operation Frequency	2450MHz	2450MHz
Outside Dimensions	538mm(W)x436mm(D)x294mm(H)	538mm(W)x436mm(D)x294mm(H)
Oven Cavity Dimensions	354mm(W)x358mm(D)x240mm(H)	354mm(W)x358mm(D)x240mm(H)
Oven Capacity	30Litres	30Litres
Cooking Uniformity	Turntable System	Turntable System
Net Weight	Approx.17.0kg	Approx.18.3kg

Packing List

1. Microwave Oven*1
2. User Manual*1
3. Metal Rack*1
4. Glass Turntable*1
5. Roller Ring*1
6. Steam pot set*1 (optional)

RoHS

Compliant.

Environmental Information

If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to collecting points where available.

This product is RoHS compliant.

Cleaning and Care

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. he outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. If the light bulb burns out, please contact customer service to have it replaced.
11. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
12. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
13. When the microwave ovens have grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

Consumer care center

ThailandCall Center Tel: [phone]Electrolux Thailand Co.,Ltd.Electrolux Building14th Floor 1910 New Petchburi Road,Bangkapi,Huay Kwang, Bangkok 10310Office Tel: [phone]Office Fax: [phone]Email: [e-mail]	SingaporeCONSUMER CARE HOTLINE : [phone]Electrolux S.E.A. Pte Ltd.1 Fusionopolis Place,#07-10 Galaxy, West LobbySingapore 138522.Office Fax: [phone]Email: [e-mail]
IndonesiaTel: ([phone]PT. Electrolux Indonesia.Gedung Plaza KuninganMenara Utara 2nd Floor,Suite 201, JI. HR Rasuna Saidkav C 11-14, Karet SetiabudilJakarta Selatan 12940Office Tel: [phone]Office Fax: [phone]Email: [e-mail]	PhilippinesDomestic Toll Free: 1-800-10-845-care 2273Customer Care Hotline: (+63 2) 845 care 2273Electrolux Philippines, Inc.10th Floor. W5th Avenue Building5th Avenue Corner 32nd StreetBonifacio Global City,Taguig Philippines 1634Trunkline: [phone]Website: www.electrolux.com.phEmail: [e-mail]
VietnamDomestic Toll Free : 1800-58-86-99Tel: [phone]Electrolux Vietnam Ltd.Floor 9th. A&B Tower76 Le Lai street - Ben Thanh Ward - District 1Ho Chi Minh City , VietnamOffice Tel: [phone]Office Fax: [phone]Email: [e-mail]	MalaysiaDomestic Toll Free: 1300-88-11-22Electrolux Home Appliances Sdn. Bhd.Corporate Office Address: 7th Floor, Tower 2,Jaya 33, No. 3 Jalan Semangat, Seksyen 13,46100 Petaling Jaya, Selangor.Corporate Office Tel: [phone]Corporate Office Fax: [phone]Consumer Care Center Address: Lot C6, No. 28,Jalan 15/22, Taman Perindustrian Tiong Nam,40200 Shah Alam, SelangorConsumer Care Center Tel: [phone]Consumer Care Center Fax: [phone]Email: [e-mail]
HongkongTel: ([phone]Dah Chong Hong, Ltd. - Service Centre8/F, Yee Lim Godown Block C2-28 Kwai Lok Street, Kwai Chung, N.T.Hong Kong

www.electrolux.com

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say, "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that we at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience the ultimate 21st century luxury: ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world.

The "Thinking of you" promise from Electrolux goes beyond meeting the needs of today's consumers. It also means we're committed to making appliances safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

สารบัญ

Electrolux. Thinking of you.

The Thoughtful Design Innovator.

Electrolux. Thinking of you.

① Sistem Pengaman Pintu
② Jendela Oven
③ Cincin Beroda (Roller Ring)
④ Poros
① Tombol Pembebas Pintu
⑥ Panel Kontrol
⑦ Pengarah Gelombang (Jangan melepas plat mika yang menutupi pengarah gelombang)
© Baki Kaca
⑨ Pemanas Grill
① Rak Logam

Panel Kontrol

Mulal Cepat (Quick Start)

Sistem Pengaman Pintu
② Jendela Oven
④ Cincin Beroda (Roller Ring)
④ Poros
① Tombol Pembebas Pintu
© Panel Kontrol
© Pengarah Gelombang (Jangan melepas plat mika yang menutupi pengarah gelombang)
© Turntable (Tadah Putar) Kaca
⑨ Pemanas Grill
49 Rak Logam

TIMER/CLOCK STOP/CLEAR START
17

Panel Kontrol

Electrolux. Thinking of you.

-8-

1. 盖子

2. 盘子

3.内钢

4.不沾饭勺

5.量杯

6.底锅

产品示意图

EMS3085X

14th Floor, 1910 New Petchburi Road

Bangkapi, Huay Kwang

Bangkok 10320

越南

免费电话：1800-58-88-99

电话:[phone]

越南 Electrolux 有限公司

AB Tower, 9th Floor

76 Le Lai Street District 1

Ho Chi Minh City

印度尼西亚

电话：[phone]

印度尼西亚 Electrolux 公司

Plaza Kuningan

Menara Utara Suite 201

JI. HR. RasunaSaid Kav. C11-14

Jakarta 12940

Depdag No.143.EI7.00401.0911

菲律宾

10th Floor. W5th Avenue Building

5th Avenue Corner 32nd Street

Bonifacio Global City,

Taguig Philippines 1634

Trunkline: [phone]

新加坡

电话：[phone]

传真：[phone]

e-mail: [e-mail]

Corporate Office Address: 7th Floor, Tower 2,

Jaya 33, No. 3 Jalan Semangat, Seksyen 13,

46100 Petaling Jaya, Selangor

Corporate Office Tel: [phone]

Corporate Office Fax: [phone]

Lot C6, No. 28, Jalan 15/22, Taman Perindustrian

Tiong Nam, 40200 Shah Alam, Selangor

www.electrolux.com

贴心的设计创新者
