USER MANUAL Active 43 Transit BECKER

The Navigation device 8

Contents of the operating guide 8

Use 8

Navigation 8

Music* 9

Pictures* 9

Video* 9

Telephone (selected models) 9

Unpacking the Navigation device 9

Checking the delivery 9

Delivery contents 9

Complaints procedure 10

Handling the packaging

Description of unit

Basic device

Cable for power supply from

cigarette lighter 11

Battery 11

USB connection cable 11

Unit bracket 11

Accessories 11

Mains power supply unit 11

External GPS antenna

(for certain models only) 11

Cable for vehicle integration

(for certain models only) 11

Headset (depending on the model) 12

Information about documentation 12

Quick start guide 12

Operating instructions 12

Registration 12

Repairs 12

Emissions and disposal 12

OVERVIEW OF SCOPE OF SUPPLY 13

OVERVIEW OF NAVIGATION DEVICE 14

General operation 16

Maintenance and care 16

Battery quality declaration 17

Display quality declaration 17

Start-up 17

Power supply 17

Using the battery 18

Connection for the cigarette lighter 18

Connection to the mains outlet 19

Connecting power supply 19

TMC antenna

(depending on the model) 19

GPS-antenna 19

Unit antenna 19

Connecting up external antenna 20

Cable for vehicle integration

(depending on the model, optional) 20

Memory card 21

Inserting memory card 21

Ejecting memory card 21

Unit bracket 22

Fitting the unit bracket 22

Release button 22

On the windscreen 23

Adjusting the unit holder's position 23

Attaching the Navigation device 23

Removing the Navigation device 23

Switching the Navigation device

on/off 23

Switching on 24

Switching off 25

Basic information about the

touch screen 25

Operation 25

Calibration 25

Basic information about the menus 26

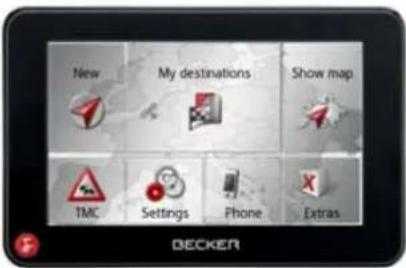

The main menu 26

Entries made with the entry menu 27

Entering characters 27

Accepting proposals 27

Scrolling through the lists 28

Special characters and umlauts 28

Other character sets 29

Entering numbers 29

Switching between upper and

lower case 29

Deleting characters 30

Inserting spaces 30

The Becker key 30

Radio remote control 30

Attaching the remote control 30

INDEX

Removing the remote control 32

Connecting the remote control to the

Navigation device 32

Replacing the battery 32

Operating the Navigation device using

the remote control 33

Content Manager 34

Installing the Content Manager 34

Starting the Content Manager 35

Transferring music tracks,

pictures and videos 36

Faults 36

Navigation mode 37

What is navigation? 37

Selecting navigation 38

Home address 38

Smart Guess 38

Last destinations list 39

The destination list 39

Icons used 39

Operating the last destinations list 40

Entering an address using speech 40

Start with existing destination 40

Scrolling through stored destinations 40

Displaying or editing a destination 40

Personal destinations 41

Contacts 41

Selecting a destination from

Personal destinations 41

Editing Personal destinations 41

Selecting a destination from Contacts 42

The New or New Destination Menu

(depending on device) 43

Layout of the New destination menu 43

Enter address 43

Select Point of Interest 43

Travel Guide "New Menu" 43

Enter geo-coordinates 44

Select on map 44

Route planning 44

Entering the address 44

Selecting a country 44

Selecting an address and starting route

guidance 45

Entering address by language

(selected models) 49

Points of interest 51

Point of interest in the vicinity 51

Point of interest near to an address 52

Point of interest near to destination 53

Entering a point of interest directly 53

Calling special destination phone

number (depending on the model) 54

Additional point of interest

information 54

Travel Guide 54

Route planning 55

Creating a new route 56

Editing a route 57

Optimising a route 58

Selecting a destination from the map 58

Coordinate entry 59

Navigation settings 60

The Guidance info button 60

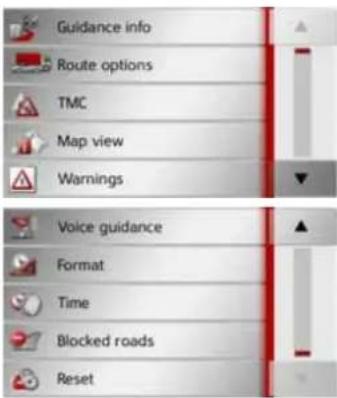

The Route options button 61

Selecting the vehicle profile 62

Selecting the route type 62

Time-dependent route guidance 63

Avoiding particular types of road 63

The TMC button 63

The Map view button 64

Autozoom 66

Setting POI categories 66

The Warnings button 67

The Driver alerts button 68

The Speed info button 68

The Voice guidance button 69

The Voice button 70

The Volume button 70

The Format button 71

The Time button 71

The Blocked roads button 72

The Reset button 73

Traffic announcements using

TMC (depending on the model) 73

Displaying TMC messages on the map 74

Using TMC 74

Reading a message 75

Display the relevant road in the map 76

Taking announcements into

consideration when calculating routes 76

Automatic recalculation 76

Manual recalculation 76

The map display 77

Calling up the map display 77

Structure of the map display 77

Map display without route guidance 77

Map display with route guidance 78

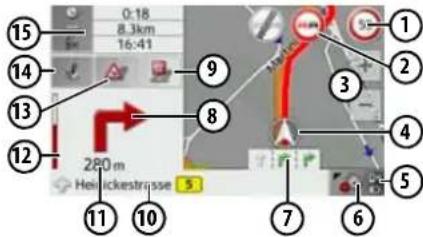

Spilt screen with route guidance 79

Route guidance with arrow display 80

Map display with Junction View 81

Using the map display 81

Repeating the last announcement 81

Changing the announcement volume 81

Map zooming 82

Moving the map 82

Map display options 82

Point of interest on the route 83

TMC on the route (depending on

the model) 84

Cancel route guidance 84

Changing route options 85

Block route 85

Switching the map mode 86

Changing the map orientation 86

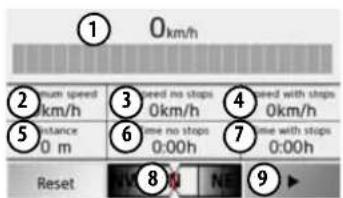

Route calculator

(depending on the model) 87

Setting day/night display 88

Selecting/setting the vehicle profile 88

Entering a destination 92

Enter/delete waypoint 92

Displaying the entire route 93

Displaying the destination list 95

Skipping destination 96

Displaying current position 96

Saving a position 97

Calling up the telephone

(depending on the model) 97

Switching off the display 97

Defining fast access buttons 97

TELEPHONE MODE 99

Calling up the telephone mode

(only selected models)

Telephone menu

(only selected models)

Dialing a number

Phonebook

Text messages (SMS)

(only selected models)

Incoming text message

Number lists 104

Icons used

Scrolling in the number list

Dialing an available number

Displaying or editing entries

Lists loaded from cell phone

Connecting Bluetooth telephones

Calling up a device list

Automatic connection

Searching for cell phones

Connecting from device lists

Connecting a mobile phone

Disconnecting a connected telephone 109

Telephone calls 109

Establishing a call

Accepting a call

Ending a call

During a call

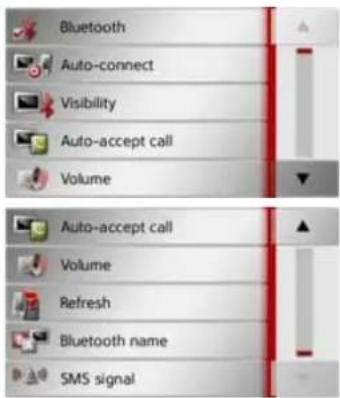

Telephone settings

Switching Bluetooth on and off

Automatic connection

Visibility

Automatic call acceptance 113

Telephone volume 113

Updating phonebook 113

Bluetooth name 114

Text message notification

(depending on the model) 114

Extras 115

MP3 player ^* 115

Selecting a track 115

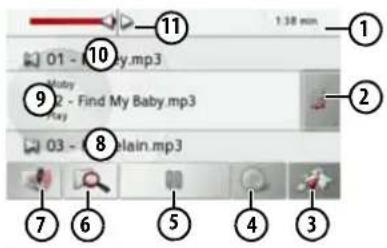

The playback menu 117

Track skip 117

Playback 117

Interrupting playback 117

Track repeat / random play 118

Setting the volume 118

Closing the MP3 player 118

Image viewer ^* 119

The image viewer menu 119

Selecting an image 120

Enlarging the image 120

Rotating the picture 120

Displaying image information 121

Slide show 121

Settings 121

Video player ^* 122

Displaying the video menu 123

Playback 123

Interrupting playback 123

Setting the volume 124

Country information 124

INDEX

Settings 126

Selecting system settings 126

The system settings menu 126

Operation 126

Selection options 126

Closing the settings menu 126

The individual menu items 127

Battery 127

Day/night display 127

Calibration 128

Brightness 128

Language 128

Automatic on/off 129

Sounds 129

Setting the colour 130

Factory settings 130

Information 130

My XTRAS 131

Specialist words 132

Keywords 134

MODEL OVERVIEW AND TECHNICAL

SPECIFICATIONS 137

NOTICE 138

EU Declaration of Conformity 138

Disposal of the unit 139

Disposal of the battery 140

Duty to supply information

according to battery legislation (BattrV) 140

Removing the battery 140

The information and data contained in these documents are subject to change without prior notice.

No part of these documents may be duplicated or transmitted for any purpose whatsoever without express written permission of United Navigation GmbH. All technical information, drawings etc. are subject to copyright law.

© Copyright 2010, United Navigation GmbH

All rights reserved.

⚠ Safety information

• The unit may only be operated if the traffic situation allows for this and if you are absolutely certain that you yourself, your fellow passengers or other road users will not be put at risk, encumbered or disturbed by this.
• The rules of applicable road traffic acts must be observed at all times. Destinations may only be input when the vehicle is stationary.
• The navigational system is only an aid. The data/details provided may in some cases be incorrect. The driver must always decide whether to follow the details given or not. We accept no liability for the navigational system issuing incorrect details. As a result of traffic routing changes and deviating data, inaccurate or incorrect instructions may be given. Drivers should always pay attention to the actual road signs and traffic control. In particular, the navigational system cannot be used as a means of orientation in cases of poor visibility.
• The unit may only be used for its intended purpose. The volume of the navigational system should be set so that noises outside the vehicle can still be heard.
• The unit should be switched off immediately if faults occur (e.g. development of smoke or smells).
• For safety reasons, the unit may only be opened by a specialist. Please contact your local stockist if you require repairs.

SAFETY INFORMATION

• The mains voltages (V) indicated on the mains charger, the car charger adapter and the unit must not be exceeded. Failure to observe this can result in destruction of the unit and the charger as well as explosion of the rechargeable battery.
• Never open the unit or the rechargeable battery. Any modification to the unit is also impermissible and renders the type approval invalid.
• Use only genuine BECKER original accessories. This will ensure that all the relevant regulations are complied with and damage to health and property is avoided. Dispose of defective units and the rechargeable battery according to the applicable legal requirements.
• No warranty is granted in the case of improper use. These safety instructions also apply to genuine BECKER original accessories.
• Permissible temperature range: -20^ - 60^ storage / 0^ - 45^ operation

Contents of the operating guide Use

Your Becker Navigation device is bed in this user manual. This manual describes different types of models in one single document. For this reason some of the functions described here might not be available in your device.

sThis Navigation device provides you with a powerful PND (Personal Navigation Device) for use in vehicles. The unit and the accessories are to be protected against moisture and dirt.

Exterior view of a black rectangular electronic device labeled 'DECKER' with a red circular icon at the bottom left (no other text or symbols visible)

Navigation

Thanks to GPS = Global Positioning System, you no longer need to spend hours searching through road atlases.

Once outside buildings, the receiver antenna integrated in the unit gives you continuous access to navigational possibilities. Depending on reception, you may not be able to use the navigational function inside buildings. When used in vehicles, you may not be able to adequately receive GPS data depending on how the Navigation device is installed. In such cases, you will have to connect up an external antenna (does not fall within the scope of supply).

THE NAVIGATION DEVICE

Music\*

Thanks to the integrated MP3-Player, you can listen to your favourite tracks when on the go.

Pictures\*

The Navigation device has a Picture Viewer offering many functions for viewing pictures.

Video\*

Navigation device features a video player for playing videos.

Telephone (selected models)

Your Navigation device is equipped Bluetooth® wireless technology. Via Bluetooth®, you may connect to a cell phone that is equipped with Bluetooth® wireless technology. Your Navigation device can then be used as a very comfortable hands-free unit. In addition, you also have the option of having the mobile phone's address book or phonebook and received text messages read out.

Unpacking the Navigation device

Note:

Your Navigation device is supplied in stable packaging. Do not unpack the unit in full if you discover any serious damage to the packaging or its content. If this happens, please contact your local stockist.

Checking the delivery

Before the Navigation device is started up, the delivery should be checked to ensure that it is complete and in the correct condition (see also page 13).

Carefully unpack the content of the withpackage and check it.

Delivery contents

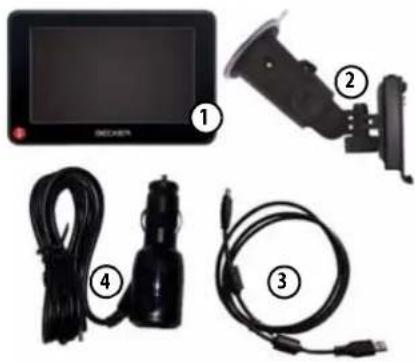

Product display of a device with four labeled parts: a black screen, cable, connector, and USB cable (no visible text or symbols)

① Navigation device
② Unit holder with carrier plate
③ USB cable
④ Vehicle power adapter 12/24 V for cigarette lighter with integrated TMC antenna (depending on the model)
⑤ DVD with the Content Manager and user manual (depending on the model)
⑥ Remote control (depending on model)

0

GB

F

1

E

PL

[Z

H

RU

>>> THE NAVIGATION DEVICE

D

GB

F

|

E

PL

Cl

H

RU

Complaints procedure

Please contact your local stockist if you have any complaints. The device can also be sent directly to United Navigation the original packing.

Handling the packaging

Keep the original packaging in a dry place, at least for the warranty period.

Note:

The packaging should be disposed of correctly in accordance with national disposal guidelines. The packaging must not be burnt. Depending on the country to which the unit is supplied, it may be possible for local stockists to accept packaging.

Description of unit

The navigation device comprises the basic device and the accessories of the scope of supply.

You will find photos of the individual parts under:

- "OVERVIEW OF SCOPE OF SUPPLY" on page 13

Note:

The basic unit and accessories must not be opened or modified in any way.

Basic device

The basic unit contains all the electronics:

• an integrated antenna,
• a TMC receiver for receiving traffic messages (depending on the model),
• a touchscreen,
• an integrated loudspeaker
• a microphone (depending on the model). On the side of the unit, there are also various connections and ports.

You will find more details of the unit under:

- See "MODEL OVERVIEW AND TECHNICAL SPECIFICATIONS" on page 137.

THE NAVIGATION DEVICE

Cable for power supply from cigarette lighter

This cable allows the unit to be connected up to the car's cigarette lighter.

The power supply must satisfy the following requirements:

• D C current 12/24 vol 0.5 amps

Battery

When depleted, the integrated rechargeable battery can be recharged by connecting the Navigation device to the power supply.

For this purpose, connect the unit via a car power adapter to a 12/24 V socket in a vehicle or via the optional mains power supply unit to the 230 V mains.

Note:

You can charge the Navigation device via the car charger cable included in the scope of delivery or via the optionally-available mains power supply unit. When the Navigation device is connected to a PC, it is supplied with power via the PC and does not consume battery power.

USB connection cable

With the USB connection cable provided, it is possible to connect the Navigation device to a standard PC with a USB interface. The integrated flash memory of the navigation device and a micro SD card that may eventually be inserted can then be addressed by the PC like a removable storage device.

Unit bracket

The Navigation device can be mounted in the vehicle using the unit bracket.

Accessories

Mains power supply unit

This power supply allows connection of the Navigation device to a mains outlet. Requirements for power supply: Alternating current

• 100-240 V 0.3 Amps 50-60 Hertz

External GPS antenna (for certain models only)

You can use an external antenna to improve reception in vehicles where only limited GPS reception is available (not included in the scope of supply). Please contact your local stockist for more information.

Details of the connection can be found under "Connecting up external antenna" on page 20.

Cable for vehicle integration (for certain models only)

With the optional cable you can integrate your Navigation device seamlessly into your vehicle. Details of the connection can be found under "Cable for vehicle integration (depending on the model, optional)" on page 20.

Headset (depending on the model)

Standard headphones with a 3.5 mm connector or suitable adapter (not included) can be connected when using Navigation device.

⚠️Danger!

Prevention of damage to hearing

The use of headphones or earphones over a relatively long period of time at a high volume may cause permanent damage to your hearing.

Conformity with the limits for sound pressure laid down in the standard EN 50332-1:2000 as required by French Article L. 5232-1 is guaranteed.

Note:

Headphones should not be used while driving. Comply with the local national laws and regulations.

Information about documentation

Quick start guide

The Quick Start Guide is designed to provide a brief introduction to operating your Navigation device. The most important basic functions of the Navigation device are explained in the Quick Start Guide.

Operating instructions

A comprehensive explanation of the Navigation device functionalities is contained in these operating instructions.

Registration

You can register your product using our software service, we will then inform you of any new updates and other news.

You can register online on the Becker homepage www.mybecker.com.

The "Software update" menu item is located under "SERVICE/SUPPORT".

Repairs

The unit must not be opened if damaged. Please contact your local stockist.

Emissions and disposal

Information on emissions, electromagnetic compatibility and disposal can be found in "NOTICE" on page 138.

OVERVIEW OF SCOPE OF SUPPLY

Scope of supply

1 Basic device - PND (Personal Navigation Device)
2 USB connection cable
3 Unit holder with carrier plate (Design depending on the model)
4 Cable for power supply via the vehicle cigarette lighter (12/24 Volt) with integrated TMC-antenna (depending on the model)

>>> OVERVIEW OF NAVIGATION DEVICE

D

GB

F

1

E

PL

0

H

RU

New My destinations Show map TMC Settings Phone Extras BECKER

BECKER ⑤

Front of unit with controls and displays

1 Becker button ()

Press = Back function in most applications

Press and hold = Calls up the main menu

2 Touch screen showing the main menu selected

3 Touch screen key

Press = activates the corresponding key command

4 Microphone (depending on the model)

Rear of unit

5 Connection available for external GPS antenna (depending on the model, external antenna not included)

OVERVIEW OF NAVIGATION DEVICE

12345

Back panel of a device showing ports, warning symbol, and five circular indicators (no text or labels visible)

Top of the unit

1 Switch-on and Switch-off (standby)

Underside of the unit

2 Slot for Micro SD card
3 Mini USB connection / connection for power supply
43.5-mm connection for headset (depending on the model, headset not included)
5 On/Off switch

Maintenance and care

The unit is maintenance-free.

For proper care, a commercially available cleansing fluid for electrical devices may be applied using a soft damp cloth.

Danger!

Danger to life by electrocution. Always switch off the unit and disconnect the mains power supply unit before cleaning the unit, supplied components, or accessories.

Note:

Do not use any aggressive or abrasive substances or cloths which may damage the surface.

The unit must not be exposed to water.

Your mobile navigation system was designed and manufactured with great care and should be treated with equal care. You will enjoy your mobile navigation system for a long time to come if you observe the recommendations listed in the following:

• Protect your mobile navigation unit and the accessories from water and moisture. If your unit has been exposed to moisture, switch it off immediately and disconnect the power supply. Allow to dry at room temperature.
• Do not operate your mobile navigation system in a dusty or dirty environment and do not store it in such an environment.

• Do not store your mobile navigation system in hot environments. High temperatures can shorten the service life of electronic components in your unit, damage the rechargeable batteries and cause certain plastics to warp or melt.

• Do not store your mobile navigation system in cold environments. During operation, when the unit warms up to operating temperature, moisture may form internally, causing damage to electronic components.

• Do not drop your mobile navigation system unit, protect it from shocks and do not shake it. Improper handling can damage components within the unit.
• Never use corrosive or aggressive chemicals, cleaning solutions or aggressive detergents for cleaning.

All the above information applies equally to the mobile navigation system, the rechargeable battery, the mains charging and car power adapters as well as all accessories. Should one of these parts not work properly, please contact your authorised dealer.

Battery quality declaration

The capacity of the rechargeable battery in your mobile navigation system decreases with every charging/discharging cycle. Improper storage at excessively high or low temperatures may also cause a gradual deterioration of capacity. Consequently, the operating time may be substantially reduced even in the case of a fully charged battery.

Display quality declaration

In some cases, for technical reasons, a few discoloured dots (pixels) may be visible on the display. Some pixels may also appear brighter or darker. However, such instances do not represent a product flaw.

Start-up

Once the Navigation device has been unpacked and checked for damage, the unit can be started up. The individual start-up stages are:

• connect to power supply
• Switching on the unit
• Ensuring antenna reception (if navigation is desired)

Power supply

Note:

You can charge the Navigation device via the car charger cable included in the scope of delivery or via the optionally-available mains power supply unit.

When the Navigation device is connected to a PC, it is supplied with power via the PC and does not consume battery power.

Using the battery

The internal power supply is via the integrated rechargeable battery. The rechargeable battery is maintenance-free and does not require any particular care.

Note:

Note that if the battery is completely discharged, it may take up to a minute before the device can be switched on again.

Note:

In the event of a defective battery, please contact your authorised dealer. Please do not attempt to remove the battery yourself.

Connection for the cigarette lighter

Note:

If the cigarette lighter has recently been used and is still hot, wait until the lighter socket has cooled down.

Connect the power supply via the vehicle battery and the cable provided for the cigarette lighter as follows:

Grasp the connector of the connection cable and insert it gently without force into the connector socket of the navigation device up to the stop, or in the case of a device with an active cradle, on the underside of the supporting plate.

Close-up of a black electronic device with an attached USB cable, showing ports and connectors (no visible text or symbols)

Close-up of a black cylindrical device with a pointed button and arrow pointing to its side (no text or symbols visible)

Insert the adapter into the cigarette lighter.

Note:

When the engine is switched off, the power supply slowly discharges the vehicle battery via the cigarette lighter!

Do not therefore operate the Navigation device for long periods with the engine switched off.

To receive TMC messages (depending on the model), the power supply must be connected to the supporting plate in the case of a device with an active cradle.

Connection to the mains outlet

⚠️Danger!

Ensure that you do not have wet hands and that the power supply unit is dry. Only connect the power supply unit to a permissible mains power supply.

Connecting power supply

Connection to the public mains grid is achieved using the optionally available mains power supply unit. Please proceed as follows to connect to the mains:

Hold the connector and push it all the way into the connecting socket in the Navigation device without using excessive force.
Insert the plug of the power supply unit into the socket.

Note:

Remove the power supply unit when not using the Navigation device for longer periods of time.

TMC antenna (depending on the model)

The supplied TMC antenna is integrated into the cable for power supply.

The TMC antenna runs in parallel with the the cigarette lighter cable in the delivered condition.

If the TMC reception is poor, you must remove the cable of the TMC antenna from the cable for the cigarette lighter.

You can then use the supplied suction cup to attach the TMC antenna to the windshield.

Note:

The TMC antenna must be installed in such a way that it does not distract you while driving.

GPS-antenna

Unit antenna

The GPS antenna is integrated into the housing.

Note:

The integrated GPS antenna is not suitable for use in vehicles with anti-glare windows (metalised thermo-glass or metal foil, indicated by the window label - SIGLA SOL, SIGLA CHROM, SIGLA, KOOL-OF, SUNGATE, etc.) and vehicles with fine-meshed heating wires in the windows.

In such cases, use an external GPS antenna if your navigation device has a corresponding connection. Please consult your local specialist dealer.

Connecting up external antenna

To enable reception under adverse reception conditions, an external GPS antenna can be connected (depending on the model, not included). For this purpose, a closable connecting socket is located on the rear of the housing. If no external antenna is connected, this connection must always be closed again.

Close-up of a black electronic device back panel with grid pattern and indicator lights (no readable text or symbols)

Open the closure by pulling gently on the side.
Connect the external antenna using the optionally available adapter.

Cable for vehicle integration (depending on the model, optional)

With the optional cable you can integrate your Navigation device seamlessly into your vehicle.

With this cable you can:

• connect your Navigation device to the phone mute function of your audio system. If the cable is connected correctly, your audio system will mute the car radio during navigation announcements.
• connect your Navigation device to your audio system for output of the audio signal.
• You can connect an optionally available microphone.

Pure electrical connector diagram without any text, numbers, or symbols

The individual connectors on the other end of the cable are labelled.

Close-up of a black mechanical component with a white arrow pointing to a small inset detail (no text or symbols visible)

Insert the cable into the socket provided on the underside of the carrier plate.

Note:

Once the cable is connected, the loudspeaker of the basic device is switched off.

L R GND Audio

Required configuration of the 3.5 mm jack plug for connecting an audio cable.

MIC IN MIC DET GND

Required configuration of the 3.5 mm jack plug for connecting a microphone.

Required configuration of the 2.5 mm jack plug for connecting the telephone mute cable.

Memory card

Your Navigation device has a slot for a micro SD memory card.

As the map data is stored in an internal memory on the Navigation device, the slot for a micro SD memory card is used for updates and for playing music*, viewing images* or watching videos*.

The memory card can also be used for supplementing the map data.

Close-up of a device rear panel with a red indicator light and control buttons, showing no visible text or symbols.

The card slot is located on the left on the underside of the unit. The card slot is equipped with a spring-actuated locking and ejector mechanism.

Inserting memory card

Remove the memory card from its packaging without touching or soiling the contact bar.
Hold the memory card so that the contact strip is facing towards the rear of the unit.
Guide the memory card into the card slot.
Exert a little pressure and slide the memory card into the card slot until it snaps in.

Ejecting memory card

The card slot ejects the card so that you can pull it out with two fingers.

Use your finger to gently press the memory card against the spring force into the card slot and then release it.

The card is ejected.

Remove the memory card and place it in the packaging while ensuring not to touch contact bar.

Unit bracket

The Navigation device can be attached directly to the windscreen with the unit holder.

Note:

The Navigation device and unit bracket must not be exposed to long periods of direct sunlight. Temperatures inside the vehicle of +70 C and higher may damage parts of the bracket.

Fitting the unit bracket

Note:

Fasten the unit holder such that your field of vision is not impaired when the Navigation device is installed and ensure that the unit is outside the deployment area of the airbag.

Ensure that the electrical connection cable does not hamper you from accessing the vehicle's controls.

Clean the attachment surface on the windscreen to ensure that it is clean and free of grease. Do not use greasy or soapy cleaning agents.

Labeled diagram of a mechanical component with numbered parts for identification

① Suction surface
② Base
③ Lever
④ Fastening screw
⑤ Fastening screw
⑥ Carrier plate
⑦ Release button

⑦ ① ⑥ ④ ② ③

① Suction area
② Base
③ Lever
④ Fastening screw
⑥ Carrier plate
⑦ Release button

On the windscreen

The unit holder can be attached directly to the windscreen using the suction mechanism.

Press the carrier plate onto the four retaining lugs of the unit holder.
Select a suitable spot to attach.
Unscrew the fastening screws ④ and ⑤ a little.
Press the base 2with its suction surface 1against the windscreen. Turn the unit holder such that the carrier plate is positioned roughly in the desired viewing direction.
Press the lever down.

The holder has attached itself firmly to the windscreen. It can now be adjusted with precision. In order to remove it, operate ③ the lever again.

Adjusting the unit holder's position

Loosen the fastening screws ④ and ⑤ until the carrier plate ⑥ can be moved without using excessive force.
Move the carrier plate ⑥ to the required position and hold it in this position.
Tighten the fastening screws ④ and ⑤ sufficiently so that the Navigation device is held securely in place when the vehicle is in motion.

Attaching the Navigation device

Position the Navigation device, with the attachment point on the bottom of the housing, onto the carrier plate ⑥
Without using excessive force, press the Navigation device onto the carrier plate ⑥. The Navigation device locks into place.

Removing the Navigation device

Press the button ⑦ in the top of the carrier plate ⑥ this unlocks the Navigation device which can be removed from the carrier plate.

Switching the Navigation device on/off

Using the On/Off switch ① you can switch the Navigation device on or off completely.

Using the button ② on the top of the Navigation device you can place the unit in sleep mode or switch it on again from sleep mode.

Diagram of a device rear panel with labeled components and warning symbol

Switching on

Set the On/Off switch on the underside of the unit to On.
Press the button on the top of the Navigation device.

The unit is switched on. The manufacturer's logo appears on the touchscreen.

BECKER

When the Navigation device is started for the first time, the language selection is displayed automatically.

English (UK) Español Français Hrvatski Italiano

Using the buttons, it is possible to scroll through the list in the direction of the relevant arrow.

Press the button for the required language.
The selection is confirmed by pressing OK.

English (UK) male - James v1.1.64157 English (UK) male - Simon (TTS) v1.70765 English (UK) female - Kate (TTS) v1.70765

Then select the desired voice.

Note: for models with TTS

Voices with a (TTS) tag support the text-to-speech function (e.g. announcing roads and reading out text messages).

A short example announcement is given.

Confirm your selection by pressing the OK button.

The following prompt appears shortly afterwards:

Please observe the roadsigns and comply with the Highway Code. The map data may be flawed or incomplete. OK

If you agree to the request contained in this prompt, press the OK button.

Note:

Use of the Navigation device is only permitted in accordance with the national road traffic regulations applicable at the time.

Switching off

You can switch the unit off at any time.

Press the button on the top of the Navigation device.
The Navigation device switches to sleep mode.
To switch off the Navigation device completely, set the On/Off switch on the underside of the unit to Off.

Note:

We recommend that you place the Navigation device in sleep mode in the event of short interruptions to operation (of up to a week).

This significantly reduces the switch-on time and the Navigation device finds the satellites required for navigation much faster.

If route guidance was active when sleep mode is activated, it is automatically resumed if the Navigation device is switched back on again within approx. 4 hours.

Basic information about the touch screen

The Navigation device is fitted with a touch screen.

New My destinations Show map TMC Settings Phone Extras DECKER

Note:

To ensure that the display's surface is not damaged, you may only touch it with your fingers or a blunt, non-smearing object.

Operation

When you touch a button on the touchscreen, the button in question is briefly shown outlined in red to confirm the selection.

If you touch a button that is not active at the moment, a short signal tone sounds.

Calibration

If the touch screen starts responding imprecisely and e.g. buttons have to be touched off-centre in order to be actuated, calibration should be undertaken.

The calibration function is started from the Settings menu (see also page 128).

Basic information about the menus

During operations, you are assisted by various menus and entry windows.

The main menu

The top menu level is the main menu. The individual applications are started from the main menu.

You will find information about the individual applications in the corresponding main chapters.

In addition to the individual applications, the main menu also contains further information and operating options.

You can tell whether a telephone is already connected by the symbol on the Phone button.

①

②

① Telephone connected ② Telephone not connected

A satellite symbol on the left-hand side of the Select destination button indicates whether there is currently any GPS reception.

①

②

① GPS reception
② No GPS reception

If route guidance is already active, the current destination address and a button for cancelling route guidance will be displayed between the two rows of buttons.

New My destinations Show map King's Arms Court, London 1 TMC Settings Phone Extras

Press the button ⑩ cancel route guidance to the displayed destination directly in the main menu.

GENERAL OPERATION

Entries made with the entry menu

Some applications require entries to be made via the entry menu. The entry menu is operated in a similar way to a keypad.

A B C D E F G H I J K L M N D P Q R S T U V W X Y Z - ← 123 AAA OK

The character entered on the keypad is displayed in the top line of the entry menu. The central area is used to enter characters. Help functions are provided in the right line. Descriptions of how to operate the menu are provided below.

Entering characters

Characters are entered by pressing the keys in the central area.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z — →300 A5B 123 AAA OK

Once the entry is complete, the process is concluded by pressing the okey and the entry passed on to the Navigation device for processing.

When a navigation destination is entered, the Navigation device compares the data with the stored data.

Only those letters that are still possible are available for selection.

Characters that cannot be selected are displayed greyed out.

Accepting proposals

During entry, the Navigation device makes proposals in the uppermost line.

The proposals take into account your usage habits. For instance, if you enter the city of Hamburg often, then after you enter the letter "H" the proposal "Hamburg" is automatically displayed.

If no preferences are known for the letter entered, then cities/locations suitable for the entry are displayed as proposals.

Berlin a b c d e f g h i j k l m n o p q r s t u v w x y z - + ABB OK

To accept the proposal, you may press either the input field or the button.

Scrolling through the lists

If you have already entered some of the letters of the selection you want, you can use the selection list to display all the destinations containing the combination of letters in question.

Berlin a b c d e f g h i j k l m n o p q r s t u v w x y z - + ASB 123 AAA OK

To call up the selection list, press the key.

Note:

The quantity of selection options is displayed in the form of the number on the button. When there are more than 300 options, the precise number is not displayed.

In the list, all the entries corresponding to the letters already entered are displayed. The letters entered are coloured red in the case of the individual entries.

The selection list appears.

Press the arrow keys on the right hand side of the screen to scroll through the list.

Press the destination you want. The destination is adopted and the selection list is closed.

Special characters and umlauts

Special characters and umlauts do not have to used when entering the names of towns and streets. The Navigation device will change entries from AE, OE and UE if necessary.

If, for example, you are looking for the location "Würzburg", then simply press "WUERZBURG" or "WURZBURG". Special characters can be useful when naming destinations and routes.

A B C D E F G H I J K L M N D P Q R S - + V W X Y Z - + →300 AGR 122 AAA OK

In order to switch to the special characters keyboard, press the button marked with an arrow.

The special characters keyboard is displayed.

A A A A A Æ Ç A&E E E E E I I I 123 I O O O Ø CE Ü Ü Ü Ü Y ABC Ø

Enter the desired special character. After you enter a character, the Navigation device automatically switches to the normal input menu. To exit the special character keypad without an entry, press the button marked with the arrow.

GENERAL OPERATION

Other character sets

Different character sets can be selected for the keyboard of the Navigation device.

A B C D E H I J K L M N O P Q R S T U V W X Y Z - + AER 123 AAA OK

Press the button marked with an arrow repeatedly until the desired character set is selected.

Entering numbers

Switch to the numbers keyboard in order to enter figures.

Press the button.

The numbers keyboard is displayed.

1 2 3 . . ; : 4 5 6 - + 7 8 9 ! ? / & • 0 # @ ' -

In order to return again to the keyboard for entering letters, press the button marked with an arrow.

Switching between upper and lower case

During free text entry, it is possible to switch between upper/lower case and the automatic function.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - + ABC 123 AAA OK

Press repeatedly on the button in the top right-hand corner of the display until the desired method of entry is activated.

The inscription on the button symbolises the method of entry.

• The button represents automatic mode. This means that, on entry, the first letter is automatically in upper case and subsequently changes automatically to lower case.
• The button represents the entry of upper case letters.
• The button represents the entry of lower case letters.

Deleting characters

To delete the last character, use the back key.

A B C D E F G H I J K L M O P Q R S T V W X Y Z - + AEB 123 AAA OK

To delete the character to the left of the cursor, press the key.

Inserting spaces

If you have an entry with two words, e.g. for names of towns, the words should be separated by a space.

A B C D E F G H I J K L N O P Q R S U V W X Y Z - + AEB 123 AAA OK

To enter a space, press the key.

The Becker key

The key is integrated in the bottom left hand corner of the casing.

DECKER

It has various functions:

- Depending on the menu context, if pressed briefly, you will be returned to the previous entry level.

• The main menu is displayed by pressing and holding the button.

Radio remote control

Note:

It is not absolutely essential for the function of the Navigation device to install the remote control.

You can control most functions and the main functions of the Navigation device using the remote control. The remote control operates using radio frequency (maximum range 5 metres) and therefore does not need to be installed in sight of the Navigation device.

Attaching the remote control

Note:

Attach the remote control so that it does not impair your ability to operate your vehicle. The remote control must not be attached within the deployment area of the airbag or on an airbag cover.

Take a coin and insert it into the slot in the base plate of the remote control.

Turn the coin anti-clockwise.

GENERAL OPERATION

This unlocks the base plate, which can now be removed.

Technical line drawing of a mechanical component with concentric rings and a central arrow indicating direction (no text or symbols)

Insert the supplied battery (CR2032/DL2032) into the battery compartment with the positive side facing up.
Press down the battery until it locks into place.

Armrest Centre console

Select a suitable position to install the remote control.

UP

Position the base plate so that the word UP is pointing in the direction of travel.
Secure the base plate using the supplied screws or self-adhesive film.

Note:

If you wish to stick the base plate in place, you will first need to clean the adhesive surfaces.

Press the remote control onto the base plate.

Hold the bottom part of the remote control and turn the remote control clockwise until it locks into place.

Removing the remote control

You can remove the remote control again, to change the battery for example.

Hold the bottom part of the remote control and turn the remote control anti-clockwise until it becomes detached from the base plate.

Connecting the remote control to the Navigation device

Connecting for the first time

Switch on the Navigation device.

1 2 3 BECKER

Press the button ☑ the remote control.

The connection to the Navigation device is established.

Reconnecting or connecting to another device

Switch on the Navigation device to which you wish to connect the remote control.
Press the buttons 2, 3 and the remote control simultaneously.
The connection to the activated Navigation device is established.

Replacing the battery

If the Navigation device stops responding to commands from the remote control, the battery in the remote control is probably dead.

Danger!

Keep the battery away from children. Consult a doctor immediately if a child swallows a battery.

Batteries must not be dismantled, short-circuited or thrown into a fire.

Environmental note:

Batteries must not be disposed of in household waste.

It is the legal duty of the user to return used batteries. You can hand in your old batteries free of charge at local municipal collection points or wherever batteries are sold. on

Remove the remote control as described above.

GENERAL OPERATION

Remove the old battery and replace it with a new type CR2032/DL2032 battery.
Place the remote control back onto the base plate.
Reconnect the remote control to the Navigation device as described above.

Operating the Navigation device using the remote control

You can control most functions and the main functions of the Navigation device using the remote control. It is provided with five buttons and a control ring.

The main functions of the individual remote control buttons are:

⑥ ⑤ ④ BECKER ① ② ③

Button	Basic function
1	Opens the map display. Opens the options menu for the map display if the map is already active.
2	Starts the telephone mode. The function is equivalent to pressing the Phone button in the main menu or the button in the options menu of the map display.

Button	Basic function
3	Starts up the voice entry.The function is equivalent to pressing the button, e.g. in the input menu.
4	Press briefly:Displays menu markings.Selects and confirms menu entries.Press and hold:Confirms the previous entry in the input menu.E.g. in fast access mode - opens the Edit menu (button).In the address input - accepts entries and starts route guidance.
5	Back function - is equivalent to the function of the button.Pressing and holding the button opens the main menu.
6	Control ring for selecting entries in lists and menus.Displays menu markings.

When using the remote control and, for example, using the control ring ⑥o scroll through a menu, the active menu entry is highlighted.

If you operate the Navigation device using the touchscreen again, the highlighting disappears.

The highlighting also disappears after approx. 8 seconds if the remote control is not operated during this time.

The example below shows the main menu with the TMC button highlighted.

New My destinations Show map TMC Settings Phone Extras

Content Manager

The Content Manager is a PC-based application containing a number of important functions to help you manage the content on your Navigation device.

With the Content Manager you can:

• back up the content saved on the Navigation device to your PC and restore it later to your Navigation device,
  • Install the contents stored on the DVD (depending on the model),
• download current content from the Internet and install it on the Navigation device.

To use the Content Manager, you will need the USB cable provided as well as a computer that meets the following minimum requirements:

	Minimum requirements
Operating system Windows XP
Processor 300 MHz clock frequency
Main memory 256 MB
Free storage space 2 GB

Installing the Content Manager

You can install the Content Manager on your computer with the following steps:

Connect the USB interface of the device directly to a USB port of the computer using the USB cable supplied.
If the application does not start automatically, please start the file "Becker_Content_Manager_Setup" manually in the folder "CONTENTMANAGER".
Select a language from the list and then click on OK.
Read the welcome page and click on Next to continue.
Select the installation folder. A default installation folder is already specified. To select another folder, either type in the path name or click on Browse and define another folder.

GENERAL OPERATION

Click on Install to start the copying procedure. Click on Details to see the details during copying.
The Content Manager is automatically started immediately after installation. Remove the check mark from the box if you do not want this.
This completes the installation procedure.
Click on Finish to exit the installation program.

Starting the Content Manager

Execute the following actions to start the Content Manager:

Close-up of a hand inserting a USB into a black electronic device (no visible text or symbols)

Switch on the Navigation device

Note:

When you connect the Becker Navigation device to the PC for the first time, the PC installs all the necessary drivers and then displays the message "Your unit is now ready to use".

After a short time, the Navigation device is displayed as a removable storage medium on the computer.

Click on Start > All Programs on the computer.
Select Becker.
Click on Content Manager.

When the Content Manager is started, the program executes a number of steps before you can start to manage your navigation software content.

Each time the program is called, a connection is established to the Internet to check whether a new version of the Content Manager is available. If a new software version is found, the Content Manager gives you the option of installing it. We recommend that you always agree to the upgrade, if one is available. If a new software version is found, you have the following options:

- Click on Yes to accept the new software version. The new version is downloaded and installed before you can start the Content Manager.

0

GB

F

1

E

PL

[Z

H

RU

• Click on No to start the Content Manager with the version already installed.
• If the new version is a critical update, the Exit button will be shown instead of the No button. You must install the new version, otherwise you have to exit the application.

If you have not yet made a backup of the navigation unit, the Content Manager will ask you each time it starts whether you would like to make a complete or partial backup copy.

Note:

We recommend that you always create the backup. Otherwise you will not be able to restore the content in the event of loss of data.

Transferring music tracks, pictures and videos

Images*, music* and videos* can be stored on a separate Micro SD memory card (not included in the scope of delivery) or in the internal memory of the Navigation device in the "Media" folder.

Files can be transferred via a card reader or a USB connection.

Note:

We recommend that you give files and directories self-explanatory names so that it is simpler to find these again, if need be.

Faults

Malfunctions in the operating system or in the unit are displayed accordingly. If the function you want cannot then be executed, you should restart the Navigation device using the On/Off switch.

If the messages reappear or the unit does not function correctly for any other reason, please contact your local stockist.

You can also try to find a solution to your problem in the FAQ in the Support area on the Becker homepage (www.mybecker.com).

Note:

Never attempt to open the unit yourself. Please contact your authorised dealer if you are unable to remedy the fault.

What is navigation?

The term "navigation" (lat. navigare = to travel by sea) is generally understood to mean the location of a vehicle, the determination of the direction and distance from the desired destination and the determination of the required route. Stars, prominent landmarks, compass and satellites etc. are used as navigation aids.

With the Navigation device, the location is determined by the GPS receiver. The Global Positioning System (GPS) was developed during the 1970s by the US military as a weapons guiding system.

GPS is based on a total of 24 satellites orbiting the Earth and emitting signals. A GPS receiver receives these signals and uses the signal times to calculate the distance to an individual satellite, and then determines your current geographical position.

Signals from at least three satellites are required to determine your position; your height above sea level can be calculated if signals are received from four or more satellites.

The Navigation device determines the direction and distance from the destination using a navigation computer and a digital street map held in its internal memory.

For safety reasons, route guidance is given predominantly in spoken form. This is supported by a direction indicator and a map display on the touch screen.

⚠ Safety instructions

• Road traffic regulations always take priority. The navigation system is only an aid. Errors may occur in individual data items/entries. At all times, the driver must decide whether or not to heed the information provided.
  We do not accept liability for erroneous data provided by the navigation system.
• When first put into use it can take up to 30 minutes to fix the position.
  • Observation of traffic signs and local traffic regulations must always take priority.
• Traffic guidance is restricted to passenger vehicles. Special driving recommendations and regulations for other vehicles (e.g. commercial vehicles) are not included.
• Destinations may only be entered when the vehicle is stationary.

>>> NAVIGATION MODE

D

GB

F

1

E

PL

0

H

RU

Selecting navigation

Navigation mode is called up from the main menu. New destinations can be entered in the menu New or New destination (depending on the device). Destinations that have already been visited or saved can be selected in the menu My destinations.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press the button My destinations .

Note:

If an address is displayed between the two rows of buttons, this means that route guidance has already been started to the displayed address.

Home Kings Arms Court London GB-E1 5 Walddorf D-72213 Select from last destinations Contacts

Home address

When you press the Home button you will be asked to enter an address if no home address has yet been entered.

No home address has been defined. Set address now? Yes No

Press Yes to enter the address.

You can then enter a destination as described under "The New or New Destination Menu (depending on device)" on page 43.

Note:

The menu items Set current position and Select from last destinations (fast access mode) can also be used to select a destination.

If you have already entered your home address, you can start route guidance to your home address in the first line.

Smart Guess

The two addresses that can be selected with the button, is a selection of the addresses last visited. Depending on the time of day and your current position, the two most likely destinations are displayed and can be selected directly.

Last destinations list

The last destinations visited and saved destinations are displayed in the Last destinations list and can be selected directly. The menu for entering destinations or the function for entering addresses using speech can also be called up using the fast access function.

Kings Arms Court London GB-E1 5 Stuttgart D-70178 Montreuil F-93100 Walddorf D-72213 Castelnuovo Del Garda I-37014

The destination list

The destination list displays, line by line, all destinations available for fast dialling. Each line of the destination list is divided into two fields. Each list field is in the form of a button. The destination is shown on the right-hand button and the properties of the destination are displayed using the left icon.

Note:

Up to 200 of the most recent destinations are automatically stored in the destination list. If the storage capacity is reached, the oldest destination is automatically deleted to make room for a new destination. However, important destinations can be protected.

If you select your home address and it has not yet been defined, you will be requested to enter the address.

Icons used

The following icons are used in the destination list:

Icon Meaning
	This destination is a standard destination with no special features.
	This destination is protected. If the destination memory is full, this destination will not automatically be deleted. This can be performed manually, if required. In the case of a protected entry, you can also determine the position using the fast access function.
	This destination is the current home address.

Operating the last destinations list

Entering an address using speech

Voice entry is activating by pressing the button.

You can find out how to enter an address using speech under "Entering address by language (selected models)" on page 49.

Start with existing destination

The existing destinations are listed in the destinations list.

Press the button for the desired destination to start route calculation.

The calculation begins.

When the calculation is complete, the map appears and the route guidance begins.

Scrolling through stored destinations

Using the ▲ buttons, it is possible to scroll through the list in the direction of the relevant arrow.

Displaying or editing a destination

Any destination stored in fast access mode can be displayed and edited.

Press the button to the left of the desired destination.
A selection menu appears.

Enter d Home Beckies D-763 Unter D-101 Elbcha D-227 Show details Name entry Protect entry Move up Move down

Option Meaning

Show details	The data for the destination are displayed. From this screen you can display the destination on the map, display the route or start the route guidance.
Name entry	The destination can be renamed. If the destination is given a name it is automatically protected.
Delete entry	The destination is deleted from the fast access mode.

Option Meaning
Protect entry	The destination is protected against automatic deletion. This function is only available in the case of unprotected destinations.
Remove protection	Protection of the destination is disabled. This function is only available for protected destinations.
Move up The	destination is moved forwards by one position. If the destination is moved it is automatically protected.
Move down The	the destination is moved back by one position. If the destination is moved it is automatically protected.
Delete all entries	All destinations (except for the protected destinations and your home address) are deleted from the list.

NAVIGATION MODE

Personal destinations

Using the Personal destinations button you can call up Google™ points of interest that have been imported into the Navigation device and start route guidance to one.

• See "Route planning" on page 55.

Contacts

Using the Contacts button you can call up Microsoft® Outlook® contacts that have been imported into the Navigation device and start route guidance to the address listed in the contact.

- See "Selecting a destination from Contacts" on page 42.

Selecting a destination from Personal destinations

You can call up Google ^TM points of interest that have been imported into the Navigation device and start route guidance to one.

Note:

To display custom Google™ points of interest, the Google™ KML files must be stored in the iGO8\content\userdata\mydest directory of the Navigation device.

In the main menu, press the button My destinations.

Stuttgart D-70178 Select from last destinations Contacts Personal destinations Planned routes

Press the Personal destinations button.

Search entry Allianz Arena 2008 Ferienhaus Dänemark Henstedt-Ulzburg Reichstag, Berlin, Germany

A list of the available destinations will be displayed.

Press the arrow buttons ▲to ▼ scroll through the list displayed.

Note:

If the list contains numerous e may be a good idea to search for the desired destination by selecting Search entry and using the input menu.

A maximum of 1000 destinations can be imported.

Newly imported destinations are filed at the start of the list.

Select the desired destination.

Route guidance to the selected destination will be initiated.

Editing Personal destinations

In the list of your own destinations, press the button in front of the destination that you wish to edit.

0

GB

F

E

PL

[Z

H

RU

Select Delete entry if you wish to delete Selecting a destination from Contacts

the destination from the list.

Select Delete all entries if you wish to delete the entire list.

Select Show details if you wish to display details about the destination.

Press the Start button to begin route guidance to the destination straight away.

You can also display your chosen destination on the map (On map), store it in fast access mode (Save), display the route to the destination (Show route) or call the number if a telephone is connected and a phone number is available by pressing the button with the symbol.

You can call up Microsoft® Outlook® contacts that have been imported into the Navigation device and start route guidance to one.

Note:

The Microsoft® Outlook® contacts are imported via the Content Manager. Up to 2000 contacts can be imported.

In the main menu, press the button My destinations.

Stuttgart D-70178 Select from last destinations Contacts Personal destinations Planned routes

Press the Contacts button.

Enter name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - AEB 123 AAA OK

An input menu appears if there are more than 10 contacts. If there are fewer than

10 entries, a list of contacts is displayed straight away.

Select the first letter of the desired entry in the input menu.

Press the button when the desired name is displayed in the top line.

If there are 5 or fewer entries available with the letter combination entered, a list containing these entries will automatically be displayed.

Note:

You can also have a list corresponding to the entered letter combination displayed before then. To do so, press in the input menu.

Select the desired entry from the list.

Steven Miller Becker-Göring-Str. 16. Karlsbad 76307 ① ② On map Save Show Note Start

Press the Start button to begin route guidance to the address displayed for this contact straight away.

You can also display the address shown for the contact on the map (On map), store it in fast access mode (Save), display the route to the destination (Show route) or call the number displayed if a phone number is provided (button with the symbol).

If there are a number of addresses provided for the chosen contact, you can select one of them after pressing the button ① If there are a number of phone numbers provided for the chosen contact, you can select one of them after pressing the button ②.

The New or New Destination Menu (depending on device)

New My destination Show map TMC Settings Phone Extras

In the main menu, press the button New destinationl.

The menu for new destinations appears.

Enter address Select Point of Interest Travel Guide Enter geo-coordinates Select on map

Layout of the New destination menu

Enter address

The various steps from selecting an address to starting route guidance can be carried out using the Enter address button.

• See "Entering the address" on page 44.

Select Point of Interest

Points of interest such as airports and ferry ports, restaurants, hotels, petrol stations or public buildings can be selected and route guidance started using the Select Point of Interest button.

• See "Points of interest" on page 51.

Travel Guide "New Menu"

With the travel guide, you can select, for example, MARCO POLO Top-Highlights or MARCO POLO Insider-Tips and start the guide destination there. See "Travel Guide" on page 54.

>>> NAVIGATION MODE

Enter geo-coordinates

The geographic coordinates for a destination can be entered and route guidance started via the Enter geo-coordinates button.

• See "Coordinate entry" on page 59.

Select on map

With Select on map, you can select a destination directly on the map and start route guidance.

- See "Selecting a destination from the map" on page 58.

Route planning

A route with several waypoints can be planned using the Route planning button.

• See "Route planning" on page 55.

Entering the address

The Enter address button in the destination input menu opens the menu for entering addresses.

Enter address Select Point of Interest Travel Guide MARCOO POLD Enter geo-coordinates Select on map

In the destination input menu, press the Enter address button.

The menu for entering addresses appears.

Germany City Code Street No Intersection ROI search

Note:

By pressing the Clear form button (top right) you can delete all entered data apart from the country.

Selecting a country

You can select a country from those available using the button for the country of destination. A country is adopted automatically in the address input menu after selection. If a country of destination has already been entered it will remain until you select a different country.

Germany City Code Street No Intersection POST search

Press the button containing the country of destination to access the country selection list.

The selection list will appear.

Switzerland Turkey Ukraine United Kingdom Vatican City

Press the button for the desired country.

Note:

If required, press the arrow keys on the right of the screen to scroll through all available countries of destination.

The symbol indicates the countries for which an address can be entered using speech. (depending on the model)

Selecting an address and starting route guidance

You can enter the exact destination address in the address input menu.

Germany City Code Street No Intersection PCI search

The following settings can be made in the address input menu:

• Town
• Postcode
  • Street and house number
  • Junctions as an orientation aid

It is also possible to:

• search for a point of interest near to the address entered (POI search). This can be entered as described under "Point of interest near to an address" on page 52,
• save the destination in fast access mode,
  • show the route on the map,
• start the route guidance straight away.

Selecting a town

The destination can be entered by either using the name or ZIP code.

When you enter the letters of a place, the navigation device displays suggestions (See "Accepting proposals" on page 27.). If you do not want to accept the proposal, just enter the other letters of the location you want.

The Navigation device excludes all impossible letter combinations and ZIP codes and activates only letter fields or numerical fields that lead to an existing location or ZIP code.

Select the option of entering the town or postcode.

Berlin a b c d e f g A&B 123 o o q r s t u v w x y z - ← OK

Enter the letters of the destination town or the numbers of the postcode consecutively.

>>> NAVIGATION MODE

D

GB

F

1

E

PL

0

H

RU

Note:

If two words need to be entered you must separate them with the character

When sufficient letters have been entered it will automatically switch to a list from which you can select the town. However, you can switch to the list before this by pressing the button.

Note:

If you have entered a postcode, the name of the town will be hidden in the input menu to start with. If you then enter the street name, the name of the town will then also be displayed.

Using the town list

Once a few letters of the desired town have been entered you can display a list of all the towns with the relevant letter combinations or this list will be displayed automatically.

Press the button on the right of the screen to call up the list.

You can scroll through the displayed list using the buttons.

Press the button for the required town.

Selecting the street

In the Street menu field the street and house number can be entered separately using a letter and number field.

The Navigation device excludes all impossible letter combinations and activates only those letters that could give an existing street name.

A house number can only be chosen once the street has been selected and if house numbers are included in the data.

Enter the letters of the destination street consecutively.

When sufficient letters have been entered it will automatically switch to a list from which you can select the street. However, you can switch to the list before this by pressing the button.

Using the street list

Once a few letters of the desired street have been entered you can display a list of all the streets with the relevant letter combinations or this list will be displayed automatically.

Press the button on the right of the screen to call up the street list.

You can scroll through the displayed list using the buttons.

Press the button containing the desired street.

Selecting the Intersection

After entering the destination town and street, you can enter a junction so as to further limit the choice.

Note:

Instead of entering a junction, you can also enter a house number. However, it is not possible to enter both at the same time.

Press the Intersection button.

The input menu for the name of the junction will appear.

Enter the name of the junction.

Once a few letters of the desired street have been entered a list will automatically be displayed.

Press the button for the desired street.

Selecting a house number

After entering the destination town and street, you can enter a house number so as to further limit the choice.

Note:

Instead of entering the house number, you can also enter a junction. However, it is not possible to enter both at the same time.

Press No.

The input menu for the house number will appear.

Enter the house number and then press the OK button.

Displaying the route

Once the address has been entered, the address input menu allows the route to the destination to be displayed on the map.

Press the Show route button to display the route on the map.

The route is calculated.

Hamburg Amsterdam Berlin + - Brussels Praha 632 km, 6.08h Unter Den Linden 23 Start

You can start the route guidance directly from this screen using the Start button.

The other options on this screen are described under "Displaying the entire route" on page 93.

Storing a destination

In the address input menu, the Save button opens a menu where a name can be entered for the specified destination.

If the desired name has been entered and has been pressed to accept it, the destination is transferred to fast access mode and protected.

Starting navigation (trace)

The Start button starts the route guidance.

All data entered thus far is processed when calculating the route.

Press Start to start the route guidance.

Fast route is being calculated using historical traffic data (Traffic Patterns): Unter Den Linden 23 D-10117 Berlin, Mitte

The route is calculated. The map will then be displayed and the route guidance will begin.

Note:

The symbols above the progress bar refer to restrictions that you may have activated (e. g. unpaved roads, toll roads).

The symbol next to the progress bar indicates that the time-dependent route guidance described in "The Route options button" on page 61 is active (depending on the model)

If the route guidance is already running you will be asked whether the new destination should replace the old destination or if the new destination should be regarded as a waypoint.

Bannwaldallee 44 76185 Karlsruhe Add as stopover Replace old destination

Select Add as stopover or Replace old destination.

If the route guidance is already running and a waypoint has already been entered you will be asked whether the new destination should replace the old destination or the waypoint.

Birkenstrasse 23 76307 Karlsbad, Spielberg Replace stopover Replace old destination

Select Replace stopover or Replace old destination.

Note:

If there is no GPS signal when the route is calculated, the following will be displayed:

No GPS Calculation starts when GPS is available. Select 'Last position' to calculate from last known position. Show route Last position Cancel

When a GPS signal is available, the route calculation will start automatically.

When the Last position button is pressed, the last known position is used and the route calculated from this position.

Entering address by language (selected models)

You can start address entry using speech from the fast access function or from the menu for entering addresses by pressing the button.

Notes:

• Only one address can be entered using the voice entry function. Lists for more precise selection cannot be operated using speech.
  • The destination country cannot be entered using speech.
• The symbol in the list of countries indicates the countries for which address entry using speech is possible. If entry using speech is not possible, the button will be displayed greyed out.
  • An address and the street number must be spoken in the language of the destination country.

After pressing the button, a menu that shows you how to say an address will be displayed.

Say the address, e.g.: 12 Kantstraße Berlin, Kantstraße Berlin or just say Berlin Say the address in German. Start over Change language

You can say the address as soon as you see the lines next to the stylised face.

Notes:

• If a number of languages are spoken in the destination country (as is the case in Switzerland, for example), you can set another language by pressing the Change language button.
• You can say the complete address or just a part of it.
  Possible entries include:
• street number - street - Town
• street - Town
• Town

Say the address.

If your entry is unique, after a short time the menu for entering addresses will be displayed with your entry filled in.

Germany Berlin, Charlottenburg Kantstrasse Intersection POI search

If the address displayed does not match the address you said, you can make appropriate changes.

If the address is correct, you can start route guidance, display the route or store the address as described on page 48.

If your entry was not unique or the Navigation device was not able to uniquely assign your entry, you will be shown appropriate lists. You can then select the address you want from these lists.

Depending on your entry, lists with town names, lists with street names or combined lists with town and street names can be displayed.

Note:

Voice entry can be restarted at any time in the lists by pressing the button.

The following example shows a list in which a town can be selected.

Crailsheim, Ofenbach Offenbach An Der Queich OFFENBACH Offenbach Am Main

Entries identified with the symbol open up a further list when they are selected. This can be necessary if, for example, the same town name occurs a number of times in the set country.

Once you have selected the town or street you want in the lists, the menu for entering addresses is displayed after a short time with your entry filled in.

You can then start route guidance, display the route or store the address as described on page 48.

Points of interest

Points of interest (POI) are included in the map and can be displayed there. Points of interest include airports and ferry ports, restaurants, hotels, petrol stations, public buildings. You can use points of interests as navigation destinations.

Note:

You can only select points of interest in the area in question if the GPS reception is adequate for determining a position. Otherwise, the last position stored will be used.

In the main menu, press the button New destinationl.

Enter address Select Point of Interest Travel Guide Enter geo-coordinates Select on map

Press the Select Point of Interest button.

POI nearby POI near location POI near destination POI search by name

You can choose between:

• a point of interest in the vicinity,
• a point of interest near to an address,
• a point of interest near to a destination, or
- entering a point of interest directly.

Point of interest in the vicinity

Press the POI nearby button.

All categories Petrol Station Restaurant Accommodation Medical

Press the arrow keys to scroll through the list displayed.

Select one of the available categories.

>>> NAVIGATION MODE

D

GB

F

1

E

PL

0

H

RU

Note:

You can also press the All categories button. An input menu will then open and you can enter the name of a point of interest directly and confirm it.

For some categories, e.g. petrol stations, a further selection menu is displayed in which you can narrow down the choice further, e.g. by brand.

If you have selected the category, any points of interest belonging to the relevant category and available within the area in question will now be displayed.

Aral 500m Hanauer Strasse 64, 63739 Ascha... Total 850m Schillerstrasse 80, 63741 Aschaff... Shell 1.0km Schillerstrasse 58, 63741 Aschaff...

The name, distance as the crow flies and the address is displayed for each entry.

Select the desired point of interest.

Aral Markgröningen Bahnhofstrasse 51 [phone]

You will now receive additional information about your chosen destination.

Press the Start button to begin route guidance to the point of interest directly.

In addition, the selected point of interest can be:

• displayed on the map (On map),
• saved in fast access mode (Save),
• used for displaying a route to the POI (Show route),
- if a telephone is connected and a phone number is available by pressing the button with the symbol. (depending on the model)

Point of interest near to an address

Press POI near location.

Germany City Code Street No Intersection PCI search

Select the desired country.
In the City or Code field, enter the town where you wish to search for a point of interest.

Note:

If you have already entered an address, this address will appear by default.

Press the POI search button.
Press the Select category button.

Note:

You can also press the Select POI button. An input menu will then open and you can enter the name of a point of interest directly and confirm it.

The points of interest categories available for the entered town are displayed.

Select the desired point of interest as described under "Point of interest in the vicinity" on page 51.

Germany Berlin 10117 Street No Important Tourist Attraction Gendarmenmarkt

Press the Start button to begin route guidance to the point of interest straight away.

However, you can also store your chosen point of interest in fast access mode (Save) or display the route to the point of interest (Show route).

Press the button next to your chosen point of interest to display any additional information about the destination.

Point of interest near to destination

Press the POI nearby button.

All categories Petrol Station Restaurant Accommodation Medical

The categories available near to the destination are displayed.

Select the desired point of interest as described under "Point of interest in the vicinity" on page 51.

Entering a point of interest directly

Press the POI search by name button.

Enter POI name A B C D E F G AGB H I J K L M N 123 O P Q R S T U V W X Y Z - + AAA OK

Enter the desired point of interest or part of the name.
Press the button.

The Navigation device displays in a list all the points of interest corresponding to the name entered.

Note:

The search radius is limited to 50 kilometers from your current position.

Select the desired destination from the list.

Aral Markgröningen Bahnhofstrasse 51 [phone]

You will now receive additional information about your chosen destination.

Press the Start button to begin route guidance to the point of interest straight away.

However, you can also display your chosen point of interest on the map (On map), store it in fast access mode (Save) or display the route to the point of interest (Show route).

Calling special destination phone number (depending on the model)

You can dial directly telephone numbers specified in the information on a point of interest

The prerequisite here is that a cell phone is connected via Bluetooth with the Navigation device.

Aral Markgröningen Bahnhofstrasse 51 [phone]

Press the button with the symbol shown at the bottom of the point of interest information screen.

The call will be initiated.

Additional point of interest information

Any additional information that is provided for a point of interest can also be displayed.

To display the additional information, press the More button shown at the bottom of the point of interest information screen.

You can scroll through the displayed text using the arrow buttons shown.

Travel Guide

The MARCO POLO travel guide is similar to the function "Enter special destination" (also see page 43). The Marco Polo Travel Guide for Berlin is already preinstalled. All travel guides are available in 5 languages (D, E, I, S, F). Other languages are represented in English. Additional cities can be purchased from the Content Manager (also see page 34).

Route planning

The route planning menu allows you to create and select individual routes. To do this, enter the individual destination points for the desired route. It is then possible to travel to these points consecutively without having to enter any further information. You can also optimise the destination points entered and in so doing change their order.

In the main menu, press the button New destinationl.

Enter address Select Point of Interest Travel Guide Enter geo-coordinates Select on map

Press the Route planning button.

In the route menu you can create a new route by pressing the Create new route button. Previously stored routes are shown in a list below this.

Create new route Deutschland Hamburg Berlin

Note:

If no routes have yet been stored, the route menu is empty.

Scrolling through stored routes

Press the arrow keys on the right of the screen to scroll through the stored routes.

Editing stored routes

You can add additional stages to a stored route, change the name of the route or delete it.

Press the button in front of the route you wish to edit.

By pressing Add stage you can now add a stage to the route.

After pressing Rename route you can give the route a new name.

Pressing Delete route will allow you to delete the route from the stored routes.

Selecting and starting a route

Press a route to select it.

The route is loaded and displayed in the stage menu.

You can also select a leg of the route. The route is started as of this leg.

Calculate Deutschland from current position set a starting point

Select the start point or your current position as the start point for route guidance.

Note:

If a start point is selected, this is only used to view a route.

The individual stages are calculated. A map of the stages will then be displayed.

2380km, 23:40h Optimise Options Startt Deutschland

Press the Start button to start guidance for this route.

You can call up the route options using the Options button.

You can optimise the order of the destinations to be travelled to by pressing the Optimise button.

By pressing the or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen.

You can use the and buttons in the bottom line to scroll through the individual stages in the route. As you scroll, each stage is shown.

Creating a new route

In the route menu, press Create new route.

Enter stage Enter address Select from last destinations Select Point of Interest Personal destinations

You can now enter an intermediate destination as described under "The New or New Destination Menu (depending on device)" on page 43 Enter address, Select Point of Interest Personal destinations, Contacts, Select on map or Enter geo-coordinates). You also have the option of quickly selecting a destination using the Select from last destinations button.

In the input menu, press the Add button to accept the relevant intermediate destination.

NAVIGATION MODE

New route Becker-Göring-Strasse 16 Add stage Done

Press Add stage to enter further intermediate destinations as described above.
When you have entered all intermediate destinations, press the Done button.

Enter route name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - + Abc ABB 123 AAA OK

Give the route a name of your choice. The stage menu for the new route will be displayed.

Editing a route

Select the route you wish to edit. Press the button in front of the stage you wish to edit.

Calculate Show details 1. Karls Set loading time 2. Ham Move up 3. Numm Move down 4. Kain Delete stage

The edit menu will be displayed. The following options are available:

Option Meaning
Show details	The data relating to the intermediate destination is displayed. From this screen, you can display the intermediate destination on the map.
Set loading time	You can define the expected loading time. Defining the loading time is necessary in order that the estimated time of arrival is as accurate as possible.

Option Meaning

Move up The stage is moved forwards by one position.

Move down The stage is moved backwards by one position.

Delete stage The stage is deleted from the route.

Replace stage You can replace the selected stage with another intermediate destination.

Optimising a route

If you have entered several destinations for a route, you can use the Navigation device to optimise the order of the destinations for the journey distance. The route stored is retained even after optimization, however.

Call up the map display for the stages of the route.

2380km, 23:40 h Optimise Options Snack Deutschland

Press Optimise.

The route is optimised and recalculated.

1635km, 17.06 h Optimise Options Start Deutschland

The optimised route is displayed.

Selecting a destination from the map

You can select a destination straight from the map.

Press Enter destination in fast access mode.

Personal destinations Contacts Route planning Enter geo-coordinates Select on map

Press the Select on map button. The map display appears.

Note:

You may need to make the area larger using the zoom buttons and in order to find the desired point. You can also move the map to the desired point.

Back to GPS Details Block

Stauffenbergstrasse 16, Berlin, Tiergarten

Press the desired point lightly on the surface of the screen.

A flashing red cross will be displayed at this point.

Note:

By pressing the Back to GPS button you can display your current position again. You can block the road for route guidance as described under "The Blocked roads button" on page 72 by pressing the Block button.

NAVIGATION MODE

Press the Details button.

Stauffenbergstrasse 25 10785 Berlin, Tiergarten PCI nearby Save Show route Start

Where available, the address of your chosen point is displayed.

Press the Start button to begin route guidance to your chosen destination straight away.

You can also search for points of interest in the vicinity of your chosen point using the POI nearby button.

However, you can also store your chosen point in fast access mode (Save) or display the route to the point of interest (Show route).

Coordinate entry

You can also enter your destination using geographic coordinates.

In the main menu, press the button New destination.

Personal destinations Contacts Route planning Enter geo-coordinates Select on map

Press Enter geo-coordinates in the navigation menu.

Lat.: N/A N49°58'40.604 Long.: E9°8'15.136 1 2 3 4 5 * 6 7 8 9 0 . OK

Using ②select the value you wish to change.

Using the two buttons indicated by ① select the direction required for the geographic longitude and latitude (east/ west or north/south).

Then enter the desired values using the buttons 1 0 to .

You can enter coordinates in three different ways.

The following formats can be used:

• Degrees Minutes Seconds. Decimal seconds e.g. 42°52'46.801"
  • Degrees Minutes. Decimal minutes e.g. 48° 53.56667'
  • Decimal degrees e.g. 48.89277778

Notes:

• The coordinates entered must correspond to WGS84 (World Geodetic System 1984).
- If you press button your current geographic position will be entered into the fields.

Press the button.

Where possible, an address matching the coordinates will be displayed. You can view the destination on the map, store it, display the route to the destination or start the route guidance straight away.

Navigation settings

The navigation settings contain all the settings that are relevant to the navigation functions.

Note:

All your settings must be confirmed by pressing the OK button. Using the button, you can exit the current menu at any time without having changed anything.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press Settings.

Navigation settings Phone settings System settings

Press the Navigation settings button.

This will take you to the navigation settings menu.

Configuration

Various pages containing functions are available in the menu:

Guidance info Route options TMC Map view Warnings Voice guidance Format Time Blocked roads Reset

You can go to the next or previous page of the settings by pressing the and buttons.

The Guidance info button

In the Guidance info settings window you can select which additional information you would like displayed during route guidance.

Press the Guidance info button in the settings menu.

The Guidance info settings window appears.

Guidance info Lane info Sign posts Country info Junction View

The following settings are available:

Setting Meaning

Lane info When this function is en-abled, a small arrow indi-cates which lane you should move into in the case of multi-lane roads.

NAVIGATION MODE

Setting Meaning
Signposts When this function is activated, you receive additional important information at traffic junctions about the sign you should follow.
Country info When this function is enabled, you will automatically receive generally applicable traffic information for the relevant country when you cross a national border (e.g. speed limits).
Junction View	If this function is activated, you will see realistic views of the current lane situation, if available, at many motorway intersections.

Note:

This information can only be displayed if it is contained in the map material.

Press the relevant button to switch the required function on or off.
Confirm your selection by pressing the OK button.

The Route options button

You can edit your driving profile in the Route options settings window. The settings made here have an effect on the route selection and on the calculation of the estimated journey times.

Press Route options in the settings menu.

The Route options settings window appears.

Route options OK Vehicle Normal car Route type Fast route ✓ Use traffic patterns Avoid

Selecting the vehicle profile

This setting influences the calculation of the expected time of arrival and blocks motorways for the bicycle setting, or in the case of lorry profiles (depending on the model), it blocks roads that do not meet the criteria entered.

Note:

In the map display, roads that cannot be used according to the settings of the lorry profile are displayed with a light red contour (depending on the model).

Select the mode of travel or the required vehicle profile after pressing the button next to Vehicle.

Lorry presets:

Truck Vile 1 Truck Vile 2 Truck Vile 3 ①②③ ④⑤⑥ ⑦⑧

The various profiles are displayed and you can select the required profile by pressing the relevant button.

① Saved profile lorry with trailer
② Saved bus profile
③ Saved mobile home profile
④ General truck profile
⑤ Car profile
⑥ Motorbike profile
⑦ Bicycle profile
⑧ Pedestrian profile

The required profile is displayed once selected.

Now you can modify the selected profile (only with truck and car profiles), as described under "Selecting/setting the vehicle profile" on page 88.

Confirm the selected profile by selecting OK.

Selecting the route type

After pressing the button next to Route type select one of the following options.

Option Meaning
Economical route	With this option, the most economical route in terms of travel time and mileage is calculated taking into consideration further parameters such as gradients, for example.
Fast route With this option, the fastest route in terms of travel time is calculated.
Short route With this option, the shortest route in terms of mileage is calculated.
Easy route With this option, a route with as few manoeuvres as possible is calculated. This may result in large detours.

Time-dependent route guidance

If this function (Use traffic patterns) is switched on (Information (statistical information) on the possible speed on certain segments at certain times of the day is also taken into account in the route calculation, provided this is available. This provides a more accurately calculated arrival time and may even result in a different route being selected.

Avoiding particular types of road

After pressing the button next to Avoid you can exclude various types of road, e.g. motorways, ferries and toll roads, from the route calculation.

You can set one of the following options for each of these road types.

Option Meaning
Permitted With	this option, the road type in question is included in calculating the route.
Avoid With this	option, the road type in question is avoided where possible.
Prohibited With	this option, the road type in question is not included in calculating the route.

Confirm your selection by pressing the OK button.

The TMC button

You can configure settings for the reception of traffic announcements in the TMC settings window.

Press TMC in the settings menu.

The TMC settings window appears.

TMC OK Rerouting Manually ✓ Auto-select station ▲ ANTENNE1 (101.3 M...

Setting Meaning
Auto-select station	Choose whether to run an automatic search for the station with the best reception (function switched on ☑)
	Press the arrow buttonsto activate the automatic station search. The currently tuned TMC station is displayed in the adjacent field. This can only be set if the Auto-select station function is switched off.

Setting Meaning
Rerouting This	button allows you to choose whether the route change should be made Never, Automatically or Manually. (See “Taking announcements into consideration when calculating routes” on page 76.) The setting Never is equivalent to switching off the TMC function.

Confirm your settings by pressing the OK button.

The Map view button

You can select whether the map is to be displayed in 3D or 2D mode, in a split screen with 3D or 2D display or in arrow mode.

You can also select whether or not 3D buildings available in towns should be displayed in 3D mode.

Further setting options are available to you in the extended settings.

Press the Map view button in the settings menu.

The Map view settings window appears.

1 2 3 4 5 Advanced OK

NAVIGATION MODE

Press the button ④or ⑤select whether to use 2D or 3D mode.
Press the button ① to select the entire map.

Press the button for a split screen.

0:18 8,3km 16:41 280 m Paulinenstrasse 27A

0:18 8.3km 16:41 280 m Paulinenstrasse 27A

Press the button ☐ for arrow mode.

90m Gartnerstrasse 50 108km 0 km/h 5:22 56,3km 16:48

Switching 3D buildings on/off

You can select whether or not 3D buildings available in towns should be displayed in 3D mode.

Note:

This function is only available in 3D mode.

Press the 3D Buildings button in the map mode menu and turn the function on or off.

1.5 km Otto-Suhr-Allee

Map with 3D buildings activated.

Confirm your setting by pressing the OK button.
To call up the extended settings, press the Advanced button.

Advanced map view Auto zoom Select POI categories ✓ Street names 2D ✓ Street names 3D OK

The following setting options are available in the extended settings:

- Auto zoom

You can select how the map changes when approaching an action point or at different speed.

- Select POI categories

You can select which symbols are displayed for points of interest on the map.

• Street names 2D/Street names 3D

You can select whether the street names should be displayed () or not () in 3D or 2D mode.

- 2D heading up

You can select whether the map should always be orientated to the direction of travel () or to the north () in 2D mode.

Autozoom

Press the Auto zoom button in the extended settings.

Auto zoom OK Auto zoom Weak zoom Medium zoom Strong zoom

Pressing the Auto zoom button switches the zoom function on ( ) or off ( ).

When the zoom function is switched on, you can select whether the autozoom action should be weak, medium or strong.

Setting POI categories

You can select which POI symbols are to be displayed on the map.

Press the Select POI categories button in the extended settings.

POI on map Show all POIs Show no POIs User defined selection Select POIs

Selecting Show all POIs displays all points of interest on the map.

Selecting Show no POIs displays no points of interest on the map.

Selecting User defined selection and then pressing the Select POIs button allows you to determine for yourself in the menu which then appears whether each individual points of interest category is displayed or not.

Select POIs OK Petrol Station Restaurant Accommodation Truck

You can then switch the display of entire categories on ( ) or off ( ).

After pressing the button beside a category you can switch subcategories in further menus on or off.

Confirm all your settings by pressing the OK button.

The Warnings button

In the Warnings settings window you can select which warnings are to be displayed by the Navigation device or which warnings are to be output.

Press the Warnings button in the settings menu.

The Warnings settings window appears.

Warnings Driver alerts Speed info

The following setting options are then available:

- Driver alerts (depending on the model)

You can have signs displayed, for example for dangerous curves or steep gradients, provided this information is stored in the map data.

- Speed info

You can select whether speed limits are displayed in parallel to the navigation. You can also receive an audible warning about exceeding the speed limit.

- Danger spots*

You can receive a warning about danger points such as permanent speed checks.

Note:

There is no standardised rule in Europe on the use of this function (warning about speed checks). Please check the legal situation in the respective country.

In Germany, for example, it is an offence to use this function while driving.

The Driver alerts button

If this information is saved in the map material and is supported by your navigation device, you can display information signs, e.g. for dangerous bends or descending gradients. In addition, you can define whether the display of the sign is also to be accompanied by a warning sound.

Press the Driver alerts button in the settings menu.

The Driver alerts settings window appears.

Driver alerts ✓ Curve warnings ✓ Traffic regulations □ General warnings □ Informatory road signs

The available signs are divided into 4 categories. The four categories can be enabled or disabled individually.

The warning sound can be set individually for each of the four categories by pressing the symbol with the bell (warning sound switched on).

The following signs are available in the individual categories:

- Curve warnings

This category includes warning signs that relate to sharp curves.

- General warnings

This category includes all other warning signs, such as steep gradients, falling rocks.

- Traffic regulations

This category includes other traffic regulations, such as no passing zones.

• Informatory road signs

This category contains the available information signs.

Confirm your settings by pressing the OK button.

The Speed info button

The Speed info settings window allows you to display speed limits parallel to the navigation. You can also be warned against exceeding the speed limit by an acoustic warning.

Note:

This information can only be displayed if it is contained in the map material.

⚠️Danger!

The information in the map material may be incorrect as a result of short-term changes (road works, for example). The traffic situation and the local road signs take precedence over the navigation system information.

Press Speed info in the settings menu. The Speed info settings window appears.

Speed info Show signs Always In city Never Out of city Never Conditional speed limits

The following settings are available.

To select settings always press the field next to the setting that you wish to change.

Setting Meaning
Show signs	Select whether speed limits are never displayed, always displayed or only displayed if the limit is exceeded.
In city	Select the amount over the speed limit at which you would like to receive an acoustic warning within built-up areas.

Setting Meaning
Out of city Select the amount over the speed limit at which you would like to receive an acoustic warning outside built-up areas.
Conditional speed limits	Select whether you would like to receive an acoustic warning with regard to speed limits which only apply during rainy or snowy conditions, or at particular times (function switched on).

Confirm your selection by pressing the OK button.

The Voice guidance button

In the Voice guidance settings window you can make settings relating to the voice guidance of the Navigation device.

Press the Voice guidance button in the settings menu.

The Voice guidance settings window appears.

Voice guidance OK Voice Volume Announce streets Announce time of arrival

The following setting options are then available:

- Voice

You can select the voice that will make the navigation announcements for the language that has been set.

• Volume

You can select the standard volume for voice announcements for each start of the Navigation device, or switch off voice announcements completely.

- Announce streets (available for devices with TTS function only)

Using the Announce streets button you can switch the announcement of the names of streets into which you are to turn on ( ) or off ( ).

Note:

This function is not available for all languages/voices. If the function is not available, the button cannot be selected.

- Announce ETA

Using the Announce ETA button you can switch the automatic announcement of the estimated time of arrival on

The Voice button

In the Voice settings window you can set the voice that will make the navigation announcements for the language that has been set.

Press Voice in the settings menu.

The Voice settings window appears.

English (UK) male - James v1.1.64157 English (UK) male - Simon (TTS) v1.70765 English (UK) female - Kate (TTS) v1.70765

Select the desired voice.

Note:

Voices with a (TTS) tag support the text-to-speech function (e.g. announcing roads and reading out text messages).

A short example announcement is given.

Confirm your selection by pressing the OK button.

The Volume button

With the Volume settings window, you can set the standard volume for voice announcements for each start of the Navigation device, or switch off voice announcements completely. Depending on the situation, this setting can be fitted into the map display.

Press Volume in the settings menu.

The Volume settings window appears.

Navigation volume 50% - +

Select the desired volume using the - and buttons.

Press the button to switch off the voice output completely.

Confirm your settings by pressing the OK button.

NAVIGATION MODE

The Format button

In the Format settings window you can set the measurement units to be used for times and distances.

Press Format in the settings menu.

The Format settings window appears.

Format OK Time 24h 12:20:23 Distance km

Press the field next to Time to switch between the 12 hour clock and the 24 hour clock.

Press the field next to Distance to switch between kilometres and miles.

Confirm your settings by pressing the OK button.

The Time button

You can select the time zone relevant for your location in the Time settings window. This setting is important for the correct calculation of the estimated time of arrival.

Press Time in the settings menu.

The Time settings window appears.

Time zone OK Time Zone ✓ Use auto time zone GMT+1 Europe/Berlin (CEST) Daylight saving time Automatically

Using the button next to Time zone you can set whether the time zone should be set automatically by Navigation device or not (automatic mode on automatic mode off).

If the automatic function is switched off, you can select the desired time zone by pressing the button below Time zone.

Pressing the button below Daylight saving time allows you to select whether daylight saving time should be set automatically by Navigation device or whether you switch daylight saving time on and off yourself.

The Blocked roads button

In the Blocked roads settings window you can unblock previously permanently blocked roads (See "Blocking route sections/roads" on page 93.) or modify the block (time and days of week of block).

Press the Blocked roads button in the settings menu.

A window is displayed containing the roads that have previously been blocked.

Delete all blockings Heslacher Tunnel (B14) Karl-Kloss-Strasse Reinsburgstrasse Weissenburgstrasse

Note:

To delete all blocked roads from the list, press the Delete all blockings button followed by the Yes button in the display that then appears.

Select the blocked road you want.

Heslacher Tunnel 70180 Stuttgart, Soil Mon Tue Wed Thu Fri Sat Sun Delete blocking Change

Press the Clear form button to delete the road from the list.

or

Press the Change button to modify the block.

Set blocking time OK Mon Tues Wed Thu Fri Sat Sun

You can now set whether or not the road should be blocked for each day of the week.

Press the buttons with the days on which the road should not be blocked (the clock symbol under the day disappears).

Confirm your settings by pressing the OK button.

or

Press the button under one of the days and set up to two times when the road should be blocked.

Set blocking time Block 24 h Use setting for... 1 11 6:00 to 9:00 16:00 to 19:00 2 22

Using the buttons set the first period when the road is to be blocked on this day.

Using the buttons ⚠ the second period when the road is to be blocked on this day if necessary.

Note:

Press the Block 24 h button to set a block for an entire day.

Press the Use setting for... button to also use the block on other days.

Confirm your settings by pressing the OK button.

The Reset button

You can reset the navigation settings to their factory settings.

The settings will then be reset. The fast access mode data, stored routes, blocked routes, voice and home address are retained.

Press the Reset button.

Reset all navigation settings? Yes No

Press the Yes button.

The navigation settings are reset to their factory settings.

Traffic announcements using TMC (depending on the model)

Your Navigation device can receive traffic announcements (TMC messages) from radio stations. The power supply with the integrated TMC antenna must be connected to the carrier plate for this function.

Note:

TMC is not available in all countries.

Traffic announcements are transmitted by radio stations via the TMC (Traffic Message Channel) in addition to the radio programme and are received and analysed by the navigation system. Receiving traffic announcements is free of charge.

>>> NAVIGATION MODE

Note:

As the traffic announcements are transmitted by radio stations, we cannot assume responsibility for the completeness or accuracy of the announcements.

Austria: The location and event code was made available by ASFINAG and BM-VIT.

The Navigation device constantly checks whether there are any relevant announcements for the route that has been set. All traffic problems that have been received are shown on the map.

If the continuous checks determine that a traffic announcement is relevant to route guidance, the unit can automatically re-calculate a new route to the destination (See "The TMC button" on page 63.)

Displaying TMC messages on the map

Current TMC messages are displayed on the map graphically. Sections of the route where there are traffic problems are highlighted blue. Arrows indicating the traffic direction which is affected by the traffic problem continue to be displayed.

In addition to the coloured mark, a warning sign is displayed on the stretch of road affected.

Bad Abing S120783 Back to GPS S120790 Details Bad Feeling Rushing 120 km Sameri

When the Navigation device has been attached to the carrier plate (power supply with the integrated TMC antenna connected), your Navigation device will receive up-to-date traffic announcements. It is then possible to calculate dynamic routes (traffic jam diversion).

You can also view traffic announcements directly.

Settings for TMC can be made as described under "The TMC button" on page 63.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press TMC. The map overview appears

Worms Heidelberg Karlaruhe 14 10 18 19 20 Linde

185km Nürnberg > Pilsen 2km 12:28Min 308km München > Stuttgart 5km 161km München - Salzburg 8km

The message list appears when you press.

You can scroll through the list using the arrow keys on the right-hand edge of the screen.

The following is displayed for each traffic announcement:

① The type of problem and the distance as the crow flies from the current position
② The road number (motorway, A-road or district road) and the section of road with traffic direction
③ The duration of the problem

④ Expected duration of the obstruction If a TMC message lies on your route, the message is indicated by the sign. Traffic announcements received via TMCpro are indicated by the symbol- bol.

Reading a message

Press on the desired message in the list. The message display appears.

Press the arrow buttons scroll in the messages.
Press the button to return to the message list.

Display the relevant road in the map

Press the button in the message display.

The relevant road can be seen in the map.

Cernay Mülhauten Bate Dau Sacking Lute 2/11

By pressing the List view button you can return to the message display.

You can use the and buttons in the bottom line to scroll through all the messages in the message list and show them on the map.

Taking announcements into consideration when calculating routes

Your Navigation device can take traffic announcements into consideration when calculating a route. You have the option of setting this function to automatic, manual or never under "The TMC button" on page 63.

Automatic recalculation

If the traffic on your route is obstructed, the Navigation device checks whether an expedient detour of the obstruction is possible. If an expedient detour is possible, then an alternative route is calculated and you are guided via the alternative route.

Manual recalculation

If a traffic announcement affects your route, a window with detailed information on the traffic announcement appears.

If, after displaying the traffic message, the navigation system detects that a sensible alternative route is possible, the following display appears.

Note:

This display may also appear if, for instance, a previously obstructed route is now free again.

Grumwald 572070 572079 572080 Holzkurthen 472 Ederberg 17-2 Kosenheim 18km 0:23 OK Cancel

The display provides you with an overview of the alternative route calculated.

The red route or route marked blue for an obstruction shows the previous route. The route marked yellow displays the alternative route calculated.

In the right section of the display, you can see how much the route changes and how much time you will likely save if you use the alternative route.

NAVIGATION MODE

Now either press the OK button to use the alternative route or press the reject, button to continue using the existing route.

The map display

The map display is used primarily for route guidance. However, you can also use the map display without route guidance to show your current position and, for example, to receive warnings about exceeding the speed limit.

Calling up the map display

The map display is called up automatically when you start route guidance. Without route guidance, you can call up the map display from the main menu.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press Show map.

The map display will then appear and, if GPS reception is available, will show your current position.

If route guidance is already active, the map will be displayed with route guidance.

Structure of the map display

The structure depends on the settings made in "Switching the map mode" on page 86 or in "The Map view button" on page 64 and whether route guidance is active or not.

Map display without route guidance

0 km/h 134m 50 Pompejanumstrasse ⑦ ① ② ⑤ ⑥ ④ ③

If the navigation is not active, almost the whole area of the touch screen will be taken up by the map.

① Speed limit on the road currently being driven on (display not available for all roads), signs for the driver alerts will also be displayed
② Zoom buttons
③ Power level/telephone status (depending on the model)
④ Button for calling up the options
⑤ Vehicle position
⑥ Current road
⑦ Information box (if displayed) showing vehicle speed and altitude above sea level

Map display with route guidance

Diagram of a road intersection with numbered annotations indicating locations and distances, likely from a map or navigation system.

① Speed limit on the road currently being driven on (display not available for all roads)
② Driver alerts (depending on the model)
③ Zoom buttons

④ Power level/telephone status (depending on the model)
⑤ Button for calling up the options
⑥ Traffic lane recommendation (only appears on some multi-lane roads; green arrows = recommended lanes)

Note:

Following the traffic lane recommendations allows you to perform the next driving manoeuvre without changing lanes.

⑦ Vehicle position
⑧ Current road, or road to which the next driving manoeuvre leads
⑨ Distance to next driving manoeuvre
⑩ Next driving manoeuvre
⑪ Calls up volume settings
⑫ Displays TMC messages for the route (depending on the model)
⑬ Displays POIs along the route
⑭ Estimated time of arrival, remaining journey time and remaining distance to the destination or, if displayed, vehicle speed and altitude above sea level

Your current position is displayed on the map via the position icon.

During route guidance you can have information displayed.

①

2

3

On the left of the screen, press the button ①. The display alternates between:

• Information about the destination or waypoint (estimated time of arrival, remaining journey time and remaining distance to destination/waypoint).
• Display of your current speed and altitude above sea level ③

Information is also displayed in the bottom left corner in the preview area.

The next manoeuvre is displayed as an arrow, with a distance indication underneath it. If two driving manoeuvres are to be performed in succession within a short time, another smaller arrow indicating the second driving manoeuvre is displayed above the first arrow.

You can adjust the volume of the navigation announcements by pressing the button with the speaker symbol in the preview area (See “Changing the announcement volume” on page 81.). Models with TMC reception: The symbol below is displayed on the left of the preview area if there is a TMC announcement along your route.

Pressing the symbol displays the TMC messages along the route. See "TMC on the route (depending on the model)" on page 84.

You can display the points of interest located along your route.

On the left of the screen, press the POI symbol. The POIs are displayed. Please refer to the description in "Point of interest on the route" on page 83.

Spilt screen with route guidance

0:18 8.3km 16:41 15 14 13 12 9 8 3 2 280 m Helickestrasse 5 11 10 7 6

① Speed limit on the road currently being driven on (display not available for all roads), signs for the driver alerts will also be displayed
② Driver alerts (depending on the model)
③ Zoom buttons
④ Vehicle position
⑤ Power level/telephone status (depending on the model)
⑥ Button for calling up the options
⑦ Traffic lane recommendation (only appears on some multi-lane roads; green arrows = recommended lanes)

Note:

Following the traffic lane recommendations allows you to perform the next driving manoeuvre without changing lanes.

⑧ Next driving manoeuvre
⑨ Displays POIs on the route
⑩ Current road, or road to which the next driving manoeuvre leads
⑪ Distance to next driving manoeuvre
⑫ Progress bar to illustrate the distance to the next driving manoeuvre
⑬ Displays TMC messages for the route (depending on the model)
⑭ Calls up volume settings
⑮ Estimated time of arrival, remaining journey time and remaining distance to the next destination or information box with vehicle speed and altitude above sea level

Route guidance with arrow display

15 14 13 12 90 m Gärtnstrasse 10 8 7 6 5 50 0 km/h 108km 56.3km 16:48 1 2 3 4 5

① Vehicle speed and altitude above sea level
② Displays POIs on the route
③ Displays TMC messages for the route (depending on the model)
④ Power level/telephone status (depending on the model)
⑤ Button for calling up the options
⑥ Estimated time of arrival, remaining journey time and remaining distance to next destination
⑦ Calls up volume settings
⑧ Speed limit on the road currently being driven on (display not available for all roads)
⑨ Driver alerts (depending on the model)

⑩ Traffic lane recommendation (only appears on some multi-lane roads; black arrows = recommended lanes)

Note:

Following the traffic lane recommendations allows you to perform the next driving manoeuvre without changing lanes.

⑪ Current road, or road to which the next driving manoeuvre leads
⑫ Distance to next driving manoeuvre
⑬ Progress bar to illustrate the distance to the next driving manoeuvre
⑭ Next driving manoeuvre
⑮ Next driving manoeuvre but one

Map display with Junction View

You can display a detailed and realistic view of the lane situation at many motorway junctions.

To do this, switch on the Junction View function as described under "The Guidance info button" on page 60.

If you are then directed through a motor-way junction by the Navigation device, you will see a corresponding display.

Follow the lanes indicated with the arrows.

Note:

You can switch back to the normal map display by tapping the display.

Using the map display

Repeating the last announcement

During route guidance, the system announces important information, e. g. the next driving manoeuvre. The last announcement can be repeated with updated information.

Press the speaker symbol in the preview area while route guidance is active.

The last announcement is repeated with updated information. The volume is also displayed.

Changing the announcement volume

The volume of announcements can be adjusted.

Press the speaker symbol in the preview area while route guidance is active.

5:23 563km 17:30 90 m Gärtnerstrasse

The bar display indicates the volume.

Press + or to increase or decrease the volume.

Press in order to mute the announcements.

The button will now have a red border.

Press again in order to cancel the mute function.

⚠ Warning.

Always adjust the volume so that you can still hear any ambient noise while driving.

The bar display disappears again automatically after a short while if no button is pressed.

Map zooming

The map can be zoomed into in steps via the zoom buttons.

Press zoom in to "zoom in on the map" and therefore to get closer to the details displayed.
Press zoom out to "zoom out from the map" and therefore to obtain a larger overview.
Press the button to switch back to the set zoom step after a change.

Note:

The zoom steps are altered in quick succession by pressing and holding the or button.

Moving the map

You can move the map to any point.

To do this, press the map briefly.

Back to GPS Details Block

Stauffenbergstrasse 16, Berlin, Tiergarten

Then press any point on the map and move it in the required direction.

The map is then moved accordingly.

Note:

By pressing the Back to GPS button you can display your current position again.

You can also select a point as a destination as described under "Selecting a destination from the map" on page 58 or block a road.

Map display options

In the map display options, you can change the settings for route guidance, the map display and the route.

On the map display, press the button on the bottom right.

POI on route TMC on route Stop guidance Route options Block road

This opens the options menu for the map display.

You see the available options in the middle section.

You can go to the next or previous page of the options by pressing the and buttons.

Note:

The scope of the displayed functions depends on whether route guidance or a route with several destinations is active.

Four fast access buttons are shown on the left-hand side of the options menu. You can assign these buttons different key functions from the options menu as described in "Defining fast access buttons" on page 97.

The options menu is exited either by selecting a function or by pressing the button.

Point of interest on the route

(Only available when route guidance is active.)

During route guidance, you can display the points of interest located on the route. You can specify which categories of points of interest should be displayed, and you can also choose whether to display only the nearest POIs, all the POIs on the entire route, or only POIs near the destination.

Open the options menu for the map display.

Press the POI on route button.

Categories: P 800 m Tiefgarage Stad... 1.2 km 800 m Luitpoldstrasse 1.2 km 600 m KFC 1.0 km 460 m Burger King (Dr... 0 m) 460 m Aral 0 m

The nearest points of interest for the three selected categories are displayed.

The first distance indicated shows the distance to the point of interest. The indication on the right shows the detour required to reach the point of interest.

The symbols on the right let you see at a glance if the detour for driving to the respective point of interest is small ( ) medium () or large ().

Press one of the points of interests to start route guidance to it. To display information regarding the point of interest, press the button next to it.

Setting categories

Press the Categories: button.

Select POI categories OK Cat. 1 Petrol Station Cat. 2 Parking Cat. 3 Restaurant

Press the button for the category you wish to change.
Then select the desired category.
Confirm your changes by pressing the OK button.

Point of interest near destination/on entire route

In the point of interest on the route menu, press the button to show POIs near the destination, or the button for POIs on the entire

route.

All categories Petrol Station Restaurant Accommodation Medical

Select the desired category.
Then select the desired point of interest. Route guidance to the selected point of interest is initiated.

TMC on the route (depending on the model)

(Only available when route guidance is active.)

You can view and edit TMC messages located on your route.

Note:

Also displayed are the TMC messages that have led to a change in the route.

Open the options menu for the map display.

Press the TMC on route button.

Nürnberg > Pilsen 185km 2km

The TMC messages located on your route are displayed.

Cancel route guidance

(Only available when route guidance is active.)

You can cancel active route guidance.

Open the options menu for the map display.

Press the Stop guidance button.

This cancels route guidance to all destinations.

Note:

You can also cancel route guidance as described in "Basic information about the menus" on page 26.

NAVIGATION MODE

Changing route options

(Only available when route guidance is active.)

You can modify the route options (route selection etc.) during route guidance.

Open the options menu for the map display.

Press the Route options button.

Route options OK Vehicle Normal car Route type Fast route ✓ Use traffic patterns Avoid

Set the route options as described under "The Route options button" on page 61.

After a change, the route is recalculated.

Block route

You can block a stretch of road ahead. This determines a certain stretch of road that should not be used. Navigation device then attempts to calculate a diversion.

Notes:

• The selected length of the block is only an approximation since the actual distance blocked depends on the availability of an exit.
- You can also define whether the route should be blocked permanently or just for the current route.

Call up the options menu for the map display.

Press the Block button.

Block the road ahead Dear all temporary blockings 200 m 500 m 1.0 km 3.0 km 5.0 km 10 km 25 km 50 km

Select the length of block you want by pressing one of the buttons.

Notes:

• If route guidance is not active, you can only select between 200 and 500m (250 and 500 yards). You can then define directly the days and times when the route should be blocked.
• Pressing the Clear all temporary blockings button deletes all temporary blocks.

This section can be blocked permanently for all future route calculations or just for the current route. Block for current route Block permanently

You can then select whether this route section should be blocked permanently or only for the current route.

Subsequent operation corresponds to the description under "The Blocked roads button" on page 72.

Switching the map mode

You can select whether the map is to be displayed in 3D or 2D mode, in a split screen with 3D or 2D display or in arrow mode.

You can also select whether or not 3D buildings available in towns should be displayed in 3D mode.

Further setting options are available to you in the extended settings.

Open the options menu for the map display.

Press the Map view button.

1 2 3 2D 4 3D Buildings Advanced OK

For further operation, please refer to the description in "The Map view button" on page 64.

Changing the map orientation

You can view your surroundings in 3D mode.

When doing so you have the option to change the viewing direction, the map angle and the size of the map area.

Open the options menu for the map display.

Press the Map orientation button.

① ② ③ ① ② ③

By pressing buttons 1you can change the viewing direction or turn the displayed map.

The compass in the top left corner shows the direction in which the map is currently oriented.

By pressing buttons ②you can change the map angle.

By pressing buttons ③you can change the size of the displayed map area.

To exit this display again, press the button.

Route calculator (depending on the model)

The route calculator provides a data display with average speeds, maximum speeds, etc. and a stopwatch with the option to record laps.

Call up the options menu for the map display.

Press the Trip computer button.

① 0km/h ② 3 speed no stops 4 seed with stops #um speed km/h 0km/h 0km/h ⑤ distance 0 m 6 time no stops 7 time with stops 0:00h 0:00h Reset ⑧ N ⑨

The data display appears.

The data display contains the following information:

① Current speed (as a number and in the form of a bar graph)
② Maximum speed
③ Average speed without breaks in the journey
④ Average speed with breaks in the journey
⑤ Total distance

⑥ Travel time without breaks in the journey
⑦ Travel time with breaks in the journey
⑧ Compass
⑨ Calls up the stopwatch with lap recording

Press the Reset button to reset the values to zero.

To display the stopwatch with the lap recording, press the button ⑨ in the data display.

Press the Start button to start the recording.

Press the Lap button to stop the current recording and start a new lap recording.

You can record up to 300 laps in the same way.

Notes:

• The second value displayed in the top section shows the total time for the laps driven.
• Pressing the arrow button on the left-hand side of the display or pressing the button switches back to the data display.

Press the Stop button to stop the recording. The time continues if you press the Start button again after stopping the recording.

Press the Reset button to delete all recordings and reset all times to zero.

You can display the individual laps in list form using the List view button.

Delete list Lap 1 0:05:05 Lap 2 0:04:57 Lap 3 0:05:08 Lap 4 0:05:02

Press the Delete all entries button to delete the recorded laps.

Setting day/night display

You can switch the Navigation device display from day to night and vice versa.

Call up the options menu for the map display.

Press the Day/Night button.

The display changes from day to night and vice versa.

Selecting/setting the vehicle profile

You can select or set the vehicle profile. For the lorry profiles (depending on the model), you can define or select dimensions, weight, number of axles etc.

If the appropriate profile has been set, route calculations will take this information into account.

Danger!

The information in the map data may be incorrect as a result of short-term changes (road works, for example).

The traffic situation and the local road signs take precedence over the navigation system information.

Note:

In map view, the roads that cannot be driven on in accordance with the truck profile settings are shown with a light red outline. (depending on the model)

Call up the options menu for the map display.

Press Truck (depending on the model). Different menus are now displayed, depending on the vehicle profile previously set.

Confirm the currently selected profile by pressing OK or select Change profile to change the profile.

Various operating options are available in the car and truck profile menus displayed. There are no other setting options for any of the other profiles.

For the car profile:

Normal car Slow car Normal car Fast car OK Change profile

Here you have the option of selecting various car profiles using the Slow car, Normal car and Fast car buttons.

For the general lorry profile or saved lorry profiles (depending on the model):

Truck 12.00m / 2.50m / 4.0... Trailer / 4 30.00t / 40.00t no hazard OK Change profile

By pressing the buttons on the right-hand side you can adjust the settings for the profile directly, as described on the following pages.

Adjusting truck profiles

Select one of the saved truck profiles or the general truck profile.

Truck profi⑥ 12.00m / 2.50m / 4.0 Trailer / 4 30.00t / 40.00t no hazard OK Change profile

You can then modify the selected profile.

① Use this button to set the size of the truck.
② Use this button to specify whether the truck has a trailer and how many axles it has.
③ Use this button to set the maximum permissible weight and the actual weight.
④ Use this button to set the hazardous goods class.

With the three saved truck profiles, you have the option of adapting the truck symbol displayed ⑤ and the name .⑥

Setting the size

In the profile settings press the button for setting the size.

Dimensions Length 12.00m Width 2.50m Height 4.00m OK

Press the button next to the dimension to be entered.

An input menu is displayed.

Enter the desired dimension.
Confirm the entry in the input menu by pressing OK.

Once you have performed the desired settings, confirm your settings by selecting OK.

Setting the trailer and axles

In the profile settings press the button for the trailer and axle setting.

Trailer / Axles OK Trailer ① Axles ② 4 ②

Use the button ① to choose whether () or not () there is a trailer.
Use the buttons ② to select the total number of axles.
Confirm your settings by selecting OK.

Setting the weight

In the profile settings press the button for setting the weight.

Weight Max. allowed 40.00t Actual 30.00t OK

Press the button next to the weight to be entered.

An input menu is displayed.

NAVIGATION MODE

Enter the desired weight. Confirm the entry in the input menu by pressing OK. Once you have performed the desired settings, confirm your settings by selecting OK.

Setting the hazardous goods category >In the profile settings press the button for setting the hazardous goods category.

No hazardous material Explosives Flammable gas Nonflammable gas Poisonous gas

Select the required hazardous goods category.

Selecting the truck symbol and name If you have changed one of the saved truck profiles, it is also possible to enter the truck symbol and name displayed.

Truck profile ① 12.00m / 2.50m / 4.0... Trailer / 4 30.00t / 40.00t no hazard OK Change profile

Press the button ① enter a different name.

The input menu is displayed.

Enter the desired name. Confirm the entry in the input menu by pressing OK.

The name is changed.

Press the button ② to change the symbol displayed.

Lorry Lorry with trailer Bus Bus with trailer Motorhome

Select the desired symbol. The new symbol is displayed in the profile.

Entering a destination

(Only available when route guidance is not active.)

You can enter a destination.

Open the options menu for the map display.

Press the Enter destination button.

Home Enter address Select from last destinations Select Point of Interest Personal destinations

You can now enter a destination as described in "The New or New Destination Menu (depending on device)" on page 43 (Home, Enter address, Select Point of Interest, Personal destinations, Contacts, Route planning, Select on map or Enter geo-coordinates).

Enter/delete waypoint

(Only available when route guidance is active.)

With this function, you can enter a waypoint or delete an entered waypoint.

Open the options menu for the map display.

Press the Add stopover button.

Enter address Select Point of Interest Select on map Enter geo-coordinates Select from last destinations

You can now enter a destination as a waypoint as described under "The New or New Destination Menu (depending on device)" on Enter address, Select Point of Interest, Personal destinations, Contacts, Select on map or Enter geo-coordinates). You also have the option of quickly selecting a destination using the Select from last destinations button.

Once you have entered the desired way-point, the route is recalculated.

Fast route is being calculated using historical traffic data (Traffic Patterns): Becker-Göring-Strasse 16 D-76307 Karlsbad, Ittersbach

The entered waypoint is marked on the map as a red flag.

Deleting a waypoint

Open the options menu for the map display.

Press the Delete stopover button.

Delete stopover? Becker-Göring-Strasse 16 Yes No

Press the Yes button. The waypoint is deleted.

NAVIGATION MODE

Displaying the entire route

(Only available when route guidance is active.)

You can display the entire route to the destination on the map. You also have the option of displaying the complete directions and blocking particular sections/roads of the route permanently.

As a further option you can display the various routes that you can set in the route options and also select them if you wish.

Open the options menu for the map display.

Press the Show route button.

Mullackin Florheim Straubelkhand BUßersheim 69 km, 1:07h Becker-Göring-Strasse 16 Start

The entire route is displayed.

You can set the route options by pressing the Options button.

By pressing the ▶ or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen.

Directions

With the entire route displayed, press the Sections button.

180m, 0:00h Gärtnerstrasse 90m

The first point in the directions is displayed on the map.

You can use the and buttons to scroll through all the directions.

You can also display a list version of the directions by pressing the List view button.

Pompejanumstrasse 90m Gärtnerstrasse 90m Hanauer Strasse 26 1.3km Hanauer Strasse 8 3.8km 3 41 1.7km

Press the arrow buttons on the right of the screen to browse through the list.

If you press an entry in the directions, it will be displayed on the map.

Blocking route sections/roads

You can block individual route sections/roads. The Navigation device then calculates a sensible diversion to avoid the blocked section.

Use the and buttons in the route directions to select the section of the route to be blocked.

Press the Block button.

This section can be blocked permanently for all future route calculations or just for the current route. Block for current route Block permanently

Select Block for current route to block the section of the route for the current route guidance session only.

Note:

If the route section is more than 10 kilometres long, you can choose, in another menu, whether to block the entire section or just part of it.

Select Block permanently to block the section of the route for future route guidance sessions too.

Set blocking time Mon Tue Wed Thu Fri Sat Sun

You can now set whether or not the road should be blocked for each day of the week.

Press the buttons with the days on which the road should not be blocked (the clock symbol under the day disappears).

Confirm your settings by pressing the OK button.

or

Press the button under one of the days and set up to two times when the road should be blocked.

Set blocking time Block 24 h 1 11 6:00 to 9:00 16:00 to 19:00 2 2 2

Using the buttons ④et the first peri- od when the road is to be blocked on this day.
Using the buttons set the second period when the road is to be blocked on this day if necessary.

Note:

Press the Block 24 h button to set a block for an entire day.

Press the Use setting for... button to also use the block on other days.

Confirm your settings by pressing the OK button.

Note:

The list of roads that you have permanently blocked can be edited as described under "The Blocked roads button" on page 72.

NAVIGATION MODE

Displaying/selecting different routes

You can use the Navigation device to display various routes.

With the entire route displayed, press the Alternative button. This function can also be selected in the options of the map display, See "Map display options" on page 82.

After a short time, the map will appear. The individual routes are calculated one after another and marked on the map.

Best 916 km 9:54 London Deutschland Brüssel Luxembourg Paris Route 2 917 km 10:19 Route 3 685 km 10:31 Route 4 926 km 10:22

The area on the right-hand side shows the colour key for the individual routes, the mileage for each route and the estimated driving time.

You can select the route you want by pressing one of the right-hand buttons.

Displaying the destination list

If a planned route with a number of destinations is active, you can display the entire route with all the destinations on the map or in a list.

Open the options menu for the map display.

Press the Itinerary button.

2378 km, 23:34h Optima List view Resume Deutschland

The planned route is displayed on the map.

By pressing the ▶ or button you can simulate the entire route quickly or slowly. You can stop the simulation by tapping the screen.

You can use the ▲ and buttons in the bottom line to scroll through the individual stages in the route. As you scroll, each stage is shown.

You can block the displayed stage by selecting Clear form.

Press List view to display the stages in the route as a list.

The individual stages in the route are displayed as a list. To return to the route guidance, press the top button.

To edit one of the stages, press the button next to the stage.

The following options are then available:

• U s Show details to display information regarding the selected stage.
  • U s Move up and Move down to change the order of the stages.
• U s Delete stage to delete the selected stage.

• U s Start guidance to start guidance for the selected stage.
- Define the expected loading time using Set loading time.

Skipping destination

If a planned route with several destinations is active, you may delete the current destination of the route. Route guidance to the next destination is then started.
This may be necessary if a destination was not driven to directly. The Navigation device otherwise tries to guide you to the current destination.

Call up the options menu for the map display.

Next destination

Press the Next destination button.

Route guidance to the next destination is started.

Displaying current position

You can display your current position and store this position. You can also display information concerning the current GPS reception and the current country.

Open the options menu for the map display.

Press the Position info button.

Current position Pompejanumstrasse 4 D-63739 Aschaffenburg

The current position is displayed. If possible, an address is displayed. If no address is available for the current position, the geographic coordinates are displayed.

You can return to the map using the Resume button.

By pressing Save you can store your current position in the fast access list.

By pressing the Country info button you can display country-specific information such as the maximum permitted speed for the country you are currently in.

By pressing GPS info you can view information regarding the GPS reception.

GPS-reception: Satellites: Very good 9 / 9 Local Time 15.07.44 Latitude N-AB°52.519° Longitude 6.8.36.24.44 Close

You can see how many satellites are being received, and whether the satellite reception is good enough for navigation. The current time and the geographic position are also displayed.

Saving a position

You can save the current position.

Call up the options menu for the map display.

Press the Save position button.

Enter name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - - Abc ABB 123 AAA OK

Enter the name you want for the position.

Press the button to confirm the name.

Calling up the telephone (depending on the model)

You can call up the telephone function.

Open the options menu for the map display.

Press the Phone button.

The telephone function is called up.

Switching off the display

To reduce the distraction posed by the display of the Navigation device you can switch off the display. You will then only receive acoustic instructions during route guidance. All overlays will, however, still be displayed.

Call up the options menu for the map display.

Press the Display off button.

To cancel switching off the display you can touch the display or press the button.

Defining fast access buttons

The Navigation device has four freely assignable buttons on the left-hand side of the options menu which you can assign functions from the options menu.

This gives you fast access to key functions. The buttons are pre-assigned at the factory.

Open the options menu for the map display.

Press the Shortcuts button.

Select position

Select the fast access button to be changed.

Select function POI on route TMC on route Stop guidance Route options

Select the desired function from the displayed list.
Confirm your selection by pressing the OK button.

The map display is opened and the fast access button has the chosen assignment the next time the options menu is opened.

TELEPHONE MODE

If your navigation device has an integrated Bluetooth® interface, you can connect it to a mobile phone equipped with Bluetooth® wireless technology.

Your Navigation device can then be used as a very comfortable hands-free unit.

Note:

• For some cell phones equipped with Bluetooth® wireless technology, it is possible that some of the functions described are not available.
• The following descriptions assume that Bluetooth is activated on the cell phone. You can find out how to activate Bluetooth on your cell phone in the cell phone's description.
• This function must also be activated on the mobile phone for an automatic connection to the mobile phone.

Calling up the telephone mode (only selected models)

You can call the telephone mode from the main menu ①or the map display with the options menu displayed ②

New My destinations Show map IMC Settings Phone Extras

POI on route TMC on route Stop guidance Route options Block road

To call the telephone mode, press the Phone button in the main menu. or
Press the Phone button in the options menu of the map display.

If Bluetooth is activated and the Navigation device is already connected with a cell phone, the telephone menu is displayed.

Disconnect Qai Phone1 Provider Dial SMS Last calls Phones

If Bluetooth is not activated upon calling the telephone function, the system will prompt you to switch Bluetooth on.

Bluetooth is not active. Activate now? Yes No

Press the Yes button to activate Bluetooth.

The Navigation device now attempts again to connect the cell phone last connected. When the connection is established, the telephone menu is then displayed after a short period.

If no cell phone has been connected yet or if the device last connect is not available, the following display is generated.

No phone connected. Connect phone now? Yes No

Press the Yes button to find Bluetooth cell phones as described in "Searching for cell phones" on page 107.

Telephone menu (only selected models)

From the telephone menu, you have the option:

• Numbers to be dialled or selected from the phonebook,
• Text messages (SMS) to be displayed, edited and read out,
  • Tocallupnumberlis
  • To search for Bluetooth telephones
  • To disconnect the connection to a cell phone.

If Bluetooth is activated and the Navigation device is already connected with a cell phone, the telephone menu is displayed after you call up the telephone function.

Disconnect Phone1 Provider Dial SMS Last calls Phones

In the upper area of the telephone menu, if available, the signal strength of the cell phone, the charging level of the cell phone, the telephone name and the network provider are displayed.

Dialing a number

You can enter a telephone number and start a call to this number or select a number from the phonebook.

In the telephone menu, press the Dial button.

[phone] 2 abc 3 def 4ghi 5 jkl 6 mno 7pqrs 8 tuv 9 emyz • 0+ # Del Phone book Paste

Use the buttons displayed to enter the telephone number you want.

TELEPHONE MODE

Note:

Press the button to delete the characters entered.

Press Pause if you wish to pause the dial-ling process.

Press the Dial button.

The Navigation device then attempts to establish a connection to the phone number entered. You can find out how to continue operation in "Telephone calls" on page 109.

Phonebook

In the phonebook, the system displays the phonebook entries loaded from the SIM card and from the memory of the cell phone. After selecting the desired entry, you can call the respective phone number.

Note:

• Be aware that it may take several minutes to transfer the phonebook.
• If the cell phone whose phonebook was already loaded is reconnected, the phonebook is not loaded again. If entries were changed or entered while the cell phone was not connected, then the phonebook of the Navigation device must be loaded manually for the update. See "Updating phonebook" on page 113.

In the telephone menu, press the Dial button.

[phone] 2 abc 3 def 4ghi 5 ju 6 mno 7pqrs 8 tuv 9 wxyz * 0+ # Del Phone book Paste

Press the Phone book button.

Enter name A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - ← >100 AGR 123 AAA OK

An input menu is displayed if there are more than 10 entries in the phonebook. If there are fewer than 10 entries, a list of entries is displayed straight away.

In the input menu, select the first letters of the entry you are looking for.

Note:

- For example, if you entered the letters "M" and "I", the entries are displayed whose last names or first names start with "MI". That means, "Miller John" or "Bauer Michael".

- You may enter the first letter of the last name and then enter the first letter of the first name separately using a space (button -).

Press the button when the name you want is displayed in the upper line. If there are 5 or less entries with the letter combination entered available in the phonebook, a list is automatically displayed with these entries.

Note:

You may also first have a list displayed that corresponds to the letter combination entered. In the input menu, press the button for this.

Select the desired entry in the list.

If there is more than one phone number available for the entry selected, you may then select the respective number.

Mustermann, Max 08912345678 [phone] [phone]

The different numbers are indicated by icons.

Icon Significance
	Private phone number
	Business phone number
	Cell phone number

Select the phone number you want. The Navigation device then attempts to establish a connection to the phone number selected. You can find out how to continue operation in "Telephone calls" on page 109.

TELEPHONE MODE

Text messages (SMS) (only selected models)

If this function is supported by the mobile phone, all the received text messages on the SIM card and in the mobile phone's memory will be loaded onto the Navigation device. The text messages can be displayed on or read out by the unit and edited.

In the telephone menu press the SMS button.

Miller Martin	17:44:36	▲
[phone]	2009-05-12	—
Susi Sanchez	2009-05-10
Katharina	2009-05-10
Miller Martin	2009-05-09	▼

The transferred text messages are displayed. The sender's name is displayed if possible. If this is not possible, the number is displayed. The date and time the message was received are also displayed, if they are available.

Select the desired text message.

Read out Options Text ** TEXT ** Text ** TEXT ** Text Text ** TEXT ** Text ** TEXT ** Text Text ** TEXT ** Text ** TEXT ** Text Text ** TEXT ** Text ** TEXT ** Text Text ** TEXT ** Text ** TEXT ** Text ▲ ▼

The selected text message is displayed.

Press the Read out button in order to have the message read out.

Note:

The message can only be read voice tagged with the abbreviation T'S has been selected. See "The Voice button" on page 70.

Press the Options button to display the editing options for the text message.

Sender: Miller Martin [phone] Sent: 12.05.08 17:44:36 Call back Numbers Delete

- Call back

By pressing the Call back button you can start a call to the sender's number.

- Numbers

By pressing the Numbers button you can display any numbers contained in the text message itself and start a call to one of these numbers if desired.

- Clear form

By pressing the Clear form button you can delete the selected text message from the Navigation device memory and from the phone's memory.

Incoming text message

You will receive notification of any text messages received, depending on the settings under "Text message notification (depending on the model)" on page 114. If you have activated the Show popup setting, the following menu will be displayed on receiving a new text message.

New incoming SMS: Steven Miller Read out Show text Ignore

The following options are then available:

- Read out

The text message will be read out.

- Show text

The text of the message will be displayed.

- Ignore

The text message will be ignored, but can be opened at a later time.

Number lists

In the number lists, the telephone numbers or names last dialed, accepted or not accepted will be shown in chronological order. If possible, the numbers or names of the list stored in the cell phone are also displayed in different lists.

In the telephone menu, press the Last calls button.

Missed Accepted Dialed Sabine [phone] Mustermann, Max Unknown

Using the buttons Missed, Accepted and Dialled, you may retrieve the lists loaded from the cell phone.

The number list of the numbers or names dialed, accepted or not accepted at the Navigation device is shown in the lines below.

Each line of the number list is divided into two fields. Each list field is designed as a button. On the right button, the number/name is displayed and the features of the entry are displayed with the left icon.

Notes:

- The number list automatically stores the last 100 numbers/names. If the storage capacity of 100 numbers is reached, the oldest number is automatically deleted for each new number. However, important numbers may be protected.

- Entries in the number list only apply to the time that the cell phone with Bluetooth® wireless technology was connected to the Traffic Assist 7827 ohne Bluetooth. Using the buttons Missed, Accepted and Dialled, you may retrieve the lists loaded from the cell phone, if available.

TELEPHONE MODE

Icons used

The following icons are used in the number list.

Icon Significance
	This entry is a standard entry without any special features.
	This entry is protected. If the number list is full, this entry is not automatically deleted.You have the option to do this manually.For a protected entry, you also have the option to set the position in the quick access.

Scrolling in the number list

With the buttons, you may scroll in the number list in the relevant direction of the arrow.

Dialing an available number

You may select directly the numbers/ names available in the number list.

To initiate the call, press the button with the entry you want.

The call will be initiated.

Displaying or editing entries

Each entry included in the number list can be displayed or edited.

Press the button field on the left next to the entry you want.

A selection menu appears.

Misse Show details 07119 Protect entry 01721 Move up 01711 Move down THOM Delete entry

Selection Significance
Show details	The data for the entry is displayed (number and name, time and date of call, if available).
Protect entry	The entry is protected against automatic deletion (only available for unprotected entries).
Remove protection	The protection of the entry is canceled (only available for unprotected entries).
Move up / Move down	The entry is moved one position forwards/backwards.
Delete entry	The entry is deleted from the number list.
Delete all entries	All entries are deleted from the number list (even the protected entries).

Lists loaded from cell phone

In the number list, call the respective list using the buttons Missed, Accepted and Dialled.

[phone] Martin 0711123456789 Miller, Sven 069123455321

With the buttons, you may scroll in the list in the respective direction of the arrow.

To initiate a call, press the button with the entry you want.

Note:

Press the button in front of an entry to display the data for that entry (number and name, time and date of call, if available).

Connecting Bluetooth telephones

So that you may make and receive calls with your Navigation device, a cell phone that is equipped with Bluetooth® wireless technology must be connected to the Navigation device. The following describes the various ways to establish a connection.

Calling up a device list

In the telephone menu, press the Phones button.

Search Bluetooth phones Phone 1 Phone 2

The device list is displayed.

From within the device list, you may search for or connect cell phones.

Note:

If you have not yet established any connections to cell phones, then the list is empty.

The device list shows line by line all cell phones that were already connected to the Navigation device.

Each line of the device list is divided into two fields. Each list field is designed as a button. On the right button, the device is named and its features are displayed with the left icon.

Icon Significance
	This device is a standard device without any special features.
	This device is protected. If the device list is full, this device is not automatically deleted.You have the option to do this manually.For a protected entry, you also have the option to set the position in the device list.
	This device is the cell phone currently connected.

By pressing the icon, you can call a menu where you can protect the device, for instance.

Bluetooth Phone Phone Protect entry Move up Move down Delete pairing Delete all pairings

Selection Significance
Protect entry	The device is protected against automatic deletion (only available for unprotected devices).
Remove protection	The protection of the device is canceled (only available for unprotected devices).
Move up / Move down	The device is moved one position forwards/backwards.
Delete The device is deleted from the device list.
Delete All All devices are deleted from the list (even the protected entries).

Automatic connection

After activation, your Navigation device attempts to establish a connection to the cell phone last connected.

Note:

The cell phone last connected is then only connected if in the device list no protected device is in front of this device.

You can switch this function on or off as described in "Automatic connection" on page 112.

Prerequisites for a successful connection are:

• For your Navigation device, Bluetooth® is switched on. (See “Switching Bluetooth on and off” on page 112.)
• The cell phone is switched on, is in range, and Bluetooth® is activated.

Searching for cell phones

Note:

Prior to a search, switch on Bluetooth® on the cell phone to be searched for.

Call up the device list.

Search Bluetooth phones Phone 1 Phone 2

Press the Search Bluetooth phones button.

The search starts.

During the search, any devices found are displayed and you may cancel the search by pressing the Stop search button.

After the search or after you press the Stop search button, a list of the devices found is displayed.

>>> TELEPHONE MODE

D

GB

F

E

PL

0

H

RU

Phone 1 Phone 2

Then select the name of the cell phone to be connected.

The Navigation device will then attempt to establish the connection. On the cell phone, the password prompt should then occur. This password is fixed by Navigation device.

Please enter the following PIN on your mobile phone: 0000 Cancel

Enter the password displayed on the cell phone.

The connection will be established. With a successful connection, the telephone menu will be displayed.

Connecting from device lists

From within the device list, you may initiate a connection to a cell phone. If a cell phone is already connected, that connection is automatically disconnected and the new device is connected.

Call up the device list.

Search Bluetooth phones Phone 1 Phone 2

Select the cell phone you want in the list.

The connection is established to the cell phone selected. With a successful connection, the telephone menu will be displayed.

Connecting a mobile phone

You can also attempt to establish a connection to the Navigation device from the mobile phone.

If a request is received from a mobile phone that has not yet been connected, you will be asked whether you wish to allow the connection.

Allow pairing request from Phone 3?

Press Yes to permit the connection.

Please enter the following PIN on your mobile phone: 0000 Cancel

Enter the displayed password (four zeros) on the mobile phone.

The connection is established. If the connection is successful, the telephone menu is displayed.

TELEPHONE MODE

Disconnecting a connected telephone

You may disconnect the connection to a cell phone currently connected via Bluetooth.

Disconnect Phone1 Provider Dial SMS Last calls Phones

Press the Disconnect button.

The connection to the cell phone currently connected is disconnected.

Telephone calls

In the telephone calls section, you can find a summary of the control options that are available for establishing a call, accepting a call, and ending a call.

Establishing a call

Enter a phone number or select an entry from the number list or phonebook.

The number is dialed.

If the call is accepted by the party called, the display changes and you are connected to the other party.

Phone 1 Max Mustermann 0711 123456789 0:59min End call Options Provider 30 m

Accepting a call

For an incoming call, a ringing tone will sound. Also the following is displayed.

Incoming call: Sabine Silberblick 0711 123456789 Accept Reject Ignore

If available, the telephone number and name of the caller are displayed.

For incoming calls, you have several operating options:

Selection Significance
Accept The call	ll is accepted. The call screen is displayed.
Reject The call	ll will be declined.The caller hears the busy signal. The screen last active is displayed.
Ignore The ringing tone is switched off. The screen last active is displayed.The call is ended if the caller hangs up.

>>> TELEPHONE MODE

D

GB

F

1

E

PL

0

H

RU

If you have switched on the automatic call acceptance as described in "Automatic call acceptance" on page 113, the time to call acceptance is also displayed for the Accept button.

Ending a call

You can end an active call.

Phone 1 Max Mustermann 0711 123456789 0:59min End call Options Provider 30 m

In the call screen, press the End call button.

The call is ended. The screen last active is displayed.

Note:

The call is also ended if the other party hangs up. The screen last active is also displayed.

During a call

During a call, you have various control options.

Phone 1 Max Mustermann 0711 123456789 0:59min End call Options Provider 30 m

In the call display, the signal strength of the cell phone, the charging level of the cell phone, the telephone name and the network provider are displayed if available in the upper area.

Beneath, the call time and, if available, the phone number or name the name of the other party are displayed.

If route guidance is active, then you will receive the navigation instructions with arrows on the call screen.

Note:

If during a call there is another incoming call, this is not indicated. But the number of the caller is displayed in the number list.

To call the options menu of the call screen, press the Options button.

Phone 1 Max Must 0711 123- 0:59min End call Options Volume Microphone off Private mode DTMF tones 1/1

• Volume

By pressing the Volume button, you can call the volume adjustment. See "Telephone volume" on page 113.

- Microphone off/Microphone on

For a private conversation in a vehicle, you can switch off the microphone of the Navigation device. The other party on the phone will not hear anything. Press the Microphone off button to switch off the microphone. Press the Microphone on button to switch the microphone back on.

- Private mode/Hands free

You can transfer a call back to the cell phone. The hands-free function is then ended.

After the call is ended, the connection to the cell phone is automatically re-established.

Press the Private mode button. The hands-free function is ended.

Press the Hands free button to make and receive calls again via the Navigation device prior to ending the call.

- DTMF tones

You can send DTMF tones during a call (e.g. to check an answering machine). Press the DTMF tones button.

Use the desired button in the menu displayed to enter the respective tone.

Telephone settings

The telephone settings include all the settings relevant for the telephone mode.

Note:

All settings must be confirmed by pressing the OK button. With the button, you can exit the current menu at any time without having changed anything.

Now My destinations Show map TMC Settings Phone Extras

In the main menu, press the Settings button.

Navigation settings Phone settings System settings

Press the Phone settings button.

>>> TELEPHONE MODE

D

GB

F

E

PL

CZ

H

RU

You will branch to the menu for the telephone settings.

Start

In the menu, various pages with the functions are available:

Bluetooth Auto-connect Visibility Auto-accept call Volume Auto-accept call Volume Refresh Bluetooth name SMS signal

You can branch to the next or previous page of the settings by pressing the ▲ and ▼ buttons.

Switching Bluetooth on and off

With the Bluetooth button, you can switch Bluetooth on or off.

In the settings menu, press the Bluetooth button.

Depending on the previous setting, you can switch Bluetooth on or off.

• Top icon: function on
• Bottom icon: function off

Automatic connection

With the Auto-connect button, you can switch on or off whether an automatic connection to a cell phone is attempted after switching on the Navigation device.

In the settings menu, press the Auto-connect button.

Depending on the previous setting, you can switch the function on or off.

• Top icon: function on
• Bottom icon: function off

Visibility

With the Visibility button, you can switch on or off whether or not for a search other Bluetooth devices can detect the Navigation device.

In the settings menu, press the Visibility button.

Depending on the previous setting, you can switch the function on or off.

• Top icon: function on
• Bottom icon: function off

TELEPHONE MODE

Automatic call acceptance

With this function, you can set whether or not or after which time an incoming call is accepted automatically.

In the settings menu, press the Auto-accept call button.

Automatically accept calls OFF after 3 seconds after 5 seconds after 10 seconds

Select whether incoming calls will be accepted automatically after 3, 5 or 10 seconds.

If you select Off, the function is switched off.

The setting currently selected is indicated with a checkmark ( ).

Confirm your settings by pressing the OK button.

Telephone volume

With this function, you can set the volume of the ringtone and the volume of the call.

In the settings menu, press the Volume button.

Phone volume 50% - +

Select the desired volume with the - and buttons.

Press the button to mute the volume.

Confirm your settings by pressing the OK button.

Updating phonebook

With this function, you can update or re-transfer the stored phonebook entries in the Navigation device.

In the settings menu, press the Refresh button.

Downloading phone book... This process might take some minutes. Transferred: 110 Processed: 30 Close

Be aware that it may take several minutes to load the phonebook.

>>> TELEPHONE MODE

Bluetooth name

With this function, you can assign a name for your Navigation device. This assigned name will then be displayed by other Bluetooth devices.

In the settings menu, press the Bluetooth name button.

Traffic Assist							Abc
a	b	C	d	e	f	g	AER
h	i	j	k	l	m	n	123
o	p	q	r	s	t	u	AAA
v	w	x	y	z	-	+	OK

Enter the desired name. Confirm the name entered by pressing the OK button.

Text message notification (depending on the model)

With this function you can set how the Navigation device should respond when a new text message is received.

Press the SMS signal button in the settings menu.

SMS signal No signal Play tone only Show popup Read out automatically

Select the required setting.
- No signal No notification is given.
- Play tone only A signal tone will sound.
• Show popup A menu is displayed in which you can select whether the message should be displayed, read out or ignored. See "Incoming text message" on page 104.

- Read out automatically

An incoming text message will be read out automatically.

Note:

The message can only be read out if a voice tagged with the abbreviation TTS has been selected. See "The Voice button" on page 70.

Confirm your settings by pressing the OK button.

EXTRAS

Under Tools, the following functions are grouped together, depending on the model:

• MP3 player*
• Picture viewer*
• Video player*
  • Country information

The extras menu is called up from the main menu.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press Extras.

Travel Guide Music Videos Pictures Country information

This displays the extras menu.

Select the desired function by pressing one of the buttons.

MP3 player\*

The MP3 Player can play MP3 tracks saved on an inserted micro SD memory card or on the internal memory.

Travel Guide Music Videos Pictures Country information

Press the Music button.

If a track is already playing, the playback menu is displayed immediately.

If no track is playing, the selection menu is displayed.

Artists Genres Albums Folders Songs Playlists

Selecting a track

Tracks can be selected from the selection menu.

Artists Genres Albums Folders Songs Playlists

In the selection menu, you have 6 ways of selecting tracks.

Note:

In order to select tracks using the categories Artists, Genres and Albums, the MP3 files should have ID3 tags.

Titles can only be selected using the Playlists category if there are playlists on the memory card.

- Artists

When you select Artists the tracks on the memory card are listed sorted by artist.

- Genres

When you select Genres the tracks on the memory card are listed sorted by genre (e.g. rock, pop).

- Albums

When you select Albums the tracks on the memory card are listed sorted by album.

- Folders

When you select Folders you can select the tracks according to the folder structure on the memory card.

- Songs

When you select Songs all the tracks on the memory card are listed in alphabetical order.

- Playlists

When you select Playlists the playlists on the memory card are listed.

Selection using Folders is described here as an example. The other selection options are similar in functionality.

Press the Folders button.

Play all folders Avril Lavigne - Let Go Eminem Jean Michel Jarre Madonna

The directories on the memory card are displayed.

By pressing the Play all folders button you can play all the tracks in the current directory level.

Press the arrow buttons on the right of the screen to browse through the list.

You can press the button at any point to go up one step in the directory hierarchy.

Select the required folder or subfolder.

Play all songs 01 - Honey.mp3 02 - Find My Baby.mp3 03 - Porcelain.mp3 04 - Why Does My Heart Feel So B.

Choose the track you want, or press Play all songs to play all the tracks in the selected folder.

The playback menu is displayed.

01 - Honey.mp3 Moby 02 - Find My Baby.mp3 Play 03 - Porcelain.mp3

EXTRAS

The playback menu

You can use the playback menu to control the playback of the MP3 tracks.

1:38 mm 01 - 100.mp3 Moby 2 - Find My Baby.mp3 Play 03 - plain.mp3 7 6 5 4 3

① Elapsed track time
② Call up track list
③ Call up navigation mode
④ Switch between random play and track repeat
⑤ Start/pause playback
⑥ Open folder overview
⑦ Volume setting
⑧ Display/button for next track
⑨ Current track
⑩ Display/button for previous track
⑪ Graphic display of the playing time / fast forward/rewind

Track skip

The names of the next and previous track are displayed above and below the current music track.

Press a track.
The track in the track line is loaded.
• The track will not be played until the playback button is pressed.
- If a track is already being played, this is interrupted and playback of the new track begins.

Playback

To play the music track displayed in the track line, press the following button:

Press the button with the play icon. The MP3 player starts playback. The button display changes to the pause icon.

At the top right of the display, you can see the elapsed time. Next to that, the elapsed time is displayed in the form of a bar. By pressing and moving the arrow at the end of the bar, you can move to a different place in the current track.

Note:

The displayed times may differ from real time, depending on the bit rate (compression) of the MP3 file.

Interrupting playback

You can pause and resume playback at any time.

Press the button with the pause icon. Playback is interrupted. The current track is still displayed in the track line. The button display changes to the playback icon. Playback is continued by pressing again.

Track repeat / random play

You can set a track to repeat on a loop, or play the tracks in a random order.

01 - Honey.mp3 Moby 02 - Find My Baby.mp3 Play 03 - Porcelain.mp3

Press the button marked with an arrow repeatedly until the desired function is selected.

The icon displayed changes according to the function selected.

• Icon functions are turned off
• Icon random play is selected
• Icon title repeat is selected

Setting the volume

You can set the volume of the MP3 play-back.

Warning.

Always adjust the volume so that you can still hear any ambient noise while driving.

In the playback menu, press the button.

02 - Find My Baby.mp3 Play 03 - Porcelain.mp3

Press or to increase or decrease the volume.
Press in order to mute the music.
Press again in order to cancel the mute function.

Closing the MP3 player

Pressing the 📄 button closes the MP3 player and displays the media menu.

Note:

Please note that music playback will continue, despite leaving the playback menu. Press the pause icon to stop music playback. (See "Interrupting playback" on page 117.)

Image viewer\*

Note:

The image viewer cannot be called up when route guidance is active.

The Image Viewer can display pictures saved on an inserted micro SD memory card or on the internal memory.

The jpg and bmp image formats are supported.

Travel Guide Music Videos Pictures Country information

Press the Pictures button.

For safety reasons it is not allowed to use this function while driving. OK

A message is displayed stating that the image viewer must not be used when driving. Please observe this warning.

Confirm the message by pressing the OK button.

USA Slide show Settings

The image viewer menu appears.

The image viewer menu

In the image viewer menu, you can select images, start a slide show and call up the settings.

USA ① ② ② ② ② ③ ④ ⑤ Slide show Settings

① File containing images
② Thumbnails of the images in the current folder
③ View the previous page of images/folders
④ Go up one level in the directory hierarchy
⑤ View the next page of images/folders

Selecting an image

USA Slide show Settings

In the image viewer menu, select the desired folder, and then the desired image. You can use the and buttons to scroll through the pages of images and folders.

The selected image is displayed along with an image menu.

Scenic landscape with a lake, forested hills, and distant mountains under a clear sky (no text or symbols visible)

You can use the menu buttons to rotate or enlarge the image or to display information.

Press the buttons to the left and right of the image to move to the next or previous image.

Press the centre of the image to hide the image menu.

Scenic lake surrounded by trees and distant mountains under a clear sky (no text or symbols visible)

Press the right- or left-hand side of the screen to move to the next or previous image.

Press the centre of the image to show the image menu again.

Enlarging the image

Show the image menu.
Press the Zoom button.

Scenic landscape with a lake, forested hills, and mountains in the background (no text or symbols visible)

Move the control on the right of the screen to the desired level of magnification.

The image can then be moved around.

Press the centre of the image to cancel the enlargement.

Rotating the picture

Show the image menu.

Press the Rotate button until the image is in the desired orientation.

Press the centre of the image to hide the image menu again.

EXTRAS

Displaying image information

Show the image menu.
Press the EXIF button.

0002.JPG Full Path Storage Card\Pictures\0002.JPG File Size 168877 bytes 1/8 File Date 2008-06-27 12:10:42 Image Size 850 x 638 pixels

Information on the current image is displayed.

Press the button to close the information.

Slide show

In the slide show, all the pictures in the current folder level are automatically displayed sequentially.

Press Slide show in the image viewer menu.

The image display changes to full screen display and initiates the slide show according to the settings made, with the first image in the current folder level.

The slide show will end once all images have been displayed.

Press the button to stop the show before the end.

Settings

In the settings, you can choose the speed at which the images are displayed, whether certain effects are used when a new image is shown, and whether the images should be loaded at a higher quality.

Press Slide show settings in the image viewer menu.

Slide show settings OK Interval time 1 sec 3 sec 5 sec Effect Slide Load pictures in high quality (slower)

You can use Interval time to set the display duration.
In Effects you can choose the transition effects for the images.
In Load pictures in high quality (slower) you can choose whether images should be loaded at high resolution

(√) or not ( ) Loading the images at high resolution makes the display slower.

Confirm your settings by pressing the OK button.

Video player\*

Note:

The video player cannot be called up when route guidance is active. The video player must not be operated during driving.

The Video Player can show videos saved on an inserted micro SD memory card or on the internal memory.

The Navigation device supports the MPEG4 Part2 video format with the file extension .avi.

Travel Guide Music Videos Pictures Country information

Press the Movies button.

For safety reasons it is not allowed to use this function while driving. OK

A message is displayed stating that the video player must not be used when driving. Please observe this warning.

Confirm the message by pressing the OK button.

Becker.avi lotr-fellowship.avi

The selection menu is displayed.

In the selection menu, all the folders on the memory card containing videos are displayed.

In the selection menu, select the desired folder, and then the desired video.

Modern flat-screen monitor with a glowing screen and abstract graphics against a solid red background (no text or symbols visible)

The selected video is played in full-screen mode.

Displaying the video menu

You can use the video menu to control the playback of the video.

Press the screen when a video is running in full-screen mode.

1:16 min ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

The video menu appears.

① Elapsed track time
② Currently playing video
③ Open next video in the folder
④ Open previous video in the folder
⑤ Start/pause playback
⑥ Open folder overview
⑦ Volume setting
⑧ Graphic display of the playing time / fast forward/rewind

If no button is pressed for a short time, the video menu is automatically hidden again.

Playback

The displayed video is played using the following button:

Press the button with the play icon. The video player starts playback. The button display changes to the pause icon.

At the top right of the display, you can see the elapsed time. Next to that, the elapsed time is displayed in the form of a bar. By pressing and moving the arrow at the end of the bar, you can move to a different place in the current video.

Interrupting playback

You can pause and resume playback at any time.

Press the button with the pause icon. Playback is interrupted. The current track is still displayed in the track line. The button display changes to the playback icon. Playback is continued by pressing again.

Setting the volume

You can set the volume of the MP3 play-back.

Warning.

Always adjust the volume so that you can still hear any ambient noise while driving.

In the playback menu, press the button.

3:14 min RCD

Press or to increase or decrease the volume.
Press in order to mute the music.
Press again in order to cancel the mute function.

Country information

The country information enables you to display country-specific information for numerous countries (maximum permitted speed, alcohol limits, etc.).

Travel Guide Music Videos Pictures Country information

Press the Country information button.

Switzerland Turkey Ukraine United Kingdom Vatican City

The list of countries is displayed.

Press the button for the desired country.

Germany 50 100 OK

The country-specific information is displayed (maximum permitted speed, alcohol limits, etc.).

Note:

Please note that the information may not be complete and other regulations may apply in the various countries.

Below you will find a description of the symbols used:

Symbol Meaning
	Speed limit in built-up areas
	Speed limit outside built-up areas
[XX0Z]	Speed limit on motorways
	Alcohol limit
	Reflective jacket requirement
[CH9T]	Driving lights requirement during daytime
	Tow rope must be carried
	Spare bulbs must be carried
	Fire extinguisher must be carried

Press the OK button or the button to leave the menu.

Selecting system settings

You can change various basic settings for all applications on the Navigation device.

New My destinations Show map TMC Settings Phone Extras

In the main menu, press Settings.

Navigation settings Phone settings System settings

Press System settings.

The system settings menu is displayed.

The system settings menu

You can select the various settings options from the system settings menu.

Battery Day/Night Calibration Brightness Automatic on/off

Language Tones Colours Information Factory reset

Operation

Selection options

Select the desired menu item by pressing the appropriate button. The functionality of the buttons varies depending on the selection and is described under "The individual menu items" on page 127.

You can go to the next or previous page of the settings by pressing the and buttons.

Closing the settings menu

Press to close the settings menu.

The individual menu items

Battery

Your Navigation device may be operated using an external power supply unit or an integrated rechargeable battery.

Note:

The current charging state is important when operating with a battery. If the battery is low on power, it may not be possible to continue navigation right to the destination.

The energy supply and status are shown on a display.

Displaying the power supply

You can call up the status display using the following button.

Press the Battery button.

The status display appears and shows the power supply.

Battery status: 66% OK

The power level is shown in the charge display. In the example, the battery still has around two-thirds charge.

The charging operation is indicated by the mains socket symbol in the status display.

Charging... OK

Closing the status display

Pressing the OK button closes the status display and shows the settings menu.

Day/night display

You can set the Navigation device display to day, night or automatic.

The automatic setting changes automatically between day and night display depending on the time, the current position and the time of year.

You can call up the setting using the following button:

Press the Day/Night button.

Automatic Day Night

Select from Automatic, Day and Night. The desired function is activated and the system settings are displayed.

Calibration

If the touch screen responds incorrectly when buttons are pressed, it needs to be calibrated.

Starting the calibration

You can start the calibration using the following button:

Press the Calibration button.

The calibration procedure will be started. You will be guided through the procedure by means of text instructions.

Brightness

You can set the brightness of the display separately for day and night display. With the following button, you may call the setting:

Press the Brightness button.

Display brightness Day + Night

Use the and buttons to set the desired brightness for the day and night display.
Confirm your settings by pressing the OK button.

Language

The texts on the touch screen can be displayed in a variety of languages.

Opening language selection

You can choose between the various languages using the following button:

Press the Language button.

The language selection appears.

English (UK) Español Français Hrvatski Italiano

The language selection shows the available languages in a list several pages long. Each list field is in the form of a button. Each button is labelled with the language name and the associated national flag.

SETTINGS

Scrolling

Using the buttons, it is possible to scroll through the list in the direction of the relevant arrow.

Selecting the language

Press the button for the required language.
The selection is confirmed by pressing OK.

A prompt appears indicating that the software has been re-started, and you are asked whether you really want to change the language.

Confirm the prompt using Yes.

Cancelling the language selection

Pressing the 📋 button cancels the language selection and shows the settings menu.

Automatic on/off

The Navigation device can switch automatically to sleep mode when the vehicle ignition is switched off.

Prerequisite:

• The Navigation device must be connected to the vehicle cigarette lighter (see also page 18).
  • The cigarette lighter is de-energized after the ignition is switched off.
  • The relevant function can be switched on at the Navigation device.

Switching the function on / off

Press the Automatic on/off button. Depending on the previous setting, the function will be switched on or off. The current setting is shown by the icon.

• Top icon: The function is switched on, the Navigation device switches off automatically.
• Bottom icon: The function is switched off, the Navigation device does not switch off automatically.

The following display is shown during automatic switch-off.

Unit goes into sleep mode in 4 seconds. Cancel

You can cancel the automatic switch-off procedure by pressing the Abbrechen button.

Sounds

You can switch the Navigation device signal tone on and off. This also includes the clicking of the touch screen buttons.

Press the Tones button.

Depending on the previous setting, the signal tones are switched on or off.

• Top icon: Tones switched on
  • Bottom icon: Tones switched off

Setting the colour

You can change the colour of the icons and other design elements.

Press the Colours button.

Colors OK ① ②

Select one of the eight predefined colours.

or

Select the required colour using the slider 21 the bottom of the display.

Note:

The colour of the button ⓣ corresponds to the red colour set at the factory.

Confirm your settings by pressing the OK button.

Factory settings

You can reset your Navigation device to the factory settings.

This deletes the following amended data: saved destinations, saved routes, the home address, telephone data, images, videos etc. saved on the internal memory.

Press the Factory reset button.

Continue with factory reset? All data will be deleted. Yes No

Press the Yes button.

The Navigation device is reset to the factory settings.

Information

The following button displays information regarding the Navigation device.

Press the Information button.

The information display appears.

BECKER Image Version Software Version Current Language: English (UK) Map version information

Note in particular the product designation and the software version. Always quote these details in enquiries to the service provided by Harman/Becker.

The Map version information button displays information relating to the installed map data.

SETTINGS

My XTRAS

You can display the content installed on your Navigation device, the content that has already been updated, the content that has been purchased and the content that can be additionally purchased via the Content Manager.

Press the XTRAS button.

MY Installed content MY Updated content MY Purchased content MY Current offers

Press the button with the information on the content you want.

The content is displayed.

You can display further information by pressing the various content.

(Greenwich Mean Time)

Central European Time

The standard time at 0 degrees of longitude (the longitude which passes through Greenwich, Great Britain). This time is used worldwide for the synchronisation of data collection.

Bluetooth

Technology for wireless data transmission at short range up to 10 meters.

GPS

(Global Positioning System)

GPS determines your actual geographical position by the use of satellites. It is based on 24 satellites which orbit the Earth and emit signals. The GPS receiver receives these signals and calculates the distance to each satellite from the running time differences and thus evaluates its actual current position in terms of geographical length and width. In order to determine the position, signals from at least three satellites are required, and the fourth one allows the height to be determined.

ID3-Tag

„Index of Contents" of an MP3 title. Contains information such as title, artist, album, year and genre.

JPG/JPEG

(Joint Photographic Experts Group)

The JPEG is the most common type of storage format for dissipating picture compression., i.e. when compressing, details of the picture are lost. Still provides good picture quality despite compression, compression stages are selectable. It is the most common format for representation and exchange of pictures on the internet.

MP3

Special compression process for audio data (e.g. music).

SD Card

(Secure Digital)

The Secure Digital Card was developed in 2001 by SanDisk on the basis of the older MMC standard. An SD card is a re-writable change-over storage card.

Stylus

A stylus is an input pointer which is used for the operation of touch-screens, mobile phones or PDAs.

The stylus consists basically of a plastic pointer with a softer plastic core. The sleeve is hard and can be gripped and the softer core emerges at the tip and is designed to touch the screen as softly as possible (i.e. without the danger of scratching the screen).

The stylus is more accurate than operation using the fingers, since only the thin tip touches the screen. In addition, dirty marks on the screen caused by finger prints are avoided.

SPECIALIST WORDS

TMC

(Traffic Message Channel)

Traffic announcements transmitted by most FM stations via RDS. Basis for dynamic navigation.

USB

(Universal Serial Bus)

The Universal Serial Bus (USB) is a bus sytem for interconnection of a computer with external USB peripherals for the exchange of data.

D

GB

F

1

E

PL

CL

H

RU

>>> KEYWORDS

D

GB

F

|

E

PL

Cl

H

RU

Numerics

3D buildings 65

3D display 64,86

A

Altitude 78

Announcing streets 70

Automatic call acceptance ..... 113

Automatic connection ..... 107, 112

B

Block 85

Block route 85

Blocked roads 72

Bluetooth 106, 132

Switching on/off 112

Buildings in 3D 65

C

Call

Accept 109

End 109,110

Ignore 109

Refuse 109

Call list 104

Connecting a telephone ..... 106

Content Manager 34

installing 34

starting 35

Coordinate entry 59

Country information 61, 124

Current position 96

D

Daylight saving time 71

Destination from map 58

Destination input menu Configuration 43

Destination list 39

Destination memory Change .... 105

changing 40

scrolling.... 40

Destinations Entering 43

Protected 106

protected 39

Standard 39,106

storing 48

Dialling 100

Directions 93

Displaying street names 66

Displaying the route 48,93

Displaying the speed 78

Displaying the vehicle speed ..... 78

Driver alerts 68

DTMF tones 111

E

Economical route 62

Entering a town 45

Entering an address 45

Entering an address using speech ... 49

F

Factory settings 73

Fast access Icons 39

Fast route 62

Ferries 63

G

Geographic coordinates 59

GMT 132

GoogleTM points of interest ..... 41

GPS 132

GPS reception 96

H

Hazardous goods category ..... 91

Height above sea level 78

Home address 41

House number 47

KEYWORDS

|

ID3 tag 115

ID3-Tag 132

Image viewer .....119

Intended use 6

J

Journey time 78

JPG/JPEG 132

Junction 47

L

Lap recording....87

Last announcement .....81

Lists

Street list .....47

Telephone numbers .....104

Town list 46

M

Main menu .....26

Map

displaying .....77

zoom in 58,82

zoom out .....58, 82

Map display .....77

Map mode, setting .....64, 86

Map orientation....66

Measurement units .....71

Memory card .....21

Microphone on/off .....111

Motorways....63

MP3 115,132

MP3 player .....115

closing 118

Interrupting playback .....117

playing 117

Track skip....117

N

Navigation....37

cancelling .....26, 84

start 48

Number list

Dialing a number .....105

Editing 105

Scroll 105

Number lists 104

Numbers, dialling .....100

P

Phonebook ....100, 101

Update .....113

Photos 119

playback....117, 123

Points of interest

Call....54

entered directly .....53

in the vicinity .....51

neardestination 53

near to an address .....52

on the route ....83

Position display ....58

Q

Quick access

Icons....105

R

Radio remote control .....30

Random play function .....118

Remote control 30

Repeat current track....118

Restrictions

Ferries....63

Motorways 63

Toll roads 63

Route calculator....87

Route guidance

cancelling .....26, 84

start 48

Route options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 85

Route planning .....44, 55

Route types .....95

D

GB

F

|

E

PL

CL

H

RU

>>> KEYWORDS

D

GB

F

1

E

PL

Cl

H

RU

S

Safety information 6

Safety instructions 37

Satellites 96

Schnellzugriff 40

SD card 21

Searching for a telephone ..... 107

Selecting a country 44

Selecting a destination Entering an address ..... 45

Selecting a town 45

Selecting the street 46

Selecting the vehicle profile 62

Setting the volume . . 81, 113, 118, 124

Settings Navigation .... 60 System .... 126 Telephone .... 111

Short route 62

Signs, displaying 68

Simple route 62

Slide show 121

SMS 103

Speed limit 68

Stylus 132

Switching on the navigation device . . 24

System settings 126

T

Telephone menu 100

Telephone mode 99

Text messages 103

Time format 71

Time of arrival 78

Time zone 71

TMC 63,73

Display on the map 74

on the route 84

Recalculating routes 76

TMC antenna 19

Toll roads 63

Track repeat 118

Traffic information ..... 61, 124

Truck profile 90

U

USB 133

V

Video player 122

Interrupting playback ..... 123

playing 123

Visibility 112

Voice 70

Voice entry 49

W

Warnings Speed limit 68

Waypoint 92 delete 92

MODEL OVERVIEW AND TECHNICAL SPECIFICATIONS

●: standard-: not availableO: optional	Navigation system
	Ready 43	Ready 43 Traffic	Active 43 Traffic	Active 43 Talk	Active 43 Transit	Professional 43 Control
Weight 165 g 165 g 167 g 167	g 167 g 173 g
Processor in MHz 400 400 400	400 400 533
Flash memory 2 GB 2 GB 4 GB	4 GB 4 GB 4 GB
SD-RAM 64 MB 64 MB 64 MB	128 MB 128 MB 128 MB
LiIon battery(see also page 127)	720 mAh 720 mAh 1200 mAh 1200 mAh 1200 mAh
Headset output 3.5 mm(see also page 12)	-	-	-	-	-	●
Radio remote control(see also page 30)	-	-	○	○	○	●
TMC (see also page 73) -	●	●	●	●	●
Cable for vehicle integration(see also page 11)	-	-	-	-	-	○
Bluetooth hands-free device(see also page 99)	-	-	-	●	●	●
Dimensions	(W x H x D) in mm 126.4 x 81.4 x 19.7
Screen	10.92 cm; touch screen with 64000 colours; reflection-proof; display resolution: 480 horizontal and 272 vertical
Micro SD card reader	Support class 6 SDHC; format FAT32
USB interface	USB Client 2.0MINI-B USB
1 Internal loudspeaker	2 Watt max.
Supply voltage	LPS (Limited Power Source); 5 volt / 1A via recharger cable
AC adapter (not included in the delivery):	100 - 240 Volt; 0.2 ampere; 50 - 60 Hz; output voltage: 5 volt

Dear customer,

In conformance with current EC guidelines, any person may operate this unit. This unit conforms to the current valid European or harmonised national standards. This designation is your guarantee that the unit conforms to the applicable specifications regarding electromagnetic compatibility. This means that interference with other electrical/electronic devices caused by the unit, or interference with this unit caused by other electrical/electronic devices, is largely prevented.

The EC type-approval mark (E13) issued by Luxembourg's Road Traffic Registration Authority in accordance with European Directive ECE-R10 governing the EMC of motor vehicles in its current version authorises installation and operation of the unit in motor vehicles (classes L, M, N and O).

EU Declaration of Conformity

The United Navigation GmbH hereby declares that the navigation device described here is in compliance with the essential requirements of the EC directives and in particular is in compliance with the essential requirements and other relevant regulations of the R&TTE directive 1999/5/EG.

You can find a comprehensive EU Declaration of Conformity on our website http://www.mybecker.com under the "Downloads" area for the respective product.

Disposal of the unit

Customer information on the disposal of electrical and electronic devices (private households)

In accordance with the self-imposed company principles of United Navigation GmbH your product has been developed and manufactured from high-quality and recyclable materials and components.

This symbol on the product and/or accompanying documents means that at the end of their life electrical and electronic products must be disposed of separately from domestic waste. Please take these products to communal collecting points or recycling centres for processing and salvage of materials. The units will be accepted there free of charge.

The proper disposal of this product helps protect the environment and prevents harmful effects on humans and the environment which could result from improper handling.

More detailed information on the nearest collecting point or the nearest recycling centre can be obtained from your local council.

For commercial customers in the European Union

Please contact your dealer or supplier if you would like to dispose of this electrical/electronic equipment.

Information on disposal in countries outside of the European Union

This symbol is only valid within the European Union.

Disposal of the battery

Duty to supply information according to battery legislation (BattV)

Batteries must not be disposed of in household waste. It is the duty of the user to return used batteries. Please only dispose of batteries via specialised dealers or at battery collection points. In this way, you make a positive contribution to environmental protection. Since 1998, German battery legislation obligates all citizens to dispose of used batteries exclusively via the retail or at collection points specially equipped for this purpose (statutory obligation to return). It is the duty of the retail and of manufacturers to take back these batteries free of charge and to correctly recycle them or to dispose of them as hazardous waste (statutory obligation to take back).

The lithium ion battery in the Navigation device is marked with the adjacent symbol, consisting of a crossed-out waste bin, and the type of battery used.

Lithium ion

Removing the battery

Before you hand in your old unit for disposal, the battery must first be removed.

Note:

Please note that in following the removal instructions for the battery described here, your unit may be destroyed. You should only remove the battery if your unit is old and is to be handed in for disposal.

NOTICE

Technical diagram of a device showing internal components and labeled parts, including a Becker device with visible wiring and numbered parts.

Completely discharge the battery (leave the unit switched on with no power supply until it automatically switches off).
Remove the two rubber covers from the screw holes.
Unscrew and remove the two housing screws ② using a small cross-slot screwdriver.
Lever off the rear of the housing ③ using a flat-blade screwdriver (placed at the slits on the sides of the housing).
Pull out the connector of the battery connecting cable ④.
Remove the battery 5

Note:

Do not reconnect a unit that you have opened to the power supply.
