USER MANUAL Chicago 9000 ROUTE 66

Copyright © 1993-2006 ROUTE 66. All rights reserved.

ROUTE 66 and the ROUTE 66 logo are registered trademarks. Data copyright © NAVTEQ B.V. IMPORTANT REMARK: No part of this publication may be multiplied, be stored in a databank and electronically, mechanically, through photocopying, on sound carriers or in any other way be copied, without the explicit written approval of ROUTE 66. All other marks are the property of their respective owners. The information contained in this document is subject to change without prior notice.

ROUTE 66: Best by a Mile!

Table of contents

CONVENTIONS AND ABBREVIATIONS 5

INTRODUCTION 6

WELCOME 6

YOUR FIRST TRIP: NAVIGATE TO A DESTINATION 7

FIRST STEPS 8

PREPARE YOUR DEVICE 8

UNDERSTANDING THE NAVIGATION SCREEN 8

MOVING AROUND THE MENUS 10

MOVING AROUND THE MAP 10

USING THE KEYBOARD 11

USING THE FILTER 11

USING THE TOUCH SCREEN AND STYLUS 11

MAIN MENU 12

NAVIGATE TO A LOCATION 13

WORKING WITH LOCATIONS 14

NAVIGATE TO YOUR HOME ADDRESS 15

NAVIGATE TO YOUR OFFICE ADDRESS 15

FIND AN ADDRESS AND NAVIGATE TO IT 16

NAVIGATE TO A FAVOURITE LOCATION 17

NAVIGATE TO A RECENTLY VISITED LOCATION (HISTORY) 18

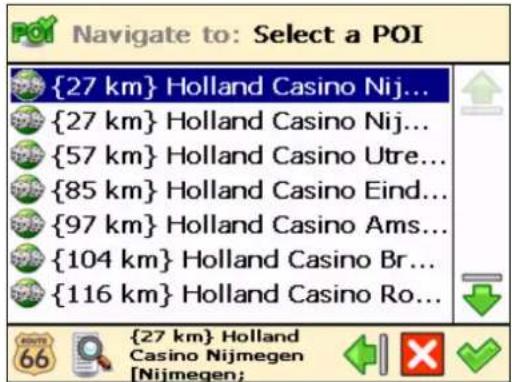

NAVIGATE TO A POI AROUND YOUR GPS POSITION 19

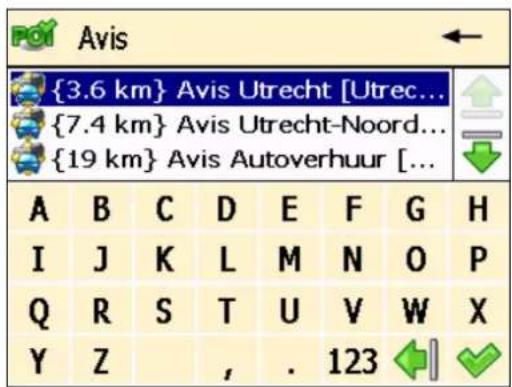

NAVIGATE TO A POI AROUND YOUR DESTINATION 20

FIND A POINT ON THE MAP AND NAVIGATE TO IT 21

NAVIGATE TO A DESTINATION VIA INTERMEDIATE POINTS (NAVIGATE VIA) 22

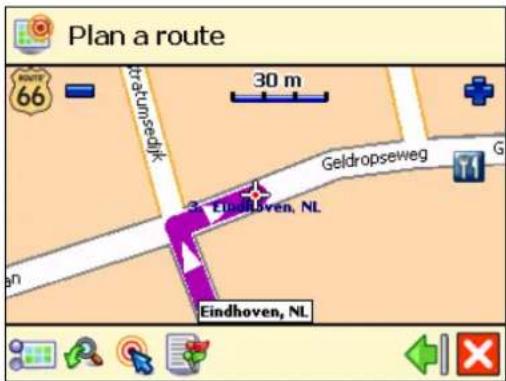

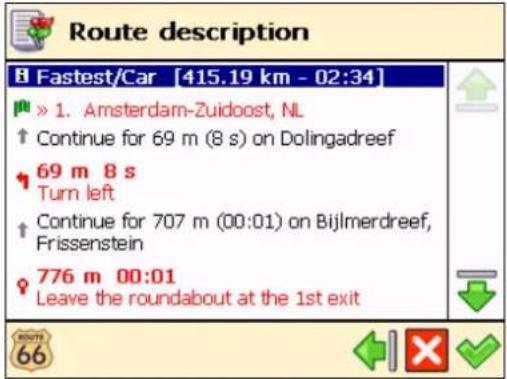

PLAN A ROUTE 24

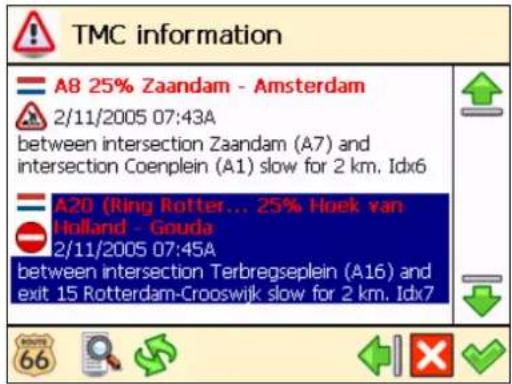

TMC INFORMATION 27

CUSTOMIZE YOUR NAVIGATION 28

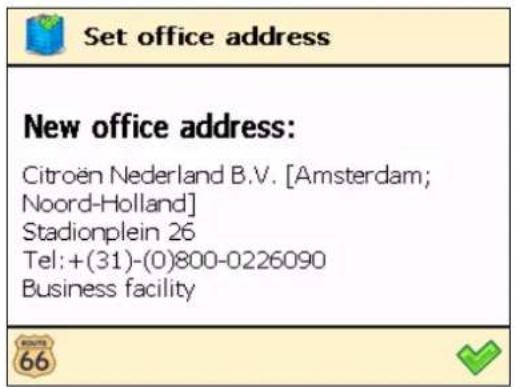

SET OFFICE ADDRESS 60

ADD FAVOURITE 61

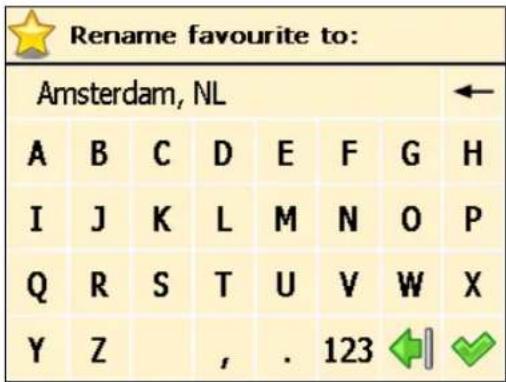

RENAME FAVOURITES 62

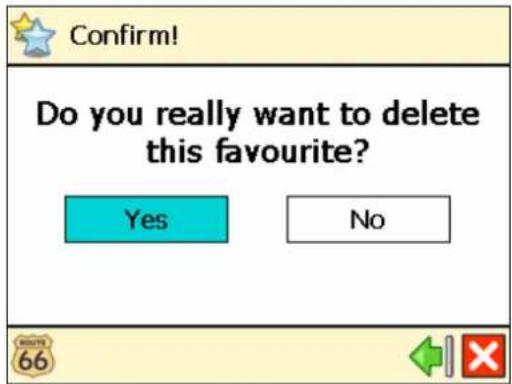

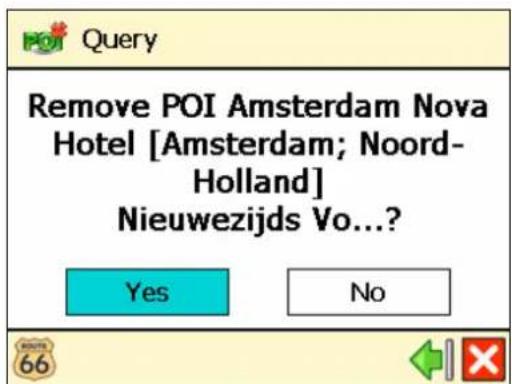

REMOVE FAVOURITES 63

APPENDIX 64

INSTALLING OTHER GEOGRAPHIC MAP(S) AND VOICE INSTRUCTIONS ON THE MEMORY

CARD 64

FORMATTING YOUR MEMORY CARD 65

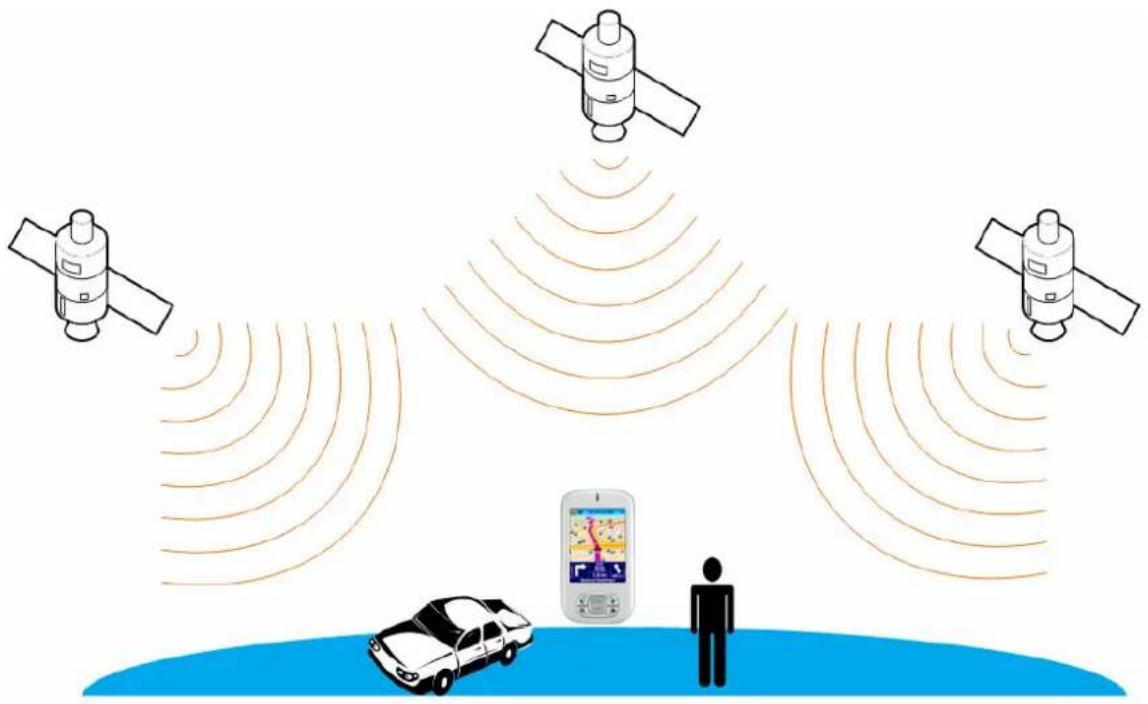

HOW DOES GPS WORK? 66

QUICK REFERENCE CARD – NAVIGATE TO A LOCATION 67

CUSTOMER SUPPORT 69

LICENSE AGREEMENT 69

DISCLAIMER 70

Conventions and abbreviations

These are the conventions used in this user manual:

1, 2, 3	Step-by-step instructions.
Locations, Change settings	Menus and submenus in your ROUTE 66 product.
	Icons in your ROUTE 66 product.
Amsterdam restaurant Examples.
	Warnings or important information.

These are the abbreviations used in this user manual:

2D Bi-dimensional

3D Three-dimensional

GPRS General Packet Radio Services (technology)

GPS Global Positioning System

IT Information Technology

POI Point-of-interest

RDS Radio Data System (technology)

TMC Traffic Message Channel (technology)

USB Universal Serial Bus

Introduction

Welcome

Congratulations! You have just purchased your ROUTE 66 product. You are the owner of an all-in-one, GPS-enabled navigation solution that contains easy-to-use on-board software, the most comprehensive map coverage currently available on the market, and state-of-the-art technology.

Easy-to-use software:

• You don't have to be an experienced driver or an IT specialist to use this product. Our professional solution is simple and user-friendly.
• Let the product do all the calculations for you. Meanwhile, concentrate on the road ahead of you and enjoy your trip.
  ■ Behind the wheel. On your bike. Or simply walking. Our solution adapts to your needs and lifestyle.
• Customize! Customize! Customize! It has never been easier to define your navigation the way you like it! Switch from day view to night view. Browse your route in the classical 2D view, or fly like a bird over the map in the more challenging 3D perspective. Change map colours. Set speed limits and speed alerts. Pick the language of the voice instructions and the user interface. Take advantage of the extensive collection of points-of-interest. Keep your expenses under control...
• Do you want to navigate from A to B? Would you rather prefer a detour from the initial route? What about longer trips, with many stopovers? Your ROUTE 66 product can do this!

Comprehensive map coverage:

The geographic data is provided by NAVTEQ, a world leader in premium-quality digital map data.
■ Street-level or major roads. National or Pan-European coverage. It's up to you!
- Choose from an impressive collection of points-of-interest, including restaurants, hotels and petrol stations.

Start navigating now! It's that simple!

Your first trip: Navigate to a destination

With your ROUTE 66 product, you can travel more easily and much faster. Let's say that you wish to travel to a restaurant in Amsterdam:

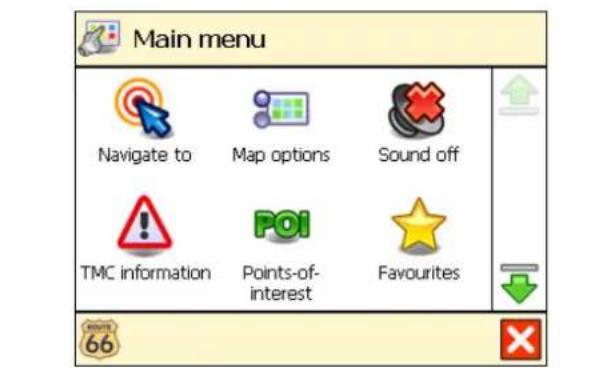

Main menu Navigate to Map options Sound off TMC information Points-of-interest Favourites

In Main Menu

, select Navigate to

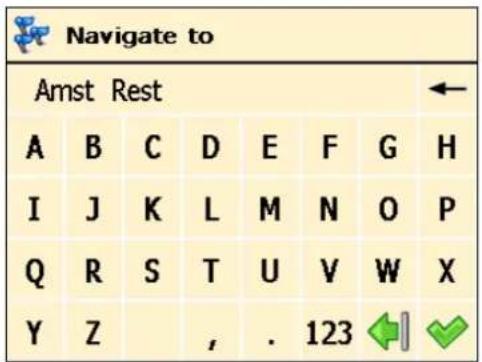

Navigate to Amst Rest A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123 ↙ ✓

Type Amsterdam restaurant, or just amst rest and firm your choice .

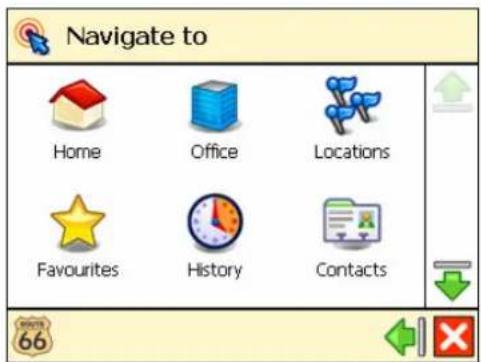

Navigate to Home Office Locations Favourites History Contacts

Select Locations

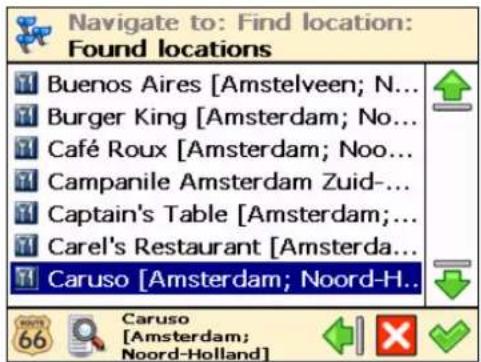

Navigate to: Find location: Found locations Buenos Aires [Amstelveen; N... Burger King [Amsterdam; No... Café Roux [Amsterdam; Noo... Campanile Amsterdam Zuid-... Captain's Table [Amsterdam;... Carel's Restaurant [Amsterda... Caruso [Amsterdam; Noord-H...

From the list of results, select the location that best is your needs, for example Caruso Amsterdam and firm your choice .

That's all! Now you can start navigating to your destination.

First steps

Prepare your device

To start using your ROUTE 66 product, you have to carry out the following 4 steps:

1 Charge the battery of the device.
② Insert the memory card into your device.
3 Switch on your device and wait for a fixed GPS position.
4 Launch your ROUTE 66 product.

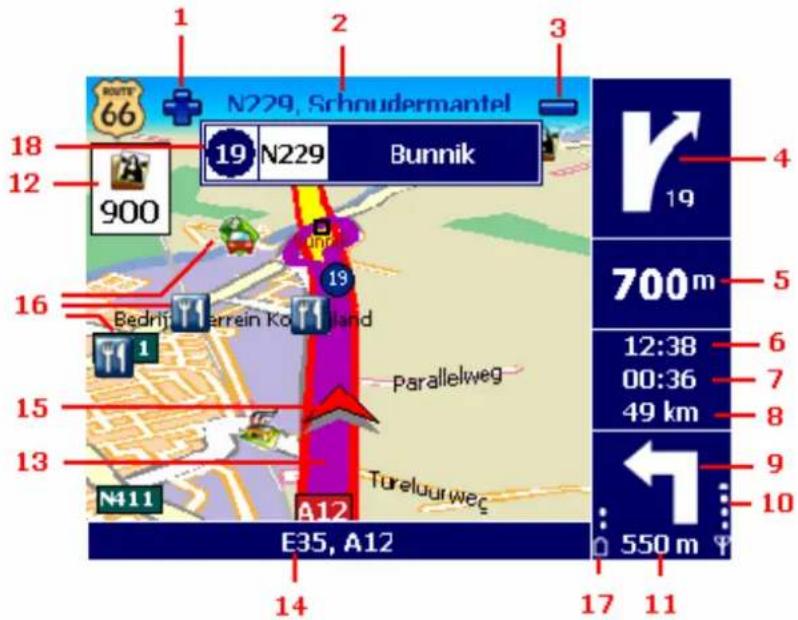

Understanding the navigation screen

The main elements of the navigation screen are presented below.

N229, Schnudermantel Bunnik 19 N229 18 12 3 66 900 16 Bedrij Terrein Ko I Land 1 13 15 17 14 E35, A12 700m 5 12:38 6 00:36 7 49 km 8 Tureluurweg Parallelweg 19 10 550 m

Element	Description Element		Description
1 Zoom in 10 Strength of GPS signal
2 Next street 11 Remaining distance to the next turn
3 Zoom out 12 POI alarm
4 Current turn 13 Current route
5 Remaining distance to the current turn		14 Current street
6 Estimated time of arrival 15 GPS arrow (current position)
7 Remaining time to destination 16 Point-of-interest
8 Remaining distance to destination		17 Battery level
9 Next turn 18 Exit information

You can tap several areas of the navigation screen and display additional information:

• Tap the map area to open the Main Menu screen.
• Tap the top-right area (4) to repeat the last voice instruction.

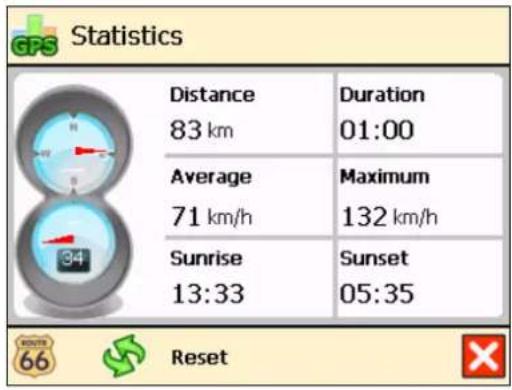

• Tap the middle-right area (including 5, 6, 7 and 8) to display the Statistics screen.

GPS Statistics Distance 83 km Duration 01:00 Average 71 km/h Maximum 132 km/h Sunrise 13:33 Sunset 05:35 66 Reset

- Tap the bottom-right area (including 9, 10, 11 and 17) to display the GPS information screen.

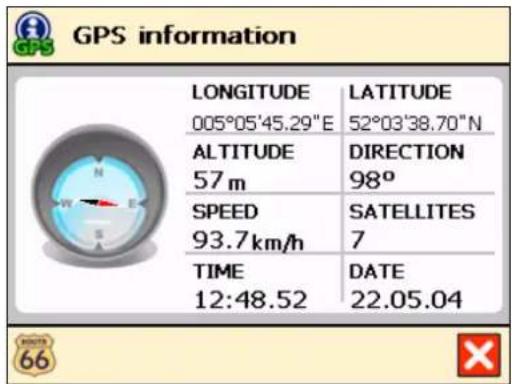

GPS information LONGITUDE LATITUDE 005°05'45.29"E 52°03'38.70"N ALTITUDE DIRECTION 57 m 98° SPEED SATELLITES 93.7 km/h 7 TIME DATE 12:48.52 22.05.04

Depending on your preferences and the specifications of your device, the navigation screen will be displayed as follows:

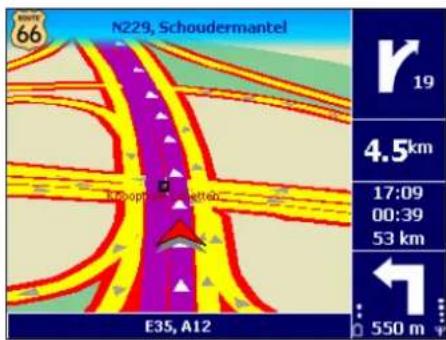

Vertical turn arrows

N229, Schoudermantel 19 4.5km 17:09 00:39 53 km E35, A12 550 m

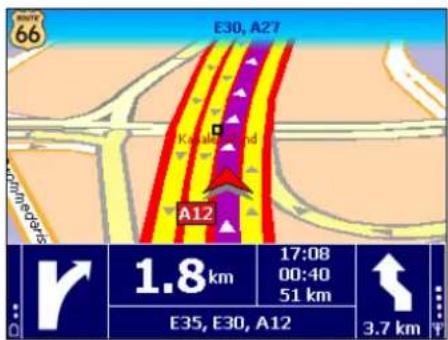

Horizontal turn arrows

E30, A27 Kakaland A12 1.8 km 17:08 00:40 51 km E35, E30, A12 3.7 km

Moving around the menus

Use the following buttons to move through the product:

Button Action
(HK3T)	Go to the next screen or confirm choices made on the current screen. For example, confirm language selection or start navigating.
(3503)	Return to the previous screen or abort the current action. For example, return to the route type selection or cancel a search action.
(87HD)	Jump to the main navigation screen, regardless of the current screen.
☐(De)Select an item or option.
(3CY2)	Move one screen up.
	Move one screen down.
(T6W4)	Filter long lists of search results.
	Delete the selected item in a list.
[4WWV]	Delete all items in a list.

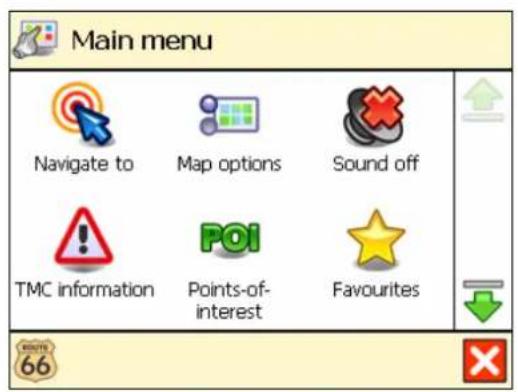

Depending on the specifications of your device, the menus will be displayed as follows:

Landscape orientation

Main menu Navigate to Map options Sound off TMC information Points-of-interest Favourites

Portrait orientation

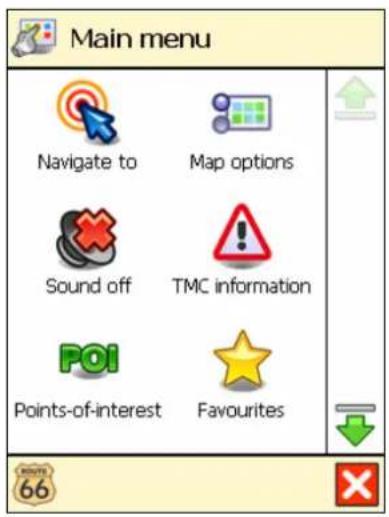

Main menu Navigate to Map options Sound off TMC information POI Points-of-interest Favourites

You can also use the joystick, if available.

Moving around the map

To view the map in a more convenient way, use the following buttons:

Button Action
	Enlarge the map view (zoom in). As you zoom in, more details will de displayed on the map.
	Decrease the map view (zoom out). As you zoom out, less details will de displayed on the map.

You can scroll the map by selecting & holding the map and dragging it in the desired direction. You can also use the joystick, if available.

Using the keyboard

The keyboard is displayed automatically when you want to enter a name (numbers, letters, or both), for example an address.

To display letters, select ABC.

To display numbers and other symbols, select 123.

To delete characters, select Backspace .

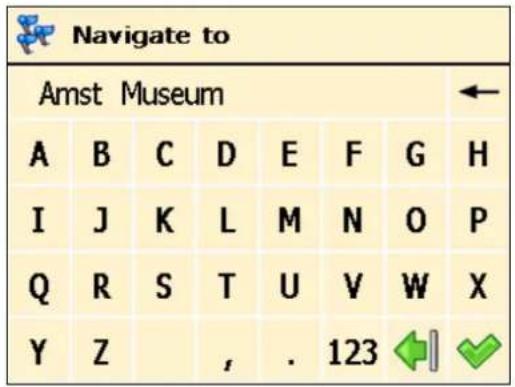

Navigate to Amst Museum A B C D E F G ← I J K L M N O P Q R S T U V W X Y Z , . 123

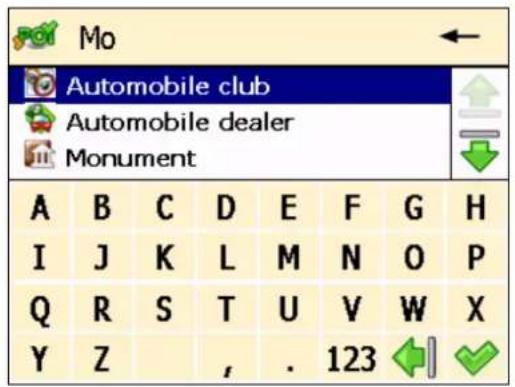

Using the filter

In longer lists, select the filter to narrow your search results.

Enter a letter, a group of letters, or a word.

That keyword is searched for in all items of the list.

The keyword can be detected anywhere in the list: at the beginning, in the middle or at the end of an item.

Mo Automobile club Automobile dealer Monument A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

Using the touch screen and stylus

The touch screen allows you to make selections, browse the map or enter data. Touch the desired object on the screen, with the stylus or simply with one of your fingers.

Main menu

First of all, spend a few minutes and read the following overview of the main features of your ROUTE 66 product.

Icon Name	Description
	Navigate to	Select this button to select a destination and start navigating it. Just select your home address or your office address; type the name of a particular location; pick a Favourite location or a recently visited address (History); browse a huge collection of points-of-interest around your current position or around your destination. Browse the map, select a location and start navigating to it.
	Map options	Select this button to customize your travelling experience. Switch from day view to night view. Display your route in 2D or 3D perspective. Set the map perspective. Show or hide your favourites or the map scale. View the legend and change colours. Choose which points-of-interest you want to display on the map.
[XYZ7]	Sound on / Sound off	Switch the speaker on or off.
	Points-of-interest	Select this button to define and maintain categories of points-of-interest. Fill these POI categories with locations you visited or discovered during your trips. Set alerts.
	Favourites	Select this button to store and maintain addresses or destinations that you visit frequently or that are of great importance to you Save them as favourites. Add favourites to your trips.
	Zoom to	Think of this button as a powerful tool to locate a particular location on the map.
	Change settings	Customize the overall functioning of the product. Set the language of the user interface and the voice instructions. Set the backlight, the time indicator or the automatic zooming. Switch from metric units to imperial units. Control the sound volume the voice instructions. Specify the preferred type of route for travelling. Set safety indicators, including alarm and speed. Specify what to avoid along your route (motorways, toll roads, ferries).
	Plan a route	Choose your departure location, your destination location and, optionally, as many stopovers (intermediate locations) as you need. Then, calculate the route, read the route description and start navigating.
	Navigate via	Select this button to compose a route that contains one or several stopovers and start navigating. Choose at least the departure location and destination location; if your route includes several stopovers (intermediate locations), add each of them as another waypoint to your route.
	TMC information	Select this button to receive the latest traffic messages on your device. In this way, you can avoid traffic jams, road works or accidents that occur along your route.
	GPS information	Check the status of the GPS receiver.
	Help	Access the list of help topics and the copyright information.
	Statistics	View statistical data about your current trip.

Navigate to a location

Now you are ready for your first trip. Select a destination and start navigating.

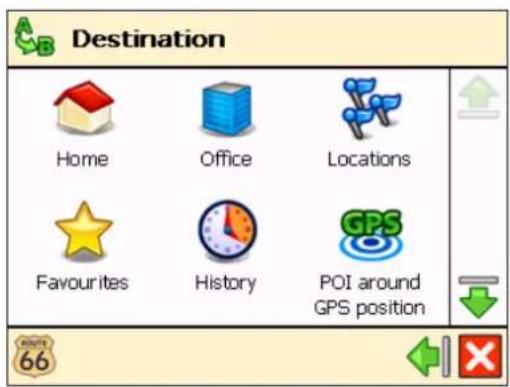

When you are in the Navigate to screen, select:

Icon Name	Description
	Home	This is an address or location you frequently navigate to, for example your home address.
	Office	This is an address or location you frequently navigate to, for example your company headquarters.
	Location	Search for a location by typing its name.
	Favourites	These are the addresses or locations you saved for future trips. Instead of searching for a location each time you need it, you can save it as a favourite and select it as often as you want.
	History	Here you can find the locations that you have visited recently.
	Contacts	Simply select a contact from your address book and navigate to it.
	POI around GPS position	These are points-of-interest (POI) around your current GPS position.
	POI around destination	These are points-of-interest (POI) near the destination of your trip.
	Point on map	Browse the map and indicate any location.

For details about finding locations, read the Working with locations chapter.

Working with locations

Locations. Addresses. Places. Points on the map. These are the basic elements that you can use to compose a new trip. A location can be your departure, your destination, or any intermediate waypoint.

How to take advantage of the available locations?

- search locations

by name;

• search the categories of points-of-interest around your current location

or around your

destination

• define your home address or your office address ;
• customize your favourites ;
• organize the locations you visited recently (History)
  • from your address book, select a contact ;
• scroll over the map and indicate any location.

The possibilities are endless!

Navigate to your home address

Imagine that you have just finished a business meeting far away in the countryside or in an unknown city. And all you want to do now is to go home. Wouldn't it be nice to select Home and start navigating to your destination? That's possible now!

① In Main Menu , select Navigate to . ② Select Home .

That's all! Now you can start navigating to your home address.

This option is available only if you have defined your home address before!

Navigate to your office address

With your ROUTE 66 product, it's so easy to start travelling to your workplace, be it an office, a university or a construction site.

① In Main Menu , select Navigate to . ② Select Office .

That's all! Now you can start navigating to your office address.

This option is available only if you have defined your office address before!

Find an address and navigate to it

You are driving to an important meeting. But, suddenly, your secretary informs you that there is a last-minute change: the meeting will take place in another city and in another hotel. Switch on your device, search for this location, and start navigating to it. All in a few seconds!

① In Main Menu , select Navigate to .

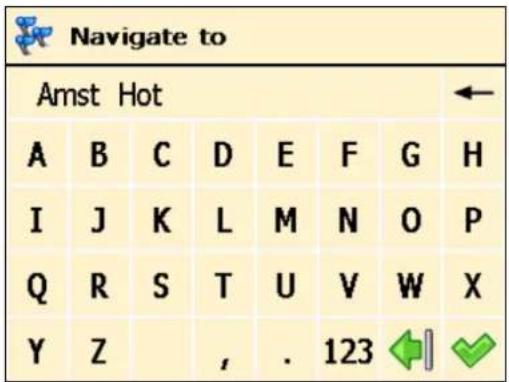

3 Type the name of the city, for example Amsterdam or just amst. Because the list of possible locations could be large, narrow your search by typing another keyword, for example hotel or just hot. When you have entered all search strings, confirm them

Navigate to Amst Hot A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

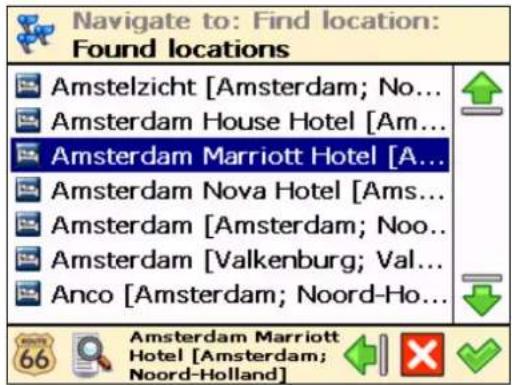

4 Wait for a few seconds. When the list of results is displayed, pick out the location that you are looking for. Confirm your choice

Navigate to: Find location: Found locations Amstelzicht [Amsterdam; No... Amsterdam House Hotel [Am... Amsterdam Marriott Hotel [A... Amsterdam Nova Hotel [Ams... Amsterdam [Amsterdam; Noo.. Amsterdam [Valkenburg; Val... Anco [Amsterdam; Noord-Ho... Amsterdam Marriott Hotel [Amsterdam; Noord-Holland]

If no result is found, repeat step ③ and enter another search string!

That's all! Now you can start navigating to your destination.

Navigate to a favourite location

Let's say that you frequently travel to the same location, for example a gas station, a ski resort or a cinema. These are your favourite locations. Would you like to store them into a personal folder? You will never lose them again! Your ROUTE 66 product lets you carry them with you, find them quickly, and easily navigate to them.

① In Main Menu , select Navigate to .

3 The list of locations you have saved before as favourites is now displayed on the screen. Select the filter if necessary. Select the location you need and confirm your choice.

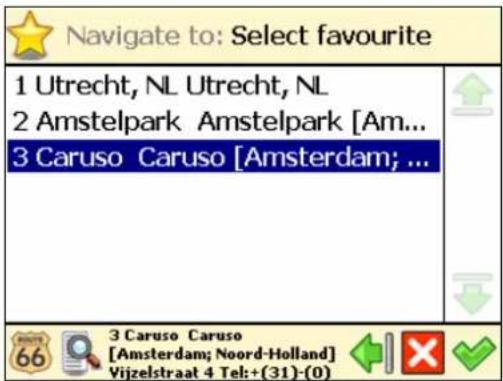

Navigate to: Select favourite 1 Utrecht, NL Utrecht, NL 2 Amstelpark Amstelpark [Am... 3 Caruso Caruso [Amsterdam; ...

If no favourite location was saved before, the list of favourites is empty!

That's all! Now you can start navigating to your destination.

Navigate to a recently visited location (History)

Let's say that last week you had a great time visiting a national park in the mountains. This weekend you would like to go to that same location again. You can try to remember all travelling details, but that's not always easy. Or, you can simply go to your History list and find the address you visited last week. Then, select it as your destination for this weekend.

① In Main Menu , select Navigate to .

3 The list with the locations you have visited recently is now displayed on the screen. Select the filter if necessary. Select Delete 🎨 to delete the selected item; select Delete all 🎨 to delete all items. Select an item in the list and confirm your choice .

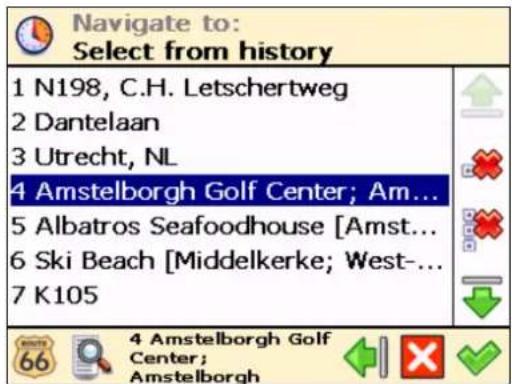

Navigate to: Select from history 1 N198, C.H. Letschertweg 2 Dantelaan 3 Utrecht, NL 4 Amstelborgh Golf Center; Am... 5 Albatros Seafoodhouse [Amst... 6 Ski Beach [Middelkerke; West-... 7 K105 4 Amstelborgh Golf Center; Amstelborgh

If this is your first trip, the Select from history list is empty!

That's all! Now you can start navigating to your destination.

Navigate to a POI around your GPS position

Let's say that you are spending your holiday in an unknown city (which is now your current GPS position). You would like to visit as many points-of-interest as possible, for example museums, casinos and libraries. You could ask the hotel personnel for details and driving instructions, but that takes time. Or, you can use your device to select a POI category and then a specific POI. Then, it's up to you to decide which location you want to visit first!

1 In Main Menu

, select Navigate to

2 Select POI around GPS position

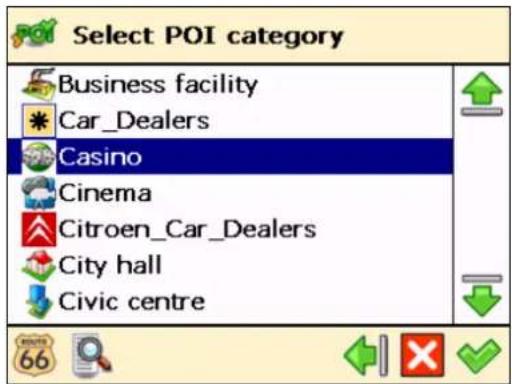

3 Select a relevant POI category, for example Casino and confirm your choice √.

Select POI category Business facility Car_Dealers Casino Cinema Citroen_Car_Dealers City hall Civic centre

4 The results are sorted by distance: the first POI in the list is the closest to your GPS position. Select the filter if necessary. Select an item from the list and confirm your choice.

Navigate to: Select a POI {27 km} Holland Casino Nij... {27 km} Holland Casino Nij... {57 km} Holland Casino Utre... {85 km} Holland Casino Eind... {97 km} Holland Casino Ams... {104 km} Holland Casino Br... {116 km} Holland Casino Ro... {27 km} Holland Casino Nijmegen [Nijmegen;

If there is no location that meets your search criteria, the No search results! message is displayed!

That's all! Now you can start navigating to your destination.

Navigate to a POI around your destination

Let's say that next week you will have a business trip to an unknown city (your future destination for a few days). You would like to know in advance where to find a bank, an ATM or the convention centre. You could ask the hotel personnel for details and instructions, but that takes time. Or, you can use your device to select a POI category and then an address. Then, it's up to you to update your agenda.

① In Main Menu , select Navigate to .

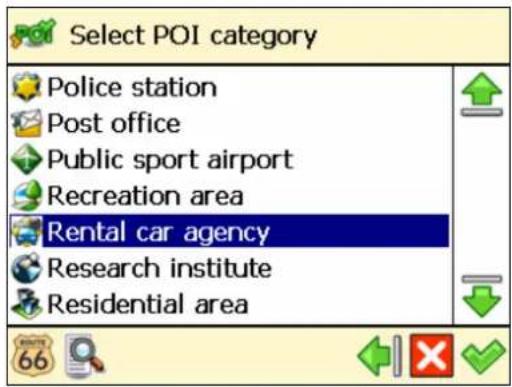

3 Select a relevant POI category, for example Rental car agency and confirm your choice √.

Select POI category Police station Post office Public sport airport Recreation area Rental car agency Research institute Residential area

4 The results are sorted by distance: the first POI in the list is the closest to your destination. Select the filter if necessary. Select an item from the list and confirm your choice.

Avis {3.6 km} Avis Utrecht [Utrecht... {7.4 km} Avis Utrecht-Noord... {19 km} Avis Autoverhuur [...] A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

If there is no location that meets your search criteria, the No search results! message is displayed!

That's all! Now you can start navigating to your destination.

Find a point on the map and navigate to it

Let's say that you are on holiday in a region you visited last year. You have great memories about a particular location with a superb panorama, but you can't remember its name. All you remember is the approximate location on the map. On the screen, browse the map, see where you are right now (your current GPS position), then search and select that special location. Then start navigating to that location. Fast and simple!

① In Main Menu , select Navigate to .

③ The map and your current position (GPS position) are displayed. Zoom in to display

more details on the map. Zoom out to view a larger section of the map. Select & hold and drag the map in the desired direction. When you see on the map the location of your memories, select it. The pointer indicates this location on the map.

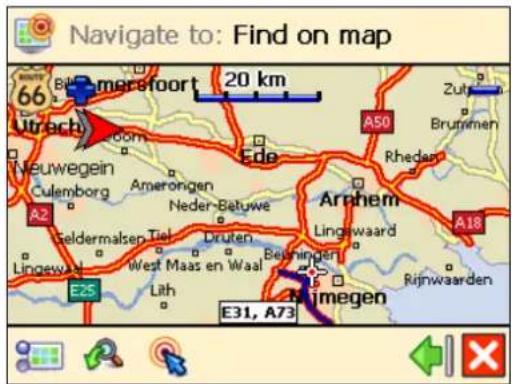

Navigate to: Find on map 66 Biermerfoort 20 km Utrecht A50 Zutru Brutmen Ede Rheden Neuwegein Culemborg Amerongen Neder-Betuwe Arrhem Lingewaard A18 Seldermalsen Tiel Druten Beamingen Lingewaard West Maas en Waal Rijnwaarden E25 Lith E31, A73

4 Select Navigate to to choose this location as your destination.

That's all! Now you can start navigating to your destination.

Navigate to a destination via intermediate points (Navigate via)

Let's say that today you have a very busy program. You have to drive to your office; you have a business lunch; you must drive home and pick up your family and go shopping; and finally, you want to go to the cinema. Think of each location as a destination: when you reach the first location, the second location becomes your next destination; and so on. Add each location as another stopover to your trip. It's simple and fast!

In Main Menu

, select Navigate via

② The Overview of waypoints screen contains a list of locations you have selected before, or locations you intend to include into your next trip. Select a single waypoint and then confirm your choice

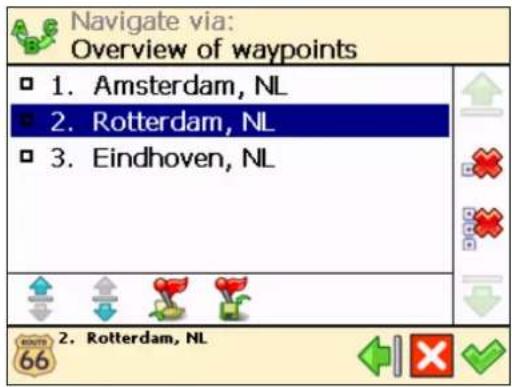

Navigate via: Overview of waypoints □ 1. Amsterdam, NL ■ 2. Rotterdam, NL □ 3. Eindhoven, NL 2. Rotterdam, NL

Optionally, you can:

- Select Save route 📁, type a relevant name and then confirm your choice √ to save the current group of waypoints.

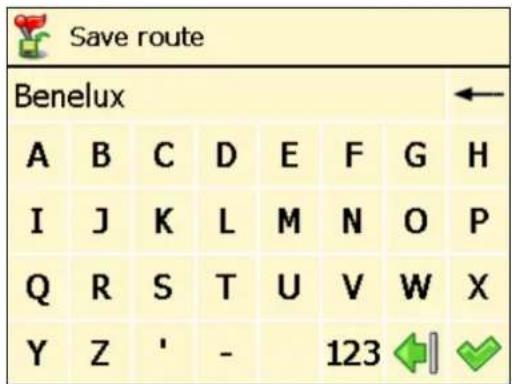

Save route Benelux A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ' - 123 ↙ ✓

- Select Load waypoints and then confirm your choice to load a group of waypoints, saved during a previous trip.

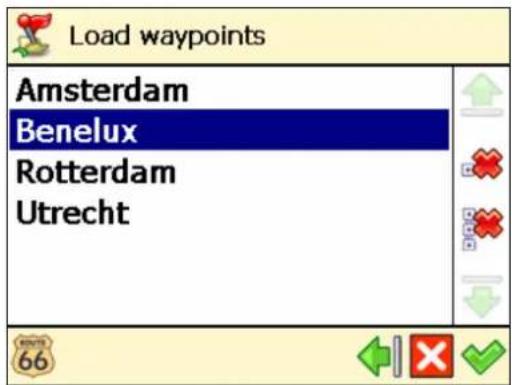

Load waypoints Amsterdam Benelux Rotterdam Utrecht

• Select Move up → to move a location up in the list. This means that the selected location will precede other locations during your trip.
• Select Move down 📋 to move a location down in the list. This means that the selected location will follow other locations during your trip.
• Select Delete ✗ to delete a location from the list.
• Select Delete all 🧑 to delete all locations from the list.

3 Select Yes and go to step 4 if you want to add other locations as additional stopovers to your trip. Select No to start navigating.

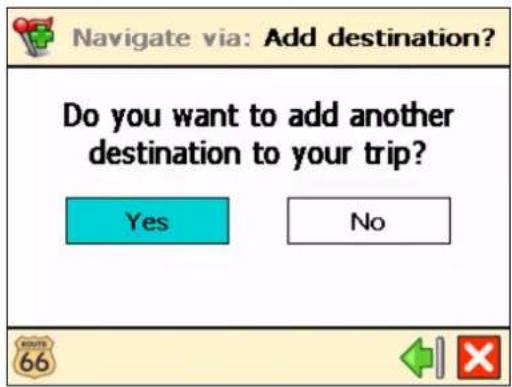

Navigate via: Add destination? Do you want to add another destination to your trip? Yes No

4 In Add waypoint, select another location for your trip, for example your office address. When you added all waypoints, confirm them √ and then select No. For details about finding locations, read the Working with locations chapter.

Repeat step 4 as many times as necessary! Following the example above, also add a restaurant business lunch, your home address, a shopping centre and finally a cinema.

That's all! Now you can start navigating to your destination.

Plan a route

Let's say that you intend to spend your holiday in the Benelux. You start your trip in Amsterdam and you want to visit Rotterdam and Eindhoven. It takes time and energy to browse paper maps and select the best route that covers all locations you want to visit. Instead, you can plan your route with your ROUTE 66 product, in a matter of seconds. And you can change your holiday plans over and over again!

In Main Menu

, select Plan a route

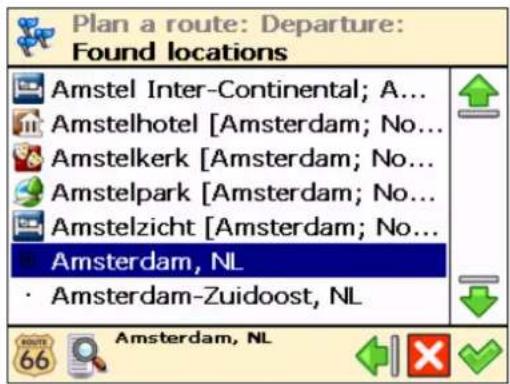

2 Add your departure location (Amsterdam) and confirm your choice. For details about finding locations, read the Working with locations chapter.

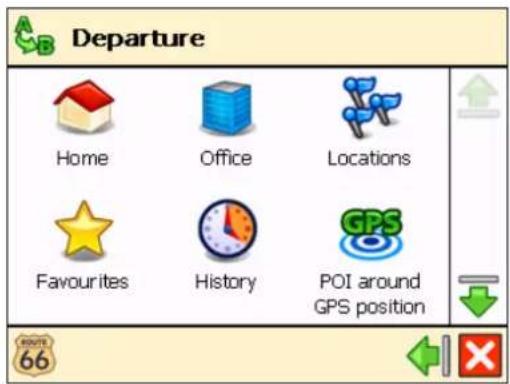

Departure Home Office Locations Favourites History POI around GPS position

Plan a route: Departure: Found locations Amstel Inter-Continental; A... Amstelhotel [Amsterdam; No... Amstelkerk [Amsterdam; No... Amstelpark [Amsterdam; No... Amstelzicht [Amsterdam; No... Amsterdam, NL • Amsterdam-Zuidoost, NL Amsterdam, NL

Add your first destination location (Rotterdam) and confirm your choice.

Destination Home Office Locations Favourites History POI around GPS position

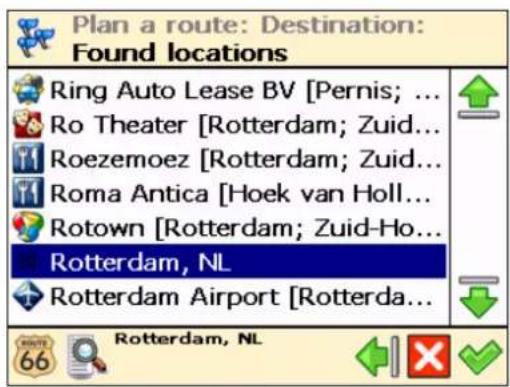

Plan a route: Destination: Found locations Ring Auto Lease BV [Pernis; ... Ro Theater [Rotterdam; Zuid... Roezemoez [Rotterdam; Zuid... Roma Antica [Hoek van Holl... Rotown [Rotterdam; Zuid-Ho... Rotterdam, NL Rotterdam Airport [Rotterdam...

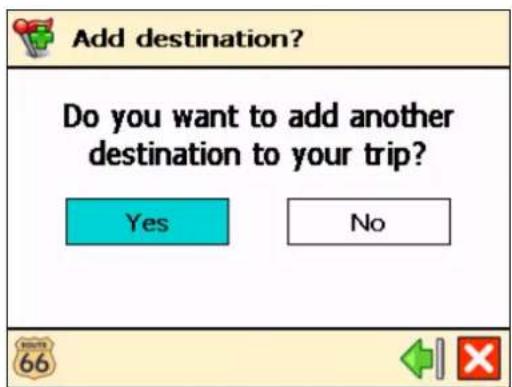

4 Select Yes and go to step 5 if you want to add other stopovers (intermediate waypoints) to your trip. Select No and go to step 6 to display the map and the departure location.

Add destination? Do you want to add another destination to your trip? Yes No

In the Destination screen, select the next stopover (intermediate waypoint) for your trip (Eindhoven).

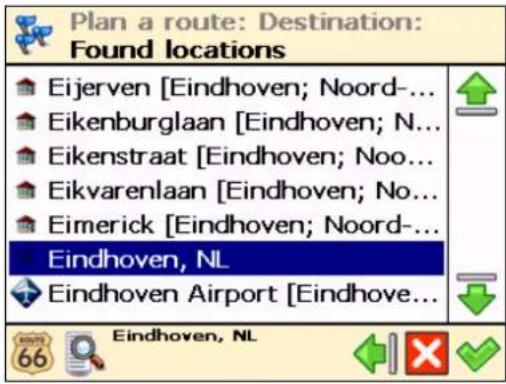

Plan a route: Destination: Found locations Eijerven [Eindhoven; Noord-... Eikenburglaan [Eindhoven; N... Eikenstraat [Eindhoven; Noo... Eikvarenlaan [Eindhoven; No... Eimerick [Eindhoven; Noord-... Eindhoven, NL Eindhoven Airport [Eindhoven...

Repeat step 5 as many times as necessary!

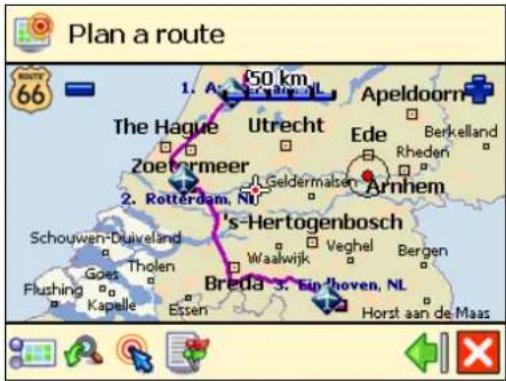

6 The route is calculated. The entire route is shown on the map. Select Navigate to travelling along the route you planned.

Plan a route 1. A: 50 km Apeldoorn The Hague Utrecht Ede Zoef rmeer Geldermaiseh Arnhem 2. Rotterdam, NL 's-Hertogenbosch Schouwen-Duiveland Tholen Waalwijk Vergel Bergen Flushing Kapelle Essen Breda 3. Ein 'hoven, NL Horst aan de Maas

Optionally, you can:

- Select Zoom to your trip.

and then Destination

to display the final destination of

Plan a route 30 m Geldropseweg Eindhoven, NL Eindhoven, NL

- Select Route description to display a list with all driving instructions of the route you planned. Select a turn arrow and confirm it to show that turn on the map.

User Manual

Route description Fastest/Car [415.19 km - 02:34] » 1. Amsterdam-Zuidoost, NL ↑ Continue for 69 m (8 s) on Dolingadreef 69 m 8 s Turn left ↑ Continue for 707 m (00:01) on Bijlmerdreef, Frissenstein 776 m 00:01 Leave the roundabout at the 1st exit

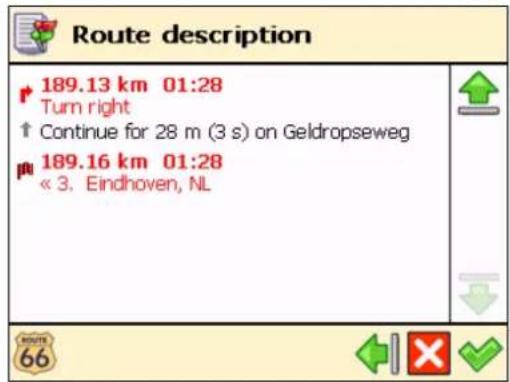

Route description 189.13 km 01:28 Turn right Continue for 28 m (3 s) on Geldropseweg 189.16 km 01:28 « 3. Eindhoven, NL

• The green flag represents the departure.
- The red flag represents the destination.

That's all! Now you can start navigating to your destination.

TMC information

Your ROUTE 66 product allows you to receive the latest traffic messages on your device. Thus, you can avoid traffic jams, road works or accidents that occur along your route.

The traffic information is gathered by specialized traffic-monitoring centres. Then, the information is broadcast via the Traffic Message Channel (TMC). Depending on the device you use, you can choose one of the following solutions to update your list of traffic messages:

- TMC information via RDS

Currently, the Radio Data System (RDS) technology is supported by most Personal Navigation Devices (PNDs), Windows Mobile smartphones and PocketPCs. The TMC messages are received by drivers via an RDS receiver (built-in or stand-alone). An external antenna is also required. The information is continuously updated.

- TMC information via Internet

Most Windows Mobile smartphones and certain PocketPCs (only in case of Windows Mobile for Pocket PC Phone Edition) use a GPRS (internet) connection to receive traffic information. The information is updated at a time interval specified by the user.

The available traffic messages are sorted by country and then alphabetically.

Traffic information is available for selected countries and selected products!

1 In Main Menu

, select TMC information

2 From the list of available traffic messages, select a relevant message.

TMC information A8 25% Zaandam - Amsterdam 2/11/2005 07:43A between intersection Zaandam (A7) and intersection Coenplein (A1) slow for 2 km. Idx6 A20 (Ring Rotter... 25% Hoek van Holland - Gouda 2/11/2005 07:45A between intersection Terbregseplein (A16) and exit 15 Rotterdam-Crooswijk slow for 2 km. Idx7

Select Refresh to update the list of available traffic messages!

3 Select to view the selected message on the map.

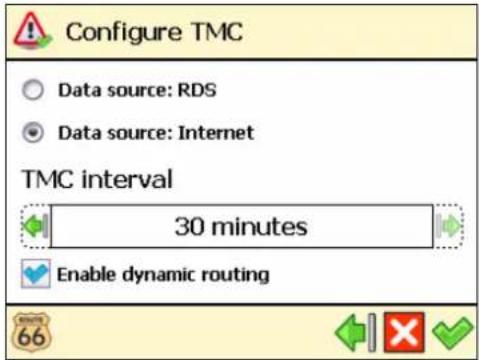

To fully take advantage of the traffic messages, use the options in the Configure TMC menu!

Customize your navigation

You are on holiday, enjoying yourself and having a great time, still a few hours from your destination. Why not use the many customisation options to adapt the device to your own personal preferences?

Read the following sections and take advantage of the powerful settings in your ROUTE 66 product.

Sound on / Sound off

Go to Main Menu

Choose Sound on

if you want to listen to the voice instructions while you navigate. Choose

Sound off if you want to turn off the voice instructions.

For safety reasons, we recommend you to keep the sound switched on and listen to the voice ons! This way, you can concentrate on the road ahead of you and avoid any unpleasant driving is!

Map options

Day colours / Night colours

In Main Menu

, select Map options

Choose Day colours

when navigating during the day (the device screen is brighter).

Sleedoomplantsoen N225 Prunusstraat Jasn Beslaan Bren Diedenweg Ritzema Bosweg 40 m 01:11 01:00 84 km 80 m

Choose Night colours

when navigating during the night (the device screen is less intense).

N233, Rondweg-West 5.0 A12 E35, A12 9.3km 13:22 00:55 84 km 550 m

2D perspective / 3D perspective

1 In Main Menu

, select Map options

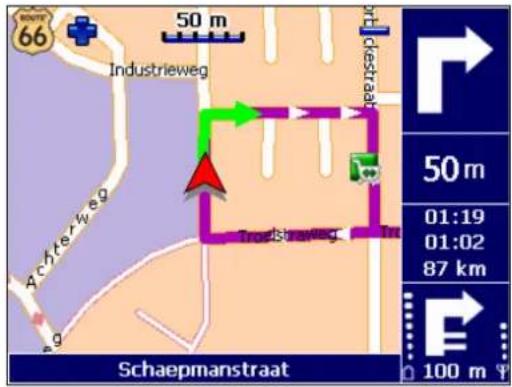

2 Choose 2D perspective

to view the map from above, as you look at a printed map.

MODE 66 50 m Industrieweg Achterweg Schaeptanstraat 50 m 01:19 01:02 87 km F 100 m

Choose 3D perspective you.

ve a panoramic view, as you are actually seeing the road ahead of

Sleedoomplantsoen N225 Prunusstraat Jasn Deslaan Bren Diedenweg Ritzema Bosweg 40 m 01:11 01:00 84 km 80 m

Set 3D angle

1 In Main Menu

, select Map options

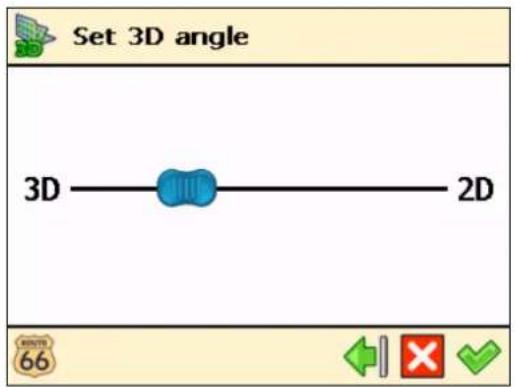

2 Select Set 3D angle

3 Select and hold the slider. Drag it to the left (3D) to increase the viewing angle. Drag it to the right (2D) to decrease the viewing angle.

Set 3D angle 3D —— 2D RINTS 66

4 Confirm your choice

You can use the Set 3D angle option only when the 3D perspective option is also selected!

Show favourites / Hide favourites

1 In Main Menu

2 Choose Show favourites

to show your personal favourites on the map. Choose Hide

favourites to remove your favourites from the map.

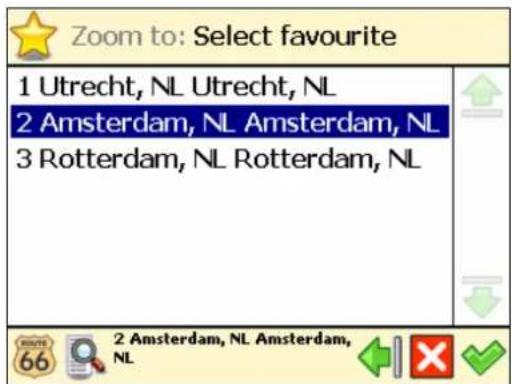

For example, if you have the following list of favourites:

Zoom to: Select favourite 1 Utrecht, NL Utrecht, NL 2 Amsterdam, NL Amsterdam, NL 3 Rotterdam, NL Rotterdam, NL 2 Amsterdam, NL Amsterdam, NL

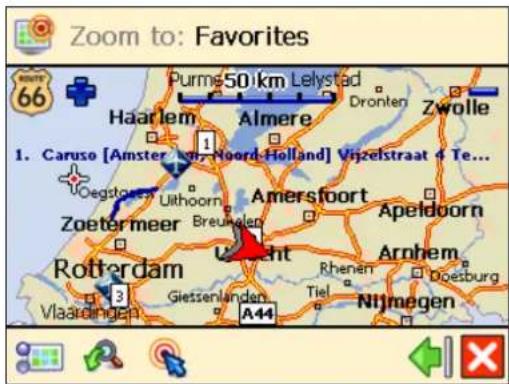

then you can show the favourites on the map or remove them from the map:

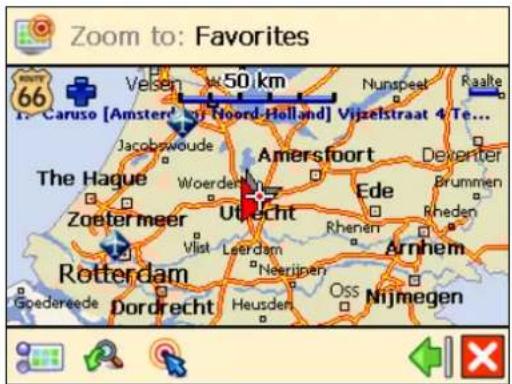

Zoom to: Favorites 66 Purme 50 km Lelystad Haarlem Almere Dronten Zwolle 1. Caruso [Amster No. Noord-Holland] Vijzelstraat 4 Te... Oegstort Uikhoorn Amersfoort Apeldoorn Zoetermeer Breuergen Rotterdam Arnhem Vlaardingen Gietzenlanden A44 Nijmegen

Zoom to: Favorites 66 Velsen 50 km Nunspeet Raalte Caruso [Amsterdam] Noord-Holland] Vijzelstraat 4 Te... Jacobzwoude The Hague Zoeter meer Utrecht Vlist Leerdam Neerijpen Rotterdam Goedereede Dordrecht Heusden Oss Nijmegen Amersfoort Ede Rhenen Arnhem Brummien Rheden

Show scale / Hide scale

1 In Main Menu

② Select Show scale 📄 to display the scale of the map at the top of the screen. When you zoom in your zoom out, the distance value above the scale is updated accordingly.

66 50 m A12 850 m 01:08 00:38 52 km 100 m

Select Hide scale to remove the scale.

66 A12 400 m 01:07 00:38 52 km 100 m

The scale is available only in 2D perspective!

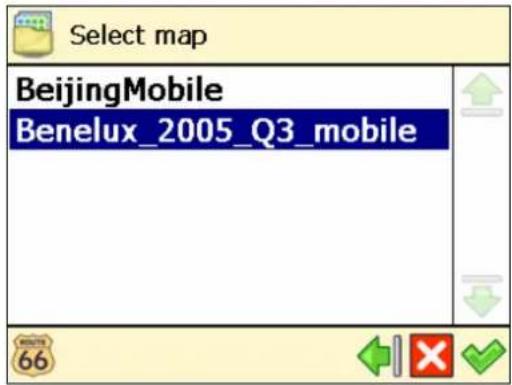

Select map

1 In Main Menu

2 Choose Select map

3 The list of available maps is displayed, with the active map highlighted. Select a map and confirm your choice.

Select map BeijingMobile Benelux_2005_Q3_mobile

The memory card included in this product is preloaded with the map of the country (or group of s) of your purchase. Depending on the product that you have bought, you can install other maps from closed CD.

The number of maps you can install on your memory card depends on the size of the memory card: a memory card can store more maps!

When you select another map, only the POI categories and points-of-interest that belong to that map available!

Before you can use a map, first you must activate it!

Legend

1 In Main Menu

2 Select Legend

3 In the Legend screen, select:

• Cities/Symbols for cities and road numbers.
- Roads for different types of roads.
- Areas/GPS for areas and arrows.
- Icons for points-of-interest.

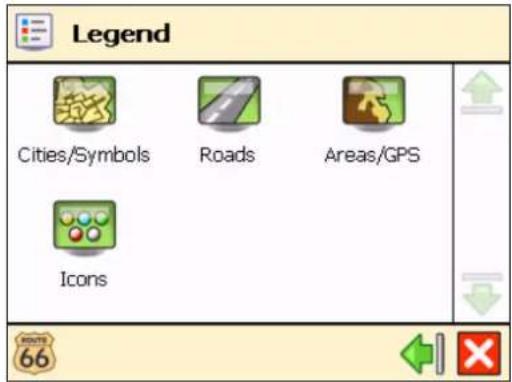

Legend Cities/Symbols Roads Areas/GPS Icons

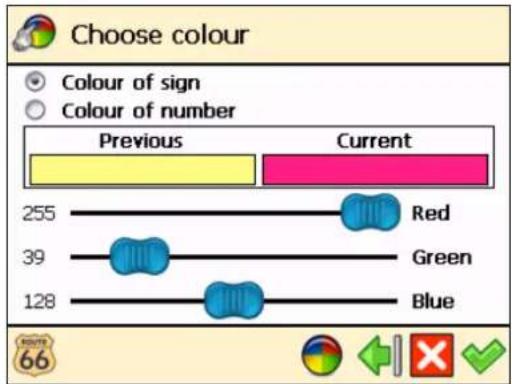

4 You can change the default colours for Cities/Symbols, Roads and Areas/GPS. Select Cities/Symbols 📋, Roads 📋 or Areas/GPS 📋 and select an item from the list. In the Choose colour screen, combine the shades of red, green and blue to compose your favourite colour. Move the slider either to the left or to the right. Optionally, select Default 📋 to return to the default colours. Confirm your changes . From now on, your ROUTE 66 product will use your new colours.

Points-of-interest (POI)

1 In Main Menu

, select Map options

2 Choose Points-of-interest (POI)

3 A list with all POI categories is displayed. Select those POI categories whose points-of-interest you want to display on the map. Deselect those POI categories whose points-of-interest you do not want to display on the map. Select the filter if necessary.

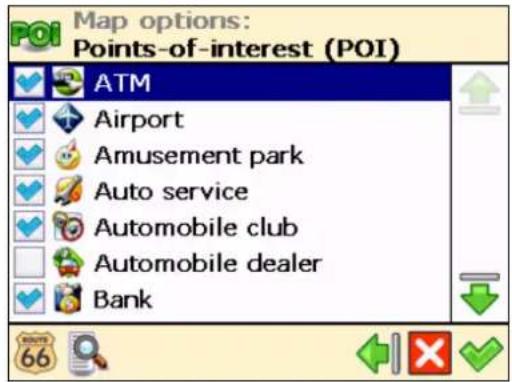

Map options: Points-of-interest (POI) ATM Airport Amusement park Auto service Automobile club Automobile dealer Bank

4 Confirm your choice

Zoom to

Let's say that, before you start a new trip, you would like to see a particular location on the map and the points-of-interest around this location. You can browse the map, zoom in to see more details, zoom out to cover a larger area, or drag the map in the desired direction. Or, you can simply specify a location and your ROUTE 66 product displays it on the map. Then, start your trip to that particular location!

① In Main Menu, select Zoom to.

2 Decide which location to display on the map. For details about finding locations, read the Working with locations chapter.

3 The Zoom to screen is displayed.

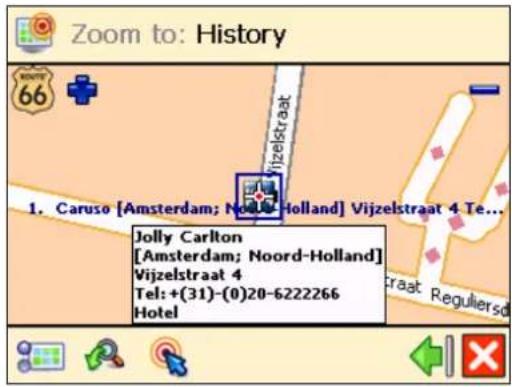

Zoom to: History 1. Caruso [Amsterdam; Noord-Holland] Vijzelstraat 4 Te... Jolly Carlton [Amsterdam; Noord-Holland] Vijzelstraat 4 Tel: +(31)-(0)20-6222266 Hotel

• Select Map options to change your navigation preferences.
• Select Zoom to to open the Zoom to screen.
• Select Navigate to to start navigating to the selected location.

Change settings

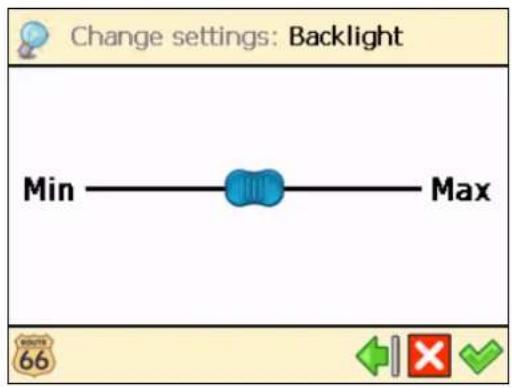

Backlight

1 In Main Menu

, select Change settings

2 Choose Backlight

3 Move the slider to the left (Min) to decrease the brightness of the navigation screen. Move the slider to the right (Max) increase the brightness of the navigation screen.

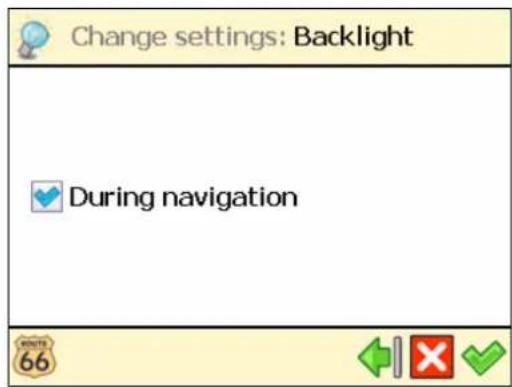

3 When the During navigation option is selected, the screen is illuminated if you are tonavigating to a particular destination.

When the During navigation option is unselected, the device is illuminated for a few seconds; then, the device enters into the power saving mode and the screen turns off.

Change settings: Backlight Min ———— Max 66

Change settings: Backlight During navigation

4 Confirm your choice √.

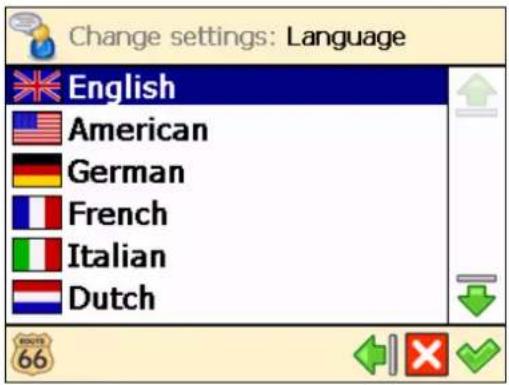

Language

1 In Main Menu

, select Change settings

2 Choose Language

3 A list of available languages is shown. These are the languages for the user interface and the voice instructions. Select a language and confirm your choice.

Change settings: Language English American German French Italian Dutch

The number of available languages depends on the product that you have bought!

Units

1 In Main Menu

, select Change settings

2 Choose Units

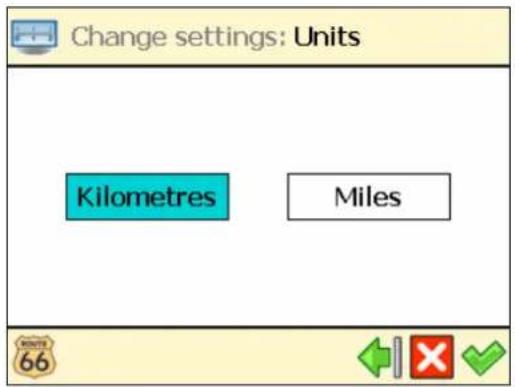

Change settings: Units Kilometres Miles

3 Select Kilometres if you want to display the distance information in metric units (kilometres and metres):

66 A30 Maanc 17km 02:55 00:50 76 km Ampèrestraat Wolfsdij A30 47 km

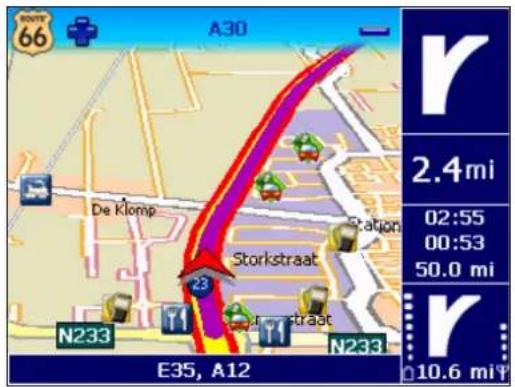

Select Miles if you want to display the distance information in imperial units (miles and yards):

N017 66 A30 De Klomp Storkstraat N233 N233 E35, A12 2.4mi 02:55 00:53 50.0 mi 10.6 miY

Volume

1 In Main Menu

, select Change settings

2 Choose Volume

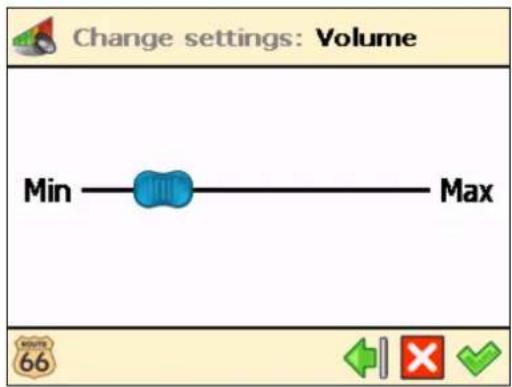

3 Select & hold and drag the slider to the left (Min) to lower the volume of the voice instructions. Select & hold and drag the slider to the right (Max) to increase the volume of the voice instructions.

Change settings: Volume Min —— Max ROUTS 66

4 Confirm your choice

For safety reasons, we recommend you to keep the sound switched on and listen to the voice ions! This way, you can concentrate on the road ahead of you and avoid any unpleasant driving ons!

Route type

1 In Main Menu

, select Change settings

2 Choose Route type

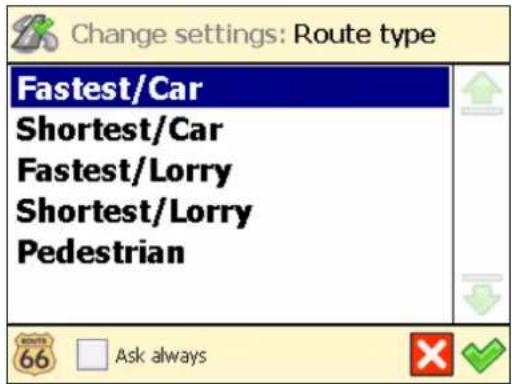

3 Select the type of route that best reflects your navigation style:

• Fastest/Car – navigate to your destination, by car, along the fastest route.
• Shortest/Car - navigate to your destination, by car, along the shortest route.
• Fastest/Lorry - navigate to your destination, by lorry (truck), along the fastest route.
• Shortest/Lorry - navigate to your destination, by lorry (truck), along the shortest route.
  • Pedestrian - walk to your destination.

Change settings: Route type Fastest/Car Shortest/Car Fastest/Lorry Shortest/Lorry Pedestrian

4 Confirm your choice .

Avoid motorways

1 In Main Menu

, select Change settings

2 Choose Avoid motorways

3 Select On if you want to exclude motorways from your route. Select Off if you do not want to exclude motorways from your route.

Avoid toll roads

1 In Main Menu

, select Change settings

2 Choose Avoid toll roads .

3 Select On if you want to exclude toll roads from your route. Select Off if you do not want to exclude toll roads from your route.

Avoid ferries

1 In Main Menu

, select Change settings

2 Choose Avoid ferries .

3 Select On if you want to exclude ferries from your route. Select Off if you do not want to exclude ferries from your route.

Automatic zooming

1 In Main Menu

, select Change settings

② Choose Automatic zooming

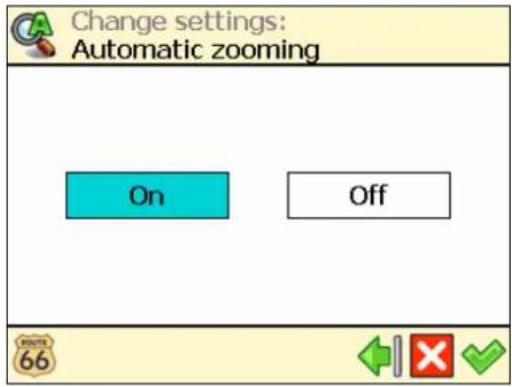

Change settings: Automatic zooming On Off

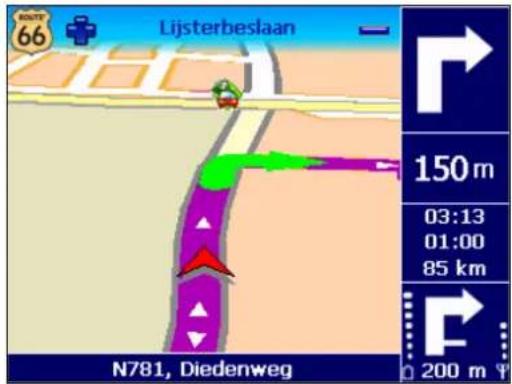

3 Select On if you want to automatically enlarge the map (zoom in) and see more details of the road when approaching street junctions.

Lijsterbeslaan 66 150 m 03:13 01:00 85 km N781, Diedenweg 200 m

Select Off if you want to manually select the zoom level you need; the zoom level you selected is preserved until you manually change it.

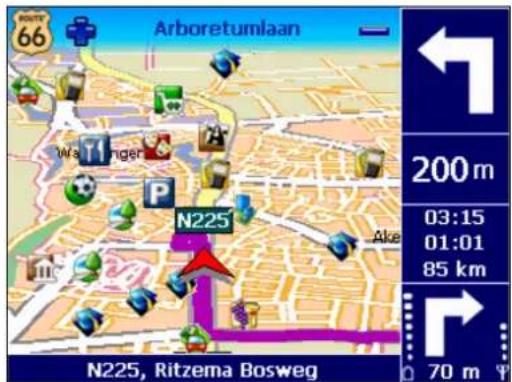

Arboretumlaan N225 N225, Ritzema Bosweg 200 m 03:15 01:01 85 km 70 m

Configure alarm

Never underestimate the safety measures! Use this option to set a safety speed: when you navigate and reach this speed, an alarm warns you that you are driving too fast.

① In Main Menu , select Change settings

2 Choose Configure alarm .

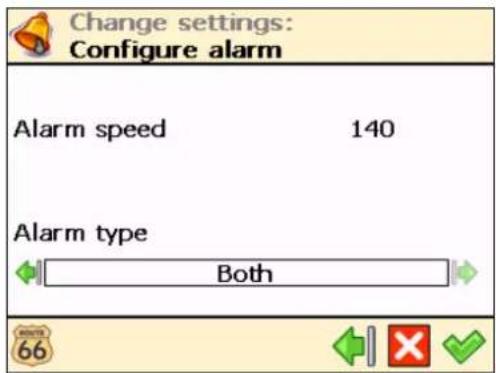

Change settings: Configure alarm Alarm speed 140 Alarm type Both

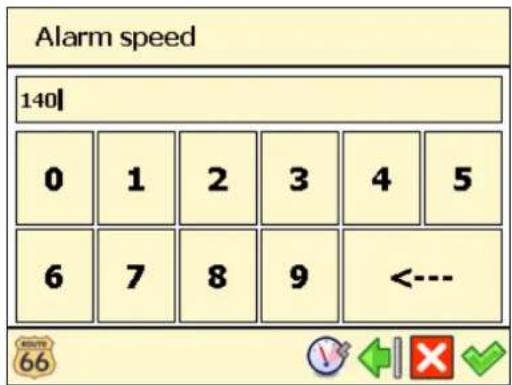

3 Select the numeric value (for example, 140). In the Alarm speed screen, type a different value and confirm your choice

Alarm speed 140| 0 1 2 3 4 5 6 7 8 9 <---

4 In the Alarm type section, select the left arrow or the right arrow to select the type of warning that automatically starts when you drive too fast:

• None - no warning
  • Acoustic alarm - a sound warning
• Visible alarm – a blinking warning
  • Both - a sound warning and a blinking warning

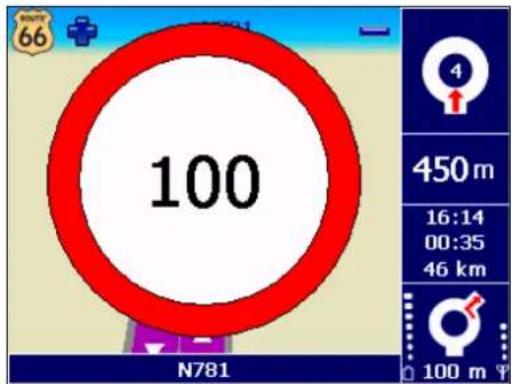

66 100 N781 450 m 16:14 00:35 46 km 100 m

5 Confirm your choice

Speed

Feel free to further customize your navigation! You can indicate the speed you prefer for each type of road. These values will be considered when calculating a route, the estimated travel time and the estimated time of arrival. Please note that if you change the speed setting, the calculated routes will be different.

1 In Main Menu

, select Change settings

2 Choose Speed

Change settings: Speed
Motorway	100
Subsidiary motorway	90
Main road	70
Link road	50
Important local road	40

3 Select a type of road (for example Motorway). Select the numeric value (for example 100). In the Alarm speed screen, type a different value and confirm your choice.

Motorway
100
0	1	2	3	4	5
6	7	8	9	<---

4 When you configured all speed values, confirm them

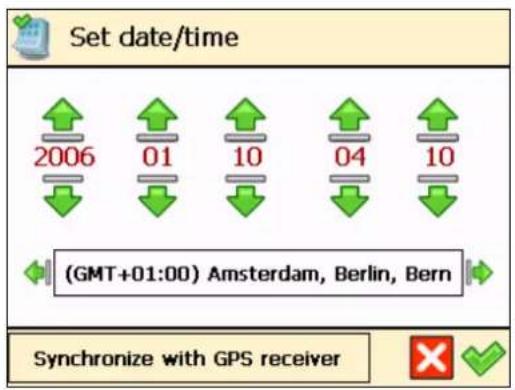

Set date/time

You can modify the date and time displayed by your ROUTE 66 product.

① In Main Menu, select Change settings

Set date/time 2006 01 10 04 10 (GMT+01:00) Amsterdam, Berlin, Bern Synchronize with GPS receiver

3 The first three controls represent the date (year-month-day). The last two controls represent the time (hour-minutes). Use the up arrow or the down arrow to select the correct values.
4 Use the back arrow or the next arrow to select your time zone.
5 Select Synchronize with GPS receiver to set the date and time, based on the selected time zone and the available GPS information.
6 Confirm your choice.

Vertical turn arrows / Horizontal turn arrows

Would you prefer to see the driving instructions (turn arrows) on the right side of the navigation screen, or at the bottom of the navigation screen? Choose the option you prefer.

In Main Menu

, select Change settings

Choose Vertical turn arrows

to display the driving instructions on the right side of the

screen.

N225, Stadsbrink N225 Ceresstraat Oude Van Schelvenweg Ritzema Bosweg 350 N225, Ritzema Bosweg 450 m 16:24 00:38 49 km 1.1 km

Choose Horizontal turn arrows screen.

to display the driving instructions at the bottom of the

Rooseveltweg 66 P Gerdesstraat 10 50 m 16:25 00:38 49 km N225, Stadsbrink 80 m

This option is available only for certain devices!

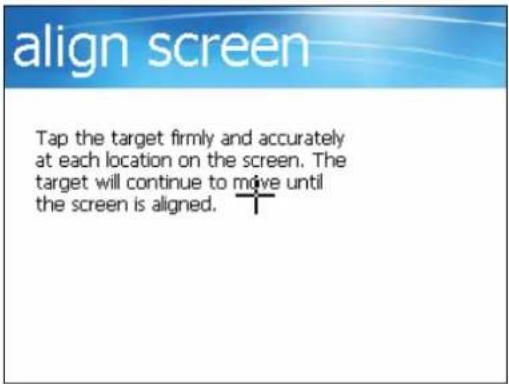

Calibrate screen

To be sure that the screen of your device works properly, you must calibrate your screen when necessary. Calibrating means adjusting the precision and reaction of the screen.

① In Main Menu, select Change settings.

3 Select & hold your stylus on the cross icon +. You must select the screen 5 times: first in the centre, then in the 4 corners of the screen.

align screen Tap the target firmly and accurately at each location on the screen. The target will continue to move until the screen is aligned.

4 Select the screen again to save your settings.

Configure TMC

Unfortunately, the traffic conditions change all the time! Unexpected traffic jams, roadblocks and accidents can ruin a perfectly planned holiday. Use our traffic messages (TMC) and make your journey more enjoyable!

① In Main Menu, select Change settings

Configure TMC Data source: RDS Data source: Internet TMC interval 30 minutes Enable dynamic routing

The traffic information is gathered by specialized traffic-monitoring centres. Then, the information is broadcast via the Traffic Message Channel (TMC). Depending on the device you use, you can choose one of the following solutions to update your list of traffic messages:

- Data source: RDS

Currently, the Radio Data System (RDS) technology is supported by most Personal Navigation Devices (PNDs), Windows Mobile smartphones and PocketPCs. The TMC messages are received by drivers via an RDS receiver (built-in or stand-alone). An external antenna is also required. The information is continuously updated.

- Data source: Internet

Most Windows Mobile smartphones and certain PocketPCs (only in case of Windows Mobile for Pocket PC Phone Edition) use a GPRS (internet) connection to receive traffic information. The information is updated at a time interval specified by the user.

3 Set your TMC interval:

• Never – it means that the traffic messages are not updated automatically on your device.
• Every ... minutes – it means that new traffic messages are automatically updated on your device, every ... minutes.

You can manually update the list of available traffic messages! In Main Menu, select TMC information

and select Refresh

4 Select Enable dynamic routing if you want to use the traffic messages during navigation. When something happens on the road, your ROUTE 66 product analyzes the situation and automatically recalculates the best possible route. Unselect Enable dynamic routing if you do not want to use traffic messages.

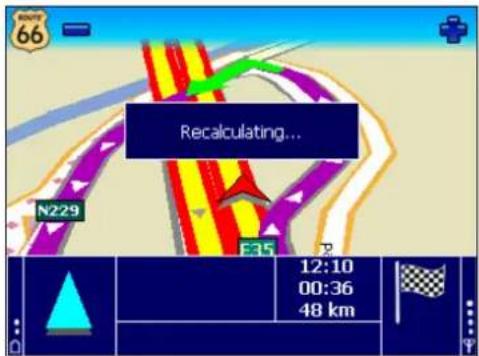

Recalculating... N229 E35 12:10 00:36 48 km

Define your navigation experience

Points-of-interest (POI)

Well, you travelled a lot and saw many wonderful places. Now it's the right moment to organize the locations you visited during your trips. Define your personal categories of points-of-interest. Add locations to your POI categories. Set advanced warnings.

Maintain POI

Add, rename or remove points-of-interest.

Add as POI

In Main Menu, select Points-of-interest (POI)
2 Choose Maintain POI .
3 Choose Add as POI .
4 Select a user-defined POI category and confirm your choice √. Any POI must belong to a POI category.

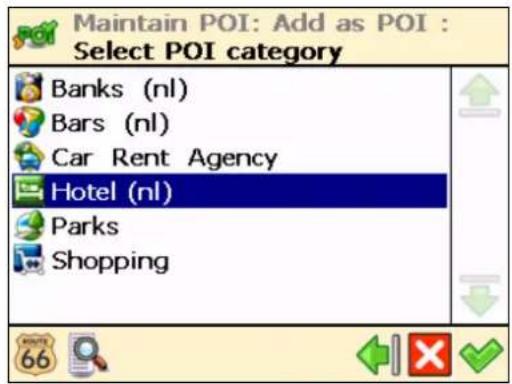

Maintain POI: Add as POI : Select POI category Banks (nl) Bars (nl) Car Rent Agency Hotel (nl) Parks Shopping

You cannot continue if there isn't at least one user-defined POI category!

5 Decide how to find the POI you want to add. For details about finding locations, read the Working with locations chapter. Confirm √ to save the selected location as a POI to the current category.

Rename POI

1 In Main Menu

2 Choose Maintain POI

3 Choose Rename POI .

4 Select a user-defined POI category and confirm your choice √.

Maintain POI: Rename POI: Select POI category Banks (nl) Bars (nl) Car Rent Agency Hotel (nl) Parks Shopping

5 Select the point-of-interest you want to rename, then confirm your choice √.

POI Select a POI Amsterdam Marriott Hotel [A... Amsterdam House Hotel [Am... Amsterdam Nova Hotel [Ams... Apollofirst [Amsterdam; Noo...

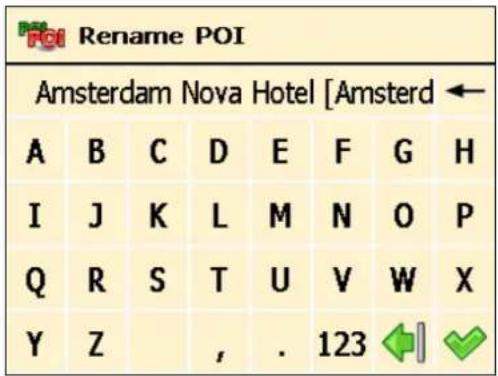

6 Change the name of the selected POI.

Reneam POI Amsterdam Nova Hotel [Amsterd ← A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123 ↙ ↕

7 Confirm your choice

Remove POI

1 In Main Menu

② Choose Maintain POI

3 Choose Remove POI .

4 Select a user-defined POI category and confirm your choice √.

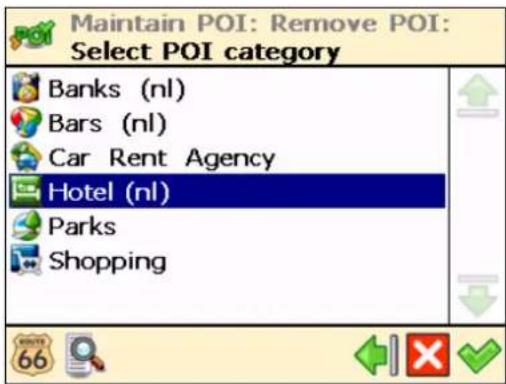

Maintain POI: Remove POI: Select POI category Banks (nl) Bars (nl) Car Rent Agency Hotel (nl) Parks Shopping

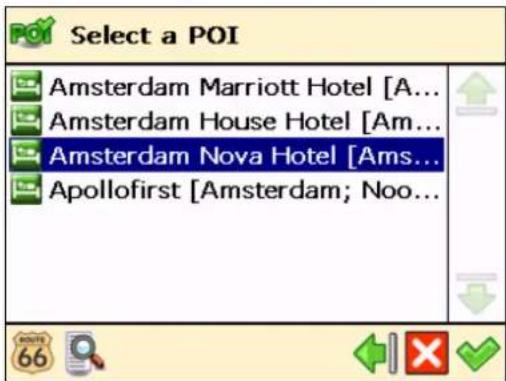

5 Select the point-of-interest you want to delete, then confirm your choice √.

POI Select a POI Amsterdam Marriott Hotel [A... Amsterdam House Hotel [Am... Amsterdam Nova Hotel [Ams... Apollofirst [Amsterdam; Noo...

6 Select Yes to confirm that you really want to delete this POI.

Query Remove POI Amsterdam Nova Hotel [Amsterdam; Noord- Holland] Nieuwezijds Vo...? Yes No

Maintain POI category

Add, rename or remove POI categories.

Keep in mind that there are two kinds of POI categories:

• pre-installed categories - These POI categories belong to the geographic map. You cannot modify or remove them.
• user-defined categories – You can add and modify these POI categories.

Add POI category

1 In Main Menu

, select Points-of-interest (POI)

2 Choose Maintain POI category

3 Choose Add POI category

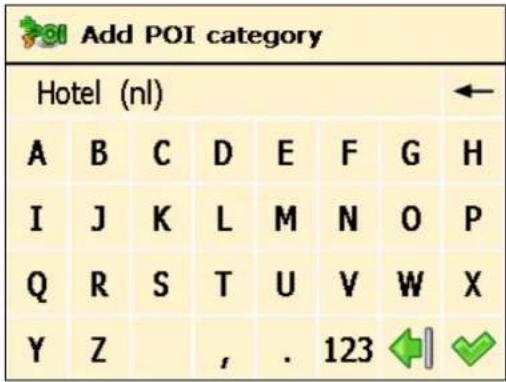

4 Type the name of the new category, for example Hotel (nl). Confirm your choice √.

Add POI category Hotel (nl) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

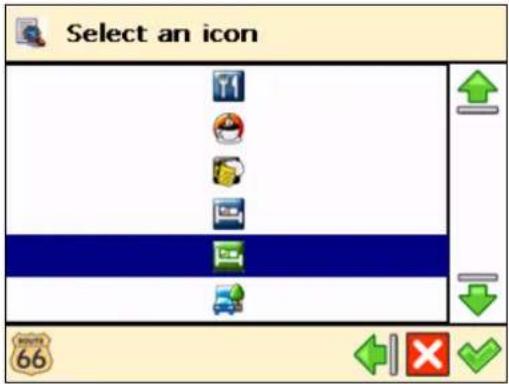

5 Select a relevant icon for the new POI category, and confirm your choice √.

Select an icon 66

Rename POI category

1 In Main Menu

2 Choose Maintain POI category

3 Choose Rename POI category

4 Select a user-defined POI category and confirm your choice √.

Maintain POI category: Rename POI category: Select POI category Banks (nl) Bars (nl) Car Rent Agency Hotel (nl) Parks Shopping

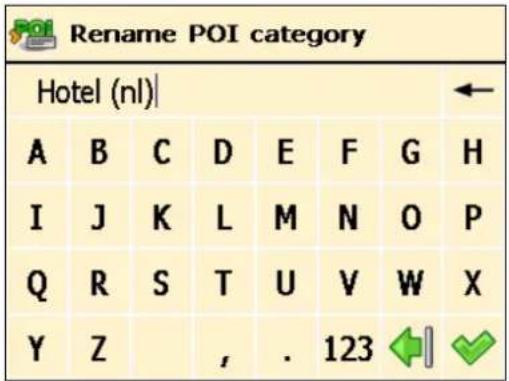

5 Change the name of the selected POI category and confirm your choice √.

Rename POI category Hotel (nl)| A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

Remove POI category

1 In Main Menu

, select Points-of-interest (POI)

2 Choose Maintain POI category

3 Choose Remove POI category

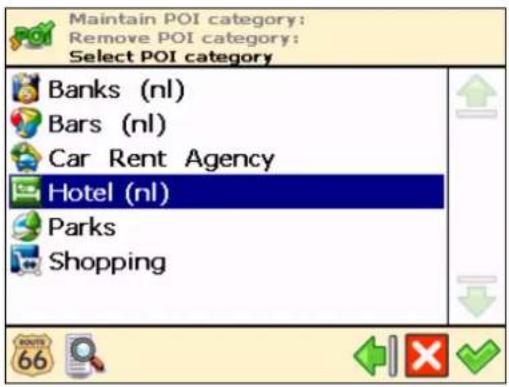

4 Select the user-defined POI category you want to delete, then confirm your choice √.

Maintain POI category: Remove POI category: Select POI category Banks (nl) Bars (nl) Car Rent Agency Hotel (nl) Parks Shopping

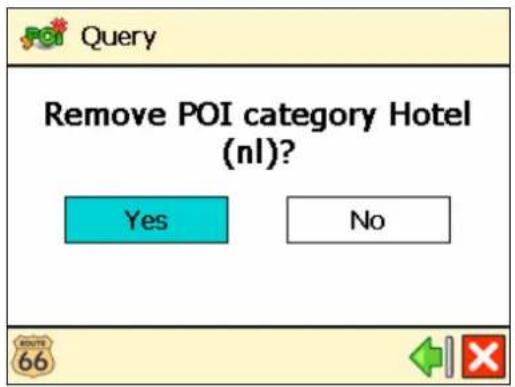

5 Select Yes to confirm that you really want to delete this POI category.

Query Remove POI category Hotel (nl)? Yes No ROUTE 66

When you delete a POI category, all points-of-interest belonging to that category are also deleted!

POI alarm

You are on holiday. You are driving to your holiday destination. Wouldn't it be nice to know, in advance, that a gas station or a hotel is 1 km ahead of you, along your route? Activate your POI alarm! You will never miss an important location.

① In Main Menu , select Points-of-interest (POI)

② Choose POI alarm

3 Select a POI category and confirm your choice. This means that, during navigation, you will be warned in advance that you are approaching points-of-interest from this POI category along your route. For example, select the POI category Museum; this means that you will be warned when you are approaching a museum. Each category has its own icon, for example H for Hospital, for Library or 📂 for Museum.

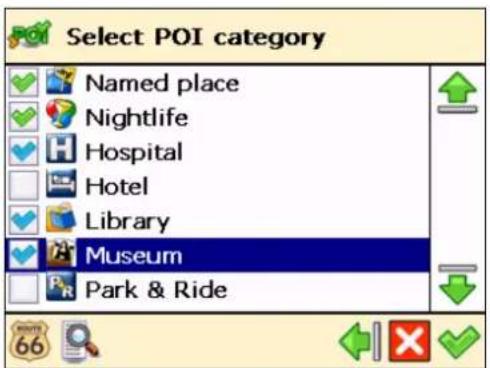

Select POI category Named place Nightlife Hospital Hotel Library Museum Park & Ride

• means a POI category previously configured for POI alarm.
• means a POI category you have just selected for POI alarm.
• means a POI category that is currently ignored by the POI alarm.

You can select and configure several categories at the same time! The same warning type, warning and warning sound will be applied to all categories you selected!

4 Select the type of warning you prefer and confirm your choice √:

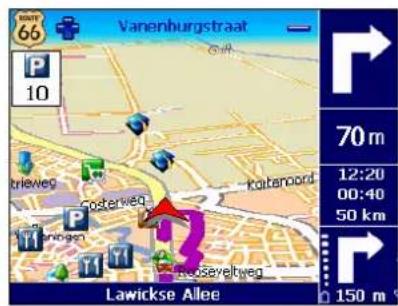

Icons and distance in top left corner

66 Vanenburgstraat 10 Trieweg Gosterweg Kolbarpord P Inbogen R Sevelweg Lawickse Allee 70 m 12:20 00:40 50 km 150 m

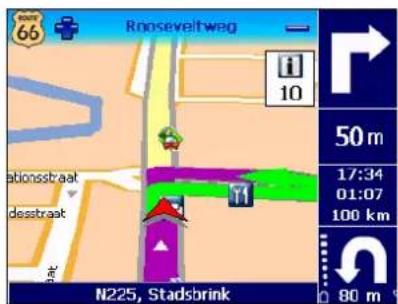

Icons and distance in top right corner

Rooseveltweg 10 50 m 17:34 01:07 100 km N225, Stadsbrink 80 m

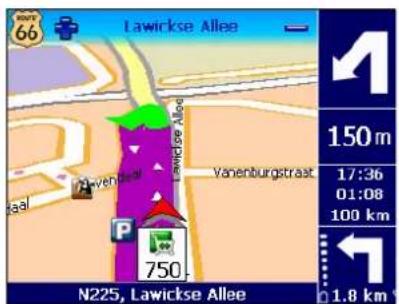

Icons and distance at GPS location

Lawickse Allee N225, Lawickse Allee Lavienburgstraat 750. 1.8 km 100 km 01:08 17:36 150 m

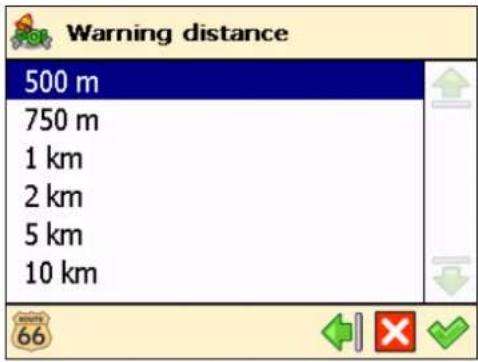

5 Select at which distance from the point-of-interest you want to receive a warning and confirm your choice

Warning distance 500 m 750 m 1 km 2 km 5 km 10 km

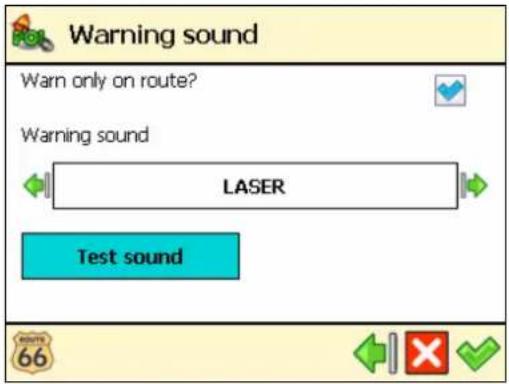

6 Select the warning sound and confirm your choice :

• Warn only on route? – When selected, you will be warned only about points-of-interest along your route; when deselected, you will be warned about any points-of-interest along and around the route.
• Warning sound – Select a sound that you like. Select the left arrow or the right arrow to scroll the list of available sounds.
• Test sound – Select and listen to the selected sound.

Warning sound Warn only on route? Warning sound LASER Test sound

Favourites

There are many locations that you visit frequently and are of great importance to you. Save these locations as your favourites – one time only! Add these favourites to your trips – over and over again!

Use the Favourites menu to set your home address and your office address. You can also add favourites, rename favourites and remove favourites.

Set home address

1 In Main Menu

, select Favourites

2 Choose Set home address

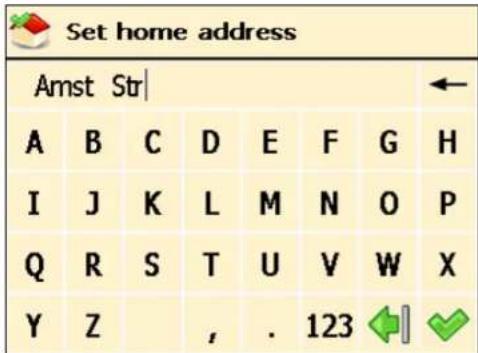

3 Type the name of the location you want to find and confirm your choice √.

Set home address Amst Str A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

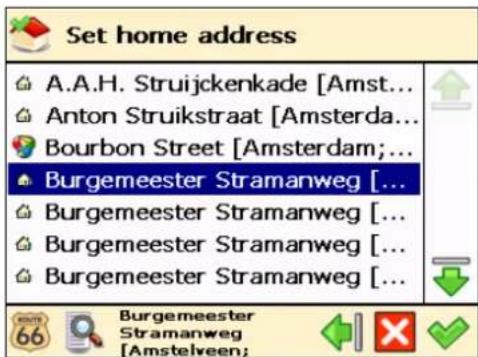

4 In the list of results, select the address that you want to add as your home address. Select the filter if necessary. Confirm your choice to continue.

Set home address A.A.H. Struijckenkade [Amst... Anton Struikstraat [Amsterda... Bourbon Street [Amsterdam;... Burgemeester Stramanweg [...] Burgemeester Stramanweg [...] Burgemeester Stramanweg [...] Burgemeester Stramanweg [...] Burgemeester Stramanweg [...]

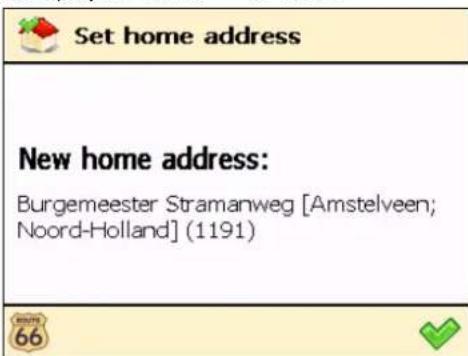

5 A summary report is displayed. Select √ to finish.

Set home address New home address: Burgemeester Stramanweg [Amstelveen; Noord-Holland] (1191)

Set office address

1 In Main Menu

, select Favourites

2 Choose Set office address

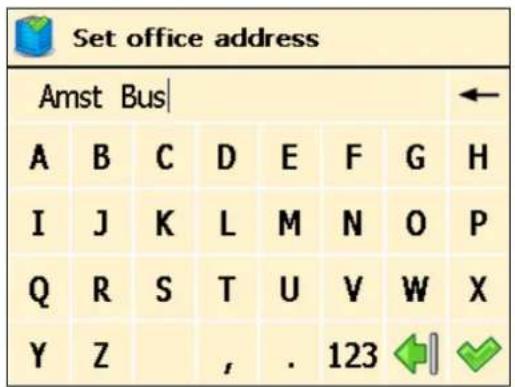

3 Type the name of the location you want to find and confirm your choice √.

Set office address Amst Bus A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

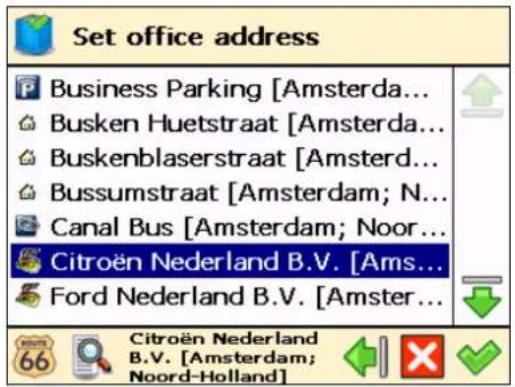

4 In the list of results, select the address that you want to add as your office address. Select the filter if necessary. Confirm your choice to continue.

Set office address Business Parking [Amsterdam... Busken Huetstraat [Amsterdam... Buskenblaserstraat [Amsterd... Bussumstraat [Amsterdam; N... Canal Bus [Amsterdam; Noor... Citroën Nederland B.V. [Ams... Ford Nederland B.V. [Amster... Citroën Nederland B.V. [Amsterdam; Noord-Holland]

5 A summary report is displayed. Select √ to finish.

Set office address New office address: Citroën Nederland B.V. [Amsterdam; Noord-Holland] Stadionplein 26 Tel: +(31)-(0)800-0226090 Business facility

Add favourite

1 In Main Menu

, select Favourites

2 Choose Add favourite

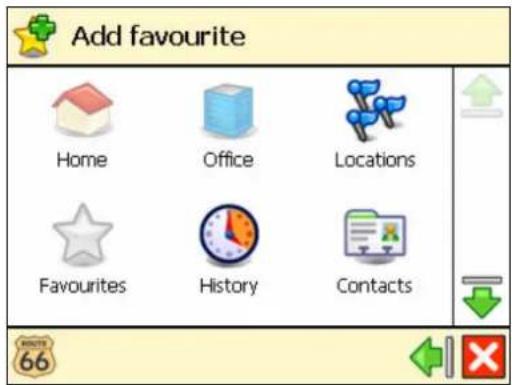

3 Decide how to find the favourite you want to add. For details about finding locations, read the Working with locations chapter.

Add favourite Home Office Locations Favourites History Contacts

4 Select √ to save the selected location as a favourite location.

Rename favourites

1 In Main Menu

, select Favourites

2 Choose Rename favourites

3 Select the favourite destination you want to rename and confirm your choice

Favourites: Rename favourites 1 Utrecht, NL Utrecht, NL 2 Amsterdam, NL Amsterdam, NL 3 Eindhoven, NL Eindhoven, NL 4 Rotterdam, NL Rotterdam, NL 5 Brussels Airport Zav Brussels ... 6 Luxemburg, L Luxemburg, L 7 Schoenlappervlinder Schoenla... 2 Amsterdam, NL Amsterdam, NL

4 Change the name of the selected favourite and confirm your choice √.

Rename favourite to: Amsterdam, NL A B C D E F G H I J K L M N O P Q R S T U V W X Y Z , . 123

Remove favourites

1 In Main Menu

, select Favourites

2 Choose Remove favourites

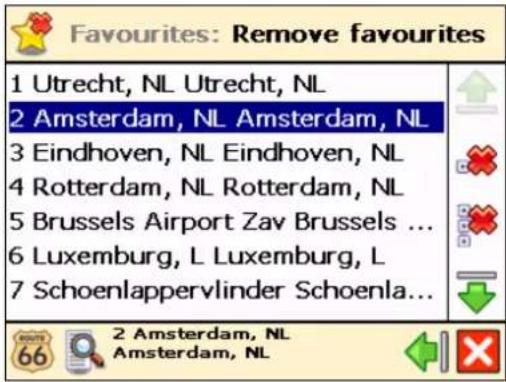

3 In the list of results:

• Select Delete 📄 to delete the selected favourite;
• Select Delete all 📁 to delete all favourites.

Favourites: Remove favourites 1 Utrecht, NL Utrecht, NL 2 Amsterdam, NL Amsterdam, NL 3 Eindhoven, NL Eindhoven, NL 4 Rotterdam, NL Rotterdam, NL 5 Brussels Airport Zav Brussels ... 6 Luxemburg, L Luxemburg, L 7 Schoenlappervlinder Schoenla... 2 Amsterdam, NL Amsterdam, NL

4 Select Yes to confirm that you really want to delete this favourite.

Confirm! Do you really want to delete this favourite? Yes No

Appendix

Installing other geographic map(s) and voice instructions on the Memory Card

You can (re)install the navigation software, geographic map(s) and voice instructions from the enclosed backup CD(s) onto your memory card.

When you use the installation CD(s) for the first time, you first have to manually format your memory card (see Formatting your Memory Card below for how to do this). If you have completed an earlier installation using the CD(s), you can immediately proceed with the steps below.

1. Connect the memory card reader & writer to the USB port of your computer, then insert the memory card into the memory card reader & writer and the CD into the CD drive.
2. The installation should start automatically. If it does not start, please run setup.exe from the CD(s).
3. Select the language you want the installation to be performed in, e.g., "English", and click Next.
4. Click Next to continue.
5. Select the drive where the files should be installed. Click Next to continue.
6. Read the license agreement carefully, select the first option and click Next to continue.

If geographic map(s) and voice instructions are already installed on your memory card, choose the relevant option and click Next to continue:

• Modify to select new components to install or the components to remove (see steps 7 to 10 below).
• Repair to reinstall the components that were previously installed (see steps 7 to 10 below).

• Remove to remove the installed components (see step 10 below).

• Select the language of the voice instructions (e.g., "English") you want to install onto the memory card. Note: The default language is identical to the Setup Language. Click Next to continue.

• Select the geographic map(s) you want to install onto the memory card (e.g., "United Kingdom & Ireland"). Click Next to continue.

• Click Install to start installing the geographic map(s) and the voice instructions onto the memory card. (For products with more than one CD: please note that not all CDs are necessarily asked for during the installation process. This depends on which map(s) you have selected for installation in step 8).

• Click Finish to complete the installation / maintenance process. The geographic map(s) and voice instructions are now installed on your memory card and can be used for navigation.

Formatting your Memory Card

Formatting the memory card maximizes the free space on the memory card and optimizes the speed of reading and writing files from/onto the memory card.

Warning:

Formatting will erase ALL data on the memory card. Note that your ROUTE 66 product can always be restored on your memory card using the CD(s), but you may want to backup other data (e.g., photographs or MP3s) that you have stored on the memory card.

1. Insert your memory card into the memory card reader & writer.
2. Connect your memory card reader & writer to a USB port of your PC.
3. Open (double-click) My Computer on your PC. The corresponding memory card appears in the Devices with Removable Storage section as "Removable Disk". Make sure this is the correct memory card (e.g., disconnect the memory card reader & writer and verify that the disk disappears from the list; next, reconnect your memory card reader & writer).
4. Click on the right button of the mouse on the identified Removable Disk and choose "Format..." Select "FAT" (not "FAT32") under "File system" and click Start. Take good notice of the contents of the warning message. If you agree, click OK. The memory card will be formatted, erasing ALL data on it!
5. The "Format Complete" dialog appears after 10 seconds. Click OK, then click Close.

How does GPS work?

The Global Positioning System (GPS) is a satellite-based navigation system made up of a network of 24 satellites placed into Earth's orbit. GPS works in any weather condition, anywhere in the world, 24 hours a day. There are no subscription fees or setup charges to use GPS.

A GPS receiver must be locked on to the signal of at least three satellites to calculate a 2D position (latitude and longitude) and track movement. With four or more satellites in view, the receiver can determine your 3D position (latitude, longitude and altitude).

Illustration of three satellites with signal waves projecting onto a car and a smartphone, no text or symbols present.

Quick Reference Card - Navigate to a location

Use this printable Quick Reference Card to easily find the steps to follow in order to navigate to a location.

Navigate to your home address

In Main Menu

Navigate to

Select Home

Navigate to your office address

In Main Menu

Navigate to

Select Office

Find an address and navigate to it

In Main Menu, se

Navigate to

Select Locations

Type the name of the city. When have entered all search strings, rm them .

Wait for a few seconds. When the if results is displayed, pick out the ion that you are looking for. irm your choice .

Navigate to a favourite location

In Main Menu

Navigate to .

Select Favourites

The list of locations you have d before as favourites is now ayed on the screen. Select the tion you need and confirm your ce √

Navigate to a recently visited location (History)

In Main Menu

Navigate to

Select History

The list with the locations you e visited recently is now displayed the screen. Select an item in the list confirm your choice .

Navigate to a contact

In Main Menu, se

Navigate to

Select Contacts

From the list of availablects, select the contact you needonfirm your choice

From the list of availablesses, select the location you needonfirm your choice .

Navigate to a POI around your GPS position

In Main Menu

Navigate to .

Select POI around GPS position

Select a relevant POI category confirm your choice

Select an item from the list andrm your choice .

Navigate to a POI around your destination

In Main Menu

Navigate to

Select POI around destination

Select a relevant POI category

and confirm your choice

Select an item from the list and

confirm your choice

Find a point on the map and navigate to it

In Main Menu

Navigate to

, select

Select Point on map

The map and your current

position are displayed. Select & hold and drag the map in the desired direction. When you see on the map the location of your memories, select

on it. The pointer indicates this location on the map.

Select Navigate to

add this location as your destination.

Navigate to a destination via intermediate points (Navigate via)

In Main Menu, select

Navigate via .

Select a single waypoint and then

confirm your choice

Select Yes and go to step 4 if

you want to add other locations as additional stopovers to your trip. Select No to start navigating.

In Add waypoint, select another

location for your trip. When you added all waypoints, confirm them and then select No.

Plan a route

In Main Menu

Plan a route

Add your departure location.

Add your first destination location.

Select Yes and go to step if

you want to add other locations as additional stopovers to your trip. Select

No and go to step 6 to display the map and the departure location.

In the Destination screen, select

the second destination for your trip

The route is calculated. The entire

route is shown on the map. Select

Navigate to

to start travelling

along the route you planned.

Customer Support

If you have any questions regarding the use of your ROUTE 66 product, please send an e-mail to [e-mail]. You can also visit the ROUTE 66 web site (http://www.66.com/) from time to time in order to stay informed about free updates and our latest offers.

License agreement

This is a legal agreement between you, the end user, and ROUTE 66 Geographic Information BV, Ridderkerk, The Netherlands ("ROUTE 66").

IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN THE CD-ROM/FLOPPY DISK/DOWNLOAD PACKAGE, THE HARDWARE AND ACCOMPANYING ITEMS - PROVIDED THEY HAVE NOT BEEN USED - TO THE PLACE YOU OBTAINED THEM. IF YOU HAVE ALREADY PAID FOR THE SOFTWARE AND/OR HARDWARE ROUTE 66 OR ITS AUTHORIZED DISTRIBUTOR FROM WHOM YOU OBTAINED THE SOFTWARE AND/OR HARDWARE, WILL REFUND YOU THE PURCHASE PRICE PROVIDED YOU PROVIDE ROUTE 66 WITH PROOF OF PURCHASE AND PAYMENT.

BY BREAKING THE SEAL OF THE CD-ROM/FLOPPY DISK, PRESSING THE "I AGREE" BUTTON FOR A DOWNLOAD, OR BY USING THE SOFTWARE AND/OR HARDWARE YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS AGREEMENT.

YOU REPRESENT AND WARRANTY THAT YOU HAVE THE RIGHT AND THE AUTHORITY TO ENTER INTO THIS LICENSE AGREEMENT AND THAT YOU ARE OVER THE AGE OF MAJORITY. IF NOT, YOU MAY NOT USE THE SOFTWARE AND/OR HARDWARE.

The License is subject to Law of the Netherlands and the District Court of Rotterdam is the only competent court for disputes related to this License or the use of the Software and/or Hardware. The United Nations Convention on Contracts for the International Sales of Goods is hereby excluded from application to this License.

1) GRANT OF LICENSE: This ROUTE 66 License Agreement ("License") permits you to use the ROUTE 66 computer program and the digital (map) data included in the accompanying package acquired with this License on any single computer, provided the Software is installed on only one computer at any time and provided the Software is combined only with one (1) navigation system. This License is non-exclusive and non-transferable.

This License does not imply any rights to future upgrades or updates of the Software. The use of any upgrades or updates of the Software is governed by this License and may be subject to additional payments.

2) COPYRIGHT: The copyrights and other intellectual or proprietary rights to the Software and Hardware are owned by ROUTE 66 or its suppliers. You may either (a) make one copy of the Software solely for backup or archival purposes, or (b) transfer the Software to a single medium provided you keep the original solely for backup or archival purposes. You may not copy the product manual(s) or written materials accompanying the Software. You only become the owner of the material data carrier and you do not acquire the ownership of the Software.

3) OTHER RESTRICTIONS: The hiring, lending, public performance and broadcasting of Software and Hardware are prohibited. You are not permitted to fully or partly modify the Software, to analyze it by means of reverse-engineering, to decompile or disassemble the Software, or to make products derived from it. If you wish to obtain information that is necessary to ensure the interoperability of the Software with third party software, please contact ROUTE 66 at [e-mail]. You are explicitly prohibited from downloading the digital maps and programs contained in the Software or from transferring these to another data carrier or computer.

4) CONFIDENTIALITY: You acknowledge and agree that the Hardware and Software was developed at considerable time and expense by ROUTE 66 and is confidential to and a trade secret of ROUTE 66. You agree to maintain the Software in strict confidence and not to disclose or provide access thereto to any person. If you would nevertheless grant another person (unauthorized) access to the Hardware and/or Software, you guarantee that such person accepts the terms and conditions of this License and you will indemnify ROUTE 66 and its authorized distributors against any claim of such person.

LIMITED WARRANTY

WARRANTOR

Non-U.S. and non-Canadian purchases: If you have made your purchase outside the United States and Canada, this Limited Warranty is granted by and this Limitation of Liability is stipulated for the benefit of ROUTE 66 Geographic Information Systems B.V., Brouwerstraat 36, NL-2984 AR Ridderkerk (The Netherlands).

User Manual

WHAT THIS WARRANTY COVERS

1) ROUTE 66 Geographic Information Systems B.V. ("ROUTE 66") warrants to you that the Hardware will be free from defects in workmanship and materials under normal use ("Defects") for a period of two (2) years from the date that the Hardware was first purchased by you ("Warranty Period"). During the Warranty Period the Hardware will be repaired or replaced at ROUTE 66's choice ("Limited Warranty") without charge to you for either parts or labour. This Limited Warranty covers the replacement of the Hardware only. If the Hardware is repaired after the Warranty Period has expired, the Warranty Period for the repair will expire six (6) months after the date of repair.

WHAT THIS WARRANTY DOES NOT COVER

2) The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone not authorized by ROUTE 66 and does not cover repair or replacement of any Hardware or part thereof damaged by: misuse, moisture, liquids, proximity or exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty does not cover physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may accompany or be installed on the Hardware.

HOW TO MAKE A WARRANTY CLAIM

3) In order to make a claim of a Defect, you must contact ROUTE 66 by email during the Warranty Period via www.66.com to explain the Defect and to obtain an RMA number (Return Materials Authorization) if necessary. You must return the Hardware during the Warranty Period, along with an explanation of the Defect, to the address provided to you by ROUTE 66. If a defect arises and a valid claim under this Limited Warranty is received by ROUTE 66 after the first one hundred and eighty (180) days of the Warranty Period, ROUTE 66 is entitled to charge you for any reasonable shipping and handling costs made in connection with the repair or replacement of the Hardware. You must comply with any other return procedures stipulated by ROUTE 66, if any.

YOUR LEGAL RIGHTS

4) Some countries may not allow the exclusion or limitation of damages. If any part of this Limited Warranty is held to be invalid or unenforceable, the remainder of the Limited Warranty shall nonetheless remain in full force and effect.
5) This Limited Warranty is the only express warranty made to you and is provided in lieu of any other express warranties or similar obligations (if any) created by any advertising, documentation, packaging, or other communications.
6) Except for the Limited Warranty and to the maximum extent permitted by applicable law, ROUTE 66 and its suppliers provide the Hardware "AS IS AND WITH ALL FAULTS", and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses, of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of or failure to provide support or other services, information, software, and related content through the Hardware or otherwise arising out of the use of the Hardware. Also, there is no warranty or condition of quiet enjoyment, quiet possession, or non-infringement with regard to the Hardware. This exclusion does not apply to (i) any implied condition as to title and (ii) any implied warranty as to conformity with description.
7) This Limited Warranty does not affect any legal rights under applicable national legislation governing the sale of consumer goods.
8) This Limited Warranty cannot be transferred to any other person.

LIMITATION OF LIABILITY

9) Neither ROUTE 66 nor its suppliers shall be liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise (including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits, business interruption or the like) arising out of the use of or inability to use the Hardware even if ROUTE 66 has been advised of the possibility of such damages.
10) Notwithstanding any damages that you might incur for any reason whatsoever (including, without limitation, all damages referenced herein and all direct or general damages in contract or anything else), the entire liability of ROUTE 66 and any of its suppliers shall be limited to the amount actually paid by you for the Hardware.
11) ROUTE 66 shall not be liable for (i) any fraud on the part of its employees and/or agents; or (ii) any fraudulent misrepresentation on the part of its employees and/or agents.
12) Notwithstanding the above, neither party's liability for death or personal injury resulting from its own negligence shall be limited.

Disclaimer

1. Location measurement with a GPS receiver should not be used for precise location measurement. Therefore you should never rely solely on the location measurement by the GPS receiver.

2. All digital cartography is to a certain degree inaccurate and incomplete. Therefore you should never rely solely on the cartography provided by this product.

3. You agree that the personal data you provide by using this product may be used to provide the services of this product to you and that these personal data may be transferred outside the European Union.

4. When you are using hardware and software navigation aids like this product in a vehicle, it is your sole responsibility to place, secure, and use these aids in such a manner that they will not cause accidents, personal injury or property damage, or in any manner obstruct your view. You, the user of this product, are solely responsible for observing safe driving practices at all time. While driving keep your hands on the wheel and your eyes on the road. Do not manipulate this product while driving but park the vehicle first. ROUTE 66 AND ITS SUPPLIERS HEREBY DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR VIOLATION OF THE LAW.
