Product Type	Portable Air Conditioner
Model	AMB12KM-410
Brand	Amcor
Cooling Capacity	12,000 BTU/h
Heating Capacity	10,000 BTU/h (heat pump)
Power Supply	115 V / 60 Hz / 10.5 A
Dimensions (W x D x H)	18.5 x 16.3 x 30.5 in
Weight	75 lbs
Refrigerant Type	R-410A
Energy Efficiency Ratio (EER)	10.2
Noise Level (Low/High)	48 / 54 dB
Functions	Cool, Heat, Fan, Dehumidify, Auto
Remote Control	Yes (included)
Casters	4 swivel casters
Air Filter	Washable mesh filter
Dehumidification Capacity	2.5 pints/h
Exhaust Hose Length	60 inches
Window Kit	Adjustable slide bar kit included
Safety Features	Overload protection, auto restart
Maintenance	Clean filter every 2 weeks; drain condensate in humid mode

Frequently Asked Questions - AMB12KM-410 Amcor

How do I install the air conditioner?

Place the unit near a window, attach the exhaust hose to the back of the unit, and extend the window kit to fit your window opening. Ensure the hose is not kinked and the window sash is securely closed. Refer to the installation section of the manual for detailed steps.

How often should I clean the filter?

The filter should be cleaned every two weeks under normal usage. A clogged filter reduces efficiency and can cause the unit to freeze. Wash with warm water, let dry completely, then reinsert.

The unit is not cooling properly. What could be the issue?

Check if the filter is dirty, ensure the exhaust hose is properly connected and not blocked, verify that the room size is appropriate for 12,000 BTU, and make sure the unit is in cool mode. Also, close windows and doors for best performance.

Can I use the air conditioner in heating mode?

Yes, the AMB12KM-410 features a heat pump, so it can provide heating. Set the mode to HEAT and adjust the temperature to your desired level. Note that heating may be less effective in very low outdoor temperatures.

How do I drain the condensate water?

In dehumidify mode or when humidity is high, water collects in the internal tank. If the unit turns off and displays a full tank indicator, remove the drain plug at the back and drain water into a container. Some models have a continuous drain option using a hose.

What does the auto-restart feature do?

Auto-restart ensures that after a power outage, the air conditioner resumes operation with the same settings as before the outage. This is a convenience feature to avoid having to reset the unit manually.

How do I use the remote control?

Insert two AAA batteries (not included) into the remote, point it at the unit's receiver, and press the power button. Use the mode button to cycle between Cool, Heat, Fan, Dehumidify, and Auto. The remote also controls temperature, fan speed, timer, and swing.

What is the recommended room size for this unit?

A 12,000 BTU air conditioner is suitable for rooms up to about 500-550 square feet, depending on insulation, ceiling height, and climate. For best cooling, ensure the room is well-sealed.

The display shows an error code. What should I do?

Common error codes include E1 (room sensor failure), E2 (evaporator sensor failure), and E3 (condenser sensor failure). Turn off the unit, unplug it for 5 minutes, then restart. If the error persists, contact customer support.

Can I program a timer?

Yes, the unit has a 24-hour timer. You can set the unit to turn on or off after a specified time. Press the Timer button on the remote or control panel and adjust the hours using the +/- buttons.

USER MANUAL AMB12KM-410 Amcor

White SAMCOR air conditioner unit with ventilation grille and wheels (no visible text or symbols)

Portable air conditioner

PARTS

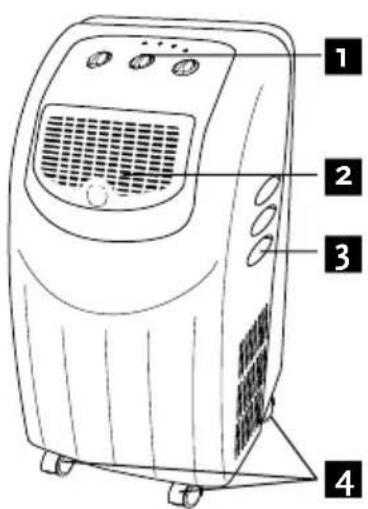

1. Control panel
2. Air outlet
3. Handle
4. Casters

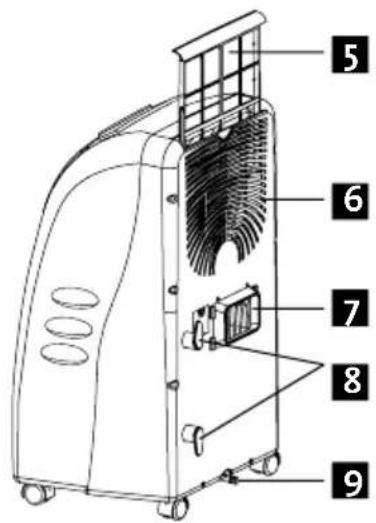

5. Air filter
6. Air inlet
7. Exhaust air outlet
8. Cord hanger

9. Water stopper (plug inside)

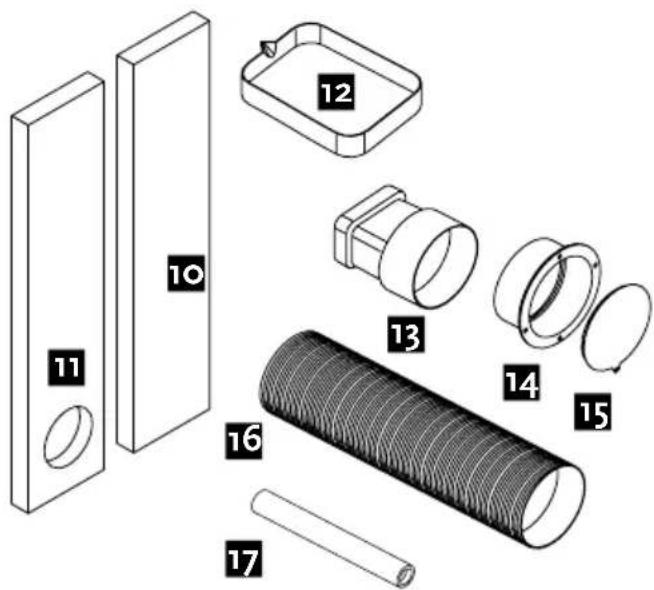

10. Foam extension

11. Foam with hole
12. Water tray
13. Hose adapter
14. Window/wall adapter
15. Cap
16. Exhaust hose
17. Water tube

THANK YOU

Thank you for choosing this innovative Amcor air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your air conditioner you should carefully read these instructions to maximise this product's performance.

For over 50 years Amcor has specialised in complete indoor environmental control, manufacturing and marketing; dehumidifiers, portable air conditioners, coolers, air purifiers, ionisers and aroma therapy scent diffusers. These world class products incorporate the latest technological developments.

SAFETY INSTRUCTIONS

IMPORTANT!

• The unit is designed for indoor operation.
• Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet.
• The installation must be in accordance with regulations of the country where the unit is used.

If you are in any doubt about the electrical installation, have it checked and if necessary modified by a qualified electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it with care.
• Keep out of the reach of children.
• Do not clean the unit by spraying it or immersing it in water.
• Do not insert any object into the openings of the unit.
• Disconnect it from the mains before cleaning the unit or any of its components.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a licensed electrician.

WARNING

• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.
• A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard.
• Any service other than regular cleaning or wick replacement should be performed by an authorized service representative. Failure to do so could result in a loss of warranty.

Do not use your cooler under the following conditions:

Abstract black-and-white geometric pattern with diagonal lines and a central emblem (no text or symbols)

If the power cable wires are frayed or cut

Silhouette of a dog and a cat crossed out by diagonal lines (no text or symbols)

When small children may be left unattended

On a slope or uneven surface

Simple line drawing of a campfire with no text or symbols

Close to a naked flame

Abstract geometric pattern with black and gray shapes intersecting by diagonal lines (no text or symbols)

This products is not made for DIY repair

Simple line drawing of a container with liquid inside, crossed by two diagonal lines (no text or symbols)

If there is a risk of liquid falling on the unit

Simple line drawing of a window frame with diagonal lines and a shaded bottom panel (no text or symbols)

Inside unit exposed to the weather outdoors

Black and white pictogram of a faucet with water droplets falling, no text or symbols present

Near water

Pure electrical circuit lines without any symbols

If an extension lead may become overloaded

Abstract black-and-white line drawing of a snake coiled around a diagonal line, no text or symbols present

Where the power cable may be damaged

Where it may be damaged by chemicals

Diagram showing a hand using a tool to cut a rectangular object with diagonal lines (no text or symbols)

Where there is a risk of interference by foreign objects

POSITIONING

This unit is portable and can easily be moved from one room to another. In doing so keep this in mind:

• The air conditioner must stand upright on an even surface.
- Position not (near) bath, douche or other wet or damp area.
- Keep for free air circulation at least 50 cm free from any obstacle or curtains.

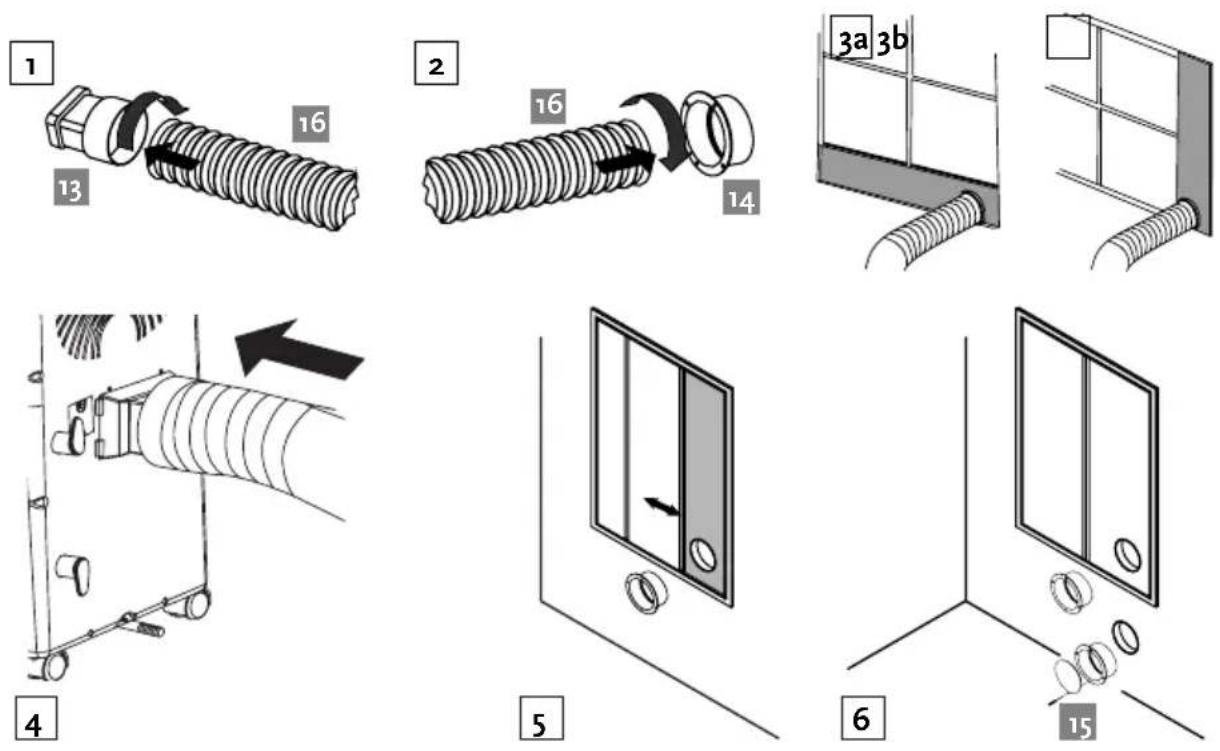

• Put the exhaust hose into the round side of the exhaust hose adapter (13) (fig. 1).
• Put the wall/window adapter (14) onto the exhaust hose (fig. 2).
• Connect the hose with the rectangular end to the air conditioner (fig. 4).

Using the foam.

Place the foam with the hole (11), if needed together with the foam extension (10), in the window and close this as far as possible to refrain the warm air from re-entering the room (fig. 5). Depending on how the window opens, horizontally (fig. 3a) or vertically (fig. 3b).

Pass the hose through the opening in the foam (11).

Permanent hole in glass or wall.

Place the wall/window connector (14) in the hole with diameter 130 millimetre (fig. 6). Connect the hose with the rectangular end to the air conditioner (fig. 4). Use the cap (15) to close the opening when the air conditioner is not used.

Important

The flexible exhaust hose can be extended from 300 to 1500 mm for mounting. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning.

The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any bow or bend in the exhaust hose.

OPERATION

1. ON/OFF and timer knob

LED [1] shows when the air conditioner is switched on ⚙

The unit switches off automatically when the selected time (between 1 and 8 hours) has run down.

2. Mode knob

Select with this knob either low or high ventilation speed (LED [2]) or low or strong cooling (LED [3]).

3. Thermostat knob

Turn this knob to maintain the temperature level in combination with cooling.

Air flow

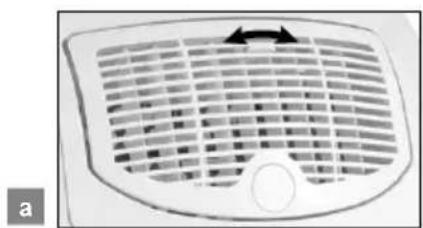

a. Turn the roller to control the air flow direction of the vertical louvres.

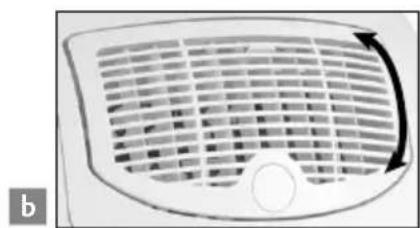

b. Move the air vent directly to adjust the air flow direction of the horizontal louvres.

Diagram of a curved electronic device with internal components and a central button (no text or symbols)

Diagram of a curved object with horizontal lines and arrows indicating rotation or movement (no text or symbols)

Notices:

• The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner.
• The cooling will switch off when the room temperature is lower than the set one. Ventilation will however continue to work on the set level. When the room temperature rises above the selected value, the cooling will work again.

EMPTYING THE INTERNAL WATER CONTAINER

When the water container is full, the compressor stops but the ventilator keeps functioning, LED [4] will be on.

Switch off the unit and remove the plug from the mains.

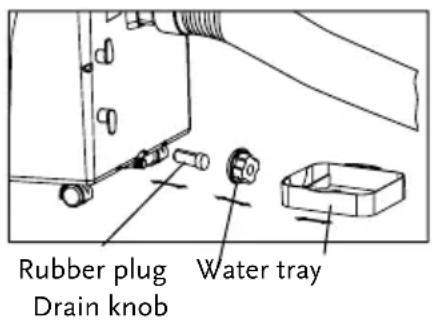

• Place the water tray flat on the floor under the drain.
• Remove the drain knob.
• Remove the rubber plug and fill the water tray then replace the plug to stop the water flow. Empty the tray and repeat this process until all water has been removed.
• Replace the rubber plug and the drain knob, plug the unit in and switch on. The LED [4] should now be out.

PERMANENT DRAINAGE

Switch off the unit and remove the plug from the mains.

• Remove the drain knob and the rubber plug.
• Connect the correct water tube onto the water outlet.
• Place the other end in a normal drain.
• Make sure that the tube is free from twists and bends.

The tube must incline over its entire length.

Dehumidification

If the unit will be used mainly as dehumidification, do not connect the exhaust hose and let the warm air return in the room. Continuous drainage is then convenient and more efficient.

Diagram of a vehicle door mechanism with wheels and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and directional arrows indicating motion (no text or symbols)

CLEANING

First of all switch off the unit and pull the plug.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions.

Filter

The single layer screen filter cleans the circulated air. The filter needs to be cleaned regularly with a vacuum cleaner to avoid blocking the air flow.

Notice! Never use the air conditioner without filter.

STORAGE

See the instructions "Emptying the water container".

• Drain the condensed water completely.
• Clean (or replace) the filter.
• Put the unit on a sunny day in fan mode for a couple of hours to ensure that the inside becomes completely dry.

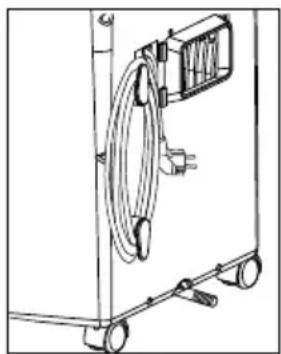

• Store the power cable as shown, protect the unit against dust and store in a dry place not accessible for children.

Technical line drawing of a mechanical device with a coiled cable and power outlet (no text or symbols)

Cable storage

TROUBLE SHOOTING

Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property.
Problem Cause	Solution
The air conditioner does not function.	No power supply. Connect to a	functioning outlet and switch on.
	Is the LCD light fl ashing. Empty	the internal water container.
	Timer function is active. Deactivate TIMER function.
The air conditioner does not seem to perform.	In direct sunlight. Close curtains.
	Windows or doors open, many people or a heat source in the room.	Close doors and windows, place an extra air conditioner.
	Dirty filter. Clean or replace the filter(s).
	Air inlet or air outlet blocked. Remove the blockage.
	Room temperature lower than the selected value.	Change temperature selection.
The unit is noisy. Unit stands uneven. Place on an even, solid surface (less vibrations).
The compressor does not work.	The overheat protection is probably activated.	Wait 3 minutes until the temperature has decreased, then turn on the unit again.
To correct problems that have not been described in the table and/or if the recommended solutions fail to solve the problem, contact an authorized service centre.

TECHNICAL DATA

Model AMB		7KM-410	AMB 10KM-410	AMB 12KM-410
Cooling capacity measured to conform to EN 14511	BTU/h 6	500 8300 9600
	kW 1.9	2.4 2.8
Mains 220–240 V / 50 Hz / 1Ph
Power consumption W 690 830 1030
Current A 3 3.7	4.5
Dehumidification	L/24h	24	28.8	36
Air delivery	m3/h	300 350	350
Recommended room size	m2	12	18	24
Refrigerant		R410A
Compressor		rotary
Fan speeds		2
Thermostat	°C	18 – 32
Timer	h	1 – 8
Dimensions (W x H x D)	mm	400 x 750 x 377
Weight	kg	29	30	32
Subject to modifications without prior notice.Please refer to the rating label for greater precision.
