BP P36R-6x9Ah - Battery BlueWalker - Free user manual and instructions

Product Type	Valve Regulated Lead-Acid (VRLA) Battery
Brand	BlueWalker
Model	BP P36R-6x9Ah
Voltage	12V
Capacity (C20)	9Ah
Chemistry	Lead-Acid, Absorbed Glass Mat (AGM)
Dimensions (L x W x H)	151 x 65 x 94 mm
Weight	2.7 kg
Terminal Type	Faston 4.8mm / 6.3mm
Float Charging Voltage	13.5 - 13.8 V
Cycle Charging Voltage	14.4 - 15.0 V
Operating Temperature	-20°C to 50°C
Self-Discharge Rate	< 3% per month at 20°C
Cycle Life	Up to 300 cycles at 50% depth of discharge
Applications	UPS, emergency lighting, security systems, alarms
Maintenance	Maintenance-free, sealed design
Safety Features	Non-spillable, valve-regulated for overpressure relief
Storage	Store in a cool, dry place; recharge every 6 months
End-of-Life	Recyclable via lead-acid battery recycling programs

Frequently Asked Questions - BP P36R-6x9Ah BlueWalker

What voltage is the BlueWalker BP P36R-6x9Ah battery?

The battery is a 12V valve-regulated lead-acid (VRLA) battery.

What is the capacity of this battery?

It has a capacity of 9Ah (C20 rate), meaning it can deliver 0.45A for 20 hours.

How should I charge this battery?

Use a compatible lead-acid charger. For float charging, maintain 13.5-13.8V. For cyclic charging, use 14.4-15.0V. Always follow the charger manufacturer's instructions.

What are the dimensions and weight of the battery?

Dimensions are approximately 151 x 65 x 94 mm (L x W x H) and weight is about 2.7 kg.

Can this battery be used in a UPS?

Yes, it is designed for UPS, emergency lighting, and security system backup applications.

How long does the battery last on a full charge?

Runtime depends on load. At 1A discharge, it would last about 9 hours, but actual runtime varies with device power consumption.

How should I store the battery when not in use?

Store in a cool (15-25°C), dry place away from direct sunlight. Recharge every 6 months to prevent deep discharge damage.

Is this battery maintenance-free?

Yes, it is sealed and maintenance-free. Do not attempt to open or add water.

How do I dispose of this battery?

Lead-acid batteries are recyclable. Dispose of it at a certified recycling facility or return it to the seller per local regulations.

What is the expected lifespan of this battery?

In float service (standby use), it can last 3-5 years. In cyclic applications, it provides up to 300 cycles at 50% depth of discharge.

USER MANUAL BP P36R-6x9Ah BlueWalker

User Manual Battery Pack

1. Important Safety Warnings

Please comply with all warnings and operating instructions in this instruction strictly. Read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

• Do not try to assemble or repair the unit yourself, contact your local supplier, seek for help of qualified technician
• To eliminate any overheating of the battery box, keep all ventilation openings free from obstruction and do not place any foreign objects on top of the battery bank. Keep the battery box 20 cm away from the wall.
• Make sure the battery box is installed within the proper environment as specified. (0-40°C and 30-90% non-condensing humidity)
• Do not install the battery box under direct sunlight. Your warranty will be void if the batteries fail due to overheating.

- This battery box is not designed for use in dusty, corrosive and salty environment.

- The warranty for this battery bank will be void if water or other liquid is spilled or poured directly onto the battery box. Similarly we do not warrant any damage to the battery box if foreign objects are deliberately or accidentally inserted into the battery box enclosure.

- The battery will discharge naturally if the system is unused for a period of time.

- It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.

- Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.

- When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity.

- CAUTION – Do not dispose of battery or batteries in a fire. The battery may explode.

- CAUTION – Do not open or mutilate the batteries. The electrolyte from the batteries is toxic and harmful to the skin and eyes.

- CAUTION – Risk of Electric Shock – Hazardous voltage may exist between battery terminals and ground. Test before touching with bare hands.

- CAUTION – A battery can present a risk of electrical shock and high short circuit current. The following precaution should be observed when working on batteries:

1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.

- Do not plug or unplug the battery connector if UPS works in DC (discharging) mode.

Installation and Setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use

Storage & Maintenance

The unit contains no user-serviceable parts. If the battery service life (3\~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.

Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

Storage

Before storing, charge the unit 4 hours. Store the unit covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours

How to install batteries in VFI 1000-3000 RT LCD

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

1. The equipment should be installed by service personnel;
2. When installing the batteries, use the same number and type of batteries showed in the battery label;
3. Do not open or mutilate the battery or batteries, released electrolyte is harmful to the skin or eyes
4. A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed when working on battery.
   (a) Remove watches, rings or other metal objects
   (b) Use tools with insulted handles

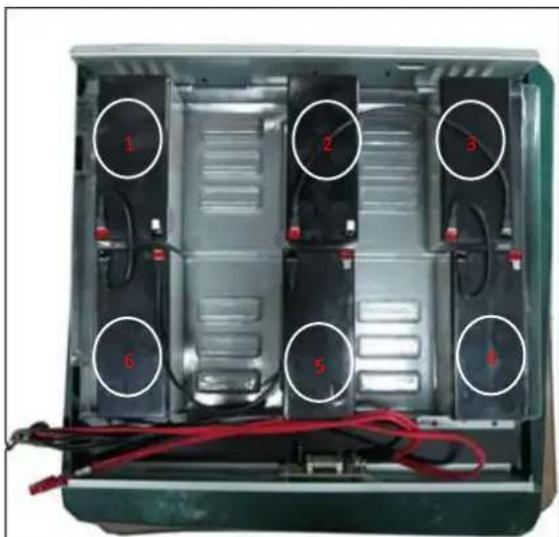

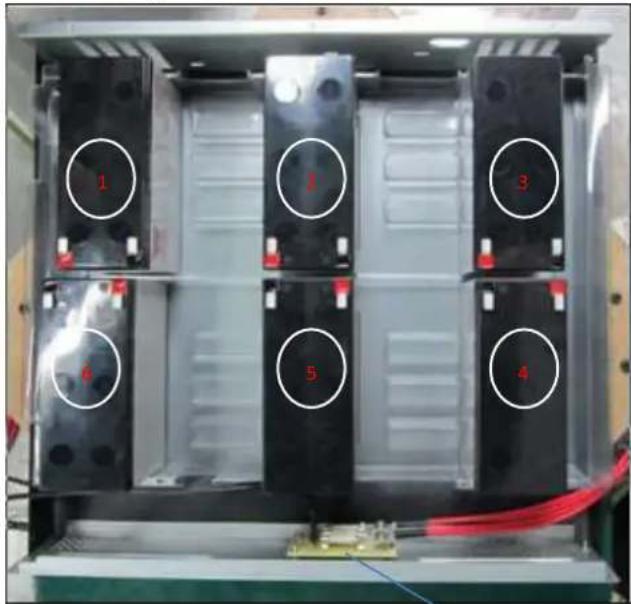

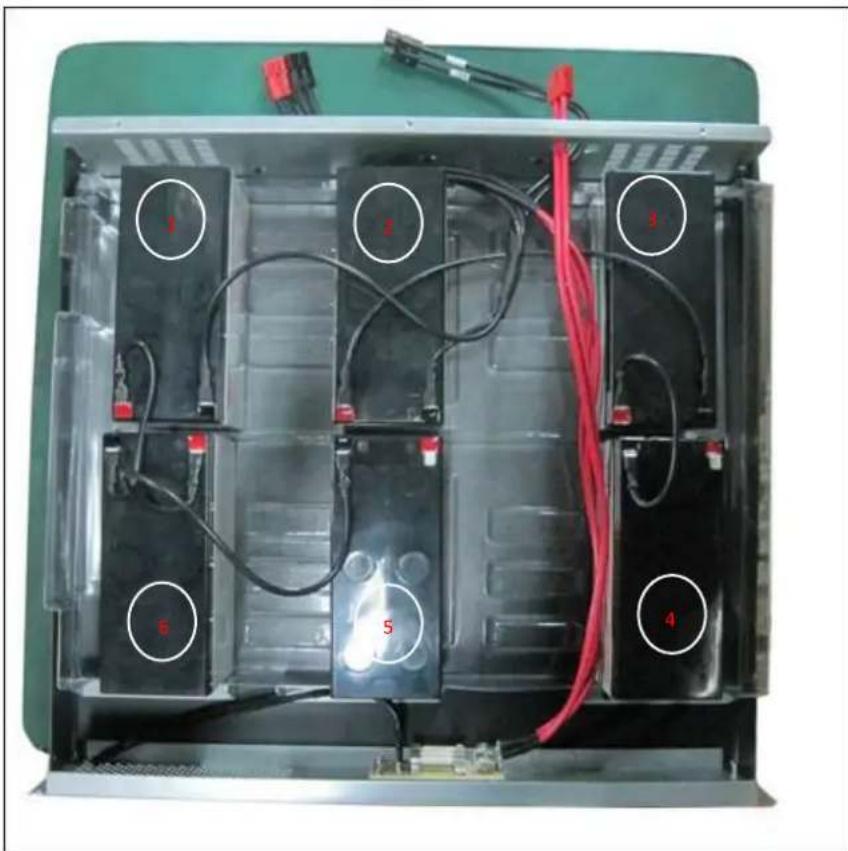

Battery Wiring of PowerWalker VFI 1000 RT LCD Battery Pack 1. Please assemble 6pcs batteries into the Battery Case's and connect batteries with wires as below;

1 2 3 4 5 6

Close-up of a circuit board with multiple components and red-circled annotations (no readable text or symbols)

REMARK: FUSE 15A 250V 3PCS

BATTERY YUASA 12V 7.2AH 6PCS

Interior view of a device casing with six labeled components and red cables (no readable text or symbols)

Please connect BAT1+ and BAT6- with black wiring

Please connect BAT6+ and BAT5- with black wiring

Please connect BAT2+ and BAT3- with black wiring

Please connect BAT3+ and BAT4- with black wiring

Interior view of an electronic battery pack with visible circuitry and wiring (no text or symbols)

Please connect BAT5+ and FUSE with black wiring

Please connect BAT4+ and FUSE with black wiring

Please connect BAT1-, BAT2- and output with long black wiring

1. Please fix batteries into the battery case's connect as below

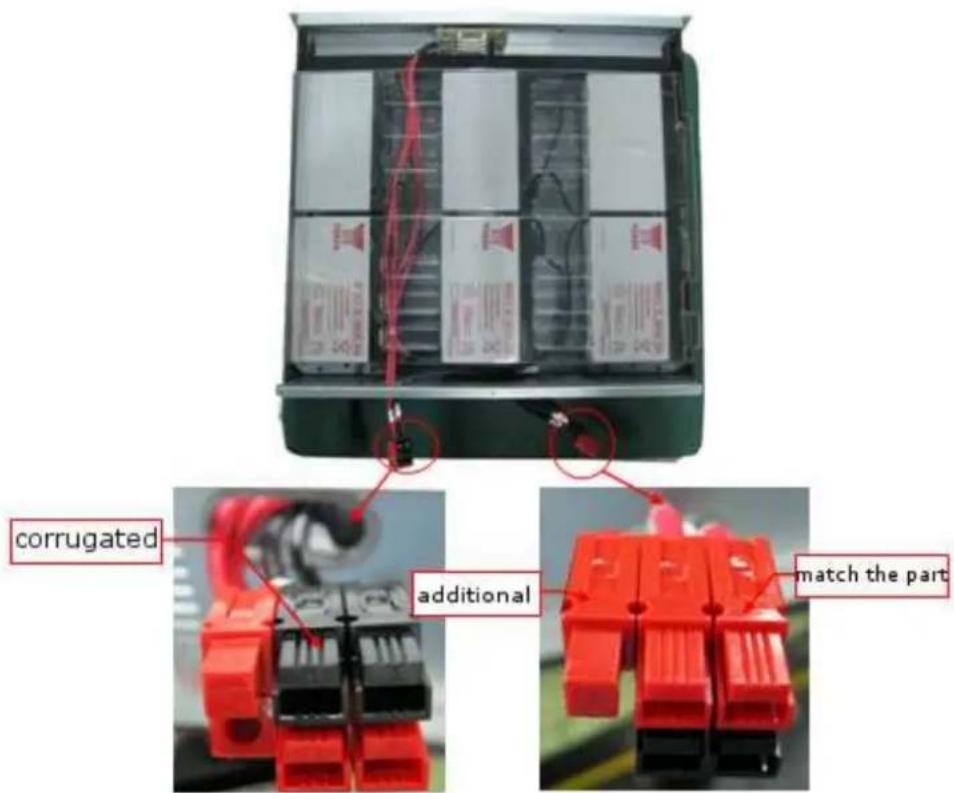

corrugated additional match the part

Anderson connector: 600V/45A

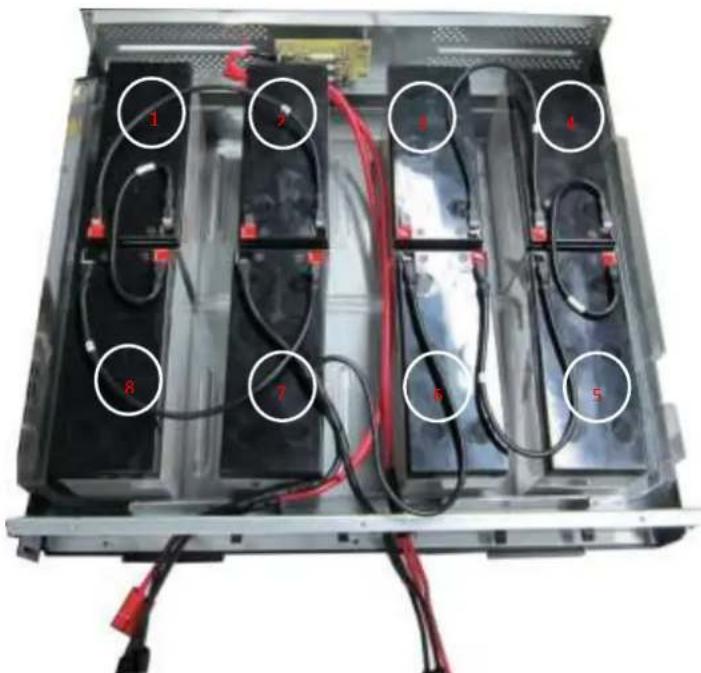

Battery Wiring of PowerWalker VFI 2000 RT Battery Pack

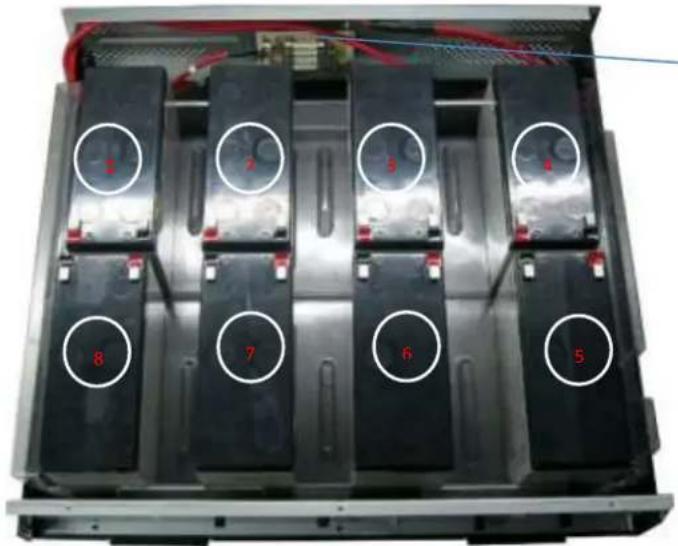

1. Please assemble 8pcs batteries into the Battery Case's and connect batteries with wires as below;

Interior view of an electronic battery pack with eight numbered compartments (labeled 1–8), no visible text or symbols on the cells or casing.

Close-up of a circuit board with three components and red circular annotations (no readable text or symbols)

REMARK: FUSE 15A 250V 3PCS

BATTERY YUASA 12V 7.2AH 8PCS

1 2 3 4 5 6 7 8

Please connect BAT7+ and BAT8- with black wiring Please connect BAT8+ and BAT1- with black wiring Please connect BAT1+ and BAT2- with black wiring Please connect BAT3- and BAT4+ with black wiring Please connect BAT4- and BAT5+ with black wiring Please connect BAT5- and BAT6+ with black wiring Please connect BAT7-, BAT6- and output with long black wiring

2 3

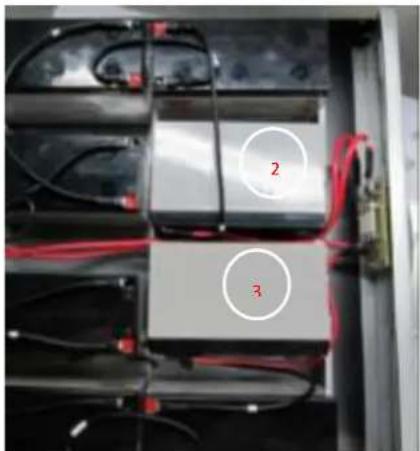

Please connect BAT2+ and FUSE with red wiring

Please connect BAT3+ and FUSE with red wiring

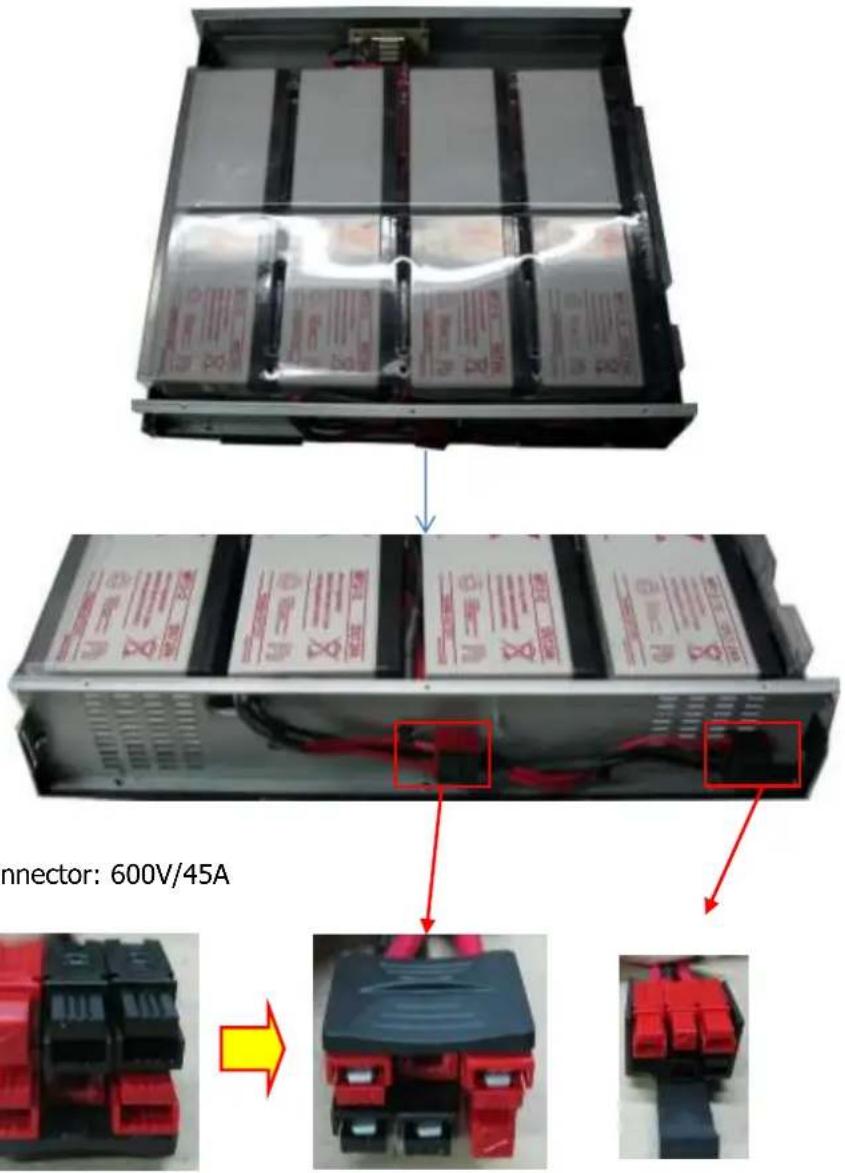

1. Please fix batteries into the battery case's connect as below

Connector: 600V/45A

Anderson connector: 600V/45A

Close-up of red and black electrical connectors (no visible text or symbols)

Close-up of a black and red electronic device with four ports (no visible text or symbols)

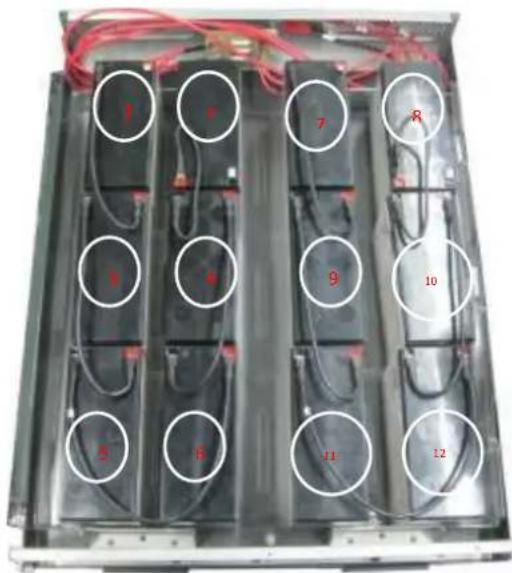

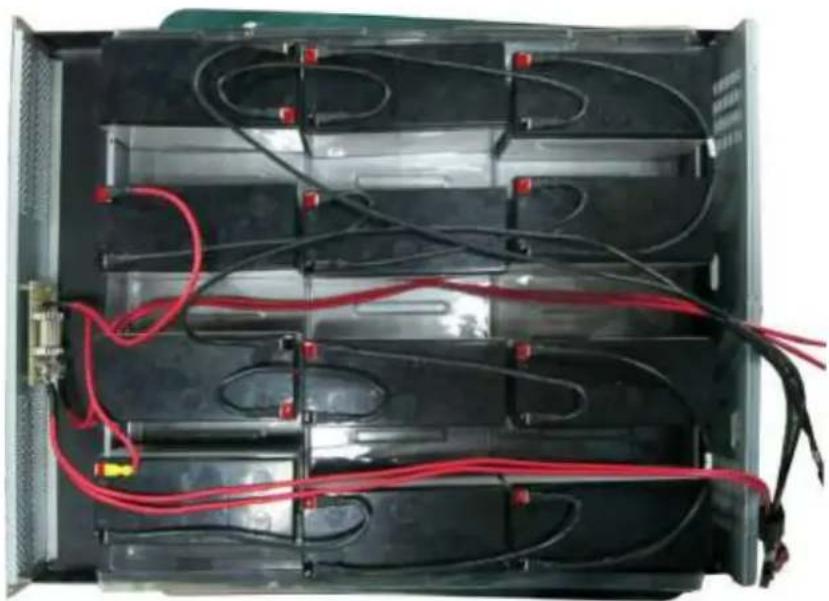

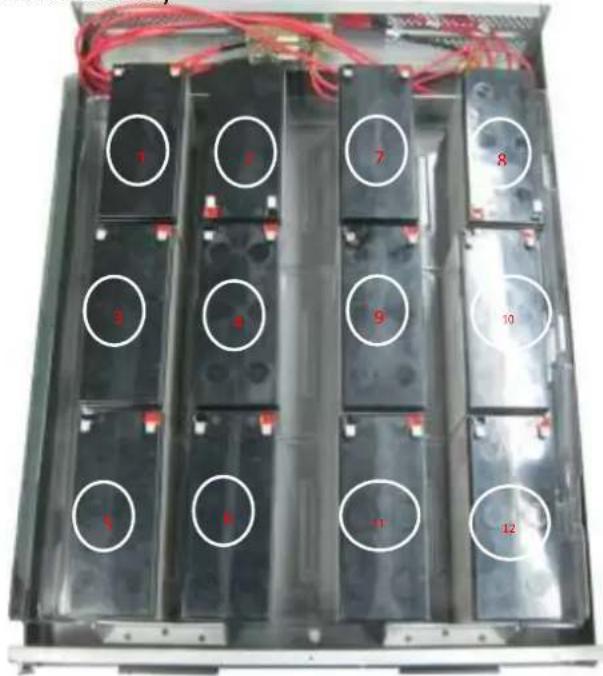

Battery Wiring of PowerWalker VFI 3000 RT LCD Battery Pack 1. Please assemble 12pcs batteries into the Battery Case's and connect batteries with wires as below;

1 2 7 8 3 4 9 10 1 6 -1 12

REMARK: FUSE 15A 250V 3PCS

BATTERY YUASA 12V 7.2AH 12PCS

1 7 7 R 8 4 9 10 8 B 11 12

Please connect BAT1-and BAT3+ with black wiring Please connect BAT3-and BAT5+ with black wiring Please connect BAT5- and BAT6+ with black wiring Please connect BAT6- and BAT4+with black wiring Please connect BAT4- and BAT2+with black wiring Please connect BAT7-and BAT9+ with black wiring

Please connect BAT9-and BAT11+ with black wiring Please connect BAT11- and BAT12+ with black wiring Please connect BAT12- and BAT10+ with black wiring Please connect BAT10- and BAT8+ with black wiring

Interior view of an electronic device showing black modules with red and black wires, no visible text or symbols

Please connect BAT1+ and FUSE with red wiring Please connect BAT7+ and FUSE with red wiring Please connect BAT2-, BAT8- and output with long black wiring 2. Please fix batteries into the battery case's connect as below

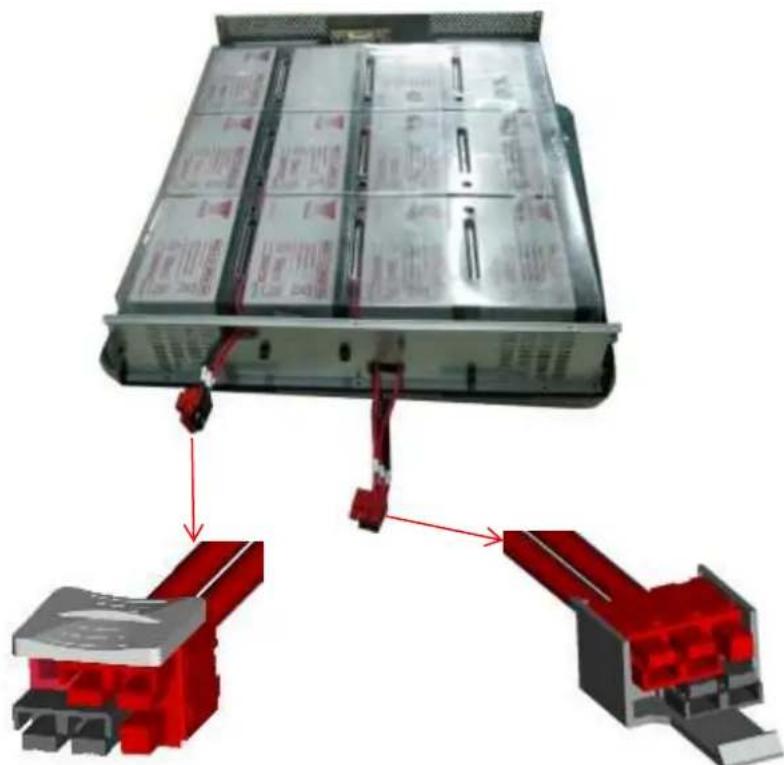

3D diagram of a battery pack assembly with red connectors and internal components (no text or symbols)

Anderson connector: 600V/45A
