25010 - Food processor KORONA - Free user manual and instructions

Product Type	Food Processor
Brand	Korona
Model	25010
Color	White/Silver
Housing Material	Plastic (ABS)
Bowl Material	Stainless Steel
Main Blade Material	Stainless Steel
Bowl Capacity	2.5 Liters
Motor Power	800 Watts
Voltage / Frequency	220-240 V / 50-60 Hz
Dimensions (L x W x H)	30 x 25 x 40 cm
Weight	4.2 kg
Number of Speeds	3 (Low, Medium, High)
Pulse Function	Yes
Functions	Chopping, Slicing, Shredding, Kneading, Mixing, Blending
Included Accessories	Stainless steel chopping blade, slicing disc, shredding disc, dough hook, whisk, spatula
Safety Features	Overload protection, non-slip feet, locking arm safety switch
Maintenance & Cleaning	Removable parts are dishwasher safe; wipe motor base with damp cloth
Spare Parts Availability	Available from manufacturer or authorized dealers
Warranty	2 years (EU)
Repairability Index	7/10 (common parts and user replaceable)
Manual Included	Yes, with recipes and user instructions

Frequently Asked Questions - 25010 KORONA

How do I properly assemble the food processor?

First, attach the bowl to the motor base by twisting it clockwise until it locks. Insert the desired blade or disc onto the central shaft. Secure the lid by aligning the arrow marks and twisting until it clicks. Finally, push the lid down and lock the safety arm over the lid.

Can I use the food processor to crush ice?

No, the 25010 model is not designed for crushing ice. Ice can damage the blades and motor. Use only for soft to medium-hard ingredients.

What are the speed settings used for?

Low speed is for mixing and kneading dough. Medium speed is for chopping vegetables and shredding. High speed is for pureeing and emulsifying. Use the pulse function for controlled chopping.

How do I clean the food processor?

Unplug the unit. Remove the blade and bowl. Wash the bowl, lid, and accessories in warm soapy water or the dishwasher (top rack). Wipe the motor base with a damp cloth. Do not immerse the base in water.

Why does the motor stop during use?

The overload protection may have activated if the processor is overfilled or processing hard food. Let it rest for 10 minutes, then reduce the load and restart.

Can I use the whisk attachment for heavy dough?

No, the whisk is intended for light mixtures like cream or egg whites. For dough, use the dough hook at low speed.

What is the maximum capacity for liquids?

Do not fill the bowl beyond the marked max line indicated inside the bowl. For hot liquids, allow to cool before processing.

How do I replace the blades or discs?

Ensure the processor is unplugged. Remove the lid and bowl. Lift the existing blade/disc off the shaft. Place the new accessory onto the shaft and press down firmly. Secure the lid before use.

Is the food processor safe for use with hot ingredients?

Do not process food above 60°C to avoid damaging the bowl or causing pressure buildup. Let hot food cool before processing.

Where can I find replacement parts for the Korona 25010?

Replacement parts can be ordered from the official Korona website or through authorized service centers. Use the model number 25010 for accurate ordering.

USER MANUAL 25010 KORONA

Close-up of a dish with shredded ingredients on a white plate (no text or symbols visible)

ung schine I essor KORONA®

CE

Close-up of a transparent container with a curved arrow and a circle on its surface (no text or symbols visible)

Close-up of a circular object on a cylindrical surface, possibly a lens or container (no visible text or symbols)

Close-up of a mechanical component with a circular annotation highlighting a specific part (no visible text or symbols)

Close-up of a glass dome-shaped object with a central circular element and a small white base (no visible text or symbols)

Close-up of a transparent glass container with a circular arrow pointing to a small object inside (no visible text or symbols)

Close-up of a transparent glass container with internal components and a white base (no visible text or symbols)

Bedienung

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for processing small

is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is only intended for private household use and not for commercial use!

Safety:

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the damaged.

Caution! Danger of electric shock!

liquid.

An electric appliance is not a toy!

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

play with the appliance.

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

problems during operation, switch off the appliance, disconnect it from the mains and remove the blockage.

etc.

must be switched off.

avoid injuries.

Always make sure that during operation the mixing container as well as the lid are properly attached !

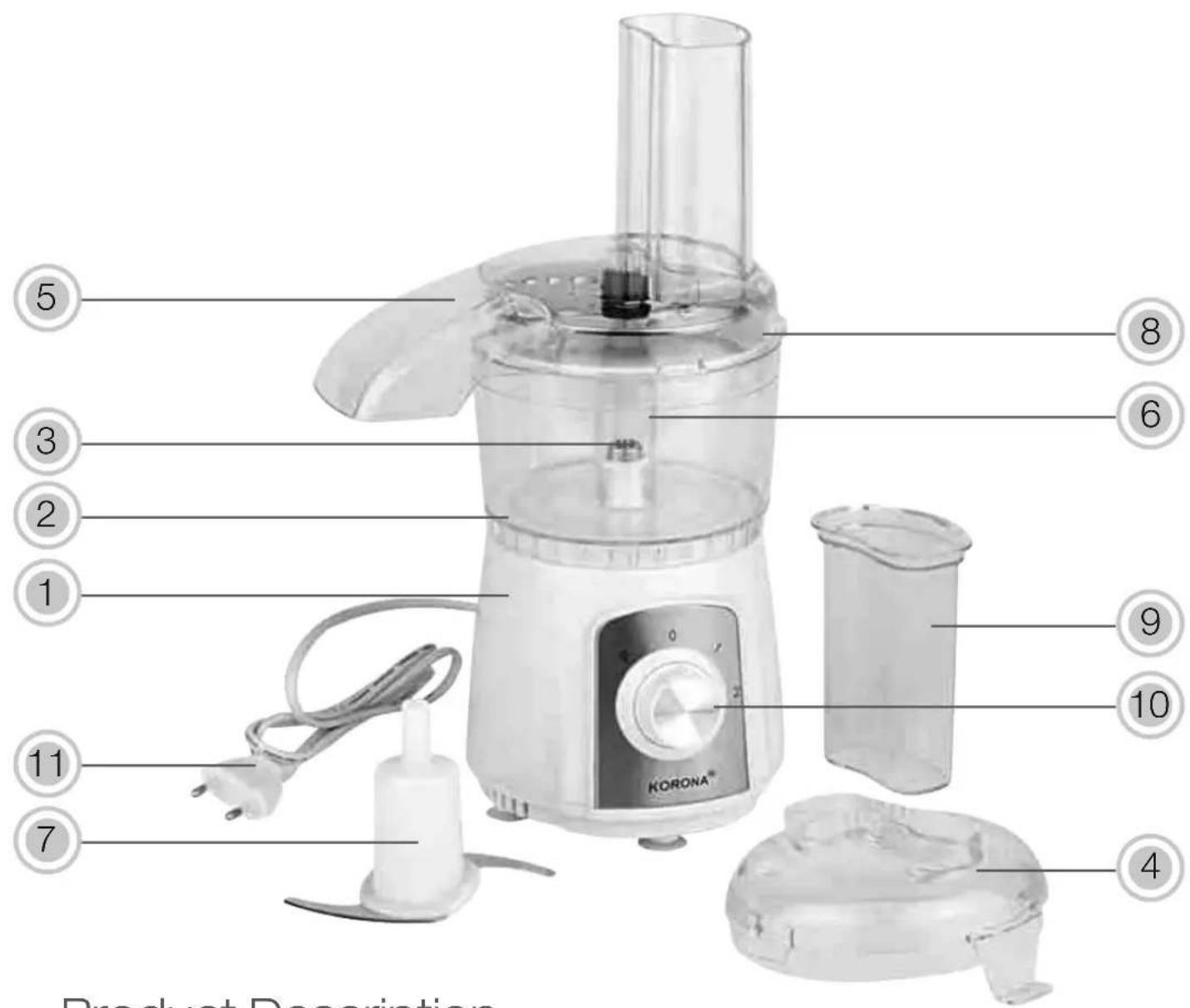

5 3 2 1 11 7 Product Description 8 6 9 10 4

Product Description

1. Motor unit
2. Mixing container

3. Driving shaft

4. Support disc

5. Cutting knife
6. Slicing disc
7. Pushing rod
8. Speed control switch
9. Power cord and plug

Before First Use

appliance is complete and undamaged.

"Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

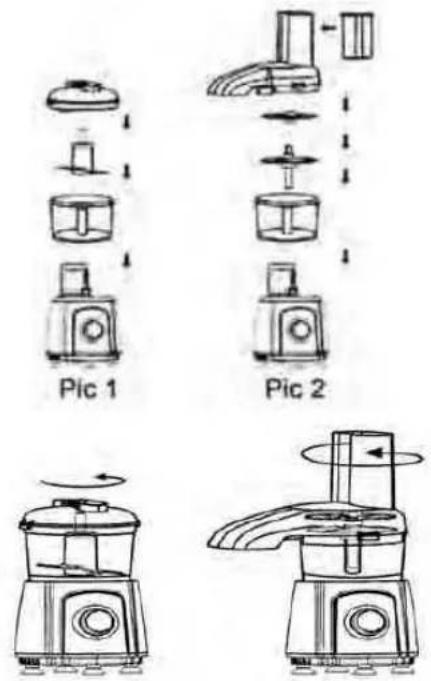

Assembling the food processor

Only operate the appliance when all accessories are properly attached.

Pic 1 Pic 2

Assemble according to

Safety Switch

Safety Switch: This appliance has an integrated safety switch and can only be switched on when

Mixing bowl installation

Close-up of a transparent container with a curved arrow and a circled circle, no visible text or symbols.

Close-up of a circular object with a black mark on a smooth, curved surface (no text or symbols visible)

Attaching the mixing container lid for chopping

Close-up of a mechanical component with a circular annotation highlighting a specific area (no visible text or symbols)

Close-up of a glass dome-shaped object with a central circular element and a small white base (no visible text or symbols)

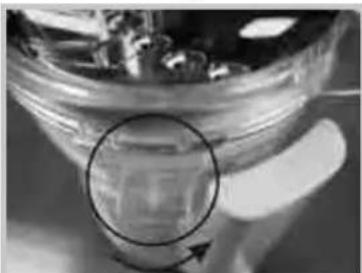

Attaching the mixing container lid for slicing

Close-up of a transparent glass container with a circular highlight and an arrow pointing to it, no visible text or symbols.

Close-up of a transparent glass container with liquid and a white plastic base (no visible text or symbols)

Operation

Your food processor can be used for processing small amounts of foods, e.g. meat, herbs, garlic, onions, hard-boiled eggs, cheese, vegetables, dry bread, etc.

appliance. This could lead to serious injuries.

Chopping

1. Place the appliance on an even and heat resistant surface.

socket.

1. Start the chopping process by turning the speed control

cannot be switched on.

switches off automatically.

Warning: DO NOT operate the appliance longer than 30 appliance.

Maximum Processing Quantity

Ingredients Maximum quantity
Meat	approx. 100 g
Fish	approx. 100g
Herbs	approx. 50 g
Cheese	approx. 100 g
Bread	approx. 75 g
Hardboiled Eggs
Biscuits	approx. 150 g
Fruits	approx. 150 g

Slicing

You can slice cucumbers, carrots, potatoes, etc. If necessary, cut the food into half lengthwise, in order to fit into the feeding tube.

Do not process any frozen foods.

1. Place the appliance onto an even and heat resistant surface..

underneath the ejection shaft.

socket.

1. Turn on the appliance by turning the speed control switch
2. Gradually, put the foods to be processed into the feeding with the other hand.

it down too hard.

disconnect it from the mains.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains and let it completely cool

Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

dishwashing detergent.

reassemble the unit after use. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must

according to the EU directive on Waste Electric And

be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Food Processor 25010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool

down.

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired
