USER MANUAL NAPOLI TAURUS

Symbolic icon of a person climbing a ladder against a red circular background (no text or symbols)

DAS ANBRINGEN DES STANDFUSSES

Exterior view of a black metal enclosure or housing component (no visible text or symbols)

Black-and-white photo of a computer case with an open lid and two black arrows pointing to the lid (no text or symbols visible)

ENTFERNEN DES STANDFUSSES

Black plastic mechanical component with a side bracket and mounting base, displayed on a patterned surface (no text or symbols visible)

Close-up of a mechanical component with internal components and directional arrows indicating movement (no visible text or symbols)

Black-and-white photo of a compact computer case with a partially open lid and directional arrows indicating movement or assembly (no text or symbols visible)

TECHNISCHE DATEN

Explanation of WARNING Symbols....2

ACCESSORIES....4

FRONT PANEL CONTROL 5

BACK PANEL CONTROL....6

REMOTE CONTROL....7

Function of remote control button....8

Teletext function control button....9

INSTALLATION 11

Connecting RF antenna, Cable TV Wire or DTV cable 11

Connecting to DVD/ Set Top Box 11

Connecting to the Headphone....13

Connecting to a Computer 14

Connecting with the Power Cord 14

BASIC OPERATION....15

Power On/Off....15

Selecting input source 15

DTV Channel Installation....15

Volume Adjust....16

Channel Select 16

Sleep Time Setting 16

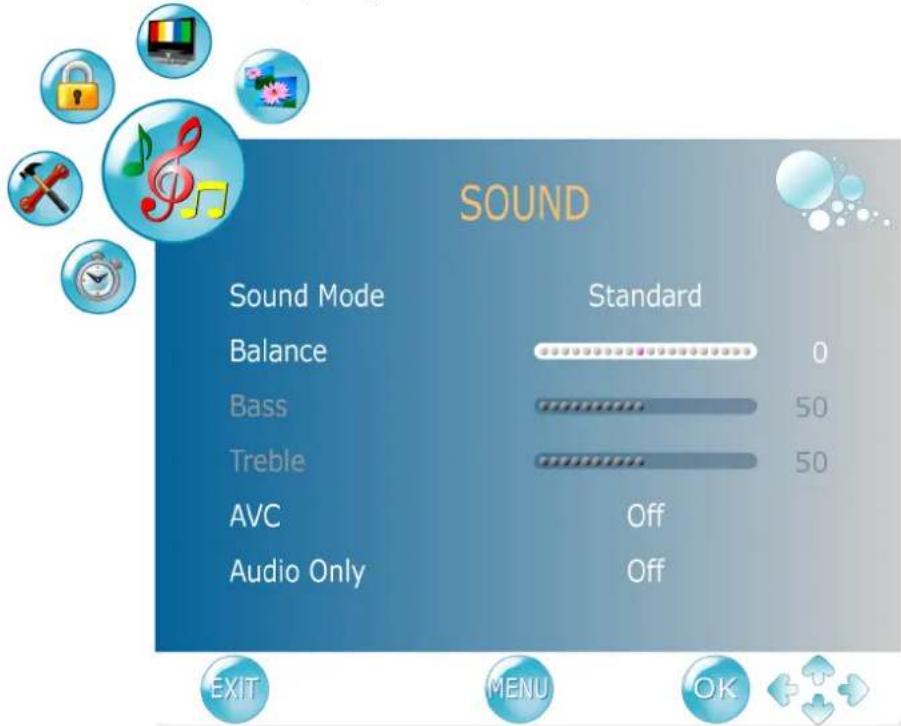

Sound Mode Select....16

Picture Mode Select 16

Aspect Ratio....16

TV AUDIO 17

Subtitle Select 17

DTV/RADIO 17

TV/DTV 18

INFO....18

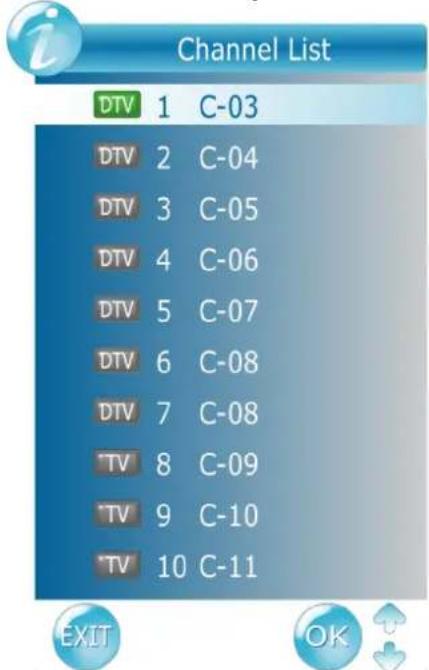

Channel List 18

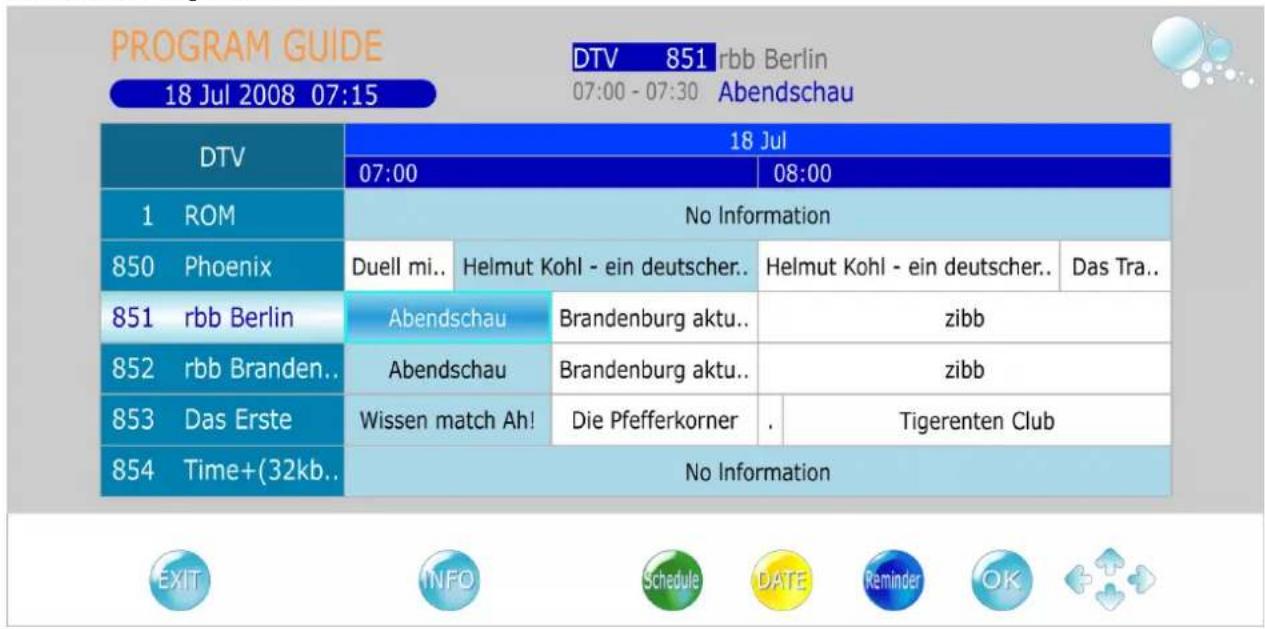

Electronic Program Guide (EPG) 19

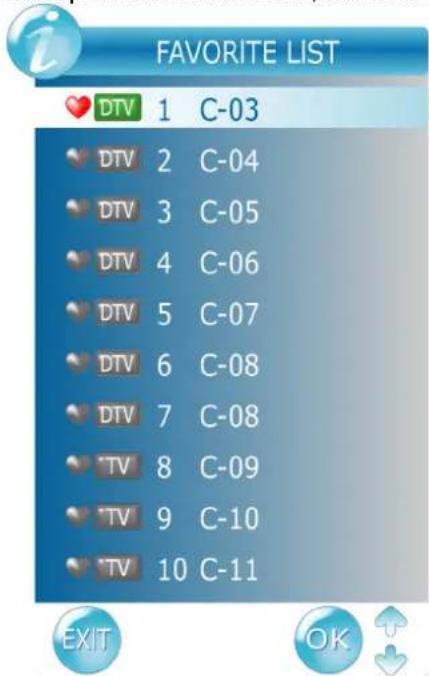

Favorite List....19

Using the OSD Menu 20

SAFETY PRECAUTIONS 39

CARE AND MAINTENANCE 40

TROUBLESHOOTING 40

ENVIRONMENT 41

Explanation of WARNING Symbols

Dangerous Voltage: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence dangerous voltage within the inside of the product that may be sufficient level to constitute a risk of electric shock to persons.

Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

Safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this LCD TV near water.

6) Clean only with dry cloth. Do not use liquid, alcohol, or aerosol cleaners.

7) Do not block any ventilation openings. Install your LCD TV in a well-ventilated area.

8) Keep your LCD TV away from moisture, excessive dust and any heat sources, such as radiators, heat registers, stoves, or any other apparatus (including amplifiers) that produce heat.

9) Do not remove the back cover. There are no user-serviceable parts inside.

10) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

11) Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the point where they exit from the LCD TV.

12) Never rest objects on the power cord or place it in high traffic areas. It is better to use the point where they exit from the apparatus.

13) Only use attachments/accessories specified by the manufacturer.

14) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the LCD TV. When a cart is used, use caution to avoid injury from tip-over.

15) Unplug this LCD TV during lightening storms or when unused for long periods of time.

16) Refer all servicing to qualified service personnel-- Servicing may be required if the LCD TV has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbolic icon of a person climbing a ladder against a red circular background (no text or symbols)

17) Do not expose your LCD TV to dripping or splashing, and no objects filled with liquids be placed on it.
18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the back panel of unit.
19) This product is only to perform the useful function of entertainment and visual display tasks are excluded.
20) Wall or ceiling mounting: When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. Use only their indicated mounting hardware for safety.

CAUTION: Any damage caused by incorrectly attempting to mount this LCD TV is not covered under the terms of the manufacturers warranty.

WARNING: To reduce the risk of fire or electric shock, do not expose this LCD TV to rain or moisture.

ACCESSORIES

Thank you for purchasing this LCD-TV of high performance!

This LCD-TV package comes with:

LCD TV	Benutzerhandbuch	Fernbedienung	Batterie 2 x AAA
Power Cord	VGA Cable RCA AV Cable		RETOURE Label

Note:

The packaging material is not a toy!

Keep out of reach of children. Plastic sheeting and bags can cause suffocation!

FRONT PANEL CONTROL

1	Volume Down (Adjust Decreasing)
2	Volume Up (Adjust Increasing)
3	On Screen Display Menu Key (Back to Previous Menu)
4	Power On/Off Switch
5	Scroll Down (Channel Down)
6	Scroll Up (Channel Up)
7	Input Source Selection (Enter)
8	Power LED Indicator/ Remote Control Receiver

BACK PANEL CONTROL

A	Power Input (AC Input)
B	Headphone Jack
C	HDMI (support HDCP or PC) Signal Input
D	VGA (15 pin) Signal Input from Computer
E	Audio Input for VGA or DVI
F	YPbPr / HD Component Video Input
G	Audio Input for AV, S-Video or YPbPr/ HDMI-DVI components (left/ right)
H	S-Video Input
I	SCART Signal Input
J	Composite Video Input
K	RF Antenna / Cable TV Input
L	CAM Card Slot

Note: A special cable is needed for DVI, which is not included in the scope of delivery.
Note: Please follow the instructions of the instruction booklet from the external devices closely, before you connect them to the TV. Please turn off the TV before connecting another device.
Note: Do not use headphones with an extreme high volume. Hearing disorder might occur.

REMOTE CONTROL

Function of remote control button

1 POWER Power ON/OFF
2 DTV/RADIO	Digital TV function. Switch between DTV/RADIO programs
3 INFO Display the current information
4 SLEEP Set TV Sleep timer
5 SOUND	Reverb Sound effect selections on Standard, Music, Movie, Sports, and User
6 FREEZE Freeze picture
7 0~9 NUMBER Switch channel number keys
8 AVC	The tuner contains automatic volume control circuitry (AVC) to prevent converter overload
9 GUIDE	Select electronic program guide (EPG) on Digital TV
10 VOL UP/ DOWN	Adjust volume up or down
11 EXIT	OSD exit
12 UP/ DOWN/ LEFT/ RIGHT/ OK	UP/ DOWN/ LEFT/ RIGHT: Select or adjust the function of OSD OK: Confirm the selection (in OSD menu)
13 INPUT	Select input source
14 RED	Function key for teletext, program edit, or electric program guide
15 GREEN	Function key for teletext, program edit, or electric program guide
16 YELLOW	Function key for teletext, program edit, or electric program guide
17 BLUE	Function key for teletext, program edit, or electric program guide
18 MUTE	Volume mute ON/OFF
19 TV AUDIO	Select sound modulation in ATV / Select audio language in DTV
20 ATV/DTV	Swap between ATV/DTV. Swap to the last TV source when in other source
21 PICTURE	Select situation mode for picture
22 SUBTITLE	ATV: Switch between available subtitle languagesDTV: Display subtitle language selection box
23 WIDE	Adjust image size for Full, Zoom 1, Zoom 2, Panorama, Auto, 4:3 or UnderScan. It has different image size effect depending on different source
24 RETURN	Return to previous channel
25 PROGRAM UP/ DOWN	Select up or down programs
26 LIST	Display channel list
27 FAVORITE	Display favorite list
28 MENU	OSD menu ON/OFF
29 TELETEXT FUNCTION CONTROL button	Please refer to page 9-10

Teletext function control button

TEXT/ MIX/ PICTURE button

• In TV Mode: Press the TEXT/ MIX/ PICTURE button to enter the Teletext mode.
• In TELETEXT Mode: Press the button again to superimpose a Teletext broadcast onto the screen of current TV program (mixed Mode).
• In MIXED Mode: Press the button again to return back to the normal TV Screen (current program).

SUBCODE button

When a selected Teletext page with hidden sub pages or timed pages, these pages can be seen by the following manner:

• Press the sub code button. Screen will show « /0001 ».
• Enter 4 digits number button corresponding to the sub page desired. E.g. 0001 for sub page number 1.
• Wait until the page appears.

UPDATE button

• Input a page number, and then press this button. The teletext page will be closed and will show the update symbol+- on the top left corner. When the update symbol changes to the page number, it means the page is complete downloaded.
• Press this button again to open the teletext page.

HOLD button

• Press this button to remove the information from the display and stop the automatic page change which will occur if a teletext page consists of 2 or more sub pages.
• To continue press this button again. The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this button is pressed the stop symbol is displayed at the left-top corner of the screen and the automatic changing is inhibited.

REVEAL button

• Press this button to display concealed information, such as solutions of riddles or puzzles.
• Press this button again to remove the information from the display.

SIZE button

Select double height text under Teletext mode for full screen.

• Press this button to enlarge the top half of the page.
• Press this button again to enlarge the bottom half of the page.
• Press this button again to return to the normal display.

LIST button

• Press this button you force the Teletext to LIST Mode. It means that row 24 (bottom row of Teletext) will not have transmitting information, only the pages that you have previously stored in the memory.
• Press LIST button again to exit from LIST Mode to Teletext.

INDEX button

• Press the Index button to return back to index page.
  When you press this button in Teletext mode, a CURSOR appears. This cursor (rectangular box) contains a page number and you can select the desired page simply by using the four colours.
• RED button: Move cursor down.
  ● GREEN button: Move cursor up.
• YELLOW button: Change from current page to selected page.
• BLUE button: Exit the CURSOR Mode.

Note: Please use PROG ▲▼ button to visit previous or next teletext page.

INSTALLATION

Connecting RF antenna, Cable TV Wire or DTV cable

Make sure the power is OFF before installing your LCD TV.

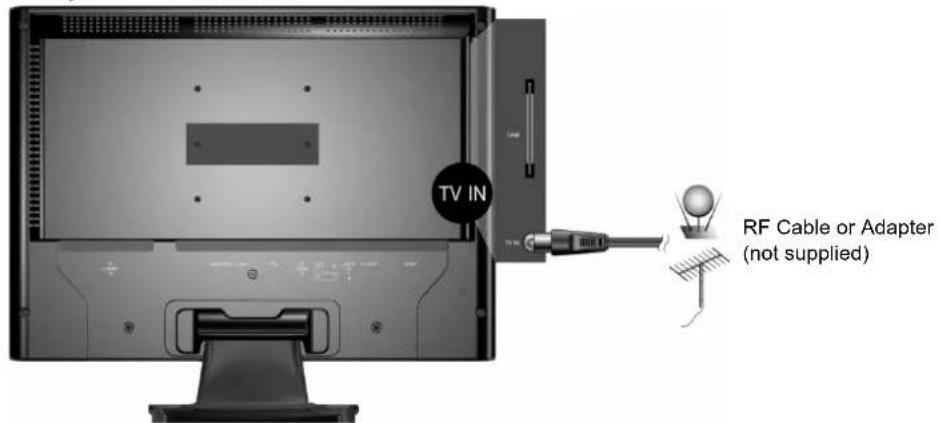

1) ATV: Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV channels into memory with Auto Tuning function (See page 26) when using an antenna or cable TV system without a cable connector box.

2) DTV: Connect the LCD TV to an antenna for Digital TV. To receive DTV programs, perform Auto Tuning function (see page 26) for the first time. To watch subscription channels, insert the CAM card into the CAM card slot.

Connecting to DVD/ Set Top Box

Connect Video/ Audio cables from compatible devices into the back panel of LCD TV.

1) With RCA A/V cable:

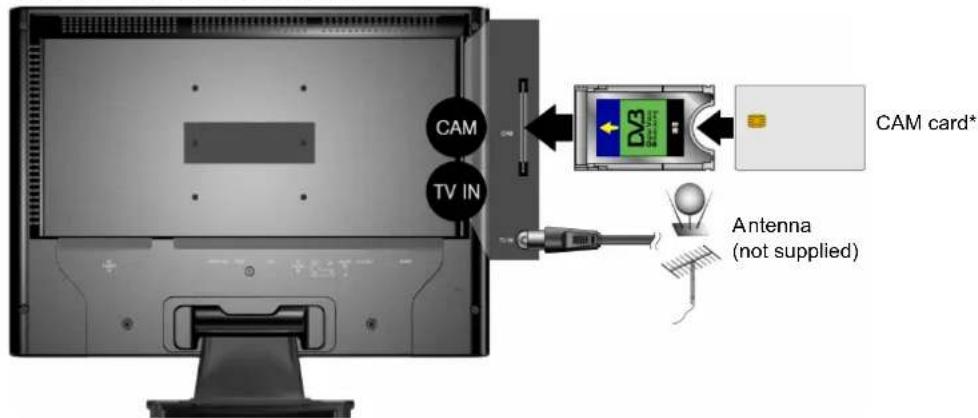

* CAM card and CI module not included in delivery.

With S-Video cable:

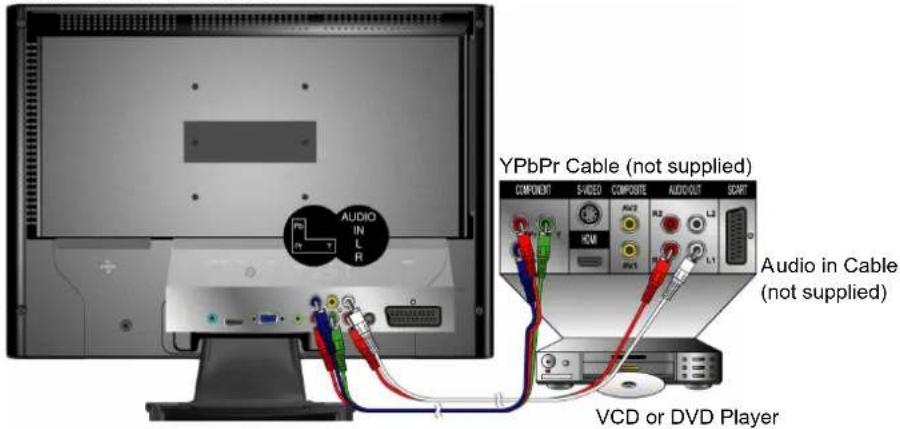

2) With YPbPr cable:

3) With SCART cable:

4) With HDMI cable:

5) With HDMI to DVI cable:

Connecting to the Headphone

Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold separately)

Connecting to a Computer

1) VGA (15pin D-Sub): Connect the VGA cable from VGA output of the computer to the VGA terminal input of your LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the audio input terminal (green) of the LCD TV.

2) HDMI-DVI cable: Connect the HDMI-DVI cable from the DVI output of the computer to the HDMI terminal input of the LCD TV. Also, connect the green end of the Audio In cable from the audio output of your computer to the audio input terminal (green) of the LCD TV.

Connecting with the Power Cord

Connect the power cord to the power cord connector on the back of your LCD TV, and plug the other end of the power cord into a correctly grounded electrical outlet.

BASIC OPERATION

Before using the LCD TV:

Connect external equipments properly.

Insert the power plug, and the power LED indicator will light orange.

To operate your LCD TV, you may use the TV remote control or bottom panel buttons to select input source, change channels, or adjust volume.

Power On/Off

To turn the LCD TV on/off:

Press POWER button on the bottom of LCD TV or press POWER button on your remote control to turn on/off the TV. The power LED indicator lights blue when the LCD TV is on.

Note:

1. When there is no signal in the PC mode, the power LED indicator lights orange after a few seconds' idleness.
2. Colour of LED indicator is per brand designed for ON.

Selecting input source

Press the INPUT button on the remote control, and use ▲▼ to select the required input source between DTV, ATV, SCART, YPbPr, VGA, HDMI, AV, or S-Video, and then press OK to confirm.

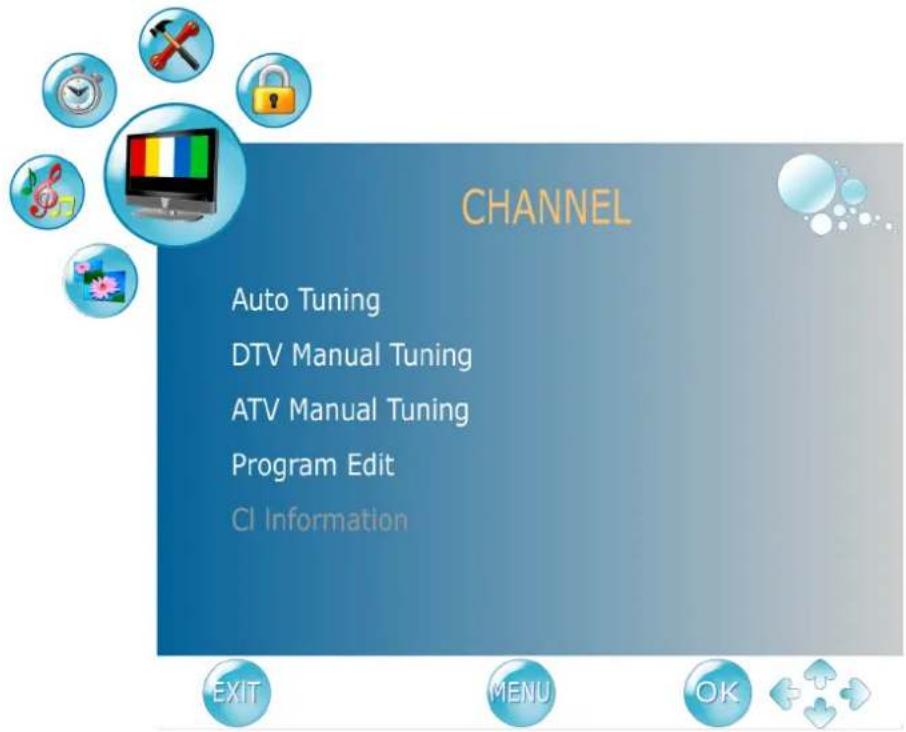

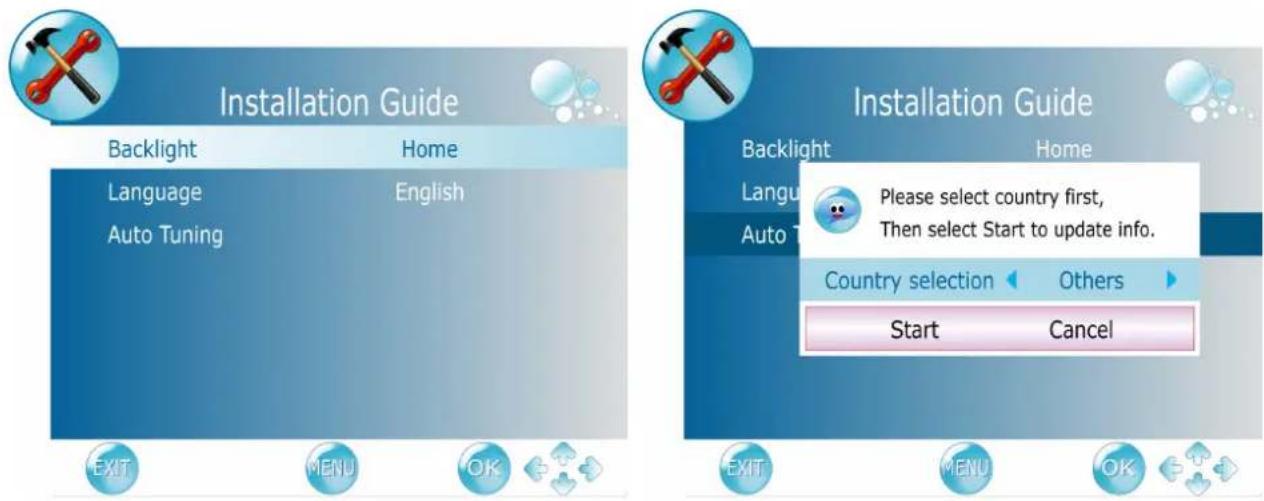

DTV Channel Installation

When you set up for DTV channels for the first time, an Installation Guide screen will appear. Follow the following steps to complete the installation process.

1. When Backlight is highlighted, use the ◀ or ▶ buttons to adjust the backlight.
2. Press ▼ button to select Language, use the ◀ or ▶ buttons to select the language displayed on the menu.

3. Press ▼ button to select Auto Tuning and press the OK button.

4. Press ◀ or ▶ to select the Country where you operate the TV, then select Start and press OK. The Auto Tuning automatically creates a list of receivable channels. Press the BACK button at any time to interrupt the memorization process. (The list cannot be created if interrupted)

Volume Adjust

Press VOL+/- to adjust volume.

To turn off the volume, press MUTE.

To restore volume, press MUTE again, or press VOL+/- directly.

Channel Select

Press number buttons or PROG ▲▼ buttons to select the desired channels.

Return to previous channel, press RETURN button.

Sleep Time Setting

Repeatedly press SLEEP key to set the off timer. The function is used to automatically shut off the LCD TV after a preset period of time passed.

There are several times for choice – Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min and 240min.

To cancel Sleep Time function, choose Off.

Sound Mode Select

Repeatedly press SOUND key to select the sound mode between Standard, Music, Movie, Sports, and User.

Picture Mode Select

Repeatedly press PICTURE key to select picture mode between Standard, Mild, User, and Dynamic.

Aspect Ratio

Repeatedly press WIDE key to select the aspect ratio of screen. You can select between Full, Zoom1, Zoom2, Panorama, Auto, or 4:3. When in HDMI source, you can also select UnderScan.

TV AUDIO

Press the TV AUDIO key to display audio channel information and select the Audio Language (in DTV). In TV, select MTS sound.

Subtitle Select

Press the SUBTITLE key to select subtitle language. Use ▲ or ▼ button to select subtitle language. By selecting through the Subtitle key, the setting can only last until the TV is switch off, and will not be saved. To save the subtitle setting, select from the Subtitle Language in OPTION menu.

DTV/RADIO

Press the DTV/RADIO key to switch between DTV and RADIO programs.

Hawksbee and jacobs

TV/DTV

Repeatedly press the TV/DTV key to switch between TV/DTV. When pressed in other input source, it will automatically direct to TV source.

INFO

To display the current information of the LCD TV:

Press INFO, and the banner displays the program No., current time, program name, teletext info, etc.

When in ATV mode, the displayed items may be different.

Note: The favorite channel icon will not be displayed in the channel banner.

Channel List

Press the LIST button and the Channel List will be displayed. Press OK key on the channel you wish to watch, and you can be directed to that channel immediately.

Electronic Program Guide (EPG)

Press the GUIDE button to display the Electronic Program Guide.

Press the ▲ or ▼ button to scroll up or down the channels, ◀ or ▶ to change time period. To change date, press the Yellow key first, and then select date with ◀ or ▶. You can also pause at a channel and press the INFO key to view the detailed program information, or press OK to switch to that program directly. You can also add a reminder on a program by pressing the Blue button. When the reminder event is about to start, a window will appear to remind you for watching. To check the programs you've added by Reminder, press the Green key to display the SCHEDULE LIST. To delete a Reminder, select with ▲ or ▼ and press the Red key. Press the EXIT button to exit Electronic Program Guide.

Press FAVORITE key to display the favorite channels you've added to the FAVORITE LIST. You can use ▲ or ▼ to select a favorite channel, and then press OK to direct to that channel immediately. To set up favorite channels, select the Program Edit function in CHANNEL menu.

Using the OSD Menu

You are able to use OSD menus to adjust various settings by using your remote control or menu button on the bottom of the LCD TV.

The basic operation is as following:

• Press MENU to display OSD menu.
• Use ◀▶ to select OSD menu page.
• Press ▼ to enter the OSD menu page.
• Use ▲▼ to select the optional item you want to adjust.
• Press ◀▶ to adjust levels or select the items.
• If the item is marked with ▶, press ▶ to display the sub-menu or enable the function.
• Press MENU again to exit current OSD page.
• Use RED/GREEN/YELLOW/BLUE button to perform special functions.

You can use the OSD menu to adjust various settings for your LCD TV.

Press the MENU button to display the OSD Menu, and use ▲▼ to select the desired OSD menu.

Picture Menu

—To adjust the picture quality

In ATV, DTV, AV, S-Video, SCART, YPbPr, HDMI source:

Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source.

In VGA source:

● Picture Mode: To select picture mode between Standard, Mild, User, and Dynamic. When user is selected, you can adjust the level of Contrast, Brightness, Colour, Tint, and Sharpness separately.
- Contrast: To adjust contrast of video.
● Brightness: To adjust luminance of video.
● Colour: To adjust colour (only for NTSC playback).
- Tint: To adjust tint level.
● Sharpness: To adjust picture sharpness.
- Colour Temperature: To select Colour Temperature from Normal, Cool, User, and Warm with ◀. When User is selected, you can adjust the level of Red, Green, and Blue separately.
- Aspect Ratio: To select image size between Full, Zoom1, Zoom2, Panorama, Auto (auto format switching), and 4:3 with ◀. When in HDMI source, you can also select UnderScan, which means full screen without over-scan.
● Noise Reduction: To reduce the noise level of connected equipment.
- Auto Adjust (for VGA only): To auto adjust picture's horizontal position, vertical position, fine tune and H-Size.
● H-Pos (for VGA only): To adjust the horizontal position of the picture.
● V-Pos (for VGA only): To adjust the vertical position of the picture.
● Size (for VGA only): To adjust the size of the picture.
● Phase (for VGA only): To adjust delay time of phase in order to reduce the noise of picture.

SOUND Menu

—To set the audio quality and status

Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source.

● Sound Mode: To select the sound mode between Standard, Music, Movie, Sports, and User. When User is selected, you can adjust the level of Bass and Treble separately.
● Balance: To adjust the left and right audio balance.
● Bass: To adjust the bass.
- Treble: To adjust the treble.
● AVC: To turn on/ off AVC (automatic volume control) function.
- Audio Only: To turn off the screen picture but keep the sound on. Press any key to disable this function.

TIME Menu

—To set up time zone

Note: The LOCK and CHANNEL menu icons are only enabled in ATV and DTV source.

• Clock: To adjust the current time. Press ▶ to enter sub-menu. Press ▲▼ to select Date, Month, Year, Hour and Minute, and press ◀▶ to set current time. When you complete the adjustment, move to Close and press OK to save the result.
• Off Time: To set a regular turn-off time. Press ▶ to enter sub-menu. Press ▲▼ to select Repeat, Hour, Minute, and press ◀▶ to set the time you want the unit to be turned off.
• On Time: To set a regular turn-on time. Press ▶ to enter sub-menu. Press ▲ ▼ to select Activate, Hour, Minute, Volume, Mode, and press ◀▶ to set the time you want the unit to be turned on.
  ● Sleep Timer: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.
• Auto Sleep: If enabled, the TV will automatically turn into sleep mode after 10 minutes if there is no remote action and no signal received. (OSD menu must be off)
  ● Time Zone: To select the correct Time Zone for your area.

OPTION Menu

—To adjust OSD setting

In DTV source:

Note: When in AV, S-Video, SCART, YPbPr, VGA, HDMI source, Audio Languages, Subtitle Language, and Hearing Impaired will be disabled. Also, the LOCK and CHANNEL menu icons will be disabled.

● Language: To select the OSD language between English, Spanish, French, Italian, Dutch, Portuguese, Finnish, Swedish, and German with ◀.

● Audio Languages: Set the primary and secondary audio languages for watching program. (only available in DTV)
- Subtitle Language: Set the primary and secondary subtitle languages for displaying subtitle. (only available in DTV)
● Hearing Impaired: To provide close-captioning function for the hearing impaired, if the program provides it. (only available in DTV)
● Country: To display the country selected in Auto Tuning function.
- DCR: To turn on/off the DCR (Dynamic Contrast Ratio) function.
- SCART Input: To select SCART Input. (only enabled in SCART source)
- OSD Time Out: To automatically shut off the OSD after a preset period of time passed.
Use ◀▶ to preset the time from 10 to 60 seconds. To keep the OSD on, select OFF.
- Canal+: To enable SCART connector to support Canal+ Set Top Box (available in French). For normal SCART function, please select OFF.
Note: The Canal+ function is available only when the input source is SCART.
- HDMI Audio: To select Auto, PC In, HDMI as the audio output source. If Auto is selected, the optimum source will be automatically selected. Only enabled in HDMI source.
● Backlight: Adjusting the backlight brightness.
● Memory Recall: To recall factory setting condition. Press ▶ to recall all settings.

LOCK Menu

—To set up parental control

It is only active in TV source.

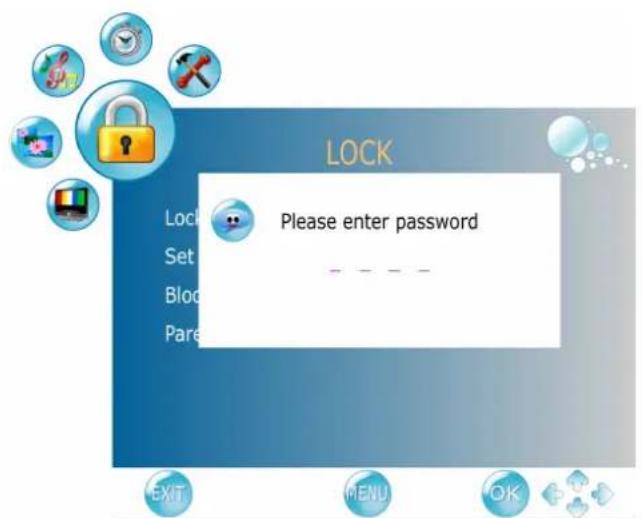

To access the LOCK Menu, enter the 4-digit number password.

The factory default password is 0000.

• Lock System: If enabled, a password is required for access to the Auto Tuning, DTV Manual Tuning, ATV Manual Tuning and Program Edit in Channel menu.
• Set Password: To change the password, press ▶. Enter the new password, and confirm by entering it again.

- Block Program: To set the program to be blocked. Press ▶. Select the program you want to block, and press Green key on it. To watch the blocked program, the password is required.

- Parental Guidance: To set the rating level of the programs. If the rating of the displayed program is higher than the rating set in the Parental Guidance, the program will be locked.

CHANNEL Menu

—To set up for TV

It is only active in TV source.

In ATV source:

In DTV source:

- Auto Tuning: To automatically preset the channels into TV's memory. Select the country of your area with ◀▶, select Start, and then press OK to perform Auto Tuning. Kindly suggest you auto scan all the channels before watching your TV for the first time.

Note: After auto scanning all the channels, you need not to do it again when turning on your TV next time.

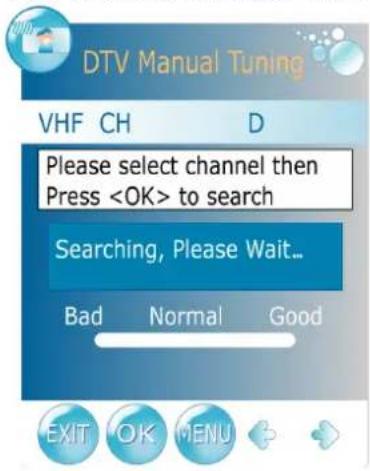

- DTV Manual Tuning: Press ◀▶ to select the channel, then press OK to start scan.

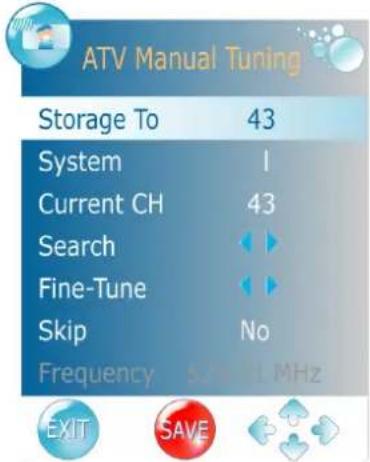

- ATV Manual Tuning: Press the ▲▼ to select the items, and press the ◀▶ button to adjust. See details in the following sub-options.

◆ Storage to: Press ◀▶ to select the channel number you want to save to.

◆ System: Press ◀▶ to select the TV sound system.

◆ Current CH: Press ◀▶ to select the current channel.

◆ Search: Press ◀▶ to search backward/forward. Press MENU or EXIT to stop the program searching.

◆ Fine-Tune: Press ◀▶ to fine tuning when the signal level of the current channel is weak.

♦ Skip: Press ◀▶ to turn on/off the switch of skip. When it's set to Yes, the current channel will be skipped when you switch channels by pressing PROG ▲▼ buttons. When completed, press Red key to save the result.

Note: It is possible to overwrite the Favorite channels by using manual tuning functions.

Program Edit: Press ▶ to enter Program Edit.

Delete: Press ▲▼ to select a channel, and then press the Red key. Press Red key again to confirm deletion. The channel you deleted will not be shown when browsing through the channels with PROG▲▼ keys. To reappear them, use the Auto Tuning function.
♦ Rename: Press ▲▼ to select a channel, and then press the Green key. Use ▲▼◀▶ to edit the name. When completed, press Green key again. (This function is only enabled for ATV.)
Move: Press ▲▼ to select a channel, and then press the Yellow key. Select the other channel you want to exchange place with, and press Yellow key again. (This function is only enabled for ATV.)
♦ Skip: Press ▲▼ to select a channel, and then press the Blue key. The channel will be marked with SKIP.
◆ The skipped channel will not be displayed when you browse through the channels with PROG▲▼ keys. To access the channel, input the channel number with number keys directly.
- Favorite: Press ▲▼ to select a channel, and then press FAVORITE key. The channel will be added to the FAVORITE LIST.

- CI Information: To check the CI information, the CI (CAM) Card must be plugged in. Press ▶ to enter CAM Menu.

Note: The OSD is only for illustration and the menu options and screen format will vary according to the services provider.

The most common seen CI Cards that have been tested so far include VIACCESS (PCMCIA), Magic Module, Digital Conax, Irdeto Access, ZetaCAM, Irdeto smit, VIACCESS (LG.FT3/3), Boxer (VIACCESS), NoVEL-TONGFANG, TopUp TV, CANAL+ CANALSAT, Irdeto Access (EpsilonCard), all of which can be used in this TV.

◆ Consultations: Press OK to check subscription and card information.

◆ Authorizations: Enter the factory default 4-digit pincode, then press OK. Pincode will vary according to services provider.

- Maturity rating: Enter the maturity rating you want, then press OK.

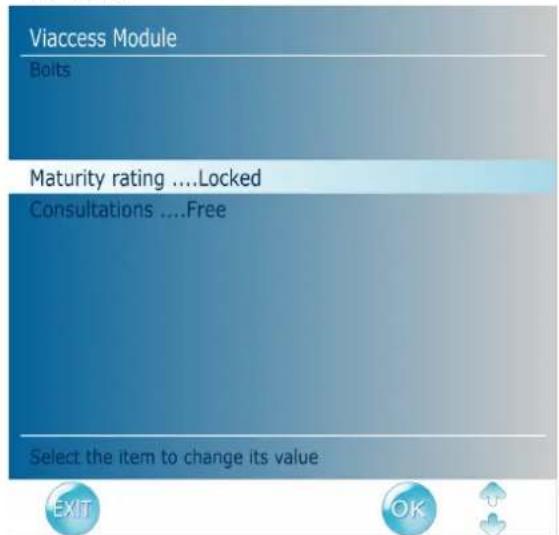

- Bolts: Select Maturity rating or Consultations, then press OK to switch between Free and Locked.

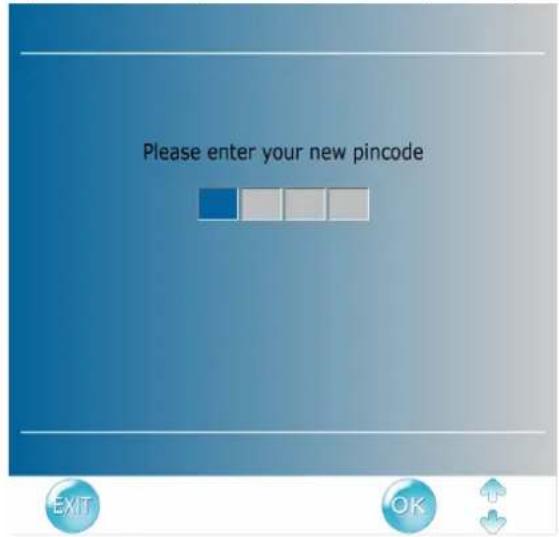

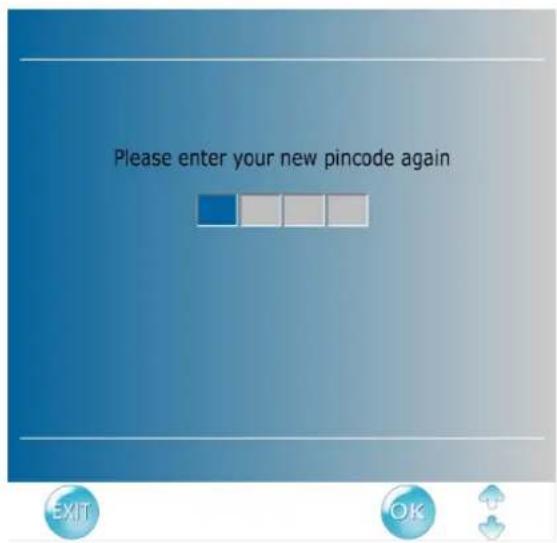

- Changing PIN code: To change the pincode for entering Authorization menu. Enter your new pincode and press OK, then repeat again to confirm.

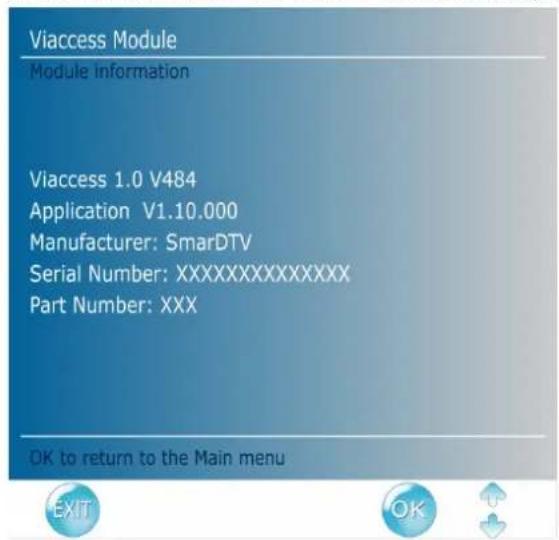

◆ Module information: Press OK to display module information.

ASSEMBLY THE TV STAND

a. Open the box, and make sure all necessary parts are in the box including the stand base.
b. Cover an even stable surface with a soft cloth. Place the TV unit face-down on the cloth.

Exterior view of a black metal enclosure or casing with a small protruding clip, placed on a patterned surface (no text or symbols visible)

c. Hold the TV unit and fit the base onto the bottom of the TV unit as the direction shown below.

Black-and-white photo of a computer monitor with a close-up view showing the lid and handle (no text or symbols visible)

REMOVE THE TV STAND

How to remove the TV stand

If you prefer to mount your new TV on a wall instead of attaching it to the TV stand, please remove the TV stand from the TV unit before mounting the TV on the wall.

Read all instructions before continuing with the TV stand removal.

To remove the TV stand from the TV sets, follow below instructions:-

a. Cover an even stable surface with a soft cloth. Place the LCD TV unit face-down on the cloth.

Black plastic electronic device with a clip and handle, placed on a patterned surface (no visible text or symbols)

b. Push stand hook as arrow direction in below figure.

Exterior view of a mechanical device with internal components and mounting holes (no visible text or symbols)

c. then hold the TV unit and slide the stand outward slowly as the direction in below figure.

Black rectangular device with a side panel and two black arrows pointing to its side (no visible text or symbols)

TECHNICAL INFORMATION

LCD	Type 18.95" TFT	Active Matrix0.2835 (H) x 0.2835 (V) mm pixel pitch
	Colour Filter RGB vertical stripe
	Glass surface Anti-Glare
Input signal	RGB RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync,fh: 30-82 kHz, fv:50-75 Hz
	RF TV system Antenna - PAL / SECAM and DVB-T
	Video 1 composite RCA, 1 S-Video, 1 SCART, 1 HDMI,1 YPbPr component,
Audio 1 mini-stereo, 1	pair of RCA (L/R) stereo
Compatibility PC Up to 1440 x 900 Non-interlaced
Resolution Recommended	and supported	1440 x 900 @ 60 Hz1152 x 864 @ 75 Hz1280 x 1024 @ 60, 75 Hz1024 x 768 @ 60, 75 Hz800 x 600 @ 60, 75 Hz640 x 480 @ 60, 75 Hz
Speaker Output 2.5W x 2
Audio Output 1 mini-stereo
Power	Voltage	100-240 VAC, 50/60 Hz (auto switch)
Display area	Full Scan	408.24 mm (H) x 255.15 mm (V)16.1" (H) x 10.0" (V)
Operating conditions	Temperature	32°F to + 104°F (0°C to + 40°C)
	Humidity	20% to 65% (no condensation)
	Altitude	To 7,000 feet (2,000m)
Storage condition	Temperature	-4°F to + 140°F (-15°C to + 60°C)
	Humidity	20% to 90% (no condensation)
	Altitude	To 40,000 feet (12,000m)
Dimensions	Physical	443.0mm (W) x 379.2mm (H) x 195.2mm (D)17.4" (W) x 14.9" (H) x 7.7" (D)
Weight	Net	5.2 kg (11.5 lb)
Regulations	CE, CB
Power saving modes	On	< 50 W (blue LED)
	Active Off	< 1 W (orange LED)
Preset Timing Mode (Pre-adjusted to GTF® 1440 x 900 @ 60 Hz)For VGA source only:The following timing pairs have the same HSYNC and HP/VP. System can't determine the correct timing.Please press and hold keypad MENU button then press CH- Key to switch between timings:"640x400 and 720x400, 1440x900 and 1152x900"Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV

SAFETY PRECAUTIONS

This LCD TV is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may result danger to the LCD TV as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

Warnings

• This LCD TV should be operated only at the correct power sources indicated on the label on the rear end of the LCD TV. If you are unsure of the power supply in your residence, consult your local dealer or power company.
• Do not try to repair the LCD TV by yourself as it contains no user-serviceable parts. The LCD TV should be repaired by a qualified technician only.
• Do not remove the LCD TV cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even when the power cord is disconnected.
• Stop using the LCD TV if the cabinet is damaged. Have it checked by a service technician.
• Put your LCD TV only in a clean dry environment. Unplug the LCD TV immediately if it gets wet, and consult your service technician.
  ● Always unplug the LCD TV before cleaning it. Clean the cabinet with a clean dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
• Keep the LCD TV away from magnetic objects, motors, TV sets, and transformer.
• Do not place heavy objects on the cable or power cord.
• For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and shall be easily accessible.

CARE AND MAINTENANCE

Care

• Avoid exposing your LCD TV directly to sunlight or other heat source. Place your LCD TV away from the sunlight to reduce glare.
  ● Put your LCD TV in a well ventilated area.
• Do not place anything heavy on top of your LCD TV.
  ● Make certain your LCD TV is installed in a clean and moisture-free area.
• Keep your LCD TV away from magnets, motors, transformers, speakers, and other TV sets.

Safety Tips

• If smoke, abnormal noise or odor appears to arise from your LCD TV. Remove the power cord immediately and call your service center.
• CAUTION-Never remove the rear cover of your LCD TV cabinet. The display unit inside contains high-voltage and may cause electric shock to human bodies.
• Never try to repair your LCD TV yourself. Always call your authorized service center or a qualified technician to fix it.

TROUBLESHOOTING

No Power

• Make sure A/C power cord is securely connected to the power supply is firmly connected to the TV.
• Plug another electrical device into the power outlet to verify the outlet is working.

Power on but no screen image

● Make sure the video cables are tightly secured.
- You have selected the correct video input.
- Adjust brightness.
● Make sure all cables are installed.

Wrong or abnormal colours

• If any colours (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the TV unit to another video source or use another TVs to make sure the video source is no problem.

Note:

Specification and design are subject to change without notice.

The product is not suitable for use at visual display workplace accordance to section 2 of the German Ordinance for work with Visual Display Units.

ENVIRONMENT

Old batteries do not belong in with the domestic waste! Consumers are obliged by law to return any old batteries and rechargeable batteries to the corresponding local and/or public collection centres or to return them to the retail shops. This ensures that batteries will be disposed of respecting the environment. Make sure to return any batteries and rechargeable batteries discharged.

Disposal of old electric and electronic devices:

The icon of a dashed-out waste bin means that a separate disposal of electric/electronic equipment is necessary. According to the Legislation of the European Union, any electric and electronic devices may not be disposed of with domestic trash but must be returned to a special collection center enabled for the recycling of these devices. The local waste companies should have set up specific collecting centres for this purpose, allowing private

consumers to return any old devices for free. Please contact your local authorities or the local waste company for the available disposal possibilities.

Please support us actively by protecting the environment and recycle this product accordingly by returning it to a specific collection centre. This will protect the environment, other people and yourself. Thank you very much!

Disposal of Packaging and Packaging Materials: Packaging and any packaging materials do not belong in with the domestic waste! Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials.

This device complies with European directives on safety and immunity.

It conforms to the following EU directives:

EN 60065: 2002 + A1: 2006

EN 55013: 2001 + A1: 2003 + A2: 2006

EN 55020: 2002 + A1: 2003 + A2: 2005

EN 61000-3-2: 2006

EN 61000-3-3: 1995 + A1: 2001 + A2: 2005

Importer:

66780 Rehlingen-Siersburg (Germany)

Tel: [phone]

Fax: [phone]

Herstellergarantie

[e-mail]

[e-mail]
