LE-207782 - Television AudioSonic - Free user manual and instructions

Brand	AudioSonic
Model	LE-207782
Product type	LED TV
Screen size	Approximately 49 inches (124 cm diagonal)
Resolution	1920 x 1080 pixels (Full HD)
Dimensions (without stand)	Approximately 110 x 64 x 8 cm
Dimensions (with stand)	Approximately 110 x 68 x 24 cm
Net weight	Approximately 12 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption (max)	80 W
Standby consumption	Less than 0.5 W
Main features	DVB-T/T2 HD, HDMI x2, USB, headphone jack, 10W speakers, teletext, parental control
Care and cleaning	Unplug before cleaning, use a slightly damp soft cloth, avoid abrasive products
Safety	Do not expose to moisture, do not block ventilation slots, use a stable stand
Spare parts and repairability	Available on request from after-sales service (remote control, power cord)
General information	Manual downloadable in PDF format from notice-facile.com

Frequently Asked Questions - LE-207782 AudioSonic

How to turn the TV on and off?

Press the Power button on the side or use the On/Off key on the remote control.

How to set the menu language?

Access the menu by pressing Menu, then select Setup > Language. Choose the desired language.

What to do if the image does not display?

Check the power cord connection and that the outlet works. If the indicator is off, press the Power button. Also verify that the input source is correct (HDMI, USB, DVB-T/T2).

How to connect a USB device?

Plug the USB device into the TV's USB port. Press Source and select USB to access files (photos, music, videos).

How to perform a DVB-T channel search?

Go to Menu > Installation > Auto search. The TV will search for all available channels.

How to clean the screen without damaging it?

Use a dry or slightly damp (clean water) microfiber cloth. Never use chemicals, alcohol, or abrasive cleaners.

Why does the TV turn off by itself?

This may be due to the sleep timer setting (Menu > Timers). Also check that the Auto standby mode is not enabled.

How to use the parental control function?

In the Security menu, enable parental control and set a PIN code. You can then lock certain channels or inputs.

Where to find the complete user manual?

The manual is available for free download in PDF format on the website notice-facile.com for the model AudioSonic LE-207782.

What to do if the remote control does not work?

Check the batteries and their orientation. Move closer to the TV. If necessary, reset the remote by removing the batteries for 30 seconds.

USER MANUAL LE-207782 AudioSonic

1- Important Safety Precaution

Incorrect usage will cause fire or electric shock. To prevent this, please do as required when you are installing, using and cleaning this machine. To insure your safety and extend the life span of LED-TV, please read the following items carefully before using:

The On/Off key on this product does not fully disconnect the TV from the main power supply. Unplug the power cord from the AC outlet before connecting any Audio / Video cables to the LED TV.

Do not place the LED TV on any unstable surface or furniture. Which may cause the product to fall, resulting in serious personal injuries and damage the product. Only place on stable furniture, recommended for LED TV by its manufacturer.

The LED panel used in this product is made of glass. Do not drop or impact the product with other objects, it may cause the panel broken. Be careful with the broken glasses in case the panel is broken.

The vents and openings at the back of the products are designed for ventilation. Do not cover or block these vents and openings. Insufficient ventilation may cause overheating and / or shorten the life of the product. Do not insert any foreign objects (metals or flammable objects) into the TV, which may cause electric shock or fire.

Do not place the LED TV close to other furniture, furnishing or electronic products. This product is not designed for built-in installation; do not place in an enclosed place without proper ventilation.

Keep this product away from direct sunlight or any heat sources such as radiator, heaters, stoves, and other heat generating products (including adaptors and amplifiers).

Do not use this product in wet and moist area or near water, such as kitchen sink, bathtub, washbasin, laundry tub, swimming pool or a wet basement.

Do not place any water container on top of this product. The water may spill onto the product causing electric shock or fire.

Do not place any type of candle or naked flames on the top or near the LED TV, which may cause fire.

To clean the cabinet and LED panel, unplug the Power cord, use only a clean soft moistened cloth and gently wipe the display panel. Hard cloth may scratch the panel surface. Never use dirty cloth, liquid cleaners or chemical cloth to clean it; such materials may damage the LED panel.

Do not remove cover; there are no serviceable parts inside. Refer servicing to qualified services personnel only.

2- Main functions

1- Can be connected with analog RGB input
2- Can be connected with CVBS input
3- Can be connected with HDMI input.
4- Can receive SCART signal
5- Can receive TV signal
6- Built-in 2 x 5W speakers, 2 sets audio input
7- Full function Infra-red remote control
8- Coaxial Audio output
9- Support USB for PVR and Media play
10- Support CI slot
11-Support DVD playback

3- Fitting the Remote Control Batteries

The remote unit is operated with 2 x AAA size batteries.

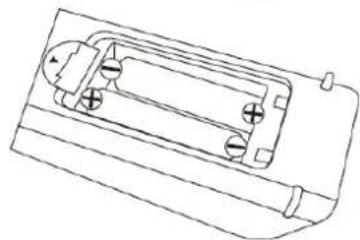

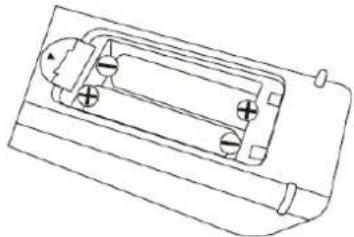

1. Push and hold the hook, the battery cover is opened.
2. Insert batteries according to the polarity marks.
3. Replace the cover.

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with mounting holes and casing (no text or symbols)

Illustration of a hand pressing down on a rolled document with directional arrows indicating motion (no text or symbols)

Remarks:

Battery replacement is necessary when the remote control fails to operate the TV set.

Battery Cautions

Incorrect use of batteries can cause chemical leakage, which will corrode the Remote Control Unit or cause the batteries to burst.

1. Always replace batteries as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one or mix battery type (Zinc Carbon with Alkaline).

3. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
4. Dispose the used batteries according to your local authorities guidelines. Do not put it into your household waste.

4- Product Overview

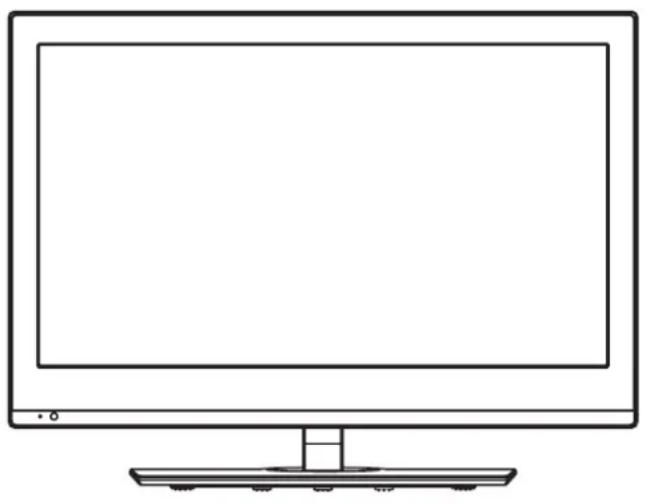

Line drawing of a flat-screen computer monitor with a base (no text or symbols)

5- Control Panel Overview

1. Control Panel Functions:

1- SOURCE – Select the input signals: ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2
2- MENU - Enter into MENU
3- VOL- - Volume down / Left orientation
4- VOL+ - Volume up / Right orientation
5- CH- - TV channel down
6- CH+ - TV channel up
7- STANDBY – Switches the TV to standby and on again
8- ▲ - OPEN/CLOSE in DVD mode.
9- ▶ || - PLAY/PAUSE in DVD mode.

Indicator Light Status

When the unit is on, the indicator light turns blue. The indicator light is red when the TV is in standby mode.

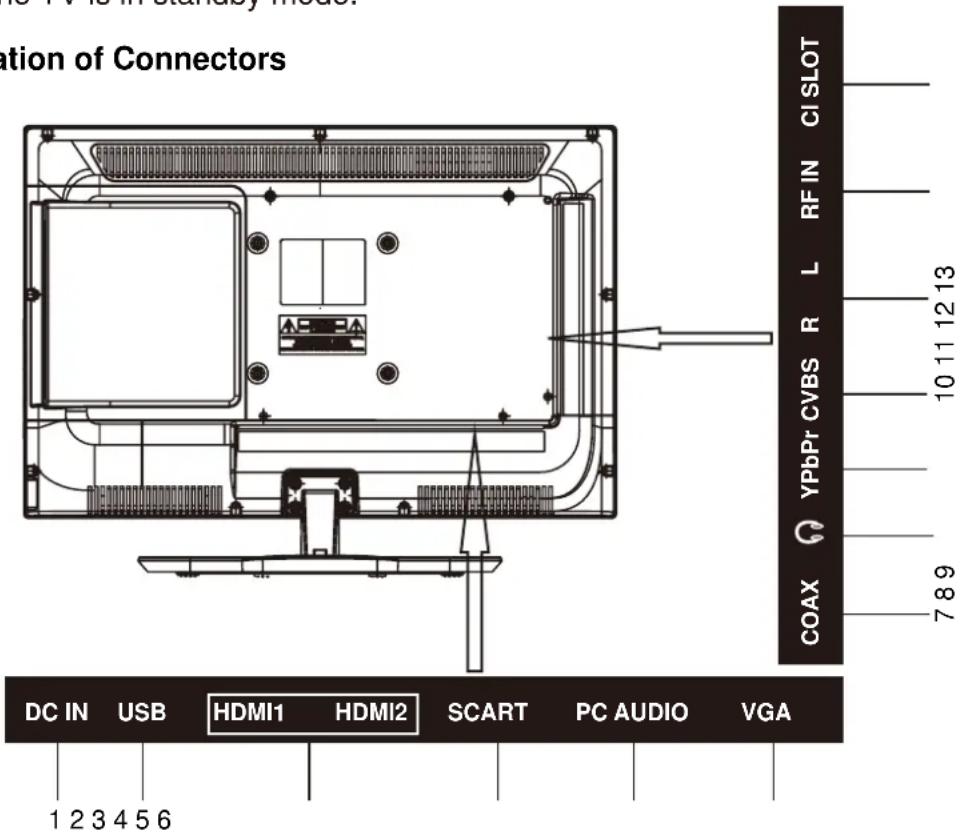

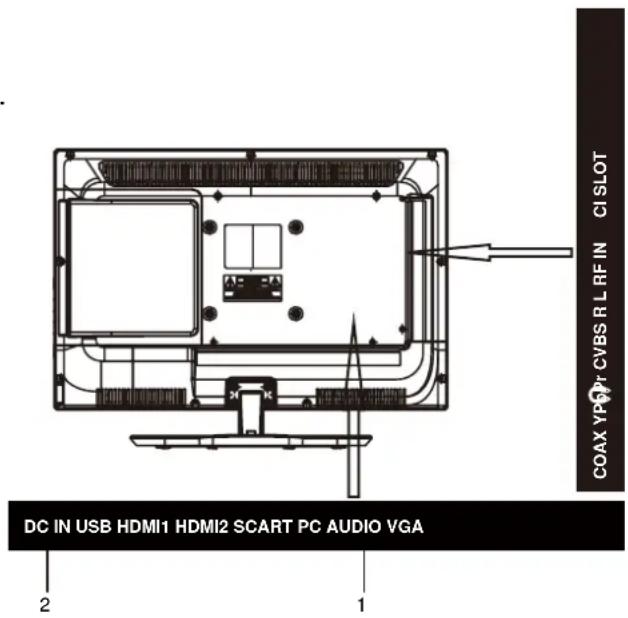

(3) Illustration of Connectors

Connector's descriptions

1. DC 12V power input for the LED TV, connects power supply adaptor here.
2. Connects to portable USB device.
3. High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output.
4. Scart input interface; connects yourAV system with Scart output.
5. Audio input for VGA mode, connects to your PC audio output.
6. DB15 VGA interface.
7. Coaxial Output, connecting to Coaxial input of your Amplifier.
8. Headphone output
9. YPBPR/Component input, connects your AV system.
10. CVBS / Composite video inputs, connects your AV system.
11. Right/Left Audio Channel input for Composite video & component mode.
12. 75 Ω aerial input, connects antenna connector or aerial interface here to receive cable / aerial signal.
13. PCMCIA input, the card reader input CI (Common interface) this requires CAM (conditional access module) used for pay TV.

Attention: This TV supports only DVB-T with CI module but no DVB-C with the according CI modules.

6- Remote Control Overview

Remote control Illustration

Keys description on the remote control

1. STANDBY: Turns the TV on or off.
   2.MUTE:Turns the sound off from the TV.
   3.EJECT: To eject the disc.
2. NUMBER BUTTONS(0-9): Press 0-9 to select a TV channel directly when you are watching TV. The channel will change after 2 seconds.
3. FAV : Press this button to show the favourite channel menu on your TV screen when you watch digital TV programmes.
4. 10+: Enter a program number for multiple program channel such as 2-1, etc.

:Returns to the previous channel.

1. ASPECT: Press this button to change the aspect of your TV.

2. AUDIO: Press this button you can choose different audio system.

9:VOL(+)/VOL(-):Increase or decrease the sound level.

10:CH(+)/CH(-):Go through the channel list.

1. THUMBSTICK(▲/▼/◄/►/OK): Allows you to navigate the on-screen menus and adjust the system settings to your preference.

12.DISPLAY:Press to display the source and channel's infomation.

1. MENU: Brings up the main TV menu on the screen.

14.D.SETUP:Press this button to setup the disc in DVD mode.

15.SOURCE:Press to cycle through the input source.

16.SLEEP:Select amount of time. Let your TV turn off automatically.

17.PMODE: Selects various preset picture settings.

18.SMODE:Select various preset sound settings.

1. TEXT: Press this button to switch on or off teletext.

20.SUBTITLE:Press this button to show subtitles for the programme you are watching. Press again to hide the subtitles.

1. HOLD: Press this button to freeze or unfreeze the teletext screen you are viewing.

EPG: Press this button to select the electronic programme guide.

1. TV/RADIO: Press to select TV or RADIO modes.

23.INDEX: Press this button to select the teletext index page.

24.SUBPAGE:Go to sub coded pages.

25.SIZE: Press this button to expand the text size while you are in teletext.

1. REVEAL: Press this button to show or hide text, for example a text quiz.

27.D.MENU:Enter DVD menu.

28.A-B:Repeat play point A and B.

1. TITLE: Go to the title menu.

30.REPEAT:Repeat the program.

31.TIMESHIFT Press this button to enter TIMESHIFT.

▶:Play/pause button in MEDIA mode.
■ :Stop button in MEDIA mode.
:Select the DVD's previous chapter.
◀ :Reverse the DVD movie to a previous scene.
▶ :Fast forward the DVD to the next scene.
▶:Select the DVD movie next chapter.

Press the buttons according to the colour displaying on the screen to enter.

7- Connection between different input signals

A) Connect with PC signal

You can use your LED-TV as a monitor for your personal computer using a VGA cable(not supplied).

1. VGA input (Remember to tighten the screws.)
2. PC Audio Input
3. DC12V power input
4. VGA input (Remember to tighten the screws.)
5. PC Audio Input
6. DC12V power input

Connection steps:

* Read the user guide supplied with your computer and ensure that it has a VGA connector;
* Make sure that the power of the LED-TV and the PC are off;
* Connect a D type 15-pin VGA interface cable (not supplied) to the VGA video interface connector on the PC. Then connect the other end to the VGA video interface connector on the back of the LED-TV. Tighten the screws on the VGA connectors once they are firmly connected;
* Connect the DC 12V power input with the adaptor come with your LED TV.
* Turn on the power of the LED-TV first, and then turn on the power of the PC;
* Press the SOURCE button to set the video input mode of the LED-TV to "PC";
* Use the VOL- / VOL+ on the control panel or remote control to adjust the volume.

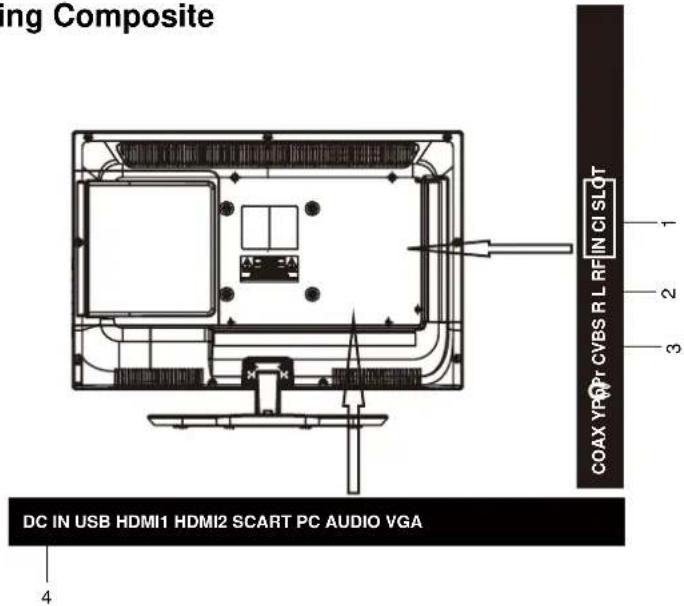

B) Connect to external AV devices using Composite

1. Left & Right Audio input.
2. CVBS / composite video input.
3. YPBPR/component Input.
4. DC12V power input

Connection steps :

* Read the user guide supplied with your AV devices and ensure that it has Composite or S-Video connectors;
* Make sure that the power of the LED-TV and the AV device are off;
* Connect a Composite video cable (not supplied) to the yellow composite video connector input on the back of the LED-TV. Now insert the other end of the composite cable into the yellow composite connector output on the AV device;
* Connect a YPBPR Cable (not supplied, provide better image quality) to the YPBPR connector on the back of the LED-TV. Now insert the other end of the YPBPR cable into the YPBPR connector on the AV device;
* Connect the RCA audio cables (not supplied, white and red connectors) from the AV devices' RCA audio output connectors to the RCA audio input connectors on the back of the LED-TV;
* Turn on the power of the LED-TV first, and then turn on the power of the AV device;
* Press the SOURCE button to set the video input mode of the LED-TV to "YPBPR" mode or "AV" mode;

(C) Connect with TV signal

1. Antenna / 75Ω aerial input.
2. DC 12V power input.

Connection steps:

* Make sure that the power of the LED-TV is off;
* Connect an antenna cable (CATV) to the corresponding interface connector (75 Ω ANT) on the back of the LED-TV. Connect the other end of the antenna cable to the antenna connector on the wall or on your digital cable / satellite receiver.
Now you are able to view regular cable TV;

* Turn on the power of the LED-TV;

* Press the SOURCE button to set the video input mode of the LED-TV to "ATV" or "DTV" mode. The channel number appears in the top right side of the screen;

* When channels are not programmed a blue screen will appear with go around white screen with the text "NO SIGNAL".

On the MENU you can read how the channels can be programmed (auto search or manual search).

It is recommended first to let the channels automatically to be searched.

* You can use key CH + / CH- button or the number keys on the remote control to select the channel you want to watch;

(D) Connect with SCART signal

1. Scart input.
2. DC 12V power input.

Connection steps:

* Read the user guide supplied with your AV devices and ensure that it has a scart connector;
* Make sure that the power of the LED-TV is off;
* Connect a SCART cable to the corresponding interface connector on the back of the LED-TV;
* Turn on the power of the LED-TV;
* Press the SOURCE button to set the video input mode of the LED-TV to "SCART" mode;

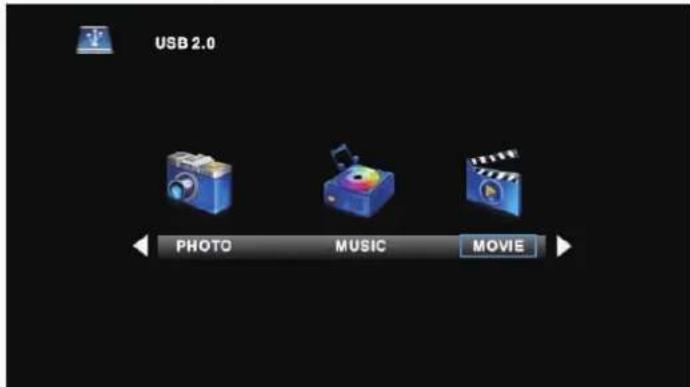

E) Connect with external device(USB)

1. External device input.
2. DC 12V power input.

Connection steps:

* Read the user guide supplied with your external devices and ensure that it has the external device connector;
* Connect the external device to the corresponding interface connector on the back of the LED-TV;
* Press the SOURCE button to set the video input mode of the LED-TV to "Media" mode;

F) Connect with HDMI signal

1. HDMI x2 input
2. DC 12V power input.

Connection steps:

* Read the user guide supplied with your AV devices and ensure that it has a HDMI connector;
* Make sure that the power of the LED-TV is off;
* Connect a HDMI cable to the corresponding interface connector on the back of the LED-TV;
* Turn on the power of the LED-TV;
* Press the SOURCE button to set the video input mode of the LED-TV to "HDMI1" or "HDMI2" mode;

8- Basic operating instructions

Turn on the LED-TV

When the STANDBY button is pressed and the LED-TV is turned on, the indicator light on the front of the LED-TV changes from red to blue.

When the LED-TV is turned on, the input mode is displayed on the screen.

When the LED-TV is turned off using the STANDBY button, the LED-TV will go into standby mode and the indicator light turns red.

Energy Saving

Regarding to energy saving this TV has a standard stand-by timer of 4 hours. We recommend to use this timer but if you want to turn this timer off you can do this by going to the time menu.

Switch Among Different Inputs :

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

Press the SOURCE button to display the inputs mode menu, then press ▼/▲key to select a input source and press OK key to confirm.

Input Source

ATV

DTV

Media

AV

PC

Component

DVD

SCART

HDMI1

HDMI2

OK

Volume

■ ■ ■ ■ ■ ■ ■

25

Audio control

1. Press the VOL+ button to increase the volume.

A number will appear on screen indicating the volume level.

1. Press the VOL - button to decrease the volume.

A number will appear on screen indicating the volume level.

Mute

1. Press the MUTE button to mute the sound temporarily. A Mute icon appears on the screen.

2. Press the MUTE button again to restore the sound. The Mute icon disappears.

Note

When you turn the LED-TV off, the mute function is cancelled automatically.

Select the TV channel you want

You can use the number keys on the remote control to directly select TV channels. The LED-TV can store up to 99 channels (1 to 99), and you can press the keys on the remote control or on the panel to make a selection.

1- Press the relevant key on the remote control if you want to choose any channel from 1 to 9. (For example: if you want to choose channel 8, just press the key number 8).

2- If you want to choose a channel bigger than 9, please press the two digits of the channel number you want to watch. (For example: select channel 16, just press the key number 1, 6).

Select the DTV channel you want

There are four ways of channel selection as follows:

1. Stepping through the channel list:

Press the CH+ button to browse up and the CH- button to browse down the available channels.

2. Selection by number:

Enter the complete channel number directly using the numerical buttons to select desired channel.

3. Selection by mini channel list:

It is also possible to change the channel using a mini channel list that is accessible by pressing the OK button with no other on screen display shown. Use the UP/DOWN ARROW keys to navigate and press the OK button to display the selected channel. To exit this mini channel list press the EXIT button.

4. Selection by EPG(Electronic Programme Guide)

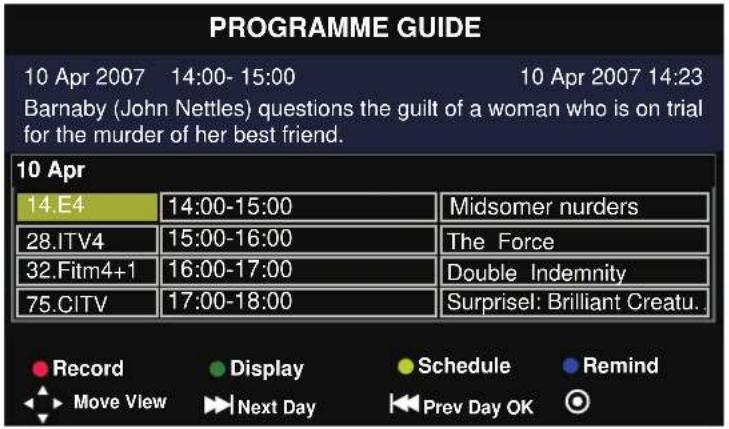

This function allows a channel schedule to be displayed for a time interval of one week.

1. Press the EPG button to display the Electronic Programme Guide on the screen.

1. Use UP/DOWN ARROW buttons to select the channel and press the OK button to view the channel.

ASPECT

Press to display proportion.(Auto; 4:3 ;16:9 ; ZOOM1 ; ZOOM2)

AUDIO

Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not available then switches to Mono.NICAM DUAL STEREO and NICAM DUAL II and NICAM DUAL II can also be selected if a mono signal is being transmitted.

SUBTITLES(DTV)

Press the SUBTITLE button to display Subtitle Language, and use UP/DOWN arrows to select subtitle language or Off, then press OK button to confirm it.

9- PVR operating instructions

1- PVR Function list

Item
Record directly	1. Press ▪ button to record the current program.Press ▪ to stop recording.
	2. File maximum size 3.9G byte, if the capacity is surpassed it will divide the file to deposit.
Timer record	1. Use EPG to carry on the appointment record.
	2. Support periodicity record /everyday record/once-only record.
	3. When the time appointment is in conflict, it will produce a warning message.
Disk manager	1. Can delete a single file
	2. Provide Disk formatting functions.
Playback	1. You can play back the recorded program in Media/USB/channel.

2- PVR Basic instructions

1. The storage location of your file

Press ▼ / ▲ button to select Option in the main menu.

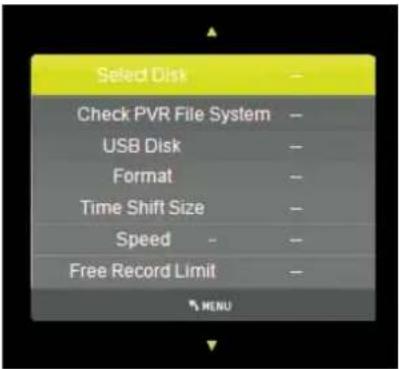

Press ▼ / ▲ button to select PVR File System, then press OK button to enter.

Press ▼ / ▲ button to select Select Disk, then press OK button to enter.

Use the external device(USB) to do appointment record.

You can switch partition in this interface

2. Check the USB speed

Press ▼ / ▲ button to select Check PVR File System,

then press OK button to enter .Then it will check the USB speed.

3- Recording methods

Mode1: Shortcut key

1. Press ● button to record the current program.

Press □ to stop recording.

1. Press STOP button to stop recording, then it will return to normal broadcast television.

2. When the storage space of Disk is insufficient, it will produce a warning message, then it stops recording automatically and return to normal broadcast television.

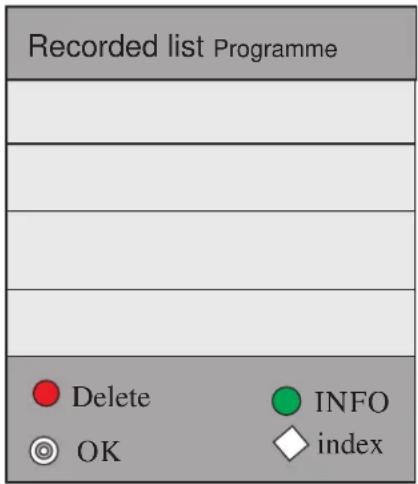

3. Press index button to see the information of the recorded list. Press DISPLAY button to see the detail of the program.

NOTE: You can see detail about the DATE/TIME/DURATION/PROGRAM NAME/CHANNEL NAME/DESCRIPTION

Mode2:Time shift

1. Press T.Shift button to start Timeshift.

This operation can make the frame still, and record program in the background.

Mode3:Timer

1. You can also press EPG button to set record.

Press the red button to start recording.

1. You can choose the time of the appointment to record you want.

3.When the time appointment is in conflict ,it will produce a warning message.

1. The time of the record is coming/appearing. it will change to current channel automatically.

4-Disk manager

1. Press SOURCE button to enter input source.
2. Press ▼ / ▲ to choose Media ,press OK to enter.

1. Press red button can delete the recorded program.

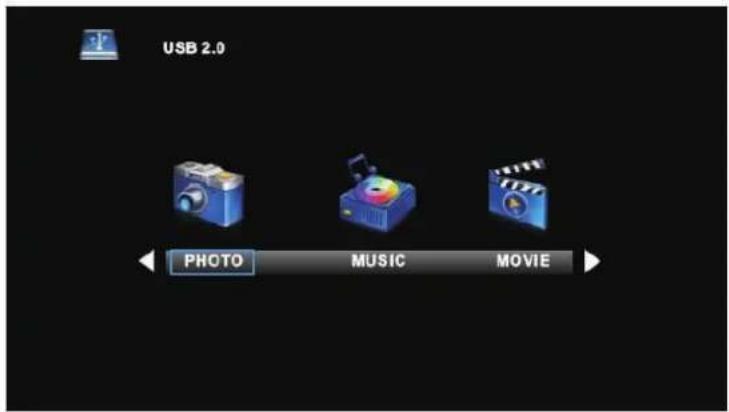

10- Media operating instructions

Note: Before operating Media menu, Plug in USB device, then press SOURCE button to set the Input Source to Media.

Press ◀ / ▶ button to select Media in the Source menu, then press OK button to enter.

Press ◀ / ▶ button to select the option you want to adjust in the main Media menu, then press OK button to enter.

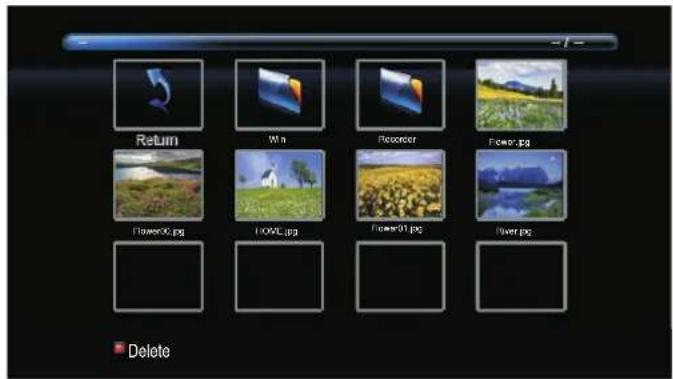

Photo Menu

Press ◀ / ▶ button to select PHOTO in the main menu, then press OK button to enter. Press exit button to return back to the previous menu.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter. Press ◀ / ▶ button to select return option to go back to the previous menu.

Press ◀ / ▶ button to select in the file selecting menu, then press OK button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

Press ◀ / ▶ button to select the file folder you want to search in the file selecting menu, then press OK button on your remote control to enter sub-menu.

Press ◀ / ▶ button to select the file you want to delete in the file selecting menu, then press red button on your remote control and press ◀ button to delete files.

Music Menu

Press ◀ / ▶ button to select MUSIC in the main menu, then press OK button to enter.

Press exit button to return back to the previous menu.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to go back to the previous menu. When highlighting the option you select, the file information will appear on the right.

Press ◀ / ▶ button to select the file you want to watch in the file selecting menu, then press OK button to play.

Press ◀ / ▶ button to select menu in the bottom you want to run, then press OK button to operate. Press exit button to return back to the previous menu.

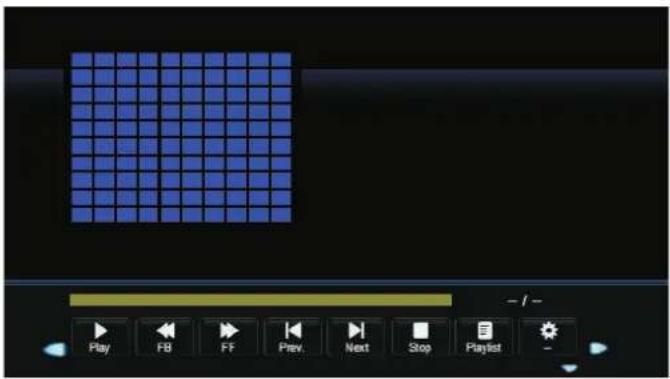

Movie Menu

Press ◀ / ▶ button to select MOVIE in the main menu, then press OK button to enter. Press exit button to return back to the previous menu.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter. Press ◀ / ▶ button to select return option to go back to the previous menu.

When highlighting the option you select, the file information will appear on the right and movie will be previewed in the center.

Press OK button to play the selected movie.

11 - TELETEXT

Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext. Pressing the TEXT button whilst in Teletext operation will switch the current status to TV. When in Teletext mode, the volume may still be altered to the desired listening level.

Page Selection

Pages can be selected by entering the page number, using the number keys on the remote control.

Size Button

Press Size to change display size: normal => large top => large bottom => normal.

Reveal Button

Press Reveal to reveal hidden words e.g. quiz page answers. Press again to hide.

Red/Green/Yellow/Cyan Buttons

These four buttons correspond to the differently coloured subjects.

Hold Button

Press Hold to remain the Teletext page when viewing multi-page information.

Press again to return to automatic page update.

Index Button

Press Index to return to the main index page.

Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Sub page Button

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found. Select the required page number using buttons 0-9. If the top of the page indicates that sub pages are being transmitted yet the page does not change, then the number at the top of the page is there to indicate that the broadcaster has updated the page's contents, there are no sub pages, Press Subpage page number will be displayed at the Bottom right of the screen. Enter desired subpage number before the page number disappears. To select page 6 enter 0,0,0 and 6.

Text Button

Press TEXT to enter or turn off Teletext mode

DigitalTeletext

Some digital channels have a digital version of the traditional teletext service. Usually if the channel that you are viewing has this digital teletext there will be an on-screen display showing how this service can be accessed. For most channels that have this digital teletext service is accessed by pressing the RED or TEXT button. Once started follow the on-screen instruction to navigate through the available information. The standard navigation method is using the UP/DOWN/LEFT/RIGHT/ARROW buttons and the OKbutton. Some services will offer shortcuts via the coloured buttons on the remote.

12 - Menu operations

You can modify certain parameters of the LED-TV in the menu system. Please read the following descriptions to get an understanding of each adjustable parameter.

Input mode: PC

1. Press the MENU key to display the main menu
2. Use the RIGHT ARROW key to select the SCREEN MENU, the PICTURE, the SOUND, the TIME, the LOCK or the SETUP
3. Press the EXIT key to exit the menu.

NAME OF MENU	SCREEN MENU	INSTRUCTIONS
SCREEN		1. Auto AdjustUse the Up / Down arrow keys to set the Auto Adjust Indication to yellow.Use the Right arrow key to adjust the setting automatically.2. H-OffsetUse the Up / Down arrow keys to set the H-Offset indication to yellow. With this function the image width can be adjusted by means of the Left / Right arrow keys.3. V-OffsetUse the Up / Down arrow keys to set the V-Offset indication to yellow. With this function the image height can be adjusted by means of the Left / Right arrow keys.4. SizePress Up /Down button to select Size,then press OK button to enter sub-menu.Press Left / Right button to adjust display size.5. PhaseUse the Up / Down arrow keys to set the PHASE indication to yellow. With this function any horizontal interference can be corrected and the contours of characters sharpened by means of the Left / Right arrow keys.6. Position ResetUse the Up / Down arrow keys to set the RESET indication to yellow. Use the Right arrow key to return to the default settings.
NAME OF MENU	PICTURE MENU	INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTUREMODEindication to yellow.Use the Left / Right arrow keys to select one of PMODE. (Dynamic; Standard; Mild; Personal)2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. This can only be adjusted in the PERSONAL mode.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. This can only be adjusted in the PERSONAL mode.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Downarrow keys to set the TINTindication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.
PICTURE		7. Color temperatureUse the Left / Right arrow keys to select an optimumCOLOR TEMPERATUREmode which suits your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND MENU	INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.(Standard;Music;Movie;Sports;Personal).2. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.3. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. Auto VolumePress UP / Down button to select Auto Volume, then press OK button to select On or Off.6. SPDIF MODEPress UP / Down button to select SPDIF MODE, then press OK button to select Auto\PCM\Off.7. AD SwitchPress UP / Down button to select AD Switch.then press OK button to select On or Off.
NAME OF MENU	TIME MENU	INSTRUCTIONS
TIME		1. Sleep TimerUse the Up/Down arrow keys to set the Sleep Timer indication to yellow. Use the Left /Right arrow keys to select the sleep timer.2. Auto StandbyPress Up / Down button to select Auto Standby, then press OK button to enter sub-menu. Press Up / Down / Left /Right button to select.3. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow. Use the Left/Right arrow keys to select the OSD Timer screen.

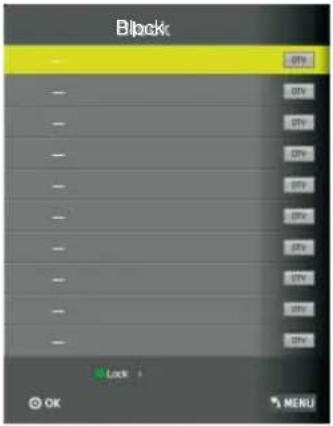

NAME OF MENU	LOCK MENU	INSTRUCTIONS
LOCK		1. Lock SystemPress Up / Down button to select Lock System, then press OK button to make the following 3 options valid. (Default password is '0000'.)2. Set PasswordPress Up / Down button to select Set Password, then press OK button to enter sub-menu to set new password.3. Block Program (not available in PC)Press Up / Down button to select Block Program, then press OK button to enter sub-menu. Press Up / Down button to select the program you want to lock, then press yellow button on your remote control. (To unlock program, enter the password you set.)Press OK button to save setting and menu button to back to the previous4. Parental Guidance (not available in PC)Press Up / Down button to select Parental Guidance, then press OK button to enter sub-menu to select. (Available options are:Off, 4-18)5. Key LockPress Up / Down button to select Key Lock, then press Left / Right button to select "On" or "Off", The key board will invivild if you set Key Lock "On".

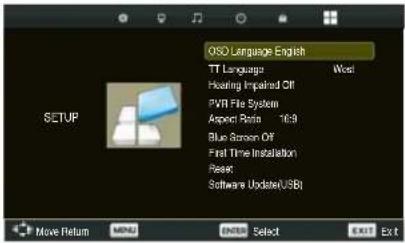

NAME OF MENU	SETUP MENU	INSTRUCTIONS

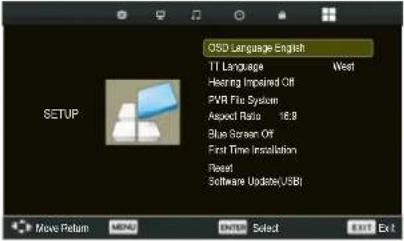

SETUP		1.OSD LanguageUse the Up / Down arrow keys to set the OSD LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, GERMAN, SPANISH, PORTUGUESE, FRENCH, ENGLISH, POLISH.2.TT Language (not available in PC)Press Up / Down button to select TT then press OK button to enter sub-menu. Press Up / Down / Left / Right button to select.3.Hearing Impaired (not available in PC)Press Up / Down button to select Hearing Impaired, then press OK button to select On or Off.4.PVR File System (not available in PC)Press Up / Down button to select PVR File System, then press OK button to enter sub-menu.5.Aspect RatioPress Up / Down button to select Aspect Ratio, then press OK button to enter sub-menu. Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2.)6.Blue ScreenPress Up / Down button to select Blue Screen, then press OK button to select On or Off.7.First Time Installation (not available in PC)Press Up / Down button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.8.ResetPress Up / Down button to select Reset, then press OK button to open a dialogue. Press Left button selecting Yes to restore factory default by choosing OSD language,country and conducting Channel Tuning.9.Software Update(USB)Press Up / Down button to select Software Update(USB), then press OK button to update software by using USB.

Input mode: AV/SCART/HDMI/Component/Media

1. Press the MENU key to display the main menu.
2. Use the Right arrow key to select the PICTURE, the SOUND, the TIME or the LOCK, the SETUP menu
3. Press the EXIT key to exit the menu.

NAME OF MENU	PICTURE MENU	INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODEIndication to yellow.Use the Left / Right arrow keys to select one of PMODE.2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. This can only be adjusted in the PERSONAL mode.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Down arrow keys to set the TINTindication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.
PICTURE		7. Color temperatureUse the Left / Right arrow keys to select an optimumCOLOR TEMPERATUREmode which suits your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND MENU	INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.2. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.3. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. Auto VolumePress UP / Down button to select Auto Volume, then press OK button to select On or Off.6. SPDIF MODEPress UP / Down button to select SPDIF MODE, then press OK button to select Auto\PCM\Off.7. AD Switch (not available in AV)Press UP / Down button to select AD Switch.then press OK button to select On or Off.
NAME OF MENU	TIME MENU	INSTRUCTIONS
TIME		1. Sleep TimerUse the Up/Down arrow keys to set the Sleep Timer indication to yellow. Use the Left /Right arrow keys to select the sleep timer.2. Auto StandbyPress Up / Down button to select Auto Standby, then press OK button to enter sub-menu. Press Up / Down / Left /Right button to select.3. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow. Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	LOCK MENU	INSTRUCTIONS
LOCK		1. Lock SystemPress Up / Down button to select Lock System, then press OK button to make the following 3 options valid. (Default password is '0000'.)2. Set PasswordPress Up / Down button to select Set Password, then press OK button to enter sub-menu to set new password.3. Block Program (not available in AV)Press Up / Down button to select Block Program, then press OK button to enter sub-menu. Press Up / Down button to select the program you want to lock, then press yellow button on your remote control. (To unlock program, enter the password you set.)Press OK button to save setting and menu button to go back to the previous menu.4. Parental Guidance (not available in AV)Press Up / Down button to select Parental Guidance, then press OK button to enter sub-menu to select. (Available options are:Off, 4-18)5. Key LockPress Up / Down button to select Key Lock, then press Left / Right button to select "On" or "Off", The key board will invalid if you set Key Lock "On".
NAME OF MENU	SETUP MENU	INSTRUCTIONS
SETUP		1. OSD LanguageUse the Up / Down arrow keys to set the OSD LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, GERMAN, SPANISH, PORTUGUESE, FRENCH, ENGLISH, POLISH.2. TT LanguagePress Up / Down button to select TT then press OK button to enter sub-menu. Press Up / Down / Left / Right button to select.3. Hearing Impaired (not available in AV)Press Up / Down button to select Hearing Impaired, then press OK button to select On or Off.4. PVR File System (not available in AV)Press Up / Down button to select PVR File System, then press OK button to enter sub-menu.5. Aspect RatioPress Up / Down button to select Aspect Ratio, then press OK button to enter sub-menu. Press Up / Down button to select aspect ratio. (Available options are: Auto, 4:3, 16:9, Zoom1, Zoom2.)6. Blue ScreenPress Up / Down button to select Blue Screen, then press OK button to select On or Off.7. First Time Installation (not available in AV)Press Up / Down button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.8. ResetPress Up / Down button to select Reset, then press OK button to open a dialogue. Press Left button selecting Yes to restore factory default by choosing OSD language, country and conducting Channel Tuning.9. Software Update(USB)Press Up / Down button to select Software Update(USB), then press OK button to update software by using USB.

Input mode: ATV

1. Press the MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the CHANNEL, the PICTURE, the SOUND, the TIME, the LOCK or the SETUP.
3. Press the EXIT key to exit the menu.

NAME OF MENU	CHANNEL MENU	INSTRUCTIONS
CHANNEL		1. Auto TuningPress Up / Down button to select Auto Tuning, then press OKbutton to start auto search.2. DTV Manual TuningPress Up / Down button to select DTV Manual Tuning, then press OK button to enter password to enter sub-menu.(Default password is ‘0000’)3. ATV Manual TuningPress Up / Down button to select ATV Manual Tuning, then press OK button to enter password to enter sub-menu.(Default password is ‘0000’)4. Program EditPress Up / Down button to select Program Edit, then press OKbutton to enter sub-menu.This option has five functions.Use Red button to Delete the current channel.Use Green button to Rename the current channel.Use Yellow button to Move the current channel.Use Blue button to Skip the current channel.·Use FAV button set the current channel to your favorite channel. if the current channel already is one of your favorite channel, press FAV button again to set it to a normal channel.
NAME OF MENU	PICTURE MENU	INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODEindication to yellow.Use the Left / Right arrow keys to select one of PMODE. (Dynamic; Standard;Mild;Personal)2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. This can only be adjusted in the PERSONAL mode.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. This can only be adjusted in the PERSONAL mode.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Down arrow keys to set the TINTindication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.
PICTURE		7. Color temperatureUse the Left / Right arrow keys to select an optimumCOLOR TEMPERATUREmode which suits your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND MENU	INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.2. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.3. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. Auto VolumePress UP / Down button to select Auto Volume, then press OK button to select On or Off.6. SPDIF MODEPress UP / Down button to select SPDIF MODE, then press OK button to select Auto\PCM\Off.7. AD Switch (not available in ATV)Press UP / Down button to select AD Switch.then press OK button to select On or Off.
NAME OF MENU	TIME MENU	INSTRUCTIONS
TIME		1. Sleep TimerUse the Up/Down arrow keys to set the Sleep Timer indication to yellow.Use the Left /Right arrow keys to select the sleep timer.2. Auto StandbyPress Up / Down button to select Auto Standby, then press OK button to enter sub-menu. Press Up / Down / Left /Right button to select.3. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	LOCK MENU	INSTRUCTIONS
LOCK		1. Lock SystemPress Up / Down button to select Lock System, then press OK button to make the following 3 options valid. (Default password is ‘0000’.)2. Set PasswordPress Up / Down button to select Set Password, then press OK button to enter sub-menu to set new password.3. Block ProgramPress Up / Down button to select Block Program, then press OK button to enter sub-menu. Press Up / Down button to select the program you want to lock, then press yellow button on your remote control. (To unlock program,enter the password you set.)Press OK button to save setting and menu button to back to the previous4. Parental Guidance (not available in ATV)Press Up / Down button to select Parental Guidance, then press OK button to enter sub-menu to select. (Available options are:Off, 4-18)5. Key LockPress Up / Down button to select Key Lock, then press Left / Right button to select “On” or “Off”, The key board will invalid if you set Key Lock “On”.
NAME OF MENU	SETUP MENU	INSTRUCTIONS
SETUP		1. OSD LanguageUse the Up / Down arrow keys to set the OSD LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, GERMAN, SPANISH, PORTUGUESE, FRENCH, ENGLISH, POLISH.2. TT LanguagePress Up / Down button to select TT then press OK button to enter sub-menu.Press Up / Down / Left / Right button to select.3. Hearing ImpairedPress Up / Down button to select Hearing Impaired, then press OK button to select On or Off.4. PVR File SystemPress Up / Down button to select PVR File System, then press OK button to enter sub-menu.5. Aspect RatioPress Up / Down button to select Aspect Ratio, then press OK button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2.)6. Blue ScreenPress Up / Down button to select Blue Screen, then press OK button to select On or Off.7. First Time InstallationPress Up / Down button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.8. ResetPress Up / Down button to select Reset, then press OK button to open a dialogue.Press Left button selecting Yes to restore factory default by choosing OSD language,country and conducting Channel Tuning.9. Software Update(USB)Press Up / Down button to select Software Update(USB), then press OK button to update software by using USB.

Input mode: DTV

1. Press the MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the CHANNEL, the PICTURE, the SOUND, the TIME or the LOCK, the SETUP
3. Press the EXIT key to exit the menu.

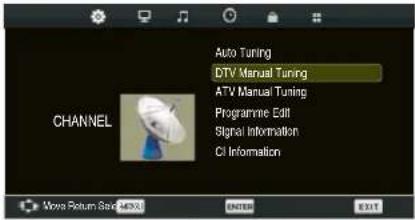

NAME OF MENU	CHANNEL MENU	INSTRUCTIONS
CHANNEL		1. Auto TuningPressUp/Downbutton to select Auto Tuning, then pressOKbutton to start auto search.2. DTV Manual TuningPressUp/Downbutton to select DTV Manual Tuning, then press OKbutton to enter password to enter sub-menu.(Default password is ‘0000’)PressLeft/Rightbutton to select channel, then pressOKbutton to search program.3. ATV Manual TuningPressUp/Downbutton to select ATV Manual Tuning, then press OKbutton to enter password to enter sub-menu.(Default password is ‘0000’)• PressLeft/Rightbutton to select channel number you want to store.• PressUp/Downbutton to select the second option. Press Left/Rightbutton to select audio system.• PressUp/Downbutton to select search, then pressOKbutton to start tuning.4. Program EditPressUp/Downbutton to select Program Edit, then press OKbutton to enter sub-menu.
CHANNEL		This option has two functions.·Use Blue button to skip the current channel.·Use FAV button set the current channel to your favorite channel. If the current channel already is one of your favorite channels, press FAV button again to set it to a normal channel.5. Signal InformationPress Up /Down button to select Signal Information, then press OK button to display signal details, including Channel Number, Frequency, Quality and Strength.6. CI InformationPress Up /Down button to select CI Information, then press OK button to display details if you has inserted the CI card.
NAME OF MENU	PICTURE MENU	INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODEindication to yellow.Use the Left / Right arrow keys to select one of PMODE. (Dynamic; Standard;Mild;Personal)2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. This can only be adjusted in the PERSONAL mode.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. This can only be adjusted in the PERSONAL mode.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Downarrow keys to set the TINTindication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.
PICTURE		7. Color temperatureUse the Left / Right arrow keys to select an optimumCOLOR TEMPERATUREmode which suits your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.

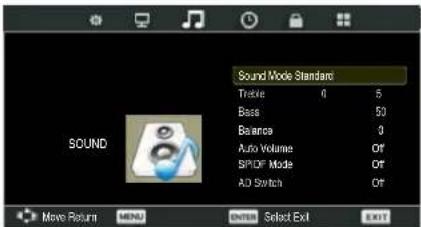

NAME OF MENU	SOUND MENU	INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.2. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.3. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. Auto VolumePress UP / Down button to select Auto Volume, then press OK button to select On or Off.6. SPDIF MODEPress UP / Down button to select SPDIF MODE, then press OK button to select Auto\PCM\Off.7. AD SwitchPress UP / Down button to select AD Switch, then press OK button to select On or Off.
NAME OF MENU	TIME MENU	INSTRUCTIONS
TIME		1. ClockDisplay the current system time.It's not available.2. Time ZonePress Up / Down button to select Time Zone, then press OK button to enter sub-menu.Press Up / Down / Left /Right button to select time zone.3. Sleep TimerUse the Up/Down arrow keys to set the Sleep Timer indication to yellow.Use the Left /Right arrow keys to select the sleep timer.4. Auto StandbyPress Up / Down button to select Auto Standby, then press OK button to enter sub-menu. Press Up / Down / Left /Right button to select.5. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	LOCK MENU	INSTRUCTIONS
LOCK		1. Lock SystemPress Up / Down button to select Lock System, then press OK button to make the following 3 options valid.(Default password is ‘0000’.)2. Set PasswordPress Up / Down button to select Set Password, then press OK button to enter sub-menu to set new password.3. Block ProgramPress Up / Down button to select Block Program, then press OK button to enter sub-menu. Press Up / Down button to select the program you want to lock, then press yellow button on your remote control.(To unlock program,enter the password you set.)Press OK button to save setting and menu button to back to the previous menu.4. Parental GuidancePress Up / Down button to select Parental Guidance, then press OK button to enter sub-menu to select.(Available options are:Off, 4-18)5. Key LockPress Up / Down button to select Key Lock, then press Left / Right button to select “On” or “Off”, The key board will invalid if you set Key Lock “On”.
NAME OF MENU	SETUP MENU	INSTRUCTIONS
SETUP		1. OSD LanguageUse the Up / Down arrow keys to set the OSD LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, GERMAN, SPANISH, PORTUGUESE, FRENCH, ENGLISH, POLISH.2. TT LanguagePress Up / Down button to select TT then press OK button to enter sub-menu.Press Up / Down / Left / Right button to select.3. Hearing ImpairedPress Up / Down button to select Hearing Impaired, then press OK button to select On or Off.4. PVR File SystemPress Up / Down button to select PVR File System, then press OK button to enter sub-menu.5. Aspect RatioPress Up / Down button to select Aspect Ratio, then press OK button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2.)6. Blue ScreenPress Up / Down button to select Blue Screen, then press OK button to select On or Off.7. First Time InstallationPress Up / Down button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.8. ResetPress Up / Down button to select Reset, then press OK button to open a dialogue.Press Left button selecting Yes to restore factory default by choosing OSD language,country and conducting Channel Tuning.9. Software Update(USB)Press Up / Down button to select Software Update(USB), then press OK button to update software by using USB.

13- Product specifications

Items		Relevant illustrations
LED		48 cm LEDTV Widescreen 16:9
Resolution		1366* 768(best resolution 1366 * 768)
Features	Compatible areas	Multinorm
	TV standard	PAL B/G - AUTO - SECAM L
	Channel amount	99
Input interface	PC	DB15 VGA input interface
	AV video, YPBPR	Composite video input interface, Component video input interface
	TV	75Ω ANT.
	SCART	21 Pin socket (Audio/Video in, Audio/Video out, RGB in)
	Audio	Audio(1) Left,right audio input interfaceLeft,right audio input interface Audio(2)
	HDMI X 2	High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output
Headphone Output		headphone output interface
Speaker Output		5W x 2
OSD language		English, German, Spanish, French, Dutch, Portuguese , Polish.
Power supply		DC 12 V / Adaptor for 230 Volt
Power consumption		< 40 W
Accessories		Remote control, AC adapter, AC cable, 2xAAA Battery, IB, Warranty card ,Screw driver with screws (4 pcs), TV Stand

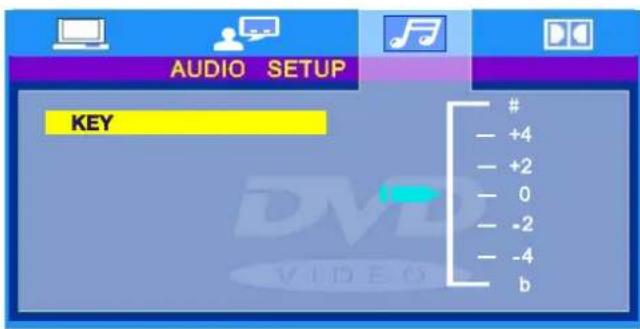

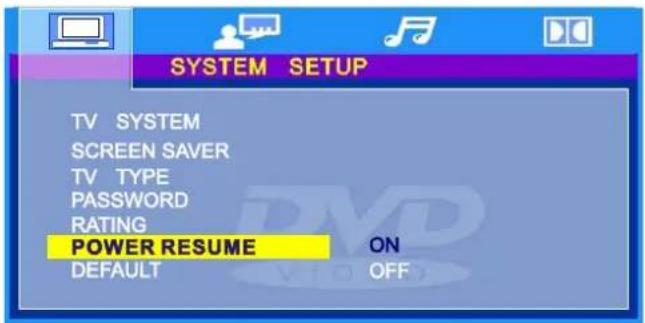

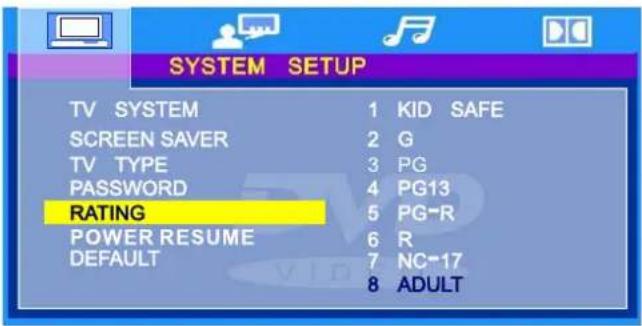

Part 2 : DVD OPERATION

This Product can play the following format of DVD Disc.

Disc type	Disc Size	Recorded Time	Recorded Content	Remarks
DVD	12cm	Single side: 120mins. Approx.	DVD format: Compressed digital Audio and Video
		Double side: 240mins. Approx
Super VCD	12cm	45mins. Approx.	MPEG 2 Compressed Digital Audio and Video	Included: SVCD, CVD
VCD	12cm	74mins. Approx.	MPEG 1 Compressed Digital Audio and Video	Included: VCD2.0, VCD1.1, VCD1.0, DVCD
CD	12cm	74mins. Approx.	CD-DA: Digital Audio
HD-CD	12cm	74mins. Approx.	HD-CD: Digital Audio
MP3 / JPEG	12cm	600mins. Approx.	Compressed digital Audio

Notice: Also support DVD-R, CD-R, and CD-RW playback.

1- Basic operating instructions

1. DVD on

Turn on the LED TV, switch to the DVD mode for the DVD operation.

2. Insert Disc

Insert the Disc to the Disc slot (Printed side facing towards the rear of the TV); the player will load the disc automatically. There will have an on screen indication "CLOSE" then "READ". After loading the disc content, it will switch to play mode automatically. If the disc is already placed inside, the disc will be read automatically.

Note 1: For some discs, after loading the content of the disc, need to press PLAY or select from the disc menu to start.

Note 2: Please make sure when inserting the Disc, the printed side of the disc should be facing the rear of the TV. When inserting the Disc incorrectly, you may damage the DVD mechanism.

3. Play

According to the disc content, the disc menu will display for your selection. When playing the disc, you may use PAUSE button to toggle between Play and Pause mode. This product also supports Menu, Title, and Sequential and Program playback.

1. Menu Playback (For DVD, Super VCD and VCD2.0 discs)

<1>

• For DVD discs, the screen will display the DVD Disc Menu (Root Menu)
- For Super VCD & VCD2.0 discs, the screen will display the Super VCD, VCD2.0 Disc Menu (PBC: [OFF]) (Press the MENU button to display the PBC status.)
- Playback the Super VCD & VCD2.0 discs, the default PBC status is ON.

<2> For DVD discs, use the navigation buttons to select and Play the highlighted contents; For Super VCD & VCD2.0 discs, use the numeric buttons to play your favorite content directly. (Note: PBC should be OFF.)

<3> Press ENTER or PLAY button to start from the highlighted content.

<4> Returns to the Root Menu when playing the disc

• For DVD discs, press MENU to display the Disc Menu.
- For Super VCD & VCD2.0 discs, when PBC is ON, press MENU to display the Disc Menu.

<5> STOP

• Press STOP button once to stop. Press PLAY button to resume from where you stopped.
• Press STOP button Twice to stop. Press PLAY button to start from beginning.

In order to protect the disc, press STOP button then press EJECT button to take the disc out. When the disc is ejected, hold the disc edge slightly and take it from the eject direction to prevent scratches.

When not using the DVD function (in stand-by mode or using others modes for a long time), please take out the disc to protect the DVD loader and the disc.

1. Title Playback (For DVD Disc only)

2. Press TITLE button, there will have an on screen indication "TITLE".

3. Press the direction or numeric buttons to select your favorite title.

4. Then will play from the first chapter of the selected title.

5. Sequential Playback (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs) For Super VCD & VCD discs, if PBC is "ON" status, press PLAY button will enter the disc menu. Press MENU button to turn PBC OFF. Press PLAY button to start in sequent. For others, while it stopped, press PLAY button to start in sequent.

6. Program Playback (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs) Using Program playback, you can select max. 16 tracks from the disc to playback in programmed order.

If it is in PBC ON status, using program playback will turn to PBC OFF automatically.

According to the highlight area input the title and chapter number by numeric buttons, press PLAY button to start; or move to the by navigation buttons, press OK button to start.

(Program up to 16 tracks)

While playing the program, you may press PROGRAM button to display the program menu for edit.

To clear the program by moving to and press OK button. Or press STOP button to

end the program. When press PLAY button again, the disc will play by sequent.

While playing the program, there will have an on screen indication "PRG PLAY" and the current title and chapter number.

2- Functions operating instructions

1. Play (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

2. For DVD disc, press PLAY button from root or title menu; while playing the DVD, you may play your favorite title directly with title selection by pressing the TITLE button.

3. For Super VCD & VCD discs, while playing the disc, you may play your favorite tracks by numeric buttons. (Note: When using the Program playback or when it is PCB ON status, you can only use PREV or NEXT buttons to change the track)
4. For CD, CD-G & HD-CD discs, while playing the disc, you may play your favorite tracks by numeric buttons.
5. For MP3 / JPEG disc, you may play your favorite tracks by numeric buttons from the content menu.

Note: From track 1-10, use numeric buttons directly; For tracks over 10, press - / -- button first. (e.g. Track 15, press - / -- then 5)

If input track number is not valid, it will not function.

1. Previous / Next (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

While playing the disc;

• Press PREVIOUS button to play to the last Title / Chapter / track.
• Press NEXT button to play to the next Title / Chapter / track.

For super VCD & VCD discs, in PBC OFF status;

• If the current track is the first one, press PREVIOUS button will stop the playback.
• If the current track is the last one, press NEXT button will stop the playback.

For DVD discs, the above functions may vary due to different DVD disc's structure.

1. Forward / Backward (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs) While playing the disc, you may use forward or backward function.

- There are 4 speeds for forward. Press forward button to toggle between different speeds in sequent. (FORWARDx2 - FORWARDx4 - FORWARDx8 - FORWARDx20 - Play)

○ While in forward, you may press PLAY to resume normal speed.
- For CD, HD-CD, MP3, forward also have audio output.

For DVD discs, if forward to last title / chapter, it will start from the beginning.

For Super VCD & VCD discs, in PBC ON status, if forward to the last track, it will start from the beginning.

- There are 4 speeds for backward. Press backward button to toggle between different speeds in sequent. (BACKWARDx2 - BACKWARDx4 - BACKWARDx8 - BACKWARDx20 - Play)

○ While in backward, you may press PLAY to resume normal speed.
- For CD, HD-CD, MP3, backward also have audio output.

For DVD discs, if backward to first title / chapter, it will start from the beginning.

For Super VCD & VCD discs, in PBC ON status, if backward to the first track, it will start from the beginning.

Note: During Forward or Backward, the sound will be off.

1. Slow motion (For DVD, Super VCD & VCD discs)

While playing the disc, you may use slow motion function.

• There are 6 speeds for slow motion. Press SLOW button to toggle between different speeds in sequent. (SF1/2 – SF1/3 – SF1/4– SF1/5 – SF1/6 – SF1/7 – Play)
  • While in slow motion, you may press PLAY to resume normal speed.
  Note: During Slow motion, the sound will be off.

• Pause (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

FOR CD, CD-G, HD-CD & MP3/JPEG discs, press PAUSE button to pause; press PLAY button to resume.

FOR DVD, Super VCD, VCD discs, press PAUSE button to pause; press STEP button to

playback frame by frame; press PLAY button to resume.

1. Repeat (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

Press REPEAT button once to display the current repeat mode.

• For Super VCD, VCD, CD, CD-G, HD-CD, discs, while playing in sequent, you may use the repeat playback.
  There are 2 repeat modes, press REPEAT to toggle between different modes in sequent. (REPEAT (OFF) – REPEAT (1) – REPEAT (ALL)).
  • For DVD discs, you may setup the repeat playback mode.
  There are 2 repeat modes, press REPEAT to toggle between different modes in sequent. (REP: (OFF) – REP: (CHAPTER) – REP: (TITLE) – REP: (ALL)).

• For MP3 / JPEG discs, while playing the disc, you may use the repeat playback.
  There are 3 repeat modes, press REPEAT to toggle between different modes in sequent. (REPEAT (OFF) – REPEAT (1) – REPEAT (DIR) – REPEAT (ALL)).

• D.DISP (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

Press D.DISP button to activate the on screen roll-down menu for the current Title, Chapter, time and other information.

• For DVD discs, (2 pages)
Press D.DISP button once to display first page:
Disc type, Title -/- (Current / Full), Chapter-/-(Current/Full), Full disc time.
Press D.DISP button again to display second page:
Audio-/--(Current/Full) or OFF, Language, Audio type, Subtitle-/--(Current/Full) or OFF.
Press D.DISP button again to turn off the on screen display.

• For Super VCD discs, (2 pages)

Press D.DISP button once to display first page:

Disc type, Track -/- (Current / Full), Mute status, PBC status, Repeat mode status, Current track time.

Press D.DISP button again to display second page:

Audio-/--(Current/Full) or OFF, Audio type, Language, Subtitle-/--(Current/Full) or OFF.

Press D.DISP button again to turn off the on screen display.

• For CD, CD-G, HD-CD, MP3 / JPEG discs,

Press D.DISP button once to display first page:

Disc type, Track -/- (Current / Full), Mute status, Repeat mode status, Current track

time.

Press D.DISP button again to turn off the on screen display.

1. Audio (For Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

2. Press AUDIO button once to display current audio mode.

3. Press again to toggle between different audio modes in sequent.

- For Super VCD & VCD discs: (Stereo - L - R - Auto L - Auto R)

- For CD, CD-G, HD-CD, MP3 discs: (Stereo - L - R)

Note: Switching to Auto L / R audio channel may be vary due to different discs contents.

Bilingual VCD discs can use AUDIO button to switch between different languages.

9. Language (For DVD, Super VCD discs)

• Press AUDIO button once to display current language.
• Press again to toggle between different languages mode in sequent.

Note: For Multi-languages DVD & Super VCD discs, press AUDIO button to select your favorite language.

10. Subtitle (For DVD, Super VCD discs)

• Press SUBTITLE button once to display current sub-title.
• Press again to toggle between different subtitle modes in sequent.

Note: For Multi-languages subtitle DVD & Super VCD discs, press SUBTITLE button to select your favorite subtitle language.

11.Mute (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

• Press MUTE button to mute the audio output. There will have an on screen symbol indicate, "MUTE".

• Press again to cancel, or Press VOL + / VOL – to cancel and adjust the volume.
  • In case there is no audio output, try to press MUTE button to cancel mute.

• Repeat A-B (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

- In normal Playback, fast forward or fast reverse, press A-B button at where you want to start the repeat portion. There will have an on screen indication "REPEAT A –".

- In normal Playback, fast forward or fast reverse, press A-B button again at where you want to stop the repeat portion. There will have an on screen indication "REPEAT A-B".

• The repeat function started to playback the portion from A to B automatically.

- Press A-B button again to cancel. There will have an on screen indication "A - B CANCEL".

- For Super VCD, VCD & CD discs, repeat A-B is only function within the same track. When playing the others, repeat A-B will cancel automatically.

- For Super DVD discs, repeat A-B is only function within the same Title /Chapter. When playing the others, repeat A-B will cancel automatically.

1. Volume (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)

Press VOL - / VOL + buttons to adjust the output volume.

Note: Playback DVD discs in original code, is not adjustable.

3-MP3 / JPEG Playback

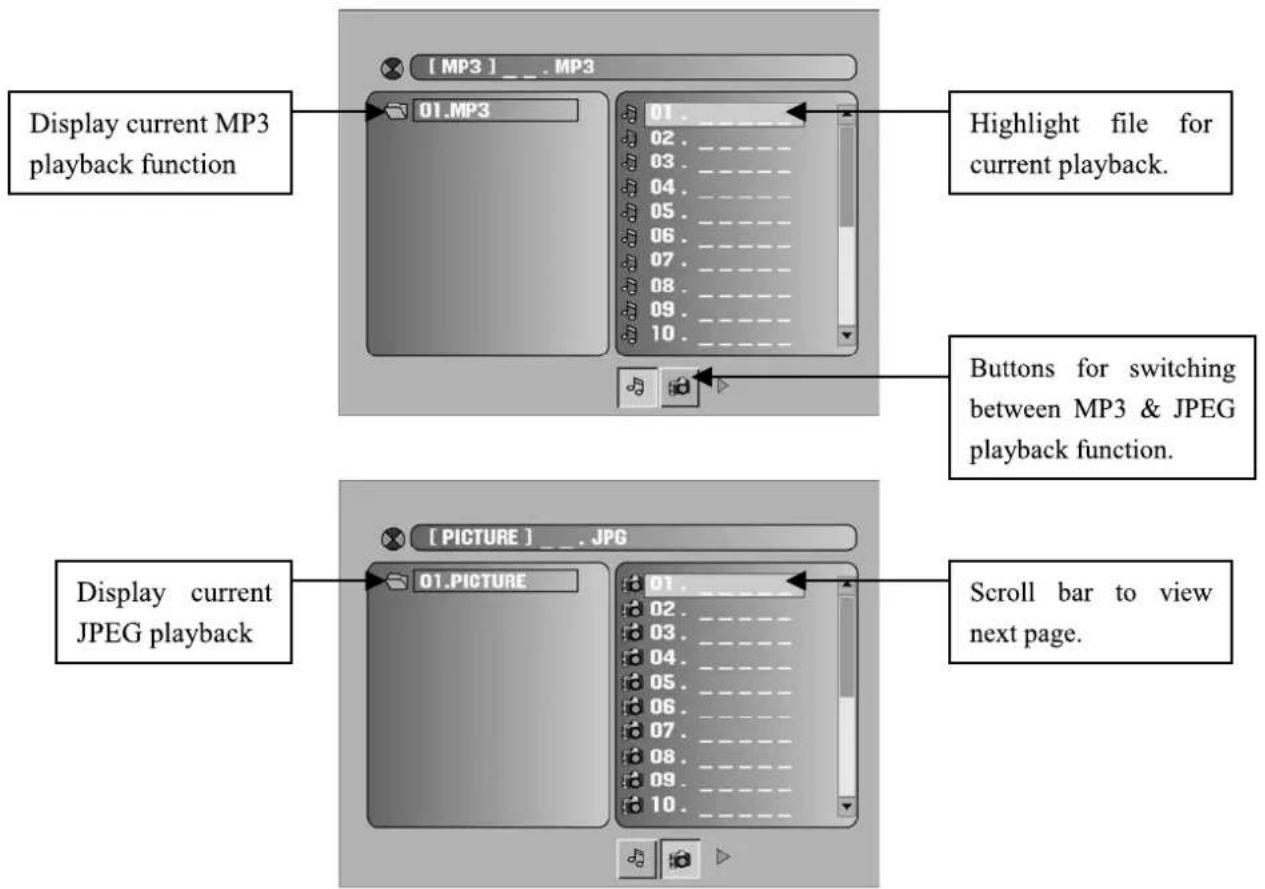

After loading the MP3 / JPEG disc, it will start to scan for the stored MP3 /JPEG folders. Then will firstly display the MP3 contents automatically and start to play the first file (highlighted file). Screen as follow.

Using the navigation buttons to check you favorite folder and playback the first file or move to the your favorite file.

Note:

• Press ◀▶ buttons to move the highlight to folders, documents or mode selection.
• Press number buttons to select the contents directly. For number over 10, press 10+ button first. (e.g. File number 15, press 10+ then 5.)
• When playback MP3 files, there is no picture display, only audio output.

- When play or pause with picture playback, you may use MENU button to enter preview mode to display 12 pictures. Press NEXT / PREV button to select next / previous page or press numeric buttons to view the corresponding pictures.

Note 1: The above functions may vary according to DMP & USB contents.

4 -Function Settings

1. DVD Function General setup

Press the D.SETUP button to activate the DVD player OSD menu.

Press ▼/▲ buttons to move and highlight between different sub-menus. Press ◀/▶ button to enter the highlighted sub-menu.

Press D.SETUP button to exit the OSD menu.

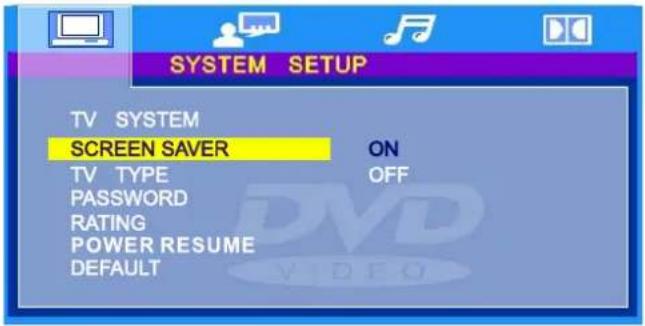

TV System

Press ▶ button to enter the TV SYSTEM and then press ▼/▲ to select one from the options. Select according to your TV color system:(NTSC, PAL or Auto for Multi-system) Default setting is PAL.

ON: Choose this setting to activate the screen saver OFF: Choose this setting to cancel the screen saver.

TV TYPE

DVD's are produced in a variety of screen aspect ratios. This menu enables you to select one of the three aspect ratios:

• 4:3 PS (Normal)
  Suitable for normal TV, when playback wide screen movie, the left and right of the screen will be cropped
• 4:3 LB (Normal)
  Suitable for normal TV, when playback wide screen movie, the top and bottom will have a black border
• 16:9 (Wide)
  Suitable for connecting a wide screen TV / Display

Select the most appropriate aspect ratio

NOTE:

• Playback screen size may vary according to the disc contents.
• For media with 4:3 contents, using any mode would only display a 4:3 screen.
• Screen ratio selection should be according to the connected TV / display aspect ratio.

PASSWORD

• The default setting is locked. No rating selection or change password could be done. To edit the rating setting, please enter default password "0000" using the numeric buttons, then press OK button to confirm
• To change password, input any 4-digit number when the lock is unlocked. Once the 4 digit number is entered, that will be your new password.

Rating restriction is divided into eight different category from KID SAFE up to ADULT Note: only editable when password is unlocked.

POWER RESUME

ON: Choose this setting so the DVD player can memorize the time elapsed from the last time you played the disc. Then at the next playing, it will resume playing from the memorized time.

OFF: Choose this setting so the DVD player will restart the disc from the beginning.

DEFAULT SETTING

Press OK button to restore factory default.

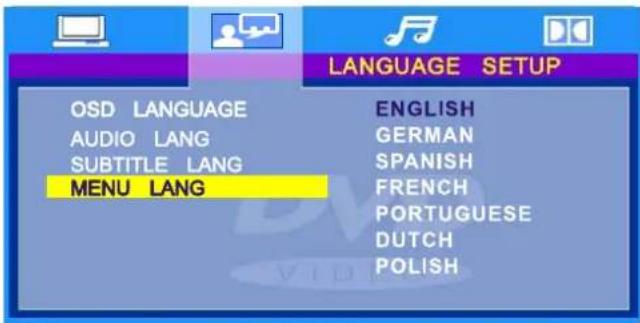

OSD LANGUAGE

Use navigation buttons to select the OSD LANGUAGE Setup Icon, press OK button to confirm. There are multi language. For your selection, press ▼/▲ buttons to toggle between different languages. Press OK button to confirm.

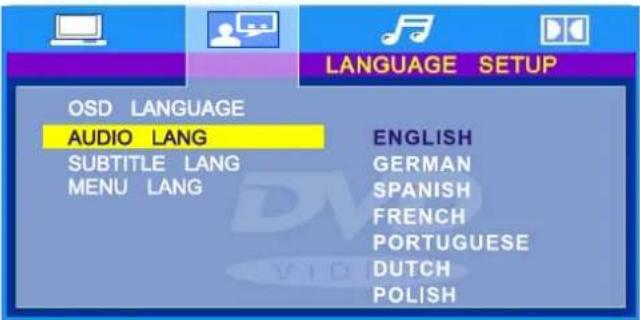

AUDIO LANGUAGE

Use navigation buttons to select the AUDIO LANGUAGE Setup Icon, press OK button to confirm. There are multi language. For your selection, press ▼/▲ buttons to toggle between different languages. Press OK button to confirm.

SUBTITLE LANGUAGE

Use navigation buttons to select the SUBTITLE LANGUAGE Setup Icon, press OK button to confirm. There are multi language. For your selection, press ▼/▲ buttons to toggle between different languages. Press OK button to confirm.

AUDIO SETUP

The audio setup options are illustrated below:

KEY

Use the Up and Down arrow button to move the scroll and adjust the KEY.

DOLBY DIGITAL SETUP

Switch the compress mode to "Audio output" to adjust the compress ratio for different effects. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is largest.

DUAL MONO

You can select four different audio output, STEREO, MONO L, MONO R, MIX MONO. The audio out descriptions of these selections is shown in table below:

MODE LEFT SPEAKER RIGHT SPEAKER
STEREO	STEREO-L	STEREO-R
L-MONO	L-MONO	L-MONO
R-MONO	R-MONO	R-MONO
MIX-MONO	L-MONO+R-MONO	L-MONO+R-MONO

Base Assembly and Wall Mount instructions

1. Attaching the TV Stand

To attach the stand, first the plastic (A) into the TV stand (B), then insert and tighten the 4 screws with the screwdriver.

2. Wall Mount instructions

Top-down schematic of a computer monitor layout with ventilation ducts and control panel (no text or labels)

Screw taps x 4 for wall mounting

Technical line drawing of a computer monitor with ventilation system and base mount (no text or symbols)

Remove the stand by taking out the 4 screws

Instructions on environment protection

Pure electrical circuit lines without any symbols

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

Deel 1: BEDIENING VAN DE LED TV

Technical line drawing of a battery pack with mounting holes and internal circuit (no text or symbols)

Illustration of a hand pressing down on a rolled document with directional arrows indicating motion (no text or symbols)

Opmerking:

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or base (pure technical lines)

Technical line drawing of a computer monitor layout with no visible text or symbols

DC IN USB HDMI1 HDMI2 SCART PC AUDIO VGA
COAX YPPr CVBS R L RF IN CI SLOT

DC IN USB HDMI1 HDMI2 SCART PC AUDIO VGA

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

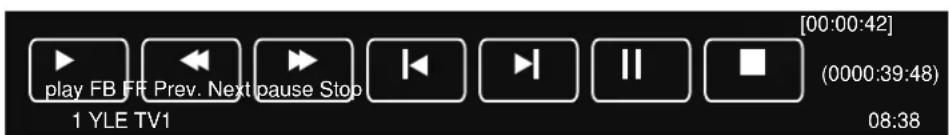

1- PVR Function list

LET OP: u kunt de details zien over DATUM / TIJD / DUUR / PROGRAMMA NAAM / KANAALNAAM / BESCHRIJVING

Manier 2: Timeshift

4-Diskmanager

Technical line drawing of a mechanical part labeled A and B, showing a triangular shape above a flat base (no text or symbols present)

Technical line drawing of a computer monitor with screwdriver and indicator lights, showing internal components and wiring (no text or symbols)

2. Wandmontage

Technical line drawing of a front-mounted device with ventilation duct and control panel (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with two terminals and a central internal component (no text or symbols)

Simple line drawing of a hand pressing down on a sheet of paper with arrows indicating motion (no text or symbols)

Remarque :

Line drawing of a flat-screen computer monitor with a stand (no text or symbols)

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

Technical line drawing of a computer monitor with ventilation ducts and control panel (no text or symbols)

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with mounting holes and casing (no text or symbols)

Simple line drawing of a hand pressing down on a sheet of paper with arrows indicating motion (no text or symbols)

Bemerkungen:

Line drawing of a flat-screen computer monitor with a stand (no text or symbols)

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

4-Disc-Manager

Technical line drawing of a device rear view with ventilation duct and control panel (no text or symbols)

Three-step diagram showing hand positioning on a battery pack, with arrows indicating motion direction (no text or symbols)

Observaciones:

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or stand

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

4- Administrador de disco

Architectural floor plan showing room layouts and ventilation ducts (no text or labels)

Technical line drawing of a front-mounted device with ventilation duct and control panel (no text or symbols)

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with two terminals and a central housing (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with directional arrows indicating motion (no text or symbols)

Observações:

Line drawing of a flat-screen computer monitor with a blank screen and stand (no text or symbols)

DC IN USB HDMI1 HDMI2 SCART PC AUDIO VGA

Passos da ligação

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

4-Gestor de discos

DOLBY DIGITAL SETUP (CONFIGURAÇÃO DE DOLBY DIGITAL)

Top-down schematic of a computer monitor layout with ventilation ducts and control panel (no text or labels)

Technical line drawing of a computer monitor with ventilation system and base mount (no text or symbols)

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with two terminals and a handle (no text or symbols)

Line drawing of a hand pressing down on a rolled document or paper (no text or symbols)

Uwagi:

Line drawing of a flat-screen computer monitor with a blank screen and stand (no text or symbols)

PL 7

ATV/DTV/Media/AV/PC/Component/DVD/SCART/HDMI1/HDMI2

4- Menedżer dysku

TYP TELEWIZORA (TV TYPE)
