USER MANUAL AVN6600 ECLIPSE

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the AVN6600. They show safe and correct ways to handle the product to prevent personal injury to you and others and avoid damage to property. Before reading through the manual, take time to read through and learn the important information listed in this section.

Cautions for use

- Start driving only after the GPS mark appears. Starting to drive with improper positioning may lead to vehicle positioning errors.

* The images appearing on the screen may differ from those shown in this manual depending on the type of map DVD-ROM used and when it was created.

Warning

This WARNING sign indicates a situation in which incorrect handling through disregard of a sign may result in death or serious personal injury.

Caution

This CAUTION sign indicates a situation in which incorrect handling through disregard of a sign may result in personal injury or may result solely in damage to property.

The symbol shown below indicates that you should know about the information in order to carefully follow it or you should remember the information for its helpfulness.

This ATTENTION sign indicates helpful information to remember and know.

• Please read all materials such as manuals and warranties that have come with the product.
• Eclipse will not be responsible for unsatisfactory product performance due to failure to follow these instructions.
• Changes to product specifications may result in differences between content of the manual and features of the product.

Introduction

How to use this manual 8

Features 10

GPS navigation system 14

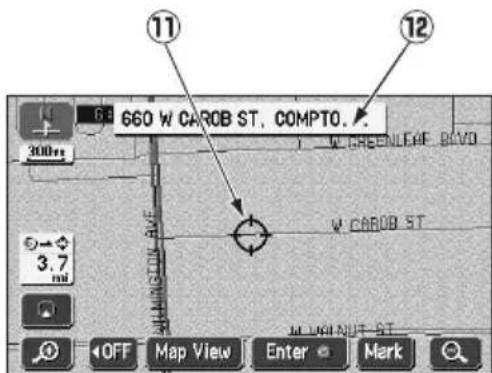

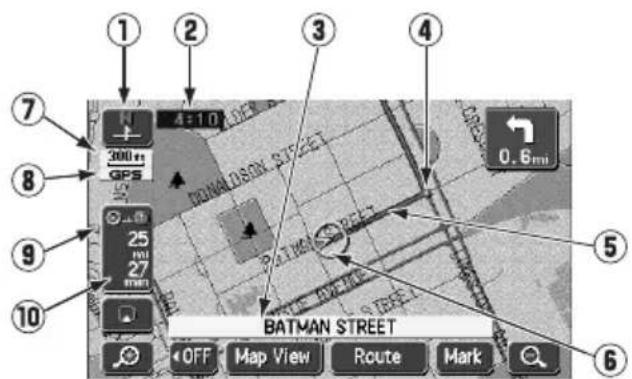

How to view the navigation screen....14

GPS 16

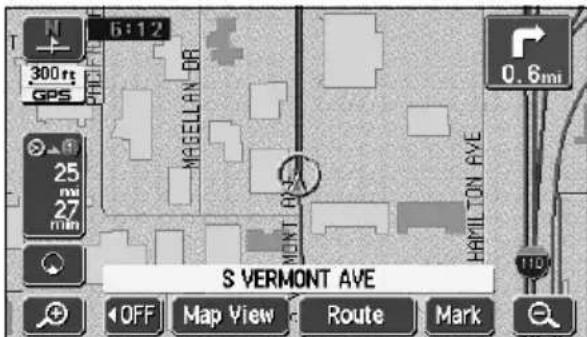

Situations when GPS signal reception is impossible ..... 16

Basic operation

Menu screen and list screens 18

Menu screen 18

How to switch the list screens 19

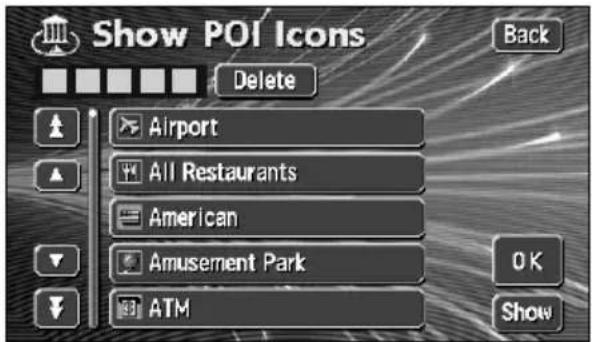

Up/down switch display 19

Page switch display 19

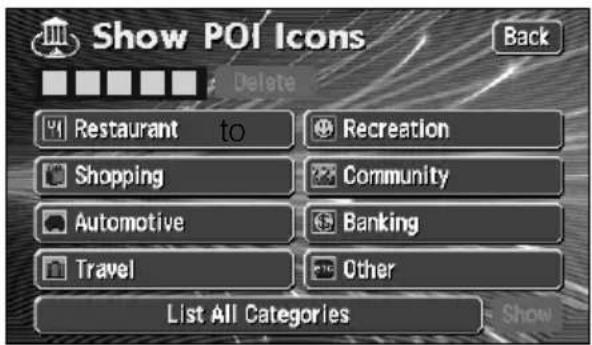

POI switch display 19

Adjusting the screen and setting the sound ..... 20

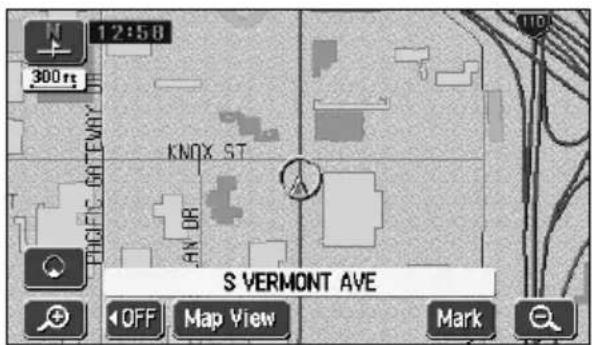

Screen adjustment 20

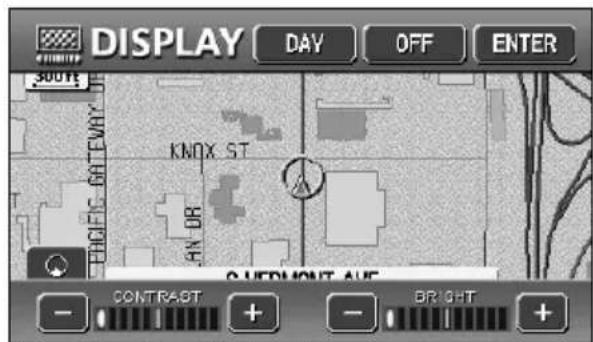

How to display the image quality adjustment screen . . . . . . . . 20

Contrast/Bright 21

How to switch to daytime display when the lights are ON ..... 21

How to turn the screen OFF....21

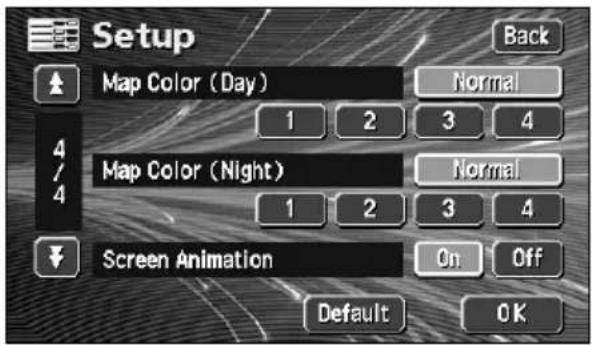

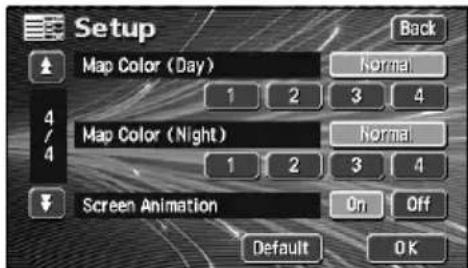

Switching the map display color....22

Switching the clock display 22

Switching miles and km display 23

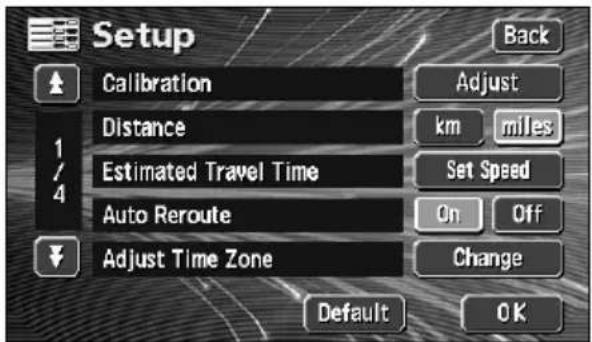

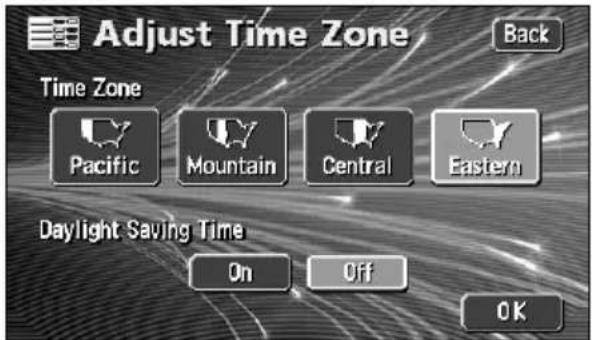

Switching the Time Zone 23

Switching the Time Zone 23

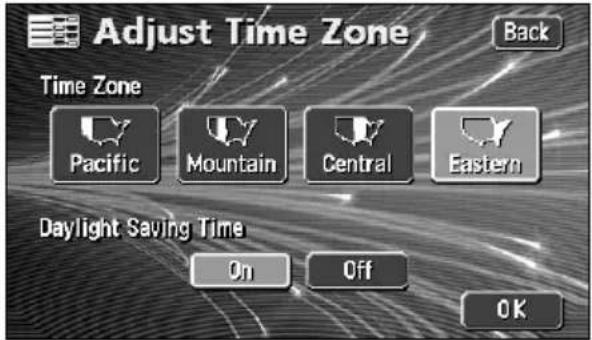

Setting the Daylight Saving Time....24

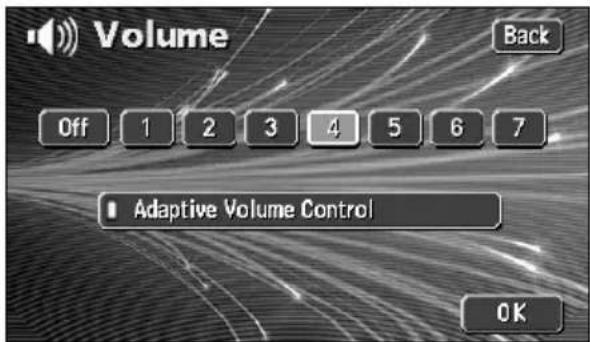

Setting the volume 25

Adjust the volume 25

Set the automatic highway volume switch function ..... 25

Map displays 26

Present location display 26

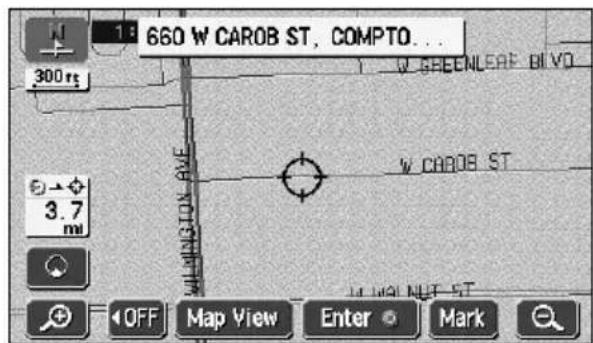

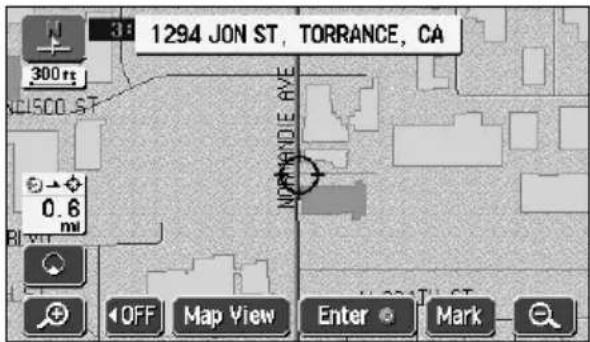

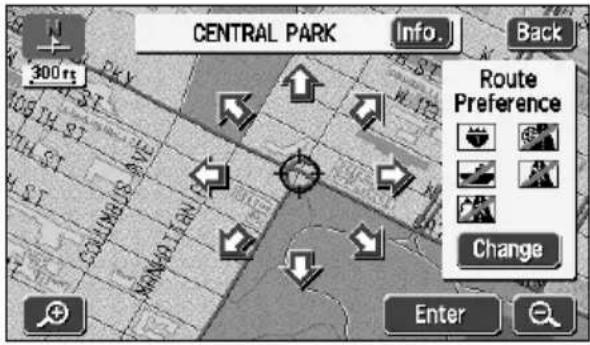

Moving the map (one-touch scroll). 27

Moving the map 27

Setting the Street Name display while scrolling 28

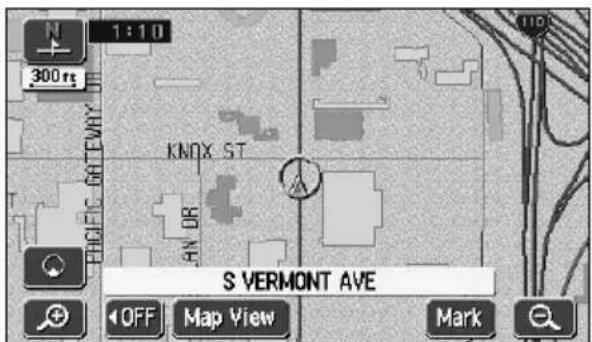

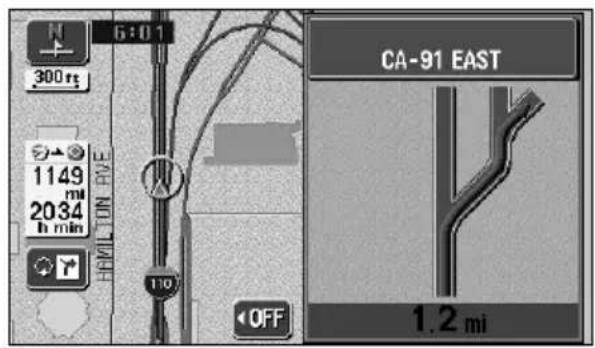

Switching the touch switch display....28

Switching the touch switch display....28

Setting touch switches to display or not display....29

Switching the map reduction scale....30

Switching to the desired reduction scale 30

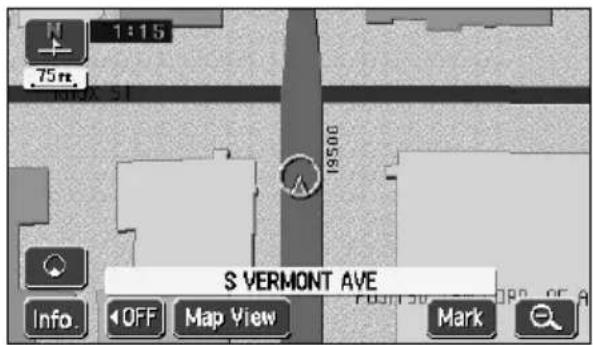

Displaying street maps....31

Switching to street map display 31

Canceling the street map display....31

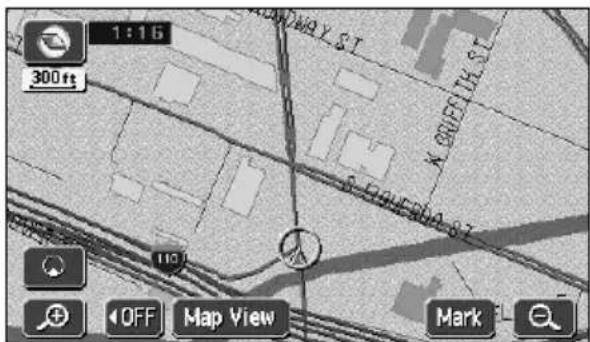

Switching the map orientation 32

Switching the map orientation 32

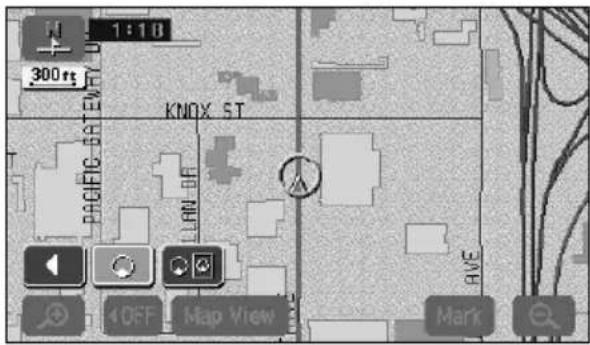

Switching to double screen display 33

Switching to double screen display 33

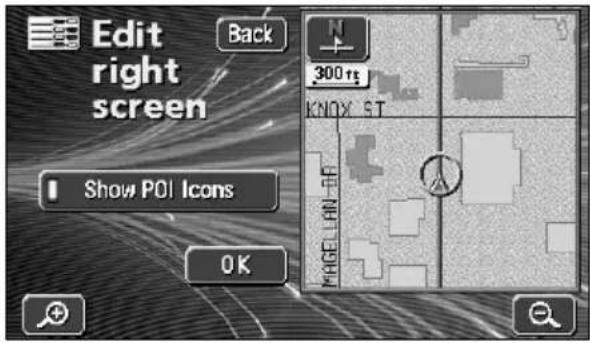

Operating the screen on the right 34

Canceling the double screen display 35

POI display....36

Display landmarks by a simple operation while driving ..... 38

Delete a POI landmark. 38

Displaying multiple types 39

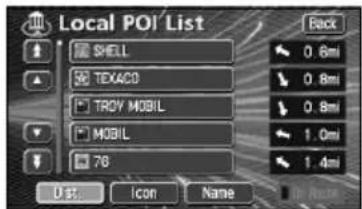

Search for POI vicinity 40

Displaying a list of POIs along the set route 42

Displaying POI information 42

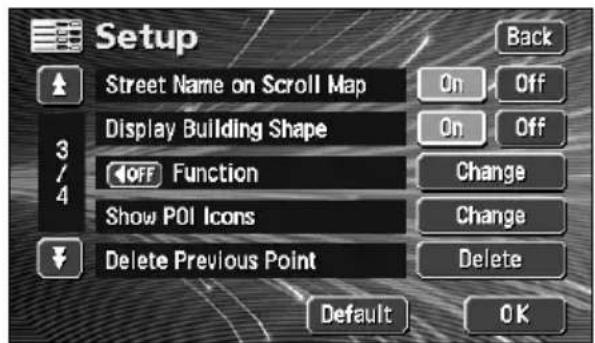

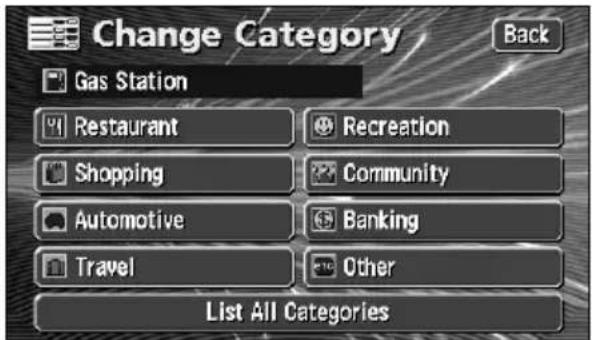

Setting the type of POI vicinity to be retrieved while driving ..... 43

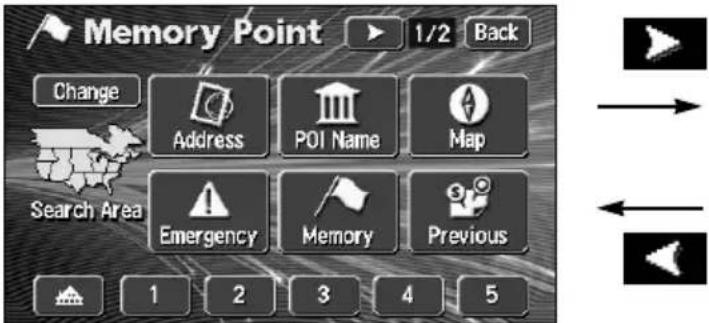

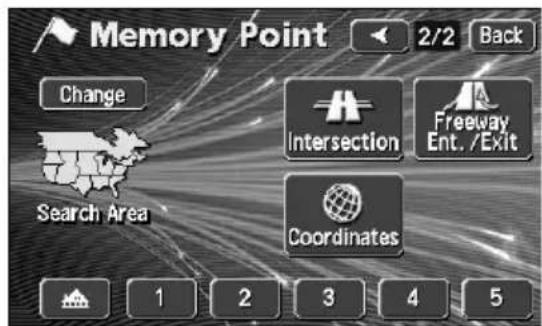

How to retrieve maps 45

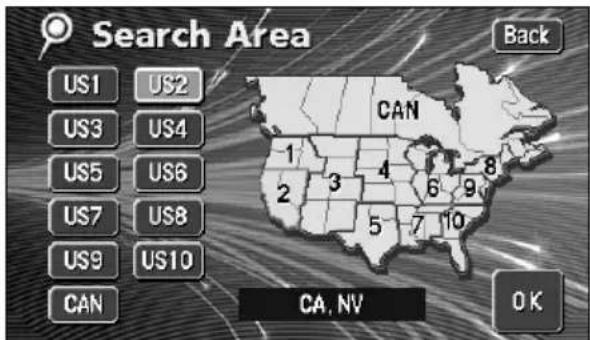

Changing the search area 47

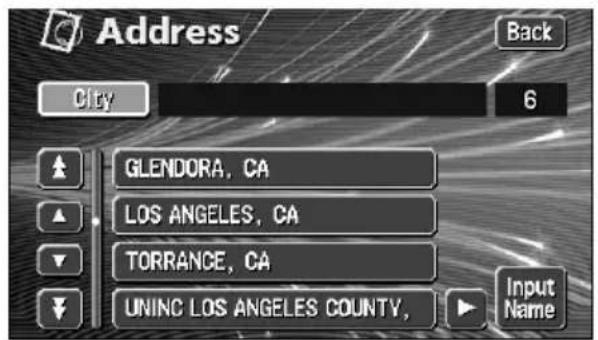

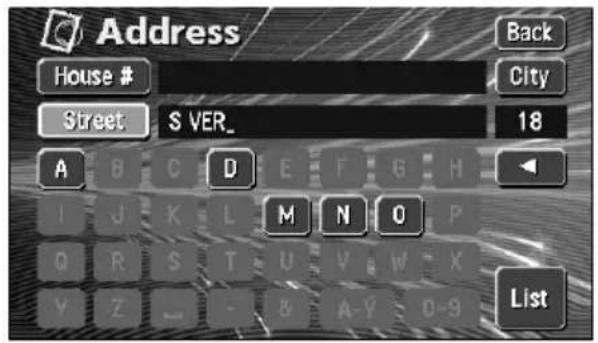

Retrieving a map using an address 48

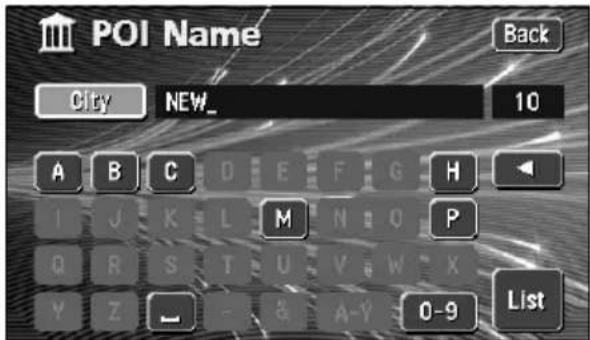

Retrieving a map using a POI name 50

If narrowing down candidates per area 51

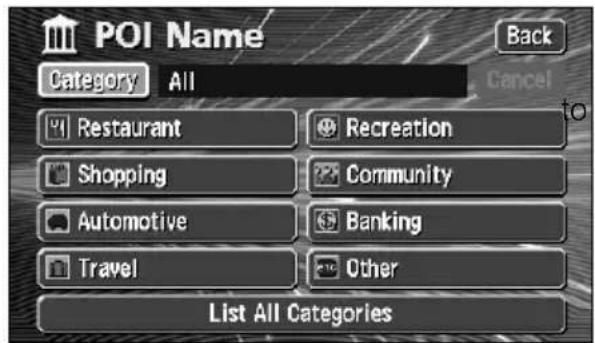

When narrowing down the list by POI type 53

Retrieving a map in the event of an emergency. 56

Retrieving a map using a memory point. 56

Retrieving a map using the archive .... 57

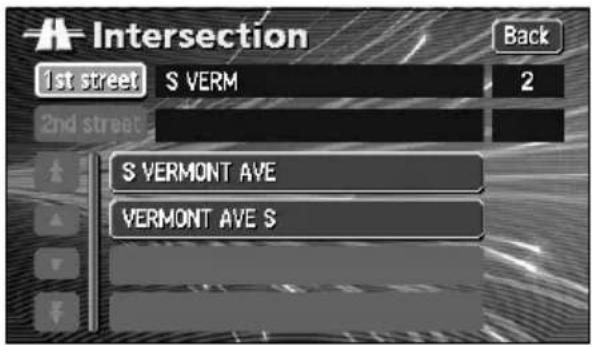

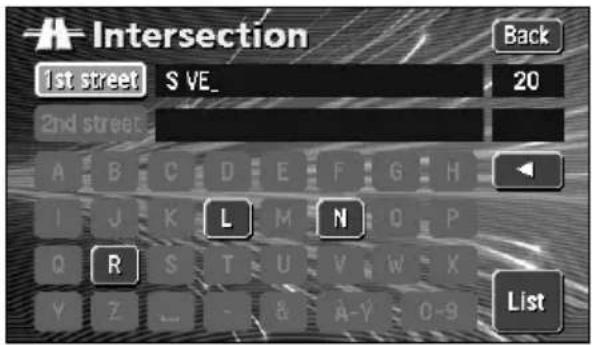

Retrieving a map using an intersection name 57

Retrieving a map using a freeway exit/entrance name ..... 59

Retrieving a map using the latitude/longitude 60

Performing operations on a retrieved map 61

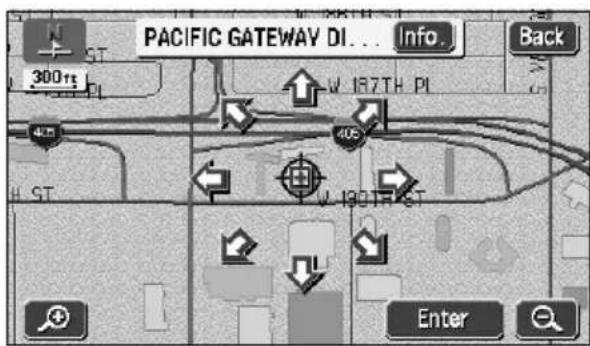

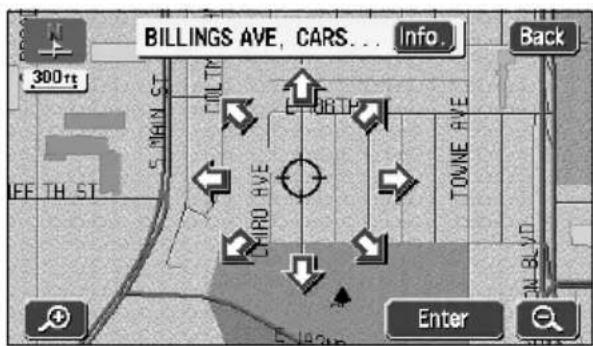

Performing operations on a displayed map 61

Displaying POI information....61

Navigation guidance

Setting the destination and searching for a route ..... 62

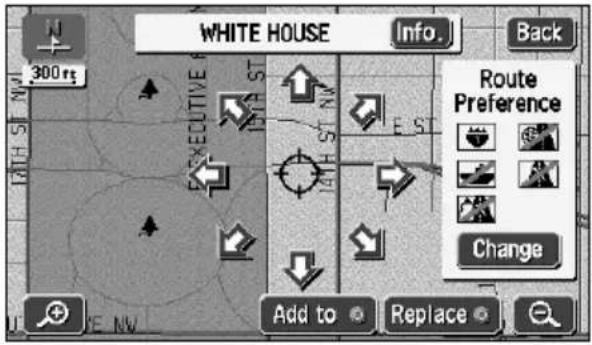

Set a destination and search for a route 63

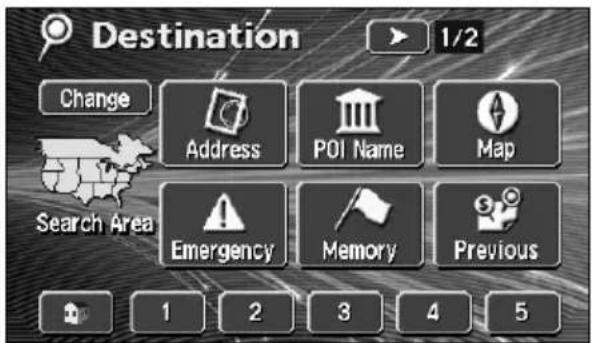

Setting a destination....64

One-touch setting....64

Set from a registered point. 65

Set using the map retrieval method 65

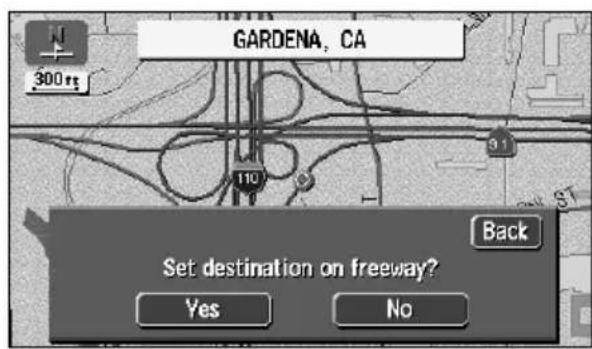

Route search....66

All-route display 67

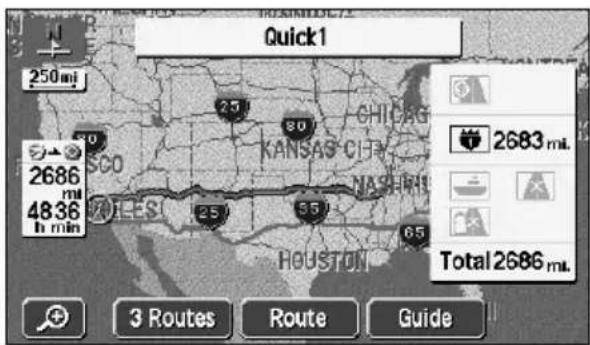

Route displays 67

All-route display and touch switches 68

Display or bypass a restricted segment ..... 70

Bypassing a restricted segment....70

How to display message on a restricted segment ..... 71

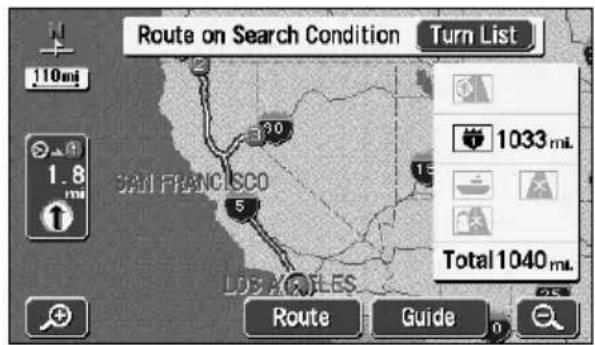

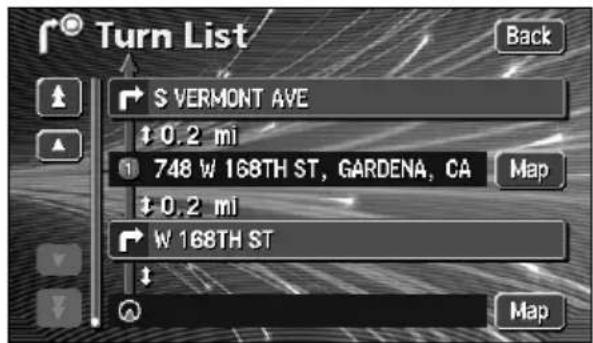

Display route data (guided road information) 72

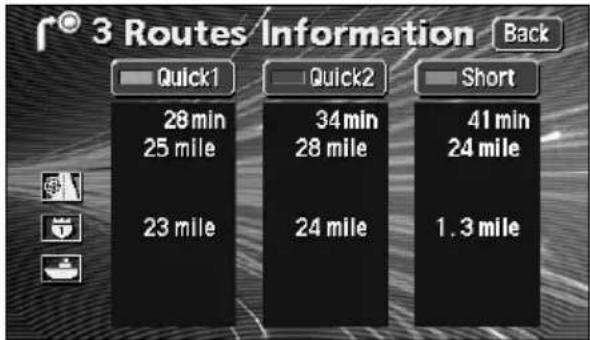

3-route simultaneous display

(3-route search function) 73

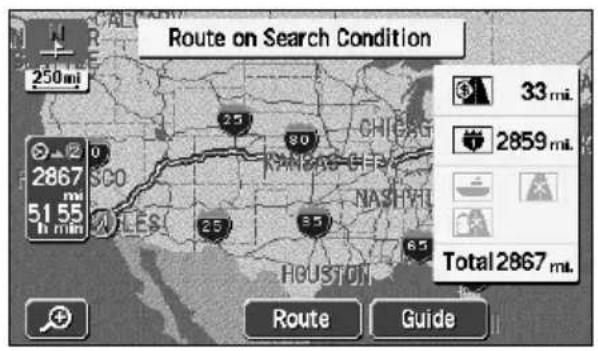

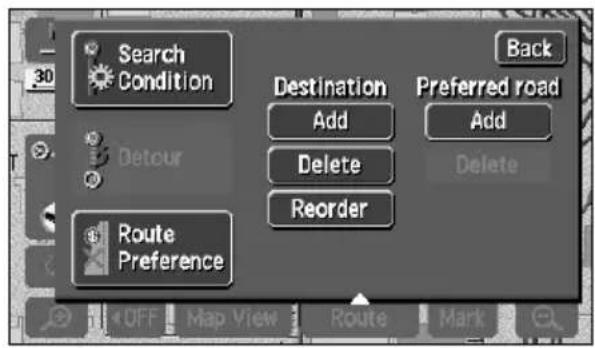

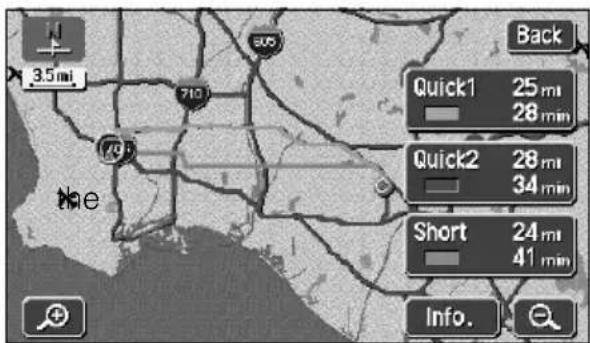

Changing the search result route 74

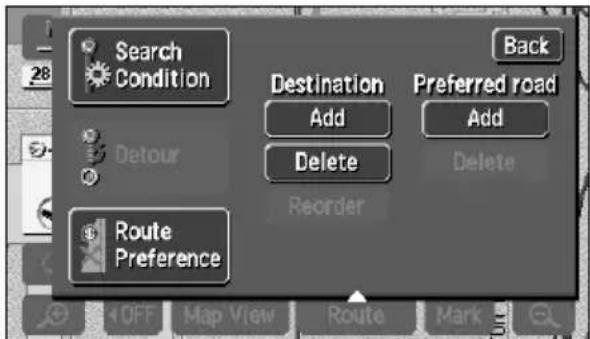

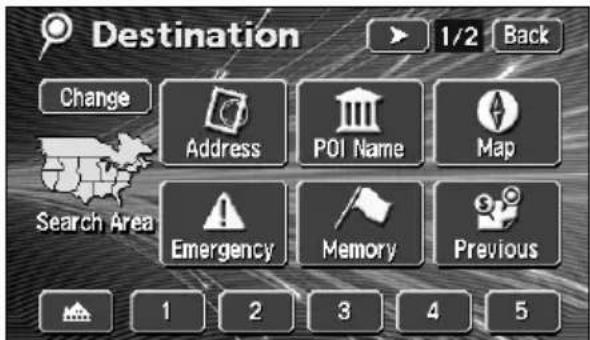

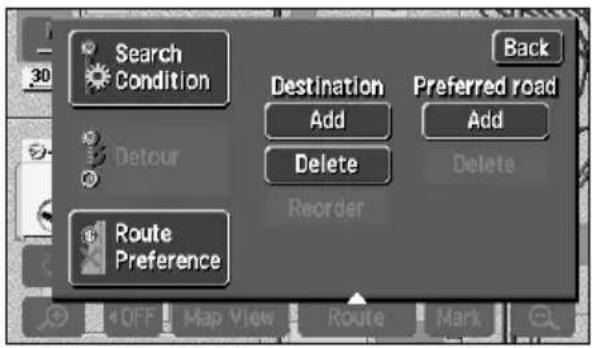

Adding a destination....75

Change the search conditions for each interval ..... 77

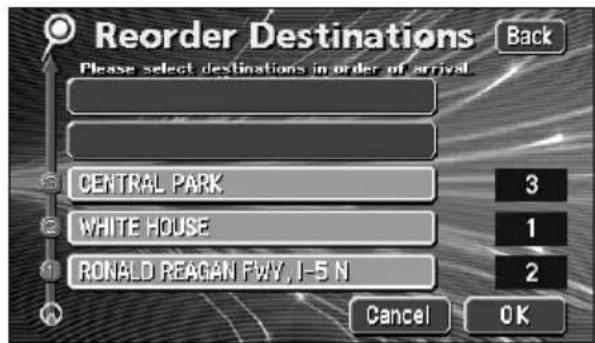

Switching the destination order 78

Deleting a destination....79

Indicating a transit road 80

Canceling a transit road indication 81

Starting, pausing and restarting route guidance. 83

Starting route guidance 83

Pausing and restarting route guidance 83

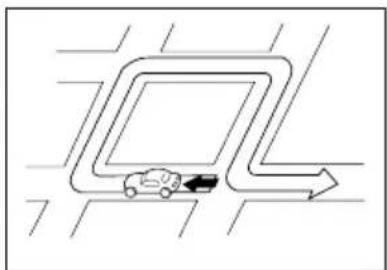

Route guidance 84

Intersection guidance 84

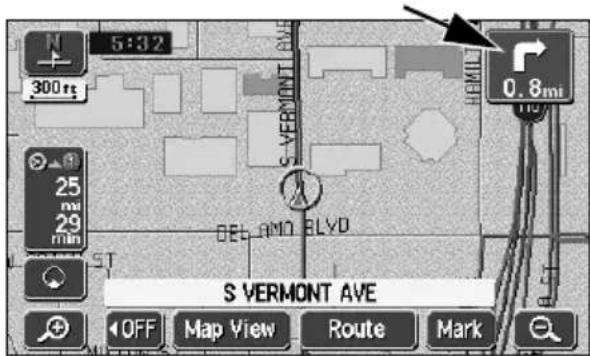

A non-junction intersection....84

A junction intersection (enlarged guidance screen for an intersection) ..... 84

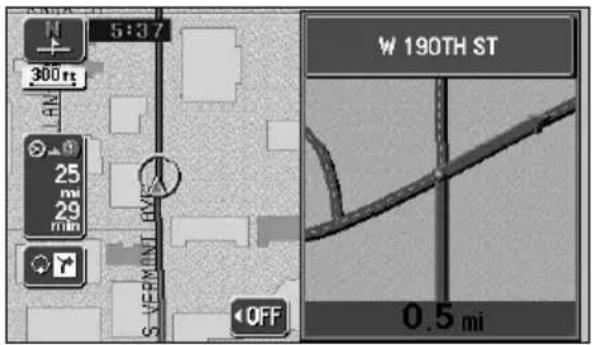

Set automatic display of the intersection guidance screen .... 86

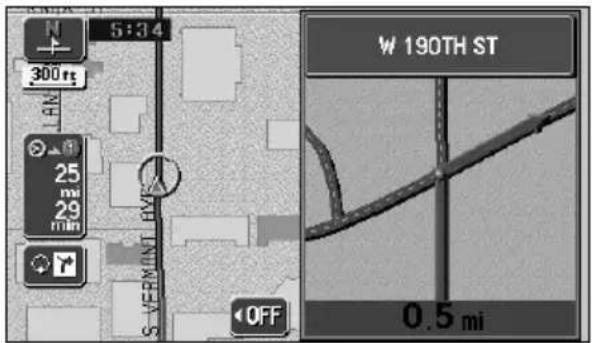

Canceling the intersection guidance screen 86

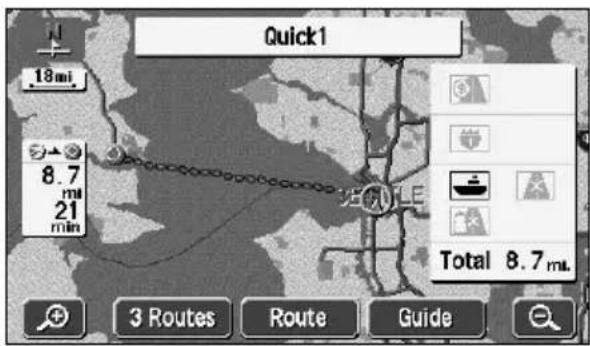

Ferry crossing guidance....87

Setting the required time display 87

Setting the average speed 88

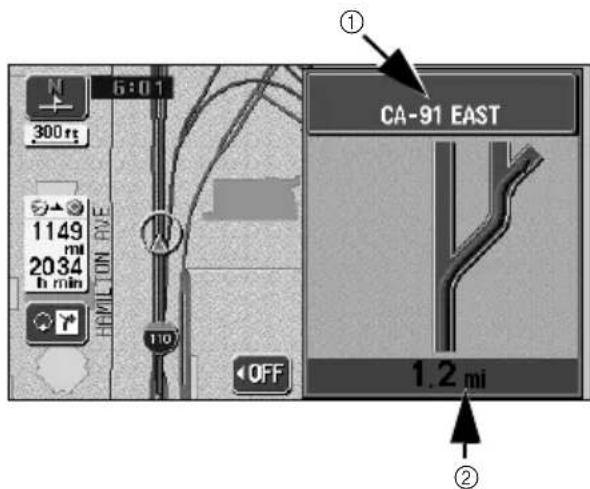

Highway junction guidance 89

Canceling the highway junction guidance screen 89

Switching the highway junction guidance screen. 90

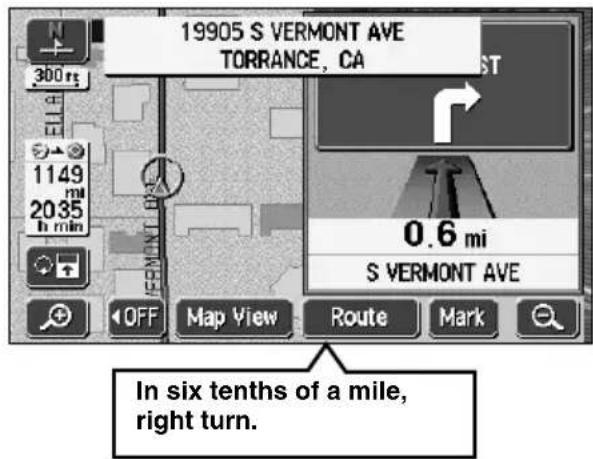

Voice guidance....91

Setting the auto voice guidance....92

Performing operations on the guided route. 93

Guidance in another mode....93

Setting the guidance when in another mode ..... 93

Redisplaying the all-route display 93

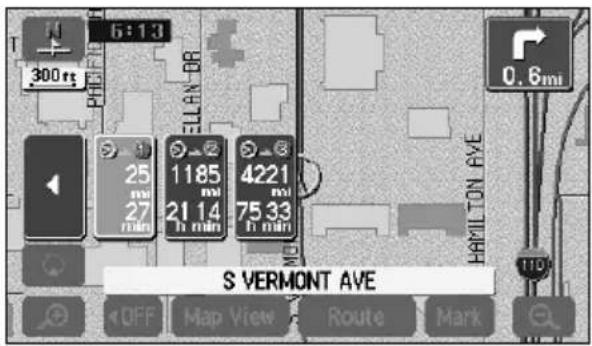

Switching the required time/distance remaining display 94

On-route scroll 95

Start on-route scroll 95

On-route scroll screen operations 95

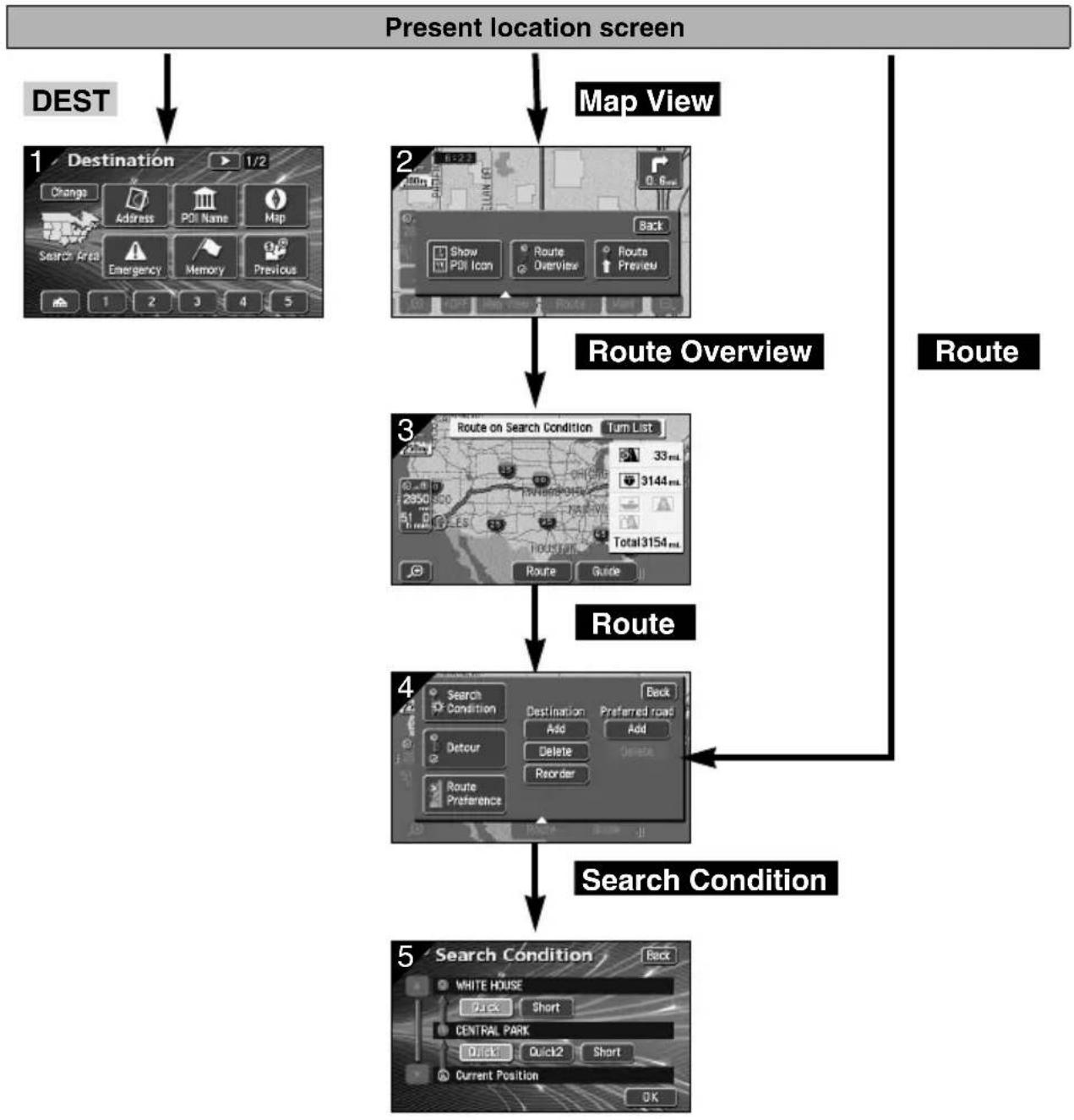

Reinitiating a route search.... 96

Reinitiating a route search 96

Reinitiating a route search 98

Automatic reroute search 99

Setting the automatic reroute search ..... 99

Point registration

What is point registration.... 100

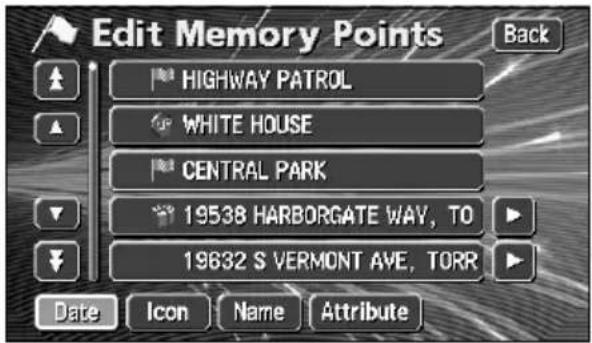

Registering, correcting or deleting a memory point .... 101

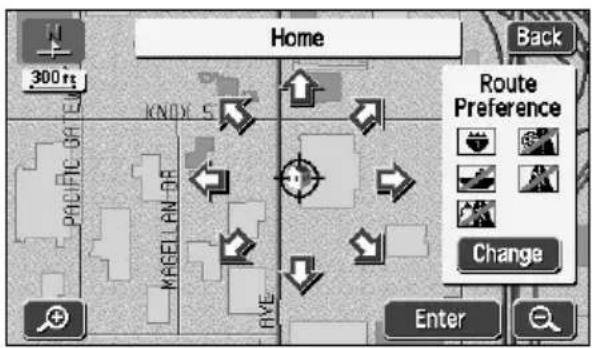

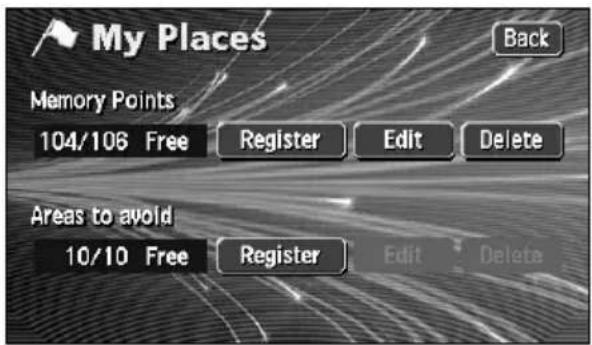

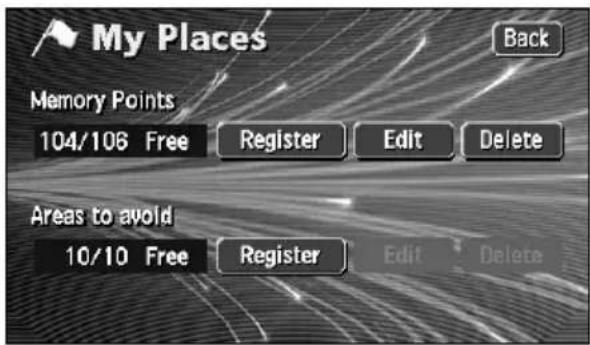

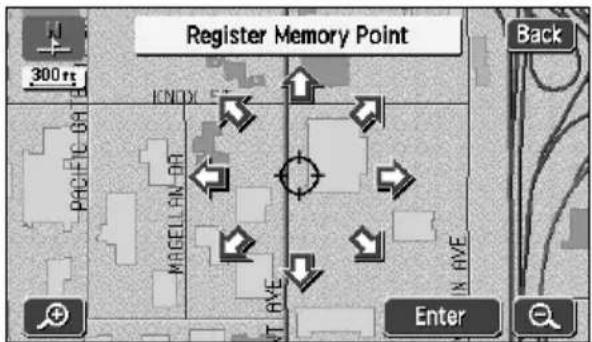

Registering, correcting or deleting your home ..... 101

Registering your home....101

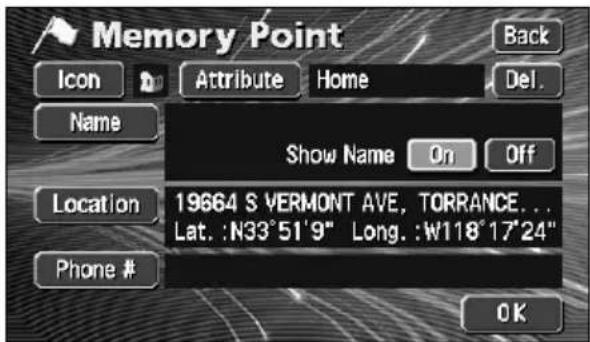

Correcting your home 103

Deleting your home 104

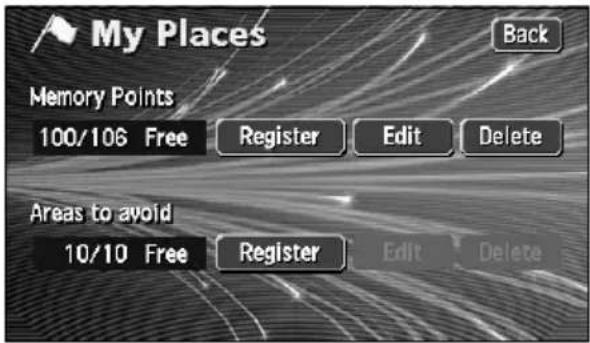

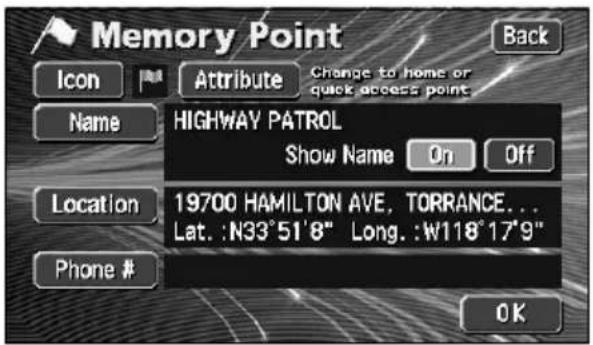

Registering memory points 105

One-touch registration 105

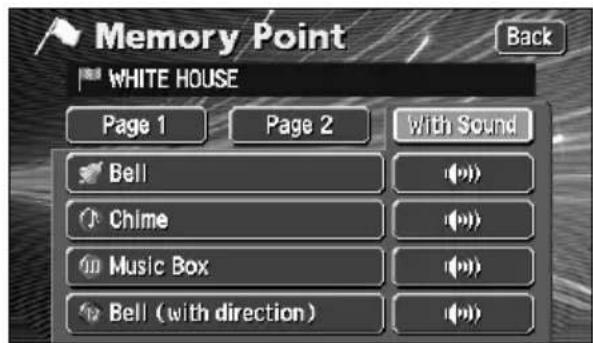

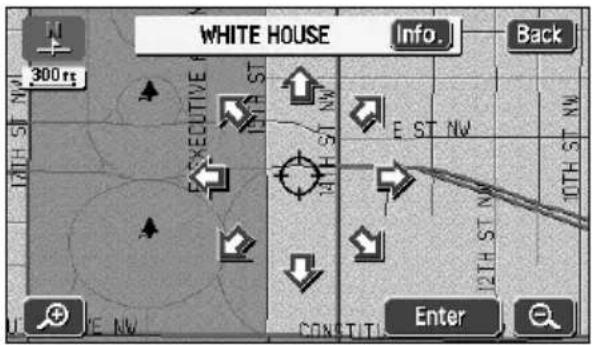

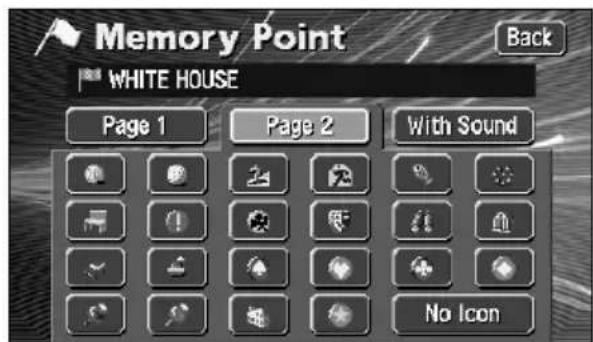

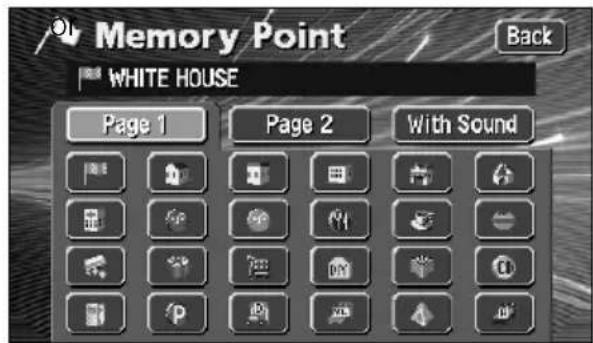

Registering a far away point 106

Correcting the position of a memory point 109

Changing the symbol of the memory point. 110

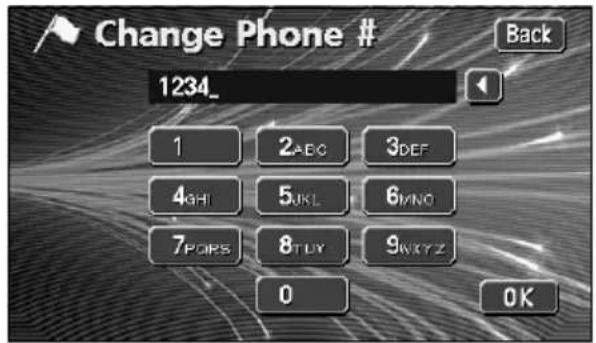

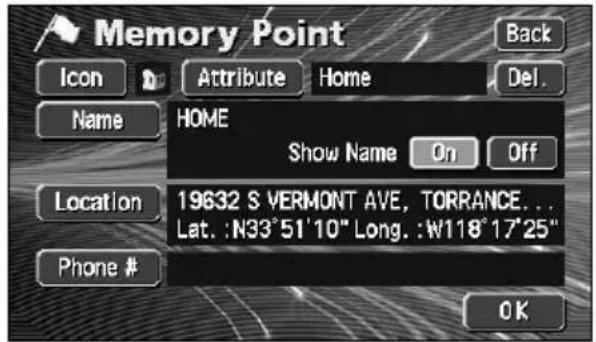

Enter a telephone number for a memory point. 111

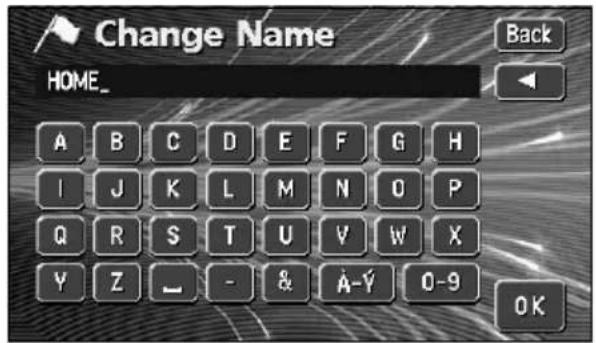

Entering the name of a memory point 112

Displaying the name of a memory point. 113

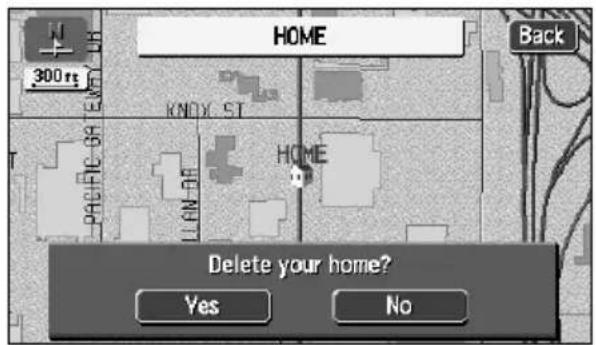

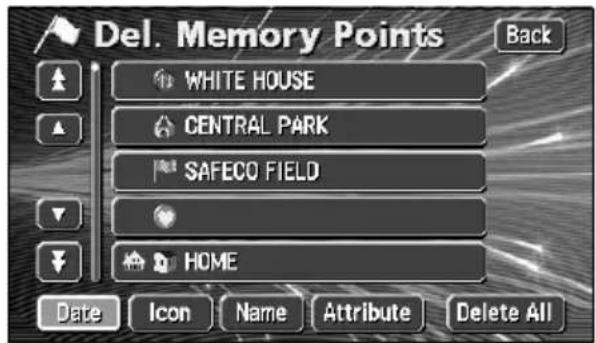

Deleting a memory point 114

Registering, correcting or deleting a special memory point 115

Registering a special memory point 115

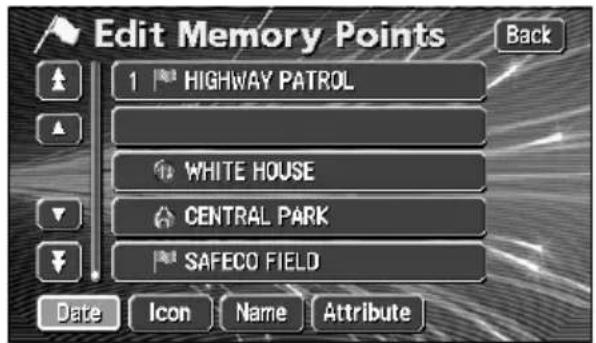

Correcting a special memory point. 117

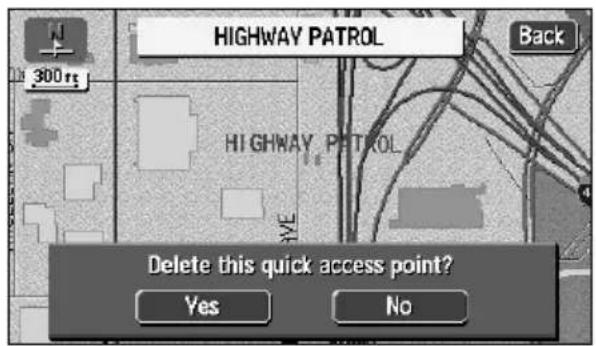

Deleting a special memory point 118

Registering, correcting or deleting detour memory points .... 119

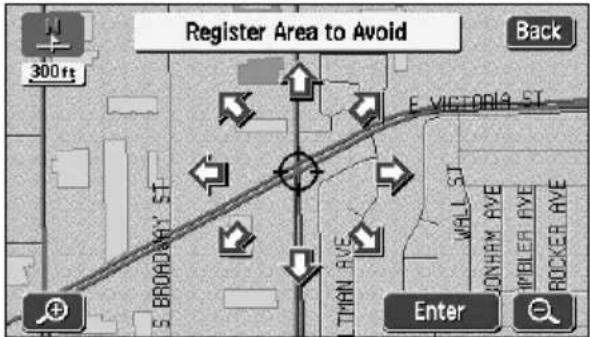

Registering detour memory points 119

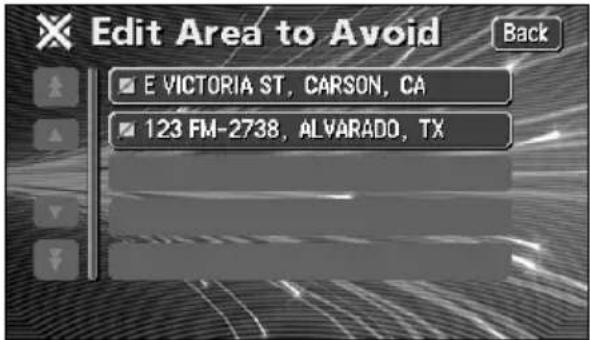

Correcting a detour memory point ..... 121

Deleting a detour memory point....122

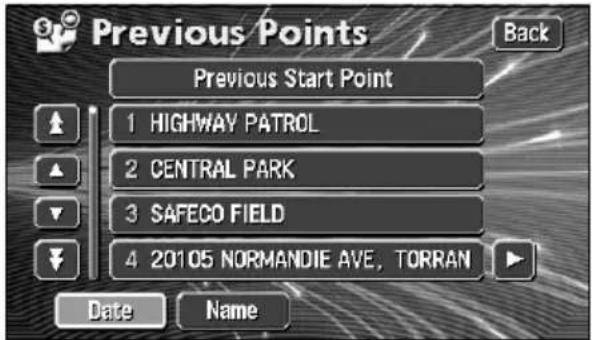

Destination archive. 123

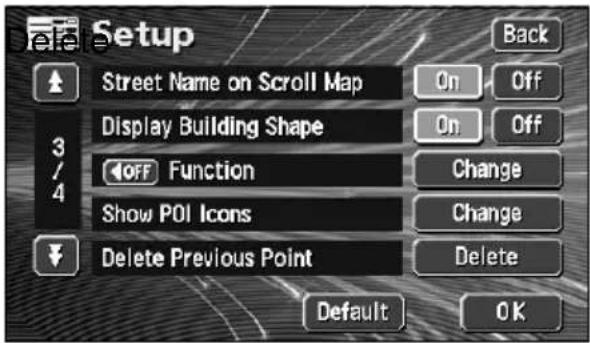

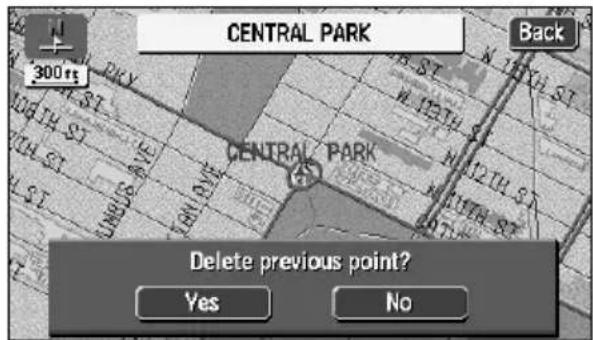

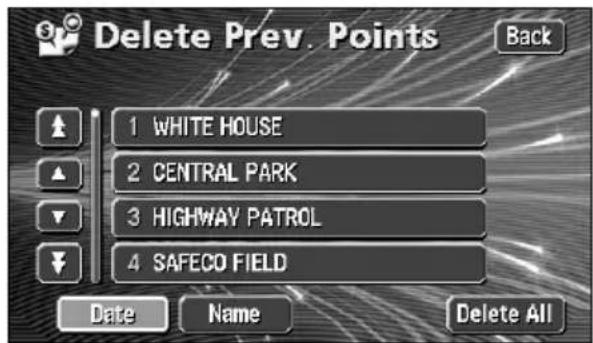

Deleting entries from the destination archive .... 123

Information function

Information screen 124

Information screen 124

SYSTEM CHECK screen 125

Optional function

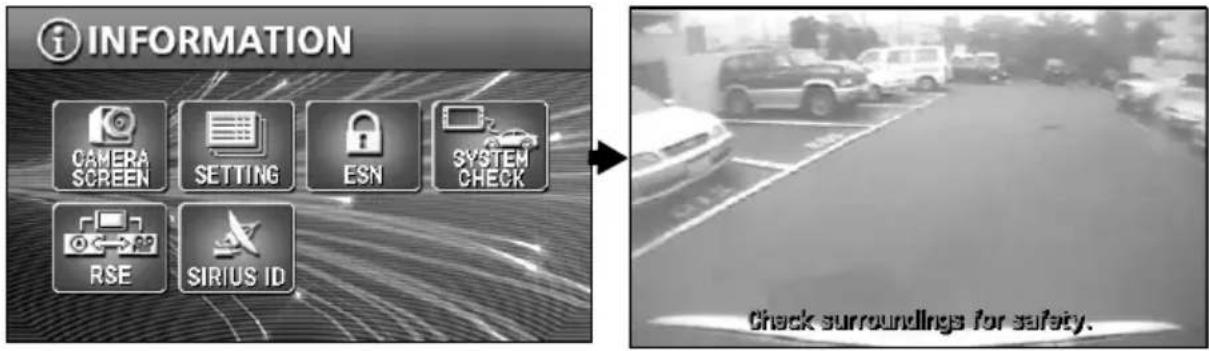

Rear View Camera operations 126

Rear View Camera image 128

Displaying the rear view image manually (MANUAL) ..... 128

Displaying the rear view image in reverse gear (AUTO) ..... 128

Rear View Camera settings 130

Helpful tips

Correction of the present location and distance ..... 132

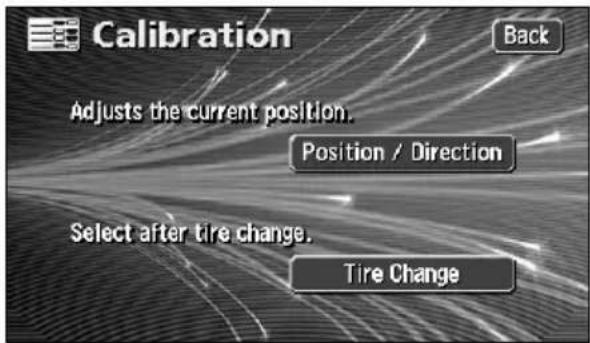

Present location correction....132

Correcting the distance 134

For reference

Map DVD-ROM data 135

Map DVD-ROM data display 135

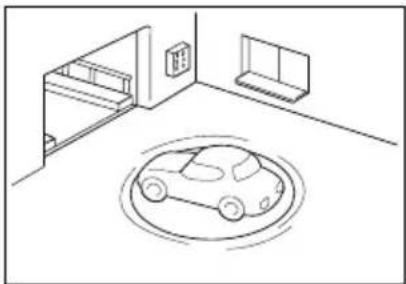

Accuracy and error 136

Positioning accuracy 136

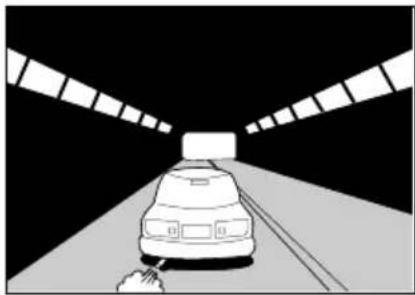

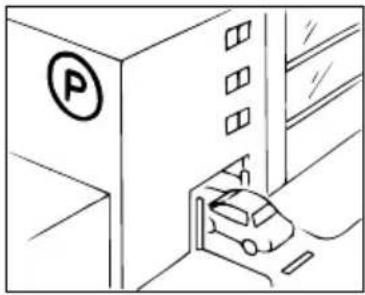

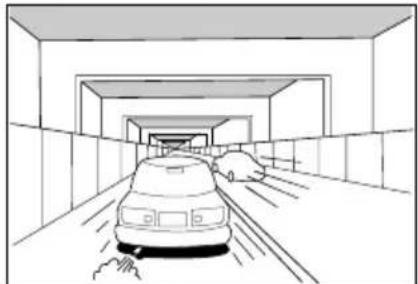

GPS signal quality and reception conditions ..... 136

Present location display error....138

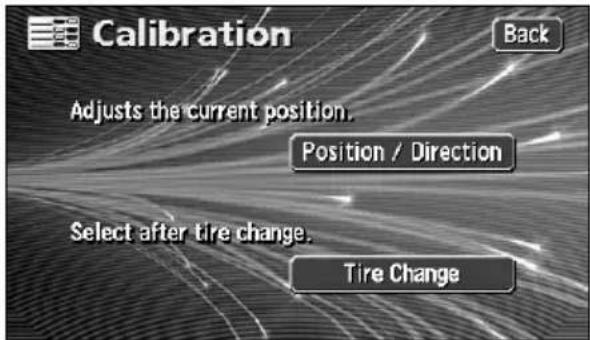

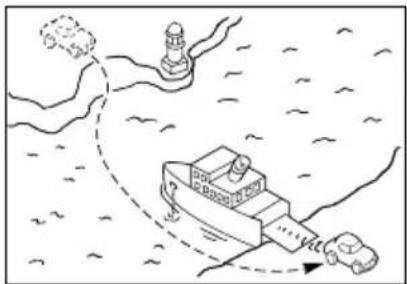

Error due to having changed a tire. 138

Correcting the map matching vehicle position sensor ..... 138

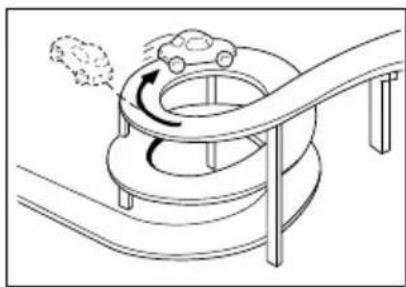

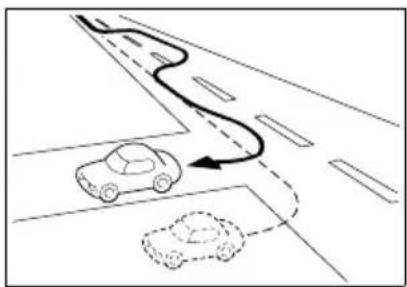

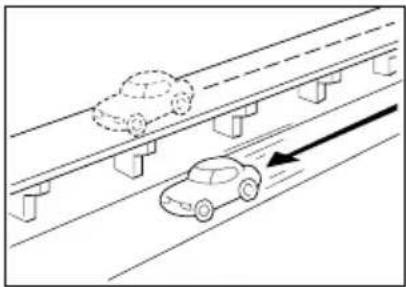

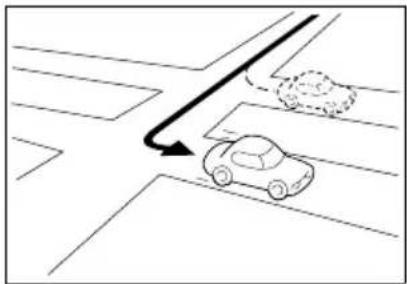

Present location display, route guidance accuracy ..... 139

Road and geographic name data....141

Route guidance 141

Information you should know 144

If one of these messages appears ..... 144

Messages related to general navigation 144

Before asking for repairs 147

Items related to general navigation functions ..... 147

Copyright 148

Glossary.... 155

Index by topic 157

Information about the maps 157

Route guidance 158

Others 160

INDEX 162

The Index by Topic simplifies searches for explanations about individual features. When confused by an operation, use the Index by Topic to search for information about the operation.

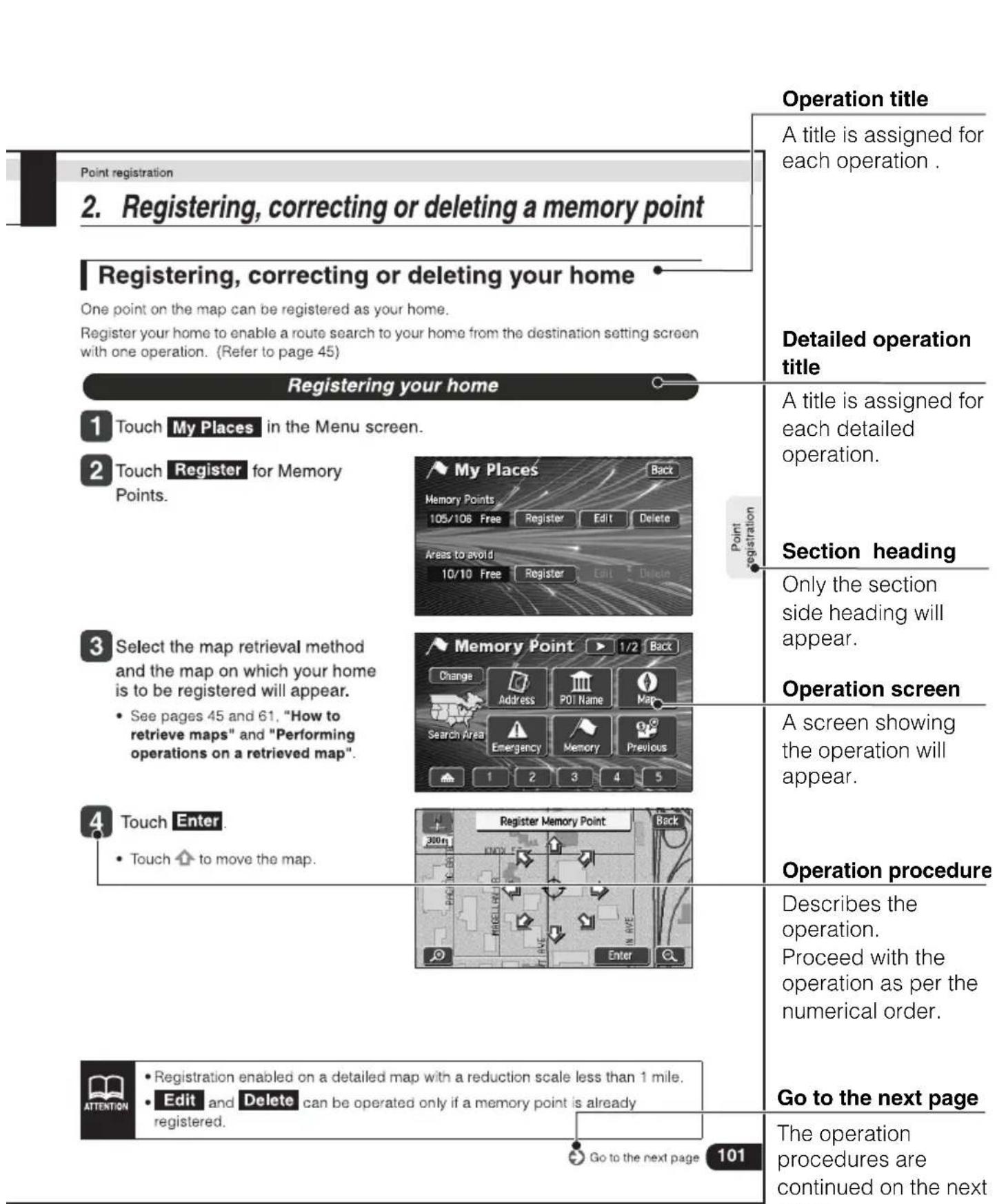

1. How to use this manual

Item title	Section titleA title is assigned for each section.
	Point registration
A number and title is assigned for each item.	What is point registrationUp to 106 geographical points - categorized as "home," memory points or special memory points - can be stored on a map by registering them as memory points. There can be one "home" and up to five special memory points. Registering detour memory points (maximum of ten) also ensures that detours will be made through these points when route searches are performed.Memory points can be registered by selecting from 46 types of symbol and 4 types of symbol with sound. It is possible to set a name, a name reading, and a telephone number for all these types of symbol. (This does not apply to detour memory points.)Registering memory points and special memory points enables you to retrieve them on a map or when conducting a route search. Use these points effectively.If you make a mistake in registration, correct it or delete the registration.(If 106 memory points or 10 detour memory points have already been registered, delete unnecessary points and reattempt the registration.)
	Memory Points	The memory points (including your home and special memory points) can be displayed and reordered according to registered type, symbol, or order of registration, and the points can be selected from a list during point searches and so on.

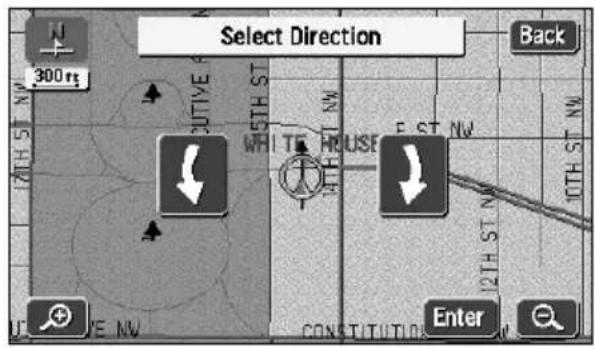

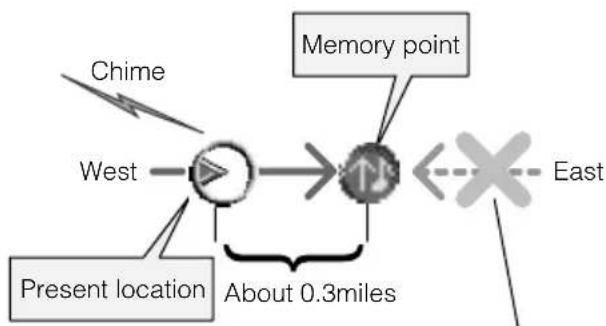

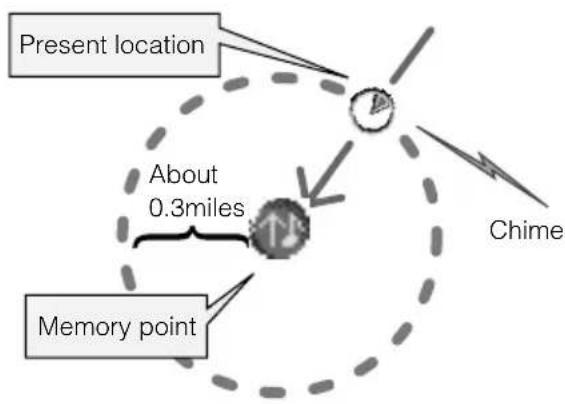

	Memory point with voice alarm	The following functions can be given to memory points with voice.1 Setting to announce the approach to a point with soundBell, Chime, Music Box2 Setting to announce the approach to a memory point from a specified directionBell (With direction)
	Home	Only one registration can be made for your home, and you can search for a route returning you home in a one-touch operation. Registering this point first is recommended.

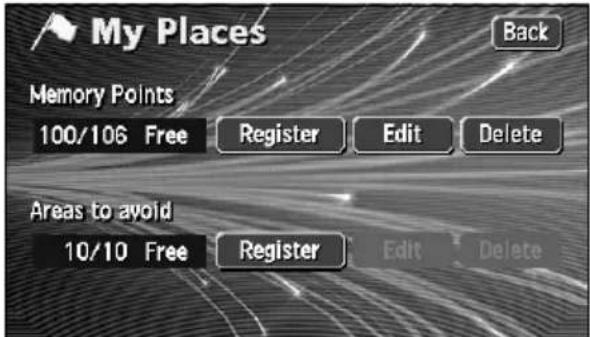

	Special memory points	Up to 5 special memory points can be registered and allocated to touch switches to facilitate a search for geographical points. Also, when setting a destination, a route search can be initiated in a one-touch operation.
	Areas to avoid	Up to 10 detour memory points can be registered with a name and detour range settable for each point. You can also set names for detour memory points.
Attention
Additional points regarding the operations are given here.	The symbol allocated to a detour memory point cannot be changed.

Point registration 2. Registering, correcting or deleting a memory point Registering, correcting or deleting your home One point on the map can be registered as your home. Register your home to enable a route search to your home from the destination setting screen with one operation. (Refer to page 45) Registering your home 1 Touch My Places in the Menu screen. 2 Touch Register for Memory Points. 3 Select the map retrieval method and the map on which your home is to be registered will appear. • See pages 45 and 61, "How to retrieve maps" and "Performing operations on a retrieved map". 4 Touch Enter. • Touch 🔒 to move the map. 5 Check Up 6 Edit and Delete can be operated only if a memory point is already registered. 7 Go to the next page 101 Operation title A title is assigned for each operation . Detailed operation title A title is assigned for each detailed operation. Section heading Only the section side heading will appear. Operation screen A screen showing the operation will appear. Operation procedure Describes the operation. Proceed with the operation as per the numerical order. Go to the next page The operation procedures are continued on the next

The description shown above is for explanation, and therefore it may differ from the actual one on the same page.

2. Features

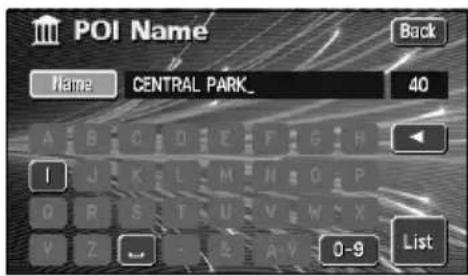

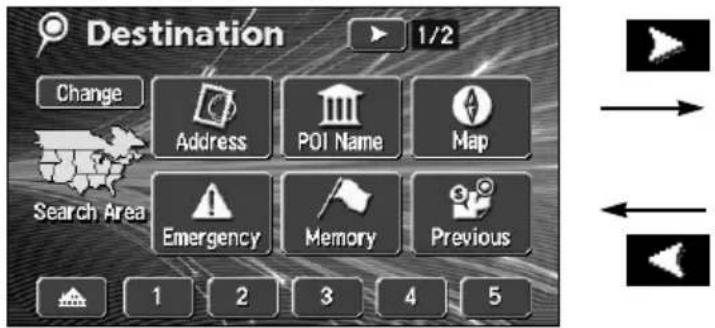

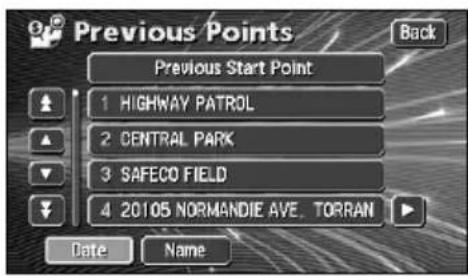

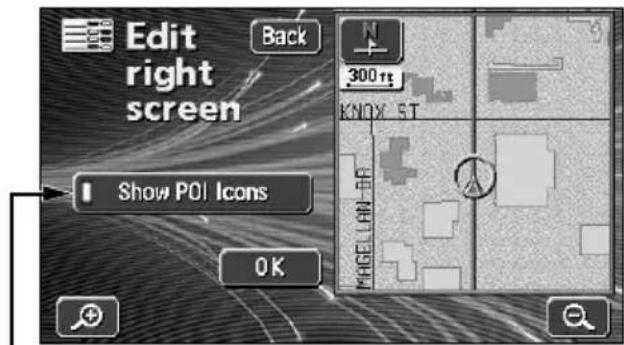

Several search methods to choose from (Refer to page 45)

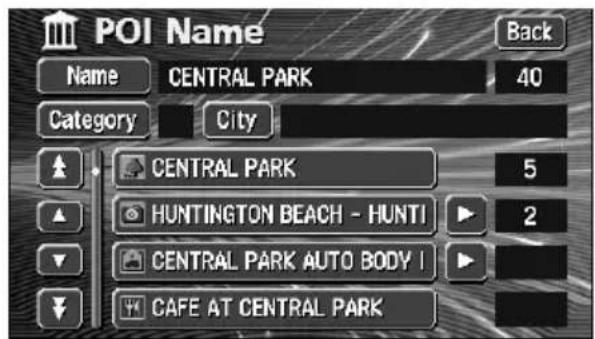

- Search using a POI name (Refer to page 50)

When the name of the POI is known, enter it to initiate a search. It is also possible to search by entering only a part of the name.

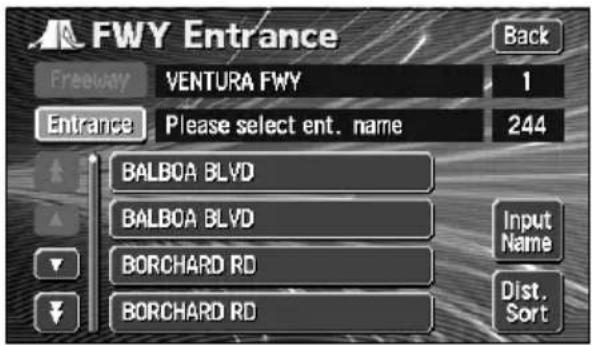

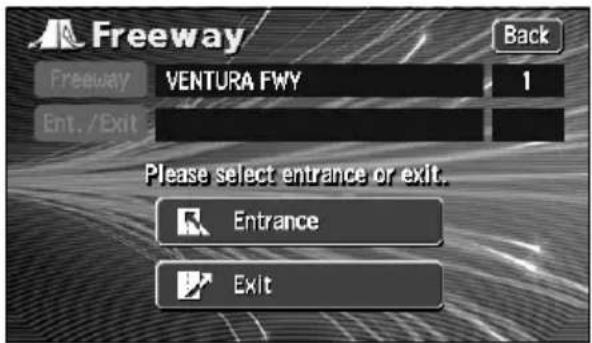

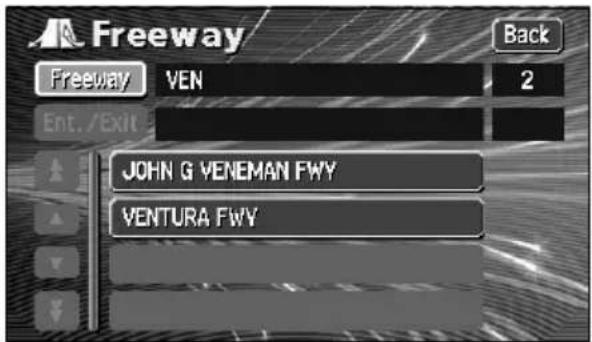

- Search using a freeway exit/entrance (Refer to page 59)

A search can be initiated using the name of a freeway or an exit/entrance

- Search using latitude/longitude coordinates (Refer to page 60)

A map can be displayed by directly entering the latitude and longitude coordinates.

• Emergency search (Refer to page 56)

In the event of an emergency, a search can be initiated for the nearest police station or hospital.

- Search using the destination archive (Refer to page 57)

A map can be retrieved using entries previously set in the destination archive.

- Search using a registered point (Refer to page 56)

A map can be retrieved using your home or a point registered in the memory.

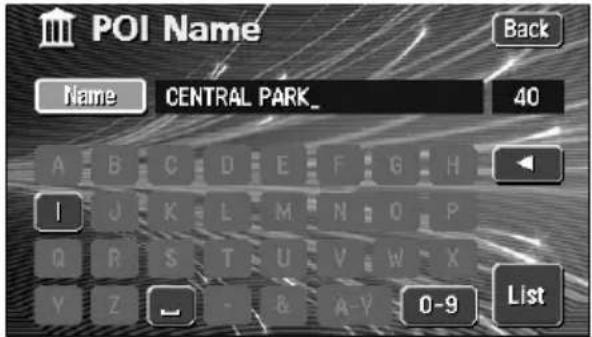

POI Name Back Name CENTRAL PARK_ 40 A B C D E F G H I J K L M I I O P Q R S T U V W X Y Z - - & A Y 0-9 List

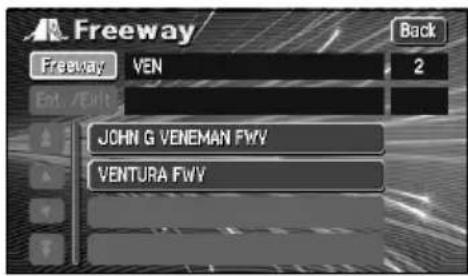

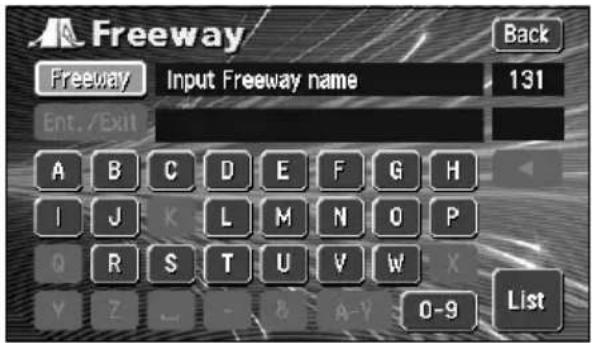

Freeway Freeway VEN Back 2 Est. /Exit JOHN G VENEMAN FWV VENTURA FWV

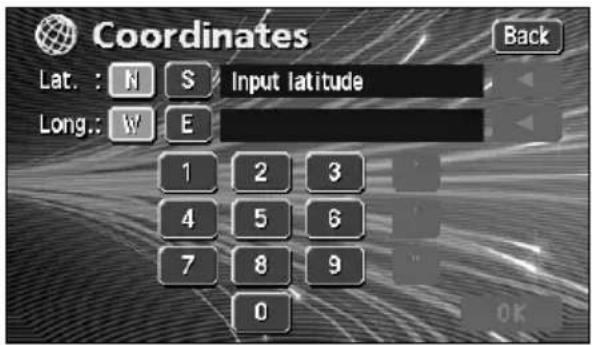

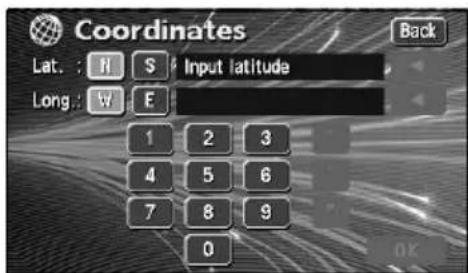

Coordinates Lat. : N S Input latitude Long: W E 1 2 3 4 5 6 7 8 9 0 Back

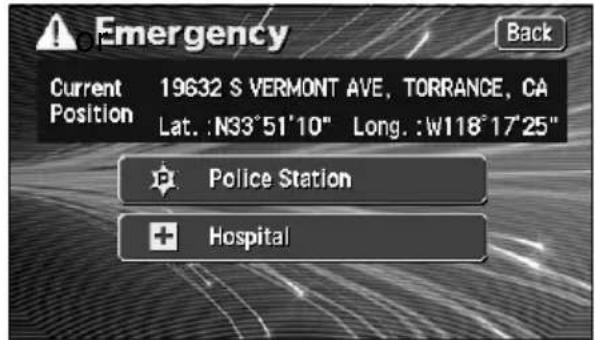

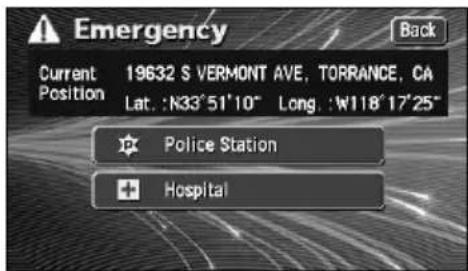

Emergency Back Current Position 19632 S VERMONT AVE, TORRANCE, CA Lat: :N33°51'10" Long: :W118°17'25" Police Station Hospital

Previous Points Previous Start Point 1 HIGHWAY PATROL 2 CENTRAL PARK 3 SAFECO FIELD 4 20105 NORMANDIE AVE. TORRAN Date Name Back

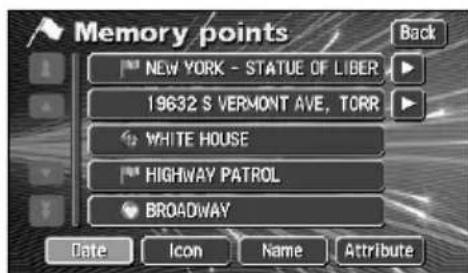

Memory points New YORK - STATUE OF LIBER 19632 S VEMMONT AVE, TORR WHITE HOUSE HIGHWAY PATROL BROADWAY Date Icon Namewer Attribute

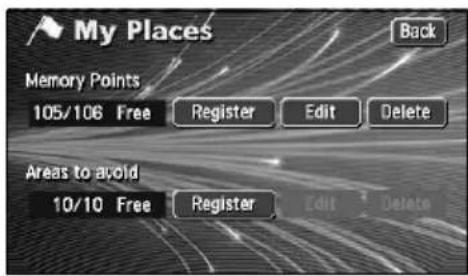

Registering a desired point in the memory (Refer to page 100)

Your home or a geographical point you want to indicate on a map can be registered in the memory. Also, when initiating a route search, points through which you want to make a detour can also be registered in advance.

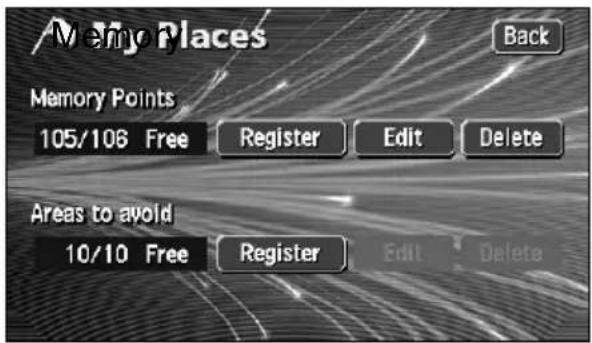

My Places Back Memory Points 105/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

POI icon display (Refer to page 36)

Various types of POIs can be displayed on a map using icons.

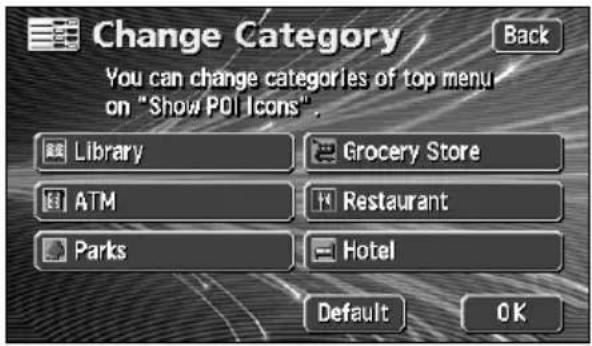

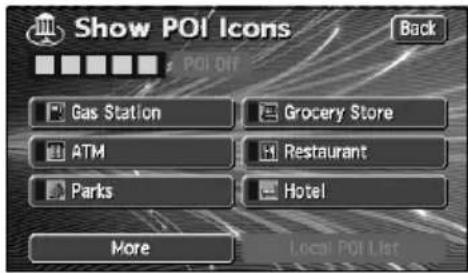

Show POI Icons Back Gas Station Grocery Store ATM Restaurant Parks Hotel More Local POI List

Diverse screen displays (Refer to pages 33, 34, 72)

- Double screen display

The screen can be divided into two parts.

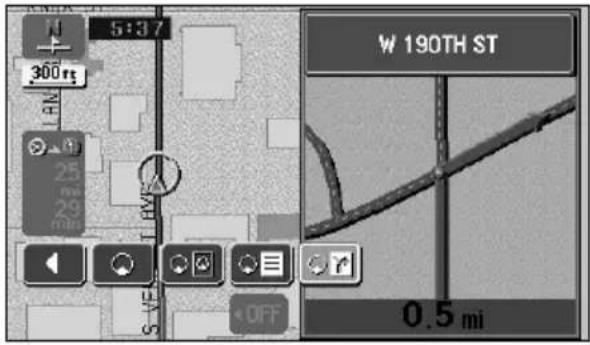

- Enlarged intersection display

While route guidance is in progress, an enlarged illustration of the area around an intersection where turn is to be made (junction) is displayed when approaching that intersection.

- Routedata

A list is displayed of all the distances up to intersections and turning directions prior to reaching the destination.

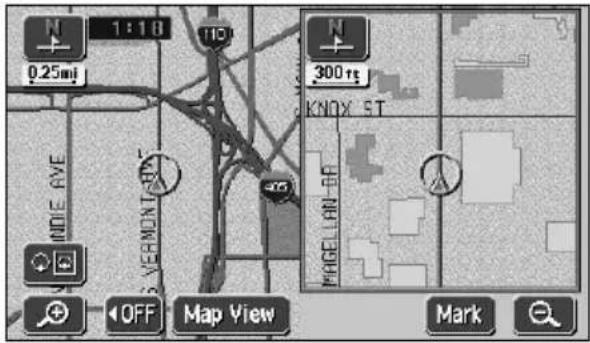

1:18 0.25m² 300ft KNOX ST HAGELLAN OR OFF Map View Mark

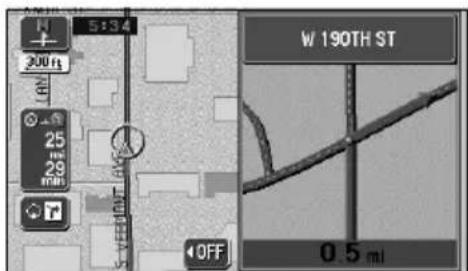

5:34 200 ft 25 29 OFF W 190TH ST 0.5 mi

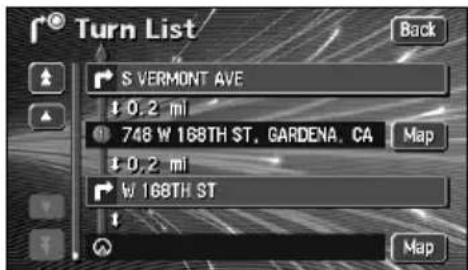

Turn List S VEMONT AVE 0.2 mi 748 W 168TH ST, GARDENA, CA 0.2 mi W 168TH ST Map Back Map

2. Features

3-route simultaneous display (Refer to page 73)

When initiating a route search, three routes (Quick 1, Quick 2 and Short) can be searched for simultaneously.

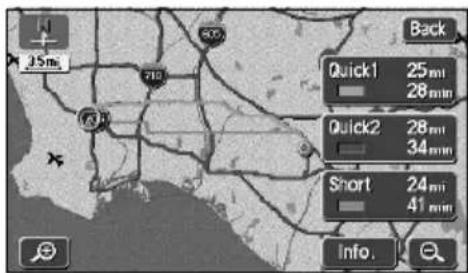

Back Quick1 25 min 28 min Quick2 28 min 34 min Short 24 min 41 min Info.

The map display color can be switched (Refer to page 22)

Four map display colors can be selected for the daytime and nighttime screen display respectively.

Setup Map Color (Day) 1 2 3 4 Map Color (Night) 1 2 3 4 Screen Animation On Off Default OK

System upgrade (Refer to page 126)

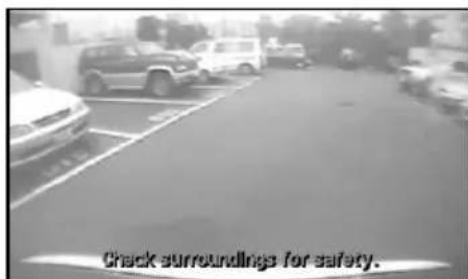

- Rear View Camera

When the optional Rear View Camera is installed, the view to the rear can be displayed on the monitor screen.

Check surroundings for safety.

MEMO

Illustration of a car's front view with city skyline background (no text or symbols)

3. GPS navigation system

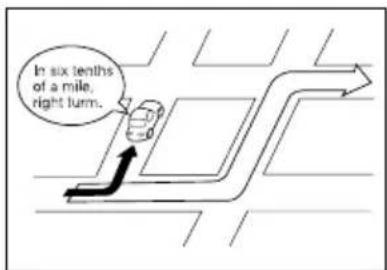

By setting your destination, the device will automatically perform a route search and guide you through the route using screen displays and voice announcements.

How to view the navigation screen

The navigation map display consists of a present location screen and a scrolled map screen.

1 2 3 4 7 4:10 300++ GPS DRUMBERSON STREET 0.6mi 5 8 25 27 BATTAGE STREET 9 10 BATMAN STREET OFF Map View Route Mark 6

660 W CAROB ST, COMPTO. W GREENLEAF BOVD 3.7 mi WMINGTON AVE WM CAROB ST OFF Map View Enter Mark

Scroll map screenPresent location screen

① Orientation mark (☐, when the bearing is pointing upwards) The map orientation is indicated.

- Refer to "Switching the map orientation" on page 32 for how to switch the map direction (North up or Heading up).

②Clock display

The present time is indicated.

• See page 22 for information concerning this mark's display.

③Name display

The following names appear depending on the situation.

(Only geographical points represented as data in the map disk)

• Names of junction and non-junction intersections
• Names of roads taken
• Names of interchange exits

④ Instruction points

Intersection guidance (intersection name display / intersection guidance screen) is displayed.

- Refer to "Intersection guidance" on page 84 for information concerning intersection guidance.

⑤Route display

When setting your destination, the route all the way to that point is displayed.

- Route guidance will occur only when the present location appears on a dark blue line.

⑥Vehicle position mark

The present location and the vehicle direction are displayed.

⑦Scale display

The reduction scale of the map being displayed is indicated.

The length of the Lappearing in the screen above represents 300ft.

⑧GPS mark GPS

This mark will appear when utilizing the absolute positioning data from the GPS satellite.

- See page 16 for information concerning this mark's display. There may be misalignments depending on the satellite conditions.

⑨Distance remaining display

The distance from the present location to the destination is indicated.

• While route guidance is in progress, the distance calculated from the route now being taken to the destination is indicated.
• When deviating from the set route, the distance to the destination in a straight line is indicated.
• Refer to "Switching the required time/distance remaining display" on page 94 for information on how to switch the remaining distance display.

⑩Required time display/destination direction mark

The following marks appear depending on the situation.

■ Required time display

While route guidance is in progress, the required time up to the destination is indicated.

- Refer to "Setting the required time display" on page 87 for information concerning the required time.

■ Destination direction mark

When deviating from the set route, the direction towards the destination is displayed.

⑪ Cursor mark

This mark is indicated on the map retrieved by a search or by scrolling.

To scroll, simply touch the map (on a spot other than the touch switches on the screen).

⑫Cursor position name display

The name of the cursor position on the map is displayed (approx. 6 seconds).

Except for some parts describing certain functions, this manual uses normal north-up map screen illustrations to describe the device's functions.

"Map touched" appears signifying that the map was directly touched (on spots other than touch switches).

4. GPS

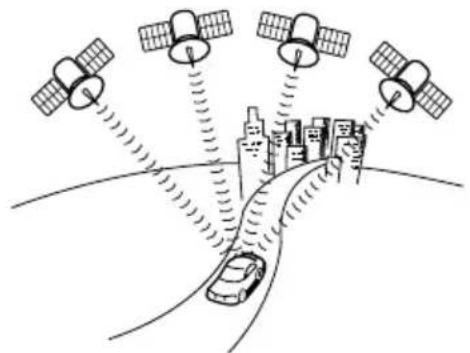

Global Positioning System (GPS): a system developed and operated by the United States Government that pinpoints your present location by utilizing latitudinal and longitudinal data received from at least 4 satellites (sometimes only 3 are used).

Situations when GPS signal reception is impossible

The following are situations when the GPS signal cannot be received.

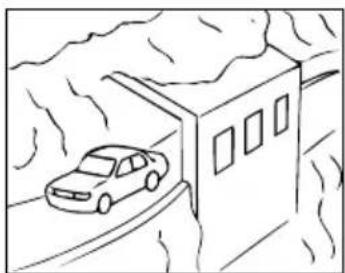

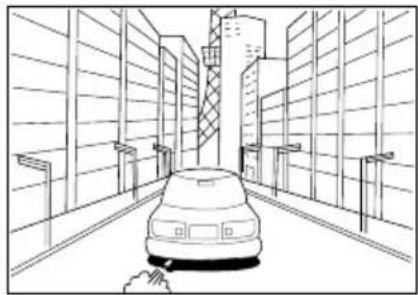

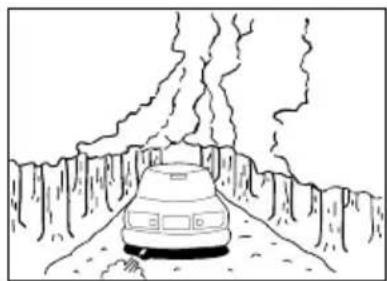

• When the GPS signal is obstructed while driving through building clusters, tunnels or overpasses
• When the signal is obstructed by an object placed on or near the GPS antenna
• When the GPS satellite is not sending any signals to the earth (signal emission may be halted due to modifications or repairs

conducted by the U.S. Tracking Control Center, the organization responsible for controlling GPS signals)

- When a digitally formatted cellular telephone unit is brought near the GPS antenna

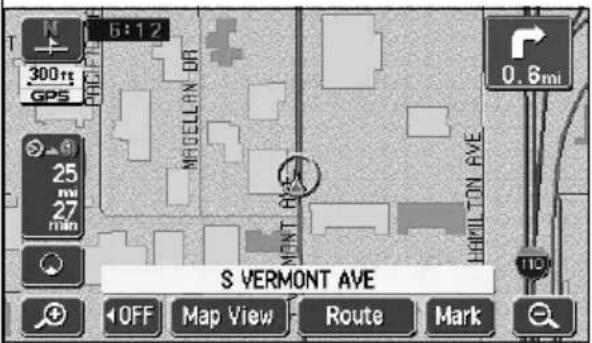

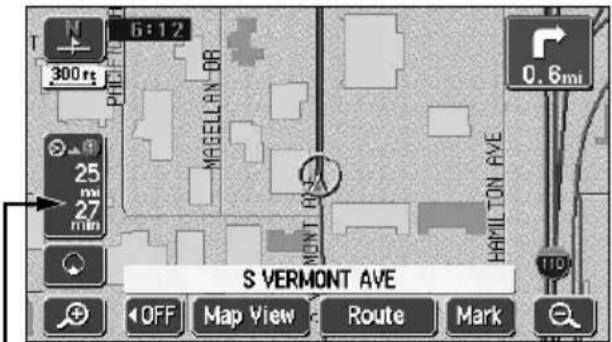

6:12 300ft GPS 25 mm 27 mm MAGELLAN OR HAMILTON AVE 0.6mi S VERMONT AVE OFF Map View Route Mark

Screen with GPS signal reception in progress

Handling the GPS antenna

• Consult a specialist at the store of purchase for how to install the GPS antenna.
• Do not apply paint or wax onto the GPS antenna. Otherwise, signal reception sensitivity may be diminished or signal reception may be rendered impossible.
• Do not pull on the cord when uninstalling or moving the GPS antenna. Otherwise, short circuits or disconnections may result.

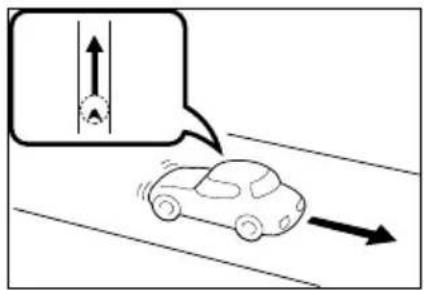

• See page 136 for information concerning GPS signal accuracy and errors. See page 155 for definitions of the terminology employed.

MEMO

Illustration of a car's front view with city skyline background (no text or symbols)

1. Menu screen and list screens

Menu screen

1 Press MENU to display the Menu screen.

2 The following operations can be performed from the Menu screen.

- Touch the desired item's touch switch to activate.

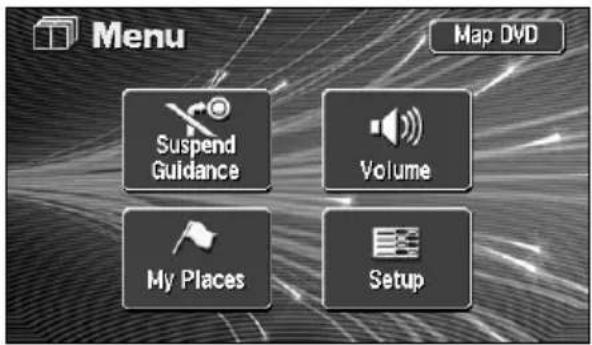

Menu Map DVD Suspend Guidance Volume My Places Setup

Item (touch switch) Function Page
Suspend guidance/Resume guidance^*1	Stopping or restarting route guidance 83
Volume	Setting the volume 25
	Setting the automatic highway volume switch 25
My places	Registering/correcting/deleting the geographical data for your home	101, 103, 104
	Registering/correcting/deleting memory geographical points *2	105, 109, 114
	Registering/correcting/deleting detour memory geographical points	119, 121, 122
Setup	Correction of the present location and distance 132
	Switching the kilometer/mile display 23
	Setting the estimated arrival time 87
	Setting the automatic reroute search	99
	Switching the time zone	23
	Setting the automatic voice guidance	92
	Setting the guidance when in each mode	93
	How to display message on a restricted segment	71
	Set automatic display of the intersection guidance screen	86
	Setting the street name display while scrolling	28
	Setting the switch display	29
	Switching the clock display	22
	Setting the type of POIs in the vicinity retrieved while driving	43
	Switching the map display color	22
	Deleting entries from the destination archive	123
Map DVD	Map DVD-ROM data display	135

*1: The color is toned down if the destination is not set.
*2: Including registering/correcting/deleting special memory geographical points.

How to switch the list screens

Up/down switch display

Touch ▲ to ▼ move the list one item at a time.

Show POI Icons Delete Airport All Restaurants American Amusement Park ATM Back OK Show

Page switch display

Touch or to move the list one page at a time.

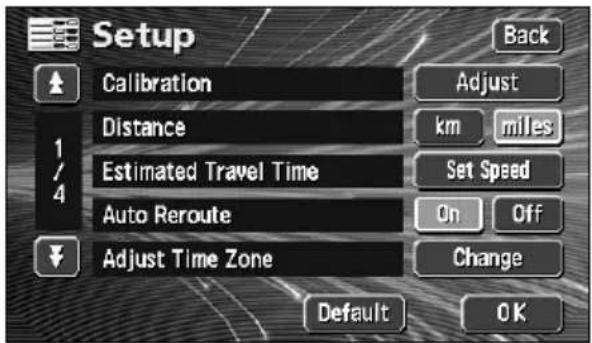

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK

POI switch display

Touch either Restaurant Shopping

Automotive Travel Recreation Community Banking Order on

move the list one POI at a time.

- The touch switch color is toned down for POIs without corresponding lists. Touching a toned-down touch switch will have no effect.

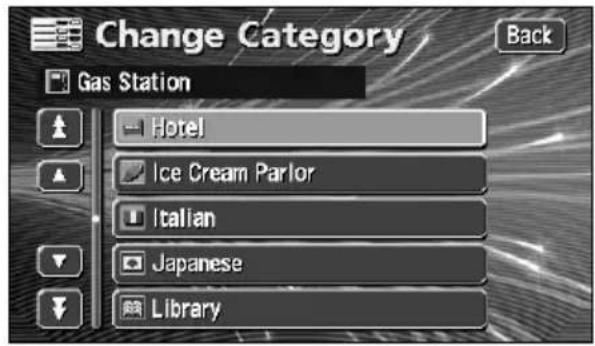

Show POI Icons Back Delete Restaurant to Recreation Shopping Community Automotive Banking Travel Other List All Categories Show

2. Adjusting the screen and setting the sound

Screen adjustment

To make viewing easier, the display switches between day screen/night screen according to whether the vehicle lights (parking lights, taillights, license plate lights) are on/off.

(Default status)

● Lights turned OFF ..... daytime display
● Lights turned ON...... nighttime display

12:50 300 rs KNOX ST S VERMONT AVE OFF Map View Mark

● Daytime display (when lights are turned OFF)

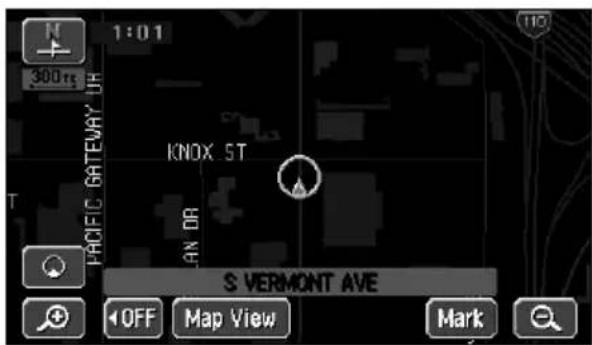

1:01 300rs KNOX 5T SAN DB S VERMONT AVE OFF Map View Mark

● Nighttime display (when lights are turned ON)

How to display the image quality adjustment screen

1 Pressing DISP the Navigation screen is displayed causes the screen to change to the image quality adjustment screen.
2 Pressing ENTER after

adjustment, or when more than about 20 seconds without operation, setting is completed automatically and the previously displayed screen is redisplayed.

DISPLAY DAY OFF ENTER 300ft KNOX ST OPENING GATEWAY HAN DB OUTRUNNT AVE CONTRAST + - BRIGHT +

●Image quality adjustment screen

Contrast/Bright

1 Contrast

Touch + crease, touch to d - se.

1 Bright

Touch + crease, touch to d - se.

How to switch to daytime display when the lights are ON

1 The daytime display and nighttime display will be switched each time DAY is pressed.

• When in daytime display, the touch switch changes into bright color.
  • DAY ayed when the lights are ON.

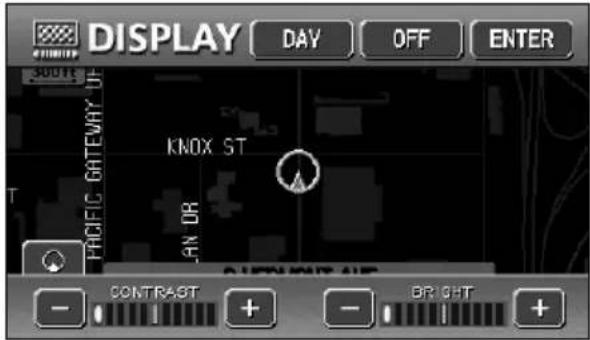

DISPLAY DAY OFF ENTER 3001R KNOX ST AN DR CONTRAST + - BRIGHT +

How to turn the screen OFF

1 Touch OFF

• To make the screen reappear, press NAVI

ATTENTION

• Even with the screen turned OFF, the GPS present location positioning continues to function.
• The daytime display screen and nighttime display screen can be separately adjusted.

2. Adjusting the screen and setting the sound

Switching the map display color

The map display color (5 color selection) can be switched for both the daytime and nighttime displays independently.

1 Touch Setup Menu screen.

2 Touch Normal 2 3

4 for both Map Color (Day) and Map Color (Night) respectively.

- The pressed touch switch will become brighter.

3 Touch OK

Setup Map Color (Day) 1 2 3 4 Map Color (Night) 1 2 3 4 Screen Animation On Off Default OK

Switching the clock display

The present time display appearing on the map screen can be switched.

1 Touch Setup Menu screen.

2 Touch On Get

Indication.

- The pressed touch switch will become brighter.

3 Touch OK

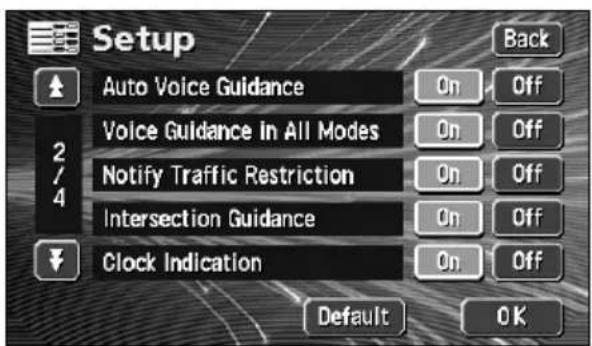

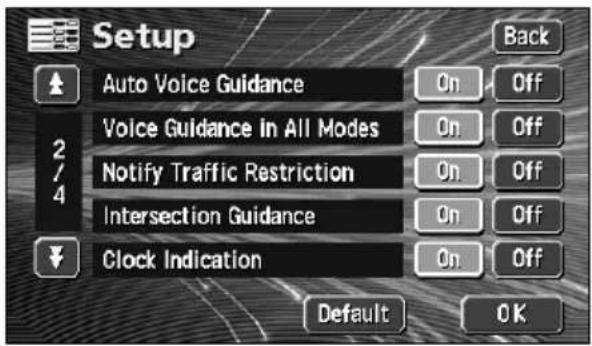

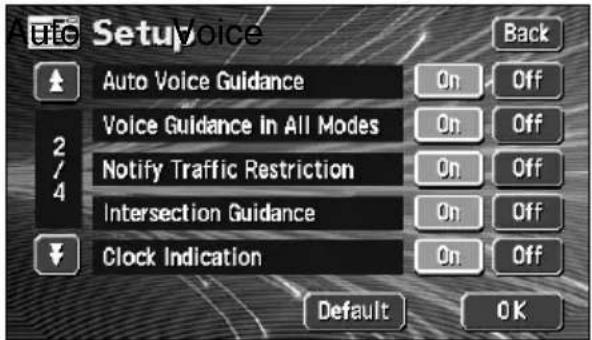

Setup Auto Voice Guidance Voice Guidance in All Modes Notify Traffic Restriction Intersection Guidance Clock Indication Back On Off On Off On Off On Off On Off Default OK

- Touch Default in the Setup screen to return all items to the default settings.

- The present time displayed is automatically adjusted using GPS signals. (You cannot adjust the time yourself.)

Switching miles and km display

Miles and km display on the map screen can be switched.

1 Touch Setup Menu screen.

2 Touch miles or Dace.

- The pressed touch switch will become brighter.

3 Touch OK

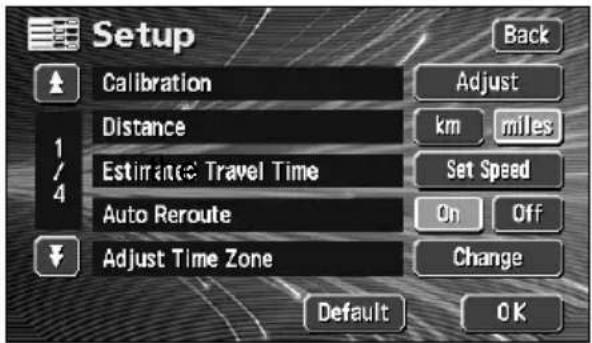

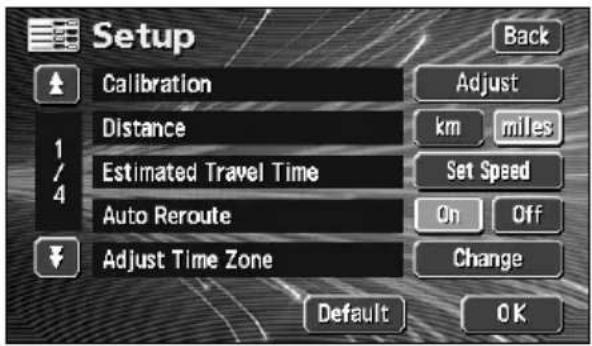

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK

Switching the Time Zone

The time zone for every region in the U.S. can be switched.

Switching the Time Zone

1 Touch Setup Menu screen.

2 Touch Change at Time Zone.

3 Touch either Pacific Mountain

Central, Eastern

- The pressed touch switch will become brighter.

4 Touch OK

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK

Adjust Time Zone Back Time Zone Pacific Mountain Central Eastern Daylight Saving Time On Off OK

ATTENTION

Touch Default in the Setup screen to return all items to the default settings.

2. Adjusting the screen and setting the sound

Setting the Daylight Saving Time

1 Touch Setup Menu screen.

2 Touch Change Time Zone.

3 Touch On for Right Saving Time.

4 Touch OK

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Back Adjust km miles Set Speed On Off Change Default OK

Adjust Time Zone Back Time Zone Pacific Mountain Central Eastern Daylight Saving Time On Off OK

• Touch Default up screen to return all items to the default settings.
• Touch Onain the clock display 1 hour ahead.

Touch Off turn the clock display to the previous setting.

- The present time displayed is automatically adjusted using GPS signals. (You cannot adjust the time yourself.)

Setting the volume

The sound volume during route guidance can be adjusted.

Adjust the volume

1 Touch Volume menu screen.

2 Touch eitl 1 2 3 4 ■ ■ , 5 6,7 ■ .

• The pressed touch switch will become brighter.
• Touch Off in OFF the volume.

When the volume is OFF, touch any of the navi volume switches to turn the volume back ON.

Volume Back Off 1 2 3 4 5 6 7 Adaptive Volume Control OK

3 Touch OK

Set the automatic highway volume switch function

When driving at high speeds, the set volume can be automatically raised one level. Either automatic switch ON (automatically raise) or OFF (not raised) can be selected.

1 Touch Volume menu screen.

2 Touch Adaptive Volume Control

- When turned ON, the movement display light turns yellow.

3 Touch OK

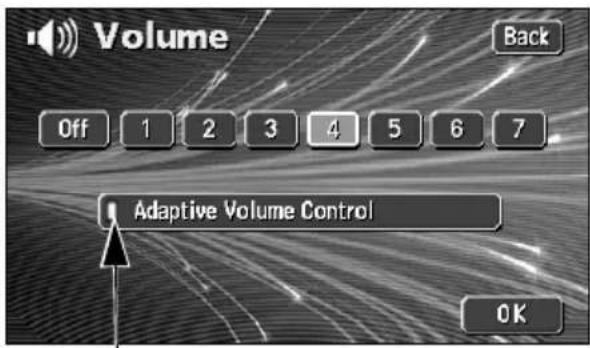

Volume Back Off 1 2 3 4 5 6 7 Adaptive Volume Control OK

Movement display light

ATTENTION

When exceeding 50 mph (80 km/h), the volume automatically increases one level and goes back down to its original level when the speed goes down below 43 mph (70 km/h).

3. Map displays

Present location display

The present location screen appears when switching the engine to ACC or ON.

• The present location of your vehicle is displayed on the map.
• When the menu screen or any other map screen besides the present location map screen is displayed, press NAVI turn to the present location screen.

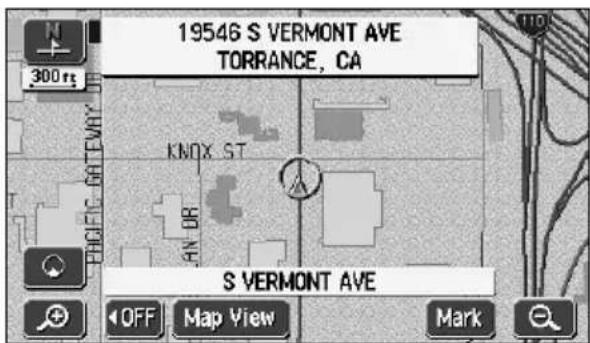

1 Press iNAM present

location screen to make all the geographical names near the present location appear.

19546 S VERMONT AVE TORRANCE, CA KNOX ST S VERMONT AVE OFF Map View Mark

After having installed the device, or after having reconnected the battery terminal, the vehicle position mark may differ from the actual present location

(misalignment of the vehicle position mark) Continue driving and, in a moment, the present location will be automatically corrected using the map matching and GPS data. (Depending on the case, this may take several minutes.) If signals from the GPS are not utilized and the present location is left uncorrected, park the vehicle in a safe place and correct the present location. (Refer to page 132)

Moving the map (one-touch scroll)

When a map is displayed, touching the map directly (anywhere except the touch switches) makes the point scroll to the center of the display. The street name around the scrolled point may appear.

Moving the map

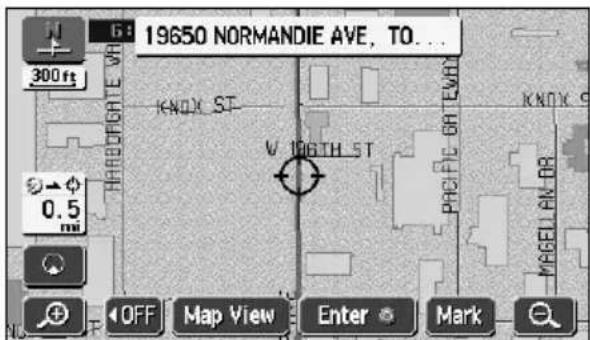

1 Touch the map (anywhere except the touch switches).

• On the bottom left of the map, the distance in a direct line from the present location is displayed.
• Touch continuously around the center of the screen and the map will move slowly.
• Touch continuously near the edge of the screen and the map will move quickly.

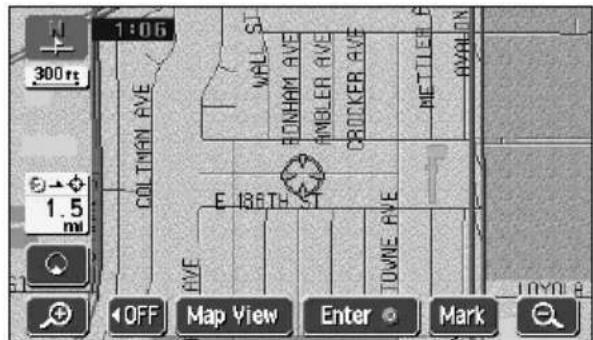

1:06 300ft COLTMAN AVE WALL ST BENHAM AVE MIDLER AVE CROCKER AVE METTLER B AVALON E 138TH ST TOWNE AVE OFF Map View Enter Mark

●While scrolling

660 W CAROB ST, COMPTO... 300 rs W GREENLEAF BLVD 3.7 ml WMINGTON AVE W CAROB ST W WAL NUT ST OFF Map View Enter Mark

-Scrolling stopped

• For safety reasons, the map can only be scrolled up to a predetermined distance while driving.
• The map orientation can be switched while driving.
  * For a scrolled map, you can only switch from "Heading up" to "North up". (Switching from "North up" to "Heading up" impossible)
• Move the map with one-touch scroll and the map will freeze into position and will not move even if moving the present location. Press NAVIurn to the original status (moving map).

3. Map displays

Setting the Street Name display while scrolling

You can select between setting the Street Name display ON (display) or OFF (not display) while scrolling.

1 Touch Setup Menu screen.

2 Touch On Sheet Name on Scroll Map.

- The pressed touch switch will become brighter.

3 Touch OK

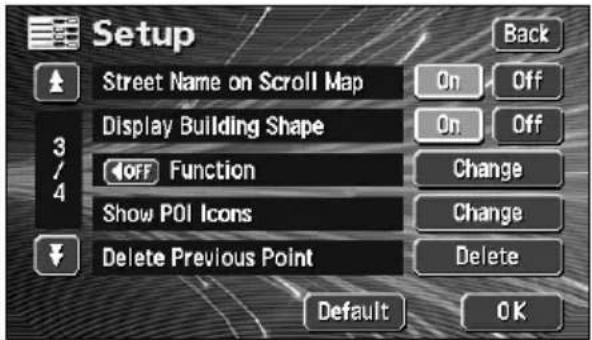

Setup Street Name on Scroll Map Display Building Shape OFF Function Show POI Icons Delete Previous Point Back On Off On Change Change Delete Default OK

Switching the touch switch display

When a map is displayed, the number of touch switches displayed on the screen can be reduced.

Switching the touch switch display

1 Touch OFF

- If the touch switches are not displayed, this operation cannot be performed via a touch switch. First display the touch switches on the screen and then proceed.

- If the touch switches are not displayed, touch ON e them appear on the screen.

1:10 300 rs KNOX ST S VERMONT AVE OFF Map View Mark

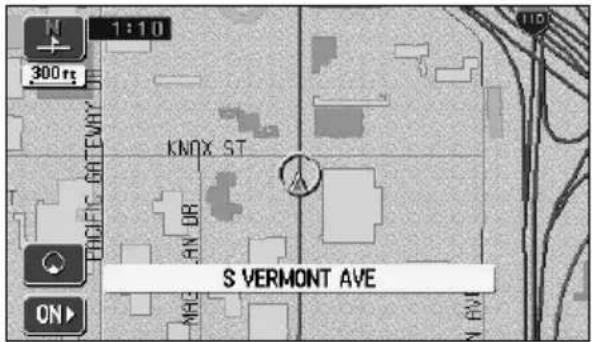

1:10 300 ft KNOX ST S VERMONT AVE ON▶ NHO N BIV

Touch Default up screen to return all items to the default settings.

Setting touch switches to display or not display

You can set the switches to be hidden on pressing the OFF switch.

1 Touch Setup Menu screen.

2 Touch Change OFF for Function.

3 Touch the touch switches desired for non-display.

- Touch OFFnap screen and the touch switches selected here will not appear.

4 Touch OK

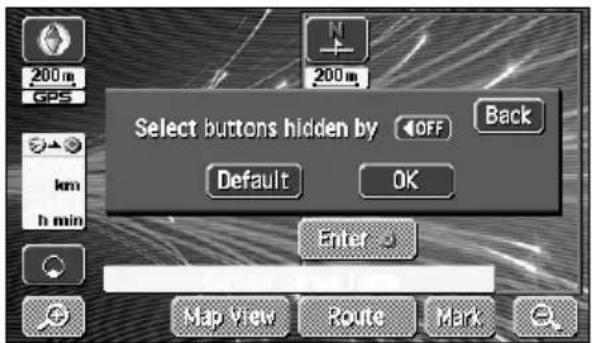

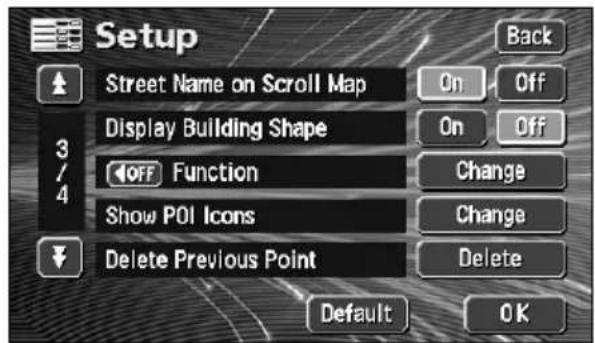

Setup Street Name on Scroll Map Display Building Shape OFF Function Show POI Icons Delete Previous Point Back On Off On Change Change Delete Default OK

200m GPS km h min Select buttons hidden by OFF Back Default OK Enter Map View Route Mark

• Touch Default switch display setting screen to return the switch display setting to default status.
• To display all the touch switches, touch those displayed in toned-down color.
  OFF or ON displayed.

3. Map displays

Switching the map reduction scale

The map reduction scale (map range) can be switched to any desired setting from 40,960,000:1 to 2,500:1. Also, if the destination is set, you can switch to the reduction scale showing the entire route to the destination with one touch.

Touch switch		Reduction scale	Scale display		Touch switch	Reduction scale	Scale display
street map		1/0.0025 million				1/0.64 million	4mi
		1/0.005 million				1/1.28 million	8mi
		1/0.01 million				1/2.56 million	16mi
		1/0.02 million				1/5.12 million	30mi
		1/0.04 million				1/10.24 million	60mi
		1/0.08 million				1/20.48 million	130mi
		1/0.16 million				1/40.96 million	250mi
		1/0.32 million

Switching to the desired reduction scale

1 To widen the map's range, touch

To shrink it down, touch

• Every time the touch switch is touched, the scale goes up/down one level at a time.

• After having touched 🔒, touch a number on the scale bar to switch to the reduction scale represented by that number.

• Touch continuously on 📄, fo#t
  least 1 second to switch the scale with no increments (free zoom).

• The reduction scale switched to will be indicated with a yellow mark.

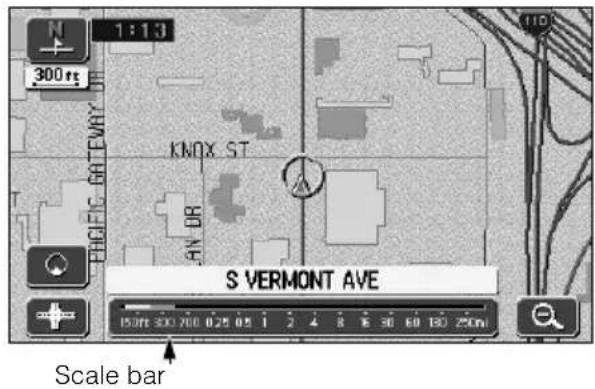

1:13 300 ft KNOX ST AN OR S VERMONT AVE Scale bar

• The switch will disappear when setting to the maximum range (250 mile scale diagram).
• For safety reasons, the scale cannot be free zoomed while driving.

Displaying street maps

1 For the area where the street map is provided, 1/0.0025 million (75 ft) scale street map can be displayed.

S VEMMONT AVE Info. OFF Map View Mark

●Street map

Switching to street map display

1 When 150 ft scale map is displayed, touch

- 75 ft scale street map is displayed.

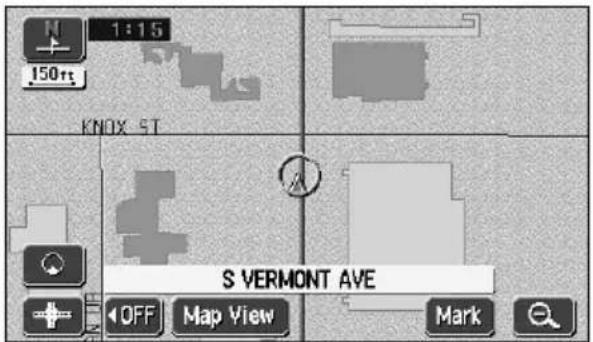

1:15 150ft KNOX ST S VERMONT AVE OFF Map View Mark

Canceling the street map display

1 When 75 ft scale street map is displayed, touch 🔒.

- Only in the area where the street map is provided, is displayed on the 150 ft scale map and becomes selectable (If you move the map or the present location to the area where the street map is not provided, the street map being displayed is automatically canceled).

●On street maps, the one-way traffic is indicated with mark. The street map cannot be moved while driving.

3. Map displays

Switching the map orientation

The orientation of the map being displayed can be switched.

- North up display

The map appears with north pointing up at all times regardless of the vehicle's heading.

(The maps appearing in this manual are shown in north up display form.)

1:16 300ft 1907h ST S BROADWAY ST W GRIFF TH ST OFF Map View Mark

●North up display

- Heading up display

The map appears with the heading of the vehicle pointing up at all times.

1:16 300ft K. GOURTH ST. S. CORNOL ST. OFF Map View Mark

●Heading up display

Switching the map orientation

1 Touch

- Switches between "North up" display and "Heading up" display.

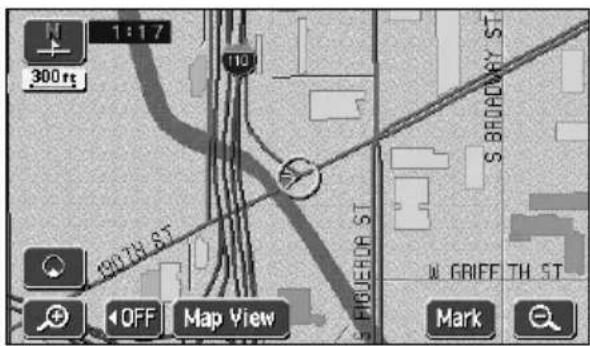

1:17 300 rs 190TH ST HIGUERA ST S BROADWAY ST W. GRIFF TH ST OFF Map View Mark

When in heading up display, maps retrieved by setting the destination and all-route display screens are shown with north up. However, when returning to the present location screen, the display will switch back to heading up.

Switching to double screen display

When a map is displayed, the screen can be divided into two parts as shown below.

Ex.) Two maps can be displayed with; different reduction scale screens, North up and Heading up screens, POI display ON and OFF screens.

Switching to double screen display

1 Touch ☐ when a map is displayed on the screen.

2 Touch

- The screen on the left can be operated the same way as when only one screen is displayed.

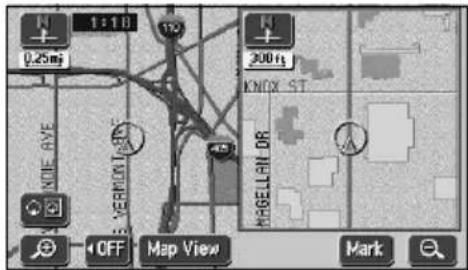

1:10 300ft KNOX 5T PACIFIC LATENRY LIND OF AVE 40FF Map View Mark

3. Map displays

Operating the screen on the right

1 Touch the map shown in the screen on the right.

2 Touch any touch switch.
3 Touch Back to return to the double screen map display.

• Touch or to switch the map reduction scale.
• Touch oL to switch the map orientation.

N 0.25mi 1:18 TICK 300ft KNOX ST OFF Map View Mark

Edit right screen Back 300 t KNOX 5T Show POI Icons OK

• When in double screen display, only the map appearing on the left screen can be moved with one-touch scroll.
• Maps retrieved by the destination setting screen or all-route display screen will appear as one screen. When returning to the present location screen, the double screen form will reappear.

POI vicinity display

When a POI vicinity is displayed in the screen on the left, you can switch it either ON (display) or OFF (not display) to appear on the right screen.

Please refer to the POIs that can be displayed on "POI display" on page 36.

■ Show POI Icons: ON

1 Touch Show POI Icons

- The actuation right is lit and turns "Show POI Icons" to ON.

■ Show POI Icons: OFF

1 Touch Show POI Icons

Actuation right is lit.

- The actuation right is off and turns "Show POI Icons" to OFF.

Edit right screen Back Show POI Icons OK 300 ft KNOX ST MHELLAN-BA

Movement display light

Canceling the double screen display

1 Touch 📋 n a map is displayed on the screen.

2 Touch 🔒

- The pressed touch switch will become brighter and the monitor will return to single screen display.

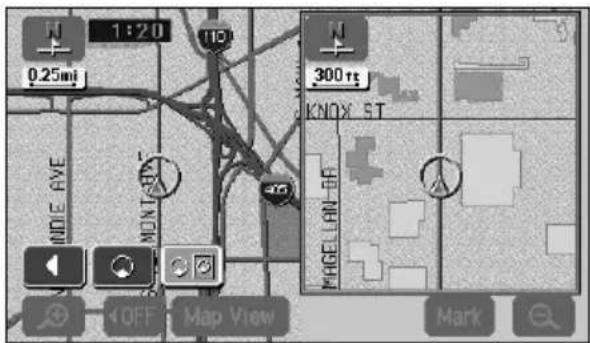

1:20 0.25mi 300ft KNOX ST MIGELAN 66 OFF Map View Mark

- When a POI vicinity is displayed, the settings in the screen on the left and right are the same. However, POIs not displayed on the left screen cannot be shown on the right screen.

- If re-displaying the double screen, the reduction scale for the maps shown will be the same as the previous double screen display scales.

3. Map displays

POI display

POI landmarks can be displayed on the map.

POI types

Restaurant	All Restaurants Horse Racing
	American Marina
	Chinese Museum
	Continental National and State Parks
	Fast Food Ski Resort
	French Speedway
	Italian Sports Complex
	Thai Video Rental
	Other Restaurants Winery
	Convenience Store
	Department Store
	Grocery Store
	Home and Garden
	Pharmacy
	Shopping Mall
	Specialty Food Store
	Other Retail Stores
	Auto Club
	Car Wash Post Office
	Gas Station
	Parking
	Service & Maintenance
	Other Automotive Stores
	Airport
	Bus Station Coffee House
	Campground
	Ferry Terminal
	Hotel
	Rental Car Agency
	Rest Area
	Train Station
	Amusement Park
	Botanical/Zoological Gardens
	Casino
	Golf Course
	Historical Monuments

	Community	Banking	Other
	City Center
	Convention Center
	Court House
	Government Offices
	Higher Education
	Hospital
	Library
	Parks
	Police Station
	School
	ATM
	Bank
	Other Financial Services
	Beauty and Barber Shops
	Dry Cleaning
	Health and Fitness Club
	Ice Cream Parlor
	Other Business Facilities

• Maps with a scale of 1 mile or greater detail can be displayed. (Excluding all route display screens.)
• POI landmarks can only be displayed within a 20 mile radius from the or mark. (Up to 200 landmarks.)
• Move the or mark to switch the POI landmark displays.

3. Map displays

Display landmarks by a simple operation while driving

POI landmarks can be displayed by simple operations while driving.

1 Touch Map View displayed.
2 Touch Show POI Icons
3 Touch the POI to be displayed

(Gas Station ATM Parts Grocery Store , Restaurant , Hotel ).

• The POI landmark touched will appear.

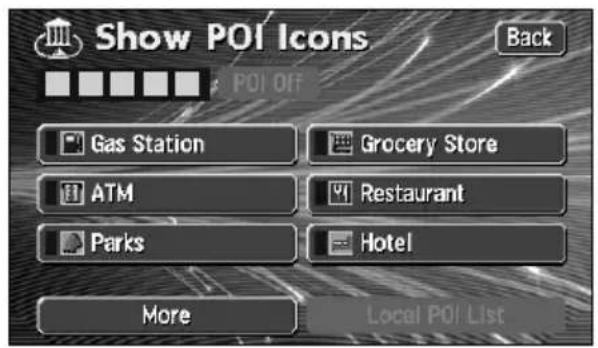

Show POI Icons Back Gas Station Grocery Store ATM Restaurant Parks Hotel More Local POI List

Delete a POI landmark

1 Touch Map View displayed.
2 Touch Show POI Icons
3 Touch POI Off

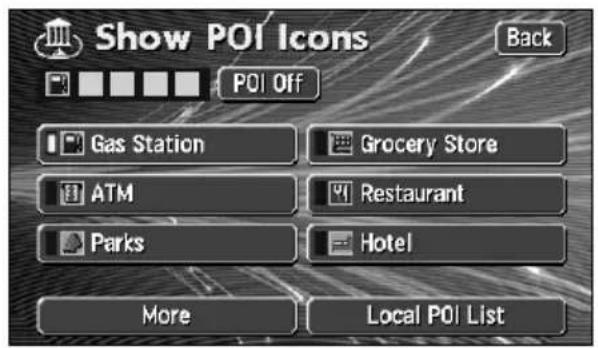

Show POI Icons Back POI Off Gas Station Grocery Store ATM Restaurant Parks Hotel More Local POI List

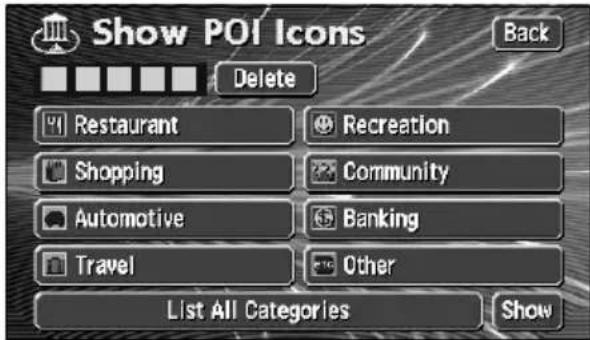

Displaying multiple types

Multiple POI landmarks (5 types) can be displayed simultaneously.

1 Touch Map View displayed.

2 Touch Show POI Icons

3 Touch More

4 Touch the POI type to be displayed.

- Touch List All Categories all the types of POI.

5 Touch the POI name to be displayed.

- Up to 5 POI landmarks can be displayed simultaneously.

- If having made an error, touch

Delete to cancel one POI landmark at a time.

- Touch an already selected POI to cancel that POI.

6 Touch OK

7 Touch Back

- The selected POI landmark is displayed.

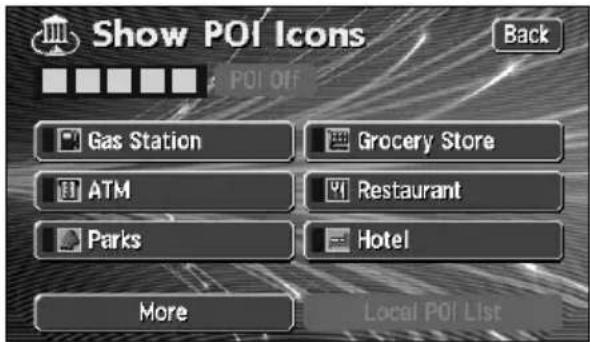

Show POI Icons Back Gas Station Grocery Store ATM Restaurant Parks Hotel More Local POI List

Show POI Icons Back Delete Restaurant Recreation Shopping Community Automotive Banking Travel Other List All Categories Show

Show POI Icons Delete Airport All Restaurants American Amusement Park ATM Back OK Show

3. Map displays

Search for POI vicinity

Names of POIs close to the or mark on the map and their distance in a straight line from the or mark can be displayed. With , it is also possible to display a direction.

1 If POI landmarks are displayed on the map, touch Map View

2 Touch Show POI Icons

3 Touch Local POI List

• A list of the selected POIs appears.

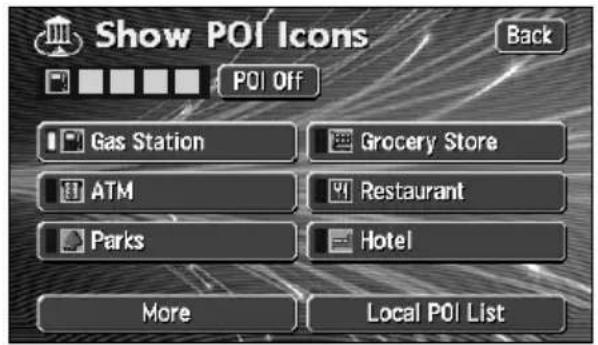

Show POI Icons Back POI Off Gas Station Grocery Store ATM Restaurant Parks Hotel More Local POI List

4 Touch the POI name to be displayed.

• A map with the selected POI in the center is displayed with the POI name and its distance in a straight line to the present location is displayed.
• If the mark is displayed, POIs

ahead of it are shown with a 1 mark

(arrow pointing upwards). (Position viewable from the vehicle directional heading.)

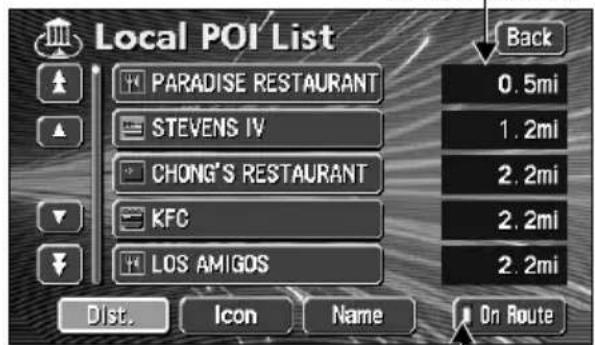

- If a destination is set, a list of POIs along the route can be displayed. Refer to the Section "Displaying a list of POIs along the set route" on page 42.

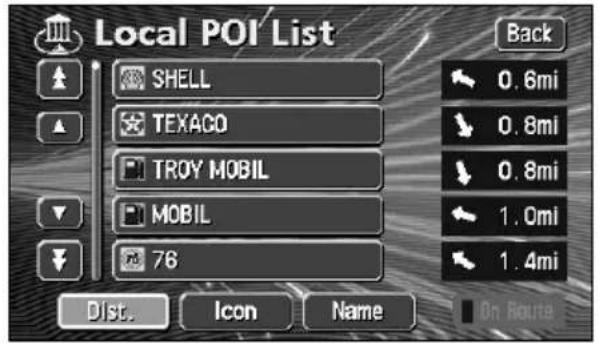

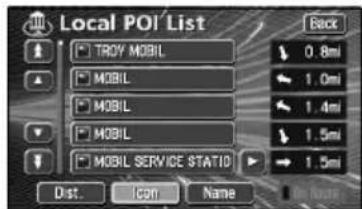

Local POI List SHELL TEXACO TROY MOBIL MOBIL 76 Dist. Icon Name Back 0.6mi 0.8mi 0.8mi 1.0mi 1.4mi On Route

• Only landmarks within a 20 mile radius of the or mark can be searched for. (Up to 200 landmarks.)
• POI landmarks can be listed in the order of proximity to the or mark or by POI icon category.

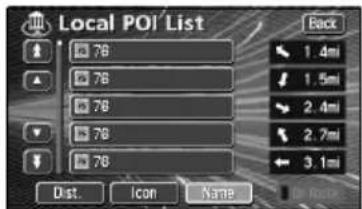

● Distance order display

Local POI List SHELL TEXACO TROY MOBIL MOBIL 78 Back 0.6mi 0.8mi 0.8mi 1.0mi 1.4mi 0:00 Icon Name

● Category order display

Local POI List TROY MOBIL MOBIL MOBIL MOBIL MOBIL SERVICE STATID Dist. Icon Name Back 0.8mi 1.0mi 1.4mi 1.5mi 1.5mi

- Name order display

Local POI List 76 76 76 76 76 Dist. Icon Name Back 1.4mi 1.5mi 2.4mi 2.7mi 3.1mi

Dist.

change the listing order to proximity to the Ⓐ or ✿ mark.

• to change to a POI icon category listing order.

• to change the name listing order.

3. Map displays

Displaying a list of POIs along the set route

If a destination has been set, a list of POIs whose distance and direction correspond to the set route can be selected. (The distances shown represent distances left to travel to the POIs.)

1 Touch On Route

• If a list displaying POIs along the set route is shown, the movement display light appears yellow.
• Touch the POI name to display a map with that POI in the center, its name and the distance to that POI from the present location.

Distance display

Local POI List PARADISE RESTAURANT STEvens IV CHONG'S RESTAURANT KFC LOS AMIGOS Dist. Icon Name On Route Back 0.5mi 1.2mi 2.2mi 2.2mi 2.2mi

●Display of POIs along the set route
Movement display light

Displaying POI information

1 Touch a POI landmark displayed on the map.

- The name of the POI and the linear distance from the current location will be displayed.

2 If Info. Played, touch to display a description of that POI.

- The data for the POI is displayed.

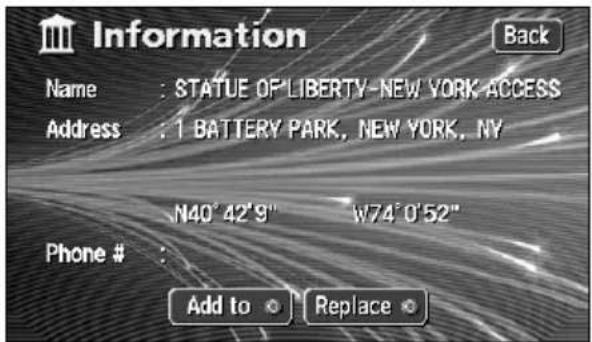

Information Name : STATUE OF LIBERTY - NEW YORK ACCESS Address : 1 BATTERY PARK, NEW YORK, NY N40° 42'9" W74° 0'52" Phone # Add to Replace

• If a route is not displayed on the map shown on the screen, a list of POIs along the set route cannot be displayed.
• There may not be a description available for some POIs.

Setting the type of POI vicinity to be retrieved while driving

The 6 items appearing in the POI vicinity menu screen (Gas Station ATMParks

Grocery Store, Restaurant Hotel

This POI vicinity menu can be displayed even while driving and POI landmarks can be displayed on the map screen.

1 Touch Setup enu screen.

2 Touch Change POI Icons.

3 Touch the POI type to be changed.

4 Touch the POI type to be displayed.

Setup Street Name on Scroll Map Display Building Shape OFF Function Show POI Icons Delete Previous Point Back On Off On Change Change Delete Default OK

Change Category You can change categories of top menu on "Show POL Icons". Gas Station Grocery Store ATM Restaurant Parks Hotel Default OK

Change Category Gas Station Restaurant Recreation Shopping Community Automotive Banking Travel Other List All Categories Back

3. Map displays

5 Touch the name of the POI to be displayed.

6 Touch OK

Change Category Gas Station Hotel Ice Cream Parlor Italian Japanese Library

Change Category You can change categories of top menu on "Show POI Icons". Back Library Grocery Store ATM Restaurant Parks Hotel Default OK

• Touch Default in screen 2 to return all items to their default settings.
  • Default 3 to return the POI vicinity received while driving
  to its default setting.

4. How to retrieve maps

When setting or adding a destination, registering your home, memory points, special memory points or detour memory points, maps corresponding to these setting and registration points can be retrieved using various methods.

For procedures on how to select a map retrieval method, see the corresponding page for each item below.

■ When setting a destination

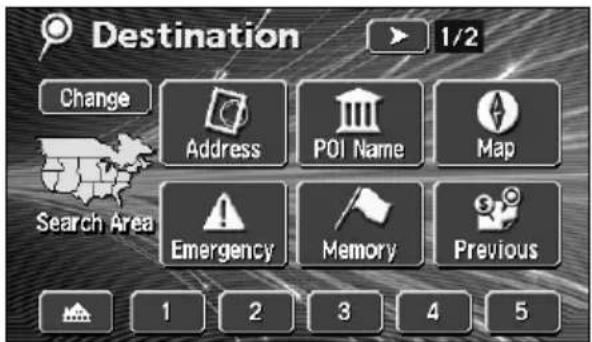

Destination 1/2 Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

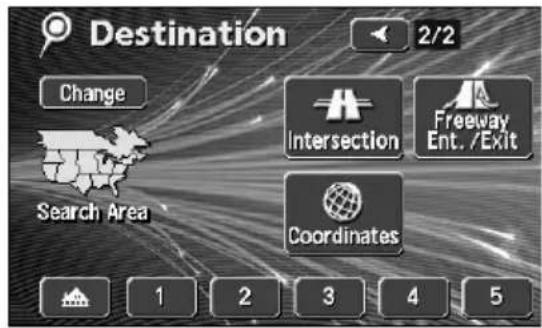

Destination 2/2 Change Search Area Intersection Freeway Ent. /Exit Coordinates 1 2 3 4 5

●Setting a destination (Refer to page 64)

●Add a destination (Refer to page 75)

■ When registering a memory point

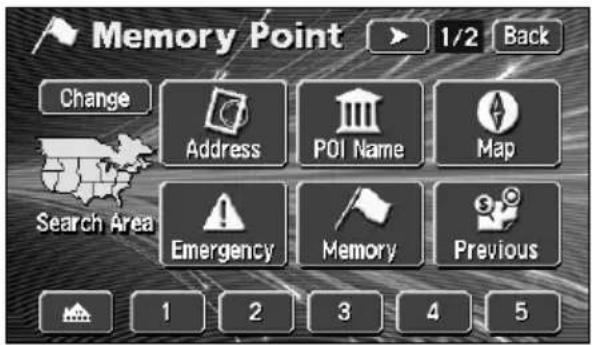

Memory Point 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

Memory Point 2/2 Back Change Search Area Intersection Freeway Ent. /Exit Coordinates 1 2 3 4 5

●Registering your home (Refer to page 101)

●Registering memory points (Refer to page 105)

●Registering special memory points (Refer to page 115)

●Registering detour memory points (Refer to page 119)

The screens above are examples of screens when setting a destination and when registering a memory point.

Touch the map retrieval method on the displayed Menu screen to select an item.

4. How to retrieve maps

Item (touch switch) Function
	By entering an address, the map corresponding to that point (or area) can be displayed. (Refer to page 48)
	By entering the name of a POI, the map corresponding to that POI's vicinity of can be displayed. Also, enter the name of an address to display the map of that area. (Refer to page 50)
	The map displayed on the screen before having opened the Menu screen can be returned.
	Police stations, hospitals are displayed in the order of proximity to the present location. (Refer to page 56)
	The map of the vicinity of a memory point can be displayed. (Refer to page 56) [Only for when memory points are registered. For information concerning memory points, see page 100.]
	The map of the vicinity of a previously set destination or the previous start point can be displayed. (Refer to page 57) [Only for when an entry in the destination archive is registered. For information concerning the destination archive, see Page 123.]
	Intersections can be displayed by entering the names of two roads that cross each other. (Refer to page 57)
	A map can be displayed by indicating a freeway entrance/exit. (Refer to page 59)
	A map can be displayed by entering latitude and longitude coordinates. (Refer to page 60)
	[When setting a destination]A route search is started for a registered geographical point. [Only when each respective point is registered.] [When registering a memory point]The map for a registered point can be displayed. [Only when each respective point is registered.]• Registering your home (Refer to page 101)• Registering 1 to 5 special memory points (Refer to page 115)
Vicinity of special memory point

Changing the search area

This navigation system divides the U.S. and Canada into 11 block areas.

For any search method employed, the system will conduct a search in the area you are occupying unless the search area has been changed. To conduct a search in another area, first set the search area prior to beginning the search.

1 Touch Change

2 Touch the area where a search is to be initiated.

- For a list of the areas, see the figure on the right.

3 Touch OK

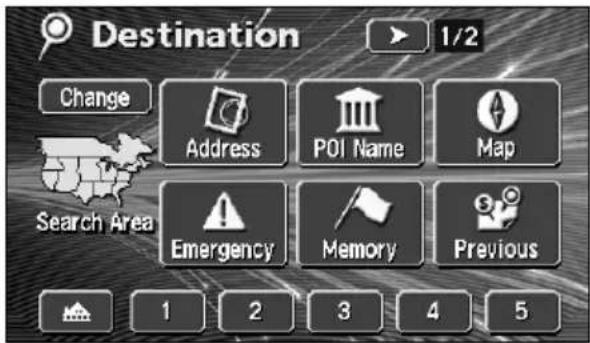

Destination Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

Search Area US1 US2 US3 US4 US5 US6 US7 US8 US9 US10 CAN Back CAN CA, NV OK

US1

Idaho

Oregon

Washington

US2

California

Nevada

US3

Arizona

Colorado

Montana

New Mexico

Utah

Wyoming

US4

lowa

Kansas

Minnesota

Missouri

North Dakota

South Dakota

US5

Oklahoma

Texas

US6

Illinois

Indiana

Kentucky

Michigan

Ohio

Wisconsin

US7

Arkansas

Alabama

Louisiana

Mississippi

Tennessee

US8

Connecticut

Massachusetts

Maine

New Hampshire

New Jersey

New York

Rhode Island

Vermont

US9

Washington,D.C.

Delaware

Maryland

New Jersey

Pennsylvania

West Virginia

US10

Florida

Georgia

North Carolina

South Carolina

CAN

All provinces and regions in Canada included in this switch.

4. How to retrieve maps

Retrieving a map using an address

If the address is known, its corresponding map can be retrieved by selecting that address.

1 Touch Street er one character at a time.

• If having made a mistake, touch delete one character at a time.
• Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.

Address House # City Street S VER_ 18 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - & A Y 0-9 List

2 Touch List

3 Touch the street name to be displayed.

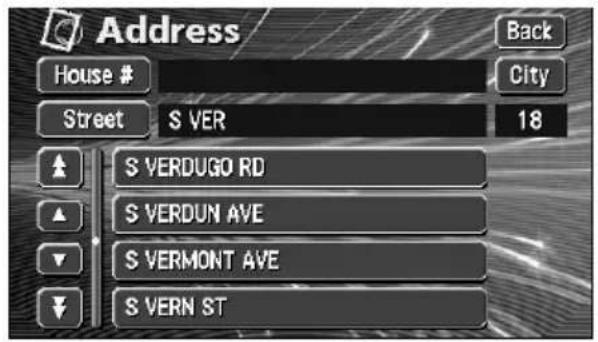

Address House # Street S VER Back City 18 S VERDUGO RD S VERDUN AVE S VERMONT AVE S VERN ST

4 Touch the city name to be displayed.

Address City Back 6 ▲ GLENDORA, CA ▲ LOS ANGELES, CA ▼ TORRANCE, CA ↓ UNINC LOS ANGELES COUNTY, Input Name

5 Touch House # one number at a time.

- If you make a mistake, touch delete one character at a time.

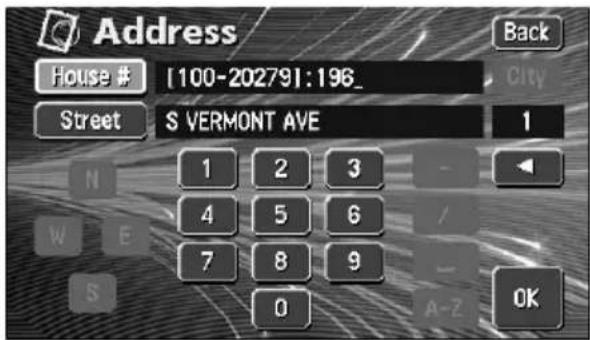

Address House # [100-20279]:196_ Street S VERMONT AVE 1 N 1 2 3 - W E 4 5 6 / S 7 8 9 - 0 A-2 OK Back City

6 Touch OK

• The map searched for by entering an address is displayed.
• If there is an address that corresponds with the entered house number, the map of the vicinity of that address will be displayed.
• If there is no address corresponding to the entered house number, a diagram of the vicinity of the corresponding street will appear.

4. How to retrieve maps

Retrieving a map using a POI name

A map can be retrieved by entering a partial POI name or by narrowing down from a list of several POI types, regions, street or city names, etc. Also, a map can be retrieved by entering the name of an address.

When the number of candidates is low, a map can be selected directly from the list screen.

1 Enter the POI name (or address) by touching one character at a time.

• Up to 24 characters can be entered.
• If having made a mistake, touch delete one character at a time.
• Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.

POI Name Back Name CENTRAL PARK_ 40 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - & A-V 0-9 List

2 Touch List

- A POI list screen containing names searched for from the entered characters is displayed.

3 Touch the POI name to be displayed.

• Narrow down a long list of candidates using City Quarterly a search after having eliminated items from the list.
• When indicating the area of the POI to be displayed in the POI list screen,

touch City Non touch or . \s Input City name

indicating the POI type, touch Category

POI Name Back Name CENTRAL PARK 40 Category City CENTRAL PARK 5 HUNTINGTON BEACH - HUNTI 2 CENTRAL PARK AUTO BODY | CAFE AT CENTRAL PARK

If entering less than 4 search candidates, the list screen will automatically be displayed.

If narrowing down candidates per area

When narrowing down candidates from the nearest 5 cities

1 Touch City e list screen.
2 Touch Nearest 5 cities
3 Touch the name of the city when the desired POI is located.
4 Touch the POI name to be displayed.

- Touch Name to screen

1 on "Retrieving a map using a POI name" (Page 50).

- Touch Category the type of POI to be displayed on the POI list screen. (Refer to page 53)

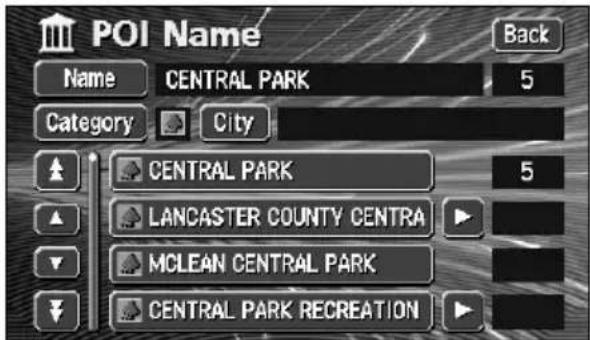

POI Name Back Name CENTRAL PARK 5 Category City CENTRAL PARK 5 LANCASTER COUNTY CENTRA MCLEAN CENTRAL PARK CENTRAL PARK RECREATION

When narrowing down the list by entering a city name

1 Touch City e POI list screen.
2 Touch Input City name
3 Touch one character at a time to enter the city name.

• Up to 24 characters can be entered.
• If having made a mistake, touch delete one character at a time.
• Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.
• Every time a character is touched, the number of POI names searched for is indicated.

POI Name City NEW_ 10 A B C D E F G H I J K L M N Q P Q R S T U V W X Y Z - & A-Y 0-9 List

4. How to retrieve maps

4 Touch List

- A POI list screen containing names searched for from the entered characters is displayed.

5 Touch the POI name to be displayed.

• Touch Name to return to screen (Page 50).
  1 on "Retrieving a map using a POI name"
• Touch Category e type of POI to be displayed on the POI list screen. (Refer to page 53)

When narrowing down the list by POI type

This is one way to narrow down the list of POI types. This is convenient when knowing what type of POI is the destination. Narrow down a long list of candidates using City start a search after having eliminated items from the list.

1 Touch Category list screen.

2 Touch the POI type to be displayed.

• List All Categories show all the types of POI.

POI Name Category All Back Cancel Restaurant Recreation Shopping Community Automotive Banking Travel Other List All Categories

●POI type indication screen

3 Touch the POI name to be displayed.

- Touch Name to screen

1 on "Retrieving a map using a POI name" (Page 50).

- Touch City ate the POI area to be displayed on the POI list screen. (Refer to page 51)

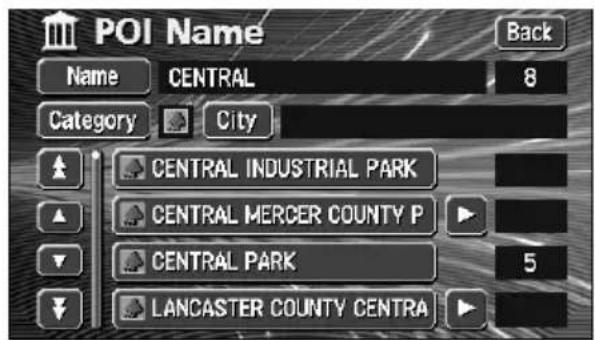

POI Name Back Name CENTRAL 8 Category City CENTRAL INDUSTRIAL PARK CENTRAL MERCER COUNTY P CENTRAL PARK 5 LANCASTER COUNTY CENTRA

• POI type selection is set for 1 type. After setting in also be selected.
  Category
  ty
• If there is no corresponding POI for the set type, no list will appear. Set a different type.
• Depending on the POI, the displayed geographical point is not always the actual location of that POI but can be a representation of the address of that location.

4. How to retrieve maps

POI types

Restaurant	All Restaurants Horse Racing
	American Marina
	Chinese Museum
	Continental National and State Parks
	Fast Food Ski Resort
	French Speedway
	Italian Sports Complex
	Japanese Theater
	Thai Video Rental
	Other Restaurants Winery
	Convenience Store
	Department Store
	Grocery Store
	Home and Garden
	Pharmacy
	Shopping Mall
	Specialty Food Store
	Other Retail Stores
	Auto Club
	Car Wash Post Office
	Gas Station
	Parking
	Service & Maintenance
	Other Automotive Stores
	Airport
	Bus Station Coffee House
	Campground
	Ferry Terminal
	Hotel
	Rental Car Agency
	Rest Area
	Train Station
	Amusement Park
	Botanical/Zoological Gardens
	Casino
	Cinema
	Golf Course
	Historical Monuments

Community

City Center

Convention Center

• Depending on the POI, the displayed geographical point is not always the actual location of that POI. The following cases may result in a search based on data that differs from general publications.
• Facilities such as art museums in department stores and amusement parks may be located in areas that differ from their customer service centers.
• The address appearing in maps may contain the geographic name of a neighboring area. Also, the address may only appear in part or may be abbreviated.

4. How to retrieve maps

Retrieving a map in the event of an emergency

In the event of a traffic accident, a problem with your vehicle or other emergency, a map for the nearest police station, hospital can be retrieved.

Switch to this mode and the address and longitudinal/latitudinal coordinates of the present location will be indicated on the upper part of the screen.

1 Touch Police Station

Hospital.

- While driving, the

Nearby Police Station or

Nearby Hospital will appear, and

you will be able to call up a map for the nearest police station or hospital.

2 Touch the POI to be displayed from

the list.

Emergency Back Current 19632 S VERMONT AVE, TORRANCE, CA Position Lat.: N33°51'10" Long.: W118°17'25" Police Station Hospital

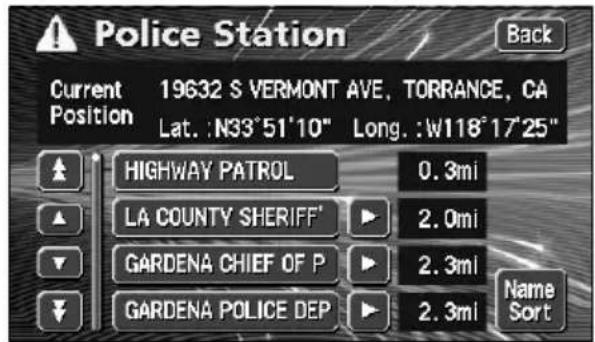

Police Station Back Current 19632 S VERMONT AVE, TORRANCE, CA Position Lat.: N33°51'10" Long.: W118°17'25" HIGHWAY PATROL 0.3mi LA COUNTY SHERIFF' 2.0mi GARDENA CHIEF OF P 2.3mi GARDENA POLICE DEP 2.3mi Name Sort

Retrieving a map using a memory point

If at least a few memory points are registered in the device in advance (Refer to page 105), a map can be retrieved using one of these points.

1 Touch the memory point to be displayed from the list.

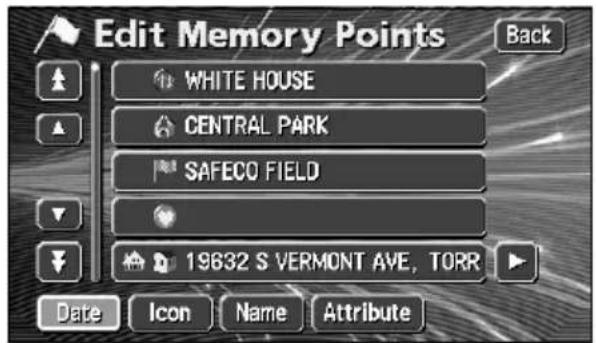

Edit Memory Points Back HIGHWAY PATROL WHITE HOUSE CENTRAL PARK 19538 HARBORGATE WAY, TO 19632 S VERMONT AVE, TORR Date Icon Name Attribute

Retrieving a map using the archive

Up to 100 latest previously set destinations are automatically recorded and a map for the same point can be easily retrieved.

1 Touch the destination archive to be displayed from the list.

- By touching

Previous Start Point you can call up the previous start point.

Previous Points Previous Start Point 1 HIGHWAY PATROL 2 CENTRAL PARK 3 SAFECO FIELD 4 20105 NORMANDIE AVE, TORRAN Date Name Back

Retrieving a map using an intersection name

An intersection can be retrieved from 2 intersecting streets.

1 Enter the Street Name by touching on the characters on the screen one character at a time.

- Up to 24 characters can be entered.

- If having made a mistake, touch delete one character at a time.

- Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.

- Every time a character is touched, the number of POI names searched for is indicated.

- Touch List play a list of the applicable streets.

Intersection 1st street S VE_ 20 2nd street A B C D E F G H I J K L M N Q P Q R S T U V W X Y Z - & A-V 0-9 List Back

ATTENTION

- Your home and special memory points are not recorded in the destination archive.

- Refer to the Section "Deleting entries from the destination archive" on page 123, for information concerning the deletion of entries in the destination archive.

4. How to retrieve maps

2 Touch Street Name from the list.

Intersection 1st street S VERM 2 2nd street S VERMONT AVE VERMONT AVE S

3 Enter one more Street Name in the same manner.

• Up to 24 characters can be entered.
• If having made a mistake, touch to delete one character at a time.
• Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.
• Every time a character is touched, the number of POI names searched for is indicated.
• Touch List play a list of the applicable streets.

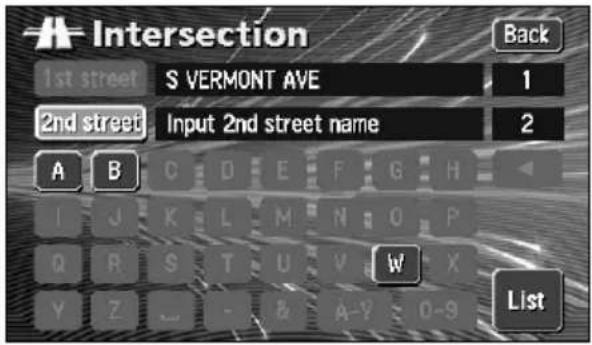

Intersection 1st street S VERMONT AVE 1 2nd street Input 2nd street name 2 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - & A-V 0-9 List

4 Touch Street Name from the list.

- The map retrieved from the entered street names appears.

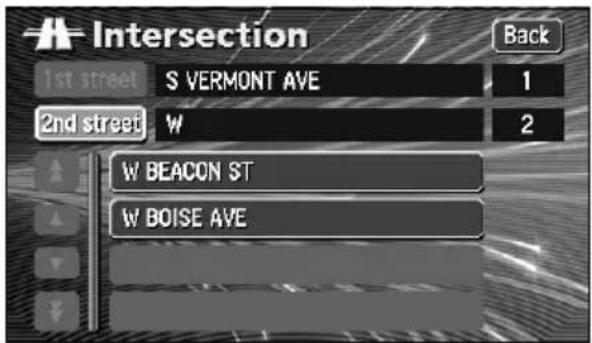

Intersection 1st street S VERMONT AVE 1 2nd street W 2 W BEACON ST W BOISE AVE Back

Retrieving a map using a freeway exit/entrance name

A map can be retrieved using the name of a freeway or an exit/entrance.

1 Enter the freeway name by touching on the characters on the screen one character at a time.

• Up to 24 characters can be entered.
• If having made a mistake, touch delete one character at a time.
• Lettered touch switches with no corresponding search result will appear inverted. Input is not enabled even if touching them.
• Every time a character is touched, the number of POI names searched for is indicated.
• Touch List play a list of the applicable freeways.

2 Touch the freeway name to be displayed.

3 Touch either Entrance E

to specify the freeway entrance or exit.

Freeway Back Freeway Input Freeway name 131 Ent./Exit A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - 8 A-V 0-9 List

Freeway Freeway VEN 2 Ent./Exit JOHN G VENEMAN FWY VENTURA FWY Back

Freeway Back VentURA FWY 1 Ent./Exit Please select entrance or exit. Entrance Exit

4. How to retrieve maps

4 Touch the entrance or exit name to be displayed form the list.

• Touch Input Name entrance or exit name directly.
• Touch Dist. Sortries in order of the distance from the present location.

FWY Entrance Freeway VENTURA FWY 1 Entrance Please select ent. name 244 BALBOA BLVD BALBOA BLVD BORCHARD RD BORCHARD RD Input Name Dist. Sort

Retrieving a map using the latitude/longitude

A map can be retrieved using the latitude/longitude.

1 Enter the number by touching the switches on the screen one number at a time.

- If having made a mistake, touch delete one number at a time.

Coordinates Lat. : N S Input latitude Long.: W E 1 2 3 4 5 6 7 8 9 0 Back

2 Touch OK

- The map retrieved from the entered latitude and longitude appears.

5. Performing operations on a retrieved map

When retrieving a map, either a map with a pinpoint search result or without a pinpoint search result (vicinity) will be displayed. Information on POIs can be displayed from the map retrieved.

Performing operations on a displayed map

The following conditions are necessary to display a map from a pinpoint:

① When entering a POI name in "Retrieving a map using a POI name"
② When "Retrieving a map in the event of an emergency"
③ When "Retrieving a map using an intersection name"
④ When a corresponding POI is made available when "Retrieving a map using a freeway exit/entrance name"

PACIFIC GATEWAY DI... Info. Back 300ft W 187TH PI 405 W 190TH ST Enter

• When a search is made using a pinpoint

BILLINGS AVE, CARS... Info. 300ft OFF TH ST. E MHN ST. F O L T N O H R O A V E T O W I N E A V E E N B L D Y D Enter Back

• When a search cannot be made using a pinpoint

The following operations are enabled on a retrieved map.

■Changing the position

Scroll to change the position.

■Displaying POI information

The POI data displayed as per the conditions described in steps ① to ④ above is shown.

Displaying POI information

1 Touch Info.

• Information on the POI is displayed

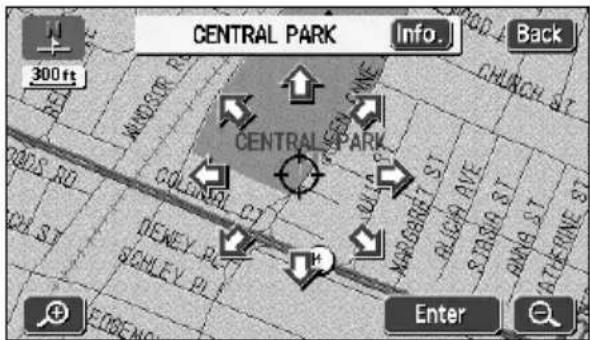

CENTRAL PARK Info. Back 300 ft WINGDER RD CENTRAL PARK CHURCH ST COLONIAL CT DENNEY PL SICHLEY PL MADARBETH ST GUCHA AVE SPRING ST ALFRENNE ST COLOMON Enter

• Information on POIs can be displayed only when the method described in ① to ④ above was used to call up a map.
• There may be no information available for some POIs.

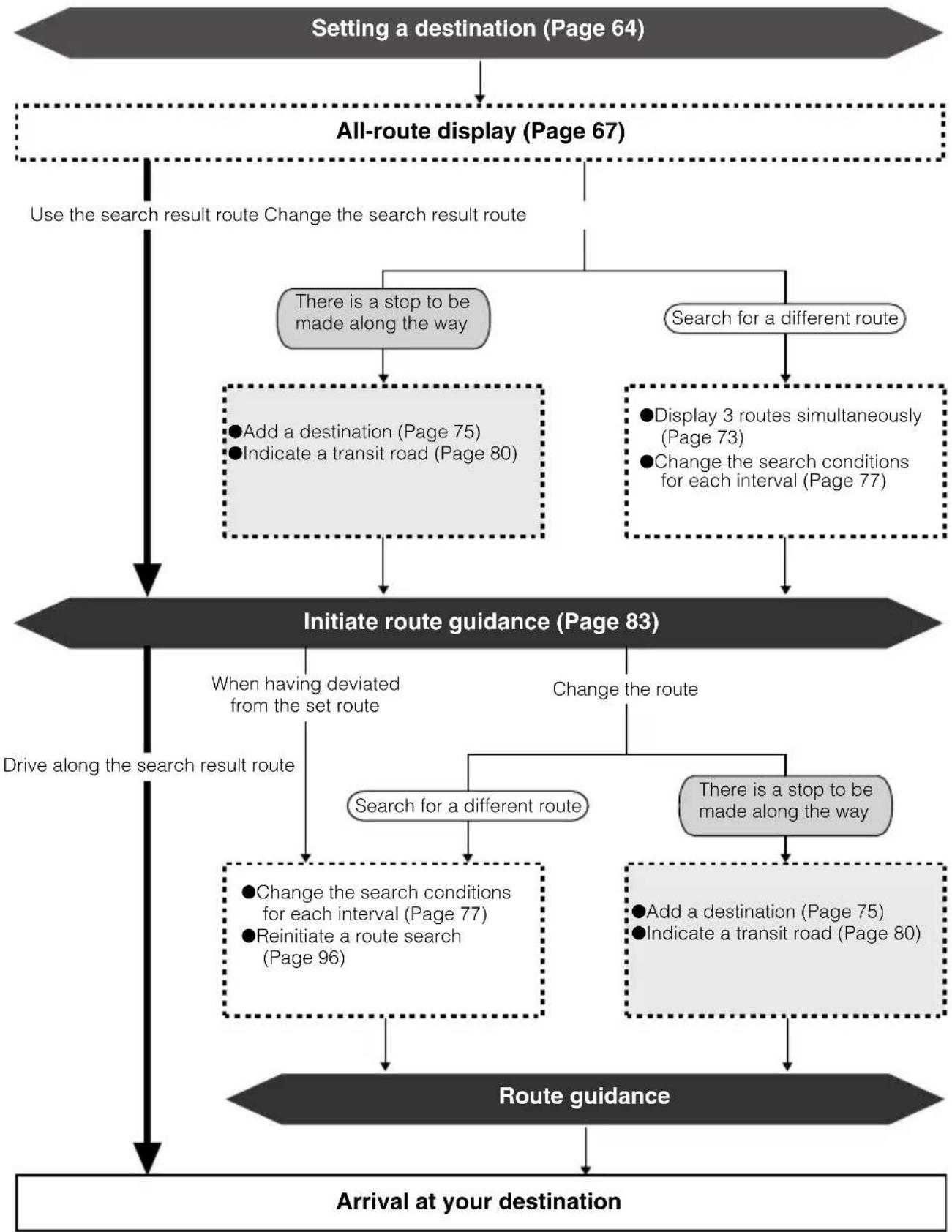

1. Setting the destination and searching for a route

To search for a route to guide you to a destination, settings including a destination setting, additional destinations, and route search conditions are required.
• Reinitiate a route search (Page 96)]
    J --> L["Route guidance"]
    K --> M["• Add a destination (Page 75)<br>• Indicate a transit road (Page 80)"]
    L --> N["Arrival at your destination"]
    M --> N
    N --> O["End"]

2. Set a destination and search for a route

Route guidance begins after setting your destination.

The destination is set as per the following methods:

• One-touch setting
• Set using a registered point (your home, special memory point)
• Set using the map retrieval method

Item Setting method
One-touch setting	Scroll the map and touch Enter e destination.
Set from a registered point	Set your home as the destination only if your home is registered. This cannot be used if your home is not registered. (Refer to "Registering your home" (Page 101).)
	Set an already registered special memory point (up to 5 points) as the destination. This cannot be used if there are no special memory points registered.(Refer to "Registering a special memory point" (Page 115).)
Set using a map retrieval method	Search using a map retrieval method to set a destination.(Refer to "How to retrieve maps" (Page 45).)

Set the destination to automatically start a recommended route search.

When adding a destination or a route other than the recommended route or setting a transit road, proceed after the route search is complete.

• When setting the destination, use a detailed map with a reduction scale of under 0.5 miles.
• Geographical points on maps representing set destinations are automatically registered (up to 100 points) and can be used to retrieve a map when setting a destination. When exceeding 100 points, the oldest entry is deleted every time a new one is entered. Unnecessary points can be deleted. (Refer to "Deleting entries from the destination archive" (Page 123).)

2. Set a destination and search for a route

Setting a destination

One-touch setting

A destination can be set in the map presently displayed.

1 Touch the map.
2 Touch Enter

3 Touch Enter

• Touch to move the map.
• A symbol will appear for the destination point on the position and a route search will begin.

- If a destination is already set, touch

Replace to delete the set destination and set a new one.

- Touch Add to destination. It will be added as the next destination after the present location.

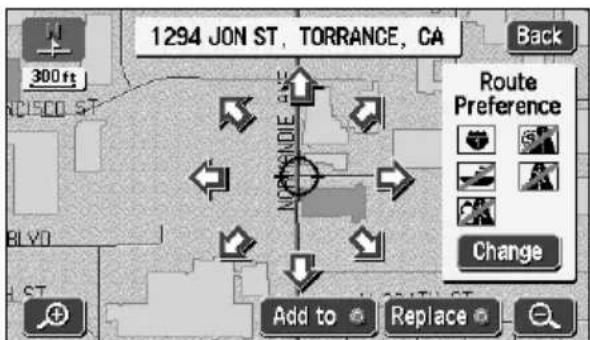

3: 1294 JON ST, TORRANCE, CA 300 ft NC1500.ST 0.6 mi NORTHARIDE AVE OFF Map View Enter Mark

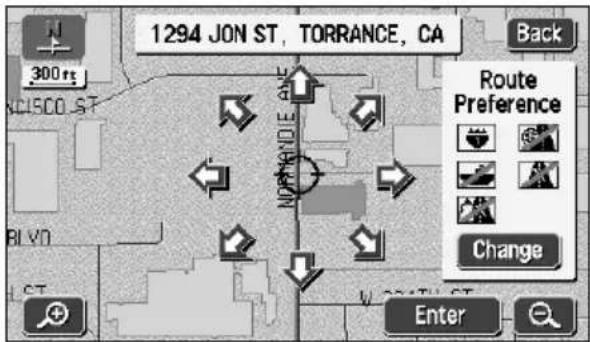

1294 JON ST, TORRANCE, CA Back 300 ft NC1500 ST NORTHARIDE AREA Route Preference Change Enter

1294 JON ST, TORRANCE, CA Back 300 ft NC1500 ST BLVD ST NORANDIE AVE Route Preference Change Add to Replace

ATTENTION

If a map with a reduction scale wider than 0.5 miles is displayed, switch to a 0.5 mile reduction scale.

Set from a registered point

1 Press DEST.

2 Touch "Home" icon or special

memory points 1.5

• The symbol will be displayed at the location of your home or the special memory point and the route search will begin.
• A registered icon is used to represent your home.
• If a destination is already set, touch Replace to delete the set destination and set a new one.
• Touch Add to destination. "Adding a destination" (Page 75) (Refer to 5) 6

Destination 1/2 Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

Home Back 300 rs KND S PACIFIC OR AR MAGELL ON AR AYE Route Preference Change Enter

Set using the map retrieval method

1 Press DEST.

2 Select the map retrieval method and the map corresponding to the point to be set as the destination will appear.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a displayed map".

3 Touch Enter

- A symbol will appear for the destination point on the position and a route search will begin.

Destination 1/2 Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

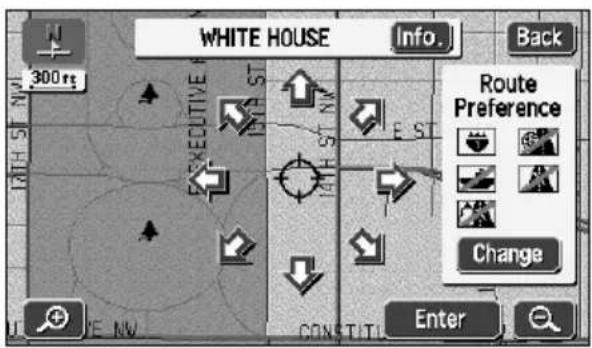

WHITE HOUSE Info. Back 300 ft EXECUTIVE ST E ST Route Preference Change Enter

2. Set a destination and search for a route

- If a destination is already set, touch

Replace to delete the set destination and set a new one.

- Touch Add to destination.

"Adding a destination" (Page 75)

(Refer to 5.) 6

WHITE HOUSE Info. Back 300 ft EXECUTIVE E ST E ST Route Preference Change Add to Replace

Route search

Set a destination and a route search will automatically start.

• A route search will continue even if switching to other screens.
• The route will not appear if the distance to the destination is too short.
• When a route search is complete, an all-route display (all routes from the present location to the destination) screen will appear.

If the destination is on a freeway or in an inaccessible area, the following screen will appear. Touch the item corresponding to the situation.

• Touch Yes the destination on the highway.
• Touch No the destination on another road.

If the destination is inaccessible or if there is a river, railroad or other obstruction in its vicinity, the following screen may be displayed.

• Touch No that point as the destination.
• Touch Yes ve the destination.

GARDENA, CA 300 rs 110 Back Set destination on freeway? Yes No

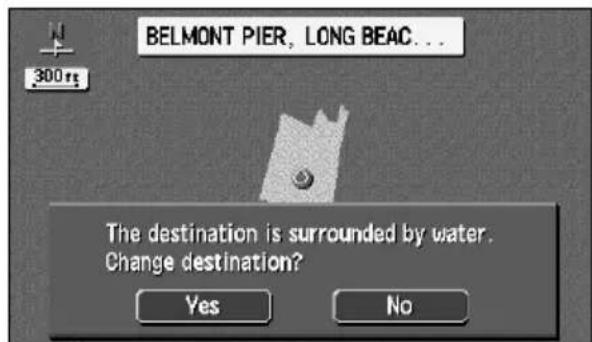

BELMONT PIER, LONG BEAC... 300ft The destination is surrounded by water. Change destination? Yes No

If a route search is conducted on a freeway or toll road interchange (IC), the search result route may start from a nearby local road. In such a case, reinitiate a route search (Refer to page 96).

All-route display

When the route search is complete, an all-route display screen appears.

- Press NAVI the all-route appears, or do not operate the device for at least 3 seconds after you start driving, and route guidance will automatically begin.

Route displays

The routes will be displayed in the following colors.

- Blue

The route when only one destination is set or the present segment up to the first destination set in case of multiple destinations appears blue.

- Light blue

The traffic regulation data in the segment is not corresponded on the map disc. The route guidance with voice and screen display such as intersection guidance is not supported.

- Purple

All segments other than the present segment up to the next destination when multiple destinations are set.

- Orange

Display seasonally restricted segment (Refer to page 70)

Quick1 250 mi 2686 mi 4836 h min 25 80 CHICAG KANSAS CITY NASDAQ NASHARES HOUSTON 25 55 65 Total 2686 mi. 3 Routes Route Guide

●Route search complete screen (all-route)

2. Set a destination and search for a route

On the all-route screen, routes from the present location to the destination, the estimated arrival time and distance are indicated.

Also, the search result routes can be changed and the guidance data can be displayed.

⑤

①

②

4 ④

③

1 2 3

■Items displayed

Data up to the final destination is displayed.

①Distance on toll roads

The distance on all toll roads is displayed.

②Distance on freeways

The distance on all freeways is displayed.

③Distance

The total distance on all roads including toll roads, freeways, local streets to the destination (when multiple destinations are set, the final destination) are displayed.

④Required time

The required time up to the destination is indicated.

⑤Distance remaining

The distance to the destination for the route presently taken are displayed. (If deviating from the road after route guidance has started, the distance to the destination in a straight line is indicated.)

■Touch switches

The following operations are enabled using the touch switches appearing on the all-route display screen.

1 3 Routes

Different routes are displayed to enable a selection. (Refer to page 73)

② Route

The route change screen is shown to enable the modification of the search conditions. Also, indicating an additional transit route to the destination is possible. (Refer to pages 75, 77 and 80.)

③ Guide

Route guidance can be initiated.

(Refer to page 83) After route guidance is started, the display returns to the present location screen.

4 When two or more destinations are set, you can switch the display of the required time / remaining distance to each of the destinations by touching the remaining distance display. (Refer to page 94)

If deviating from the road after route guidance has started, the distance to the destination in a straight line is indicated.

• The search result route is a reference route to the vicinity of the destination. In no way is it the shortest, fastest or least congested route.
• The required time is calculated from the average vehicle speed(Refer to page 88) and may have a slight deviation depending on the driving conditions.
• In the following situations, 3 routes cannot be displayed.
• When 2 or more destinations are set
• When a transit road is indicated
  •After route guidance has started
• An all-route diagram can be displayed even after route guidance has started. (Refer to page 93)

2. Set a destination and search for a route

Display or bypass a restricted segment

Bypassing a restricted segment

Bypass using the all-route display screen

1 Touch Route all route display screen.
2 Touch Route Preference
3 Touch

Allow Season Restricted Road

- If searching for a route that passes through a restricted segment, an indicator will light up.

4 Touch OK tart the route search.

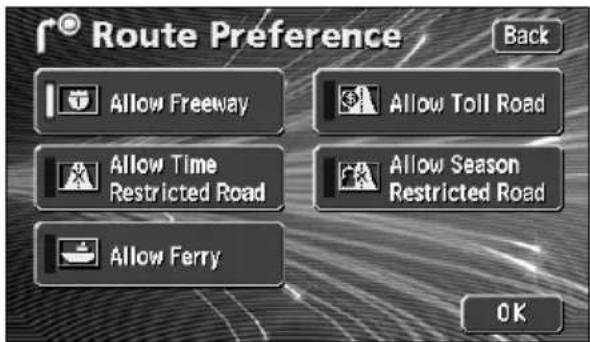

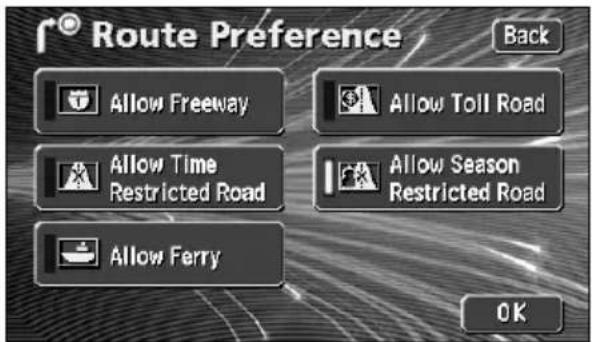

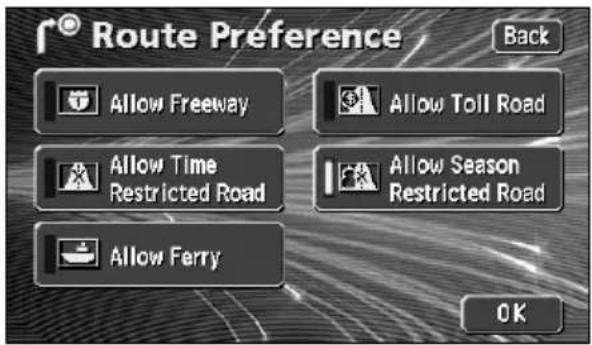

Route Preference Allow Freeway Allow Toll Road Allow Time Restricted Road Allow Season Restricted Road Allow Ferry Back OK

Bypass using the present location screen

1 Touch Route p is displayed.

2 Touch Route Preference

3 Touch

Allow Season Restricted Road

- If searching for a route that passes through a restricted segment, an indicator will light up.

4 Touch OK start the route search.

Route Preference Allow Freeway Allow Toll Road Allow Time Restricted Road Allow Season Restricted Road Allow Ferry OK

How to display message on a restricted segment

The message appearing if a search result route has a restricted segment can be turned ON (display) or OFF (not display).

1 Touch Setup Menu screen.

2 Touch either On for

Notify Traffic Restriction.

- The pressed touch switch will become brighter.

3 Touch OK

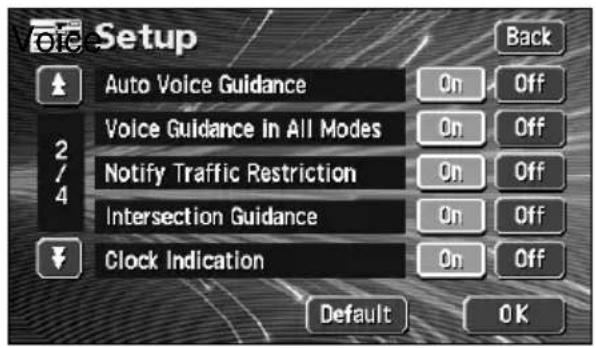

Setup Auto Voice Guidance Voice Guidance in All Modes Notify Traffic Restriction Intersection Guidance Clock Indication Back On Off On Off On Off On Off On OK Default

Touch Default up screen to return all items to their default settings.

2. Set a destination and search for a route

Display route data (guided road information)

The divided route data to the destination by its entrances/exits of interchanges (IC), transit roads, national roads or local streets can be displayed. The map at the departure or destination area can also be displayed.

1 Touch Map Viewent location screen.

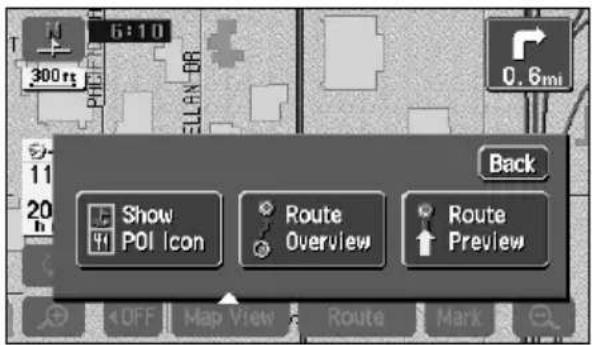

2 Touch Route Overview

3 Touch Tum List

- Route data is divided at entrances/ exits of interchanges (IC), junctions (JCT) and at the turning points of each destination, transit and other roads.

- The road name and distance appear for each piece of divided route data.

4 Touch Map

- Maps for the various set points are displayed.

Route on Search Condition Turn List 110mi 1.8 mi SAN FRANCISCO 5 1033 mil. Total 1040 mil. LOC ANGLES Route Guide 0

Turn List S VERMONT AVE ↑0.2 mi 748 W 168TH ST, GARDENA, CA ↑0.2 mi W 168TH ST Map Map

• If the present location is on the route, the vehicle position mark will appear in the route data screen.
• If the present location is not on the route (if having deviated from the route), data will be displayed from the point the route is displayed.

3-route simultaneous display (3-route search function)

Set the destination and a recommended route will be searched for resulting in an all-route display from the present location to the destination. Other than the recommended route ("Quick 1"), "Quick 2" and "Short" routes will also be displayed to enable a selection.

1 Touch 3 Routes route display screen to start the route guidance.

- 3 routes will be displayed in different colors along with the distance and required time.

2 Touch the route name.

• The selected route is displayed and the all-route display screen is shown.
• Tou Info. displays information for the three routes.

Back Quick1 25 mi 28 min Quick2 28 mi 34 min Short 24 mi 41 min Info.

• In the following situations, 3 routes will not appear simultaneously.
• When 2 or more destinations are set
• When transit points (transit roads) are indicated
  • After route guidance has started
• Refer to the Section "Reinitiating a route search" on page 96, for the characteristics of each of the 3 routes.
• The required time is calculated from the average vehicle speed(Refer to page 88) and may have a slight deviation depending on the driving conditions.

3. Changing the search result route

After a route search is complete, the route can be changed by adding a destination or transit road. The following are methods for changing the route.

- Touch Route II-route display screen or the present location screen (during route guidance) to display the route modification screen.

The route modification method is set on the route modification screen.

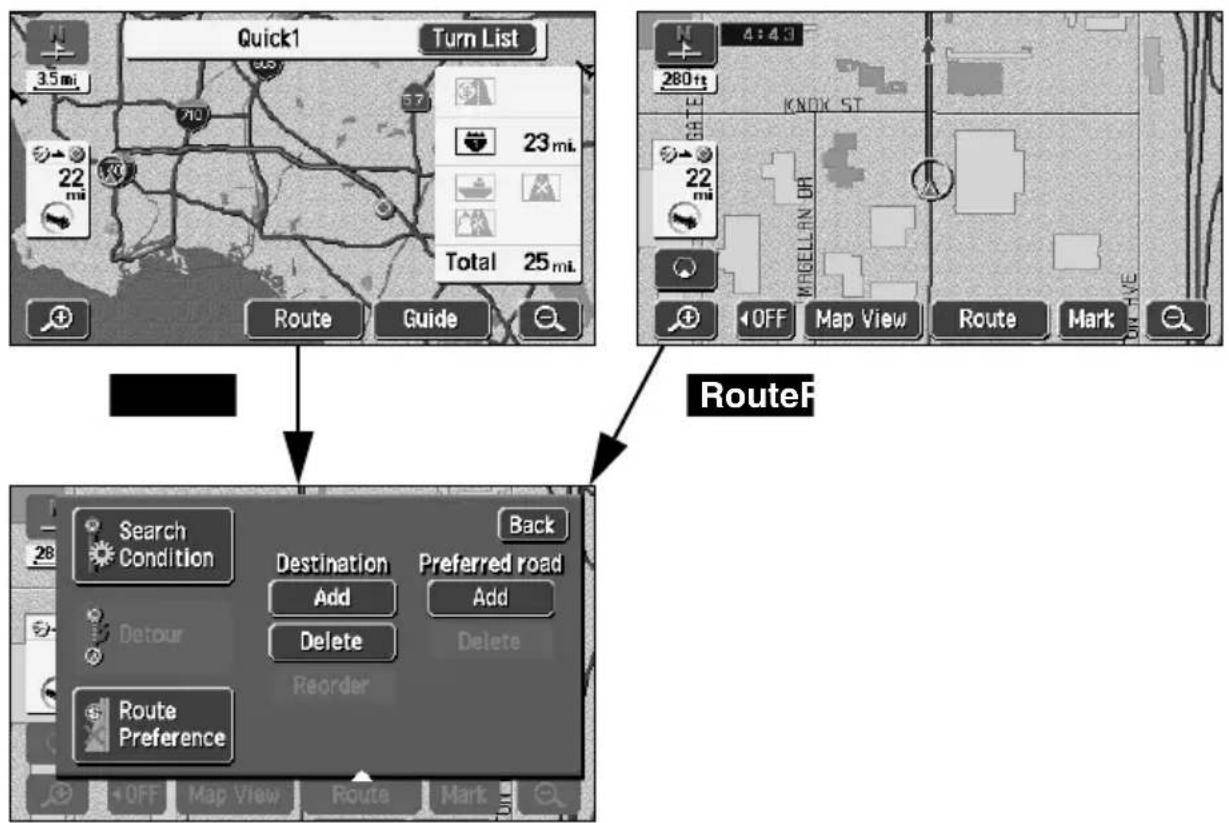

● All-route display screen

Quick1 Turn List 35 mi 22 mi 70 57 23 mi. Total 25 mi. Route Guide 4:43 280+1t KNOX ST 22 mi OFF Map View Route Mark RouteF Search Condition Back Destination Preferred road Add Add Delete Delete Retour Route Preference

●Route modification screen

• Add a destination.... Page 75
• Change the search conditions per segment ...... Page 77
• Switch the order of destinations ...... Page 78
• Delete a destination.... Page 79
• Indicate a transit road.... Page 80
• Cancel the transit road indication...... Page 81

The operations described here cannot be performed if a destination is not set.

Adding a destination

After having set a destination, up to five more destinations can be added.

In the following situations, set an additional destination.

- When setting a transit point between the present location and set destination

- When changing the set destination into a transit point and setting a new destination

Using the same method as setting a destination, touch Add to destination. (Refer to "One-touch setting" (Page 64), "Set from a registered point" (Page 65) and "Set using the map retrieval method" (Page 65).)

1 Touch Route

2 Touch Add estimation.

3 Select the map retrieval method and display the map on which a destination is to be set.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a displayed map".

Search Condition Back Destination Add Preferred road Add Detour Delete Delete Route Preference Recorder

Destination 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

• The destination can be set on a map with a scale of 1 mile or greater detail.
• Geographical points on maps representing set destinations are automatically registered (up to 100 points) and can be used to retrieve a map when setting a destination. When exceeding 100 points, the oldest entry is deleted every time a new one is entered. Unnecessary points can be deleted. (Refer to the Section "Deleting entries from the destination archive" on page 123.)
• When adding a destination with a transit road (see pages 80 and 81) indicated, that transit road indication may be canceled depending on that geographical point.
• When 2 or more destinations are set, Reorder

3. Changing the search result route

4 Touch Enter

• A destination point in the form of the

symbol will appear in the position.

• Up to a maximum of 5 destinations can be set.
• When 5 destinations are already set, delete a destination and proceed. (For information concerning deletion of a destination, refer to "Deleting a destination" on page 79.)

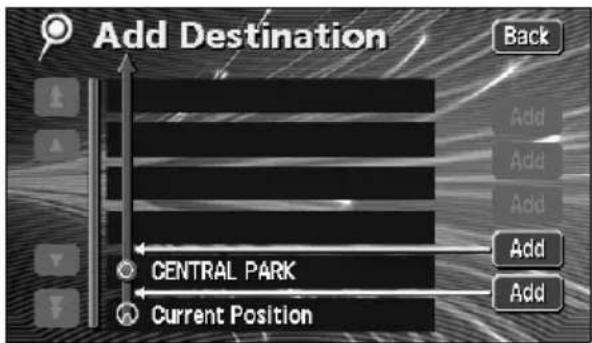

5 Touch Add segment to be set.

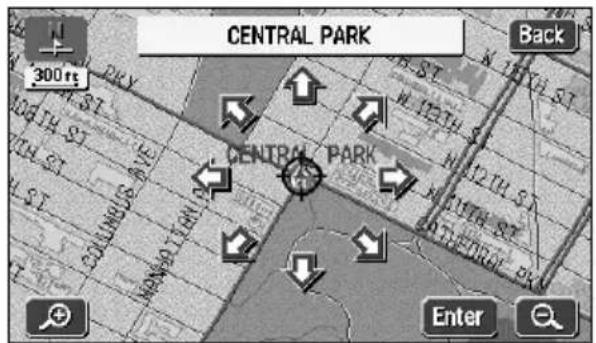

CENTRAL PARK 300rs Info. Back Route Preference Change Enter

Add Destination Back Add Add Add Add Central Park Current Position Add Add

6 When a transit road is indicated, a cancellation screen may appear.

• Touch Yes cel the transit road indication and initiate a route search.
• Touch No the destination without canceling the indication.

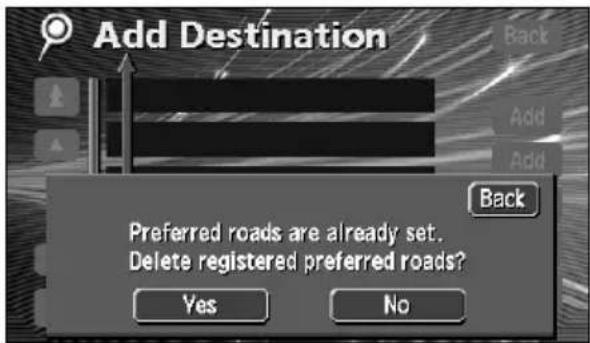

Add Destination Back Add Add Back Preferred roads are already set. Delete registered preferred roads? Yes No

• After having set the destination, the following operations are enabled from this screen:
Change the search conditions per segment (Page 77)
Switch the order of destinations (Page 78)
Delete a destination (Page 79)
Indicate a transit road (Page 80)
Cancel the transit road indication (Page 81)

Search Condition Back Destination Add Preferred road Add Detour Delete Delete Route Preference Reorder

• When adding more destinations, touch Add e screen in step on page 3.5
  will appear. Repeat steps ③ ⑥

Change the search conditions for each interval

The search conditions per segment can be changed and a search reinitiated.

1 Touch Search Condition

route modification screen.

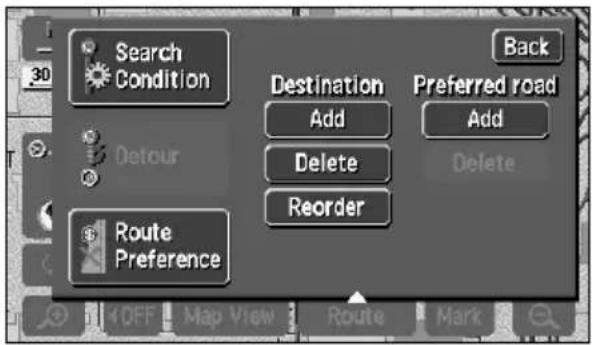

Search Condition Back Destination Add Preferred road Add Detour Delete Delete Reorder Route Preference

2 Touch the search conditions (for

each route) per individual segment.

3 Touch OK

- The route search is started.

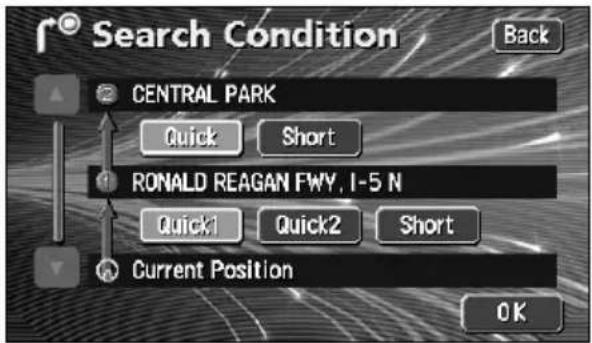

Search Condition Back CENTRAL PARK Quick Short RONALD REAGAN FWY, 1-5 N Quick1 Quick2 Short Current Position OK

ATTENTION

For search condition characteristics, refer to "Reinitiating a route search" on page 96.

3. Changing the search result route

Switching the destination order

The setting order of multiple destinations can be switched and a search reinitiated.

1 Touch Route

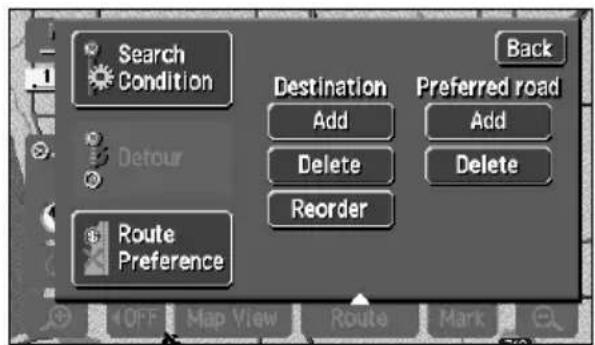

2 Touch Reorder

- When transit roads are indicated, a confirmation screen allowing you to cancel and reorder destinations is displayed.

Touch Yes hcel and reorder.

Touch No port reordering and return to the original screen.

Search Condition Back Destination Add Preferred road Add Detour Delete Delete Reorder Route Preference

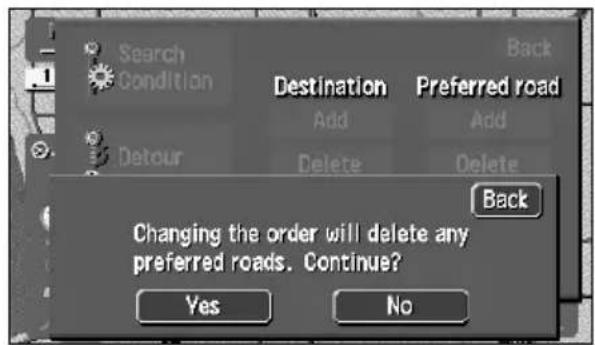

Search Condition Destination Back Add Preferred road Add Detour Delete Delete Back Changing the order will delete any preferred roads. Continue? Yes No

3 Touch the name of the destinations in order starting with the next destination.

• A new order will appear on the right of the selected destination names.
  • If having made a mistake, touch

Cancel to cancel the destination name order selected.

Reorder Destinations Please select destinations in order of arrival. CENTRAL PARK WHITE HOUSE RONALD REAGAN FWV, I-5 N Cancel OK Back 3 1 2 OK

4 Touch OK

• When the new destination name order is determined, the route modification screen will appear automatically after about 3 seconds without having to touch OK
• Without touching all the destination names, touch only the destination you want to change the order of and touch OK at selection will move to the top of the destination order.

ATTENTION

If changing the destination order with a transit road indicated (Refer to page 80), that transit road indication may be canceled.

Deleting a destination

Multiple set destinations can be deleted. It is also possible to delete all the destinations at the same time.

1 Touch Route

2 Touch Delete for

- If only one destination is set, the screen in 4 appear.

3 Touch the destination name to be canceled.

- Touch Delete All the destinations.

4 Touch Yes

• Touch No turn to the original screen.
• When all destinations are deleted and only one point is set, the present location screen appears.

5 Touch OK

- A route search is started and the all-route display screen appears.

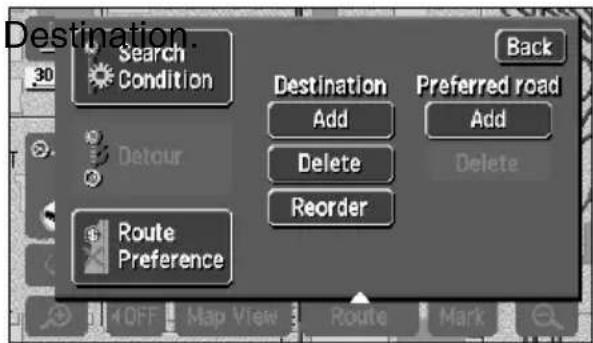

Destination. 30 Search Condition Back Destination Add Preferred road Add Detour Delete Delete Reorder Route Preference

Delete Destinations Back CENTRAL PARK RONALD REAGAN FWY, I-5 N WHITE HOUSE Delete All OK

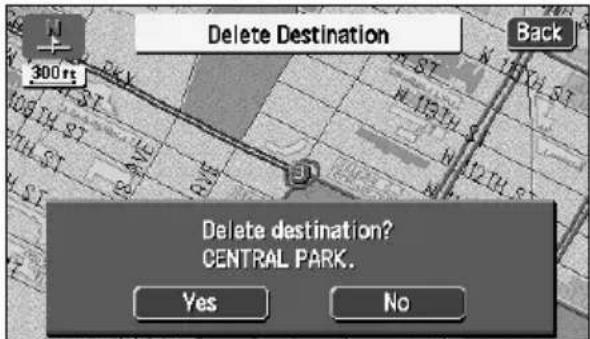

Delete Destination 300 ft Back Delete destination? CENTRAL PARK. Yes No

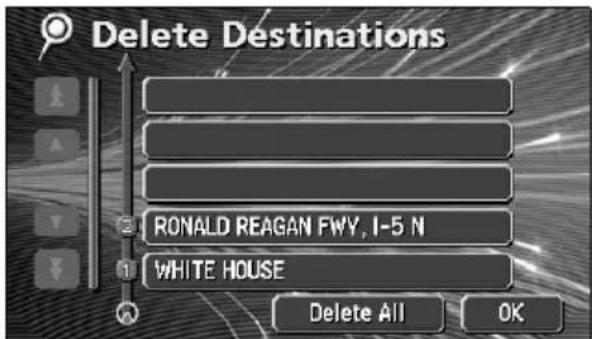

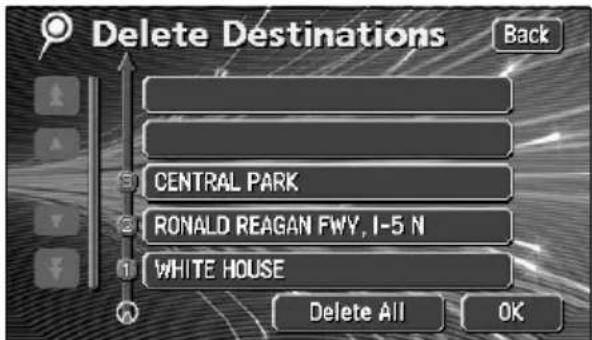

Delete Destinations RONALD REAGAN FWY, I-5 N WHITE HOUSE Delete All OK

When all destinations are deleted, route guidance cannot be restarted. Setting a destination is necessary to activate route guidance.

3. Changing the search result route

Indicating a transit road

1 Touch Route

2 Touch Add referred Road.

3 The map will move to the position of the indicated transit road.

4 Touch Enter

5 To indicate the road displayed, touch OK.

6 To specify another road, touch Next.

• Transit roads are marked with
- If only one destination is set and there are no interchanges or transit roads indicated, the screen in 71 appear.

Search Condition Back Destination Add Preferred road Add Detour Delete Delete Reorder Route Preference

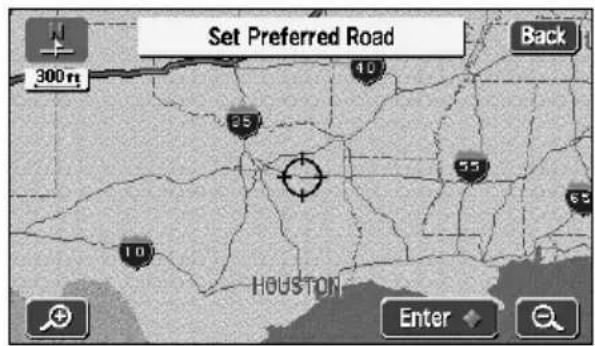

Set Preferred Road Back 300ft 10 25 55 65 10 Houston Enter

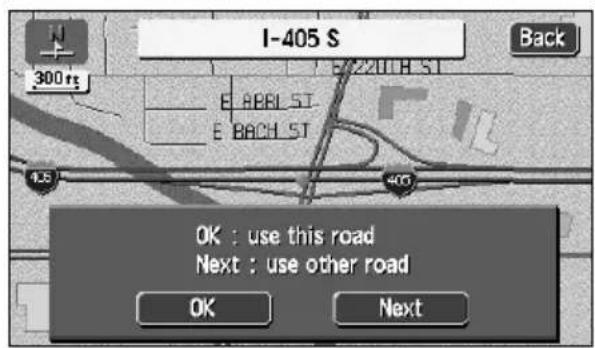

I-405 S Back 300 ft E ABR1 ST E BACH ST OK : use this road Next : use other road OK Next

• Delete if there is a transit road already indicated.
• If a map with a reduction scale wider than 0.5 mile is displayed, switch to a 0.5 mile reduction scale.

7 If 2 or more destinations are set or if a transit road is indicated, touch Add in the segment to be indicated.

8 The route search is started.

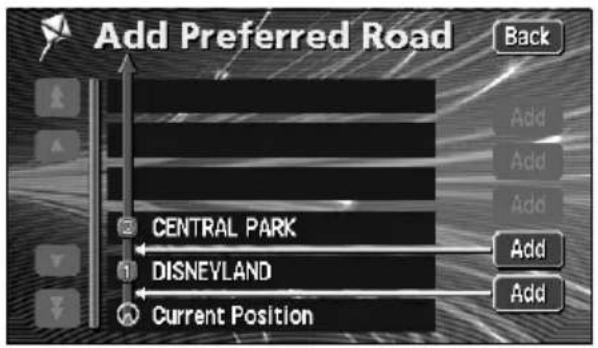

Add Preferred Road Back Add Add Add Central Park Add DISNEVLAND Add Current Position

Route on Search Condition 250 mi 2867 51.55 h min 25 80 CHICAGO CITY NASHVILLE HOUSTON Route Guide 33 mi. 2859 mi. Total 2867 mi.

Canceling a transit road indication

1 Touch Route
2 Touch Delete for Road.

- If only one destination is set, the screen in 4 appear.

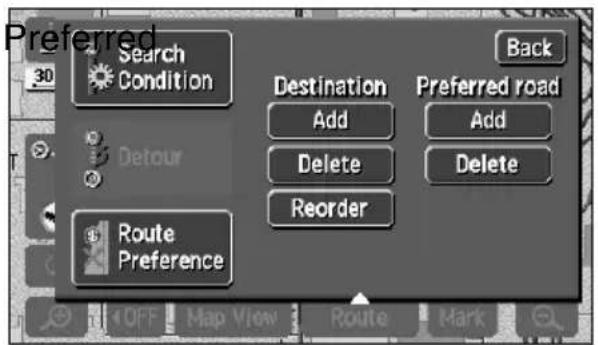

Preferred 30 Search Condition Destination Add Preferred road Add Detour Delete Delete Route Preference Reorder Back

3 Touch the road name to be canceled.

• Indicated transit roads appear with a mark.
• Touch Delete All transit roads.

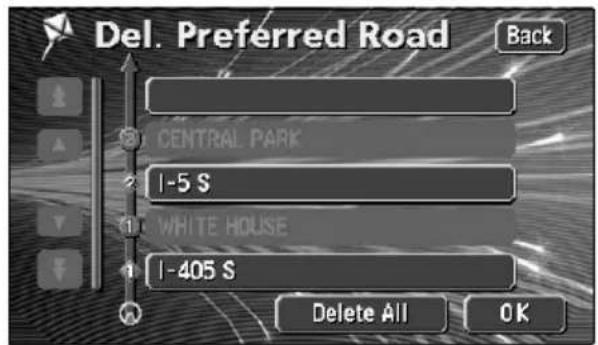

Del. Preferred Road Back CENTRAL PARK 1-5 S WHITE HOUSE 1-405 S Delete All OK

3. Changing the search result route

4 Touch Yes

- Touch No turn to the original screen.

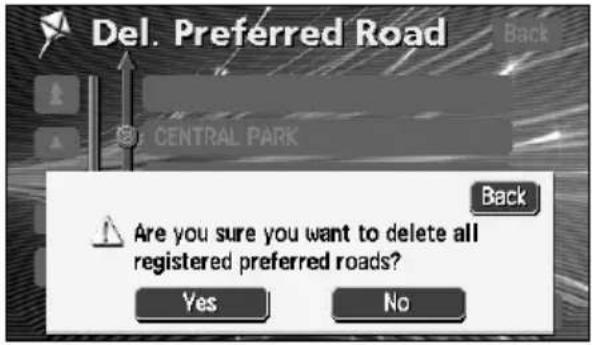

Del. Preferred Road CENTRAL PARK Are you sure you want to delete all registered preferred roads? Yes No

5 Touch OK

• The route search is started.

Route on Search Condition 250 mi 2863 51 51 h min Route Guide 33 mi. 2855 mi. Total 2863 mi.

4. Starting, pausing and restarting route guidance

Starting route guidance

When the route search is complete, the all-route display screen appears. Touch Guide the all-route display screen to start the route guidance. Route guidance can be paused and restarted.

1 Touch Guide all-route display screen.

• Route guidance is started.
• Press aNAV the all-route appears, or do not operate the device for at least 3 seconds after you start driving, and route guidance will automatically begin.

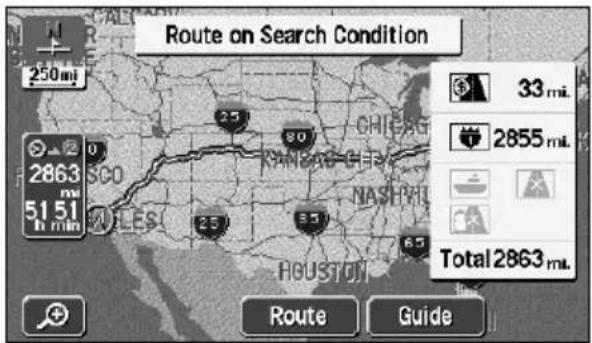

Route on Search Condition 250 mi 2863 51.51 h min 25 80 CHICAGO NASHIKU LALES 25 35 HOUSTON 65 33 mil. 2855 mil. Total 2863 mil. Route Guide

Pausing and restarting route guidance

1 Touch Suspend Guidance Menu screen.

• Destinations will not be deleted even if pausing route guidance.
• To restart route guidance, touch Resume Guidance on the Menu screen again.

Menu Map DVD Suspend Guidance Volume My Places Setup

5. Route guidance

When the route search is complete, guidance for the desired route can be started.

Drive towards your destination and the device will guide you along the route all the way to that destination.

Intersection guidance

When approaching an intersection with a guidance point displayed on the present location screen (if the present location is located on the route) while route guidance is in progress, intersection guidance and voice guidance is performed. Also, when approaching a junction intersection (within about a mile), an enlarged intersection display screen will automatically appear.

A non-junction intersection

Distance to the next intersection where a turning is to be made and the turning direction

5:32 300 ft S VERMONT AVE OFF Map View Route Mark 0.8mi DEL AMD BLVD ST S VERMONT AVE

A junction intersection (enlarged guidance screen for an intersection)

①Intersection name display

Names of transit points or junction intersections appear.

②Remaining distance display

The distance up to the intersection is indicated.

5:33 300 ft 25 mi 29 min S VERMINT OFF W 190TH ST 0.5 mi ① ②

• Enlarged intersection screens only appear if On for automatic enlarged intersection screen display. (Refer to page 86)
• Lane displays and names will not appear for intersections about which there is no data in the map disk.
• The intersection name indicated may differ from the actual intersection.
• In the following situations, intersection guidance is not performed:

- Immediately after route guidance is started

• In the vicinity of the destination

• Intersection guidance may be early or late.
• When approaching a junction intersection, an enlarged intersection display screen will appear.
• When an enlarged intersection display screen is displayed, the intersection name will be displayed for the junction intersection. There is no intersection guidance prior to junction intersections.
• Immediately before a turn is to be made, a chime will sound. However, the chime will not sound if the volume is set to Off

5. Route guidance

Set automatic display of the intersection guidance screen

Select either to have the intersection guidance screen turned ON (display) or OFF (not display).

1 Touch Setup menu screen.

2 Touch On for Section Guidance.

- The pressed touch switch will become brighter.

3 Touch OK

Setup Auto Voice Guidance Voice Guidance in All Modes Notify Traffic Restriction Intersection Guidance Clock Indication Back On Off On Off On Off On Off Default OK

Canceling the intersection guidance screen

■Cancel using OFF

1 Touch OFF

- Press NAVI display the intersection guidance screen.

N 5:34 300ft LAN 25 mi 29 min S.VERIMENT HWS OFF W 190TH ST 0.5 mi

■Cancel using

1 Touch 🔒 ↗

N 5:37 300 ft 25 29 S.VERIMENT BWS OFF W 190TH ST 0.5 mi

Touch Default up screen to return all items to their default settings.

2 Touch 🔒 display the normal map.

- Touch 📄 on the screen to display the intersection guidance screen.

N 5:37 300ft 25 29 OFF S-VE W 190TH ST 0.5 mi

Ferry crossing guidance

Ferry crossings are shown with a dotted line.

• Voice guidance occurs up to the ferry terminal.
• After having finished the ferry crossing, start driving and route guidance will resume in a moment.

Quick1 18 mi. 8.7 mi 21 min Total 8.7 mi. 3 Routes Route Guide

Setting the required time display

The required time can be indicated on the left of the map appearing on the present location screen (if the present location is on the set route) while route guidance is in progress.

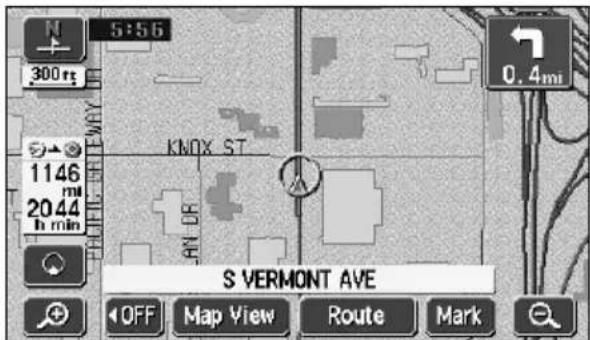

N 300 rs 5:56 KNOX ST 1146 mi 2044 th min S VERMONT AVE OFF Map View Route Mark 0.4mi

●Required time display

The required time include the ferry ride hours.

5. Route guidance

Setting the average speed

The following times are calculated based on the set average vehicle speed.

• Required time on the present location screen (Page 14)
• All route display screen required time (Page 67)
• Required times for the segments list (simultaneous 3 route display) (Page 73)

1 Touch Setup menu screen.

2 Touch Set Speed for Estimated Travel Time.

3 Set the speed for each road.

- Touch ▶ raise the speed, touch to lower it. (Each press raises or lowers 5 mph.)

4 Touch OK

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK

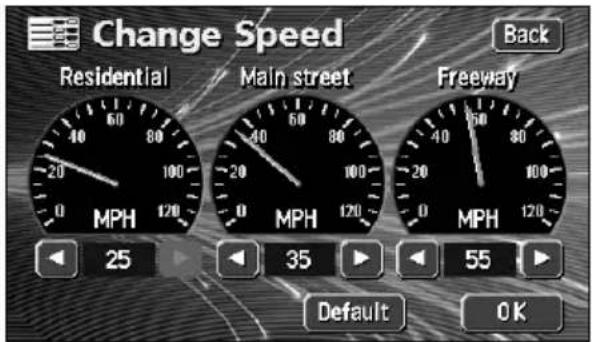

Change Speed Residential Main street Freeway Back 20 40 60 80 100 20 40 60 80 100 20 40 60 80 100 20 40 60 80 100 25 35 55 Default OK

• The required time is calculated from the average vehicle speed and may have a slight deviation depending on the driving conditions.
• When deviating from the set route, the destination direction mark will appear.
• When reaching the maximum speed (75 mph freeway, 55 mph main streets, 25 mph residential), the ▶ witch inverts. When reaching the minimum speed (5 mph), the ◀ witch inverts. These switches cannot be operated even if touched.
• Touch Default range Speed screen to return to its default settings (Freeway; 55 mph / Main street; 35 mph / Residential; 25 mph).

Highway junction guidance

When driving on a highway with the present location screen displayed (if the present location is on the set route) while route guidance is in progress and a junction point approaches [interchange exits/entrances (IC), junctions (JCT)], the highway junction guidance screen will appear.

①Junction point name display

The interchange exit/entrance name (IC) or the junction (JCT) direction name is displayed.

②Remaining distance display

The distance up to the junction point is displayed. The distance decreases as you approach the junction point.

6:01 300 ft 1149 mi 2034 h min HOMMELTON RIVE 110 OFF CA-91 EAST 1.2 mi ① ②

Canceling the highway junction guidance screen

1 Touch OFF

- Press NAV display the highway junction guidance screen.

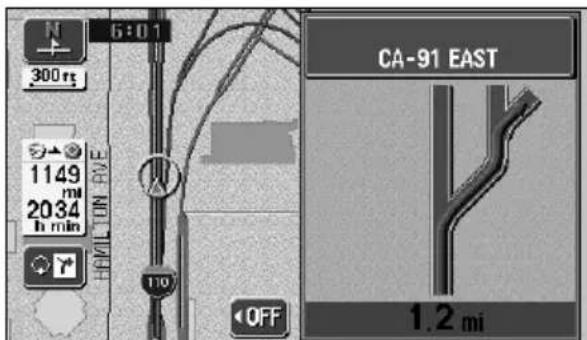

6:01 300 rs 1149 mi 2034 h min HAMILTON RIVE 110 OFF CA-91 EAST 1.2 mi

• No highway junction guidance display will occur for junction points that do not have corresponding data in the map data. Also, the junction point name may not be displayed even if the highway junction guidance screen is displayed.
• The junction point name displayed may differ from the actual junction name.
  • In the following situations, highway junction guidance is not performed:

- Immediately after route guidance starts

• In the vicinity of the destination

• The highway junction guidance screen may be early or late.
• When approaching the next junction point, the highway junction guidance screen will continue to be displayed.

5. Route guidance

Switching the highway junction guidance screen

1 Touch

2 To display the regular screen touch 🔒. To display the turn list, touch 🔒 ≡️.

- To redisplay the highway pattern screen, touch 🔊️ 📋 🔒 📂

6:01 300 ft 1149 mi 2034 h min HAMILTON RIVE 110 OFF CA-91 EAST 1.2 mi

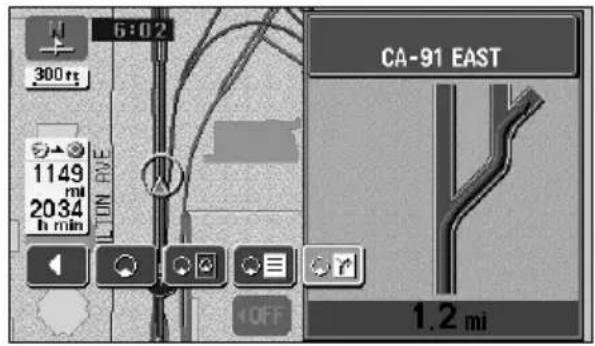

6:02 300ft 1149 mi 2034 h min TON RVE CA-91 EAST 1.2 mi

Voice guidance

If approaching an intersection, junction point, transit point, interchange (ramp) exit/entrance, junction (JCT) or destination while route guidance is in progress, a voice will announce the remaining distance to those points and up to 10 turning directions (straight, right, left, slight right, slight left, sharp right, sharp left, make a legal u-turn, keep right, keep left). Voice guidance is performed in PCM voice (human voice).

1 Press NoAdtivate voice

guidance as per the distance up to the junction intersection.

[Example of voice guidance while route guidance is in progress]

• Intersection voice guidance

(just guidance)

While route guidance is in progress, a chime will sound prior to a junction point.

◆Example of voice guidance:

In miles (km), turn

• Highway junction voice guidance

While driving on a highway, junctions are shown as an enlarged display and the direction is announced vocally.

◆Example of voice guidance:

In miles (km), the exit

[Example of voice guidance in the vicinity of the destination while route guidance is in progress]

◆Example of voice guidance:

You have arrived at your destination.

Your route guidance is now finished.

1990S S VERMONT AVE TORRANCE, CA 300 mi 1149 mi 2035 mi OFF Map View Route Mark 0.6 mi S VERMONT AVE In six tenths of a mile, right turn.

• Use the voice guidance only as a reference.
• After a voice guidance such as "Left turn in about 0.6 miles", drive for a moment and press NAVIange the announcement as per the approaching distance (ex.: Left turn in about 0.5 miles, etc.)
• The intersection voice guidance is activated by turning On Auto Voice Guidance. (Refer to page 92)

5. Route guidance

Setting the auto voice guidance

The auto voice guidance can be turned ON (announced) or OFF (not announced).

1 Touch Setup menu screen.

2 Touch On for

Guidance.

- The pressed touch switch will become brighter.

3 Touch OK

SetupVoice Auto Voice Guidance Voice Guidance in All Modes Notify Traffic Restriction Intersection Guidance Clock Indication Back On Off On Off On Off On Off On Off Default OK

ATTENTION

• The voice guidance examples mentioned above are the most common to be announced and may differ depending on the way the roads along your route are connected.
• If your vehicle position is not precisely specified, voice guidance may not occur or, in some cases, may be delayed or announce an erroneous instruction.
• The voice guidance volume may be adjusted (Refer to page 25). However, selecting Off disable voice guidance.
• Touch Default tup screen to return all items to their default settings.

6. Performing operations on the guided route

Guidance in another mode

The route guidance continues (no vocal guidance output) even if switching to another mode (showing a screen other than the navigation screen). The voice guidance can be made to output even if switching to another mode.

Setting the guidance when in another mode

1 Touch Setup menu screen.

2 Touch On for

Guidance in All Modes.

- The pressed touch switch will become brighter.

3 Touch OK

Setup Auto Voice Guidance Voice Guidance in All Modes Notify Traffic Restriction Intersection Guidance Clock Indication Back On Off On Off On Off On Off Default OK

Redisplaying the all-route display

The all-route display from the departure point to the destination can be shown.

1 Touch Map View displayed.

2 Touch Route Overview

• The all-route display screen appears.
- For details pertaining to the all-route display screen, refer to "All-route display and touch switches" on page 68.
- Touch Back by the present location screen.

6:10 300ft 0.6mi Back Show POL Icon Route Overview Route Preview

Touch Default up screen to return all items to their default settings.

6. Performing operations on the guided route

Switching the required time/distance remaining display

If 2 or more destinations are set on the present location screen (if the present location is along the set route) while route guidance is in progress, the required time/ distance remaining can be switched.

1 Touch the required time/distance remaining.

• If 2 or more destinations are set, the required time/distance remaining for each destination appears.
• Switching is impossible if having deviated from the set route.

2 Touch the distance remaining display up to the destination desired.

6:12 300 ft MAGELLAN DB 25 mi 27 min S VEMONT AVE HAMILTON AVE OFF Map View Route Mark

Required time/distance remaining

6:13 300 ft ELLAN DB 25 27 min 1185 21 14 4221 75 33 HAMILTON AVE S VERMONT AVE OFF Map View Route Mark

On-route scroll

The map can be moved automatically along the set route to the destination or to the departure point on the screen showing the guided route.

Start on-route scroll

1 Touch Route Preview modification screen.

2 Touch the scroll touch switches

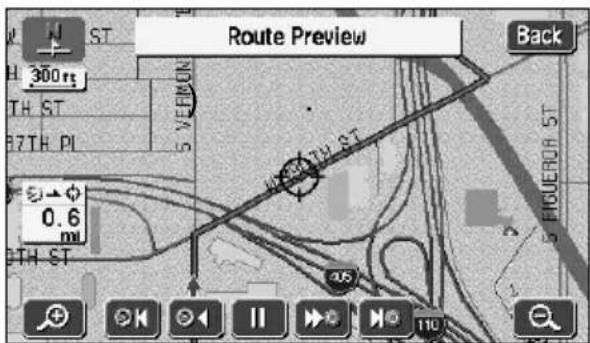

Route Preview Back 300 rs ST 5 VERIKON TH ST B7TH PI 0.6 ml TH ST 4.6 5 FIGUEROR ST 110

On-route scroll screen operations

• Touch to pause map scrolling.
• Press NAVp the on-route scroll.
• Touch or to move the map quickly.

Route Preview Back 300rs ST VETERON 4TH ST 0.6 ml 4th ST FIGUEROR ST 110

ATTENTION

• If there is no route displayed on the map, on-route scroll is impossible.
• Using on-route scrolling during a double screen display will cause a reversion to single screen display. Press NAVI turn to double screen display.

• If scrolling up to the next destination:

• Use the switch to move the map up to the next destination.

• Use the switch to move the map back to the departure point (previous destination).
• Use the switch to display the next destination map.
• Use the 📄️ to display the departure point map (previous destination).
• The on-route scroll may stop depending on the map displayed.

7. Reinitiating a route search

Reinitiating a route search

While route guidance is in progress, additional destinations can be set, search conditions can be changed and a route search can be reinitiated.

To change the route, use either the "Change method using Route change method using DEST".

A route search can be reinitiated from the following screens.

- See the next page for information concerning the touch switches appearing on each screen.

Screen No.	Touch switch Function	Page
1 Map	retrieval method	Retrieves the destination map Sets/ adds a destination	45
2	Route Overview	Shows the all-route display 67
3	Route	Displays the search condition setting screen	74
4	Destination, Transit destination Add , Delete Reorder	Adds, switches the order or deletes destinations	757879
	Transit point (transit road indication) Add delete	Indicates, corrects or deletes transit roads	8081
	Search Condition	Displays the route modification screen 77
	Detour	Detour from the existing route ahead. -
	Route Preference	Permits you to specify whether freeways, toll roads and other road categories are used or not.	98
5	Search conditions	Sets the search conditions for each segment	77

Search conditions	Function
Quick 1	A common route from the present location to the next destination* is searched for.
Quick 2	A route prioritizing toll roads from the present location to the next destination* is searched for.
Short	A route with the shortest distance from the present location to the next destination* is searched for.

* When a transit road is indicated between the present location and the next destination, a route is searched for between the present location and the indicated transit road.

7. Reinitiating a route search

Reinitiating a route search

1 Touch Route present location screen while route guidance is in progress.

2 Touch Route Preference

3 Touch the item for which a search is to be reinitiated.

- A route search is reinitiated.

Route Preference Allow Freeway Allow Toll Road Allow Time Restricted Road Allow Season Restricted Road Allow Ferry OK

- Because of the shape of the road, a route search may not be reinitiated and the same route may result from the reinitialized search due to a change in the search conditions.

- If having deviated far from the set route, a route to return you to the original route is not searched for. Rather, a new route search for the set destination (interchange, transit road) is initiated.

- If driving under an elevated road or along parallel local roads and a route search is initiated, the search result route may take you along elevated toll roads and parallel toll roads.

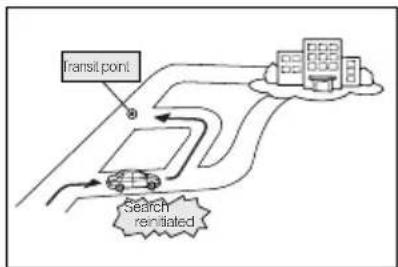

Automatic reroute search

If having deviated from the road, a route search may be initiated automatically (vicinity search or all-route search).

The search result route may differ as per the conditions under which the set route was deviated.

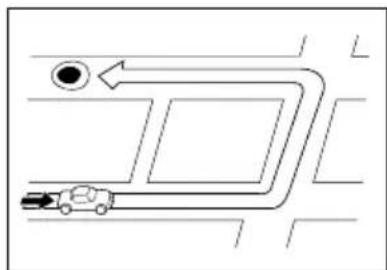

• Vicinity search: a route search returning you to the original route is initiated
• All-route search: a route search is initiated under selected conditions between the present location to the destination*
  * When a transit road is indicated between the present location and the next destination, a route is searched for between the present location and the indicated transit road.

Setting the automatic reroute search

The automatic reroute search function can be turned ON (enable) or OFF (disable).

1 Touch Setup menu screen.

2 Touch On for Reroute.

- The pressed touch switch will become brighter.

3 Touch OK

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK

• If having deviated from the set route while route guidance is in progress, the automatic reroute search is activated when the device determines that you are driving on a guidable road.
• Touch Default up screen to return all items to their default settings.

1. What is point registration

Up to 106 geographical points - categorized as "home," memory points or special memory points - can be stored on a map by registering them as memory points. There can be one "home" and up to five special memory points. Registering detour memory points (maximum of ten) also ensures that detours will be made through these points when route searches are performed.

Memory points can be registered by selecting from 46 types of symbol and 4 types of symbol with sound. It is possible to set a name, a name reading, and a telephone number for all these types of symbol. (This does not apply to detour memory points.)

Registering memory points and special memory points enables you to retrieve them on a map or when conducting a route search. Use these points effectively.

If you make a mistake in registration, correct it or delete the registration.

(If 106 memory points or 10 detour memory points have already been registered, delete unnecessary points and reattempt the registration.)

Memory Points

The memory points (including your home and special memory points) can be displayed and reordered according to registered type, symbol, or order of registration, and the points can be selected from a list during point searches and so on.

Memory point with voice alarm

The following functions can be given to memory points with voice.

①Setting to announce the approach to a point with sound

Bell, Chime, Music Box

②Setting to announce the approach to a memory point from a specified direction

Bell (With direction)

Home Only one registration can be made for your home, and you can search for a route returning you home in a one-touch operation. Registering this point first is recommended.

Special memory points

Up to 5 special memory points can be registered and allocated to touch switches to facilitate a search for geographical points. Also, when setting a destination, a route search can be initiated in a one-touch operation.

Areas to avoid

Up to 10 detour memory points can be registered with a name and detour range settable for each point. You can also set names for detour memory points.

ATTENTION

The symbol allocated to a detour memory point cannot be changed.

2. Registering, correcting or deleting a memory point

Registering, correcting or deleting your home

One point on the map can be registered as your home.

Register your home to enable a route search to your home from the destination setting screen with one operation. (Refer to page 45)

Registering your home

1 Touch My Places u screen.

2 Touch Register for Points.

Memory Places Back Memory Points 105/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

3 Select the map retrieval method and the map on which your home is to be registered will appear.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a retrieved map".

Memory Point 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

4 Touch Enter

- Touch to move the map.

Register Memory Point 300 ft KNOX PACIFIC DR MOELL RIN DR AVE Back Enter

• Registration enabled on a detailed map with a reduction scale less than 1 mile.
• Edit I can be used only if a memory point is already registered.

2. Registering, correcting or deleting a memory point

5 Touch Attribute

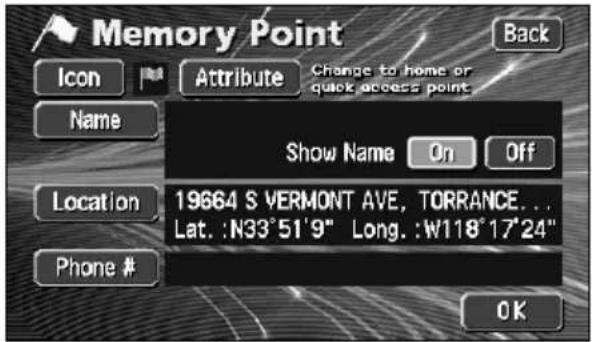

Memory Point Back Icon Attribute Change to home or quick access point Name Show Name On Off Location 19664 S VERMONT AVE, TORRANCE... Lat. :N33°51'9" Long. :W118°17'24" Phone # OK

6 Touch Not Registered

Touch switch for registering your home

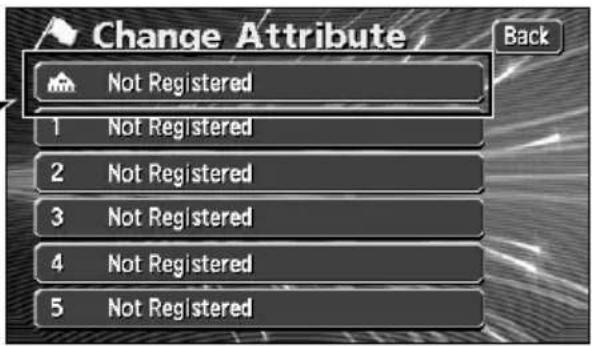

Change Attribute Back Not Registered 1 Not Registered 2 Not Registered 3 Not Registered 4 Not Registered 5 Not Registered

7 Touch Icon

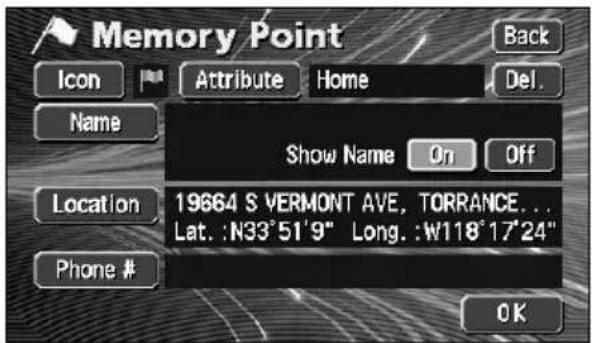

Memory Point Back Icon Attribute Home Del. Name Show Name On Off Location 19664 S VERMONT AVE, TORRANCE... Lat. :N33°51'9" Long. :W118°17'24" Phone # OK

8 Touch the symbol to be registered on the map.

• Page 2 V Sound and to select a different symbol. (Refer to page 106)

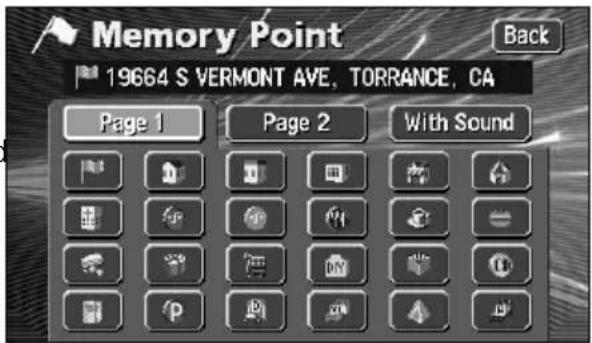

Memory Point 19664 S VERMONT AVE, TORRANCE, CA Back Page 1 Page 2 With Sound

ATTENTION

If your home is already registered, touch it to display the home cancellation screen.

Correcting your home

1 Touch My Places u screen.

2 Touch Edit emory Points.

3 Touch

My Places Back Memory Points 104/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

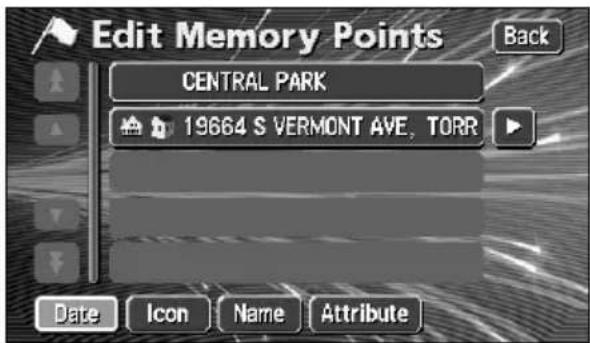

Edit Memory Points CENTRAL PARK 19664 S VERMONT AVE, TORR Date Icon Name Attribute Back

4 Touch the touch switch for the item to be corrected or entered.

• Touch Del. cel your home.

• This correction and entry method is the same as for memory points.

• Symbol (Page 110)

• Name entry (Page 112)
• Name display on a map (Page 113)
• Position (Page 109)
• Telephone number (Page 111)

Memory Point Back Icon Attribute Home Del. Name Show Name On Off Location 19664 S VERMONT AVE, TORRANCE... Lat. :N33°51'9" Long. :W118°17'24" Phone # OK

5 Touch OK

2. Registering, correcting or deleting a memory point

Deleting your home

1 Touch My Places u screen.
2 Touch Delete hory Points.

My Places Back Memory Points 104/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

3 Touch

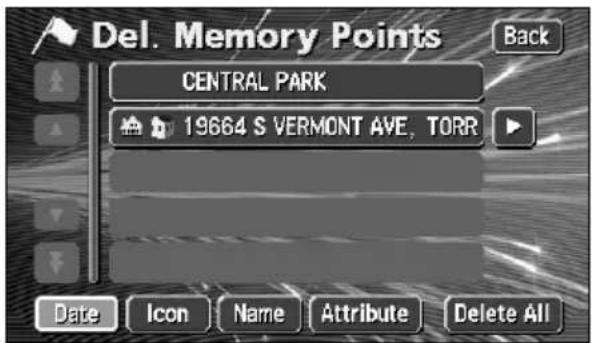

Del. Memory Points CENTRAL PARK 19664 S VERMONT AVE, TORR Date Icon Name Attribute Delete All

4 Touch Yes

- Touch No turn to the original screen.

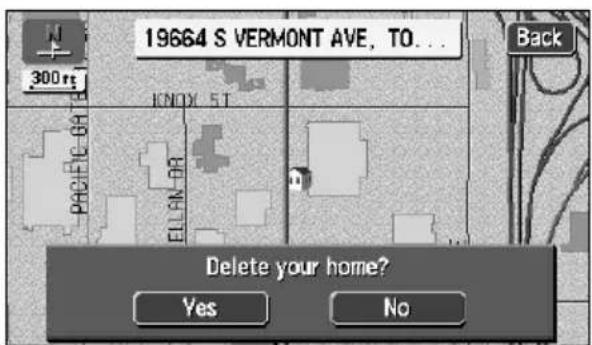

19664 S VERMONT AVE, TO... 300 rs KNOX 5T PACIFIC OR ELAN OR Back Delete your home? Yes No

Maps with a scale of 1 mile or greater detail can be registered.

Registering memory points

Up to 106 memory points (landmarks) can be registered on a map (including 1 home and 5 special memory points). (If registering more than 106 points, first delete unnecessary memory points and proceed.)

Registering memory points enables the following:

• Symbol and name displays on the map
- An alarm that announces when approaching a point
- Maps corresponding to memory points can be retrieved when setting a destination (Refer to page 56)

One-touch registration

Memory points can be registered on a map presently displayed.

1 Touch the position on the map where the memory point is to be registered.

- It is not necessary to scroll the map when registering the present location.

2 Touch Mark

- The memory point will be displayed with a symbol ( ) on the or position.

G: 19650 NORMANDIE AVE, TO... 300ft HARDBORATE VA KNOW ST- V 196TH ST PACIFIC OR TEWA KNOW S 0.5 mi OFF Map View Enter Mark

• Maps with a scale of 1 mile or greater detail can be registered.
• Depending on the location, the address displayed for the memory point may include a name of a neighboring area.
• A registered memory point may display a neighboring name or address.

2. Registering, correcting or deleting a memory point

Registering a far away point

1 Touch My Places u screen.
2 Touch Registerry Points.

My Places Back Memory Points 104/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

3 Select a map retrieval method to display the map on which the memory point is to be registered.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a retrieved map".

Memory Point 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

4 Touch Enter

- Touch to move the map.

WHITE HOUSE Info. Back 300 rs EXECUTIVE ST E ST NW 12TH ST NW 12TH ST NW 10TH ST NW U E NW CONSTITN Enter

• When a memory point is not registered, Edit I have to run and will be inoperable even if touched.

• Depending on the location of the registered point and the map retrieval method, the name and telephone number may be entered simultaneously.

• Touch Icon play the selected symbol in the position.
  • Page 1 Page 2 With Sound for the memory point Icon to change the type of symbol.

• Touch No Icon by the registered memory point symbol on the map.
• Selecting a symbol with sound will enable an alarm to sound when about 0.3 miles from the memory point.

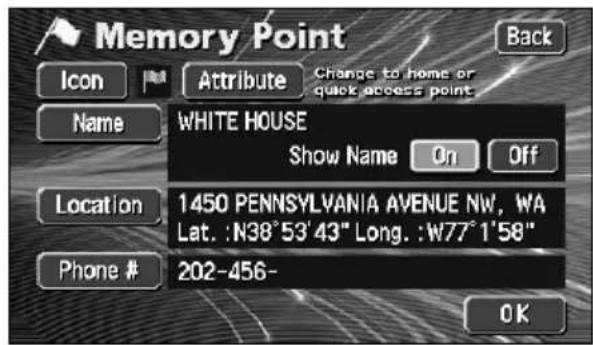

Memory Point Back Icon Attribute Change to home or quick access point Name WHITE HOUSE Show Name On Off Location 1450 PENNSYLVANIA AVENUE NW, WA Lat. :N38°53'43" Long. :W77°1'58" Phone # 202-456- OK

Memory Point Back WHITE HOUSE Page 1 Page 2 With Sound

Page 1

Memory Point Back WHITE HOUSE Page 1 Page 2 With Sound No Icon

Page 2

Memory Point Back WHITE HOUSE Page 1 Page 2 With Sound Bell (000) Chime (000) Music Box (000) Bell (with direction) (000)

●With Sound

2. Registering, correcting or deleting a memory point

5 Touch Bell (with direction)

• Set the direction.
• To move the direction counterclockwise, touch ↓. To move it clockwise, touch ↓
• The memory point will be displayed with 📋.

Select Direction Back 300 ft OUTIVE WHIT TO HOUSE E ST NW 10TH ST NW 12TH ST NW 10TH ST NW UVE NW CONSTITUTION Enter

6 Touch Enter

[With sound] [With direction]

Present location About 0.3miles Memory point Chime

An alarm will not sound when approaching this direction.

[When setting with direction]

- Touch Bell (with direction) and only when approaching a memory point within about 0.3 miles from the set direction.

For example, when driving on a road running East-West, you can set an alarm to sound when approaching a memory point from the west and not sound when approaching it from the east.

ATTENTION

• When selecting a symbol With Sound abled.
• Touch ▪ near each of the sounds.

Correcting the position of a memory point

1 Touch My Places u screen.
2 Touch Edit emory Points.
3 Touch the memory point to be corrected.

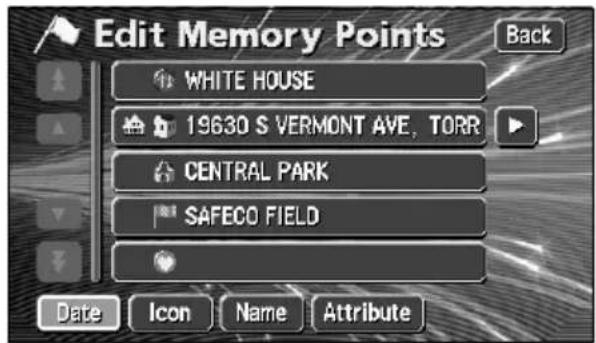

Edit Memory Points Back WHITE HOUSE 19630 S VERMONT AVE, TORR CENTRAL PARK SAFECO FIELD Date Icon Name Attribute

4 Touch Location

- A map will appear.

Memory Point Back Icon Attribute Change to home or quick access point Name CENTRAL PARK Show Name On Off Location 85TH ST, NEW YORK, NY Lat. :N40°48'2" Long. :W73°57'29" Phone # OK

5 Touch ↑.

- Move the map to the position on which the memory point is to be corrected.

6 Touch Enter

• The symbol displayed in appears in the position.
• Correct the position and the name of the position displayed in 4 also corrected.

CENTRAL PARK 300 feet Back CENTRAL PARK Enter

7 Touch OK

ATTENTION

Maps with a scale of 1 mile or greater detail can be registered.

2. Registering, correcting or deleting a memory point

Changing the symbol of the memory point

1 Touch My Places u screen.
2 Touch Edit emory Points.
3 Touch the memory point whose symbol you want to change.

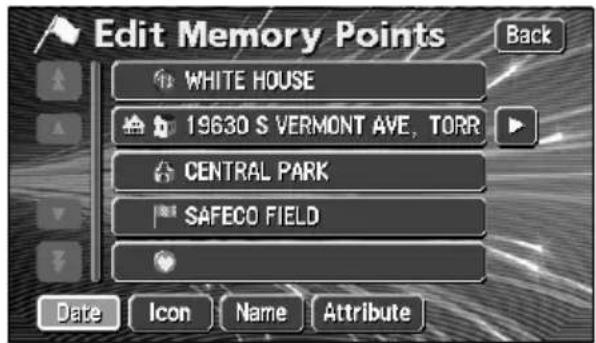

Edit Memory Points Back WHITE HOUSE 19630 S VERMONT AVE, TORR CENTRAL PARK SAFECO FIELD Date Icon Name Attribute

4 Touch Icon

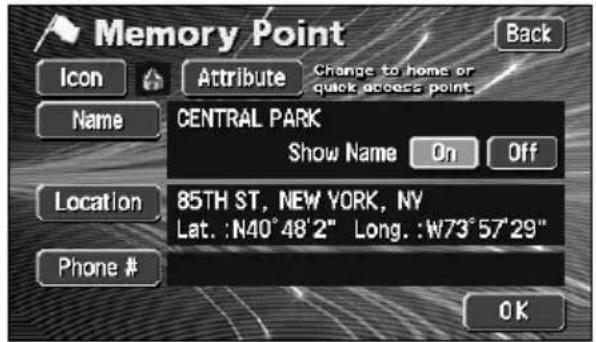

Memory Point Back Icon Attribute Change to home or quick access point Name CENTRAL PARK Show Name On Off Location 85TH ST, NEW YORK, NY Lat. :N40°48'2" Long. :W73°57'29" Phone # OK

5 Touch the symbol to be changed.

• Page 2 V Sound and to select a different symbol. (Refer to page 106)

6 Touch OK

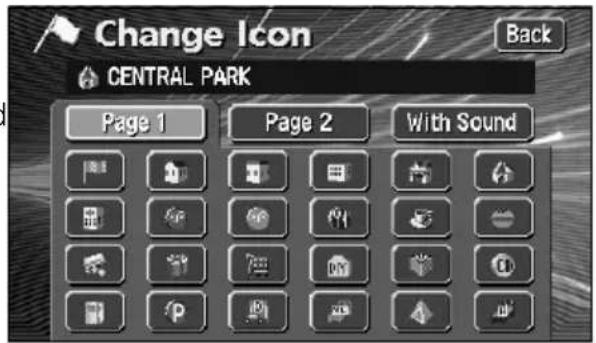

Change Icon CENTRAL PARK Back Page 1 Page 2 With Sound

The items in memory point list can be sorted by the Date, Icons, Names or Attributes.

Enter a telephone number for a memory point

1 Touch My Places u screen.

2 Touch Edit memory Points.

3 Touch the memory point whose telephone number you want to enter.

4 Touch Phone #

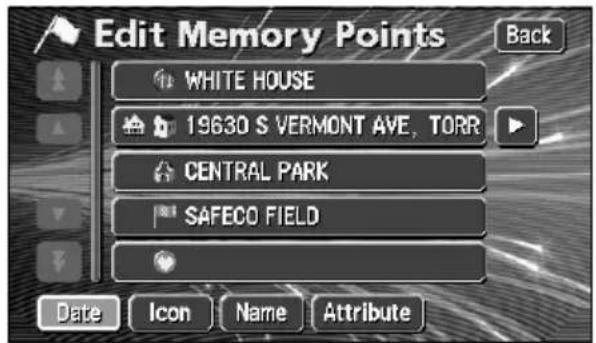

Edit Memory Points Back WHITE HOUSE 19630 S VERMONT AVE, TORR CENTRAL PARK SAFECO FIELD Date Icon Name Attribute

Memory Point Back Icon Attribute Home Del. Name HOME Show Name On Off Location 19632 S VERMONT AVE, TORRANCE... Lat. :N33°51'10" Long. :W118°17'25" Phone # OK

5 Enter the number by touching the switches on the screen one number at a time.

- If having made a mistake (or if the phone number is already entered), touch to delete one number at a time.

Change Phone # 1234_ Back 1 2ABC 3DEF 4AHI 5UKL 6MNO 7POPS 8TLY 9WXYZ 0 0K

6 Touch OK

- Up to 20 digits can be entered. - Depending on the registered point, there may be a telephone number already entered for it.

2. Registering, correcting or deleting a memory point

Entering the name of a memory point

1 Touch My Places u screen.

2 Touch Edit emory Points.

3 Touch the memory point for which you want to enter a name.

4 Touch Name

5 Enter one character at a time by touching the switches on the screen.

- If having made a mistake (or if the name is already entered), touch ▶b delete one character at a time.

6 Touch OK

Edit Memory Points Back WHITE HOUSE CENTRAL PARK SAFECO FIELD 19632 S VERMONT AVE, TORR Date Icon Name Attribute

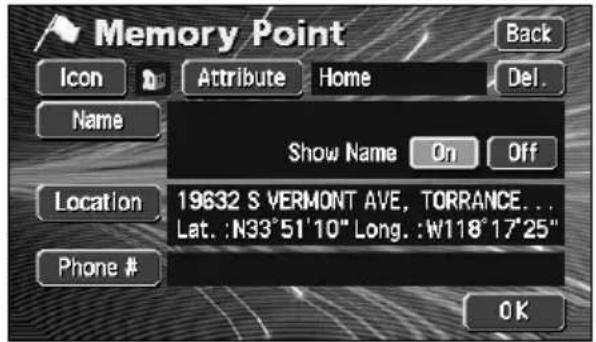

Memory Point Back Icon Attribute Home Del. Name Show Name On Off Location 19632 S VERMONT AVE, TORRANCE... Lat. :N33°51'10" Long. :W118°17'25" Phone # OK

Change Name HOME_ Back A B C D E F G H I J K L M N O P Q R S T U V W X Y Z _ - & À-Ý 0-9 OK

Depending on the registered point, there may be a name already entered for it.

Displaying the name of a memory point

The name of the memory point entered can be displayed.

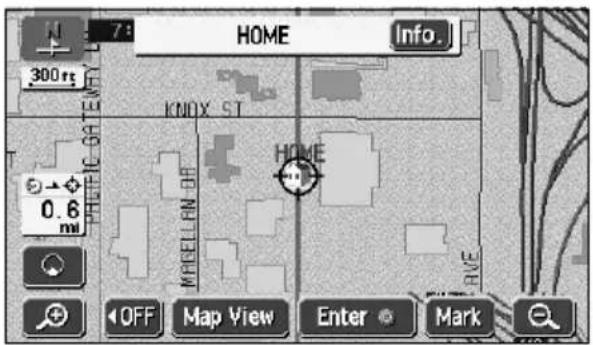

HOME 300 feet KNOX ST 0.6 mi MAHELLAN BHI HOME RIVE OFF Map View Enter Mark

1 Touch My Places u screen.
2 Touch Edit memory Points.
3 Touch the memory point whose name you want to display.

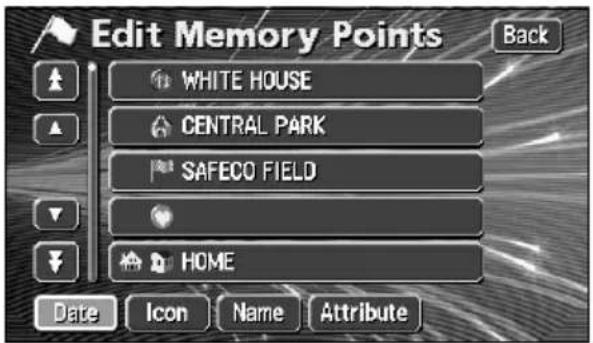

Edit Memory Points Back WHITE HOUSE CENTRAL PARK SAFECO FIELD HOME Date Icon Name Attribute

4 Touch On Out S

Name.

- The pressed touch switch will become brighter.

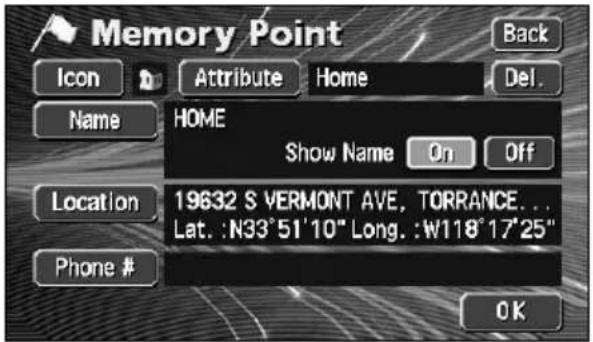

Memory Point Back Icon Attribute Home Del. Name HOME Show Name On Off Location 19632 S VERMONT AVE, TORRANCE... Lat.: N33°51'10" Long.: W118°17'25" Phone # OK

5 Touch OK

Maps with a scale of 1 mile or greater detail can be displayed.

2. Registering, correcting or deleting a memory point

Deleting a memory point

1 Touch My Places u screen.
2 Touch Deleteory Points.
3 Touch the memory point to be deleted.

• To delete all the memory points, touch

Delete All

Del. Memory Points Back WHITE HOUSE CENTRAL PARK SAFECO FIELD HOME Date Icon Name Attribute Delete All

4 Touch Yes

- Touch No turn to the original screen.

HOME 300 ft KNOX ST PACIFIC 6H TEM LUN DH HOME Back Delete your home? Yes No

3. Registering, correcting or deleting a special memory point

Up to 5 special memory points can be registered on one map.

A special memory point is different from other memory points in that, when registered, they can be retrieved with one-touch from the screen appearing when retrieving a map. Also, when setting a destination, a route search can be initiated with one-touch from the destination setting screen. (Refer to page 65)

Registering a special memory point

1 Touch My Places u screen.

2 Touch Register Point.

3 Select a map retrieval method and the map corresponding to the special memory point to be registered appears.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a retrieved map".

4 Touch Enter

- If is displayed, touch it to move the map.

- The special memory point will appear on the position.

My Places Back Memory Points 100/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

Memory Point 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

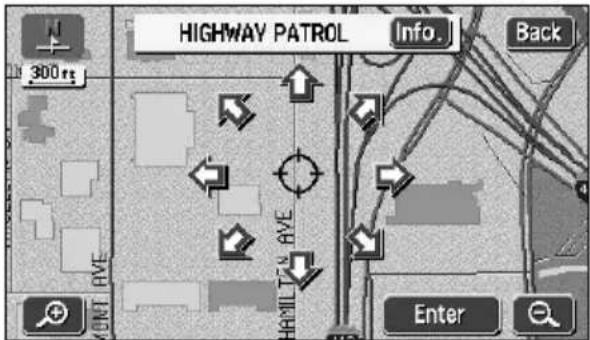

HIGHWAY PATROL Info. Back 300 ft HAMILTY AVE ARMEN EYE Enter

3. Registering, correcting or deleting a special memory point

5 Touch Attribute

6 Touch Not Registered special memory point (1 to 5).

7 Touch OK

Memory Point Back Icon Attribute Change to home or quick access point. Name HIGHWAY PATROL Show Name On Off Location 19700 HAMILTON AVE, TORRANCE... Lat.: N33°51'8" Long.: W118°17'9" Phone # OK

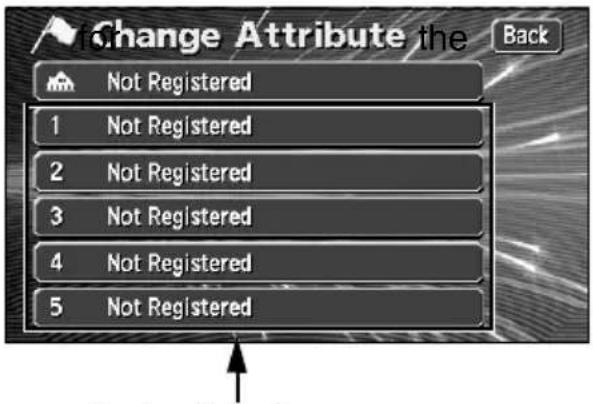

Change Attribute the Back Not Registered 1 Not Registered 2 Not Registered 3 Not Registered 4 Not Registered 5 Not Registered

Touch switches for special memory point (1 to 5)

• Maps with a scale of 1 mile or greater detail can be registered.
• Depending on the location, the address displayed for the special memory point may include a name of a neighboring area.
• A neighboring name or address will be displayed for the registered special memory point.
• Depending on the location of the registered point and the map retrieval method, the name and telephone number may be entered simultaneously.
• Edit Village only when a memory point is already registered.
• Select an already registered telephone number and touch it to display a deletion screen for the special memory point corresponding to that selected telephone number.

Correcting a special memory point

1 Touch My Places u screen.
2 Touch Edit memory Points.
3 Touch the special memory point to be corrected/entered.

Edit Memory Points Back 1 HIGHWAY PATROL WHITE HOUSE CENTRAL PARK SAFECO FIELD Date Icon Name Attribute

4 Touch the touch switch for the item to be corrected or entered.

- This correction and entry method is the same as for memory points.

• Symbol (Page 110)
• Name entry (Page 112)
• Name display on a map (Page 113)
• Position (Page 109)
  • Telephone number (Page 111)

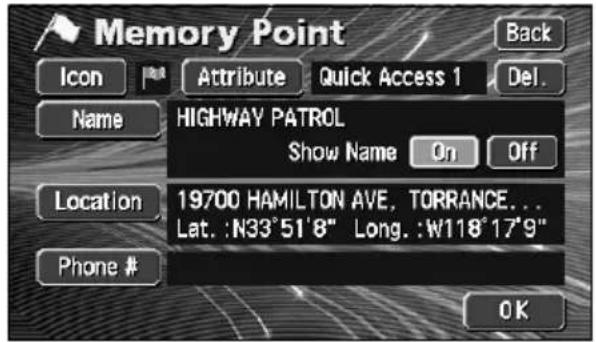

Memory Point Back Icon Attribute Quick Access 1 Del. Name HIGHWAY PATROL Show Name On Off Location 19700 HAMILTON AVE, TORRANCE... Lat. :N33°51'8" Long. :W118°17'9" Phone # OK

5 Touch OK

3. Registering, correcting or deleting a special memory point

Deleting a special memory point

1 Touch My Places u screen.
2 Touch Delete nory Points.
3 Touch the special memory point to be deleted.

• To delete all the memory points, touch

Delete All

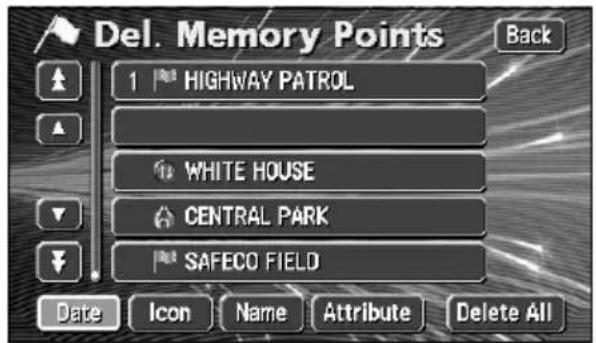

Del. Memory Points Back 1 HIGHWAY PATROL WHITE HOUSE CENTRAL PARK SAFECO FIELD Date Icon Name Attribute Delete All

4 Touch Yes

- Touch No turn to the original screen.

HIGHWAY PATROL Back 300 rs HIGHWAY PATROL WE Delete this quick access point? Yes No

4. Registering, correcting or deleting detour memory points

Registering detour memory points

Up to 10 detour memory points can be registered. (If registering more than 10 points, first delete unnecessary detour memory points and proceed.)

By registering detour memory points, you can search for a route that takes you through the registered area when conducting a route search.

This function is convenient when knowing what roads are blocked due to construction or accidents or congested.

1 Touch My Places u screen.

2 Touch Register to Avoid.

My Places Back Memory Points 100/106 Free Register Edit Delete Areas to avoid 10/10 Free Register Edit Delete

3 Select the map retrieval method to display the map on which a detour memory point is to be registered.

• See pages 45 and 61, "How to retrieve maps" and "Performing operations on a retrieved map".

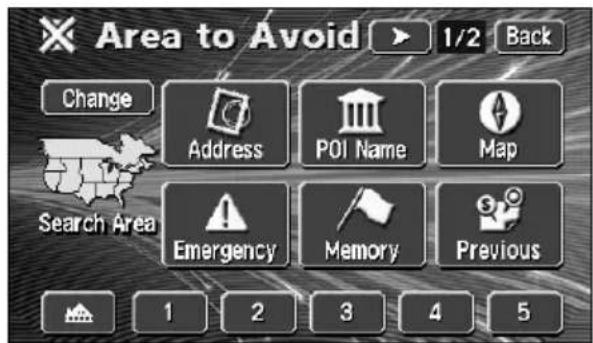

Area to Avoid 1/2 Back Change Address POI Name Map Search Area Emergency Memory Previous 1 2 3 4 5

4 Touch Enter

- Touch to move the map.

Register Area to Avoid Back 300ft E VICTORIA ST ST BRADWAY ST LITMAN AVE WALL ST JONHAM AVE IMBLER AVE ROCKER AVE Enter

• Edit Village at any time when a detour memory point is already registered.
• The route may take you through a detour depending on the position of the set destination or the present location.

4. Registering, correcting or deleting detour memory points

5 Touch ▲ to ▼ the area to be detoured.

• To widen the area, touch
  narrow the area, touch
• When reaching the maximum or minimum permissible area, the ▲
  switches invert and are inoperable even if touched.

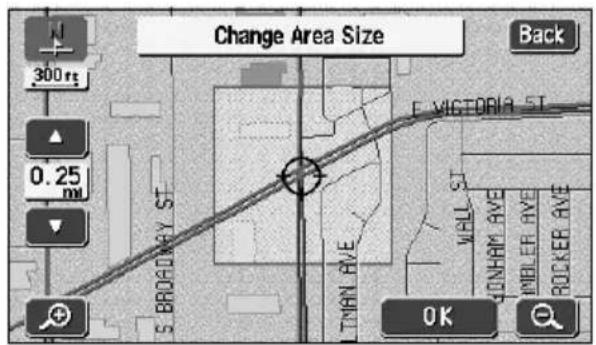

Change Area Size Back 300 ft 0.25 mL BROOKWAY ST E VICTORIA ST ST WALL JONHAM AVE INDLER AVE ROCKER AVE LITMAN AVE OK

6 Touch OK

- The detour memory point will appear on the position with a mark (smallest point) or a mark (area).

7 Touch OK

ATTENTION

• The following 10 values represent settable sizes for detour areas: Point, 150 ft, 300 ft, 700 ft, 1/4 mi, 1/2 mi, 1 mi, 2 mi, 4 mi, 8 mi
• A neighboring name or address will be displayed for the registered detour memory point.
• The address appearing for the detour memory point may differ depending on the location or the registration method.
• Depending on the location of the registered point and the map retrieval method, the name may be entered simultaneously.

Correcting a detour memory point

1 Touch My Places u screen.

2 Touch Edit reas to Avoid.

3 Touch the Area to Avoid to correct/enter.

4 Touch the touch switch for the item to be corrected or entered.

- The correction/entry method is the same as for memory points.

- Name entry (Page 112)

- Position (Page 109)

- Touch Area Size e detour area. (Page 119)

5 Touch OK

Edit Area to Avoid Back E VICTORIA ST, CARSON, CA 123 FM-2738, ALVARADO, TX

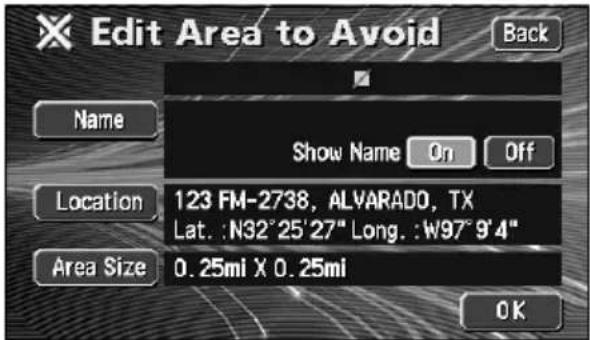

Edit Area to Avoid Back Name Show Name On Off Location 123 FM-2738, ALVARADO, TX Lat. :N32°25'27" Long. :W97°9'4" Area Size 0.25mi X 0.25mi OK

4. Registering, correcting or deleting detour memory points

Deleting a detour memory point

1 Touch My Places u screen.
2 Touch Delete is to Avoid.
3 Touch the Area to Avoid to be deleted.

- To delete all detour memory points, touch Delete All.

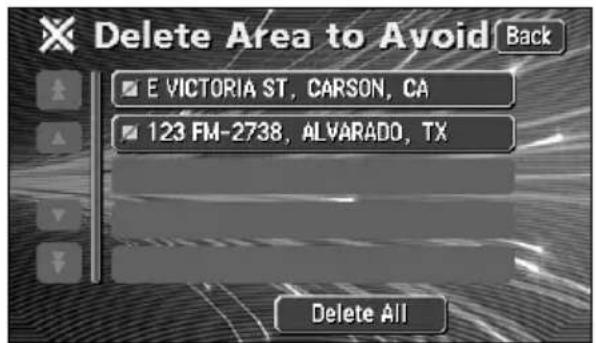

Delete Area to Avoid Back E VICTORIA ST, CARSON, CA 123 FM-2738, ALVARADO, TX Delete All

4 Touch Yes

- Touch No turn to the original screen.

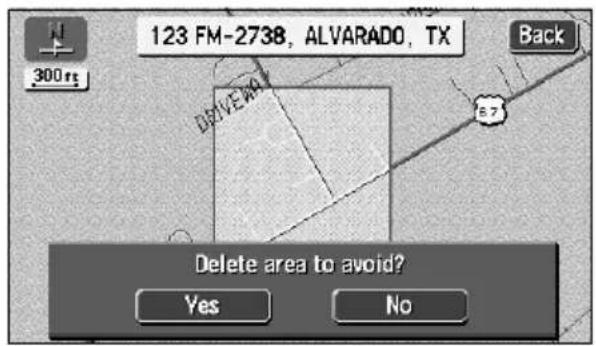

123 FM-2738, ALVARADO, TX Back 300ft DRIVEAK 5.7 Delete area to avoid? Yes No

5. Destination archive

Deleting entries from the destination archive

Points on a map set as destinations are automatically recorded and can serve to retrieve a map when setting a destination (maximum 100 destinations). When exceeding 100 destinations, the oldest entry is deleted every time a new one is entered. Unnecessary destinations can be deleted.

1 Touch Setup Menu screen.

2 Touch Delete for Previous Point.

3 Touch the point name to be deleted.

- To delete all destination archive items, touch Delete All.

4 Touch Yes

- Touch No turn to the original screen.

Setup Street Name on Scroll Map Display Building Shape OFF Function Show POI Icons Delete Previous Point Back On Off On Change Change Delete Default OK

Delete Prev. Points Back 1 WHITE HOUSE 2 CENTRAL PARK 3 HIGHWAY PATROL 4 SAFECO FIELD Date Name Delete All

CENTRAL PARK Back 300rs PKY CENTRAL PARK Delete previous point? Yes No

1. Information screen

The information function contains "SETTING", "ESN" and "SYSTEM CHECK". The "CAMERA SCREEN" and "SIRIUS ID" function can be operated by installing the optional items.

Information screen

1 Press INFO to display the INFORMATION screen.

2 Touch the touch switch.

• Select an item.
• The following functions are possible from the information screen.

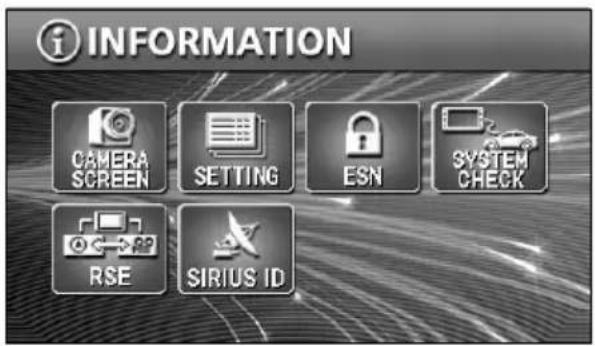

i INFORMATION CAMERA SCREEN SETTING ESN SYSTEM CHECK RSE SIRIUS ID

Display order/item (touch switch) Function Page
1 CAMERA SCREEN Display of Rear View Camera 126
2 SETTING	Settings for the background, beep, etc.		OPERATION GUIDE/ Audio
	Setting for Rear View Camera 130
3 ESN	Settings for the ESN (ECLIPSE Security Network)		OWNER'S MANUAL/ Reference Guide
4 SYSTEM CHECK Display of system status 125
5 RSE	Setting the DUAL PLAY		OPERATION GUIDE/ Audio
6 SIRIUS ID	Display of the SIRIUS ID		OPERATION GUIDE/ Audio

CAMERA SCREEN button is available when backeye camera (BEC105) is conneted.

SYSTEM CHECK screen

1 Touch SYSTEM CHECK INFORMATION screen.

- The SYSTEM CHECK screen is displayed.

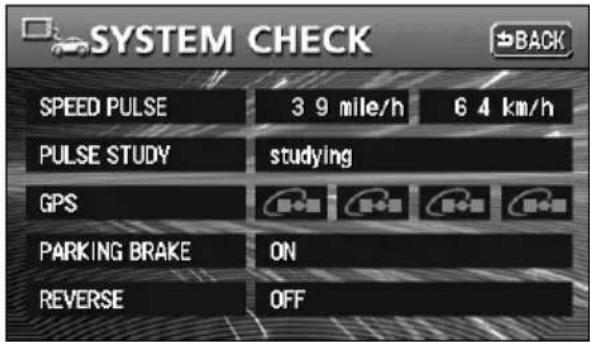

SYSTEM CHECK SPEED PULSE 3 9 mile/h 6 4 km/h PULSE STUDY studying GPS PARKING BRAKE ON REVERSE OFF

Item (touch switch) Function
SPEED PULSE Displays the current vehicle speed.
PULSE STUDY	Studies the vehicle speed during events such as tire changes.Studying: Pulse study in progressComplete: Pulse study completed
GPS Displays the GPS reception status.
PARKING BRAKE	Displays the parking brake status.ON: Parking brake appliedOFF: Parking brake not applied
REVERSE	Displays the reverse gear selection status.ON: Reverse gear selectedOFF: Reverse gear not selected

1. Rear View Camera operations

When the optional Rear View Camera is installed, the rear view image can be displayed on the monitor screen.

• Do not rely too heavily on the Rear View Camera.
• Please use the Rear View Camera as a back up means to check for obstructions behind the vehicle.
• Raindrops or other natural phenomena may blur the camera's image.
• Do not backup your vehicle looking only at the monitor. Use the rear view mirror and both side mirrors to check for any obstruction behind or around your vehicle.
• Do not use the Rear View Camera in the following situations:

- On frozen, slippery or snowbound roads

- With the trunk opened

- When using tire chains or a spare tire

- On a slope or any uneven road

- When the external air temperature is low, the image may darken or become faint. Images of moving objects in particular may be distorted, or they may not be visible on the screen, so the driver must confirm safety around the vehicle directly by eye.

• The actual position and distance of people or objects may vary depending on the features of the camera lens.
• Do not expose the camera to strong shocks such as hitting it or knocking it onto other objects. The Rear View Camera may not function properly if the position of the camera or its mounting angle is incorrect.
• The camera is waterproof. Do not uninstall, dismantle or reconfigure the unit. Otherwise, the Rear View Camera may not function properly.
• If strongly rubbing the camera cover or using a hard brush or abrasive to clean it, the camera may get scratched adversely affecting the image quality.
• The camera cover is made of plastic. Do not apply an organic solvent, body wax, oil remover, glass coating, etc. If having applied any of the above, wipe it off immediately.
• Pouring hot water on the Rear View Camera to deice it in cold weather can lead to a drastic change in temperature that may render normal operation impossible.
• The Rear View Camera may not operate normally if the camera is damaged as a result of having hit the unit. Immediately bring it to the store of purchase for an inspection.
• Do not leave it in direct sunlight for long periods of time. Otherwise, a printed image phenomenon may result.
• The figure is merely an example. The range appearing on the monitor screen varies depending on the vehicle model.
• The instant the vehicle is put in reverse, part of the monitor will appear white then gradually stabilize.
• A white vertical band will appear when struck by light from the sun, headlights or any other strong light beam source (Smear effect).
  • After having used the unit for a long time, white scratches and vertical lines may appear due to a rise in temperature depending on the features of the CCD.
• The 50 Hz power source range fluorescent light may cause flickering in the screen. This is not a malfunction.
• Because the Rear View Camera uses a special lens, the image and distance appearing on the screen differs from the actual image and distance.

1. Rear View Camera operations

Rear View Camera image

Displaying the rear view image manually (MANUAL)

i INFORMATION CAMERA SCREEN SETTING ESN SYSTEM CHECK RSE SIRIUS ID Check surroundings for safety.

1 Touch CAMERA SCREEN N screen.

• The rear image appears on the monitor screen.
• Touch any of the following switches to return to the normal screen:

NAVI DEST (NAVI)MENU INFO

CAMERA SCREEN button is available when backeye camera (BEC105) is conneted.

Displaying the rear view image in reverse gear (AUTO)

To display the rear view image in reverse gear, set "AUTO" for the "CAMERA SCREEN" setting in advance. (Refer to page 130)

1 Select reverse gear.

• The rear image appears on the monitor screen.
• On shifting to any gear other than reverse, the normal screen is redisplayed.

• The range of the image may vary depending on the vehicle and the road conditions.
• There is a limit to the range of the camera. Objects near the ends of the bumper and under the bumper cannot appear.
• The rear image color may vary from the actual objects.
• The image brightness and contrast can be adjusted. (Refer to "Adjusting/setting the screen" in the OPERATION GUIDE/ Audio.)
• Depending on the vehicle, the back guideline may appear misaligned on the left and right. This is not a malfunction.
• In the following situations, the screen may be difficult to view but does not constitute a malfunction.
  • In a dark area (such as at night)
  • The temperature near the camera is high or low
• Raindrops are on the camera lens or the humidity is high (when raining)
• A foreign object is near the camera (such as mud)
• When the sun or a beam from headlights strikes the camera lens directly
• When a high-luminance point strikes the camera (such as the reflection of the sun's rays on the chassis), a Smear effect* typical of CCD cameras may occur.

[Screen condition]

Simple black-and-white diagram with a small white starburst at the bottom left corner, no text or symbols present.

*Smear effect: A phenomenon where a vertical line appears from a high-luminance point striking the camera (such as the reflection of the sun's rays on the chassis).

High-luminance point

1. Rear View Camera operations

Rear View Camera settings

You can select whether or not the rear view image is automatically displayed on the monitor on selecting reverse gear.

1 Touch SETTING

INFORMATION screen.

2 Touch AUTO MANUAL

CAMERA SETTING.

• AUTO view image is displayed in reverse gear.

- MANUAL w image can be displayed by touching

CAMERA SCREEN on

the INFORMATION screen.

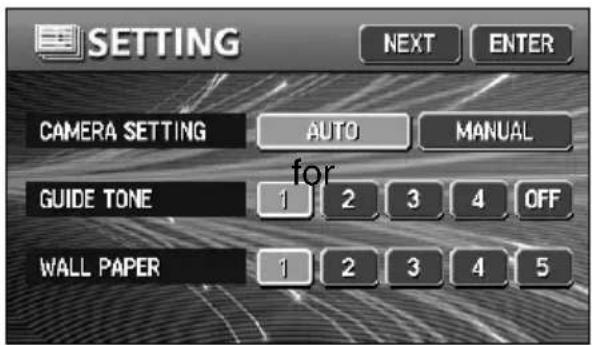

SETTING NEXT ENTER CAMERA SETTING AUTO MANUAL GUIDE TONE 1 2 3 4 OFF WALL PAPER 1 2 3 4 5

ATTENTION

Even when "AUTO" is set, the rear view image can be displayed by touching

CAMERA SCREEN on the INFORMATION screen.

MEMO

Illustration of an airplane cockpit with city skyline background (no text or symbols)

Optional

function

1. Correction of the present location and distance

A correction is necessary in the following situations:

- When changing a tire: perform an automatic correction (Distance correction) Also, a correction can also be made in the following situations.

- When the vehicle position mark appears in a location different from the actual present location (the vehicle position mark is misaligned), the vehicle position mark position and direction can be corrected. (Present location correction)

- When the progression of the vehicle position mark on the map and the actual progression of the vehicle while driving: the vehicle position mark progression can be corrected. (Distance correction)

However, even if the vehicle position mark on the map is misaligned, continue driving for a moment and the present location will be automatically corrected using map matching and GPS data. (Depending on the case, this may take several minutes.)

In the event the device does not use GPS data and the present location is not automatically corrected, park the vehicle in a safe area and perform present location correction.

Present location correction

1 Touch Setup Menu screen.
2 Touch Adjust for

C

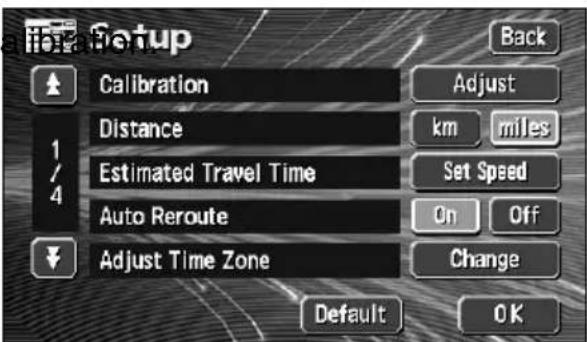

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km miles Set Speed On Off Change Default OK Back

3 Touch Position/Direction

Calibration Adjusts the current position. Position / Direction Select after tire change. Tire Change

4 Touch ↗.

- Move to the actual position of the present location on the map.

5 Touch Enter

6 Set the direction.

- To move the direction counterclockwise, touch ↓ To move it clockwise, touch ↓

7 Touch Enter

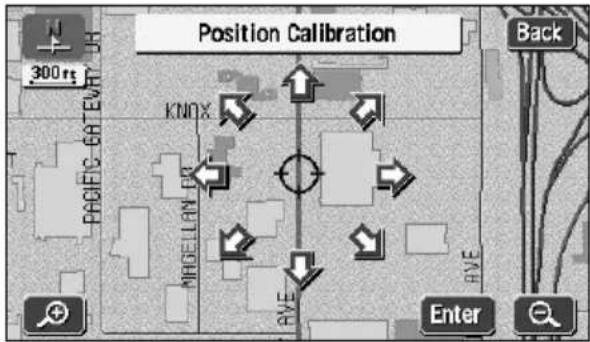

Position Calibration 300 ft KNOX MODELLAN AVE Back Enter

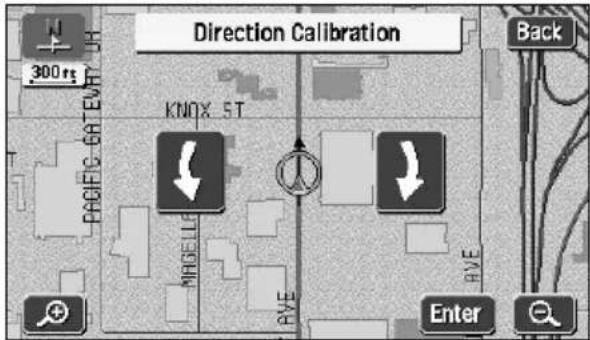

Direction Calibration 300 ft KNOX_5T PACIFIC 6-TEVNT MODELLA RVE Back Enter

1. Correction of the present location and distance

Correcting the distance

1 Touch Setup Menu screen.

2 Touch Adjust for

3 Touch Tire Change

• Automatic correction is performed.
- The touch switch turns brighter during automatic correction.
- Using GPS data, the correction will automatically be completed after driving a moment and the touch switch will turn back to blue.

C.

Setup Calibration Distance Estimated Travel Time Auto Reroute Adjust Time Zone Adjust km Set Speed On Change Default OK Back

Calibration Adjusts the current position. Position / Direction Select after tire change. Tire Change

• The device performs automatic distance correction (automatic correction) using GPS and vehicle speed signals. This may be delayed in the event of a sharp deviation that overwhelms the automatic correction function (changing a tire, being towed by another vehicle, etc.) In such a case, drive about 6 miles along a road indicated by favorable GPS signal reception conditions.
• If correction is impossible, have the device inspected at the store of purchase.
• During automatic correction, the vehicle position may be misaligned.
• Even if the automatic correction is complete, because the distance correction has a learning function, there may be variations in the progression of the vehicle position mark depending on the driving conditions.

2. Map DVD-ROM data

The information on the map DVD-ROM can be viewed.

The figure below is merely an example. The displays may vary depending on the type of map DVD-ROM and when it was made.

Map DVD-ROM data display

1 Touch Map DVD u screen.

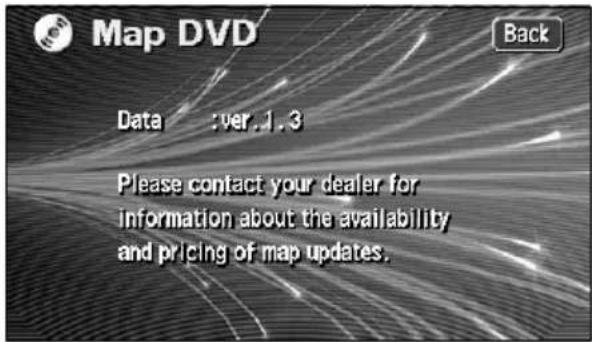

Map DVD Data :ver.1.3 Please contact your dealer for information about the availability and pricing of map updates.

3. Accuracy and error

Positioning accuracy

The GPS is a very accurate satellite controlled by the U.S. Department of Defense. Errors may result due to the occurrence of a multipath caused by reflections off buildings or other structures.

GPS signal quality and reception conditions

Any obstruction coming between the satellite and the GPS antenna will disrupt signal reception from the satellite.

Also, 3 or more signals must be received simultaneously to enable positioning. When driving along locations such as those shown below, GPS positioning is not possible.

In addition, obstructions placed on or near the GPS antenna (such as a load) will disrupt signals from the satellite.

• Because the GPS satellite orbits the earth, signal reception conditions may vary depending on the position of the satellite even if driving in the same area. Signals from a satellite orbiting near the horizon are more likely to be obstructed.
• The GPS satellite is controlled by the U.S. Department of Defense and can be deliberately made to lose positioning accuracy.

Underground, in a tunnel or in an indoor parking structure

Surrounded by obstructions such as tall buildings In a building

Cartoon illustration of a car driving on a road under tunnel lighting (no text or symbols)

Line drawing of a car driving on a narrow urban street with tall buildings (no text or symbols)

Line drawing of a parking garage with a car parked at the gate, no text or symbols present

Line drawing of a car driving on a dirt road with smoke rising from the roadside (no text or symbols)

Line drawing of a car driving through a tunnel with vehicles on the road (no text or symbols)

Simple line drawing of a car parked near a building with wind or snow falling (no text or symbols)

Densely wooded areas Under an elevated road On a cliff side road or at a cavern opening

Under the following conditions, make sure to install the GPS antenna in the position indicated in the instruction manual for your vehicle model.

- If the noise emitted from another electrical device diminishes signal reception.

- If this device may represent an obstruction to the proper operation of airbags.

- If the satellite signal received from the side or rear of the vehicle is diminished because of a windshield pillar or roof panel.

3. Accuracy and error

Present location display error

In order to find the exact position of the present location, this device uses compiled data from the GPS satellite, vehicle speed sensor and vibration gyro sensor. Because each of these contains a margin of error, the present location indicated may not coincide with your actual positioning.

If the indication is different from the actual positioning, the present location displayed can be corrected. Park the vehicle in a safe place first before proceeding.

Error due to having changed a tire

The device calculates the distance traveled by the vehicle using a speed sensor (in proportion to the tire rotation). The following situations would result in a significant error that may render proper present location positioning impossible.

• When using a sub-standard tire
• When driving on a snow covered, gravel road or any slippery road
• When the tire air pressure is incorrect
• When using new tires (the distance correction coefficient setting can be changed and adjusted)

Correcting the map matching vehicle position sensor

Map matching is a system that compares present location positioning data from the GPS and other sources with information concerning all the roads driven on until now in order to correct the present location onto the most appropriate road.

This device corrects the present location data compiled from a combination of independent navigation and satellite navigation and matches it with the shape of the road.

However, there may be instances when the present location error cannot be avoided and the position indicated on the map does not coincide with your actual positioning even after a correction using map matching.

Also, driving along a road whose actual shape differs from the map data may result in a vehicle position mark misalignment.

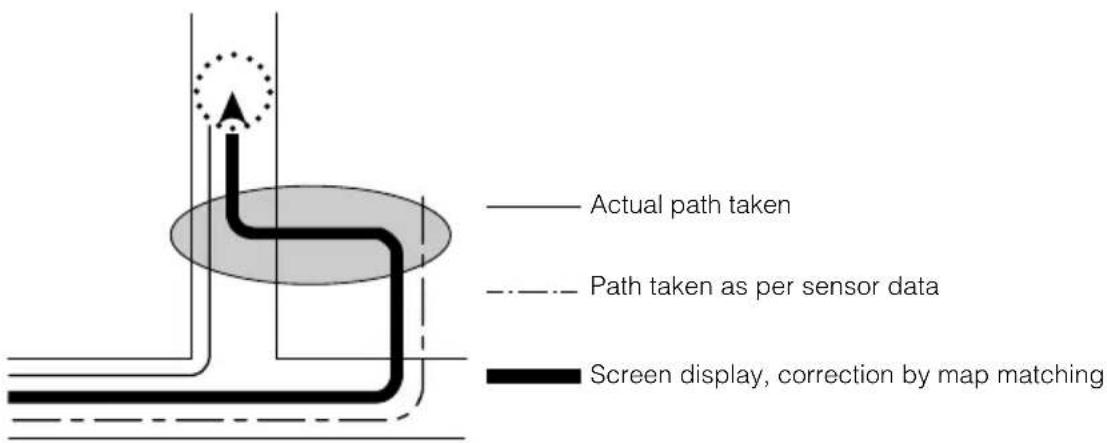

Actual path taken Path taken as per sensor data Screen display, correction by map matching

Present location display, route guidance accuracy

The following situations are not malfunctions but merely some examples where inaccurate present location positioning and/or route guidance occurs depending on the road and driving conditions.

Diagram of a car driving on an elevated road with a dashed bridge and arrow indicating speed (no text or symbols)

The present location appears on a road running parallel to the road taken.

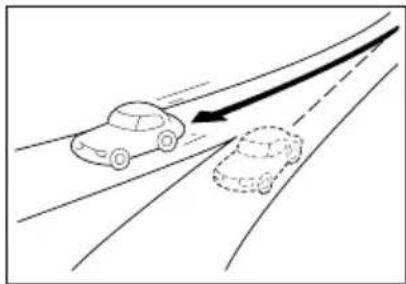

Diagram showing a car driving on a curved road with an arrow indicating direction (no text or symbols)

When turning on a road forking into two roads making a "Y" shape, the present location appears on the other road.

Diagram showing a car driving on a road with an arrow indicating direction (no text or symbols)

When making a turn, the present location appears on the road just before or after the road turned on.

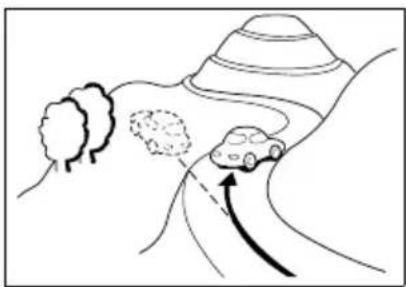

Simple line drawing of a car driving on a curved road with trees and hills (no text or symbols)

The present location appears misaligned when driving on steep roads.

Diagram of a mechanical device with rotating components and a curved path (no text or symbols)

The present location appears misaligned when driving on a continuous curve in the same direction.

Diagram showing a car driving on a road with a curved path and a dashed outline of a car (no text or symbols)

The present location appears misaligned when meandering such as changing lanes.

3. Accuracy and error

Isometric line drawing of a car parked in a garage with two windows (no text or symbols)

The present location appears misaligned when the vehicle is rotated on a parking structure turntable with the ACC turned OFF.

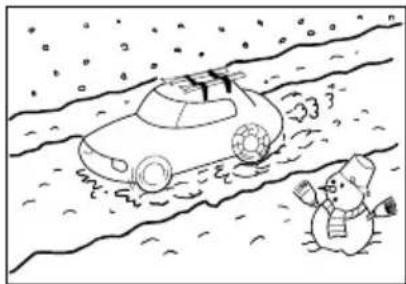

Cartoon illustration of a snowman and a car driving through water, with snow falling (no text or symbols)

The present location appears misaligned when driving on a snowbound or slippery road or when using tire chains.

Line drawing of a ship navigating through water with a lighthouse and distant vehicles (no text or symbols)

When the vehicle is moved by ferry or a means other than being driven, the GPS positioning will indicate a present location on the spot where the vehicle was prior to being moved.

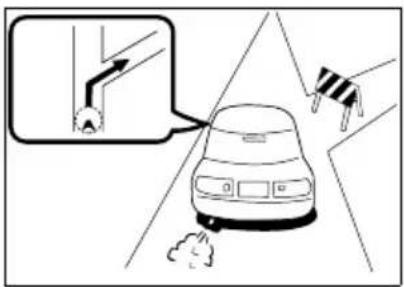

Diagram showing a car accident with a warning sign and a magnified detail of a traffic accident.

When route guidance indicates a road that is actually blocked off (regular traffic prohibited).

Diagram showing a car driving on a road with an upward arrow and speech bubble, indicating speed or direction of motion.

The present location appears misaligned when turning back.

Line drawing of a car with wheels and a wrench, no text or symbols present

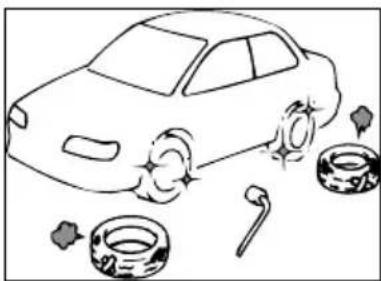

When having changed a tire(s), the vehicle position mark may be misaligned.

Road and geographic name data

The roads and geographic names are subject to change after the compilation of the map database and may differ from the actual roads and names.

Route guidance

In six tenths of a mile, right turn.

When having turned on an intersection that is not part of the route guidance, there may be an error in the voice guidance instructions.

Diagram of a car driving on a curved road with directional arrows indicating flow (no text or symbols)

When searching for a route, the route provided may include a detour.

Diagram of a car driving on a curved road with directional arrows (no text or symbols)

The route guidance may instruct a U-turn.

Diagram of a road intersection with a curved ramp and dashed lane markings (no text or symbols)

When driving on a straight road, the route guidance may instruct you to go straight (in cases where the shape of intersections is difficult to determine).

Diagram of a curved pipe or pipe with directional arrows indicating flow or movement (no text or symbols)

No route guidance may occur even if turning at an intersection.

When driving towards the destination without passing through a transit point, the device may reinitiate a route search and provide a new route that takes you towards that transit point.

3. Accuracy and error

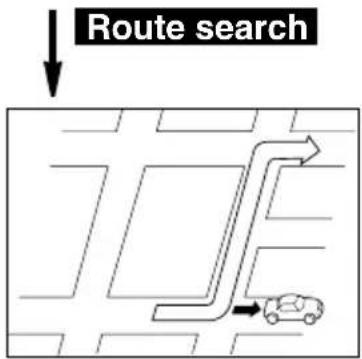

Diagram of a car driving on a road with directional arrow (no text or symbols)

When searching for a route, the route display may not appear in time for the next turn.

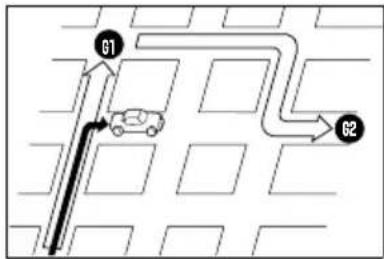

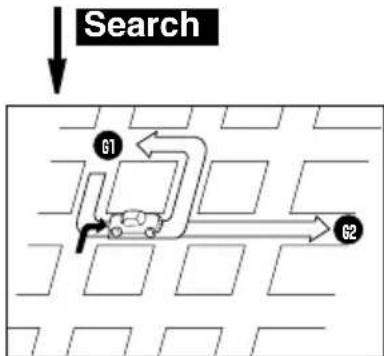

In case of multiple destinations, when having bypassed the next destination, a route search is reinitiated to provide a route returning to it.

Simple line drawing of a car driving on a curved road (no text or symbols)

While providing guidance on where you are headed, several geographical names may be indicated.

Route search

Diagram showing a car driving on a crosswalk with a traffic sign and curved arrow (no text or symbols)

Drive following the actual traffic regulations.

• The time it takes the device to reinitiate a route search while driving on a highway may be lengthy.
• When correcting the present location mark manually and then driving under conditions where the positioning is not corrected, the position will not be properly indicated.
• The route may not change even if reinitiating a search.
• If having set a present location, destination or transit point on a remote island or in an area where there are no guidable roads, the device may not search for a route.
• The device may not search for a route if the present location and the destination are in close proximity.
• The route guidance will not necessarily recommend toll roads even if having selected to prioritize toll roads in the search conditions.

Similarly, even if having selected not to prioritize toll roads, a route using toll roads may be displayed.

(The "Prioritize/Do not prioritize toll roads" setting enables the prioritization of either toll roads or local roads when a selection of one is made possible.)

MEMO

Illustration of a car's interior with city skyline and street lamp in background (no text or symbols)

1. Information you should know

If one of these messages appears

If any of the following messages are displayed, check the equipment while referring to the Cause and Remedy columns.

Messages related to general navigation

Messages Cause Corrective action
Check GPS antenna	The GPS antenna is not connected properly.	Connect the GPS antenna properly.
Check speed pulse	The device is not properly connected to the vehicle speed sensor.	Connect the vehicle speed sensor properly.
No DVD. Please insert map DVD.	The map disk is not inserted. Insert the	map disk.
Unable to read data. Check if map DVD is correct.	A disk other than the map disk is inserted.	Remove the inserted disk and insert the correct map disk.
Unable to read DVD correctly. Check if the DVD is damaged or dirty.	The data cannot be read due to scratches and/or dirt on the map disk.	Check whether there are any scratches and/or dirt on the map disk and contact the store of purchase.
DVD check in process.	The device is now reading the map disk data.	Wait until a map is displayed on the screen.
Unable to read data. Temperature is too high.	The DVD player temperature is high.	Wait until the temperature has fallen.
Too many characters were input.	Character entry count for memory point names beyond capacity.	Decrease the character entry count and reenter.
No previous points registered.	There are no previously set destinations.	Register a destination in the archive and proceed. (Setting a destination registers it in the archives.)
Home is not registered. Register in menu Memory Point.	Your home is not registered as a memory point.	Register your home as a memory point and proceed. (Refer to page 101)
No quick access point registered. Register in menu Memory Point.	A special memory is not registered for the memory point.	Register a special memory for the memory point and proceed. (Refer to page 115)
No roads possible for guidance near current position. Please refer to map.	There are no roads where route guidance is possible in the vicinity of the present location.	Refer to a map and proceed.
No roads possible for guidance near current position and destination. Please refer to map.	There are no roads where route guidance is possible in the vicinity of the present location and destination.	Refer to a map and proceed.
No roads possible for guidance near destination. Please refer to map.	There are no roads where route guidance is possible in the vicinity of the destination.	Refer to a map and proceed.
Seasonal traffic restricted roads on this route.	The system searched for a route that included a seasonally restricted segment.	If changing to a route that bypasses the seasonally restricted segment is desired, bypass the restricted segment after changing the route. (Refer to page 70)
Destination too far. Please change to a point within 5000 km in a straight line.	The set destination is too far.	Set the destination within a 5,000 km distance in straight line.
2 preferred roads have been set. Perform operation again after deleting them.	You attempted to set 3 or more transit road indications when changing the route.	Up to 2 transit roads can be indicated. Delete unnecessary transit roads before adding a new one.
No roads possible for guidance nearby. Perform operation again after moving.	There are no roads available to serve as transit roads when indicating one for a route change.	Move the map and indicate a transit road among the roads in the vicinity.
Unable to save additional points. Please delete some points.	You attempted to set more than 5 destinations.	Up to 5 destinations can be set. Delete unnecessary destinations and proceed with adding new ones. (Refer to page 79)
Unable to search for new route. Previous route will be displayed.	A new route could not be found when reinitiating a route search.	Route guidance will proceed using the present route. (Drive referring to the route guidance.)
Destination is nearby. Please check the map.	You attempted to set the destination in a nearby location.	The destination is nearby. Refer to the map and continue driving.
No corresponding POI nearby.	There is no corresponding POI found nearby for the POI search in the vicinity.	Search for the POI in another area.
No corresponding POI on route.	There is no corresponding POI found nearby for the POI search along the route.	Search for the POI in another area.
Position cannot be specified in this scale. Switching to more detailed map.	You attempted to set/register a destination/memory point on a map with a reduction scale of more than 0.5 miles.	Set/register a destination/memory point on a more detailed map (with a reduction scale of less than 0.5 miles).

For

reference

1. Information you should know

Messages Cause Corrective action
The destination is surrounded by water. Change destination?	There is a river or other body of water between the destination and the nearest road.	TouchYese the map and set a destination near the road.TouchNoset the destination on the position displayed.
No memory point registered. Register in menu Memory Point.	You attempted to retrieve a map using a memory point when there is none registered.	Register a memory point and proceed. (Refer to page 105)
Unable to register additional points. Perform operation again after deleting unnecessary points.	You attempted to register a memory point when there are 106 points already registered.	Delete unnecessary memory points and proceed to register a new one. (Refer to page 114)

Before asking for repairs

Slight differences in operation can sometimes be mistaken for malfunctions, so check the following table before asking for any repairs.

If the following fail to solve the problem, contact the place of purchase.

Items related to general navigation functions

Symptom Possible reason Corrective action
The map does not move even when driving.	Is the display showing a screen other than the present location screen?	Display the present location screen. (Refer to page 26)
The vehicle position mark does not appear.	Is the display showing a screen other than the present location screen?	Display the present location screen. (Refer to page 26)
The GPS mark does not appear.	Is the device in a situation where GPS data cannot be utilized?	Move the vehicle to an area free of obstructions or remove the object placed on the GPS antenna.
Voice guidance not outputted.	Is the "Voice Guidance" item for set up set to Off	Touch On Voice Guidance" in set up.
	Is the guidance paused?	If the route guidance is paused, resume guidance. (Refer to page 83)
	Is the guidance volume turned down (voice OFF)?	Turn up the volume. (Refer to page 25)
Small blemishes or luminescent spots on the monitor screen	This phenomenon is characteristic of liquid crystal panels. The liquid crystal panel is make with high-tech precision and has 99.99% or more effective imaging.	This is not a defect, so please use the equipment in this condition.
For a moment after turning the engine switch ON, there is an irregular display on the screen.	In cold weather, the liquid crystal panel's backlight features may emit light unevenly.	This condition stops in a few minutes as the backlight warms up.
The screen is difficult to view.	Are the contrast and brightness correctly adjusted?	Adjust the contrast and brightness. (Refer to page 21)
The vehicle position mark appears on a spot different from the actual present location. (The vehicle position mark is misaligned.)	The vehicle position mark may be misaligned depending on the satellite conditions or vehicle conditions (where and how the vehicle is driven). Also, the vehicle position mark may be misaligned if driving on a newly constructed road or on a road with a shape that differs from the shape recorded in the map data.	Continue driving and, in a moment, the present location will be automatically corrected using the map matching and GPS data. (Depending on the case, this may take several minutes.) If signals from the GPS are not utilized and the present location is left uncorrected, park the vehicle in a safe place and correct the present location. (Refer to page 132)

2. Copyright

©GDT, Geographic Data Technology, Inc.
©2003 NAVTEQ. All rights reserved.

Data by infoUSA Copyright ©2003, All Rights Reserved.

©2004 VISA Corporation

National Research Bureau ©2003

The Bullseye Design is a registered trademark of Target Brands, Inc.

END USER LICENSE AGREEMENT

PLEASE READ THIS AGREEMENT CAREFULLY BEFORE USING THE NAVIGATION SYSTEM

THIS IS A LICENSE AGREEMENT FOR YOUR COPY OF THE MAP DATABASE ("The DATABASE"), ORIGINALLY MADE BY Geographic Data Technology, Inc. ("GDT"), USED IN THE NAVIGATION SYSTEM. BY USING THE DATABASE, YOU ACCEPT AND AGREE TO ALL TERMS AND CONDITIONS SET FORTH BELOW.

OWNERSHIP

The DATABASE and the copyrights and intellectual property or neighboring rights therein are owned by GDT or its licensors.

LICENSE GRANT

GDT grants you a non-exclusive license to use your copy of the DATABASE for your personal use or for use in your business' internal operations. This license does not include the right to grant sub-licenses.

LIMITATIONS ON USE

The DATABASE is restricted for use in the specific system for which it was created. Except to the extent explicitly permitted by mandatory laws, you may not extract or re-utilize any portion of the contents of the DATABASE, nor reproduce, copy, modify, adapt, translate, disassemble, decompile, or reverse engineer any portion of the DATABASE.

TRANSFER

You may not transfer the DATABASE to third parties, except together with the system for which it was created, provided that you do not retain any copy of the DATABASE, and provided that the transferee agrees to all terms and conditions of this AGREEMENT.

DISCLAIMER OF WARRANTY

GDT does not warrant or make any representations regarding, either express or implied, regarding the use or results of the use of the DATABASE in terms of its correctness, accuracy, reliability, or otherwise, and expressly disclaims any implied warranties of quality, performance, merchantability, fitness for a particular purpose or non-infringement. GDT does not warrant that the DATABASE is or will be error free. No oral or written information or advice provided by GDT, your supplier or any other person shall create a warranty.

LIMITATION OF LIABILITY

The price of the DATABASE does not include any consideration for assumption of risk of consequential, indirect or unlimited direct damages which may arise in connection with your use of the DATABASE. Accordingly, in no event shall GDT or supplier of the navigation system using the DATABASE ("Supplier") be liable for any consequential, special, incidental or indirect damages, including without limitation, loss of revenue, data, or use, incurred by you or any third party arising out of your use of the DATABASE, whether in an action in contract or tort or based on a warranty, even if GDT or the Supplier has been advised of the possibility of such damages. In any event GDT's liability for direct damages is limited to the price of your copy of the DATABASE.

THE DISCLAIMER OF WARRANTY AND LIMITATION OF LIABILITY, SET FORTH IN THIS AGREEMENT, DO NOT AFFECT OR PREJUDICE YOUR STATUTORY RIGHTS WHERE YOU HAVE ACQUIRED THE DATABASE OTHERWISE THAN IN THE COURSE OF A BUSINESS.

Some states and laws do not allow the exclusion of implied warranties, so the above disclaimer may not apply to you.

WARNINGS

The DATABASE reflects reality as existing before you received the DATABASE and it comprises data and information from government and other sources, which may contain errors and omissions. Accordingly, the DATABASE may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and due to the nature of the sources used. The DATABASE does not include or reflect information on - inter alia - neighborhood safety; law enforcement; emergency assistance; construction work; road or lane closures; vehicle or speed restrictions; road slope or grade; bridge height, weight or other limits; road or traffic conditions; special events; traffic congestion; or travel time.

GOVERNMENT END USERS

If the DATABASE is for a region of North America and is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, the DATABASE is licensed with "limited rights." Utilization of the DATABASE is subject to the restrictions specified in the "Rights in Technical Data and Computer Database" clause at DFARS 252.227-7013, or the equivalent clause for non-defense agencies. Manufacturer of the DATABASE for North America is Geographic Data Technology, Inc., at 11 Lafayette Street, Lebanon, New Hampshire 03766, USA.

2. Copyright

END USER NOTICE

PLEASE READ THIS NOTICE CAREFULLY BEFORE USING THIS NAVIGATION SYSTEM

The Point Of Interest Data ("POI" Data) in the navigation system is in part provided by infoUSA Inc. ("infoUSA"). By using the POI Data, you accept and agree to all terms and conditions set forth below.

1. Ownership

All rights, title and interest to the infoUSA POI Data shall be retained by infoUSA.

2. Limitations on use

Except to the extent explicitly permitted by mandatory laws, you may not extract or re-utilize any portion of the contents of the POI Data, nor reproduce, copy, modify, adapt, translate, disassemble, decompile, or reverse engineer any portion of the POI Data.

3. Transfer

You may not transfer the POI Data to third parties, except together with the system for which it was created, provided that you do not retain any copy of the POI Data.

4. Disclaimer of warranty

EXCEPT AS STATED HEREIN, INFOUSA MAKES NO EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR WARRANTY OF MERCHANTABILITY.

5. Limitation of Liability

EITHER INFOUSA OR SUPPLIER OF POI DATA SHALL NOT BE LIABLE FOR ANY INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES MADE OR ALLEGED IN CONNECTION WITH YOUR USE OF THE POI DATA.

END USER LICENSE AGREEMENT

Personal Use Only. You agree to use this information for solely personal, non-commercial purposes, and not for service bureau, time-sharing or other similar purposes. You may not modify the information or remove any copyright notices that appear on the information in any way. You may not decompile, disassemble or reverse engineer any portion of this information, and may not transfer or distribute it in any form, for any purpose. Without limiting the foregoing, you may not use this information with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications.

No Warranty. This information is provided to you "as is," and you agree to use it at your own risk. DENSO and its licensors (and their licensors and suppliers, collectively "DENSO") make no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, and DENSO expressly disclaims any warranties regarding content, quality, accuracy, completeness, effectiveness, reliability, fitness for a particular purpose, non-infringement, usefulness, use or results to be obtained from this information, or that the information or server will be uninterrupted or error-free.

Some states, territories and countries do not allow certain warranty exclusions, so to that extent, the above exclusion may not apply to you.

Disclaimer of Liability: DENSO SHALL NOT BE LIABLE TO YOU FOR ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF ITS NATURE, ALLEGING ANY LOSS, INJURY OR DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING ANY LOSS OF PROFIT, REVENUE OR CONTRACTS ARISING OUT OF YOUR POSSESSION, USE OF OR INABILITY TO USE THIS INFORMATION, ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF DENSO OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states, territories and countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.

Indemnity. You agree to indemnify, defend and hold DENSO and its licensors (including their respective licensors, suppliers, assignees, subsidiaries, affiliated companies, and the respective officers, directors, employees, shareholders, agents and representatives of each of them) free and harmless from and against any liability, loss, injury (including injuries resulting in death), demand, action, cost, expense, or claim of any kind or character, including but not limited to attorney's fees, arising out of or in connection with any use or possession by you of this information.

END USER NOTICE

The marks of companies displayed by this product to indicate business locations are the marks of their respective owners. The use of such marks in this product does not imply any sponsorship, approval, or endorsement by such companies of this product.

END-USER TERMS

The Map Data Disc ("Data") is provided for your personal, internal use only and not for resale. It is protected by copyright, and is subject to the following terms and conditions which are agreed to by you, on the one hand, and [LICENSEE] ("[LICENSEE]") and its licensors (including their licensors and suppliers) on the other hand. Such licensors include NAVTEQ North America, LLC [insert "NAVTEQ B.V." where European Licensed Data is used]. Without limiting the foregoing, you agree that NAVTEQ North America, LLC shall have the right to enforce these Terms directly against you.

©2003 NAVTEQ. All rights reserved.

2. Copyright

TERMS AND CONDITIONS

Personal Use Only.

You agree to use this Data for the solely personal, non commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you may copy this Data only as necessary for your personal use to (i) view it, and (ii) save it, provided that you do not remove any copyright notices that appear and do not modify the Data in any way. You agree not to otherwise reproduce, copy, modify, decompile, disassemble or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. You may transfer the Data and all accompanying materials on a permanent basis if you retain no copies and the recipient agrees to these End-User Terms. Multi-disc sets may not be transferred on a divided basis.

Restrictions.

Except where you have been specifically licensed to do so by [LICENSEE] and without limiting the preceding paragraph, you may not (a) use this Data with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (b) with or in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without limitation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs.

No Warranty.

This Data is provided to you "as is," and you agree to use it at your own risk. [LICENSEE] and its licensors (and their licensors and suppliers) make no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, fitness for a particular purpose, usefulness, use or results to be obtained from this Data, or that the Data or server will be uninterrupted or error-free.

Disclaimer of Warranty:

[LICENSEE] AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS) DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. Some States, Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.

Disclaimer of Liability:

[LICENSEE] AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THIS INFORMATION, ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF [LICENSEE] OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States, Territories and Countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.

Export Control.

You agree not to export from anywhere any part of the Data provided to you or any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations.

Entire Agreement.

These terms and conditions constitute the entire agreement between [LICENSEE] (and its licensors, including their licensors and suppliers) and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.

Governing Law.

The above terms and conditions shall be governed by the laws of the Illinois [insert "the Netherlands" where European Licensed Data is used], without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of Illinois [insert "the Netherlands" where European Licensed Data is used] for any and all disputes, claims and actions arising from or in connection with the Data provided to you hereunder.

Government End Users.

If the Licensed Data is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, (i) for acquisitions conducted by the Department of Defense, the Licensed Data is licensed with "Limited Rights" in accordance with the rights set forth at DFARS 252.227-7013(b)(3), TECHNICAL DATA-NONCOMMERCIAL ITEMS, and Licensed Data delivered or otherwise furnished with "Limited Rights" shall be marked with the following "Limited Rights Notice" set forth at DFARS 252.227-7013(f)(3), and shall be treated in accordance with such Notice:

2. Copyright

LIMITED RIGHTS

CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQ North America, LLC CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS:

222 Merchandise Mart Plaza, Suite 900, Chicago, Illinois 60654

The Government's rights to use, modify, reproduce, release, perform, display, or disclose these technical data are restricted by paragraph (b)(3) of the Rights in Technical Data-Noncommercial Items clause contained in the above identified contract. Any reproduction of technical data or portions thereof marked with this legend must also reproduce the markings. Any person, other than the Government, who has been provided access to such data must promptly notify the above named Contractor.

and; (ii) for civilian agency acquisitions, the Licensed Data is licensed in accordance with the rights set forth at FAR 52.227-14(g)(1), RIGHTS IN DATA-GENERAL (Protection of limited rights data and computer software). In the event that the Contracting Officer requires the delivery of limited rights Licensed Data that has been withheld or would otherwise be withholdable in accordance with FAR 52.227-14(g)(1), the Licensed Data is licensed with "Limited Rights" as set forth in the following "Limited Rights Notice" at FAR 52.227-14(g)(2) (Alternate II), which shall be affixed to the Licensed Data and the Licensed Data shall be treated in accordance with such Notice (which shall be marked on any reproduction of these data, in whole or in part):

LIMITED RIGHTS NOTICE (JUN 1987)

These data may be reproduced and used by the Government with the express limitation that they will not, without written permission of the Contractor, be used for purposes of manufacture nor disclosed outside the Government; except that the Government may disclose these data outside the Government for the following purposes, if any, provided that the Government makes such disclosure subject to prohibition against further use and disclosure: There are no additional purposes permitting disclosure of such Data.

The manufacturer/supplier of the Data is NAVTEQ North America, LLC, 222 Merchandise Mart Plaza, Suite 900, Chicago, Illinois 60654.

If the Contracting Officer refuses to use either of the licenses provided in (i) or (ii), herein, the Contracting Officer must notify NAVTEQ North America, LLC prior to seeking additional or alternative rights in the Licensed Data.

3. Glossary

In order to use this device effectively, please keep the following definitions in mind.

GPS (Global Positioning System)

Illustration of satellite communication with ground stations and a car driving on a road, no text or symbols present

The GPS is a system that uses signals received from a satellite in a maximum orbit of approximately 21,000 km above the earth to indicate your present position (latitude, longitude, altitude).

These satellites were launched into space by the U.S. Department of Defense to be used for military purposes. This system was released for public utility.

Independent navigation

This technology uses data from a vehicle speed sensor and vibration gyro sensor to track the path followed by your vehicle in order to pinpoint your present location.

The present location of your vehicle can be pinpointed even in tunnels and under elevated roads.

Positioning

6:12 300ft GPS 25 mi 27 min MOGELLAN OR HOMILTON AVE 0.6mi S VERMONT AVE OFF Map View Route Mark

Signals are received from 3 or more GPS satellites to pinpoint the present location of your vehicle. The device will display a mark on the upper left part of the present location screen when it is receiving signals from 3 or more satellites and positioning is rendered possible.

(The mark is not displayed on the setting or registration screens.)

3. Glossary

2- and 3-dimensional positioning

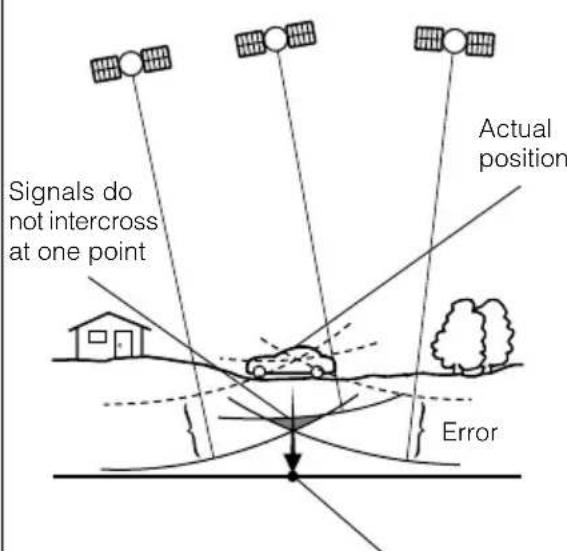

Signals do not intercross at one point Actual position Error

Position determined by 2-dimensional measurement

The GPS calculates your position using a 3-point measurement principle.

Signals received from one satellite are used to determine the distance from that satellite to your vehicle. Signals received from 3 satellites can pinpoint your present location.

However, there exists a margin of error in the GPS satellite and navigation unit resulting in 2-dimensional positioning using latitudinal and longitudinal coordinates if signals from only 3 satellites can be received. In such a case, accuracy is low.

Also, when receiving signals from 4 or more satellites, 3-dimensional positioning is effectuated using the latitude, longitude and altitude of your vehicle. 3-dimensional positioning is more accurate than 2-dimensional positioning and the vehicle position display error margin is reduced.

Vibration gyro sensor

This sensor electronically detects in which direction your vehicle turned.

This sensor plays a very important role in the independent navigation function of this device.

4. Index by topic

Information about the maps

[Map displays]

■ Info on how to view the map screens

"How to view the navigation screen"...... Page 14

■ Info on the present location

"Present location display"...... Page 26

■ Info on how to move the map

● How to view a map in the vicinity of the present location
"Moving the map (one-touch scroll)" Page 27
● How to view the street name while scrolling
"Setting the Street Name display while scrolling"...... Page 28

■ Info on how to delete the touch switches appearing on the maps

"Switching the touch switch display" Page 28

■ Info on how to change the map size (reduction scale)

● How to switch from a 250 mile to a 75 ft scale
"Switching the map reduction scale"...... Page 30

■ Info on how to change the map display method

● How to change the map orientation
"Switching the map orientation" Page 32

● How to display a double screen

"Switching to double screen display"...... Page 33

■ Info on how to display various data on a map

● How to display POIs
"POI display" Page 36

● How to display the arrival time at the destination

"Switching the touch switch display" ...... Page 28

How to display the present time

"Switching the Time Zone" Page 23

4. Index by topic

■ Info on how to switch the map image quality

● How to change the brightness and contrast "Screen adjustment" ...... Page 20
- How to change the map color "Switching the map display color" ...... Page 22

[Retrieving a map]

■ Info on how to retrieve a map

"How to retrieve maps"...... Page 45

• How to retrieve a map by entering a POI name or part of an address "Retrieving a map using a POI name"...... Page 50
• How to retrieve a map by searching for an address "Retrieving a map using an address" ...... Page 48
• How to retrieve a map for the police station/hospital "Retrieving a map in the event of an emergency" ...... Page 56
• How to retrieve a map from a registered point "Retrieving a map using a memory point"...... Page 56
• How to retrieve a map from the previous destination "Retrieving a map using the archive" ...... Page 57
• How to retrieve a map from the intersection name "Retrieving a map using an intersection name" ...... Page 57
• How to retrieve a map from the freeway exit/entrance name "Retrieving a map using a freeway exit/entrance name"...... Page 59
• How to retrieve a map by entering the latitude/longitude "Retrieving a map using the latitude/longitude"...... Page 60

Route guidance

[Prior to starting route guidance]

■ Info on how to set a destination

"Setting a destination"......Page 64

■ Info on how to start route guidance

"Starting route guidance"......Page 83

■ Info on how to display alternate routes

"3-route simultaneous display (3-route search function)"......Page 73

[Prior to starting route guidance or while route guidance is in progress]

■ Info on the route up to the destination (guided roads)

"Display route data (guided road information)" Page 72

■ Info on how to add a destination

"Adding a destination" Page 75

■ Info on how set a transit road

"Indicating a transit road"......Page 80

■ Info on how to change the displayed route

"Change the search conditions for each interval"......Page 77

[While route guidance is in progress]

■ Info on how to change the voice guidance volume

"Setting the volume"...... Page 25

■ Info on junction intersection landmarks

"Voice guidance"......Page 91

■ Stopping route guidance

- How to pause route guidance without deleting the destination(s) "Pausing and restarting route guidance"......Page 83

- How to pause route guidance and delete the destination(s) "Deleting a destination"......Page 79

■ Info on how to display all-route diagrams

"Redisplaying the all-route display" Page 93

■ Info on how to change the displayed route

■ What to do when having deviated from the displayed route

"Reinitiating a route search"......Page 96

4. Index by topic

Others

[Useful functions]

■ Info on how to change the menu screen color

"Setting the wallpaper"......"OPERATION GUIDE/Audio"

■ Info on how to place a symbol on the map

● How to mark your home
"Registering, correcting or deleting your home"...... Page 101

● How to mark a desired location

"Registering memory points"......Page 105

"Registering a special memory point"......Page 115

[When something isn't clear]

■ I don't understand how to move the list screen

"How to switch the list screens" Page 19

■ I don't understand the screen message

"If one of these messages appears"...... Page 144

■ Was that a malfunction?

"Before asking for repairs"...... Page 147

■ When the GPS mark does not appear

"GPS" Page 16

MEMO

Illustration of a car's front wheel and dashboard with city skyline background (no text or symbols)

For

reference

5. INDEX

Numerics

3-route simultaneous display (3-route search function)...... 73

A

Accuracy and error ..... 136 All-route display ..... 67 Automatic reroute search ..... 99

C

Correcting the distance.... 134

D

Deleting entries from the destination archive.... 123 Display seasonally restricted segment .... 70 Double screen display .... 33

F

Ferry crossings.... 87 Free zoom .... 30

G

GPS 16

H

Heading up display.... 32 Highway junction guidance .... 89 How to retrieve maps .... 45 How to view the navigation screen.... 14

1

Indicating a transit road ..... 80 Intersection guidance ..... 84

N

Name entry.... 112 North up display.... 32

0

On-route scroll.... 95 Orientation mark.... 14

P

POI display.... 36 Point registration .... 100 Present location correction .... 132

R

Rear View Camera operations .... 126 Registering detour memory points.... 119 Registering memory points.... 101 Registering special memory points.... 115 Registering your home .... 101 Reinitiating a route search.... 96 Route data (guided road information) .... 72 Route search .... 63

S

Scale display.... 15

Setting a destination...... 62

Setting the average

speed 88

Starting, pausing and

restarting route guidance... 83

Switching the distance

remaining display.... 94

Switching the map

reduction scale.... 30

SYSTEM CHECK 125

V

Vehicle position mark ..... 15

Voice guidance 91
