Product Type	Freestanding Washing Machine
Model Number	C510WM11
Brand	Currys Essentials
Capacity	5 kg
Maximum Spin Speed	1000 rpm
Energy Class	A+
Dimensions (H x W x D)	85 cm x 40 cm x 60 cm
Weight	55 kg
Power Supply	220-240 V, 50 Hz, 10 A
Wash Programs	Cotton, Synthetics, Delicates, Quick 30', Wool, Hand Wash, Rinse, Spin
Temperature Settings	Cold, 30°C, 40°C, 60°C, 90°C
Spin Speed Settings	0, 400, 600, 800, 1000 rpm
Display Type	LED with digital display
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	Yes, automatic water stop
Door Type	Front loading, 180° opening
Noise Level (Wash/Spin)	62 dB / 78 dB
Water Consumption per Cycle	45 liters (eco mode)
Annual Energy Consumption	180 kWh/year (based on 220 cycles)
Spare Parts Availability	Door seal, drum bearings, pump, control board available from Currys
Repairability Index	8.1 / 10 (France)
Included Accessories	Inlet hose, drain hose, user manual, transit bolts

Frequently Asked Questions - C510WM11 Currys Essentials

How do I install my Currys Essentials C510WM11 washing machine?

First, remove all packaging and transit bolts. Place the machine on a level surface. Connect the inlet hose to a cold water supply with a 3/4 inch thread. Attach the drain hose to a standpipe or sink outlet. Plug into a grounded outlet. Level the feet using the adjustable feet. Run a first cycle without laundry to clean the drum.

What detergent should I use for this washing machine?

Use a low-sudsing detergent suitable for front-loading machines. For cotton cycles, powdered detergent is recommended. For synthetics and delicates, liquid detergent is preferable. Avoid using too much detergent as it can cause oversudsing.

How do I clean the drain filter?

The drain filter is located at the bottom front of the machine behind a kick panel. Open the panel, place a tray under the filter, and unscrew it clockwise. Remove any lint or debris. Clean the filter with water and reinstall securely. Perform this every 2-3 months to maintain performance.

What does error code E30 mean?

Error code E30 indicates a problem with the door lock. Ensure the door is fully closed and no clothing is caught. If the error persists, the door lock mechanism may need replacement. Contact Currys support for assistance.

Can I wash my duvet in this machine?

Check the care label of your duvet. The C510WM11 has a 5 kg capacity, so a single duvet (up to 200×200 cm) can be washed but may be cramped. Use the Delicate or Hand Wash program at 30°C with a low spin speed. Do not overload.

How do I reset the machine if it stops mid-cycle?

If the machine stops mid-cycle, first check if the water supply is on and the drain is not clogged. Turn the program dial to the Off position, wait 2 minutes, then turn back to the desired program. If the machine does not respond, unplug it for 10 minutes and then plug back in.

What is the maximum spin speed for delicate items?

For delicate items, we recommend selecting a spin speed of 400 rpm or 600 rpm to prevent fabric damage. Wool and hand wash programs will automatically set a low spin speed.

Why is my washing machine vibrating during spin?

Vibration can be caused by unevenly distributed laundry, missing transit bolts, or an unlevel machine. Ensure the load is balanced, the transit bolts are removed, and the feet are adjusted to level the machine. Also check that the floor is solid.

How often should I run a cleaning cycle?

Run a drum clean or self-clean cycle every 2 months. Use a washing machine cleaner or a cup of white vinegar. Set the machine to the highest temperature (90°C) and run an empty cycle. This prevents mold and detergent buildup.

Where can I find spare parts for my Currys Essentials C510WM11?

Spare parts such as door seals, inlet hoses, drain pumps, and control boards are available from Currys' official website or authorized repair centers. Provide the model number C510WM11 when ordering. For out-of-warranty repairs, consider third-party suppliers but ensure compatibility.

USER MANUAL C510WM11 Currys Essentials

Front view of a white disposable washing machine with a circular vent and control panel (no visible text or symbols)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Contents

Unpacking 4

Installing Your Washing Machine .... 5

Choosing the Right Location for Your Washing Machine ....5

Moving and Installing 6

Removing the Anchor Bolts....6

Moving the Washing Machine from One Location to Another 6

Hose and Cable Lengths....7

Levelling the Washing Machine ....7

Water Supply Hose....7

Water Drain Hose....8

Connecting to the Mains Supply 8

Product Overview....9

The unit 9

Control Panel 10

Preparation 11

Organising Laundry....11

Preparing Laundry ....11

Adding Detergent and Softener 11

Selecting the Programme....12

Wash Setting....13

Standard Washing 13

Removing Washing (Once program is finished)....13

Important Information....14

Washing (Wool Programmes)....14

Which Detergent to Use....14

Tips for Hanging Delicate Items to Dry....14

If Clothing Shrinks in the Wash....14

How to Use Laundry Starch....15

How to Use Salt....15

Maintenance - Cleaning the Washing Machine 16

Cleaning the Drum....16

Cleaning the Exterior of your Washing Machine....16

Cleaning the Detergent Drawer....16

Cleaning the Door Seal and Window 16

Cleaning the Drain Filter....17

Preventing a Frozen Water Supply Hose....17

Cleaning the Filter Net of the Water Supply Hose....17

Hints and Tips 18

Troubleshooting....20

Specification 21

Safety Warnings....22

Thank you for purchasing your new Currys Essentials Washing Machine.

We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

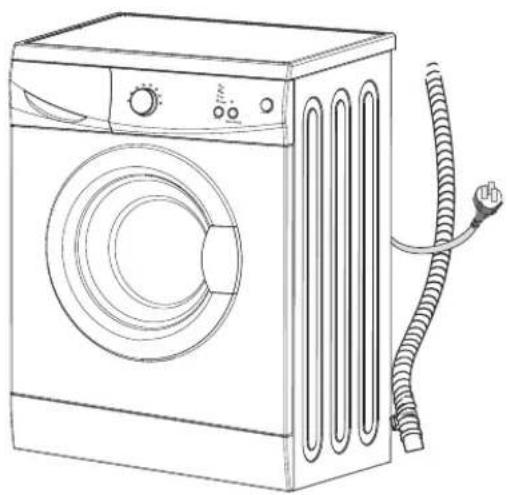

Line drawing of a front-loading washing machine with a coiled cord and control panel (no text or symbols)

The Main Unit Cover Cap x 4

Water Supply Hose x 1 P.N.: 301101000843

P.N.: 301130650057

U - shape Holder x 1

P.N.: 301114200808

For fixing the water drain hose.

Instruction Manual

P.N.: C510WM11-001

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Installing Your Washing Machine

Please read and follow the instructions carefully.

• In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.

Additional space (240mm) is required for the rear side of the washing machine. This is to allow enough space for the water hose and drain hose.

Choosing the Right Location for Your Washing Machine

• Make sure there's enough space for your washing machine.
  • Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
• Don't install your washing machine in direct sunlight or in a place where temperatures reach freezing.

✗ Sloping surface
Unstable Bumpy
surface

Two or more people are required to carry the washing machine.

• Start by tilting the washing machine backwards.
- One person should stand behind it, holding the rear of the top panel. The other person should grip the bottom feet at the front.
- Don't touch the door opening button while holding.
- Check that you have all the required accessories for installation.
- Entrust the installation of the washing machine to a qualified technician or service agent.

INSTALLATION

Moving and Installing

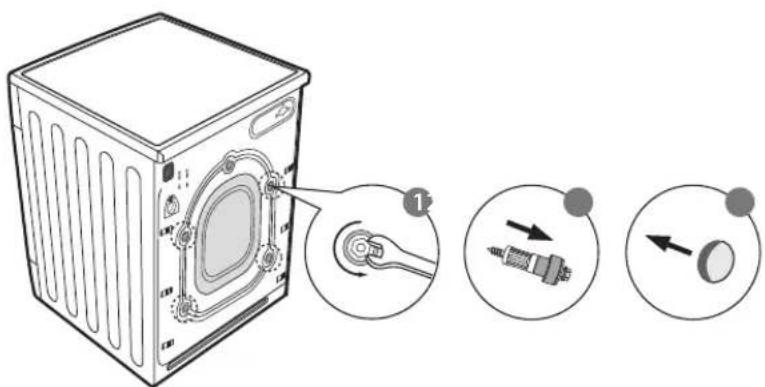

Removing the Anchor Bolts

Four anchor bolts keep the interior of the washing machine in place while it's being moved.

They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below.

Don't run the washing machine without removing the bolts, as this can cause excessive vibrations.

To remove the anchor bolts:

1. Use a spanner to loosen the four bolts. They are located at the rear side of the washing machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Remove the 4 plastic bolt guides if not removed with the bolt.

You'll need the anchor bolts again if you move the washing machine, so make sure you keep them in a safe place.

Moving the Washing Machine from One Location to Another

Make sure to fix the anchor bolts prior to moving the washing machine.

Before you move the washing machine

• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from the pump hose.
  • Depressurise the water supply hose and remove it.
• Disconnect the mains cable.
• Attach the anchor bolts.

INSTALLATION

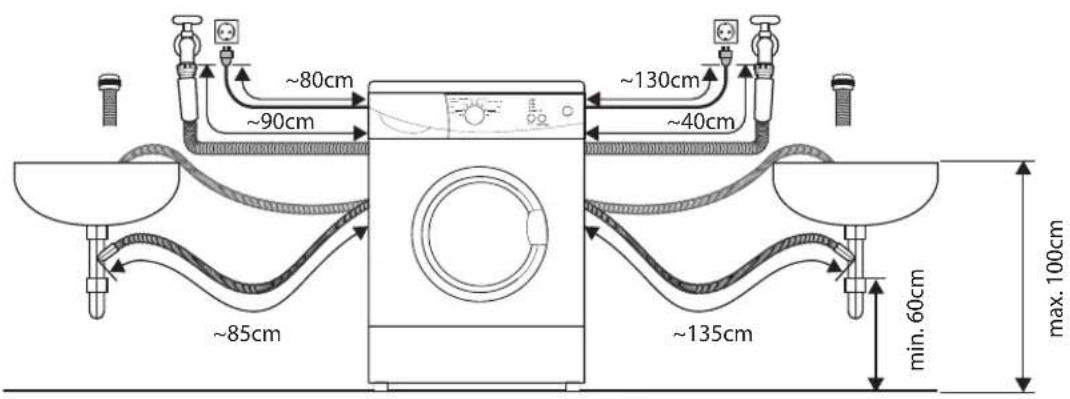

Hose and Cable Lengths

How to connect from the left side

How to connect from the right side

Levelling the Washing Machine

There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level.

1. On each stand, loosen the lock nut by turning it clockwise with a spanner.
2. Adjust all four feet in this way.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the washing machine body), again using a spanner.

Ensure all four lock nuts are tightened securely. Check the feet are still bolted to the washing machine - if they're unbolted, the washing machine will move around.

Water Supply Hose

Points to remember

• Follow the instructions in this section to avoid water leaks.
- Don't connect the hose to a combination tap.
- Don't twist, squash, modify or cut the hose.
- Optimum water pressure in the main pipe is 0.02 MPa - 1.0 MPa. If the water pressure is set higher than this, you will need to install a depressurising valve. Water-flow from the tap should be more than 5 litres per minute. If you're unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to cold water mains using the new water inlet hose provided.

Connecting the Water Supply Hose

1. Attach the hose to a tap, and tighten the plastic joint by hand.
2. Open the tap slowly and check that there are no leaks around the joint.

The joint is subject to water pressure.

INSTALLATION

Leak-proof System - Overflow Detection

This system is designed to prevent water leaks from the washing machine. If water collects in the washing machine above a certain level, this function prevents the washing machine overflowing by stopping the water supply and activating the drain pump.

Water Drain Hose

Points to remember:

• Don't twist, pull out or bend the drain hose.
• Your washing machine should be no more than 100cm from the drain outlet.

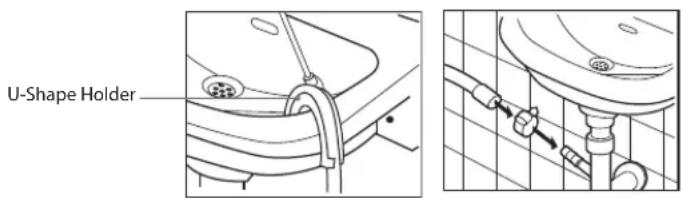

Draining to a sink or wash-basin

• Secure the drain hose in position, so it can't drop out of the basin.
• Don't block the basin's drain outlet, and make sure that the drainage through it is sufficient.
• Don't let the tip of the drain hose dip into the drained water, as this can cause the water to flow back into the washing machine.

Draining to a wash-basin Draining to a drain hose

Connecting to the Mains Supply

For your safety:

• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance.

Installation Check List

By now, you should have installed the washing machine.

Let's go through the checklist to ensure that the installation has been done correctly!

Questions Checkbox
Anchor bolts - Have you removed them and attached the cover caps properly?
4 levelling feet	Are they bolted securely to the washing machine?
	Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to 240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?

Product Overview

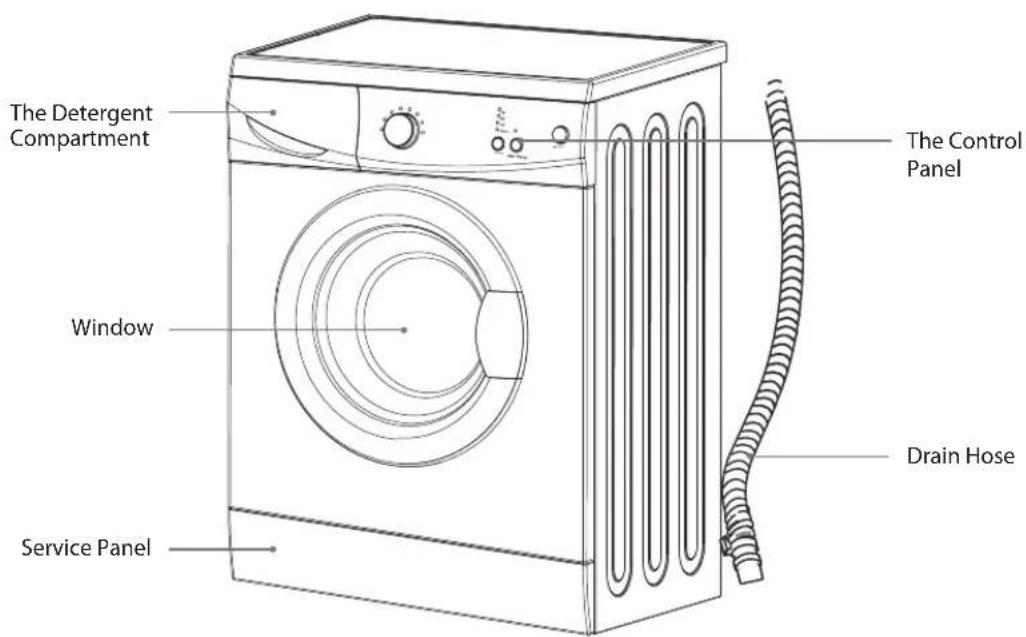

The unit

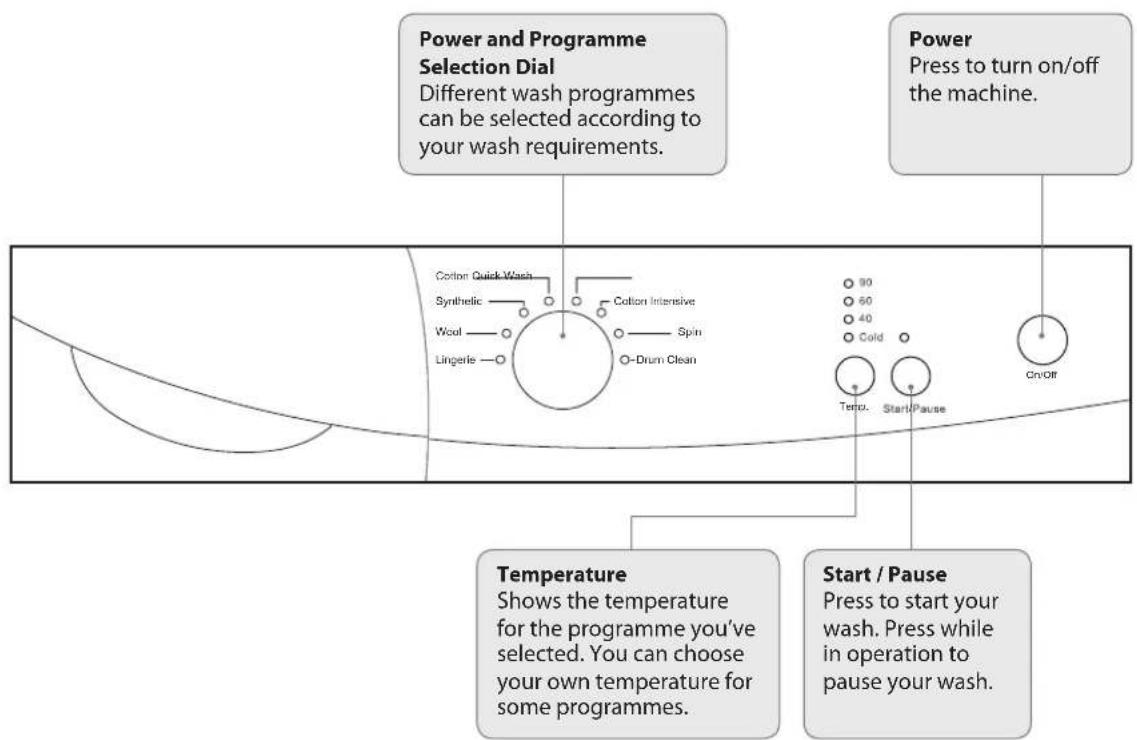

Control Panel

• If you need to change a setting, press Start / Pause button and then re-select the desired program.
• Water is poured into the washing machine to perform an inspection at the time of shipment from the factory, so there may be drops of water or condensation in the washing machine. This is not an indication of a malfunction.

Preparation

Read the following to understand how best to prepare your laundry for washing.

Organising Laundry

• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is.

This will help you choose the correct programme and temperature for each wash.

• Do not exceed maximum load!
• Be careful not to trap any items of clothing.

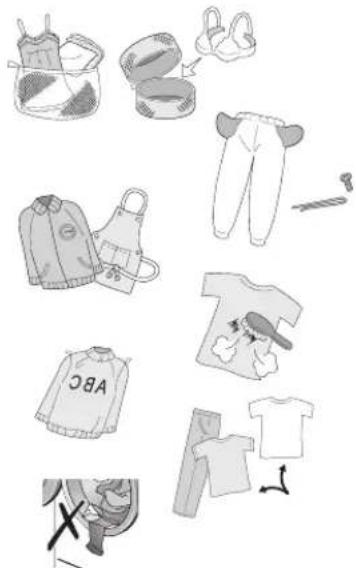

Preparing Laundry

• Treat stains before washing.
- Some items should to be put into a cleaning net before going into the washing machine. i.e. bras with metal wires, tights and lace clothing to prevent damage. Check that pockets do not contain any objects which may damage your clothes and the washing machine.
- Tie up any loose strings on laundry, close zippers and reverse clothing with zips inside out.
- Remove any surplus hair, animal fur, sand, and other materials with a brush before washing.
• If clothes have raised fabric turn them inside out.
• Clothes that are not colour fast should be washed separately.
- Insert your clothes into the washing machine. Close the washing machine door. Ensure not to trap any items of clothing between the loading door and rubber seal.

Illustration of various clothing and apparel items including jackets, pants, T-shirts, and accessories (no text or symbols)

Adding Detergent and Softener

• Add detergent into the appropriate dispenser.
• Apply softener before you start washing to prevent static.
• Apply detergent and softener according to the washing amount, the soiling level, the water hardness in your area and the manufacturer's instructions of these products.

Main wash detergent

Softener

Pre-wash detergent

Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the overflow. Maximum level is 40ml.

• Do not use washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally.
• If you forget to add detergent, you can drain the washing machine by running a spin only programme. Then you can add detergent and start the programme again. Detergent only reaches the drum when water flushes through the detergent drawer.
• To prevent powered detergent staying in the drawer, dry the inside of the drawer with a cloth. Make sure the powder isn't lumpy when you add it into the drawer.
• If the rinse cycle isn't removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has finished.

Selecting the Programme

Here are the available programmes, additional functions and option settings.

Temperature can be selected separately for certain programmes.

Programme Description		Max Temperature	Max Load (kg)	Preset Setting
				Default Spin (rpm)	Approximate Time (Min)
Cotton	Cold	For average soiled cottons, household linens and work / play clothes.	20°C 5.0 1000 90
	40°C 40°C 5.0 1000
	60°C 60°C 5.0 1000
	90°C 90°C 5.0 1000 140
Synthetics	Cold	For average or lightly soiled garments for mixed cotton, linen and man-made fabrics.	20°C 2.5 700 80
	40°C 40°C 2.5 700
	60°C 60°C 2.5 700
Cotton Intensive	Cold	Increase the washing effects, main additional washing time is increased.	20°C 5.0 1000 130
	40°C 40°C 5.0 1000
	60°C 60°C 5.0 1000
	90°C 90°C 5.0 1000 160
Quick	Cold	For lightly soiled cottons, household linens and work / play clothes.	20°C 1.5 1000 15
	40°C 40°C 1.5 1000 20
Wool	Cold For machine	washable woolens and other items marked with hand wash care label.	20°C 1.5 400 45
	40°C 40°C 1.5 400
Lingerie	Cold	Underwear cycle which is specially made for washing underwears is demanding much more water	20°C 5.0 1000 90
	40°C 40°C 5.0 1000
	60°C 60°C 5.0 1000
	90°C 90°C 5.0 1000 140
Spin Sperate spin procedure - 5.0 1000 12
Drum clean 90°C		This cycle is specially set in this machine to clean the drum and tube.	90°C	-500 100

• Washing times depend on programme and temperature settings selected.
• Washing times may be longer if the laundry in the drum needs to be balanced.

Wash Setting

Standard Washing

1. Press the Power button.
2. Pull the door handle and put the laundry in the drum. (Refer to page 12 for sorting your laundry before it goes into the drum.) Make sure no washing gets caught in the door.
3. Close the door and turn the Power & Programme Selection Dial to select your wash programme.
4. Add detergent into the detergent drawer. The quantity of detergent will depend on the amount of laundry, the degree of soiling and the water hardness. Use the amount of detergent suggested on the packaging.
5. Press the Start / Pause button to start the washing.
6. The washing machine will sound when the programme is complete.

Illustration of four different household items: a microwave oven, a rectangular box, a plastic bottle, and a clear water bottle (no text or symbols present)

If the door is locked and you switched the washing machine off - or if there's a power cut - it will stay locked for 1 minute.

When you start the washing machine, the Start / Pause indicator change from flashing to on.

Removing Washing (Once program is finished)

Door remains locked for 1 minute after wash stopped.

1. Open the washing machine door and remove your washing.
2. Remove any foreign objects to avoid risk of rusting.
3. Leave the door and detergent drawer open so that residual water can evaporate.

Important Information

Washing (Wool Programmes)

These programmes rock the drum gently for best results on delicate laundry.

• Delicate laundry loads: 1.5kg or less
• Tips for Wool programme:

Approximate Weights:

• Wool sweater (400g)
• Silk blouse / under garment (200g)
• Trousers (400g)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Which Detergent to Use

• For wool items, use a mild liquid detergent. Other detergents may damage your clothes.
- With Wool or Silk programmes, you may need to use the Extra Rinse cycle to remove excess detergent from your clothes. This depends on the amount of detergent you use, and the amount of foam that develops in the main wash cycle.
- To do this, once the programme has finished, select the "Wool" programme to rinse again. Then select "Rinse" using the Power & Programme Selection Dial and press the Start / Pause button.

Tips for Hanging Delicate Items to Dry

• Hang white or light colour clothes, wool and nylon away from direct heat or sunlight.
  • After washing, smooth creases and folds out of wool and nylon clothes and return them to their normal shape before hanging in the shade.
• Use a hanger for shirts, blouses and trousers. You can wrap a towel around the hanger to fit the shoulder width of your clothes, so they retain their shape as they dry.
• Spread woollen items such as seaters out to dry.

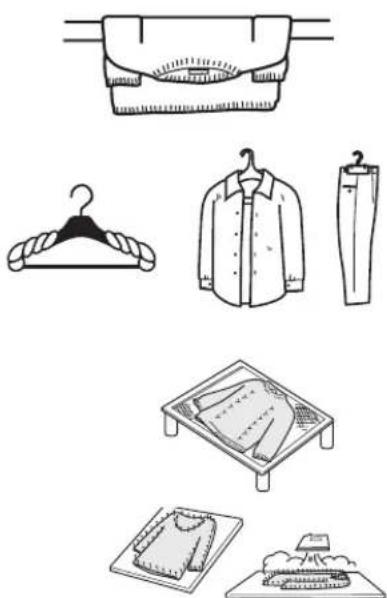

If Clothing Shrinks in the Wash...

- You can spread the item out to its original size on an ironing board, and use dress pins to hold the size and shape. Then use an iron to steam the item and leave it to dry.

Illustration of various clothing items including hangers, jackets, dresses, and accessories (no text or symbols)

How to Use Laundry Starch

Laundry starch makes your clothes crisp in texture.

Synthetic laundry starch is a stiffening agent.

• To use laundry starch, simply add it to the softener compartment, next to where you add detergent. It will automatically be applied to your clothes as part of the final rinsing cycle.
• If it's hard to pour, you can dilute the starch slightly with water before adding it to the softener compartment. Make sure you don't fill the compartment over the MAX level.

After using starch, clean the detergent drawer, especially the softener cover. Then remove any excess starch in the drum, run a "Quick Wash" programme without detergent.

How to Use Salt

If the water in your area is hard, deposits will form in the drum. To reduce the hardness of the water, you will need to add a water softening agent after the detergent to the main wash compartment. If you use other treatments like fabric softener or a stain remover, add them to your wash in the following order:

1. Detergent 2. Salt 3. Stain remover

It is recommended that adjustments should be made according to the water hardness level in your area.

Water Hardness
°dh °fh °Clark mmol / l
0 - 8 0 - 14 0 - 10 0 - 1.4
8 - 12 14 - 39 10 - 28 1.4 - 3.9
22 - 45 39 - 80 28 - 56 3.9 - 8
>45 >80 >56 >8

1 °dh (German degree) = 1.25mmol / l 1 °fh (French degree) = 0.178mmol / l 1 °Clark (British degree) = 1.78mmol / l

Maintenance - Cleaning the Washing Machine

Cleaning the Drum

If you keep using cold water in your washing machine, this may cause a build-up of bacteria inside the drum, which can give off an odour. You can avoid this by running the "drum clean" programme once a month. When you use a scale remover, follow the manufacturer's instructions.

Don't put laundry in the washing machine during the drum cleaning.

1. Press the ON/OFF button to provide power.
2. Turn the Programme Selection Dial to drum cleaning.
3. The washing machine will sound when the programme is complete.

Cleaning the Exterior of your Washing Machine

• Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.
• Don't splash water over the washing machine.
• Do not use cream cleansers, thinners or products containing alcohol or kerosene.

Cleaning the Detergent Drawer

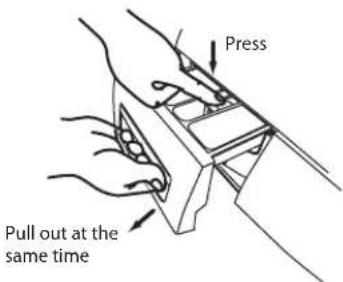

1. Remove the detergent drawer by pulling and pressing the softener cover at the same time.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the washing machine.) Residue detergent soon builds up if you don't clean the drawer regularly, and can develop mould.

Hand cleaning a metal frame with a cloth (no text or symbols visible)

Cleaning the Door Seal and Window

• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
• Remove any coins, buttons and other objects from the door seal after each wash.

Cleaning the Drain Filter

Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash.

Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing machine.

1. Use a small, flat bladed screwdriver to open the Service Flap.

1. Carefully loosen the drain filter. Turn anti clockwise until the water gentle begins to run, this is normal.

2. Remove the filter once the water has stopped.

3. Remove any lint and debris before carefully replacing the filter.

Three-step diagram showing a mechanical assembly process: before, after, and after hand turning a component (no text or symbols present)

1. Turn it clockwise and screw the filter back.

Preventing a Frozen Water Supply Hose

If your washing machine is delivered in freezing weather conditions, leave it at room temperature for 24 hours after you've set it up before using it. This ensures there's no ice blocking the water supply hose. If your water supply hose freezes, add 2 or 3 litres of warm water to the drum. Then run a "Drain" only programme.

Cleaning the Filter Net of the Water Supply Hose

If water isn't draining properly...

1. Turn the water supply off at the tap.

2. Close the washing machine door and select "Spin" programme and press the Start / Pause button.

3. When finished, turn the power off. Loosen the water supply hose and remove it from the tap.

4. Use a small brush, e.g. a toothbrush to clean the filter.

5. Re-connect the water supply hose to the tap and turn the tap back on, checking for leaks.

Hints and Tips

Problems Solutions
Buttons don't work • Key lock is activated. Deactivate the key lock function.The washing machine is operating a programme.TheProgramme Dialwas turned to a different programme.
Door doesn't open • Door lock may be active.
If you start a wrong programme accidentally.	First pressStart/Pausebutton or turn theProgramme Dialto "Off". Secondly turn theProgramme Dialto the correct programme, then select the temp, spin speed or optional function you want. Press theStart/Pausebutton to start the new programme. (Note: We suggest that you do not change the programme after the machine has been running for 3 minutes.)
Unusual odour • Rubber parts may give off a smell when you first start using the washing machine, but this goes away over time.You should wash the drum once a month.
You can't see any water This is normal: The water level is below the window.
There's no water going into the washing machine	The water tap might be turned off.The water hose or water-supply hose may be frozen.Your water supply may be disrupted.The water-supply valve filter may be clogged.
There's only a small amount of water	If you have paused the programme and you restart, the washing machine may drain some water.Don't pour water in through the door.
Water adds up during washing	This is normal: water is supplied automatically as the level lowers, and with heavy loads the water may fill up repeatedly.
Water drains away during washing	This is normal: water often drains and refills to wash off excess foam. (This is called foam detection.)
There's no water going into the washing machine during rinse operation	Before rinsing, the washing machine spins to drain water remaining from the wash. The water will fill up after that.
Rinsing begins before the spinning finishes	If your laundry has collected to one side of the drum, rinsing will start automatically to correct the imbalance.If there's excess foam after washing, water may drain and refill to wash it off. (This is called foam detection.)
During the spin-dry, the drum stops and rotates several times	This is normal. The washing machine has detected an unbalanced load and is trying to correct it.
Foam and water remain in the door or door seal	Although foam and water may remain, it does not have any influence on the performance of a rinse.
Spin starting is repeated This is normal. Although spin starting may be repeated, it is a function made to spin quietly.
Wash time too long During washing, if the laundry is unbalanced, the machine will try to correct by slowly rotating the drum. This may take several attempts. This is normal.There's not much foam • This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.The amount of foam can vary, depending on the temperature, level and softness of your water.You may not be using enough detergent.You may be using a reduced-foam type of detergent.Heavily soiled laundry can reduce the amount of foam.Larger loads of laundry can also reduce the amount of foam.
There's a lot of foam • The amount of foam can vary depending on the temperature, level and softness of your water.You may have used too much detergent.The type of detergent you use could cause excess foam.Some laundry types (Bathrobe, Bath towel), hold the detergent and becomes agitated during washing cycle. This is normal. Do not over fill the drum.
Fabric softener overflows • You may have exceeded the MAX level in the softener drawer.You may have spilt the liquid by closing the softener drawer too sharply.
There's a residue of powder detergent at the end of the wash	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.
There's an unusual noise or vibration	Check there's nothing metal in the drum.Make sure the transit bolts used in transportation have been removed.Check the washing machine is on a flat, stable surface.
There's a noise when the water drains away	This is normal, it's the pump starting and stopping.
The electricity supply cuts out while the washing machine's on	The washing machine will stop, and won't start by itself when the power comes back on. You'll need to select a programme and start it again.

Troubleshooting

Troubles Reason Solution
Washing machine cannot start up		Check that the door is closed tightly.Check that the power is on.Check that the water supply tap is open.Check that the Start/Pause button is pressed.
Water leakage	The connection between inlet pipe or outlet hose and tap or washing machine is not tight.Drain pipe in the room is blocked.	Check and fasten water pipes.Clean up outlet hose and ask a qualified technician to repair it if necessary.
Water is overflowed from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage.	Fix the inlet pipe.Replace the drain hose.
Indicator or display does not light	Power is disconnected or the unit is turned off.	Check that the power is shut off and the power plug is connected correctly.Check the mains plug and fuse.Check that the washing machine is turned on.
Washing effects are not good	The clothes are too dirty.Insufficient detergent quantity.	Select a proper wash programme.Add the proper detergent quantity according to the instructions on your detergent packaging.

Specification

Model	C510WM11
Rated Voltage	220 - 240V~
Rated Frequency	50 Hz
Maximum Energy Rated Power Input	2100 W
Heating Energy Rated Power Input	1900 W
Dimensions of the Product	595mm (W) x 470mm (D) x 850mm (H)
Weight of the Product	50 kg
Maximum Mass of Dry Cloth	5 kg
Pressure of Tap Water	0.05 MPa - 1 MPa
Energy Rated Programme According To Regulation EN60456	Program Cotton 60°C

Features and specifications are subject to change without prior notice.

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

WARNING!

- If you will not be using the washing machine for a while such as when you go on holiday, turn off the water supply to the washing machine. This is particularly important if there is no drainage around the washing machine.

If the water supply is left on, water pressure may build up and cause a leak.

General Use

• Do not install your washing machine anywhere that is damp or exposed to the weather. If you do, it may cause an electric shock, fire, failure or deterioration.
• Do not pour water directly onto any part of the washing machine. It may cause a short circuit or electric shock.
• Keep burning objects such as candles or cigarettes, away from the washing machine. They may cause a fire or damage.
• Keep flammable substances well away from the washing machine – for example kerosene, gasoline, benzene, paint thinner and alcohol, or clothing soaked with these. They may cause an explosion or a fire.
  • This washing machine is only suitable for washing textiles labelled washing machine washable.
• Anchor bolts are used to transport the washing machine. You should remove these using a spanner or similar tool before you install the washing machine. If you do not, it will cause strong vibrations when the washing machine is spinning.
• Do not connect the washing machine to hot water. The washing machine works with cold water.
• Before you start using the washing machine, turn the tap on to check that the hose is properly connected. If it's not, there may be a water leak.
• Do not apply pesticide, hair spray or deodorant to the washing machine.
• Do not put any electrical equipment near the washing machine – for example a TV, radio or battery charger.
• Do not put too much laundry or detergent into the washing machine. It may cause washing machine troubles.
• Be careful not to get your laundry caught in the door when you close it. This could cause a water leak or damage your laundry.

Power Source and Cable

• Use an independent household dedicated mains socket, fully rated at AC 220V to 240V. If the washing machine is plugged in with other appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly in the socket. A loose connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug, it could cause a fire. To prevent this, unplug the cable and clean the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable. Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adaptor or extension cable. It may overheat and cause a fire.
• Make sure your home voltage matches the voltage displayed on the washing machine. If you are not sure, contact an electrician.

To Prevent Injury

• Do not climb on the washing machine. You may hurt yourself or damage the washing machine.
• When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They could damage your laundry or the washing machine.
• Do not wash, rinse or spin water-proof sheets or clothing. These may cause vibration or washing machine failure during spin-drying, which could lead to injury, damage to the washing machine or damage due to water leaking.
• Be careful when draining hot water or any detergent from the drum. To prevent an injury.
• Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Do not touch the laundry inside the washing machine, until the drum has completely stopped. Even if the drum is spinning at low speed it can cause an injury. Take particular care of children in this respect.
• The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused.
  • The ventilation openings in the base of washing machine must not be obstructed by a carpet.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number
Water Supply Hose 301101000843
Cover Cap 301130650057
U-shape holder 301114200808

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead

Herts • HP2 7TG • England

(P.N.: C510WM11-001)
