USER MANUAL BTD136ZJ MAKITA

GB Cordless Impact Driver Instruction Manual

1

2

3

4

5

6

7
012609

8
012575

9
004521

10 11

011407011406

12 13

012571
012577

14 15
009218

16 17

012775

009219

012774

ENGLISH (Original instructions)

	Explanation of general view
1 Red indicator	10 Hard	19 Hook
2 Button	11 Medium	20 Screw
3 Battery cartridge	12 Soft	21 Standard bolt
4 Star marking	13 T mode	22 Fastening torque
5 Switch trigger	14 Battery capacity	23 Proper fastening torque
6 Lamp	15 Bit	24 Fastening time
7 Button	16 Sleeve	25 High tensile bolt
8 Reversing switch lever	17 Bit-piece
9 Changed in four steps	18 Groove

SPECIFICATIONS

Model BTD136 BTD147
Capacities	M a c h i n e s c r e w	4 mm - 8 mm	4 mm - 8 mm
	Standard bolt	5 mm - 14 mm		5 mm - 16 mm
	High tensile bolt	5 mm - 12 mm		5 mm - 14 mm
No load speed (min-1)	Impact mode (Hard)	0 - 2,600		0 - 2,800
	Impact mode (Medium)	0 - 2,100		0 - 2,300
	Impact mode (Soft)	0 - 1,200		0 - 1,400
	T m o d e	0 - 2,600		0 - 2,800
Impacts per minute (min-1)	Impact mode (Hard)	0 - 3,200		0 - 3,400
	Impact mode (Medium)	0 - 2,600		0 - 2,800
	Impact mode (Soft)	0 - 1,100		0 - 1,300
	T m o d e	0 - 2,600		0 - 2,800
Overall length		129 mm
Rated voltage		D.C. 14.4 V		D.C. 18 V
Battery cartridge		BL1415	BL1430	BL1815	BL1830
Net weight		1.2 kg	1.4 kg	1.3 kg	1.5 kg

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

ENE033-1

Intended use

The tool is intended for screw driving in wood, metal and plastic.

GEA010-1

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB054-1

CORDLESS IMPACT DRIVER SAFETY WARNINGS

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
3. Hold the tool firmly.
4. Wear ear protectors.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10° C – 40° C ( 50° F – 104° F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.
• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.
• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Battery protection system (Lithium-ion battery with star marking) (Fig. 2)

Lithium-ion batteries with a star marking are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

- Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the trigger switch on the tool and stop the application that caused the tool to become overloaded. Then pull the trigger switch again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the trigger switch again.

- Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.

Switch action (Fig. 3)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

NOTE:

- The tool automatically stops if you keep pulling the switch trigger for about 130 seconds.

Lighting up the front lamp (Fig. 4 & 5)

CAUTION:

- Do not look in the light or see the source of light directly.

To turn on the lamp status, press the button for few seconds. To turn off the lamp status, press the button for few seconds again.

With the lamp status ON, pull the switch trigger to turn on the lamp. To turn off, release it. The lamp goes out approximately 10 seconds after releasing the switch trigger.

With the lamp status OFF, the lamp will not turn on even if the trigger is pulled.

NOTE:

- To confirm the lamp status, pull the trigger. When the lamp lights up by pulling the switch trigger, the lamp status is ON. When the lamp does not come on, the lamp status is OFF.

• While pulling the switch trigger, the lamp status cannot be changed.
• For approximately 10 seconds after releasing the switch trigger, the lamp status can be changed.

Reversing switch action (Fig. 6)

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

• Always check the direction of rotation before operation.

• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

Changing the impact force (Fig. 7)

Impact force grade displayed on panel	Maximum blows		Application Work
	BTD136 BTD147
Hard	3,200 (min-1)	3,400 (min-1)	Tightening when force and speed are desired.	Tightening in underwork material/Tightening long screws/Tightening bolts.
Medium	2,600 (min-1)	2,800 (min-1)	Tightening when a good finishing is needed.	Tightening in the finishing board, plaster board.
Soft	1,100 (min-1)	1,300 (min-1)	Tightening when excessive tightening need to be avoided because of potentially clogged female screw and broken or damaged screw head.	Tightening sash screw/Tightening small screws such as M6.
T mode	2,600 (min-1)	2,800 (min-1)	Tightening when speed and good finishing are needed.	Tightening self drilling screws.

012610

The impact force can be changed in four steps: hard, medium, soft, and T mode.

This allows a tightening suitable to the work.

Every time the button is pressed, the number of blows changes in four steps.

“T” is a special mode for fastening self drilling screws. In this mode, the tool starts to drive a screw with faster rotation, which is suited for drilling with the self-drilling-screw tip. Once the tool starts to tighten the screw, it impacts in medium force grade.

For approximately one minute after releasing the switch trigger, the impact force can be changed.

NOTE:

• When all lamps on the switch panel go out, the tool is turned off to save the battery power. The impact force grade can be checked by pulling the switch trigger to the extent that the tool does not operate.
• While pulling the switch trigger, the impact force grade cannot be changed.

Indicating the remaining battery capacity (Fig. 8)

When you pull the switch trigger, the LED display shows the remaining battery capacity.

The remaining battery capacity is shown as the following table.

LED indicator status Remaining battery capacity
	About 50% or more
	About 20% – 50%
	About less than 20%

012273

NOTE:

• When the LED display goes off, the tool is turned off to save the battery power. To check the remaining battery capacity, slightly pull the switch trigger.
• The LED display goes off approximately one minute after releasing the switch trigger.
• When the tool is overheated, the light flashes once per second for one minute, and then the LED display goes off. In this case, cool down the tool before operating again.
• When the LED display lights up and the tool stops even with a recharged battery cartridge, cool down the tool fully. If the status will not change, stop using and have the tool repaired by a Makita local service center.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit or socket bit

Use only bits that has inserting portion shown in the figure. (Fig. 9)

For tool with shallow bit hole

A = 12 mmB = 9 mm

Use only these type of bit. Follow the procedure (1).(Note) Bit-piece is not necessary.

006348

For tool with deep bit hole

A = 17 mmB = 14 mm	To install these types of bits, follow the procedure (1).
A = 12 mmB = 9 mm	To install these types of bits, follow the procedure (2).(Note) Bit-piece is necessary for installing the bit.

011405

Procedure 1 (Fig. 10)

For tool with normal sleeve

To install the bit, pull the sleeve in the direction of the arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit.

For tool with one-touch type sleeve

To install the bit, insert the bit into the sleeve as far as it will go.

Procedure 2 (Fig. 11)

In addition to the Procedure 1 above, insert the bit-piece into the sleeve with its pointed end facing in.

To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out.

NOTE:

• If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the bit will not be secured. In this case, try re-inserting the bit according to the instructions above.
• When it is difficult to insert the bit, pull the sleeve and insert it into the sleeve as far as it will go.
• After inserting the bit, make sure that it is firmly secured. If it comes out, do not use it.

Hook (Fig. 12)

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool.

To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

OPERATION

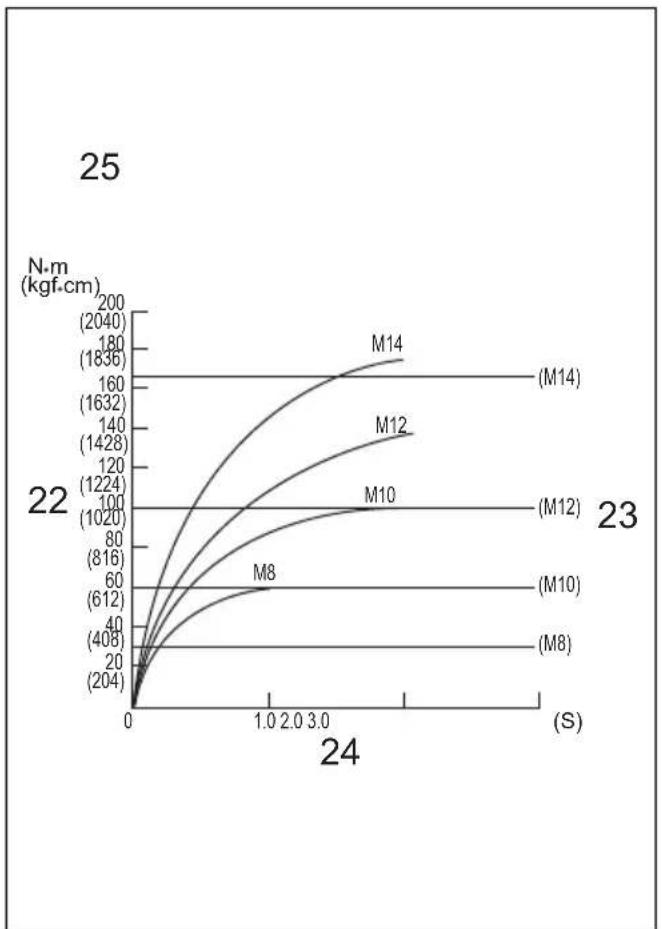

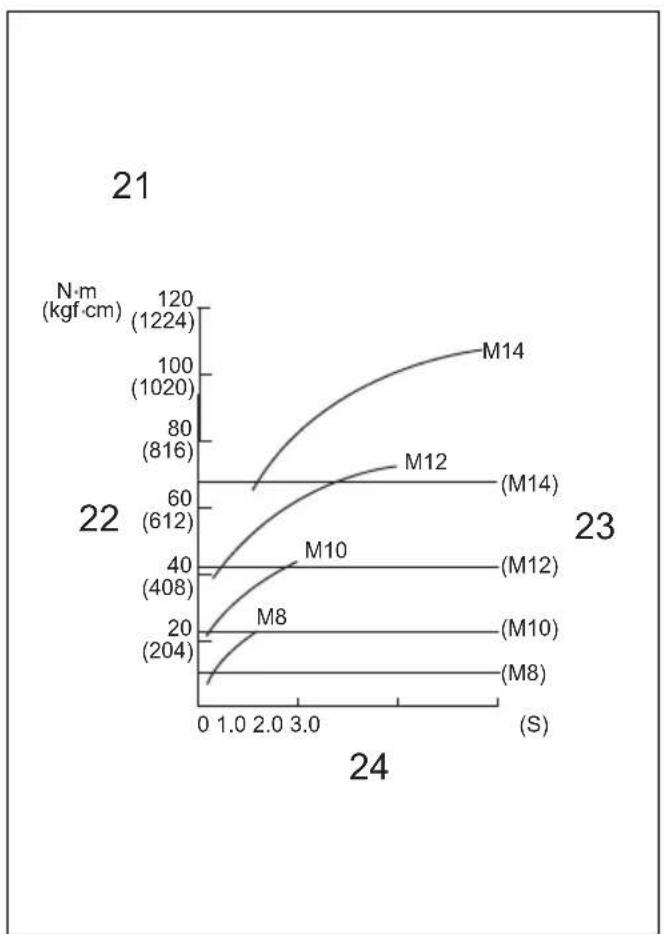

The proper fastening torque may differ depending upon the kind or size of the screw/bolt, the material of the workpiece to be fastened, etc. The relation between fastening torque and fastening time is shown in the figures. (Fig. 13)

Model BTD136 (Fig. 14 & 15)

Model BTD147 (Fig. 16 & 17)

Hold the tool firmly and place the point of the driver bit in the screw head. Apply forward pressure to the tool to the extent that the bit will not slip off the screw and turn the tool on to start operation.

NOTE:

• Use the proper bit for the head of the screw/bolt that you wish to use.
• When fastening M8 or smaller screw, choose a proper impact force and carefully adjust pressure on the switch trigger so that the screw is not damaged.
• Hold the tool pointed straight at the screw.
• If the impact force is too strong you tighten the screw for a time longer than shown in the figures, the screw or the point of the driver bit may be overstressed, stripped, damaged, etc. Before starting your job, always perform a test operation to determine the proper fastening time for your screw.

The fastening torque is affected by a wide variety of factors including the following. After fastening, always check the torque with a torque wrench.

1. When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.
2. Driver bit or socket bit
   Failure to use the correct size driver bit or socket bit will cause a reduction in the fastening torque.

3. Bolt

• Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter of bolt.
• Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the class of bolt and the bolt length.
• The manner of holding the tool or the material of driving position to be fastened will affect the torque.
• Operating the tool at low speed will cause a reduction in the fastening torque.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance except for the following troubleshooting related to the light.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Screw bits
• Socket bits
• Hook
• Plastic carrying case
• Bit-piece
• Battery protector
• Tool hanger

- Various type of Makita genuine batteries and chargers

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Model BTD136

Sound pressure level ( L_pA ): 94 dB (A)

Sound power level ( L_WA ): 105 dB (A)

Uncertainty (K): 3 dB (A)

Model BTD147

Sound pressure level ( L_pA ): 95 dB (A)

Sound power level ( L_WA ): 106 dB (A)

Uncertainty (K): 3 dB (A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Model BTD136

Work mode: impact tightening of fasteners of the maximum capacity of the tool Vibration emission ( a_h ): 15.0 m/s ² Uncertainty (K): 2.0 m/s ²

Model BTD147

Work mode: impact tightening of fasteners of the maximum capacity of the tool Vibration emission ( a_h ): 14.5 m/s ² Uncertainty (K): 1.5 m/s ²

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-15

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine: Cordless Impact Driver

Model No./ Type: BTD136, BTD147

are of series production and

Conforms to the following European Directives:

2006/42/EC

And are manufactured in accordance with the following standards or standardised documents: EN60745

The technical documentation is kept by our authorized representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

11.8.2011

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

OPTIONELE ACCESSOIRES

LET OP:

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Engeland

11.8.2011

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Makita Corporation

Anjo, Aichi, Japan

885113-993

IDE

www.makita.com
