Product Type	16-Port DVI-D Extender Receiver
Brand	Smart-AVI
Model	RK-DVX-RX16S
Video Format	DVI-D Single Link
Maximum Resolution	1920x1200 @ 60Hz (WUXGA)
Maximum Pixel Clock	165 MHz
Maximum Distance	275 ft (84 m) over CAT6 STP cable
Number of Ports	16 DVI-D female inputs (front) / 16 DVI-D female outputs (rear)
Input Interface (Receiver)	DVI-D 29-pin female
Output Interface (Receiver)	DVI-D 29-pin female
Input Cable Length	Up to 20 ft (6 m)
Output Cable Length	Up to 20 ft (6 m)
Cable Type	3x CAT6 STP (Shielded Twisted Pair) per channel
Power Supply	Internal 110-240 VAC
Dimensions (W x H x D)	17 in x 3.5 in x 3.25 in (43.2 cm x 8.9 cm x 8.3 cm)
Weight	10 lb (4.5 kg)
Compatibility	Mac, PC, Linux DVI standards
Supported Resolutions	640x480 @85Hz to 1920x1200 @60Hz
DDC	5 volts p-p (TTL) from internal table
Operating Temperature	0 to 55 °C (32 to 131 °F)
Storage Temperature	-20 to 85 °C (-4 to 185 °F)
Humidity	Up to 95%
Special Features	Rack-mountable, plug-and-play, zero pixel loss with TMDS signal correction, data recovery for digital video
Applications	Medical, industrial, home theater, digital signage, kiosks, recording studios

Frequently Asked Questions - RK-DVX-RX16S Smart-AVI

What is the maximum resolution supported by the RK-DVX-RX16S?

The RK-DVX-RX16S supports resolutions up to 1920x1200 @ 60Hz (WUXGA).

What type of cable is required for extending DVI signals?

The extender uses three CAT6 STP (Shielded Twisted Pair) cables per channel to achieve maximum distance.

How many displays can be connected to the RK-DVX-RX16S?

It supports up to 16 DVI-D displays when used with compatible transmitters.

Is the RK-DVX-RX16S compatible with Mac and Linux systems?

Yes, it is fully compatible with Mac, PC, and Linux DVI standards.

What is the maximum transmission distance?

The maximum distance is 275 feet (84 meters) when using high-quality CAT6 STP cable.

Does this extender require external power for the receiver?

No, the RK-DVX-RX16S receiver is powered via the internal power supply of the transmitter. The receiver itself does not require separate power.

Can the RK-DVX-RX16S be rack-mounted?

Yes, it is designed for rack-mounting with standard 19-inch racks.

What is the DDC support?

The extender provides DDC signals from an internal table for compatibility with Mac and PC monitors.

What are the power requirements for the transmitter?

The transmitter uses an internal power supply accepting 110-240 VAC.

How do I connect the RK-DVX-RX16S for rack-to-endpoint setup?

Connect DVI sources to the transmitter, then connect each transmitter port to a receiver using STP cable. Finally, connect displays to the receivers and power on all devices.

USER MANUAL RK-DVX-RX16S Smart-AVI

16-Port DVI-D Extender up to 275 feet over STP Cable

Front view of a black Smart-AM server rack with purple and blue labels, showing network ports (no readable text beyond branding)

Introduction

The RK-DVX200 is a 16-port video extender system (transmitter and receiver) designed to broadcast high-definition DVI-D signals up to 275 feet using inexpensive STP cabling. It is the perfect solution for extending DVI-D signals to a remote location up to 275 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location. It is fully compatible with MAC, PC and LINUX DVI standards.

One box, one power supply, and up to 16 displays extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our Rack Series of extenders allows for up to 16 inputs and 16 outputs (30 feet each way) and one power supply.

Features

• Supports up to 16 DVI-D single-link sources
• Supports High Resolution 1920x1200 60Hz WUXGA
• Supports Mac, PC, and Linux DVI
• Distance: 275 feet with three CAT6 STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Compatible with all operating systems
• Compatible with all major KVM switches
- Rack Mountable Solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
- Plug-and-play

Applications

• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

The RK-DVX200 transmitter is designed to work in conjunction with the RK-DVX200 receiver, but may also be used with the DVX-200 receiver and transmitter units. Up to 16 DVX200 receivers/transmitters may be used with the RK-DVX200, depending on the application.

Exterior view of a black Smart-IM device with I/O port and external ports (no readable text or symbols)

DVX200 Transmitter

What's in the Box?

PART NO. DESCRIPTION

RK-DVX-TX4S DVI RACK 4 ports Transmitter over STP CAT6

RK-DVX-TX8S DVI RACK 8 ports Transmitter over STP CAT6

RK-DVX-TX16S DVI RACK 16 ports Transmitter over STP CAT6

RK-DVX-RX4S DVI RACK 4 ports Receiver over STP CAT6

RK-DVX-RX8S DVI RACK 8 ports Receiver over STP CAT6

RK-DVX-RX16S DVI RACK 16 ports Receiver over STP CAT6

DVX-RX200 DVX Receiver. DVI Receiver over CAT6 STP

DVX-TX200 DVX Transmitter. DVI Transmitter over CAT6 STP

Technical Specifications*

VIDEO
Format DVI-D Single Line	e
Maximum Pixel Clock 165 MHz
Input Interface (TX)	(16) DVI-D 29-pin female
Output Interface (RX) (16)	DVI-D 29-pin female
Resolution	Up to 1920 x 1200 @60Hz
DDC	5 volts p-p(TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.

OTHER
Power	Internal 110-240 VAC
Dimensions	17 in W x 3.5 in H x 3.25 in D
Weight	10 lb
Operating Temp.	0-55 °C (32-131°F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%

Installation Diagram One - Rack to Endpoint

1. Power off all devices.
2. Connect up to 16 DVI-D sources (computers) to each of the 16 DVI-D ports on the rear of the RK-DVX200 transmitter.

3. Connect the RK-DVX200 transmitter to the rear of each of the DVX200 receivers with one STP (Sheilded Twisted Pair) cable per receiver.

4. Connect up to 16 DVI displays to the DVI-D ports on the front of the DVX200 receivers.

Exterior view of a black Smart-Link electronic device with GVA port and network ports (no visible text or symbols)

DVX200 Receiver

1. Connect the power to the RK-DVX200 transmitter and the DVX200 receivers.

2. Power on the computers and displays.

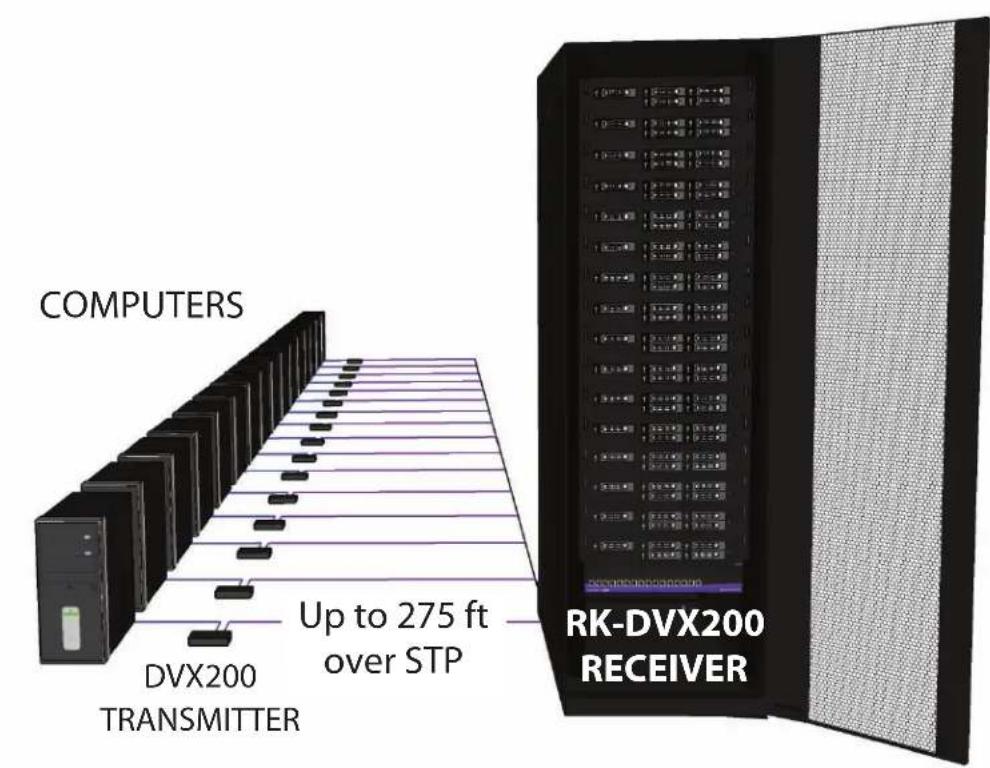

Installation Diagram Two - Endpoint to Rack

1. Power off all devices.

2. Connect up to 16 DVI-D sources (computers) to the DVI-D ports of up to 16 DVX200 transmitters.

3. Connect each of the DVX200 transmitters to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per transmitter.

4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver.

Exterior view of a black Smart Min network device with I/O port and external ports (no visible text or symbols on body)

DVX200 Transmitter

1. Connect the power to the RK-DVX200 receiver and the DVX200 transmitters.

2. Power on the computers and displays.

Installation Diagram Three - Rack to Rack

1. Power off all devices.
2. Connect DVI-D sources (computers) to the DVI-D ports of the RK-DVX200 transmitter.
3. Connect the RK-DVX200 transmitter to the RK-DVX200 receiver with one STP (Sheilded Twisted Pair) cable per channel (up to 16).
4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVX200 receiver.
5. Connect the power to the RK-DVX200 transmitter and the RK-DVX200 receiver.
6. Power on the computers and displays.

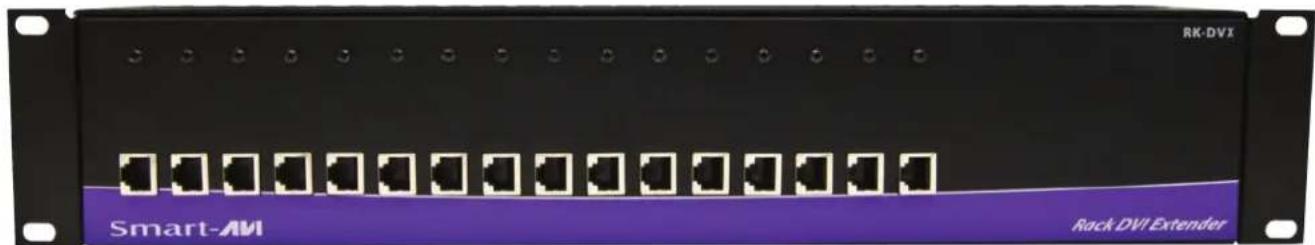

Front panel of a Smart-AM rack DVI Extender with multiple ports and indicator lights (no readable text beyond labels)

RK-DVX200-TX Front

RK-DVX200-TX Rear

Exterior view of a black Smart-M device with I/O port and DTA-758 branding (no readable text beyond branding)

DVX200 Transmitter

STP Cable Configuration

The following is the wiring standard for terminating UTP/STP cable using RJ-45 connector:

Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

Supported Resolutions

Resolution	Refresh Rate
640 x 480	85 Hz
800 x 600	85 Hz
1024 x 768	85 Hz
1152 x 870	75 Hz
1280 x 768	75 Hz
1280 x 960	60 Hz
1280 x 1024	60 Hz
1600 x 1200	60 Hz

DVI-D Configuration

Pin #	Signal	Pin #	ahgiS
1	T.M.D.S Data 2-	16	Hot Plug Detect
2	T.M.D.S Data 2+	17	T.M.D.S Data 0-
3	T.M.D.S Data 2/4 Shield	18	T.M.D.S Data 0+
4	T.M.D.S Data 4-	19	T.M.D.S Data 0/5 Shield
5	T.M.D.S Data 4+	20	T.M.D.S Data 5-
6	DDC Clock	21	T.M.D.S Data 5+
7	DDC Data	22	T.M.D.S Clock Shield
8	Analog Vert. Sync	23	T.M.D.S Clock+
9	T.M.D.S Data 1-	24	T.M.D.S Clock -
10	T.M.D.S Data 1+
11	T.M.D.S Data 1/3 Shield	C1	Analog Red
12	T.M.D.S Data 3-	C2	eerogen
13	T.M.D.S Data 3+	C3	Analog Blue
14	5VDC 1.6A	C4	Analog Horz Sync
15	GND	C5	Analog Ground

© Copyright 2010 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.
