Product Type	Floor Fan
Brand	Convair
Model	CTF07
Blade Diameter	18 inches (46 cm)
Height Adjustment	Yes, telescopic pole (4.5 to 5.5 ft)
Weight	6.5 kg (14.3 lbs)
Power Supply	AC 120V, 60Hz
Power Consumption	55 W
Number of Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, wide-angle (90°)
Remote Control	Included (with battery)
Timer	Yes, up to 8 hours
Safety Features	Overheat protection, tip-over switch
Maintenance	Clean grille and blades with damp cloth; do not immerse
Assembly Required	Yes (base, pole, fan head)
Replacement Parts Available	Blade, guard, motor, remote control
Certifications	UL listed
Warranty	1 year limited

Frequently Asked Questions - CTF07 Convair

How do I assemble the Convair CTF07 fan?

First, attach the base to the pole by screwing it clockwise. Then, extend the pole to desired height and tighten the collar. Finally, attach the fan head to the pole using the provided screws. Refer to the manual for diagrams.

How do I clean the fan?

Always unplug the fan before cleaning. Use a soft damp cloth to wipe the grille and blades. Do not use abrasive cleaners or immerse the fan in water. For stubborn dirt, use a mild soap solution.

The remote control is not working. What should I do?

First, check the battery and replace if necessary (CR2025). Ensure the remote sensor on the fan is not blocked. If still not working, try resetting the fan by unplugging it for 30 seconds.

Why is my fan making a rattling noise?

Rattling noise could be due to loose screws on the guard or blade. Tighten all screws. Also check if the blade is warped or unbalanced. If the noise persists, contact customer service.

The oscillation function stopped working. How can I fix it?

Ensure the oscillation button is pressed securely. If the fan is on a carpet, the base might be unstable. Try moving it to a hard floor. If still not working, the oscillation motor may need replacement.

Can I use the fan outdoors?

The Convair CTF07 is designed for indoor use only. Do not expose it to rain or moisture. Using it outdoors can pose electrical hazards and void the warranty.

How do I set the timer?

Press the timer button on the remote or control panel repeatedly to select from 1 to 8 hours. The timer indicator on the display will show the selected time. The fan will automatically turn off after the set period.

What should I do if the fan stops suddenly?

First, check if the tip-over switch has been activated. If the fan is knocked over, it will auto-shut. Place it on a stable surface. If not, the fan may have overheated. Unplug it and let it cool for 30 minutes before restarting.

Is there a way to change the speed without the remote?

Yes, you can use the control panel on the fan base. There are three speed buttons (Low, Medium, High) and an oscillation button. The remote is optional for convenience.

Where can I purchase replacement parts for the CTF07?

Replacement parts such as blades, guards, and remote controls can be ordered from the Convair website or authorized dealers. Use the model number CTF07 to ensure compatibility.

USER MANUAL CTF07 Convair

Modern vertical electronic tower with three circular fans and a metallic base (no visible text or symbols)

(English) (CTF07)

SAFETY

General Safety

Please read these instructions before using the fan and keep for future reference.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction in using the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. Do not poke anything through the ventilating slits.

Assemble the fan completely before use.

Always use the fan in an upright position. Stand it on a firm, solid, horizontal base (not on thick pile carpets).

Clean the air inlets and outlets at regular intervals to prevent airflow reduction (refer Maintenance section).

For indoor use only. Do not use this fan outdoors, or on wet surfaces. Do not use the fan near flammable areas or substances.

Electrical Safety

Before connecting your electrical power cord to a power outlet, check that the fan voltage is the same as your power supply. The fan voltage will be stated on the rating label.

Make sure that the fan never comes into contact with water.

Never turn the fan on if the lead is damaged or if the fan's casing is obviously damaged.

If the power supply cord is damaged it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

Do not pull the fan along by the power cord. Always uncoil the power cord completely.

Always turn the fan off and unplug from the power socket when not in use.

ASSEMBLY

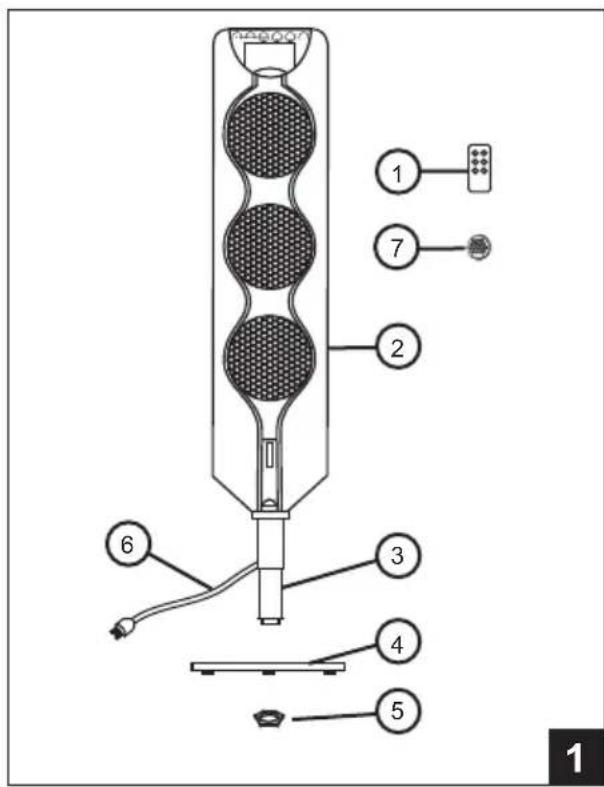

Component List

1 Remote Control
2 Main Body
3 Stand
4 Base
5 Locking nut
6 Power Cord & Plug
7 Fragrant disc

Assembly

Unpack the fan and check that you have all of the components.

Locate the plastic locking nut and turn the fan upside down. Assemble the base onto the stand and lock into position with the nut.

Note: Ensure the nut is tight to avoid shaking of the fan.

Remote Control Storage

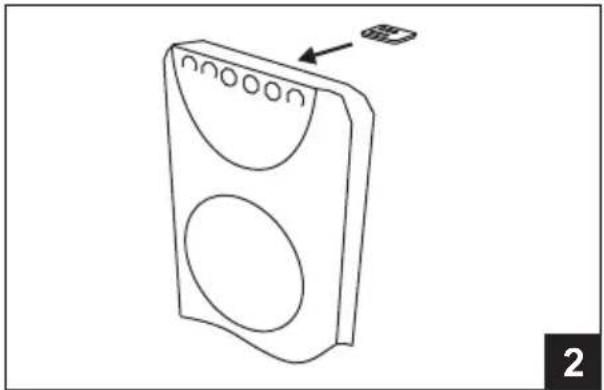

The remote control is stored in the remote control holder located at the top of the rear enclosure as shown in Fig 2.

Line drawing of a device with two circular cutouts and an arrow pointing to a small electronic component (no text or symbols)

Replacing the battery

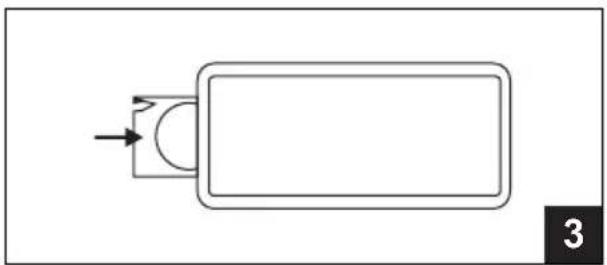

Your remote control is supplied with a battery. To begin use, open the battery cover and insert the battery supplied (Fig 3). Check the polarity is correct and replace the back cover.

When the fan's power is on, the remote control can be used to operate the fan from up to 6m away. Note: if there are two or more fans within this distance, both will be operated by the same remote control.

Simple line drawing of a rectangular object with an arrow pointing to it, no text or symbols present.

Fragrance Disc

Remove the felt from inside the fragrant disc. Use perfume or a fragrant oil to coat the felt before replacing in the fragrant disc and hanging from the fan grille.

OPERATION

Operation

Insert the plug into the power outlet.

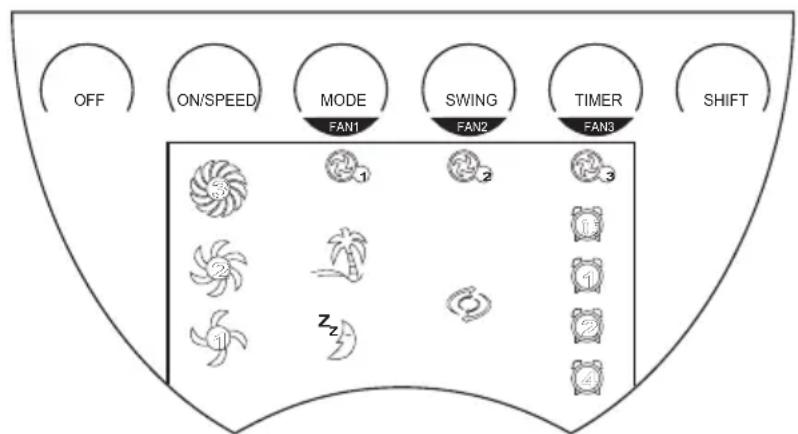

The fan is operated by a 'touch' screen control panel (refer Fig. 4)

Touch the button to turn the fan on. Select the desired fan speed (low-med-high) by touching this button. Each touch will cycle between the speeds.

Turn the fan OFF by touching the button at any time.

Modes

The fan has 3 modes of operation: Normal, Nature and Sleep. Touch the MODE button to cycle between these modes.

• Normal mode: The fan will work continuously at the selected speed setting.
• Nature mode: is shown and if set at high speed, the fan will cycle between high, medium and low speeds for 5 seconds each. If the fan speed is set to medium, the fan

will cycle between medium and low. If set to low, the fan will cycle between low and off.

- Sleep mode: is shown and if set at high speed the fan will first work at high speed nature mode for 30 min, then at medium speed nature mode for 30 min, then continue working at low speed nature mode.

Swing Function

Touch the button on the control panel to enable the swing function. The control panel will display the symbol and the fan will swing from side to side in a 90° arc. Touch again to stop oscillation.

Note: Do not force or hinder the oscillation movement!

The fan has a timer function that will turn off the fan. By touching the button 0.5 to 7.5 hour delays are available.

The timer will count down as it progresses - i.e. if 2 hours is set, after 30 minutes 1.5 hours will show as the remaining time on the display. To cancel, touch the button until the timer indicators are no longer lit.

Shift Function

As well as the fan speed control, the fan is also equipped with the ability to turn each of the three different fans on or off.

Touch the ⏻ button. “FAN1”, “FAN2” and “FAN3” will flash on the display for 5 seconds.

During this time, touch the MODE, SWING or TIMER buttons to turn FAN1, FAN2 or FAN3 off or on.

NOTE: if all fans are turned off, this is the same as touching the ⏻ button.

Maintenance

To maximise the efficiency of the fan, clean the inlet and outlet grilles regularly.

• Unplug the fan from the mains power supply before cleaning.
• Use a soft, damp cloth to wipe the outside. Never use thinners or other strong chemicals on the fan surfaces.
• Use a vacuum cleaner to remove dirt and dust from the inlet and outlet grilles.
• Ensure the fan is dry before plugging back into the mains power supply.

Waste electrical products must not be disposed of with household waste. This product should be taken to your local recycling centre for safe treatment.

As the policy of this company is one of continuous improvement, all specifications are subject to change without notice.

In this warranty:

We or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact details are set out at the end of this warranty;

You means you, the original end-user purchaser of the Goods;

Supplier means the authorised distributor or retailer of the Goods that sold you the Goods in Australia; and

Goods means the product, unit, appliance or equipment which was accompanied by this warranty and purchased in Australia.

Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable quality and the failure does not amount to a major failure.

In addition to any rights and remedies that You may have under the Australian Consumer Law or any other law, subject to the terms of this warranty, We provide the following warranty:

1. If, during the first 24 months from the date of first retail purchase (Warranty Period), the Goods upon examination prove defective by reason of improper workmanship or material, We will replace the Goods or any part thereof without charge. We may substitute any similar good (including a portable tower fan (or other portable cooling product) of a different size or shape), even if it is not on our current price/equipment list. Alternatively, at our sole discretion, we may choose to arrange a refund of the purchase price you paid.

2. We are under no obligation to replace the Goods under clause 1 if the Goods have not been used only for personal, domestic or household purposes and have not been installed/mounted (if relevant), operated, and maintained in accordance with the instructions in the Owner's Manual. The addition of any third party device or the removal or the alteration of any of our components will void this warranty. In addition, the warranty granted under clause 1 does not apply to:

- Adjustments necessary due to misuse of the appliance,

• Normal user maintenance,

- Setting of controls,

• Transit damage, or

- Damage caused by user misuse, tampering, or failure to observe the care and special provisions in the instructions.

1. The warranty granted under clause 1 is limited to replacement only. As far as the law permits, We will not be liable for any consequential loss suffered through, or resulting from, the non operation, or ineffective operation of the Goods. The warranty granted under clause 1 does not cover damage to the Goods or other loss resulting from acts of God.

2. No other person, firm or corporation is authorised by us to offer or give on our behalf any other or greater warranty than that given under this warranty. The benefits conferred by this warranty are in favour of You and any person deriving title to the goods through or under such person and are intended to be separate from and additional to all other rights and remedies that they may have in law in respect of the goods.

3. We are not responsible in any way for any failure and/or inadequate performance of the Goods which arises from or is connected to the use in the Goods of non-genuine spare parts. We strongly recommend that only spare parts supplied or approved by us are used in the Goods.

4. In order to claim under the warranty granted under clause 1 You must within the Warranty Period return the Goods to the Supplier at the place of purchase together with the proof of purchase.

5. Alternatively, you may claim under the warranty granted under clause 1 by within the Warranty Period returning the Goods to us at the address below together with: (i) a covering letter which states your name and address, daytime telephone number, and model and serial number of the goods, (ii) the legible and unmodified proof of purchase, which clearly indicates the name and address of the original retailer, the date and place of purchase, and the product name or other product serial number, and (iii) a copy of the completed Warranty Information below.

6. This warranty does not cover the cost of claiming under the warranty, it is your responsibility to cover all forwarding and freight costs incurred in returning the Goods to the Supplier at the place of purchase or us.

WARRANTY cont.WARRANTY

1. This warranty is only valid and enforceable in Australia.

Our liability under this warranty is limited to the extent permitted by law. That is, to the extent that it is fair and reasonable, if the Goods are not of a kind ordinarily acquired for personal, domestic or household use or consumption, your remedies associated with any failure or defect of the Product will be limited to:

(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods; or
(d) the payment of the cost of having the Goods repaired

and subject to the terms and conditions included in this warranty.

For technical assistance before returning the product please contact:

1300 650 399

Please retain your receipt as proof of purchase. Every request for warranty must be accompanied by proof of purchase.

WARRANTY INFORMATION

Please complete the following information:

Serial Number:

Product: Convair

Model: CTF07

Purchased from:

Date purchased: ...../...../.....

You can also register your warranty online by visiting www.seeleyinternational.com and following these steps:

Step 1 Select 'GET SUPPORT' and 'REGISTER A WARRANTY'

Step 2 Select the brand of product you purchased

Step 3 Enter the required information and then 'Submit'

Service Department

Seeley International Pty Ltd

112 O'Sullivan Beach Road

Lonsdale, South Australia 5160

Technical assistance in Australia: 1300 650 399

Website: www.seeleyinternational.com
