Salco 90210 - Blender KORONA - Free user manual and instructions

Product Type	Blender
Brand	Korona
Model	Salco 90210
Dimensions (H x W x D)	Approx. 40 x 20 x 20 cm
Weight	Approx. 2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	500 W
Capacity (Jug)	1.5 L
Speed Settings	2 speeds + pulse function
Blade Material	Stainless steel
Jug Material	Glass
Safety Features	Safety lock mechanism; non-slip feet
Cleaning and Maintenance	Dishwasher-safe jug; wipe base with damp cloth
Spare Parts Availability	Jug, blade assembly, and lid available separately
Certifications	CE, RoHS

Frequently Asked Questions - Salco 90210 KORONA

How do I use the Korona Salco 90210 blender?

Place ingredients in the jug, ensure the lid is securely locked, select desired speed (1 or 2) or use the pulse function for short bursts.

Can I crush ice with this blender?

Yes, the stainless steel blades and powerful 500W motor can crush ice. Use pulse function for best results.

Is the blender jug dishwasher safe?

Yes, the glass jug is dishwasher safe. The base should be wiped with a damp cloth only.

What safety features does the blender have?

It has a safety lock mechanism that prevents operation if the jug is not properly locked, and non-slip feet for stability.

What is the maximum capacity of the jug?

The jug has a 1.5 liter capacity. Do not exceed the maximum fill line indicated.

Can I blend hot liquids?

No, let hot liquids cool to room temperature before blending to avoid pressure buildup and potential accidents.

How do I clean the blender?

For quick cleaning, fill the jug halfway with warm water and a drop of dish soap, run on pulse for 10 seconds, then rinse. The jug is also dishwasher safe.

What speed settings are available?

The blender offers two speed settings (low and high) and a pulse function for controlled blending.

Where can I find spare parts?

Spare parts such as the jug, blade assembly, and lid are available from Korona authorized service centers or online stores.

Is the blender suitable for making smoothies?

Absolutely! The 500W motor and sharp blades easily blend fruits, vegetables, and ice for smooth and creamy smoothies.

USER MANUAL Salco 90210 KORONA

Two horizontal color swatches: black, gray, white with a crosshair for selection (no text or symbols)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended and suitable for processing foods and liquids. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.

• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose (processing small amounts of foods) and as described in this manual.
• Never touch the rotating parts/blades with your hands and/or other objects when using the appliance. This could lead to serious injuries and/or damage to the appliance.
• Careful, when cleaning the blade, it is very sharp.
• Never use any boiling liquids. Allow those liquids to cool down first (lukewarm) to avoid serious injuries/burns.
• If the cutting knife should experience any problems during operation, switch off the appliance, disconnect it from the mains and remove the blockage.
• Never process any hard foods, e.g. nuts, ice, chocolate, etc.
• Whilst processing pieces of food, only fill up the mixing cup to 2/3, as the mix will rise due to the rotation of the blade.
  Never process large quantities at one time.
• When exchanging accessories always disconnect it from the mains.
• Never immerse the blender completely into the ingredients.
• Keep the appliance out of the reach of children.
  • Continuous Operation: 1 Minute.

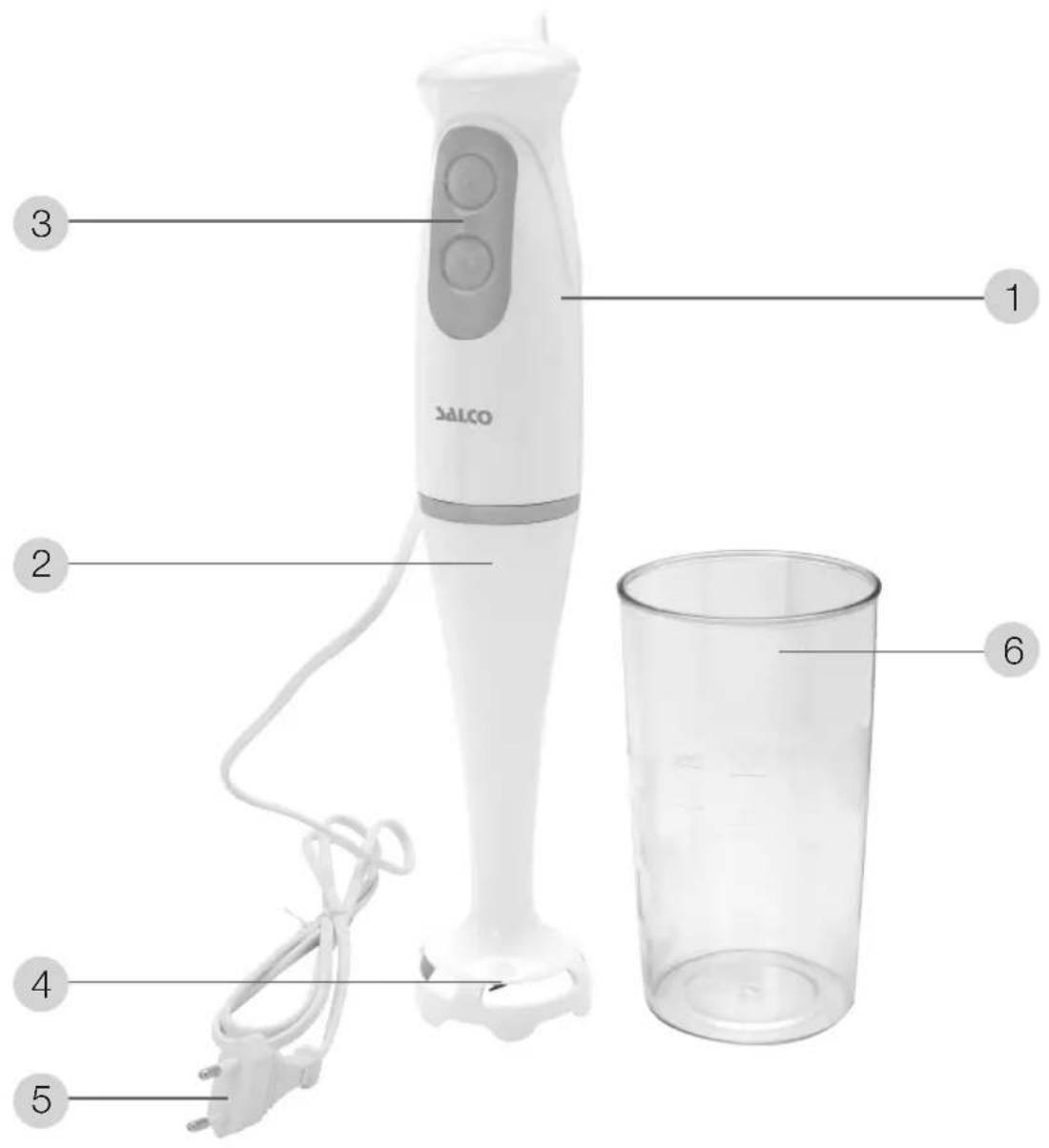

Product Description

1. Motor unit
2. Blender
3. Speed control button
4. Cutting knife
5. Power cord and plug
6. Mixing cup

( = normal / = turbo )

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
• Fully unwind the power cord (5).
• Clean the appliance as specified under “Cleaning and Care”.

Warning: Plastic bags are a danger to toddlers and s, therefore keep them away to avoid suffocation.

Operation

Your stick blender can be used for processing soups, sauces, dips, baby-foods and for mixing fruit and milk shakes.

Never touch the rotating parts/blades with your hands or other objects when using the appliance. This could leadious injuries.

Attach / Release the Blender

Attach the blender (2) to the motor (1) by turning it in clockwise direction. Make sure that the blender (2) is properly secured.

Release blender (2) from the motor unit (1), by rotating the blender unit (2) in anti-clockwise direction.

Processing of foods

1. Put the resp. ingredients into the mixing cup (6) or another suitable container. Cut the ingredients into pieces (2cm) first.

2. Attach the blender (2) to the motor unit (1) as described under Attach / Release the Blender and make sure it is properly locked.

3. Lower the blender (2) into the ingredients and make sure that the blade guard is completely covered.

4. Connect the power plug (5) to a properly installed wall socket.
5. Start the mixing process by pressing the speed control button (3). Depending on the foods and the amount, choose the speed setting ( = normal or = Turbo ).
6. Once the mixing process is complete release the speed control button (3) of your appliance and disconnect it from the mains.

To properly blend the ingredients, move the appliance up and down and in circles.

Attention: The appliance is equipped with a pulse switch which does not engage. Once the speed button is released the appliance switches off, automatically.

Warning: DO NOT operate the appliance longer than 1 minute (CO-time) at a time, to avoid overheating of the appliance.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the motor unit (1) in water. Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

Release the blender (2) as described under Attach / Release the Blender. Clean it in warm water using some dishwashing detergent. Rinse with clear water and dry it properly. The blender (2) is not dishwasher safe.

The mixing cup (6) can be cleaned in warm water with some dishwashing detergent or in the dishwasher. Stubborn stains can be removed with some vegetable oil.

The blade is extremely sharp. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your stick blender 90210 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50/60 Hz

Rated Power: 200 W

CO-Time: 1 Minute

Protection Class: II

CO-Time: The CO-Time (Continuous Time) describes the time how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 3 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 3 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Two horizontal color swatches with a central crosshair symbol (no text or labels)

SALCO

Ref: 90210/21-2013.10
