Product Type	Electric Kettle (Design Kettle Advanced)
Brand	Gastroback
Model	Design 42413
Dimensions (W x D x H)	Approx. 225 mm x 157 mm x 255 mm
Weight	Approx. 1.6 kg
Power Supply	220-240 V AC, 50/60 Hz, 2200-2400 W
Maximum Capacity	1.7 L
Material	Stainless steel
Water Level Indicator	Illuminated gauge
Automatic Shut-Off	Yes, when water boils; also dry-out protection
Removable Limescale Filter	Yes
Power Cord Length	Approx. 70 cm
Safety Features	Boil dry cut-out, thermal cut-out, lid closed safety
Care and Cleaning	Wipe exterior with damp cloth; decalcify regularly; do not immerse base
Spare Parts	Removable limescale filter; power base
Warranty	2 years
Intended Use	Household only, boiling drinking water

Frequently Asked Questions - Design 42413 Gastroback

What is the maximum capacity of the Gastroback Design 42413 kettle?

The maximum capacity is 1.7 liters (marked as 1700/MAX on the water gauge).

Can I use the kettle to boil other liquids besides water?

No, the kettle is designed only for boiling pure drinking water. Do not add any other liquids, spices, or ingredients.

How do I clean the limescale filter?

Remove the filter by lifting the grey bar. Rinse under running water or soak in warm vinegar overnight if heavily scaled. Do not use hard or sharp utensils.

What should I do if the kettle doesn't turn on?

Ensure the kettle is properly placed on the power base, the lid is closed, and the switch is on. If it still doesn't work, check the power supply and allow the kettle to cool down if the thermal cut-out has activated.

How often should I decalcify the kettle?

Decalcify regularly depending on water hardness. Use a descaling solution like Gastroback Premium Descaler (Art.-No. 98175) or follow the vinegar method described in the manual.

Is the kettle safe to leave unattended?

No, always do not leave the appliance unattended while in use. It has automatic shut-off, but supervision is required to avoid hazards.

Can I immerse the kettle base or power base in water?

No, never immerse the kettle base, switch area, power base, or power cord in water. Only wipe with a damp cloth and dry thoroughly.

What does the dry-out protection do?

If there is insufficient water, the boil dry cut-out automatically switches off the heating element. Allow the kettle to cool, then refill between the MIN and MAX marks.

How do I reset the kettle after the thermal cut-out activates?

Switch off the kettle, unplug, and let it cool down for a few minutes. Then fill with water and try again. If it still doesn't work, contact an authorized service center.

What is the warranty period for the Gastroback Design 42413?

The warranty is 2 years from the date of purchase, covering manufacturing or material defects. Keep the sales slip.

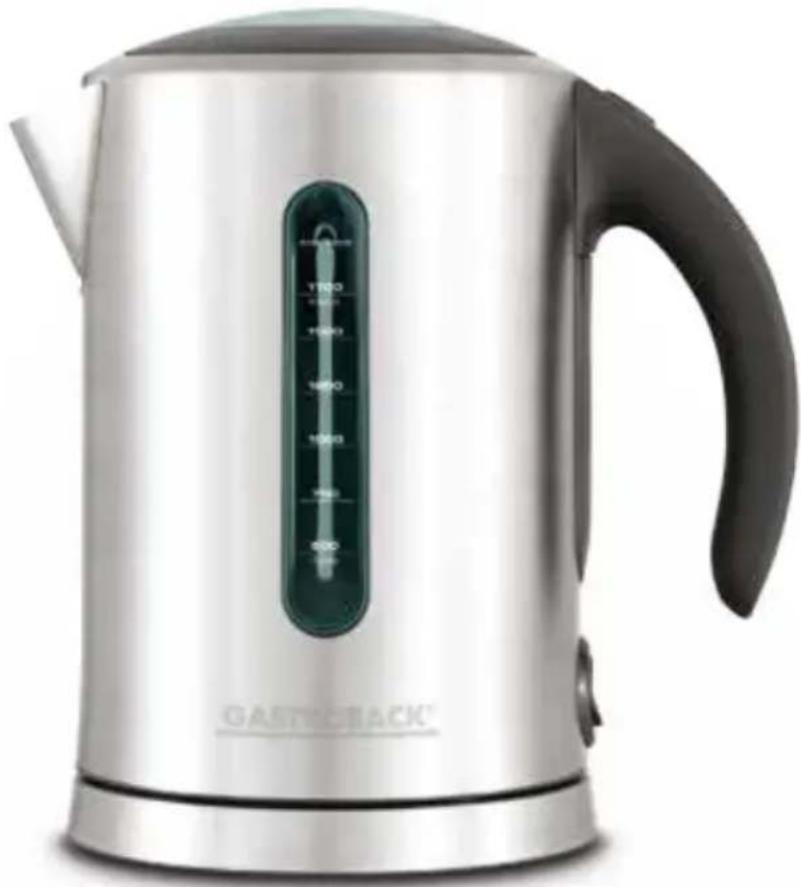

USER MANUAL Design 42413 Gastroback

Silver and black stainless steel water heater with digital display (no visible text or symbols)

Operating Instructions

DESIGN KETTLE ADVANCED

Silver and black stainless steel water heater with digital display (no visible text or symbols)

KNOWING YOUR DESIGN KETTLE ADVANCED ....19

IMPORTANT SAFEGUARDS ....20

Important Safeguards for Electrical Appliances....22

Hot Surfaces – Risk of Burns ......23

TECHNICAL SPECIFICATIONS ....23

BEFORE FIRST USE....24

CARE AND CLEANING....27

Removable Limescale Filter....27

Cleaning the Kettle....27

Decalcifying the Water Container....28

STORAGE 28

NOTES FOR DISPOSAL 29

INFORMATION AND SERVICE....29

WARRANTY....29

DEAR CUSTOMER!

Congratulations on your purchase of the Design Kettle Advanced. The Design Kettle Advanced is designed for boiling drinking quality water. Powerful 2200-2400 watt heating elements are integrated in the bottom of the stainless steel kettle and therefore protected against damage, making cleaning and decalcifying quite easy. An illuminated water gauge will help you to measure off the required amount of water.

The information in this booklet will easily and quickly exploit many helpful features of your Kettle for you to get the delight of wonderful tea and coffee.

Your Gastroback GmbH

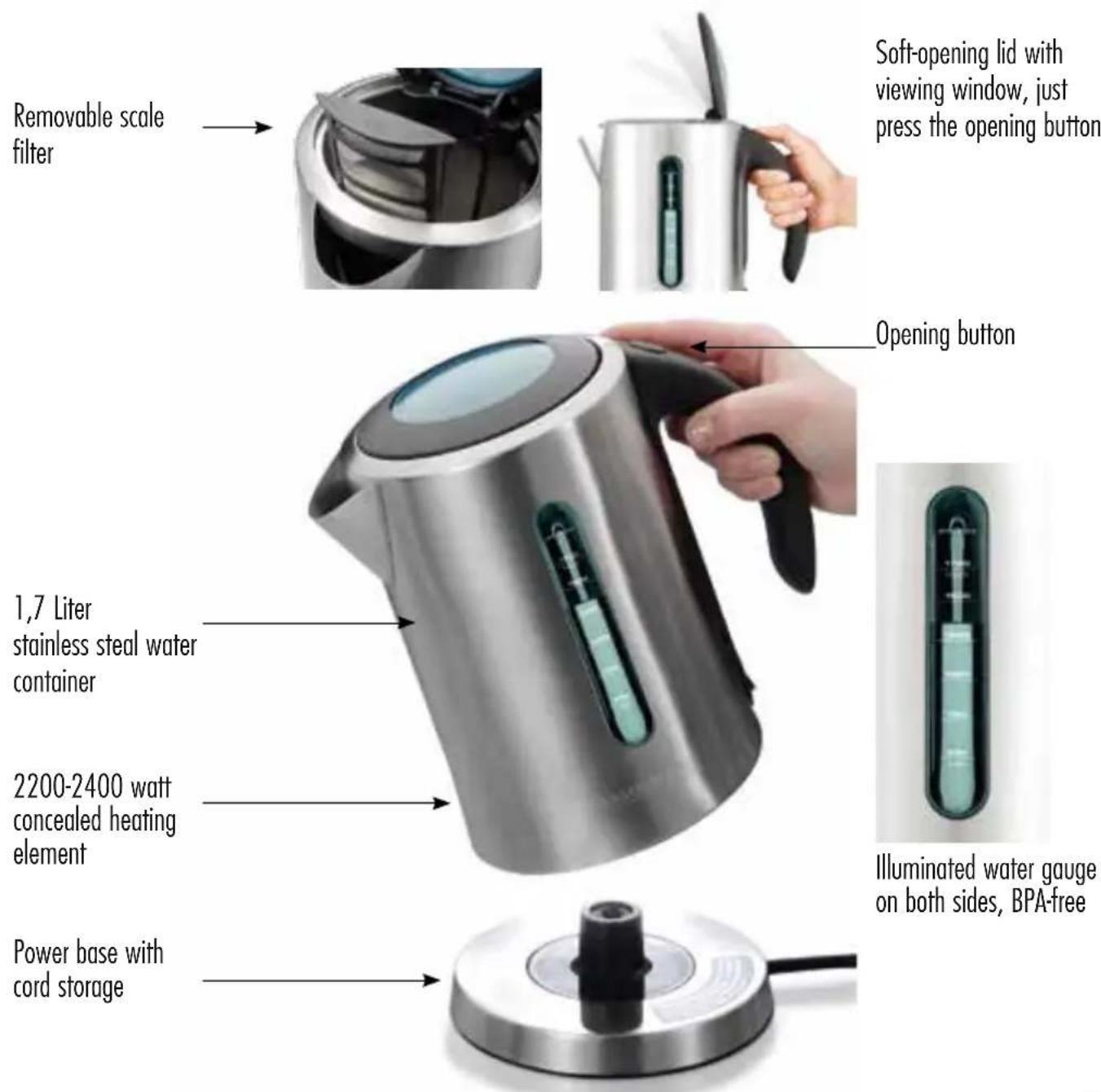

KNOWING YOUR DESIGN KETTLE ADVANCED

IMPORTANT SAFEGUARDS

Carefully read all instructions before operating this appliance and save for further reference. Do not attempt to use this appliance for any other than the intended use, described in these instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, heat or fire. Any operation, repair and technical maintenance of the appliance or any part of it other than described in these instructions may only be performed at an authorised service centre. Please contact your vendor.

- Do not attempt to operate the appliance if the appliance or any parts are likely to be damaged or subject to inadmissible strain (i.e. mechanical or electric shock, overheating). Before operating, always ensure that there are no objects in the water container, and check the appliance and each part of it on impeccable operation or any damage or leakage. The pins of the power plug must be tidy, smooth and clean.

Do not attempt to operate the appliance and immediately switch off and unplug the appliance if water leaks out of the kettle.

• Any use of accessories, attachments or spare parts not recommended by the manufacturer may result in fire, electric shock and injuries to persons. If the appliance or any part of it is likely to be defective or not operating in the intended way or water leaks out of the kettle, immediately unplug from the power supply and return the entire appliance to an authorised service centre for examination and repair. Any maintenance, repair and operation other than described in these instructions must be performed at an authorised service centre to avoid risk of electric shock, fire or injuries to persons.
• Close supervision is necessary when the appliance is used near young children. Do not let young children play with any parts of the appliance. The appliance is not intended for use by children or infirm persons without supervision. For storage always keep the entire appliance dry and clean and where young children cannot reach it. Do not place any hard and/or heavy objects on the appliance or any part of it.
• Always place the appliance on a stable, level, dry, heat-resistant and easy accessible surface. Do not place the appliance near the edge of the table or counter or on an inclined surface. Ensure, that the power base will not tilt or wobble before placing the kettle on it. Do not place any cloth or tissue beneath or on the appliance to avoid any risk of fire, electric shock and overheating. Always keep the table or counter clean and dry and immediately wipe off spilled liquids.
• During operation keep the appliance in an appropriate distance of at least 20 cm on each side to furniture, walls, boards, curtains and other objects. Keep at least 1 m of free space above the appliance. Do not operate the appliance near any heat-sensitive or moisture-sensitive materials or under boards to avoid damage caused by steam and condensate.

- The kettle is heated electrically. Do not place the appliance and any part of it on or near hot surfaces, (i.e. burner, heater or oven). The appliance and any part of it may never touch hot surfaces.

- Do not leave the power base unattended, when connected to the power supply. Always unplug when the appliance is not in use and before cleaning or moving the power base. Always switch OFF the kettle and allow to cool down before cleaning or filling. Before use, always make sure that the lid is closed properly and a sufficient amount of water is filled in (between water level mark 500 and 1700/MAX). Do not operate the appliance with the water level below the water level mark 500. Do not overfill the water container above the maximum water level mark 1700/MAX.

- Do not use this appliance to boil any other liquids or foodstuffs others than pure drinking water without any additional ingredients.

- Never use abrasive cleaners, cleaning pads or any hard and sharp objects (i.e. metal scouring pads) for cleaning. Clean the kettle and power base with a damped sponge or tissue and carefully dry the power base and exterior of the kettle after cleaning. Do not handle the appliance or any part of it with violence. The lid is easily opened by pressing the opening button. Do not lift or carry the kettle by the lid. Always use the handle for moving the kettle.

- Do not immerse the kettle base, switch area, power base or power cord in water, or allow moisture to come in contact with these parts. Never place the appliance or any part of it in an automatic dishwasher.

- This appliance is for household use only and NOT intended for use in moving vehicles or outdoors. Do not operate or store the appliance in humid or wet areas. During operation a little amount of moisture could condensate on the power base. This is no indication for any failure.

- This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

IMPORTANT SAFEGUARDS FOR ELECTRICAL APPLIANCES

Care must be taken when using any electrical appliance. Please adhere to the following precautions.

• Ensure that the voltage rating of your mains power supply corresponds to the voltage requirements of the appliance (220-240 V, 50/60 Hz, AC, rated for 16 A). Always connect the appliance directly to a separately protected mains power supply wall socket with protective conductor (earth/ground) connected properly. Do not use any extension cord or multi socket outlet. The installation of a residual current safety switch with a maximum rated residual operating current of 30 mA in the supplying electrical circuit is recommended. If in doubt, contact your electrician for further information.
• Always handle the power cord with care. The power cord may never be knotted, twisted or squeezed. Do not pull or strain the power cord. Do not let the plug or power cord hang over the edge of the table or counter. Take care that no one will pull the appliance by the power cord, especially when young children are near. Always grasp the plug to disconnect the power cord from the power outlet. Do not touch the plug or power base with wet hands, when the plug is connected to the power supply.
• Before operation completely unwind the power cord, insert the power cord in the gap on the bottom of the power base, and ensure that the power base will not tilt or wobble during operation. Do not place the kettle or power base on the power cord.
• Always switch off the kettle and unplug the power base from the power outlet when not in use and before moving or cleaning the power base. Do not leave the power base unattended while connected to the power supply. Never leave the appliance unattended when in operational mode.
• When the power cord warms up during operation or is likely to be damaged, it must be replaced by an authorised Service Centre. Do not attempt to repair the power cord!
• Do not immerse the kettle, power base or power cord in water or any other liquid. Do not spill or drip any liquids on the power base, power cord or switch area of the kettle to avoid risk of fire and electric shock. When liquids are spilled on the exterior of the appliance or condensate has built up on the power base, immediately switch off the kettle, unplug the power base and dry the appliance.

HOT SURFACES - RISK OF BURNS

The exterior of the Design Kettle will get very hot during operation. In addition, beware of steam and hot condensate during operation and even some minutes after switching off the appliance, especially when opening the lid or pouring out water.

• The kettle is still hot, even some minutes after switching off. Do not touch hot surfaces (exterior of the water container and lid) while the appliance is in use. Always use the soft grip handle for moving the kettle. Always use the opening button for opening the lid. Do not place the kettle on any heat-sensitive objects, while it is hot. Never place any heat-sensitive objects in or on the kettle.
• Close supervision is important, when moving the kettle immediately after switching off. Take care to hold the kettle level, especially when filled to the maximum level.
• For operation place the appliance on a dry, stable, heat-resistant and water-resistant, level surface (i.e. glass, ceramics, stone). Never place any clothes or other objects on or under the appliance during operation to avoid overheating. Always let the kettle cool down to room temperature before cleaning.
• Always keep your hands, face and arm as well as any clothing and other objects away from the lid and spout during operation to avoid scalds and damage. Beware of steam and hot condensate, when opening the lid. Always keep the lid closed, when operating the kettle. Otherwise power consumption increases significantly and, additionally, the automatic switching off of the heating elements will not work out. Ensure all persons stay in sufficient distance to the appliance during operation.

TECHNICAL SPECIFICATIONS

Model:	Art.-No. 42413 Design Kettle Advanced
Power supply:	230/240 V AC, 50/60 Hz
Power consumption:	2,200 - 2,400 W
Length of power cord:	approx. 70 cm
Weight:	approx. 1.6 kg
Dimensions: (width x depth x height)	approx. 225 mm x 157 mm x 255 mm
Maximum capacity of water reservoir:	1.7 litre
Certification:

BEFORE FIRST USE

Unpack the appliance carefully and remove any promotional material attached to the kettle, but do not remove the warning or model labels on the appliance. Before first use, fill the kettle to its maximum level (1700/MAX), boil and discard the water.

CAUTION: The lid opens automatically just by pressing the opening button. Ensure that there are no objects in the interior of the kettle. Do not immerse the kettle base, switch area, power base or power cord in water, or allow moisture to come in contact with these parts.

1. To fill the kettle, remove it from the power base and open the lid by pressing the opening button.
2. Fill in pure tap water (drinking quality) up to the water level mark 1700/Max. Try to hold the kettle as level as possible, while doing so.

Boil the water as described in the following section (Operating Your Design Kettle).

1. Discard the water.

Note:

Your kettle will only operate when positioned on the power base with the power switch in the on position. The kettle will automatically switch off, once the water has boiled. Too little water will result in the kettle switching off before the water has boiled.

CAUTION! Only fill with pure drinking water. Do not fill any other liquids or foodstuffs into the water container and do not add any additional ingredients, such as spices or flavours. Do not place any foreign objects in the water container. Do not drip or spill any liquids on the exterior of the kettle or on the power base.

Ensure the kettle is filled with the appropriate amount of water (water level between 500 and 1700/MAX) before switching on the appliance.

⚠ WARNING! Do not use any extension cord or multi socket outlet to avoid risk of fire and electric shock. Always connect the appliance directly to a separately protected mains power supply wall socket with protective conductor (earth/ground) connected properly (see Important Safeguards for Electrical Appliances). Always completely unwind the power cord before connecting the plug to the power supply.

Do not use any mains adapter other than the supplied power base for the kettle.

Always place the appliance on a stable, level, dry and sufficiently large surface. Ensure, that the power base will not tilt or wobble during operation. Do not operate the appliance on an inclined surface, to avoid scalding and damage by boiling water overflowing the brim of the kettle.

Beware of hot surfaces! The exterior of the kettle and lid will get very hot during operation. Only use handles and knobs for handling the appliance. Beware of hot condensate and steam, when opening the lid.

Immediately switch off and unplug the appliance, if water leaks out of the kettle.

1. Prepare the power base for use. Completely unwind the power cord from the cord storage and insert it in the gab on the bottom of the power base.

Place the power base on an appropriate surface (level, dry, water-resistant and heat-resistant). During operation, always keep the appliance away from other objects: leave at least 20 cm of free space on each side and 1 m of free space above the appliance. Ensure, that the power base will not tilt or wobble.

1. Fill with pure drinking water. Press the opening button to open the lid. Fill with the desired amount of water. Always fill the kettle between the minimum (500) and maximum marks (1700/MAX) on the water gauge.

2. Too little water will result in the kettle switching off before the water has boiled.

3. Filling above the maximum mark on the water gauge of the kettle may result in boiling water splashing from the kettle.

⚠ WARNING! Do not overfill the water container beyond the maximum water level mark 1700/MAX (1.7 litre). Otherwise boiling water could splash from the kettle during operation, causing injuries to persons and damage. Only use clear water without any ingredients. Dry spilled water immediately.

1. Ensure, that the lid is locked firmly into place and place the kettle onto the power base.

The electric contacts of the multi-directional power base will slide into a corresponding opening in the bottom of the kettle. The power base will work out in any orientation.

Note:

Always keep the lid closed during operation. Otherwise power consumption increases significantly.

CAUTION! Only with the lid closed, the kettle automatically switches off, once the water has boiled.

1. Plug the power cord into a 230/240V power outlet and switch on. The power on light and the water gauge will illuminate and the heating element starts heating.

⚠ WARNING! The exterior of the kettle will get very hot during operation and even some minutes after switching off the appliance. In addition, beware of steam venting from the lid and spout and hot condensate, especially when opening the lid or pou-

ring out water. Always keep your hands, face and arm as well as any clothing and other objects away from the lid and spout of the kettle. Always use the soft grip handle for moving the kettle and take care to keep the kettle level to avoid boiling water pouring out unintentionally.

Note:

The kettle will automatically switch off once the water has boiled and a bell rings, but the automatic switching off only works out with the lid closed.

1. Lift the kettle by the handle from the power base and pour the water. When moving the kettle, ensure to hold the kettle level, especially when filled to the maximum level.

Note:

Use caution when pouring boiling water from the kettle. Do not pour the water too quickly, as boiling water could splash.

1. To reboil, it may be necessary to wait for about 1 or 2 minutes to allow the kettle to cool down and the control to reset.
2. Switch off the kettle and unplug the power connector. Pour out any remaining water. Do not leave remaining water cool down to room temperature in the kettle to avoid any excessive accumulation of mineral deposits on the interior of the water container and water gauge.

The kettle may be stored on its power base, when not in use to protect the connector pins from dust and splashes. The power switch must be switched off and the appliance must be unplugged from the power supply, when not in use.

⚠ WARNING: Always switch off the kettle and unplug from power supply, when the kettle is not in use, to avoid risk of fire and electric shock. DO NOT leave the power base unattended with the power plug connected to the power supply.

DRY-OUT PROTECTION

If there is not enough water in the kettle during operation, the boil dry cut-out switches off the heating element automatically. To reset the appliance:

1. Switch off the kettle and wait some minutes for the heating elements to cool down. Then press the opening button to open the lid and slowly fill with water. Always keep the water level between the minimum and maximum water level mark (500 to 1700/MAX) during operation.
2. Close the lid, replace the kettle on the power base and switch on the kettle. For additional safety your kettle is fitted with an additional thermal cut out. In the event of overheating, the kettle will automatically shutdown to prevent further

damage. In this case, take your kettle to an authorised service centre for inspection and repair.

⚠ WARNING: Do not attempt to operate the appliance after shutdown by the thermal cut out. Any maintenance, repair and operation other than described in these instructions must be performed at an authorised service centre to avoid risk of electric shock, fire or injuries to persons.

CARE AND CLEANING

⚠ WARNING! Always switch off, unplug and let the appliance cool down before removing the mesh filter, moving the power base or cleaning the appliance.

CAUTION! To avoid damage, do not use any chemicals, disinfectants, steel wool, abrasive cleaners or hard or sharp utensils to clean the appliance. Handle with care. Do not place or immerse the kettle base, power base or power cord in any liquids. Do not spill any liquids on the kettle base, switch area, power base or power cord. Do not place the kettle or power base in an automatic dishwasher.

REMOVABLE LIMESCALE FILTER

The Design Kettle Advanced features a removable limescale filter to filter out scale deposits for clearer water. Additionally the filter will prevent boiling water from splashing, when you pour the water. Clean the filter regularly to avoid blockage of the mesh.

CAUTION: Handle the limescale filter with care. Do not scratch, scrub or scrape on the filter mesh with hard or sharp utensils to avoid damage.

1. Switch off and unplug the appliance and allow to cool down. Press the opening button to open the lid. Grasp the grey bar of the limescale filter and lift it up and out of the kettle.
2. Clean the limescale filter. Rinse the filter under running water. Possibly use a plastic cleaning brush or sponge. If the limescale filter is blocked with lime: leave the filter overnight in warm vinegar. Carefully rinse with clear tap water.
3. To replace the filter, simply slide the filter in the correct orientation down into the slots behind the spout of the kettle (see >Features of Your Design Kettle Advanced). Push the filter down, until the grey bar is in line with the brim of the kettle and the lid of the kettle can be shut tightly.

CLEANING THE KETTLE

In normal case there is no need to clean the interior of the kettle. Before first use or after a longer period of storage rinse the interior of the kettle with clear drinking

water. However, depending on the water hardness in your residential area you should decalcify the water container regularly to avoid any loss of performance and excessive power consumption. See >Decalcifying the Water Container<.

⚠ WARNING! Immediately wipe off condensate or spilled water. Do not spill any liquids on the appliance. Do not immerse the kettle base, switch area, power base or power cord in water to avoid risk of electric shock. Always keep the table or counter clean and dry and immediately wipe off spilled liquids or condensate.

Do not place the appliance or any part of it in an automatic dishwasher.

1. Wipe the outside of the kettle with a damp cloth. In the same way, the power base may be cleaned. Make sure not to spill or drip any liquids on the power base.
2. Dry with a soft dry cloth. Polish the stainless steel parts with a soft cloth, when required.

DECALCIFYING THE WATER CONTAINER

CAUTION: Never use abrasive cleaners, any chemicals, disinfectants, cleaning pads or any sharp utensils (i.e. metal scouring pads) for cleaning. Handle the kettle and power base without violation. Never place the appliance or any part of it in an automatic dishwasher.

Depending on the water hardness in your residential area, mineral deposits build up in the water container, causing decolouration and increasing energy loss. Therefore we recommend to decalcify the water container regularly. We suggest using Gastroback Premium descaler (Art.-No.: 98175).

1. Fill 100 ml Premium Descaler into the kettle. The bubble formation is part of the chemical process of lime solution. The discaler attacks the lime immediately and dissolves it.
2. Fill the kettle then completely with warm water and let the solution act over time (possibly overnight). Thereby do not heat the kettle in any case!
3. Empty the solution from the kettle and rinse thoroughly with tap water.
4. After that the kettle will be ready for use.

STORAGE

Store the entire appliance (including the power base and operating instructions) on a clean and dry surface, where it may not tilt or fall and no other objects could fall on it and where it is safe from frost and inadmissible strain (mechanical or electric shock, heat) and where it is out of reach of young children. Do not place any hard

or heavy objects on the appliance or any parts of it.

Always switch off the kettle and unplug the power base, when the appliance is not in use.

Empty remaining water and place the kettle on the power base to protect the connector pins in the power base from dust.

When the appliance is not in use for a long period of time, decalcify the interior of the water container (see >Decalcifying the Water Container<). When required, wind the power cord round the cord storage in the bottom of the power base.

NOTES FOR DISPOSAL

Dispose of the appliance and packaging must be effected in accordance with the corresponding local regulations and requirements for electrical appliances and packaging. Please contact your local disposal company. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills, dumps, or refuse incineration, hazardous substances can leak into the groundwater or can be emitted into air, thus getting into the food chain, and damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

INFORMATION AND SERVICE

Please check www.gastroback.de for further information. For technical support, please contact Gastroback Customer Care Center by phone: [phone] or e-mail [e-mail].

WARRANTY

We guarantee that all our products are free of defects at the time of purchase. Any demonstrable manufacturing or material defects will be to the exclusion of any further claim and within 2 years after purchasing the appliance free of charge repaired or substituted. There is no Warranty claim of the purchaser if the damage or defect of the appliance is caused by inappropriate treatment, over loading or installation mistakes. The Warranty claim expires if there is any technical interference of a third party without a written agreement. The purchaser has to present the sales slip in assertion-of-claim and has to bear all charges of costs and risk of the transport.

Note:

Customers from Germany and Austria: For repair and service, please send Gastroback products to the following address: Gastroback GmbH, Gewerbestr. 20, D-21279 Hollenstedt, Germany.

Customers from other countries: Please contact your dealer.

Please agree that we cannot bear the charge of receipt. Submission of appliances: Please ensure packing the appliance ready for shipment without accessories. Add the sales slip and a short fault description. The processing time after receipt of the defective appliance will be approx. 2 weeks; we will inform you automatically. After the warranty period, please send defective appliances to the given address. You will get a free quotation and, thereafter, can decide, whether we shall repair the appliance to the costs possibly accrued, send back the defective appliance for free of charge, or dispose of the appliance for free of charge.

The appliance is intended for household use only and NOT suited for commercial usage. Do not attempt to use this appliance in any other way or for any other purpose than the intended use, described in these instructions. Any other use is regarded as unintended use or misuse, and can cause severe injuries or damage. There is no warranty claim of the purchaser if any injuries or damages are caused by unintended use.

GASTROBACK GmbH
