Rondò Kristal White.3F.STD - Cooker Foster - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Foster
Model	Rondò Kristal White.3F.STD
Color	White
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm (approx.)
Weight	50 kg (approx.)
Power Supply	Gas hob, Electric oven (220-240 V, 50/60 Hz)
Number of Hob Burners	4 gas burners (including one triple-ring)
Oven Type	Electric fan-assisted oven
Oven Functions	Convection, grill, bottom heat, defrost
Oven Capacity	65 liters (approx.)
Control Type	Knobs for hob and oven functions
Door Type	Drop-down oven door with glass window
Cleaning	Enamel interior, removable oven door for easy cleaning
Safety Features	Flame failure device on gas burners, child lock on oven
Spare Parts Availability	Genuine Foster spare parts available online
Repairability	Modular design, easy access to components
Warranty	2 years manufacturer warranty

Frequently Asked Questions - Rondò Kristal White.3F.STD Foster

How do I install the gas cooker?

Ensure the installation complies with local gas regulations. The cooker must be installed by a qualified technician. Refer to the manual for gas connection and ventilation requirements.

What type of gas can I use?

The cooker is supplied for natural gas but can be converted to LPG. Use the appropriate injectors as indicated in the manual.

How do I clean the oven?

Clean the oven after each use with warm water and mild detergent. For stubborn stains, use a non-abrasive cleaner. The enamel interior is easy to wipe.

Why does the oven not heat up?

Check the power supply and that the oven function is selected. If the issue persists, the heating element may be faulty. Contact a service center.

How do I replace a gas burner?

Ensure the gas supply is off. Remove the burner cap and unscrew the burner ring. Install the new part in reverse order. Use only genuine Foster parts.

What is the oven capacity?

The oven has a capacity of approximately 65 liters, suitable for large dishes like turkey or multiple trays.

Can I use aluminum foil in the oven?

Yes, but avoid contact with the heating elements. Do not cover the oven floor entirely as it may affect heat distribution.

How do I light the gas hob?

Push and turn the knob to the maximum flame position, then press the ignition button. If the flame goes out, the flame failure device will cut off gas.

What does the symbol on the knob mean?

The symbols indicate oven functions: fan, grill, bottom heat, defrost. Refer to the manual for a complete description.

How do I order spare parts?

Visit the Foster official website or authorized dealers. Have your model number ready: Rondò Kristal White.3F.STD.

USER MANUAL Rondò Kristal White.3F.STD Foster

MODELS	Burners					Automatic ignition	Safety valve	Product dimensions (W x D) in mm	Cut-out dimensions (W x D) in mm
	A	SR	R	TC	-
	1	1	1	-	-	yes	yes	∅ 520	∅ 500

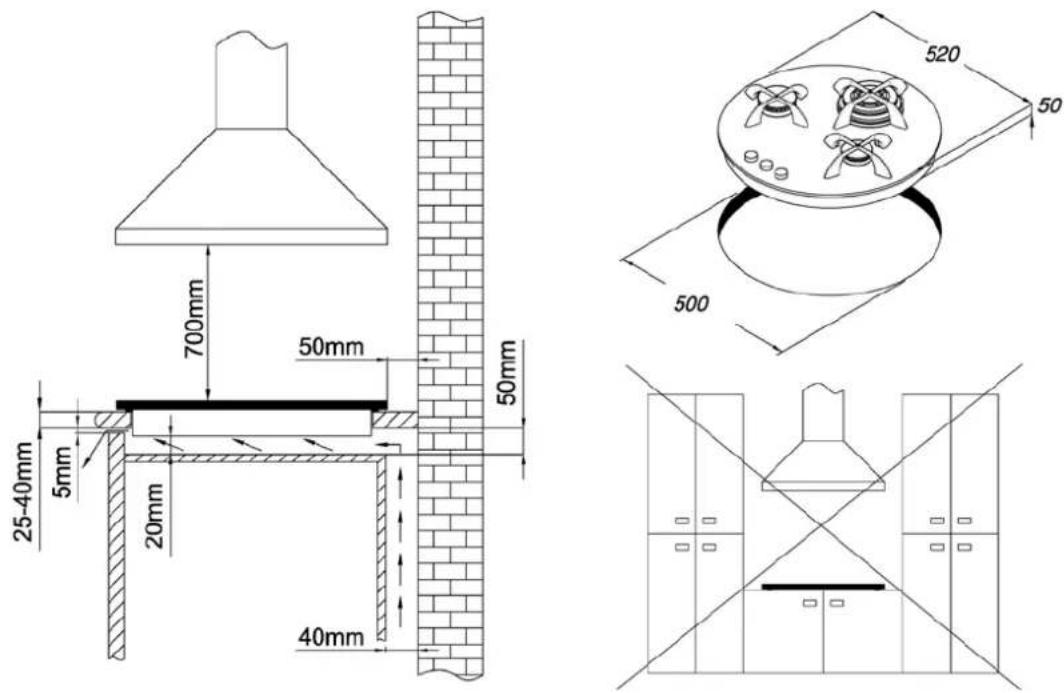

Installation

The purchaser is responsible for installation: the Manufacturer does not offer this service. Any technical assistance activities carried out by the Manufacturer relating to faulty installation are not covered by the warranty.

The built-in hobs are designed for installation on worktops made of any material, provided these are between 25 mm and 40 mm thick and can withstand temperatures of 100°C. If the hob is installed adjacent to a cabinet on any one of the two sides, at least 150 mm must divide the hob edge from the cabinet, while the distance between the rear wall and hob edge must be at least 50 mm. A partition made of insulating material (wood or similar) must be inserted in the underlying cabinet at least 20 mm from the bottom edge of the hob.

Securing the hob to the cabinet

The hob is secured to the cabinet with the aid of clamps supplied as accessories. The underside of the hob contains pre-drilled holes through which the self-tapping plates (A) must be inserted; the relative screws (C) that secure the fixing clamps (B) must then be screwed onto the plates.

C B A

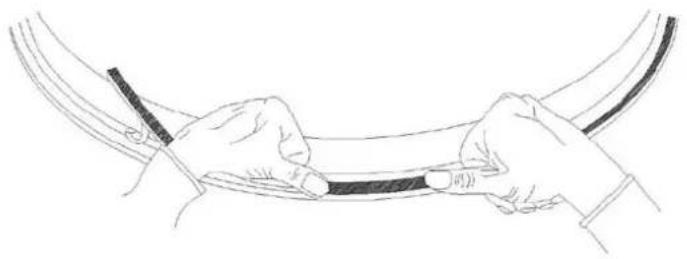

Applying the sealant

Important - the picture below indicates how the sealant must be applied along the entire edge.

This appliance is designed for non-professional use in domestic environments.

Line drawing of two hands holding a curved object, possibly a tool or device, with no visible text or symbols.

Installation room

The use of a gas cooker hob generates heat and humidity in the room in which it is installed. Make sure the room is well ventilated by keeping any natural ventilation openings open or by installing a cooker hood with flue duct (Fig. 1-2). Intensive and prolonged use of the appliance may require additional ventilation, either by opening a window or by increasing the efficiency and power of the mechanical ventilation system, if present.

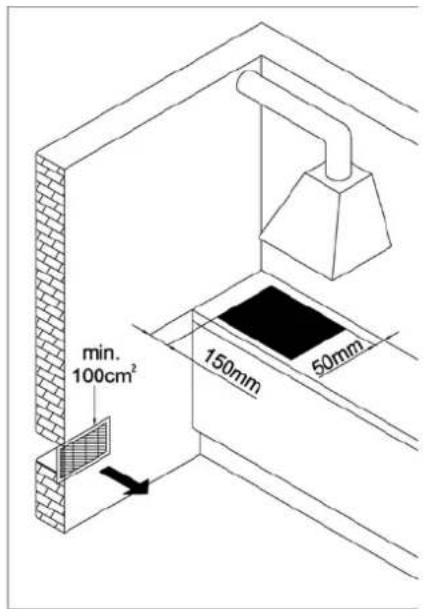

An electric ventilator must be implemented if a cooker hood (Fig. 2) cannot be installed: it must be fitted to the external wall or window in the room (Fig. 3), provided the room is equipped with air intake vents.

The electric ventilator must guarantee an hourly air exchange rate 3-5 times the volume of the kitchen. The installer must comply with the specifications of the UNI-CIG 7129 and 7131 standards currently in force.

min. 100cm² 150mm 50mm

Fig. 1

min. 100cm² 150mm 50mm

Fig. 2

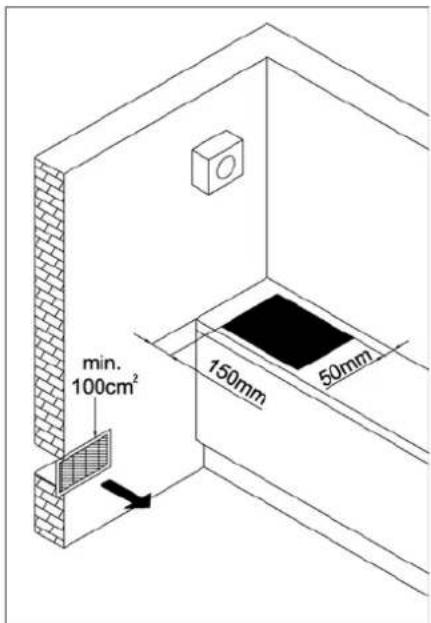

min. 100cm² 150mm 50mm

Fig. 3

min.

min.

Electrical connection

Check the data on the rating plate located on the underside of the appliance and verify that the rated voltage complies with the mains voltage.

Check the efficiency of the earthing system before carrying out the electrical connection. It is mandatory to earth the appliance. The Manufacturer shall not be held liable for any harm to persons or damage to objects arising from failure to comply with this provision.

If the model is not equipped with a plug, install a standardised plug on the cable that is capable of withstanding the power output indicated on the rating plate. The earth wire is identified by the yellow-green jacket. The plug must always be accessible.

When carrying out a fixed connection to the mains electricity, an omnipolar cut-off device with a contact gap of at least 3 mm must be installed between the appliance and the power outlet.

In order to connect the cord to the cooker hob, loosen and remove the terminal board cover to access the contacts located inside. After making the connection, secure the cord with the fixing system provided and cover the terminal board immediately.

Whenever the power cord is replaced, make sure that the earth wire (yellow-green) is 10 mm longer than the remaining wires.

Use an H05RR-F type rubber cord comprising wires with 3x1.5 mm cross-section.

DECLARATION OF CONFORMITY. Regarding the components intended to come into contact with foodstuffs, this appliance conforms to the specifications of Italian Legislative Decree no. 108 dated 25/01/1992 which implements European Directive 89/109/EEC.

CE - Appliance manufactured in conformity to European Directives 90/396/EEC, 89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent amendments.

Connection options

LINEA	L
TERRA	±
NEUTRO	N

RETE DI ALIMENTAZIONE ELETTRICA	MAINS ELECTRICITY
LINEA	LIVE
TERRA	EARTH
NEUTRO	NEUTRAL
MARRONE	BROWN
GIALLO/VERDE	YELLOW/GREEN
BLU	BLUE
CAVO DI ALIMENTAZIONE	POWER CORD

GAS CONNECTION

Appropriate rating plates on the gas cooker hob indicate the type of gas for which the hob is configured. However, the appliance can be operated with other types of gas after carrying out simple adjustments. (See indications in the following paragraphs)

Connection to the gas supply

Connection of the appliance to the gas piping or cylinder must be carried out in conformity to the UNI-CIG7129 and 7131 standards, after verifying that the hob is suitably configured for the intended type of gas. If not, carry out the operations indicated in the paragraph <>. In the event of liquid gas supply (from a cylinder), use pressure valves that conform to UNI-CIG 7432 specifications. Important: in order to ensure safe operation, optimal energy consumption and appliance durability, make sure that the supply pressure complies with the values indicated in the "Burner specifications" table (on page 5)

Installation of the gas pipe fitting

The instructions are intended for personnel authorised to install the appliance in conformity to UNI-CIG 7131 specifications. All operations must be carried out while the appliance is disconnected from the power supply. CAUTION: two different fittings are included in the packaging - one cylindrical and the other conical. Select the most appropriate type depending on the country of installation.

Pure mechanical component diagram without any text or symbols

Pure technical line drawing of a pipe fitting with threaded end (no text or symbols)

Installation steps:

• Screw the adjustable fitting onto the gas rail feed pipe (with cylindrical size 12 male gas thread) on the appliance (A1) with the appropriate sealing gasket (A2).
• Tighten the fitting thoroughly while making sure it lies in the right direction.
• Connect the cooker hob to the gas supply line by screwing the supply pipe to the adjustable fitting and inserting the sealing gasket.

A1 = Gas rail pipe
A2 = Gasket
A3 = Adjustable fitting
A4 = Rigid or flexible gas supply pipe

Exclusively use pipes that conform to UNI-CIG 9891 specifications and sealing gaskets that conform to UNI-CIG 9264 specifications. The pipes must be installed so that when fully extended, their length does not exceed 2,000 mm. To facilitate installation and avoid the risk of gas leaks, it is advisable to first connect the adjustable fitting to the cooker hob then subsequently to the gas supply pipe. Inverting this sequence may not guarantee a gas-tight connection between the pipe and hob.

Important: after completing installation, verify the perfect tightness of all the fittings using a soapy solution - never a flame. Moreover, ensure that the flexible pipe does not lie in the path of moving parts in the underlying cabinet (e.g. drawers) and that its position safeguards it against possible damage.

ADJUSTMENT FOR DIFFERENT TYPES OF GAS

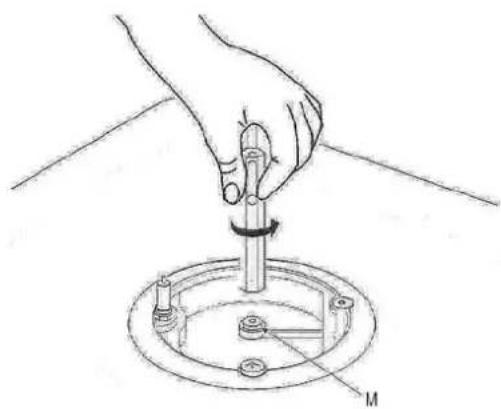

To adjust the gas hob for a different type of gas to that originally intended, follow the steps below in the sequence indicated:

• Remove the pan support and burner.
• Unscrew the injectors (M) using a suitable plug spanner and replace them with injectors whose diameter is appropriate for the type of gas to be used (see the "Burner specifications" table).
• After completing the procedure, replace the old calibration plate with the one provided relative to the new installation.

BURNER SPECIFICATIONS

Burners		A	SR	R
Rated heat input	kW	1	1.75	3.00
Reduced heat input	kW	0.45	0.70	1.00
minimum heat input DE-AT	kW	0.55	0.90	1.30
∅ INJECTOR:
G30/G31 28..30/30-37 mbar	mm	0.50	0.65	0.85
G30/G31 50 mbar	mm	0.43	0.58	0.75
G20 20 mbar	mm	0.72	0.97	1.15
G25 25 mbar	mm	0.72	0.94	1.21
G25 20 mbar	mm	0.77	1.00	1.34
G110 8 mbar	mm	1.45	1.85	2.60
G120 8 mbar	mm	1.40	1.80	2.40
∅ BY-PASS:
G30/G31 28..30/30-37 mbar	mm	0.28	0.31	0.42
G30/G31 50 mbar	mm	0.28	0.31	0.42
G20 20 mbar	mm	Adj.	Adj.	Adj.
G25 25 mbar	mm	Adj.	Adj.	Adj.
G25 20 mbar	mm	Adj.	Adj.	Adj.
G110 8 mbar	mm	Adj.	Adj.	Adj.
G120 8 mbar	mm	Adj.	Adj.	Adj.

Hand holding a tool above a circular mechanical component labeled 'M' (no text or symbols on the diagram itself)

HOB SPECIFICATIONS

Model	Total power output (kW)	Consumption
		G30 g/h	G20 m^3/h	G25 m^3/h	G110 m^3/h	G120 m^3/h
7052 - 142/642	5.75	601	0.78	0.91	1.87	1.67

MINIMUM FLOW ADJUSTMENT

Switch the burner on, set the valve to the minimum position then remove the knob (it is pressure-fitted thus easily removable).

Use a small screwdriver to turn the valve adjustment screw - anti-clockwise to increase the gas flow and clockwise to reduce the gas flow - until the flame is 3-4 mm long.

For LPG (in cylinder), turn the by-pass clockwise until it reaches the end.

Simple line drawing of a mechanical assembly with a central component and two circular holes (no text or symbols)

Instructions for the user

This appliance is designed for domestic cooking purposes and must be operated for its intended use only. Any other use of the appliance constitutes improper use and is dangerous.

The manufacturer shall not be held liable for any damages resulting from improper, incorrect or unreasonable use.

Operating the burners

If the burners have not been used for several days, wait a few seconds before igniting them to enable the air in the piping to escape.

The burners are equipped with an automatic ignition device and can be ignited by simply turning the knob towards the small star symbol. The ignition generator is of the repetitive discharge type.

If the flame does not ignite within 5 seconds, turn the knob back to position 0 and repeat the operation.

On models equipped with a flame safety device (that interrupts the flow of gas should the flame accidentally extinguish), the burners can be ignited in the above-mentioned manner, provided the knob is kept fully depressed for roughly 5-6 seconds after the flame ignites.

After this time - which is necessary to engage the safety device - the flame burns permanently.

CAUTION: after cleaning the hob, make sure that the burner is properly inserted in its housing and does not interfere with the spark plug.

For more efficient use of the burners, we recommend using flat-bottomed pots with suitable diameter in relation to the chosen burner.

When using small-diameter cookware (coffee pots, tea pots, etc.), adjust the burner power so that the flame does not spread over the edges of the cookware. Do not use cookware with concave or convex bottom.

WARNING: should the burner flame accidentally extinguish, shut off the control knob and attempt to reignite the burner after at least 1 minute.

CLEANING AND MAINTENANCE

Prior to carrying out any maintenance on the hob, unplug the appliance or disconnect it from the power supply by shutting off the mains switch.

Wait for the appliance to cool down before effecting cleaning operations; wash any enamelled, painted or chrome-plated parts with the aid of warm water and soap or a non-corrosive liquid detergent.

Steel parts can be cleaned with methylated spirits or other specific products available on the market. Use cotton or a cloth wetted with vaseline or seed oil to clean aluminium profiles and panels. Clean then wipe using methylated spirits.

Never use abrasive or corrosive detergents, bleach or acids for cleaning operations.

Avoid leaving acidic or alkaline residues (lemon juice, vinegar, etc.) on enamelled, painted or stainless steel parts.

TECHNICAL ASSISTANCE

Verify the following before contacting the Technical Assistance Service:

In the event of cooker hob malfunctions, we recommend verifying that the plug is properly inserted in the power socket and that the gas flows normally to the hob.

Should you fail to identify the cause of the malfunction:

switch off the appliance, do not tamper with it and contact the Technical Assistance Service.

The appliance comes with a warranty certificate that enables the owner to benefit from the Technical Assistance Service.

The warranty certificate must be stored and duly filled in to be presented to the Technical Assistance Service whenever required, together with a fiscally valid document issued by the dealer at the moment of purchase (delivery note, invoice, tax receipt, other) and indicating the dealer's name, delivery date, product identification data and purchase price.
