A800 - Smartphone LENOVO - Free user manual and instructions

Product Type	Smartphone
Brand	Lenovo
Model	A800
Operating System	Android 4.0.4
Dimensions	133.5 x 68.8 x 11.5 mm
Weight	155 g (including battery)
Battery Capacity	2000 mAh
Standby Time	Up to 320 hours (may vary)
SAR (Head)	0.598 W/kg (1g)
SAR (Body)	0.587 W/kg (1g)
Network Type	WCDMA
Wi-Fi	Yes
Sensors	Gravity sensor, Multi-touch
Screen Rotation	Auto-rotate with gravity sensor
Memory Card Support	Yes (microSD)
Maintenance	Wipe with damp soft lint-free cloth; avoid corrosive detergents
Operating Temperature	-10°C to 50°C
Antenna	Use only supplied or approved antenna
Recycling	Lenovo recycling program available at lenovo.com/recycling

Frequently Asked Questions - A800 LENOVO

How do I charge the Lenovo A800?

Connect the supplied charger to the phone and a power outlet. The battery icon indicates charging status. Use only Lenovo-approved chargers.

How do I insert the SIM card?

Power off the phone. Remove the back cover and battery. Locate the SIM card slot and slide the SIM card in with the gold contacts facing down. Reinsert the battery and cover.

How do I insert a memory card?

Power off the phone. Remove the back cover and battery. Insert the microSD card into the dedicated slot with gold contacts facing down. Replace battery and cover.

How do I open an application?

Tap the app icon on the home screen or app drawer. Press the Home key to return to the home screen.

How do I zoom in or out on the screen?

Use the multi-touch function: place two fingers on the screen and spread them apart to zoom in, or pinch them together to zoom out. Works in maps, browser, etc.

How do I scroll the screen?

Drag your finger up or down on the screen to scroll through content.

What are the temperature limits for using the A800?

Avoid temperatures below -10°C or above 50°C. Extreme conditions may damage the device.

How should I clean the Lenovo A800?

Use a damp, soft, lint-free cloth to wipe the screen. Do not use corrosive detergents or solvents.

What is the SAR value of the Lenovo A800?

The SAR values are 0.598 W/kg (head) and 0.587 W/kg (body) tested at 1g. Maintain 1.0 cm distance from body.

How do I recycle the Lenovo A800?

Visit lenovo.com/recycling for information on Lenovo's recycling programs. Do not dispose of as unsorted municipal waste.

USER MANUAL A800 LENOVO

Read this manual carefully

before operating the handset

Technical Parameters

Product: WCDMA digital mobile phone

Model: Lenovo A800

System: Android 4.0.4

Size: Approximately 133.5*68.8*11.5mm

Weight: Approximately155g (including battery)

Standby time: Max 320 hours *

Battery capacity: 2000 mAh

*may vary depending on local signal strength

SAR Information

0.598W/Kg@1g(HEAD) 0.587W/kg@1g(BODY)

Body-worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

Procedure Initial Setup Procedure

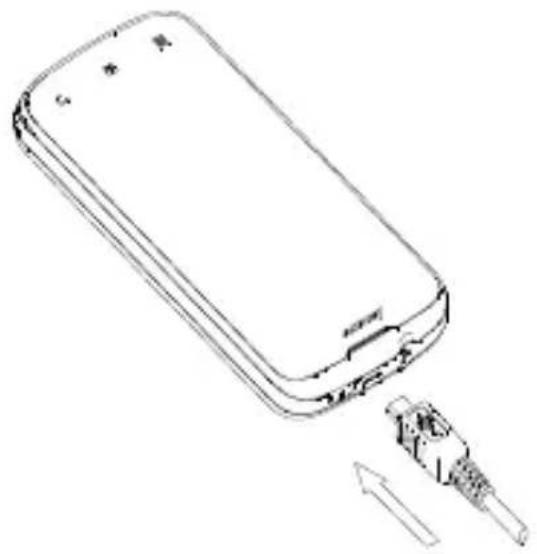

Charging the phone

Line drawing of a smartphone with an attached cable and plug, showing internal components (no text or symbols)

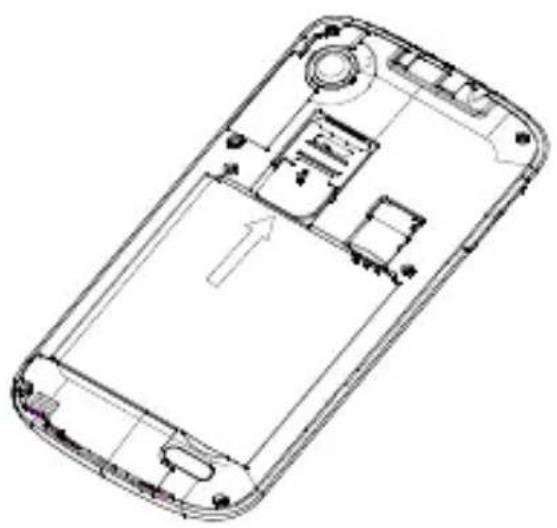

Inserting the SIM card

Technical line drawing of a smartphone internal panel with no visible text or symbols

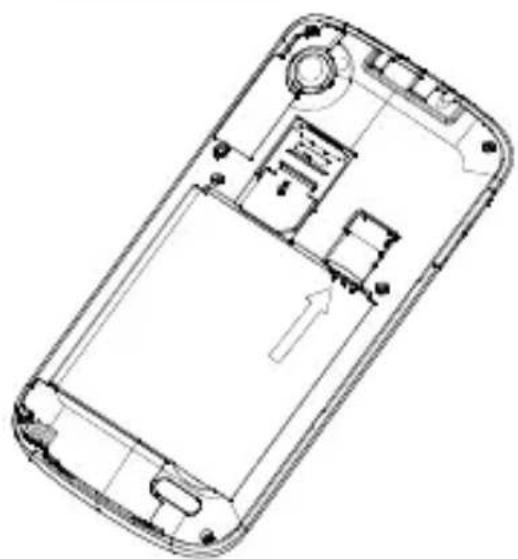

Inserting the memory card

Technical line drawing of a smartphone interior showing internal components and casing (no text or symbols)

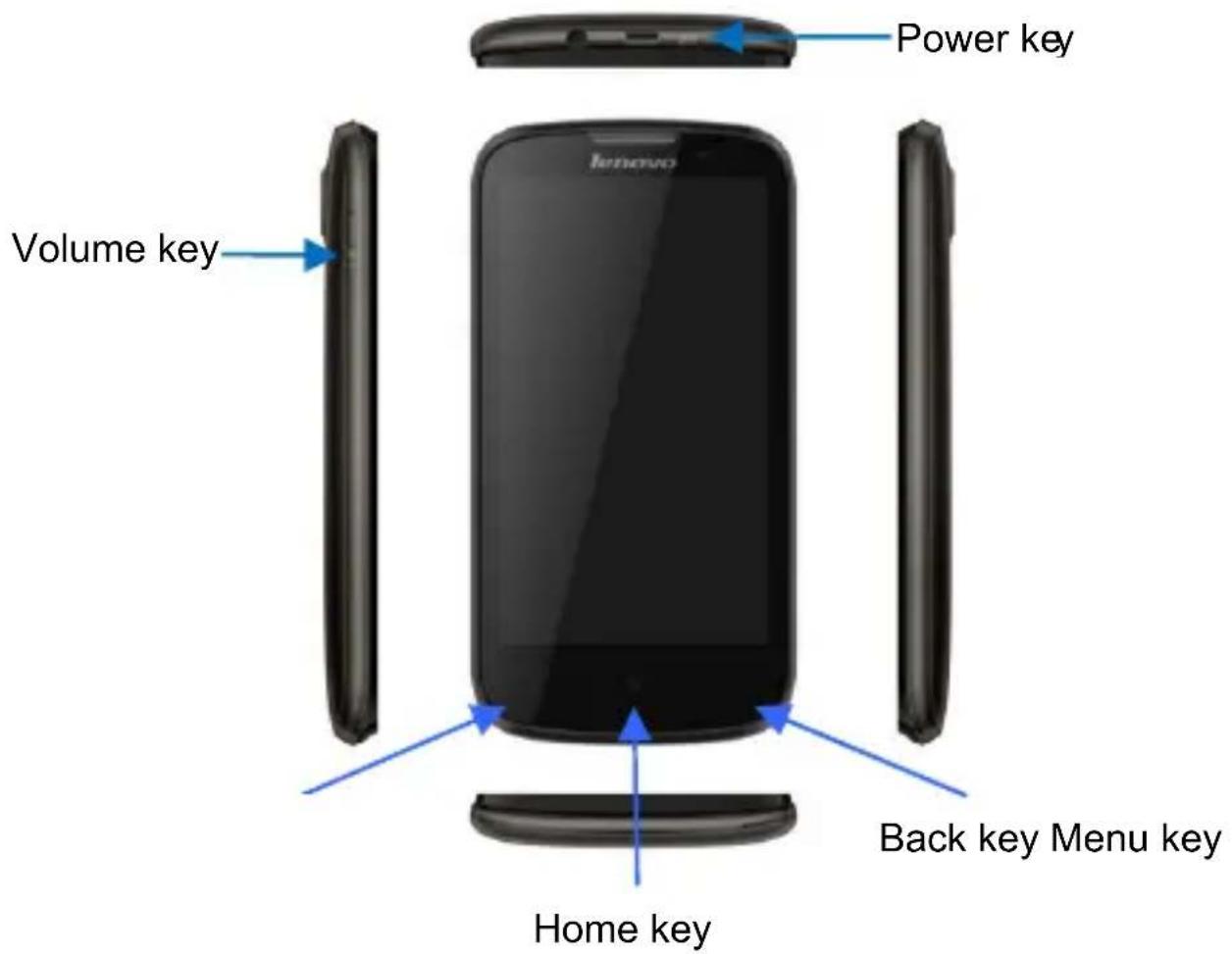

Port Assignment and Button Layout

Applications Overview

	Browser	Browsers websites. The web browser in this unit can access the Internet via the WIFI network for business and personal use.
	Email	Receives/Sends and views mails by linking directly to your mailbox.
	Gallery	Browsers and edits images. In an image full-screen page it supports slideshow functions and such operations as, Share, Set as, and Details.
	Contacts	Allows you to add or delete contacts and edit or delete particulars of a contact.
	LeCalendar	Creates new events, toggles the day view, the week view and the month view, and enables the event reminder function.

Gravity sensor and multi-touch

Auto rotate screen according to the rotation of the device. You can lock the A800 screen in the current direction screen rotation lock downward. To unlock the screen direction: Menu - Settings - Display - Auto-rotate screen.

Use the A800 in the landscape or portrait mode

After launching one application, you can rotate the screen to your preferred direction.

Use the multi-touch function

The multi-touch function enables you to perform various operations on the screen.

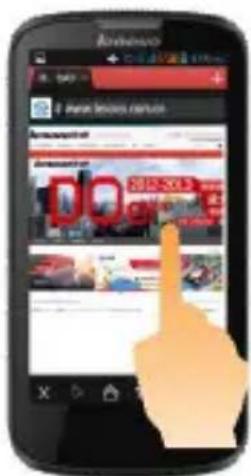

Open an application

Open an application: Tap the icon of this application on the screen. By clicking home key, you can return to the home screen.

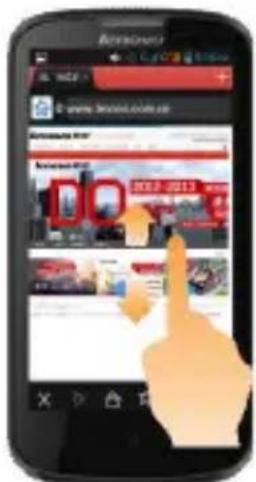

Scroll

Scroll the screen by dragging up or down on the content.

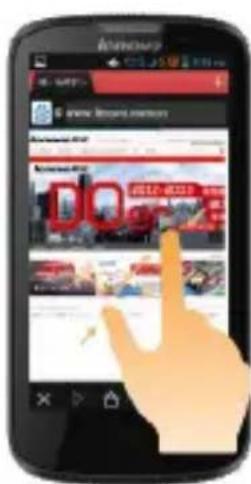

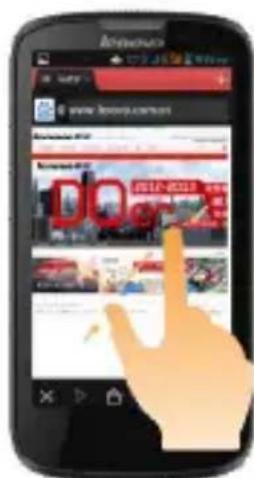

Zoom in or out

You can zoom in or out a map or web page while viewing it. To do so, just move your two fingers apart or together.

Precautions and Tips for A800

Never drop, strike, scratch, twist, knock, vibrate or push the A800 or place any heavy objects on it.

Gently touch the A800.

Keep the A800 away from any magnetic substances, mobile phones in conversation, electrical appliances or speakers.

Avoid exposing the A800 to extreme temperatures (lower than -10°C or higher than 50°C).

Do not place the A800 in a damp environment.

Do not use corrosive detergents or solvents to clean your A800. Just wipe the A800 screen with a damp, soft, lint-free cloth to clear fingerprints off it.

Recycling and environmental information General recycling statement

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to: http://www.lenovo.com/recycling

Important WEEE information

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

The WEEE marking on Lenovo products applies to countries with WEEE and e-waste regulations (for example, European Directive 2002/96/EC, India E-Waste Management & Handling Rules, 2011). Appliances are labeled in accordance with local regulations concerning waste electrical and electronic equipment (WEEE).

These regulations determine the framework for the return and recycling of used appliances as applicable within each geography. This label is applied to various products to indicate that the product is not to be thrown away, but rather put in the established collective systems for reclaiming these end of life products.

Users of electrical and electronic equipment (EEE) with the WEEE marking must not dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return, recycle, and recovery of WEEE and to minimize any potential

effects of EEE on the environment and human health due to the presence of hazardous substances. For additional WEEE information go to: http://www.lenovo.com/recycling

Recycling information for India

Recycling and disposal information for India is available at: http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html

Battery recycling marks

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Restriction of Hazardous Substances Directive (RoHS)

India RoHS

RoHS compliant as per E-Waste (Management & Handling) Rules, 2011.

Ponsel Lenovo

Panduan Penggunaan

Model: Lenovo A800

Line drawing of a smartphone with an attached cable and plug, showing internal components (no text or symbols)

Memasukkan kartu SIM

Technical line drawing of a smartphone casing with internal compartments and mounting points (no text or symbols)

Memasukkan kartu memori

Technical line drawing of a smartphone interior showing internal components and casing (no text or symbols)

Membuka aplikasi

Line drawing of a smartphone with an attached cable and plug, showing internal components (no text or symbols)

Line drawing of a smartphone interior showing internal components and casing (no text or symbols)

Technical line drawing of a smartphone internal casing with visible circuitry and mounting points (no text or symbols)

Открытие приложения

Line drawing of a smartphone with an attached cable showing internal components (no text or symbols)

Lắp thể SIM

Technical line drawing of a smartphone casing with internal compartments and mounting points (no text or symbols)

Lắp thể nhớ

Technical line drawing of a smartphone interior showing internal components and casing (no text or symbols)
