Product Type	Wireless Router
Brand	LevelOne
Model	WGR-6013
Dimensions (approx.)	150 x 100 x 30 mm
Weight	200 g
Power Supply	5V DC, 1A
Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Maximum Wireless Speed	300 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x 10/100 Mbps
Antennas	2 external, detachable
Security	WEP, WPA/WPA2, WPS
QoS	Supported
Firewall	NAT, SPI
Maintenance	Keep clean and dry; avoid direct sunlight
Safety	Use only provided power adapter
Spare Parts	Contact LevelOne support
Repairability	Not user-serviceable; consult technician

Frequently Asked Questions - WGR-6013 LEVELONE

How do I reset the router to factory defaults?

Press and hold the Reset button on the back panel for 10 seconds using a paperclip until the power LED blinks. Release the button and wait for the router to reboot.

What is the default IP address to access the router settings?

The default IP address is 192.168.1.1. Open a web browser and enter this address to access the login page.

I forgot the router login password. How can I recover it?

You cannot recover the password. Perform a factory reset (see above). The default username and password are both admin (lowercase).

How do I change the wireless network name (SSID)?

Log into the router web interface, go to Wireless Settings, and change the SSID field. Click Save and the router will reboot.

The internet connection is not working. What should I check?

First, ensure the WAN cable is firmly connected to the router's yellow port. Check the WAN LED on the front panel. Log into the router and verify the Internet connection type (PPPoE, DHCP, etc.) matches your ISP settings.

Can I use the router as a wireless access point?

Yes, you can. Connect the router to your main network via LAN, disable its DHCP server, and change its IP address to avoid conflicts. Then use the LAN ports for wired devices.

How do I update the router firmware?

Download the latest firmware from the LevelOne support website. Log into the router web interface, go to System Tools > Firmware Upgrade, and upload the file. Do not power off during the update.

What is the maximum number of wireless clients supported?

The router typically supports up to 32 simultaneous wireless clients under normal usage.

The router gets hot. Is that normal?

Some heat is normal. Ensure the router is placed in a well-ventilated area away from direct sunlight and other heat sources. If it becomes too hot to touch, contact support.

How do I enable guest network?

Log into the router, go to Wireless > Guest Network, enable it, and set a separate SSID and password. This isolates guest traffic from your main network.

USER MANUAL WGR-6013 LEVELONE

LevelOne User Manual

WGR-6013

300Mbps Wireless Gigabit Router

Ver. 1.0

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The CE-Declaration of Conformity can be downloaded at: http://www.levelone.eu/support.php

General Public License

This product incorporates open source code into the software and therefore falls under the guidelines governed by the General Public License (GPL) agreement.

Adhering to the GPL requirements, the open source code and open source license for the source code are available for free download at http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US\$9.99 plus the cost of shipping.

Table of Contents

Chapter 1 Introduction....5

1.1 Packing List 5
1.2 Spec Summary Table 5
1.3 Hardware Configuration....7
1.4 LED indicators....8
1.5 Button Definition....9
1.6 Procedure for Hardware Installation 9

Chapter 2 Getting Start....11

Chapter 3 Making Configuration....17

2.1 Login to Configure from Wizard.... 18
2.2 System Status 23
2.3 Advanced 24

Appendix A FAQ and Troubleshooting 89

What can I do when I have some trouble at the first time? ..... 89
How do I connect router by using wireless? 91

IP Address 192.168.1.1
Password admin
Wireless Mode Enable
Wireless SSID LevelOne
Wireless Security None

Chapter 1 Introduction

Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

1.1 Packing List

WGR-6013

Power Adapter

RJ-45 LAN Cable

Quick Installation Guide

CD Manual/QIG

Antenna

1.2 Spec Summary Table

Device Interface
Ethernet WAN	1 x RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX
Ethernet LAN	4 x RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX
Antenna	2 dBi detachable antenna
WPS Button	For WPS connection
Reset Button	Reset router setting to factory default
LED Indication	Power/Status / WAN / LAN1 ~ LAN4/ WiFi
Power Jack	DC Power Jack, powered via external DC 5V/1.2A switching power adapter
Wireless LAN (WiFi)
Standard	IEEE 802.11b/g/n compliance
SSID	SSID broadcast or in stealth mode
Channel	Auto-selection, manually
Security	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
WPS	WPS (Wi-Fi Protected Setup)
WMM	WMM (Wi-Fi Multimedia)
Functionality
Ethernet WAN	PPPoE, DHCP client, Static IP
WAN Connection	Auto-reconnect, dial-on-demand, manually
One-to-Many NAT	Virtual server, special application, DMZ, Super DMZ(IP pass-through)
NAT Session	Support NAT session(20000)
SPI Firewall	IP/Service filter, URL blocking, Internet Access Control
DoS Protection	DoS (Deny of Service) detection and protection
Routing Protocol Static route, dynamic route (RIP v1/v2)
Management	SNMP, UPnP IGD, syslog, DDNS
Administration	Web-based UI, remote login, backup/restore setting
Performance	NAT up to 700Mbps and Wireless up to150Mbps
Environment & Certification
Package Information	Device dimension (mm) 185x119x32
Operation Temp.	Temp.: 0~40°C, Humidity 10%~90% non-condensing
Storage Temp.	Temp.: -10~70°C, Humidity: 0~95% non-condensing
EMI Certification	CE/FCC compliance
RoHS	RoHS compliance

*Specifications are subject to change without prior notice.

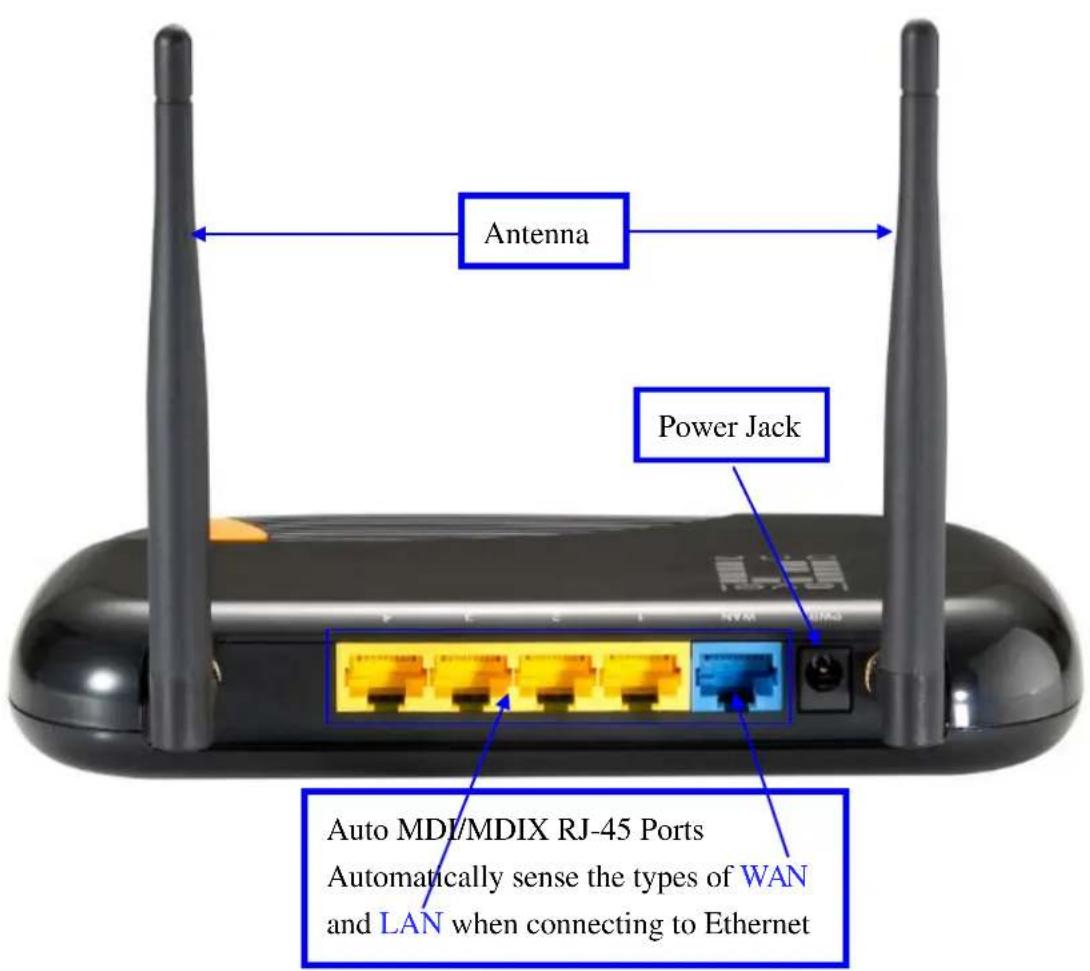

1.3 Hardware Configuration

1.4 LED indicators

	LED status	Description
Status	Green in flash	Device status is working.
WAN LED	Green RJ45 cable is plugged
	Green in flash Data access
LAN LED	Green RJ45 cable is plugged
	Green in flash Data access
WiFi LED	Green WLAN is on
	Green in flash Data access
	Green in fast flash Device is in WPS PBC mode
	Green in dark	Wi-Fi Radio is disabled

1.5 Button Definition

Description
WPS	When Wireless is On, press this button (about 1 sec) to execute WPS function.
Wireless On	When Wireless is off depend as Schedule Rule, Press this button(about 5 sec) to enable "Wireless Radio".
Reset	1. Press this button then Power on the device2. Press about 6 second, the device will reset to default then Status LED flashes per sec in Normal status.Notice: If Status LED flashes very fast, it means to press this button too long and please try again.

1.6 Procedure for Hardware Installation

Step 1 Insert the Ethernet cable into LAN Port:

Insert the Ethernet patch cable into LAN port on the back panel of Router, and an available Ethernet port on the network adapter in the computer you will use to configure the unit.

Front view of a white wireless router with two antennas and three ports, showing a black plug inserted into the port (no text or symbols visible)

Step 2 Insert the Ethernet patch cable into Wired WAN port:

Insert the Ethernet patch cable form DSL

Modem into Wired WAN port on the back panel of Router.

Front view of a wireless router with two antennas and a USB port, showing network ports and a key inserted (no text or symbols visible)

Step 3. Power on Router:

Connect the power adapter to the receptor on the back panel of your Router.

Front view of a wireless router with two antennas and a USB port (no text or symbols visible)

Step 4. Complete the setup.

When complete, the Status LED will flash.

Chapter 2 Getting Start

Insert the CD into CD reader on your PC. The program, AutoRun, will be executed automatically.

And then you can click the Easy setup Icon for this utility.

Configure the settings by the following steps.

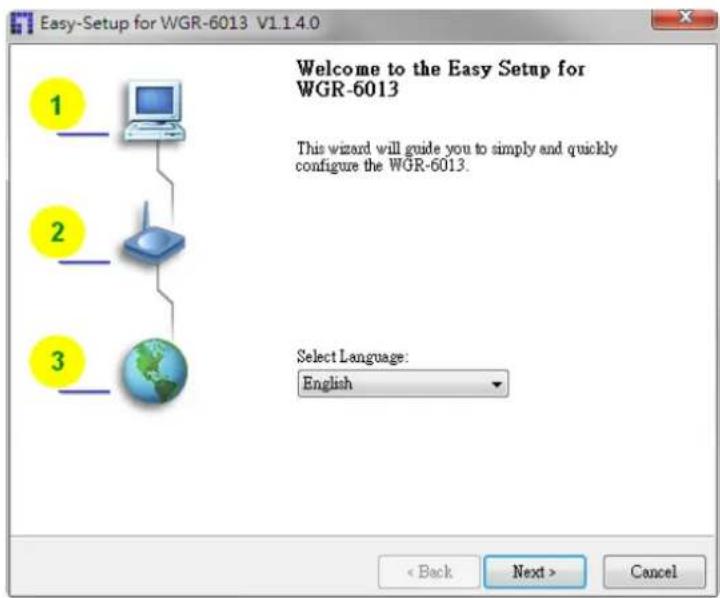

2.1. Select Language then click "Next" for continues.

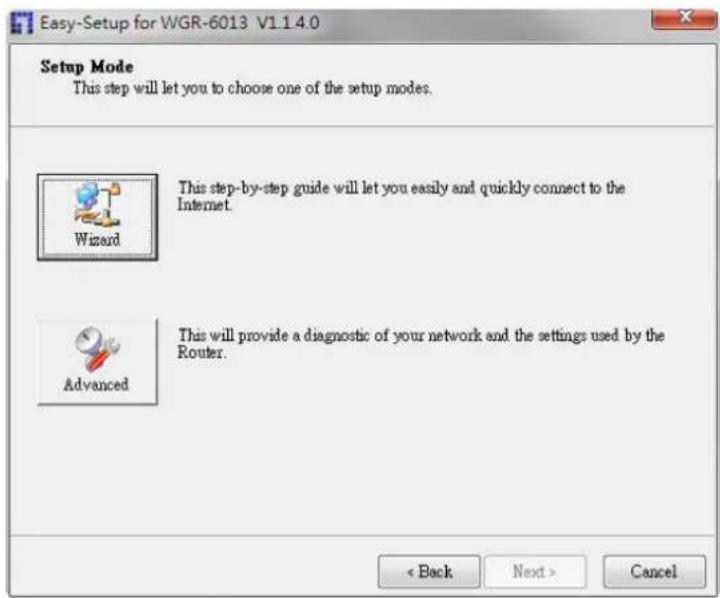

2.2 Setup mode

You can select Wizard mode to run the setup step-by-step or run advanced mode to diagnose the network settings of the router.

2.3 Advanced mode Setup.

Check the PC, Router or Internet icons for the Status of PC, Router or Internet.

2.4 Quick Wizard Install mode Setup

1. Make sure the router is powered on.
2. Make sure your network adapter is connected to the LAN port of the router
3. Make sure your network adapter has an IP address.

Click "Next" for continues

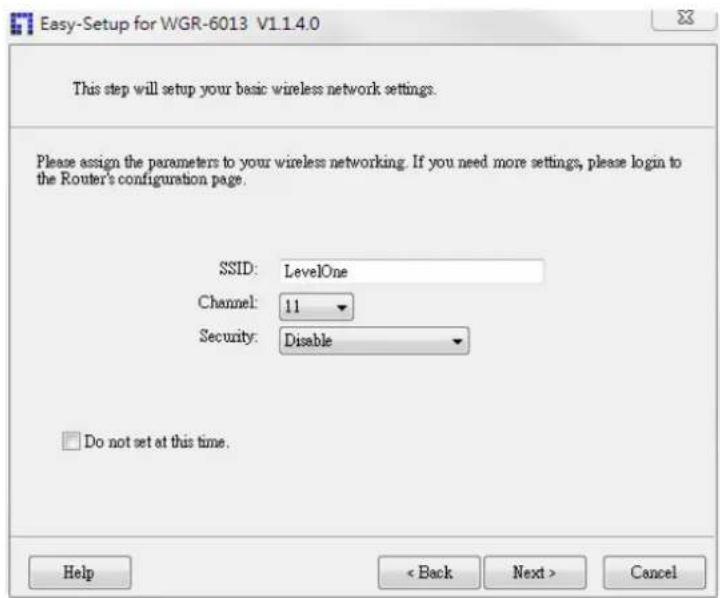

2.5. Wireless Setting.

Key in the SSID, Channel and Security options, and then click "Next" for continues.

2.6 Auto Detect WAN Service.

Click "Next" for continue.

Click the button, "Let me select WAN service by myself", to disable this function.

Note: The Item supports to detect the Dynamic and PPPoE WAN Services only

Example, the Dynamic WAN type is detected.

2.7. Manual select WAN Service

In the manual mode, Click the any icons for continues.

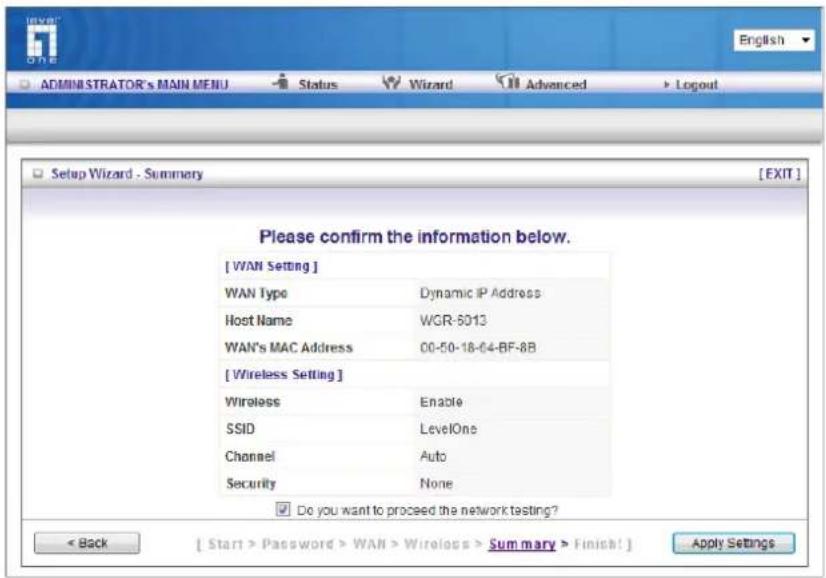

2.8 Summary of the settings and Next to "Reboot"

Click "Next" for continue.

2.9 Apply the Settings or Modify.

Click "Next" for continue.

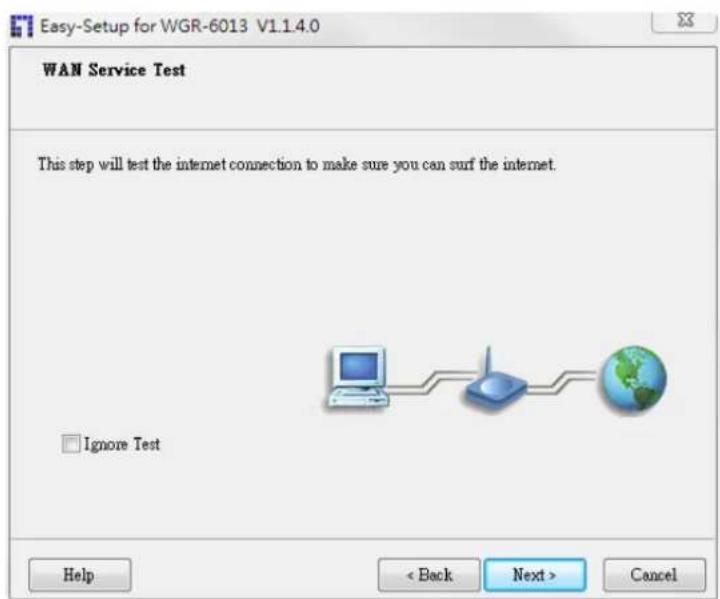

2.10 Test the Internet connection.

Test WAN Networking service. Click "Next" for continue.

You can ignore the by select the "Ignore Test".

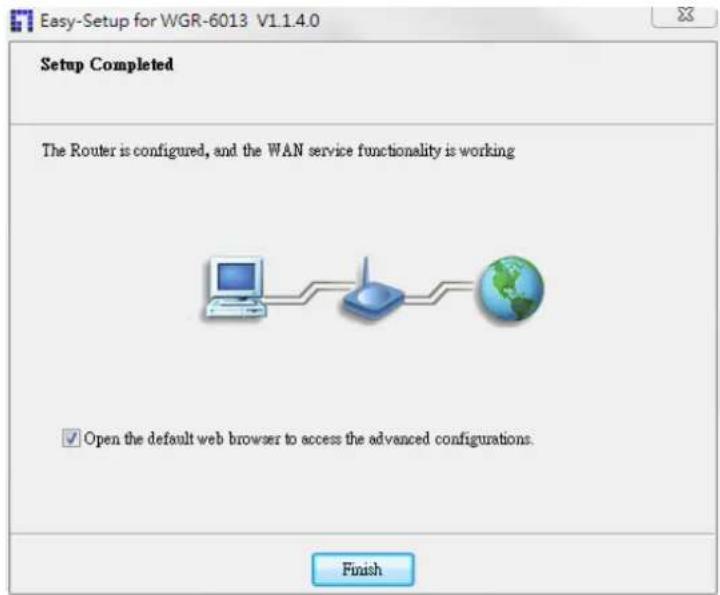

2.11 Setup Completed.

The EzSetup is finish, you can open the default web browser to configure advanced settings of the Router.

Click "Finish" to complete the installation.

Chapter 3 Making Configuration

This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Mozilla Firefox or or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.

2.1 Login to Configure from Wizard

Type in the IP Address

(http://192.168.1.1)

Type password, the default is

"admin" and click 'login' button.

Press "Wizard" for basic

settings with simple way.

Press "Next" to start wizard.

Step 1:

Set up your system password.

Step 2:

Select Wan Type.

Auto Detecting or

Setup Manually.

Step 3:

Setup the LAN IP and WAN Type.

Example:

Step 4:

Please fill in PPPoE service information which is provided by your ISP.

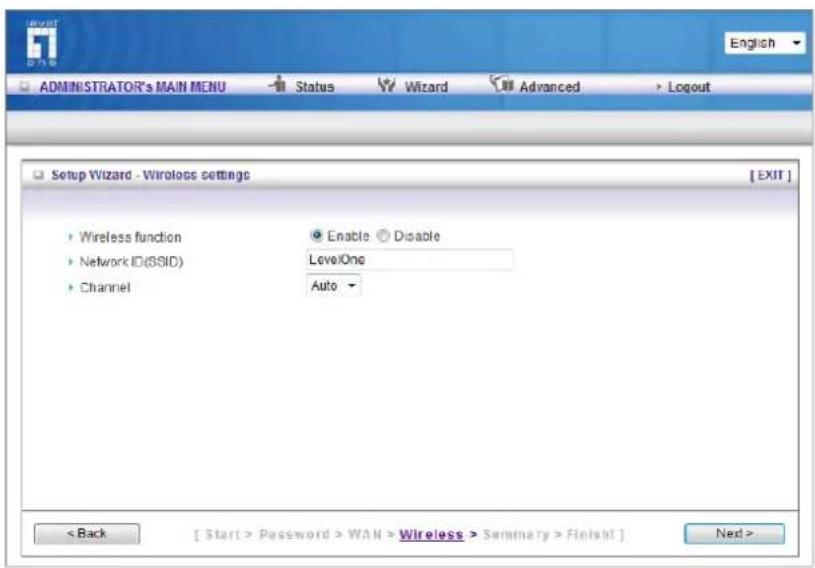

Step 5:

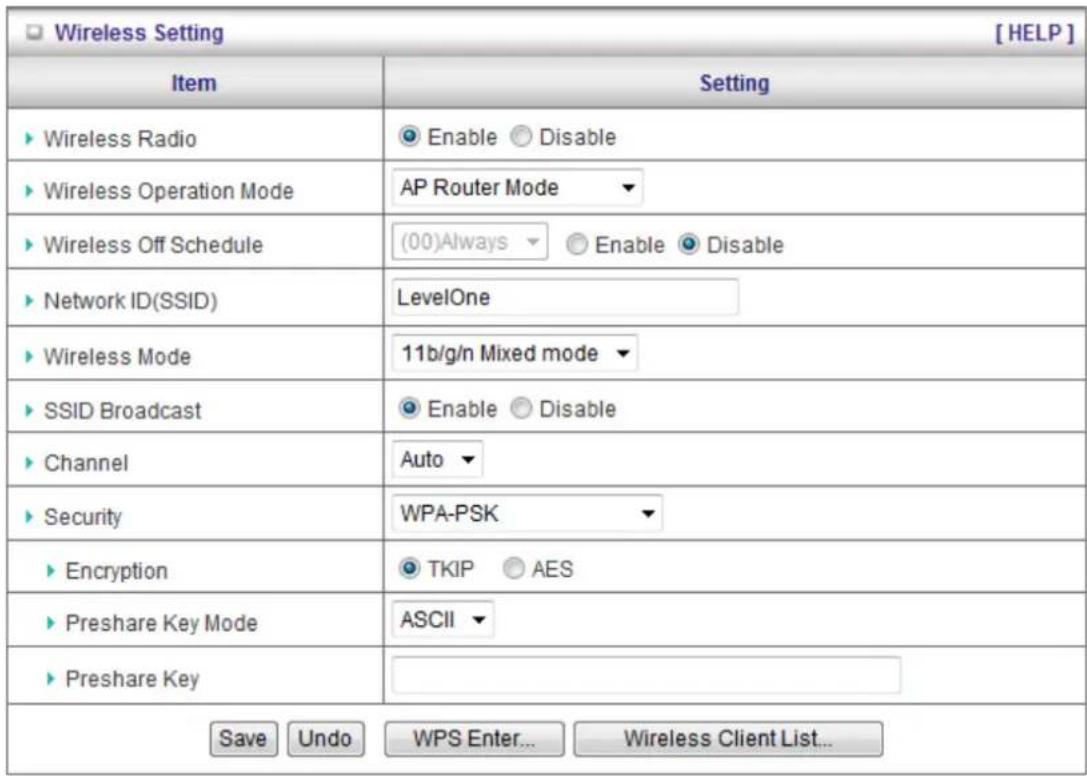

Set up your Wireless.

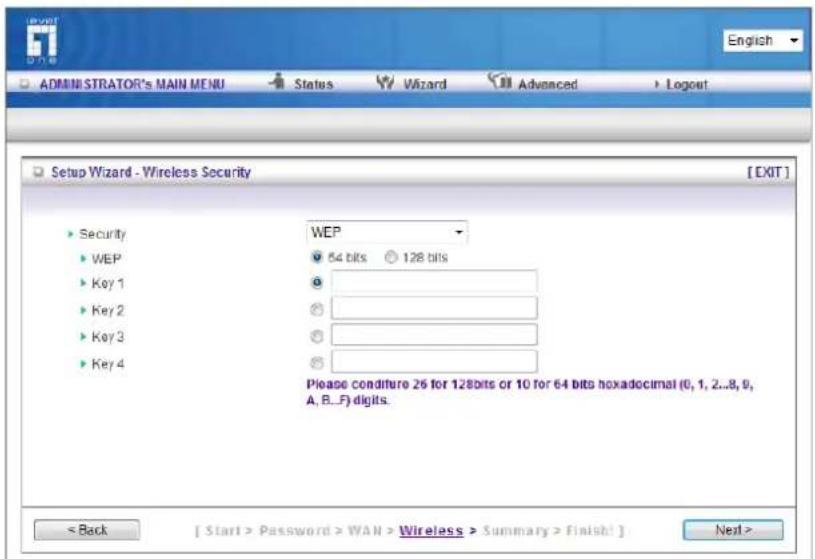

Set up your Authentication and Encryption.

Step 6:

Then click Apply Setting.

And then the device will reboot.

Step 7:

Click Finish to complete it.

2.2 System Status

System Status [HELP]
Item	WAN Status	Sidenote
Remaining Lease Time	47:59:40	Renew
IP Address	192.168.50.125	Release
Subnet Mask	255.255.255.0
Gateway	192.168.50.1
Domain Name Server	168.95.1.1, 61.31.233.1
MAC Address	00-50-18-64-BF-8B
IPv6 System Status
Item	WAN Status	Sidenote
ipv6	Disable
WAN Link Local Address	-
LAN IPv6 Address	-
LAN IPv6 Link-Local Address	-
Wireless Status
Item	WLAN Status	Sidenote
Wireless mode	Enable
SSID	LevelOne
Channel	Auto
Security	WPA-PSK / WPA2-PSK	(TKIP+AES)
MAC Address	00-50-18-64-BF-8C

This option provides the function for observing this product's working status:

WAN Status.

If the WAN port is assigned a dynamic IP, there may appear a "Renew" or "Release" button on the Sidenote column. You can click this button to renew or release IP manually.

Statistics of WAN: enables you to monitor inbound and outbound packets

2.3 Advanced

2.3.1 Basic Setting

Please Select "Advanced Setup" to Setup

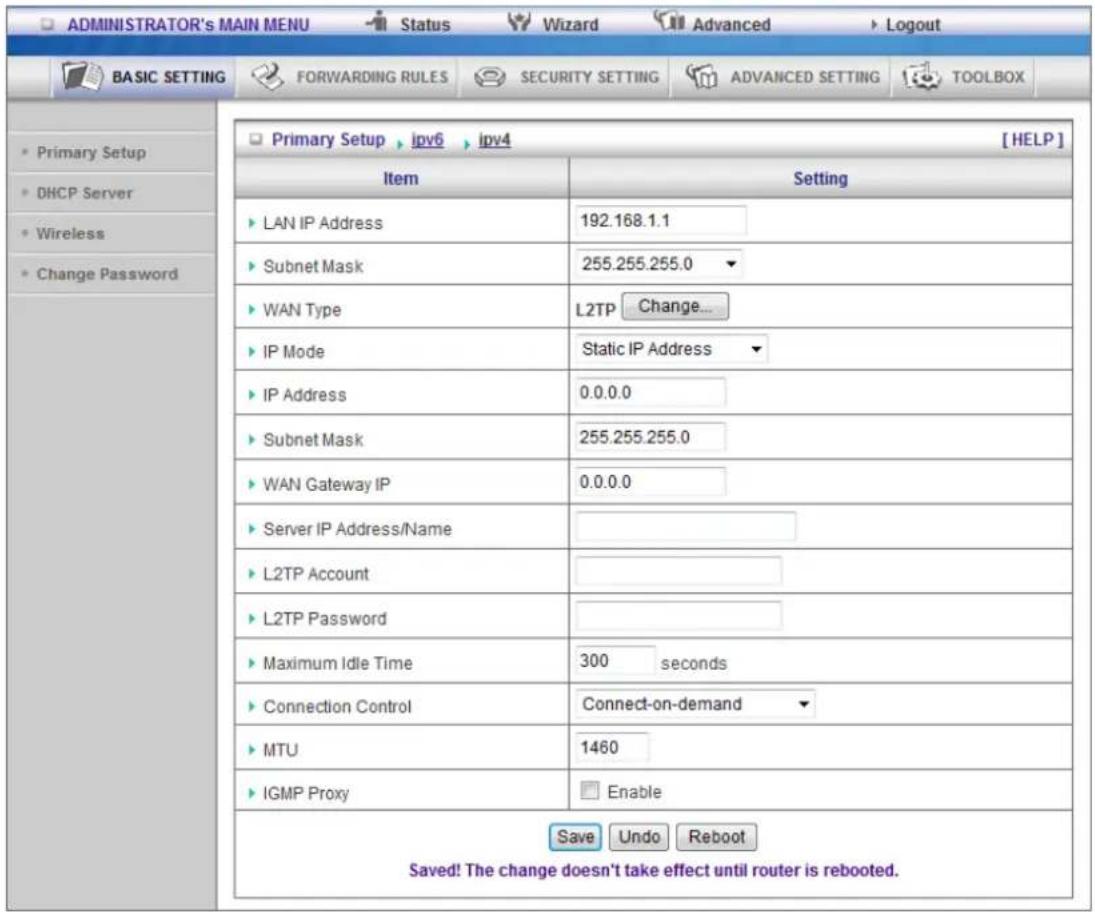

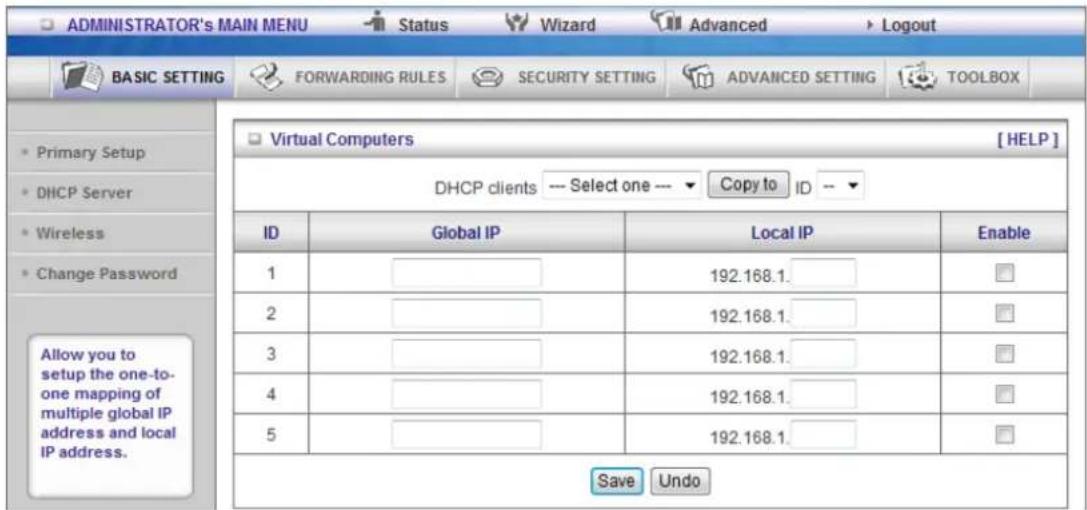

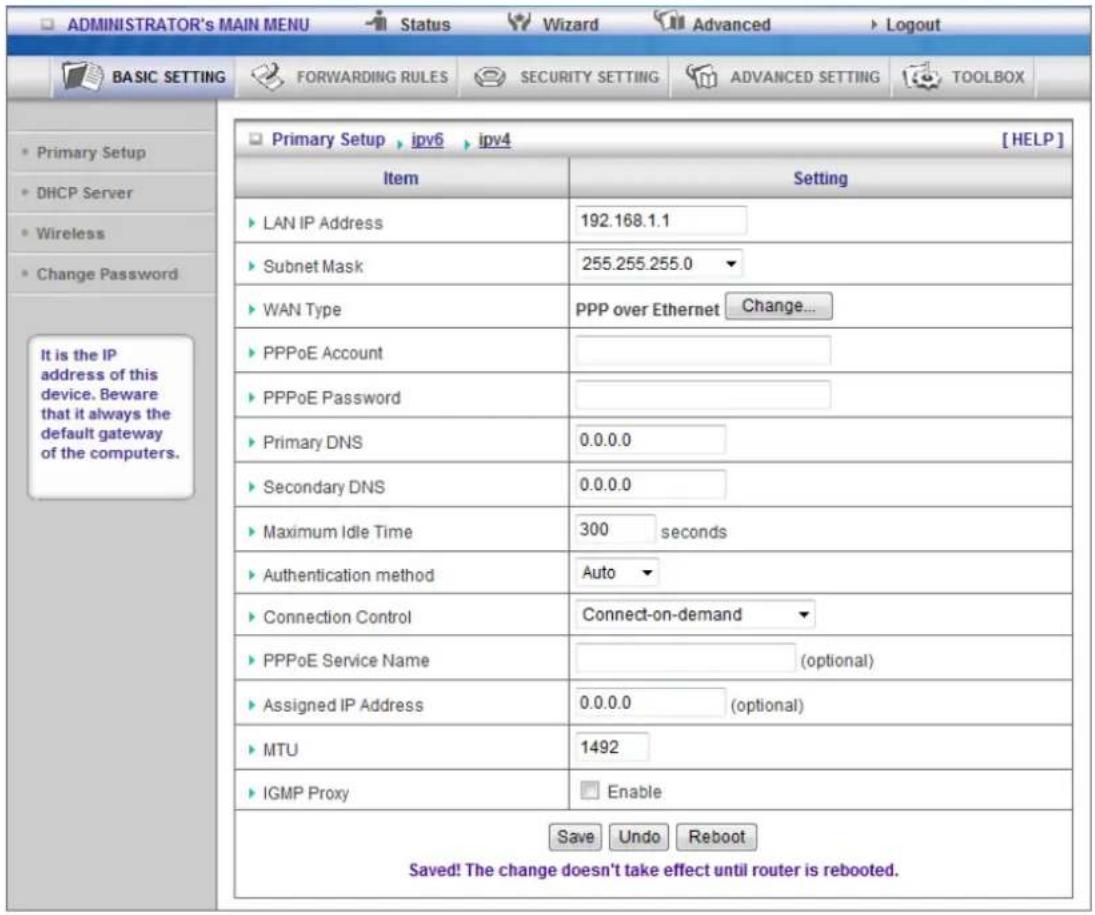

2.3.1.1 Primary Setup – WAN Type, Virtual Computers

Press "Change"

This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start.

1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway. You can change it if necessary.

1. WAN Type: WAN connection type of your ISP. You can click Change button to choose a correct one from the following four options:

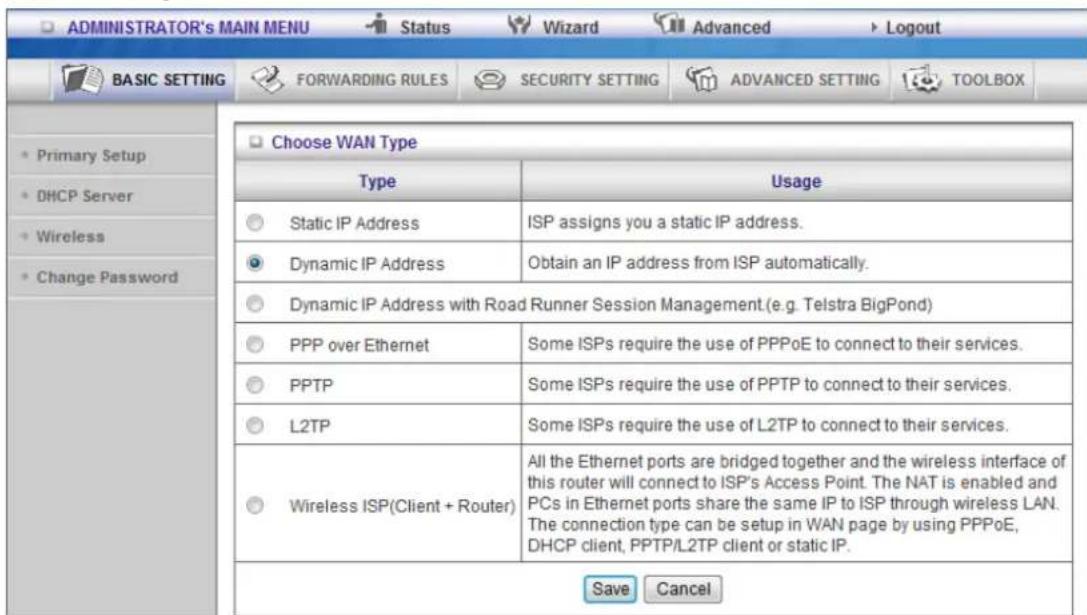

Choose WAN Type
Type	Usage
Static IP Address	ISP assigns you a static IP address.
Dynamic IP Address	Obtain an IP address from ISP automatically.
Dynamic IP Address with Road Runner Session Management (e.g. Telstra BigPond)
PPP over Ethernet	Some ISPs require the use of PPPoE to connect to their services.
PPTP	Some ISPs require the use of PPTP to connect to their services.
L2TP	Some ISPs require the use of L2TP to connect to their services.
Wireless ISP(Client + Router)	All the Ethernet ports are bridged together and the wireless interface of this router will connect to ISP's Access Point. The NAT is enabled and PCs in Ethernet ports share the same IP to ISP through wireless LAN. The connection type can be setup in WAN page by using PPPoE, DHCP client, PPTP/L2TP client or static IP.
Save Cancel

A. Static IP Address: ISP assigns you a static IP address.
B. Dynamic IP Address: Obtain an IP address from ISP automatically.
C. PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.
D. PPTP: Some ISPs require the use of PPTP to connect to their services.
E. L2TP: Some ISPs require the use of L2TP to connect to their services
F. WISP: All the Ethernet ports are bridged together and the wireless interface of this router will connect to ISP's Access Point. The NAT is enabled and PCs in Ethernet ports share the same IP to ISP through wireless LAN. The connection type can be setup in WAN page by using PPPoE, DHCP client or static IP.

Static IP Address: ISP assigns you a static IP address:

WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper setting provided by your ISP.

Dynamic IP Address: Obtain an IP address from ISP automatically.

Host Name: optional. Required by some ISPs, for example, @Home.

Renew IP Forever: this feature enables this product to renew your IP address automatically when the lease time is expiring-- even when the system is idle.

PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.

PPPoE Account and Password: the account and password your ISP assigned to you. For security, this field appears blank. If you don't want to change the password, leave it empty.

PPPoE Service Name: optional. Input the service name if your ISP requires it. Otherwise, leave it blank.

Maximum Idle Time: the amount of time of inactivity before disconnecting your PPPoE session. Set it to zero or enable Auto-reconnect to disable this feature.

Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The most common MTU value is 1492.

Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing packets.

Auto-Reconnect(Always-on): The device will link with ISP until the connection is established.

Manually :The device will not make the link until someone clicks the connect-button in the Status-page.

PPTP: Some ISPs require the use of PPTP to connect to their services

First, Please check your ISP assigned and Select Static IP Address or Dynamic IP Address.

1. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you. If you don't want to change the password, keep it empty.
4. Connection ID: optional. Input the connection ID if your ISP requires it.
5. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this product will connect to ISP automatically, after system is restarted or connection is dropped.

Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing packets.

Auto-Reconnect(Always-on): The device will link with ISP until the connection is established.

Manually: The device will not make the link until someone clicks the connect-button in the Status-page.

First, Please check your ISP assigned and Select Static IP Address or Dynamic IP Address.

For example: Use Static

1. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you. If you don't want to change the password, keep it empty.
4. Connection ID: optional. Input the connection ID if your ISP requires it.
5. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this product will connect to ISP automatically, after system is restarted or connection is dropped.

Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing packets. Auto-Reconnect(Always-on):The device will link with ISP until the connection is established. Manually :The device will not make the link until someone clicks the connect-button in the Status-page.

WISP: Wireless ISP(Client + Router)

In this mode, the AP can also send wireless signal to the LAN side. That means the AP can connect with the remote WISP AP and the indoor wireless card, and then provide IP sharing capability all at the same time!

First, Select WISP WAN Type and please follow Dynamic IP, Static IP and PPPoE to configure.

Regarding with Wireless setting, like SSID, MAC Channel, Security and Scanned AP'S MAC.

Please refer to "2.3.1.3 Wireless Setting"

Virtual Computers(Only for Static and dynamic IP address Wan type)

Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one mapping of multiple global IP address and local IP address.

• Global IP: Enter the global IP address assigned by your ISP.
- Local IP: Enter the local IP address of your LAN PC corresponding to the global IP address.
- Enable: Check this item to enable the Virtual Computer feature.

2.3.1.2 IPv6

The growth of the Internet has created a need for more addresses than are possible with IPv4. IPv6 (Internet Protocol version 6) is a version of the Internet Protocol (IP) intended to succeed IPv4, which is the protocol currently used to direct almost all Internet traffic. IPv6 also implements additional features not present in IPv4. It simplifies aspects of address assignment (stateless address auto-configuration), network renumbering and router announcements when changing Internet connectivity providers. This router supports 6 types of IPv6 connection (Static IPv6/ DHCPv6/ PPPoE/ 6 to 4 / IPv6 in IPv4 tunnel/ / PPPoA). Please ask your ISP of what types of IPv6 are supported before you proceed with IPv6 setup.

■ Coexistence (Ether or PPPoE Dual Stack)

• Select WAN type Ether or PPPoE: Almost ISPs follow the setting of IPv4 to connect IPv6, for example, use the same account and Password in the PPPoE of IPv4 Page.
• IPv6 DNS (WAN IPv6 address) settings: You may select to obtain DNS server address automatically or use following DNS address. You may add IPv6 address Primary DNS address and secondary DNS address.
• IPv6 SPI: The firewall settings section is an advance feature used to allow or deny traffic from passing through the device.
• LAN IPv6 address settings: Please enter "LAN IPv6 address" and ignore the "LAN IPv6 Link-Local address".
• Address auto configuration settings:

Auto-configuration: Disable or enable this auto configuration setting.

Auto-configuration type: You may set stateless or stateful (Dynamic IPv6).

■ Static IPv6

Primary Setup ipv6 ipv4
Static v6
Item	Setting
Link Local IP Address
Global IP Address
Gateway Global IP Address
Prefix Length	64
MTU	1500
Primary DNS
Secondary DNS
Current LAN Address
Item	Setting
IPv6 SPI	Disable Enable
Link Local Address
Autoconfiguration Type	Stateless
Global Address

• IPv6 address: Enter the IPv6 address here; IPv6 addresses have a size of 128 bits. Therefore, IPv6 has a vastly enlarged address space compared to IPv4. An example of an IPv6 address is "2001:0db8:85a3:0000:0000:8a2e:0370:7334"
• Prefix Length: enter the Prefix length of the Subnet Mask here; The subnet mask was the forerunner of the modern IP address prefix length. For example a subnet mask of 255.255.255.0 conveys exactly the same information as a prefix length of /24, a subnet mask of 255.255.255.240 is equivalent to a prefix length of /28.
• Gateway Global IP Address: Enter the Default Gateway address here; A default gateway is the node on the computer network that the network software uses when an IP address does not match any other routes in the routing table.
• IPv6 DNS (WAN IPv6 address) settings: You may select to obtain DNS server address automatically or use following DNS address. You may add IPv6 address Primary DNS address and secondary DNS address.
• IPv6 SPI: The firewall settings section is an advance feature used to allow or deny traffic from passing through the device.
• LAN IPv6 address settings: Please enter "LAN IPv6 address" and ignore the "LAN IPv6 Link-Local address".

- Address auto configuration settings:

Auto-configuration: Disable or enable this auto configuration setting.

Auto-configuration type: You may set stateless or stateful (Dynamic IPv6).

6RD

• Remote IPv4 address: Enter Remote IP Address
• Remote IPv6 Address/Prefix Length: Enter the IPv6 address here; IPv6 addresses have a size of 128 bits. Therefore, IPv6 has a vastly enlarged address space compared to IPv4. An example of an IPv6 address is
  "2001:0db8:85a3:0000:0000:8a2e:0370:7334". Then enter the Prefix length of the Subnet Mask here; The subnet mask was the forerunner of the modern IP address prefix length. For example a subnet mask of 255.255.255.0 conveys exactly the same information as a prefix length of /24, a subnet mask of 255.255.255.240 is equivalent to a prefix length of /28.
• IPv6 DNS (WAN IPv6 address) settings: You may select to obtain DNS server address automatically or use following DNS address. You may add IPv6 address Primary DNS address and secondary DNS address.
  • IPv6 SPI: The firewall settings section is an advance feature used to allow or deny

traffic from passing through the device.

• LAN IPv6 address settings: Please enter "LAN IPv6 address" and ignore the "LAN IPv6 Link-Local address".
• Address auto configuration settings:

Auto-configuration: Disable or enable this auto configuration setting.

Auto-configuration type: You may set stateless or stateful (Dynamic IPv6).

6in4

• Remote IPv4 address: Enter Remote IP Address
- Remote IPv6 Address/Prefix Length: Enter the IPv6 address here; IPv6 addresses have a size of 128 bits. Therefore, IPv6 has a vastly enlarged address space compared to IPv4. An example of an IPv6 address is
"2001:0db8:85a3:0000:0000:8a2e:0370:7334". Then enter the Prefix length of the Subnet Mask here; The subnet mask was the forerunner of the modern IP address prefix length. For example a subnet mask of 255.255.255.0 conveys exactly the same information as a prefix length of /24, a subnet mask of 255.255.255.240 is equivalent to a prefix length of /28.
- IPv6 DNS (WAN IPv6 address) settings: You may select to obtain DNS server address automatically or use following DNS address. You may add IPv6 address Primary DNS

address and secondary DNS address.

• IPv6 SPI: The firewall settings section is an advance feature used to allow or deny traffic from passing through the device.
• LAN IPv6 address settings: Please enter "LAN IPv6 address" and ignore the "LAN IPv6 Link-Local address".
• Address auto configuration settings:

Auto-configuration: Disable or enable this auto configuration setting.

Auto-configuration type: You may set stateless or stateful (Dynamic IPv6).

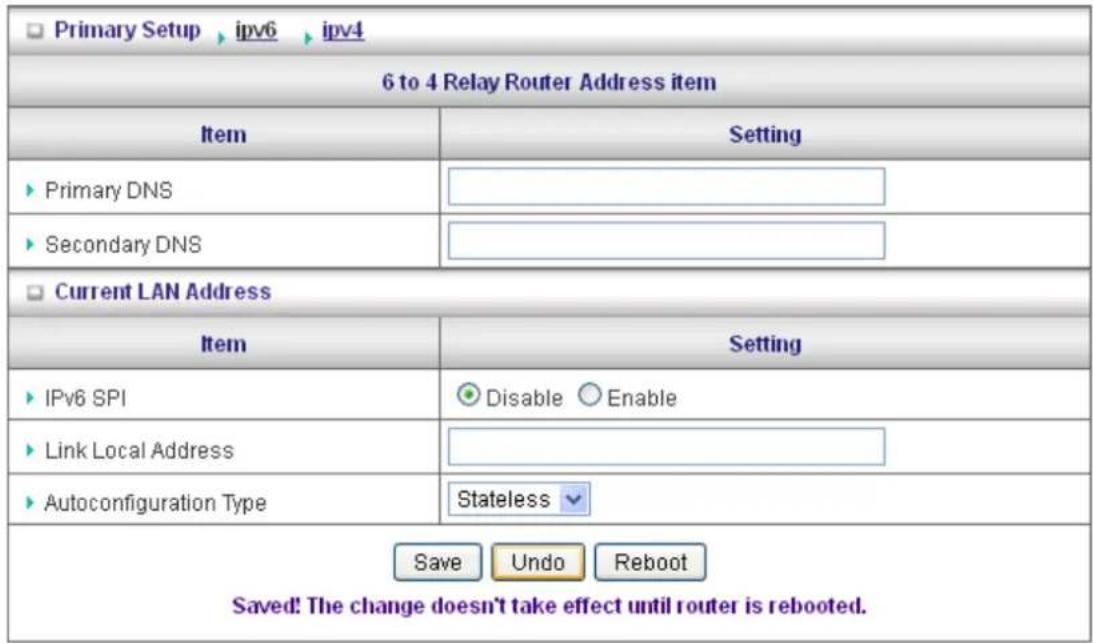

6to4

• IPv6 DNS (WAN IPv6 address) settings: You may select to obtain DNS server address automatically or use following DNS address. You may add IPv6 address Primary DNS address and secondary DNS address.
• IPv6 SPI: The firewall settings section is an advance feature used to allow or deny traffic from passing through the device.
• LAN IPv6 address settings: Please enter "LAN IPv6 address" and ignore the "LAN IPv6 Link-Local address".
• Address auto configuration settings:

Auto-configuration: Disable or enable this auto configuration setting.

Auto-configuration type: You may set stateless or stateful (Dynamic IPv6).

2.3.1.3 DHCP Server

Press "More>>"

1. DHCP Server: Choose "Disable" or "Enable."
2. Lease time: This is the length of time that the client may use the IP address it has been

Assigned by dhcp server.

1. IP pool starting Address/ IP pool starting Address: Whenever there is a request, the DHCP

server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

1. Domain Name: Optional, this information will be passed to the client.
2. Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers
3. Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers
4. Gateway: The Gateway Address would be the IP address of an alternate Gateway. This function enables you to assign another gateway to your PC, when DHCP server offers an IP to your PC.

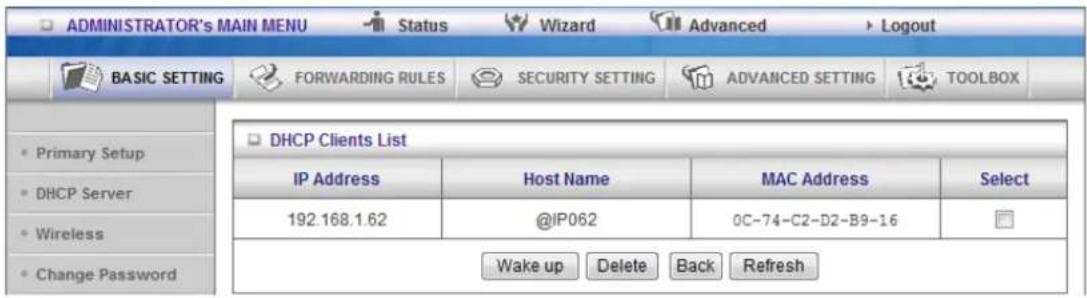

5. DHCP Client List:

2.3.1.3 Wireless Setting

Wireless settings allow you to set the wireless configuration items.

Wireless Radio: The user can turn on or off Wireless Service.

Wireless Operation Mode

AP Router Mode:

This Mode can allow you Get your wired and wireless devices connected with NAT.

Wireless Off Schedule: Before turning Off Wireless Radio, the device will detect if Wireless station is online, then depend as Schedule "01:00\~08:30" to disable WiFi service.

Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is "default")

SSID Broadcast: The router will Broadcast beacons that have some information, including ssid so that

The wireless clients can know how many ap devices by scanning function in the network. Therefore, This function is disabled, the wireless clients can not find the device from beacons.

Channel: The radio channel number. The permissible channels depend on the Regulatory Domain.

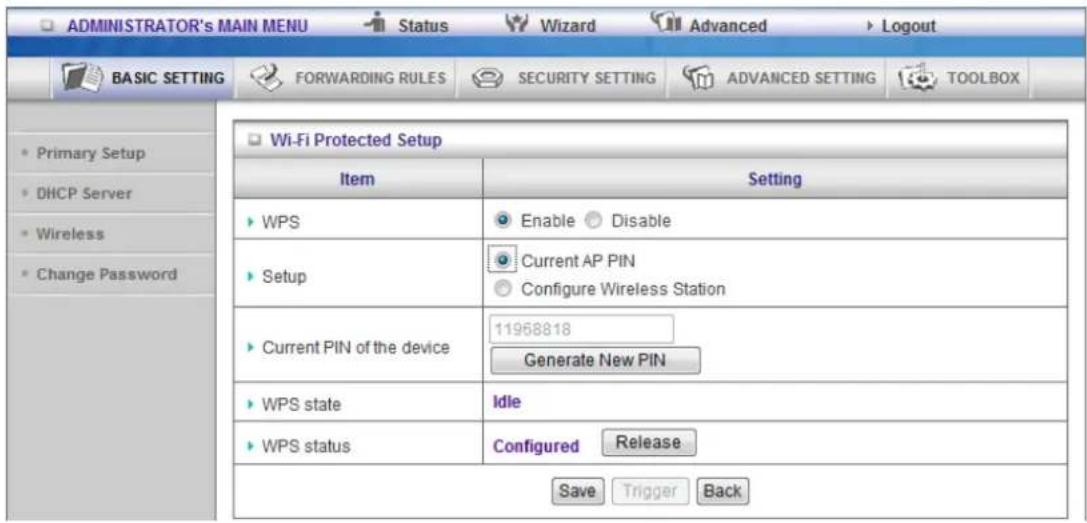

WPS (WiFi Protection Setup)

WPS is WiFi Protection Setup which is similar to WCN-NET and offers safe and easy way in Wireless Connection.

Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another.

AP only Mode:

When acting as an access point, this device connects all the stations to a wired network and WAN Port is disabled. See the sample application below.

Wireless Off Schedule: Before turning Off Wireless Radio, the device will detect if Wireless station is online, then depend as Schedule "01:00\~08:30" to disable WiFi service.

Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is "default")

SSID Broadcast: The router will Broadcast beacons that have some information, including ssid so that

The wireless clients can know how many ap devices by scanning function in the network. Therefore, This function is disabled, the wireless clients can not find the device from beacons.

Channel: The radio channel number. The permissible channels depend on the Regulatory Domain.

WPS (WiFi Protection Setup)

WPS is WiFi Protection Setup which is similar to WCN-NET and offers safe and easy way in Wireless Connection.

Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another.

WDS Hybrid Mode:

While acting as Bridges, Wireless Router 1 and Wireless Router 2 can communicate with each other through wireless interface (with WDS). Thus All Stations can communicate each other and are able to access Internet if Wireless Router 1 has the Internet connection

Wireless Off Schedule: Before turning Off Wireless Radio, the device will detect if Wireless station is online, then depend as Schedule "01:00\~08:30" to disable WiFi service.

Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is "default")

SSID Broadcast: The router will Broadcast beacons that have some information, including ssid so that

The wireless clients can know how many ap devices by scanning function in the network. Therefore, This function is disabled, the wireless clients can not find the device from beacons.

Channel: The radio channel number. The permissible channels depend on the Regulatory Domain.

Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another.

Remote AP MAC : Choose "Manual" or scan one AP to copy to item1\~4.

WDS(Wireless Distribution System)

The WDS (Wireless Distributed System) function let this access point acts as a wireless LAN access point and repeater at the same time. Users can use this feature to build up a large wireless network in a large space like airports, hotels and schools ...etc.

Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is "default")

SSID Broadcast: The router will Broadcast beacons that have some information, including ssid so that

The wireless clients can know how many ap devices by scanning function in the network. Therefore, This function is disabled, the wireless clients can not find the device from beacons.

Channel: The radio channel number. The permissible channels depend on the Regulatory Domain.

Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another.

Remote AP MAC : Choose "Manual" or scan one AP to copy to item1\~4.

Universal Repeater Mode

Universal Repeater is a technology used to extend wireless coverage.

It provides the function to act as Adapter (client) and AP at the same time and can use this function to connect to a Root AP and use AP(SSID name is same with Root AP) function to service all wireless stations within its coverage. All the stations within the coverage of this access point can be bridged to the Root AP.

□ Universal Repeater Mode
Item		Setting
► Wireless Radio		● Enable ○ Disable
► Wireless Operation Mode		Universal Reapeater ▼
► SSID (Wireless Network Name)				Manual
► Security		None ▼
Select	SSID	Channel	Signal Strength	Security	MAC Address
○	WBR-6012TSD	1	5	WPA2-PSK	00-11-6B-2F-B5-A6

SSID (Wireless Network Name): Select "AP" or entry SSID manually to connect.

Security "There are several security types to use:

WEP :

When you enable the 128 or 64 bit WEP key security, please select one WEP key to be used and input 26 or 10 hexadecimal (0, 1, 2...8, 9, A, B...F) digits.

802.1X

Check Box was used to switch the function of the 802.1X. When the 802.1X function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server

IP address or the 802.1X server's domain-name.

RADIUS Shared Key

Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server.

WPA-PSK

1. Select Encryption and Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits If ASCII, the length of pre-share key is from 8 to 63.

1. Fill in the key, Ex 12345678

WPA

Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server's domain-name.

Select Encryption and RADIUS Shared Key

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits

If ASCII, the length of pre-share key is from 8 to 63.

Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server.

WPA2-PSK(AES)

1. Select Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits

If ASCII, the length of Pre-share key is from 8 to 63.

1. Fill in the key, Ex 12345678

WPA2(AES)

Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server

IP address or the 802.1X server's domain-name.

Select RADIUS Shared Key

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits

If ASCII, the length of Pre-share key is from 8 to 63.

Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server.

WPA-PSK /WPA2-PSK

The router will detect automatically which Security type the client

uses to encrypt.

1. Select Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits

If ASCII, the length of Pre-share key is from 8 to 63.

1. Fill in the key, Ex 12345678

WPA/WPA2

Check Box was used to switch the function of the WPA. When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network service. RADIUS Server

The router will detect automatically which Security type(Wpa-psk version 1 or 2) the client uses to encrypt.

IP address or the 802.1X server's domain-name.

Select RADIUS Shared Key

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2...8, 9, A, B...F) digits

If ASCII, the length of Pre-share key is from 8 to 63.

Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server.

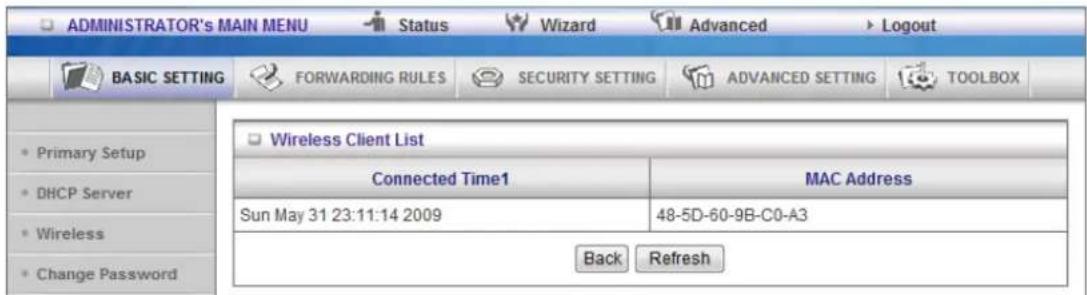

Wireless Client List

2.3.1.4 Change Password

You can change Password here. We strongly recommend you to change the system password for security reason.

2.3.2 Forwarding Rules

2.3.2.1 Virtual Server

This product's NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping.

A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP. Virtual Server can work with Scheduling Rules, and give user more flexibility on Access control. For Detail, please refer to Scheduling Rule.

2.3.2.2 Special AP

Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

1. Trigger: the outbound port number issued by the application..
2. Incoming Ports: when the trigger packet is detected, the inbound packets sent to the specified port numbers are allowed to pass through the firewall.

This product provides some predefined settings Select your application and click Copy to add the predefined setting to your list.

Note! At any given time, only one PC can use each Special Application tunnel.

2.3.2.3 Miscellaneous Items

IP Address of DMZ Host

DMZ (DeMilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications.

NOTE: This feature should be used only when needed.

Super DMZ(IP Passthrough)

The client be set in Super DMZ and dhcp server assigns a global IP which is the same with Wan IP of this device. This client also can access the local client. This client behind NAT can use various applications without limitation.

Non-standard FTP port

You have to configure this item if you want to access an FTP server whose port number is not 21. This setting will be lost after rebooting.

Xbox Support

The Xbox is a video game console produced by Microsoft Corporation. Please enable this function when you play games.

UpnP Setting

The device also supports this function. If the OS supports this function enable it, like Windows Xp. When the user get ip from Device and will see icon as below:

2.3.3 Security Settings

2.3.3.1 Packet Filters

Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or DMZ host only. You can select one of the two filtering policies:

1. Allow all to pass except those match the specified rules
2. Deny all to pass except those match the specified rules

You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define the following:

• Source IP address
• Source port address
• Destination IP address
• Destination port address
• Protocol: TCP or UDP or both.
• Use Rule#

For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.

For source or destination port, you can define a single port (80) or a range of ports (1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53, U2000-2999. No prefix indicates both TCP and UDP are defined. An empty implies all port addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on Access control. For Detail, please refer to Scheduling Rule.

Each rule can be enabled or disabled individually.

Inbound Filter:

To enable Inbound Packet Filter click the check box next to Enable in the Inbound Packet Filter field.

Suppose you have SMTP Server (25), POP Server (110), Web Server (80), FTP Server (21), and News Server (119) defined in Virtual Server or DMZ Host.

Example 1:

(1.2.3.100-1.2.3.149) Remote hosts are allow to send mail (port 25), and browse the Internet (port 80)
(1.2.3.10-1.2.3.20) Remote hosts can do everything (block nothing)

Others are all blocked.

Example 2:

(1.2.3.100-1.2.3.119) Remote hosts can do everything except read net news (port 119) and transfer files via FTP (port 21) behind Router Server.

Others are all allowed.

After Inbound Packet Filter setting is configured, click the save button.

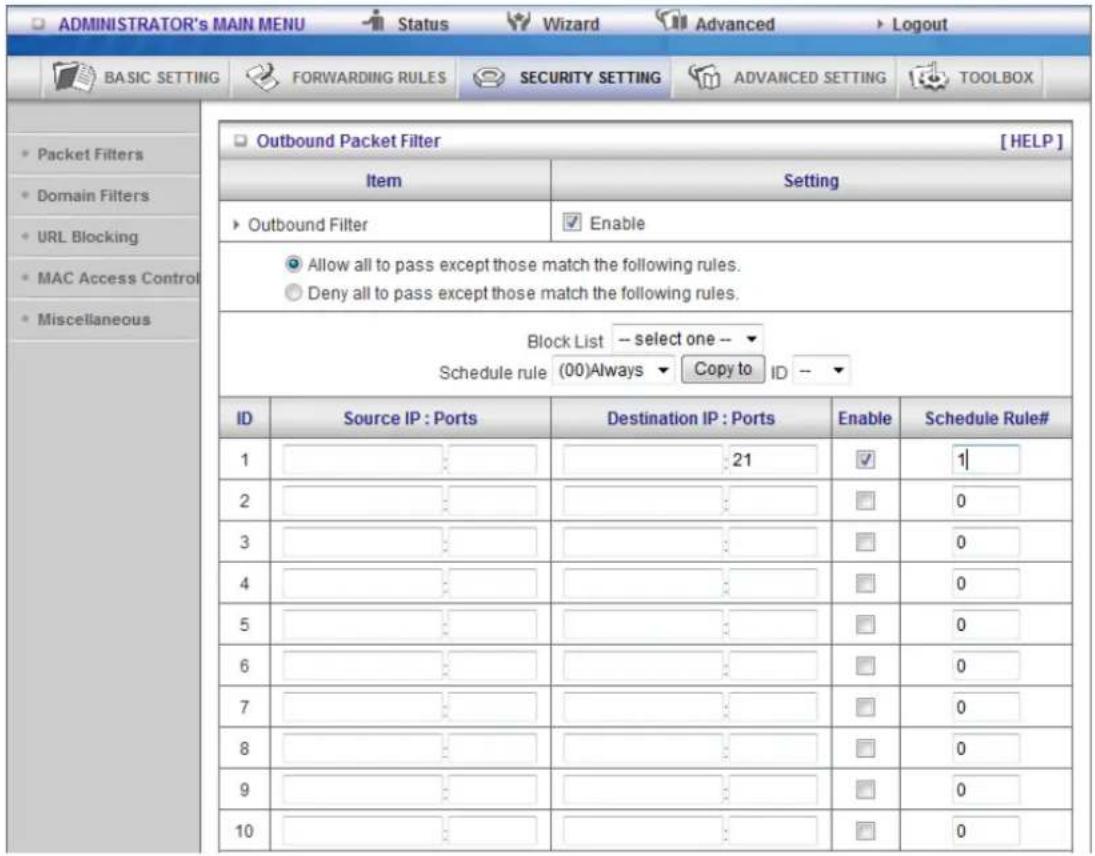

Outbound Filter:

To enable Outbound Packet Filter click the check box next to Enable in the Outbound Packet Filter field.

Example 1:

Router LAN IP is 192.168.12.254

(192.168.12.100-192.168.12.149) Located hosts are only allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve the domain name.

(192.168.12.10-192.168.12.20) Located hosts can do everything (block nothing) Others are all blocked.

Example 2:

Router LAN IP is 192.168.12.254

(192.168.12.100 and 192.168.12.119) Located Hosts can do everything except read net news (port 119) and transfer files via FTP (port 21)

Others are allowed

After Outbound Packet Filter setting is configured, click the save button.

2.3.3.2 Domain filters

Domain Filter

Let you prevent users under this device from accessing specific URLs.

Domain Filter Enable

Check if you want to enable Domain Filter.

Log DNS Query

Check if you want to log the action when someone accesses the specific URLs.

Privilege IP Addresses Range

Setting a group of hosts and privilege these hosts to access network without restriction.

Domain Suffix

A suffix of URL to be restricted. For example, ".com", "xxx.com".

Action

When someone is accessing the URL met the domain-suffix, what kind of action you want.

Check drop to block the access. Check log to log these access.

Enable

Check to enable each rule.

Example:

In this example:

1. URL include "www.msn.com" will be blocked, and the action will be record in log-file.

2. URL include "www.sina.com" will not be blocked, but the action will be record in log-file.

3. URL include "www.baidu.com" will be blocked, but the action will not be record in log-file.

4. IP address x.x.x.1\~x.x.x.99 can access Internet without restriction.

2.3.3.3 URL Blocking

URL Blocking will block LAN computers to connect to pre-defined Websites.

The major difference between "Domain filter" and "URL Blocking" is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.

URL Blocking Enable

Checked if you want to enable URL Blocking.

URL

If any part of the Website's URL matches the pre-defined word, the connection will be blocked. For example, you can use pre-defined word "sex" to block all websites if their URLs contain pre-defined word "sex".

Enable

Checked to enable each rule.

In this example:

1. URL include "msn" will be blocked, and the action will be record in log-file.
2. URL include "sina" will be blocked, but the action will be record in log-file

3.3.3.4 Internet Access Control

The device provides "Administrator MAC Control" for specific MAC to access the device or Internet without restriction. It also provides 3 features to access Internet: MAC Control by host, Group MAC Control and Interface Access Control depend as user-defined time Schedule.

Administrator MAC Control

Regardless the MAC access configuration of administrator, specific MAC can access the device.

This device can record 3 sets. When the host(should be admin) logins Web management, the device will record MAC address of this host. Before this host configures Internet Access Control, Suggest end-user to enable this feature, first.

□ Internet Access Control
Item	Setting
Access Control Type	○ MAC Access Control ○ Group MAC Access Control ○ Interface Access Control
Next >>

1. MAC control

MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address.

MAC Address Control Check "Enable" to enable the "MAC Address Control". All of the settings in this page will take effect only when "Enable" is checked.

Connection control Check "Connection control" to enable the controlling of which wired and wireless clients can connect to this device. If a client is denied to connect to this device, it means the client can't access to the Internet either. Choose "allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control table" (please see below), to connect to this device.

Association control Check "Association control" to enable the controlling of which wireless client can associate to the wireless LAN. If a client is denied to associate to the wireless LAN, it means the client can't send or receive any data via this device. Choose "allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control table", to associate to the wireless LAN.

Control table

ID	MAC Address	IP Address	C	A	Schedule Rule
1		192.168.1.			0
2		192.168.1.			0
3		192.168.1.			0
4		192.168.1.			0

"Control table" is the table at the bottom of the "MAC Address Control" page. Each row of this table indicates the MAC address and the expected IP address mapping of a client. There are four columns in this table:

MAC Address	MAC address indicates a specific client.
IP Address	Expected IP address of the corresponding client. Keep it empty if you don't care its IP address.
C	When "Connection control" is checked, check "C" will allow the corresponding client to connect to this device.
A	When "Association control" is checked, check "A" will allow the corresponding client to associate to the wireless LAN.

In this page, we provide the following Combobox and button to help you to input the MAC address.

You can select a specific client in the "DHCP clients" Combobox, and then click on the "Copy to" button to copy the MAC address of the client you select to the ID selected in the "ID" Combobox.

Previous page and Next Page To make this setup page simple and clear, we have divided the "Control table" into several pages. You can use these buttons to navigate to different pages.

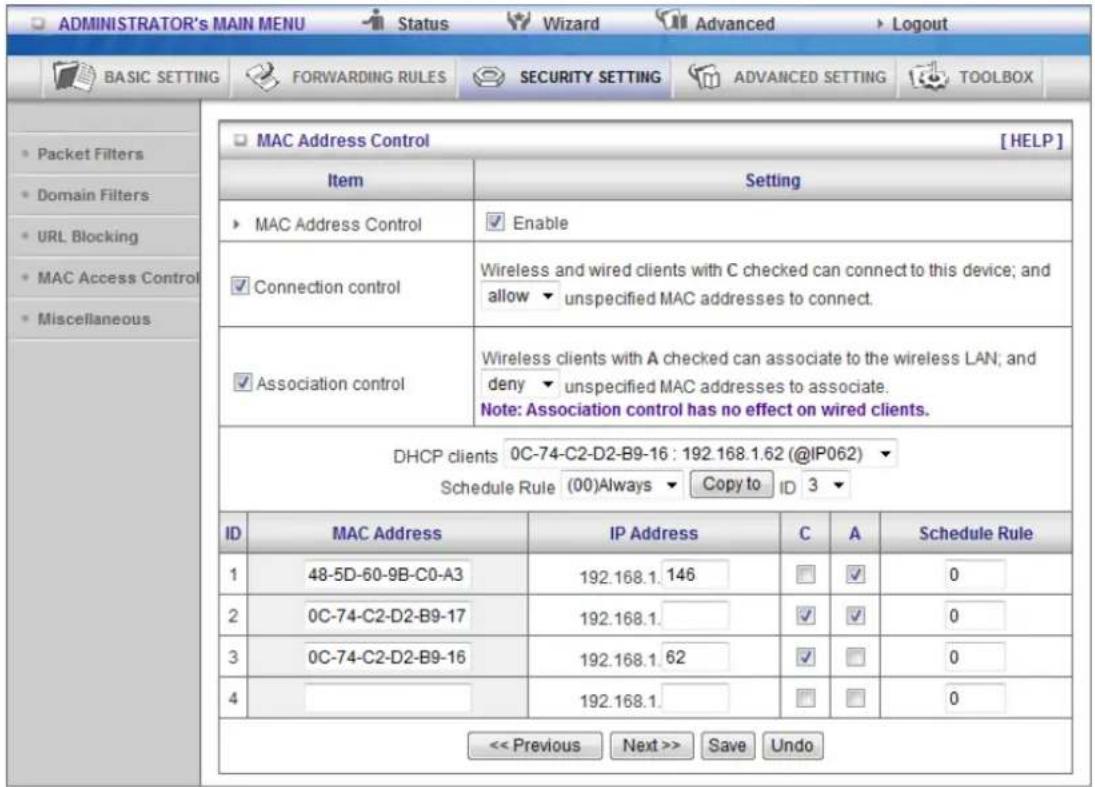

Example:

In this scenario, there are three clients listed in the Control Table. Clients 1 and 2 are wireless, and client 3 is wired.

1. The "MAC Address Control" function is enabled.
2. "Connection control" is enabled, and all of the wired and wireless clients not listed in the "Control table" are "allowed" to connect to this device.
3. "Association control" is enabled, and all of the wireless clients not listed in the "Control table" are "denied" to associate to the wireless LAN.
4. Clients 1 and 3 have fixed IP addresses either from the DHCP server of this device or manually assigned:

ID 1 - "48-5D-60-9B-C0-A3" --> 192.168.1.146

ID 3 - "0C-74-C2-D2-B9-16" --> 192.168.1.62

Client 2 will obtain its IP address from the IP Address pool specified in the "DHCP Server" page or

can use a manually assigned static IP address.

If, for example, client 3 tries to use an IP address different from the address listed in the Control

table (192.168.1.62), it will be denied to connect to this device.

1. Clients 2 and 3 and other wired clients with a MAC address unspecified in the Control table are all allowed to connect to this device. But client 1 is denied to connect to this device.

2. Clients 1 and 2 are allowed to associate to the wireless LAN, but a wireless client with a MAC address not specified in the Control table is denied to associate to the wireless LAN. Client 3 is a wired client and so is not affected by Association control.

2. Group MAC Access Control

Administrator can define hosts in which Group to allow Internet. For example, Father and Mother are in Group1 without limitation and hosts Brother and Sister are in Group2 to access according as Schedule Rule2.

For example,

Schedule Rule 1 sets "always" everyday with limitation.

Schedule Rule 2 sets 08:00\~23:00 Monday \~ Friday.

3. Interface Access Control

The device defines 5 Interfaces as Lan1,Lan2, Lan3,Lan4 and WiFi. The device allows different interface to access Internet by time schedule

For example,

Schedule Rule 1 sets "always" everyday with limitation.

Schedule Rule 2 sets 08:00\~23:00 Monday \~ Friday.

Administrator can set guests in Lan3 and Lan4 to access Internet according as Schedule Rule

1. Set Friends in Lan1, Lan2 and WiFi according as Schedule Rule 1.

2.3.3.5 Miscellaneous Items

Miscellaneous Items [HELP]
Item	Setting	Enable
► Remote Administrator Host / Port	0.0.0.0 / 8080
► Administrator Time-out	600 seconds (0 to disable)
► Discard PING from WAN side
► SPI mode
► DoS Attack Detection
► VPN PPTP Pass-Through
► VPN IPSec Pass-Through
Save Undo

Remote Administrator Host/Port

In general, only Intranet user can browse the built-in web pages to perform administration task.

This feature enables you to perform administration task from remote host. If this feature is enabled, only the specified IP address can perform remote administration. If the specified IP address is 0.0.0.0, any host can connect to this product to perform administration task. You can use subnet mask bits "/nn" notation to specified a group of trusted IP addresses. For example, "10.1.2.0/24".

NOTE: When Remote Administration is enabled, the web server port will be shifted to 88. You can change web server port to other port, too.

Administrator Time-out

The time of no activity to logout automatically. Set it to zero to disable this feature.

Discard PING from WAN side

When this feature is enabled, any host on the WAN cannot ping this product.

SPI Mode

When this feature is enabled, the router will record the packet information pass through the router like IP address, port address, ACK, SEQ number and so on. And the router will check every incoming packet to detect if this packet is valid.

DoS Attack Detection

When this feature is enabled, the router will detect and log the DoS attack comes from the Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.

VPN PPTP and IPSec Pass-Through

Virtual Private Networking (VPN) is typically used for work-related networking. For VPN tunnels, the router supports IPSec Passthrough and PPTP Passthrough.

2.3.4 Advanced Settings

2.3.4.1 System Time

Get Date and Time by NTP Protocol

Selected if you want to Get Date and Time by NTP Protocol.

Time Server

Select a NTP time server to consult UTC time

Time Zone

Select a time zone where this device locates.

Set Date and Time manually

Selected if you want to Set Date and Time manually.

Set Date and Time manually

Selected if you want to Set Date and Time manually.

Function of Buttons

Sync Now: Synchronize system time with network time server

Daylight Saving:Set up where the location is.

2.3.4.2 System Log

This page supports two methods to export system logs to specific destination by means of syslog(UDP) and SMTP(TCP). The items you have to setup including:

IP Address for Syslog

Host IP of destination where syslogs will be sent to.

Check Enable to enable this function.

E-mail Alert Enable

Check if you want to enable Email alert (send syslog via email).

SMTP Server IP and Port

Input the SMTP server IP and port, which are concatenated with ':' If you do not specify port number, the default value is 25.

For example, "mail.your_url.com" or "192.168.1.100:26".

Send E-mail alert to

The recipients who will receive these logs. You can assign more than 1 recipient, using ';' or ',' to separate these email addresses.

2.3.4.3 Dynamic DNS

To host your server on a changing IP address, you have to use dynamic domain name service (DDNS).

So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.

Before you enable Dynamic DNS, you need to register an account on one of these Dynamic DNS servers that we list in provider field.

To enable Dynamic DNS click the check box next to Enable in the DDNS field.

Next you can enter the appropriate information about your Dynamic DNS Server.

You have to define:

Provider

Host Name

Username/E-mail

Password/Key

You will get this information when you register an account on a Dynamic DNS server.

2.3.4.4 SNMP

In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events.

Enable SNMP

You must check Local, Remote or both to enable SNMP function. If Local is checked, this device will response request from LAN. If Remote is checked, this device will response request from WAN.

Get Community

Setting the community of GetRequest your device will response.

Set Community

Setting the community of SetRequest your device will accept.

IP 1, IP 2, IP 3, IP 4

Input your SNMP Management PC's IP here. User has to configure to where this device should send SNMP Trap message.

SNMP Version

Please select proper SNMP Version that your SNMP Management software supports.

WAN Access IP Address

If the user wants to limit to specific the IP address to access, please input in the item. The default 0.0.0.0 and means every IP of Internet can get some information of device with SNMP protocol.

Click on "Save" to store your setting or "Undo" to give up.

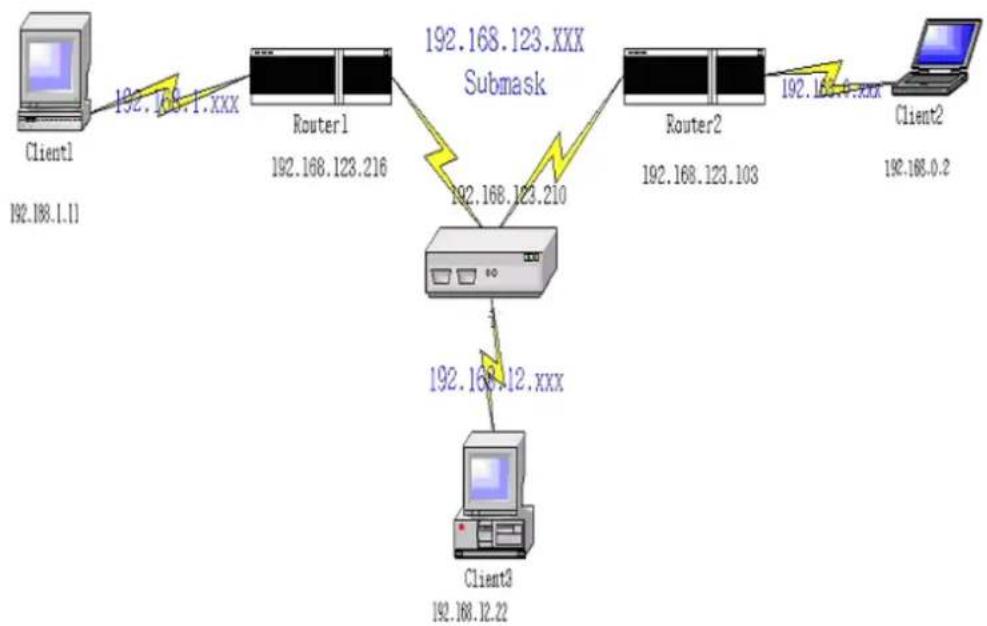

2.3.4.5 Routing

Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other.

Routing Table settings are settings used to setup the functions of static.

Dynamic Routing

Routing Information Protocol (RIP) will exchange information about destinations for computing routes throughout the network. Please select RIPv2 only if you have different subnet in your network.

Otherwise, please select RIPv1 if you need this protocol.

Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the destination IP address, subnet mask, gateway, hop for each routing rule, and then enable or disable the rule by checking or unchecking the Enable checkbox.

Example:

Configuration on NAT Router

Destination	SubnetMask	Gateway	Hop	Enabled
192.168.1.0	255.255.255.0	192.168.123.216	1
192.168.0.0	255.255.255.0	192.168.123.103	1

So if, for example, the client3 wanted to send an IP data gram to 192.168.0.2, it would use the above table to determine that it had to go via 192.168.123.103 (a gateway),

And if it sends Packets to 192.168.1.11 will go via 192.168.123.216

Each rule can be enabled or disabled individually.

After routing table setting is configured, click the save button.

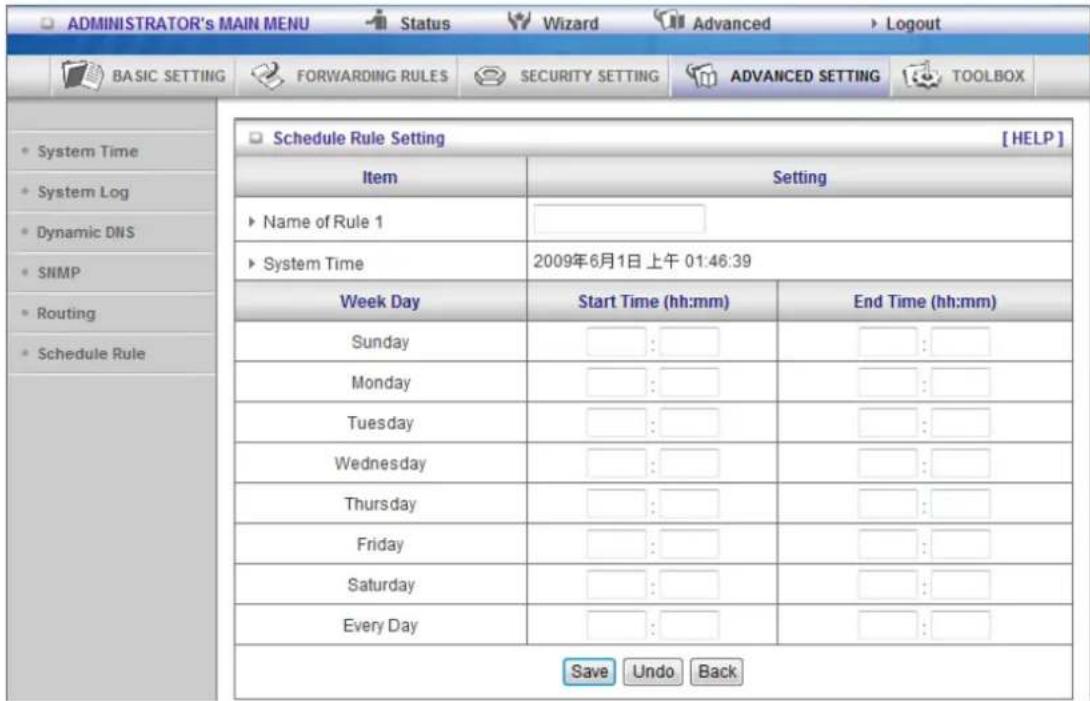

2.3.4.6 Schedule Rule

You can set the schedule time to decide which service will be turned on or off. Select the "enable" item.

Press "Add New Rule"

You can write a rule name and set which day and what time to schedule from "Start Time" to "End Time". The following example configure "ftp time" as everyday 14:10 to 16:20

Schedule Enable

Selected if you want to Enable the Scheduler.

Edit

To edit the schedule rule.

Delete

To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease one automatically.

Schedule Rule can be apply to Virtual server and Packet Filter, for example:

Example1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:20 to 16:30)

Example2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:20 to 16:30).

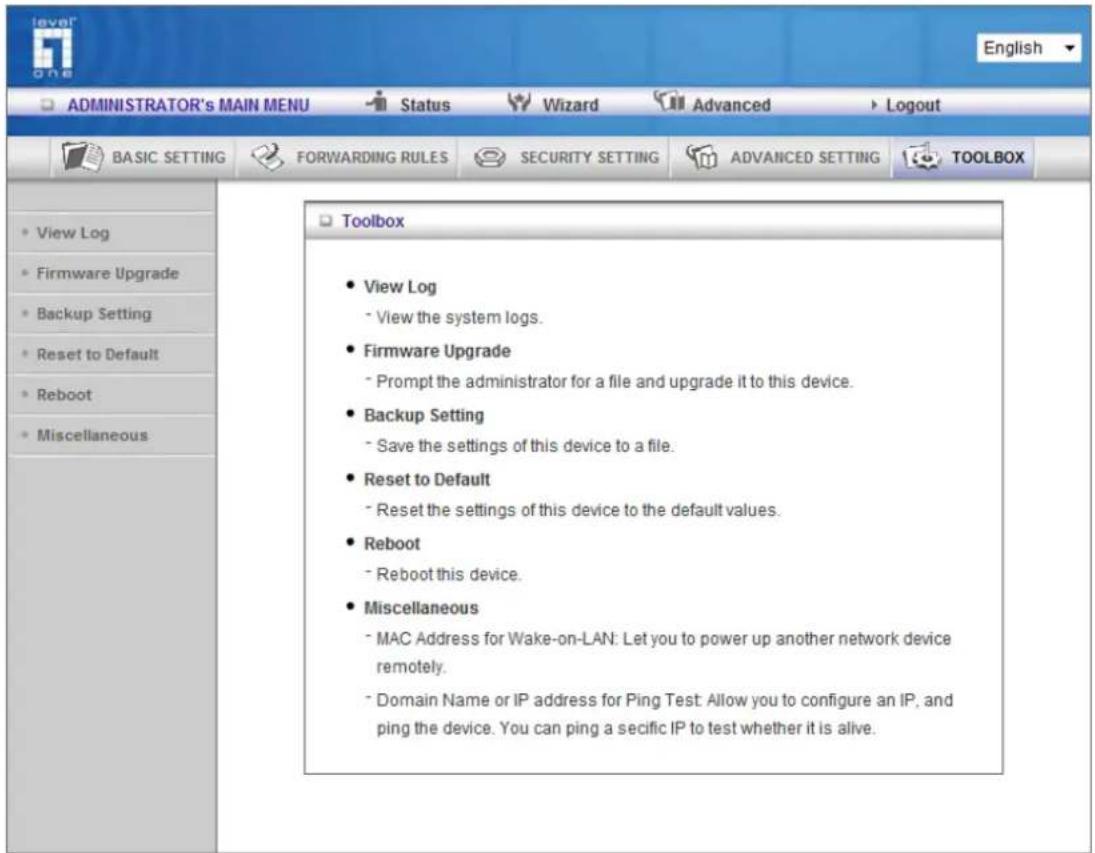

2.3.5 Toolbox

2.3.5.1 View Log

You can View system log by clicking the View Log button

2.3.5.2 Firmware Upgrade

You can upgrade firmware by clicking Firmware Upgrade button.

2.3.5.3 Backup Setting

You can backup your settings by clicking the Backup Setting button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved.

2.3.5.4 Reset to default

You can also reset this product to factory default by clicking the Reset to default button.

2.3.5.5 Reboot

You can also reboot this product by clicking the Reboot button.

2.3.5.6 Miscellaneous Items

MAC Address for Wake-on-LAN

Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC address of this device, say 00-11-22-33-44-55. Clicking "Wake up" button will make the router to send the wake-up frame to the target device immediately.

Domain Name or IP Address for Test

Allow you to configure an IP, and ping the device. You can ping a specific IP to test whether it is alive.

Appendix A FAQ and Troubleshooting

What can I do when I have some trouble at the first time?

1. Why can I not configure the router even if the cable is plugged in the ports of Router and the led is also light?

A: First, make sure that which port is plugged. If the cable is in the Wan port, please change to plug in Lan port 1 or Lan port 4:

Then, please check if the Pc gets ip address from Router. Use command mode as below:

C:\>ipconfig
Windows IP Configuration
Ethernet adapter Local Area Connection:
Connection-specific DNS Suffix . :
IP Address. . . . . . . . . . . . : 192.168.123.115
Subnet Mask . . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . . : 192.168.123.254

If yes, please execute Browser, like Mozilla and key 192.168.123.254 in address.

If not, please ipconfig /release, then ipconfig /renew.

C:\>ipconfig /release
Windows IP Configuration

Ethernet adapter Local Area Connection:
    Connection-specific DNS Suffix . :
    IP Address. . . . . . . . . . . . : 0.0.0.0
    Subnet Mask . . . . . . . . . . . : 0.0.0.0
    Default Gateway . . . . . . . . . . :

C:\>ipconfig /renew
Windows IP Configuration

Ethernet adapter Local Area Connection:
    Connection-specific DNS Suffix . :
    IP Address. . . . . . . . . . . : 192.168.123.115
    Subnet Mask . . . . . . . . . . : 255.255.255.0
    Default Gateway . . . . . . . . . : 192.168.123.254

Whatever I setup, the pc can not get ip. Please check Status Led and refer to the Q2:

2. Why can I not connect the router even if the cable is plugged in Lan port and the led is light?

A: First, please check Status Led. If the device is normal, the led will blink per second.

If not, please check How blinking Status led shows.

There are many abnormal symptoms as below:

Status Led is bright or dark in work: The system hanged up .Suggest powering off and on the router. But this symptom often occurs, please reset to default or upgrade latest fw to try again.

Status led flashes irregularly: Maybe the root cause is Flash rom and please press reset Button to reset to default or try to use Recovery mode.(Refer to Q3 and Q4)

Status flashes very fast while powering on: Maybe the router is the recovery mode and please refer to Q4.

3.How to reset to factory default?

A: Press Wireless on /off and WPS button simultaneously about 5 sec

Status will start flashing about 5 times, remove the finger. The RESTORE process is completed.

4. Why can I not connect Internet even though the cables are plugged in Wan port and Lan port and the leds are blink. In addition, Status led is also normal and I can configure web management?

A: Make sure that the network cable from DSL or Cable modem is plugged in Wan port of Router and that the network cable from Lan port of router is plugged in Ethernet adapter. Then, please check which wan type you use. If you are not sure, please call the isp. Then please go to this page to input the information isp is assigned.

☐ Choose WAN Type
Type	Usage
Static IP Address	ISP assigns you a static IP address.
Dynamic IP Address	Obtain an IP address from ISP automatically.
Dynamic IP Address with Road Runner Session Management (e.g. Telstra BigPond)
PPP over Ethernet	Some ISPs require the use of PPPoE to connect to their services.
PPTP	Some ISPs require the use of PPTP to connect to their services.
L2TP	Some ISPs require the use of L2TP to connect to their services.

1. When I use Static IP Address to roam Internet, I can access or ping global IP 202.93.91.218, But I can not access the site that inputs domain name, for example http://espn.com?

A: Please check the dns configuration of Static IP Address. Please refer to the information of ISP and assign one or two in dns item.

How do I connect router by using wireless?

1.How to start to use wireless?

A: First, make sure that you already installed wireless client device in your computer. Then check the Configuration of wireless router. The default is as below:

About wireless client, you will see wireless icon:

Then click and will see the ap list that wireless client can be accessed:

If the client can not access your wireless router, please refresh network list again. However, I still can not fine the device which ssid is "default", please refer to Q3.

Choose the one that you will want to connect and Connect:

If successfully, the computer will show

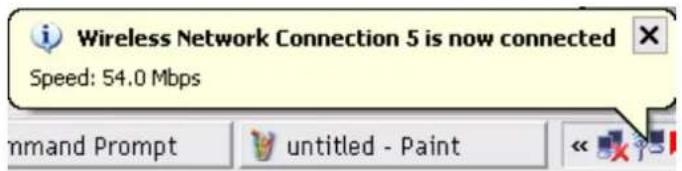

and get ip from router:

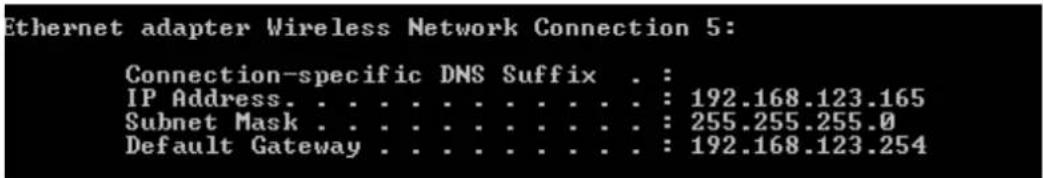

2. When I use AES encryption of WPA-PSK to connect even if I input the correct pre-share key?

A: First, you must check if the driver of wireless client supports AES encryption. Please refer to the below:

If SSID is default and click "Properties" to check if the driver of wireless client supports AES encryption.

3. When I use wireless to connect the router, but I find the signal is very low even if I am close to the router?

A: Please check if the wireless client is normal, first. If yes, please send the unit to the seller and verify What the problem is.
