Product Type	CD Player with FM/MW Radio and MP3 Link
Brand	Philips
Model	AZ300
Dimensions (Main Unit)	245 × 130 × 212 mm (W × H × D)
Weight (Main Unit)	1.4 kg
Weight (With Packaging)	1.8 kg
AC Power Input	110–127 V / 220–240 V ∼, 50/60 Hz
Power Consumption (Operation)	15 W
Power Consumption (Standby)	1.5 W
Battery Type	6 × R14/UM2/C Cell (9 V total)
Amplifier Rated Output Power	2 × 1 W RMS
Frequency Response (Amplifier)	80 Hz - 16 kHz, ± 3 dB
Signal to Noise Ratio (Amplifier)	50 dB
Disc Types Supported	CD, MP3 CD
Laser Type	Semiconductor
Frequency Response (Disc)	60 Hz - 16 kHz
Tuner Frequency Range (FM)	87.5 - 108 MHz
Tuner Frequency Range (MW)	530 - 1710 kHz
MP3 Link Input	0.5 V RMS, 20 kΩ
Playback Functions	Program, repeat (track/all/album), random playback, pause, skip/search
External Device Connection	MP3 Link (3.5 mm input)
Safety Certifications	CE, UL (implied)
Recommended Cleaning	Dry cloth; avoid liquids
Spare Parts Availability	Contact Philips support or visit www.philips.com/support

Frequently Asked Questions - AZ300 PHILIPS

How do I program tracks to play in a specific order on my Philips AZ300?

To program tracks, first stop playback by pressing ■. Then press PROG to activate programming mode. For MP3 CDs, use ALBUM +/− to select an album. Use ◀◀/▶▶ to select a track, then press PROG to confirm. Repeat to program more tracks. Finally, press ▶ to start playback. To cancel the program, stop playback and press ■ again.

What type of batteries does the Philips AZ300 use?

The AZ300 requires 6 × R14/UM2/C (C cell) batteries providing a total of 9 V. You can use alkaline batteries, but do not mix old and new or different types.

Can I connect my smartphone or MP3 player to this device?

Yes, the AZ300 has an MP3 Link input (3.5 mm jack). Connect your external device via a standard audio cable and select the MP3 Link function to play audio.

How do I tune the radio on the Philips AZ300?

Press the Source button to select FM or MW band. Turn the Tuning knob to search for stations. For FM, ensure the antenna is extended for best reception.

What should I do if the CD player does not read discs?

First, ensure the disc is inserted correctly with the label facing up. Check for scratches or dirt on the disc; clean it with a soft cloth radially. If the problem persists, try a different disc. If none work, contact Philips support.

Is it safe to leave batteries in the AZ300 when not in use?

It is recommended to remove batteries if the unit will not be used for a long period to prevent leakage, which can cause damage. Always dispose of old batteries properly.

What are the safety precautions I should follow?

Do not block ventilation openings, avoid placing near heat sources, protect the power cord, unplug during storms or long inactivity, and refer servicing to qualified personnel. Do not expose to rain or moisture.

How do I clean the Philips AZ300?

Use a soft, dry cloth to clean the exterior. Do not use any liquids or abrasive cleaners. Ensure the unit is unplugged or batteries removed before cleaning.

Can I play MP3 CDs on this player?

Yes, the AZ300 supports MP3 CDs. Use the ALBUM +/− buttons to select an album when playing MP3 discs. The device can also play standard audio CDs.

Where can I find the user manual or support?

The manual can be downloaded from www.philips.com/welcome after registering your product. For support, visit www.philips.com/support or contact Philips customer service.

USER MANUAL AZ300 PHILIPS

Register your product and get support at

www.philips.com/welcome

AZ300

EN User manual

PHILIPS

EN Before using your product, read all accompanying safety information.

What's in the box

Connect power

1

1

EN To play with the device, you can use either alkaline battery (R14) or AC power. Before connecting AC power, adjust the voltage selector to correspond to the local power voltage.

2

2

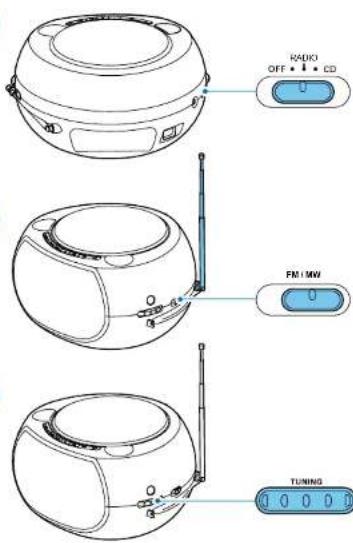

Listen to FM/MW radio

1

Listen to an external audio device

1

2

Play disk

1

2

3

ALBUM For MP3 CDs, select an album. MODE

Play a track/all tracks/an album repeatedly; play tracks randomly.

PROG Program tracks.

Stop play or erase a program.

Pause or start play.

Skip to the previous/next track or search within play.

Program tracks

1 In CD mode, press ■ to stop playback. 2 Press PROG to activate programming. 3 For MP3-CDs press ALBUM +/- to select an album. 4 Press ◀◀/▶▶I repeatedly to select a track, then press PROG to confirm. 5 Repeat steps 3--4 to program more tracks. 6 Press ▶ to play the programmed tracks. 7 To cancel the program, when playback is stopped, press

Adjust volume

For online help

www.philips.com/support

EN Need rep Visit www.philips.com/support

Warning and maintenance

Turn the device off

Specifications are subject to change without notice.

All rights reserved.

AZ300 78 UM V1.0

EN

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

1 Important

• Read these instructions.
• Follow all instructions.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the unit.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: • Install all batteries correctly, + and - as marked on the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
• The unit shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the unit (e.g. liquid filled objects, lighted candles).

- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Know these safety symbols

This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Warning

Never remove the casing of this apparatus.

• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.

- Keep this apparatus away from direct sunlight, naked flames or heat.

- Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the apparatus from the power.

Caution

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

2 Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

This apparatus includes this label:

Note

•The type plate is located on the bottom of the apparatus.

3 Specifications

Amplifier

Rated Output Power 2 X 1 W RMS

Frequency Response 80 Hz - 16 kHz, ± 3 dB

Signal to Noise Ratio 50 dB

MP3 Link Input 0.5 V RMS 20 kohm

Discs

Laser Type Semiconductor

Total Harmonic Distortion <1%

Frequency Response 60Hz -16kHz

S/N Ratio 55dBA

Tuner

Tuning Range FM: 87.5 - 108 MHz;

MW: 530 - 1710 kHz;

Total Harmonic Distortion <3%

Signal to Noise Ratio 40 dB

General information

AC power 110–127 V / 220–240 V ∼, 50/60

Hz

Operation Power Consumption 15 W

Standby Power Consumption 1.5 W

9 V battery, 6 x R14/UM2/C cells

Dimensions

- Main unit (W × H × D): 245 × 130 × 212 mm

Weight

- With packaging

1.8 kg

- Main unit

1.4 kg
