Product Type	Motherboard
Brand	Biostar
Model	Hi-Fi B85S3+
Form Factor	ATX (244 mm x 230 mm)
Chipset	Intel B85
CPU Socket	LGA1150
CPU Support	Intel Core i7 / i5 / i3 / Pentium / Celeron, max TDP 95W
Memory Slots	4 x DDR3 DIMM, dual channel, max 32 GB
Memory Support	DDR3 1066 / 1333 / 1600 MHz
Storage Interfaces	4 x SATA 6Gb/s, 2 x SATA 3Gb/s
LAN	Realtek RTL8111F Gigabit Ethernet
Audio	Realtek ALC892 7.1-channel HD Audio, Biostar Hi-Fi
USB Rear	2 x USB 3.0, 4 x USB 2.0
USB Internal	1 x USB 3.0 header (2 ports), 2 x USB 2.0 headers (4 ports)
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1, 1 x PCI
Rear I/O	1 x PS/2 combo, 1 x HDMI, 1 x DVI-D, 1 x VGA, 1 x RJ45, 6 x audio jacks
Power Connectors	24-pin ATX, 4-pin CPU
Fan Headers	1 x CPU fan (4-pin), 2 x system fan (4-pin)
BIOS	UEFI AMI
OS Support	Windows 7, Windows 8 (Windows 10 compatible)
Package Contents	2 x SATA cables, I/O shield, user manual, driver DVD

Frequently Asked Questions - Hi-Fi B85S3+ BIOSTAR

What type of CPU does the Hi-Fi B85S3+ support?

It supports Intel Core i7, i5, i3, Pentium, and Celeron processors with LGA1150 socket, with a maximum TDP of 95W.

Can I use DDR3L memory on this motherboard?

The motherboard supports standard DDR3 modules (1.5V). DDR3L (low voltage, 1.35V) may work but is not officially listed. Check the memory support list on Biostar's website.

How do I update the BIOS?

You can update the BIOS using the BIOSTAR BIOS Flasher (from a USB drive in BIOS) or the BIOS Update Utility in Windows. Detailed steps are in the manual chapter 3.2.

How many SATA ports does it have?

The motherboard has 4 SATA 6Gb/s ports and 2 SATA 3Gb/s ports, all supporting AHCI mode.

Does it support RAID?

No, the Intel B85 chipset does not support RAID. RAID is only available on Z87 and H87 models.

What is the maximum memory capacity?

The maximum memory capacity is 32 GB, using four 8 GB DDR3 modules.

How do I clear the CMOS?

Use the JCMOS1 jumper. Power off and unplug, move the jumper from pins 1-2 to pins 2-3 for 5 seconds, then return to pins 1-2, plug in and power on. Load optimized defaults in BIOS.

What video outputs are available?

The rear I/O includes HDMI, DVI-D, and VGA ports. They work with integrated graphics on Intel CPUs.

Does it support Windows 10?

The manual officially lists Windows 7 and 8, but many users have successfully installed Windows 10. Drivers may be available from Biostar's website.

How to enable dual-channel memory?

Install matching DDR3 modules in pairs: either in slots A1 and B1 (same color) or A2 and B2. For best performance, use identical modules.

USER MANUAL Hi-Fi B85S3+ BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

2004/108/CE, 2006/95/CE e 1999/05/CE

Short Declaration of conformity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ...... 1

1.1 Before You Start ....1
1.2 Package Checklist ....1
1.3 Motherboard Specifications 2
1.4 Rear Panel Connectors....4
1.5 Motherboard Layout....5

Chapter 2: Hardware Installation ...... 6

2.1 Install Central Processing Unit (CPU)....6
2.2 Install a Heatsink....8
2.3 Connect Cooling Fans....9
2.4 Install System Memory....10
2.5 Expansion Slots....11
2.6 Jumper Setting 13
2.7 Headers & Connectors....14

Chapter 3: UEFI BIOS & Software.... 20

3.1 UEFI BIOS Setup....20
3.2 BIOS Update....20
3.3 Software....24

Chapter 4: Useful Help.... 34

4.1 Driver Installation....34
4.2 AMI BIOS Beep Code....35
4.3 Troubleshooting....35
4.4 RAID Functions 37

Appendix: Specifications in Other Languages 40

Arabic....40
French 42
German 44
Italian 46
Japanese....48
Polish....50
Portuguese 52
Russian 54
Spanish....56

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

■ Prepare a dry and stable working environment with sufficient lighting.
■ Always disconnect the computer from power outlet before operation.
■ Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
■ Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
■ Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
■ The operating temperatures of the computer should be 0 to 45 degrees Celsius.
■ To avoid injury, be careful of: Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

☑ Serial ATA Cable x2
☑ Rear I/O Panel for ATX Case x1
User's Manual x1
☑ Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Motherboard Specifications

Specifications
CPU Support	Socket 1150 for Intel® Core i7 / i5 / i3 / Pentium / Celeron processorMaximum CPU TDP (Thermal Design Power): 95Watt* Please refer towww.biostar.com.twfor CPU support list.
Chipset	INTEL® Z87 (Hi-Fi Z87S3+) INTEL® B85 (Hi-Fi B85S3+)INTEL® H87 (Hi-Fi H87S3+)
Memory	Supports Dual Channel DDR3 1066/ 1333/ 1600Supports Dual Channel DDR3 DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC) for Hi-Fi Z87S3+4 x DDR3 DIMM Memory Slot, Max. Supports up to 32 GB MemoryEach DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module* Please refer towww.biostar.com.twfor Memory support list.
Storage	INTEL® Z87 & H87: INTEL® B85:6x SATA 6Gb/s Connector 4x SATA 6Gb/s ConnectorSupports RAID 0,1,10,5, SRT & AHCI 2x SATA 3Gb/s ConnectorSupports AHCI
LAN	Realtek RTL 8111F10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8927.1 Channels, High Definition Audio, Biostar Hi-Fi
USB	Hi-Fi Z87S3+ & Hi-Fi H87S3+6x USB 3.0 port (4 on rear I/Os and 2 via internal headers)6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)Hi-Fi B85S3+4x USB 3.0 port (2 on rear I/Os and 2 via internal headers)8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
Expansion Slots	1x PCI Slot2x PCIe 2.0 x1 Slot1x PCIe 3.0 x16 Slot (x16)
Rear I/Os	Hi-Fi Z87S3+ & Hi-Fi H87S3+ Hi-Fi B85S3+1x PS/2 Mouse/Keyboard 1x PS/2 Mouse/Keyboard1x HDMI Port 1x HDMI Port1x VGA Port 1x VGA Port1x DVI Port 1x DVI Port1x LAN port 1x LAN port2x USB 2.0 Port 4x USB 2.0 Port4x USB 3.0 Port 2x USB 3.0 Port6x Audio Jack 6x Audio Jack

Specifications
Internal I/Os	Hi-Fi Z87S3+ & Hi-Fi H87S3+6x SATA 6.0Gb/s Connector2x USB 2.0 Header(each header supports 2 USB 2.0 ports)1x USB 3.0 Header(each header supports 2 USB 3.0 ports)1x 4-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector2x System Fan Connector1x Front Panel Header1x Front Audio Header1x Clear CMOS Header1x Consumer IR Header1x Serial Port Header1x S/PDIF out Connector1x Printer Port Header	Hi-Fi B85S3+4x SATA 6.0Gb/s Connector2x SATA 2.0Gb/s Connector2x USB 2.0 Header(each header supports 2 USB 2.0 ports)1x USB 3.0 Header(each header supports 2 USB 3.0 ports)1x 4-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector2x System Fan Connector1x Front Panel Header1x Front Audio Header1x Clear CMOS Header1x Consumer IR Header1x Serial Port Header1X S/PDIF out Connector1x Printer Port Header
Form Factor ATX Form Factor, 244 mm x 230 mm
OS Support	Windows 7/8Biostar reserves the right to add or remove support for any OS with or without notice.

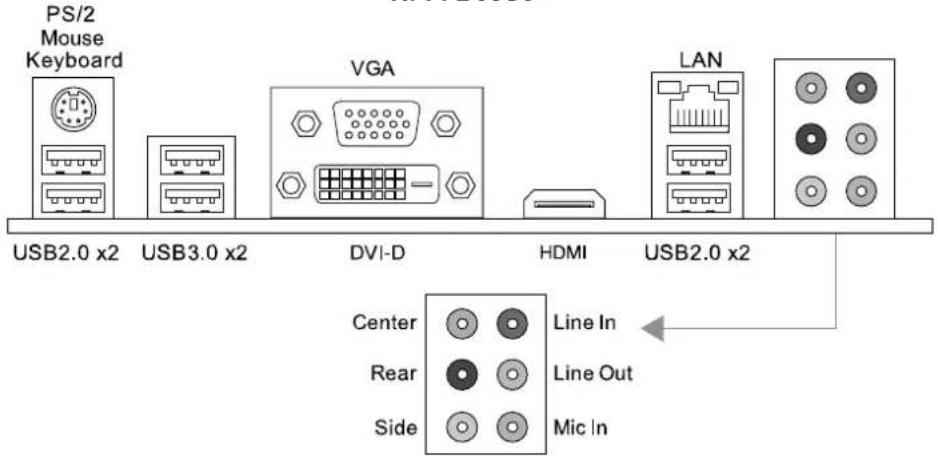

1.4 Rear Panel Connectors

Hi-Fi Z87S3+ & Hi-Fi H87S3+

Hi-Fi B85S3+

Note1: HDMI, DVI-D & VGA ports only work with an Intel® integrated Graphics Processor.
Note2: Maximum resolution:
HDMI: 4096 x 2160 @24Hz, compliant with HDMI 1.4a
DVI: 1920 x 1200 @60Hz
VGA: 1920 x 1200 @60Hz
Note3: The mainboard supports three onboard display outputs at same time.

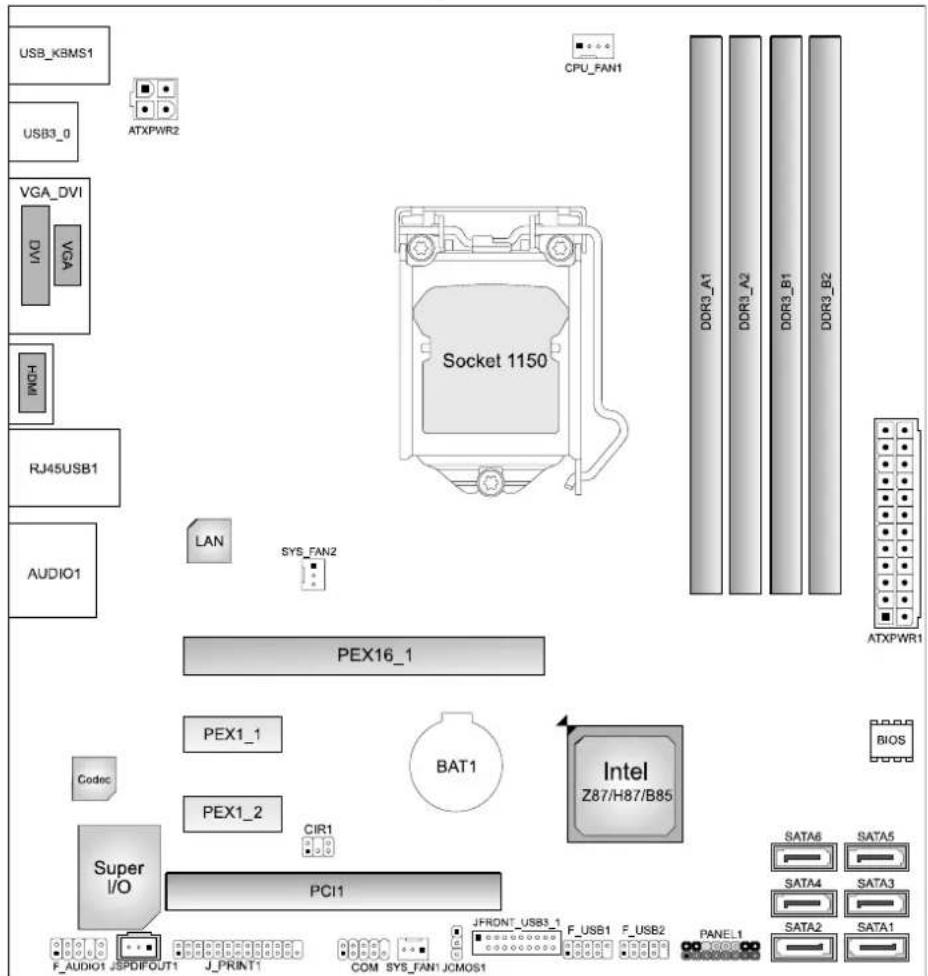

1.5 Motherboard Layout

Note: ■ represents the 1 ^st pin.

CHAPTER 2: HARDWARE INSTALLATION

2.1 Install Central Processing Unit (CPU)

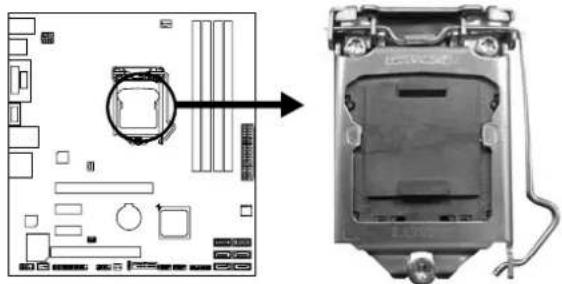

Step 1: Locate the CPU socket on the motherboard

Note1: Remove Pin Cap before installation, and make good preservation for future use. When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won't be damaged.

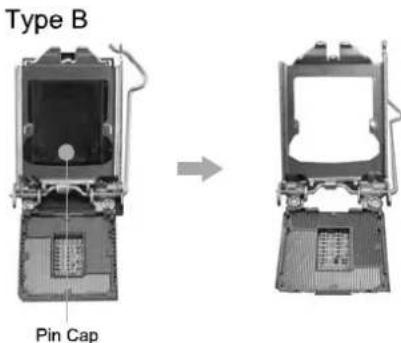

Note2: The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap.

Step 2: Pull the socket locking lever out from the socket and then raise the lever up.

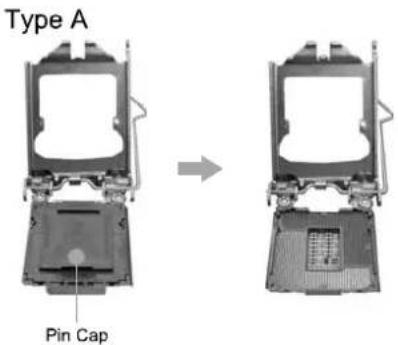

Diagram showing a device component labeled 'Type A' before and after assembly, with no visible text or symbols on the diagram itself.

Step 3: Remove the Pin Cap.

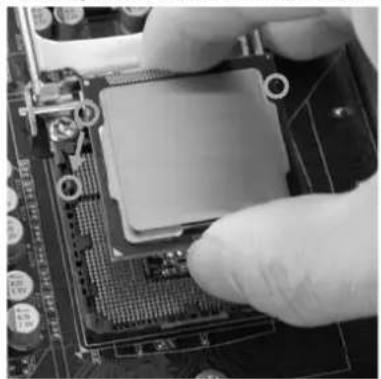

Step 4: Hold processor with your thumb and index fingers, oriented as shown. Align the notches with the socket. Lower the processor straight down without tilting or sliding the processor in the socket.

Close-up of a hand pressing a CPU socket on a motherboard (no visible text or symbols)

Note1: The LGA1155 CPU is not compatible with LGA 1150 socket. Do not install a LGA 1155 CPU on the LGA 1150 socket.

Note2: The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

Step 5: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.

Close-up of a computer processor casing with visible internal components and wiring (no text or symbols)

2.2 Install a Heatsink

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector.

Close-up of a computer motherboard with a CPU fan and heatsink (no visible text or symbols)

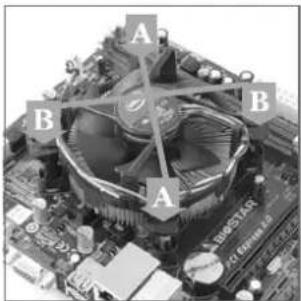

Step 2: Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place. Ensure that all four fasteners are secured.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

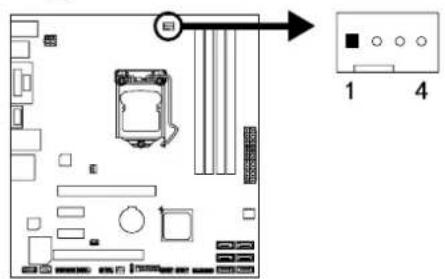

CPU_FAN1: CPU Fan Header

Pin Assignment
1	Ground
2	+12V
3	FAN RPM rate sense
4	Smart Fan Control (By Fan)

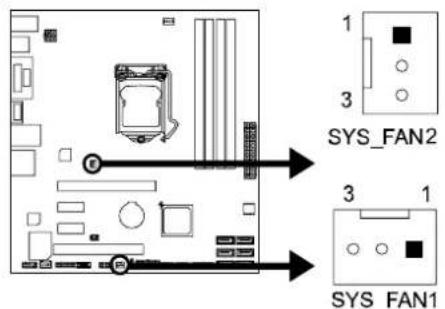

SYS_FAN1/2: System Fan Header

Pin Assignment
1	Ground
2	+12V
3 FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1/2 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

2.4 Install System Memory

DDR3 Modules

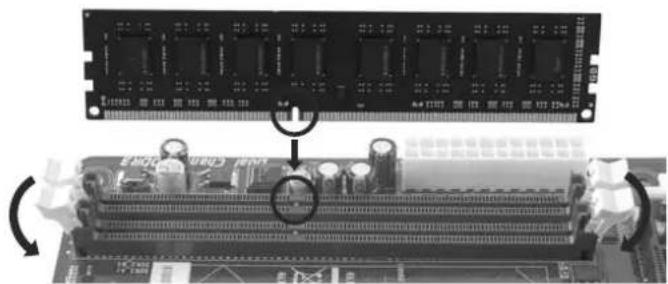

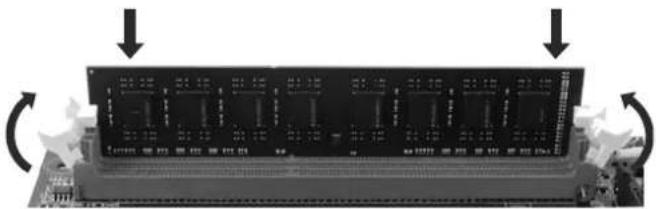

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Two views of a computer RAM module showing internal slots and circuitry (no text or symbols visible)

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Close-up of a computer RAM module with multiple slots and memory chips, shown in a row (no visible text or labels)

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

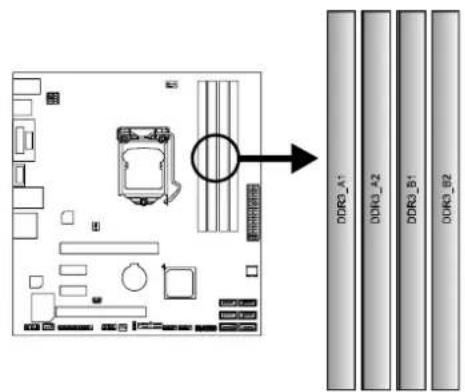

Memory Capacity

DIMM Socket Location	DDR3 Module	Total Memory Size
DDR3_A1	512MB/1GB/2GB/4GB/8GB	Max is 32GB.
DDR3_A2	512MB/1GB/2GB/4GB/8GB
DDR3_B1	512MB/1GB/2GB/4GB/8GB
DDR3_B2	512MB/1GB/2GB/4GB/8GB

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1DDR3_B2
Enabled		O	X	O
Enabled		X	O	X
Enabled		O	O	O

(O means memory installed, X means memory not installed.)

Note: The DRAM bus width of the memory module must be the same (x8 or x16)

2.5 Expansion Slots

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the expansion card into the computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. Replace your computer's chassis cover.
6. Power on the computer, if necessary, change BIOS settings for the expansion card.
7. Install related driver for the expansion card.

PEX16\_1: PCI-Express Gen3 x16 Slot

• PCI-Express 3.0 compliant.
• Maximum theoretical realized bandwidth of 16GB/s simultaneously per direction, for an aggregate of 32GB/s totally.

PEX1\_1/1\_2: PCI-Express Gen2 x1 Slots

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total

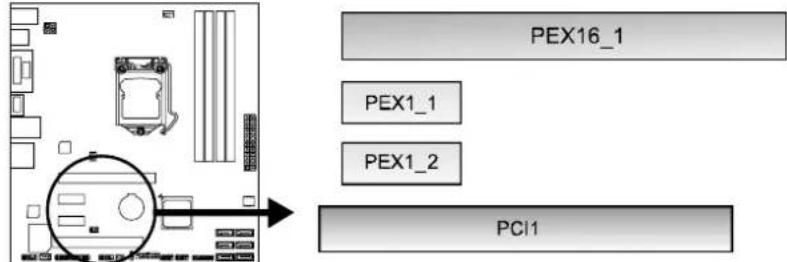

PCI1: Peripheral Component Interconnect Slot

The PCI slots support cards used in PCs include: LAN cards, sound cards, modems, TV tuner cards and other cards that comply PCI standard.

2.6 Jumper Setting

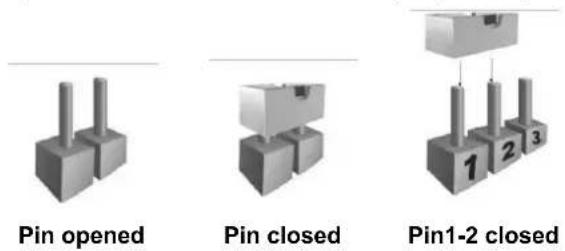

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

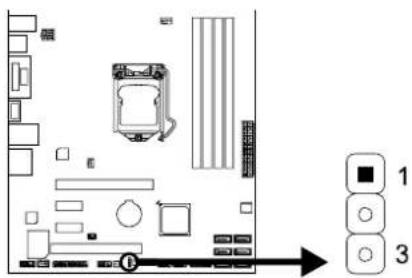

JCMOS1: Clear CMOS Jumper

Placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Close:
Normal Operation (default).

Pin 2-3 Close:
Clear CMOS data.

1. Remove AC power line.
2. Set the jumper to "Pin 2-3 close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 close".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.7 Headers & Connectors

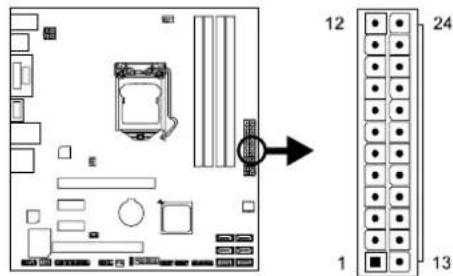

ATXPWR1: ATX Power Source Connector

This connector allows user to connect an ATX 24-pin power supply. Make sure to find the proper orientation before plugging the connector.

Pin	Assignment		Pin	Assignment
13	+3.3V	1	+3.3V
14	-12V	2	+3.3V
15	Ground	3	Ground
16	PS_ON	4	+5V
17	Ground	5	Ground
18	Ground	6	+5V
19	Ground	7	Ground
20	NC	8	PW_OK
21	+5V	9	Standby	Voltage+5V
22	+5V	10	+12V
23	+5V	11	+12V
24	Ground	12	+3.3V

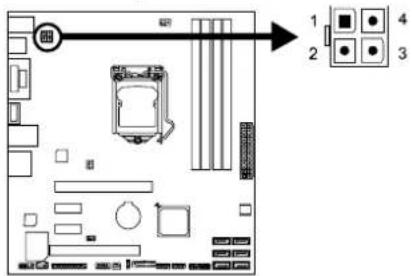

ATXPWR2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit.

Pin	Assignment
1	+12V
2	+12V
3	Ground
4	Ground

Note1: Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.

Note2: Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

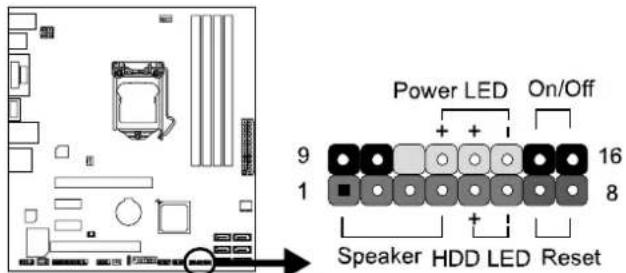

PANEL1: Front Panel Header

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case's front panel switch functions.

Pin	Assignment		Function		Pin	Assignment	Function
1	+5V	9	N/ASpeakerConnector N/A				N/A
2	N/A	10
3	N/A	11
4	Speaker			12 Power LED (+)			Power LED
5	HDD LED (+)	13 Power LED	BardriveLED
6	HDD LED (-)			14 Power LED (-)
7	Ground	15	Power buttonReset button				Power-on button
8	Reset	control		16 Ground

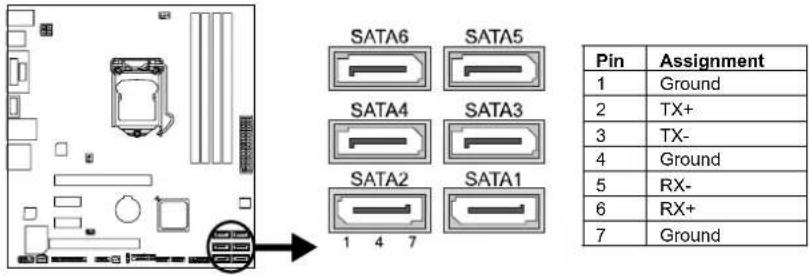

SATA1\~SATA6: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables. Please refer below table for SATA data transfer rates.

ConnectorsModels	SATA1	SATA2	SATA3	SATA4	SATA5	SATA6
Hi-Fi Z87S3+	SATA 6Gb/s
Hi-Fi H87S3+	SATA 6Gb/s
Hi-Fi B85S3+	SATA 6Gb/s				SATA 3Gb/s

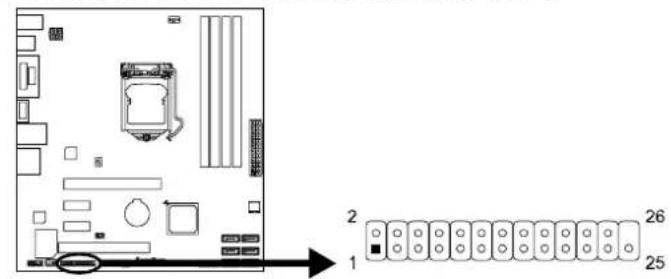

JFRONT\_USB3\_1: Header for USB 3.0 Ports at Front Panel

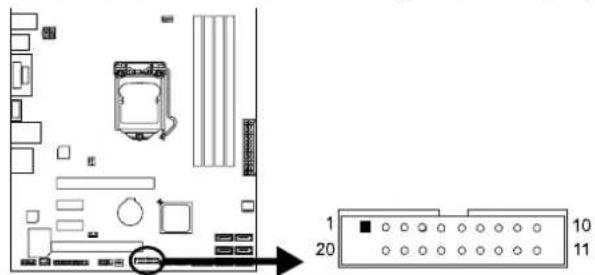

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment	Pin	Assignment
1	VBUS0	11	D2+
2	SSRX1-	12	D2-
3	SSRX1+	13	Ground
4	Ground	14	SSTX2+
5	SSTX1-	15	SSTX2-
6	SSTX1+	16	Ground
7	Ground	17	SSRX2+
8	D1-	18	SSRX2-
9	D1+	19	VBUS1
10	ID	20	Key

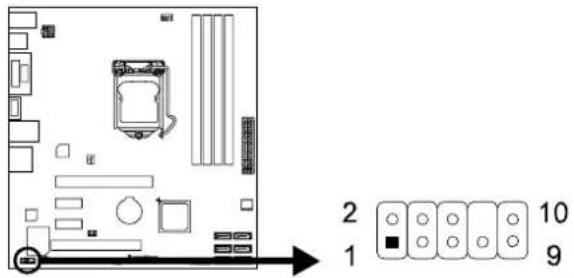

F\_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment
1	+5V (fused)
2	+5V (fused)
3	USB-
4	USB-
5	USB+
6	USB+
7	Ground
8	Ground
9	NC
10 Key

F\_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC'97 audio standards.

HD Audio AC'97
Pin	Assignment	Pin	Assignment
1 Mic Left in 1 Mic In
2	Ground 2	Ground
3 Mic Right in 3 Mic Power
4	GPIO 4	Audio	Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7	Front Sense	7	Reserved
8	Key 8	Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

Note1: It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

JSPDIFOUT1: Digital Audio-out Connector

The connector is for connecting the S/PDIF output bracket.

Pin Assignment
1	+5V
2	SPDIF_OUT
3	Ground

COM: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin	Assignment
1	Carrier detect
2	Received data
3	Transmitted data
4	Data terminal
5	Signal ground
6	Data set ready
7	Request to send
8	Clear to send
9	Ring indicator
10	NC

J\_PRINT1: Printer Port Header

This header allows user to connect a printer to the PC.

Pin	Assignment	Pin	Assignment
1	-Strobe	14	Ground
2	-ALF	15	Data
3	Data	0	16 Ground
4	-Error	17	Data 7
5	Data	1	18 Ground
6	-Init	19	-ACK
7	Data	2	20 Ground
8	-Scltin	21	Busy
9	Data	3	22 Ground
10	Ground	23	PE
11	Data	4	24 Ground
12	Ground	25	SCLT
13	Data 5	26	Key

CIR1: Consumer IR Header

This header is for infrared remote control and communication.

Pin Assignment
1 IrDA serial input
2	Ground
3	Ground
4	Key
5 IrDA serial output
6	IR Power

CHAPTER 3: UEFI BIOS & SOFTWARE

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual in the Setup DVD.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.

Note2: Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose [fs0] to search for the BIOS file.

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click Yes to start updating BIOS.

1. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the [Y] key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup. After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

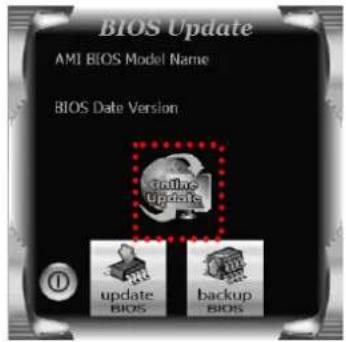

3. Launch BIOS Update Utility and click the Online Update button on the main screen.

Motherboard Manual

1. An open dialog will show up to request your agreement to start the BIOS update. Click Yes to start the online update procedure.
2. If there is a new BIOS version, the utility will ask you to download it. Click Yes to proceed.
3. After the download is completed, you will be asked to program (update) the BIOS or not. Click Yes to proceed.
4. After the updating process is finished, you will be asked you to reboot the system. Click OK to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup. After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the Update BIOS button on the main screen.

1. A warning message will show up to request your agreement to start the BIOS update. Click OK to start the update procedure.
2. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on Open. It will take several minutes, please be patient.
3. After the BIOS Update process is finished, click on OK to reboot the system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click Save.

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note1: All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

BIOScreen Utility

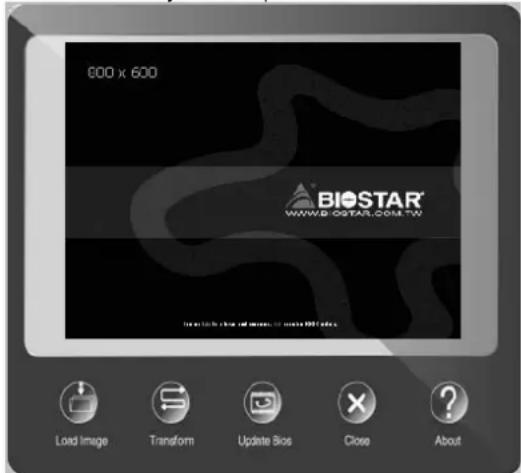

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image : Choose the picture as the boot logo.
  ● Transform : Transform the picture for BIOS and preview the result.
• Update Bios : Write the picture to BIOS Memory to complete the update.

eHot-Line

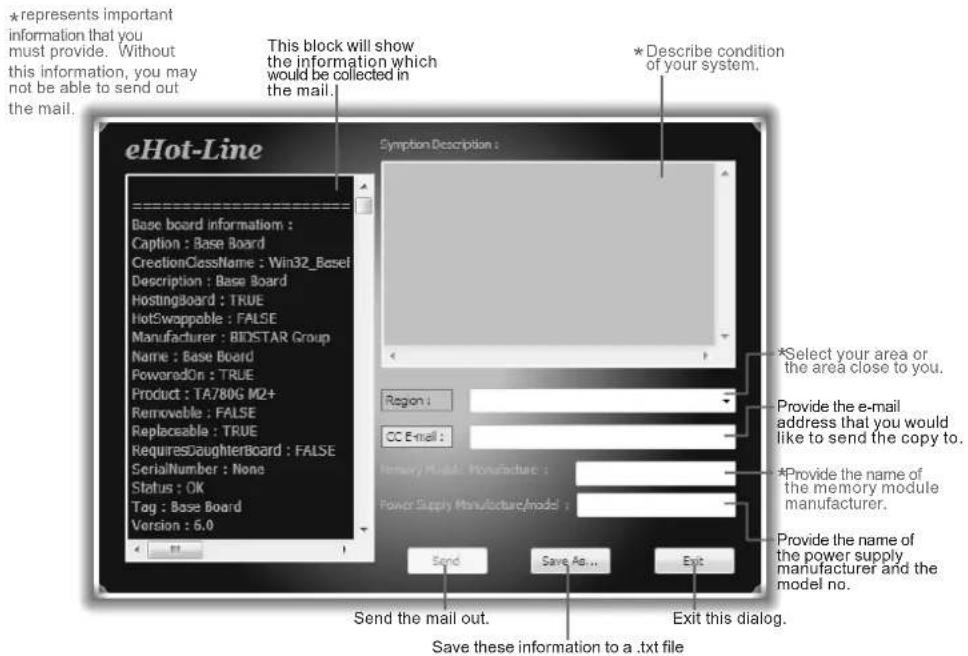

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application program.

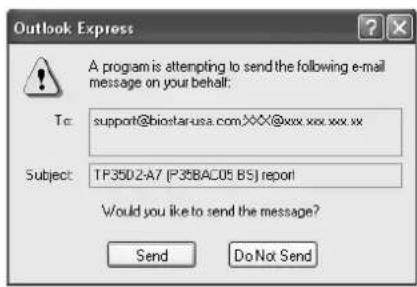

After filling up this information, click "Send" to send the mail out. A warning dialog would appear asking for your confirmation; click "Send" to confirm or "Do Not Send" to cancel.

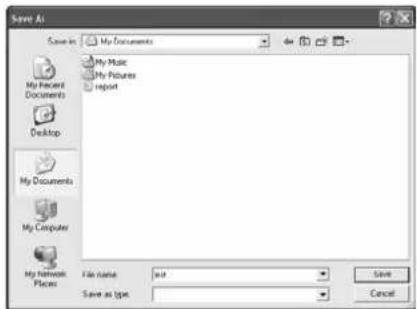

If you want to save this information to a .txt file, click "Save As..." and then you will see a saving dialog appears asking you to enter file name.

Motherboard Manual

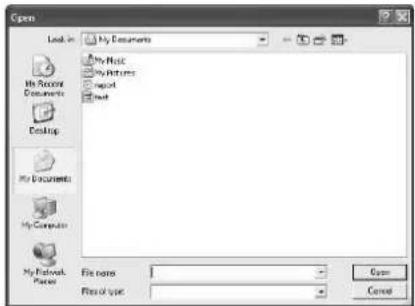

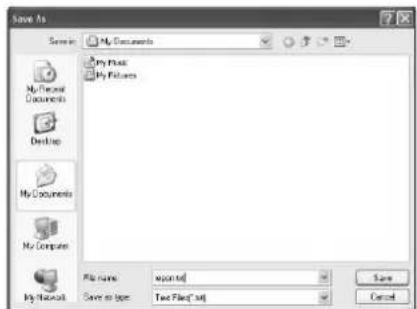

Enter the file name and then click "Save". Your system information will be saved to a .txt file.

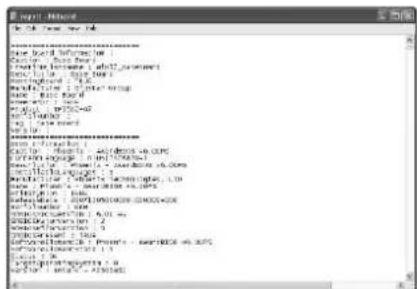

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/device/OS information. This information is also concluded in the sent mail.

Note1: We will not share customer's data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following website http://www.biostar.com.tw/app/en/about/contact.php for getting our contact information.

Smart EAR

Hi-Fi Audio Requirements:

1. A chassis with front audio output jacks
2. An earphone or a headphone
3. Windows 7 or Windows 8 operation system

Illustration of a desktop computer tower connected to an earphone (no text or symbols visible)

Installation Guide:

1. Make sure the front audio cable of the chassis connected to the front audio header of the motherboard properly.
2. Install the Smart Ear 3D Utility from the driver DVD.
3. Connect the earphone or headphone to the front audio jack of the chassis.

Note: If you want to use an AC'97 front audio output cable, please disable the "Front Panel Jack Detection" setting. This setting can be found via O.S. Audio Utility.

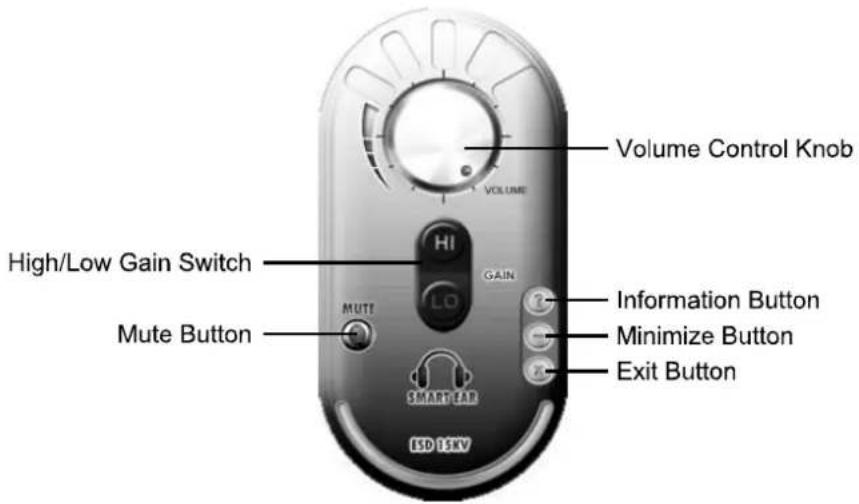

Smart EAR Utility:

● High/Low Gain Switch: Keep the gain switch to low for low impedance headphone and set to high for high impedance headphone.
● Mute Button: To disable system sound
- Volume Control Knob: The volume can be finely adjusted by turning the knob either clockwise or anti-clockwise to increase or decrease system volume accordingly.
● Information Button: Get information of the application
- Minimize Button: Minimize the application window to the taskbar
- Exit Button: Exit the application

Smart Connect Technology

Intel® Smart Connect Technology is designed to update programs by periodically waking your computer from sleep/standby mode for a short time. This function works with applications that automatically get their data from the Internet.

System Requirement:

• Intel Smart Connect Technology enabled in BIOS Setup
• Set the "ACPI Sleep State" to S3 in BIOS Setup.
  ● Windows 7 and Windows 8
  ● Normal internet connection

Configuring Intel Smart Connect Technology

Step 1: After installing the operating system and motherboard drivers, install the Intel Smart Connect Technology application. Restart your computer when completed.

Step 2: Click on start menu and input "regedit" in the search bar. Press enter to open the registry editor. Look for the following directory in the registry editor: Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Intel\Intel Smart Connect Technology Right-click on Intel Smart Connect Technology and select New > Key. Type "OEM".

Note: Intel Smart Connect Technology is for S3 mode only. During the updating process, the monitor will not light up and no sound will be output from the speaker.

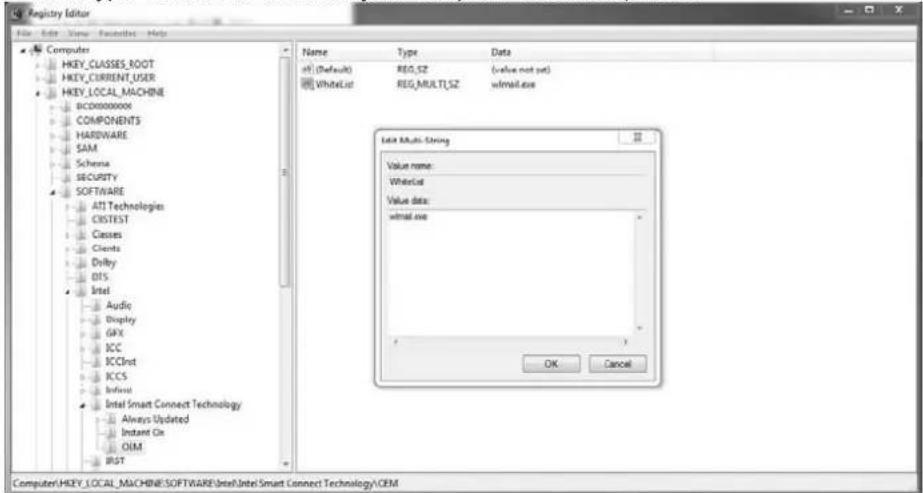

Step 3: As shown in the screenshot below, right-click on OEM, select New > Multi-String Value, and type "WhiteList". Double-click WhiteList and type the application name to be added in Edit Multi-String. For example, to add Microsoft Live Mail, type "w1mail.exe". Restart your computer when completed.

Step 4: After completing the steps above, go to Start\All Programs\Intel and launch Intel(R) Smart Connect Technology.

Basic and advanced settings

Basic Tab

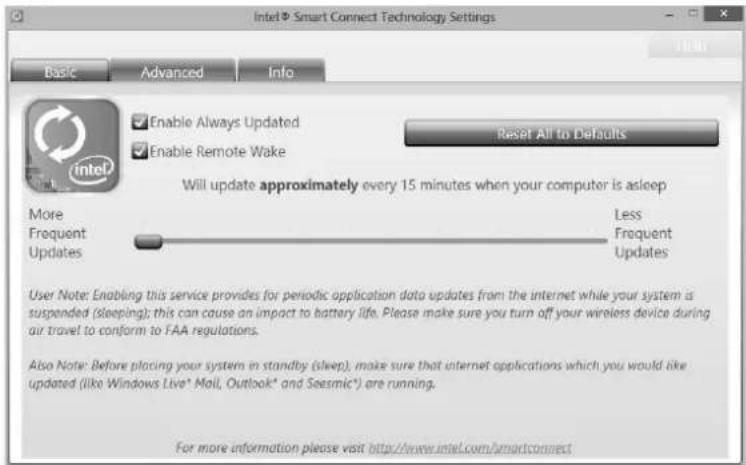

Update Frequency slider: This slider bar sets the amount of time the feature waits to wake your computer and update your applications. Move the slider in the user interface to change the frequency. The slider bar can be set to wake and update your computer from every 15 to 60 minutes. The longer the time between updates the less power the feature consumes.

Reset All to Defaults button: This button is designed to reset Intel® Smart Connect Technology back to the original factory setting for wake frequency.

Advanced Tab

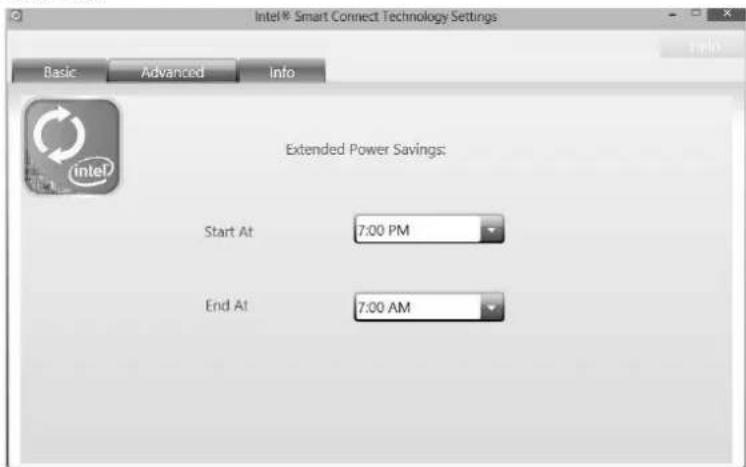

Extended Power Savings: You can set a time for Intel Smart Connect Technology to work in Extended Power Savings mode. This night time mode updates your computer every two hours, saving power for the times you are not using your computer.

Rapid Start Technology

Intel® Rapid Start technology enables your system to get up and running faster from even the deepest sleep, saving time and power consumption. Feel secure knowing that your system will still resume to working conditions in the event of unexpected power loss while in sleep mode.

System Requirement:

- An Intel® SATA SSD (SATA Gen2 or Gen3. Preferably Gen3, and 80 GB or larger)

● Windows 7 and Windows 8

Note1: Please visit below webpage for more details about operating systems supporting http://www.intel.com/p/en_US/support

Note2: The Rapid Start Technology is NOT supported by H81 chipset.

Installing Intel® SBA:

Step 1: BIOS Setting

1-1 Go to [Advanced Menu] > [ACPI Settings], and set [ACPI Sleep State] to S3 (Suspend to RAM)

1-2 Go to [Advanced Menu] > [SATA Configuration], and set [SATA Mode Selection] to AHCI

1-3 Go to [Advanced Menu] and set [Intel(R) Rapid Start Technology] to Enabled

1-4 Save your changes, and then exit the BIOS Setup.

Step 2: Operating System Installation

Step 3: Installing Intel® Rapid Start Application

3-1 Insert the setup Driver DVD into your optical drive. Click "Intel Rapid Start Technology" to launch the program.

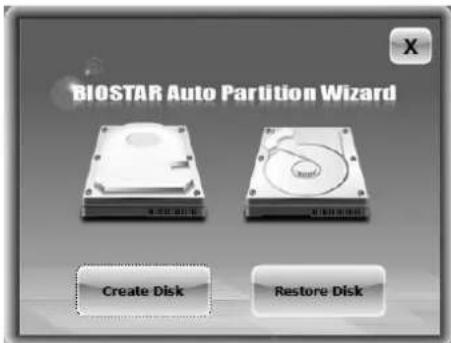

3-2 Below window will pop-out, then click "Create Disk" to star disk partition. After disk partition finished, please click "OK" then system will reboot automatically.

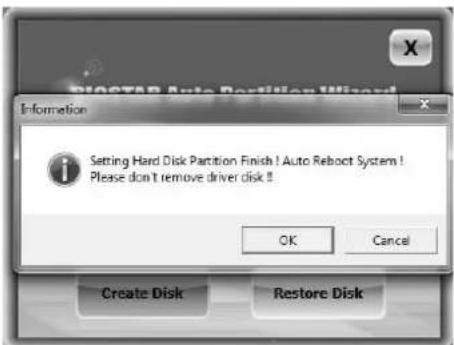

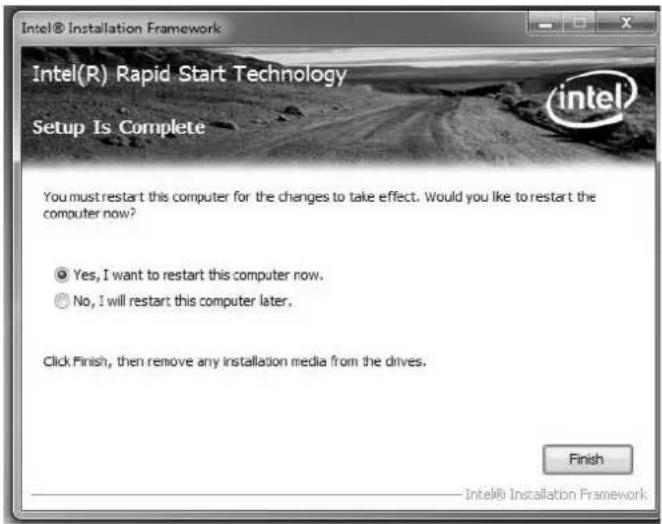

3-3 After rebooting, the system will setup Intel® Rapid Start Technology automatically. We recommend you restart the system after this installation is complete,

Step 4: Configuring Intel® Rapid Start Application

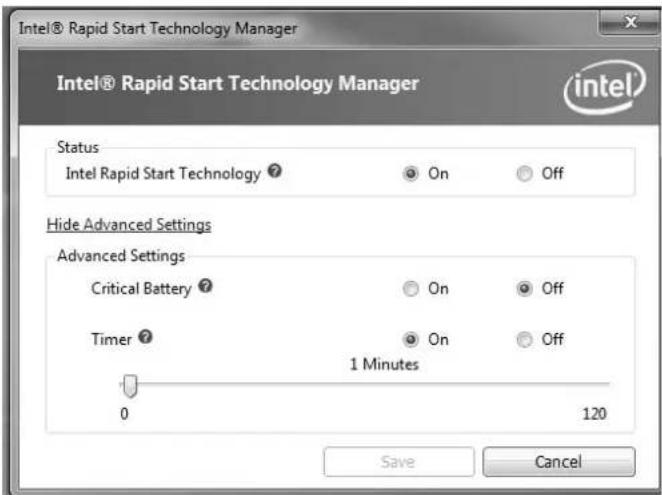

Launch the Intel® Rapid Start Technology Manager application from [Start] > [All Programs] > [Intel] or click the icon in the notification area.

Intel® Small Business Advantage

Intel Small Business Advantage (Intel SBA) provides an out-of-the-box hardware-based security and productivity suite designed for the small business user.

Software Monitor

Software Monitor helps keep critical security software running by monitoring it at the hardware level and alerting the business if there has been an attack. The Software Monitor also maintains an event log that shows status information and any errors generated, so businesses can know what happened.

Data Backup and Restore

Data Backup and Restore provides reliable after-hours backup of critical data using the local maintenance timer to power on the computer. Data can be backed up to a designated location.

USB Blocker

The optional USB Blocker lets businesses control access to their infrastructure, preventing unauthorized USB devices or file imports or exports on company computers.

PC Health Center

PC Health Center can schedule and do PC maintenance tasks after hours, without interrupting employee work time. Tasks such as updating the operating system, deleting temporary internet files, and running disk defragmentation can be done at night. PC Health Center works even if the computer is powered-down, as long as it is plugged in.

Energy Saver

With the optional Energy Saver, businesses can save energy by scheduling PCs to power-down at the end of the day and turn on before the work day begins - ready for employees as they arrive in the morning.

Supported Operating Systems:

Windows 7 and Windows 8

Note1: Please visit below webpage for more details about operating systems supporting http://www.intel.com/p/en_US/support

Note2: The Intel® Small Business Advantage is only supported by H87 & B85 chipsets.

Installing Intel SBA

This procedure describes how to install Intel SBA.

1. Logon to the computer with a user that has administrator privileges.
2. Copy the Setup.exe file to the computer.
3. Double-click Setup.exe.

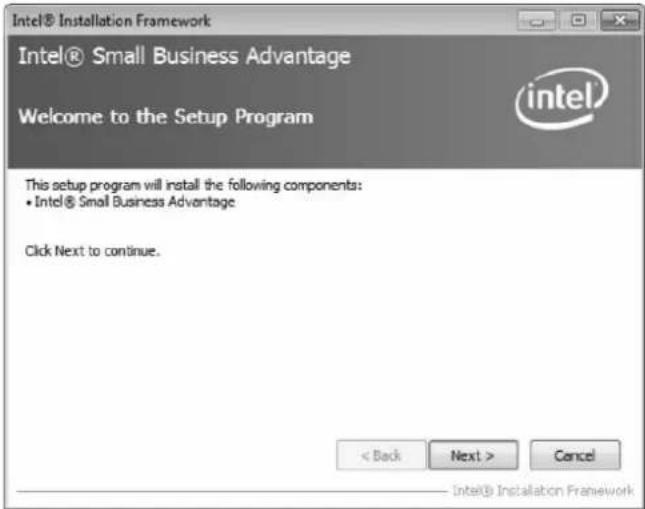

The Welcome to the Setup Program window opens.

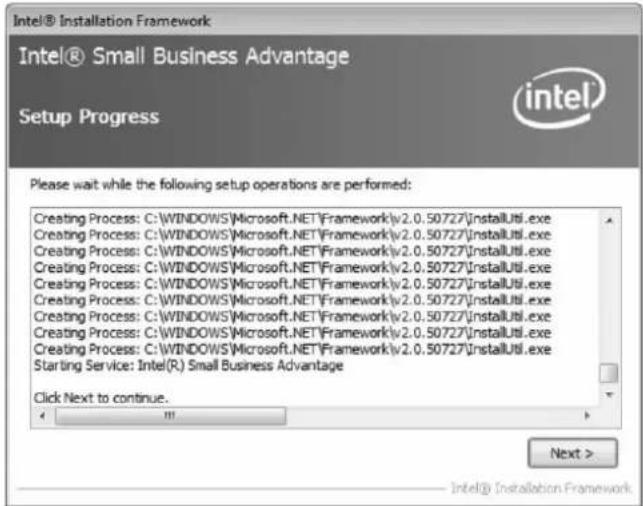

1. Click Next. The installer starts the installation and the Setup Progress window opens showing the progress of the installation. When installation is complete, the installer starts the Intel SBA service and the Next button is enabled.

1. Click Next. The Setup Is Complete window opens.
2. Click Finish. The installer closes.

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

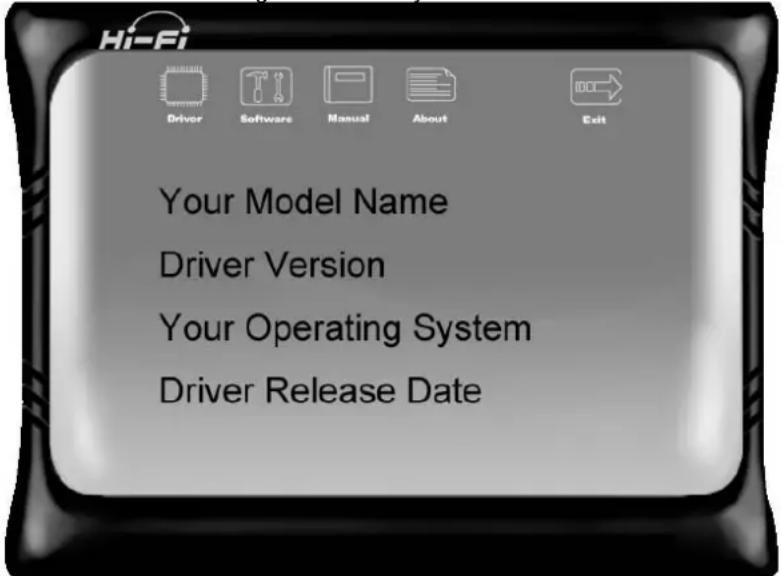

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manuals.

Note1: If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive. Note2: You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps	Description
1	Success booting.
8 Display memory error (system video adapter)

4.3 Troubleshooting

Probable	Solution
1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
2. Wait for seconds.
3. Power on the system again.

4.4 RAID Functions

RAID Definitions

RAID 0:

RAID 0

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
• Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

RAID 1:

RAID 1

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.

RAID 10:


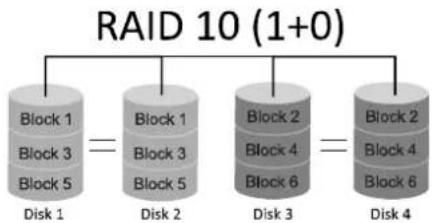

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

RAID 5:


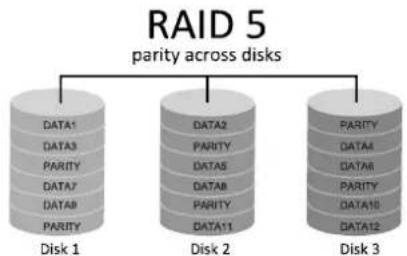

A RAID 5 array can withstand a single disk failure without losing data or access to data. Although RAID 5 can be achieved in software, a hardware controller is recommended. Often extra cache memory is used on these controllers to improve the write performance.

Features and Benefits

• Drives: Minimum 3.
• Uses: RAID 5 is recommended for transaction processing and general purpose service.
• Benefits: An ideal combination of good performance, good fault tolerance, and high capacity and storage efficiency.
• Drawbacks: Individual block data transfer rate same as a single disk. Write performance can be CPU intensive.
• Fault Tolerance: Yes.

Note1: The RAID 0,1,10 and 5 functions are only supported by Z87 & H87 chipsets.

Note2: For more details settings about Intel® Rapid Storage Technology (Intel® RST), please visit http://www.intel.com/p/en_US/support/highlights/chpsts/imsm

This Page Intentionally Left Blank

APPENDIX: Specifications in Other Languages

Arabic

واصفاتالم
Intel® Core i7 / i5 / i3 / Pentium / Celeron 1150 المعلج ايه إم دىالحد الأقصى للاطاقة الحرازية في تصميم المعالعJ : ( thermal design power - TDP ) CPU لقالمة دعم المعالعJ www.biostar.com.tw يرجى الرجوع إلى الموقع *	itaoudة وحدة المعالجةpink Mozika	itaoudة وحدة المعالجةpink Mozika
INTEL® B85 (Hi-Fi B85S3+) INTEL® Z87 (Hi-Fi Z87S3+)INTEL® H87 (Hi-Fi H87S3+)	*	*
### DDR3 1066/ 1333/ 1600# DDR3 1800(OC) / 1866(OC) / 2133(OC) / 2200(OC)(Hi-Fi Z87S2)# DIMM # تحل محد أقصى 32 جيجابيت ذاكرة 4x DDR3 8/4/2/1/ 512 ECC # تحل دون DIMM# تحل دون DIMM# كلي# ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ##	###	###
INTEL® B85 INTEL® Z87 & H876 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA## 6 SATA##	*	*
REALTEK RTL 8111 F# 1000 / 100 / 10# miجبابيت dentatima , تحديد تلاني , التصف/ Trinidad الفسوي المزدوچة	*	*
ALC892Biostar Hi-Fi# ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ####	*	*
Hi-Fi Z87S3+ & Hi-Fi H87S3+4 ) 3.0 USB## 6 ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ###

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+
