USER MANUAL PBQSS BAUMATIC

PBQSS/PF1SS Pythagora 30 cm domino hob

Instruction manual

User Manual for your Baumatic

PBQSS Pythagora 30 cm Barbeque domino hob

PF1SS Pythagora 30 cm Deep fat fryer domino hob

Two identical electronic devices with grid and circular components, no visible text or symbols.

You will be mine ...

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

ENGLISH

Dear User,

Many thanks for choosing one of our products.

We are sure that this complete, functional, practical, modern appliance will give you full satisfaction, since it has been meticulously designed and constructed with materials of the very best quality.

We advise you to read the instructions in this handbook carefully and follow them; they will allow you to get the best from your appliance from the very first time you use it.

KEEP THIS PRODUCT'S DOCUMENTATION FOR FUTURE REFERENCE.

Baumatic Ltd.

CONTENTS

Instructions for the user

Installation 3

Use 3

Maintenance 4

Instructions for the installer

Installation 6

Positioning 6

Electrical connection 6

IMPORTANT:

THIS PRODUCT IS DESIGNED FOR USE IN THE HOME. THE MANUFACTURER ACCEPTS NO LIABILITY IN CASE OF INJURY OR DAMAGE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, INCORRECT OR UNREASONABLE USE.

INSTRUCTIONS FOR THE USER

INSTALLATION

All installation (electrical connection) procedures must be carried out by a skilled engineer in accordance with the laws and regulations in force.

The appliance may be installed in all masonry, metal, wood or plastic laminate-covered wood furniture units capable of withstanding a maximum temperature of 90^ C.

A gap of 50 mm must be left from the rear edge and 120 mm from the left-hand side, as shown in figure 1.

For specific instructions, see the section addressed to the installer.

The following models are covered by these instructions:

BBQ PBQ BF1 PF1

USE

Turn the knob to the right setting for your cooking requirements, bearing in mind that higher numbers correspond to higher heat output.

BARBECUE: PBQ - BBQ

To turn on the element, turn the knob clockwise; this sets the relative thermostat, with settings from “1” to “10”. (Fig. 3)

The pilot light turns on to show that the element is in operation.

It is normal for some types of lamp to show a little light even when the plates are not working.

Using the grid: Before using the grid, it is always advisable to check that it is firmly positioned and correctly placed on the hob. Also check that the rubber pads it rests on are intact and properly in place.

Lava rock: Place the rock inside the tray provided and dispose of the bag. Once it is in place, turn on the heating element.

ADVICE AND WARNINGS:

After cooking, turn knobs back to the "0" setting.

FRYER: PF1 - BF1

To set the cooking temperature, turn the knob clockwise, up to a maximum setting of 200^ C.

When the heating element comes on, two lights, one green and one red, light up. The red light goes out when the selected temperature is reached.

It is normal for some types of lamp to show a little light even when the plates are not working.

ADVICE AND WARNINGS:

Put the frying oil in the container provided before switching on the heating element.

After cooking, wait for the oil to cool before emptying the container.

After cooking, turn knobs back to the "0" setting.

If the regulator thermostat fails, a thermostat with manual reset will be activated; this must be reactivated by a skilled engineer.

MAINTENANCE

ALL ADJUSTMENT, SERVICING ETC. PROCEDURES MUST BE CARRIED OUT WITH THE APPLIANCE DISCONNECTED FROM THE ELECTRICITY SUPPLY.

To extend the appliance working life, it must be cleaned regularly, following the instructions below:

- Electrical element:

For a longer working life, heat the element for a few moments to burn off any residues left on it during the manufacturing process.

- Control panel:

Only use warm water with a mild detergent and dry with a clean, dry cloth., dirty cloths. For easier cleaning, you may remove the knobs by pulling them up (do not apply leverage on the control panel). If the knob is stiff, apply leverage with a cloth underneath it, and remove it carefully.

- Enamelled parts:

Simply clean with soap and water with the appliance cold, and dry with a clean, dry cloth. Do not clean when hot, as this may alter the colour of the enamel.

- Stainless Steel Parts:

Clean with a soft cloth using warm water and a mild detergent, dry with a clean dry cloth.

INSTRUCTIONS FOR THE INSTALLER

INSTALLATION

All installation (electrical connection) procedures must be carried out by a skilled engineer in accordance with the regulations in force.

ALL ADJUSTMENT, SERVICING ETC. PROCEDURES MUST BE CARRIED OUT WITH THE APPLIANCE DISCONNECTED FROM THE ELECTRICITY SUPPLY.

POSITIONING

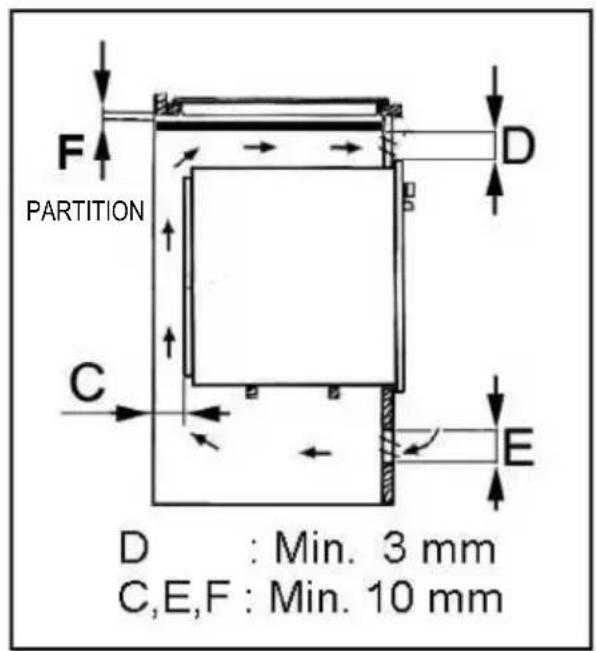

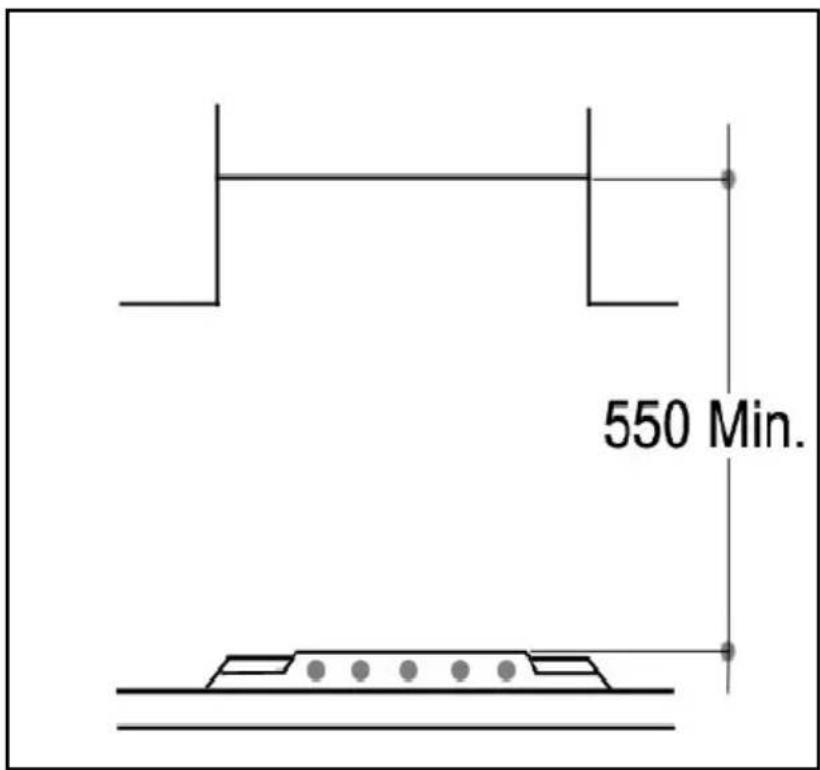

The appliance is designed for built-in installation, with dimensions above the appliance as shown in figures “1” and “2”.

If the hob is combined with an oven, follow the instructions provided by the oven's manufacturer, in all cases assuring ventilation as specified in fig. "6". In all cases, the electrical connections to the two appliances must be made separately, both for electrical reasons and to simplify extraction.

This product has a special gasket to prevent liquids from seeping into the cabinet. The gasket must be put carefully in place as shown in figure “7”.

Secure the hob with the brackets provided as shown in figure “7”.

ELECTRICAL CONNECTION

Before making the electrical connection, check that:

• The characteristics of the home's power supply comply with the requirements stated on the nameplate provided underneath the hob and in this handbook;
• Ensure that there is an earth connection system in good working order;
• If the appliance does not have a power lead, use material complying with characteristics stated on the nameplate provided underneath the hob and in this handbook;
• In case of direct connection to the mains, an omnipolar circuit-breaker with contact breaking gap of at least 3 mm must be installed on the power supply line in an easily accessible position close to the appliance (there must be no break in the yellow-green earth wire).
• Characteristics of the Barbecue cable: 3x1,5 IMQ (H05VV-F)
• Characteristics of the Fryer cable: 3x1,5 IMQ (H05RN-F)
  Add electrical rating for each model please

THE MANUFACTURER ACCEPTS NO LIABILITY IN CASE OF FAILURE TO COMPLY WITH THE ABOVE INSTRUCTIONS AND WITH NORMAL ACCIDENT PREVENTION STANDARDS.

"Please note that this appliances carries the CE mark for normal domestic use and is not suitable for the marine environment"

Fig. 1

Fig. 2

BARBECUE
FRYER
Fig. 3

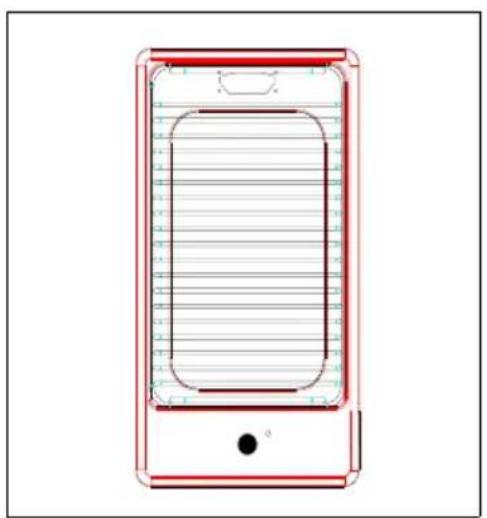

Fig. 5

Top-down schematic of a smartphone screen with horizontal lines and a small black button at the bottom (no text or symbols)

Illustration of a smartphone with a circular lens and attached bracket (no text or symbols)

Fig. 6

Fig. 7
