Product Type	Refrigerator with Freezer
Model	SJ-P692NBE
Brand	Sharp
Voltage	220-240 V
Ambient Temperature Range	+5°C to +38°C
Plasmacluster Technology	Yes (SJ-P692N only)
Deodorizing Unit	Automatic operation
Defrost System	Automatic (energy saving)
Freezer Temperature Control	Adjustable (1 to 7)
Refrigerator Temperature Control	Adjustable (1 to 7)
Ice Maker	Ice cube trays and ice cube box
Refrigerator Shelves	3 (adjustable)
Freezer Shelf	1
Vegetable Crisper	Yes
Fresh Case	Yes
Egg Holder	Yes
Bottle Stopper	Yes (prevents bottles from falling)
Adjustable Feet	2 front adjustable feet
Casters	Yes (for moving back and forth)
Lighting	Freezer and refrigerator compartment lights
Lamp Bulbs	Freezer: E12, MAX 10W; Refrigerator: E12, MAX 15W
Magnetic Door Seal	Yes

Frequently Asked Questions - SJ-P692NBE SHARP

How do I adjust the temperature in the freezer and refrigerator compartments?

Use the Freezer Temp. Control knob and Refrigerator Temp. Control knob. Settings range from 1 (MIN) to 7 (MAX). For normal freezing, set freezer to 4 (MED); for normal refrigeration, set refrigerator to 4 (MED).

What is Plasmacluster technology and how does it work?

Plasmacluster is a feature that releases clusters of positive and negative ions to inactivate airborne mold fungus. It automatically starts when the refrigerator is powered on. You can press the PLASMACLUSTER button to turn it on or off.

How do I make ice in this refrigerator?

Fill the ice cube trays (do not overfill) and place them in the freezer. Once frozen, turn the lever clockwise to empty the ice into the ice cube box. Do not make ice directly in the ice cube box.

How do I clean the refrigerator?

Clean the interior with a cloth soaked in warm soapy water (diluted dishwashing liquid). Rinse thoroughly with water. Remove shelves and pockets and wash separately. Do not use polishing powder, benzine, or hot water. Wipe the exterior with a soft cloth.

How do I replace the light bulb?

Unplug the refrigerator first. Remove the light cover. Replace with the same type: For freezer, base E12, MAX 10W, T-20; For refrigerator, base E12, MAX 15W, T-20. Then reattach the cover.

Why is the refrigerator making unusual noises?

Some sounds are normal: compressor startup noise, gurgling of refrigerant, cracking from expansion/contraction. Loud noise once a day is the defrost cycle. If noise persists, check if the refrigerator is level and has adequate ventilation.

How do I defrost the freezer?

Defrosting is fully automatic. The defrost cycle starts proportionally to compressor running time. No manual defrosting is required.

What should I do if the refrigerator is not cooling properly?

Check the temperature control settings, ensure the door is closed properly, and verify there is adequate ventilation space around the refrigerator. If the problem persists, contact a Sharp-approved service agent.

How should I store food for best results?

Wrap fruits and vegetables loosely in plastic and place in the vegetable crisper. Store dairy products and eggs in designated holders. Place meat, fish, and poultry on a dish and cover. Cool hot foods before storing. Do not block air outlets.

What safety precautions should I take when disposing of the refrigerator?

To prevent accidents to children, completely remove the door before disposal. Flammable insulation blowing gases should be disposed appropriately. Take the cabinet and doors to a recycling plant.

USER MANUAL SJ-P692NBE SHARP

SJ-P642N SJ-642N SJ-P692N SJ-692N

Plasmacluster is a trademark of SHARP Corporation

Line drawing of a refrigerator with front and back panels (no text or symbols)

SJ-P642N SJ-P692N

Line drawing of a refrigerator with front and back panels (no text or symbols)

SJ-642N SJ-692N
- Plasmacluster is a trademark of SHARP Corporation

СОДЕРЖАНИЕ

SJ-P692N-(BE, GR, SL) SJ-692N-(BE, GR, SL) ШАРП

Diagram of a mechanical component with a curved housing and an arrow indicating direction (no text or symbols)

Illustration of people assembling a large panel with circular components, shown in two views (no text or symbols)

REFRIGERATOR TEMP. CONTROL

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

All persons using the cabinet must be thoroughly familiar with its operation and safety features.

Keep this operation manual with the refrigerator if you move or if the cabinet changes owners so that whoever uses it can read about the various features and safety rules.

WARNING

1. This refrigerator is airtight. TO PREVENT FATAL ACCIDENTS TO CHILDREN, please completely remove the door prior to discarding the refrigerator.
2. Highly volatile and inflammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.
3. To prevent damage to the outer cabinet, avoid contact with lacquer, and paint, etc.
4. When cleaning your refrigerator, do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.
5. When cleaning any areas adjacent to electrical components or replacing the lamp bulb, unplug the refrigerator first to prevent electric shock.
6. Should electrical components be accidentally immersed in water, unplug the refrigerator, dry the parts and contact your nearest service agent approved by SHARP.

Important:

• This refrigerator is for domestic use only, with an ambient temperature between +5^ and +38^ . The refrigerator should not be subjected to temperatures of -10^ for long periods.
  • T o be used on 220-240V mains voltage.

• When disconnecting the power plug, do not touch the pin of plug. This may cause electric shock.

• This refrigerator is designed solely for the purpose of storing foodstuff for domestic use in accordance with the instructions given in this manual. Using the refrigerator for other purposes might be harmful to persons or property.

• This refrigerator is not suitable for the storage of materials requiring precise temperatures. Deterioration of these materials will be dangerous.

• Dust deposited on the power plug may cause fire. Wipe it off carefully.

• Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

• Information regarding disposal of the appliance Flammable insulation blowing gases should be disposed appropriately. Take the cabinet and doors to a recycling plant for flammable insulation blowing gases.

CAUTION

1. Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.
2. If the power supply is accidentally disconnected, please wait for at least 5 minutes before re-connecting the power, as back pressure in the compressor may trip the overload relay.
3. Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.
4. To prevent accidental power disconnection, plug the refrigerator directly to the source. Do not use a double adaptor as loss of power could lead to the spoiling of the stored food.
5. Do not place bottles in the freezer as they may crack when frozen.
6. Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise, resulting in food spoilage and increase in electricity costs.
7. Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.
8. When installing or moving the refrigerator, make sure that you do not nip or kink the power cord. Damage of the power cord may cause electric shock or fire.

9. Do not use this refrigerator when the power cord or plug is damaged, or the outlet attachment is loose, as they may cause electric shock or fire.

10. Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

11. Make sure that you leave adequate ventilation space around the refrigerator to prevent the compressor from overheating and stopping. Please follow the instructions given for installation.
12. The refrigeration system behind and inside the refrigerator contains refrigerant. If this system is punctured it could result in serious damage to your refrigerator, therefore do not allow any sharp objects to come into contact with the refrigeration system.
13. Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.
14. In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.
15. Do not place heavy or easily broken objects on top of the refrigerator. Objects may fall when opening or closing the refrigerator, causing injury.
16. Do not place objects containing liquid on top of the refrigerator. Spillage may cause electric shock or fire.
17. Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.
18. This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

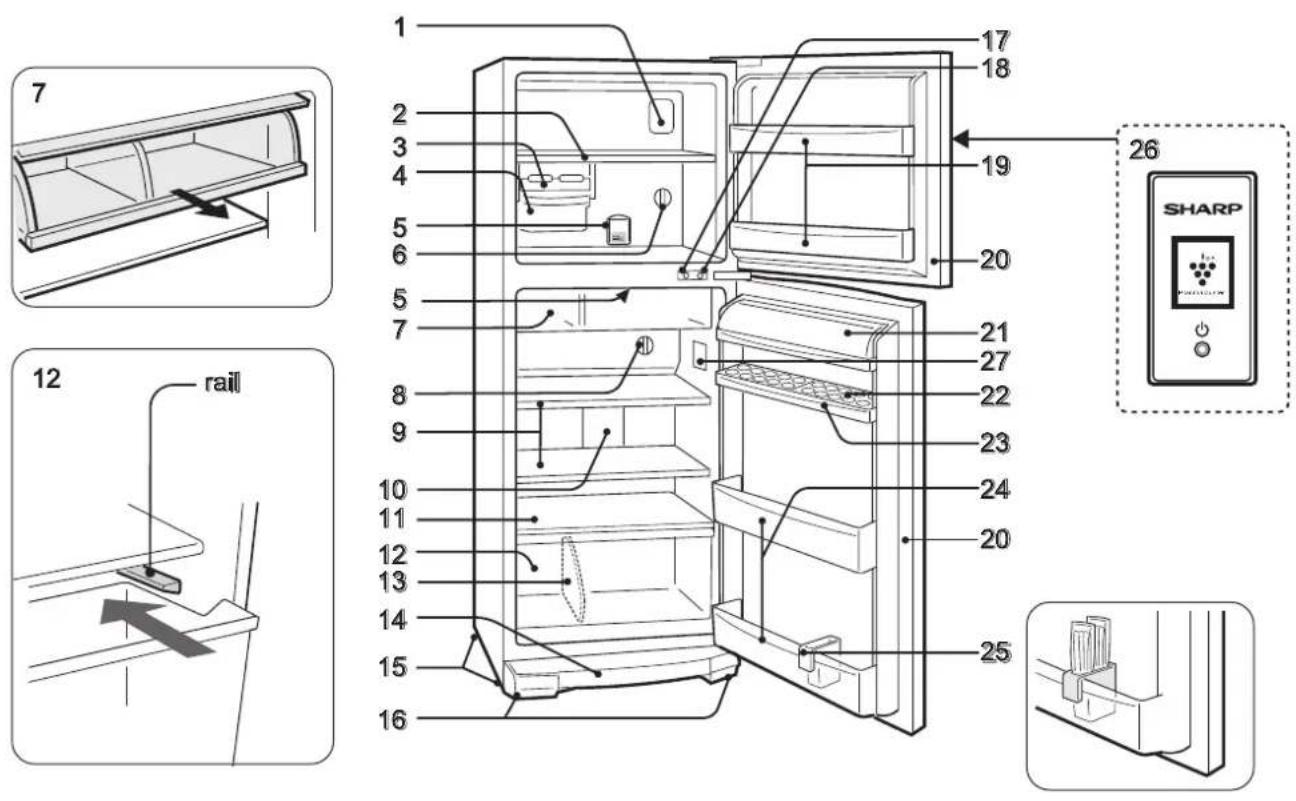

1. Freezer light
2. Freezer shelf
3. Ice cube maker
4. Ice cube box
5. Deodorizing unit
6. Freezer temp. control knob
7. Fresh case

The cover of Fresh case opens as the case is pulled.

1. Refrigerator temp. control knob
2. Refrigerator shelf

(642 type 2 shelves, 692 type 3 shelves)

1. Refrigerator light
2. Shelf
3. Vegetable crisper

Put in the Vegetable crisper under the rail.

1. Divider
2. Evaporating pan & cover

3. Casters

4. Adjustable feet

5. Fan & light switch for freezer
6. Fan & light switch for refrigerator
7. Freezer pocket
8. Magnetic door seal
9. Utility case
10. Egg holder
11. Free pocket

(642 type 1 pocket, 692 type 2 pockets)

1. Bottle pocket
2. Bottle stopper

Prevents bottles, etc. from falling. Stick-type food products can also be stored inside.

1. Plasmacluster panel

(Only for SJ-P642N, SJ-P692N)

1. Feature label

Contents information such as the volume and outside dimensions.

1 Keep adequate ventilation space around the refrigerator.

• The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.
• It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.
• If using the refrigerator in the space below dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure.

2 Using the two front Adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor.
3 Clip Evaporating pan cover (supplied inside the refrigerator compartment) in position in front of the two Adjustable feet.

NOTE:

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.

When transporting

• Using the casters, it is possible to move back and forth.
- Carry the refrigerator by holding the handles located on the rear and bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly.

OPERATION

CONTROLLING TEMPERATURES

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

Freezer

compartment

7(MAX)	For making ice rapidly or fast freezing.
4(MED)	For normal freezing.
1(MIN)	When frozen food or ice cream is not stored.

- If the refrigerator is operated for a long time with FREEZER TEMP. CONTROL set at 7(MAX), foods stored in the refrigerator compartment may also freeze.

Refrigerator compartment

REFRIGERATOR TEMP. CONTROL

7(MAX)	For keeping foods fresher tasting.When the refrigerator does not provide sufficient cooling.
4(MED)	For normal operation.
1(MIN)	When the refrigerator provides excessive cooling.

• If the refrigerator is operated for a long time with REFRIGERA-T OR TEMP. CONTROL set at 7 (MAX), foods stored in the refrigerator compartment may also freeze.
• Low ambient temperature may cause placed foods to freeze even if REFRIGERATOR TEMP. CONTROL is set to 1 (MIN).

HINTS WHEN MAKING ICE

1. Do not over fill the Ice cube trays; otherwise the ice cubes will be joined together when frozen.

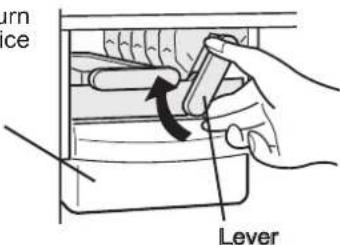

2. When the ice cubes are made, turn the lever clockwise to empty the ice into Ice cube box.

Ice cube box

NOTE:

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

PLASMACLUSTER (Only for SJ-P642N, SJ-P692N)

The plasmacluster automatically starts operating when the refrigerator is powered on.

1. Press "PLASMACLUSTER(ON/OFF) button", and the PLASMACLUSTER lamp goes out and the plasmacluster turns off.
2. Press "PLASMACLUSTER(ON/OFF) button" again, and the PLASMACLUSTER lamp lights up. The plasmcluster turns on.

PLASMACLUSTER(ON/OFF) button

Notes about PLASMACLUSTER operation

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the freezer and refrigerator compartment.

These ion clusters inactivate airborne mold fungus.

- There may be a slight odors in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

DEODORIZING UNIT

A built-in unit which requires no manual operation because it automatically starts operating when the refrigerator is powered on.

DEFROSTING

Defrosting is fully automatic due to a unique energy saving system. Whereby the defrost cycle start time is proportional to the running time of your refrigerator compressor, i. e., the less time the refrigerator compressor operates (during the winter season or you're away on holidays), the longer the time between each defrost cycle.

STORING FOOD

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in Vegetable crisper. Those fruits and vegetables with thick skins e.g. oranges do not require wrapping.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE:

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• H ot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.

Do not place food directly in front of cold air outlet. This may lead to the food freezing.

IN OUT

Diagram of a refrigerator interior showing airflow direction and internal compartments (no text or labels)

FOR BEST FREEZING

• Q uality of foods should be fresh.
- F freeze small quantities of food at a time to freeze them quickly.
- Food should be properly stored or covered and the air should be removed to seal tightly.
- E venly place the food in the freezer.
- Label bags or containers to keep an inventory of freezing food.

Some household cleaning chemicals may affect the inside surfaces and plastic shelves resulting in splitting or cracks occurring.

When cleaning all plastic parts inside this refrigerator, only use diluted dishwashing liquid(soapy water). Make sure that all plastic parts are thoroughly rinsed with water after cleaning.

1. Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.
2. Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
3. Wipe the exterior with a soft cloth each time it is soiled.
4. Clean Magnetic door seal with a toothbrush and warm soapy dishwashing water.
5. Evaporating pan should be removed and cleaned once a year.

NOTE:

• Do not use polishing powder, benzine, hot water etc.
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.
• Wipe any food oils adhered to plastic components as they can cause cracking of the plastic surface.
• The glass shelves weighs approximately 3kg each. Hold firmly when removing from the cabinet or carrying.

Evaporating pan & cover; How to remove

1. Hold both sides of Evaporating pan cover and angling upward.
2. Pull Evaporating pan out.

How to set

1. Put Evaporating pan on Radiator plate, then slide it in completely.
2. Fit the pawls of Evaporating pan cover into the holes of the cabinet, then push the cover to attach.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Evaporating pan
Evaporating pan cover

Replacing method of the lamp bulb

1. Unplug the refrigerator first to prevent electric shock.
2. Remove the light cover.
3. Replace the lamp bulb with the same type.

Freezer: base E12, MAX 10W, T-20 Refrigerator: base E12, MAX 15W, T-20

Light cover

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

WHAT TO DO BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following point.

IT IS NORMAL for the refrigerator to produce the following sounds.

• Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.

• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).

• Cracking or crunching sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.

• Squeaking sound --- Sound produced by expansion and contraction of internal parts.

IT IS NORMAL that the outside of a cabinet may be hot when touched. The hot pipe is in the cabinet in order to prevent dew generation.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.
