Product Type	Analogue Quartz Wristwatch
Model	Caliber 8V36
Brand	Seiko
Display System	24-hour, hour, minute, and second hands
Ultrasonic Alarm Display	Designated alarm time and engagement/disengagement indication
Time Setting	Advance minute hand 4-5 minutes ahead, then back to exact minute
Alarm Setting	Rotate crown to set alarm hand; for precision, turn counterclockwise; if less than 2 hours ahead, first advance >2 hours then back
Alarm Duration	20 seconds vibration
Alarm Accuracy	±5 minutes
Battery Life Indicator	Second hand moves at 2-second intervals when battery is low
Battery Type	Seiko SR43W (silver oxide)
Battery Life	Approximately 2 years (may be less if alarm used >10 sec/day)
Driving System	Step motor for time, ultrasonic motor for alarm
IC	C-MOS-IC, 2 pieces
Crystal Oscillator Frequency	32,768 Hz
Monthly Accuracy	Less than ±15 seconds at normal temperature (5°C to 35°C)
Operational Temperature Range	-10°C to +60°C (14°F to 140°F)
Battery Change Recommendation	Contact authorized Seiko dealer; use only SR43W battery
Safety Warning	Keep battery away from children; do not short-circuit, heat, or recharge

Frequently Asked Questions - 8V36 SEIKO

How do I set the time on my Seiko 8V36 watch?

To set the time, pull out the crown. When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired time and then turn it back to the exact minute.

How do I set the ultrasonic alarm?

Turn the crown to set the alarm hand to the desired alarm time. For more precise setting, turn the alarm hand counterclockwise. If setting an alarm less than 2 hours ahead, first advance the alarm hand more than 2 hours ahead, then turn it back to the exact time. Pull out the crown to engage the alarm.

How do I disengage the alarm?

Push the crown back in to disengage the alarm. The alarm is set on a 12-hour basis.

How does the battery life indicator work?

When the battery nears its end, the second hand moves at two-second intervals instead of normal one-second intervals. This indicates that the battery needs to be replaced.

What type of battery does the Seiko 8V36 use?

It uses a Seiko SR43W miniature silver oxide battery. Only use this type for replacement, and we recommend visiting an authorized Seiko dealer.

How long does the battery last?

Approximately 2 years. However, if the ultrasonic alarm is used more than 10 seconds per day, battery life may be shorter.

What is the ultrasonic alarm?

The ultrasonic alarm uses a motor to vibrate the watch for 20 seconds at the set time. Ensure the bracelet fits snugly on your wrist to perceive the vibration clearly.

Why can't I feel the alarm vibration?

The vibration may not be clearly perceived during active sports or work involving arm movement. Make sure the bracelet fits snugly on your wrist.

Is it safe to replace the battery myself?

It is recommended to have the battery replaced by an authorized Seiko dealer. Do not remove the battery yourself; if removed, keep it away from children. Never short-circuit, heat, or recharge the battery.

What is the accuracy of the watch?

The watch has a monthly rate of less than ±15 seconds at normal temperature range (5°C to 35°C). The alarm accuracy is ±5 minutes.

USER MANUAL 8V36 SEIKO

You are now the proud owner of a SEIKO Analogue Quartz Watch Cal. 8V36. For best results, please read the instructions in this booklet carefully before using your SEIKO Analogue Quartz Watch. Please keep this manual handy for ready reference.

☆ For the care of your watch, see "TO PRESERVE THE QUALITY OF YOUR WATCH" in the attached Warranty Booklet.

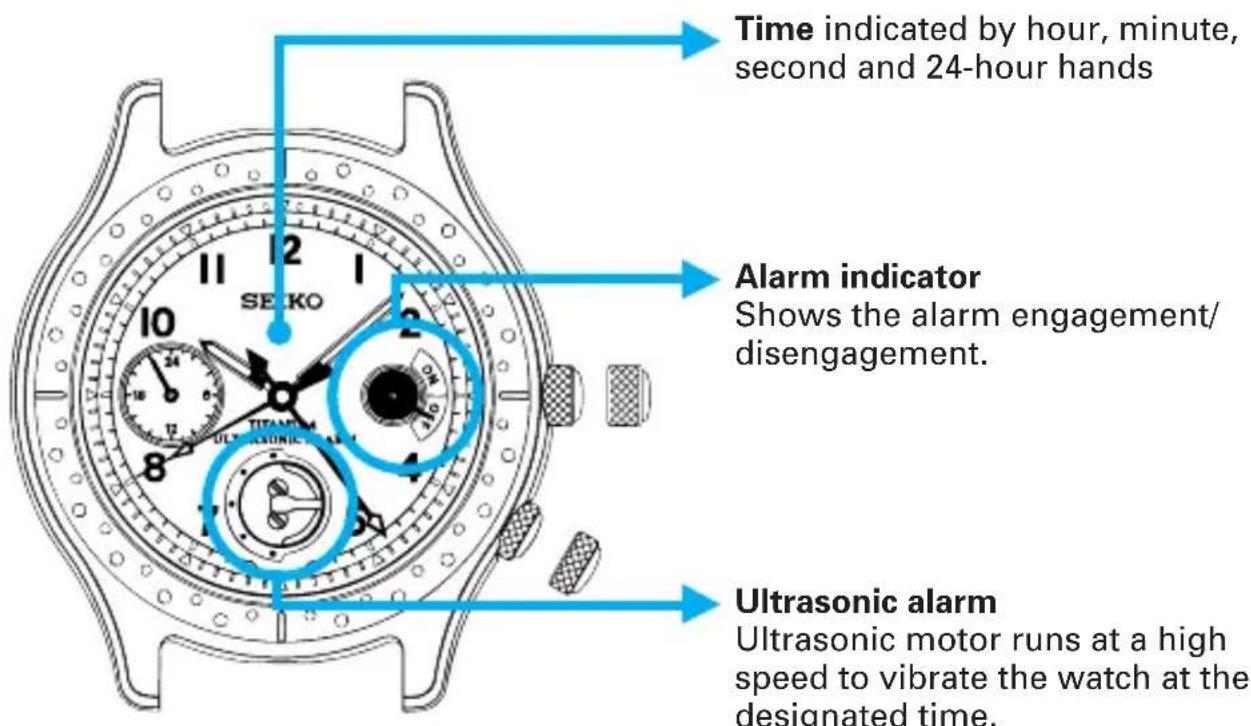

SEIKO CAL. 8V36

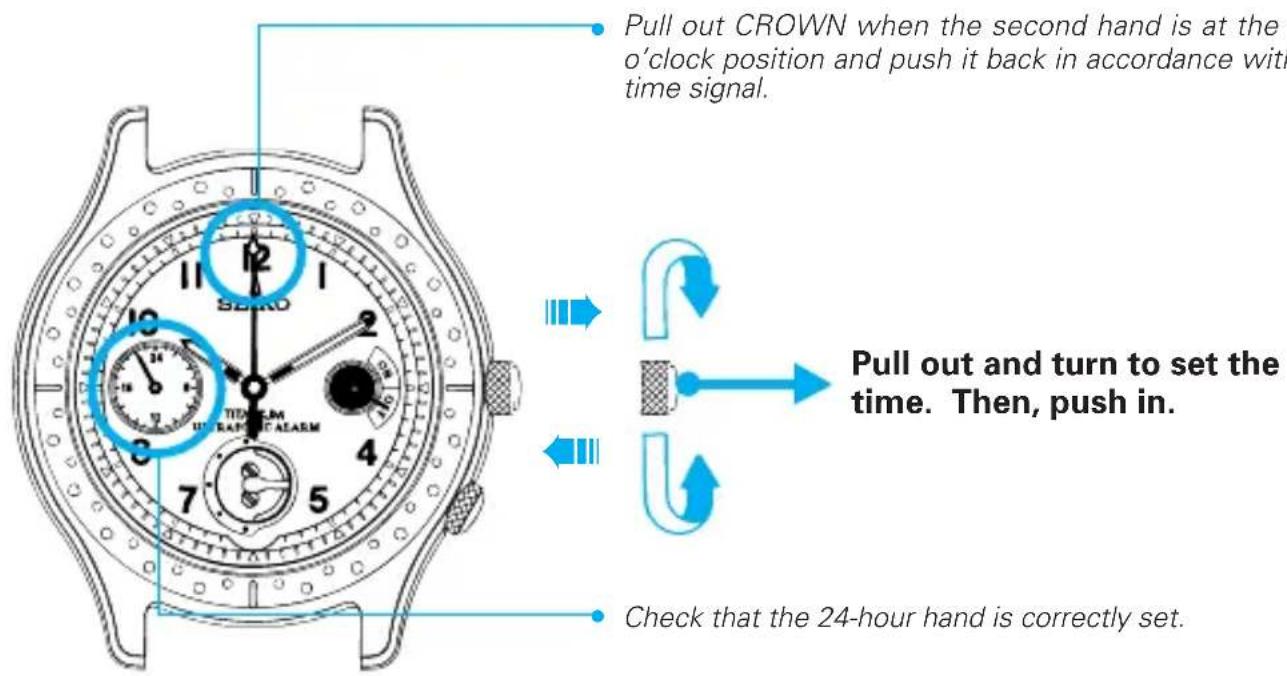

TIME SETTING

When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired time and then turn it back to the exact minute.

ULTRASONIC ALARM

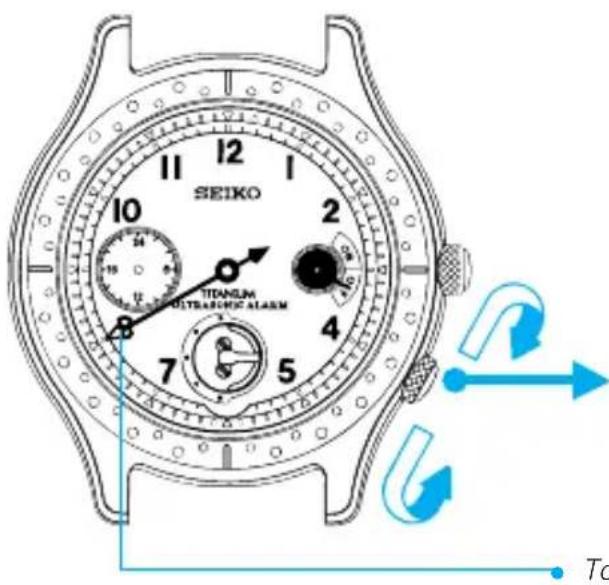

Turn to set the alarm hand to the desired alarm time.

Then pull out.

To set the alarm time more precisely, turn the alarm hand counterclockwise.

To set the alarm time less than 2 hours ahead of the current time, first advance the alarm hand more than 2 hours ahead of the current time and then turn it back to the exact alarm time.

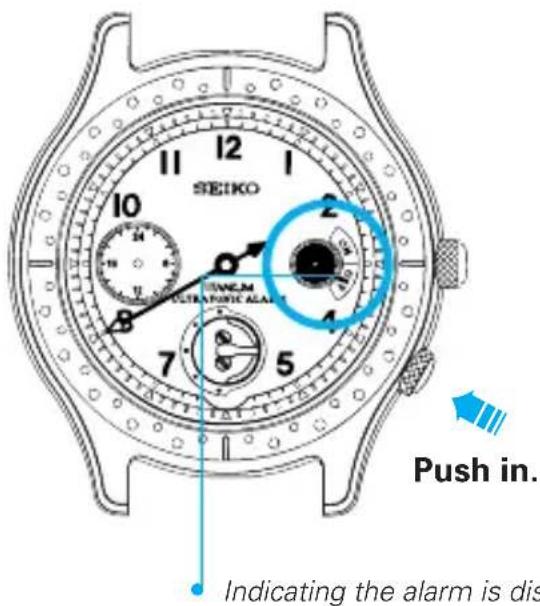

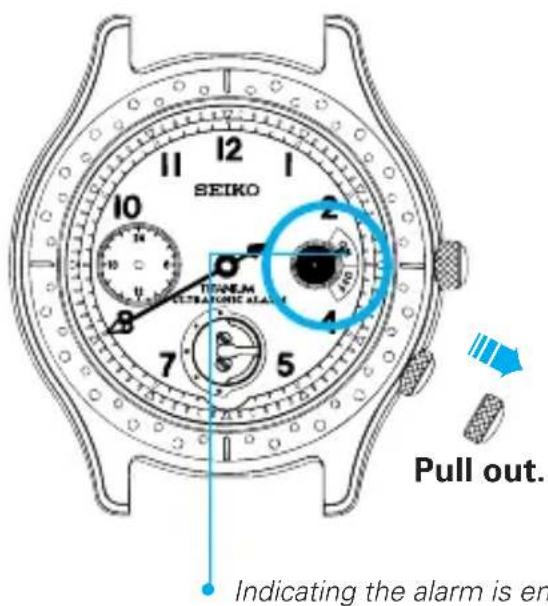

• To engage the alarm • To disengage the alarm

At the designated time, the watch vibrates for 20 seconds.

NOTES ON ULTRASONIC ALARM

• The alarm can be set on a 12-hour basis.
• When using the ultrasonic alarm, make sure that the watch bracelet fits snugly on your wrist so that the vibration of the watch can be perceived clearly.
• Please note that, while you are engaged in an active sport or work requiring arm movement, the vibration of the watch may not be perceived clearly.
• The alarm time scale may be graduated differently depending on the model. When reading the current time, take care not to mistake the alarm time scale for the current time scale.

BATTERY LIFE INDICATOR

When the battery nears its end, the second hand moves at two-second intervals instead of normal one-second intervals to indicate that the battery needs to be replaced with a new one.

BATTERY CHANGE

The miniature battery which powers your watch should last approximately 2 years. However, because the battery is inserted at the factory to check the function and performance of the watch, its actual life once in your possession may be less than the specified period. When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. For battery replacement, we recommend that you contact an AUTHORIZED SEIKO DEALER and request SEIKO SR43W battery.

* The battery life may be less than 2 years if the ultrasonic alarm is used more than 10 seconds a day.
* When the battery nears its end, the ultrasonic motor runs slowly. In that case, replace the battery with a new one. (The time accuracy is not affected)

WARNING

• Do not remove the battery from the watch.
• If it is necessary to take out the battery, keep it out of the reach of children. If a child swallows it, consult a doctor immediately.

CAUTION

• Never short-circuit, heat or otherwise tamper with the battery, and never expose it to fire. The battery may burst, become very hot or catch fire.
• The battery is not rechargeable. Never attempt to recharge it, as this may cause battery leakage or damage to the battery.

SPECIFICATIONS

1 Frequency of crystal oscillator .... 32,768 Hz (Hz = Hertz ... Cycles per second)
2 Loss/gain (Monthly rate) .... Less than 15 seconds at normal temperature range (5°C \~ 35°C) (41°F \~ 95°F)

Accuracy of the alarm ±5 minutes

3 Operational temperature range -10^ C \~ +60° C (14° F \~ 140° F)
4 Duration of watch vibration 20 seconds for each time
5 Display system Time .... 24-hour, hour, minute and second hands Ultrasonic alarm .... Designated alarm time and indication of alarm engagement/disengagement
6 Driving system For the watch .... Step motor, 1 piece For the ultrasonic alarm .... Ultrasonic motor, 1 piece
7 Battery ...... Miniature silver oxide battery SR43W, 1 piece
8 Battery life .... Approx. 2 years
9 IC (Integrated Circuit) ...... C-MOS-IC, 2 pieces
