Product Type	Wristwatch
Brand	Seiko
Model	7C17
Movement Type	Quartz
Case Material	Stainless steel
Crystal Material	Mineral glass
Case Diameter	Approximately 38 mm
Case Thickness	Approximately 10 mm
Band Material	Stainless steel or leather
Band Width	18 mm
Water Resistance	30 meters (3 ATM)
Weight	Approximately 80 g
Power Source	Battery (SR920SW or equivalent)
Battery Life	Approximately 2-3 years
Display Type	Analog
Functions	Hours, minutes, seconds, date
Date Adjustment	Crown pulled to first position
Operating Temperature	-10°C to +60°C
Maintenance	Battery replacement every 2-3 years; clean with soft cloth
Safety Precautions	Keep away from strong magnets and extreme temperatures
Repairability	Serviceable by authorized Seiko centers; spare parts available

Frequently Asked Questions - 7C17 SEIKO

How do I set the time on my Seiko 7C17 watch?

Pull the crown out to the second position (fully extended). Turn the crown clockwise or counterclockwise to set the correct time. Push the crown back in to the normal position.

How do I change the date on my Seiko 7C17?

Pull the crown out to the first position (one click). Turn the crown clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM to prevent damage to the movement.

What type of battery does the Seiko 7C17 use?

The Seiko 7C17 typically uses a SR920SW (or equivalent) silver oxide battery. Replaces every 2-3 years.

Is the Seiko 7C17 water resistant?

Yes, it is water resistant to 30 meters (3 ATM). Suitable for splashes and brief immersion, but not for swimming or diving.

How can I replace the battery myself?

Battery replacement should be done by a professional watchmaker to maintain water resistance. The case back needs to be opened carefully and the gasket should be checked.

What does the crown do on the Seiko 7C17?

The crown has three positions: normal (worn), first click (date adjustment), second click (time setting). It also serves to wind the watch if it is an automatic, but the 7C17 is quartz, so no winding.

How do I clean my Seiko 7C17?

Clean the watch case and metal bracelet with a soft, damp cloth. Avoid using chemicals or abrasives. For leather straps, use a leather cleaner.

Why did my Seiko 7C17 stop running?

The most common reason is a depleted battery. Replace the battery. If it still doesn't work, there may be a mechanical issue; consult a watchmaker.

Can I wear my Seiko 7C17 while showering?

It is not recommended. Although water resistant to 30m, showering may expose it to soap and steam, which can degrade the gaskets over time.

Where can I find a service manual for the Seiko 7C17?

Service manuals are typically available from Seiko distributors or online. You can also search for 'Seiko 7C17 service manual PDF' on the internet.

USER MANUAL 7C17 SEIKO

INSTRUCTIONS (P. 11)

You are now the proud owner of a SEIKO Analogue Quartz Watch Cal. 2A27, 4J27, 7C17. For best results, please read the instructions in this booklet carefully before using your SEIKO Analogue Quartz Watch. Keep this manual handy for ready reference.

Specially designed and manufactured for the visually challenged.

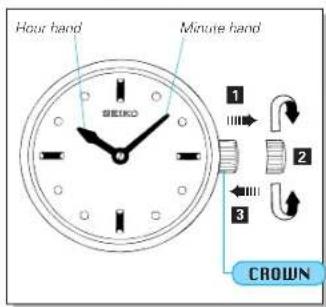

TIME SETTING

CROWN

1 Pull out.
2 Turn to set the hour and minute hands.
3 Push back in to normal position.

NOTES

1 When CROWN is pulled out, the watch stops operating
2 When setting the minute hand, advance it 4 to 5 minutes ahead of the desired time and then turn it back to the exact minute.

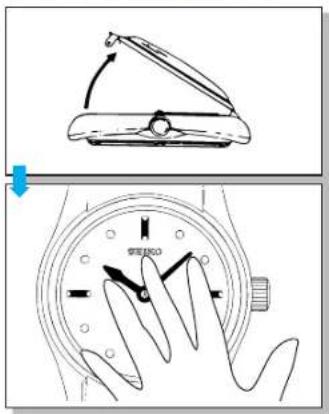

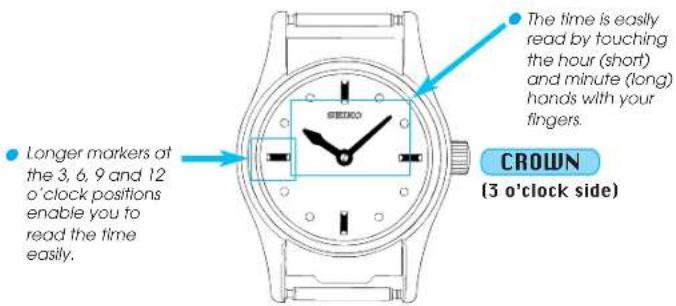

HOW TO READ THE TIME

Open the front cover.

Pull up the snap located on the 6 o'clock side of the front cover.

Read the time.

Touch the hands with your fingers.

NOTES

1 When touching the hands, take care not to move or damage them.
2 The hands are slightly loose at the center. However, this is not a malfunction.

REMARKS ON USING THE WATCH

This watch is not water resistant, and care should be taken not to get it wet. Also, do not touch the hour and minute hands with wet fingers, as this will adversely affect the time accuracy.
If the watch becomes wet, have it checked by an AUTHORIZED SEIKO DEALER or SERVICE CENTER.

As the front cover is opened and closed every time you read the time, we recommend that the push pin supporting it be replaced with a new one once a year.

BATTERY CHANGE

Cal. 2A27 & Cal. 4J27

Cal. 7C17

The miniature battery which powers your watch should last approximately 2 years (Cal. 2A27 and Cal. 4J27) / 5 years (Cal. 7C17). However, because the battery is inserted at the factory to check the function and performance of the watch, its actual life once in your possession may be less than the specified period. When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. For battery replacement, we recommend that you contact an AUTHORIZED SEIKO DEALER and request SEIKO SR621SW (Cal. 2A27) / SEIKO SR521SW (Cal. 4J27) / SEIKO SR43SW (Cal. 7C17) battery.

WARNING

●Do not remove the battery from the watch.

- If it is necessary to take out the battery, keep it out of the reach of children. If a child swallows it, consult a doctor immediately.

●Never short-circuit, tamper with or heat the battery, and never expose it to fire. The battery may burst, become very hot or catch fire.

CAUTION

●The battery is not rechargeable. Never attempt to recharge it, as this may cause battery leakage or damage to the battery.

TO PRESERVE THE QUALITY OF YOUR WATCH

■TEMPERATURES

Your watch works with stable accuracy within a temperature range of 5°C and 35°C (41°F and 95°F).

Temperatures over 60°C (140°F) may cause battery leakage or shorten the battery life. Do not leave your watch in very low temperatures below -10°C (+14°F) for a long time since the cold may cause a slight time loss or gain. However, the above conditions will be corrected when the watch returns to normal temperature.

■SHOCKS & VIBRATION

Light activities will not affect your watch, but be careful not to drop your watch or hit it against hard surfaces, as this may cause damage.

MAGNETISM

Your watch will be adversely affected by strong magnetism. Keep it away from close contact with magnetic objects.

■ CARE OF CASE AND BRACELET

To prevent possible rusting of the case and bracelet caused by dust, moisture and perspiration, wipe them periodically with a soft dry cloth.

■PERIODIC CHECK

It is recommended that the watch be checked once every 2 to 3 years. Have your watch checked by an AUTHORIZED

SEIKO DEALER or SERVICE CENTER to ensure that the case, crown, gasket and crystal seal remain intact.

CHEMICALS

Be careful not to expose the watch to solvents (e.g., alcohol and gasoline), mercury (i.e., from a broken thermometer).

cosmetic spray, detergents, adhesives or paints. Otherwise, the case, bracelet, etc. may become discolored, deteriorated or damaged.

■PRECAUTION REGARDING CASE BACK PROTECTIVE FILM

If your watch has a protective film and/or a sticker on the case back, be sure to peel them off before using your watch.

Otherwise, perspiration getting in under them may rust the case back.

SPECIFICATIONS

1 Frequency of crystal oscillator .... 32,768 Hz (Hz = Hertz ... Cycles per second)

2 Loss/gain (monthly rate) .... Less than 15 seconds at normal temperature range (5°C \~ 35°C) (41°F \~ 95°F)

3 Operational temperature range .... -10°C - +60°C (14°F - 140°F)

4 Driving system .... Step motor

5 Battery SEIKO SR621SW, 1 piece (Cal. 2A27)

SEIKO SR521SW, 1 piece (Cal. 4J27)

SEIKO SR43SW, 1 piece (Cal. 7C17)

6 IC (Integrated Circuit) C-MOS-IC, 1 piece

* The specifications are subject to change without prior notice for product improvement.
