6R20 - Montre-bracelet SEIKO - Free user manual and instructions

Product Type	Wristwatch
Brand	Seiko
Model	6R20
Movement	Automatic mechanical with manual winding mechanism
Power Reserve	Approximately 45 hours when fully wound
Accuracy	+25 to -15 seconds per day at normal temperature range (5°C to 35°C) when worn on the wrist
Vibrations per Hour	28,800 vibrations/hour (8 vibrations/second)
Jewels	29 jewels
Functions	Time display (hour, minute, seconds), date hand, day hand, power reserve indicator
Water Resistance	Refer to the indication on the case back (e.g., WATER RESISTANT, 5 BAR, 10 BAR, etc.)
Magnetic Resistance	Refer to the indication on the case back (e.g., JIS level-1 or level-2 standard)
Care and Cleaning	Wipe moisture, sweat, and dirt with a soft cloth. Do not wash with crown extended. For metallic bands, clean with water and a soft toothbrush. For leather bands, avoid water and direct sunlight. Periodic overhaul recommended every 2-3 years.
Safety	Keep out of reach of children. Avoid strong magnetic fields, extreme temperatures, and impacts. Do not use in scuba diving unless specifically designed for it. If allergic reaction occurs, stop wearing and consult a specialist.
Spare Parts and Reparability	Periodic inspection and overhaul (disassembly and cleaning) every 2-3 years. Replacement parts may be substituted if originals are unavailable. Repairs should be performed by authorized retailers or Seiko service centers.
General Information	Manufactured by Seiko Watch Corporation. Instruction manual available in multiple languages. Band length adjustment requires specialized expertise.

Frequently Asked Questions - 6R20 SEIKO

How do I wind the mainspring?

Turn the crown clockwise slowly. For a watch with a screw-down crown, unlock it first. Wind until the power reserve indicator shows fully wound. The watch cannot be wound by turning the crown counterclockwise. It is recommended to wind fully every day at a fixed time for optimal accuracy.

How do I set the time and date?

Pull the crown out to the second click when the seconds hand is at 0. Turn the crown to set the hour and minute hands, ensuring AM/PM is correct. For the date and day, pull to first click: turn clockwise for day, counterclockwise for date. Avoid setting between 9:30 PM and 2:00 AM. Push crown back in after setting.

What does the power reserve indicator show?

The power reserve indicator shows the winding state of the mainspring. When pointing near 45 or F, it is fully wound. As the mainspring unwinds, the indicator moves toward 0 or E. For stable accuracy, keep the winding amount between 20 hours and fully wound.

How often should I service my Seiko 6R20 watch?

It is recommended to have periodic inspection and adjustment by disassembly and cleaning (overhaul) every 2 to 3 years to maintain optimal performance. The first overhaul after purchase is especially important.

Is this watch water resistant?

Water resistance depends on the case back indication. Refer to the marks such as 'WATER RESISTANT' (everyday life water resistance), '5 BAR' (suitable for swimming), or '10/20 BAR' (suitable for diving without air cylinder). Non-water resistant watches should avoid any contact with water.

What should I do if the watch stops?

First, wind the mainspring by turning the crown about 20 turns or swinging the watch side to side until the seconds hand starts. Then set the time. If it still does not operate, consult the retailer or Seiko customer service.

How accurate is this mechanical watch?

The specified daily rate is +25 to -15 seconds per day at normal temperature range (5°C to 35°C) when worn on the wrist. Actual accuracy may vary due to conditions such as temperature, arm movement, and winding state.

Can I wear this watch while swimming?

Only if the case back indicates 'WATER RESISTANT 5 BAR' or higher. Even then, avoid operating the crown when wet. For diving, use a watch specifically designed for diving. Do not use in scuba diving unless rated accordingly.

How do I adjust the band length?

For metallic bands, adjustment requires specialized knowledge; contact the retailer or Seiko service center. For leather bands with tri-fold clasps, you can adjust the length by moving the pin to a different hole. Some models have an easy adjust clasp for fine tuning up to 5 mm.

What should I do if the date changes at noon?

This indicates that AM/PM is not set correctly. Advance the hands by 12 hours to switch the date change to midnight.

USER MANUAL 6R20 SEIKO

Copyright©2022 by SEIKO WATCH CORPORATION

SEIKO

6R20 / 6R21 / 6R24 / 6R27

INSTRUCTIONSME

日本語 JA 1

English ...... EN 1

Please refer to the Instruction Manuals

of other languages by accessing

"Customer Service"→ "Instruction"

on our Website from PC or Smartphone.

Deutsch / Français / Italiano / Español /

Русский язык / العربية / Português /

Thank you very much for choosing a SEIKO watch. For proper and safe use of your SEIKO watch, please read carefully the instructions in this booklet before using it.

Keep this manual handy for easy reference.

* Length adjustment service for metallic bands is available at the retailer from whom the watch was purchased. If you cannot have your watch repaired by the retailer from whom the watch was purchased because you received the watch as a gift, or you moved to a distant place, please contact SEIKO CUSTOMER SERVICE CENTER. The service may also be available on a chargeable basis at other retailers, however, some retailers may not undertake the service.

* If your watch has a protective film for preventing scratches, make sure to peel it off before using the watch. If the watch is used with the film on it, dirt, sweat, dust, or moisture may be attached to the film and may cause rust.

EN 1

CONTENTS

1 HOW TO USE

Handling cautions....3

Mechanical watch characteristics(Hand-wound, auto-wound)....7

Names of the parts and their functions....8

Crown....11

How to wind the mainspring....12

Power reserve indicator....14

How to read the power reserve indicator....15

How to set the time, date, and day of the week....16

How to set the time....17

How to set the date and day of the week....19

Date adjustment at the end of the month....21

2 TO PRESERVE THE QUALITY OF YOUR

WATCH

Daily care 22

Performance and type 23

Lumibrite 24

Water resistant performance 25

Magnetic resistant performance 26

Band 28

How to use tri-fold type clasp for leather band

(Special clasps) 31

How to use an easy adjust type clasp ..... 37

After sales service 40

Accuracy of mechanical watches 42

Troubleshooting 44

Specifications 46

Handling cautions

WARNING

Please note that there is a risk of serious consequences such as severe injury if the following safety regulations are not strictly observed.

Immediately stop wearing the watch in following cases:

○ If the watch body or band becomes edged by corrosion etc.

○ If the pins protrude from the band.

* Immediately consult the retailer from whom the watch was purchased or SEIKO CUSTOMER SERVICE

CENTER.

Keep the watch and accessories out of the reach of babies and children.

Care should be taken to prevent a baby or a child accidentally swallowing the accessories.

If a baby or child swallows the battery or accessories, immediately consult a doctor, as it will be

harmful to the health of the baby or child.

1

HOW TO USE

EN 3

CAUTION

Please note that there is a risk of minor injury or material damage if the following safety regulations are not strictly observed.

Avoid the following places for wearing or keeping the watch:

- Places where volatile agents (cosmetics such as polish remover, bug repellent, thinners etc.) are

- Places where the temperature drops below

5°C or rises above 35°C for a long time

- Places affected by strong magnetism or static

electricity

O Places affected by strong vibrations

O Places of high humidity

○ Dusty places

If you observe any allergic symptoms or skin irritation

Stop wearing the watch immediately and consult a specialist such as a dermatologist or an allergist

Other cautions

For adjusting the length of the metallic band, specialized knowledge and expertise are necessary. Therefore, in such a case, contact the retailer from whom the watch was purchased. If you attempt to adjust the metallic band, injury may occur to your hand or fingers, or parts of the band may be lost.

○ Do not disassemble or tamper with the watch.

- Keep the watch out of the reach of babies and children. Extra care should be taken to avoid risks of any injury or allergic rash or itching that may be caused when you touch the watch.

○ If your watch is of the fob or pendant type, the strap or chain attached to the watch may damage your clothes, or injure the hand, neck, or other parts of your body.

WARNING

Do not use the watch in scuba diving or saturation diving.

The various tightened inspections under simulated harsh environment, which are usually required for watches designed for scuba diving or saturation diving, have not been conducted on the water resistant watch with the BAR (barometric pressure) display. For diving, use watches specifically designed for diving.

CAUTION

Do not pour running water directly from faucet.

The water pressure of tap water from a faucet is high enough to degrade the water resistant performance of a water resistant watch for everyday life.

EN 4

EN 5

CAUTION

Please note that there is a risk of minor injury or material damage if the following safety regulations are not strictly observed.

Do not turn or pull out the crown when the watch is wet.

Water may get inside of the watch.

If the inner surface of the glass is clouded with condensation or water droplets appear inside of the watch for a long time, the water resistant performance of the watch is deteriorated. Immediately consult the retailer from whom the watch was purchased or SEIKO CUSTOMER SERVICE CENTER.

Do not leave moisture, sweat and dirt on the watch for a long time.

Be aware of a risk that a water resistant watch may lessen its water resistant performance because of deterioration of the adhesive on the glass or gasket, or the development of rust on stainless steel.

Do not wear the watch while taking a bath or a sauna.

Steam, soap or some components of a hot spring may accelerate the deterioration of water resistant performance of the watch.

EN 6

Mechanical watch characteristics (Hand-wound, auto-wound)

• This is a mechanical watch powered by a spring.
- To use it from a stopped state, turn the crown 20 turns by hand to wind up the spring before starting the watch.
- Although the accuracy of quartz watches is measured in differences over months or years, in mechanical watches it is measured in differences per day (i.e., the amount the watch speeds up or slows down in a single day).
- Additionally, mechanical watches are subtly affected by the conditions in which they are used (e.g., duration worn, temperature, arm movement, the amount wound, etc.); thus, the amount of error is not constant.
- When affected by a strong magnetism from outside, a mechanical watch may lose/gain time temporarily. The parts of the watch may become magnetized depending on the extent of the effect. In such a case, consult the retailer from whom the watch was purchased since the watch requires repair including demagnetizing.

EN 7

Names of the parts and their functions

6R20 / 6R21

* The position and design of the display may vary depending on the model. * The direction of the power reserve indicator is different depending on the model.

① Minute hand
② Hour hand
③ Power reserve indicator
④ Seconds hand
⑤ Day hand (day of the week)
⑥ Crown

- Normal position (not locked): Wind up the watch (hand-wound)

- First click position: Date and day of the week setting

• Second click position: Time setting

⑦ Date hand

g on the model.

pending on the model,

6R24

* The position and design of the display may vary depending on the model.

① Minute hand
② Hour hand
③ Power reserve indicator
④ Seconds hand
⑤ Date hand
⑥ Day hand (day of the week)
⑦ Crown

- Normal position (not locked): Wind up the watch (hand-wound)

- First click position: Date and day of the week setting

• Second click position: Time setting

EN 9

6R27

* The position and design of the display may vary depending on the model.

① Minute hand
② Hour hand
③ Power reserve indicator
④ Seconds hand
⑤ Date hand
⑥ Crown

- Normal position (not locked): Wind up the watch (hand-wound)

- First click position: Date setting

- Second click position: Time setting

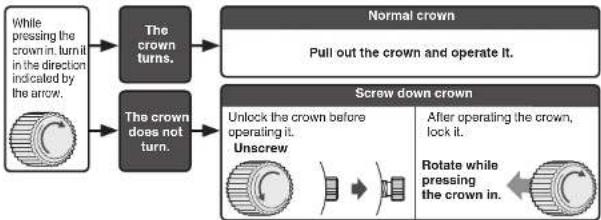

Crown

There are two types of crowns, a normal crown and a screw down crown. Please check the type of the crown of your watch.

* By locking the crown by screw, a screw down crown can prevent malfunction and increase water resistance. * Be careful not to screw the crown in by force as it may damage the slots of the crown.

EN 10

EN 11

How to wind the mainspring

• This is an automatic mechanical watch with a manual winding mechanism.
• When the watch is worn on the wrist, the mainspring is wound automatically through normal wrist movement. The watch can also be wound up by turning the crown.
  • To start the watch after it stops completely, wind it up either by turning the crown or swinging it from side to side until the seconds hand starts moving. Then, set the time and date before putting the watch on the wrist. To wind up the watch, turn the crown clockwise slowly. The watch cannot be wound by turning the crown counterclockwise. In this way, the watch can be wound up fully. Furthermore, turning the crown further will not break the spring. * For the watch with screw down crown, please unlock the crown before operating it and be sure to lock the crown after operating it.
• Wind the mainspring until the power reserve indicator shows a fully-wound state. Once the watch is wound up fully, it operates for about 45 hours.
  * To check the winding state of the mainspring, refer to "Power reserve indicator" → P.14.

EN 12

* If the watch is used without being wound up fully, gain or loss of time may result. To avoid this, wear the watch for more than 10 hours a day. If the watch is used without being worn on the wrist, be sure to wind it up fully every day at a fixed time.
* If you use a watch that has stopped with the mainspring unwound, winding the mainspring with the crown will not start the watch immediately. That is because the mainspring torque or force is low at the beginning of its winding due to the characteristics of mechanical watches. The seconds hand will start to move when a certain degree of torque is reached after the mainspring has been wound up. However, swinging the watch from side to side to forcibly turn the balance can start the watch sooner.

Power reserve indicator

• The power reserve indicator lets you know the winding state of the mainspring.
- Before removing the watch from your wrist, observe the power reserve indicator to check if the watch has stored enough power to keep running until the next time you wear it. If necessary, wind the mainspring. (To prevent the watch from stopping, wind the mainspring to store the excess power that will allow the watch to run for extra time.)
* The continuous operating time of the watch may vary depending on the conditions of your usage (such as the number of hours you wear the watch or the extent of your movement while wearing it). * In a case where you wear the watch for a short period of time each day, observe the power reserve indicator to check the level of the remaining power. If necessary, manually wind the mainspring.

■ How to read the power reserve indicator

- As shown in the diagram below, when the indicator is pointing near 45 or F on the scale, it is fully wound. As the mainspring upwinds, the indicator will move toward 0 or F.

* The accuracy of a mechanical watch is affected by the winding amount of the mainspring. If the watch is used for a long time when the winding amount is 20 hours or less, stable accuracy may not be obtained. Therefore, it is recommended that the winding amount be between 20 hours and full winding when you use the watch. * Once the mainspring is fully wound, it will slip if you wind it further, so there is no chance of the mainspring breaking even if it is over wound.
* The indicator may move beyond 0 or E, but this is not a malfunction.

The Power Reserve Indicator
The winding state of the mainspring	Fully wound Half wound Unwound
The number of hours the watch can run	Approximately 45 hours Approximately 20 hours The watch either stops or is running down.

* Designs vary depending on the model. Refer to the above diagram to read the approximate continuous operating time.

EN 14

EN 15

How to set the time, date, and day of the week

The watch is provided with a date and day of the week function and is so designed that the date and day of the week change once every 24 hours. The date changes around midnight, and the day of the week changes at around 2:00 a.m. If AM/PM is not properly set, the date will change at 12 o'clock noon, and the day of the week will change at around 2:00 p.m.

CAUTION

The day and date cannot be adjusted during the "No setting period," from 9:30 p.m. to 2:00 a.m, even if turning the crown. Turning the crown during this period will not cause a malfunction.

EN 16

4 Push the crown back in to the normal position in accordance with a time signal.

The seconds hand immediately starts moving.

* The telephone time signal service is helpful for setting the seconds hand exactly.

* For models with screw down crown, please be sure to lock the crown after operating it.

CAUTION

The mechanism of mechanical watches is different from that of quartz watches. When setting the time, be sure to turn back the minute hand a little behind the desired time and then advance it to the exact time.

EN 18

■ How to set the time

1 Make sure that the watch is working.

* To carry out the procedure, please make sure that the watch is in working state. Please wind the mainspring when the watch is not working.

2 Pull out the crown to the second click when the seconds hand is pointing at the 0 second position. The seconds hand stops moving.

* For models with screw down crown, please unlock the crown before operating it.

3 Turn the crown to advance the hour and minute hands until they indicate the current time. Make sure that AM/PM is correctly set.

Pull out the crown to the second click when the seconds hand is pointing at the 0 second position.

EN 17

■ How to set the date and day of the week

* For 6R27. procedure 2 (setting the day of the week) is not necessary.

1 Pull out the crown to the first click. The seconds hand continues moving.

2 Turn the crown clockwise to set the day hand.

For every two clicks, the day hand moves by one day.

* Do not set the day hand to point to an intermediate position between two day indicators. * If you turn the crown after the day hand points to Saturday, the day hand jumps back and stops pointing to Sunday.

If you fast forward the day hand after it points to Saturday, the day hand may jump back and forward to point to Monday, skipping Sunday. If this happens turn the crown slowly to reset the day hand again.

EN 19

3 Turn the crown counterclockwise to set the date hand.

For every click, the date hand moves by one day.

* If you turn the crown after the date hand points to "31", the date hand jumps back and stops pointing to "1".

4 Push the crown back in to the normal position.

* For models with screw down crown, please be sure to lock the crown after operating it.

Push the crown back in to the normal position

EN 20

Daily care

● The watch requires good daily care

- Do not wash the watch when its crown is in the extended position.

- Wipe away moisture, sweat or dirt with a soft cloth.

- After soaking the watch in seawater, be sure to wash the watch in clean pure water and wipe it dry carefully.

Do not pour running water directly from a faucet onto the watch. Put some water into a bowl first, and then soak the watch in the water to wash it.

* If your watch is rated as "Non-water resistant" or "water resistant for daily use," please do not wash the watch. "Performance and type" → P.23

"Water resistant performance" → P.25

● Turn the crown from time to time

• In order to prevent corrosion of the crown, turn the crown from time to time.

- The same practice should be applied to a screw down crown. "Crown" → P.11

EN 22

■ Date adjustment at the end of the month

It is necessary to adjust the date at the end of February and 30-day months.

Ex.) To adjust the date in the A.M. period on the first day of a month following a 30-day month. The watch displays "31" instead of "1." Pull out the crown to the first click.

Turn the crown counterclockwise to set the date to "1" and then push the crown back in to the normal position.

* For models with screw down crown, please be sure to lock the crown after operating it.

Pull out the crown to the first click

CAUTION

The day and date cannot be adjusted during the "No setting period," from 9:30 p.m. to 2:00 a.m, even if turning the crown. Turning the crown during this period will not cause a malfunction.

EN 21

Performance and type

The case back shows the caliber and performance of your watch

Water resistant performance

Magnetic resistant performance

Case Number

• Water resistant performance

Please refer to P.25.

- Case Number

The number to identify the type of your watch.

• Magnetic resistant performance

Please refer to P.26 and P.27.

* The above illustration is provided as an example, therefore it may not be exactly the same as your watch.

EN 23

Lumibrite

2

TO PRESERVE THE QUALITY OF YOUR WATCH

If your watch has Lumibrite

Lumibrile is a luminous paint that absorbs the light energy of sunlight and lighting apparatuses in a short time and stores it to emit light in the dark. For example, if exposed to a light of more than 500 lux for approximately 10 minutes, Lumibrile can emit light for 3 to 5 hours. Please note, however, that, as Lumibrile emits the light it stores, the luminance level of the light decreases gradually over time. The duration of the emitted light may also differ slightly depending on such factors as the brightness of the place where the watch is exposed to light and the distance from the light source to the watch.

* In general, when coming from a place that is bright to a place that is dark, it takes human eyes some time to adapt to the darkness making it difficult to see objects initially. (Dark adaptation)

* Lumibrite is luminous paint that stores and emits light, which is harmless to human beings and the environment, containing no toxic materials such as radioactive substances.

Condition illumination
Sunlight	Fine weather 100,000 lux
	Cloudy weather 10,000 lux
Indoor (Window-side during daytime)	Fine weather More than 3,000 lux
	Cloudy weather 1,000 to 3,000 lux
	Rainy weather Less than 1,000 lux
Lighting apparatus (40-watt daylight fluorescent light)	Distance to the watch: 1 m 1,000 lux
	Distance to the watch: 3 m 500 lux (Average room luminance)
	Distance to the watch: 4 m 250 lux

EN 24

Water resistant performance

Refer the table below for the description of water resistant performance of your watch before using. (Please look at P.23.)

Indication on the case back	Water resistant performance	Conditions of Use
No indication Non-water resistance Avoid drops of water or sweat
WATER RESISTANT	Water resistance for everyday life	The watch withstands accidental contact with water in everyday life.	WARNINGPlease do not use it for swimming.
WATER RESISTANT 5 BAR	Water resistance for everyday life at 5-BAR water resistant	The watch is suitable for sports such as swimming.
WATER RESISTANT 10 (20) BAR	Water resistance for everyday life at 10 (20)-BAR water resistant	The watch is suitable for diving not using an air cylinder.

EN 25

Magnetic resistant performance

Affected by nearby magnetism,

a watch may temporarily gain or lose time or stop operating.

2

TO PRESERVE THE QUALITY OF YOUR WATCH

⚠ DANGER
Indication on the case back	Condition of use
No Indication
	Keep the watch more than 5 cm away from magnetic products.(JIS level-1 standard)
	Keep the watch more than 1 cm away from magnetic products.(JIS level-2 standard)

If the watch becomes magnetized and its accuracy deteriorates to an extent exceeding the specified rate under normal use, the watch needs to be demagnetized. In this case, you will be charged for demagnetization and accuracy readjustment even if it happens within the guarantee period.

The reason why a watch is affected by magnetism

The built-in balance spring may be influenced by a strong external magnetic field.

Smartphone, cellular phone, tablet terminal (Speaker, magnet of cover)

AC adapter Bag

(With magnet buckle)

AC-powered shaver

Magnetic cooking device

Portable radio (Speaker)

Magnetic necklace

Magnetic health pillow

EN 26

EN 27

2

TO PRESERVE THE QUALITY OF YOUR WATCH

2

TO PRESERVE THE QUALITY OF YOUR WATCH

Band

2

The band touches the skin directly and becomes dirty with sweat or dust. Therefore, lack of care may accelerate deterioration of the band or cause skin irritation or stain on the sleeve edge. The watch requires a lot of attention for long usage.

● Metallic band

- Moisture, sweat or soil will cause rust even on a stainless steel band if they are left for a long time. - Lack of care may result in a rash or cause a yellowish or gold stain on the lower sleeve edge of shirts. - Wine off moisture, sweat or soil with a soft cloth as soon as possible.

• To clean the soil around the joint gaps of the band, wipe it out in water and then brush it off with a soft toothbrush.

(Protect the watch body from water splashes by wrapping it up in plastic wrap etc.) Clean it off with a soft cloth.

- Because some titan bands use pins made of stainless steel, which has outstanding strength, rust may form in the stainless steel parts.

- If rust advances, pins may poke out or drop out, and the watch case may fall off the band, or the clasp may not open.

- If a pin is poking out, personal injury may result. In such a case, refrain from using the watch and request repair.

EN 28

Leather band

- A leather band is susceptible to discoloration and deterioration from moisture, sweat and direct sunlight. - Wipe off moisture and sweat as soon as possible by gently blotting them up with a dry cloth.

- Do not expose the watch to direct sunlight for a long time.

- Please take care when wearing a watch with light-colored band, as dirt is likely to show up.

- Refrain from wearing a leather band watch other than Aqua Free bands while bathing, swimming, and when working with water even if the watch itself is water resistant enforced for daily use (10-BAR/20-BAR water resistant).

● Polyurethane band

- A polyurethane band is susceptible to discoloration from light, and may be deteriorated by solvent or atmospheric humidity.

- Especially a translucent, white, or pale colored band easily adsorbs other colors, resulting in color smears or discoloration.

- Wash out dirt in water and clean it off with a dry cloth.

(Protect the watch body from water splashes by wrapping it up in plastic wrap etc.)

- When the band becomes less flexible, have the band replaced with a new one. If you continue to use the band as it is, the band may develop cracks or become brittle over time.

EN 29

Silicone band

• As for material characteristics, the band is easily dirtied, and may be stained and discolored.
- Unlike bands of other materials, cracks may result in the band being cut. Take care not to damage the band with an edged tool.

Notes on skin irritation and allergy	Skin irritation caused by a band may result from various factors such as allergy to metals or leathers, or skin reactions against friction on dust or the band itself.
Notes on the length of the band	Adjust the band to allow a little clearance with your wrist to ensure proper airflow.When wearing the watch, leave enough room to insert a finger between the band and your wrist.

2

EN 30

How to use tri-fold type clasp for leather band (Special clasps)

There are 3 types of special clasps as described below;

If the clasp of the watch you purchased is one of them, please refer to the indications.

EN 31

2

2

Type

Lift up the clasp to release the buckle.

Open the flap.

Remove the pin from the adjustment hole. Slide the band left and right, and reinsert the pin into the adjustment hole at an appropriate length.

Fasten the flap.

Do not push the flap in too hard.

When fastening the clasp, insert the tip of the band into the movable loop and fixed loop, and then, securely tighten the clasp.

EN 32

Type

While pressing the push buttons on both sides of the flap, lift to open the clasp.

Remove the pin from the adjustment hole. Slide the band left and right, and insert the pin into the adjustment hole at an appropriate length. Push the buckle and fasten the clasp.

EN 33

Type

● How to wear or take off the watch

1 While pressing the push buttons on both sides of the flap, pull the band out of the movable loop and fixed loop. Then open the clasp.

Place the tip of the band into the movable loop and fixed loop, and fasten the clasp by pressing the frame of the buckle.

How to adjust the length of the band

While pressing the push buttons on both sides of the flap, pull the band out of the movable loop and fixed loop. Then open the clasp,

Press the push buttons again to unfasten the flap.

EN 34

EN 35

3 Pull the pin out of an adjustment hole of the band. Slide the band to adjust its length and find an appropriate hole. Place the pin into the hole.

4 Fasten the flap.

EN 36

How to use an easy adjust type clasp

Some bands are provided with an easy adjust type clasp for fine adjustment of the band's length. If the clasp of the watch you purchased is as follows, please refer to the following instructions.

* The band can be lengthened by up to about 5 mm. This is useful if the band feels too light or is uncomfortable for some reason.

Technical line drawing of a mechanical component with curved and straight sections (no text or symbols)

EN 37

● How to wear the band (Opening and closing the clasp)

1. Lightly press the push buttons to open the clasp.

* Note that pressing the push buttons too firmly (deeply) actuates the adjuster, which lengthens the band.

1. Fasten the clasp by pressing the frame of the buckle.

● How to adjust the length of the band

1. You can lengthen the band by up to about 5 mm (2 stages) by firmly pressing the push buttons from both sides to actuate the adjuster.

2. Fasten the clasp by pressing the frame of the buckle.

Even while the clasp is closed, you can still retract the length of band extended by the adjuster.

Technical line drawing of a mechanical component with curved surfaces and directional arrows indicating motion (no text or symbols)

Technical line drawing of a curved mechanical component with internal components and a rotation arrow (no text or symbols)

* The above illustrations are provided as examples. Some details may differ depending on the model.

EN 38

EN 39

After sales service

2

Notes on guarantee and repair

• Contact the retailer from whom the watch was purchased or SEIKO CUSTOMER SERVICE CENTER for repair or overhaul.
• Within the guarantee period, present the certificate of guarantee to receive repair services.
  • Guarantee coverage is provided in the certificate of guarantee. Read carefully and retain it.
• For repair services after the guarantee period has expired, if the functions of the watch can be restored by repair work, we will undertake repair services upon request and payment.

● Replacement with functional parts

- Please keep in mind that if original parts are not available, they may be replaced with substitutes whose outward appearance may differ from the originals.

EN 40

● Inspection and adjustment by disassembly and cleaning (Overhaul)

• Periodic inspection and adjustment by disassembly and cleaning (overhaul) is recommended approximately once every 2 to 3 years in order to maintain optimal performance of the watch for a long time.
• The power transmission gear of the movement of this watch constantly receives force. To ensure that this mechanism works properly all the time, washing parts, changing oil, adjusting accuracy, checking functions and replacing consumable parts on a regular basis are important. The first overhaul after the purchase of your watch is particularly important for preserving long-time use of your watch. According to use conditions, the oil retaining condition of your watch mechanical parts may deteriorate, abrasion of the parts due to contamination of oil may advance or delay the time significantly, or the watch itself may stop.

As the parts such as gasket may deteriorate, water resistant performance may be impaired due to intrusion of perspiration and moisture.

Inspection and adjustment by disassembly and cleaning (overhaul) should be performed by the retailer from whom the watch was purchased, and who specifies "SEIKO GENUINE PARTS." At this time, also request replacement of the gasket and the spring bar.
- When your watch is inspected and adjusted by disassembly and cleaning (overhauled), the movement of your watch may be replaced.

EN 41

Accuracy of mechanical watches

2

○ The accuracy of mechanical watches is indicated by the "daily rate."
The accuracy of mechanical watches may not fall within the specified range of time accuracy because loss/gain changes according to the position of the watch, which is dependent on the conditions of use, such as the length of time during which the watch is worn on the wrist, arm movement, and whether the mainspring is wound up fully or not, etc.
☐ The loss/gain of mechanical watches is not measured by a daily rate, but by daily rates of one week or so.
○ Accuracy variation according to temperature

The parts that compose the accuracy of mechanical watches are made of metals. It is well known that metals expand or contract depending on temperatures due to metal properties. This exerts an effect on the accuracy of the watches. Mechanical watches tend to lose time at high temperatures while they tend to gain time at low temperatures.

EN 42

○ Mainspring wound condition and accuracy

In order to improve accuracy, it is important to regularly supply energy to the balance that controls the speed of the gears. The driving force of the mainspring that powers mechanical watches varies between when fully wound and immediately before it is unwound. As the mainspring unwinds, the force weakens. Relatively steady accuracy can be obtained by wearing the watch on the wrist frequently for the self-winding type and winding up the mainspring fully everyday at a fixed time to move it regularly for the wind-up mechanical type.

○ Effect of magnetism

When affected by a strong magnetism from outside, the mechanical watch may lose/gain time temporarily. The parts of the watch may become magnetized depending on the extent of the effect. In such a case, consult the retailer from whom the watch was purchased since the watch requires repair including demagnetizing.

EN 43

2

2

Troubleshooting

2

TO PRESERVE THE QUALITY OF YOUR WATCH

Troubles Possible causes Solutions
The watch stops operating.	The mainspring has not been wound.	Wind up the watch as per "How to wind the mainspring" → (P.12), and set the time. If the watch still does not operate, consult the retailer from whom the watch was purchased.
The watch temporarily gains/loses time.	The watch has been left in extremely high or low temperatures for a long time.	Return the watch to a normal temperature so that it works accurately as usual, and then reset the time. The watch has been adjusted so that it works accurately when it is worn on your wrist under a normal temperature range between 5°C and 35°C.
	The watch has been left close to an object with a strong magnetic field.	Correct this condition by moving and keeping the watch away from the magnetic source, and reset the time. If this action does not correct the condition, contact the retailer from whom the watch was purchased.
	You drop the watch, hit it against a hard surface, or wear it while playing active sports. The watch is exposed to strong vibrations.	It accuracy does not return after setting the time, consult the retailer from whom the watch was purchased.
	The watch has not been overhauled for more than 3 years.	Consult the retailer from whom the watch was purchased.

EN 44

Troubles Possible causes Solutions
The date changes at 12 o'clock noon.	AMPM is not properly set. Advance the hands is by 12 hours.
Blur in the display persists.	A small amount of water has got inside the watch due to deterioration of the gasket, etc.	Consult the retailer from whom the watch was purchased.

* For a solution to a problem other than listed above, contact the retailer from whom the watch was purchased.

2

TO PRESERVE THE QUALITY OF YOUR WATCH

Specifications

2

TO PRESERVE THE QUALITY OF YOUR WATCH

Cat. 6R20 / 6R21 5R24 6R27
1. Features 6 hands (Time display (Hour, minute and seconds hands), date hand, day hand and power reserve indicator)		5 hands (Time display (Hour, minute and seconds hands), date hand and power reserve indicator)
2. Vibrations per hour 28,800 vibrations/hour (8 vibrations/sec)
3. Loss/gain (daily rate) +25 to -15 seconds at normal temperature range Only if worn on the wrist in a temperature range of 5°C to 35°C
4. Driving system Automatic winding type with manual winding mechanism
5. Duration Approx. 45 hours
6. Jewels 29 jewels 31 jewels 29 jewels

* The accuracy above is factory-adjusted
Due to the characteristics of mechanical watches, any actual daily rate may not fall within the range of time accuracy specified above dependent on the conditions of use, such as the length of time during which the watch is worn on the wrist, temperature, arm movement, and whether the mainspring is wound up fully or not, etc.

EN 46
