Product type	Light alarm clock
Brand	Philips
Model	HF3506/05
Power supply	Mains (power cord)
Sunrise simulation	Yes, gradual increase of light intensity over 30 minutes before the alarm
Adjustable light intensity	Yes, 10 levels (1-10)
Night light function	Yes
Sound alarm	Yes, fixed sound (not adjustable)
Alarm volume	Fixed (not adjustable)
Snooze	Yes, 9 minutes (fixed)
Automatic alarm stop	After 90 minutes
Time display	LED, 24-hour or 12-hour format (AM/PM)
Adjustable display brightness	Yes, 4 levels (high, medium, low, very low)
Radio	No
Demo mode	Yes (90 seconds)
Cleaning	Dry cloth; do not use abrasive products
Safety	Unplug before cleaning; do not expose to water
Repairability	No user-serviceable parts
Environment	Do not dispose of with household waste; recycle at a collection point

Frequently Asked Questions - HF3506/05 PHILIPS

How to set the time on the Philips HF3506/05 alarm clock?

Plug the device into the mains. The time flashes automatically. If not, press the Clock button on the side. Use the + and - buttons to adjust the hours and minutes, then press the Clock button again to confirm (or wait 5 seconds).

How to set the alarm on the Philips HF3506/05?

Press the Alarm button. The hours flash. Use + and - to set the hour, then press Alarm or wait 5 seconds. The alarm icon appears when activated.

How to turn off the alarm once it sounds?

Press the Alarm button to stop it for the current day. To deactivate the alarm for the next day, press the Alarm button again until the icon disappears. The light remains on; you can turn it off with the Light button.

How to use the snooze function?

When the alarm sounds, tap the top of the device to activate snooze. The sound alarm stops but the light remains on. It will ring again after 9 minutes (fixed interval).

How to adjust the display brightness?

Press the Display brightness button located on the top or side. The brightness cycles through 4 levels: high, medium, low, and very low.

Can I use the radio on this model?

No, the HF3506/05 model does not have a radio. Only the light wake-up function with a fixed alarm sound is available.

How to clean the Philips HF3506/05 light alarm clock?

Unplug the device before cleaning. Use a dry cloth to dust the exterior. Never use abrasive products, scouring pads, or harsh detergents like gasoline or acetone.

What to do if the device does not turn on?

Check that the power cord is properly plugged into the mains outlet. If the clock does not display, the device may be faulty. No user-serviceable parts; contact Philips customer service.

How to change the time format (12h/24h)?

Press and hold the Clock button for more than 2 seconds to switch between 12-hour mode (with PM/AM) and 24-hour mode. The PM/AM icon appears in 12-hour mode.

Does the alarm turn off automatically?

Yes, the alarm (light and sound) turns off automatically after 90 minutes if you do not stop it manually.

USER MANUAL HF3506/05 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

Question? Contact Philips

HF3505

HF3500

White spherical digital alarm clock with a white base and control buttons (no visible text or symbols)

White digital alarm clock with buttons and a 'WELLON' display (no visible text or symbols beyond the label)

3 4 5 6 8:00:00 AM PM 8:00:00 - + 7 8 1 2 9 10 - = =

ENGLISH 4

DANSK 11

DEUTSCH 18

ESPAÑOL 25

SUOMI 32

FRANÇAIS 39

ITALIANO 46

NEDERLANDS 53

NORSK 60

PORTUGUÊS 67

РУССКИЙ 74

SVENSKA 81

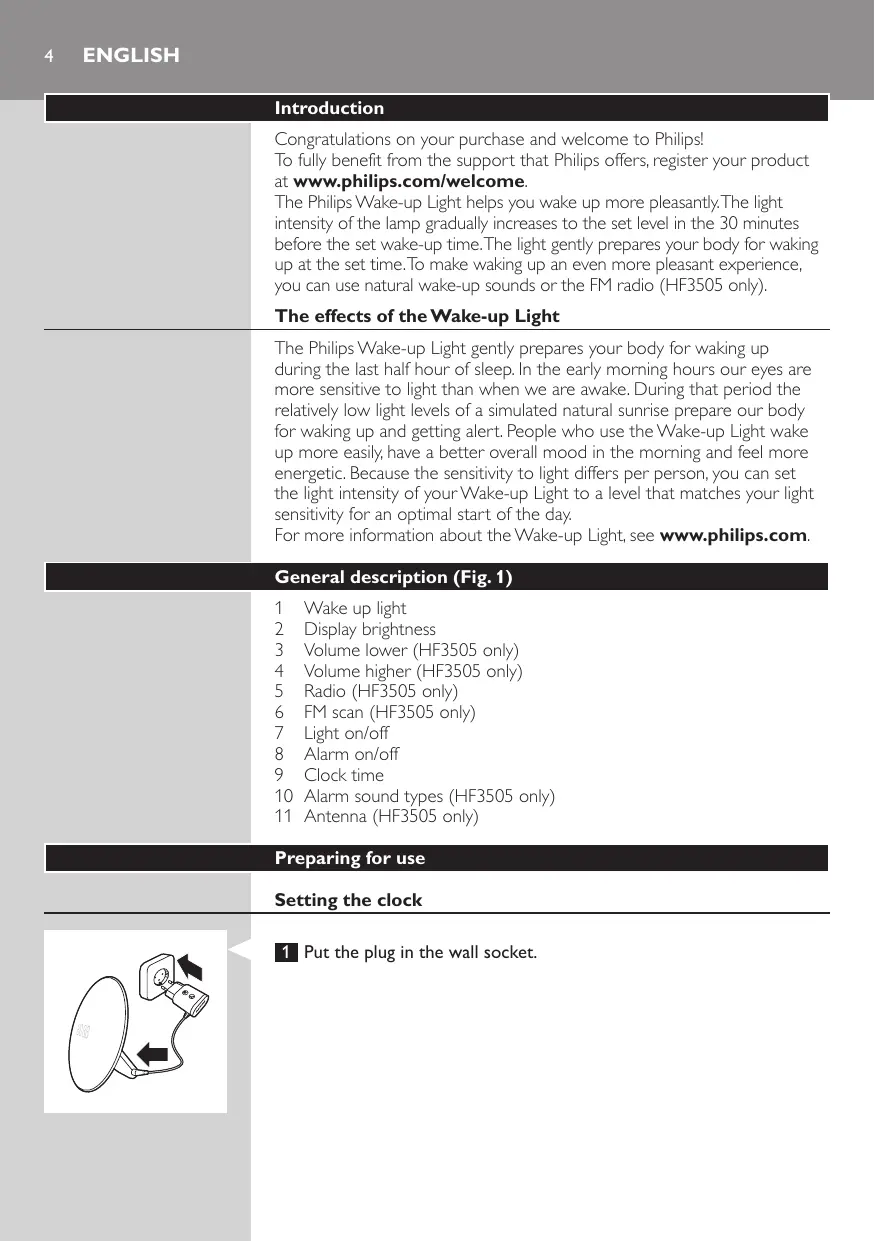

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The Philips Wake-up Light helps you wake up more pleasantly. The light intensity of the lamp gradually increases to the set level in the 30 minutes before the set wake-up time. The light gently prepares your body for waking up at the set time. To make waking up an even more pleasant experience, you can use natural wake-up sounds or the FM radio (HF3505 only).

The effects of the Wake-up Light

The Philips Wake-up Light gently prepares your body for waking up during the last half hour of sleep. In the early morning hours our eyes are more sensitive to light than when we are awake. During that period the relatively low light levels of a simulated natural sunrise prepare our body for waking up and getting alert. People who use the Wake-up Light wake up more easily, have a better overall mood in the morning and feel more energetic. Because the sensitivity to light differs per person, you can set the light intensity of your Wake-up Light to a level that matches your light sensitivity for an optimal start of the day.

For more information about the Wake-up Light, see www.philips.com.

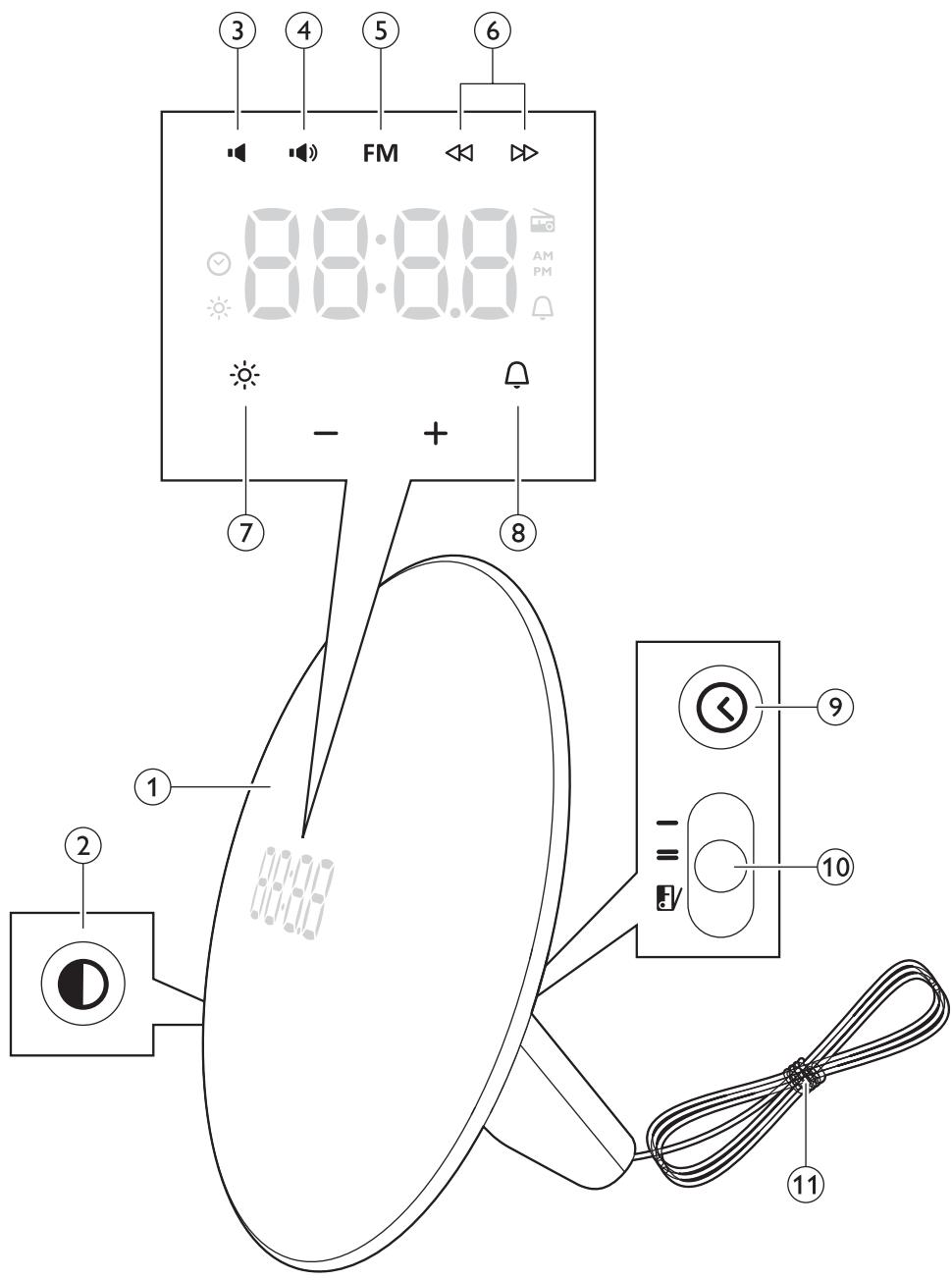

General description (Fig. 1)

1 Wake up light
2 Display brightness
3 Volume lower (HF3505 only)
4 Volume higher (HF3505 only)
5 Radio (HF3505 only)
6 FM scan (HF3505 only)
7 Light on/off
8 Alarm on/off
9 Clock time
10 Alarm sound types (HF3505 only)
11 Antenna (HF3505 only)

Preparing for use

Setting the clock

Diagram showing a satellite dish connected to an electrical outlet with directional arrows indicating signal flow or connection.

1 Put the plug in the wall socket.

8:30-8:38 FM

2 When plugging in, the clock time will automatically start blinking.
If the clock time does not start blinking, press the clock button on the side of the appliance.
The clock icon appears on the display.

09:45 -/+

3 Press the + or - button to set the hour and minutes.

Note: You can only do this when you are in the set clock time and when the time indication flashes. If this is not the case, press the clock button again, you are now in the set clock time.

4 Press the Clock button to confirm.

You can also wait for 5 seconds before the clock is fixed.

Note: Every time you remove the plug from the wall socket, clock time setting is lost.

Using the appliance

Functions

Below you can find a list of all functions that can be set in this appliance:

• Clock time
• Time format
• Alarm time
• Alarm sounds (HF3505 only)
• FM (HF3505 only)
• Light level
• Display brightness

You can set these functions in the following way:

8:30 AM + - +

8:00 AM + - +

Using the light

You can use the appliance as a bedside lamp.

1 To switch on the light, press the lamp on/off button.
The light icon is shown in the display and the current light level 10 appears.
2 Press the + and - buttons to select a light intensity.

You can choose a light intensity between 1 and 10.

Note: The light intensity you have selected is automatically set as the light intensity level for the alarm as well.

3 To switch off the lamp, press the lamp on/off button again.

Note: The light level can be adjusted when light is on/off.

Setting time format

2 sec.

Switching between 24h and 12h time mode.

1 Press the Clock button for > 2 seconds.

When the 12h mode is active, PM or AM will be shown in display.

Note: To switch to the 24h mode, press the Clock button again for >2 seconds.

Setting the alarm

When you set the alarm, you choose an alarm time and (only in case of HF3505) the type of sound you want to wake up to. The alarm is activated when the alarm symbol is visible on the display. The light intensity slowly increases to the selected level during the last 30 minutes before the set alarm time. The sound slowly increases to the selected level after the set alarm time.

HF3505 only:

Light level range is 1-10, volume level range is 1-10. It is not possible to switch these functions off.

HF3500 only:

Light level range is 1-10 and there is no volume control for the type of the appliance. The alarm sound volume is fixed.

8:30:00 - +

07:30 -/+

8:30 AM + - +

Alarm on 8:30 AM

1 Press the alarm button to switch on the alarm.

The time indication of the alarm time flashes.
▶ Alarm icon appears on display.

2 Press the + or - buttons to select the time.

Note: You can only do this when the time indication flashes. If this is not the case, press the alarm button again to enter the alarm time mode.

Tip: Press the + or - button >2 seconds to speed up the digit change.

3 Press the Alarm button to confirm or wait for 5 seconds.

Note: The alarm icon is shown in the display to indicate the alarm is ON. The alarm time is now set.

Switching off the alarm

When the alarm goes off, you can switch off the alarm by pressing on the alarm button. The alarm will go off again the next day.

When you want to switch off the alarm for the next day, or before the alarm goes off, press the alarm button again.

Note: The alarm icon disappears from the display.

Note: The lamp stays on to light your room. You can switch off the lamp by pressing the light on/off button.

Note: The alarm (sound and/or light) automatically switches off after 90 minutes.

Simple line drawing of a vehicle or road with a circular symbol and a vehicle icon, no text or labels present.

Diagram showing a road intersection with directional arrows and a vehicle icon, likely illustrating a traffic or road safety concept.

Line drawing of a hand holding a circular object with a downward arrow, no text or symbols present

Line drawing of a megaphone with a curved arrow and label '8835' (no text or symbols on the diagram itself)

FM 8:00:00

Setting the alarm sound (HF3505 only)

You can choose one of the following sounds by switching the function from:

- Sound I

- Sound II

- Radio

Note: When switching to a new alarm sound or radio, a preview of that sound/radio will be played for 5 seconds.

Snoozing

1 Tap on top of the appliance to snooze 9 minutes.

The lamp continues to be on at the selected intensity level, but the alarm sound stops. After 9 minutes, the wake-up sound is automatically played again.

Note: The 9-minute snooze time is fixed. This time cannot be adjusted.

Radio/volume (HF3505 only)

Tip: Fully unwind the antenna to use the radio function.

1 To switch on the radio, press the radio on/off button.

The radio icon appears in the display.

08:00 FM

Weather interface icons showing speaker, FM, and alarm clock with time display

2 To select the desired radio frequency, press the « and » buttons.

Tip: To scan radio frequencies automatically, press and hold the « or » button for approx. 2 seconds.

Tip: To make sure you get a good radio signal, fully unwind the antenna and move it around until you have found a position at which reception is best.

Note: The current radio frequency is shown in the display for 5 seconds, before clock time is shown again.

3 To switch off the radio, press the radio on/off button again.

Volume

1 To set the volume, press the volume increase or decrease button. You can choose a volume level between 1 and 10.

Note: The volume level you have selected is automatically set as the volume level for the alarm as well.

Setting the display brightness

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

1 Press the Display brightness button to adjust the display brightness. The brightness of the display will change from high-medium-low-very low.

Demo mode

If you want a quick demonstration (90 seconds) of the gradually increasing light intensity and sound level, switch on the test function of the appliance.

1 Press and hold the alarm button for at least 3 seconds.
2 The appliance starts the demonstration of the alarm.
3 To switch off the demonstration, press and hold the previously pressed alarm button for 3 seconds again.

Cleaning and maintenance

Simple line drawing of a balance scale with a cross mark on top (no text or symbols)

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Regularly remove dust from the outside of the appliance with a dry cloth.

1 Unplug the appliance before you clean it.
2 Clean the outside of the appliance with a dry cloth.

Do not let water run into the appliance or spill water onto the appliance.

Replacement

This appliance does not contain any serviceable parts.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
