Product Type	Canister Vacuum Cleaner
Brand	Fakir
Model	Ares Oko Power
Color	Red/Black
Rated Power	1000 W
Suction Power	350 Air Watts
Dust Capacity	2.5 L
Filtration System	HEPA 13 washable filter
Bagless	Yes
Cord Length	8 m
Operating Radius	12 m
Noise Level	72 dB(A)
Weight	5.5 kg
Dimensions (L x W x H)	400 x 280 x 320 mm
Power Cord Retractable	Yes
Floor Nozzle	Multi-surface with brush
Crevice Tool	Included
Upholstery Tool	Included
Motor Protection	Filter protection
Overheating Protection	Yes
Washable Filter	Yes
Energy Efficiency Class	A
Suitable for	Hard floors and carpets
Warranty	2 years

Frequently Asked Questions - Ares Oko Power FAKIR

How do I clean the HEPA filter?

Turn off the vacuum and unplug it. Open the filter compartment, remove the HEPA filter, and tap it gently to remove loose dust. If heavily soiled, wash it under cold water and let it dry completely for 24 hours before reinstalling.

How often should I empty the dust container?

Empty the dust container when it reaches the MAX fill line or after each use for optimal suction. Press the release button to remove the container, hold it over a trash can, and press the bottom lid to empty.

What is the best setting for thick carpets?

Use the carpet/rug setting on the floor nozzle or adjust the brush height if available. For deep cleaning, move slowly and use a powerful suction level.

Can I use Ares Oko Power on hardwood floors?

Yes, it is suitable for hardwood floors. Use the hard floor setting or a dedicated parquet brush (if included) to avoid scratches.

How often do I need to replace the filters?

The washable foam filter should be cleaned every 4-6 weeks and replaced every 6-12 months. The HEPA filter typically lasts up to 2 years, but replace sooner if damaged or odor appears.

Why is my vacuum losing suction?

Check the dust container if it's full, clean the filters, and inspect the hose and nozzle for blockages. A clogged filter or full container is the most common cause.

Is the power cord retractable?

Yes, the vacuum has an auto-retractable cord. Press the cord rewind button to retract the cord safely.

How do I store the accessories?

Most accessories can be clipped onto the onboard storage on the vacuum body or stored in the included accessory bag for easy access.

Can I wash all the filters?

Only the foam filter and HEPA filter (if labeled washable) can be washed. The exhaust filter may be non-washable; check the manual. Always let filters dry completely before reusing.

What is the noise level of this vacuum?

The Ares Oko Power operates at approximately 72 dB(A), which is typical for a canister vacuum. Use ear protection for prolonged exposure.

USER MANUAL Ares Oko Power FAKIR

Exterior view of a Fakir vacuum cleaner with attached hose and body (no text or symbols visible)

Inhaltsverzeichnis

Allgemeines

Fieldir A B C D E F G H

Gray plastic object with a protruding rod and label 'M' (no other text or symbols)

Modell: Fakir

ARES Öko Power

Art.-Nr.: 27 92 003

Sonderzubehör

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Close-up of a small vacuum cleaner with a handle and spool (no visible text or symbols)

WARNUNG!

Close-up of a medical or surgical tool tip with a black arrow pointing to a curved component (no text or symbols visible)

3D rendered image of a mechanical clamp or bracket component (no text or symbols visible)

Close-up of a syringe with internal components and directional arrows indicating movement (no text or symbols)

Close-up of a white electronic device with perforated panel and circular button, showing a black arrow pointing to a button (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Abstract grayscale 3D shape with a black arrow pointing to a curved surface (no text or symbols)

Close-up of a black cable with two arrows pointing to its tip (no text or symbols visible)

WARNUNG!

Black and white photo of a small electronic device with a keypad and display screen (no visible text or symbols)

Black and white photo of a vacuum cleaner with handle and control panel (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a small rectangular feature (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Illustration of a small vacuum cleaner with a handle and control panel (no text or symbols)

Close-up of a hand operating a white robotic vacuum cleaner (no visible text or symbols)

HINWEIS:

Hand holding a medical device with visible text labels and instructions in Chinese

Close-up of a white robotic device with exposed internal components and a handle, no visible text or symbols.

Illustration of a computer with monitor and keyboard, no visible text or symbols

Symbol of a waste bin with crossed lines indicating no waste or restriction (no text or labels)

Instructions for use Vacuum cleaner

Exterior view of a Fakir vacuum cleaner with attached mesh hose and body filter (no text or symbols visible)

General

Information about the operating instructions....3

Liability....3

Notices in the operating instructions....3

Safety

CE Declaration of Conformity 4

Intended use 4

Unauthorized use....4

Children 4

Electric current....6

In case of danger 6

Dispatch....6

In case of defects....7

Overview

Product description and scope of delivery 8

Optional accessories 9

Technical data....9

Assembly

Unpacking....10

Assembling 10

Accessories

Floor suction nozzle 11

Hard floor nozzle 11

Crevice nozzle 11

Upholstery nozzle....11

Furniture brush....11

Turbo suction brush 11

Electric suction brush....11

Operating

Vacuum cleaning....12

Accessory compartment 13

Untensil socket 13

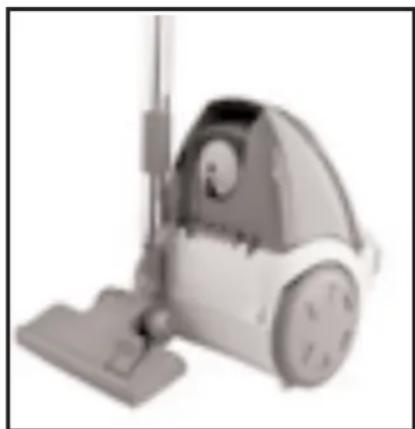

Work breaks....13

After vacuuming 14

After use

Cleaning 15

Changing the dust bag 15

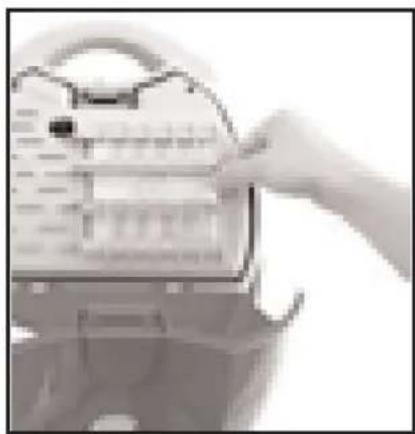

Changing the motor protection filter 16

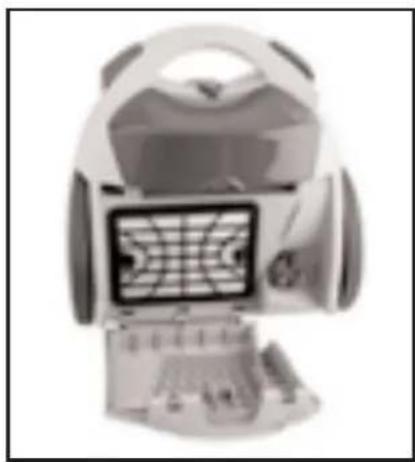

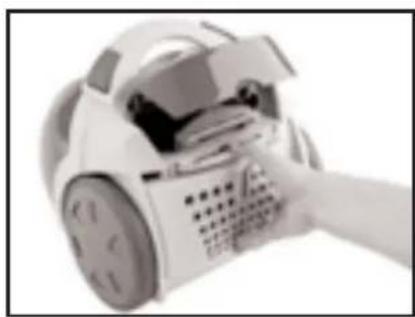

Changing the HEPA filter 16

Troubleshooting....17

Disposal....19

Warranty – only valid for the German market ......20

Notes......21

Thank you,

for choosing a Fakir vacuum cleaner of high energy efficiency and therefore with low energy consumption and without loss of suction performance.

The vacuum cleaner was developed and manufactured to guarantee a trouble-free operation for many years.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfils the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.” The appliance bears the CE mark on the rating plate.

Intended use

The appliance may only be used in households.

It may be used only for dry cleaning hard floors and textile coverings, carpets, upholstery furniture, mattresses, furniture, radiators and curtains.

It is not suitable for commercial use.

Check if all filters have been inserted properly before using the appliance. The appliance must not be used without filters.

Use only original Fakir filters and accessories.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

- These devices can be of children aged 8 and over, and persons with reduced physical, sensory or mental abilities or lack of experience or knowledge can be used if they are supervised, or concerning the safe use of the device have been instructed and the resulting risks have understood.

- Children should not play with the device.

- Cleaning and user maintenance must not come through children are carried out without supervision.

- Keep packaging films away from children - danger of suffocation!

WARNING!

Danger of injury from vacuuming:

• Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body.
• Nozzles and tube ends must never be brought close to the eyes or ears.
• Never use the appliance to vacuum human beings or animals. The manufacturer is not responsible for any damages caused by unauthorized use or improper operation.
• Danger of injury! Never reach into the rotating brush roller when working with the turbo / electrical suction brush.

Health hazard!

- Never vacuum hazardous materials, such as toner used in laser printers or copiers.

Danger of fire and explosion!

• Never vacuum hot ashes or burning objects, such as cigarettes or matches.
• Never use the appliance in the vicinity of explosive or flammable materials.
• Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

• Risk of short circuits! Never vacuum water and other liquids, such as damp carpet cleaning solutions..
• Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.
• Damage to appliance from rain and dir!: Never use or store the appliance outdoors.
• Danger from overheating! Always keep the openings in the appliance free.

Electric current

ATTENTION!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The socket must be protected with a 16 A automatic circuit breaker.
• Use only extension cords designed for the power input of the appliance.

WARNING: Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself.

see Chapter "Troubleshooting".

Notice

If you were not able to eliminate a problem yourself, please contact an authorized Fakir / nilco service center or a trained technician in your country.

Service Hotline (within Germany) 01805 325474

14 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, have the article no. and appliance / model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may be carried out only by trained specialists (e.g. an authorized Fakir service center).

Only Fakir original replacement parts may be used for repairs and maintenance. For further information, see: Troubleshooting. Unauthorized repairs and maintenance pose a danger for the user.

D E C F B A H G

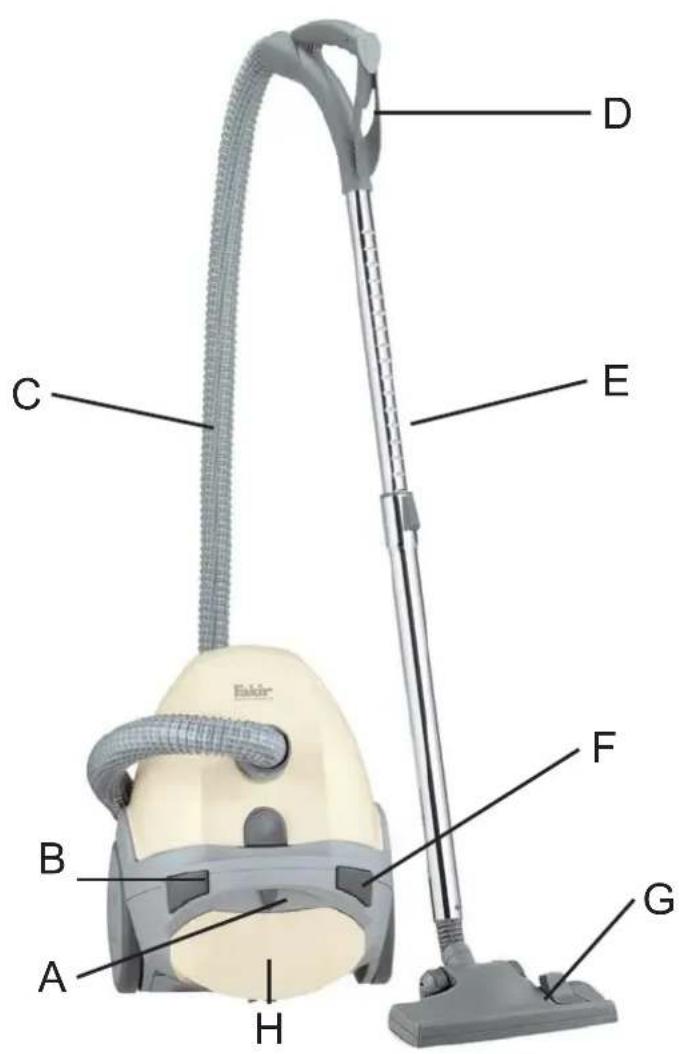

Product description and scope of delivery

A Suction control
B Pedal button ON-OFF
C Suction hose
D Handle with suction control
E Telescopic suction tube
F Pedal button for cable rewind
G Floor suction nozzle

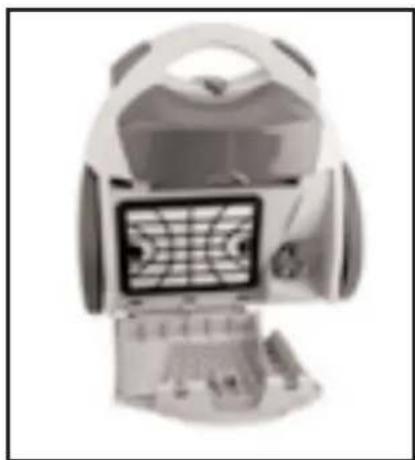

H HEPA filter and accessory compartm.
I Furniture brush **
J Crevice nozzle **
K Upholstery nozzle L Hard floor nozzle
M Turbo suction brush *

Dust bag (not illustrated)

Instructions for use

* = Optional accessory
** = Stored in the accessory compartment

|
J

M

Gray plastic clip with a handle, no visible text or symbols

Model Fakir

ARES Öko Power

Reference 27 92 003

Optional accessories

Turbo brush black ref.: 20 18 920 X

HEPA-Filter ref.: 20 18 085 --

Vliesfilter ref.: 20 60 805 X

X = optional accessory

--- = standard accessory

Technical data

Mains voltage 230 V

Nominal frequency 50 Hz

Power IEC 1300 W

Depression max. 23 kPa

Air flow max. 38 l/s

Weight approx. 5,9 kg

Dimensions approx. 37,5 x 31,5 x 29,5 cm

Colour (housing)

crema

Dust bag:

max. filling volume 3,5 l

max. usable filling volume 2,9 l

Unpacking

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Assembling

Close-up of a small vacuum cleaner with a handle and spout (no visible text or symbols)

Close-up of a medical or surgical tool tip with a black arrow pointing to a curved component (no text or symbols visible)

3D rendered image of a mechanical clamp or bracket component (no text or symbols visible)

Close-up of a mechanical component with two black arrows pointing left, no visible text or symbols

Unpack the appliance and check the contents for completeness (see "scope of delivery").

Sort the packaging material and recycle accordingly.

If you notice any transportation damage, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

- Suction hose

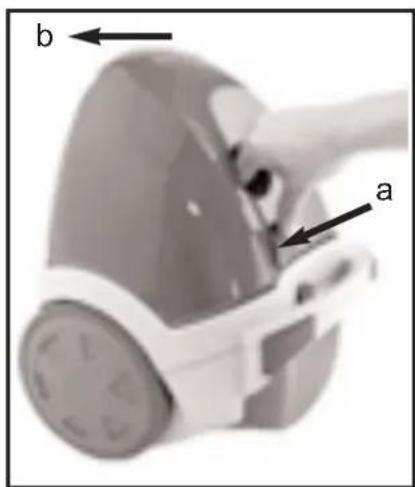

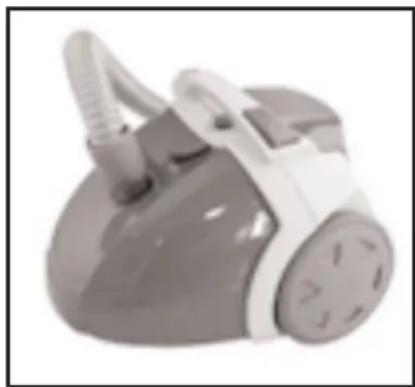

Press the connecting piece at the end of the suction hose into the air intake opening of the vacuum cleaner.

- Suction hose / Telescopic suction tube

Insert the handle of the suction hose into the telescopic tube.

- Nozzles / Hand tube resp. Telescopic suction tube

Insert the required nozzle with a slight turn onto the handle of the suction hose, or onto the telescopic suction tube.

- Setting the length of the suction tube

Use your thumb to press the slide element in the direction of the arrow.

Hold the lower part of the tube in your other hand and pull or push the suction tube to the required length.

The vacuum cleaner is now ready for use.

ATTENTION!

Always switch off the appliance before changing the nozzle.

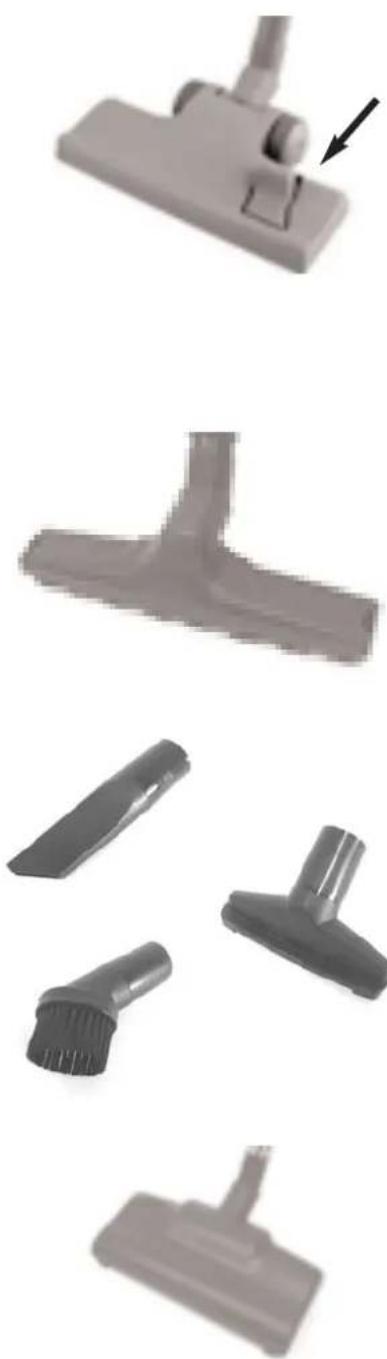

- The floor suction nozzle has a switch (see arrow) which sets the nozzle for cleaning of either carpets or hard flooring. You can activate this switch with your foot.

Vacuum-cleaning hard floors:

• the brush element is extended.

Carpeting:

• the brush element is retracted.

NOTICE!

Set suction capacity medium to high.

The hard floor nozzle is used for cleaning hard floors such as tiles, parquet or PVC etc.

NOTICE!

Set suction capacity medium to high.

The crevice nozzle serves to clean hard-to-access places, such as deep cracks, corners, recesses, etc.

With the upholstery nozzle you can vacuum off curtains, upholstered furniture, etc.

With the furniture brush you can vacuum off dust from furniture, pictures, window sills, books, etc.

NOTICE!

Set suction capacity low to medium.

The turbo brush can clean deep down into carpets and rugs to remove stubborn fluff and animal hairs thanks to the suctioning air flow driven by the rotating roller brush.

(optional accessory)

WARNUNG! Danger of injury: Never reach into the rotating brush roller when working with the turbo suction brush and electric suction brush.

Vacuum cleaning

Close-up of a white electronic device with a perforated panel and a circular button, showing a black arrow pointing to a button (no text or symbols visible)

WARNING!

Always check the appliance and the power cable before use. Faulty appliances may cause injury and should not be used.

• Attach the required nozzle.
• Pull out the power supply cable by tugging on the plug until the required length is reached.
  A yellow mark on the cable shows you that the maximum cable length has almost been reached. The maximum cable length is shown by a red mark on the cable. Never pull the cable out of the appliance beyond the red mark.
• To switch the vacuum cleaner on, press the ON-OFF pedal button.

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

Abstract grayscale shape with a black arrow pointing to a curved form (no text or symbols)

- Set the required suction level by using the suction regulator:

MIN = slide to the left MAX = slide to the right

Close-up of a black cable with two arrows pointing to its tip (no text or symbols)

Adjustment of suction level

by means of the suction control on the handle of the suction hose:

Suction level max. = vent closed

Suction level min. = vent open

Accessory department

Illustration of a white and black robot with open lid and wheels (no visible text or symbols)

Open the accessory compartment lid.

The accessory compartment is containing:

• crevice nozzle
• upholstery nozzle
• furniture brush

Work breaks

Suction pipe park position

Illustration of a vacuum cleaner with handle and control panel (no text or symbols)

Use the park holder of the floor nozzle to hold the suction tube safely in position when the cleaner is not being used.

To do this, insert the park holder of the floor nozzle into the nozzle holder on the reverse of the appliance.

After vacuuming

WARNING!

Follow the steps below as soon as you stop vacuum cleaning. Never leave the appliances unattended.

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

• Press the pedal button ON-OFF to switch off the vacuum cleaner.
• Remove the plug from the mains socket.

Close-up of a mechanical component with a black arrow pointing to a feature (no visible text or symbols)

- Press the pedal button "cable rewind" to reel in the cable. Gently guide the cable with your hand until the cable has been completely wound in and the plug rests snugly against the opening.

Illustration of a small vacuum cleaner with a penguin inside, mounted on a stand (no text or symbols visible)

- Insert the holder of the floor suction nozzle into the nozzle holder on the underneath of the appliance. Now you can carry the appliance easily or place it on the floor.

- Store the vacuum cleaner in a place that is out of the reach of children.

ATTENTION!

Never place the appliance next to heat sources and avoid direct sunlight, as the heat may damage the vacuum cleaner.

Maintenance and cleaning

WARNING!

Before conducting any maintenance or cleaning, switch off and unplug the appliance. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

Changing the dust bag

ATTENTION!

Do not use any cleaning agents, abrasives or alcohol. These damage the housing.

b a

Only clean the appliance using a dry or damp cloth.

If necessary, you can also clean the dust compartment with a damp cloth.

- Open the dust (filter) compartment:

Push the release lever in direction of the arrow (a) and open both housing parts (b).

- Changing dust bag:

1. Pull out the suction hose.
2. Remove the full dust bag and dispose it.
3. Insert the new dust bag into the dust bag holder.
4. Reinsert the suction hose.

Close-up of a hand operating a small white robotic device (no visible text or symbols)

NOTICE!

Always ensure that all the filters are inserted before you use the vacuum cleaner.

Changing the motor protection filter

Person holding a hand holding a closed notebook or device (no visible text or symbols)

1. Open the dust compartment lid.
2. Remove the contaminated filter and put in the new one perfectly.
3. Close the dust compartment lid (both housing parts) until it clicks into place.

NOTICE!

Change the motor protection filter after the consumption of approx. 5 dust bags.

Changing the HEPA-filter

Close-up of a white robotic device with a hand extending from it, showing internal components (no text or symbols visible)

1. Open the accessory compartment lid.
2. Press the flaps down and remove the exhaust air grid backwards.
3. Remove the contaminated HEPA filter and dispose it.
4. First put in the new HEPA filter and then insert the exhaust air grid so that it fits precisely.
5. Close the accessory compartment lid.

NOTICE!

Change the HEPA filter after approx. 6 months.

Illustration of a robotic arm with a laptop displaying a grid, surrounded by abstract geometric shapes (no text or symbols)

The HEPA* filter is a high efficiency submicron air filter which not only collects household dust but also pollen and other micro-small particles – a boon for people with sensitive respiratory organs or those suffering from allergies.

* HEPA = H IGH EFFICIENCY PARTICULATE AIR FILTER

Troubleshooting

Dear Customer:

Our products are subjected to stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting the authorized Fakir service center, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

NOTICE!

If you were not able to eliminate a problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

Service Hotline (within Germany) 01805 325474

14 cents / minute

from the wire-line network of the Deutsche Telekom.

Before calling, make sure to have the following information:

Appliance / model designation including 7-digit article number e. g. Art. no. 27 92 003 and date of manufacture 2010-08

(This information can be found on the rating plate of the appliance.)

or the 7-digit replacement part number.

ATTENTION!

Repairs and maintenance may be carried out only by trained specialists (e.g. an authorized Fakir service center).

Only Fakir original replacement parts may be used for repairs and maintenance. Unauthorized repairs and maintenance pose a danger for the user.

Fault	Possible cause	Solution
Appliance does not work.	Plug is not inserted or the appliance is not switched on.	Insert de plug into a mains socket and switch on the appliance.
	Power outlet does not carry any power.	Test the appliance at another socket which you are sure carries current.
	Power cord is damaged.	Have the power cord replaced by an authorised Fakir service centre.
Appliance suddenly stops vacuuming.	Overheat protection has tripped (possibly due to clogged suction channels, dirty filters, etc.)	Switch off and unplug the appliance. Eliminate the cause of overheating (e.g. clogged suction channels, dirty filters, etc.). Wait 45 minutes and let the appliance cool down. Then switch on the appliance again.
Vacuum cleaning is unsatisfactory.	Dust bag is full.	Change dust bag.
	Filter is dirty or clogged.	Clean or change the corresponding filter.
	Nozzle, telescopic suction tube or suction hose are clogged up.	Eliminate clogging. If necessary, use a wooden stick (e.g. a broomstick) to do this.
	Suction regulator is open.	Close suction regulator.
	The power setting does not suit the flooring.	Set the power to the setting suggested for the flooring.
	The attached nozzle does not fit the flooring.	Attach the correct nozzle.
	The “carpet/hard floor” switch is in the wrong position for the particular type of floor.	Set the “carpet/hard floor” switch to the correct position for the type of floor.
Appliance runs unusually loud.	Sucked-in particles have become jammed.	Remove particles. If necessary, use a long wooden stick (e.g. a broomstick).

Disposal

Symbol of a waste bin with crossed lines indicating no waste, no text or labels present

When the appliance has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable by cutting the power cord.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse. Take the appliance to a central recycling facility.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

You can dispose used dust bags and filters in the household waste system.

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free of charge, including free shipping, if it becomes defective due to a material or assembly error within 24 months (within 12 months if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   A pre-condition of our warranty is that the appliance always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters) do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances. When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If the repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the appliance and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008

Exterior view of a Fakir vacuum cleaner with attached mesh hose (no text or symbols visible)

Generalidades

C D E F B A H G

Close-up of a gray plastic clip or clip with a handle, no visible text or symbols

Modelo Fakir

ARES Öko Power

Referencia 27 92 003

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Montar

Close-up of a small vacuum cleaner with a handle and spool (no visible text or symbols)

Close-up of a medical or surgical tool tip with a black arrow pointing to a curved component (no text or symbols visible)

3D rendered image of a mechanical clamp or bracket component (no text or symbols visible)

Close-up of a mechanical component with two black arrows pointing left, no visible text or symbols

3D rendered mechanical component with a black arrow pointing to a small square feature (no text or symbols visible)

¡ADVERTENCIA!

Simple 3D-rendered gray T-shaped object with no text or symbols

Three gray plastic kitchen utensils on a white background (no text or symbols visible)

¡NOTA!

Gray plastic clip or bracket with a handle, no visible text or symbols

¡NOTA!

Close-up of a white electronic device with a perforated panel and a circular button, showing a black arrow pointing to a button (no text or symbols visible)

¡ADVERTENCIA!

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

Abstract grayscale shape with a black arrow pointing to a curved form (no text or symbols)

Close-up of a black cable with two directional arrows indicating angle (no text or symbols)

Monochrome image of a small robotic device with open lid and control panel (no visible text or symbols)

Illustration of a vacuum cleaner with a brush and handle (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a small rectangular feature (no text or symbols visible)

¡ADVERTENCIA!

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

Illustration of a vacuum cleaner with a handle and control panel (no text or symbols)

Close-up of a hand operating a white handheld device (no visible text or symbols)

¡NOTA

Hand holding a small electronic device with visible internal components (no readable text or symbols)

Close-up of a white robotic device with a hand extending into it, showing internal components (no visible text or symbols)

Illustration of a robotic arm with a computer monitor displaying a grid pattern (no text or symbols)

¡NOTA!

Symbol of a waste bin with crossed lines indicating restriction or exclusion (no text or labels)
