| Product Type | Washing Machine |
| Brand | Blomberg |
| Model | WNF 5180 WE |
| Capacity | 5 kg |
| Maximum Spin Speed | 800 rpm |
| Energy Efficiency Class | A++ |
| Annual Energy Consumption | 157 kWh |
| Water Consumption per Cycle | 39 L |
| Noise Level (Wash/Spin) | 56 dB / 76 dB |
| Dimensions (H x W x D) | 84 cm x 60 cm x 44 cm |
| Weight | 55 kg |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Type of Installation | Freestanding |
| Number of Programs | 15 |
| Programs Include | Cotton, Synthetics, Delicates, Quick Wash, Wool, Hand Wash, Rinse & Spin, Drain |
| Special Features | AquaStop, Child Lock, Delay Start, Load Sensing, Foam Control |
| Display Type | LED |
| Drum Material | Stainless Steel |
| Door Opening | Left hinge, 180° |
| Spare Parts Availability | 10 years |
Frequently Asked Questions - WNF 5180 WE BLOMBERG
What is the maximum load capacity of the Blomberg WNF 5180 WE?
The maximum load capacity is 5 kg for cotton and other fabrics. Overloading can affect washing performance and cause excessive vibration.
How do I clean the detergent drawer?
Remove the drawer by pressing the release lever. Wash it under running water with a soft brush, especially the fabric softener compartment. Dry it before reinserting.
What should I do if the machine does not drain?

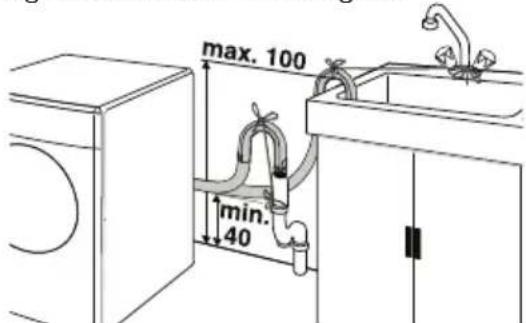

Check if the drain hose is kinked or blocked. Also, clean the pump filter located at the bottom front of the machine. Ensure the drain hose is at the correct height.
How do I activate the Child Lock?
Press and hold the 'Child Lock' button (or a combination of buttons, typically indicated in the manual) for 3-5 seconds until the lock symbol appears on the display. Repeat to deactivate.
What does the error code 'E01' mean?
Error code E01 usually indicates a problem with the door lock. Check if the door is properly closed and the locking mechanism is not obstructed. If the issue persists, contact service.
Can I use liquid detergent with this machine?
Yes, liquid detergent can be used. Pour it into the appropriate compartment (marked with 'II' or liquid symbol). For pre-wash, use the compartment marked 'I'. Do not exceed the maximum fill line.
How often should I run a maintenance wash?
It is recommended to run a maintenance wash (e.g., a hot cotton cycle at 90°C with an empty drum and a descaling agent) every 2-3 months to remove detergent residue and prevent odors.
Why is the machine vibrating excessively during spin?

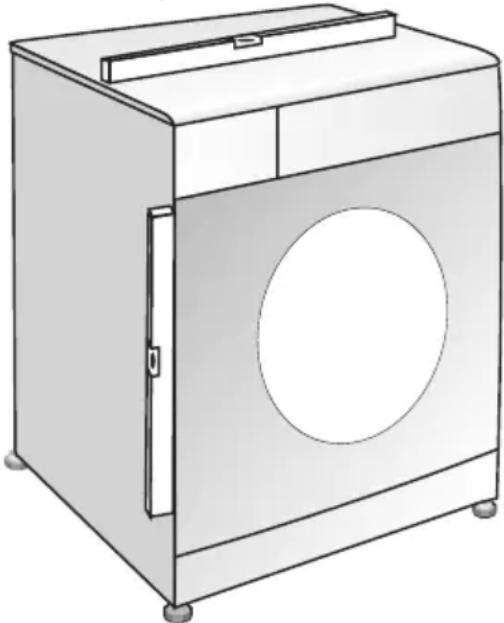

Check that the machine is leveled (adjust the feet) and that the transport bolts have been removed. Also ensure the load is balanced; redistribute clothes if necessary.
What is the maximum spin speed?
The maximum spin speed is 800 rpm. You can adjust it lower for delicate fabrics. Higher spin speeds extract more water but may cause more wear.
How do I reset the machine to factory settings?
Turn the program selector to 'Off' position. Press and hold the 'Start/Pause' and 'Delay Start' buttons simultaneously for 3 seconds, then turn the selector to any program. The display should show '0' or a reset confirmation.
