Product Type	Solarium
Brand	Philips
Model	HB 828
Dimensions (W x D x H)	Approx. 1200 x 600 x 400 mm
Weight	Approx. 15 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000 W
UV Lamp Type	Philips HPA 400-500W
Number of Lamps	4
Timer	Adjustable, up to 30 minutes
Intensity Levels	3
Protective Goggles	Included
Cooling Fan	Yes
Overheat Protection	Automatic shut-off
Cleaning	Wipe with damp cloth, avoid solvents
Lamp Replacement	Every 1000 hours or as indicated
Safety Certification	CE, TÜV
Included Accessories	Protective goggles, instruction manual
Warranty	2 years

Frequently Asked Questions - HB 828 PHILIPS

How do I set the timer on my Philips HB 828 solarium?

Use the timer knob on the control panel. Turn it to the desired time (up to 30 minutes). The solarium will automatically shut off after the set time.

How often should I replace the UV lamps?

The lamps should be replaced after approximately 1000 hours of use, or when they show signs of wear such as darkening or flickering. Refer to the manual for specific replacement instructions.

Can I use the solarium without protective goggles?

No, always wear the included protective goggles to prevent eye damage from UV radiation. Never look directly at the lamps.

What is the recommended session duration for initial use?

Start with 5-10 minutes per session, gradually increasing by 1-2 minutes each time. Do not exceed the maximum recommended session time of 30 minutes.

How do I clean the solarium?

Unplug the device and allow lamps to cool. Wipe the exterior and lamps with a soft, damp cloth. Do not use abrasive cleaners or solvents.

What should I do if the solarium turns off unexpectedly?

Check if the timer has run out or if the overheat protection has activated. Allow the unit to cool for 30 minutes before restarting. If the problem persists, contact customer service.

Can I use the solarium while lying down?

Yes, the HB 828 is designed for both sitting and lying positions. Ensure the unit is stable and placed on a flat surface.

How do I store the solarium when not in use?

Store in a dry place, away from direct sunlight and moisture. Cover it to protect from dust. Keep it upright or as recommended in the manual.

Is the Philips HB 828 suitable for all skin types?

It is suitable for most skin types, but individuals with very fair skin or a history of skin cancer should consult a doctor before use. Always follow the recommended session times.

What should I do if a lamp breaks?

Turn off and unplug the solarium. Carefully remove broken glass with gloves. Clean the area with a damp cloth. Replace with a Philips HPA 400-500W lamp.

USER MANUAL HB 828 PHILIPS

ENGLISH 4

DEUTSCH 12

NEDERLANDS 20

Introduction

Foldable tanning appliance

With this tanning appliance you can suntan comfortably at home. The tanning lamps emit visible light, heat and ultraviolet light, giving you the impression you are sunbathing in real sunlight. The special UV filter only passes UV light that is required to get a tan.

The tanning lamps emit sufficient infrared light to provide a comfortable warmth.

A timer ensures that each tanning session does not last longer than 30 minutes (HB828) or 60 minutes (HB826). Just as with natural sunlight, overexposure must be avoided (see chapter 'Tanning and your health').

General description (fig. 1)

A Wheels
B Mains cord in storage compartment
C Handgrip
DTimer and remote control unit

- HB826 only:Timer

- HB828 only: Remote control unit

E Memory knobs (for two persons)
F Slides
GStand
H Locking collar for height adjustment

- (to unlock: slide collar downwards)

Locking collar for lamp unit

- (to unlock: press down the two lugs)

J Handgrip
K Fan (cooling)
Lamp unit
MUV filter
N Tanning lamps (type Philips HPA flexpower 400-600)
Reflector
P Measuring tape
Q Protective goggles (2 pairs)

- (type no. HB072/service no. 4822 690 80147)

RBase

sType plate

Important

Check if the voltage indicated on the appliance corresponds to the mains voltage in your home before you connect the appliance.
Water and electricity are a dangerous combination! Do not use this appliance in wet surroundings (e.g. in the bathroom or near a shower or swimming pool).
If you have just been swimming or have just taken a shower, dry yourself thoroughly before using the appliance.
▶ Always unplug the appliance after use.
Never use the appliance when the UV filter is damaged, broken or missing or when the timer is defective.
The UV filter becomes hot during the tanning session. Do not touch it.
Make sure children do not play with the appliance.

Let the appliance cool down for approx. 15 minutes after use before folding it back into transport position and storing it.
▶ Only move the tanning appliance when it is folded in.
Make sure the vents in the lamp unit and in the base remain open during use. Keep your hair away from the air inlet of the lamp unit.
The appliance has been fitted with an automatic protection against overheating. If the appliance is insufficiently cooled (e.g. because the vents are covered), the appliance will switch off automatically.
HB826: once the cause of overheating has been removed and the appliance has cooled down, the appliance will switch on automatically again.
HB828: once the cause of overheating has been removed and the appliance has cooled down, a new session time has to be set to switch the appliance on again.
Do not exceed the recommended tanning time and the maximum number of tanning hours (see 'Tanning sessions: how often and how long?').
▶ Do not choose a tanning distance of less than 65 cm.
Do not tan a particular part of your body more than once a day. Avoid excessive exposure to natural sunlight on the same day.
Do not use the tanning appliance if you have a disease and/or use medication or cosmetics that increase the sensitivity of your skin. Be extra careful if you are hypersensitive to UV light. Consult your doctor in case of doubt.
Consult your doctor if ulcers, moles or persistent lumps develop on the skin.
The appliance is not to be used by people who get sunburnt without tanning when exposed to the sun, by persons suffering from sunburn, by children, or by persons who suffer (or have previously suffered) from skin cancer or who are predisposed to skin cancer.
Always wear the protective goggles provided with the appliance while tanning to protect your eyes against overexposure (also see 'Tanning and your health').
Remove creams, lipstick and other cosmetics well in advance of a tanning session.
▶ Do not use any sunscreens or suntan accelerators.
If your skin feels taut after the tanning session, you may apply a moisturising cream.
Colours may fade under the influence of the sun. The same effect may occur when using this appliance.
Do not expect the appliance to yield better results than the natural sun.
This product has been manufactured to comply with the radio interference requirements laid down in directives 87/308 and 87/310/EEC.

Tanning and your health

The sun, UV and tanning

The sun

The sun supplies various types of energy. Visible light enables us to see, ultraviolet (UV) light gives us a tan and the infrared (IR) light in sunrays provides the heat in which we like to bask.

UV and your health

Just as with natural sunlight, the tanning process will take some time. The first effect will only become visible after a few sessions (see 'Tanning sessions: how often and how long?').

Overexposure to ultraviolet light (natural sunlight or artificial light from your tanning appliance) can cause sunburn.

Besides many other factors, such as overexposure to natural sunlight, incorrect and excessive use of a tanning appliance may increase the risk of skin and eye problems. The degree to which these effects occur is determined by the nature, intensity and duration of the exposure on the one hand and the sensitivity of the person involved on the other hand.

ENGLISH6

The more the skin and the eyes are exposed to UV light, the higher the risk of keratitis, conjunctivitis, damage to the retina, cataracts, premature skin ageing and the development of skin tumours will be. Some medications and cosmetics increase the sensitivity of the skin.

▶ Therefore it is highly important:

• that you follow the instructions given in 'Important' and 'Tanning sessions: how often and how long?';
• that the tanning distance (distance between the UV filter and the body) is 65 cm;
• that you do not exceed the maximum number of tanning hours per year: i.e. 19 hours or 1140 minutes (also see 'Tanning sessions: how often and how long?');
• that you always wear the goggles provided while tanning.

Tanning sessions: how often and how long?

Take one tanning session a day for five to ten days. Wait at least 48 hours after the first session before taking the second session. After this 5 to 10-day course, we advise you to give your skin a rest for a while.

▶ Approximately one month after a course, your skin will have lost much of its tan. You can then start a new course.
If you want to keep your tan, do not stop tanning after the course, but continue taking one or two tanning sessions a week.

Whether you choose to stop tanning for a while or whether you continue tanning on a lower frequency, always keep in mind that you must not exceed the maximum number of tanning hours. For this appliance the maximum is 19 tanning hours (= 1140 minutes) a year.

Example

Suppose you are taking a 10-day course, consisting of a 7-minute tanning session on the first day and a 20-minute tanning session on the following nine days.

The entire course will then last (1 x 7 minutes) + (9 x 20 minutes) = 187 minutes.

This means you can take 6 of these courses a year, as 6 x 187 minutes = 1122 minutes.
Of course, the maximum number of tanning hours applies to each separate part or side of the body that is tanned (e.g. the back or front of the body).

Table

As is shown in the table, the first session of a tanning course should always last 7 minutes, irrespective of the sensitivity of the skin.

If you think that the sessions are too long for you (e.g. if the skin gets taut and tender after the session), we advise you to reduce the duration of the sessions by e.g. 5 minutes.

For a beautiful all-over tan, turn your body slightly during the session so that the sides of you body are better exposed to the tanning light.

If your skin feels slightly taut after tanning, you can apply a moisturising cream.

Duration of the tanning session for each separate part of the body	for persons with very sensitive skin	for persons with normal sensitive skin	for persons with less sensitive skin
1st session	7 minutes	7 minutes	7 minutes
rest of at least 48 hours
2nd session	10 minutes	20-25 minutes	30 minutes*
3rd session	10 minutes	20-25 minutes	30 minutes*
4th session	10 minutes	20-25 minutes	30 minutes*
5th session	10 minutes	20-25 minutes	30 minutes*
6th session	10 minutes	20-25 minutes	30 minutes*
7th session	10 minutes	20-25 minutes	30 minutes*
8th session	10 minutes	20-25 minutes	30 minutes*
9th session	10 minutes	20-25 minutes	30 minutes*
10th session	10 minutes	20-25 minutes	30 minutes*

*) or longer, depending on your skin sensitivity.

Preparing for use

In transport position the appliance can be easily moved and stored because it has wheels (fig. 2).
The appliance is easier to lift if you do so together with another person.
▶ NB:The appliance weighs more than 28 kg.

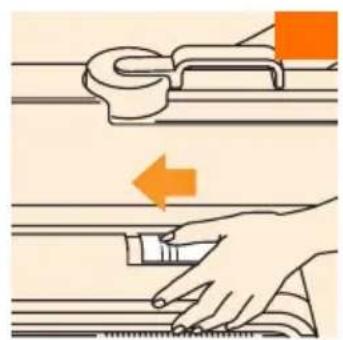

2 Unlock the lamp unit (L) from the base (R) by pushing the slides (F) in the direction of the arrow (fig. 3).
3 Pull the stand (G) and the lamp unit (L) upwards (fig. 4).
4 Put the tanning appliance in the position shown in the picture (fig. 5).
5 Pull the lamp unit (L) up into horizontal position by means of the handgrip (J) (fig. 6).

▶ You will hear clicks when you move the lamp unit past certain fixed positions.

6 Instead of using the above step-by-step method described, you can also pull the lamp unit up by its handgrip in one single movement (fig. 7).

▶ Hold the handgrip (J).

7 Turn the lamp unit a quarter turn (fig. 8).

When you have done this, the tanning appliance will have been folded out into the position shown in the figure (fig. 9).

8 Place the tanning appliance beside a bed as shown in the figure (fig. 10).

9 Unlock the locking collar for height adjustment (H) by sliding the collar downwards. Slide out the stand (G) with your other hand until the lamp unit (L) is approx. 85 cm above the bed (fig. 11).

Use the measuring tape (P) to check the distance between the bed and the lamp unit.

10 Let go of the collar to lock the lamp unit in position.

Using the appliance

Setting the timer (HB826 only)

I Fully unwind the mains cord.

2 Insert the mains plug into the wall socket.

3 Consult the memory knobs and the table in these instructions for use.

4 Put on the protective goggles supplied.

5 Set the timer to the required tanning time (fig. 12).

6 Lie down under the lamp unit.

Once the set time has elapsed, the timer will switch off the tanning appliance automatically.

NOTE: the timer can be set up to a maximum of 60 minutes. If you wish to treat both sides of your body directly after each other, we advise you to reset the timer just before the set time has elapsed. By doing this, you can avoid the 3-minute waiting period which would otherwise be necessary before the lamps can be switched on again.

Remote control unit (HB828 only) (fig.1)

a Time setting button for 1-30 minutes.

b Start button: press this button to switch on the tanning lamps and the timer.

C Pause/repeat button: press this button if you want to interrupt the session(e.g. when the telephone rings).The tanning lamps will go out and the remaining time of the session will blink in the display.You can also press this button during the last minute of a session to repeat the set time (e.g. to treat the other side of the body).

d Blinking signal: this signal is only visible when the timer is counting down the time.

e Pilot light: this light is on when the appliance is connected to the mains.

f Beeper: the beeper indicates that the last minute of the time set for the tanning session has started.

- If you want the tanning appliance to operate longer than the set time, you will have to set a new time when you hear the beeper go off. You can also press button → during the last minute of a session to repeat the set time.

g Display: the display shows the set time. During the session the display shows the remaining time.

ATTENTION

In the following cases you will see 00 in the display:

- after you have inserted the plug into the wall socket;

- at the end of the tanning session (blinking during the first three minutes);

- after a mains failure;

- after the overheat protection has come into operation.

In these cases the tanning lamps will not be on.

! Fully unwind the mains cord and take the remote control unit out of the storage compartment (B).

2 Insert the mains plug into the wall socket.

3 Consult the memory knobs and the table in these instructions for use.

4 Put on the protective goggles supplied.

5 Set the duration of the tanning session (fig. 13).

Press + to put the time forward.

Press - to put the time backward.

Keep the button pressed to adjust the time more quickly.

6 Switch on the tanning lamps (fig. 14).

Press button Ⓑ. Blinking signal ⓓ will become visible on the display and the preset session time will be shown.

The timer will count down the set session time.

During the last minute of the session, the beeper 📕 will sound.

During this minute you can press button ↗ to repeat the session time or set a new time.

By doing this, you can avoid the 3-minute waiting time which is necessary to allow the tanning lamps to cool down after they have been switched off.

7 Lie down under the lamp unit.

▶ Repeating the session time (during the last minute) (fig. 15).

Press button ⬆.The previously set tanning session time appears on the display.The beeping stops.

Setting a different session time (during the last minute) (fig. 16).

Set a new tanning session time and then press button Ⓐ.

As soon as this button has been pressed, the beeping will stop and the new session time will start.

If you do not repeat the session time or set a new session time, the tanning appliance will switch off automatically as soon as the set session time has elapsed.

Extra facilities

▶ Interruption of the tanning session (e.g. to answer a telephone call) (fig. 17).

- Press button ↻.

The tanning lamps are switched off. Blinking signal ⓐ disappears from the display.

The remaining tanning session time blinks on the display.

- After three minutes, the blinking stops. Then, you can switch on the tanning lamps again by pressing button ①.

If you want to use the tanning appliance shorter than the set time: (fig. 18).

- Press button ①. The tanning lamps are switched off and you can set a new session time;

- Wait until the time shown on the display stops blinking. Then press button ① again.

After the tanning session

- Keep track of the number of sessions you have had by means of the memory knobs. The appliance has two memory knobs: one per person.

Let the tanning appliance cool down for 15 minutes before folding it in and storing it.

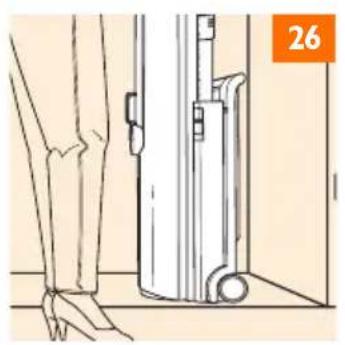

Storage

Wind the mains cord and store it in the storage compartment (B). HB828 only: make sure the cord and remote control are stored properly too.

▶ Be careful that the cord(s) and the remote control (HB828 only) do not get stuck between the base and the lamp unit when you fold the appliance back into transport position.

2 Release the locking collar for height adjustment (H) by sliding the collar downwards with one hand. Slide in the stand with the other hand and then release the collar (fig. 19).

3 Turn the lamp unit a quarter turn (fig. 20).

4 Lift the lamp unit a little with one hand and unlock the lamp unit by sliding the two lugs (I) down with the other hand (fig. 21).

ENGLISH10

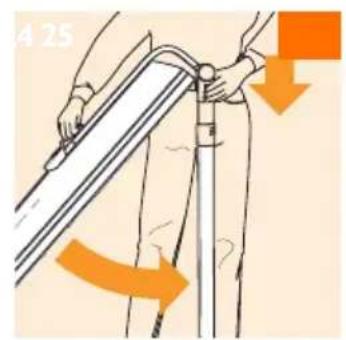

5 Lower the lamp unit carefully into vertical position (fig. 22). Release the two lugs.
6 Lower the stand with the lamp unit onto the base (R) (fig. 23).
7 Lock the lamp unit onto the base by pushing the slides (F) in the direction of the arrow (fig. 24).
8 You can store the tanning appliance horizontally under a bed (fig. 25).
9 You can also store it in a cupboard in upright position (fig. 26).

Cleaning

Always unplug the appliance and let it cool down before you start cleaning it.

Never use scouring pads and abrasive liquids such as scouring agents, petrol or acetone to clean the appliance.

• Clean the outside of the appliance with a damp cloth.
  ▶ Do not let any water run into the appliance.
• You can clean the UV filter with a soft cloth sprinkled with some methylated spirits.

Replacement

The UV filter protects against exposure to undesired UV light. It is therefore important to have a damaged or broken filter replaced right away.

The light emitted by the tanning lamps will become less bright in time (i.e. after a few years in case of normal use). When this happens, you will notice a decrease in the tanning capacity of the appliance. You can solve this problem by setting a slightly longer tanning time or by having the tanning lamps replaced.

Have the tanning lamps, the UV filter and the cord replaced by a service centre authorised by Philips. Only they have the knowledge and skills required for this job and the original spare parts for your tanning appliance.

Environment

The lamps of the appliance contain substances that can be harmful to the environment. When you discard the lamps, do not throw them away with the normal household waste but hand them in at an official collection point.

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Guarantee restrictions

The tanning lamps are not covered by the terms of the international guarantee.

Troubleshooting

If the appliance has not been installed or is not used in accordance with the instructions, it may fail to work properly. In that case you will be able to solve the problem yourself by following the troubleshooting tips below.

If the problem is not mentioned in the list, the appliance may not work properly because it has a defect. In that case we advise you to contact your dealer or a Philips service centre.

Problem	Possible causes
The appliance does not start.	The plug has not been properly inserted into the wall socket.
	The appliance has not been folded out properly.
	Perhaps there is a power failure. Check by means of another appliance.
	The lamps are still too hot to go on. Let them cool down for 3 minutes first.
	The appliance was not sufficiently cooled and the overheating protection switched the appliance off automatically. Remove the cause of overheating (e.g. remove a towel that is blocking one or more vents).Wait for 10 minutes and switch the appliance on again (HB828), or continue the session when the lamps come on again (HB826).
The fuse cuts off the mains power when the appliance is switched on or during use.	Check the fuse of the circuit to which the tanning appliance is connected.The correct fuse is a 16A standard fuse or an automatic fuse.The fuse may also blow because you have connected too many appliances to the same circuit.
Poor tanning results.	You are using an extension cord that is too long or does not have the correct current rating (16A). Consult your dealer. Our general advice is not to use an extension cord.
	You are not following the tanning schedule suitable for your skin type. Check the table in 'Tanning sessions: how often and how long?'
	When the lamps have been used for a long time, the intensity of the UV light emitted will decrease.This effect only becomes noticeable after several years.You can solve this problem by selecting a slightly longer tanning time or by replacing the lamps.
	The distance between the body and the UV filter is larger than 65 cm.

Einleitung

Illustration of a hand opening a vehicle with an orange arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to press down a wall-mounted lock, with an orange arrow indicating the process (no text or symbols present)

Illustration of a hand holding a car with an attached electrical plug and directional arrow (no text or symbols)

Line drawing of a person's legs and arm holding a vacuum cleaner (no text or symbols)
