Product Type	DVD Player / VCR Combo
Brand	Sony
Model	SLV-D950E
Dimensions (W x H x D)	approx. 430 x 95 x 300 mm
Weight	approx. 5 kg
Power Supply	220-240 V AC, 50/60 Hz
Power Consumption	approx. 25 W
Playback Media	DVD, CD, VCD, VHS tapes
Recording Media	VHS tapes
Video Outputs	Composite, S-Video, Component (Y/Pb/Pr)
Audio Outputs	Analog Stereo, Digital Coaxial

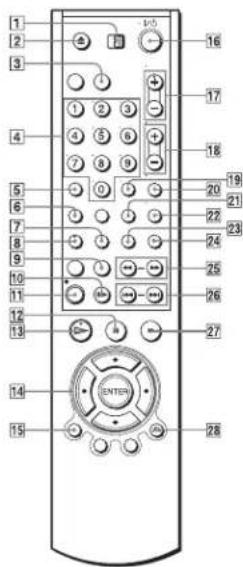

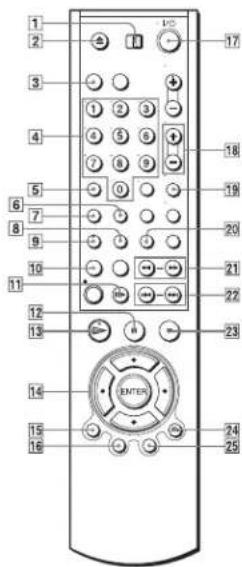

Remote Control	Included (infrared)
Timer Recording	Yes, up to 8 programs
Playback Features	Slow motion, Still, Repeat, Zoom
Maintenance	Clean video heads with a cleaning cassette
Safety	Avoid moisture; unplug during storms
Spare Parts	Contact Sony service center for replacements

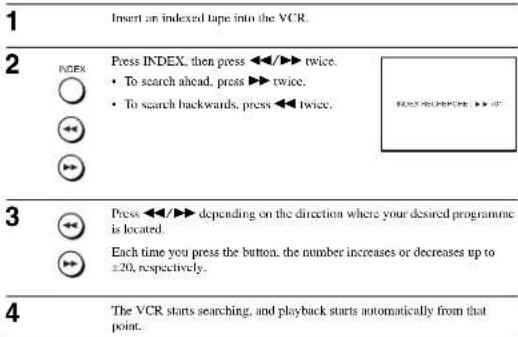

Additional Information	Automatic channel tuning; Index search for VCR

Frequently Asked Questions - SLV-D950E SONY

How do I switch between DVD and VCR mode?

Press the DVD or VCR button on the remote control or on the front panel of the unit. The display will indicate which mode is active.

Why is there no picture on my TV?

Check that the correct input source is selected on your TV. Ensure the cables are securely connected to the proper output jacks (e.g., Composite or S-Video). Verify the unit is turned on and not in standby mode.

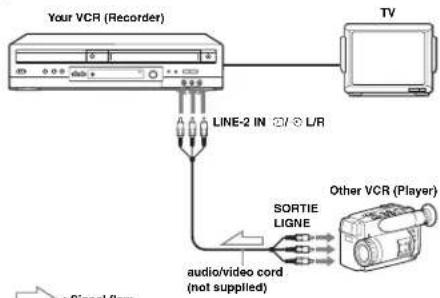

Can I record from DVD to VHS?

Yes, you can record the signal from a DVD being played to a VHS tape. Simply insert a blank VHS tape, select the DVD source, start playback, and press REC on the VCR mode.

How to set the clock and timer recording?

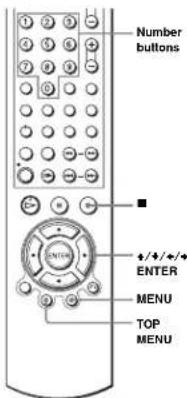

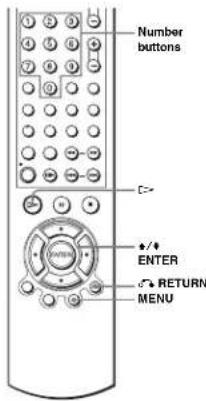

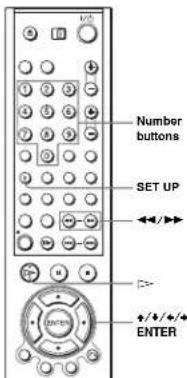

Press MENU and navigate to Setup > Clock Set. Use the number buttons to enter date and time. For timer recording, go to Timer in the menu and program the start/stop time, channel, and recording speed.

What types of discs can I play?

This device plays DVDs, CDs, VCDs, and audio CDs. It does not support Blu-ray or HD DVD.

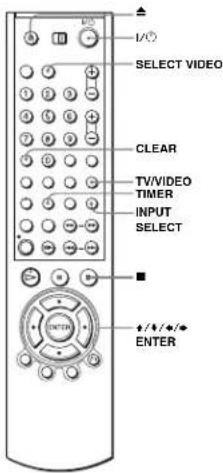

The remote control is not working. What should I do?

First, check the batteries and replace them if needed. Make sure there are no obstacles between the remote and the sensor. Clean the remote's IR lens and try again.

How do I clean the video heads?

Use a VHS head cleaning cassette following the manufacturer's instructions. Insert the cleaning cassette, play for about 10-20 seconds, then remove. Do not use abrasive materials.

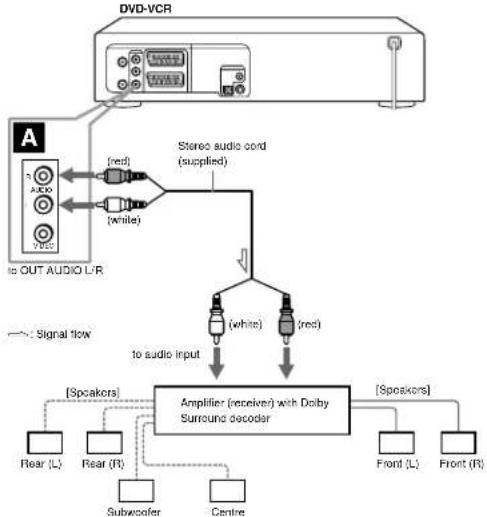

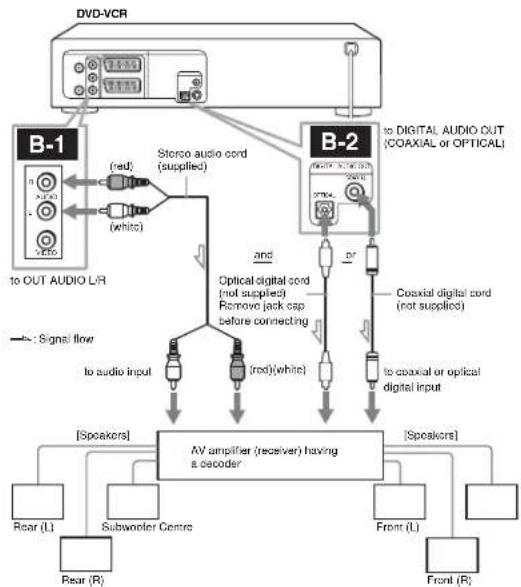

Can I connect this device to a surround sound system?

Yes, you can connect using the digital coaxial audio output to a compatible receiver or use the analog stereo outputs. The device does not have HDMI output.

How can I reset the unit to factory defaults?

Unplug the power cord for at least 2 minutes, then reconnect. Alternatively, with the unit off, press and hold the POWER button on the front panel until 'RESET' appears on the display.

Why does the VCR eject the tape immediately?

This may indicate a tape error, a dirty head, or a mechanical problem. Try cleaning the heads with a cleaning cassette. If the issue persists, the tape may be damaged or the mechanism may need servicing.

USER MANUAL SLV-D950E SONY

Front view line drawing of a CD-ROM front panel with buttons and ports (no text or symbols)

TS-10 MECHANISM

Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENT MANUAL VII for MECHANICAL ADJUSTMENTS. (9-921-790-11)

SPECIFICATIONS

System

Laser

Semiconductor laser

Signal format system

PAL/(NTSC)

SLV-D910B/D950B:

SECAM

SLV-D910B/D910N/D910R/D950B:

MESECAM

Channel coverage

SLV-D910B/D910E/D950B/D950E:

PAL (B/G):

VHF E2 to E12

VHF Italian channel A to H

UHF E21 to E69

CATV S01 to S05, S1 to S20

HYPER S21 to S41

SLV-D950GI:

PAL (I):

VHF IA to IJ, SA10 to SA13

UHF B21 to B69

CATV S01 to S05, S1 to S20

HYPER S21 to S41

SLV-D910B/D950B:

SECAM (L):

VHF F2 to F10

UHF F21 to F69

CATV B to Q

HYPER S21 to S41

SLV-D910N/D910R:

PAL (B/G, D/K):

VHF E2 to E12, R1–R12

UHF E21 to E69, R21–R69

CATV S01 to S05, S1 to S41

SLV-D910AZ:

B/G: VHF E2 to E12/UHF E21 to E69/

CATV S01 to S05, S1 to S41

B/B: VHF R1 to R12/UHF R21 to R69

RF output signal

SLV-D910E/D910N/D910R/D950E/D950GI:

UHF channels 21 to 69

SLV-D910AZ:

UHF channels 21 to 69 (B/G)

UHF channels 28 to 69 (B/B)

Aerial out

75-ohm asymmetrical aerial socket

Tape speed

SP: PAL 23.39 mm/s

(recording/playback)

NTSC 33.35 mm/s

( playback only)

SLV-D910B/D950B:

SECAM 23.39 mm/s

(recording/playback)

MESECAM 23.39 mm/s

( playback only)

SLV-D910N/D910R

MESECAM 23.39 mm/s

(recording/playback)

— Continued on next page —

DVD PLAYER/

VHS PIL

Hi-Fi

SHOWVIEW®

VIDEOplus®

(recording/playback)

NTSC 16.67 mm/s

( playback only)

SLV-D910B/D950B:

SECAM 11.70 mm/s

(recording/playback)

MESECAM 11.70 mm/s

( playback only)

SLV-D910N/D910R:

MESECAM 11.70 mm/s

(recording/playback)

EP: NTSC 11.12 mm/s

( playback only)

Maximum recording/playback time

10 hrs. in LP mode (with E300 tape)

Rewind time

Approx. 1 min. (with E180 tape)

Inputs and outputs

SLV-D910B/D910E/D910N/D910R/D950B/

D950E/D950GI:

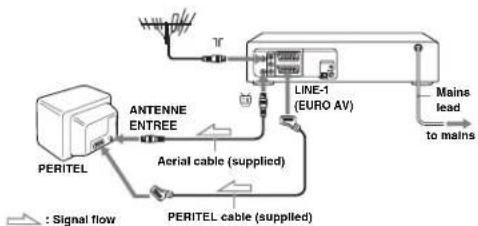

LINE-1 (EURO AV)

21-pin

Video input: pin 20

Audio input: pins 2 and 6

Video output: pin 19

Audio output: pins 1 and 3

LINE-2 IN ⇌ / ⇌ L/R

VIDEO IN, phono jack (1)

Input signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative

AUDIO IN, phono jacks (2)

Input level: 327 mVrms

Input impedance: more than 47 kilohms

LINE-3

21-pin

Video input: pin 20

Audio input: pins 2 and 6

OUT

VIDEO OUT, phono jack (1)

Output signal: 1 Vp-p, 75 ohms, unbalanced,

sync negative

AUDIO OUT, phono jacks (2)

Standard output: 327 mVrms

Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

SLV-D910AZ:

LINE IN1/LINE-2 IN

VIDEO IN, phono jack (1)

Input signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative

AUDIO IN, phono jacks (2)

Input level: 327 mVrms

Input impedance: more than 47 kilohms

LINE OUT

VIDEO OUT, phono jack (1)

Output signal: 1 Vp-p, 75 ohms, unbalanced,

sync negative

AUDIO OUT, phono jacks (2)

Standard output: 327 mVrms

Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

DIGITAL OUT (OPTICAL)

Optical output jack/-18 dBm

DIGITAL OUT (COAXIAL)

Phono jack/0.5 Vp-p/75 ohms

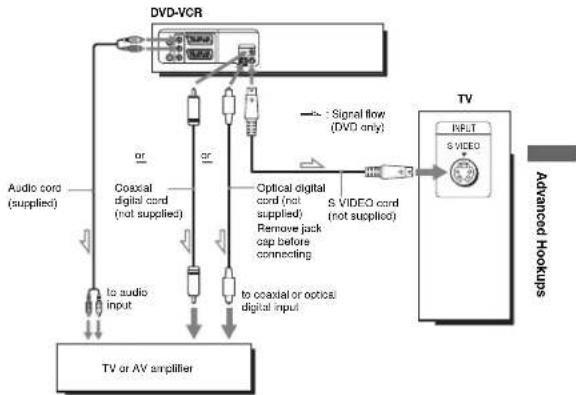

S VIDEO OUT

4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL),

0.286 Vp-p (NTSC)/75 ohms

SLV-D910AZ:

COMPONENT VIDEO OUT (Y, Cb, Cr)

phono jack

Y: 1.0 Vp-p/Cb, Cr: 0.7 Vp-p, 75 ohms

Timer section

Clock

Quartz locked

Timer indication

24-hour cycle

Timer setting

6 programs (max.)

SLV-D910AZ:

Power back-up

Back-up duration: up to 1 hour at a time

General

Power requirements

220 - 240 V AC, 50 Hz

Power consumption

25 W

Operating temperature

5^ C to 40^ C

Storage temperature

-20°C to 60°C

Dimensions including projecting parts and

controls (w/h/d)

SLV-D910AZ/D950:

Supplied accessories

Remote commander (1)

R6 (size AA) batteries (2)

Aerial cable (1)

Audio cord (pinplug · 2 ↔ pinplug · 2) (1)

Video cord (pinplug · 1 ↔ pinplug · 1) (1)

Design and specifications are subject to

change without notice.

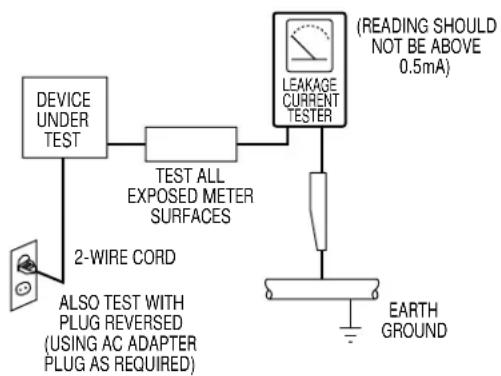

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

1. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
2. Check the B+ voltage to see it is at the values specified.

CAUTION:

The use of optical instrument with this product will increase eye hazard.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This appliance is classified as

a CLASS 1 LASER product.

The CLASS 1 LASER

PRODUCT MARKING is

located on the rear exterior.

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead-free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

- Unleaded solder melts at a temperature about 40^ higher than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to about 350^ C.

Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!

- Strong viscosity

Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK △ OR DOTTED LINE WITH MARK △ ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

TABLE OF CONTENTS

Precautions

1 Safety Precautions 5

2 Servicing Precautions 7

3 ESD Precautions 8

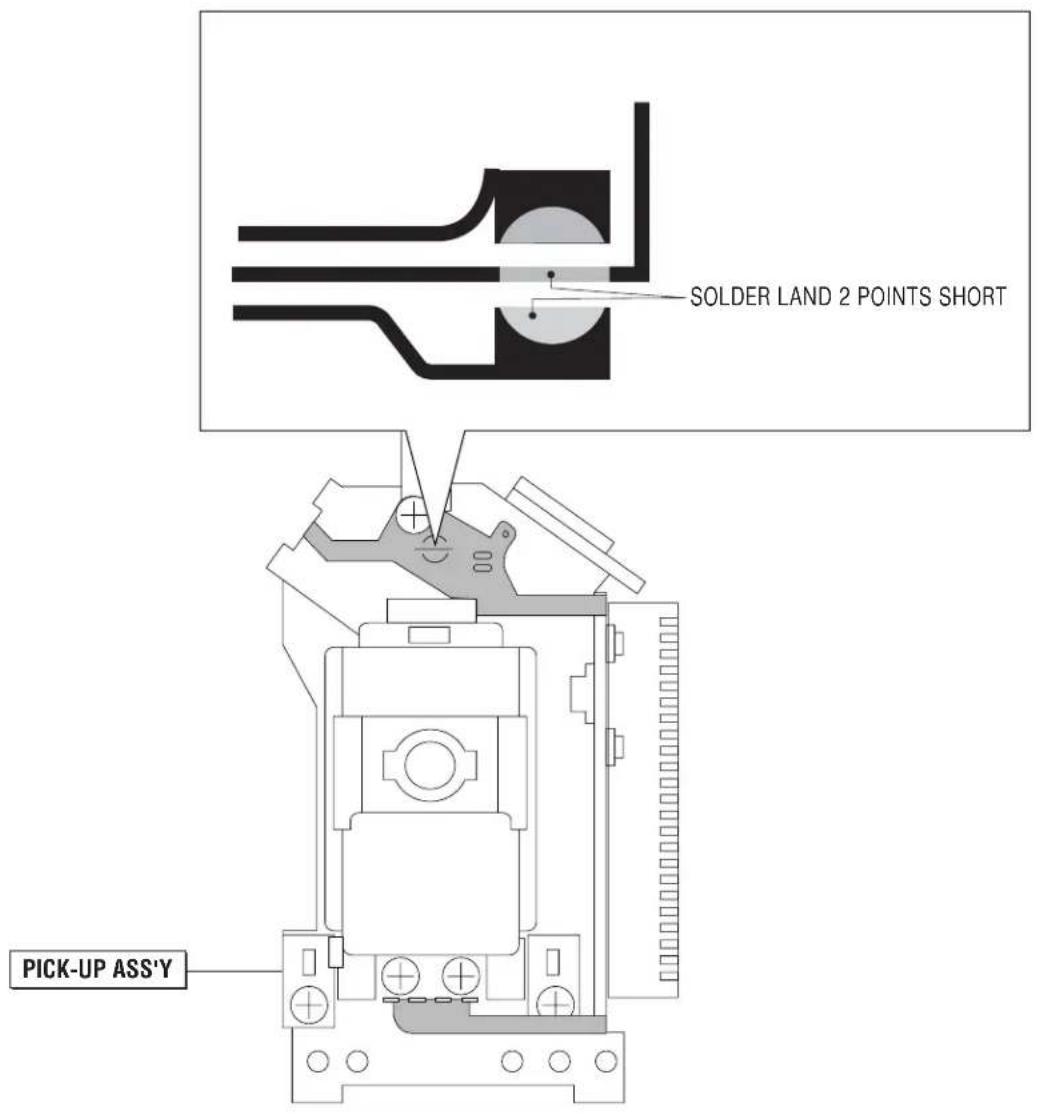

4 Handling the Optical Pick-up 9

5 Pick-up Disassembly and Reassembly 10

1. General

Getting Started.... 1-1

Basic Operations.... 1-6

Advanced Hookups 1-13

DVD Settings and Adjustments 1-14

DVD Additional Operations 1-17

VCR Additional Operations 1-22

Additional Information 1-26

2. Disassembly and Reassembly

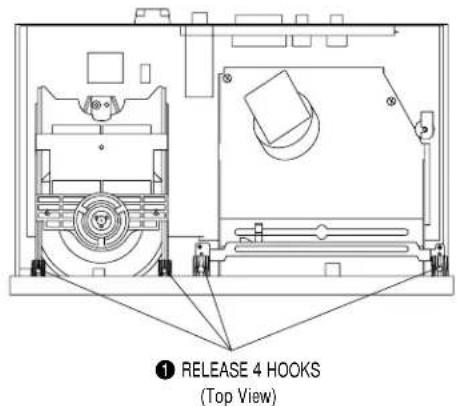

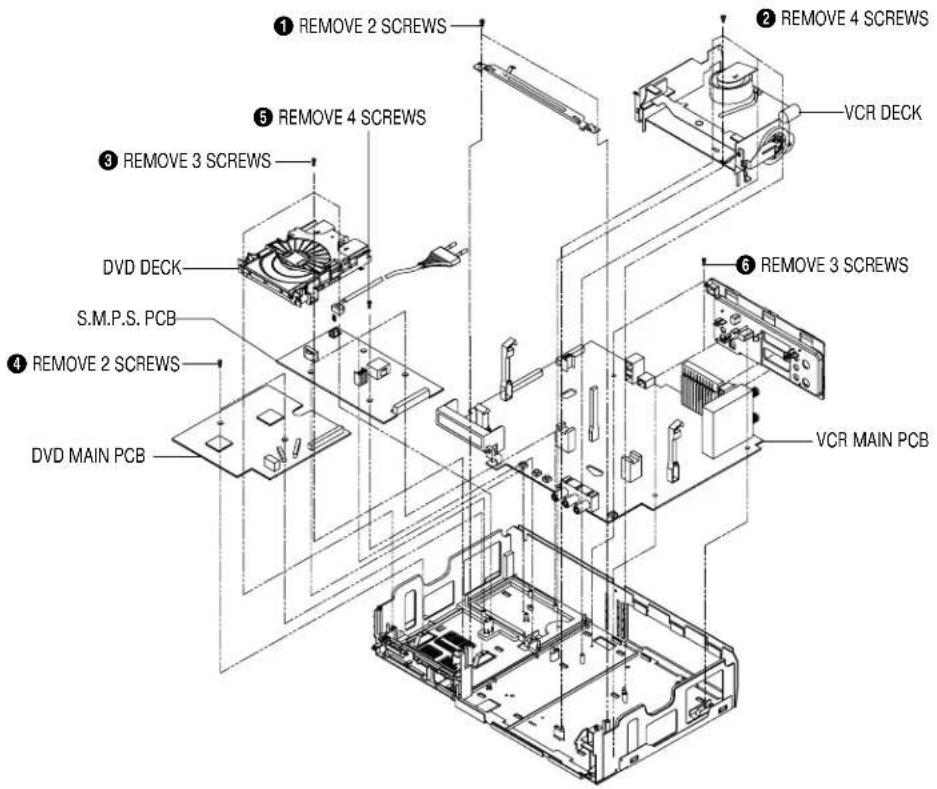

2-1 Cabinet and PCB 2-1

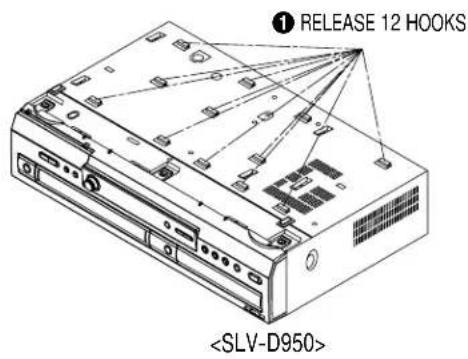

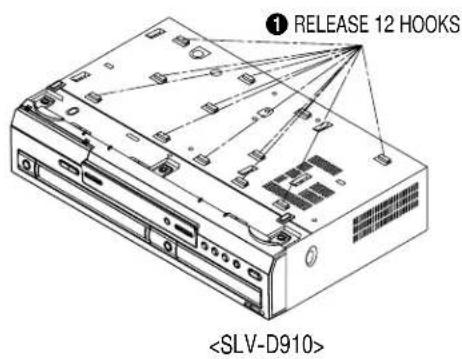

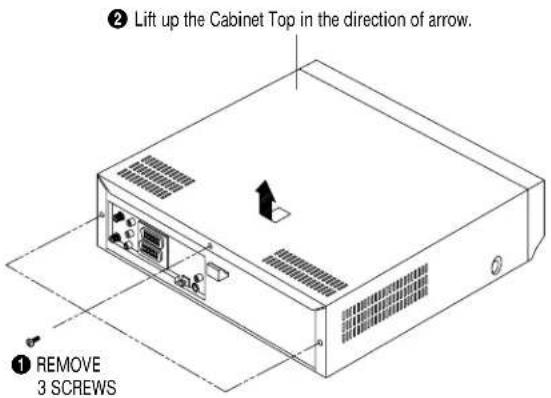

2-1-1 Cabinet Top Removal 2-1

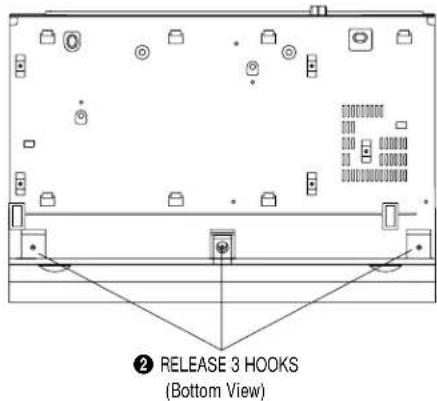

2-1-2 Bottom Cover Removal 2-1

2-1-3 Ass'y Front Panel Removal 2-1

2-1-4 Function PCB Removal 2-1

2-1-5 Chassis Removal 2-2

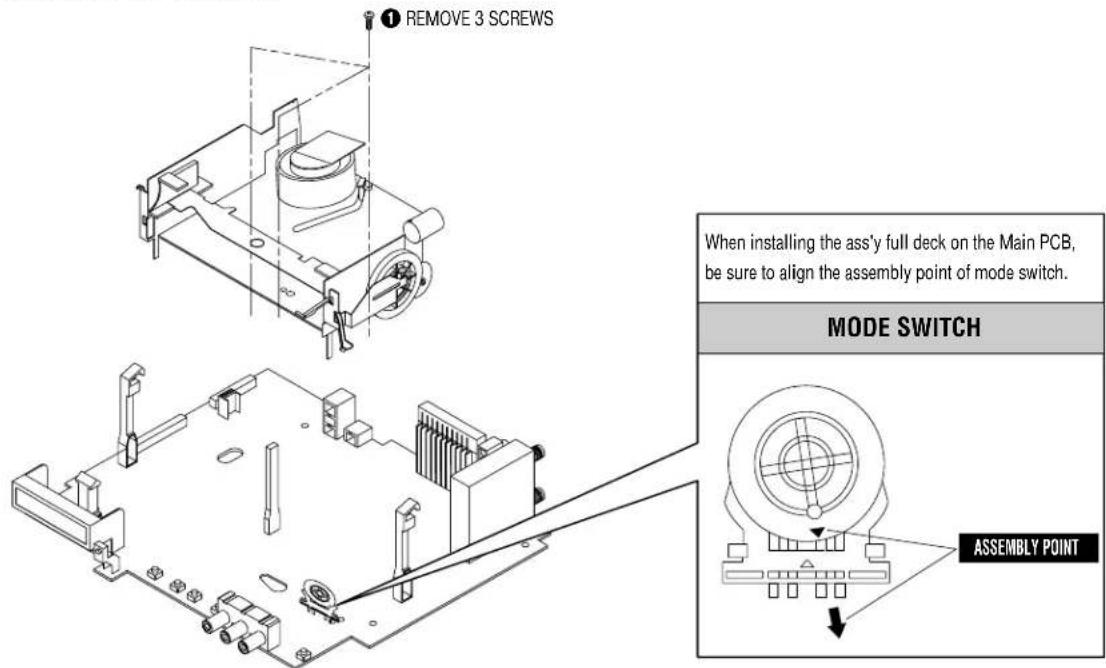

2-1-6 VCR Main PCB Removal 2-2

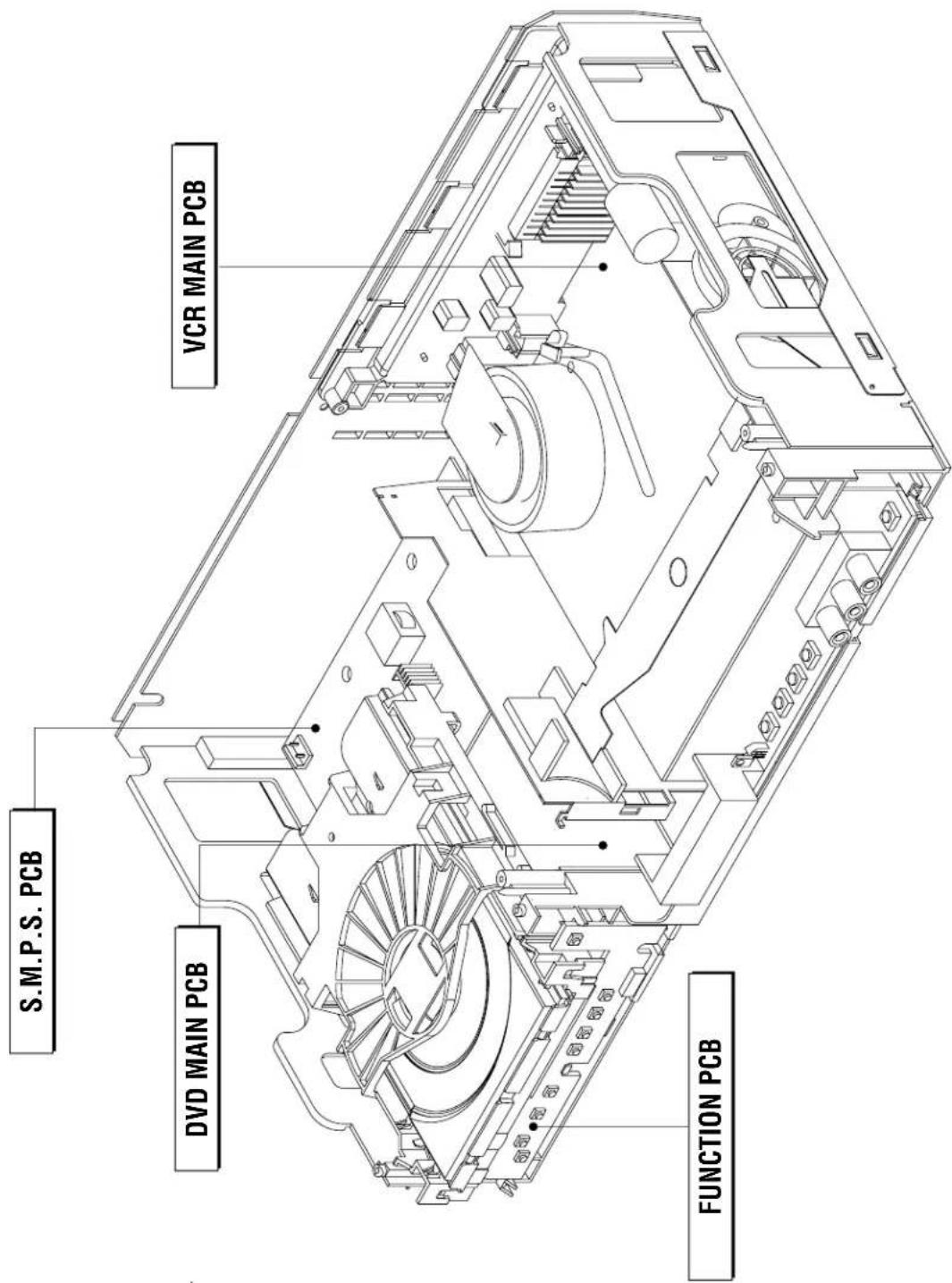

2-2 Circuit Board Locations 2-3

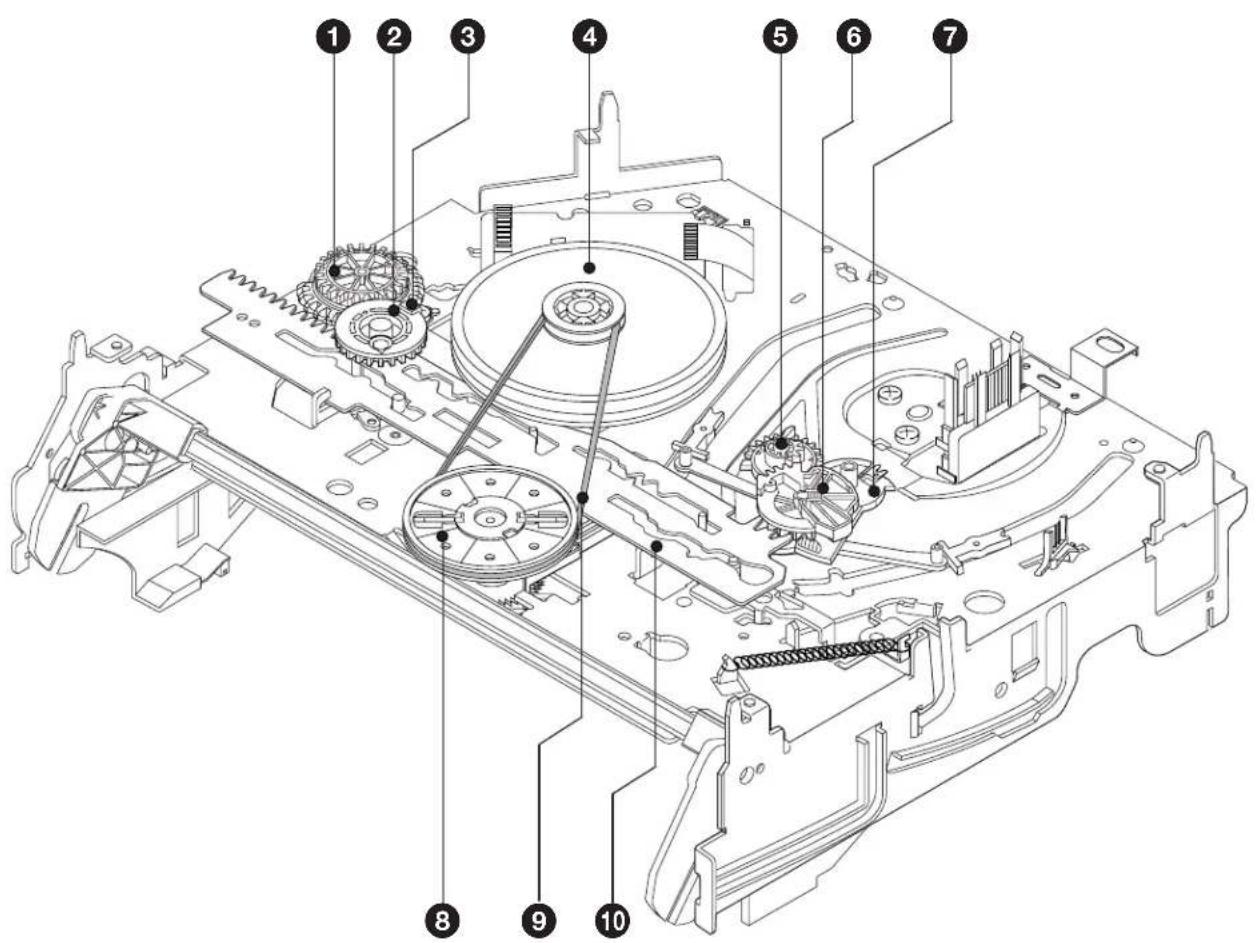

2-3 VCR Deck Parts Locations 2-4

2-3-1 Top View 2-4

2-3-2 Bottom View 2-6

2-4 VCR DECK 2-7

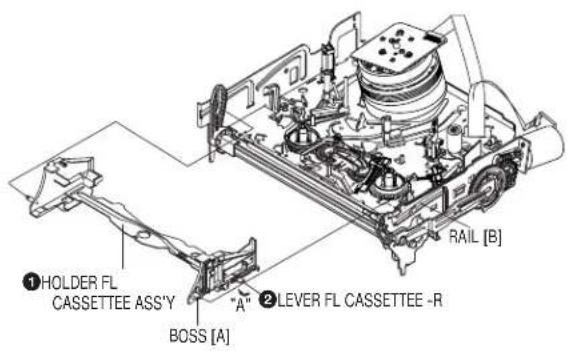

2-4-1 Holder FL Cassette Ass'y Removal 2-7

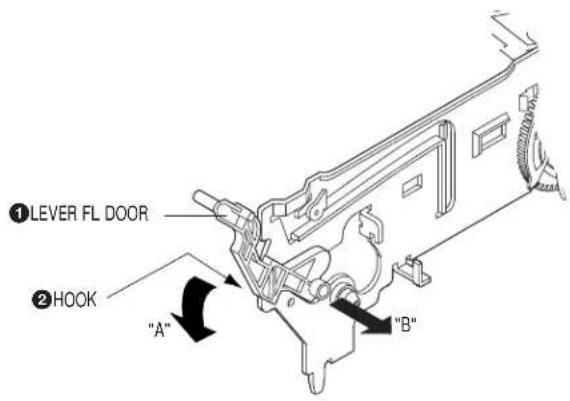

2-4-2 Lever FL Door Removal 2-7

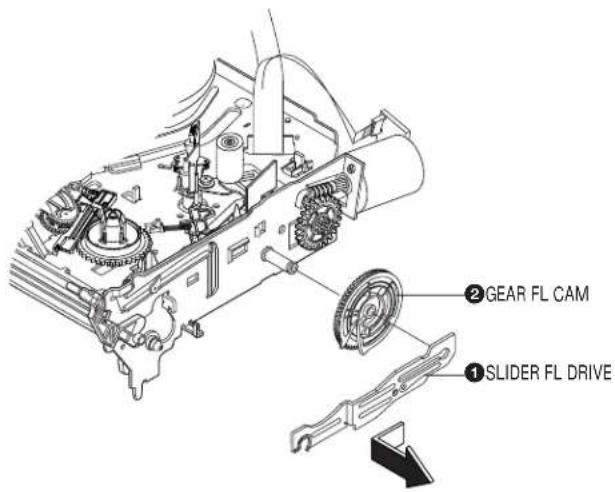

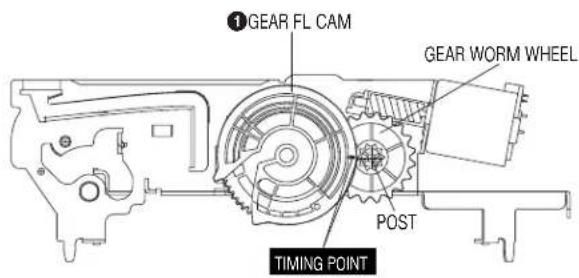

2-4-3 Slider FL Drive, Gear FL Cam Removal 2-8

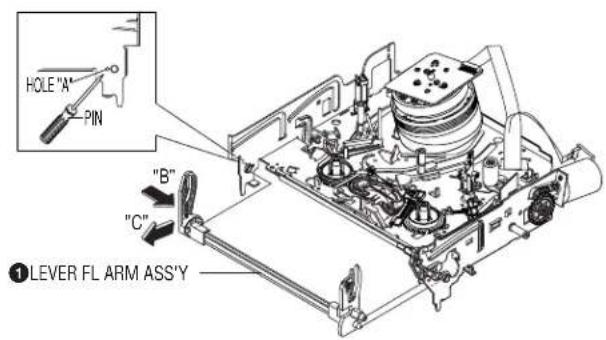

2-4-4 Lever FL Arm Ass'y Removal 2-8

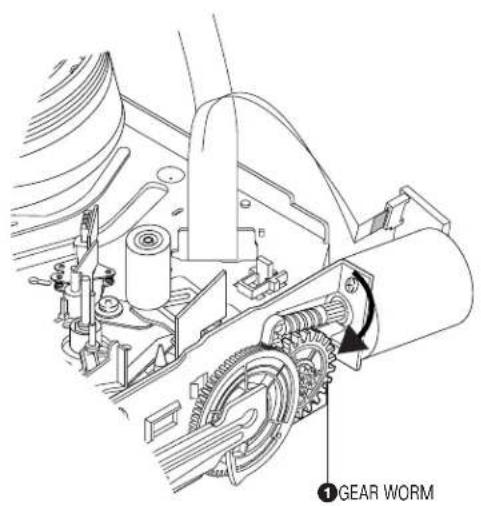

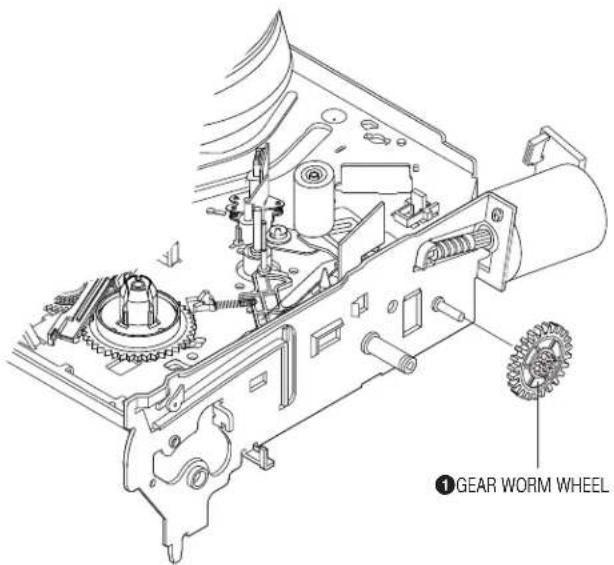

2-4-5 Gear Worm Wheel Removal 2-9

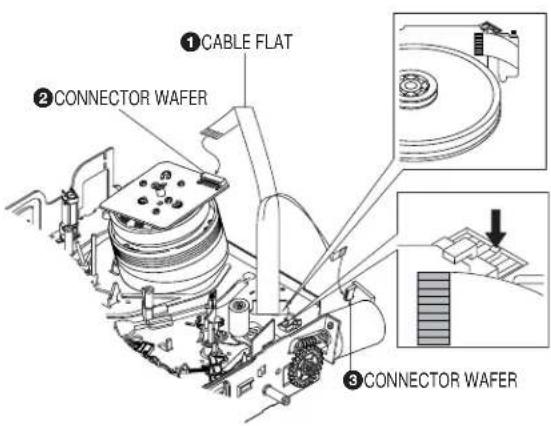

2-4-6 Cable Flat Removal 2-9

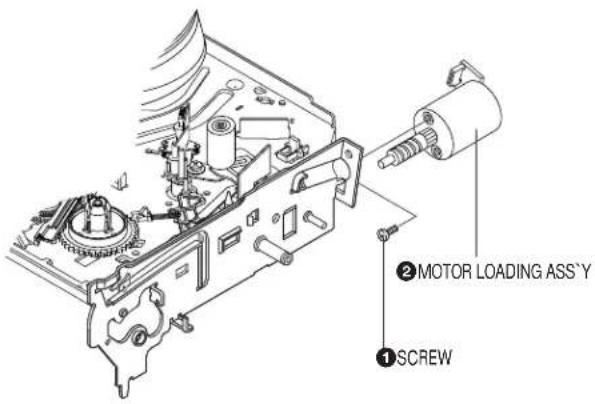

2-4-7 Motor Loading Ass'y Removal 2-10

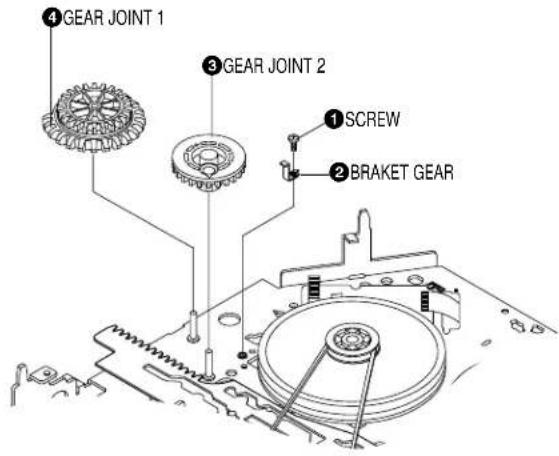

2-4-8 Bracket Gear, Gear Joint 2, 1 Removal 2-10

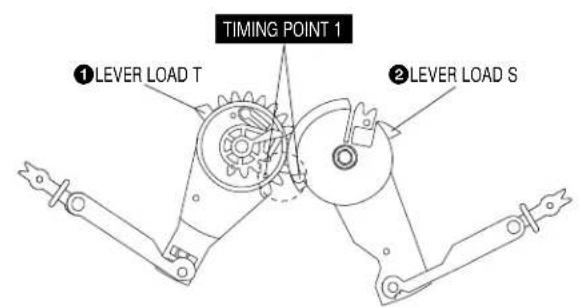

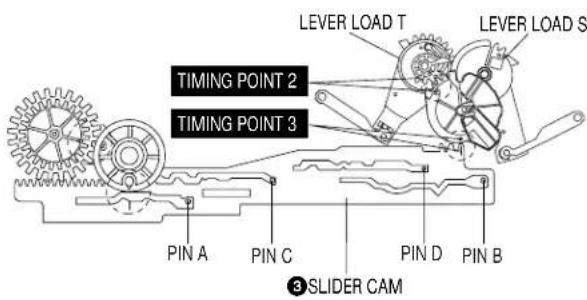

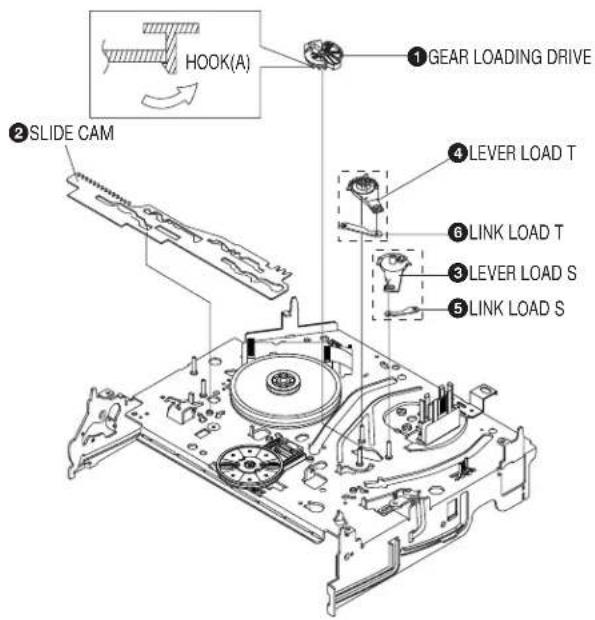

2-4-9 Gear Loading Drive, Slider Cam, Lever Load S, T Ass'y Removal 2-11

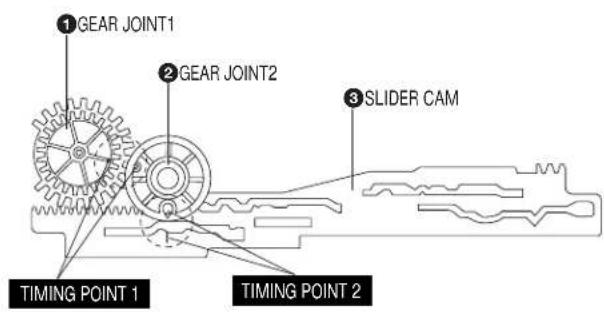

2-4-10Gear Loading Drive, Slider Cam, Lever Load S, T Ass'y Assembly 2-11

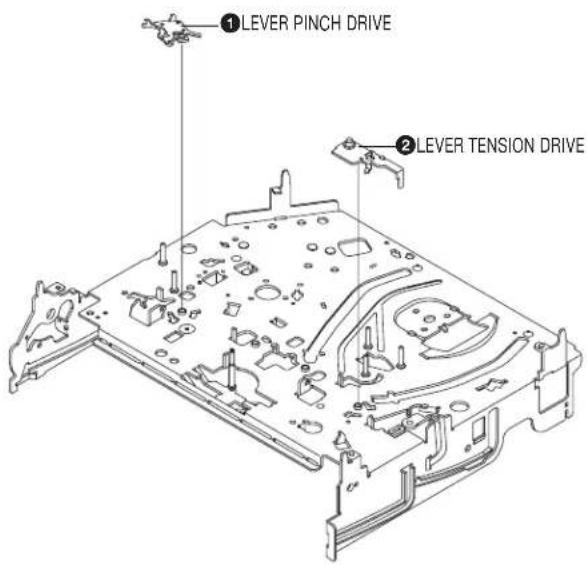

2-4-11 Lever Pinch Drive, Lever Tension Drive Removal 2-12

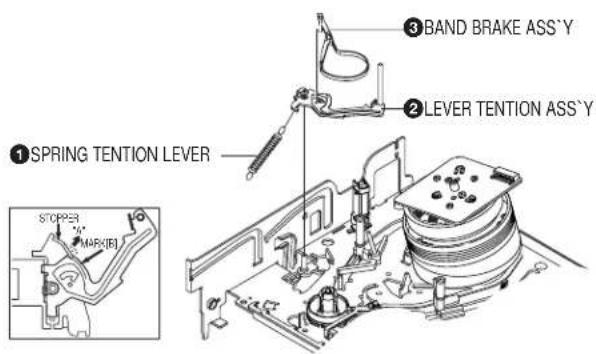

2-4-12 Lever Tension Ass'y, Band Brake Ass'y Removal 2-12

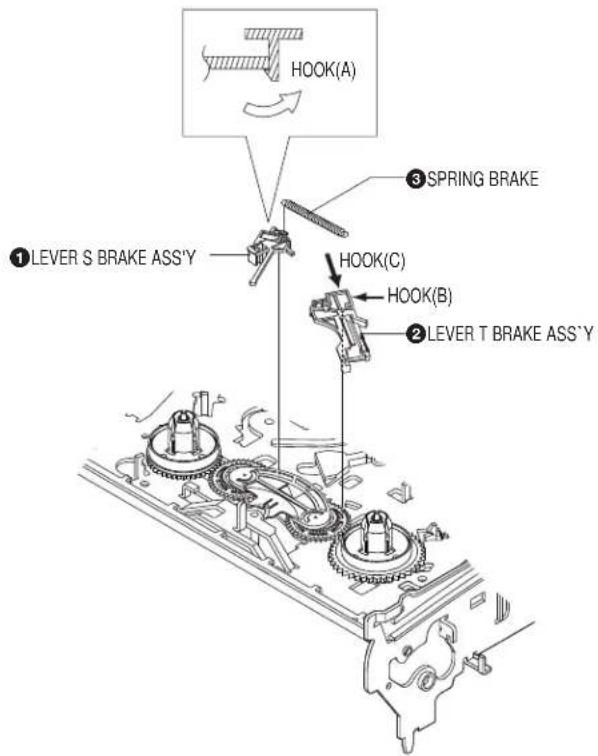

2-4-13 Lever Brake S, T Ass'y Removal 2-13

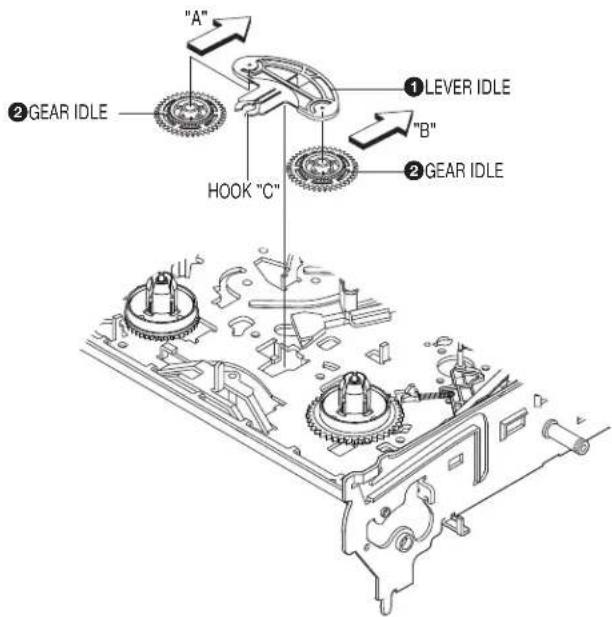

2-4-14Gear Idle Ass'y Removal 2-13

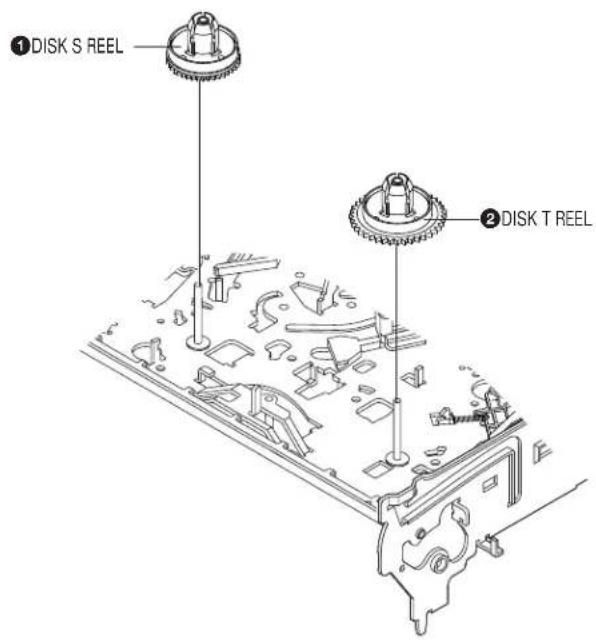

2-4-15Disk S, T Reel Removal 2-14

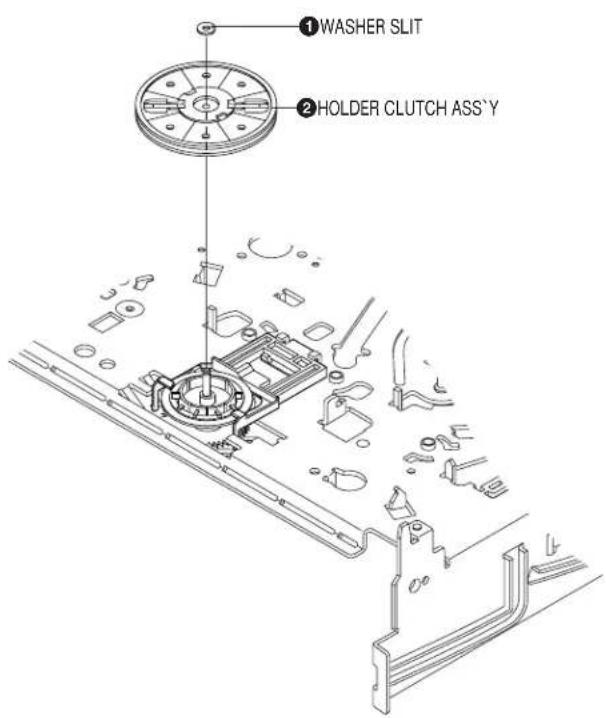

2-4-16Holder Clutch Ass'y Removal 2-14

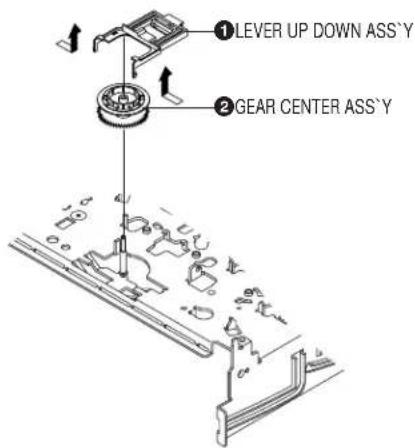

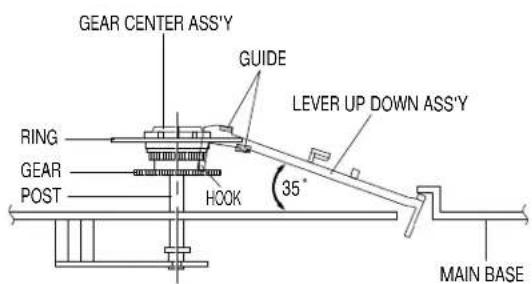

2-4-17 Lever Up Down Ass'y, Gear Center Ass'y Removal ..... 2-15

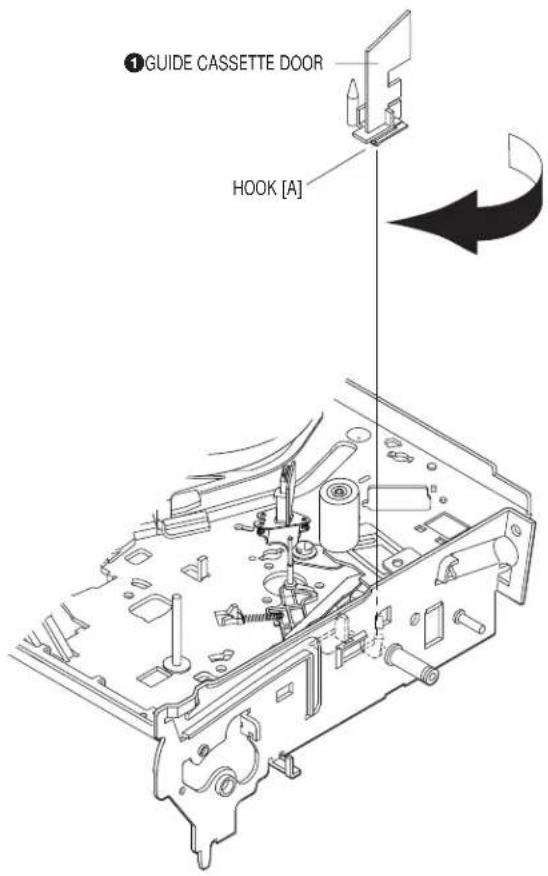

2-4-18Guide Cassette Door Removal 2-15

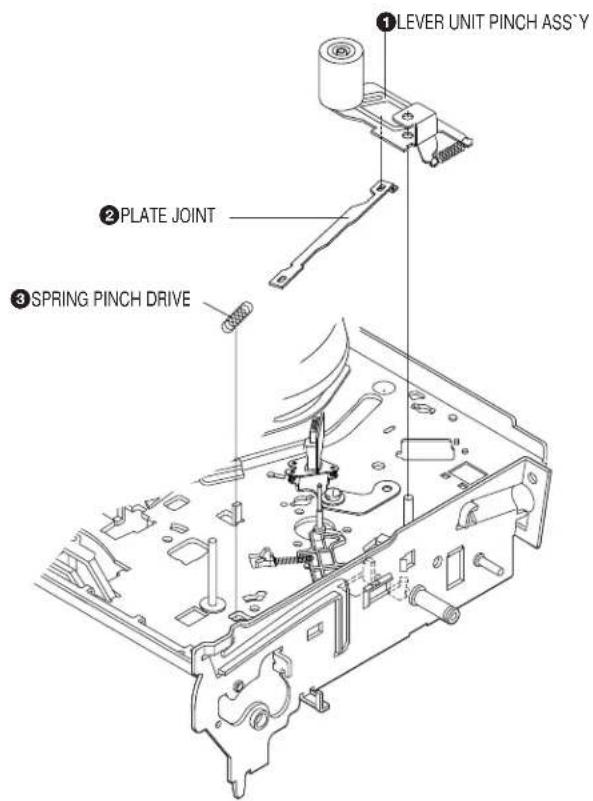

2-4-19 Lever Unit Pinch Ass'y, Plate Joint, Spring Pinch Drive Removal 2-16

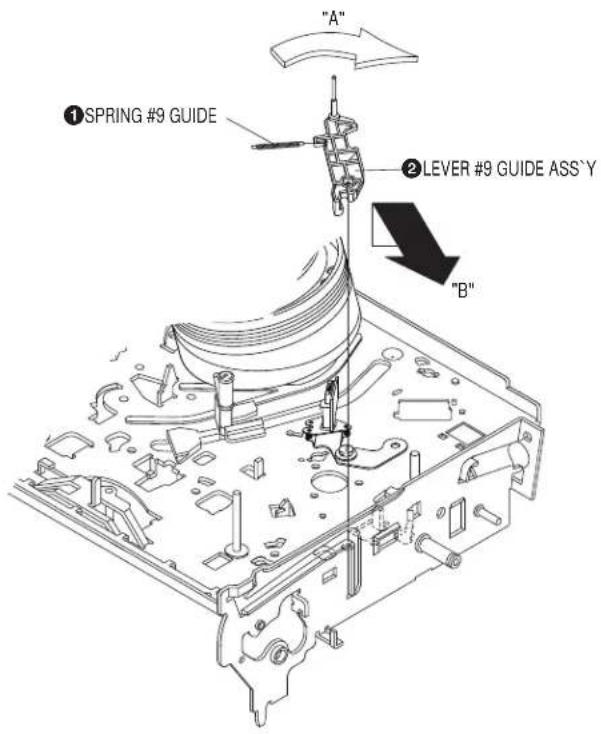

2-4-20 Lever #9 Guide Ass'y Removal 2-16

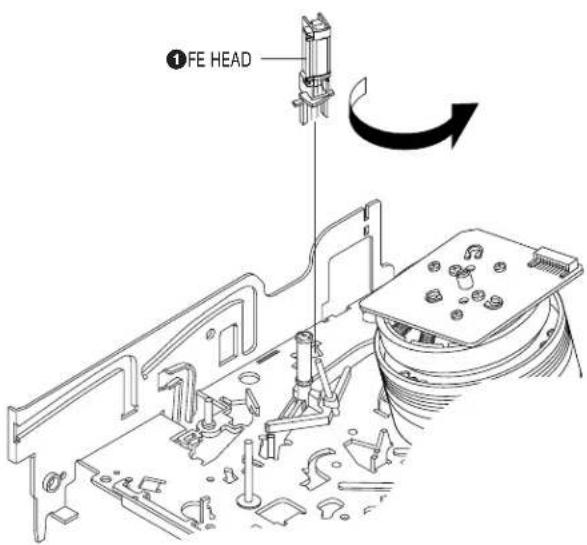

2-4-21FE Head Removal 2-17

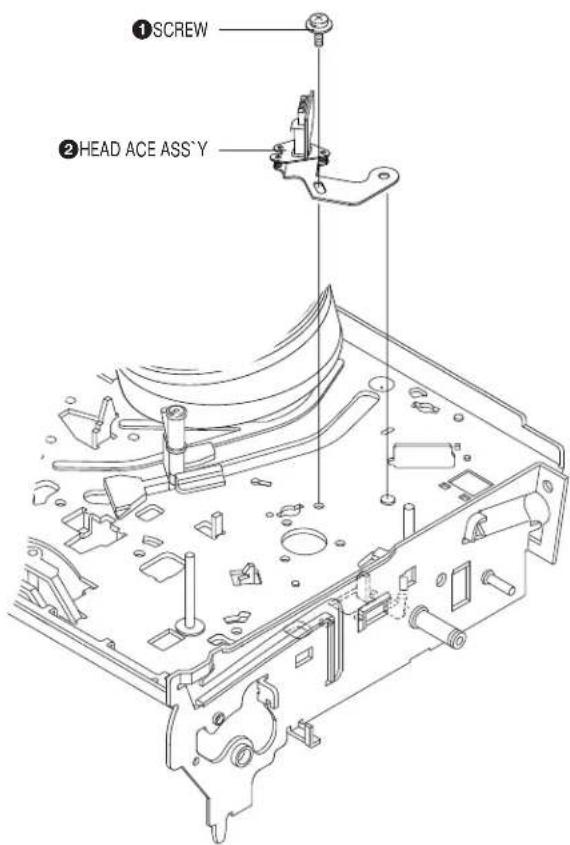

2-4-22ACE Head Removal 2-17

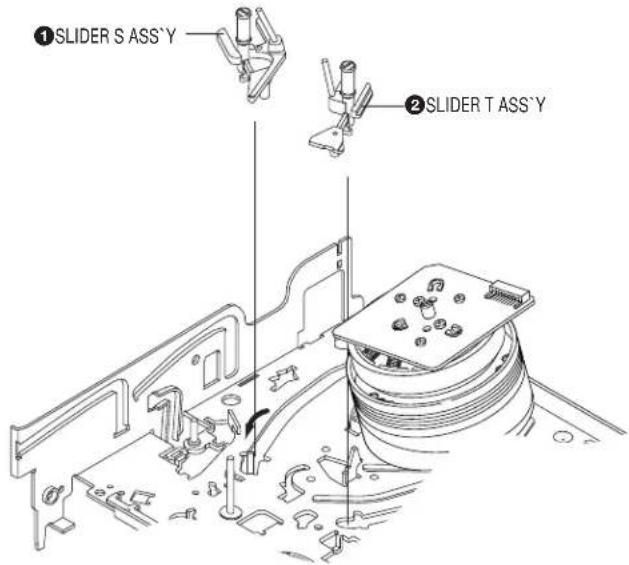

2-4-23Slider S, T Ass'y Removal 2-18

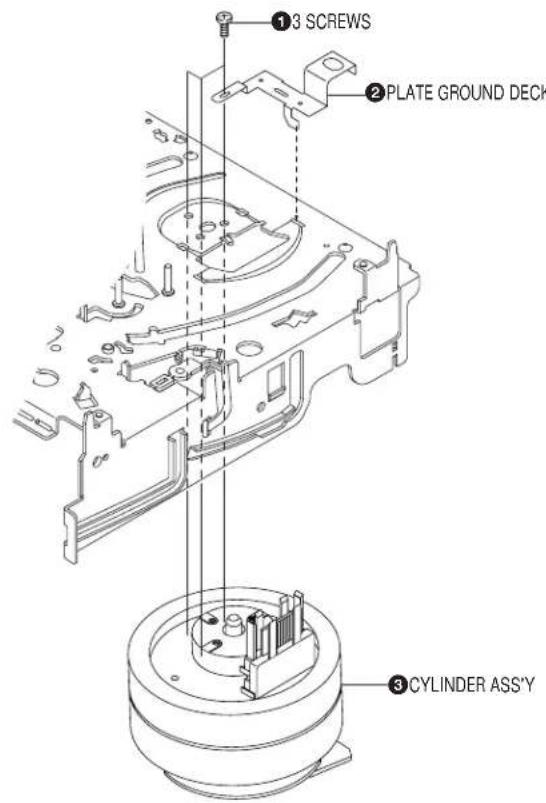

2-4-24Plate Ground Deck, Cylinder Ass'y Removal 2-18

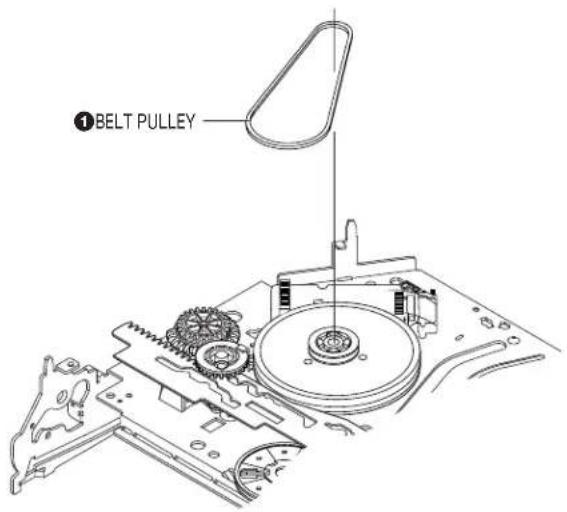

2-4-25Belt Pulley Removal 2-19

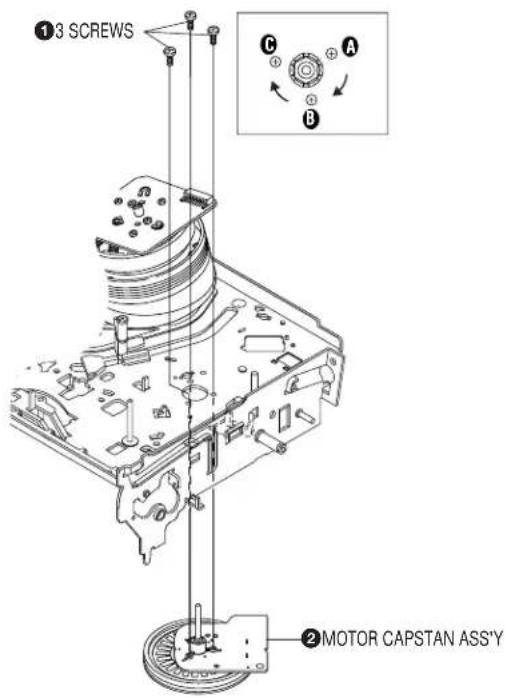

2-4-26Motor Capstan Ass'y Removal 2-19

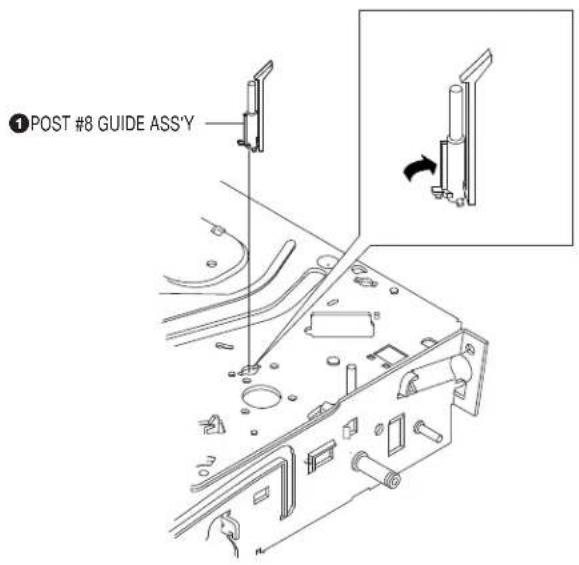

2-4-27Post #8 Guide Ass'y Removal 2-20

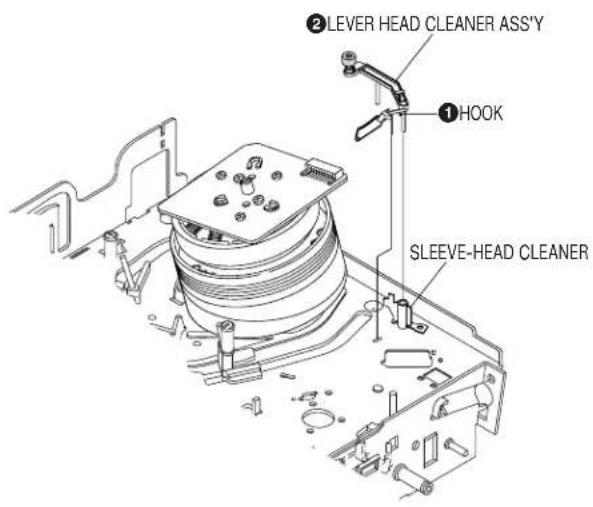

2-4-28Level Head Cleaner Ass'y Removal (Optional) 2-20

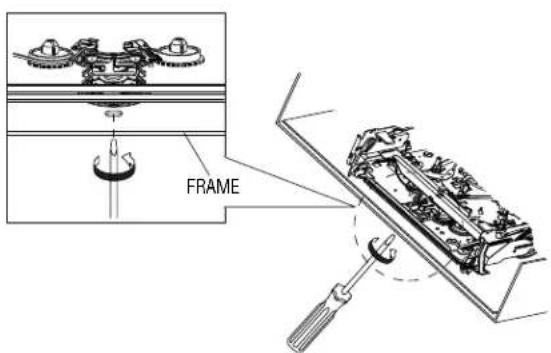

2-4-29How to Eject the Cassette Tape 2-20

2-5 The Table of Cleaning, Lubrication and Replacement Time about Principal Parts 2-21

2-6 DVD Deck 2-22

2-6-1 Tray Disc Removal 2-22

2-6-2 Ass'y P/U Deck Removal 2-23

2-6-3 Housing Ass'y Removal 2-24

2-6-4 Sub Chassis Removal 2-25

2-6-5 Ass'y Brkt Deck Removal 2-26

3. Block Diagram 3-1

4. PCB Diagrams

4-1 VCR Main 4-3

4-2 DVD Main 4-7

4-3 S.M.P.S. 4-11

4-4 Function 4-13

4-5 Dial-Timer (SLV-D950B/D950E/D950GI/D910AZ Only)…… 4-13

5. Schematic Diagrams

◆ Block Identification of Main PCB 5-3

5-1 S.M.P.S. 5-5

5-2 Power Drive 5-7

5-3 OSD/VPS/PDS 5-9

5-4 A2/NICAM 5-11

5-5 Audio/Video 5-13

5-6 Hi-Fi 5-15

5-7 Input-Output 5-17

5-8 TM 5-19

5-9 Syscon 5-21

5-10 Logic/Function 5-23

5-11 SECAM (SLV-D950B/D910B/D910R Only) 5-25

5-12 DVD Main-Micom/AV Decoder 5-27

5-13 DVD Servo 5-29

5-14 DVD Audio/Video 5-31

6. Alignment and Adjustments

6-1 VCR Adjustment 6-1

6-1-1 Reference 6-1

6-1-2 Head Switching Point Adjustment 6-3

6-1-3 NVRAM Option Setting 6-3

6-2 DVD Adjustment 6-4

6-2-1 Location of Test Point 6-4

6-2-2 Skew Adjustment 6-5

6-3 VCR Mechanical Adjustment 6-7

6-3-1 Tape Transport System and Adjustment Locations 6-7

6-3-2 Tape Transport System Adjustment 6-8

6-3-3 Reel Torque 6-13

7. Troubleshooting 7-1

8. Repair Parts List

8-1 Exploded Views 8-2

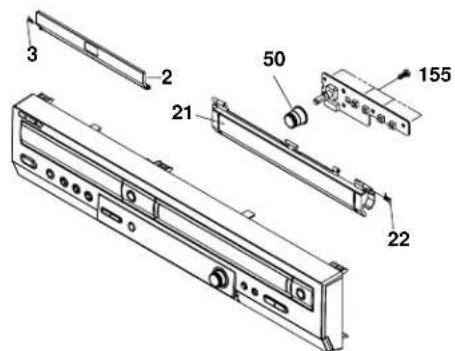

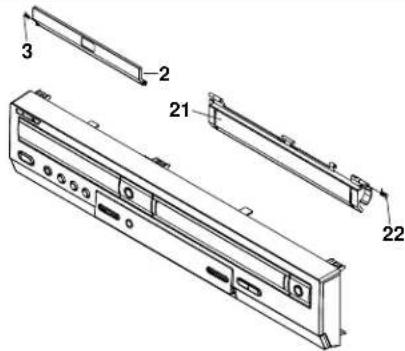

8-1-1 Cabinet Assembly 8-2

8-1-2 VCR Mechanical Parts (Top Side) 8-4

8-1-3 VCR Mechanical Parts (Bottom Side) 8-5

8-1-4 DVD Mechanical Parts 8-6

8-2 Electrical Parts List 8-7

1 SAFETY PRECAUTIONS

1) Before returning an instrument to the customer, always make a safety check of the entire instrument, including, but not limited to, the following items:
(1) Be sure that no built-in protective devices are defective or have been defeated during servicing.

(1) Protective shields are provided to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience.

(2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including, but not limited to, nonmetallic control knobs, insulating fish papers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and functioning.

(2) Be sure that there are no cabinet openings through which adults or children might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, excessively wide cabinet ventilation slots, and an improperly fitted and/or incorrectly secured cabinet back cover.
(3) Leakage Current Hot Check-With the instrument completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1270 (40.7). With the instrument's AC switch first in the ON position and then in the OFF position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinets, screwheads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis.

Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the outlet and repeat the test. See Fig. 1.

Any measurements not within the limits specified herein indicate a potential shock hazard that must be eliminated before returning the instrument to the customer.

Fig. 1 AC Leakage Test

(4) Insulation Resistance Test Cold Check-(1) Unplug the power supply cord and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the instrument. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and all exposed metallic cabinet parts on the instrument, such as screwheads, antenna, control shafts, handle brackets, etc. When an exposed metallic part has a return path to the chassis, the reading should be between 1 and 5.2 megohm. When there is no return path to the chassis, the reading must be infinite. If the reading is not within the limits specified, there is the possibility of a shock hazard, and the instrument must be repaired and rechecked before it is returned to the customer. See Fig. 2.

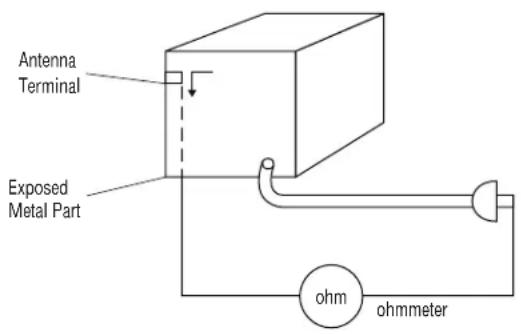

Fig. 2 Insulation Resistance Test

2) Read and comply with all caution and safety related notes on or inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter or add to the mechanical or electrical design of this instrument. Design alterations and additions, including but not limited to, circuit modifications and the addition of items such as auxiliary audio output connections, might alter the safety characteristics of this instrument and create a hazard to the user. Any design alterations or additions will make you, the servicer, responsible for personal injury or property damage resulting therefrom.
4) Observe original lead dress. Take extra care to assure correct lead dress in the following areas:

(1) near sharp edges, (2) near thermally hot parts (be sure that leads and components do not touch thermally hot parts), (3) the AC supply, (4) high voltage, and (5) antenna wiring. Always inspect in all areas for pinched, out-of-place, or frayed wiring, Do not change spacing between a component and the printed-circuit board. Check the AC power cord for damage.

5) Components, parts, and/or wiring that appear to have overheated or that are otherwise damaged should be replaced with components, parts and/or wiring that meet original specifications.

Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading, an ( ) or a ( ) on schematics and parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

CAUTION: Before servicing units covered by this service manual and its supplements, read and follow the Safety Precautions section of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. Remember: Safety First.

2-1 General Servicing Precautions

(1) a. Always unplug the instrument's AC power cord from the AC power source before (1) re-moving or reinstalling any component, circuit board, module or any other instrument assembly, (2) disconnecting any instrument electrical plug or other electrical connection, (3) connecting a test substitute in parallel with an electrolytic capacitor in the instrument.
b. Do not defeat any plug/socket B+ voltage interlocks with which instruments covered by this service manual might be equipped.
c. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.
d. Always connect a test instrument's ground lead to the instrument chassis ground before connecting the test instrument positive lead. Always remove the test instrument ground lead last.

Note: Refer to the Safety Precautions section ground lead last.

(2) The service precautions are indicated or printed on the cabinet, chassis or components. When servicing, follow the printed or indicated service precautions and service materials.

(3) The components used in the unit have a specified flame resistance and dielectric strength.

When replacing components, use components which have the same ratings. Components identified by shading, by (A) or by (A) in the circuit diagram are important for safety or for the characteristics of the unit. Always replace them with the exact replacement components.

(4) An insulation tube or tape is sometimes used and some components are raised above the printed wiring board for safety. The internal wiring is sometimes clamped to prevent contact with heating components. Install such elements as they were.

(5) After servicing, always check that the removed screws, components, and wiring have been installed correctly and that the portion around the serviced part has not been damaged and so on. Further, check the insulation between the blades of the attachment plug and accessible conductive parts.

2-2 Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn the power ON. Connect the insulation resistance meter (500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (see note) should be more than 1 Megohm.

Note: Accessible conductive parts include metal panels, input terminals, earphone jacks, etc.

Electrostatically Sensitive Devices (ESD)

Some semiconductor (solid state) devices can be damaged easily by static electricity.

Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

(1) Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.
(2) After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
(3) Use only a grounded-tip soldering iron to solder or unsolder ESD devices.
(4) Use only an anti-static solder removal devices. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD devices.
(6) Do not remove a replacement ESD device from its protective package until immediately before your are ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive materials).
(7) Immediately before removing the protective materials from the leads of a replacement ESD device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

(8) Minimize bodily motions when handling unpackaged replacement ESD devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ESD device).

The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.

The following method is recommended.

(1) Place a conductive sheet on the work bench (The black sheet used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the chassis is grounded to the sheet.
(3) Place your hands on the conductive sheet(This gives them the same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be careful not to let your clothes or any other static sources to touch the unit.

◆ Be sure to put on a wrist strap grounded to the sheet.

◆ Be sure to lay a conductive sheet made of copper etc. Which is grounded to the table.

Fig.3

(6) Short the short terminal on the PCB, which is inside the Pick-Up ASS'Y, before replacing the Pick-Up. (The short terminal is shorted when the Pick-Up Ass'y is being lifted or moved.)
(7) After replacing the Pick-up, open the short terminal on the PCB.

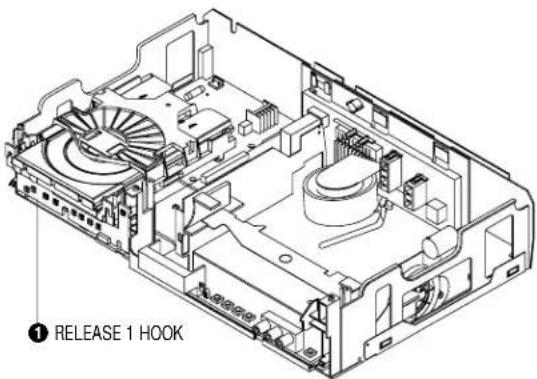

5-1 Disassembly

1) Remove the power cord.
2) Disassemble the Deck-Assy.
3) Make solder land 2 points short on Pick-up. (See Fig. 4)
4) Disassembly the Pick-up.

5-2 Assembly

1) Replace the Pick-up.
2) Remove the soldering 2 points on Pick-up.
3) Reassemble the Deck-Assy.

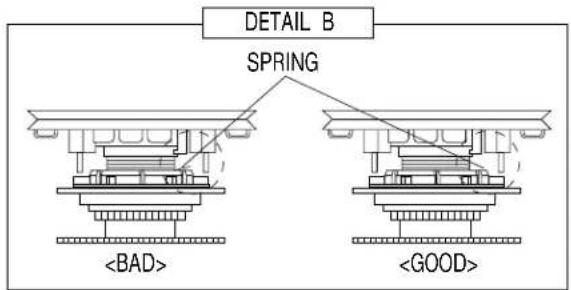

Note: If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.

Fig. 4

1. GENERAL

This section is extracted from SLV-D910B/D950B instruction manual. (3-084-916-E2)

Getting Started

Step 1 : Unpacking

Check that you have received the following items with the DVD-VCR:

• R emote commander • PERITEL cable

• R 6 ( size AA) batteries • Audio cord

(pinplug ×2 ↔ pinplug ×2)

• A erial cable • Video cord

(pinplug ×1 ↔ pinplug ×1)

Check your model name

The instructions in this manual are for the 2 models: SLV-D950B and SLV-D910B. Check your model name by looking at the rear panel of your DVD VCR. SLV-D950B is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, "SLV-D950B only".

8 | Unpacking

Controlling other TVs with the remote commander

The remote commander is preprogrammed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer's code number.

1 Set TV / DVD-VIDEO at the top of the remote commander to TV.
2 Hold down 1/1, and enter your TV's code number using the number buttons. Then release 1/1.

Now you can use the I/(b), VOL +/−, PROG +/−, MUTING*, TV/VIDEO, 0-9 and -/-* buttons to control your TV. You can also use the buttons marked with a dot (*) to control a Sony TV. To control the DVD-VCR, reset TV/ DVD-VIDEO to DVD-VIDEO.

* for Sony TV only

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer	Code number
Sunny	01, 02
Akai	68
Ferguson	52
Grundig	10.11
Hitachi	24
JVC	33
Loewe	45
Mivar	09.70
NEC	66
Nokia	15, 16, 69

Manufacturer	Code number
Panasonic	17, 49
Philips	06, 07, 08
Saba	12, 13
Samsung	22, 23
Sanyo	25
Sharp	29
Telefunken	36
Thomson	43
Toshitsu	38

Notes

• If you enter a new code number, the code number previously entered will be erased.
• If the TV uses a different remote control system from the one programmed to work with the DVD-VCR, you cannot control your TV with the remote commander.
• When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.

Step 2 : Setting up the remote commander

Inserting the batteries

Insert two size AA (R6) batteries by matching the + and - on the batteries to the diagram inside the battery compartment.

Insert the negative (−) end first, then push in and down until the positive (+) end clicks into position.

Using the remote commander

You can use this remote commander to operate this DVD-VCR and a Sony TV. Buttons on the remote commander marked with a dot (*) can be used to operate your Sony TV.

If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.

Getting Started

To operate	Set TV / DVD-VIDEO to
the DVD player DVD-VIDEO _ then press SELECT DVD and point at the remote sensor at the DVD-VCR
the VCR DVD-VIDEO _ then press SELECT VIDEO and point at the remote sensor at the DVD-VCR
your TV TV _ and point at the remote sensor at your TV

Notes

• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
  • D e not use a new battery with an old one.
  • Do not use different types of barteries.
• Do not leave the remote commander in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.

continued

Setting up the remote commander

9

Step 3 : Connecting the DVD-VCR

Note that "Advanced Hookups" (page 59) explains additional hookup methods that will optimize the picture and sound for a true "hometheatre" experience.

Getting Started

1	Disconnect the aerial cable from your TV and connect it to on the rear panel of the DVD-VCR.

2	Connect the DVD-VCR and the aerial input of your TV using the supplied aerial cable.

3	Connect LINE-1 (EURO AV) on the DVD-VCR and the PBRITEL connector on the TV with the supplied PERITEL cable.This connection improves picture and

4 Connect the mains lead to the mains.

continued

Connecting the DVD-VCR

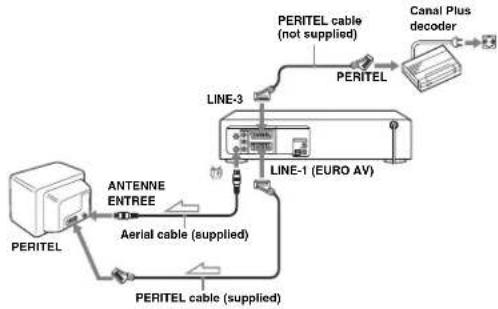

Additional connection

To a satellite or digital tuner with Line Through

Using the Line Through function, you can watch programmes from a satellite or digital tuner connected to this DVD-VCR on the TV even when the DVD-VCR is turned off. When you turn on the satellite or digital tuner, this DVD-VCR automatically sends the signal from the satellite or digital tuner to the TV without turning itself on.

PERITEL cable (not supplied)

1 Connect the satellite or digital tuner to the LINE-3 connector as shown above.

2 Turn off the DVD VCR.

To watch a programme, turn on the satellite or digital tuner and the TV.

Notes

• This function may not work with some types of satellite or digital tuners.
• When the DVD-VCR is turned off, set the TV to the video channel

Press ♦/♦ to select your country, then press ENTER.

The DVD-VCR starts searching for all of the receivable channels and presets them (in the appropriate order for your local area).

If you want to change the order of the channels or disable unwanted programme positions, see "Changing/disabling programme positions" on

After the search is complete, the current time appears for any stations that transmit a time signal. If the time does not appear, set the clock manually. See "Setting the clock" on page 16.

INSTALLATION AUTO
Nordic alamundi	10%

To cancel the Auto Set Up function

Press SET UP.

Tip

- If you want to change the language for the on-screen display from the one preset in the Auto Set Up function, see page 15.

Notes

• Whenever you operate the Auto Set Up function, some of the settings (ShowView, tumor, etc.) will be reset. If this happens, you have to set them again.
• Auto preset starts automatically only when you plug in the mains lead for the first time after you purchase the DVD-VCR.
• If you want to use the Auto Set Up function again, select "Installation" in the "OPTION" menu, then press ♦/♦ to select "Installation Auto", then repeat step 3.
• Auto preset can be performed by pressing ■ on the unit continuously for 5 seconds or more during power off with no tape inserted.

Step 4 : Setting up the DVD-VCR with the Auto Set Up function

Before using the DVD-VCR for the first time, set up the DVD-VCR using the Auto Set Up function. With this function, you can set TV channels, guide channels for the ShowView system*, and DVD-VCR clock automatically.

* SLV-D950B only

1

Turn on your TV and set it to the video channel.

2

Connect the mains lead to the mains.

The DVD-VCR automatically turns on and the "SELECTION DU PAYS" menu appears.

continued

Setting up the DVD-VCR with the Auto Set Up function

13

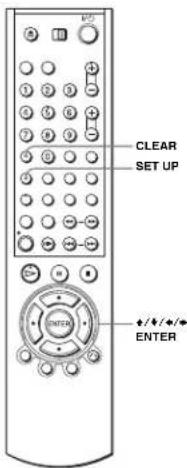

Step 5 : Selecting a language

If you prefer an on-screen language other than French, use the on-screen display to select another language.

Before you start...

• T ur n on the DVD-VCR and your TV.
- T is control the DVD-VCR, set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- S et your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Langue", then press ENTER. The "SELECTION LANGUE" menu appears.

3

Press ♦/♦ to select the desired language, then press ENTER.

4

Press SET UP to exit the menu.

Selecting a language

15

Step 6 : Setting the clock

You must set the time and date on the DVD-VCR to use the timer features properly.

The Auto Clock Set function works only if a station in your area is broadcasting a time signal.

Before you start...

• Turn on the DVD-VCR and your TV.
• T o control the DVD-VCR, set TV
DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- Set your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "L'horloge", then press ENTER.

The "REGLAGE HORI.OGE" menu appears.

3

Press ♦/♦ to set the hour.

16

Setting the clock

Step 7 : Presetting channels

If some channels could not be preset using the Auto Set Up function, you can preset them manually.

Before you start...

• Turn on the DVD-VCR and your TV.
• T o control the DVD-VCR, set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- Set your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Installation", then press ENTER.

The "INSTALLATION" menu appears.

18

Presetting channels

4

Press to select the minutes and set the minutes by pressing / .

5

Set the day, month, and year in sequence by pressing ♦ to select the item to be set, and press ♦/♦ to select the digits, then press ♦. The day of the week is set automatically.

6

Press ♠/♦ to select "Oui" for the setting of the Auto Clock Set function.

The DVD-VCR automatically sets the clock according to the time signal broadcast between the channels PR 1 to PR 5.

If you do not need the Auto Clock Set function, select "Non".

7

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

8

Press SET UP to exit the menu.

Tips

- If you set "Horloge Auto" to "Oui", the Auto Clock Set function is activated whenever the DVD VCR is turned off. The time is adjusted automatically by making reference to the time signal from the station.

- To change the digits while setting, press to return to the item to be changed, and select the digits by pressing / .

Note

• The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off.

Setting the clock

17

3

Press ♦/♦ to select "Installation Manuelle", then press ENTER.

4

Press ♠/♦ to select the row which you want to preset, then press ♦.

5

Press ♦/♦ to select "SYS." if necessary.

6

Press ♦/♦ to set "L/L." or "B/G" if necessary. • T o receive broadcast in France, select "L/L".

7

Press ♦/♦ to select "CANAL", then press ♦/♦ repeatedly until the channel you want is displayed.

8

Press ♦/♦ to select "NOM", then press ➔.

continued

Presetting channels

19

9

Enter the station name.

1 Press ♦/♦ to select a character. Each time you press ♦, the character

changes as shown below. A → B → ... → Z → 0 → 1 → ... → 9 → A

2 Press → to set the next character.

The next space flashes.

To correct a character, press ◆/◆ until the character you want to correct flashes, then reset it.

You can set up to 4 characters for the station name.

10

Press ENTER to confirm the station name.

11

Press o RETURN, then press SET UP to exit the menu.

If the picture is not clear

If the picture is not clear, you may use the Manual Fine Tuning (REGL.FIN)

function. After step 7, press ♦/♦ to select "REGL.FIN". Press ♦/♦ to get a clear picture. Then press ENTER.

Tips

- To set the programme position for the decoder, see "Setting the Canal Plus decoder" on

page 27.

- The DVD-VCR must receive channel information for station names to appear automatically.

Note

- When adjusting REGL.FIN, the menu may become difficult to read due to interference from the picture being received.

20

Presetting channels

3

Press ♦/♦ to select "Installation Manuelle", then press ENTER.

4

Press / to select the row containing the programme position you want to change. To display other pages for programme positions 6 to 80, press / repeatedly.

5

Press ENTER, then press ♦/♦ to move to the desired programme position.

6

Press ENTER to confirm the setting.

To change the programme position of another station, repeat steps 4 through 6.

7

Press ⬆ RETURN, then press SET UP to exit the menu.

22

Presetting channels

Changing/disabling programme positions

After setting the channels, you can change the programme positions as you like. If any programme positions are unused or contain unwanted channels, you can disable them.

You can also change the station names. If the station names are not displayed, you can enter them manually.

Changing programme

positions

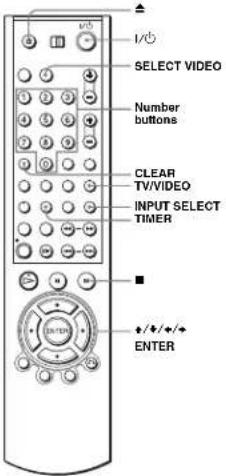

Before you start...

• T u r n on the DVD-VCR and your TV
• T o control the DVD-VCR, set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- S et your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

-SET UP

+/+/+/+ ENTER RETURN

Getting Started

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Installation", then press ENTER.

The "INSTALLATION" menu appears.

continued

Presetting channels

21

Disabling unwanted programme positions

After presetting channels, you can disable unused programme positions. The disabled positions will be skipped later when you press the PROG +/- buttons.

Before you start...

• T ur n on the DVD-VCR and your TV.
• T o control the DVD-VCR. set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- Set your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

CLEAR
SET UP

+/+/+/+ ENTER RETURN

Getting Started

1

Press SET UP, then press ↑/↓ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Installation", then press ENTER.

The "INSTALLATION" menu appears.

continued

Presetting channels

23

3

Press ♦/♦ to select "Installation Manuelle", then press ENTER.

PIN	CAN	NOM	DEC	SYS
1	OZ	PAB	NON	L2E
2	PN	PAN	MIN	L3I
3	ON	OCE -	NON	L3I
4	IO	L3K	MIN	L3I
5

4

Press ♦/♦ to select the row which you want to disable. To display other pages for programme positions 6 to 80, press ♦/♦ repeatedly.

LISTE STATIONS TV
FR	CAN	NO4	DEC	SVC
1	027	AAD -	NON	L L'
2	029	LON	NON	L L'
3	031	L30 -	MIN	L L'
4	032	LJK -	NON	L L'
5

5

Press CLEAR. The selected row will be cleared as shown on the right.

PR	CAN	NOM	DEC	CVS
1	U2F	PAB	NOM	L1 L'
2	090	CDC-	NON	L1 L'
4	082	IJK-	NON	L1 L'
5

6

Repeat steps 4 and 5 for any other programme positions you want to disable.

7

Press ⬆ RETURN, then press SET UP to exit the menu.

Note

- B: e sure to select the programme position you want to disable correctly. If you disable a programme position by mistake, you need to reset that channel manually.

24

Presetting channels

4

Press ♦/♦ to select the row which you want to change or enter the station name, then press ♦. To display other pages for programme positions 6 to 80, press ♦/♦ repeatedly.

RECHNOIS MANUELLE
SVC	1.11
PIN	5
LONG	108
FOM PIN	—
DECOOLIF	NON
NOM	—

5

Press ↑/↓ to select "NOM", then press ♦.

SYS. L'L
PH.	h
CASA : 100
FECLIN	-
DECOOCH : NO3
MRS

6

Enter the station name.

RECHNO 10 MANUELLE
NYA	1.11
PR	5
CANAL	003
PEULHN
ECCOCULF	NON
NOSI	-0

1 Press / to select a character. Each time you press . the character changes as shown below. A → B → ... → Z → 0 → 1 → ... → 9 → A

2 Press to set the next character.

The next space flashes.

To correct a character, press ♦/♦ until the character you want to correct flashes, then reset it.

You can set up to 4 characters for the station name.

7

Press ENTER to confirm the new name.

8

Press ⬇ RETURN, then press SET UP to exit the menu.

26

Presetting channels

Changing the station names

You can change or enter the station names (up to 4 characters). The DVD-VCR must receive channel information for station names to appear automatically.

Before you start...

• Turn on the DVD-VCR and your TV.
• T o control the DVD-VCR, set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- S et your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

Getting Started

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Installation", then press ENTER. The "INSTALLATION" menu appears.

3

Press ♦/♦ to select "Installation Manuelle", then press ENTER.

continued

Preselling channels

25

Setting the Canal Plus decoder

You can watch or record Canal Plus programmes if you connect a decoder (not supplied) to the DVD VCR.

Connecting a decoder

: Signal flow

Getting Started

continued

Setting the Canal Plus decoder

27

Setting Canal Plus channels

To watch or record Canal Plus programmes, set your DVD-VCR to receive the channels using the on-screen display.

In order to set the channels correctly, be sure to follow all of the steps below.

Before you start...

• T u r n on the DVD-VCR and your TV.

• T o control the DVD-VCR, set TV DVD-VIDEO to DVD-VIDEO on the remote (page 9).
- Set your TV to the video channel so that the signal from the player appears on the TV screen.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

1

Press SET UP, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ↑/↓ to select "Installation", then press ENTER.

The "INSATLLATION" menu appears.

3

Press ♦/♦ to select "Installation Manuelle", then press ENTER.

28

Selling the Canal Plus decoder

Notes

• To be a perimpose subtitles while watching Canal Plus programmes, make both decoder-VCR and VCR-TV connections using 21-pin PERITEL cables that are compatible with the RGB signals. You cannot record subtitles on the VCR.
• When you watch Canal Plus programmes through the RFL input of the TV, press TV/VIDEO so that the VCR indicator appears in the display window.

4

Press ♦/♦ to select the row which you want to set for the decoder, then press ♦.

To display positions 6 to 80, press ♦/♦ repeatedly.

5

Press ♦/♦ to select "SYS" if necessary.

6

Press ◆/◆ to set "L/L"" or "B/G" if necessary. • T o receive broadcast in France, select "L/L".
- T o receive broadcast using the PAL system (for example, in Germany or Switzerland), select "B/G".

7

Press ♦/♦ to select "DECODEUR"

8

Press ➔ to set "DECODEUR" to "OUT", then press ENTER.

9

Press ⬇ RETURN, then press SET UP to exit the menu.

RETURN

continued

Selling the Canal Plus decoder

29

Basic Operations

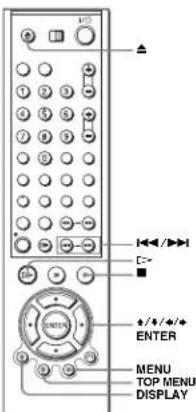

Playing discs DVD VCD CD DATA-CD

Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.

Before you start...

• T ur n on the DVD-VCR and your TV
• S et your TV to the video channel so that the signal from the player appears on the TV screen.
• S c t /DVD-VIDEO to DVD-VIDEO, then press SELECT DVD to control the DVD player (page 9).

1

Press ▲ to open the disc tray and place a disc on the disc tray.

with the playback side facing down

Basic Operations

30

Setting the Canal Plus decoder

continued

Playing disc

31

2

Press =>.

The disc tray closes and the DVD player starts playback.

The display window shows the playback time. ^9 Depending on the disc, a menu may appear on the TV screen. For DVDs, see page 73. For VIDEO CDs, see page 93.

“- ----” appears when no disc is loaded.

Hour Minute Second

Additional tasks

To Press
Stop play ■
Pause play* ■
Resume play after pause ■ or △-
Advance by frame in pause mode ■▶
Go to the next chapter, track, or scene in continuous play mode	▶▶ on the remote
Go back to the previous chapter, track, or scene in continuous play mode	◀◀ on the remote
Stop play and remove the disc ▲

* If you pause the DVD player for more than 5 minutes, the DVD player will automatically stop.

To Resume playback for the current disc (Resume Play)

The DVD player remembers the point where you stopped the disc even if the DVD player enters standby mode by pressing I/☐.

1 While playing a disc, press ■ to stop playback.

2 Press D=>

The DVD player starts playback from the point where you stopped the disc in step 1.

Tip

• To begin playback from the tap of the disc, press ■ twice then press =>.

32

Playing discs

Notes on playing DVDs with a DTS sound track

- DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack.

- When you play a DVD with DTS sound tracks, set "DTS" to "Oui" in "Options Audio" menu (page 63).

- If you connect the player to audio equipment without a DTS decoder, do not set "DTS" to "Oui" in "Options Audio" menu (page 63). A loud noise may come out from the speakers, affecting your cars or causing the speakers to be damaged.

* "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

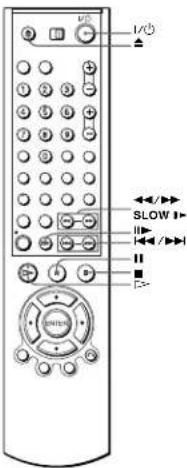

To locate a point quickly by playing a disc in fast forward or fast reverse in continuous play mode (DVD, VIDEO CD and CD only)

Press ◀ or ▶▶

For DVD or VIDEO CD, each time you press the button, the playback speed changes as follows.

- 2 → FF1/FR1 → FF2/FR2 → FF3/FR3 → FF4/FR4 (DVD only) → FF5/FR5 (DVD only)

Release the button at the desired speed.

For CD, the searching speed does not change (FF2/FR2 play).

When you find the point you want, press

To watch slow motion in continuous play mode (DVD and VIDEO CD only)

Press Ⅱ, then press ▶▶ SLOW ▶. With each press, the playback speed changes cyclically as follows.

To resume normal playback, press

Tip

• To make a ke a video timer reservation during DVD playback, we recommend performing the operations under "Quick Timer Recording" (page 96).

Basic Operations

Notes

- You can change the screen type using the "REGLAGE DE L'ECLAN" menu. (See "Screen Script" on page 65.)

• Do not perform VIDEO playback while playing back a disc

- If you play a DVD or VIDEO CD that has scratches, the player may stop playback at the point of the scratch or skip to the next track.

- You can not change the MP3 or the Multi Session CD playback speed.

• V IDPO CD fast forward/reverse cannot be paused.

- During CD fast forward/reverse play, no sound is output.

Notes on playing DTS* sound tracks on a CD

- When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jack of the DVD player.

- Set the sound to "STEREO" using the AUDIO button when you play DTS sound tracks on a CD (page 82).

- Do not play DTS sound tracks without first connecting the DVD player to an audio component having a built-in DTS decoder. The DVD player outputs the DTS signal via the DIGITAL AUDIO OUT (COAXIAL, or OPTICAL) jack even if "DTS" is set to "Non" in "Options Audio" mean (page 63), and may affect your ears or cause your speakers to be damaged.

continued

Playing discs

33

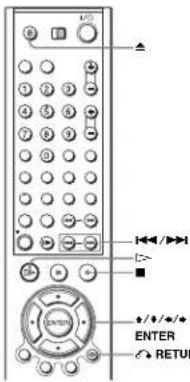

Guide to the on-screen display DVD VCD CD DATA-CD

You can check disc information during playback.

The displayed contents differ according to the type of disc being played.

Press DISPLAY. The following information appears: type of disc, current title/track, chapter, counter position, voice language, subtitle language and surrnumal setting. Refer to "DVD Audio/Subtitle Language" on page 126 for the abbreviation of the language.

You can playback the desired title/track, chapter or counter position using this menu.

To playback the desired title/track or chapter

1 Press ♦/♦ to select the desired item.
2 Press +/→ to change the item.
3 Press ENTER to start playback.
4 Press DISPLAY or ⬆ RETURN to turn off the menu.

The title/track or chapter icon will appear on the DVD playback screen followed by the current title/track or chapter number and the counter position.

Basic Operations

34

Playing discs

continued

Guide to the on-screen display

35

To playback from the desired title/track counter position

1 Press ♦/♦ to select the counter position icon
2 Enter the desired elapsed playing time of the current title/track using the number buttons.
3 Press ENTER to start playback
4 Press DISPLAY or a RETURN to turn off the menu.

Tip

- Y ou can change the counter position information (playing time or remaining time) using ♦/♦ (DVD and CD only).

DVD
Indication Counter Information

T * : **: ***	Elapsed playing time of the current title
T * : **: ***	Remaining time of the current title
C * : **: ***	Elapsed playing time of the current chapter
C- * : **: ***	Remaining time of the current chapter

CD

Indication Counter information

T * : ** : **	Elapsed playing time of the current track
T- * : ** : **	Remaining time of the current track
D * : ** : **	Elapsed playing time of the disc
D * : ** : **	Remaining time of the disc

Notes

• The display may not change as operated depending on the disc.
- T he display window continue indicating the playing time even when the counter position information on the on-screen display is being changed.

Playing a tape VHS

Before you start...

• Turn on the DVD-VCR and your TV.

• S et your TV to the video channel so that the signal from the player appears on the TV screen.
• S e⊥ /DVD-VIDEO to DVD-VIDEO, then press SELECT VIDEO to control the VCR (page 91.

Basic Operations

1

Insert a tape.

The VCR starts playing automatically if you insert a tape with its safety tab removed.

2

Press [=>

The display window shows the playback time. When the tape reaches the end, it will rewind automatically.

Hour Minute Second

continued

Playing a tape

37

36

Guide to the on-screen display

Additional tasks

To Press
Stop play	■
Pause play*	■
Resume play after pause	■ or □-
Fast-forward the tape	▶ during stop
Rewind the tape	◀ during stop
Fject the tape	△

* If you pause the VCR for more than 5 minutes, the VCR will automatically resume play.

To play a recently watched scene

You can immediately rewind and playback the scene you want to watch again.

To skip playback

You can skip a scene that you do not want to watch (such as a commercial) and restart playback.

During playback, press ▶ STEP. The VCR skips the tape 30 seconds on the counter each time the button is pressed (up to four times) and playback is resumed.

To turn off the power while rewinding (Rewind Shut Off)

Press I/While the tape is rewinding. The power will turn off, but the tape will keep rewinding until it reaches the end.

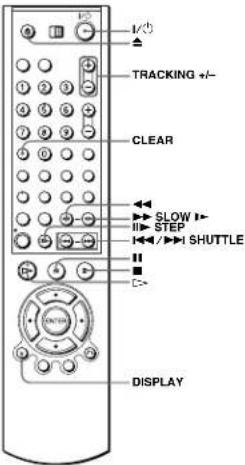

To play / search at various speeds

Playback options	Operation
View the picture during fast-forward or rewind	During fast-forward, hold down ➤. During rewind, hold down ←◀.
Play at high speed	During playback, briefly press ➤ or ←◀. The tape continues to play at 5 times normal speed.During playback, hold down ➤ or ←◀. The tape continues to play at 5 times normal speed. When you release the button, normal playback resumes.
Play in slow motion	During pause, press ➤ SLOW ➤.
Play frame by frame	During pause, press ➤ STTP.
Play at various speeds(Shuttle play)	During playback, preat ←◀ or ➤. You can change the playback speed as follows.REVIEW ←◀ → -2 ↔ -1 ↔ SLOW ↔ STILL ↔SLOW ←◀ PLAY ←◀ → 2 ↔ CURE←

^61 “REW” flashes in the display window.
^62 “FF” flashes in the display window.

To resume normal playback

Press ▷.

To set the colour system

If the playback picture has no colour, or streaks appear during palyback, set the "Syst. Couleur" option in the "REGLAGES UTILISATEUR" meant to conform to the system that the tape was recorded in (see page 110) (Normally set the option to "Auto").

To use the time counter

Press CLEAR at the point on the tape that you want to find later. The counter in the display window resets to "1:00:00".

To display the counter on the TV screen, press DISPLAY during normal playback.

Tip

• A d j out the picture using the TRACKING +/- buttons if
  — Streaks appear while playing in slow motion.
• Bands appear at the top or bottom while pausing.
  The picture shakes during pause.

Notes

• T apes recorded in the I.P mode on other VCRs can be played back on this VCR but the
  picture quality cannot be guaranteed.
• The counter resets to "0:00:00" whenever a tape is reinserted.
  • The counter stops counting when it comes to a portion with no recording.
• Depending on your TV, the following may occur while playing an NTSC-recorded tape:

- The picture becomes black and white.

— The picture shakes
- No picture appears on the TV screen.
- Black streaks appear horizontally on the TV screen.
- The colour density increases or decreases.
- When 10 hours have passed, the counter in the display window returns to "0:00:00" and the
count starts over again.
• T he sound is muted during playback at various speeds.
• The picture may show noise when playing at high speed in reverse.
- While playing a tape, you can display the setup menu, but the remote commander's function switches to DVD automatically. Press SET UP to exit the menu.
• 5.1 op disc playback while playing back a video.
• T he picture returns to normal playback from slow motion in reverse in 30 seconds.

Basic Operations

38

Playing a tape

Playing a tape

39

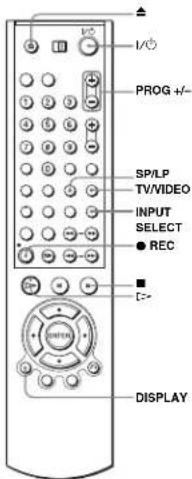

Recording TV programmes VHS

Before you start...

• T ur n on the DVD-VCR and your TV.
- S witch the input selector on your TV so that the signal from the player appears on the TV screen.
- S +⊥ /DVD-VIDEO to DVD-VIDEO, then press SELECT VIDEO to control the VCR (page 9).
• T o record from a decoder, turn it on.
• Make sure the tape is longer than the total recording time.

1

Insert a tape with its safety tab in place.

40

Recording TV programmes

In order to get an accurate remaining time indication, he sure "Sélect Cassette" in the "REGLAGE DE LA FONCTION VIDEO" menu is set according to the tape type you use (see page 105).

Maximum Recording Time

Tape Length SP LP
E-180 3 hrs 6 hrs
E-240 4 hrs 5 hrs
E-260 4 hrs 20 mins	8 hrs 40 mins
E-300 5 hrs	10 hrs

To watch another TV programme while recording

1 Press TV/VIDEO to display "TV" in the display window.

2 Select another channel on the TV.

To watch a DVD while recording

1 Press SELECT DVD to control the DVD player.
2 Press ▲ and place the disc on the disc tray.
3 Press D>

The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen.

To save a recording

To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.

Tips

• To select a programme position, you can use the number buttons on the remote commander. For two-digit numbers, for example, press 2 and 3 to select "PR 23".
• If you connect additional equipment to a LINE connector or jack, you can select the input
  signal using the INPUT SELECT or PROG 47 buttons. • T be DISPLAY information appears on the TV screen indicating information about the tape, but the information will not be recorded on the tape.
• If you do not want to watch TV while recording, you can turn off the TV. When using a decoder, make sure to leave it on.

42

Recording TV programmes

2

• PROCY TRACKING

- To record a normal channel, press PROG +/- until the programme position number you want appears in the display window.

- To record from a decoder or other source connected to one or more of the LINE inputs, press INPUT SELECT until the connected line appears in the display window.

3

Press SP/LP to select the tape speed, SP or LP. LP (Long Play) provides recording time twice as long as SP. However, SP (Standard Play) produces better picture and audio quality.

4

Press ● REC to start recording. The recording indicator lights up red in the display window.

Recording indicator

To stop recording

Press ■.

To check the remaining time

Press DISPLAY twice. With the display on, press DISPLAY again to check the remaining time.

continued

Recording TV programmes

41

Notes

• If a tape has portions recorded in both PAL (SECAM, MESECAM) and NTSC systems, the time counter reading will not be correct. This discrepancy is due to the difference between the counting cycles of the two video systems.
• You cannot watch a Canal Plus programme while recording another Canal Plus programme.
• When you insert a non-standard commercially available tape, the remaining time may not be correct.
  • T he remaining time is intended for rough measurement only.
• About 30 seconds after the tape begins playback, the tape remaining time will be displayed.
  • 10 a c a film recorded a DVD to a Vc.K tape.
• To watch a TV programme during video recording, step else playback.

Notes

Recording TV programmes using the ShowView® system (SLV-D950B only) VHS

The ShowView system is the feature that simplifies programming the VCR to make timer recordings. Just enter the ShowView number listed in the TV programme guide. The date, times, and programme position of that programme are set automatically. You can preset a total of six programmes, including settings made with other timer methods.

Before you start...

• C check that the DVD-VCR clock is set to the correct time.
  • T u r n on the DVD-VCR and your TV.
• Set your TV to the video channel so that the signal from the player appears on the TV screen.
• S e L 3DVD-VIDEO to DVD-VIDEO, then press SELECT VIDEO to control the VCR (page 9).
• When using a decoder, turn it on.
• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.

1

Press TIMER.

The "OPTIONS PROG." menu appears.

44

Recording TV programmes using the ShowView® system (SLV-D950B only)

5

If you want to change the date, tape speed and the VPS/PDC setting:

1 Press ✦/♦ to select the item you want to change.

2 Press ♦/♦ in reset it.
- To record the same programme every the same day every week, see "Daily/weekly recording" on page 46.
- To use the VPS/PDC function, set "V/P" to "Oui". For details about the VPS/PDC function, see "Timer recording with VPS/PDC signals" on page 46.

6

Press ENTER to confirm the setting.

7

Press ENTER to confirm all settings.

8

Press I/ ^① to turn off the DVD-VCR.

The indicator appears in the display window and the VCR stands by for recording.

To record from a decoder or other source, leave the connected equipment switched on.

To stop recording

To stop the DVD-VCR while recording, press SELECT VIDEO and then press ■

Daily/weekly recording

In step 5 above, press ↓ to select the recording pattern. Each time you press ↓, the indication changes as shown below. Press ↓ to change the indication in reverse order today → JOUR (Monday to Sunday) → S-SA (every Saturday) ..... → S-DI (every Sunday) → 1 month later → (dates count down) → today

Timer recording with VPS/PDC signals

Some broadcast systems transmit VPS or PDC signals with their TV programmes. These signals ensure that your timer recordings are made regardless of broadcast delays, early starts, or broadcast interruptions.

To use the VPS/PDC function, set "V/P" to "Oui" in step 5 above. You can also use the VPS/PDC function for a source connected to one or more of the LINE inputs.

46

Recording TV programmes using the ShowView® system (SLV-D950B only)

2

Press ♦/♦ to select "ShowView", then press ENTER.

The "ShowView" menu appears.

3

Press the number buttons to enter the ShowView number. If you make a mistake, press CLEAR and re-enter the correct number.

You can also press ✦ to delete the last entered number.

Press ENTER.

10

The date, start and stop times, programme position, tape speed and VPS (Video Programme System)/PDC (Programme Delivery Control) setting appear on the TV screen.

- If “” appears in the “PR” (programme) column (this may happen for local broadcasts), you have to set the appropriate programme position manually. Press ♦/♦ to select the desired programme position.

- To record from a decoder or other source connected to one or more of the LINE inputs, press INPUT SELECT to display the connected line in the "PR" position. You will only have to do this operation once for the referred channel. The VCR will then store your setting.

If the information is incorrect, press CLEAR to cancel the setting.

Basic Operations

continued

Recording TV programmes using the ShowView® system (SLV-D950B only)

45

To watch another TV programme after setting the timer

1

Press TV/VIDEO to display "TV" in the display window.

2 If your TV is connected to the VCR using A/V connections, set the TV to the TV's aerial input: if not, skip this step.
3 Select another channel on the TV.

Tips

• To set the channel, you can also use the ♦/♦ or number buttons.
- If the indicator appears, this means that the VCR is currently recording this programme.
- You can also do the following tasks while the VCR is recording:

- Reset the counter(page 39).

- Display tape information on the TV screen (page 41).

To use the Auto Tape Speed function

In step 5 above, press ♦ to select "Auto". When you are recording a programme in the SP mode and the remaining tape length becomes shorter than the recording time, the recording tape speed is automatically changed to the LP mode. Note that some noise will appear on the picture when the tape speed is changed. To operate this function correctly, the "Select, Cassette" setting in the "REGLAGE DE LA FONCTION VIDEO" menu must be accurate (see page 105).

Tips

• To set the line input video source, you can also use the INPUT SELECT button.
• You can set the extended time for the ShowView setting by 10, 20, 30, 40, 50, or 60 minutes. Set "Elendre ShowView" in the "REGLACES UTILISATEUR" menu to the desired extended time on page 110.
• To check, change, or cancel the programme setting, see "Checking/changing/cancelling timer settings" on page 56.

Notes

• If the VPS/PDC signal is too weak or the broadcasting station failed to transmit VPS/PDC signals, the VCR will start recording at the set time without using the VPS/PDC function.
• The Ⓑ indicator flashes in the display window when you press I/○ with no tape inserted.

Basic Operations

Recording TV programmes using the ShowView® system (SLV-D950B only)

47

Recording TV programmes using the timer

VHS

You can preset up to six programmes at a time.

Before you start..

• C. heck that the DVD-VCR clock is set to the correct time.
• T ur n on the DVD-VCR and your TV.
- S witch the input selector on your TV so that the signal from the player appears on the TV screen.
- S e⊥ /DVD-VIDEO to DVD-VIDEO, then press SELECT VIDEO to control the VCR (page 9).
- When using a decoder, turn it on.
- Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.
- If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

48

Recording TV programmes using the timer

5

Press ENTER to confirm all settings.

6

Press I/O to turn off the DVD-VCR.

The indicator appears in the display window and the VCR stands by for recording.

Torccord from a decoder or other source, leave the connected equipment switched on.

To stop recording

To stop the DVD-VCR while recording, press SELECT VIDEO and then press ■.

Daily/weekly recording

In step 3 above, press ♦ to select the recording pattern. Each time you press ♦, the indication changes as shown below. Press ♦ to change the indication in reverse order.

today → JOUR (Monday to Sunday) → S-SA (every Saturday) ..... → S-DI (every Sunday) → 1 month later → (dates count down) → today

To use the Auto Tape Speed function

In step 3 above, press to select "Auto". When you are recording a programme in the SP mode and the remaining tape length becomes shorter than the recording time the recording tape speed is automatically changed to the LP mode. Note that some noise will appear on the picture when the tape speed is changed. To operate this function correctly, the "Select Cassette" setting in the "REGLAGE DE LA FONCTION VIDEO" mean must be accurate (see page 105).

Tips

- To set the line input video source, you can also use the INPUT SELECT button. - To check, change, or cancel the programme setting, see "Checking/changing/cancelling timer settings" on page 56.

Notes

• When setting the timer with VPS/PDC signals, enter the start times exactly as indicated in the TV programmatic guide. Otherwise, the VPS/PDC function will not work.
• If the VPS/PDC signal is too weak or the broadcasting station failed to transmit VPS/PDC signals, the VCR will start recording at the set time without using the VPS/PDC function.
• The indicator flashes in the display window when you press 1/1 with no tape inserted.

1

Press TIMER.

• S L V - D 950B The "OPTIONS PROG." menu appears.
• S I. V - D 910B The timer programming menu appears. Step 2 is skipped.

2

SLV-D950B only Press ♦/♦ to select "Normal", then press ENTER. The timer programming menu appears.

3

Set the date, start and stop times, programme position, tape speed and VPS/PDC function: 1 Press ♦ to select each item in turn. 2 Press ♦/♦ to set each item. To correct a setting, press ♦ to return to that setting and reset.

- To record the same programme every day or the same day every week, see "Daily/weekly recording" on page 50. - To use the VPS/PDC function, set "V/P" to "Oui." For details about the VPS/PDC function, see "Timer recording with VPS/PDC signals" on page 46. - To record from a decade or other source connected to one or more of the LINE inputs, press INPUT SELECT to display the connected line in the "PR" position.

4

Press ENTER to confirm the setting. To enter another setting, press ♦/♦ to select the next row and repeat step 3. Press CLEAR to cancel the setting.

continued

Recording TV programmes using the timer

49

To watch another TV programme after setting the timer

1 Press TV/VIDEO to display "TV" in the display window.

2 If your TV is connected to the VCR using A/V connections, set the TV to the TV's aerial input; if not, skip this step. 3 Select another channel on the TV.

Tips

- To set the channel, you can also use the +/♦ or number buttons. - If the ○ indicator appears, this means that the VCR is currently recording this programme. - You can also do the following tasks while the VCR is recording: - Reset the counter (page 39). - D is play tape information on the TV screen (page 41).

50

Recording TV programmes using the timer

Recording TV programmes using the timer

51

Recording TV programmes using DIAL TIMER (SLV-D950B only) VHS

The Dial Timer function allows you to make timer recordings of programmes without turning on your TV. Set the recording timer to record up to six programmes that will be broadcast within a month using DIAL TIMER. The recording start time and recording stop time can be set at one minute intervals.

Before you start...

• Turn on the DVD-VCR.
- When using a decoder, turn it on.
- Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.
- Stop the DVD-VCR.

© DIAL THER Press © DIAL TIMER.

DATE indicator appears and the current date flashes in the display window.

If the date and time are not set, DAY indicator will appear. To set the date and time, see "To set the clock" on page 55.

DIGLTimer Turn DIAL TIMER to set the recording date.

Recording TV programmes using DIAL TIMER (SLV-D950B only)

© DIAL TIMER Press © DIAL TIMER.

The current programme position number flashes in the display window.

CIAL TIMER Tum DIAL TIMER to set the programme position number.

To record from a source connected to the LINE-1 connector, LINE-2 IN jacks or LINE-3 connector, turn Ⓞ DIAL TIMER or press INPUT SELECT to display "L1", "L2" or "L3".

© DIAL TIMER Press © DIAL TIMER.

The current tape speed flashes in the display window.

©216 TIMER Turn ∅IAL TIMER to set the tape speed.

© DIAL TIMER Press ©DIAL TIMER to complete the setting.

"OK" appears in the display window for about five seconds.

The timer indicator appears in the display window and the VCR stands by for recording. When using a decoder, leave it on.

To return to the previous step

To return to the previous step, press the PROGRAM + and - buttons on the unit at the same time during any of the Dial Timer settings.

Recording TV programmes using DIAL TIMER (SLV-D950B only)

© DIAL TIMER Press DIAL TIMER to set the start time.

"START" and the next quarter hour increment appear alternately in the display window.

- DVL TIMER. Turn 0DIAL TIMER to set the recording start time.

You can set the recording start time in 15 minute intervals or adjust the time in one minute intervals by pressing the PROGRAM +/- buttons on the unit.

© DIAL TIMER Press DIAL TIMER to set the stop time.

"STOP" and the next quarter hour increment appear alternately in the display window.

© DIAL TIMER Turn ©DIAL TIMER to set the recording stop time.

You can set the recording stop time in 15 minute intervals or adjust the time in one minute intervals by pressing the PROGRAM +/- buttons on the unit.

continued

Recording TV programmes using DIAL TIMER (SLV-D950B only)

To set the clock

1 Hold down DIAL TIMER so that DAY indicator appears in the display window. However, if the clock has already been set, the current setting appears.
2 Tum DIAL TIMER to set the day.

3 Press ⏻ DIAL TIMER.

MONTH indicator appears in the display window

4 Turn and press DIAL. TIMER to set the month and then the year. After you set the year, "CLOCK" appears in the display window.

5 Turn and press ⒹDIAL. TIMER to set the hour and minute.

6 When you have finished setting the time, press ⒹDIAL TIMER to start the clock.

Tips

• T - o cancel a Dial Timer setting, press any button other than DIAL TIMER or PROGRAM +/- on the unit or any button on the remote while you are making the settings
• To check, change, or cancel the programme setting, see "Checking/changing/cancelling timer settings" on page 56.

Notes

• If six programmes have already been set using the ShowView system or the manual timer setting, "TILL" appears in the display window for about five seconds.
• If you set the clock using the Auto Clock Set feature, the clock will adjust itself to the incoming time signal regardless of adjustments made with DIAL. TIMER. Be sure you have set Auto Clock Set correctly.
• If you are setting the clock for the first time or "0: " appears in the display window, you cannot set the clock to February 29 using DIAL TIMER. Please use the Auto Clock Set feature to set the VCR to this day.
• The indicator flashes in the display window when you complete the setting in step 11 on page 34 with no tape inserted.
• When the setting time is incorrect, "Error" appears in the display window in step 11. Set the tumor again from step 1.

About the Demonstration Mode

The Dial Timer function has a Demonstration Mode that allows the user, such as a salesperson, to enter more than six examples of timer settings when demonstrating the use of DIAL.TIMER. It cancels the FULL notice which appears if six programmes have already been set. Do not use the Demonstration Mode for making timer recordings. Doing so may cause the settings to be inaccurate.

To activate the Demonstration Mode

Press II on the unit while turning (DIAL, TIMER, "DEMO" appears in the display window for a few seconds.

To cancel the Demonstration Mode

Turn the power off and unplug the mains lead. Although the Demonstration Mode is cancelled, the timer settings entered while using the Demonstration Mode will remain. Be sure to manually cancel the timer settings before you use DIAL TIMER or any other timer method after reconnecting the mains lead (page 56).

Recording TV programmes using DIAL TIMER (SLV-D950B only)

Checking/changing/cancelling timer settings VHS

Before you start..

• C hock that the DVD-VCR clock is set to the correct time.
  • T ur n on the DVD-VCR and your TV.
• S witch the input selector on your TV so that the signal from the player appears on the TV screen.
• S c t /DVD-VIDEO to DVD-VIDEO. then press SELECT VIDEO to control the VCR (page 9).
• When using a decoder, turn it on.
• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.
• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

56

Checking/changing/cancelling timer settings

When the timer settings overlap

The programme that starts first has priority and the second programme starts recording only after the first programme has finished. If the programmes start at the same time, the programme listed first in the menu has priority.
    note1["about 20 seconds"]
    note2["will be cut off"]
    note1 -.-> note1
    note2 -.-> note2

58

Checking/changing/cancelling timer settings

1

Press SET UP, then press ♦/♦ to select (TIMER) and press ENTER.

• S L V - D 950B The "OPTIONS PROG." menu appears.

• S L V - D 910B The timer programming menu appears. Step 2 is skipped.

2

SLV-D950B only Press ♦/♦ to select "Normal", then press ENTER. • If you want to change a setting, go on to the next step. • If you do not need to change the settings, press SET UP to exit the menu.

3

Press ♦/♦ to select setting you want to change or cancel.

• To change the setting, press / to flash the item you want to change, and press / to change it.
  • T o cancel the setting, press CLEAR.

4

Press ENTER to confirm the setting. If any settings remain, turn off the VCR to return to recording standby.

continued

Checking/changing/cancelling timer settings

57

Advanced Hookups

A/V Receiver hookup DVD VCD CD DATA-CD VHS

A Use this hookup if your A/V receiver has a Dolby* Surround (Pro Logic) decoder and 3 to 6 speakers

You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-channel audio (Dolby Digital) discs.

* Manufactured under license from Dolby Laboratories. "Dolby," "Pro Logic," and the double D symbol are trademarks of Dolby Laboratories.

Advanced Hookups

continued

A/V Receiver hookup

59

B Use this hookup if your A/V receiver has a Dolby Digital, MPEG audio or DTS* decoder, a digital Input jack and 6 speakers

This connection will allow you to use the Dolby Digital, MPEG audio or DTS decoder function of your AV amplifier (receiver). You are not able to enjoy the surround sound effects of this player. You must make connections using B-1

* "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

Note

After you have completed the connection, he sure to set "Dolby Digital" to "Dolby Digital" and "DTS" to "Ooi" in "OPTIONS AUDIO" menu (page 62). If your AV amplifier (receiver) has an MPEG audio decoder function, set "MPEG" to "MPTG" in "OPTIONS AUDIO" menu (page 62). Otherwise, no sound or a load noise will come from the speakers.

A/V Receiver hookup

DVD Settings and Adjustments

Audio Setup DVD

"Options Audio" allows you to set the sound according to the playback and connection conditions.

Press SET UP when the DVD player is in stop mode, then press ♦/♦ to select 📄 (DVD) and press ENTER.

Press ↑/↓ to select "Options Audio", then press ENTER.

Press ♦/♦ to select the setup item from the displayed list: "Dolby Digital", "MPEG", "DTS", "Audio DRC", or "48kHz/96kHz PCM".

Audio Setup

S-Video hookup DVD VCD DATA-CD

Make audio connections using the OUT AUDIO L/R jacks or DIGITAL. AUDIO OUT (OPTICAL or COAXIAL) jacks when you use S-VIDEO hookup.

Use this hookup if your TV has an S VIDEO input jack

- C connect an S VIDEO cord (not supplied). You will enjoy high quality images.

Notes

- Set "DVD S-Video Out" to "Out" in the "REGLAGE DE LTECLAN" menu (page 65) to view pictures from the S-VIDEO jack.

- The connection using S VIDEO OUT jack is only for the DVD player.

S-Video hookup

61

Press ♦/♦ to select an item.

Press SET UP to exit the menu.

Menu choices

• D olby Digital

Selects the type of Dolby Digital signal

The default setting is indicated in bold print.

D-PCM	Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder.
Dolby Digital	Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.

• M P E G

Selects the type of MPEG audio signal.

The default setting is indicated in bold print

PCM	Select this when the player is connected to an audio component lacking a built-in MPEG decoder. If you play MPEG audio sound tracks, the player outputs stereo signals via the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack.
MPEG	Select this when the player is connected to an audio component with a built-in MPEG decoder.

• DTS

Selects whether or not to output DTS signals.

The default setting is indicated in hold print.

Non	Select this when the player is connected to an audio component lacking a built-in DTS decoder.
Oui	Select this when the player is connected to an audio component with a built-in DTS decoder.

DVD Settings and Adjustments

continued

Audio Setup

63

• Audio DRC (Dynamic Range Control)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to "Audio DRC". This affects the output from the following jacks: - OUT AUDIO L/R jacks

- D IGITAI. AUDIO OUT (OPTICAL or COAXIAL) jack only when "Dolby Digital" is set to "D-PCM".

The default setting is indicated in bold print.

Standard Normally select this position.

TV Makes the low sounds clear even if you turn the volume down.

4 8kHz/96kHz PCM

Selects the sampling frequency of the audio signal. The default setting is indicated in bold print.

48kHz/16bit The audio signals of DVD VIDEOS are always converted to 48 kHz/16 bit.
96kHz/24bit	All types of signals including 96 kHz/24 bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48 kHz/16 bit.

Notes

- If you select the surround setting while playing a DVD, the player does not output the following signals from the DIGITAL AUDIO OUT (OPTICAL, or COAXIAL) jack. D u l by Digital signals (when you set "Dolby Digital" to "D PCM" in "OPTIONS AUDIO" menu)

M PEG audio signals

• If you connect a component that does not conform to the selected audio signal, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged.
• Even if you set "48kHz/96kHz PCM" to "96kHz/24bit", the sampling frequency is converted to 48 kHz/16 bit when a "SURROUND" mode (page 83) is selected.
• The analog audio signals from AUDIO OUT L/R jacks are not affected by "48kHz/96kHz PCM" setting and keep their original sampling frequency level.

Screen Setup DVD

"Réglage de L'écran" allows you to set the screen according to the playback and connection conditions.

1

SET UP Press SET UP when the DVD player is in stop mode, then press ♦/♦ to select (DVD) and press ENTER.

2

3

Press ♦/♦ to select the setup item from the displayed list: "Type TV", "DVD LINE1 RVB Out" or "DVD S-Video Out".

continued

Screen Setup

65

64

Audio Setup

4

Press ♦/♦ to select an item.

SET

Press SET UP to exit the menu.

Menu choices

• Type TV

Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting is indicated in bold print.

4:3 Letter Box Select this when you connect a 4:3 screen TV. Displays a wide picture with beads on the upper and lower portions of the screen.
4:3 Pan Scan	Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.
16:9	Select this when you connect a wide-screen TV or a TV with a wide made function.

• D VD LINEI RVB Out

Selects the method of outputting video signals from the LINE-1 (EURO AV) jack on the rear panel of the player.

The default setting is indicated in bold print.

Non	Select this to not output RGB signals.
Oul	Select this to output RGB signals.

• D VD S-Video Out

Selects whether or not to output S video signals from the S-VIDEO OUT jack on the rear panel of the player.

The default setting is indicated in bold print.

Oui	Select this when the player is connected to a TV with 5 VIDEO input jack.
Non	Select this when the player is connected to a TV lacking 5 VIDEO input jack.

Notes

• Playback settings stored in the disc take priority over the "REGLAGE DU DVD" menu settings and not all the functions described may work.
• Depending on the DVD. "4:3 Letter Box" may be selected automatically instead of "4:3 Pan Scan" or vice versa.
  • The connection using S VIDEO OUT jack is only for the DVD player.
• When you select "Oui" in the "DVD LINE1 RVB Our" setting, "DVD S-Viden Our" is set to "Non" automatically.
• While you select "Out" in the "DVD S Video Out" setting, "DVD LINE1 RVB Out" is set to "Non" automatically.

66

Screen Setup

Screen Setup

67

Setting the display or sound track language DVD

You can set various languages for the disc's menu, sound track or subtitle.

1

Press SET UP when the DVD player is in stop mode, then press ♦/♦ to select (DVD) and press ENTER.

2

Press ♦/♦ to select "Réglage de la langue", then press ENTER.

The "REGLAGE DE LA LANGUE" menu appears.

3

Press ↑/↓ to select the language setup item from the displayed list, "Menu DVD", "Audio", or "Sous-Title". Then press ENTER.

68

Setting the display or sound track language

Parental Control (limiting playback by children)

DVD

Playback of some DVDs can be limited according to a predetermined level such as the age of the users. The parental control function allows you to set a playback limitation level.

1

Press SET UP when the DVD player is in stop mode, then press ♦/♦ to select 📄 (DVD) and press ENTER.

2

Press ♦/♦ to select "Cont. Parental", then press ENTER.

70

Parental Control (limiting playback by children)

4

Press ♦/♦ to select the desired language, then press ENTER.

• L A NGUE DE MENU DVD You can select the desired language for the disc's menu.

• L. A. NGUE DE LA BANDE SON Switches the language of the sound track. When you select "Originale", the language given priority in the disc is selected.

• L. A NGUE DES SOUS-TITRES Switches the language of the subtitle recorded on the DVD.

5

Press SET UP to exit the menu.

Tip

- I if you select "Autre" in step 4, an additional language menu appears. Press ♦/♦/♦/♦ to select the desired language, then press ENTER.

Notes

• When you select a language that is not recorded on the DVD in step 4, one of the recorded languages will be automatically selected.
• Playback settings stored in the disc take priority over the REGLAGE DU DVD settings and not all the functions described may make.
• If you change the LANGUE DE MENU DVD setting after playing the disc, press ▲ to open and close the disc may to activate the new setting, then play the disc again.

Setting the display or sound track language

69

3

Press ➔ to select "Oui".

- If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons.

The display for confirming the password appears. Re-enter the password.

The display for confirming the password appears. Re-enter the password.

- When you have already registered a password The display for entering the password appears. Enter a 4-digit password using the number buttons.

4

Press ♠/♦ to select the level you want, then press ENTER.

The options are as follows. Level 8 (Adultie) Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 (Tout Public) The lower the value, the stricter the limitation

6

Press SET UP to exit the menu.

continued

Parental Control (limiting playback by children)

To change the password

1 Select "Modif. Code Secret" in step 4 on page 71.
2 Enter a new 4-digit password using the number buttons. The display for confirming the password appears.
3 Re-enter the new password.

To turn off the Parental Control function

Set "Utiliser le Code" to "Non" in step 3 on page 71.

To play a disc for which Parental Control is set

1 Insert the disc, then press ▷.
The display for entering your password appears.
2 Enter your 4-digit password using the number buttons. The player starts playback.

If you forget your password

1 Remove the disc and turn off the DVD-VCR.

2 Turn on the DVD-VCR again with no disc in the unit.

3 Hold down ◀◀ and ▶▶ on the front panel simultaneously for 5 seconds. "Reset OK" appears on the screen.

4 Turn off the DVD-VCR.

The password is cleared.

5 To create a new password, follow step 3 on page 71

Notes

• While you play DVDs which do not have the Parental Control function, playback cannot be limited on this player.
• All the ratings higher than the level you select will be blocked.
• Write your password down and keep it in a safe place in case you forget it.

72 | Parental Control (limiting playback by children)

3

Press ENTER.

To turn off the DVD's menu

Press ■

Note

• D e p e nding on the DVD, you may not be able to use the TOP MENU button.

74 | Using the DVD's menu

DVD Additional Operations

Using the DVD's menu DVD

A DVD is divided into long sections of a picture or a music feature called "titles". When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button.

When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button.

1

Press TOP MENU or MENU.

C

TOP MENU

O

C

MENU

[EMPTY]

Press ♦/♦/♦/♦ to select the item you want to play or change.

You can also use the number buttons to select the item.

continued

Using the DVD's menu

73

Zooming into a scene DVD VCD DATA-CD

You can zoom into a scene during playback or still mode.

To zoom into a JPEG image, see "Playing JPEG image files" on page 89.

1

Press ZOOM

“是”

appears.

2

Press ♦/♦/♦/♦ to move “■” to the position where you want to zoom in.

3

Press ENTER repeatedly to change the magnification. Each time you press the button, the magnification changes as shown below.

1. → 4. → 2. → normal magnification

Zooming into a scene

75

Changing the angles DVD

If various angles (multi-angles) for a scene are recorded on the DVD, "appears in the display when you press ANGLE during playback. This means that you can change the viewing angle.

1

Press ANGLE during playback. The angle number appears on the display. The number after the slash indicates the total number of angles.

2

Press ♦/♦ repeatedly to select the angle number. The scene changes to the selected angle.

Note

• D e p ending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

76

Changing the angles

Various play mode functions (Programme play, Shuffle play, Repeat play) DVD VCD CD DATA-CD

You can set the following play modes:

• P r ogramme play (page 78)
- S h u f f le play (page 80)
• R e p eat play (page 81)

Note

• The play mode is cancelled when:

- y ou open the disc tray

the player enters standby mode by pressing I/O.

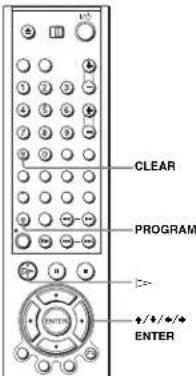

Creating your own programme (Programme play)

You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own programme. You can programme up to 20 tracks.

1

Press PROGRAM when the DVD player is in stop mode.

78

Various play mode functions (Programme play, Shuffle play, Repeat play)

Displaying the subtitle DVD

If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD.

1

Press SUBTITLE during playback.

2

Press ♦/♦ repeatedly to select the language.

Depending on the DVD, the choice of language varies.

Refer to "DVD Audio/Subtitle Language" on page 126 for the abbreviation of the language.

3

Press ♦/♦ repeatedly to select "Oui".

To turn off the subtitles

Select "Non" in step 3.

Note

- Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on the DVD. You also may not be able to turn them off.

Displaying the subtitle

77

2

Press ◀/◆ to select "PROGRAMMATION", then press ENTER.

3

Press ♠/♦/♦/♦ to select the track number you want to programme, then press ENTER.

4

To programme other tracks, repeat step 3.

The programmed track numbers are displayed in the selected order.

5

Press => to start programme play.

Programme play starts.

When the programme ends, you can restart the same programme again by pressing [> .

To stop programme play

Press CLEAR during programme play.

To change or cancel a programme

1 Follow steps 1 and 2 of "Creating your own programme (Programme play)".
2 Press CLEAR
The last programmed number is cancelled.
3 Follow step 3 for new programming.

DVD Additional Operations

continued

Various play mode functions (Programme play, Shuffle play, Repeat play)

79

Playing in random order (Shuffle play)

You can shuffle the playback order of tracks. Subsequent "shuffling" may produce a different playing order.

1

Press PROGRAM when the DVD player is in stop mode.

2

Press ♦/♦ to select "ALEATOIRE", then press ENTER.

To return to normal play

Press CLEAR during shuffle play.

80

Various play mode functions (Programme play, Shuffle play, Repeat play)

Changing the sound DVD VCD CD

When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, MPEG or DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also change the language.

With CDs, DATA CDs, or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

1

Press AUDIO during playback.

2

Press ♦/♦ repeatedly to select the desired language/audio setting.

- When playing a DVD

Depending on the DVD, the choice of language varies. Refer to "DVD Audio/Subtitle Language" on page 126 for the abbreviation of the language.

- When playing a VIDEO CD or CD The default setting is indicated in bold print

Stereo	The standard stereo sound
Ganche	The sound of the left channel (monaural)
Droite	The sound of the right channel (monaural)

82

Changing the sound

Playing repeatedly (Repeat play) DVD VCD CD DATA-CD

You can play all of the titles or tracks on a disc or a single title, chapter, or track repeatedly.

1

Press REPEAT during playback.

2

Press REPEAT to select the item to be repeated.

When playing a DVD

• C chapter: repeats the current chapter.

• Title: repeats the current title on a disc.

When playing a VIDEO CD or CD

- T rack: repeats the current track.

• D isc; repeats all of the tracks.

When playing a DATA CD (MP3 audio)

• T rack: repeats the current track.

To return to normal play

Select "Non" in step 2 or press CLEAR during repeat play.

Tip

- When playing a DATA CD, press REPEAT again to cancel repeat play.

Various play mode functions (Programme play, Shuffle play, Repeal play)

81

Virtual surround setting DVD

When you connect a stereo TV or 2 front speakers, SURROUND lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers.

This function is designed to work with the OUT AUDIO I/R jacks.

1

Press SURROUND during playback.

2

Press SURROUND repeatedly to select "Oui".

To cancel the setting

Select "Non" in step 2.

DVD Additional Operations

continued

Virtual surround setting

83

Notes

• S. surround effects cannot be obtained for DTS or linear PCM
- When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear.
- When you activate the surround effect, turn off the surround setting of the connected TV or amplifier (receiver).
- Make sure that your listening position is between and at an equal distance from your sneakers, and that the sneakers are located in similar surroundings.
- If you use the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and set "Dolby Digital" to "Dolby Digital" or "DTS" to "Oui" in "OPTIONS AUDIO" menu, sound will come from your speakers but it will not have the surround effect.
- Certain audio features of this product manufactured under a license from Desper Products, Inc. Spatializer®, VBXTM and the circle-in-square device are trademarks owned by Desper Products, Inc.

Playing an MP3 audio track DATA-CD

You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) recorded in MP3 (MPEG1 Audio Layer 3) format.

1

Press ▲ and place a DATA CD on the disc tray, then press ▲ to close the tray.

When you load a DATA CD which contains MP3 audio tracks and JPEG image files, "Sélectionnez le type de media" meau appears. If you load a DATA CD which contains only MP3 audio files, the MP3 display appears. Then you can skip step 2.

2

Press ♦/♦ to select "MP3", then press ENTER.

continued

Playing an MP3 audio track

84

Virtual surround setting

3

Press ♦/♦ then press ENTER, or press ◀◀◀ /▶▶ to select the desired track.

The selected track starts playing.

When a track or album is being played, its title is shaded. The playing track number appears on the display window.

To change the album, press 📌 RETURN.

RETURN

4

Press ↑/↓ to select an album, then press ENTER.

The list of tracks contained in the album appears.

To select a track, repeat step 2.

To go to the next or previous page

Press ♦ or ♦.

To return to the previous display

Press 📋 RETURN.

To turn off the display

Press ■, then press ⬆ RETURN repeatedly.

Notes

- Only the letters in the alphaher and numbers can be used for album or track names. Anything else is displayed as an asterisk.

- U p t o 8 alphanumeric characters can be displayed for album or track names. - 1 D3 taps cannot be displayed.

About MP3 audio tracks

You can play MP3 audio tracks on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the tracks.

You can also play discs recorded in Multi Session.

See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.

86

Playing an MP3 audio track

To play a Multi Session CD

This player can play Multi Session CDs when an MP3 audio track is located in the first session. Any subsequent MP3 audio tracks, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.

Notes

- If you put the extension "MP3" to data not in MP3 format, the player cannot recognize the data properly and will generate a loud noise which could damage your speaker system.

- This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different specifications may result in loud noise, sound skipping or speaker damage. - D. n. p. r. rolling on the disc, playback may take some time to start

The Playback order of MP3 audio tracks

The playback order of albums and tracks recorded on a DATA CD is as follows. • S1 r ucture of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

When you insert a DATA CD and press I=>, the numbered tracks are played sequentially, from ① through ②. Any sub-albums/tracks contained within a currently selected album take priority over the next album in the same tree. (Example: ③ contains ④ so ⑤ is played before ⑥.)

When you press a RETURN and the list of MP3 albums appears (page 86), the albums are arranged in the following order: A → B → C → D → F → G. Albums that do not contain tracks (such as album E) do not appear in the list.

continued

Playing an MP3 audio track

Tips

- If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order.

- A disc with many trees takes longer to start playback. Some discs with many trees cannot be played back.

Notes

• D e p e nding on the software you use to create the DATA CD, the playback order may differ from the illustration above.
• The playbook order above may not be applicable if there are more than a total of 200 albums and tracks in the DATA CD.
• The player can recognize up to 100 albums (the player will count just albums, including albums that do not contain MP3 audio tracks). The player will not play any albums beyond the first 100 albums. Of the first 100 albums, the player will play no more than a combined total of 200 albums and tracks.

Playing JPEG image files DATA-CD

You can play JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs).

1

Press ▲ and place a DATA CD on the disc tray, then press ▲ to close the tray.

When you load a DATA CD which contains MP3 audio tracks and JPEG image files, "Sélectionnez le type de media" menu appears.

If you load a DATA CD which contains only JPEG image files, the "Album" display appears. Then you can skip step 2.

2

Press ♦/♦ to select "JPEG", then press ENTER.

The "Album" display will appears. If you do not press ENTER after selecting a media type, the selected media will be automatically played.

88

Playing an MP3 audio track

3

Press ◄◀/▶▶ to select the next/previous album page, then press ♦/♦/♦/♦ to select an image in the "Album" display.

To display the selected image

1 Press ENTER. The selected image number appears in the display window.
2 To display the next/previous image, press

To play the Slide show

1 Press =>. You can also play the Slide show using the menu on the selected image. For details, see "To enjoy the Slide show" on page 91.
2 Press ◆/◆ to select the desired playing speed on the "Intervalle" menu, then press ENTER. Slide show starts from the selected image.
2 Press ◆/◆ to select the desired playing speed on the "Intervalle" menu, then press ENTER. Slide show starts from the selected image.

To rotate an Image

1 Press ♦/♦/♦/♦ to select an image in the "Album" display, then press ENTER.
2 Press ♦/♦ to select “☐”, then press ENTER. Each time you press ENTER, the image turns clockwise by 90°.

To zoom in an image

1 Press +/+/*/ to select an image in the "Album" display, then press ENTER.
2 Press ♦/♦ to select "■", then press ENTER. "■" a appears.
3 Press ♦/♦/♦/♦ to move “■” to the position where you want to zoom in.
4 Press ENTER repeatedly to change the magnification. Each time you press ENTER, the magnification changes as shown below. 2. → normal magnification

continued

Playing JPEG image files

89

To enjoy the Slide show

1 Press ♦/♦/♦/♦ to select an image in the "Album" display, then press ENTER.
2 Press ✦/✗ to select “✗”, then press ENTER. The “Intervalle” menu appears.
3 Press ♦/♦ to select the desired playing speed, then press ENTER. Slide show starts.

To turn on/off the menu in the single image display

Press DISPLAY in the single image display.

To return to the "Album" display

Press DISPLAY to turn on the menu and press ◆/→ to select “■”, then press ENTER. You can also use MENU button to return to the “Album” display. Press I▶ repeatedly to return to the first “Album” page.

• S | i d e show can play in only one direction.
- You can not rotate or zoom in the image during Slide show. - If you select "■" in the rotated image display, the images in the "Album" display will also be rotated. Correct the rotation in the single image display.

About JPEG Image files

You can play JPEG image files on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the files.

You can also play discs recorded in Multi Session.

See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.

To play a Multi Session CD

This player can play Multi Session CDs when an JPEG image file is located in the first session. Any subsequent JPEG image files, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.

90

Playing JPEG image files

continued

Playing JPEG image files

91

Tip

- If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.

Notes

• The system can play the extension "JPG" or "JPEG".
• Some CD-Rs or CD-RWs cannot be played on this system depending on file format.
• If you add the extension "JPG" or "JPEG" to data not in JPG format, the display will be
  blank.
• D e p erding on the disc or the size of image files, playback may take some time to start.

Playing VIDEO CDs with "MENU OUI/NON" functions VCD

The PBC (Playback control) function allows you to search and perform other operations interactively. PBC playback follows a selection menu displayed on your TV screen. The "MENU OUT" function is the PBC function.

1

Start playing a VIDEO CD with "MENU OUT". The menu for your selection appears.

2

Press ♦/♦ to select the item number you want. You can also use the number buttons to select the item number and track.

continued

Playing VIDEO CDs with "MENU OUI/NON" functions

3

Press ENTER.

4

Follow the instructions in the menu for interactive operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.

To return to the menu

Press ⬆ RETURN.

To play using "MENU NON"

Press MENU to select "MENU NON".

When "MENU NON" is selected, the DVD player starts continuous play. You cannot

play still pictures such as a menu.

To return to "MENU OUI", press MENU to select "MENU OUI".

Tip

e p e nding on the VIDEO CD, "Press ENTER" in step 3 may appear as "Press SELECT" in the instructions supplied with the disc. In this case, press E=>.

VCR Additional Operations

Playing a tape with SQPB function VHS

The SQPB (Super VHS Quasi Playback) function is only for playing a Super VHS format tape.

1

Insert a Super VHS format tape.

2

Press [=>

3

ANGLE

Press SQPB to start SQPB.

Notes

• Y on cannot use the SOPB function for recording.
• T he playback display will be distorted if you use the SQPB function with a normal VHS format tape.
• When you eject the tape, the VCR automatically returns to normal mode.
• Playback of tapes recorded in EP (Extended Play) mode on an NTSC system is not guaranteed.

Quick Timer Recording VHS

After you have started recording, you can have the VCR stop recording automatically after a specified duration.

1

While recording, press ● REC.

2

Press ● REC repeatedly to set the duration time.

In SP mode

Each press advances the time in increments of 30 minutes.

In 1.2 minute

Each press advances the time as shown below.

The tape counter decreases minute by minute to 0:00, then the VCR stops recording.

96

Quick Timer Recording

Recording stereo and bilingual programmes VHS

In the ZWEITON (German stereo) system

This VCR automatically receives and records stereo and bilingual programmes based on the ZWEITON system. When a stereo or bilingual programme is received, the STEREO indicator appears in the display window.

To select bilingual sound while recording

Press AUDIO to select the sound you want.

To listen to On-screen display Display window

Main	PRINCIPALE	STEREO
Sub SECONDAIRE STEREO
Main and sub	PRINCIP/SEC. STEREO
Standard sound*	MONO	STEREO

* 1. usually the main channel heard from both the left and right in bilingual programmes

To select stereo programme while recording

To listen to On-screen display Display window

Stereo	STEREO	STEREO
Left channel	CANAL G	STEREO
Right channel	CANAL D	STEREO
Standard sounds*	CANAL G + CANAL D	STEREO

* Usually the mixed sound of left and right channels in stereo programmes

In the NICAM system

This VCR receives and records stereo and bilingual programmes based on the NICAM system (NICAM appears on the TV screen). When a stereo or bilingual programme is received, the STEREO indicator appears in the display window.

To record a NICAM programme, "NICAM" in the "REGLAGES UTILISATEUR" menu should be set to "Oui" (initial setting). To check the menu setting, see page 110 for details.

To extend the duration

Press ● REC repeatedly to set a new duration time.

To cancel the duration

Press ● REC repeatedly until the ○ indicator disappears and the VCR returns to normal recording mode.

To stop while recording

Press ■.

Note

- You cannot display the current tape time in the display window when setting the recording duration time.

Quick Timer Recording

97

To select the sound while recording

Press AUDIO to select the sound you want.

Stereo programmes

To listen to On-screen display Display window
Stereo	NICAM, STEREO	STEREO
Left channel	NICAM, CANAL G	STEREO
Right channel NICAM, CANAL D	STEREO
Left and right channels*	NICAM, CANAL G + CANAL D	STEREO

* Usually the mixed sound of left and right channels

Bilingual programmes

Tolisten to On-screen display Display window
Main	NICAM, PRINCIPALIE	STEREO
Sub NICAM, SECONDAIRE	STEREO
Main and sub	NICAM, PRINCIPI/SEC	STEREO
Standard sound*	NICAM, MONO	STEREO

* Usually the main sound (monaural)

Selecting the sound during HI-fl playback

Press AUDIO to select the sound you want.

To listen to On-screen display Display window
Stereo	STEREO	STEREO
Left channel	CANAL G	STEREO
Right channel CANAL D	STEREO
Mix sound*	MIX	STEREO
Mono sound	MONO	No indicator

* The mixed sound of left and right channels, and the normal mono audio track

98

Recording stereo and bilingual programmes

continued

Recording stereo and bilingual programmes

99

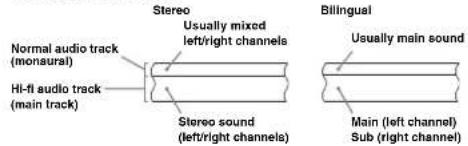

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.

Notes

• To listen to playback sounds in stereo, you must use the PERITEL or AUDIO OUT connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting.

Searching using index function VHS

The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.

To find a specific recording by scanning (Index scan)

1 Insert an indexed tape into the tape compartment.

3 Press <> to start playback when you find the desired point.

VCR Additional Operations

100

Recording stereo and bilingual programmes

continued

Searching using index function

101

To search a specific recording (Index search)

To stop searching

Press ■

Note

N o index signal will be added when recording starts from recording pause. However, an index signal will be marked if you change the programme position during recording pause.

Adjusting the picture (tracking) VHS

Adjusting the tracking

Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.

During playback, press TRACKING +/- to display the tracking meter. The distortion should disappear as you press one of the two buttons. To resume automatic tracking adjustments, eject the tape and re-insert it.

Adjusting the picture

sharpness (Smart trilogic)

You can automatically adjust the sharpness of the picture.

Tracking meter

1 SET UP During playback, press SET UP, then press

↑/↓ to select (OPTION) and press ENTER.

VCR Additional Operations

102

Searching using index function

continued

Adjusting the picture (tracking)

103

2

Press ♦/♦ to select "Réglages Utilisateur", then press ENTER.

3

Press ♦/♦ to select "Smart Trilogic", then press ♦.

4

Press ♦/♦ to set "SMART TRILOGIC" to "OUT" or "NON".

- OUT: Picture sharpness is automatically adjusted.
• NON: Adjust the picture sharpness manually.
To soften the picture, press
To sharpen the picture, press ♦.

5

Press 📄 RETURN to return to the original screen.

104

Adjusting the picture (tracking)

3

Press ♦/♦ to change the setting.

SET UP

Press SET UP to exit the menu.

Menu choices

The default settings are indicated in bold print.

OPTION

Menu option Set this option to
Ville Auto	• "Non" to deactivate the Auto Power Off function. • "1Heures"/21Heures"/31Heures" to turn the DVD-VCR off automatically if no signal is received and you do not press any of the buttons during this time.
Messages Ecran	• "Oul" to display the menu on the TV screen. • "Non" to disappear the menu from the TV seconds.

VIDEO SETUP

Menu option Set this option to
Select. Cassette	• "E180" to use an E-180 or shorter type tape. • "T 2 4 0 " to use an E-240 type tape. • "E 2 6 0 " to use an E-290 type tape. • "T 3 0 0 " to use an E-300 type tape.
Répétion Torale • "Oui" to play back a tape repeatedly. The VCR rewinds a tape to fix: beginning and restarts playback automatically. • "Non" to turn off Auto repeat.

106

Changing menu options

Changing menu options VHS

1

Press SET UP when the DVD player is in stop
mode, then press ♦/♦ to select
(OPTION) or VIDEO and press
UNIT

How to connect to record on this VCR

Connect the line outputs of the other VCR to the input connector of this VCR. Refer to the examples A through C and choose the connection that best suits your VCR.

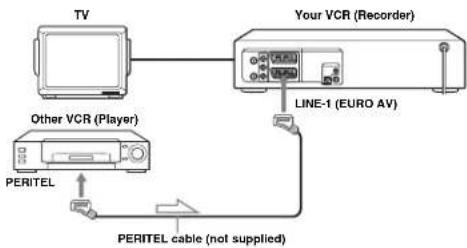

Example A

: Signal flow

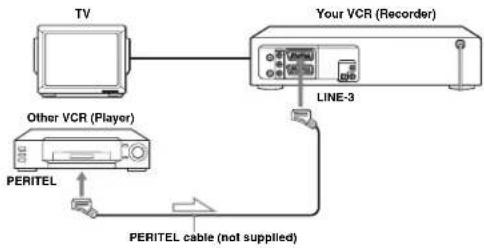

Example B

: Signal flow

continued

Editing

107

Example C

: Signal flow

How to connect to a stereo system

Connect the LINE-2 IN →/→ L/R jacks on this DVD-VCR to the audio output jacks on the stereo system, using an audio cable (not supplied).

Notes

• M-ake sure you connect the plugs to jacks of the same colour.
- If the other VCR is a monaural type, leave the red plugs unconnected.
- If you connect this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select
the input correctly to prevent a burning noise.
- When you connect another VCR to the LINE-3 or LINE-2 connector, press INPUT SELECT to display "L3" or "L2" in the display window.

108

Ediling

Additional Information

General setup information

Changing setup options

1

SET UP

Press SET UP when the DVD player is in stop mode, then press ♦/♦ to select (OPTION) and press ENTER.

2

Press ♦/♦ to select "Réglages Utilisateur", then press ENTER. The "REGLAGES UTILISATEUR" menu appears.

3

110

General setup information

Operation (when recording on this VCR)

Before you start editing

- Turn on your TV and set it to the video channel.

• Press INPUT SELECT to display the connected line in the display window.
• Press SP/LP to select the tape speed, SP or LP.
• Press SELECT VIDEO to control the VCR.

1

Insert a source tape with its safety tab removed into the other (playback) VCR. Search for the point to start playback and set it to playback pause.

2

Insert a tape with its safety tab in place into this (recording) VCR. Search for the point to start recording and press Ⅲ to set it to playback pause.

3

Press ● REC on this VCR to set it to recording pause.

4

To start editing, press the Ⅲ (pause) buttons on both VCRs at the same time.

To stop editing

Press the ■ (stop) buttons on both VCRs.

Tip

- To cut out unwanted scenes while editing, press III on this VCR when an unwanted scene begins. When it ends, press III again to resume recording.

Editing

109

4

Press ◆/◆ to change the setting.

5

Press SET UP to exit the menu.

Menu choices

Initial settings are indicated in bold print.

Menu option Set this option to
Syst Couleur	• "Auto" to select the colour system automatically. • "P A 1." to use the tape recorded in the PAL colour system. • "S E C A M " to use the tape recorded in the SBCAM system. • "MFSICAM" to use the tape recorded in the MFSICAM colour system. • "B / W" to use the tape recorded in black and white. When using the tape recorded NTSC colour signals. • "NTPB" to play back an NTSC recorded tape on PAL TV. • "N T 4 43" to play back an NTSC-recorded tape on Mte
NICAM	• "Oul" to record NICAM broadcasts on the hi-fi audio track. • "N on" to record standard sound on the hi-fi audio track. For details, see page 98.
Smart Trilogic	• "Oul" to automatically adjust the sharpness of the picture. • "N on" to manually adjust the sharpness of the picture.
Elenize ShowView	• "Non" to deactivate the ShowView Extend function. • 1020W3W..60 (minutes) to extend the time of the ShowView setting by the selected amount of time.

Troubleshooting

If you have any questions or problems not covered below, please consult your nearest Sony service facility.

General Troubleshooting

	Symptom Remedy
Power	The I/ (on/standby) switch does not function.	• C on next the mains lead to the mains securely.
	The power is turned on but the DVD-VCR does not operate.	• M moisture condensation has occurred. Turn the power off, unplag the mains lead and leave the DVD VCR to dry for over three hours.
Clock	The clock has stopped and “<--” appears in the display window.	• T h e clock stops if the DVD-VCR is disconnected from the mains. Reset the clock (and linear).
Others	The remote commander does not function.	• M also sure you are pointing the remote commander at the remote sensor on the DVD-VCR. R e p lace all the batteries in the remote commander will new ones if they are weak. • M also sure the TV DVD-VIDEO switch is set correctly. S elect correctly VIDEO or DVD with the SELF DIVE VIDEO button.
	The tracking tracker does not appear on the screen.	• T he recording condition of the tape is very poor and tracking cannot be adjusted.
	You cannot control other TVs.	• Set your TV's code number. The code number may change when you replace the batteries of the remote commander.

DVD Troubleshooting

	Symptom Remedy
Picture	There is no picture/picture noise appears.	R e connect the connecting cord securely.T he connecting cords are damaged.C h c k t h e c o n c t i o n to your TV (page 11) and switch the input selector on your TV so that the signal from the player appears on the TV screen.T h e disc is dirty or flawed.I f the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programmes could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try contacting your player to your TV's S VIDEO input (page 61).

	Symptom Remedy
Picture	Even though you set the aspect ratio in "Type TV" of the "REGLAGE DE L'ECLAN" menu the picture does not fill the screens.	• The aspect ratio of the disc is fixed on your DVD.
Sound	There is no picture from your VCR connected to the LINE IN jacks.	• The DVD player must be in standby mode to view pictures from your VCR.
	There is no sound. • Re-connect the connecting card securely.• The co-necting card is damaged.• The p1 ayer is connected to the wrong input jack on the amplifier (receiver) (page 59).• The a m plifier (receiver) input is not correctly set.• The player is in pause mode or in Slow motion Play mode.• The player is in fast forward or fast reverse mode.• If the audio signal does not come through the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 62).
	Soutad is assay. • When playing a CD with DTS sound tracks, noise will come from the OUT AUDIO LR jacks (page 33) or DIGITAL OUT (OPTICAL or COAXIAL) jack.
	The sound volume is low.	• The sound volume is low on some DVDs. The sound volume may improve if you set "Audio DRC" to "TV" (page 61).
Operation	The disc does not play. • The disc is turned over.• I insert the disc with the playback side facing down on the disc tray.• The disc is skewed.• The p1 ayer canns play certain discs (page 6).• The region code on the DVD does not match the player.• Mo i stare has condensed inside the player.• The p1 ayer cannot play CD-Rs, CD-RWs, DVD-Rs or DVD RWs that are not finished (page 7).• M ate sure the TV DVD/VIDEO switch is set correctly.• Select correctly VIDEO or DVD with SELHCT DVD/VIDEO button.
	The MP3 audio track cannot be played (page 85).	• The DATA CD is not recorded in the MP3 format that conforms to ISO9600 Level I/Level 2 or Joielet.• The MP3 a audio track does not have the extension "MP3".• The data is not formatted in MP3 even though it has the extension "MP3".• The data is not MPEG1 Audio Layer 3 data.• The player cannot play audio tracks in MP3PRO format.
	The JPEG image file cannot be played.	• The DATA CD is not recorded in JPEG format that conforms to ISO9600 Level I/Level 2 or Joielet.• The JPEG image file does not have the extension "JPEG" or "JPEG".• The data is not formatted in JPEG even though it has the extension "JPEG" or "JPEG".• Long ta or width of the image is more than 4720 dots.

112

Troubleshooting

continued

Troubleshooting

113

	Symptom Remedy
Operation	The title of the MPS audio album or track is not correctly displayed.	• The player can only display numbers and alphabet. Other characters are displayed as asterisks.
	The disc does not start playing from the beginning.	• P r ogramme play, shuffle play, or repeat play, has been selected (pages 78, 80, 81);• R e s u m e play has taken effect (page 32).
	The player starts playing the disc automatically.	• T h e disc features an auto playbook function.
	Playback stops automatically.	• While playing discs with an auto pause signal, the player stops playback at the auto pause signal.
	You cannot perform some functions such as stop, search, slow-motion play, repeat play, shuffle play, or programme play.	• D spending on the disc; you may not be able to do some operations. See the operating manual that comes with the disc.
	The language for the sound track cannot be changed.	• T r y u s i ng the DVD's menu instead of the direct selection button on the remote (page 72).• M u l r i lingual tracks are not recorded on the DVD being played.• T h e D VD prohibits the changing of the language for the sound track.
	The subtitle language cannot be changed or turned off.	• T r y u s i ng the DVD's menu instead of the direct selection button on the remote (page 73).• M u l t i lingual subtitles are not recorded on the DVD being played.• T h e D VD prohibits the changing of the subtitles.
	The angles cannot be changed.	• Try using the DVD's menu instead of the direct selection button on the remote (page 73).• M u l t i -angles are not recorded on the DVD being played.• T h e D VD prohibits changing of the angles.
	The player does not operate properly.	• When static electricity, etc., causes the player to operate abnormally, mapping the player.

VCR Troubleshooting

	Symptom Remedy
Playback	The playback picture does not appear on the TV screen.	• M: take sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input. • If the VCR is connected to the TV with the PERITEL cable, make sure the VCR indicator is lit in the display window. Use the TV/VIDEO button on the remote commander to light up the VCR indicator.
	The picture is not clear	• Adjust the tracking with the TRACKING +/- buttons. • The v i deo heads are dirty (see the last page of Troubleshooting). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony service facility (as standard service charge will be required). Do not use a commercially available liquid type cleaning cassette either than Sony's, as it may damage the video heads. • The video heads may have to be replaced. Consult your local Sony service facility for more information.
	The picture has no colour	• The "Syst. Coulcam" option in the "RECLAGES UTILISATEUR" menu is set to the wrong position. Set the option to confera to the system that the tape was recorded in.
	The picture rolls vertically during picture search.	• A d j ut the vertical hold control on the TV or monitor.
	The picture has no sound. • The tape is defective. • If you made A/V connections, check the audio cord connection.
	The sound from a tape recorded with the VCR is not in stereo or the STEREO indicator in the display window is Hashung.	• A d j ut the tracking. • The v i deo heads are dirty. Clean the video heads using a Sony video head cleaning cassette as explained above.
Recording	No TV programme appears on the TV screen.	• M: take sure the TV is set to the video channel. If you are using a monitor, set it to video input. • Select the correct source with the INPUT SELECT button. Select a programme position when recording TV programmes; select a line input when recording from other equipment.
	TV reception is poor.	• Make sure the aerial cable is connected scarcely. • A d j ut the TV aerial. • Makes sure "SYS. (I.I. or BIG)" in the "RECHIC MANUELLE" menu is set to the same system in your local area.
	The tape starts playing as soon as it is inserted.	• The s a f c ty tab has been removed. To record on this tape, cover the tab hole.
	The tape is ejected when you press ● REC.	• The s a f c ry tab has been removed. To record on this tape, cover the tab hole.
	Nothing happens when you press ● REC.	• M: take sure the tape is not at its end.

114

Troubleshooting

continued

Troubleshooting

115

	Symptom Remedy
Timer recording	The timer does not operate. • Check that the clock is set.• M . also sure a tape has been inserted.• C . check t h at the safety tab has not been removed.• M . also sure the tape is not at its end.• M . also sure a programme has been set for timer recording.• M . make sure your timer settings are past the current time.• C . check that the decoder is turned on.• C . check t h at the satellite timer is turned on.• T . c clock stops if the DVD-VCR is disconnected from the mains for more than one minute. Reset the clock and timer.• T u r n the power off and unplug the mains lead.
	The VPS/PDC function does not operate properly.	• C . check that the clock and the date are set correctly.• C . check t h at the VPS/PDC (time you set is the correct one (there might be a mistake in the TV programme guide). If the broadcaster you wanted to record did not send the good VPS/PDC information, the VCR will not start recording.• I f t h e reception is poor, the VPS/PDC signal might be altered and the VCR might not start recording.
Canal Plus	You cannot watch Canal Plus programmes when the VCR is in standby mode.	• C . check t h at "DEC" is set to "OUI" for this channel in the "LISTE STATIONS TV" menu.• M . also sure the Canal Plus PERITEL cable is plugged securely.
	A Canal Plus programme is always recorded scrambled.	• M . also sure the Canal Plus PERITEL cable is plugged securely.• C . check t h at "DEC" is set to "OUI" for this channel in the "LISTE STATIONS TV" menu.
Others	A tape cannot be inserted. • Check that a tape is not already in the tape compartment.
	The selected input line connector number does not appear in the display window.	• P . c . ss INPUT SELECT to display the connected line.
	The VCR mechanism needs to be cleaned.	• C lean the cabinet, panel and controls with a dry, soil cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.

Symptoms caused by contaminated video heads
• Rough picture
- Unclear picture
• No picture (or

initial contamination

116

Troubleshooting

Title (page 35)

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Track (page 35)

Sections of a picture or a music feature on a CD or VIDEO CD (the length of a sung).

118

Glossary

Glossary

Chapter (page 35)

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Dolby Digital (pages 60 and 63)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital.

Dolby Surround (Pro Logic) (page 59)

Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, centre and rear signals. The rear channel is monaural.

DTS (page 63)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.

Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

DVD (page 6)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.

Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

DVD-RW (page 6)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+RW (page 6)

A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

continued

Glossary

117

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

Front panel
SLV-D950B

SLV-D910B

[1]I/ (on/standby) switch (10) (38)

|2|Disc tray (31)

③合 (open/close) button (31) (32)

④ Tape compartment (37)

5△ (eject) button (38)

6 SELECT DVD/VIDEO (9)

7 LINE-2 IN ⊖l→L/R jacks ^61 (107)

8|PROGRAM +/- buttons ^2 (11)

9 DIAL TIMER* (52)

10 Remote sensor (9)

11 Display window (32) (37)

12 ● REC (record) button (4.1)

13 ◀◀ (rewind)/▶▶ (fast-forward) buttons (33) (38)

14■ (stop) button (32) (38)

15 (pause) button (32) (38)

16 C> (play) button (32) (37)

* Covered

^*2 PROGRAM + button has a tactile dot. Use the tactile dot as a reference when operating the DVD-VCR.

^1 SLV-D950B only

continued

Index to parts and controls

121

Display window

1 DVD indicator (32)
2 Disc indicator (32)
3 MONTH indicator* (52)
4 DAY indicator* (52)
5 YEAR indicator* (52)
6 DATE indicator* (52)
7 Tape indicator (37)
8 VCR indicator (37)

9 Timer indicator (46)
10 Recording indicator (41)
|11|STEREO indicator (98)
12 Playing time/clock/current status
indicator (32)
13 SURR (surround) indicator (83)
|14|DTS indicator (63)
* SLV-D950B only

Rear panel

DVD player and VCR

[1] (out to tv) connector (II)
2 (from antenna) connector (11)
3 OUT VIDEO/AUDIO L/R jacks (11) (59)
[4]LINE-3 connector (12)
⑤LINE-1 (EURO AV) connector (11)

DVD player only

|6|Mains lead (11)
⑦ DIGITAL AUDIO OUT jack (COAXIAL) (60)
8S-VIDEO OUT jack (61)
|9|DIGITAL AUDIO OUT jack (OPTICAL) (60)

122

Index to parts and controls

Remote commander for DVD

① TV / DVD•VIDEO switch (9)
2 ▲ (open/close) button (31) (32)
3 SELECT DVD button (9)
4 Number buttons* (10) (71)
5 CLEAR button (79)
6 SURROUND button (83)
7SET UP button (14)
8|SUBTITLE button (77)
9 AUDIO button* (S2)
10 REPEAT/PROGRAM button (78) (81)
11▶ STEP button (32)
|12| (pause) button (32)
13 => (play button* (32)
14 ♠/♣/♦/→ buttons
ENTER button (14)
15 DISPLAY button (35) (41)
|16|TOP MENU button (73)
17 I/O (on/standby) switch (10)
18 VOL (volume) = 1 - buttons (10)
19 ZOOM button (75)
20 ANGLE button (76)
21 ◀◀/▶▶ SCAN/SLOW▶ buttons (32)
22 ◀◀/▶▶1 PREV/NEXT buttons (32)
23 ■ (stop) button (32)
24 RETURN button (20)
25 MENU button (73)
* Number 5, AUDIO and => buttons have a tactile dot. Use the tactile dot as a reference when operating the DVD-VCR.

Remote commander for VCR

continued

Index to parts and controls

123

① TV / DVD·VIDEO switch (9)
2 ▲ (eject) button (38)
3 SELECT VIDEO button (9)
4 Number buttons* (10)
5 CLEAR button (24)
6SET UP button (14)
7 TIMER button (49)
8 AUDIO button* (98)
9 INDEX button (101)
10 II STEP button (38)
11● RLC (record) button (41)
12 II (pause) button (38)
13 => (play) button * (37)
14+/↓/↔buttons
ENTER button (14)
15 DISPLAY button (41)
161/ (on/standby) switch (10) (38)
17 PROG (programme)/TRACKING +/- buttons* (39) (41)
18 VOL (volume) +/- buttons (10)
19-/-- (ten's digit) button (10)
20 MUTING button (10)
21 SP (Standard Play)/L.P (Long Play) button (41)
22TV/VIDEO button (42)
23 SQPB button (95)
24 INPUT SELECT button (41)
25 ← (rewind)/▶ (fast-forward) buttons SLOW ▶ button (38)
26 ◀◀◀ /▶▶ SHUTTLE buttons (38)
27 ■ (stop) button (38)
28 RETURN button (20)
* Number 5. AUDIO, => and PROG
TRACKING + buttons have a tactile dot. Use the tactile dot as a reference when operating the DVD-VCR

124

Index to parts and controls

Index to parts and controls

125

DVD Audio/Subtitle Language

Abbreviation Language
ARA Arabic
CHI Chinese
CRO Croatian
CZK Czech
DAN Danish
DEU German
ENG English
ESP Spanish
ITN finish
FRA French
GRE Greek
HUN Hungarian
IDN	1 n
IND Hindi
ISL Icelandic
ITA Italian
IWR Hebrew
JPN Japanese
KOR Korean
MAL Malay
NL D Dutch
NOR Norwegian
POL	Polish
POR Portuguese
RUS	Russian
SVE Swedish
THA Thai
TUR Turquish
VIE Vietnamese
ZAF Afrikaans

donesian

Index

Numerics

16966

4:3 Letter Box 60

4:3 Pan Scnn 66

A

Adjusting

picture 103

tracking 103

Aerial makeup

Angle 70

Audio Back A/O Ave Gisels Box 17

Auto Clock Set 12

C

Canal Plus 27

Changing the programme

position 21

Changing the station name 25

Clock setting 16

Colour system

Commercial Strip 78

Commercial Bank 50 Connecting

Connecting

the 19+13-VC.K and your TV.11

171

to video equipment TO

Counter 39

□

DATA CD 6 85 89

Demonstration Mode 55

Dial Timer 52

Disabling the programme

positions 23

ISOLHY DIGITAL. 59,82

DTS 60.82

DVD 6

E

Editine 107

H

Handling discs?

11i-fi audio track 100

|

Index scan 101

J

JPEG 6.89

L

Language selecting 15

LP mode 41

B

Manual fine tuning 20

Monatral 99

Moulongins

during playback 99

during rounding 98

MP3 6.85

N

NICAM broadcasts 98

Normal audio track 100

F

Parental Control 70

PBC (Playback control) 93

PDC iProgramme Delivery

Control 146

Picture adjustment 103

Playback 31 47

at various events 22-28

from the following: 71

IBEC (many files 80

M17 studio track V5

MI 3 (bio) (Iber 6)

programme play is

repeat play 81

selecting the sound 98,99

shuttle play 80

skip 38

slow motion 33, 38

VIDEOCD<2>

Presetting channels 18

Programme play 78

R

Recording 40

quick timer recording 96

savine 42

using DIAL TIMER 52

using the ShowView

vocum 14

while watching another

esentary: 42, 47, 51

Pereys play 51

The following table

Kochler 30

10

Safety tab 42

Searching

at various speeds 33.38

ShowView

recording 44

Shuffle play 8

Slide show 91

Smart trilogic 193

SP mode41

STEREO 82.08

Subsista 72

T

Timer setting

daily/weekly recording 46.

50

quick timer recording 96

using DIAL TIMER 52

using the ShowView

system 4

Tracking adjustment, see

Adjusting

U

Useable discs 6

y

VIDEO CD 6

VPS (Valco Prestaurine)

System) 16

7

Zoom 25:00

ZWEITON broadcasts 98

2. DISASSEMBLY AND REASSEMBLY

2-1 CABINET AND PCB

2-1-1 Cabinet Top Removal 2-1-3 Ass'y Front Panel Removal

Fig. 2-1 Cabinet Top Removal

2-1-2 Bottom Cover Removal

Fig. 2-3 Ass'y Front Panel Removal

Fig. 2-2 Bottom Cover Removal

2-1-4 Function PCB Removal

Fig. 2-4 Function PCB Removal

2-1-5 Chassis Removal

Fig. 2-5 Chassis Removal

2-1-6 VCR Main PCB Removal

Fig. 2-6 VCR Main PCB Removal

Fig. 2-7 Circuit Board Locations

2-3-1 Top View

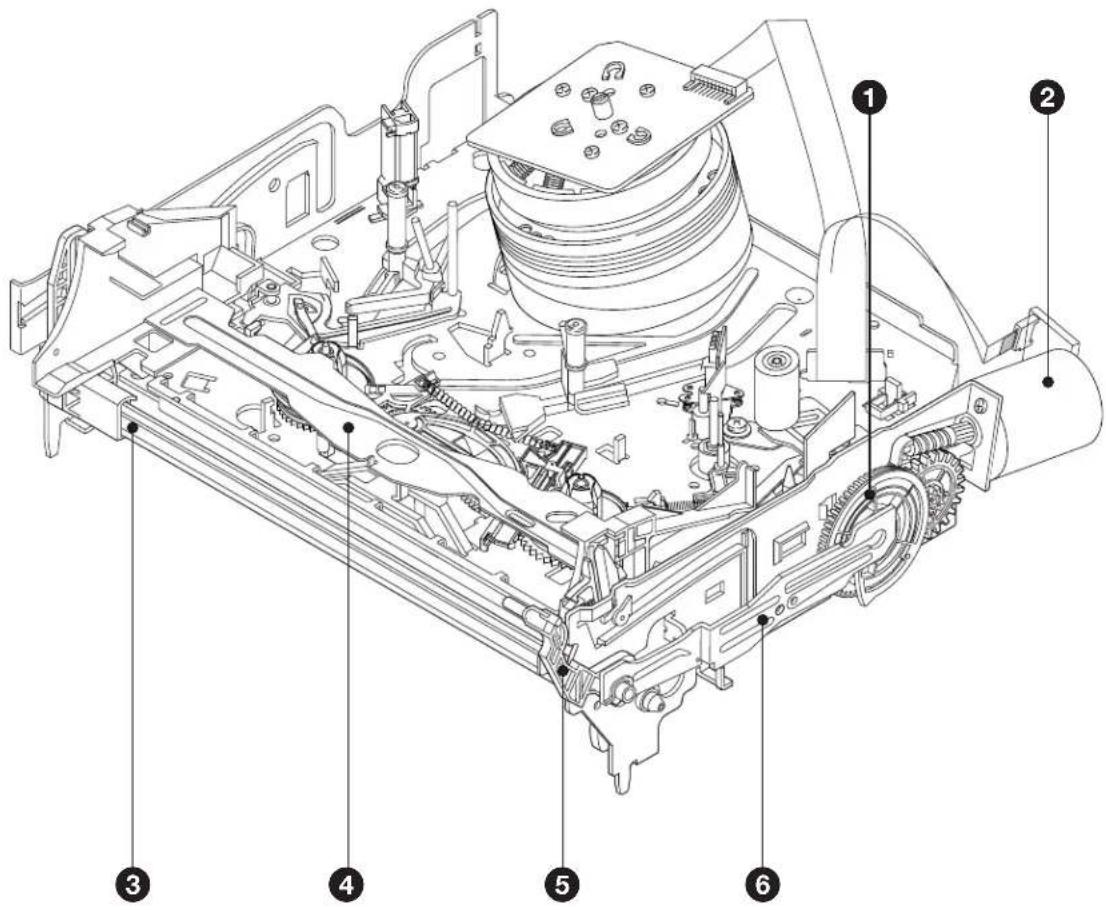

Fig. 2-8 Top parts Location-1

① GEAR FL CAM
② MOTOR LOADING ASS'Y
③ LEVER FL ARM ASS'Y
④HOLDER FL CASSETTE ASS'Y
⑤ LEVER FL DOOR
6 SLIDER DRIVE

Fig. 2-9 Top Parts Location-2

① FE HEAD
② CYLINDER ASS'Y
③ACE HEAD ASS'Y
④ LEVER UNIT PINCH ASS'Y
⑤ LEVER #9 GUIDE ASS'Y
6 LEVER TENSION ASS'Y
⑦ BAND BRAKE ASS'Y

8 DISK S REEL
9 LEVER S BRAKE ASS'Y
10 GEAR IDLE
11 LEVER IDLE
12 LEVER T BRAKE ASS'Y
13 DISK T REEL

2-3-2 Bottom View

Fig. 2-10 Bottom Parts Location

① GEAR JOINT 1
②GEAR JOINT 2
③BRAKET GEAR
④ MOTOR CAPSTAN ASS'Y
⑤ LEVER T LOAD ASS'Y
⑥ GEAR LOADING DRIVE
7 LEVER S LOAD ASS'Y
8 HOLDER CLUTCH ASS'Y
⑨ BELT PULLEY
10 SLIDER CAM

2-4-1 Holder FL Cassette Ass'y Removal

1) Pull the Holder FL Cassette Ass'y ① to the eject position.
2) Pull the Holder FL Cassette Ass'y ① as grasping the Holder FL Cassette Ass'y ① and Lever FL Cassette-R ② in the same time to release hooking from Main Base until the Boss [A] of Holder FL Cassette Ass'y ① is taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass'y ①, in this time, you have to grasp the Lever FL Cassette-R ② Continuously until the Holder FL Cassette Ass'y ① is taken out completely.

Note: Be sure to insert Lever FL Cassette-R ② in the direction of "A" to prevent separation and breakage of the Lever FL Cassette-R ② at disassembling and reassembling.

Fig. 2-11 Holder FL Cassette Ass'y Removal

2-4-2 Lever FL Door Removal

1) Release the Hook ② and Remove the Lever FL Door ① in the direction of arrow "A".

Fig. 2-12 Lever FL Door Removal

2-4-3 Slider FL Drive, Gear FL Cam Removal

1) Pull the Slider FL Drive ① to the front direction.
2) Remove the Slider FL Drive 1 in the direction of arrow. (Refer to Fig. 2-13)
3) Remove the Gear FL cam ②.

Note: When reinstalling be sure to reassemble Slider FL drive 1 after you insert the Boss of Lever FL ARM-R in Groove of Slider FL drive 1.

Assembly: Align the Gear FL Cam ① with the Gear worm wheel Post as shown drawing. (Refer to Timing point)

Fig. 2-13 Slider FL Drive Removal

Fig. 2-14 Gear FL Cam, Gear Worm

2-4-4 Lever FL Arm Ass'y Removal

1) Push the hole "A" in the direction of arrow "B" use the pin.(about Dia. 2.5)
2) Pull out the Lever FL Arm Ass'y ① from the Boss of Main Base.
3) Remove the Lever FL Arm Ass'y ① in the direction of arrow "C".

Fig. 2-15 Lever FL Arm Ass'y Removal

2-4-5 Gear Worm Wheel Removal

1) Remove the Gear Worm wheel ①.

Fig. 2-16 Gear Worm Wheel Removal

2-4-6 Cable Flat Removal

1) Remove the Drum connecting part of Cable Flat ① from Connector Waffer ②.
2) Remove the Loading Motor connecting part of Cable Flat ① from Connector Waffer ③.

Fig. 2-17 Cable Flat Removal

2-4-7 Motor Loading Ass'y Removal

1) Remove the screw ①.
2) Remove the Motor Loading Ass'y ②.

Fig.2-18 Motor Loading Ass'y Removal

2-4-8 Bracket Gear, Gear Joint 2, 1 Removal

1) Remove the SCREW ①.
2) Remove the Bracket Gear ②.
3) Remove the Gear Joint 2 ③.
4) Remove the Gear Joint 1 ④.

Assembly:

1) Be sure to align dot mark of Gear Joint 1 ① with dot mark of Gear Joint 2 ② as shown Fig 2-20. (Refer to Timing point1)

2) Confirm the Timing Point 2 of the Gear Joint 2 ② and Slider Cam ③.

Fig. 2-19 Bracket Gear, Gear Joint 1,2 Removal

Fig. 2-20 Gear Joint 1,2 Assembly

2-4-9 Gear Loading Drive, Slider Cam, Lever Load S, T Ass'y Removal

1) Remove the Belt Pulley. (Refer to Fig. 2-38)
2) Remove the Gear Loading Drive ① after releasing Hook [A] in the direction arrow as shown in detail drawing.
3) Remove the Slider Cam ②
4) Remove the Lever Load ③, Link Load ⑤ & Lever Load ④, Link Load ⑥.

Fig. 2-21 Gear Loading Drive, Slider Cam, Lever T, S Load Ass'y Removal

2-4-10 Gear Loading Drive, Slider Cam, Lever Load S, T Ass'y Assembly

1) When reinstalling, be sure to align dot of Lever Load T Ass'y ① with dot of Lever Load S Ass'y ② as shown in drawing, (Refer to Timing Point 1).
2) Insert the Pin A,B,C,D into the Slider Cam ③ hole,
3) Be sure to align dot of Lever Load T ① and dot of Gear Loading Drive ④, (Refer to Timing Point 2).
4) Aline dot of Gear Loading drive ④ with mark of Slider Cam ③ as shown in drawing (Refer to Timing Point 3).

Fig. 2-22 Gear Loading Drive, Slider Cam, Lever Load S, T Ass'y Assembly

2-4-11 Lever Pinch Drive, Lever Tension Drive Removal

1) Remove the Lever Pinch Drive ①, Lever Tension Drive ②.

Fig. 2-23 Lever Pinch Drive, Lever Tension Drive Removal

2-4-12 Lever Tension Ass'y, Band Brake Ass'y Removal

1) Remove the Lever Brake S Ass'y (Refer to Fig 2-25).
2) Remove the Spring Tension Lever 1
3) Rotate stopper of Main Base in the direction of arrow "A".
4) Lift the Lever Tension Ass'y ② & Band brake Ass'y ③.

Note:

1) When replacing the Lever Tension Ass'y ②, be sure to apply Grease on the post,
2) Take care not to touch stain on the felt side, and not to be folder and broken Band brake Ass'y
3) After Lever Tension Ass'y seated, Rotate stopper of Main Base to the Mark[B].

Fig. 2-24 Lever Tension Ass'y, Band Brake Ass'y Removal

2-4-13 Lever Brake S, T Ass'y Removal

1) Release the Hook [A] and the Hook [B], [C] in the direction of arrow as shown in Fig 2-25.
2) Lift the Lever S, T Brake Ass'y ①, ② with spring brake ③.

Assembly:

1) Assembly the Lever S Brake Ass'y ① on the Main Base. 2) Assembly the Lever T Brake Ass'y ② with spring brake ③.

Note: Take extreme care not to be folded and transformed Spring Brake at removing or reinstalling.

Fig. 2-25 Lever Brake S, T Ass'y Removal

2-4-14 Gear Idle Ass'y Removal

1) Push the Lever Idle ① in the direction of arrow "A", "B". 2) Lift the Lever Idle ①.

Assembly:

1) Apply oil in two Bosses of Lever Idle ①.
2) Assemble the Gear Idle ② with the Lever Idle ①

Note: When replacing the Gear Idle ②, be sure to add oil in the boss of Lever Idle ①.

Fig. 2-26 Gear Idle Ass'y Removal

2-4-15 Disk S, T Reel Removal

1) Lift the Disk S, T Reel ①, ②.

Fig. 2-27 Disk S, T Reel Removal

2-4-16 Holder Clutch Ass'y Removal

1) Remove the Washer Slit ①.
2) Lift the Holder Clutch Ass'y ②.

Note: When you reinstall Holder Clutch Ass'y

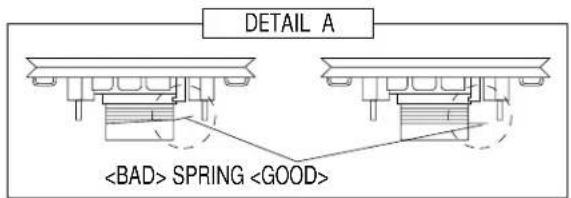

1) Check the condition of spring as shown in detail A.
2) Don't push Holder Clutch Ass'y down with excessive force Just insert Holder Clutch Ass'y into post center with dead force and Rotate it smoothly.

Be sure to confirm that spring is in the slit of Gear Center Ass'y as shown in detail B.

Fig. 2-28 Holder Clutch Ass'y Removal

2-4-17 Lever Up Down Ass'y, Gear Center Ass'y Removal

1) Remove the 2 hooks in the direction of arrow as shown Fig. 2-29 and lift the Lever Up Down Ass'y ①.
2) Lift the Gear Center Ass'y ②.

Assembly:

1) Insert the Lever Up Down Ass'y ① in the rectangular holes on Main Base as shown in Fig 2-30.
2) Lift the Lever Up Down Ass'y ① about 35°. (Refer to Fig 2-30)
3) Insert Ring of the Gear Center Ass'y ② in the Guide of the Lever Up Down Ass'y ①.
4) Insert the Gear Center Ass'y ② in the post on Main Base.
5) Push down the Lever Up Down Ass'y ① for locking of the Hook.

Note:

1) Take care not to separate and sentence does not mark sense.
2) Be sure to confirm that Ring of the Gear Center Ass'y ② is in the Guide of the Lever Up Down Ass'y ① after finishing assembly of Lever Up Down Ass'y ① and Gear Center Ass'y ②.

Fig. 2-29 Lever Up Down Ass'y Removal

2-4-18 Guide Cassette Door Removal

1) Lift the Hook [A].
2) Rotate the Guide Cassette Door ① in the direction of arrow.

Note: After reinstalling the Guide Cassette Door ① sure the Hook [A].

Fig. 2-31 Guide Cassette Door Removal

Fig. 2-30 Lever Up Down Ass'y Removal

2-4-19 Lever Unit Pinch Ass'y, Plate Joint, Spring Pinch Drive Removal

I) Lift the Unit Pinch Ass'y ①.
2) Remove the Plate Joint ② from Lever Pinch Drive.
3) Remove the Spring Pinch Drive ③.

Note:

1) Take extreme care not to touch the grease on the Roller Pinch.
2) When reinstalling, be sure to apply grease on the post pinch roller.

Fig. 2-32 Lever Unit Pinch Ass'y, Plate Joint, Spring Pinch Drive Removal

2-4-20 Lever #9 Guide Ass'y Removal

1) Remove the Spring #9 Guide ①.
2) Lift the Spring #9 Guide Ass'y ② in the direction of arrow "A".

Note:

1) Take extreme care not to get grease on the tape Guide Post.
2) After reinstalling, check the bottom side of the Post #9 Guide to the top side of Main Base.

Fig. 2-33 Lever #9 Guide Ass'y Removal

2-4-21 FE Head Removal

1) Remove the screw ①.
2) Lift the FE Head ②.

Fig. 2-34 FE Head Removal

2-4-22 ACE Head Removal

1) Pull out the FPC from connector of ACE Head Ass'y ②.
2) Remove the screw 1.
3) Lift the ACE Head Ass'y ②.

Fig. 2-35 ACE Head Removal

2-4-23 Slider S, T Ass'y Removal

1) Move the Slider S, T Ass'y ①, ② to slot, and then lift it to remove. (Refer to arrow)

Fig. 2-36 Slider S, T Ass'y Removal

2-4-24 Plate Ground Deck, Cylinder Ass'y Removal

1) Remove the 3 Screws ①.
2) Lift the Plate Ground Deck ②.
3) Lift the Cylinder Ass'y ③.

Assembly:

1) Match the 3 holes in the bottom of Cylinder Ass'y ③ to the 3 holes of Main Base as attending not to drop or knock the Cylinder Ass'y ③.
2) Tighten the 1 Screw ①.
3) Match the Plate Ground Deck ② to the Hole of Base Main.
4) Tighten the other 2 Screws ①.

Note:

1) Take care not to touch the Cylinder Ass'y ③ and the tape guide post at reinstalling.
2) When reinstalling, Don't push down too much on Screw Driver.

Fig. 2-37 Plate Ground Deck, Cylinder Ass'y Removal

2-4-25 Belt Pulley Removal

1) Remove the Belt Pulley ①.

Note: Take extreme care not to get grease on Belt Pulley 1 at assembling or reassembling.

Fig. 2-38 Belt Pulley Removal

2-4-26 Motor Capstan Ass'y Removal

1) Remove the Damper Capstan ① in the direction of arrow.
2) Remove the 3 Screws ②
3) Remove the Motor Capstan Ass'y ③.

Assembly:

1) Match the 3 holes of Motor Capstan Ass'y ③ to the 3 holes of Main Base. Be careful not to drop or knock the Motor Capstan Ass'y ③.
2) Tighten the 3 Screws ② in the direction of arrow as shown detail drawing.
3) Assemble the Damper Capstan ①.

Note: After tightening screws, check if there is gap between the head of screws and the top side of Main Base. There should have no gap between the head of screws and the top side of Main Base.

After reinstalling, adjusting the tape transport system again.

Fig. 2-39 Motor Capstan Ass'y Removal

2-4-27 Post #8 Guide Ass'y Removal

1) Rotate the Post #8 Guide Ass'y ① in the direction of arrow to lift up.

Fig. 2-40 Post #8 Guide Ass'y Removal

2-4-28 Level Head Cleaner Ass'y Removal (Optional)

1) Release the Hook ①.
2) Lift the Lever Head Cleaner Ass'y ②.

Fig. 2-41 Lever Head Cleaner Ass'y Removal

2-4-29 How to Eject the Cassette Tape (If the unit does not operate on condition that is inserted into housing Ass'y)

1) Turn the Gear worm ① clockwise with screw driver.(Refer to arrow) (Other method: Remove the Screw of Motor Load Ass'y, Separate the Motor Load Ass'y)

Fig. 2-42

2) When Slider S,T are approached in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the hole of frame's bottom in order to wind the unwinded tape. (Refer to Fig.2-43)

(If you rotate Gear Worm ① continuously when tape is in state of unwinding, you may cause a tape contamination by grease and tape damage. Be sure to wind the unwinded tape in the state of set horizontally.)

3) Rotate Gear Worm ① clockwise using screw driver again up to the state of eject mode and then pick out the tape.(Refer to Fig.2-42)

Fig. 2-43

2-5 THE TABLE OF CLEANING, LUBRICATION AND REPLACEMENT TIME ABOUT PRINCIPAL PARTS

1) The replacement time of parts is not life of parts.
2) The table 2-1 is that the VCR Set is in normal condition (normal temperature, normal humidity).
The checking period may be changed owing to the condition of use, runtime and environmental conditions.
3) Life of the Cylinder Ass'y is depend on the condition of use.
4) See exploded view for location of each parts.

* Parts Name

Checking Period

Remark

500 1000 1500

2000 25

00 3000

3500 40

00 4500

5000

TAPEPATH SYSTEM

POST TENSION Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

- To clean the parts, use patch and alcohol (solvent).- After cleaning, use the video tape after alcohol is gone away completely. - We recommend to use oil [EP-50] or solvent. - One or two drops of oil should be applied after cleaning with alcohol.

SLANT POST S, T Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

#8 GUIDE SHAFT Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

CAPSTAN SHAFT Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

#9 GUIDE POST Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

#3 GUIDE POST Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

Δ

GUIDE ROLLER S, T Δ

Δ

Δ

O

O

O

O

O

O

O

CYLINDER ASS'Y Δ O

O

O

O

O

O

O

O

O

FE HEAD

Δ

Δ

Δ

O

O

O

O

O

O

O

ACE HEAD

Δ O

O

O

O

O

O

O

O

O

PINCH ROLLER Δ O

O

O

O

O

O

O

O

O

POST REEL S, T

◆

◆

◆

◆

◆

- Periodic time of applying oil (Apply oil after cleaning) - The excessive applying oil may be the cause of malfunction.

SLEEVE TENSION

◆

◆

◆

◆

◆

POST CENTER

◆

◆

◆

◆

◆

LEVER IDLE BOSS (2Point)

◆

◆

◆

◆

◆

DRIVING SYSTEM

CAPSTAN MOTOR PULLEY

Δ

Δ

Δ

Δ

Δ

O

O

O

O

O

BELT PULLEY

O

O

O

O

O

O

O

HOLDER CLUTCH ASS'Y

Δ O

O

O

O

O

O

O

O

O

GEAR CENTER ASS'Y

O

O

O

O

O

O

O

O

O

GEAR IDLE (2Point)

O

O

O

O

O

O

O

O

O

LOADING MOTOR

O

O

O

O

O

O

O

O

O

BRAKE SYSTEM

BAND BRAKE ASS'Y

O

O

O

O

O

O

O

O

O

BRAKE T ASS'Y

O

O

O

O

O

O

O

O

O

Δ : Cleaning O : Check and replacement in necessary ◆ : Add Oil

2-6-2 Ass'y P/U Deck Removal

1) Disconnect DCN2 ①, DCN3 ②. 2) Lift down the Assy P/U Deck ③ while simultaneously pushing 2 Hooks ④, ⑤ in the direction of arrow "A", "B".  Fig. 2-45 Assy P/U Deck Removal

2-6-2 Assy P/U Deck Removal

1) Disconnect DCN2 ①, DCN3 ②. 2) Lift down the Assy P/U Deck ③ while simultaneously pushing 2 Hooks ④, ⑤ in the direction of arrow "A", "B".  Fig. 2-45 Assy P/U Deck Removal

2-6-3 Housing Ass'y Removal

1) Remove Belt ①. 2) Push the Hook ② in the direction arrow "A" and lift up Pulley Gear ③. 3) Push the Slider Housing ⑤ in the direction arrow "B" and lift up the Gear Tray ④. 4) Lift up the Slider Housing 5. 5) Remove 2 Screws ⑥ and lift down the Motor Load Assy ⑦. 6) Remove Clamper Ass'y 8.  Fig. 2-46 Housing Ass'y Removal

2-6-4 Sub Chassis Removal

1) Remove the Soldering of Motor Feed (+, - wire) ①. 2) Remove the 4 Screws ②. 3) Lift up the Ass'y Brkt Deck ③.  Fig. 2-47 Sub Chassis Removal

2-6-5 Ass'y Brkt Deck Removal

1) Push the Hook ① in the direction arrow "A" and lift up Gear Feed B ②. 2) Remove 3 Screws ③ and 3 Holder Cam Skew ④. 3) Remove Shaft Pick-Up ⑤ and Pick-Up Assy ⑥ 4) Remove Gear Feed A ⑦. 5) Remove 2 Screws 8. 6) Remove Motor Feed Ass'y ⑨. 7) Remove 3 Screws 10. 8) Remove Motor Spindle ⑪.  Fig. 2-48 Ass'y Brkt Deck Removal

3. BLOCK DIAGRAM

MEMO

4. PCB DIAGRAMS

4-1 VCR Main 4-3 4-2 DVD Main 4-7 4-3 S.M.P.S. 4-11 4-4 Function 4-13 4-5 Dial-Timer (SLV-D950B/D950E/D950GI/D910AZ Only) 4-13

4-1 VCR MAIN

COMPONENT SIDE

 CONDUCTOR SIDE

4-2 DVD MAIN

COMPONENT SIDE

 CONDUCTOR SIDE  4-3 S.M.P.S. COMPONENT SIDE CONDUCTOR SIDE

4-4 FUNCTION

COMPONENT SIDE  CONDUCTOR SIDE

4-5 DIAL-TIMER (SLV-D950B/D950E/D950GI/D910AZ Only)

COMPONENT SIDE  CONDUCTOR SIDE  MEMO

5. SCHEMATIC DIAGRAMS

◆ Block Identification of Main PCB 5-3

VCR Main PCB

5-1 S.M.P.S. 5-5 5-2 Power Drive 5-7 5-3 OSD/VPS/PDS 5-9 5-4 A2/NICAM 5-11 5-5 Audio/Video 5-13 5-6 Hi-Fi 5-15 5-7 Input-Output- 5-17 5-8 TM 5-19 5-9 Syscon 5-21 5-10 Logic/Function 5-23 5-11 SECAM (SLV-D950B/D910B/D910R Only) 5-25

DVD Main PCB

5-12 DVD Main-Micom/AV Decoder 5-27 5-13 DVD Servo 5-29 5-14 DVD Audio/Video 5-31

Note

For schematic Diagram - Resistors are in ohms, 1/8W unless otherwise noted. Special note Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the "electrostatically sensitive (ES) devices" section of this service manual. Important safety notices : Components identified with the mark A, have the special characteristics for safety. When replacing any of these components. Use only the same type. ◆ BLOCK IDENTIFICATION OF MAIN PCB  5-1 S.M.P.S.

5-2 POWER DRIVE



5-4 A2/NICAM


5-5 AUDIO/VIDEO

 5-6 Hi-Fi

5-7 INPUT-OUTPUT



5-9 SYSCON

 5-10 LOGIC/FUNCTION

5-11 SECAM (SLV-D950B/D910B/D910R Only)

 5-12 DVD MAIN-MICOM/AV DECODER

5-13 DVD SERVO


5-14 DVD AUDIO/VIDEO

 5-32E5-31

6. ALIGNMENT AND ADJUSTMENTS

6-1 VCR ADJUSTMENT

6-1-1 Reference

1) X-Point (Tracking center) adjustment, "Head switching adjustment" and "NVRAM option setting" can be adjusted with remote control. 2) When replacing the Main PCB Micom (IC601) and NVRAM (IC605; EEPROM) be sure to adjust the "Head switching adjustment" and "NVRAM option setting". 3) When replacing the cylinder ass'y, be sure to adjust the "X-Point" and "Head switching adjustment". 4) How to adjustment. - Intermittently short-circuit the Test Point on Main PCB with pincers to the adjustment mode. - If the corresponding adjustment button is pressed, the adjustment is performed automatically. - If the adjustment is completed, be sure to turn the power off.

6-1-1(a) Location of adjustment button of remote control

 Short-Circuit for few seconds and release. (Just one time) TEST D703 D702 W01A W02A W00S CN501 REVE01 MAINTA DIVA PAL AC41-00870A MICON SCREW STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL STEL Fig. 6-2 VCR Main PCB (Top View)

6-1-2 Head Switching Point Adjustment

1) Playback the alignment tape. 2) Intermittently short-circuit the two Test Points on VCR Main PCB while setting the adjustment mode. (See Fig. 6-2) 3) Press the "1, 0" buttons; remote control adjustment operates automatically. (See Fig. 6-1)

6-1-3 NVRAM Option Setting

1) NVRAM Option is adjusted in the factory. 2) In case Main PCB Micom (IC601) and NVRAM (IC605 ; EEPROM) are replaced, be sure to set the corresponding option number of the required model. (If the option is not set, the unit will operate.) 1) Intermittently short-circuit the two Test Points on VCR Main PCB. (See Fig. 6-2) 2) Press the "1, 4" buttons on the remote control. The option setting is appears. (See Fig. 6-3) 3) Select the option number (See table 6-1) of corresponding model with “◀, ▶, ♠, ▼” buttons on the remote control. 4) After selecting the option number is completed, press the "ENTER" button of remote control. (If "ENTER" button is pressed, the selected number is changescolor.; See Fig. 6-4) 5) Press the "RETURN" button of remote control again to store the option number. 6) Turn the Power off.  Fig. 6-3 Fig. 6-4

MODEL OPTION NUMBERS
SLV-D950E 2, 4, 5, 6	7, 8, 9, 10, 11, 12, 13, 15, 32, 34, 35, 38, 40, 42, 45, 47, 60, 61, 63, 64, 69, 70, 72
SLV-D910E 4, 5, 6, 7	8, 9, 10, 11, 12, 13, 15, 32, 34, 35, 38, 40, 42, 45, 47, 60, 61, 63, 69, 70, 72
SLV-D950B	2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 20, 21, 26, 32, 33, 34, 35, 36, 38, 40, 45, 47, 60, 61, 63, 64, 69, 70, 72
SLV-D910B 4, 5, 6, 7	8, 9, 10, 11, 12, 13, 15, 20, 21, 26, 32, 33, 34, 35, 36, 38, 40, 45, 47, 60, 61, 63, 69, 70, 72
SLV-D950GI 3, 4, 5, 6	8, 9, 10, 11, 12, 13, 15, 25, 26, 32, 33, 34, 35, 38, 40, 41, 45, 47, 60, 61, 63, 64, 69, 70
SLV-D910N 4, 5, 6, 7	8, 9, 10, 11, 12, 13, 15, 20, 32, 36, 38, 42, 45, 47, 60, 61, 63, 69, 70, 72
SLV-D910R 6, 7, 8, 9	10, 11, 12, 13, 15, 20, 32, 36, 37, 39, 42, 45, 47, 60, 61, 63, 69, 70
SLV-D910AZ 6, 7, 8, 9	10, 12, 15, 25, 26, 27, 32, 33, 35, 36, 39, 42, 45, 47, 53, 60, 61, 63, 64, 70

6-2-1 Location of Test Point  Fig. 6-5 Location of test Point (DVD Main PCB - Bottom Side)

6-2-2 Skew Adjustment

6-2-2(a) Adjustment Spec. and Test Point

Test Disc Adjustment Spec. Test Point Adjustment Location
TDV-533 “SKEW” Ass'y Deck - Top SideChapter 14 Flat Waveform (DVD Main PCB - Bottom Side) (See Fig. 6-6)(P/N: J-6090-135-A) (See Fig. 6-5)

 Fig. 6-6 Ass'y Deck (Top Side)

6-2-2(b) SKEW Adjustment Method

Needed to minimize the variations in Skew of the Pickup unit and to provide optimum match with the recorded signal on the Disc. 1) Connect an Oscilloscope to the "SKEW" Test Point (See Fig. 6-5). 2) Connect Power, Open the Tray and Play the TDV-533 Disc, Chapter 14. ◆ Set the Oscilloscope Range as follows : (Voltage ; 50mV/Div., Frequency ; 10m Sec.) 3) Adjust the Screws "A" and "B" (See Fig. 6-6) using a Hex screwdriver until you obtain a Flat Waveform and the picture is stable. Then, go to Chapter I and make sure the Waveform is Flat here as well. If not, you have to go back to Chapter 14 and adjust again. If you cannot obtain a Flat waveform, then the unit is defective. Note: The Deck must be in a horizontal position. Use both "A" and "B" screws to adjust.

Oscilloscope waveform display showing a zigzag signal against a grid background (no readable text or symbols)



Green sine wave signal plotted on a grid background (no text or labels)


A green line fluctuating slightly above a dashed grid background (no text or symbols)

Typical Waveform before Adjustment Waveform after Correct Adjustment Fig. 6-7 Envelope Waveform

6-3-1 Tape Transport System and Adjustment Locations

The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the following : 1) Noise observed on the screen. 2) Tape damage. 3) Parts replacement in the tape transport system. Lower flange height of tape guide is used as the reference for the transport adjustment. To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.  Fig. 6-8 Location of Tape Transport Adjustment  Fig. 6-9 Tape Travel Diagram

6-3-2 Tape Transport System Adjustment

When parts are replaced, perform the required adjustments by referring to procedures for the tape transport system. If there are any changes to the tape path, first run a T-120 tape and make sure excessive tape wrinkle does not occur at the tape guides. ◆ If tape wrinkle is observed at the guide roller S, T, turn the guide roller S, T until wrinkle disappears. ◆ If the tape wrinkle is still observed at the tape guide, perform the tilt adjustment of the ACE head.

(1) ACE Head Assembly Adjustment

a. ACE HEAD HEIGHT ADJUSTMENT

1) Run the alignment tape (Color bar) in the playback mode. 2) Observe surface of the audio head using a dental mirror. 3) Turn screw (C) clockwise or counterclockwise until the gap of lower tape edge and the lower edge of the control head is about 0.25mm. (Refer to Fig. 6-10 and 6-11)  Fig. 6-10 Location of ACE Head Adjustment Screw  Fig. 6-11 ACE Head Height Adjustment

b. ACE HEAD TILT ADJUSTMENT

1) Playback a blank tape and observe the position of the tape at the lower flange of tape guide. 2) Confirm that there is no curl or wrinkle at the lower flange of tape guide as shown in Fig. 6-12 (B). 3) If a curl or wrinkle of the tape occurs, slightly turn the screw (A) tilt adjust on the ACE head ass'y. 4) Reconfirm the ACE head height.  Fig. 6-12 Tape Guide Check

c. AUDIO AZIMUTH ADJUSTMENT

1) Load alignment tape (Mono scope) and playback the 6KHz signal. 2) Connect channel-1 scope probe to audio output. 3) Adjust screw (B) to achieve maximum audio level. (See Fig. 6-10)

d. ACE HEAD POSITION (X-POINT) ADJUSTMENT

1) Playback the alignment tape (Color bar) 2) Intermittently short-circuit the two Test Points on VCR Main PCB. (See Fig. 6-2) 3) Press the "0, 5" remote control buttons, then adjustment is operates automatically. (See Fig. 6-1) 4) Connect the CH-1 probe to "Envelope" the CH-2 probe to "H'D switching pulse" and then trigger to CH-1. 5) Insert the (-) driver into the X-Point adjustment hole and adjust it so that envelope waveform is maximum. Test point: W568 (Audio Output) W569 (Envelope) W570 (H'D S/W -Trigger) W571 (Control Pulse)

Fig. 6-13 Location of Test point (VCR Main PCB-Top View)

(2) Linearity adjustment (Guide roller S, T adjustment)

1) Playback the Mono Scope alignment tape (SP mode). 2) Observe the video envelope signal on an oscilloscope (triggered by the video switching pulse). 3) Make sure the video envelope waveform (at its minimum) meets the specification shown in Fig. 6-14. If it does not, adjust as follows:

Note:

a=Maximum output of the video RF envelope. b=Minimum output of the video RF envelope at the entrance side. c=Minimum output of the video RF envelope at the center point. d=Maximum output of the video RF envelope at the exit side. 4) If the section A in Fig. 6-15 does not meet the specification, adjust the guide roller S up or down. 5) If the section B in Fig. 6-15 does not meet the specification, adjust the guide roller T up or down.  Fig. 6-14 Envelope Waveform Adjustment  Fig. 6-15 Adjustment Points 6) Play back the Mono Scope alignment tape (SP mode). 7) Connect an oscilloscope CH-1 to the "Envelope" and CH-2 to the "H'D SW Pulse" for triggering. 8) Turn the guide roller heads with a flat head (☐) driver to obtain a flat video RF envelope as shown in Fig. 6-16.

Fig. 6-16 Guide Roller S, T Height Adjustment

(3) Check Transitional Operation from RPS to Play

Check transition from RPS mode to play mode: Using a pre-recorded SP tape, make sure the entry side of envelope comes to an appropriate steady state within 3 seconds (as shown in Fig. 6-17). If the envelope waveform does not reach specified peak-to peak amplitude within 3 seconds, adjust as follows : 1) Make sure there is no gap between the supply roller lower flange and the tape. If there is a gap, adjust the supply guide roller again. 2) Change operation mode from the RPS to the play mode (again) and make sure the entry side of envelope rises within 3 second.  Fig. 6-17 Video Envelope Rising when Operation mode Changes from RPS to Play Mode

(4) Envelope Check

1) Make recordings on T-120 (E-120) and T-160 (E-180) tape. Make sure the playback output envelope meets the specification as shown in Fig. 6-18. 2) Play back a self recorded tape (recording made on the unit using with T-120 (E-120). The video envelope should meet the specification as shown in Fig. 6-18. In SP mode, (A) should equal (B). If the head gap is wide, upper cylinder should be checked.  Fig. 6-18 Envelope Input and Output Level

(5) Tape Wrinkle Check

1) Run the T-160 (E-180) tape in the playback, FPS, RPS and Pause modes and observe tape wrinkle at each guide. 2) If excessive tape wrinkle is observed, perform the following adjustments in Playback mode: ◆ Tape wrinkle at the guide roller S, T section : Linearity adjustment. ◆ Tape wrinkle at tape guide flange : ACE head assembly coarse adjustment.

6-3-3 Reel Torque

1) The rotation of the capstan motor causes the holder clutch ass'y to rotate through the belt pulley. 2) The spring wrap PLAY/REV of holder clutch ass'y drives the disk reel S, T through gear idler by rotation of gear center ass'y. 3) Brake is operated by slider cam at FF/REW mode. 4) Transportation of accurate driving force is done by gears. (Gear Center Ass'y) Note: If the spec. does not meet the followings specifications, replace the holder clutch ass'y and then recheck.

MODE TORQUE g/cm GAUGE
PB 42 ± 11 Cassette Torquemeter
RPS 145 ± 30 Cassette Torquemeter

MEMO

7. TROUBLESHOOTING

    M["Play Mode Inoperative (VCR Section)"] --> N{EE-VIDEO}
    N -->|No| O["See (Video Missing in EE Mode)"]
    N -->|Yes| P{Insert the cassette tape recorded by another VCR and press PLAY Button}
    P -->|Yes| Q{Play Indicator in the display}
    Q -->|No| R{Press PLAY key in remote control}
    R -->|No| S["Check IC601-58"]
    R -->|Yes| T["Check Timer"]
    Q -->|Yes| U{Mechanism operation}
    U -->|No| V["See (Mechanism doesn't operate in play mode)"]
    U -->|Yes| W{PB-VIDEO}
    W -->|No| X["See (Video missing in play mode)"]
    W -->|Yes| Y["See (PB VIDEO) audio missing in play mode"]

    O["FWD SEARCH DOESN'T OPERATE"] --> P{PLAY OPERATION}
    P -->|NO| Q["SEE (PLAY DOESN'T OPERATE)"]
    P -->|YES| R["PRESS F.FWD FOR FORWARD SEARCH"]
    R --> S{IS CAPSTAN SPEED CHANGED?}
    S -->|NO| T["CHANGE DECK"]
    S -->|YES| U{NOISE BAR LOCKING}
    U -->|NO| V["(CONTROL PULSE) IC601-89"]
    V --> W{SEARCH OPERATION}
    W -->|NO| X["CHANGE IC601"]
    W -->|YES| Y["END"]
    W -->|YES| Z["ADJUST A/CE HEAD"]
    W -->|YES| AA["CHECK CAPSTAN MOTOR"]

8. REPAIR PARTS LIST

8-1 Exploded Views 8-2 8-1-1 Cabinet Assembly 8-2 8-1-2 VCR Mechanical Parts (Top Side) 8-4 8-1-3 VCR Mechanical Parts (Bottom Side) 8-5 8-1-4 DVD Mechanical Parts 8-6 8-2 Electrical Parts List 8-7

NOTE:

- -XX, -X mean standardized parts, so they may have some differences from the original one. - Items marked “\*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified.

8-1-1 Cabinet Assembly

 Ref. No. Part No. Description Remarks 4 9-885-037-38 ASSY DVD DECK 5 3-084-083-01 ASSY DECK 101 9-885-043-09 CASE (COMBO PAL), UPPER 153 3-075-256-01 SCREW TAP 3X12 Ref. No. Part No. Description Remarks 155 3-078-566-01 SCREW TAP M3 L10 BLK 157 3-075-262-01 SCREW BH 4X12 △200 1-823-023-11 POWER CORD KKP419C (EXCEPT D950GI) △200 1-823-025-11 POWER CORD Y352 (D950GI)

Models	1 UT01
SLV-D910
SLV-D950

Ref. No. Part No. Description Remarks 1 9-885-043-21 ASSY PANEL FRONT (D910B/D910E/D910N) 1 9-885-043-22 ASSY PANEL FRONT (D950B/D950E) 1 9-885-043-23 ASSY PANEL FRONT (D950GI) 1 9-885-043-24 ASSY PANEL FRONT (D910R) 1 9-885-043-25 ASSY PANEL FRONT (D910AZ) 2 9-885-037-27 DOOR TRAY 3 9-885-037-28 SPRING ETC-DOOR TRAY Ref. No. Part No. Description Remarks 21 9-885-037-26 DOOR CASSETTE 22 9-885-037-13 SPRING ETC MASK 50 1-786-352-11 SW-DIAL TIMER (D950B/D950E/D950GI/D910AZ) UT01 9-885-043-07 COMMANDER (RMT-V503A) (D910B/D910E/D910N/D910R/D910AZ) UT01 9-885-043-08 COMMANDER (RMT-V503B) (D950B/D950E/D950GI) 8-1-2 VCR Mechanical Parts (Top Side)  Ref. No. Part No. Description Remarks B410 1-763-836-11 LOADING ASSY, MOTOR B440 3-075-253-01 SCREW ASSY MAC 2.6X5 B475 1-796-433-11 DAMPER CAPSTAN B480 3-075-241-01 ASSY ACE HEAD G001 1-796-704-11 ASSY CLYNDER 6HD (SECAM) G060 3-075-254-01 SCREW ASSY MAC 3X6 G070 3-067-796-01 PLATE-GROUND DECK G420 3-079-347-01 SLIDER-SUPPLY ASSY G450 3-079-346-01 SLIDER-TAKE UP ASSY G510 3-084-091-01 SCREW TAP 2.6X5 G520 3-067-779-01 LEVER-#9 GUIDE G527 3-067-780-01 SPRING-#9 GUIDE G546 3-067-787-01 LEVER-FL DOOR Ref. No. Part No. Description Remarks G555 3-067-784-01 LEVER-UNIT PINCH G680 3-075-021-01 AUTO HEAD CLEANER (G680) G681 3-075-022-01 AUTO HEAD CLEANER (G681) K110 3-075-047-01 DISK S REEL K140 3-075-046-01 DISK T REEL K240 3-067-781-01 LEVER-TENSION K248 3-067-782-01 SPRING-TENSION LEVER K250 3-067-783-01 BAND-BREAK K340 3-067-785-01 LEVER-T. BRAKE K350 3-067-786-01 SPRING-BRAKE K490 3-067-788-01 HOLDER-FL CASS K546 3-067-789-01 GUIDE-CASS.DOOR   The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks 900 3-078-592-01 SCREW TAP 2X6 903 9-885-037-07 SCREW MAC 1.7X3 904 9-885-037-08 SCREW TAP 1.7X5 H103 9-885-037-29 PULLEY GEAR H104 9-885-037-20 MOTOR LOADING ASSY H105 3-078-583-01 BELT RECTANGULAR H106 9-885-037-30 GEAR TRAY H108 9-885-037-24 TRAY DISC H202 9-885-037-35 RUBBER INSULATOR Ref. No. Part No. Description Remarks H203 3-078-588-01 SHAFT PU H204 9-885-037-31 GEAR FEED A H205 9-885-037-32 GEAR FEED B H206 9-885-037-23 HOLDER-CAM SKEW H207 9-885-037-21 MOTOR-SPINDLE H210 9-885-037-22 MOTOR FEED ASSY △H211 9-885-037-37 ASSY PICK UP H241 9-885-037-06 CABLE FLAT 24P

8-2 ELECTRICAL PARTS LIST

NOTE:

- Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. - -XX, and -X mean standardized parts, so they may have some difference from the original one. - RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • Not all of the parts are listed. - Items marked “\*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - SEMICONDUCTORS In each case, u: , for example: uA...: A... , uPA... , PA... , uPB... , PB... , uPC... , PC... , uPD..., ∝PD. • CAPACITORS: uF: ∝F • COILS uH: H When indicating parts by reference number, please include the board name. The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks DVD MAIN BOARD \*\*\*\*\*\*\*\*\*\*\*\*\* 9-885-043-18 PWB MAIN ASSY (EXCEPT D910R/D910AZ) 9-885-043-19 PWB MAIN ASSY (D910R) 9-885-043-20 PWB MAIN ASSY (D910AZ) < DIODE > DD1 1-805-013-11 DIODE DAP202K < IC > AIC2 1-805-024-11 IC (DA CONVERTER) AIC4 1-805-028-11 IC (OP AMP 4560) PIC1 1-805-030-11 IC 1563 (V REGULATOR) PIC2 9-885-037-02 IC (POSI. FIXED) RIC1 9-885-037-19 IC S5L1463A01 (ASIC) SIC1 9-885-037-18 IC S5L1455X01 (ASIC) SIC2 9-885-036-98 IC 41LV16256 (DRAM) SIC3 9-885-036-97 IC FAN8728 (MOTOR DRIVER) VIC1 9-885-037-03 IC LA73054 (VIDEO) ZIC1 9-885-043-28 IC ZR36742 (DECODER) ZIC2 9-885-036-99 IC IS42S16400A-7T (DRAM) ZIC3 9-885-050-82 IC (FLASH MEMORY) (EURO W) (D950B/D950GI/D950E/D910E/D910B) ZIC3 9-885-050-83 IC (FLASH MEMORY) (EURO E) (D910N/D910R) ZIC3 9-885-050-85 IC (FLASH MEMORY) (AZ) (D910AZ) ZIC7 1-805-027-11 IC 24C021 (EEPROM) ZIC8 1-805-022-11 IC 74VHCT125A (CMOS LOGIC) DQ1 1-805-016-11 TRANSISTOR KSC1623-L DQ2 1-805-016-11 TRANSISTOR KSC1623-L DQ3 1-805-016-11 TRANSISTOR KSC1623-L RQ1 1-805-014-11 TRANSISTOR KSA1182-Y RQ2 1-805-014-11 TRANSISTOR KSA1182-Y SY1 1-795-749-11 CRYSTAL UNIT (33.8688MHz) ZY1 1-795-750-11 CRYSTAL UNIT (27MHz) Ref. No. Part No. Description Remarks FUNCTION BOARD \* \* \* \* \* \* \* \* \* \* \* \* \* < SWITCH > SW704 1-786-353-11 TACT SW (TAPPING 5mm) (D910B/D910E/D910N/D910R) SW705 1-786-353-11 TACT SW (TAPPING 5mm) (D910B/D910E/D910N/D910R) SW706 1-786-353-11 TACT SW (TAPPING 5mm) (D910B/D910E/D910N/D910R) SW708 1-786-353-11 TACT SW (TAPPING 5mm) SW709 1-786-353-11 TACT SW (TAPPING 5mm) (D910B/D910E/D910N/D910R) S. M. P. S. BOARD ^* \* ^* \* ^* \* ^* \* ^* \* ^* \* ^* FC1SS1 1-576-527-11 FUSE CLIP FC1SS2 1-576-527-11 FUSE CLIP SC01 3-075-256-01 SCREW TAP 3X12 < CAPACITOR > △C1SD02 1-165-573-11 CONDENSER FILM 0.1uF △C1SS01 1-165-573-11 CONDENSER FILM 0.1uF < DIODE > D1P101 1-804-409-11 DIODE IN4002 D1P103 1-804-407-11 DIODE IN4148 D1P104 1-804-407-11 DIODE IN4148 D1SF01 1-804-407-11 DIODE IN4148 D1SF02 1-804-412-11 DIODE FIT4 D1SS01 1-804-413-11 DIODE IT5 D1SS02 1-804-413-11 DIODE IT5 D1SS03 1-804-413-11 DIODE IT5 D1SS04 1-804-413-11 DIODE IT5 D1SS11 1-804-408-11 DIODE UF4007 D1SS12 1-805-041-11 DIODE SE55 D1SS13 1-805-041-11 DIODE SE55 D1SS14 1-805-041-11 DIODE SE55 D1SS15 1-804-412-11 DIODE FIT4 D1SS16 1-804-411-11 DIODE UG2D

S. M. P. S. VCR MAIN

Ref. No. Part No. Description Remarks D1SS17 1-804-412-11 DIODE FIT4 D1SS19 1-804-412-11 DIODE FIT4 ZD1P02 1-804-418-11 DIODE MTZJ12B ZD1P03 1-804-417-11 DIODE MTZJ9.1B ZD1SS1 9-885-036-94 DIODE MTZJ20B ZD1SS2 1-805-265-11 DIODE MTZJ4.3B < FET > SCS11A 9-885-036-95 FET SILICON △F1SD01 1-576-526-11 FUSE (1.6A/250V) < IC > △IC1S02 1-804-784-11 IC PHOTO COUPLER IC1S03 1-804-445-11 IC KA4318 IC1SS2 9-885-037-01 IC (PWM CONTROLLER) △L1SS01 1-424-831-11 LINE FILTER 20uH △L1SS02 1-424-831-11 LINE FILTER 20uH < TRANSFORMER > △PT1SD1 9-885-043-32 TRANS SWITCHING EER3530 Q1P101 1-804-424-11 TRANSISTOR KSC2328AY Q1P104 1-804-424-11 TRANSISTOR KSC2328AY VCR MAIN BOARD \* \* \* \* \* \* \* \* \* \* \* \* \* \* 9-885-043-36 PWB MAIN ASSY VHS (D950B) 9-885-043-37 PWB MAIN ASSY VHS (D950GI) 9-885-043-38 PWB MAIN ASSY VHS (D950E) 9-885-043-39 PWB MAIN ASSY VHS (D910E) 9-885-043-40 PWB MAIN ASSY VHS (D910B) 9-885-043-41 PWB MAIN ASSY VHS (D910N) 9-885-043-42 PWB MAIN ASSY VHS (D910R) 9-885-043-43 PWB MAIN ASSY VHS (D910AZ) JC801S 3-078-566-01 SCREW TAP M3 L10 BLK (EXCEPT D910AZ) PIC3S 3-075-255-01 SCREW TAP 3X8 < DIODE > D301 1-804-407-11 DIODE IN4148 D302 1-804-409-11 DIODE IN4002 D401 1-804-409-11 DIODE IN4002 D501 1-804-409-11 DIODE IN4002 D603 1-804-407-11 DIODE IN4148 D620 1-804-409-11 DIODE IN4002 D688 1-804-407-11 DIODE IN4148 D692 1-804-409-11 DIODE IN4002 D701 1-804-407-11 DIODE IN4148 Ref. No. Part No. Description Remarks D702 1-804-407-11 DIODE IN4148 D703 1-804-407-11 DIODE IN4148 D704 1-804-407-11 DIODE IN4148 D705 1-804-407-11 DIODE IN4148 D805 1-804-407-11 DIODE IN4148 (EXCEPT D910AZ) D80A 1-804-407-11 DIODE IN4148 (EXCEPT D910AZ) D81A 1-804-407-11 DIODE IN4148 (EXCEPT D910AZ) D899 1-804-409-11 DIODE IN4002 D4N01 1-804-407-11 DIODE IN4148 D4N02 1-804-407-11 DIODE IN4148 D601C 1-804-409-11 DIODE IN4002 D6P01 1-804-407-11 DIODE IN4148 D1P105 1-804-407-11 DIODE IN4148 D1P107 1-804-407-11 DIODE IN4148 D1P108 1-804-407-11 DIODE IN4148 DAA801 1-805-012-11 DIODE DAN202K DAA802 1-805-009-11 DIODE DAN217 DAA803 1-805-012-11 DIODE DAN202K DAA804 1-805-012-11 DIODE DAN202K DAA805 1-805-012-11 DIODE DAN202K DAA810 1-805-012-11 DIODE DAN202K (D910AZ) DAA811 1-805-012-11 DIODE DAN202K (D910AZ) RD801 1-804-407-11 DIODE IN4148 RD802 1-804-407-11 DIODE IN4148 VZ1 1-805-011-11 DIODE UDZ9.1B VZ2 1-805-011-11 DIODE UDZ9.1B VZ3 1-805-011-11 DIODE UDZ9.1B VZ4 1-805-011-11 DIODE UDZ9.1B VZ5 1-805-011-11 DIODE UDZ9.1B (D910AZ) VZ6 1-805-011-11 DIODE UDZ9.1B (D910AZ) VZ9 1-805-011-11 DIODE UDZ9.1B (D910AZ) VZ10 1-805-011-11 DIODE UDZ9.1B (D910AZ) ZD01C 1-804-417-11 DIODE MTZJ9.1B (EXCEPT D910AZ) ZD02C 1-805-011-11 DIODE UDZ9.1B (EXCEPT D910AZ) ZD03C 1-804-417-11 DIODE MTZJ9.1B (EXCEPT D910AZ) ZD04C 1-805-011-11 DIODE UDZ9.1B (EXCEPT D910AZ) ZD401 1-804-414-11 DIODE UZP33B ZD701 1-805-011-11 DIODE UDZ9.1B ZD801 1-804-803-11 DIODE MTZ6.2B (EXCEPT D910AZ) ZD806 1-805-011-11 DIODE UDZ9.1B ZD807 1-805-011-11 DIODE UDZ9.1B ZD809 1-805-011-11 DIODE UDZ9.1B (EXCEPT D910AZ) ZD810 1-805-011-11 DIODE UDZ9.1B (EXCEPT D910AZ) ZD811 1-805-011-11 DIODE UDZ9.1B (EXCEPT D910AZ) ZD1P04 1-804-416-11 DIODE MTZJ5.1B ZD1P05 1-804-418-11 DIODE MTZJ12B ZD1P06 1-804-416-11 DIODE MTZJ5.1B ZDA880 1-804-417-11 DIODE MTZJ9.1B (EXCEPT D910AZ) ZDA881 1-804-417-11 DIODE MTZJ9.1B (EXCEPT D910AZ) ZDA885 1-805-011-11 DIODE UDZ9.1B (D910AZ) ZDA886 1-805-011-11 DIODE UDZ9.1B (D910AZ)

Note :

The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks < FUSE > ▲FZ01 1-576-729-11 FUSE-RADIAL LEAD1A △FZ02 1-576-729-11 FUSE-RADIAL LEAD1A △FZ03 1-576-729-11 FUSE-RADIAL LEAD1A ▲FZ04 1-576-729-11 FUSE-RADIAL LEAD1A < IC > DIC1 1-805-039-11 IC M74HCU04 IC301 1-804-702-11 IC (VIDEO) IC501 1-804-703-11 IC (HIFI) IC604 1-804-704-11 IC (RESET) (EXCEPT D910AZ) IC604 1-804-773-11 IC (RESET) (D910AZ) IC605 1-804-432-11 IC 524C80D81 IC608 1-804-705-11 IC (POWER DETECT) (D910N/D910R/D910AZ) IC701 9-885-043-27 IC (LED DRIVER) IC802 9-885-036-96 IC BU4053BCFV (CMOS LOGIC) IC803 9-885-036-96 IC BU4053BCFV (CMOS LOGIC) (EXCEPT D910AZ) IC3S01 1-804-701-11 IC (SECAM) (D950B/D910B/D910R) IC4N01 1-805-156-11 IC MSP3417D (PQFP) (AUDIO) IC6P01 1-804-453-11 IC (PDC/OSD) (EXCEPT D910R/D910AZ) IC6P01 1-804-454-11 IC (OSD) (D910R/D910AZ) ICA811 1-805-028-11 IC 4560 (OP AMP) (EXCEPT D950B/D910B) PIC3 1-805-031-11 IC 3RD13 (V REGULATOR) LD601 1-804-438-11 LED-IR (T/S REEL) LD701 9-885-043-30 LED DISPLAY (D950B/D950GI/D950E) LD701 9-885-043-31 LED DISPLAY (D910E/D910B/D910N/D910R/D910AZ) PT601 1-804-770-11 TRANSISTOR PHOTO INTERRUPTER PT602 1-804-770-11 TRANSISTOR PHOTO INTERRUPTER Q302 1-804-421-11 TRANSISTOR KSC945 (D950B/D910B/D910R) Q305 1-804-429-11 TRANSISTOR KSR2001 Q351 1-804-420-11 TRANSISTOR KSA733 Q3Q1 1-804-421-11 TRANSISTOR KSC945 Q3Q2 1-804-421-11 TRANSISTOR KSC945 Q3Q3 1-804-421-11 TRANSISTOR KSC945 Q3Q4 1-804-421-11 TRANSISTOR KSC945 Q3Q6 1-804-428-11 TRANSISTOR KSR1004 Q3Q7 1-804-421-11 TRANSISTOR KSC945 Q601 1-804-428-11 TRANSISTOR KSR1004 Q802 1-804-428-11 TRANSISTOR KSR1004 (EXCEPT D910AZ) Q803 1-804-428-11 TRANSISTOR KSR1004 (EXCEPT D910AZ) Q804 1-804-429-11 TRANSISTOR KSR2001 (EXCEPT D910AZ) Q808 1-804-428-11 TRANSISTOR KSR1004 Q809 1-804-421-11 TRANSISTOR KSC945 (EXCEPT D910AZ) Q810 1-804-421-11 TRANSISTOR KSC945 Q811 1-804-421-11 TRANSISTOR KSC945 (EXCEPT D910AZ) Q812 9-885-043-26 TRANSISTOR KSR1104 Q813 9-885-043-26 TRANSISTOR KSR1104 Ref. No. Part No. Description Remarks Q814 1-805-016-11 TRANSISTOR KSC1623-L (EXCEPT D910AZ) Q815 1-805-016-11 TRANSISTOR KSC1623-L (EXCEPT D910AZ) Q816 1-805-016-11 TRANSISTOR KSC1623-L (EXCEPT D910AZ) Q880 1-804-429-11 TRANSISTOR KSR2001 (EXCEPT D910AZ) Q882 1-804-429-11 TRANSISTOR KSR2001 (EXCEPT D910AZ) Q3A01 1-804-421-11 TRANSISTOR KSC945 Q3A02 1-804-420-11 TRANSISTOR KSA733 Q3A03 1-804-422-11 TRANSISTOR KTC3023 Q3A04 1-804-422-11 TRANSISTOR KTC3023 Q3A05 1-804-422-11 TRANSISTOR KTC3023 Q3A06 1-804-420-11 TRANSISTOR KSA733 Q6P01 1-804-420-11 TRANSISTOR KSA733 Q6P02 1-804-420-11 TRANSISTOR KSA733 Q6P04 1-804-421-11 TRANSISTOR KSC945 Q1P102 1-804-429-11 TRANSISTOR KSR2001 Q1P103 1-804-421-11 TRANSISTOR KSC945 Q1P105 1-804-424-11 TRANSISTOR KSC2328AY Q1P106 1-804-424-11 TRANSISTOR KSC2328AY Q1P107 1-804-424-11 TRANSISTOR KSC2328AY Q1P108 1-804-429-11 TRANSISTOR KSR2001 Q1P109 1-804-421-11 TRANSISTOR KSC945 Q1P110 1-804-424-11 TRANSISTOR KSC2328AY Q1P111 1-804-424-11 TRANSISTOR KSC2328AY QA801 1-805-016-11 TRANSISTOR KSC1623-L QA802 1-805-016-11 TRANSISTOR KSC1623-L QAA801 1-805-017-11 TRANSISTOR 200MW QAA802 1-805-018-11 TRANSISTOR KSR2103 QAA803 1-805-015-11 TRANSISTOR KSA812 QAA804 1-805-018-11 TRANSISTOR KSR2103 QAA805 1-805-017-11 TRANSISTOR 200MW QAA806 1-805-016-11 TRANSISTOR KSC1623-L QAA807 1-805-018-11 TRANSISTOR KSR2103 QAA808 1-805-016-11 TRANSISTOR KSC1623-L QAA809 1-805-017-11 TRANSISTOR 200MW QAV802 1-805-015-11 TRANSISTOR KSA812 (EXCEPT D910AZ) < MODULE > RM701 1-477-308-11 REMOCON MOD (TSOP2238WE1) S601 1-804-439-11 PHOTO TRANSISTOR (END SENSOR) S602 1-804-439-11 PHOTO TRANSISTOR (START SENSOR) < SWITCH > SW601 1-786-198-11 SWITCH MODE (PROGRAM SWITCH) SW602 1-786-199-11 SWITCH REC (REC SWITCH) TM401 1-693-633-11 TUNER PAL (D950B/D910B) TM401 9-885-043-35 TUNER PAL (EXCEPT D950B/D910B) Note : The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified.

VCR MAIN

Ref. No. Part No. Description Remarks XT301 1-795-330-11 VIBRATOR CRYSTAL (4.433619MHz) XT601 1-795-332-11 VIBRATOR CRYSTAL (32.768kHz) (D910AZ/D910N/D910R) XT602 1-795-331-11 VIBRATOR CRYSTAL (8MHz) XT4N01 9-885-043-29 CRYSTAL (18.432MHz) MISCELLANEOUS ※※※※※※※※※※※※※ △200 1-823-023-11 POWER CORD KKP419C (EXCEPT D950GI) △200 1-823-025-11 POWER CORD Y352 (D950GI) B410 1-763-836-11 LOADING ASSY, MOTOR B560 1-796-432-11 MOTOR CAPSTAN G001 1-796-704-11 ASSY CLYNDER 6HD (SECAM) H104 9-885-037-20 MOTOR LOADING ASSY H207 9-885-037-21 MOTOR-SPINDLE H210 9-885-037-22 MOTOR FEED ASSY △H211 9-885-037-37 ASSY PICK UP H241 9-885-037-06 CABLE FLAT 24P ACCESSORIES & PACKING MATERIALS \*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\*\* 3-084-914-12 MANUAL, INSTRUCTION (FRENCH) (D910E) 3-084-914-22 MANUAL, INSTRUCTION (ITALIAN) (D910E) 3-084-914-32 MANUAL, INSTRUCTION (SPANISH) (D910E/D950E) 3-084-914-42 MANUAL, INSTRUCTION (GERMAN) (D910E/D950E) 3-084-914-52 MANUAL, INSTRUCTION (DUTCH) (D910E/D950E) 3-084-915-12 MANUAL, INSTRUCTION (ENGLISH) (D950GI) 3-084-916-12 MANUAL, INSTRUCTION (FRENCH) (D910B/D950B) 3-084-917-11 MANUAL, INSTRUCTION (ENGLISH) (D910N) 3-084-917-21 MANUAL, INSTRUCTION (POLISH) (D910N) 3-084-917-31 MANUAL, INSTRUCTION (HUNGARIAN) (D910N) 3-084-917-41 MANUAL, INSTRUCTION (CZECH) (D910N) 3-084-917-51 MANUAL, INSTRUCTION (RUSSIAN) (D910R) 3-084-918-12 MANUAL, INSTRUCTION (ENGLISH) (D910AZ) 9-885-043-07 COMMANDER (RMT-V503A) (D910B/D910E/D910N/D910R/D910AZ) 9-885-043-08 COMMANDER (RMT-V503B) (D950B/D950E/D950GI) 9-885-043-33 CABLE RCA (RED) 9-885-043-34 CABLE RCA (YEL)

Note :

The components identified by mark △ or dotted line with mark △ are critical for safety. Replace only with part number specified.
