TMPBA012 - Blender TM Electron - Free user manual and instructions

Product Type	Blender
Brand	TM Electron
Model	TMPBA012
Dimensions (approx.)	20 x 15 x 30 cm
Weight (approx.)	1.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	400 W
Capacity	1.5 L
Speed Settings	2 speeds + pulse
Main Functions	Blending, pureeing, mixing
Blade Material	Stainless steel
Jar Material	Glass
Care & Cleaning	Hand wash recommended; blade assembly removable
Safety Features	Overload protection, locking lid
Spare Parts Available	Jar, blade assembly, lid, seal ring
Repairability	Replaceable parts; user serviceable
Included Accessories	Blender jar with lid, blade assembly, user manual

Frequently Asked Questions - TMPBA012 TM Electron

How do I clean the blender?

Disassemble the jar, lid, and blade assembly. Wash all parts with warm soapy water. Do not submerge the motor base. The blade assembly can be rinsed carefully. Dry thoroughly before reassembling.

Can the blender crush ice?

Yes, the TMPBA012 can crush ice. Use the pulse function and add some liquid to facilitate blending. Avoid overloading.

What is the warranty period?

TM Electron offers a 2-year limited warranty from the date of purchase covering manufacturing defects. Keep your receipt as proof.

How do I replace the blade assembly?

Unscrew the base of the jar (counter-clockwise). Remove the old blade assembly and seal ring. Insert the new one and tighten securely. Ensure the seal ring is properly placed.

Why is the blender leaking?

Check if the sealing ring is correctly fitted or damaged. Also ensure the lid is tightly closed. If the jar is cracked, replace it.

Can I blend hot liquids?

No, do not blend hot liquids as pressure buildup can cause the lid to blow off. Allow liquids to cool to room temperature before blending.

What does the pulse function do?

The pulse function provides short bursts of high speed for precise control, ideal for chopping or intermittent blending.

How do I remove stubborn stains from the jar?

Fill the jar with warm water and a drop of dish soap, then blend on high for 30 seconds. Rinse thoroughly. For tough stains, use a soft sponge with baking soda.

Is the blender suitable for making smoothies?

Yes, it is excellent for smoothies. Combine fruits, yogurt, ice, and liquid, then blend on high until smooth.

Where can I find spare parts?

Spare parts are available on the TM Electron official website or through authorized dealers. Use the model number TMPBA012 to search.

USER MANUAL TMPBA012 TM Electron

Your assistance in your kitchen

Close-up of a mechanical component with multiple blades and a central shaft, possibly a turbine or impeller (no visible text or symbols)

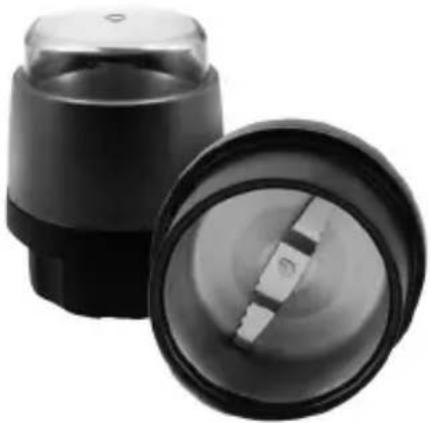

MOLINILLO DE CAFÉ
COFFEE GRINDER

Close-up of a black mechanical component with a transparent lid and circular lens (no visible text or symbols)

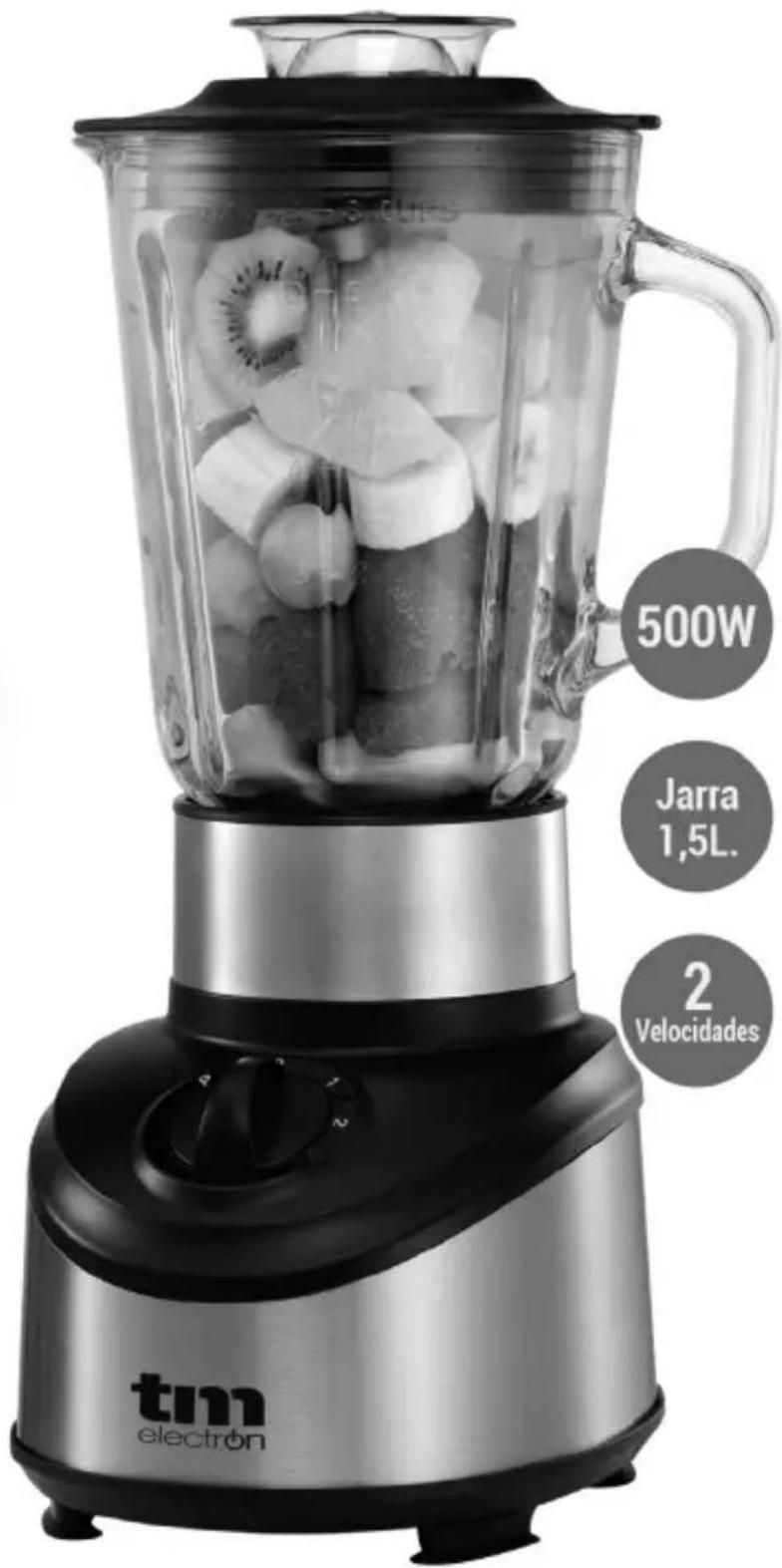

500W

Jarra 1,5L.

2 Velocidades

tin

electron

Exterior view of a modern electric blender with a black and silver casing (no text or symbols visible on the device itself)

TABLE BLENDER TMPBA012

Thank you very much for your confidence in our products. For proper implementation and operation of the product read the manual carefully before using the appliance.

It is very important that you keep this instruction manual to find answers to future queries.

INDEX

1. Structure....06
2. Safety instructions 06
3. Usage 07
4. Clean & Care 09
5. Technical parameter 10

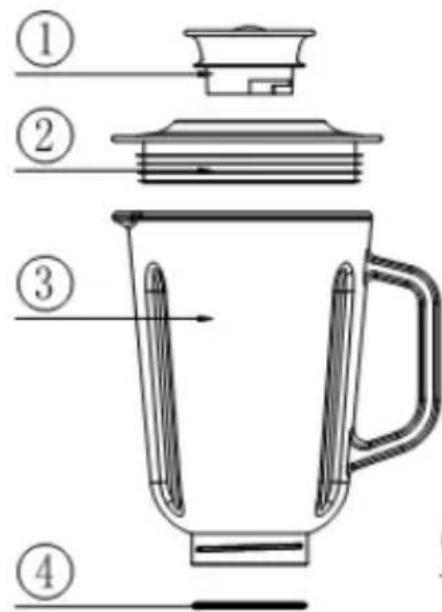

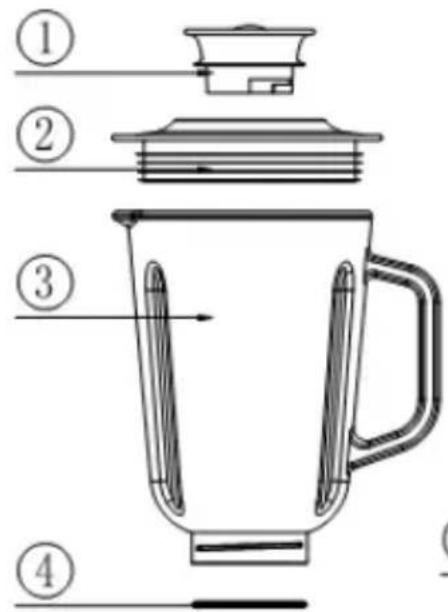

1. Structure

Line drawing of a blender with handle and side blades, no text or symbols present

1. Inner Cover
2. Cover
3. Glass jar
4. Seal ring
5. Blade

6. Blade seat

7. Main Body

8. Switch
9. Blender
10. Grinder
11. Grinder base

2. Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including:

1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE!
2. To protect against the risk of electrical shock do not put the main housing or power supply in water or other liquid, and do not use near a source of water.
3. This appliance is not intended for use by young children or infirm persons without supervision.

4. Make sure to unplug the plug before using or cleaning

5. Never touch the operating part during using.

6. Do not use this appliance if it is damaged, return the appliance to the retailer if it is still within the guarantee period. Or ask a professional person to check.

7. Do not use this appliance outdoors.

8. Never hang the cord on the table.

9. Never put your hand or other objects into the jar during operating.

10. Be careful for the blade as it is sharp.

11. To avoid any accidents, never assemble the blade base when you don't use.

12. Never to open the cover during operating

13. Make sure the cover is in the correct position before using.

14. Take out the inner cover when blending the hot liquid.

15. Never operate the appliance in empty-load.

16. The appliance is only for household, not for commercial use.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

DISPOSAL:

DO not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. We reserve the right to make amendments.

3. Usage

1. Twist the blade base in an anti-clockwise direction until the tabs on the jar are fully locked.

NOTE: If the blade base not fully locked into the jar, it will cause leakage or cause damage to the motor.

1. Put the fruits into glass jar.

Note: Prepare any fruits and vegetables for processing by slicing roughly into cubes. Remove any fruit stones or large pips. Peel as required (100g-150g required).

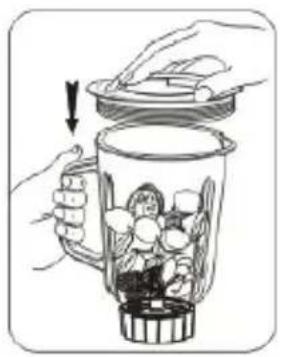

1. Place the cover onto the jar correctly to avoid the juice spill out.

NOTE: Make sure the cover placed correctly onto the jar.

1. Add water or milk into the jar from the hole.

NOTE: The max capacity can be added is 1000ml., the min capacity is 250ml. Maximum temperature for ingredients is 60^ C.

Line drawing of a hand holding a large mug and a small plant, with no text or symbols present.

Illustration of a hand pouring liquid into a blender with food inside (no text or symbols)

Illustration of hands using a blender to remove vegetables from a glass (no text or symbols)

1. Twist the inner cover tightly to the cover.

NOTE: Twist the inner cover tightly or the liquid will spill out.

1. Place the glass jar into the main body vertically, choose the speed you need. "1" "2" is continuous working, P is pulse control.

NOTE: If food is not request for grinding hard, choose P.

Illustration of hands pouring liquid into a glass mug filled with food items (no text or symbols)

Illustration of hands using a blender to handle food items (no text or symbols)

Illustration of a blender with food inside, showing a drop in the side (no text or symbols)

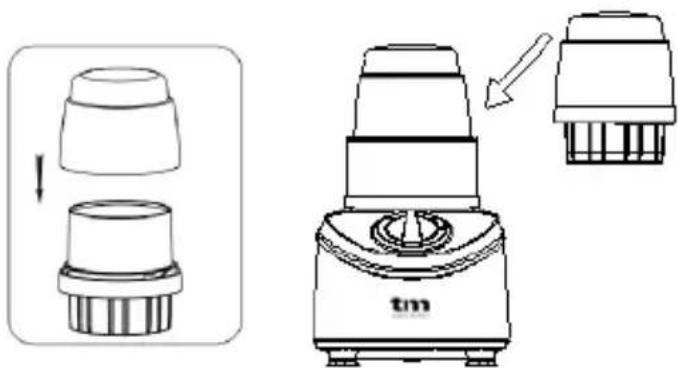

1. Put the foods into the dry miller cup while the weight can not be more than 80g. Then place the dry miller blade base in the miller cup and twist it in anti-clock wise.

NOTE: When working, if the blades cannot touch the foods, please stop the appliance and unplug it.

1. Place the dry miller on the main body to work. When milling hard food please select Speed 2 or P control. Other soft food, please select Speed. This appliance has built-in safety switch, please press the dry mill cup by hand or it won't be working. Do not work over 2 minutes when milling the coffee or bean.

Technical line drawing of a blender with a top component and side view showing a drop (no text or symbols)

4. Clean & Care

1. Clean & dry all parts after use.

NOTE: Make sure it is unplug before cleaning.

1. Turn the appliance off at the power supply and unplug. Pull up the glass jar off the main body, pour out any remaining material. then disassemble the blade from the blade base.
2. Wash glass jar, cover, inner cover and blade base in warm soap water. These parts can be washed in a dishwasher, as long as they are placed on the top shelf and wash on a low temperature. Do not exceed 50^ C. Assemble the blade base after cleaning. Use a cloth to wipe the surface of main body.
3. After cleaning, first assemble the blade into the blade base, then put the seal ring on the stainless steel blade base, twist the jar in clockwise direction, at last press the whole jar on the main body.
4. It is better to clean the blade, blade base, axletree per month, suggest to brush a little esculent oil on the blade shaft and axletree to keep it lubricative
5. Never put the motor or main body into water to clean (fig.1), do not wash it under tap (fig 1), just clean it with a damp cloth.

The unit is suitable to use usually to keep the motor in a good condition. If not use please keep it in a dry and ventilative place to avoid the motor be affected with damp.

5. Technical Parameter

TMPBA012 Table Blender

220-240V AC 50/60Hz 500W

16.000-20.000RPM

Exterior view of a modern electric blender with visible internal components and a separate lid (no text or symbols)

BATIDORA DE VASO

TMPBA012

Line drawing of a blender with handle and side blades, no text or symbols present

Technical line drawing of a portable kitchen appliance with a base and top component, showing internal structure and assembly (no text or symbols)
