Product Type	Hot and Cold Water Dispenser
Brand	InSinkErator
Model	F-2000S
Dispensing Modes	Instant Hot (near boiling) and Cold Filtered Water
Tank Capacity	Approximately 0.5 gallons (2 liters)
Power Supply	120 V AC, 60 Hz
Power Consumption	700 W (heating), 60 W (standby)
Dimensions (Main Unit)	10.5 x 6.5 x 12 inches (Height x Width x Depth)
Weight	7.5 lbs
Hot Water Temperature	Up to 200°F (93°C)
Cold Water Temperature	Dependent on incoming line; no chilling mechanism
Filtration System	Integrated carbon filter (replaceable)
Filter Life	6 months or 500 gallons
Faucet Type	Single lever with side push-button for hot water
Mounting	Deck mount (faucet) with under-sink tank
Safety Features	Child safety lock on hot button, auto shut-off at 200°F
Maintenance	Descale tank every 6 months; clean faucet aerator
Installation Requirements	Standard kitchen sink with 1.5" faucet hole; nearest electrical outlet
Included Components	Tank, faucet, filter cartridge, mounting hardware, instruction manual
Compatible Replacement Parts	Filter cartridge (model SCF-100), tank assembly
Warranty	2-year limited warranty on parts and labor

Frequently Asked Questions - F-2000S InSinkErator

How do I install the InSinkErator F-2000S?

Installation requires a standard kitchen sink with a 1.5-inch faucet hole. Connect the tank to cold water line, mount the faucet, and plug in the power. Full instructions are in the manual.

How often should I replace the water filter?

Replace the filter every 6 months or after 500 gallons of water to maintain water quality and flow.

Can I get hot water instantly from the F-2000S?

Yes, it provides near-boiling water (up to 200°F) on demand, thanks to the heated tank.

What is the cold water temperature?

The cold water is not chilled; it dispenses at the temperature of your incoming water line.

Is the hot water safe for children?

The hot water dispense button has a child safety lock that prevents accidental activation.

How do I clean and maintain the dispenser?

Regularly descale the tank using a vinegar solution every 6 months. Wipe the faucet with a damp cloth and check the aerator for debris.

What replacement parts are available?

Replacement parts include the filter cartridge (model SCF-90 or SCF-100), tank assembly, faucet, and seals.

How much noise does the F-2000S make?

It operates quietly; you may hear a slight gurgle when water heats up or a click when the thermostats engage.

Does it require a dedicated electrical outlet?

It requires a standard 120V outlet under the sink, but can share a circuit with a garbage disposal if adequate.

What is the warranty period?

InSinkErator offers a 2-year limited warranty covering defects in materials and workmanship.

USER MANUAL F-2000S InSinkErator

4700 21st St. Racine, WI 53406 1.800.558.5700 www.insinkerator.com

ISE 44688 REV 8 34-8711-7208-5

The Emerson logo is a trademark and a service mark of Emerson Electric Co. InSimExtractor may make improvements and/or changes in the specifications at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models. ©2016 Imministrator, a business unit of Emerson Electric Co. All rights reserved.

Instant HOT Water Filtration System Installation Instructions

EMERSON ercial & Residential Solutions

INTRODUCTION

Read, understand, and follow all safety information contained in these instructions prior to installation and use of the InSinkErator® Instant Hot Water Dispenser Filtration System. Retain these instructions for future reference.

The InSinkErator Instant Hot Water Dispenser Filtration System offers two levels of filtration, depending on the filter used: F-1000S is intended for use in filtering particulates, chlorine taste and odor from drinking water, and has not been evaluated for other uses; F-2000S reduces particulates, chlorine taste and odor, plus cysts, lead, mercury, asbestos, benzene, atrazine, 2,4-D, Lindane, Carbofuran and p-Dichlorobenzene. The system is typically installed (near or beneath a sink) where filtered drinking water is desired, and must be installed, operated and maintained as specified in the installation and use instructions.

WARNING

Warning indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Caution, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Notice is used to address practices not related to personal injury.

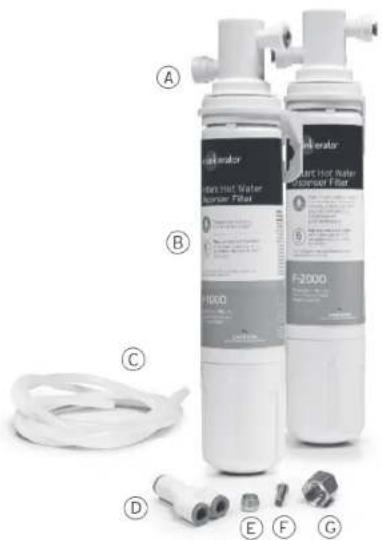

COMPONENTS IN THIS PACKAGE

A B C D E F G Water Purifier Filter Water Purifier Filter F-2000 Water Purifier Filter

(A) Filter Head and Bracket
B F-1000/F-2000 Filter Cartridge
© Two White Polyethylene Tubes
D "Y" Quick-Connector
E Ferrule
F Tube Insert
G Brass Nut

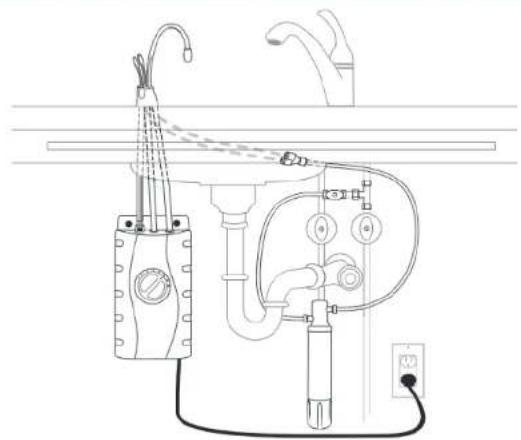

OVERVIEW OF A COMPLETED SETUP

Technical line drawing of a kitchen sink with electrical components and wiring (no text or symbols)

⚠ WARNING	To reduce the risk associated with choking: Do not allow children under 3 years of age to have access to small parts during the installation of this product.
⚠ WARNING	To reduce the risk associated with ingestion of contaminants, do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

NOTICE

To reduce the risk associated with property damage due to water leakage or flooding, and to ensure optimal filter performance:

• Read and follow Use Instructions provided with the original system before installation and use of this product.
• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate. Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.
• For systems using two handle HC model faucets, operate only one handle at a time.

Turn off water supply before starting.

Installation must comply with all state and local laws and regulations.

1

INSTALLING FILTRATION SYSTEM

A

WARNING

Personal Injury: Do not locate filter above an outlet or other electrical device. Install head and bracket so that connections require no stretching, kinking or pinching of tubing.

Screws provided are for use in wood studs or cabinets only. Use wall anchors (not supplied) for installation into drywall.

☐ Separate cartridge from filter head.
☐ Mark hole locations for filter head and bracket in a spot that allows for filter replacement.
Drill 1/8" starter holes and attach bracket to wall with wood screws, turning until snug.
☐ Insert cartridge into filter head. Top surface of cartridge will become flush with bottom of filter head when fully engaged.

B

NOTICE

Property Damage: Tube runs need to form to the cabinet's contours to allow storage space with no sharp bends. Tubes need clean, perpendicular, burr-free cuts to ensure a true fit.

☐ Determine length of tubing required, then cut to length making sure the cut is perpendicular and burr-free.
☐ Insert a white 1/4" tube into inlet side of filter head until it stops. Press in again to ensure a secure fit.
☐ Insert the other white 1/4" tube into outlet side of filter head until it stops. Press in again to ensure a secure fit.

C

NOTICE

Property Damage: Do not extend the lines farther than the 16" provided. Ensure tube(s) and "Y" connector are securely fit.

☐ Insert the copper tubes(s) from the dispenser into "Y" quick-connector using the plug for hot-only models.
☐ Connect the white 1/4" tube from the right outlet on the filter head into the quick-connect fitting until it stops. Press in again to ensure a secure fit.

To remove tube(s) or plug from quick-connector, depress the release ring and gently pull away.

It is normal for approximately 2 oz. of water to discharge when filter is removed.

□ Connect remaining white 1/4" tube to incoming water supply line.

2

FINAL WATER CONNECTION

A

Brass Nut Ferrule Brass Insert 1/4" Plastic Tube

NOTICE

Property Damage: Join remaining tube to cold water supply only.

☐ Install a T-fitting (not included) onto the cold water supply line.
☐ Install dedicated water control valve with 1/4" compression fitting.
At the end of the white 1/4" tube from the filter or quick-connector, slide the supplied brass nut and ferrule over the tube and then push in the brass tube insert.
☐ Insert the white 1/4" tube into the 1/4" compression fitting and tighten.

3

TURN ON WATER & CONNECT POWER

A

WARNING

Scalding Hazard: The faucet dispenses near-boiling (212°F) water which can instantly cause scalds or burns. Use care when operating this appliance.

□ Turn on the water supply
□ Depress the dispenser's HOT handle and hold it until water flows from the spout (approximately 1 to 2 minutes).
☐ For the F-1000S and F-1000, flush 2.25 gallons through filter before use (approximately 3 minutes). For the F-2000S and F-2000, flush 3 gallons through filter before use (approximately 4 minutes).
□ Check all connections to ensure they are tight and that there are no leaks.

F-1000 Cartridge (included with this system) Chemical & Mechanical Reduction Filter Specifications:

This cartridge provides mechanical and chemical reduction of chlorine taste & odor and particulate class III.

NSE

Tested & Certified by NSF International against NSF/ANSI Standard 42 in the following InSinkError Systems Only: GN1100, HC1100, GN2200, HC2200, GN2215, HC2215, H3300 or HC3300 for the reduction of claims specified on the Performance Data Sheet. For systems using two handle HC model faucets, operate only one handle at a time.

Pressure: 30-120 (207-827 kPa) psi Temperature: 33F - 100°F Flow Rate: 0.75 gpm Capacity: 500 gallons

Filter Capacity: 500 gallons, depending on local water conditions. Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. For cold water use only. Systems must be installed and operated in accordance with the Manufacturer's recommended procedures and guidelines. See warranty card for warranty. For service and parts, contact your local dealer or InSinkErator® directly at 1-600-558-5700.

Contaminant Reduction	Average Influent	Influent Challenge Concentration Except As Notes, Units Apply to Each Row.	Avg. Product Water	Average % Reduction	NSF Red Requirements	NSF Test
Chlorine Taste & Odor	2.1 mg/L	2.0 mg/L ± 10%	0.06 mg/L	97.0%	≥ 50%	J-0082587
Nominal Particulate Class III, ≥ 5 μm to <15 μm	270,000 pts/mL	At least 10,000 particles/mL	82 pts/mL	99.9%	≥ 85%	J-00119308

Application guidelines/Water Supply Parameters for NSF Testing: Service flow of 0.75 gpm, community or private well water supply, water pressure of 20-120 psi (138-827 kPa), water temperature of 33°F-100°F Except as noted, all testing performed at pH = 7.5 ± 0.5, Flow: 0.75 gpm, Pressure: 60 psi, Temp: 20°±3°C

Refer to the Performance Data Sheet for InSinkErator Filter System Model F-2000S

Replacement Cartridge: F-2000

Contact an authorized InSinkErator service agent for repairs or replacement components. Replacement filters F-1000 and F-2000 can be ordered by calling 800-558-5700, visiting shop.insinkerator.com, or by contacting an authorized InSinkErator reseller.

AnswerLine

1-800-558-5700

IMPORTANT SAFETY INFORMATION

▲WARNING	To reduce the risk associated with the ingestion of contaminants: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
▲WARNING	To reduce the risk associated with hazardous voltage due to an installer drilling through existing electric wiring or water pipes in the area of installation: Do not install near electric wiring or piping which may be in path of a drilling tool when selecting the position to mount the system bracket.
▲CAUTION	To reduce the risk associated with property damage due to water leakage or flooding:Read and follow Use instructions before installation and use of this system.Installation and use MUST comply with all state and local plumbing codes.Protect from freezing, remove filter cartridge when temperatures are expected to drop below 40°F (4.4°C).Do not install systems in areas where ambient temperatures may go above 100°F (37.8°C).Do not install on hot water supply lines. The maximum operating water temperature of this system is 100°F (37.8°C).Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.Where a backflow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.Do not use a torch or other high temperature sources near system, cartridges, plastic fittings or plastic plumbing.Do not install in direct sunlight or outdoors.Do not install near water pipes which will be in path of a drilling tool when selecting the position to mount the bracket.Mount system in such a position as to prevent it from being struck by other items used in the area of installation.Ensure that the location and fasteners will support the weight of the system when installed and full of water.Ensure all tubing and fittings are secure and free of leaks.Do not install unit if collet is missing. Contact 800-558-5700 if collets are missing from any fittings.Do not install using rigid piping. System intended for use with plastic water lines (such as PEX tubing, PE tubing, PP tubing).

INSINKERATOR IN-HOME LIMITED WARRANTY

This limited warranty is provided by InSinkErator®, a business unit of Emerson Electric Co., ("InSinkErator" or "Manufacturer" or "we" or "our" or "us") to the original consumer owner of the InSinkErator product with which this limited warranty is provided (the "InSinkErator Product"), and any subsequent owner of the residence in which the Product was originally installed ("Customer" or "you" or "your").

InSinkError warrants to Customer that your InSinkError Product will be free from defects in materials and workmanship, subject to the exclusions described below, for a period of 1 year (the "Warranty Period"), commencing on the later of: (a) the date your InSinkError Product is originally installed, (b) the date of purchase, or (c) the date of manufacture as identified by your InSinkError Product serial number. You will be required to show written documentation supporting (a) or (b). If you are unable to provide documentation supporting either (a) or (b), the Warranty Period commencement date will be determined by Manufacturer, in its sole and absolute discretion, based upon your InSinkError Product serial number.

Permitted Uses

You may use your InSinkErator Product hot or cold water tank and filter system in combination with any genuine InSinkErator Product dispenser and component parts and/or Authorized OEM Products. "Authorized OEM Products" mean those hot, cold or hot/cold water dispensers and component parts that have been manufactured by an authorized InSinkErator original equipment manufacturer ("Authorized OEM") and which have documentation expressly stating that such Authorized OEM Products are compatible with the InSinkErator Product(s). Authorized OEMs may change from time to time. A list of Authorized OEMs is available for products that include the product's product version. Use of your InSinkErator Product in combination with any products other than Authorized OEM Products will void this warranty.

What is Covered

This limited warranty covers defects in materials or workmanship, subject to the exclusions below, in InSinkErator Products used by a consumer Customer for residential use only, and includes all replacement parts and labor costs. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE INSINKERATOR PRODUCT, PROVIDED, THAT IF WE DETERMINE IN OUR SOLE DISCRETION THAT NEITHER REMEDY IS PRACTICABLE, WE MAY PROVIDE YOU WITH A REFUND OF YOUR PURCHASE PRICE OR A CREDIT TOWARDS ANOTHER INSINKERATOR PRODUCT.

What is not Covered

This limited warranty does not extend to and expressly excludes:

• Losses or damages or the inability to operate your InSinkErator Product resulting from conditions beyond the Manufacturer's control including, without limitation, accident, alteration, misuse, abuse, neglect, negligence (other than Manufacturer's), failure to install, maintain, assemble, or mount the InSinkErator Product in accordance with Manufacturer's instructions or local electrical and plumbing codes.
• Wear and tear expected to occur during the normal course of use, including without limitation, cosmetic rust, scratches, dents or comparable and reasonably expected losses or damages.
• Losses or damages caused by any product or component part used with the InSinkErator Products, including both Authorized OEM Products and other products and components.

In addition to the above exclusions, this limited warranty does not apply to InSinkErator Products installed in a commercial or industrial application.

No Other Express Warranty Applies

This limited warranty is the sole and exclusive warranty provided to the Customer Identified above. No other express warranty, written or verbal, applies. No employee, agent, dealer, or other person is authorized to alter this limited warranty or make any other warranty on behalf of Manufacturer. The terms of this limited warranty shall not be modified by the Manufacturer, the original owner, or their respective successors or assigns.

What we will do to Correct Problems

If your InSinkErator Product does not operate in accordance with the documentation provided to you, or you have questions concerning your InSinkErator Product or how to determine when service is needed, please call the toll free InSinkErator AnswerLine at 1 [phone], or visit our website at www.insinkerator.com. You may also notify us at: InSinkErator Service Center, 4700 21st Street, Racine, Wisconsin 53406 USA.

The following information must be provided as part of your warranty claim: your name, address, phone number, your InSinkErator Product model and serial number, and if necessary, upon request, written confirmation of either: (a) the date shown on your installation receipt, or (b) the date shown on your purchase receipt.

Manufacturer or its authorized service representative will determine, in its sole and absolute discretion, if your InSinkErator Product is covered under this limited warranty. You will be given the contact information for your closest authorized InSinkErator Service Center. Please contact your InSinkErator Service Center directly to receive in home warranty repair or replacement service. Only an authorized InSinkErator service representative may provide warranty service. InSinkErator is not responsible for warranty claims arising from work performed on your InSinkErator Product by anyone other than an authorized InSinkErator service representative. It a covered claim is made during the Warranty Period. Manufacturer will, through its authorized service representative, either repair or replace your InSinkErator Product. Cost of replacement parts or a new InSinkErator Product, and cost of labor for repair or installation of the replacement InSinkErator Product are provided at no cost to you. Repair or replacement shall be determined by Manufacturer or its authorized service representative in their sole discretion. All repair and replacement services will be provided to you at your home.

If Manufacturer determines that your InSinkErator Product must be replaced rather than repaired, the limited warranty on the replacement InSinkErator Product will be limited to the unexpired term remaining in the original Warranty Period.

This InSinkErator Product is covered by Manufacturer's limited warranty. This limited warranty is void if you attempt to repair the InSinkErator Product. For service information, please visit www.insinkerator.com or call, toll free, 1-800-558-5700.

Limitation of Liability

TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL MANUFACTURER OR ITS AUTHORIZED SERVICE REPRESENTATIVES BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE INSINKERATOR PRODUCT OR THE MANUFACTURER'S OR ITS AUTHORIZED SERVICE REPRESENTATIVE'S NEGLIGENCE. MANUFACTURER SHALL NOT BE LIABLE FOR DAMAGES CAUSED BY DELAY IN PERFORMANCE AND IN NO EVENT, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OTHER SORT OR OTHERWISE), SHALL MANUFACTURER'S LIABILITY TO YOU EXCEED THE PRICE PAID BY THE ORIGINAL OWNER FOR THE INSINKERATOR PRODUCT.

The term "consequential damages" shall include, but not be limited to, loss of anticipated profits, business interruption, loss of use or revenue, cost of capital or loss or damage to property or equipment.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This limited warranty gives you specific legal rights and you may also have other rights which vary from state to state.

InSinkErator® may make improvements and/or changes in the specifications at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.

Technical line drawing of a cleaning or piping system with no visible text or symbols

Diagram showing three-step installation of a mechanical component with hand operating, valve assembly, and directional arrows indicating motion.
