USER MANUAL HAF651650BCU Hanseatic
Manual/version:
2401-01104_EN_20240905
Order no.: 52857363
Reproduction, even of excerpts, is not permitted!
Air fryer
Table of contents
Explanation of terms/symbols .....EN-3
Safety ....EN-4 Intended use....EN-4 Safety notices....EN-4
Delivery ....EN-12 Package contents ....EN-12 Checking the delivery ...EN-12
Appliance parts and control elements .....EN-13 Function keys .....EN-14
Start-up .....EN-15 Moving and unpacking ..EN-15 Connection .....EN-15 Connection requirements .....EN-16 Cleaning before use ....EN-16 Heating up the appliance for the first time .....EN-16
Operation ....EN-18 Before getting started ...EN-18 Starting, pausing and ending the cooking pro- cess ....EN-18
Modes ....EN-20 Selectable cooking modes ....EN-20 Delay function....EN-23 Keep warm function ....EN-23 Shake function ....EN-23 Preheating function ....EN-24 Cooking tips ....EN-24
Care and maintenance . . .EN-25
Troubleshooting table . . . .EN-27 Service .....EN-28
Waste prevention, free return and disposal .....EN-29 Waste prevention .....EN-29 Free return of old electrical appliances.....EN-29 Disposal .....EN-30 Packaging .....EN-32
Technical data .....EN-33
Explanation of terms/symbols
Please read through the safety notices and this user manual carefully before using the appli- ance. This is the only way you can use all the functions relia- bly and safely.
Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.
Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the appliance.
The following symbols can be found in this user manual.
WARNING
This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
CAUTION
This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
NOTICE
This symbol warns against possible damage to property.
This symbol refers to useful additional information.
This symbol warns of a hot surface.
Safety
Intended use
The appliance is intended for cooking food.
The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).
It is not suitable for use outdoors or on non-stationary sites (e.g. ships).
Make sure the appliance is properly positioned. Never use adhesives or glue to fix the appliance in place.
The appliance is not suitable
– for heating a room.
– for drying or storing food, clothes or other items.
– for heating up warming pads, slippers, sponges, damp cloths and similar.
Persons who are unable to operate the appliance safely due to their physical, buttony or mental abilities or lack of knowledge must be supervised during use.
Do not make any technical changes to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.
Safety notices
In this chapter you will find general safety instructions which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.
Risks to children and certain groups of individuals
WARNING
Risk of suffocation for children! Children can become entangled in the packaging film or swallow small parts and suffocate.
■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths.
WARNING
Risk of injury!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.
WARNING
Risk of injury!
Children and certain groups of people have a higher risk of being injured when handling the appliance.
■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.
Risks in handling household electrical appliances
WARNING
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if it
– shows visible signs of damage – for example, the mains cable is defective.
- starts smoking or there is a smell of burning.
- makes unfamiliar noises. In such cases, you should pull the mains plug out of the socket or switch off/unscrew the fuse and have the appliance repaired (see "Service").
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Check the appliance regularly for damage.
■ Do not use the appliance in wet rooms or outdoors.
■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. Ensure that the voltage is correct when connecting it. More detailed information about this can be found on the type plate.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service”).
■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
■ The appliance may be connected to the mains only af-
ter completion of all installation and assembly work.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cord; always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ In the event of a fault, as well as before cleaning or maintenance, pull out the mains plug/switch off or unscrew the fuse.
■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ The appliance must not be cleaned with a steam cleaner.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our Service department.
■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair the appliance yourself.
CAUTION
Fire hazard!
Improper handling of the appliance can lead to fire.
■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-sock-
et extension cable or a multi-socket plug.
■ Please note that the appliance is not intended to be operated by means of an external timer or a separate remote control system.
! NOTICE
Risk of damage to property! Improper handling of the appliance may result in damage or explosions.
■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging.
■ Do not lift the appliance by the handles! They are not intended to carry the heavy weight of the appliance.
■ Do not use sharp objects to unpack the appliance.
■ Do not place the appliance on heat-generating surfaces or near heat-generating appliances.
■ Use the supplied accessories only with this appliance.
■ Do not use the appliance for frying with oil.
■ Do not overfill the cooking baskets. The food to be cooked can lead to damage to the appliance or reduced safety when it comes into contact with the heating elements.
■ When cleaning, please note:
- Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents be used. All-purpose cleaners with a neutral pH are recommended.
- The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
- Use only soft cloths.
- Ensure that water does not enter the ventilation slits or enter into the electrical components.
Risks when handling heat-generating appliances
CAUTION
Risk of burns!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Do not touch the parts of the housing!
■ Do not touch hot parts. Always protect hands with oven gloves or pot holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.
■ Allow the appliance to cool completely before cleaning.
■ The cooking baskets and accessories get hot during operation. Do not touch the cooking baskets and accessories without protection.
Only place on heat-resistant surfaces.
CAUTION
Fire hazard!
Improper handling of the appliance may result in fire and damage to property.
■ Do not operate the appliance unattended.
■ To ensure sufficient air circulation, it is imperative that the instructions in the ‘Start-up’ chapter are followed.
■ Do not cover the appliance with blankets, cloths or similar, as these objects may become hot and catch fire.
■ The appliance is intended for cooking food. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition, or fire.
■ Do not store any items in the cooking chamber. Accidentally switching on the appliance can cause dam-
age or even ignition. Do not use the cooking chamber for storage purposes.
■ Do not leave any objects on the appliance while it is in use.
■ Never heat flammable objects or dishes containing alcohol.
■ If smoke is emitted, the appliance should be shut off or the power plug pulled and the appliance kept closed to avoid possible flames.
In the event of a fire, keep the appliance closed, immediately disconnect the power plug from the socket, or turn off the automatic circuit breaker or remove the fuses.
■ Never extinguish burning oil or fat with water. To extinguish the fire, use a suitable fire extinguisher with the designation ‘F’ or a fire blanket.
■ Once the fire has been extinguished, have the appliance checked by our Service department (see “Service”).
General risks when cooking food
CAUTION
Health hazard!
Improper use of this appli- ance can lead to damage to health.
■ Clean the appliance regularly and remove any traces of food leftovers immediately.
■ Particularly with poultry and dishes containing fresh egg, and when warming up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).
■ Use a thermometer to check the recommended cooking temperature.
CAUTION
Acrylamide may be carcinogenic. Acrylamide is produced when starch is exposed to excessive heat, e.g. in potatoes (fries, chips), biscuits, toast, bread etc.
- Keep cooking times as short as possible.
■ Only brown the food slightly, do not allow it to brown too much.
■ Cut larger-sized fries and then bake at a maximum of 180^ C.
NOTICE
Risk of damage to property! Improper handling of the appliance can lead to property damage.
■ The oven should be cleaned regularly and any food deposits removed.
■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.

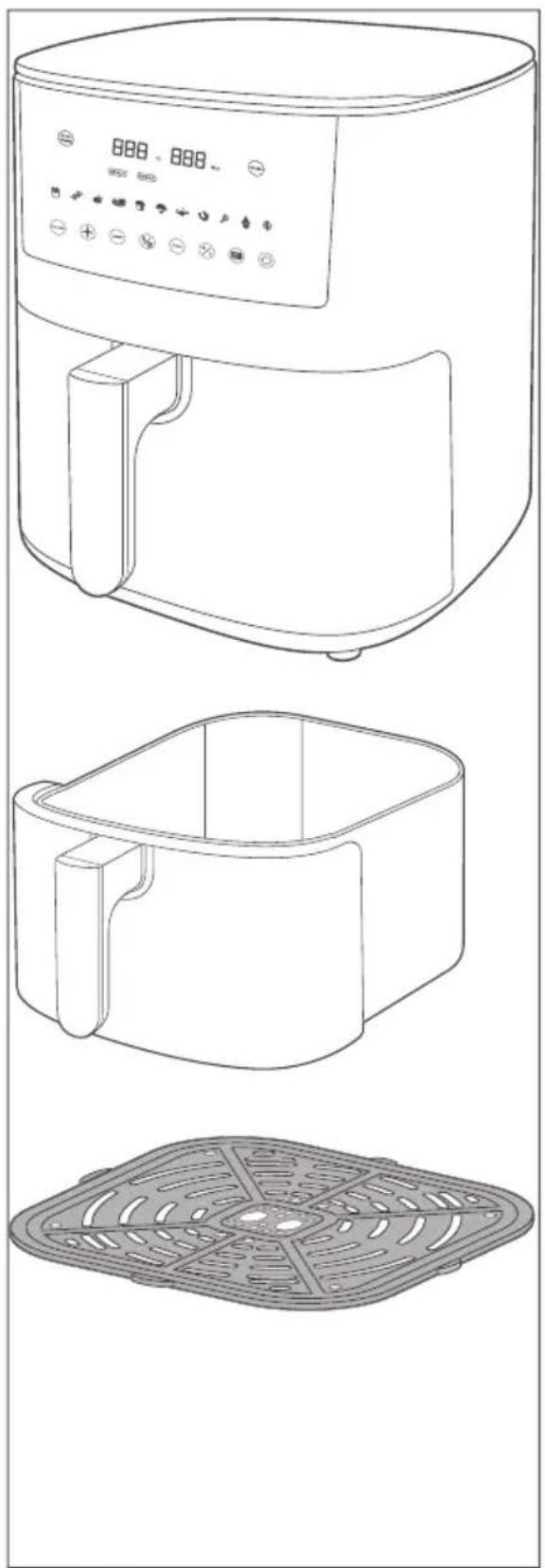

Delivery
- Air fryer
- 1x cooking basket
- 1x sieve insert
Checking the delivery
- Transport the appliance to an appropriate location and unpack the it (see "Start-up").
- Check that the delivery is complete.
- Check whether the appliance was damaged during transit.
- If the delivery is incomplete or the appliance has transport damage, please contact our Service department (see "Service").
WARNING
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Never use a damaged appliance.

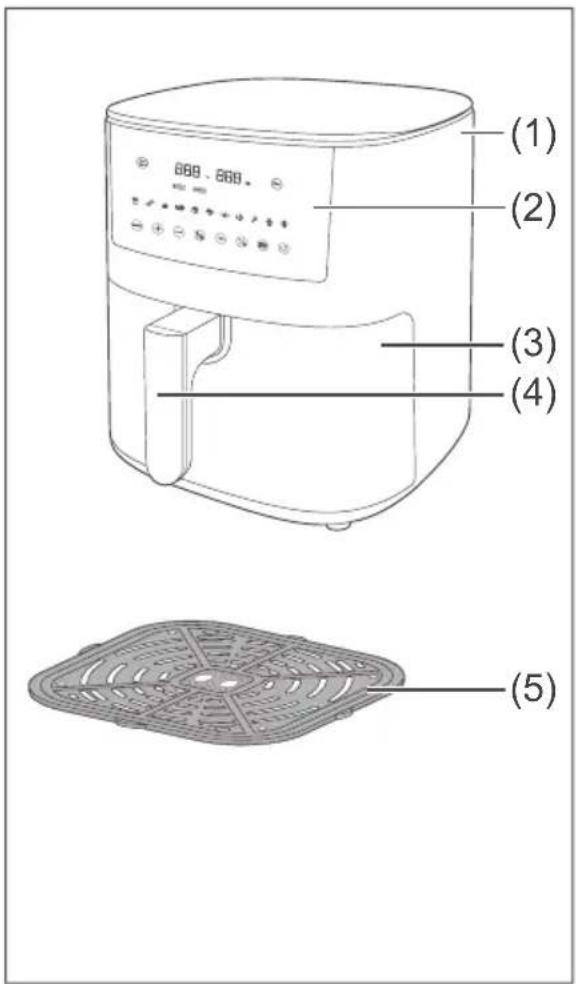

Appliance parts and control elements
(1) Main unit
(2) Control panel
(3) Cooking basket
(4) Handle
(5) Sieve insert
(6) Cooking time display
(7) Shake button
(8) Function buttons for selecting cooking modes
(09) On / Off button
(10) Cooking mode button
(11) Start/Pause button
(12) Delay button
(13) Change temperature / time button
(14) "-" button
(15) "+" button
(16) Preheat button
(17) Keep warm button
(18) Temperature indicator
Start-up
CAUTION
Fire hazard!
Improper handling of the appliance may result in damage or cause a fire. Heat trapped inside the appliance may shorten its service life.
■ Ensure sufficient ventilation. Do not cover the vents, for example with oven mitts or cookery books!
NOTICE
Risk of damage to property! Improper handling of the appliance may result in damage.
■ Do not use sharp objects to unpack the appliance.
Moving and unpacking
- Carefully unpack the appliance and remove all packaging items, plastic profiles, adhesive strips and foam padding from inside, outside and from the back plate of the appliance.
Connection
WARNING
Risk of electric shock / fire hazard!
Touching live parts may result in severe injury or death.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see the chapter "Service").
- Only connect the appliance to a properly installed protective contact socket with its own adequate protection (220–240 V\~ / 50–60 Hz).
Connection requirements
- For the electrical connection of the new appliance, you need a properly installed protective contact socket, which must be adequately secured (see "Technical data").
- The connection voltage of the appliance must correspond to the mains voltage in your home (see rating plate on the back of the appliance).
- Do not use multiplugs or extension cables!
Cleaning before use
The appliance should be cleaned before first use so that, for example, packaging residues do not affect the flavour of the food (see "Care and maintenance").
Heating up the appliance for the first time
- Place the appliance on a level, heat-resistant surface.
- Leave at least 50 mm around the appliance.
• To remove the cooking basket (3) from the main unit (1):
– Hold the main unit at the top. - Hold the handle with one hand.
– Pull the cooking basket out of the main unit. - Place the cooking basket on a heat-resistant surface.

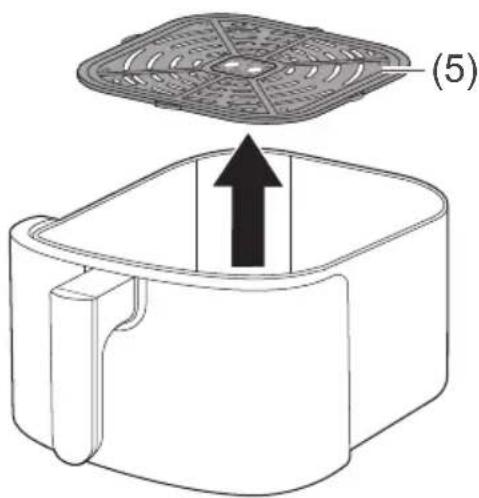

- To remove the sieve insert from the main unit:
- Use the holes in the sieve insert (5) to remove it with your hands when the insert has cooled down a little.
There may be a slight odour during first use. This is non-toxic and disappears after a short moment.
Operation
Before getting started
- Read the "Safety" chapter, particularly the safety instructions.
- Install the appliance correctly, and connect it as described in chapter "Start-up".
Starting, pausing and ending the cooking process
! NOTICE
Risk of damage to property! Improper handling of the appliance can lead to property damage.
■ Use only the supplied cooking basket for cooking.
■ Inspect the cooking basket for damage or dirt before use. Clean with a soft cloth if necessary.
■ Before operation, make sure the cooking basket is fully seated. Never operate the appliance without the cooking basket.
■ Do not move the appliance while in use, and make sure it is not standing directly on an edge.
- Connect the appliance. The On / Off button (09) lights up red.
- Press the "On/Off" button to switch the appliance on. All selectable buttons light up.
- Select the function buttons for selecting cooking modes (8) to select from the various cooking modes (see "Selectable cooking modes"). If no selection is made within 30 seconds, the appliance will start automatically.
- Then press the Start / Pause button (11) to start the programme.
- Press the Change temperature / time button (13) to switch between the temperature and cooking time settings. The button lights up five times. Press the "+" (15) or "-" (14) buttons to increase or decrease the settings.
-
The temperature is increased or decreased by 5 °C each time.
-
The cooking time is increased or decreased by 1 minute with each short press.
- The maximum temperature is 200^ , and the maximum cooking time is 60 minutes.
The cooking process automatically pauses when the cooking basket is removed.
Reinsert the cooking basket to continue cooking. If the cooking basket is removed for more than 60 minutes, the appliance automatically switches off.
Modes
CAUTION
Fire hazard!
Improper handling of the appliance may result in damage or cause a fire.
■ Do not open the cooking chamber if smoke develops!
Switch off the appliance, unplug at the mains or switch off at the fuse box.
Selectable cooking modes
Use the function buttons (8) to select between 11 different cooking modes, in which the cooking time and temperature are preset as required.
NOTICE
Risk of damage to property!
Improper handling of the appliance may cause it to become damaged.
■ Do not operate the appliance with an external timer or a separate remote control system.
■ Do not place the cooking basket on the appliance after cooking. Place the hot cooking basket only on a heat-resistant surface.
You can use the delay function to delay the start of cooking in a cooking mode (see “Selectable cooking modes”).
- Place the food in the cooking basket (3) and insert it into the appliance.
- Press the “Delay” button (12). The button lights up. The cooking process is delayed by 90 minutes. This delay can be modified using the “+” (15) and “-” (14) buttons. A short press changes the time by 10 minutes, and a long press by 30 minutes.
- Press the Start/Pause button (11). The delayed cooking process is set. The "Delay" button and the selected cooking mode light up.
The temperature can be selected between 60 and 70 °C. The maximum keep warm time is 60 minutes.
Keep warm function
With the keep warm function, you can keep already warmed food in the cooking basket warm.
- Press the Keep warm button (17).
- The keep warm process starts at a standard temperature of 65 °C for 15 minutes. The temperature and cooking time can be adjusted by pressing the Change temperature / time button (13) and "+" (15) and "-" (14) buttons.
The temperature can be selected between 60 and 70
°C. The maximum keep time is 60 minutes.
Shake function
You can shake food with the appliance.
-
Press the Shake button (7) after selecting a cooking mode. The button lights up and "SHAKE" lights up on the control panel.
-
Press the Start / Pause button (11) to start cooking.
The appliance beeps 5 times when cooking is halfway finished. This means that you can shake the food at that time.
This feature is preset for chips, poultry, steak, vegetables, fish, shrimp, and chicken legs.
Preheating function
You can let the appliance preheat before you fill in food.
- Press the Preheat button (16). The button lights up and "READY" lights up on the control panel. The preheating process begins.
The standard temperature of the preheating process is 200 °C. The default preheating time is 3 minutes.
Cooking tips
- For a uniform browning, make sure that the food is evenly distributed in the cooking basket. If necessary, twist or shake the food after half the cooking time.
- To adjust recipes intended for a traditional oven, reduce the specified temperature by 10^ . Check the food regularly.
- To prevent light foods from being swirled around by the ventilation, secure it, for example, with a toothpick.
- For fresh vegetables and potatoes, use a tablespoon of oil. Increase the amount as needed.
- Check the food and use a suitable thermometer if necessary. Remove the food immediately after completion of cooking or after reaching the desired degree of browning.
Care and maintenance
WARNING
Health hazard!
Improper use of this appli- ance can lead to damage to health.
■ The oven should be cleaned regularly and any food deposits removed.
■ Cleaning and user maintenance shall not be made by children without supervision.
CAUTION
Risk of burns!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.
CAUTION
Risk of electric shock!
Improper cleaning may lead to electric shocks and short circuits.
■ Isolate the fuse and pull out the mains plug from the socket before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
■ Ensure that no cleaning water or other liquids can penetrate the ventilation slits or the electrical components.
■ The appliance must not be cleaned with a steam cleaner. Steam can get into live components through cracks.
CAUTION
Risk of burns!
The housing becomes hot during operation, especially in the area of the vents. The
containers can also get very hot due to the foods.
■ Please allow the appliance to cool completely before cleaning.
NOTICE
Risk of damage to property! The door seals can get damaged by improper handling.
■ Never use harsh, soda, acid, solvent or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Only use soft cloths.
■ Never immerse the appliance in water.
- If possible, clean the appliance after each use before any contaminants can dry.
-
Clean the appliance with a damp, soft cloth. Use warm water and a standard all-purpose detergent or washing-up liquid and a soft sponge or cloth.
-
Dissolve stubborn dirt with an undiluted all-purpose cleaner.
- The cooking basket and sieve insert can be cleaned in the dishwasher.
- Wipe down all surfaces after cleaning with a dry, soft cloth.
- For your own safety, please check regularly whether the appliance is intact:
- Are the mains cable and plug undamaged?
– Is the housing undamaged?
– Is the cooking basket undamaged?
Troubleshooting table
Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.
WARNING
Risk of electric shock in case of improper repair!
Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
| Problem P | Possible cause Solutions, | tips |
| Could not start appliance, display off. | No electricity to socket. | Check the socket by connecting another appliance. |
| Mains plug is loose. | Check the tightness of the mains plug. | |
| Display is black. | The appliance is in standby mode. | Press the On / Off button. |
| The appliance emits odours. | This can happen the first time you use it. | See “Heating up the appliance for the first time”. |
| Display shows "Shut". | The cooking basket is not fully seated. | Check the seating of the cooking basket. |
| The food is not completely cooked. | Food is not sufficiently distributed in the cooking basket, or the temperature or cooking time is set too low. | Distribute the food in the cooking basket as described in the section "Cooking tips", or increase the cooking time or temperature if necessary. |
Service
Please note!
You are responsible for the condition of the appliance and its proper use in the household.
Damage resulting from non-compliance with this manual cannot be recognised.
In order for us to help you quickly, please tell us:
| Name of appliance Model Order number | |
| hanseatic Air fryer HAF651650BCU 52857363 |
General customer service
Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.
Spare parts
Customers in Germany
Please contact Hermes Fulfilment GmbH.
Tel. (057 32) 99 66 00
Monday–Thursday 8 am to 3 pm, Friday 8 am to 2 pm
Customers in Austria
Please contact your mail order company's customer service centre or product advice centre.
Waste prevention, free return and disposal
Waste prevention
According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.
For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.
Please help us reduce waste and contact our customer service if your product is faulty.
More information can be found in the brochure ‘Waste Prevention Programme - of the German Government with the Involvement of the Federal Länder’.
Free return of old electrical appliances
Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.
In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.
Disposal
Disposing of old electrical devices in an environmentally friendly manner
Electrical appliances contain harmful substances as well as valuable resources.
Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.
You can dispose of old electrical appliances free of charge at your local recycling centre.
Please contact your dealer directly for more information about this topic.
Don't forget to erase data!
If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.
Batteries and rechargeable batteries, lamps and bulbs
If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.
This symbol means that single-use and rechargeable batteries may not be disposed of with the household
waste.
Consumers are required by law to bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or to a retailer so that they can be disposed of in an environmentally friendly manner and so that valuable re-
sources (e.g. cobalt, nickel or copper) can be recovered.
Batteries and rechargeable batteries can be returned free of charge.
Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.
There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit. Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.
Please only dispose of single-use and rechargeable batteries in a discharged state!
If possible, use rechargeable batteries in place of disposable batteries.
Charge your batteries properly and fully to maximize their lifespan. If necessary, fully discharge them using a suitable charger before recharging.
Always use the correct type of batteries for your devices. Incorrect use can shorten the life of the batteries and possibly cause harmful effects.
*) labelled with:
Cd = Cadmium
Hg = Mercury
Pb = Lead
Packaging
Our packaging is made of environmentally friendly, recyclable mate-
rials:
– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.
If you have sufficient space, we recommend retaining the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.
If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.
Technical data
| Manufacturer hanseatic | |
| Name of appliance Air fryer | |
| Model HAF651650BCU | |
| Supply voltage in V~/50 Hz 220–240 V~, 50–60 Hz | |
| Cooking chamber volume in litres | |
| with sieve insert 6,5 l | |
| without sieve insert 6,2 l | |
| Appliance dimensions in cm 38.8 × 30.0 × 32.4 cm | |
| Empty weight in kg 7.2 kg | |
| Order number 52857363 | |
- Lieferumfang
- Table of contents
- Explanation of terms/symbols
- WARNING
- CAUTION
- NOTICE
- Safety
- Intended use
- Safety notices
- Risks to children and certain groups of individuals
- Risks in handling household electrical appliances
- ! NOTICE
- Risks when handling heat-generating appliances
- General risks when cooking food
- Delivery
- Package contents
- Checking the delivery
- Appliance parts and control elements
- Start-up
- Moving and unpacking
- Connection
- Connection requirements
- Cleaning before use
- Heating up the appliance for the first time
- Operation
- Before getting started
- Starting, pausing and ending the cooking process
- Modes
- Selectable cooking modes
- Keep warm function
- Shake function
- Preheating function
- Cooking tips
- Care and maintenance
- Troubleshooting table
- Service
- General customer service
- Spare parts
- Waste prevention, free return and disposal
- Waste prevention
- Free return of old electrical appliances
- Disposal
- Don't forget to erase data!
- Batteries and rechargeable batteries, lamps and bulbs
- Packaging
- Technical data
Brand : Hanseatic
Model : HAF651650BCU
Category : Freezer
