Product Type	Bread Maker
Brand	Innoliving
Model	INN-786
Dimensions (approx.)	30 x 25 x 35 cm (12 x 10 x 14 in)
Weight (approx.)	5 kg (11 lbs)
Power Supply	220-240 V, 50/60 Hz, 600 W
Main Functions	Baking bread (white, whole wheat, gluten-free), dough making, jam, cake, rapid bake, crust control (light/medium/dark), timer (up to 13 hours), keep warm function
Capacity	Up to 1.5 kg (3.3 lbs) loaf
Programs	12 automatic programs
Display	LCD with program selection and timer
Non-Stick Coating	Yes, on baking pan and kneading paddle
Maintenance & Cleaning	Remove bread pan and paddle; wash with warm soapy water; wipe interior with damp cloth; never immerse the main unit in water
Safety Features	Auto shut-off, overheat protection, cool-touch exterior, non-slip feet
Spare Parts & Repairability	Replacement baking pan, kneading paddle, and measuring cup/spoon available from Innoliving service centers; user replaceable parts
Accessories Included	Bread pan, kneading paddle, measuring cup, measuring spoon, user manual
General Information	Compact design, suitable for home use, warranty 2 years

Frequently Asked Questions - INN-786 Innoliving

How do I clean the bread maker?

After use, unplug the machine and let it cool. Remove the bread pan and kneading paddle; wash them with warm soapy water. Wipe the interior of the main unit with a damp cloth. Never immerse the main unit in water.

What ingredients can I use?

Use bread flour, sugar, salt, yeast, butter or oil, and water. For whole wheat, use whole wheat flour. You can also add nuts, seeds, or dried fruits. Avoid using self-rising flour unless specified.

Why is my bread too dense?

Possible causes: expired yeast, too much flour, too little water, or low room temperature. Measure ingredients accurately and ensure yeast is fresh. Try using a bread flour with higher protein content.

Can I delay baking?

Yes, use the timer function. Add ingredients (except perishable items like milk or eggs) and set the delay up to 13 hours. The machine will start baking automatically to finish at your desired time.

What does the crust control do?

The crust control lets you choose between light, medium, or dark crust. Select your preference before starting the program. The machine adjusts baking time accordingly.

How do I know when the bread is done?

The machine will beep at the end of the cycle. The display shows the remaining time. After baking, the keep warm function activates for 1 hour. Use oven mitts to remove the pan.

Can I make gluten-free bread?

Yes, this model has a gluten-free program. Use a gluten-free flour blend and follow the recommended recipe. Ensure all utensils are clean to avoid cross-contamination.

What if the kneading paddle stays in the bread?

This is normal. After baking, remove the bread from the pan and use a non-metallic utensil to gently pry out the paddle. Clean it before next use to prevent sticking.

How long can I store homemade bread?

Store bread in a cool, dry place in a sealed bag for up to 3 days. For longer storage, slice and freeze for up to 3 months. Thaw at room temperature.

Where can I find replacement parts?

Contact Innoliving customer service or visit their website to order replacement baking pans, paddles, or measuring cups. Use only genuine parts to ensure safety and performance.

USER MANUAL INN-786 Innoliving

innoliving easy tech, easy life

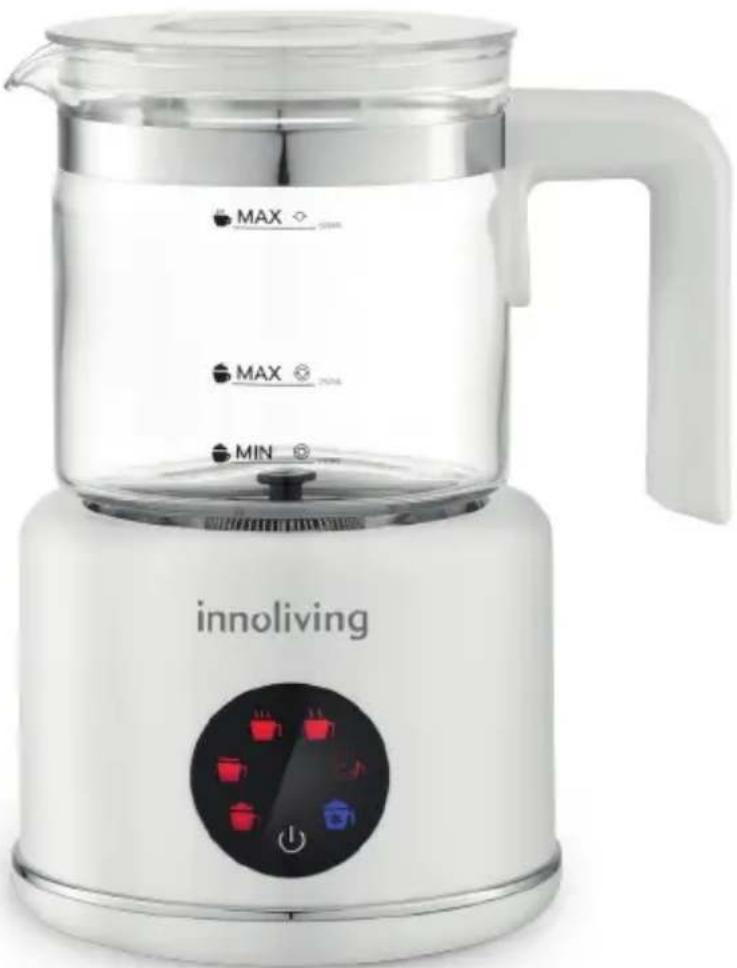

MONTALATTE ELETTRICO ELECTRIC MILK FROTHER

White glass water heater with 'innoliving' label and control buttons, no visible text or symbols on the device itself.

INN-786

MANUALE D'USO

USER MANUAL

Thank you for purchasing the INN-786 electric milk frother with touch screen display and removable, dishwasher-safe glass jug.

Please read the instructions and warnings carefully before using the product, and keep this manual for future reference.

WARNINGS

• Keep the product out of the reach of children. The device is not intended for use by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed in the use of the device by a person responsible for their safety. Children should be supervised to ensure they do not play with the device.
• This appliance is intended for use in domestic and similar applications such as: in cooking areas reserved for personnel in shops, offices, and other professional environments; in farms; use by hotel, motel, and other residential customers; in bed and breakfast-type environments.
• Packaging materials (plastic bags, cardboard, polystyrene, etc.) should not be left within the reach of children as they may pose a potential hazard and must be disposed of in accordance with applicable regulations.
• After removing the appliance from the packaging, check for any transport damage and the completeness of the supply according to the design. In case of damage or doubts about its integrity, do not use the appliance and contact an

authorized service center.

• Ensure that the voltage of the power supply is the same as that specified on the rating label. The rating label is located on the appliance itself. Use the appliance only with the provided base.
• Do not use the product if the power cord is damaged. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons.
• Disconnect the product from the power supply after use, before changing accessories, or cleaning it.
• Do not use the product if it has fallen to the ground, if there are visible signs of damage, or leaks.
• Do not immerse the product in water or other liquids to avoid short circuits.
• Do not leave the product unattended while it is in operation.
• Do not carry or pull the appliance by the cord. Do not unplug the power plug by pulling the cord. Do not run the power cord along edges or sharp corners. Never leave the cord hanging. Do not remove the plug from the outlet with wet hands, and avoid contact between the plug and hot surfaces or oils.

• Do not touch the main unit, metal parts, or rotating accessories during or immediately after use, as this may cause burns or scalds. Always handle the container by the handle.

• The device is intended for domestic use only, for the preparation of beverages as described in this user manual. Any other use is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage caused by improper use, incorrect handling, or unauthorized repairs.

• Do not use the milk frother in outdoor environments. Use the milk frother on a flat, stable surface. Do not use near the kitchen stovetop and/or other heat sources.
• Do not operate the milk frother with the container empty or with a quantity of milk lower than the MIN level.
  • CAUTION, Hot surface, do not touch.
• Do not overfill the container to avoid spillage of hot milk. Maximum capacity levels are indicated on the container.
• When the appliance is not in use for an extended period, unplug it and store it in a dry place out of reach of children. Protect it from dust and dirt.
• In case of malfunction or poor performance of the appliance, turn it off and do not tamper with it. For any repairs, contact an authorized technical service center only.
• All parts intended for contact with food during the use of the appliance must be thoroughly washed before use.

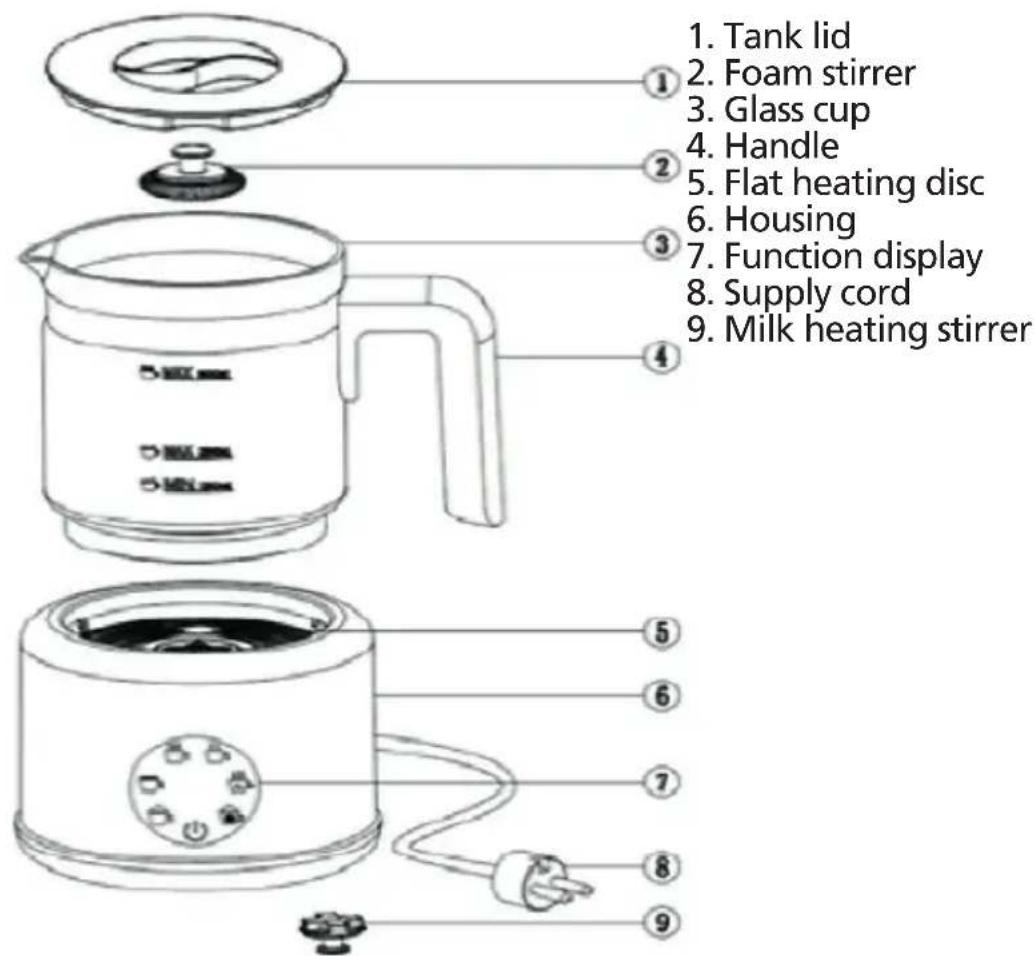

PRODUCT DESCRIPTION

1. Tank lid
2. Foam stirrer
3. Glass cup
4. Handle
5. Flat heating disc
6. Housing
7. Function display
8. Supply cord
9. Milk heating stirrer

NOTE: Under the base, there are two holes with a magnetic system for storing the accessories.

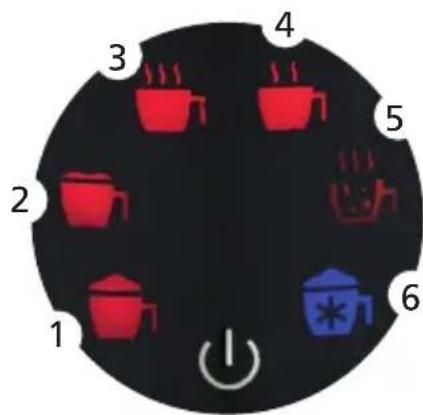

DISPLAY SYMBOLS

1. Thick hot / Milk foam 60-65°C
2. Thin hot / Milk foam 60-65°C
3. Hot milk 65-70°C
4. Mild hot milk 55-60°C
5. Hot chocolate 85°C
6. Non-hot milk foam

RUNTIME OF THE FUNCTIONS:

1 TO 4 MINUTES

OPERATING INSTRUCTIONS

1. Ensure that the bottom of the jug is dry before using the device.

2. Before use, insert the desired accessory into the jug and connect the base to the power outlet.

3. Pour the milk into the jug and place the jug correctly on the base, securing it with the appropriate lid.

4. Press ON button Ⓤ to power on the unit, all the symbols on display flash, press ON button to set the function.

Function		Whisk/Stirrer	Button Lights	Min Capacity	Max Capacity
	Hot and thick foam		Red	130ml	250ml
	Hot and thin foam		Red	130ml	250ml
	Hot milk 65-70°C		Red	130ml	500ml
	Hot milk 55-60°C		Red	130ml	500ml
	Hot chocolate 80-85°C		Brown	130ml	250ml
	Cold foam		Blue	130ml	250ml

Press and hold the ON button to turn the unit off.

TIPS:

1 When frothing milk, do not exceed the 250 ml level, otherwise the liquid may overflow.

2 Use cold, fresh, whole or semi-skimmed milk.

3 To mix and heat the milk, use the appropriate accessory without the spring around it.

CLEANING AND MAINTENANCE

Before carrying out any cleaning or maintenance activities, disconnect the product from the power supply.

• Glass Jug: Rinse with water and wash with a mild detergent. This part

can be washed in the dishwasher.

- Jug Lid: Wash with water.

- Base: Clean with a soft, damp cloth. Do not immerse the base in water.

• Accessories: Remove them from the product, rinse with water, and dry them

RATING LABEL

Innoliving Spa

Via Merloni 2/B 60131 Ancona - Italy

INN-786 MONTALATTE ELETTRICO ELECTRIC MILK FROTHER

220-240V\~50-60Hz 600W

LOT n.

MADE IN CHINA

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Safe

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_09.2024
