USER MANUAL A+ SuperWorkstation 5014A-TT Supermicro

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in industrial environment for Class A device or in residential environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0a

Release Date: December 12, 2022

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2022 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the A+ Workstation AS -5014A-TT. Installation and maintenance should be performed by experienced technicians only.

Please refer to the workstation specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your workstation.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 Unpacking the System 8
1.3 System Features 9
1.4 Workstation Chassis Features ...... 11

Control Panel 11

Front Features....12

Rear Features ....13

1.5 System Architecture ....14
Block Diagrams....14
1.6 Motherboard Layout....15
Quick Reference Table....16
1.7 Where to Get Replacement Components....18
1.8 Returning Merchandise for Service....18

Chapter 2 System Installation

2.1 Overview....19
2.2 Unpacking the System 19
2.3 Preparing for Setup....19

Choosing a Setup Location....19

Workstation Precautions....19

Chapter 3 Maintenance and Component Installation

3.1 Removing Power ....21
3.2 Accessing the System....22

Left Side and Right Side Covers 22

Front Bezel....23

3.3 Processor and Heatsink Installation....24

Memory Installation....31
Memory Support....31
DIMM Installation 33
DIMM Removal 33
Motherboard Battery ....34

3.4 Chassis Components ....35

Drive Cage 35

Installing or Removing Drives....36

Top Front Peripheral Drive Bays....37

Front Side Drive Bays....38

Installing and Removing Drives from Trays....39

Installing an M.2 Solid State Drive....40

GPUs....42

Fans and Cooling....46

Air Flow....46

Dust Filters....46

Power Supply 50

Chapter 4 Motherboard Connections

4.1 Power Connections ....52
4.2 Headers and Connectors ....54
4.3 Rear I/O Ports ....59
4.4 Front Control Panel....62
4.5 Jumpers....63
How Jumpers Work....63
4.6 LED Indicators....66

Chapter 5 Software

5.1 Microsoft Windows OS Installation....67
5.2 Red Hat Linux OS Installation....68
5.3 Driver Installation....72
5.4 SuperDoctor ^® 5....73
5.5 IPMI 74
BMC ADMIN User Password 74

Chapter 6 UEFI BIOS

6.1 Introduction....75
Starting the Setup Utility 75
6.2 Main Setup 76
6.3 Advanced....78
6.4 IPMI 100
6.5 Event Logs ....102
6.6 Security Settings ....104
6.7 Boot Settings....107
6.8 Save & Exit....109

Appendix A Standardized Warning Statements for AC Systems

Appendix B System Specifications

Appendix C Energy Star

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Sales Inquiries)

[e-mail] (Gov. Sales Inquiries)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

[e-mail] (Webmaster)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (Sales Inquiries)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail] (Sales Inquiries)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

This chapter provides a brief outline of the functions and features of the A+ Workstation AS-5014A-TT. In addition to the M12SWA-TF motherboard and CSE-GS7A-000NBP chassis, parts included with the system are listed below.

Main Parts List
Description Part Number Quantity
FAN module with 2200rpm PWM FAN-0221L4 3
FAN module with 6400rpm PWM (optional, with three or more GPU cards installed)	FAN-0222L4 3
2000W 80PLUS Platinum PS/2 Power Supply PWS-2K01-PQ 1
OOB Software Management License SFT-OOB-LIC 1
High Performance CPU heatsink and fan (optional) SNK-P0066AP4 -
Tempered Glass side panel (optional) MCP-230-GS701-0B -

Note: The following safety models associated with the AS -5014A-TT have been certified as compliant with CSA or UL models: GS7A-20 and GS7A-S20M12.

1.2 Unpacking the System

Inspect the box in which the workstation was shipped and note if it was damaged in any way. If any equipment appears damaged, file a damage claim with the carrier who delivered it. Refer to Section 1.8 for Returned Merchandise Authorization (RMA) instructions.

Decide on a suitable location that will hold the workstation. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix A.

1.3 System Features

The following table provides you with an overview of the main features of the A+ Workstation AS -5014A-TT.

System Features

Motherboard

M12SWA-TF

Chassis

CSE-GS7A-000NBP

CPU

Supports AMD RyzenTM ThreadripperTM PRO 3000WX Series Processors in OLGA-4094 socket, up to CPU TDP 280W

Chipset

AMD WRX80 Chipset

Management Chipset

AMI 256Mb Flash EEPROMACPI 6.2, SMBIOS 3.1.1, Plug-and-Play (PnP), RTC (Real Time Clock) wakeup, Riser Card Auto-Detection support

Memory

Up to eight DDDR4 ECC/non-ECC UDIMM/ECC RDIMM sockets, with speeds of up to 3200MHz (1DPC). Up to 256GB (UDIMM)/2TB (RDIMM) max capacity

Storage Drives

Drive Bays:Two 2.5" front drive bays, four internal 3.5" drive bays, and two 5.25" peripheral baysOnboard:Four SATA 3.0 6Gb/s connectors (support RAID 0, 1, 5, 10)Four M.2 M-key slots via PCIe 4.0 (support 2260/2280/22110, RAID 0,1,5,10)Two U.2 sockets

Expansion Slots

Six PCIe 4.0 x16 slots with metal armor protection

Security

One TPM 2.0 header

Power

One 2000W multi-output PS2/ATX PS, 80PLUS Platinum Certified power supply

Note: The System Features table continues on the next page.

System Features

Input/Output

Front:Two USB 2.0 portsTwo USB 3.2 Gen 1 (5Gbps) Type A portsOne USB 3.2 Gen 2 (10Gbps) Type C portOne Power ButtonOne Audio OutOne Mic InOne LED on/off buttonRear:One 10Gb LAN portOne 1Gb LAN portOne USB 3.2 Gen 2x2 (20Gbps) Type C portFour USB 3.2 Gen 2x1 portsThree USB 3.2 Gen 1 portsOne VGA port (for BMC interface)HD Audio 7.1 Channel connectorOne COM portOnboard:One USB 3.2 Gen 2 Type C headerOne USB 3.2 Gen 1 Type A headerTen 4-Pin fan headersOne 12V power header for water cooler pumperOne DOM PW connectorOne TPM 2.0 header

System Cooling

Two 12 cm front cooling fansOptional three 12 cm top cooling fansOne 12 cm rear exhaust fan

Weight

Net weight: 37.3 lbs / 16.9 kgGross weight: 43.5 lbs / 19.75 kg

Form Factor

5U Tower; (W x H x D)8.7 x 21.1 x 22.6 in. or 222 x 535 x 572 mm (with stand)8.7 x 20 x 22.6 in. or 222 x 508 x 572 mm (without stand)

1.4 Workstation Chassis Features

Control Panel

The control panel includes one power button and one LED indicator. Next to the power button and LED indicator are I/O ports including one audio out, one mic in, and five USB ports.

Figure 1-1. Control Panel

Control Panel Features
Feature Description
Power button	The main power switch applies or removes primary power from the power supply to the workstation but maintains standby power.
LED button On/off	button for the white colored LED strip along the edge of the chassis.
Audio Out Audio	port
Mic In Microphone	port
USB Type C USB	3.2 Gen 2 port (supports power usage at a maximum current of 3A)
USB 2.0 USB 2.0	port (x2)
USB 3.2 Gen 1 U	SB 3.2 Gen 1 port (x2)

Front Features

In addition to the control panel, the front features two tool-less drive bays that open via a latch and a front bezel that can be opened to access the front fans. The workstation feet support the system in its default tower position.

Figure 1-2. Front View

Chassis Front Features
Item Features Description
1 Control	Panel See previous page for details.
2 Drive Bay Latch Cable-based 2.5" drive bay (x2) for tool-less storage drive
3 Feet Workstation feet
4	Front Bezel	Vented bezel with filter that opens for access to front fans

Rear Features

The illustration below shows the features included on the rear of the chassis.

Figure 1-3. Rear View

Chassis Rear Features
Item Features Description
1 Removable Chamber Dedicated and removable chamber
2 Fan Rear 12-cm fan
3 I/O Rear I/O ports. See Section 4.3 Rear I/O Ports for details.
4 Expansion Slots PCIe expansion slots (x8)
5 Power Supply 2000W 80PLUS Platinum power supply with modular cables*

1.5 System Architecture

Block Diagrams
        A["CPU"]
        B["AMD Threadripper PRO"]
        C["BMC AST3800"]
        D["SIO"]
        E["Chipset AMD WRX80"]
    end

    subgraph AMD_Threadripper
        F["DDR4"]
        G["DOR4"]
        H["DOR4"]
        I["DOR4"]
        J["DOR4"]
        K["DOR4"]
        L["DOR4"]
        M["DOR4"]
        N["DOR4"]
        O["DOR4"]
        P["DOR4"]
        Q["DOR4"]
        R["DOR4"]
        S["DOR4"]
        T["DOR4"]
        U["DOR4"]
        V["DOR4"]
        W["DOR4"]
        X["DOR4"]
        Y["DOR4"]
        Z["DOR4"]
        AA["DOR4"]
        AB["DOR4"]
        AC["DOR4"]
        AD["DOR4"]
        AE["DOR4"]
        AF["DOR4"]
        AG["DOR4"]
        AH["DOR4"]
    end

    subgraph Chipset
        AI["COM2"]
        AJ["USB2 2.0 Cell 1"]
        AK["USB2 2.0 Cell 2"]
        AL["USB2 2.0 Cell 3"]
        AM["USB2 2.0 Cell 4"]
        AN["USB2 2.0 Cell 5"]
        AO["USB2 2.0 Cell 6"]
        AP["USB2 2.0 Cell 7"]
        AQ["USB2 2.0 Cell 8"]
        AR["USB2 2.0 Cell 9"]
        AS["USB2 2.0 Cell 10"]
        AT["USB2 2.0 Cell 11"]
        AU["USB2 2.0 Cell 12"]
        AV["USB2 2.0 Cell 13"]
        AW["USB2 2.0 Cell 14"]
        AX["USB2 2.0 Cell 15"]
        AY["USB2 2.0 Cell 16"]
        AZ["USB2 2.0 Cell 17"]
        BA["USB2 2.0 Cell 18"]
        BB["USB2 2.0 Cell 19"]
        BC["USB2 2.0 Cell 20"]
    end

    subgraph Chipset
        DA["COM2"]
        DB["USB2 2.0 Cell 1"]
        DC["USB2 2.0 Cell 2"]
        DD["USB2 2.0 Cell 3"]
        DJ["USB2 2.0 Cell 4"]
        DK["USB2 2.0 Cell 5"]
        DL["USB2 2.0 Cell 6"]
        DV["USB2 2.0 Cell 7"]
        DW["USB2 2.0 Cell 8"]
        BX["USB2 2.0 Cell 9"]
        BY["USB2 2.0 Cell 10"]
    end

    subgraph Chipset
        CA["COM2"]
        CB["USB2 2.0 Cell 1"]
        CD["USB2 2.0 Cell 2"]
        DD["USB2 2.0 Cell 3"]
        DX["USB2 2.0 Cell 4"]
        DBX["USB2 2.0 Cell 5"]
        DBY["USB2 2.0 Cell 6"]
        DBZ["USB2 2.0 Cell 7"]
        DBXZ["USB2 2.0 Cell 8"]
    end

    subgraph Chipset
        BE["COM2"]
        BF["USB2 2.0 Cell 1"]
        BG["USB2 2.0 Cell 2"]
        BH["USB2 2.0 Cell 3"]
        BI["USB2 2.0 Cell 4"]
    end

    subgraph Chipset
        BJ["COM2"]
    end

    CPU -->|PCE_79| ADC11XC
    CPU -->|PCE_79| LAN1
    CPU -->|PCE_79| LAN3A
    CPU -->|PCE_79| LAN5A
    CPU -->|PCE_79| LAN8C
    CPU -->|PCE_79| LAN9C
    CPU -->|PCE_79| LAN10C
    CPU -->|PCE_79| LAN11C
    CPU -->|PCE_79| LAN12C
    CPU -->|PCE_79| LAN13C
    CPU -->|PCE_79| LAN14C
    CPU -->|PCE_79| LAN15C
    CPU -->|PCE_79| LAN16C
    CPU -->|PCE_79| LAN17C
    CPU -->|PCE_79| LAN18C
    CPU -->|PCE_79| LAN19C
    CPU -->|PCE_79| LAN20C
    CPU -->|PCE_79| LAN21C
    CPU -->|PCE_79| LAN22C
    CPU -->|PCE_79| LAN23C
    CPU -->|PCE_79| LAN24C
    CPU -->|PCE_79| LAN25C
    CPU -->|PCE_79| LAN26C
    CPU -->|PCE_79| LAN27C
    CPU -->|PCE_79| LAN28C
    CPU -->|PCE_79| LAN29C
    CPU -->|PCE_79| LAN30C
    CPU -->|PCE_79| LAN31C
    CPU -->|PCE_79| LAN32C
    CPU -->|PCE_79| LAN33C
    CPU -->|PCE_79| LAN34C
    CPU -->|PCE_79| LAN35C
    CPU -->|PCE_79| LAN36C
    CPU -->|PCE_79| LAN37C
    CPU -->|PCE_79| LAN38C
    CPU -->|PCE_79| LAN39C
    CPU -->|PCE_79| LAN40C
    CPU -->|PCE_79| LAN41C
    CPU -->|PCE_79| LAN42C
    CPU -->|PCE_79| LAN43C
    CPU -->|PCE_79| LAN44C
    CPU -->|PCE_79| LAN45C
    CPU -->|PCE_79| LAN46C
    CPU -->|PCE_79| LAN47C
    CPU -->|PCE_79| LAN48C
    CPU -->|PCE_79| LAN49C
    CPU -->|PCE_79| LAN50C
    CPU -->|PCE_79| LAN51C
    CPU -->|PCE_79| LAN52C
    CPU -->|PCE_79| LAN53C
    CPU -->|PCE_79| LAN54C
    CPU -->|PCE_79| LAN55C
    CPU -->|PCE_79| LAN56C
    CPU -->|PCE_79| LAN57C
    CPU -->|PCE_79| LAN58C
    CPU -->|PCE_79| LAN59C
    CPU -->|PCE_79| LAN60C
    CPU -->|PCE_79| LAN61C
    CPU -->|PCE_79| LAN62C
    CPU -->|PCE_79| LAN63C
    CPU -->|PCE_79| LAN64C
    CPU -->|PCE_79| LAN65C
    CPU -->|PCE_79| LAN66C
    CPU -->|PCE_79| LAN67C
    CPU -->|PCE_79| LAN68C
    CPU -->|PCE_79| LAN69C
    CPU -->|PCE_79| LAN70C
    CPU -->|PCE_79| LAN71C
    CPU -->|PCE_79| LAN72C
    CPU -->|PCE_79| LAN73C
    CPU -->|PCE_79| LAN74C
    CPU -->|PCE_79| LAN75C
    CPU -->|PCE_79| LAN76C
    CPU -->|PCE_79| LAN77C
    CPU -->|PCE_79| LAN78C
    CPU -->|PCE_79| LAN79C

Figure 1-4. Motherboard Block Diagram

1.6 Motherboard Layout

Below is a layout of the M12SWA-TF with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4.

Figure 1-5. Motherboard Layout

Quick Reference Table
Jumper Description Default Setting

JBT1 Clear CMOS (Onboard) Open (Normal)

JPAC1 HD Audio Enable/Disable Pins 1-2 (Enabled)

JPL1, JPL2 LAN1/LAN2 Enable/Disable Pins 1-2 (Enabled)

JPUSB1 USB6/7 Wake Up Pins 1-2 (Enabled)

JWD1 Watch Dog Time Control Pins 1-2 (Reset)

JP5 USB 12 Enable/Disable Pins 1-2 (Enabled)

LED	Description	Status
M.2-0LED, M.2-1LED,M.2-2LED, M.2-3LED	M.2 LEDs for M.2-4/M.2-3/M.2-2/M.2-1	Green: Blinking: Device Working
BMC LED	BMC Heartbeat LED	Solid Green: BMC Normal
Power LED	Onboard Power LED	Solid Green: Power On
UID-LED	Unit Identifier (UID) LED	Blue On: Unit Identified

Connector	Description
JD1	Front Panel External Speaker
J31	Front Panel Audio FP Header
BT1 Onboard Battery
COM1	COM Port (Back Panel)
CPU SLOT1~7	PCIe 4.0 x16 Slots
FAN1 ~ FAN6	CPU Fan Headers
FANA ~ FAND	System Fan Headers
12V_PUMP_PWR1	12V 4-pin Power Connector for Liquid Cooling CPU Pump
SATA0~3	Serial ATA (SATA 3.0) Ports (6Gb/second)

JSD1 SATA DOM Power Connector

JF1	Front Control Panel Header
JL1	Chassis Intrusion Header
JOH1 Overheat LED Header
JPI2C1	Power Supply SMBus I2C Header
JPW1	24-pin ATX Main Power Connector (Required)
JPW2, JPW3, and JPW4	+12V 8-pin Power Connectors (Required)
JSTBY1	Standby Power Header (5V)

Connector Description

JTPM1 Trusted Platform Module (TPM)/Port 80 Header

JSPDIF In/JSPDIF Out SPDIF (Sony/Philips Digital Interface) In/Out Headers

USB0/1 USB 2.0 Front Panel Header

USB10/11 USB 3.2 (Gen 1) Type A Front Panel Header

USB9 USB 3.2 (Gen 2) Type C Front Panel Header

VGA VGA Port

Note:

- Jumpers in the table not described are for manufacturing testing purposes only and are not covered in this manual.

Caution: The equipment should only be operated by skilled or instructed persons. Instructed person is a term applied to a person who has been instructed and trained by a skilled person, or who is supervised by a skilled person.

Caution: It is recommended that you connect both 8-pin (JPW3) and 24-pin (JPW1) connectors to your power supply modules before powering on the motherboard.

Caution: For installing multiple GPU cards, it is required to connect both 8-pin connectors (JPW2 and JPW4). See Chapter 4 Power Connection for more details.

1.7 Where to Get Replacement Components

If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com. Click the "Where to Buy" link.

1.8 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 2

System Installation

2.1 Overview

This chapter provides advice and instructions for unpacking and preparing your system for setup. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 3 for details on installing those specific components.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges and keep them in anti-static bags when not in use.

2.2 Unpacking the System

Inspect the box in which the SuperWorkstation AS -5014A-TT was shipped, and note if it was damaged in any way. If any equipment appears damaged, file a damage claim with the carrier who delivered it.

The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix A.

2.3 Preparing for Setup

Please read this section in its entirety before you begin the installation.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Workstation Precautions

- Review the electrical and general safety precautions in Appendix A.

• Use a regulating uninterruptible power supply (UPS) to protect the workstation from power surges, voltage spikes and to keep your system operating in case of a power failure.
• Allow the power supply units and components to cool before touching them.
• To maintain proper cooling, always keep all chassis panels closed when not being serviced.

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Before performing most setup or maintenance tasks, use the following procedure to ensure that power has been removed from the system.

1. Use the operating system to power down the system, following the on-screen prompts.
2. After the system has completely shut-down, carefully grasp the head of the power cord and gently pull it out of the back of the power supply.
3. Disconnect the cord from the power strip or wall outlet.

3.2 Accessing the System

Caution: Except for short periods of time, do not operate the system without the cover in place. The chassis cover must be in place to allow proper airflow and prevent overheating.

Left Side and Right Side Covers

Removing the Left Side Chassis Cover

Begin by powering down the system.

1. Using a screwdriver, remove the two screws at the rear of the chassis.

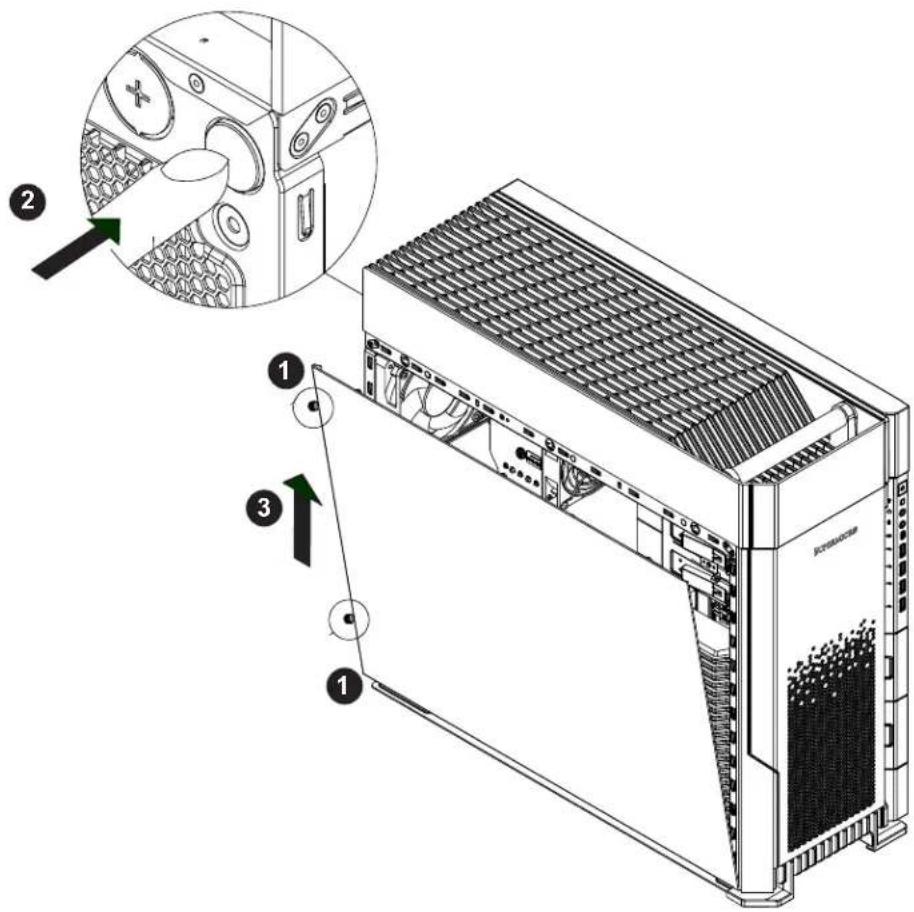

2. Push the release button located at the top rear of the chassis as shown below.
3. Lift the cover up to remove it from the chassis.

Figure 3-1. Removing the Left Side Cover

Removing the Right Side Chassis Cover

Begin by powering down the system.

1. Remove the two screws at the rear of the chassis.
2. Slide the cover back to remove it from the chassis.

Figure 3-2. Removing the Right Side Cover

Front Bezel

Remove the front bezel by pulling the right edge out and then swinging it away from the chassis. The front door can be opened to access the fans and filter.

3.3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area of the fan.

Important:

• For the Processor/Heatsink installation you need to use a T20 screwdriver when opening/closing the CPU socket.
• Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an AMD-certified multi-directional heatsink only.
• Make sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the Supermicro website for updates on CPU support.

Installing the Processor and Heatsink

1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole.

1. The spring-loaded Force Frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position.

Line drawing of a hand placing a computer chip into a housing component (no text or symbols)

1. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.

2. Note: The Rail Frame is spring loaded, so keep a secure grip on it as you lift it so it does not snap up.

1. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame.

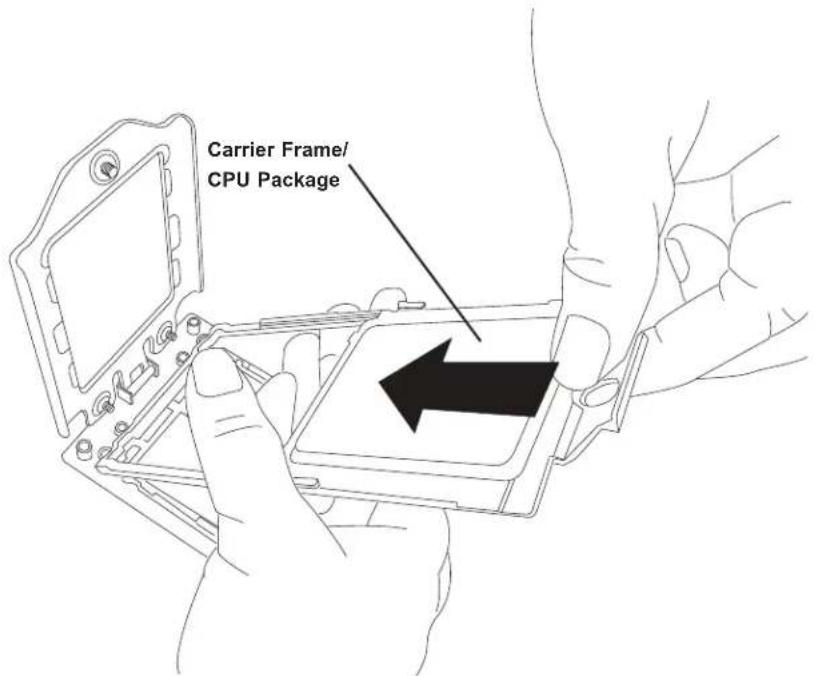

1. The CPU Package is shipped from the factory with the Carrier Frame pre-assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later.

2. Slide the Carrier Frame/CPU Package downwards to the bottom of the Rail Frame. Ensure the flanges are secure on the rails as you lower it downwards.

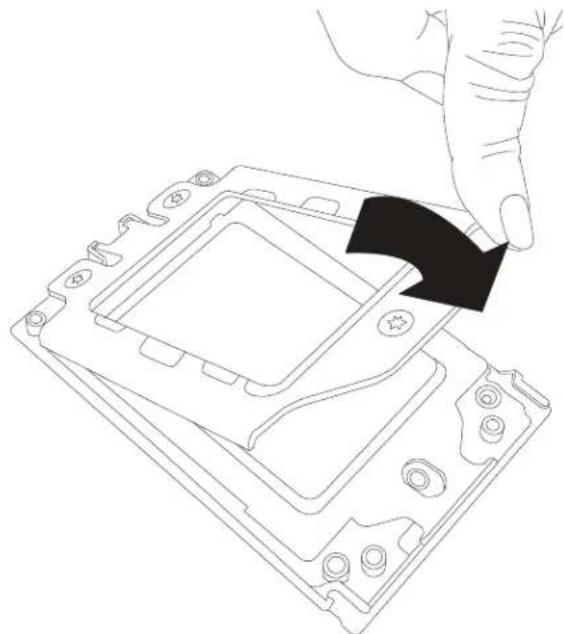

1. Gently lower the Rail Frame down onto the socket until the latches on the Rail Frame engage with the Socket housing. and it rests in place. DO NOT force it into place!

Line drawing of a computer processor with a hand adjusting its top panel (no text or symbols)

1. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.

Line drawing of hands installing or adjusting a component on a computer chassis (no text or symbols)

1. Place and re-screw the screws in the reverse order to the way you removed them (holes 1-2-3 in order). When finished, the Force Frame will be secure over both the Rail Frame and CPU Package.

Technical line drawing of a mechanical component with mounting holes and a central square feature (no text or symbols)

1. After the Force Frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU Package on the socket frame.

Technical line drawing of an industrial transformer with cooling fins and mounting base (no text or symbols)

1. As illustrated, tighten the four screws down on the heatsink in a diagonal pattern till it is secured. The heatsink will now be secured and you have finished installing the processor and heatsink onto the motherboard. Repeat this procedure for any remaining CPU sockets on the Motherboard.

Un-installing the Processor and Heatsink

1. Remove the heatsink attached to the top of the CPU Package by reversing the installation procedure.
2. Clean the thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.
3. Reverse the procedure for installing the Force Frame onto the socket, unscrewing the plate in the 3-2-1 screw order and lift the Force Frame to the vertical position.
4. Lift the Rail Frame using the lift tabs near the front end of the Rail Frame. Note that the Rail Frame is spring loaded, so be careful lifting it up into a vertical position.
5. Grip the handle of the Carrier Frame and pull upwards to extract it from the Rail Frame. Return the Carrier Frame/CPU Package to its original shipping container.
6. Grip the handle on the External Cap and return it to the Rail Frame sliding it downwards till it rests in the frame.
7. Gripping the Rail Frame, rotate it downwards till it rests above and locks over the socket housing in its horizontal position.
8. Push and rotate down the Force Frame till it is over the External Cap and Rail Frame into a horizontal position.
9. While holding down the Force Frame, secure it back to the socket frame by securing screw 1 in place. Note that without a CPU Package in place, it is not necessary to tighten down screws 2 and 3 at this time.

Memory Installation

Note: Check the Supermicro website for recommended memory modules.

Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Memory Support

There are eight DIMM slots on the AS -5014A-TT. Maximum capacity is up to

• 2TB of ECC RDIMM with speeds of up to 3200 MHz (1DPC)
• 256GB of ECC/non-ECC UDIMM.

When installing memory modules, the DIMM slots should be populated in the following order: DIMMC1, DIMMD1, DIMMG1, DIMMH1, DIMMA1, DIMME1, DIMMB1, DIMMF1.

• The slots closest to the CPU must be populated first.
• It is recommended that DDR4 DIMM modules of the same size, type, and speed should be installed.
• The motherboard will support odd-numbered modules (1 or 3 modules installed). However, to achieve the best memory performance, fully populate the motherboard with validated memory modules.
• Configurations with fewer than eight channels are supported, but not recommended.

Memory Module Configurations
Number of DIMMs	D1	C1 B1	A1 CPU	S	Socket E1 F1 G1 H1
1		V
2	V	V
4	VV	VV
6	VV	VV		VV
8	VV	VV V	VV	V

Figure 3-3. DIMM Numbering

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with DIMMC1, DIMMD1, DIMMG1, DIMMH1, DIMMA1, DIMME1, DIMMB1, DIMMF1. For best performance, please use the memory modules of the same type and speed.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Press both ends of the module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

DIMM Removal

Press both release tabs on the ends of the DIMM module to unlock it. Once the DIMM module is loosened, remove it from the memory slot.

Technical illustration of a mechanical component with a blue arrow indicating direction (no text or symbols)

Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

Begin by removing power from the system as described in section 3.1.

1. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
2. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Figure 3-4. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

3.4 Chassis Components

Drive Cage

The removable drive cage is accessed by removing the left chassis cover. These drives are not hot-swappable. Power must be removed from the system before removing or installing drives. The cage can house up to four drives of either 3.5" or 2.5" (2.5" drives require an optional bracket: MCP-220-73102-0N).

Removing the Drive Cage

Begin by powering down the system and removing the left cover as previously described.

1. Use a Phillips-head screwdriver to remove the two screws at the top of the cage that secure it to the side of the chassis.
2. The drive cage is hooked onto the chassis floor. Slide the drive cage forward so that the holding studs move into the large release holes.
3. Lift the cage up and out of the chassis.
4. Install or remove drives as described on the next page.

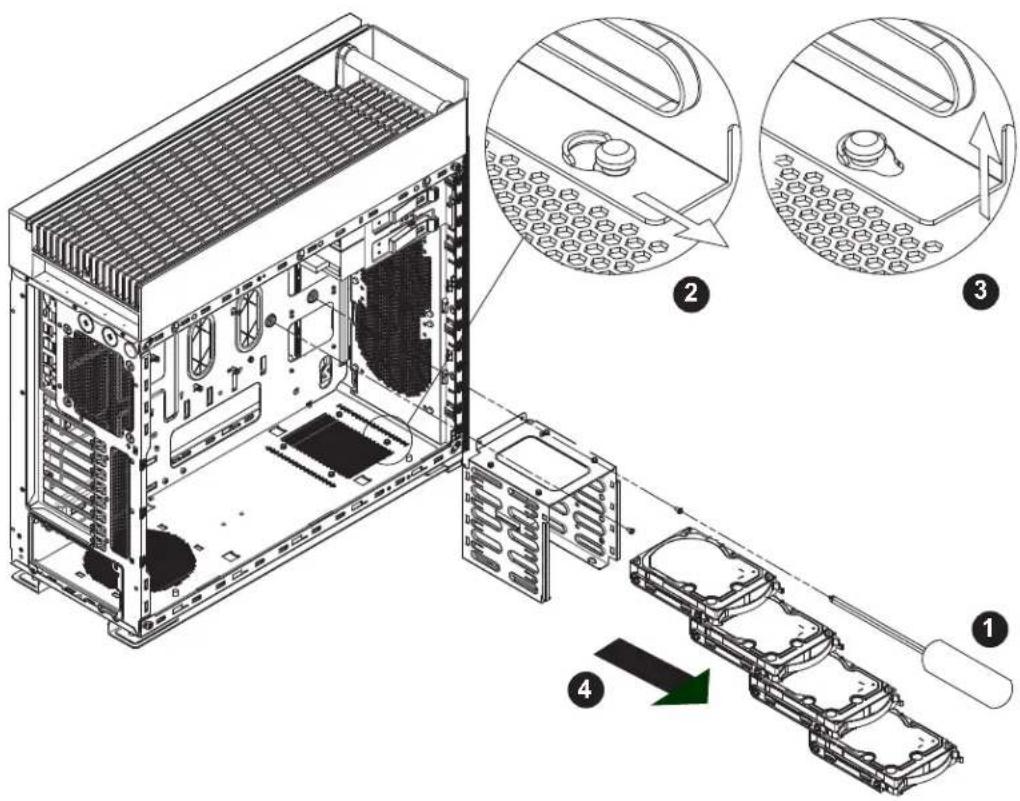

Figure 3-5. Removing the Drive Cage

Installing or Removing Drives

Installing Drive and Drive Tray

1. Using a tray that is compatible with the cage, install the drive onto the tray.
2. Install the drive and drive tray into the cage.

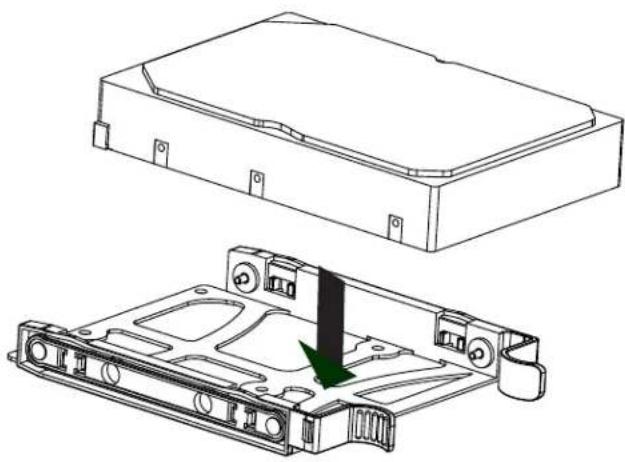

Technical line drawing of a mechanical housing assembly with a green arrow indicating a component detail (no text or symbols present)

Figure 3-6. Installing Drive onto Tray

Removing Drive and Drive Tray

1. Using the handles, remove the drive tray from the cage.
2. Remove the drive from the drive tray.

Technical line drawing of an electronic device housing with a component highlighted by an arrow (no text or symbols present)

Figure 3-7. Removing Drive from Tray

Top Front Peripheral Drive Bays

Two 5.25" peripheral tool-less drive bays are located at the top front of the chassis. It can support the mobile rack for more storage drives requirement.

Installing/Removing the Top Front Drive Bays

Begin by powering down the system and removing the left chassis cover as previously described.

1. Open the front bezel, then use a flat-head screwdriver to bend and remove the 5.25" drive bay plate as shown below.
2. Install drives as needed into one or both bays and attach the wiring. Do not reattach the cover plate.
3. To remove drives from these bays, disconnect their wiring then depress the two release latches to unlock the drives and slide them out of the chassis.

Figure 3-8. Installing Top Peripheral Drives

Front Side Drive Bays

Two 2.5" drive bays are included along the front right side of the chassis. These drives are not hot-swap, power must be removed from the system before removing or installing drives.

Installing/Removing the Front Side Drive Bays

Begin by powering down the system.

1. Push the release tab on either of the two drive bays so that the drive tray pops out from the chassis.
2. Pull the drive tray out and install drives as needed. See the next section.
3. Push the drive tray and drive back into the bay and attach the wiring.
4. To remove drives from these bays, disconnect their wiring before pulling the tray from the chassis.

Figure 3-9. Installing Front Side Drives

Installing and Removing Drives from Trays

The drives must be inserted into tool-less drive trays before being installed in the system.

Installing a Drive into a Drive Tray

1. Pull out the two securing tabs on the tray as illustrated below.

2. With the tabs retracted, insert the drive sideways and at an angle. Make sure the tabs are in the drive screw holes or the tray will not insert correctly into the chassis. Then push it into the tray until it locks into place.

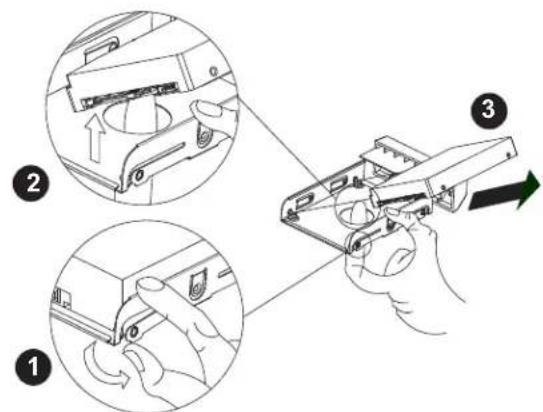

Figure 3-10. Installing a Drive into a Tray

Removing a Drive from a Drive Tray

1. Pull out the two securing tabs on the tray as illustrated below.

2. With the tabs retracted, use your finger to push the drive up and out of the tray through the hole in the tray bottom.

3. Remove the drive.

Figure 3-11. Removing a Drive from a Tray

Installing an M.2 Solid State Drive

The AS -5014A-TT can accommodate four M.2 solid state drives (SSDs). Each M.2 socket supports NVMe PCIe 4.0 x4 in the 2280, 22110, and 2260 form factors. Please use the appropriate standoffs and screws included in the accessory box.

Caution: Use industry-standard anti-static equipment, such as gloves or wrist strap, and follow precautions to avoid damage caused by ESD.

Figure 3-12. M.2 Slot Locations

Installing an M.2 Device

1. Power down the system and remove the motherboard from the chassis.
2. Remove any component blocking the M.2 sockets.
3. Place the standoff in the mounting hole that matches to your M.2 device. Then to install the module, insert it into the slot at a 30 degree angle and press down.
4. With the cutoff circle at the end of the module aligned with the standoff, tighten the screw to secure the module.

GPUs

Installing a GPU with Bracket and Holder

1. Align the screw holes of the GPU with the bracket by standing the gold finger on the surface.

2. Tighten two screws to secure the GPU to the bracket.

Technical line drawing of a mechanical assembly with a tool and green arrow indicating motion (no text or symbols)

Figure 3-13. Securing the GPU to the Bracket

1. Bend and break the end of the bracket before plugging the GPU into the system, as shown below.

Technical line drawing showing a device with a magnified inset highlighting a component (no text or symbols present)

Figure 3-14. Breaking Off the End of the Bracket

1. Remove the PCIe bracket on the chassis.

2. Install the GPU to the motherboard.

3. Align the bracket to the GPU holder and secure it with a screw.

Figure 3-15. Remove the PCIe Bracket

Figure 3-16. Installing the GPU to the Motherboard

Figure 3-17. Locking the GPU

1. Lock the GPU in place at the chassis rear.

Technical line drawing of an internal server rack with exploded view showing internal components and assembly (no text or symbols)

Figure 3-18. Installing the GPU Holder

Technical illustration of a computer tower with internal components and exploded view, showing internal structure and assembly (no text or symbols)

Figure 3-19. Installing the GPU Plastic Cover

1. Install the GPU plastic cover and the left side cover.

Fans and Cooling

The chassis includes two front intake fans and one rear exhaust fan. The top of the chassis can accommodate up to three optional 12-cm fans for three more GPU cards installation or an optional liquid cooling unit.

Air Flow

Make sure cables do not obstruct the cooling airflow.

Dust Filters

The chassis features a dust filter in the front of the front fans and the another on the bottom of the chassis. They can be removed and washed to improve system air flow circulation.

Installing Top Fans

A total of three fans (all optional parts) may be added to the top chassis section.

1. Begin by removing the screw from the top chassis cover.
2. Once the screw has been removed, slide the cover toward the back of the chassis.
3. Lift the cover up and away from the chassis for full top access.

Figure 3-20. Removing the Top Cover

1. With the cover removed, remove all screws that secure the top panel to the chassis. Lift the top panel up and out of the chassis.
2. If necessary, disconnect the wiring of the failed fan, then replace it with a new fan and reconnect the wiring.
3. Proceed with the above steps in reverse order to re-install the top panel back onto the chassis.

Figure 3-21. Installing the Top Fans

Replacing Front Fans

1. Open the front bezel to access the front fan area.
2. Disconnect the fan wiring.

3. Install new fans with rubber pins or screws.

4. If existing fans are mounted with rubber pins, pull the fans toward you. If the fans are mounted by screws, unscrew the fans.

Note: The chassis includes rubber mounting stands for these fans. Place the rubber mount in the fan mounting holes, and then align it to the proper holes in the front panel. Once aligned, pull the rubber mount to secure it in place.

Technical line drawing of a computer tower internal structure with fan base and ventilation slots (no text or symbols)

Figure 3-22. Installing the Front Fans

Replacing the Rear Fan

1. Open the left side cover for access to the rear fan.
2. Remove the screws at the top back of the chassis that secure the fan to the chassis.
3. Pull the fan out through the open space inside the chassis.
4. Replace the failed fan, then proceed with the above steps in reverse order to install the fan back into the chassis.

Figure 3-23. Installing the Rear Fan

Power Supply

The AS -5014A-TT chassis supports a power supply on the rear floor of the chassis. It is recommended that the power requirements of installed components in the system total no more than 80% of the power supply rating.

The 2000W power supply that comes standard with the AS-5014A-TT is a modular type power supply that allows you to connect only the wiring you need for your system's configuration.

Attach all required wiring to the power supply then to your system as needed.

Installing Power Supply Cables

1. Power down the system as described in Section 3.1 and open the left side chassis cover.
2. The power supply is isolated from the rest of the system with a cover. Remove the two screws at the top of this cover as shown below.
3. Push in the release tabs along the bottom of the power supply cover to detach it.
4. Lift the cover up and out of the chassis.

Figure 3-24. Removing the Power Supply Cover

1. With access to the power supply, install the power supply cables.
2. Replace the power supply cover then the left chassis cover before restoring power to the system.

Warning: Each power cord shall be connected to a socket outlet with earthing connection.

Chapter 4

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions.

Note that depending on how the system is configured, not all connections are required.

The LEDs on the motherboard are also described here. The motherboard layout indicating component locations may be found in Chapter 1.

Please review the Safety Precautions in Appendix A before installing or removing components.

4.1 Power Connections

ATX Power Supply Connector

The 24-pin power supply connector (JPW1) meets the ATX SSI EPS 12V specification. You must also connect the 8-pin (JPW2\~JPW4) CPU power connectors to the power supply.

ATX Power 24-pin Connector Pin Definitions
Pin# Definition Pin# Definition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

Required Connection

8-Pin Power Connectors

JPW2\~JPW4 are 8-pin 12V DC power input for the CPU that must be connected to the power supply. Refer to the table below for pin definitions.

8-pin Power ConnectorsPin Definitions

Pin# Definition

1 - 4 Ground

5 - 8 +12V

Required Connection

Important:

- To provide adequate power supply to the motherboard, be sure to connect the 24-pin ATX PWR and the 8-pin PWR connectors (JPW2, JPW3 and JPW4) to the power supply. Failure to do so may void the manufacturer warranty on your power supply and motherboard.

- For installing multiple GPU cards, it is required to connect the 8-pin connectors (JPW2, JPW3 and JPW4) to the power supply. Please refer to the tables below.

GPU Cards and the Required Connectors
Type of GPU Number of GPU Cards JPW1 JPW2 JPW3 JPW4
Single-Width GPU X 1	VVV
GPU X 2	VVV
GPU X 3	VVV
GPU X 4 or more	VVVV

Type of GPU Number of GPU Cards JPW1		JPW2 JPW3 JPW4
Double-Width GPU X 1		VVV
		GPU X 2	VVV
		GPU X 3	VVVV
		GPU X 4 or more	VVVV

Type of GPU Number of GPU Cards JPW		1 JPW2 JPW	3 JPW4
Triple-Width GPU X 1		V V V
		GPU X 2	V V V V

4.2 Headers and Connectors

Front Panel External Speaker (JD1)

If you wish to use an external speaker, attach an external speaker to pins 6\~7. See the table below for pin definitions.

Speaker ConnectorPin Definitions

Pins# Definition

1~2 Power LED

6~7 External $peaker

Front Panel Audio FP Speaker (J31)

A 10-pin front panel audio header (J31) located on the motherboard allows you to use the onboard sound for audio playback. Connect an audio cable to the header to use this feature. Refer to the table below for pin definitions.

Front Panel Audio FP SpeakerPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 3.3V_STBY 16 SERIRQ
17 GND 18 NC
19 NC 20 NC

COM Port

One COM connection (COM1) is located on the motherboard. COM1 is located on the I/O back panel.

COM PortPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
15 3.3V_STBY 16 SERIRQ
17 GND 18 NC
19 NC 20 NC

SATA (SATA0\~SATA3)

The M12SWA-TF has four available SATA 3.0 ports (SATA0\~SATA3). These are standard SATA 3.0 ports.

SATA ConnectorsPin Definitions

Pin# Definition

1 Ground

2 SATA_TXP

3 SATA_TXP

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

Standby Power Header

The Standby Power header is located at JSTBY1 on the motherboard.

Standby PowerPin Definitions
Pin# Definition
1 +5V	Standby
2 Ground
3 Wake-up

FAN Headers

There are four system fan headers (FANA\~FAND) and six CPU fan headers (FAN1\~FAN6) on this motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management (via Hardware Monitoring) in the BMC. When using Thermal Management setting, please use all 4-pin fans.

Sysem Fan Headers Pin Definitions

Pin# Definition

1 Ground

2 +12V (Red)

3 Tachometer

4 PWM Control

SPDIF (Sony/Philips Digital Interface) Out Header

The SPDIF Out (JSPDIF_OUT) is used for digital audio output. Please choose the appropriate cable to use these features.

SPDIF_OUTPin Definitions
Pin# Definitions
1	S/PDIF_Out
2 Ground

Universal Serial Bus (USB)

Two Universal Serial Bus 2.0 ports (USB0/1) are located on the front panel of the M12SWA-TF. In addition, two Type A USB 3.2 headers (USB10/11) and one Type C USB 3.2 header (USB9) are located on the front panel of the M12SWA-TF. See the tables below for pin definitions.

Front Panel USB 3.0Pin Definitions
Pin#	Definition Pin#	Definition
1	VBUS 11 USB_P
2	Stda_SSRX- 12 USB_N
3	Stda_SSRX+ 13 GND
4	GND 14 USB3_TP
5	Stda_SSTX- 15	USB3_TN
6	Stda_SSTX+ 16	GND
7	GND 17 USB3_RP
8	D- 18	USB3_RN
9	D+ 19	Power
10		x

Front Panel USB 3.2Pin Definitions
Pin#	Definition Pin#	Definition
1	VBUS 11 USB_P
2	Stda_SSRX- 12 USB_N
3	Stda_SSRX+ 13 GND
4	GND 14 USB3_TP
5	Stda_SSTX- 15	USB3_TN
6	Stda_SSTX+ 16	GND
7	GND 17 USB3_RP
8	D- 18	USB3_RN
9	D+ 19	Power
10		x

Overheat LED Header

The JOH1 header is used to connect an LED to provide warnings of chassis overheat. This LED will also blink to indicate a fan failure. Refer to the table below for pin definitions.

Overheat LED Header Pin Definitions
Pin# Definitions
1	Intrusion Input+
2	Intrusion Input-

Power Supply SMBus I²C Header

The Power System Management Bus (I²C) header at JPI2C monitors the power supply input/output voltages, fans, temperatures, and status. Refer to the table below for pin definitions.

Power SMBus Header Pin Definitions
Pin# Definitions
1	Clock
2	Data
3	PMBUS_Alert
4	Ground
5	+3.3V

SATA DOM Power Connector (JSD1)

One power connector for SATA DOM (Disk On Module) device is located at JSD1. Connect an appropriate cable here to provide power support for your DOM device.

SATA DOM PWRPin Definitions
Pin# Definition
1 +5V
2 Ground
3 Ground
19 NC

TPM Header/Port 80 Connector

The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available from a third-party vendor. A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.

Please go to the following link for more information on TPM: http://www.supermicro.com/manuals/other/TPM.pdf.

Trusted Platform Module HeaderPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 LFRAME# 4
5 LRESET# 6 NC
7 LAD3 8 LAD2
9 3.3V 10 LAD1
11 LAD0 12 GND
13 NC 14 NC
15 3.3V_STBY 16 SERIRQ
17 GND 18 NC
19 NC 20 NC

4.3 Rear I/O Ports

Figure 4-1. I/O Port Locations and Definitions

Rear I/O Ports
# Description		# Description		# Description		# Description
1. COM1 6.			USB6: USB 3.2 Gen 2 (Type A, 10Gb/s)	11.	USB2: USB 3.2 Gen 2 (Type A, 10Gb/s)	16. Line In
2. VGA Port 7.			USB7: USB 3.2 Gen 2 (Type A, 10Gb/s)	12.	USB3: USB 3.2 Gen 2 (Type A, 10Gb/s)	17. Line Out
3. 1Gb LAN Port (i210) 8.			10Gb LAN Port (AQC113C)	13. Center/LFE Out 18. Mic In
4.	USB12: USB 3.2 Gen 1 (Type A, 5Gb/s)	9.	USB4: USB 3.2 Gen 1 (Type A, 5Gb/s)	14. Surround Out 19. UID Switch
5.	USB8: USB 3.2 Gen 2x2 (Type C, 20Gb/s) (supports power usage at a maximum current of 3A)	10.	USB5: USB 3.2 Gen 1 (Type A, 5Gb/s)	15. S/PDIF Out

1. COM Port

There is one serial communications port (COM1) on the rear I/O panel.

2. VGA Port

There is one VGA port on the rear I/O panel

3. 1Gb LAN Port (i210)

There is one 1Gb LAN port located on the I/O back panel.

4. USB 12: USB 3.2 Gen 1 (Type A, 5Gb)

There is one USB 3.2 port on the I/O back panel. It supports the type A connector.

5. USB 8: USB 3.2 Gen 2x2 (Type C, 20Gb)

There is one USB 3.2 port on the I/O back panel. It supports the type C connector.

6\~7. USB 6 and USB 7: USB 3.2 Gen 2 (Type A, 10Gb)

These two USB 3.2 ports on the I/O back panel support the type A connector.

8. 10Gb LAN Port (AQC113C)

There is one 10Gb LAN port located on the I/O back panel.

9\~10. USB 4 and USB 5: USB 3.2 Gen 1 (Type A, 5Gb)

These two USB 3.2 ports on the I/O back panel support the type A connector.

11\~12. USB 2 and USB 3: USB 3.2 Gen 2 (Type A, 10Gb)

These two USB 3.2 ports on the I/O back panel support the type A connector.

13\~14. Center/LFE Out and Surround Out

This motherboard features a 7.1+2 Channel High Definition Audio (HDA) codec that provides 10 DAC channels. The HD Audio connections simultaneously supports multiple-streaming 7.1 sound playback with two channels of independent stereo output through the front panel stereo out for front, rear, center and subwoofer speakers. To enable this function, download the advanced software for this motherboard.

CEN/LFE is the audio output for the center channel and low frequency channel.

15. S/PDIF Out

This is a fibre optic audio output for a TOSLINK connector and cable.

16. Line In

This type of connector attaches audio devices.

17. Line Out

This is a headphone jack.

18. Mic In

This is a microphone jack.

19. UID Switch

A Unit Identifier (UID) switch is located on the I/O backpanel. The rear UID LED is located next to the UID switch. When you press the UID switch, both rear and front UID LED indicators will turn on. Press the UID switch again to turn off the LED indicators. The UID Indicator provides easy identification of a system that may be in need of service.

Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com

4.4 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JF1.

Figure 4-2. JF1 Pin Definitions

4.5 Jumpers

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector.

Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the CMOS battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Re-install the CMOS battery on the motherboard.
7. Replace the cover, reconnect the power cord(s), and power on the system.

Note: Clearing CMOS will also clear all passwords.

JBT1 contact pads

HD Audio Enable/Disable

JPAC1 enables or disables Audio Controller on the motherboard. See the table below for jumper settings. The default setting is Enabled

HD Audio Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

LAN1/LAN2 Enable/Disable

Use JPL1 and JPL2 to enable or disable LAN ports 1 and 2 respectively on the motherboard. Refer to the table below for jumper settings. The default setting is Enabled.

LAN1/LAN2 Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Reset (Default)

Pins 2-3 Disabled

USB6/7 Wake Up

Use the jumper JPUSB1 to "wake-up" your system by pressing a key on a USB keyboard or clicking the USB mouse connected to the backpanel USB ports 6/7. JPUSB1 is used together with a USB Wake-Up feature in the BIOS. Enable this jumper and the USB support in the BIOS to wake up your system via USB devices.

JPUSB1Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt (NMI) signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user needs to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

USB12 Enable/Disable

JP5 jumper enables or disables USB12.

USB12Jumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

4.6 LED Indicators

M.2-0LED, M.2-1LED, M.2-2LED, M.2-3LED

Three M.2 indicators blinks green when they are functioning normally.

Onboard Power LED Indicator

LED Color Definition

Blinking Green Device working

BMC Heartbeat LED

A BMC Heartbeat LED is located at LEDM1 on the serverboard. When LEDM1 is blinking, BMC functions normally. See the table below for more information.

BMC Heartbeat LED States
Color State Definition
Green Solid	On BMC is not ready.
Green Blinking	BMC Normal
Green Fast	Blinking BMC: Initializing

Onboard Power LED

When this LED is lit, it means system is in power-on state, and the onboard power status is ok. Turn off the system and unplug the power cord before removing or installing components.

Onboard Power LED Indicator

LED Color Definition

Off System Off (power cable not connected)

Green System On, Power OK

UID LED

The UID LED (LE) is located next to the UID switch. When you press the UID switch, the UID LED will be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator provides easy identification of a system unit that may be in need of service.

UID LED

LED Color Definition

Blue On Unit |identified

Chapter 5

Software

After the hardware has been installed, you can install the Operating System (OS), configure RAID settings and install the drivers. Note that RAID settings are only available on these operating systems: Microsoft Windows 10 and Red Hat Linux.

5.1 Microsoft Windows OS Installation

If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the AMD-RAID Drivers during a Windows OS Installation

1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
2. Boot the system and allow it to access the Microsoft Windows operating system CD-ROM or DVD.
3. In the Windows setup window, select the language, time and keyboard options.
4. Select Next, and select Install Now.
5. If prompted, select the desired operating system, and then select Next.
6. Insert the device with the AMD-RAID drivers, select Browse, navigate to the directory containing the saved AMD-RAID drivers and select OK.

Note: If the installation has multiple controllers, there will be two or more rcbottom.inf's listed.

1. Select the first AMD-RAID Bottom Device (rcbottom.inf) driver in the list and select Next.
2. Select OK in the Load Driver Warning message:
3. At the Select the Driver window, select Browse to navigate to the directory containing the saved AMD-RAID drivers, and select OK.

4. Select the AMD-RAID Controller (rcraid.inf) driver in the list, and select Next.

5. Select (Check Mark) I Accept the License Terms, and select Next.

6. Select Custom: Install Windows Only (advanced). Once both drivers have been loaded, a valid Virtual Disk appears. Select Load Drivers.
7. Select Browse to navigate to the directory containing the saved AMD-RAID drivers, and select OK.
8. Select the AMD-RAID Config Device (rccfg.inf) driver from the list and select Next.
9. In the Where do you want to install Windows window, select Next.
10. Follow the on-screen instructions to complete the installation of the Windows operating system.

11. After the OS is installed, open Device Manager and verify the following:

12. Expand Storage Controllers: there is an entry listed as AMD-RAID Bottom Device.

13. Expand Storage Controllers: there is an entry listed as AMD-RAID Controller.

14. Expand System Devices: there is an entry listed as AMD-RAID Config Device.

15. Remove the storage medium and Microsoft Windows OS CD-ROM or DVD from the applicable drive(s) or port.

5.2 Red Hat Linux OS Installation

Installing the AMD-RAID Drivers during a Red Hat Linux Installation

Note: When installing Red Hat Linux, use the Linux dd installation mode instead of the Linux expert mode.

1. Create a method to access the Red Hat Linux installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
2. Boot the system and allow it to access the Red Hat Linux operating system CD-ROM or DVD.
3. At the Red Hat Enterprise Linux Welcome window, press the arrow key, select Install Red Hat Enterprise Linux 8.x, and press the key.
4. Press the arrow key twice, select the linuxefi /images string, and press the key.
5. Add "inst.dd modprobe.blacklist=ahci modprobe.blacklist=nvme" to the end of the string, and press .

- (Example) linuxefi /images......quiet inst.dd modprobe.blacklist=ahci modprobe.blacklist=nvme

Note: If the shell does not appear (the screen is black), reset and try with the settings below.

1. Add "inst.dd modprobe.blacklist=ahci modprobe.blacklist=nvme nomodeset" to the end of the string, and press .

- (Example) linuxefi /images......quiet inst.dd modprobe.blacklist=ahci modprobe.blacklist=nvme nomodeset

1. In the Driver Disk Device Selection, insert the USB drive (which contains the AMD-RAID dd-rcraid....x86_64.iso) into the USB port.

- Press the key, and press to refresh.

- Press the number key <2>, the number of the USB flash drive inserted above, and press .

1. In the Choose Driver Disk ISO file, press the number key <1> (the number of the dd-rcraid-RHEL....el8.x86_64.iso entry), and press .

2. In the Select Drivers to Install, press the number key <1> (the number of the /media/DD/.....x86_64.rpm entry), and press .

3. The /media/DD/... is now selected and should look like [X] /media/DD/.....x86_64.rpm. Press the key and press .

4. In the Driver Disk Device Selection, press the key, press key, and remove the USB flash drive.

5. In the Welcome to Red Hat Enterprise Linux Screen, select the desired Language, select the desired Country, and click Continue in the bottom right corner.

6. At the Installation Summary Screen, configure the following:

- Under Localization, select these items to review the settings and make any necessary changes:

• Keyboard
  • Language Support
• Time and Date

• Under Software, select Software Selection.

- Under Base Environments, select Server with GUI, and click Done in the upper left corner.

• Under System, select Installation Destination.
- Under Local Standard Disks, select AMD-RAID Array 01.
- Under Storage Configuration, select Custom, click Done in the upper left corner, and click the Click here to create them automatically link.
• Under Installation:

• Select DATA/home, change File System from xfs to ext4, select SYSTEM/rhel-root, change File System from xfs to ext4, select SYSTEM/boot, change File System from xfs to ext4, and click Done in the upper left corner.
• In the Summary of Changes window, click Accept Changes.

• Under Network and Hostname:

• In the bottom left corner, enter a valid Hostname, and click the Apply button.
• Select an Ethernet Port, and click Configure in the bottom right corner.
• Enter valid entries, and click Save.

- Under Ethernet, click the ON button and click Done In the upper left corner.

1. Click Beginning Installation in the bottom right corner.

2. In the Configuration Window:

3. Click Root Password, enter an applicable root password, re-enter the root password, and click Done in the upper left corner.

4. Click User Creation, enter a Full Name, a Username, enter an applicable password, re-enter the user password, and click Done in the upper right corner.

5. When the message “Red Hat Enterprise Linux is now successfully installed and ready for you to use! Go ahead and reboot to start using it!” appears, click Reboot in the bottom right corner, and remove the installation device.

6. In the Initial Setup Window, click License Information under Licensing, review the EULA, select (Check Mark) I accept the License Agreement and click Done in the upper left corner.

- Under System, configure Subscription Manager in the bottom right corner, and click Finish Configuration.

1. Login to the system, select a user, and enter a password.

2. In the Welcome window, select the desired Language, and click Next.

3. In Typing Window, select the desired Language, and click Next.
4. If desired, Configure Privacy, and click Next.
5. In the Connect your Online Accounts, you can configure or click Skip.
6. Click Start using Red Hat Enterprise Linux Server.

5.3 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wdl/. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.)

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities". Insert the flash drive or disk and the screenshot shown below should appear.

Figure 5-1. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

5.4 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Figure 5-2. SuperDoctor 5 Interface Display Screen (Health Information)

5.5 IPMI

The M12SWA-TF supports the Intelligent Platform Management Interface (IPMI). IPMI provides remote access, monitoring and management through the baseboard management controller (BMC) and other management controllers distributed among different system modules. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

BMC ADMIN User Password

For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address.

Figure 5-3. BMC Password Label

See the motherboard layout in Chapter 1 for the location of the label.

Chapter 6

UEFI BIOS

6.1 Introduction

This chapter describes the AMIBIOS ^™ setup utility for the M12SWA-TF motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS setup utility, press the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , , , keys, etc.) can be used at any time during the setup navigation process.

6.2 Main Setup

When you first enter the AMI BIOS setup utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

System Date/System Time

Use this item to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after the RTC (Real Time Clock) reset.

Supermicro M12SWA-TF

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

6.3 Advanced

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to the default to the manufacture default settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between the POST messages and the OEM logo upon bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power on state for the key. The options are On and Off.

Wait For "F1" If Error

Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it is expired for more than 5 minutes. The options are Disabled and Enabled.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Wake On Lan Enable

This feature enables integrated LAN to wake the system. The options are Disabled and Enabled.

Deep S5 Power Policy

Use this feature to configure the Deep S5 Mode configurations. The options are Disabled and Enabled.

▶PSP Firmware Versions

This section displays the Platform Security Processor (PSP) firmware versions.

- PSP Bootloader Version

• SMU FW Version
• ABL Version
  • X570/590 Chipset PSP Version
  • X570/590 Chipset SMU Version

▶ACPI Settings

PCI AER Support

Use this feature to enable or disable ACPI OS to natively manage PCI Advanced Error Reporting. The options are Disabled and Enabled.

High Precision Event Timer

The High Precision Event Timer (HPET) can produce periodic interrupts and is used to synchronize multimedia streams, providing smooth playback and reducing the need to use other timestamp calculations. The options are Disabled and Enabled.

NUMA Node Per Socket

This feature specifies the number of desired Non-Uniform Memory Access (NUMA) nodes per socket. Setting this to zero will attempt to interleave the two sockets together. The options are NPS0, NPS1, NPS2, NPS4 and Auto.

ACPI SRAT L3 Cache As NUMA Domain

Use this setting to enable/disable ACPI SRAT L3 Cache As NUMA Domain. The options are Disabled, Enabled and Auto.

▶Super IO Configuration

The following Super IO information will display:

Super IO Chip AST2600

▶ Serial Port 1 Configuration

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, IO=3F8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=2F8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=3E8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, and IO=2E8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12.

▶SOL Configuraiton

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, IO=2F8h; IRQ=3, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=2F8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=3E8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, and IO=2E8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12.

Serial Port 2 Attribute

Use this setting to select the serial port 2 mode. The options are SOL and COM.

▶CPU Configuration

SMT Control

Use this setting to specify Simultaneous Multithreading. Options include Disabled for 1T single thread and Auto for 2T two-thread if your system is capable of it.

Core Performance Boost

This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.

Global C-state Control

This setting is used to configure for Global C-state Control. Options include Disabled, Enabled and Auto.

Local APIC Mode

Use this setting to adjust local APIC mode. Options include xAPIC, x2APIC and Auto.

L1 Stream HW Prefetcher / L2 Stream HW Prefetcher

This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher. The options are Disabled, Enabled and Auto.

SVM Mode

This setting Disables or Enables CPU Virtualization.

SEV ASID Count

Use this setting to specify the maximum valid ASID. Options include 253 ASIDs, 509 ASIDs and Auto.

SEV-ES ASID Space Limit Control

The SEV VMs using ASIDs below the SEV-ES ASID Space Limit must enable the SEVES feature. The valid values for this field are from 0x1 (1) to 0x10 (16). Default is 1. Options include Auto and Manual.

▶CPU Information

These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as:

• CPU Version
  • Number of Cores Running
• Processor Family
• Processor Model
• Processor Stepping
• Microcode Patch Level
  • L1 Instruction Cache (Size/Method)
  • L1 Data Cache (Size/Method)
  • L2 Data Cache (Size/Method)
  • L3 Cache per Scket (Size/Method)

▶NB Configuration

Determinism Control

Use this setting to configure the Determinism Control. Options include Manual and Auto.

cTDP Control

Use this setting to configure the cTDP Control. Options include Manual and Auto.

IOMMU

Use this setting to enable or disable IOMMU. Options include Disabled, Enabled, and Auto.

ACS Enable

Use this setting to enable or disable ACS. Options include Enabled, Disabled and Auto.

Package Power Limit Control

Use this setting for Package Power Limit Control. Options include Manual and Auto.

APBDIS

Use this setting to set APBDIS. Options include 0, 1 and Auto.

DF Cstates

Use this setting to enable/disable DF Cstates. Options include Disabled, Enabled, and Auto.

Preferred IO

Use this setting for Preferred IO. Options include Manual and Auto.

▶Memory Configuration

Memory Clock

This setting allows you to select different memory clock speed. The options are Auto, 2666MHz, 2933MHz and 3200MHz.

Memory Interleaving

This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option. The options are Disabled and Auto.

Memory Interleaving size

This setting controls the memory interleaving size. This determines the starting address of the interleave (bit 8, 9, 10 or 11). The options are 256 Bytes, 512 Bytes, 1 KB, 2 KB and Auto.

Chipselect Interleaving

This setting controls interleave memory blocks across the DRAM chip for node 0. The options are Disabled and Auto.

BankGroupSwap

This setting controls the Bank Group Swap. The options are Enabled, Disabled and Auto.

DRAM Scrub Time

This setting provides a value that is the number of hours to scrub memory. The options are Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours and Auto.

▶CPU1 Memory Configuration

These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as:

• Detected Size (per slot, in MB)
• Current Speed (MT/s)

▶PCIe/PCI/PnP Configuration

This menu provides PCIe/PCI/PnP configuration settings and information.

PCI Bus Driver Version

PCI Devices Common Settings:

Above 4G Decoding

This setting Disables or Enables 64-bit capable devices ability to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding).

SR-IOV Support

If the system has SR-IOV capable PCIe devices, this setting will Disable or Enable the Single Root IO Virtualization Support for the system.

BME DMA Mitigation

Re-enable Bus Master Attribute is disabled during Pci enumeration for PCI Bridges after SMM Locked. The options are Disabled and Enabled.

PCIe Spread Spectrum

Use this setting to enable or disable PCIe Spread Spectrum for your system. The options are Enabled and Disabled.

PCIe ARI Support

Use this setting to control the Alternative Routing-ID Interpretation. The options are Disable, Enable and Auto.

VGA Priority

Use this setting to select between onboard or offboard VGA support. The options are Onboard and Offboard.

NVMe Firmware Source

Use this setting to select between the AMI Native firmware support or the device vendor-defined firmware support. The options are Vendor Defined Firmware and AMI Native Support.

M.2 (AHCI) Firmware Source

The options are Vendor Defined Firmware and AMI Native Support.

Maximum Read Request

Use this setting to set maximum read request size of PCI Express device or allow system BIOS to select the value. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

PCI Devices Option Rom Setting

Onboard NVME 0 OPROM

Use this setting to enable or disable the Onboard NVME OPROM function. The options include Disabled and EFI.

Onboard NVME 1 OPROM

Use this setting to enable or disable the Onboard NVME OPROM function. The options include Disabled and EFI.

Onboard NVME 2 OPROM

Use this setting to enable or disable the Onboard NVME OPROM function. The options include Disabled and EFI.

Onboard NVME 3 OPROM

Use this setting to enable or disable the Onboard NVME OPROM function. The options include Disabled and EFI.

CPU1 SLOT 1 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

CPU1 SLOT 2 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

CPU1 SLOT 3 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

CPU1 SLOT 5 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

CPU1 SLOT 6 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

CPU1 SLOT 7 PCIe 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled and EFI.

Onboard 10G LAN Enable

This setting enables or disables onboard 10G LAN. The options include Disabled and Enabled.

Onboard LAN1 OPROM

This setting enables or disables the onboard LAN 1 Option ROM. The options include Disabled and EFI.

Onboard LAN 2 OPROM

This setting enables or disables the onboard LAN 2 Option ROM. The options include Disabled and EFI.

▶Network Stack Configuration

Network Stack

This setting allows you to enable or disable the UEFI Network Stack. The options are Disabled and Enabled.

IPv4 PXE Support

This setting allows you to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. The options are Disabled and Enabled.

IPv4 HTTP Support

This setting allows you to enable or disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available. The options are Disabled and Enabled.

IPv6 PXE Support

This setting allows you to enable or disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available. The options are Disabled and Enabled.

IPv6 HTTP Support

This setting allows you to enable or disable IPv6 HTTP boot support. If disabled, IPv6 HTTP boot support will not be available. The options are Disabled and Enabled.

PXE boot wait time

This setting allows you to set in a number field the wait time to press to abort the PXE boot. The default value is 0.

Media detect count

This setting allows you set in a number field the number of times presence of media will be checked. The default value is 1.

▶USB Configuration

USB Module Version

USB Devices

Legacy Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options include Enabled, Disabled and Auto.

XHCI Hand-off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The options include Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options include Disabled and Enabled.

▶Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

SOL

Console Redirection

Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy Console Redirection Resolution

For Legacy OS systems, use this setting to specify the number of Rows and Columns supported for redirection. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Redirection After BIOS POST

For this setting, when the Bootloader is selected, then the Legacy Console Redirection is disabled before booting to the legacy OS. If you select Always Enable, then the Legacy Console Redirection is enabled for legacy OS systems. The options are Always Enable and BootLoader.

Legacy Console Redirection

Legacy Serial Redirection Port

For this setting, select a COM port to display redirection of Legacy OS and Legacy OPROM messages. Options include COM1.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

Console Redirection

Select Enabled to enable EMS console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1, COM2 (Disabled), and AMT SOL.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per Second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits EMS

Parity EMS

Stop Bits EMS

▶Network Configuration

(Available when EFI is selected in LAN OPROM after reboot)

▶VLAN Configuration (MAC: 3CECEF741952)

▶Enter Configuration Menu

Create New VLAN

VLAN ID

This option is an input field used to enter a unique numeric VLAN ID. The valid range is from 0\~4096.

Priority

This option is an input field used to enter a unique numeric VLAN 802.1Q priority. The valid range is from 0\~7.

Add VLAN

Use this option to create a new VLAN or update an existing VLAN.

Configured VLAN List

Remove VLAN

Use this option to remove an existing VLAN.

▶IPv4 Network Configuration

Configured

Select Enabled to activate IPv4 network configuration. The options include Disabled and Enabled.

*If the item above is set to Enabled, the following item will become available for configuration:

Enable DHCP

This feature allows the user to select the source of the IP address for this computer. If Disabled is selected, you will need to know the local IP address of this computer and enter it to the system manually in the field. If Enabled is selected, the system will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that it is attached to and request the next available IP address for this computer. The options include Disabled and Enabled.

*If the item above is set to Disabled, the following items will become available for configuration:

Local IP Address

This item sets and displays the Local IP address for this computer. This should be in decimal and in dotted quad form.

Local NetMask

This item sets the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Local Gateway

This item sets the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Local DNS Servers

This item sets the address for the local DNS servers for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Save Changes and Exit

Use this item to save the changes above and exit.

▶IPv6 Network Configuration

▶Enter Configuration Menu

Enable DHCP

Interface ID

The 64 bit alternative interface ID for the device.

DAD Transmit Count

The number of consecutive Neighbor Solicitating messages sent while performing Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed.

Policy

Options include automatic and manual.

Save Changes and Exit

Use this item to save the changes above and exit.

▶SATA Configuration

This section displays the detected SATA devices installed on the system.

SATA Enable

This setting enables or disables the on chip SATA controller. The options are Disabled, Enabled, and Auto.

▶SATA Information

This section displays information on the detected SATA devices.

▶KMIP Server Configuration

KMIP Server IP address

Enter IP4 address in dotted-decimal notation.

KMIP TCP Port number

Enter KMIP TCP Port number 100 to 9999. The default value is 5696.

TimeZone

Enter current timezone GMT+? The default value is GMT+8 Taiwan time.

Client UserName

Enter Client identity: user name, name length is 0 to 63 characters.

Client Password

Enter Client identity: password, password length is 0 to 31 characters.

KMS TLS Certificate

▶CA Certificate

The options include Update, Delete, Export

▶Client Certificate

The options include Update, Delete, Export

▶Client Private Key

The options include Update, Delete, Export

▶NVMe Configuration

NVMe Information

NVMe RAID mode

Use the setting to set the NVMe RAID mode. Options include Disabled and Enabled.

▶NVMe Information

NVMe Configuration

▶HTTP Boot Configuration

HTTP Boot Configuration

HTTP Boot Policy

Options include Apply to all LANs, Apply to each LAN and Boot Priority #1 instantly.

Priority of HTTP Boot

Instance of Priority 1

Rank targeted port

Select IPv4 or IPv6

Targeted LAN port is boot from IPv4 or IPv6. Options include IPv4 and IPv6t.

Boot Description

This item must be filled out, otherwise boot option for the URI will not be created. Length of description isn't more than 75.

Boot URI

A new IPv4/IPv6 Boot Option will be created according to this Boot URI. Only supported on Dual or EFI Mode. Length of URI isn't more than 128.

▶Intel(R) I210 Gigabit Network Connection

Use the setting to specify the port speed used for the selected boot protocol. Options include Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On Lan

Use the setting to enable or disable the server to be powered on using an in-band magic packet. Option inclue Diabled and Enabled.

Blink LEDs

Use the setting to identify the physical network port by blinking the associated LED.

PORT CONFIGURATION INFORMATION

UEFI Driver

This item displays the UEFI Driver model.

Adapter PBA

This item displays the Adapter PBA.

Chip Type

This item displays the Chip Type.

PCI Device ID

This item displays the PCI Device ID.

PCI Address

This item displays the PCI Address.

Link Status

This item displays Link Status.

MAC Address

This item displays the MAC Address.

Virtual MAC Address

This option displays the programmatically assignable MAC address for port.

▶TLS Authentication Configuration

This submenu allows the user to configure Transport Layer Security (TLS) settings.

▶Server CA Configuration

This feature allows the user to configure the client certificate that is to be used by the server.

▶Enroll Certification

This feature allows the user to enroll the certificate in the system.

▶Enroll Certification Using File

Use this feature to enroll certification from a file.

Certification GUID

Use this feature to enroll to input the certification GUID.

▶Commit Changes and Exit

Use this feature to save all changes and exit TLS settings.

▶Discard Changes and Exit

Use this feature to enroll to discard all changes and exit TLS settings.

▶ Delete Certification

Use this feature to delete certification.

▶iSCSI Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

▶ Add an Attempt

Use this setting to add an attempt.

▶ Delete Attempts

Use this setting to delete one or more attempts.

▶Change Attempt Order

Use this setting to change the order of attempts.

▶Driver Health

▶Intel (R) PR0/1000 6.1.16 PCIe Healthy

This item displays the information/status of driver installed in the system.

6.4 IPMI

Use this feature to configure Intelligent Platform Management Interface (IPMI) settings.

Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit
BMC Firmware Revision 1.00.05 IPMI STATUS Working	Press <Enter> to change the SEL event log configuration.
System Event Log BMC Network Configuration
	+: Select Screen T↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.20.1276, Copyright (C) 2021 American Megatrends, Inc.

▶System Event Log

SEL Components

Select Enabled for all system event logging at bootup. The options include Disabled and Enabled.

Erashing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options include No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options include Do Nothing and Erase Immediately.

▶BMC Network Configuration

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options include No and Yes.

*If the item above is set to Yes, the following item will become available for user's configuration:

Configuration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options include Static and DHCP.

VLAN

This item configures the virtual LAN settings. The options include Disabled and Enabled.

IPv6 Support

Use this feature to enable IPv6 support. The options include Enabled and Disabled.

6.5 Event Logs

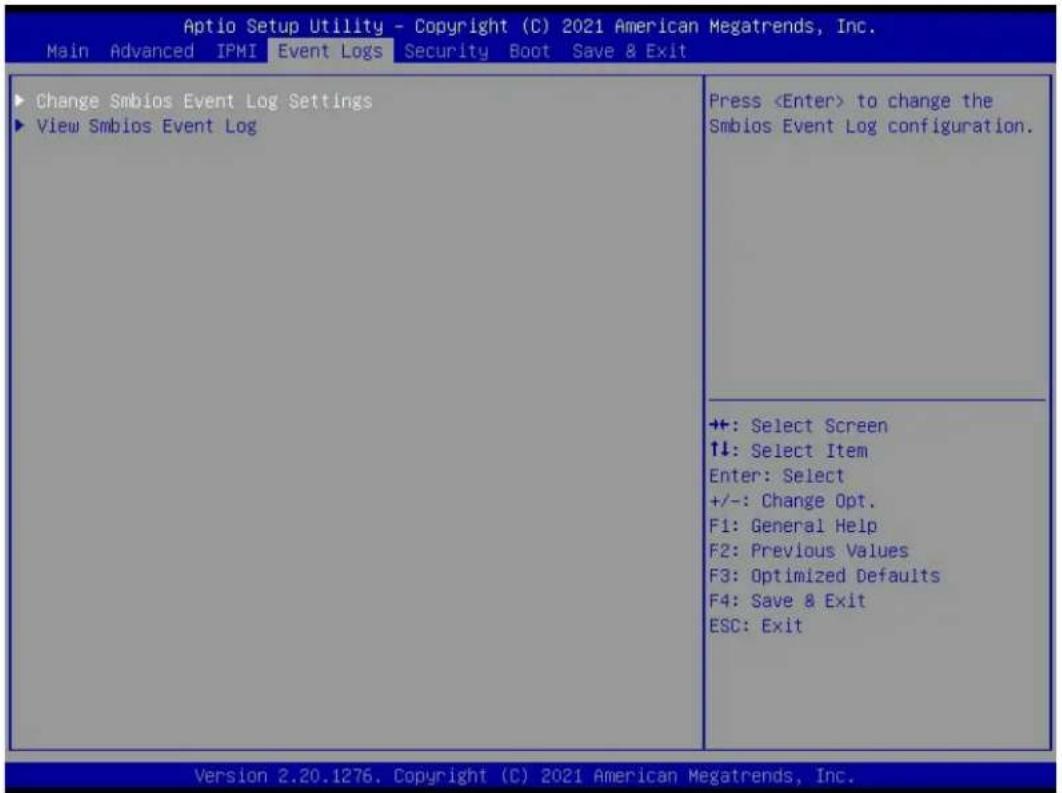

Use this feature to configure Event Log settings.

Note: After you've made a change on a setting below, please be sure to reboot the system for the change to take effect.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

The options are No, Yes, Next reset, and Yes, Every reset.

Select No to keep the event log without erasing it upon next system bootup. Select Yes, Next Reset to erase the event log upon next system reboot. The options are No, Yes, Next reset, and Yes, Every eset.

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

6.6 Security Settings

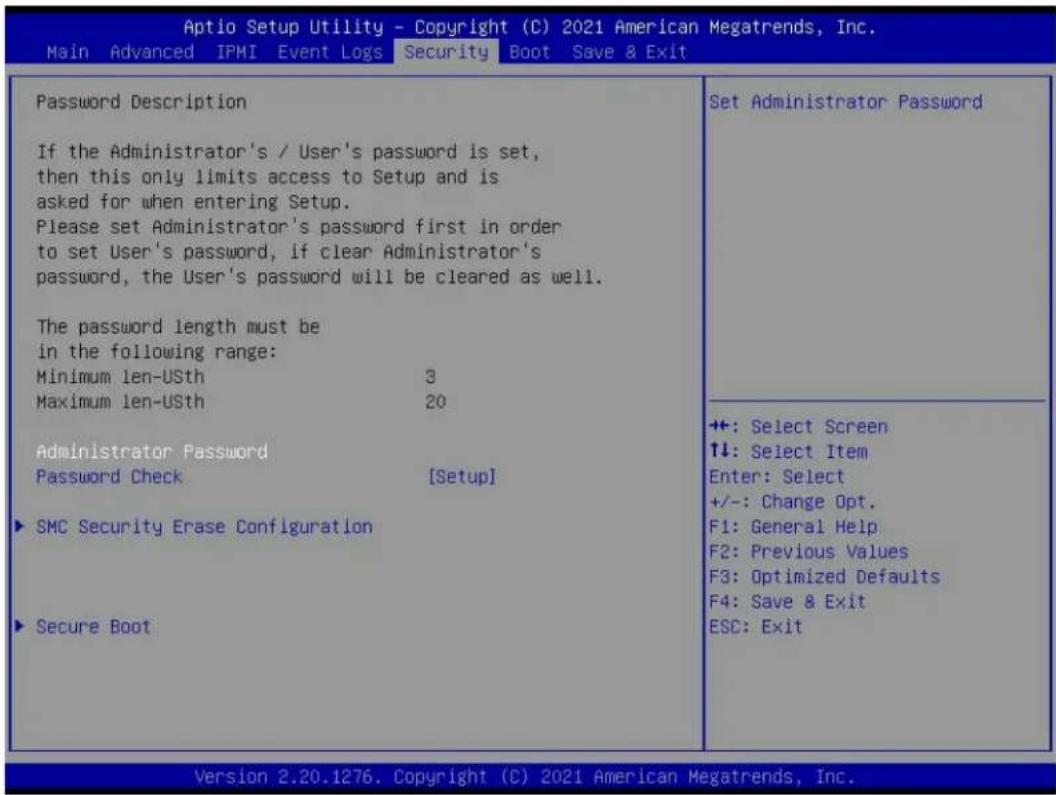

This menu allows the user to configure the following security settings for the system.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at system boot and upon entering the BIOS Setup utility. The options are Setup and Always.

▶SMC Security Erase Configuration

▶Secure Boot

When you select this submenu and press the key, the following items will display:

System Mode

Secure Boot

Select Enabled to use Secure Boot settings. The options are Disabled and Enabled.

Secure Boot Mode

Use this feature to select the desired secure boot mode for the system. The options are Standard and Custom.

*If the item above is set to Custom, the following items become available for configuration:

Select Yes to restore manufacturer default keys used to ensure system security. The options are Yes and No.

▶Reset to Setup Mode

Select Yes to reset the system to the Setup Mode. The options are Yes and No.

▶Key Management

Factory Key Provision

The options are Disabled and Enabled.

Select Yes to restore database variables to the manufacturer default settings. The options are Yes and No.

▶Reset To Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶Export Secure Boot Variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore all DBs to the default settings. The options are Yes and No.

Secure Boot variable | Size | Keys# | Key Source

▶ Platform Key (PK)

This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well. Select Update to update the platform key.

▶Key Exchange Keys

This feature allows the user to enter and configure a set of values to be used as KeyExchange-Keys for the system. The sizes, keys numbers, and key sources of the KeyExchange-Keys will be indicated as well. Select Update to update your "Key Exchange Keys". Select Append to append your "Key Exchange Keys".

▶ Authorized Signatures

This feature allows the user to enter and configure a set of values to be used as Authorized Signatures for the system. These values also indicate the sizes, keys numbers, and the sources of the authorized signatures. Select Update to update your "Authorized Signatures". Select Append to append your "Authorized Signatures". The settings are Details, Export, Update, Append and Delete.

▶Forbidden Signatures

This feature allows the user to enter and configure a set of values to be used as Forbidden Signatures for the system. These values also indicate sizes, keys numbers, and key sources of the forbidden signatures. Select Update to update your "Forbidden Signatures". Select Append to append your "Forbidden Signatures". The settings are Details, Export, Update, Append and Delete.

▶ Authorized TimeStamps

This feature allows the user to set and save the timestamps for the authorized signatures which will indicate the time when these signatures are entered into the system. Select Update to update your "Authorized TimeStamps". Select Append to append your "Authorized TimeStamps". The settings are Update, and Append.

▶Os Recovery Signatures

This feature allows the user to set and save the authorized signatures used for OS recovery. Select Update to update your "OS Recovery Signatures". Select Append to append your "OS Recovery Signatures". The settings are Update, and Append.

6.7 Boot Settings

Use this feature to configure Boot Settings:

FIXED BOOT ORDER Priorities

This feature prioritizes the order of a bootable device from which the system will boot. Press on each item sequentially to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5

• Boot Option #6

• Boot Option #7

• Boot Option #8
• Boot Option #9
• Boot Option #10
• Boot Option #11

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

Delete Boot Option

Use this feature to remove an EFI boot option from the boot priority list.

▶ Delete Driver Option

Use this feature to remove an EFI Driver option from the drive order.

Delete Driver Option

Use this feature to remove an EFI boot option from the boot priority list.

▶UEFI NETWORK Drive BBS Priorities

Use this feature to set the system boot order.

▶UEFI Application Boot Priorities

Use this feature to specify the Boot Device Priority sequence from available UEFI Application.

6.8 Save & Exit

Select the Save & Exit menu from the BIOS setup screen to configure the settings below.

Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit
Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: PXE IPv4 Intel(R) I210 Gigabit Network Connection - 3CECEF741952 UEFI: PXE IPv4 Marvell AQC113C - 3CECEF74191E UEFI: PXE IPv6 Intel(R) I210 Gigabit Network Connection - 3CECEF741952 UEFI: PXE IPv6 Marvell AQC113C - 3CECEF74191E UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device	Exit system setup without saving any changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.20.1276. Copyright (C) 2021 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to exit from the BIOS setup utility without making any permanent changes to the system configuration and reboot the computer.

Save Changes and Reset

When you have completed the system configuration changes, select this option to leave the BIOS setup utility and reboot the computer for the new system configuration parameters to become effective.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes you've made and return to the AMI BIOS setup utility.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Defaults from the Exit menu and press to load manufacturer default settings which are intended for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save all changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined default settings that were saved previously.

Boot Override

This feature allows the user to override the Boot priorities sequence in the Boot menu, and immediately boot the system with a device specified by the user instead of the one specified in the boot list. This is a one-time override.

Launch EFI Shell from filesystem device

This feature attempts to launch EFI Shell application (Shell.efi) from one of the available filesystem devices.

Appendix A

Standardized Warning Statements for AC Systems

A.1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Support AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors in OLGA-4094 socket, up to CPU TDP 280W

BIOS

AMI 256Mb Flash EEPROM

ACPI 6.2, SMBIOS 3.1.1, Plug-and-Play (PnP), RTC (Real Time Clock) wakeup, Riser Card Auto-Detection support

Motherboard

M12SWA-TF 12" x 13" (304.8mm x 330.2mm)

Chassis

CSE-GS7A-000NBP (WxHxD)

with stand: 8.7 x 21.1 x 22.6 in. (222 x 535 x 572 mm)

without stand: 8.7 x 20 x 22.6 in. (222 x 508 x 572 mm)

Memory

Up to eight DDDR4 ECC/non-ECC UDIMM/ECC RDIMM sockets, with speeds of up to 3200MHz (1DPC).

Up to 256GB (UDIMM)/2TB (RDIMM) max capacity

Storage Drives

Drive Bays:

Two 2.5" front drive bays, four internal 3.5" drive bays, and two 5.25" peripheral bays

Onboard:

Four SATA 3.0 6Gb/s connectors (support RAID 0,1,10)

Four M.2 M-key via PCIe 4.0 (support 2260/2280/22110, RAID 0,1,5,10)

Two U.2 sockets

PCI Expansion Slots

Six PCIe 4.0 x16 slots with metal armor protection

Input/Output

Front:

Two USB 2.0 ports

Two USB 3.2 Gen 1 (5Gbps) Type A ports

One USB 3.2 Gen 2 (10Gbps) Type C port

One Power Button

One Audio Out and one Mic In

One LED on/off button

Rear:

One 10Gb LAN

One 1Gb LAN

One USB 3.2 Gen 2x2 (20Gbps) Type C port

Four USB 3.2 Gen 2x1 ports

Three USB 3.2 Gen 1 ports

One VGA port (for BMC interface)

HD Audio 7.1 Channel connector

One COM port

Onboard:

One USB 3.2 Gen 2 Type C header

One USB 3.2 Gen 1 Type A header

One 12V power header for water cooler pumper

One DOM PW connector

One TPM 2.0 header

Weight

Net weight: 37.3 lbs / 16.9 kg

Gross weight: 43.5 lbs / 19.75 kg

System Cooling

Two 12 cm front cooling fans

Optional three 12 cm top cooling fans

One 12 cm rear exhaust fan

Optional 360 mm closed loop CPU liquid cooling

Power Supply

Model: PWS-2K01-PQ; 80Plus Platinum level (92%+)

Total Output Power:

1200W at 100-115Vac

1500W at 115-200Vac

2000W at 200-264Vac

Input:

100-240Vac/ 15-12A/ 50-60Hz

Regulation:

+3.3V, +5V, +12V, +5Vsb: +/-5%

-12V: +/-10%

Operating Environment

Operating Temperature: 10° to 35° C (50° to 95° F)

Non-operating Temperature: -40° to 60° C ( -40° to 140° F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

FCC, ICES, CE, VCCI, CSA/UL, CB

Applied Directives, Standards

EMC/EMI: 2014/30/EU (EMC Directive)

Electromagnetic Compatibility Regulations 2016

FCC Part 15 Subpart B

ICES-003

VCCI-CISPR 32

AS/NZS CISPR 32

BS/EN 55032

BS/EN 55035

CISPR 32

CISPR 24/CISPR 35

BS/EN 61000-3-2

BS/EN 61000-3-3

BS/EN 61000-4-2

BS/EN 61000-4-3

BS/EN 61000-4-4

BS/EN 61000-4-5

BS/EN 61000-4-6

BS/EN 61000-4-8

BS/EN 61000-4-11

Product Safety: 2014/35/EU (LVD Directive)

UL/CSA 62368-1 (USA and Canada)

Electrical Equipment (Safety) Regulations 2016

IEC/BS/EN 62368-1

Environment:

2011/65/EU (RoHS Directive)

EC 1907/2006 (REACH)

2012/19/EU (WEEE Directive)

California Proposition 65

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

ENERGY STAR qualified products save your money by reducing energy cost and protecting the environment without sacrificing features or performance. Supermicro is proud to offer our customers products with the ENERGY STAR mark.

About ENERGY STAR

Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Supermicro is committed to offering products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through higher energy efficiency, the more we reduce greenhouse gases and the risks of climate change. Supermicro products marked with the ENERGY STAR logo are following the ENERGY STAR specification established by the US Environmental Protection Agency, and the product power management function has been turned on. In addition, our equipment automatically go into "display sleep" within 10 minutes of inactivity respectively. The user can wake up the computer by pressing any key. Additional information about the energy and cost savings that power management features can provide can be found on the EPA ENERGY STAR Power Management website at:

http://www.energystar.gov/powermanagement.

Additional information about the ENERGY STAR program and its environmental benefits can be found on the EPA ENERGY STAR website at:

http://www.energystar.gov.

The picture as below showed that the power management settings of this computer have been enabled by default.

Note: The preset default power management settings are compliance with ENERGY STAR and are recommended by the ENERGY STAR program for optimal energy savings.

The timing settings can be changed to other power management plan through selecting other time option:

When the screen turns off or computer falls into sleep mode, you can move your mouse, click your keyboard or press power button to wake it up.
