CM508-BT - Pregnant Audibax - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Audibax
Model	CM508-BT
Dimensions (W x H x D)	20 x 10 x 10 cm (7.9 x 3.9 x 3.9 in)
Weight	0.5 kg (1.1 lbs)
Power Supply	Built-in rechargeable lithium-ion battery, 2000 mAh
Charging Time	Approximately 3 hours
Playback Time	Up to 10 hours at moderate volume
Bluetooth Version	5.0
Wireless Range	10 meters (33 ft)
Audio Output	10W (single driver)
Frequency Response	80 Hz – 20 kHz
Additional Features	Built-in microphone, AUX input, USB charging port, TWS pairing
Controls	Power, Volume +/-, Play/Pause, Track skip, Bluetooth pairing button
Cleaning and Maintenance	Wipe with a soft dry cloth; do not use harsh chemicals or immerse in water
Safety Warnings	Do not expose to extreme temperatures, liquids, or direct sunlight. Keep away from children.
Repairability	Battery replaceable by qualified technician; no user-serviceable parts inside
Package Contents	Speaker, USB charging cable, AUX cable, user manual
Warranty	1 year limited warranty

Frequently Asked Questions - CM508-BT Audibax

How do I pair the speaker with my phone?

Turn on the speaker, press the Bluetooth button to enter pairing mode (LED flashes), then search for Audibax CM508-BT in your phone's Bluetooth settings and connect.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging, but it may take longer to charge fully.

How long does the battery last?

At moderate volume, the battery lasts up to 10 hours. Higher volume reduces playback time.

How do I reset the speaker?

Press and hold the power button for 10 seconds until the LED turns off and on again. This resets the speaker to factory settings.

Can I connect two speakers for stereo sound?

Yes, the CM508-BT supports TWS (True Wireless Stereo). Pair one speaker to your phone, then press the TWS button on both speakers to link them.

The speaker is not charging. What should I do?

Check the USB cable and charger. Try a different cable or power source. If still not charging, the battery may be depleted; charge for at least 30 minutes.

How do I clean the speaker?

Use a soft, lint-free cloth slightly dampened with water. Avoid getting moisture into the ports. Do not use abrasive cleaners.

What does the LED indicator mean?

Solid blue: connected via Bluetooth. Flashing blue: pairing mode. Red: charging. Off: not in use or turned off.

Can I connect a non-Bluetooth device?

Yes, use the AUX input with a 3.5mm audio cable to connect devices like an MP3 player or computer.

Is the speaker waterproof?

No, it is not waterproof. Avoid exposure to rain or splashes. Keep it away from water.

USER MANUAL CM508-BT Audibax

CM508-BT / CM608-BT / CM808-BT

USER'S

MANUAL

NOTES:

CM508-BT / CM608-BT

CM808-BT

Please read the manual before using the product

CM508-BT / CM608-BT / CM808-BT

USER'S MANUAL

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid the fire and/or electrical shock. Repairs must only be carried out by qualified technician in order to avoid electrical shock. Keep the manual for future reference.

- Prior to suing the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

- The unit contains voltage carrying parts. Therefore do NOT open the housing.

- Do place metal objects or pour liquids into the unit this may cause electrical shock and malfunction.

- Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.

- The unit is not suitable for continuous use.

- Be careful with the main lead can cause electrical shock and malfunction.

- When unplugging the unit from a mains outlet, always pull the plug, never the lead.

- Do not plug or unplug the unit with wet hands.

- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

- If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the unit to rain and moisture.

- All repairs should be carried out by a qualified technician only.

- Connect the unit to an earthed mains outlet (220-240VAC/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if the unit the mains. The rule is: Unplug it from the mains when not in use.

- If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

- Do not repeatedly switch the fixture on and off. This shortens the life time.

- Keep the unit out of the reach of children. Do not leave the unit unattended.

- Do not use cleaning sprays to clean switches. The residues of these s sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

- Do not force the controls.

- This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60 cm away from computer or TV.

Specifications

	CM508-BT	CM608-BT	CM808-BT
Load Rating	30W + 30W	40W + 40W	50W + 50W
Frequency Range	100 Hz ~ 20 kHz	70 Hz ~ 20 kHz	50 Hz ~ 20 kHz
SPL(@1W/m)	86dB	88dB	90dB
Woofer / Impedance	5,25" / 8ohms	6.5"/8 ohms	8"/8 ohms
Tweeter	1" silk dome	1" silk dome	1" silk dome
Diameter	∅ 214 mm	∅ 244 mm	∅ 284 mm
Install depth	88.9 mm	104.30 mm	99 mm
Install dimension	170 mm	200 mm	240 mm
Colour / Material	Black / ABS	Black / ABS	Black / ABS

CM508-BT / CM608-BT / CM808-BT

Mechanical assembly diagram showing a screwdriver inserted into a circular component (no text or symbols)

Diagram of a rotating disk with concentric rings and a central point, no text or symbols present

Connecting with BT

Connecting your BT-device to the speaker follow below steps:

1. Turn on BT on your device
2. Search for "BT-SPEAKER"
3. Your device is now connected, no password needed

Disconnecting or Reconnecting

If you want to change from BT-device, follow bellow steps:

1. Disconnect the current BT-device ("OFF")
2. Connect new BT-device by following above steps

If you move out of range or turn off the BT function on your BT device, the BT if the speaker will disconnect. To reconnect turn on the BT on the desired device, it will reconnect.

• This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged with people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240V AC/50Hz. Check if power outlet match. If you travel is suitable for this unit

CM508-BT / CM608-BT / CM808-BT

USER'S MANUAL

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee

Note: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric product must not be put into household waste. Please bring them to a recycling center. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other specifications can be change without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any change to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages cause by inappropriate use or disrespect of the warning, contained in this manual. Power AUDIBAX cannot be held responsible for personal injuries caused by disrespect of the safety recommendations and warning. This is also applicable to all damages in whatever form.

Installation of the CM508-BT / CM608-BT / CM808-BT

1. Drill a hole in the ceiling, big enough to fit the speaker:

Model	Install dimension
CM508-BT	170 mm
CM608-BT	200 mm
CM808-BT	240 mm

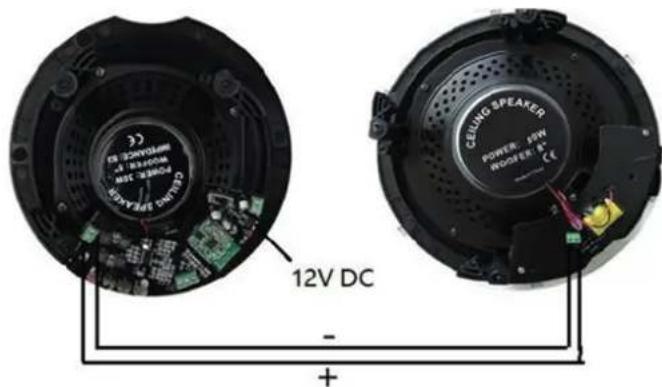

1. Connect the Active speaker with the 12V DC plug (See picture)
2. Connect Active and Passive speaker with speaker cable (+/-) (see picture)

1. Insert the speaker in the hole

2. Screw down each of the two screws (the locking tabs will swivel into the rear surface)

3. Place the metal grill
