KF4485XNBIHE - Refrigerator Cylinda - Free user manual and instructions

Product Type	Freestanding Fridge with Freezer Compartment
Brand	Cylinda
Model	KF4485XNBIHE
Total Net Capacity	420 L (approx.)
Refrigerator Net Capacity	300 L (approx.)
Freezer Net Capacity	120 L (approx.)
Energy Class	E (EU energy label)
Annual Energy Consumption	280 kWh/year (approx.)
Noise Level	40 dB (approx.)
Dimensions (H x W x D)	1850 x 600 x 660 mm (approx.)
Weight	70 kg (approx.)
Climate Class	N-ST (16°C – 38°C)
Refrigerant	R600a
Power Input	150 W (approx.)
Defrosting	Automatic (refrigerator), manual (freezer)
Temperature Control	Electronic with digital display
Door Reversibility	Yes, reversible
Shelves	4 adjustable glass shelves
Drawers	1 crisper drawer, 3 freezer drawers
Interior Lighting	LED
Maintenance & Cleaning	Clean with soft cloth and mild detergent; defrost freezer when ice exceeds 5 mm
Safety	Ensure proper ventilation, leveling, and electrical grounding
Spare Parts & Repairability	Available shelves, drawers, door gaskets, and thermostat; repair by qualified technician
General Information	For full instructions, refer to the user manual provided

Frequently Asked Questions - KF4485XNBIHE Cylinda

How do I set the temperature on my Cylinda KF4485XNBIHE fridge?

Use the electronic control panel to adjust the temperature. Press the Temp button and select the desired cooling level, typically between 2°C and 8°C for the refrigerator and -18°C for the freezer.

Why is my fridge making unusual noises?

Normal operation includes sounds like compressor hum, fan whir, or refrigerant flow. If noises are loud or persistent, ensure the fridge is level and not touching walls or cabinets. Refer to the troubleshooting section in the manual.

How do I reverse the door opening direction?

Reversing the door requires removing the top hinge, door, and bottom hinge, then reinstalling them on the opposite side. Detailed step-by-step instructions are in the user manual. You will need a screwdriver and a helper.

How often should I defrost the freezer?

Defrost the freezer manually when the ice layer becomes thicker than 5 mm (about 0.2 inches). This ensures efficient operation and prevents excessive frost buildup.

What is the energy consumption of the KF4485XNBIHE?

The approximate annual energy consumption is 280 kWh based on standard test methods. Actual consumption may vary depending on usage and settings.

Can I store hot food directly in the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge. This prevents raising the internal temperature and overworking the compressor.

What should I do if the interior light doesn't work?

Check if the door switch is functioning. If the LED light is faulty, it may need replacement by a qualified technician. Do not attempt to replace it yourself unless the manual specifies it is user-replaceable.

How do I clean the fridge's condenser coils?

Unplug the fridge and locate the coils at the back or bottom. Use a vacuum cleaner with a brush attachment to gently remove dust. Clean every 6 months to maintain efficiency.

Is the fridge water dispenser or ice maker included?

The KF4485XNBIHE model is a standard fridge-freezer with no water dispenser or ice maker. It has simple ice cube trays provided in the freezer compartment.

What is the warranty period for this refrigerator?

Cylinda typically offers a 2-year warranty on parts and labor. Check your purchase receipt and the warranty card included with the manual for exact terms and conditions.

USER MANUAL KF4485XNBIHE Cylinda

Simple line drawing of a kitchen appliance with oven, refrigerator, and washing machine (no text or symbols)

KF4485XNHE

KF4485XNVE

KF4485XNSVHE

KF4485XNRFHE

KF4485XNBIHE

-bed and breakfast-bostäder

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 Vid användning

Illustration showing three different hand positions: a keyboard, a curved arrow indicating rotation, and a crossed-out hand holding a cross (no text or symbols)

3.6.2 Fryslådan

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Technical line drawing of a structural frame with vertical displacement arrow, labeled Fig. 2 (no text or symbols on the diagram itself)

Line drawing of a bottled water bottle mounted on a shelf, labeled Fig. 1 (no text or symbols on the diagram itself)

Diagram of a shelving unit with shelves and fixtures, showing an upward movement indicated by arrows (no text or symbols)

7 INNAN DU RINGER SERVICE EFTER FÖRSÄLJNING

Fel

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS .... 30

1.1 General Safety Warnings ....30
1.2 Installation warnings....34
1.3 During Usage....34

2 DESCRIPTION OF THE APPLIANCE....36

3 USING THE APPLIANCE 37

3.1 Information about New Generation Cooling Technology 37
3.2 Display and Control Panel....37

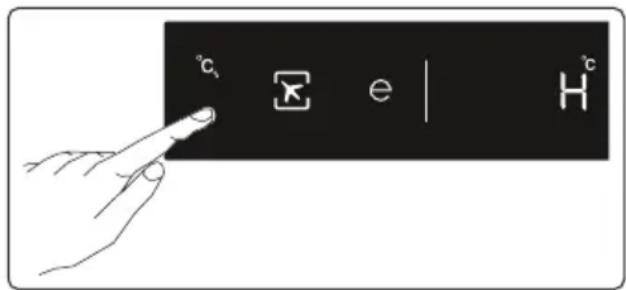

3.3 Operating your Fridge Freezer 37
3.3.1 Super Freeze Mode....37
3.3.2 Super Cool Mode 38
3.3.3 Economy Mode....38
3.3.4 Holiday Mode....39
3.3.5 Drink Cool Mode....39
3.3.6 Screen Saver Mode....39
3.3.7 The Child Lock Function....40
3.3.8 No Light mode 40
3.3.9 Mute Mode....40
3.4 Temperature Settings ....40
3.4.1 Freezer Temperature Settings....40
3.4.2 Cooler Temperature Settings....41
3.4.3 Door Open Alarm Function....41
3.5 Temperature Settings Warnings 41
3.6 Accessories 42
3.6.1 Ice Tray (In some models) 42
3.6.2 The Freezer Box....42

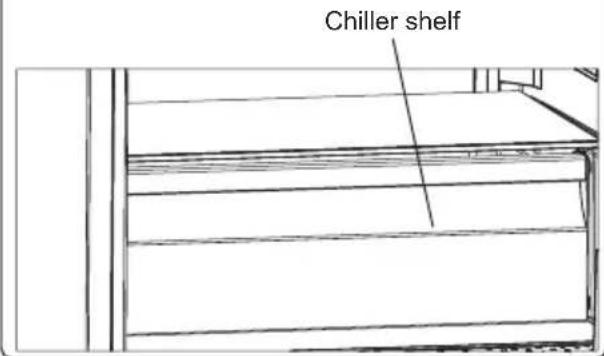

3.6.3 The Chiller Shelf (In some models) 43

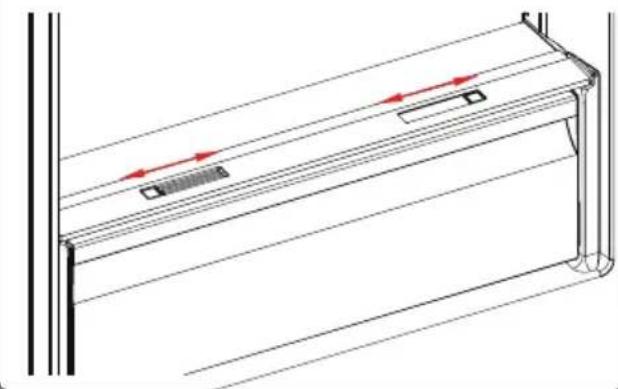

3.6.4 The Fresh Dial (In some models) 43

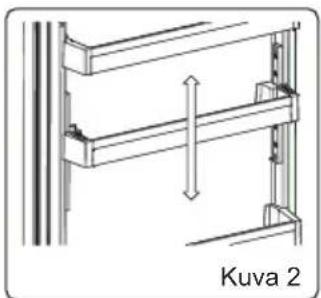

3.6.5 Adjustable Door Shelf (In some models) 44

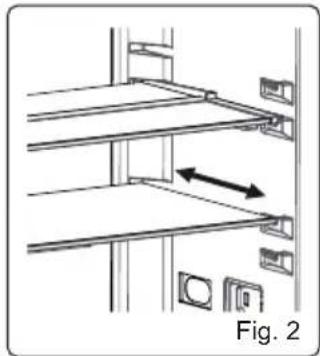

3.6.6 Adjustable Glass Shelf (In some models)....44
3.6.7 Natural Ion Tech (In some models)....44

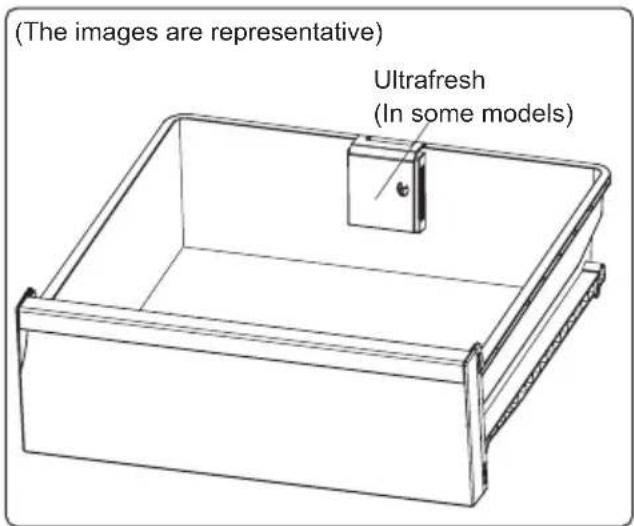

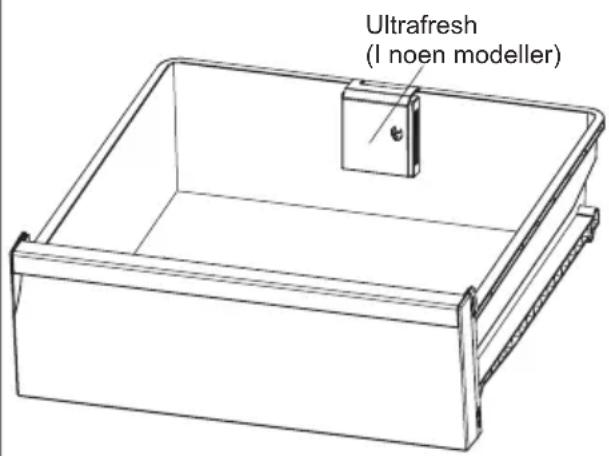

3.6.8 Ultrafresh (If available) 44

4 FOOD STORAGE 45

4.1 Refrigerator Compartment....45
4.2 Freezer Compartment ....46

5 CLEANING AND MAINTENANCE....48

5.1 Defrosting 49

6 SHIPMENT AND REPOSITIONING....49

6.1 Transportation and Changing Positioning ....49

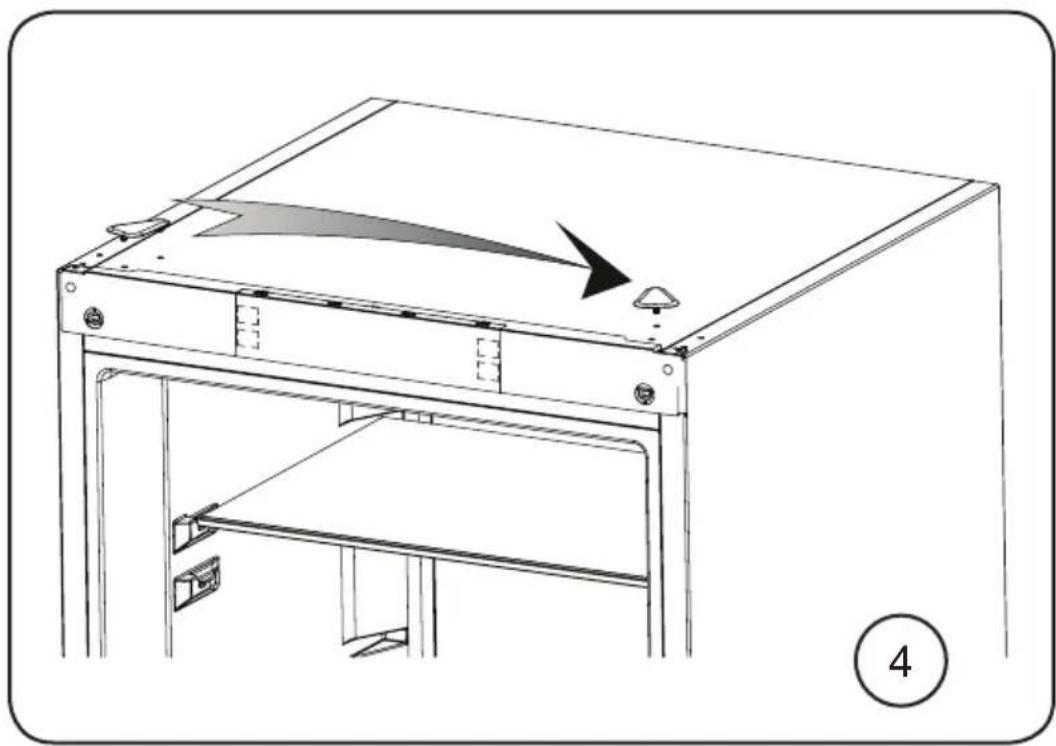

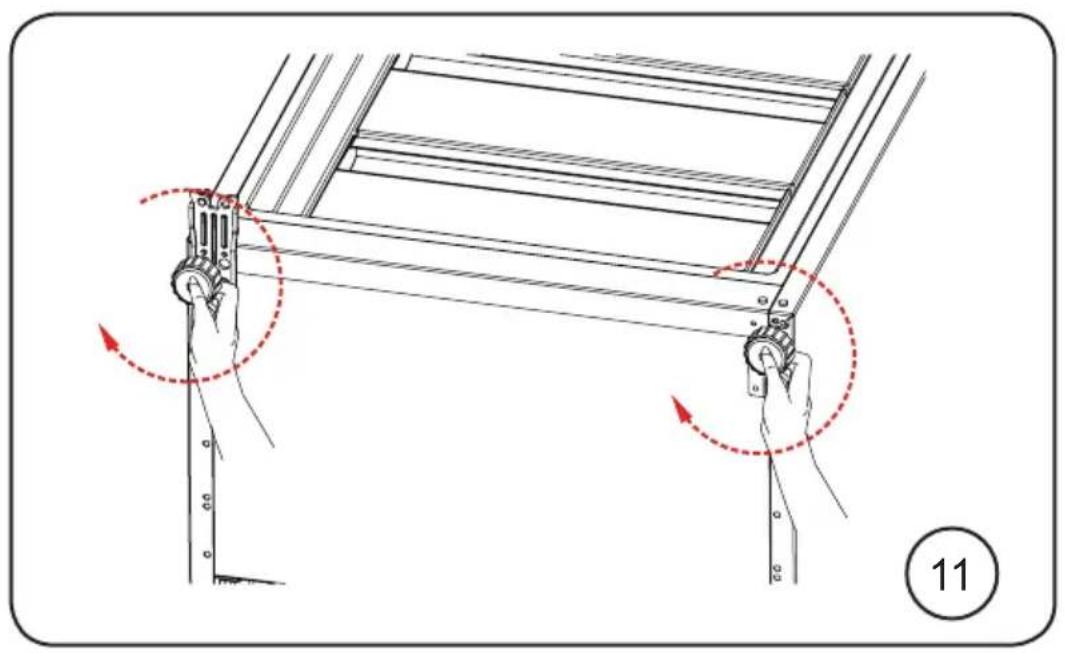

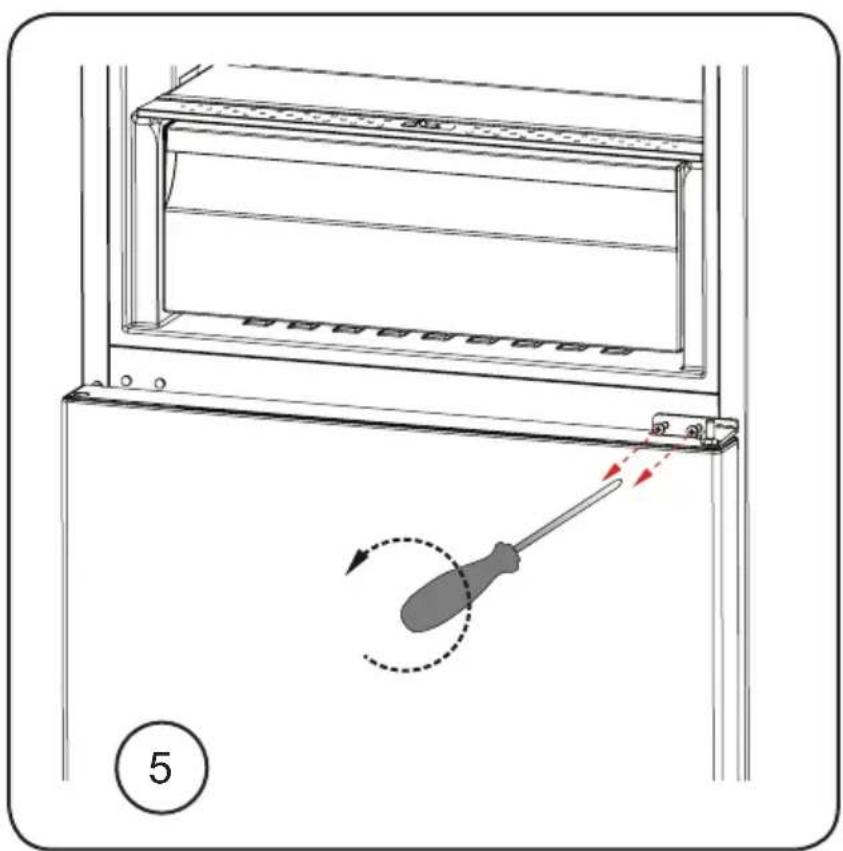

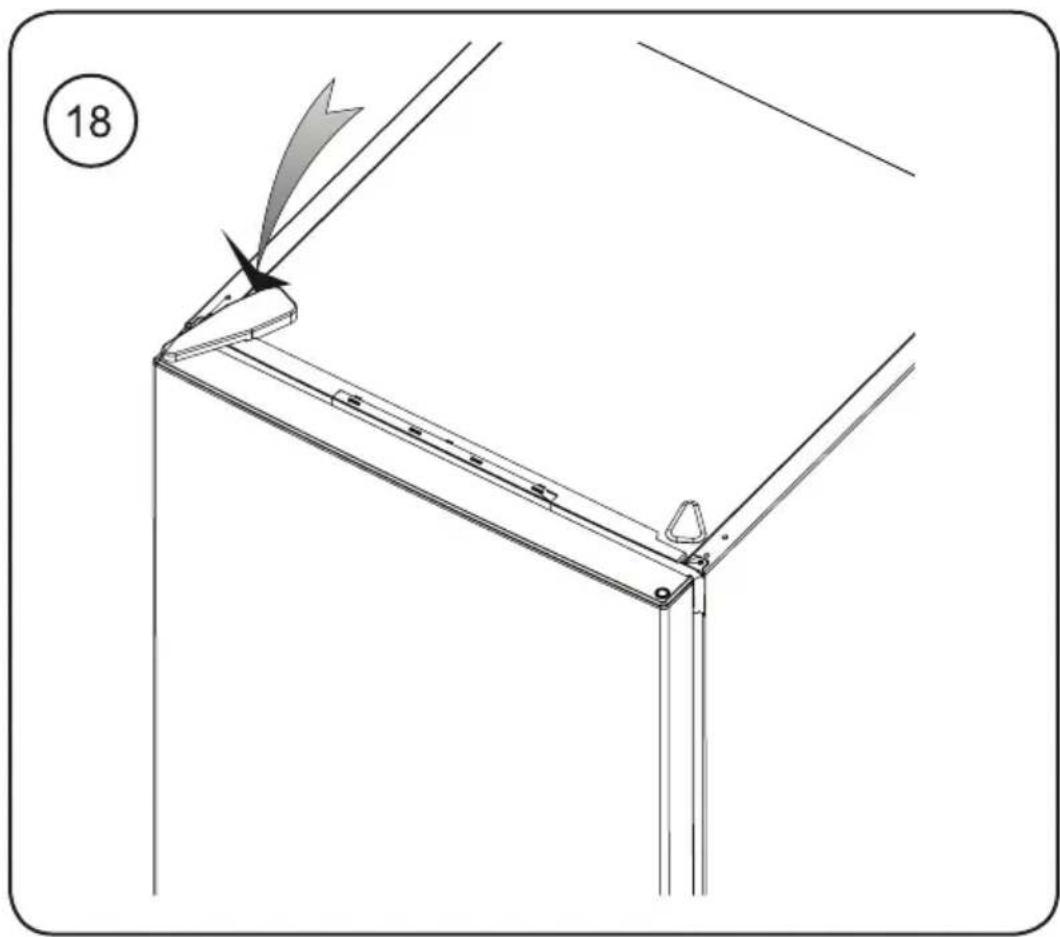

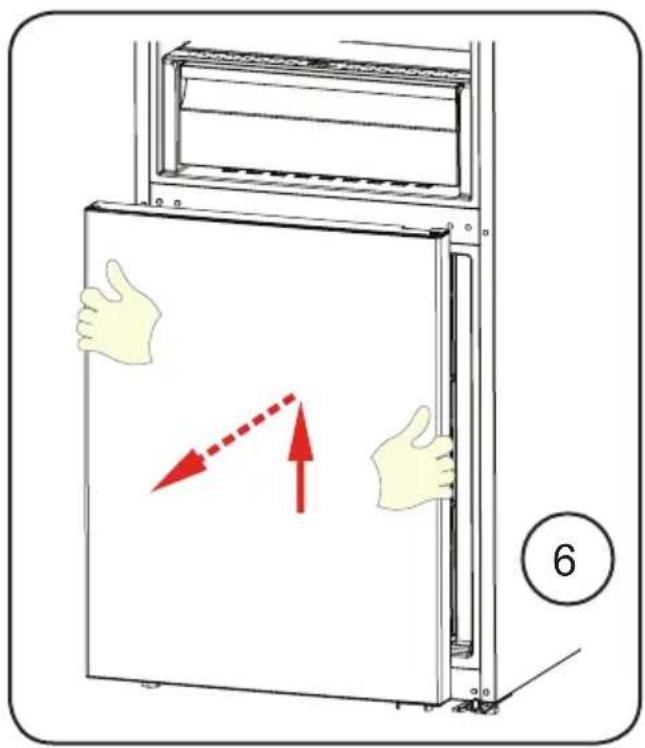

6.2 Repositioning the Door....49

7 BEFORE CALLING AFTER-SALES SERVICE....50
8 TIPS FOR SAVING ENERGY....51
9 TECHNICAL DATA....52
10 INFORMATION FOR TEST INSTITUTES 52
11 CUSTOMER CARE AND SERVICE....52

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your fridge freezer for the first time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• At first installation if the product has been transported in horizontal position or after reversing the door hanging, wait at least 4 hours before connecting the appliance to the power supply.
• Your fridge freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a

deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.
• Clearance of at least 50 mm is required at the top of your appliance. Do not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
  • Install the plastic distance guide(s) on the
  condenser (black vanes at the rear of the appliance) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.
• The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 During Usage

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling

of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation.

The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

2 DESCRIPTION OF THE APPLIANCE

This appliance is not intended to be used as a built-in appliance.

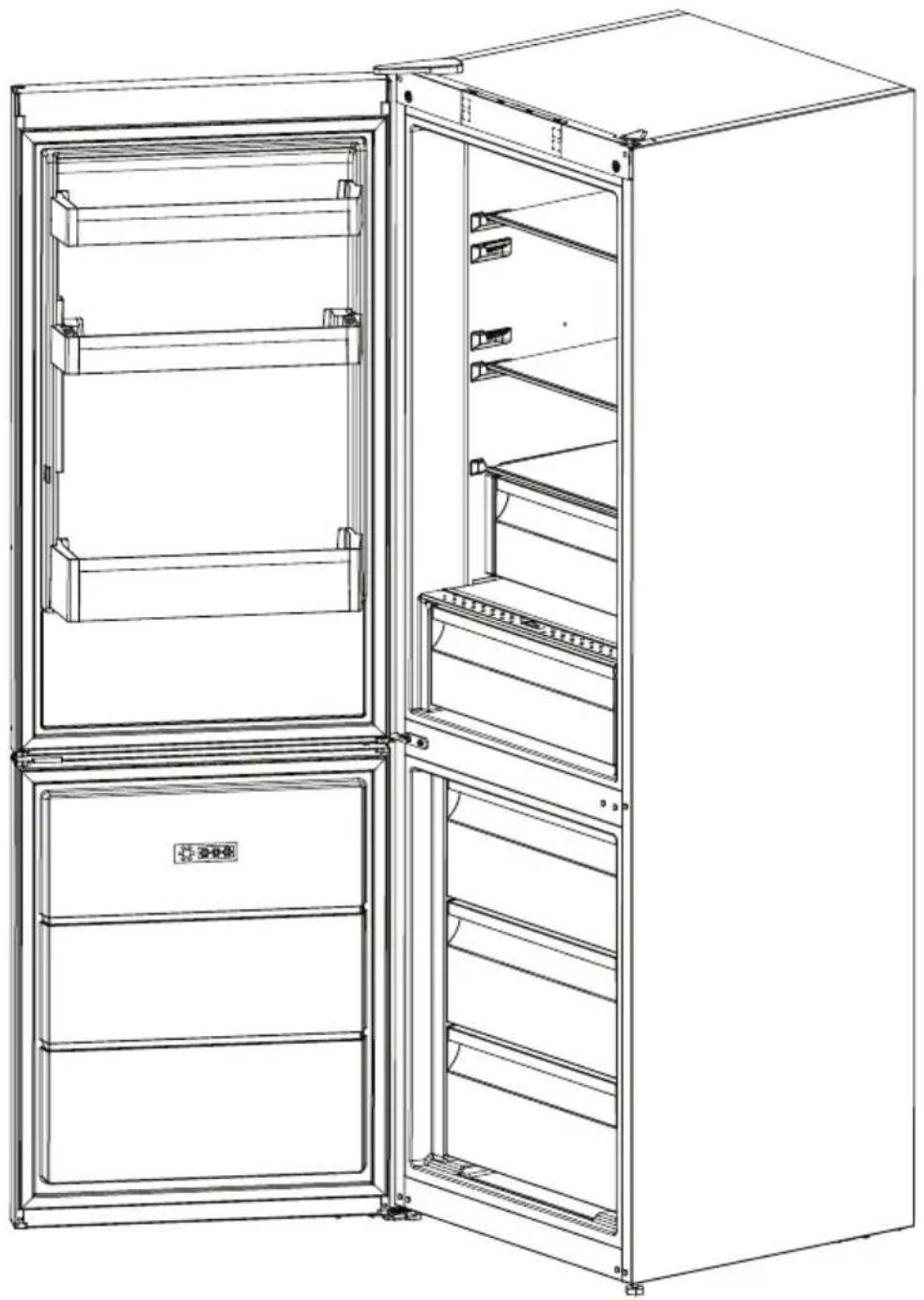

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

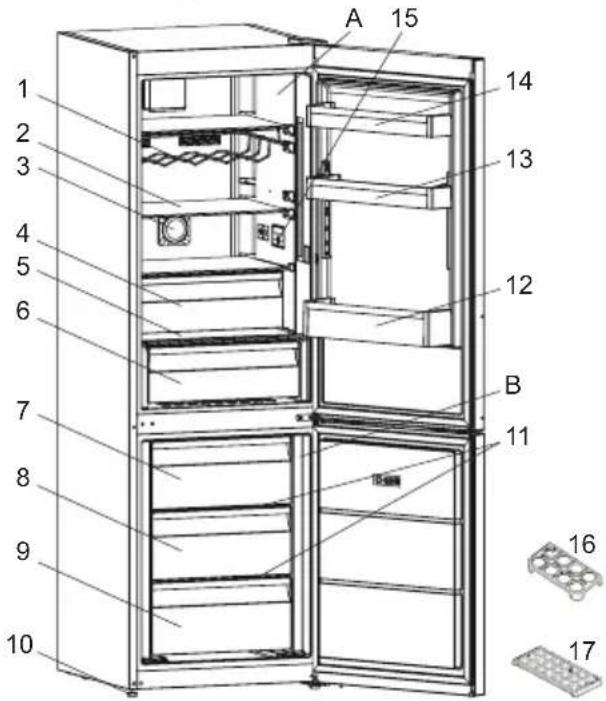

A) Refrigerator compartment
B) Freezer compartment

1) Wine rack *
2) Refrigerator shelves

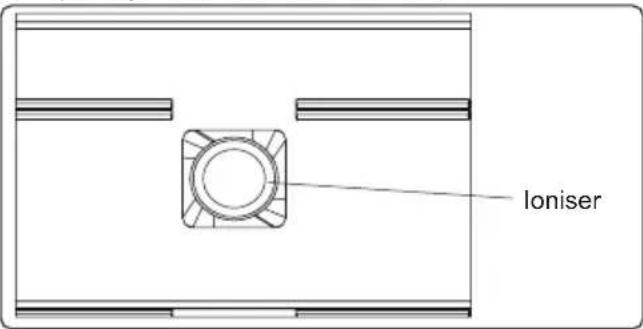

3) Ioniser *
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer upper basket
8) Freezer middle basket
9) Freezer bottom basket

10) Levelling feet

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

3 USING THE APPLIANCE

3.1 Information about New Generation Cooling Technology

Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such fridges, regular defrosting is required; the fridge must be switched off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridges with new-generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer

compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up.

In the refrigerator compartment, air blown by the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the refrigerator compartment.

There is no air passage between the freezer and refrigerator compartments, therefore preventing the mixing of odours.

As a result, your fridge, with new-generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance.

3.2 Display and Control Panel

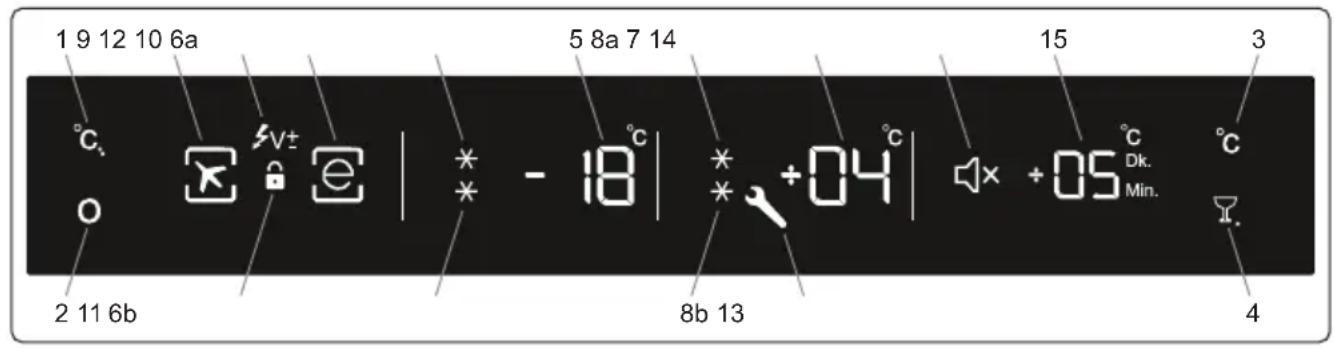

Using the Control Panel

1. Freezer Set Button
2. Mode Button
3. Refrigerator Button
4. D.cool & Mute Button
5. Freezer Set Value Screen
   6a/6b. Super Freeze Symbol
6. Cooler Set Value Screen
   8a/8b. Super Cool Symbol
7. Holiday Mode Symbol
8. Economy Mode Symbol
9. Child Lock Symbol
10. Low Voltage Symbol
11. Alarm (SR) Symbol
12. Sound Off Symbol
13. Drink Cool Value Screen (Active

Symbol May Change According to Language(Min-Dk.))

3.3 Operating your Fridge Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.3.1 Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
  • To freeze food more quickly.
  • To store fresh food and vegetables.

How to Use?

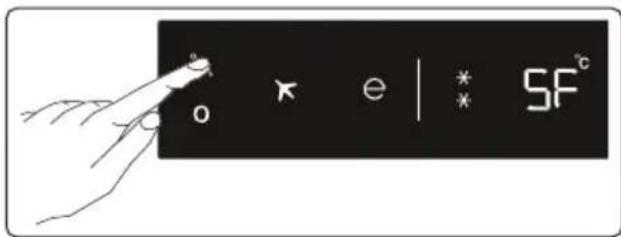

• Press freezer set button until SF letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.
• Freezer temperature segment will show "SF".

During This Mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
• Economy and holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.

Notes:

• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.
- For optimal appliance performance in maximum freezer capacity, set the appliance to active super freeze mode 24 hours before you put the fresh food into the freezer.
- Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.

3.3.2 Super Cool Mode

Purpose

• To cool prepared food.
• To cool and store a large quantity of food in the refrigerator compartment.
• To cool drinks more quickly.

How to Use?

- Press cooler set button until SC letters

will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

- Cooler temperature segment will show "SC".

During This Mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
  • Economy and holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.

3.3.3 Economy Mode

Purpose

If you want to use set temperature values, defined by the control circuit. Both compartments will work in the normal manner with the set values.

How to Use?

• Push MODE button till a circle appears around economy symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Circle of economy symbol and "e" will light till mode finishes.

During This Mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
  • Holiday mode can be selected after

cancelling the economy mode. Then the selected mode is activated.

To cancel, you will just need to press on mode button.

3.3.4 Holiday Mode

Purpose

If you are planning to leave the appliance for a long period of time, you can activate this function. Only the freezer compartment will remain active.

How to Use?

• Push MODE button till a circle appears around plane symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer temperature segment will show "H".
• Circle of plane symbol and H will light till mode finishes.

During This Mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

3.3.5 Drink Cool Mode

Purpose

This mode is used to cool drinks within an adjustable time.

How to Use?

Drink cool button should be pressed to activate beverage cooling mode. Each press will increment the time for 5 minutes up to 30 minutes, and then it returns to zero. You can view the time zone you want to set on “Drink cool alarm counter” section. Drink cool mode only lets the refrigerator release an audible alert after a specific period.

Important: It should not be confused with cooling.

You must adjust the time according to the temperature of the bottles before put them in.

For example, you can set the time as “5 minutes” in the beginning. After this time, if the cooling is insufficient, you might set another 5 or 10 minutes.

While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance.

In the event that you leave the bottles in when the drink cool mode is on, they might explode.

3.3.6 Screen Saver Mode

Purpose

This mode saves energy by switching all control panel lights off for as long as the control panel remains inactive.

How to Use?

• This mode will be activated when you press on mode button for 5 seconds.
• If pressed on no button in 5 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can make the adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.

Notes:

• When screen saver mode is active you can also activate child lock.
• If you do not press any button for 5 seconds after activating child lock, the lights of the control panel will go off. Then, you can view the previous settings and that child lock symbol is active when you pres any button, and you can cancel child lock as is described in the instruction of that mode.

3.3.7 The Child Lock Function

Purpose

Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings.

Activating Child Lock

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Cancelling Child Lock

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Child lock will automatically cancel if a power failure occurs.

3.3.8 No Light mode

How to Use?

• If you want to cancel lights of cooler, you can select this mode.
• While pushing on Freezer, Cooler, Mode and D.Cool/Mute Button together for 3 seconds. The mode will be selected in this way. From now on, the lights will not come on when the function is not cancelled by the same way.
• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.

3.3.9 Mute Mode

This mode can be activated when you press and hold mute bottom for 3 seconds. When this mode is activated all button sounds and sound alarms will be off. This mode can be cancelled when you press and hold mute button for 3 seconds.

3.4 Temperature Settings

3.4.1 Freezer Temperature Settings

- The temperature for the freezer will initially display -18 °C.

• Press the freezer SET button.
• When you first push this button, the last set value will blink on screen.
  • Each time the button is pressed, the temperature will decrease by 2 degrees (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, SF).
• When you press the freezer set button until superfreeze symbol appears on the freezer setting indicator, and if you do not press any button in 1 seconds super

freeze will flash.

• If you continue to press, it will restart from -16 °C.
• The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

3.4.2 Cooler Temperature Settings

- The temperature for the refrigerator will initially display +4 °C.

• Press cooler button once.
• When you first push this button, the last value appears on the setting indicator of the cooler.
• Whenever you press on this button, lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, SC)
• When you press the cooler set button until supercool symbol appears on the cooler setting indicator, and if you do not press any button in 1 seconds super cool will flash.
• If you continue to press, it will restart from +8 °C.
• The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Recommended Settings for the Freezer and Cooler Compartment Temperature

Freezer Compartment	Cooler Compartment	Remarks
-18 °C 4	°C	For regular use and best performance.

Freezer Compartment	Cooler Compartment	Remarks
-20°C, -22 °C or -24 °C	4°C	Recommended when environmental temperature exceeds 30 °C.
SF 4	°C	Must be used when you wish to freeze food in a short period of time.
-18°C, -20 °C, -22°C or -24°C	2°C	These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently.
-18°C, -20 °C, -22°C or -24°C	SC	Must be used when the refrigerator compartment is overloaded with food or when food needs to be cooled quickly.

3.4.3 Door Open Alarm Function

If fridge door is opened more than 2 minutes, appliance sounds ‘beep beep’.

3.5 Temperature Settings Warnings

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the appliance and the ambient temperature in the location of your appliance.

• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.

• A 5 minute delay function is applied to prevent damage to the compressor of your appliance when connecting or disconnecting to mains, or when an energy breakdown occurs. Your appliance will begin to operate normally after 5 minutes.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

3.6 Accessories

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.6.1 Ice Tray (In some models)

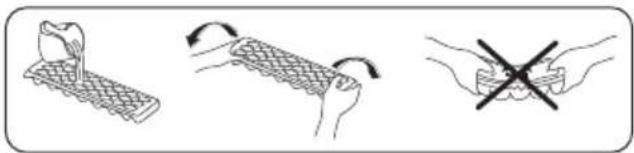

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three different hand positions: a keyboard, a keyboard with rotation arrows, and a hand holding a pen (no text or symbols)

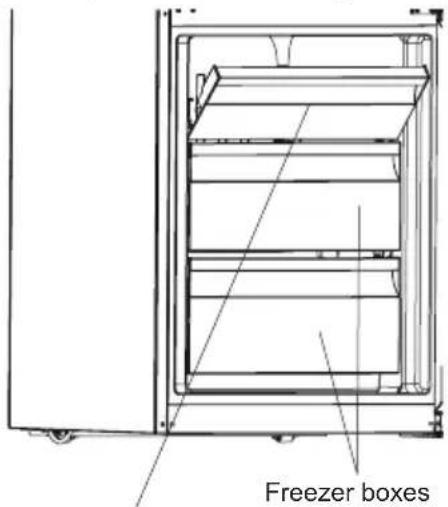

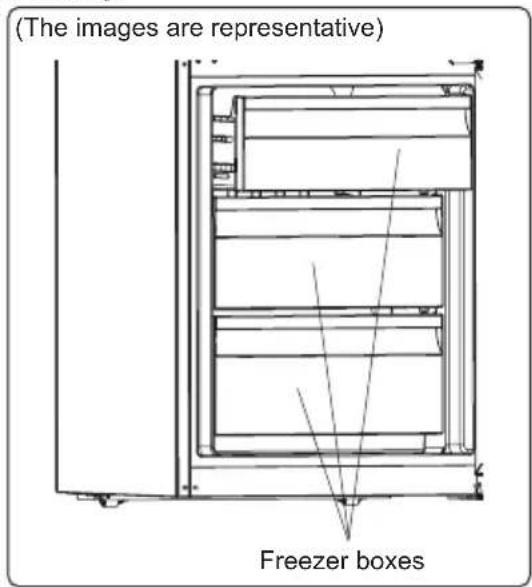

3.6.2 The Freezer Box

The freezer box allows food to be accessed more easily.

or

(The images are representative)

Freezer upper cover

Removing the freezer box:

• Pull the box out as far as possible
  • Pull the front of the box up and out

Carry out the opposite of this operation when refitting the sliding compartment.

Always keep hold of the handle of the box while removing it.

3.6.3 The Chiller Shelf (In some models)

(The images are representative)

Keeping food in the Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water.

(Water freezes at 0^ C, but food containing salt or sugar freezes at temperatures lower than this).

The Chiller compartment is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Do not put food you want to freeze

or ice trays (to make ice) in the Chiller compartment.

3.6.4 The Fresh Dial (In some models)

(The images are representative)

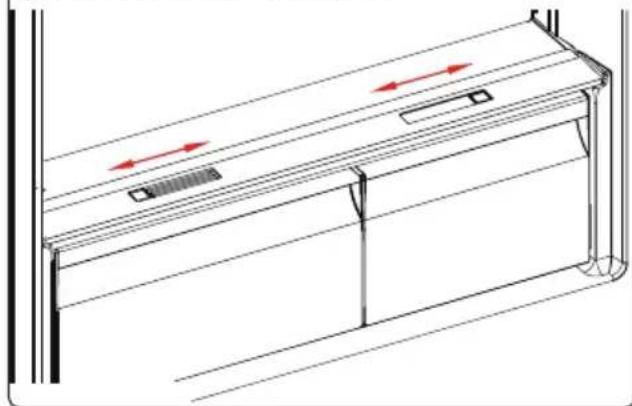

Technical line drawing of a mechanical component with red directional arrows indicating motion or force (no text or symbols)

or

(The images are representative)

Line drawing of a cabinet or rack with directional arrows indicating movement, no text or symbols present

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

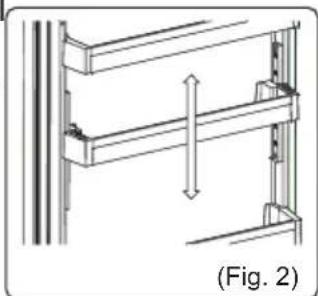

3.6.5 Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

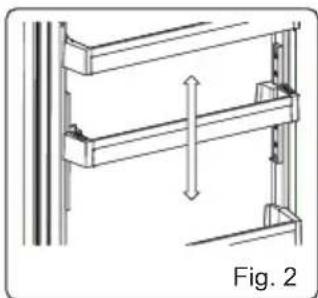

To change the position of adjustable door shelf ;

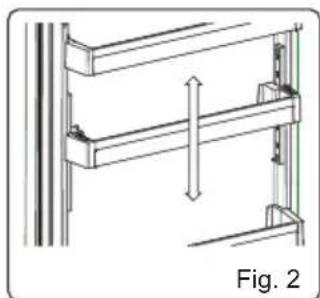

Hold the bottom of the shelf and pull the

buttons on the side of the door shelf direction of arrow. (Fig.1)

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

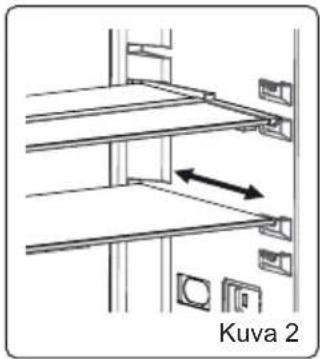

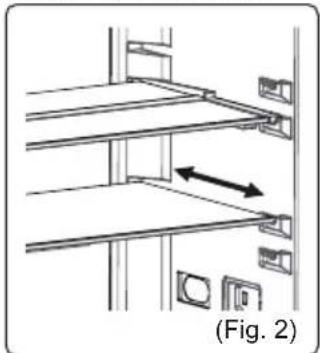

3.6.6 Adjustable Glass Shelf (In some models)

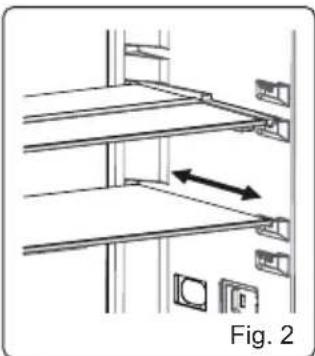

Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

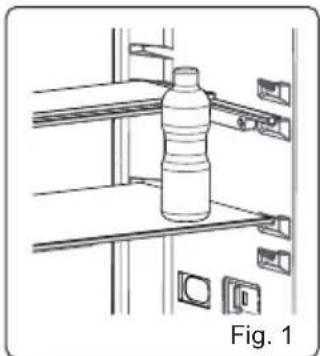

Line drawing of a bottled water bottle mounted on a shelf with attached compartments (no text or symbols)

Diagram of a shelving unit with shelves and doors, showing an arrow indicating direction (no text or symbols)

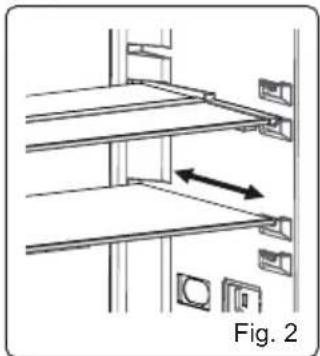

You can load your food as you want in the resulting extra space. To bring the shelf in

its original position, pull it toward you.

3.6.7 Natural Ion Tech (In some models)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

- This feature is optional. It may not exist on your product.

- The location of your ioniser device may vary from product to product.

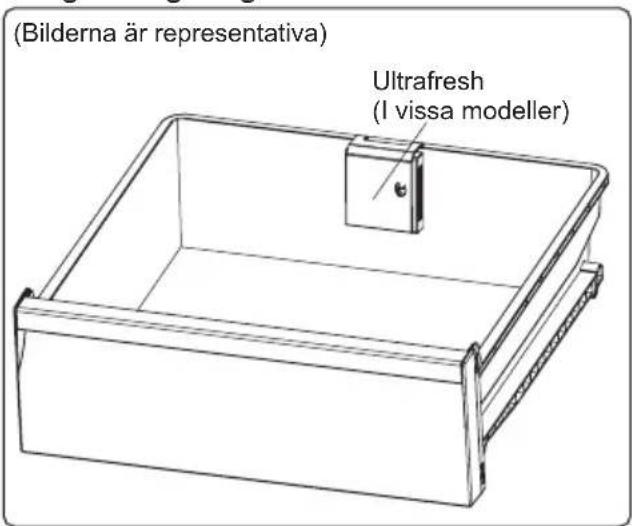

3.6.8 Ultrafresh (If available)

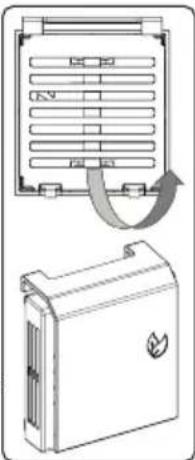

Ultrafresh technology helps to remove

ethylene gas (a volatile organic compound released naturally from fresh foods) and unpleasant odors from the crisper.

In this way, food stays fresh for a longer time.

- Ultrafresh must be cleaned once in a year. The filter should be waited for 2 hours at 65^ C in a oven.

- To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.

- The filter should not be washed with water or any detergent.

4 FOOD STORAGE

4.1 Refrigerator Compartment

For normal operating conditions, set the temperature of the cooler compartment to +4 or +6 °C.

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Cooked dishes must remain covered when they are kept in the fridge. Do not place warm foods in fridge. Place them when they are cool, otherwise the temperature/humidity inside the fridge will increase, reducing the fridge's efficiency.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
  • Storing fruit and vegetables separately

helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).

• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
  • Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to

prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 days	Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese	3 - 4 days	On the designated door shelf
Butter and margarine	1 week	On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month		On the designated egg shelf
Cooked food	2 days All shelves

NOTE:

Potatoes, onions and garlic should not be stored in the refrigerator.

4.2 Freezer Compartment

For normal operating conditions, set the temperature of the freezer compartment to -18 or -20 °C.

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags. For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen

food as it can thaw the frozen food.

- Before freezing fresh food, divide it into portions that can be consumed in one sitting.

- Consume thawed frozen food within a short period of time after defrosting

- Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.

- When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

- Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

- Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

- If the freezer door has been left open for a long time or not closed properly, frost will form and can prevent efficient air circulation. To resolve this, unplug the freezer and wait for it to defrost. Clean the freezer once it has fully defrosted.

- The freezer volume stated on the label is the volume without baskets, covers, and so on.

- Do not refreeze thawed food. It may pose a danger to your health and cause problems such as food poisoning.

NOTE: If you attempt to open the freezer door immediately after closing it, you will

find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane 1 - 3
Chicken and turkey	Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach	Wash and boil in water	6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant	Cut into pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn	12

Vegetables and Fruits Preparation	Maximum storage time (months)
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, sourberry Wash and hull the stems 8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie	1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough	2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza	2 - 3 2 - 4 15-20 (200 °C)

Dairy products	Preparation	Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk – in its own	packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

• Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the water tray behind your appliance and evaporates there.
  • Make sure you have disconnected the plug of your appliance before cleaning the water tray.

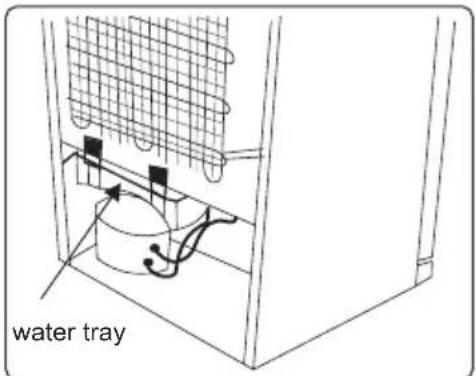

• Remove the water tray from its position by removing the screws (if it has screws). Clean it with soapy water at specific time intervals. This will prevent odours from forming.

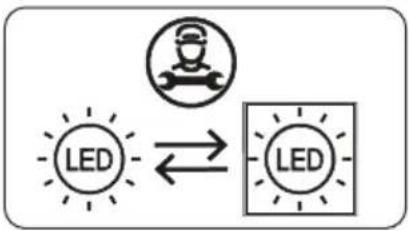

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to model.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

6 SHIPMENTAND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

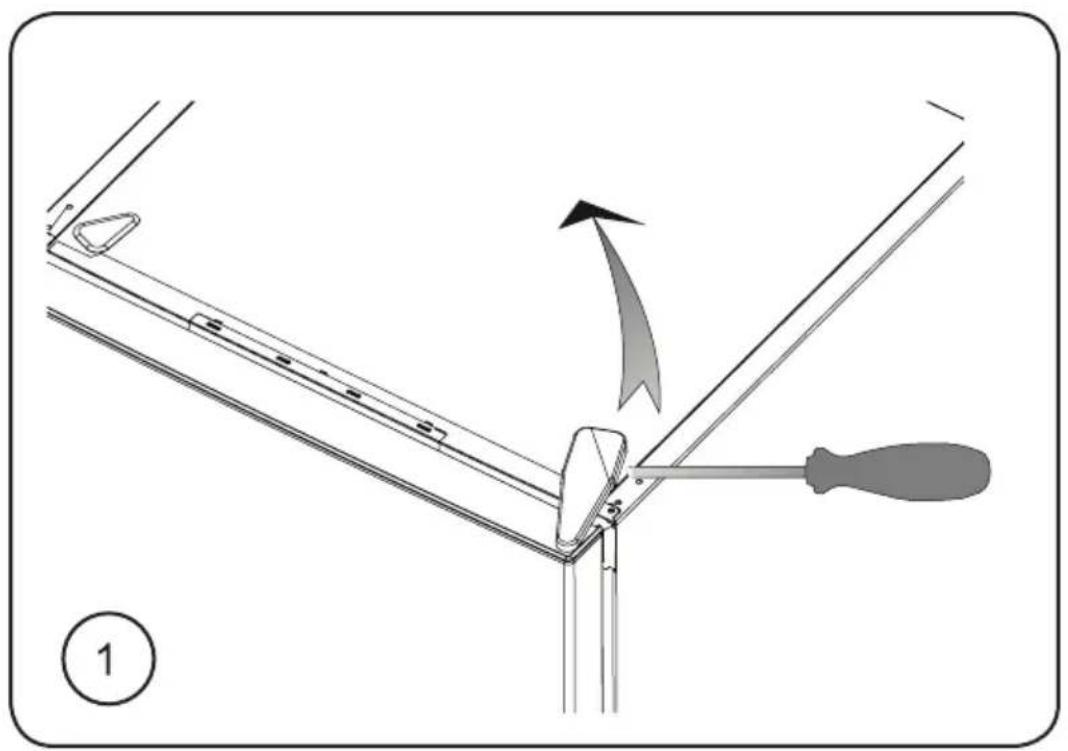

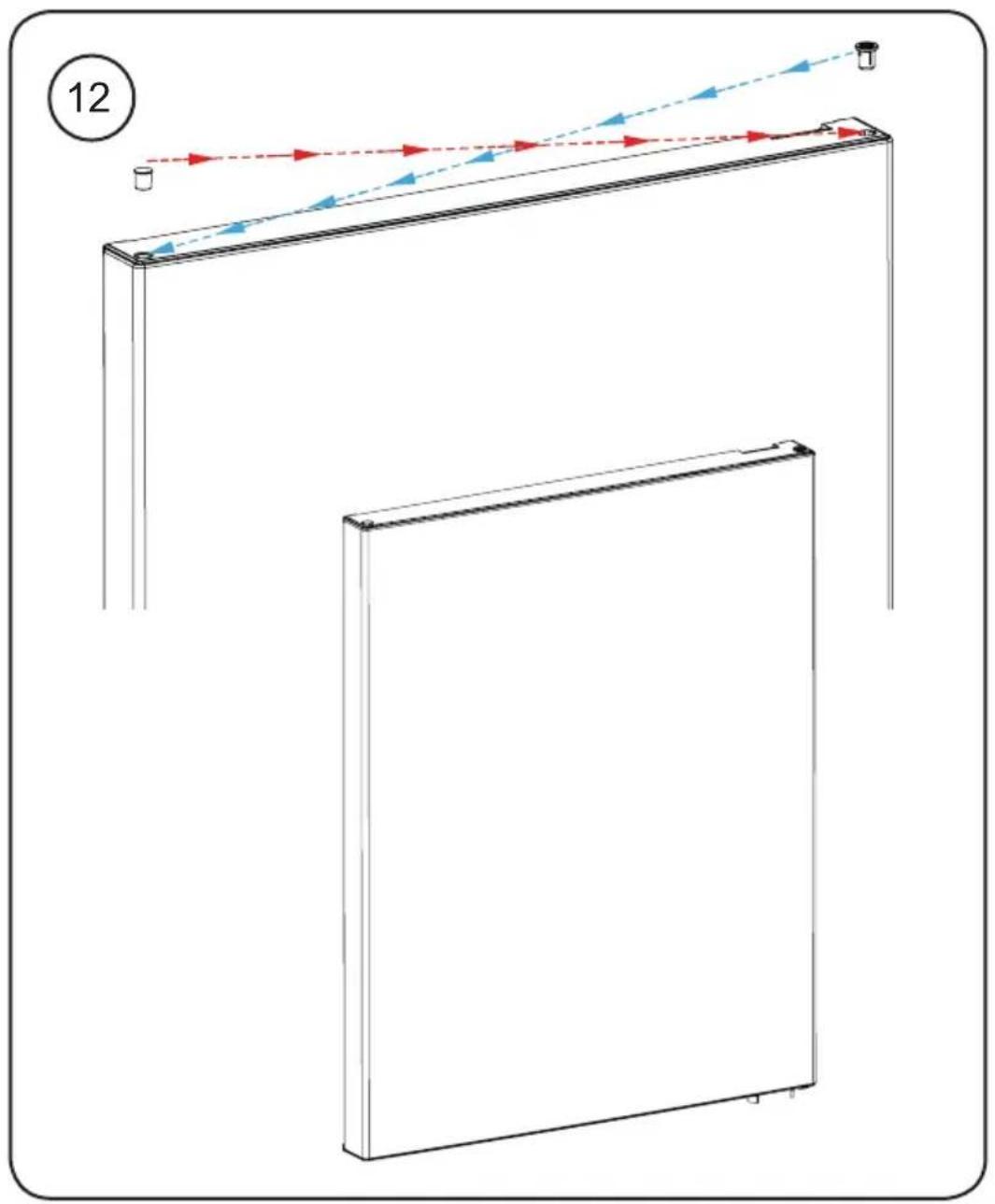

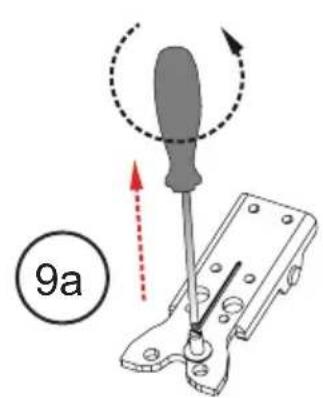

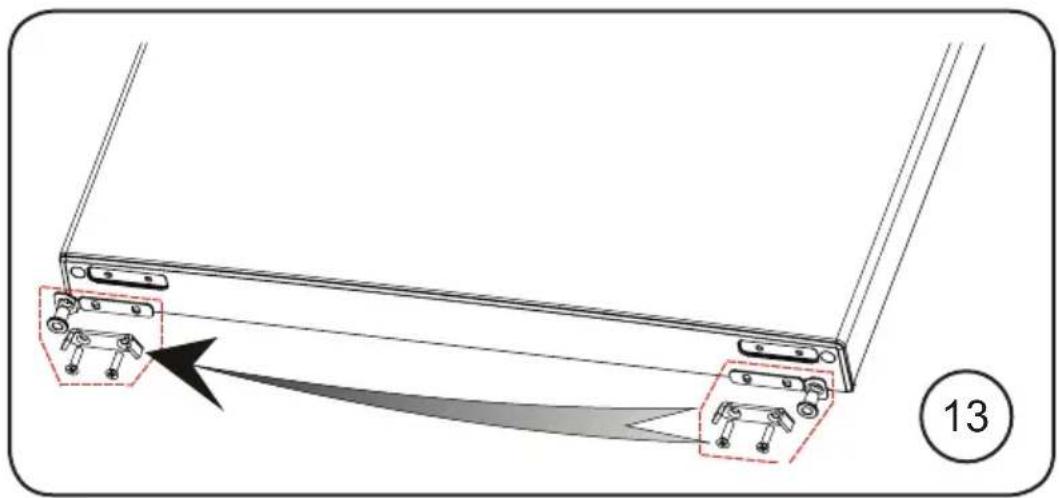

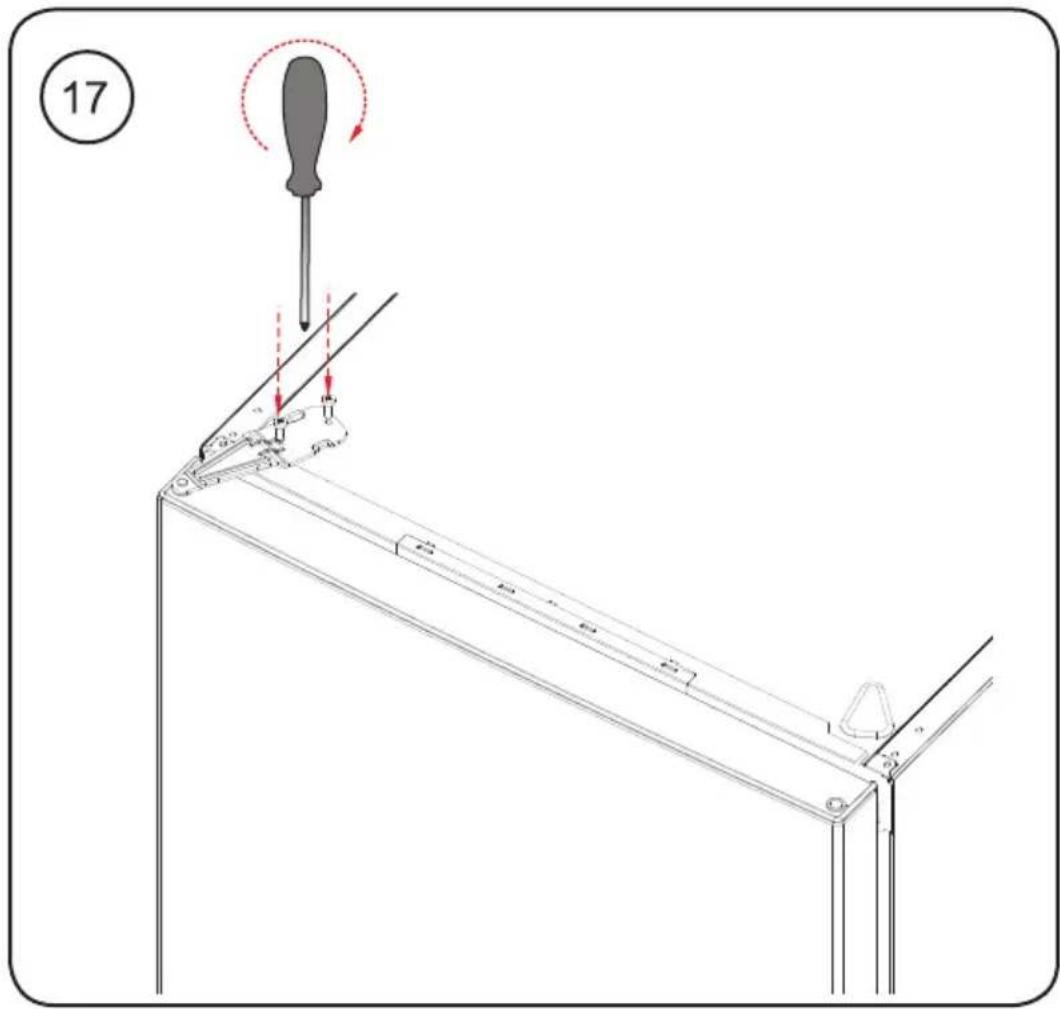

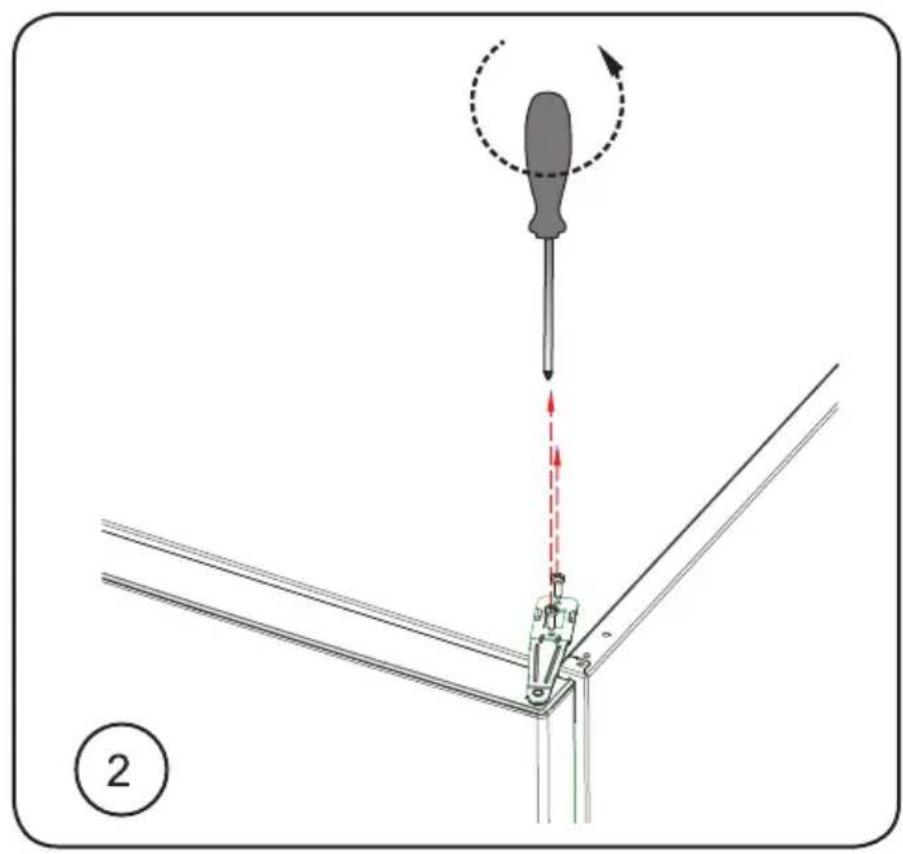

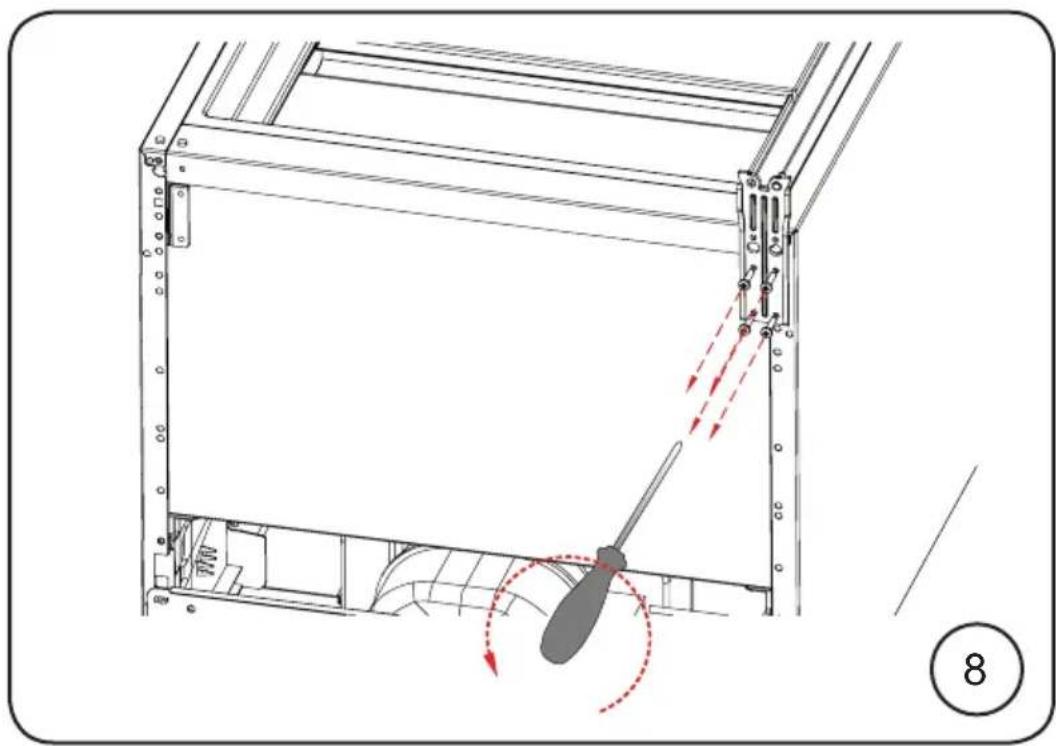

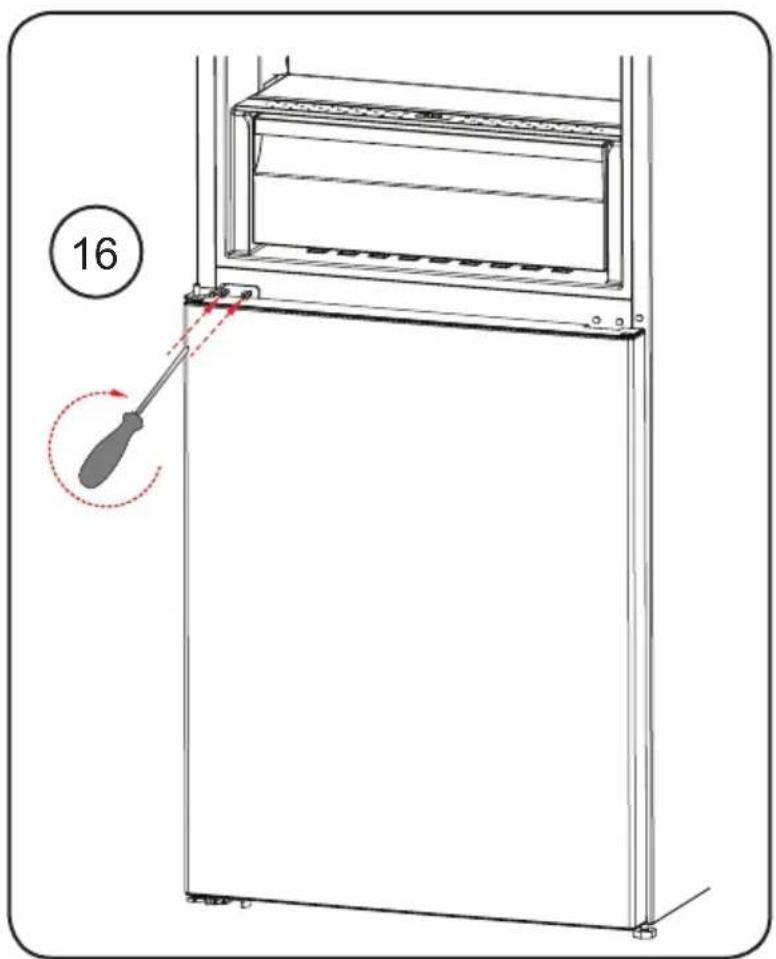

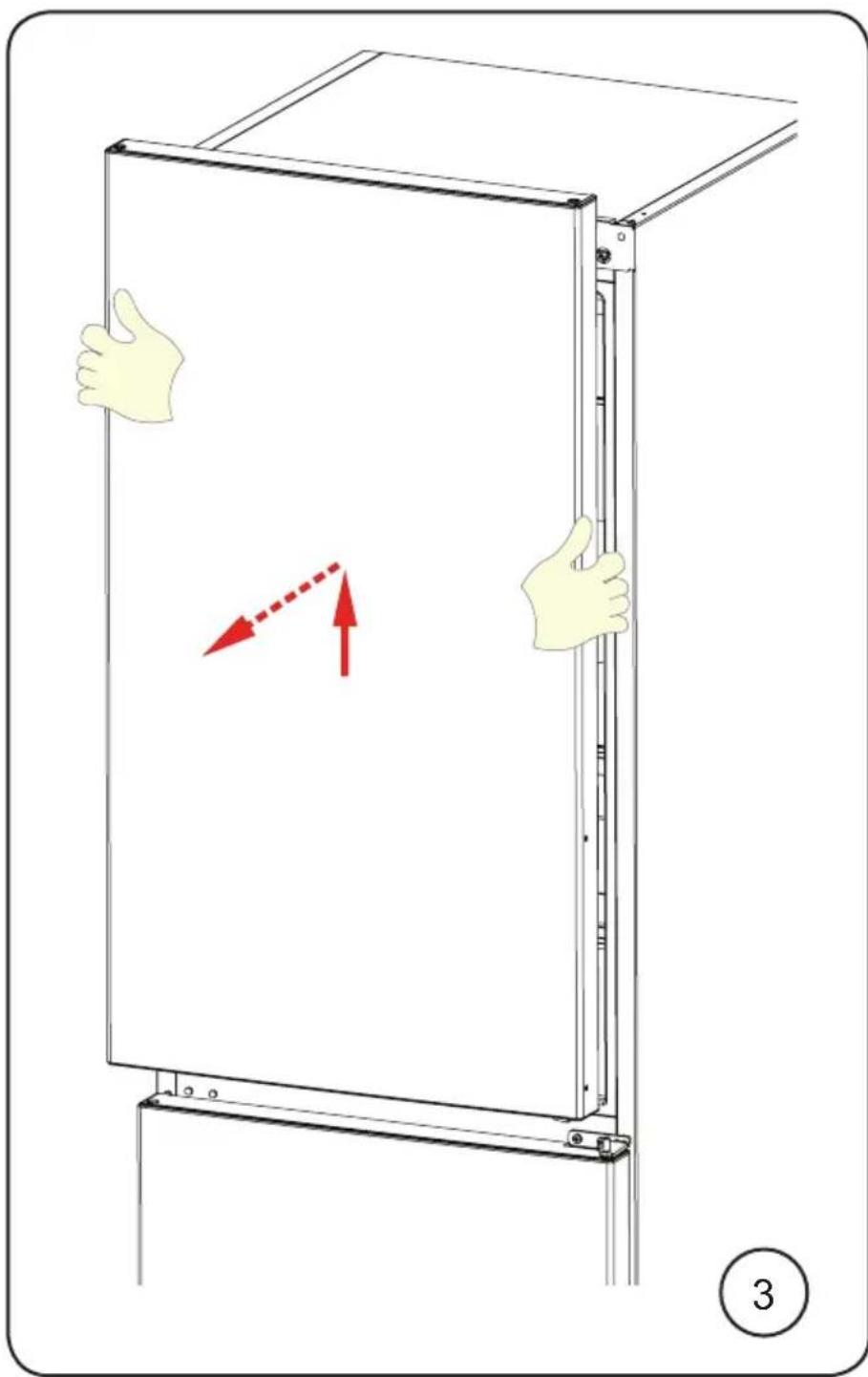

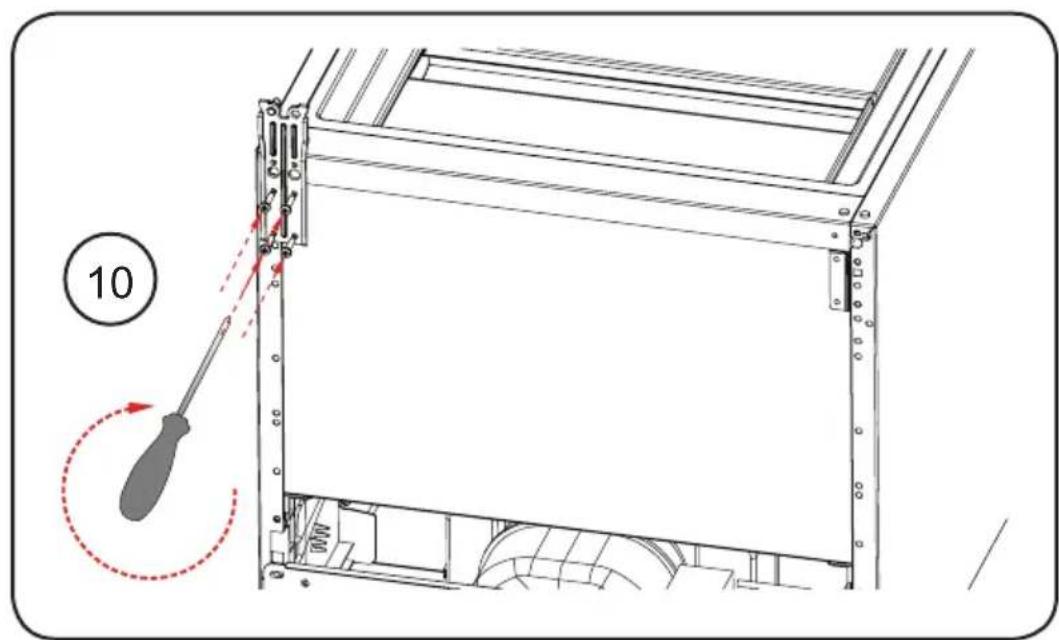

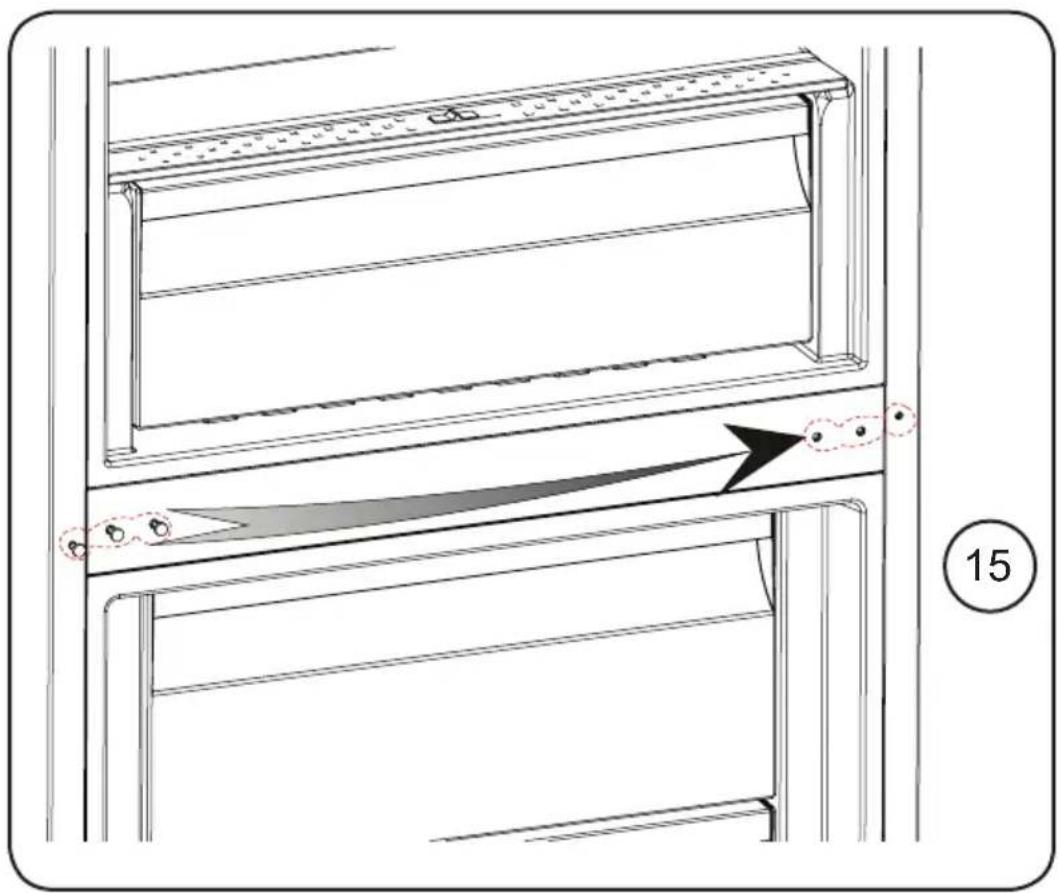

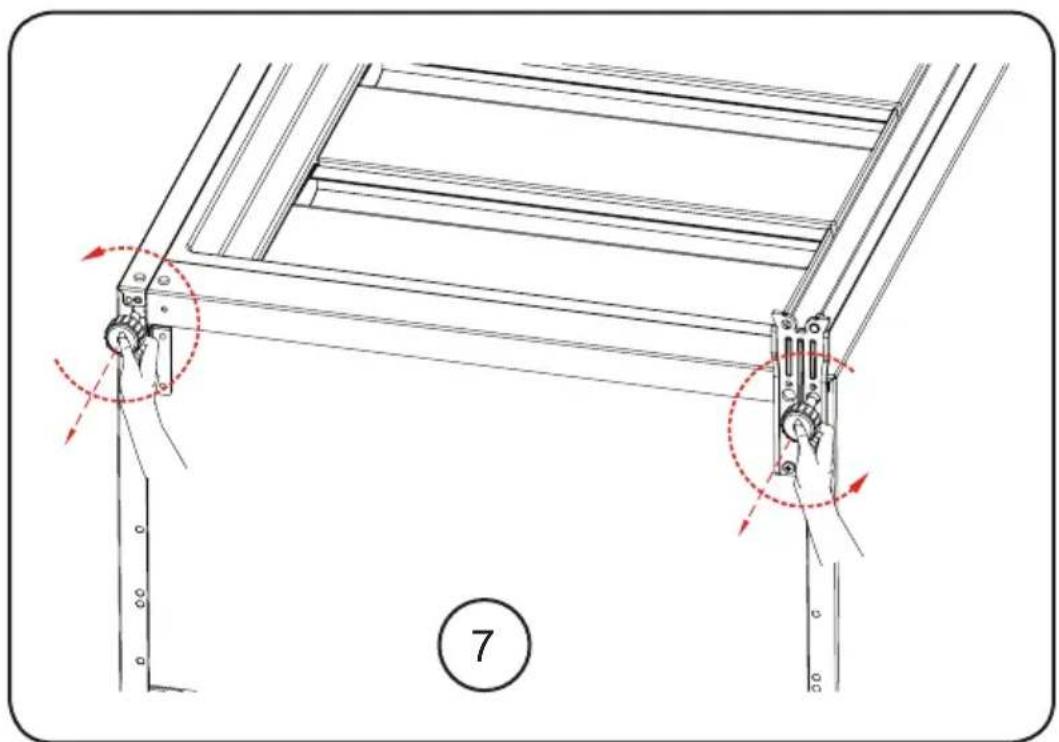

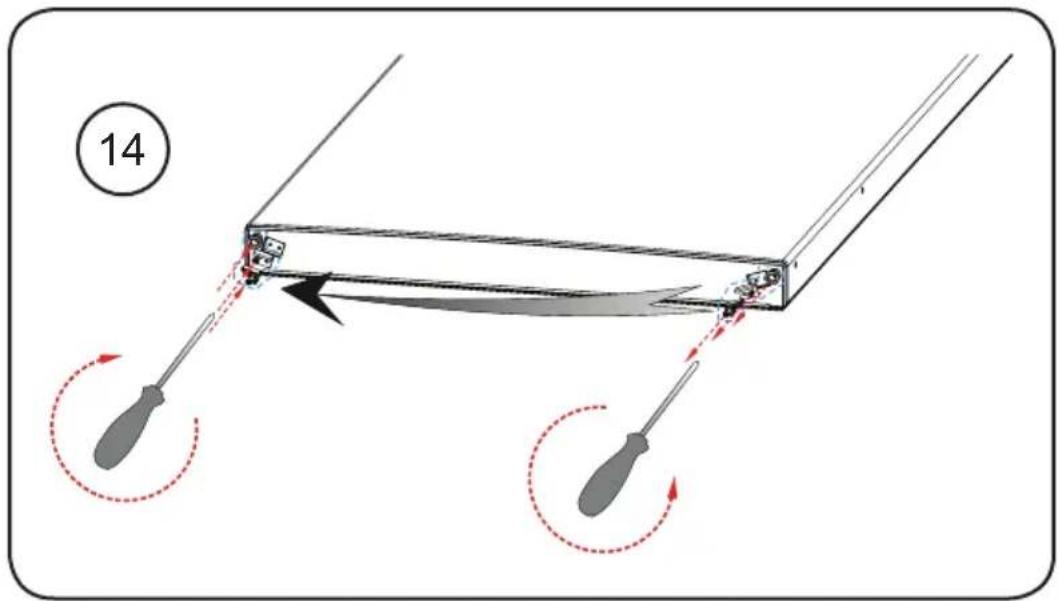

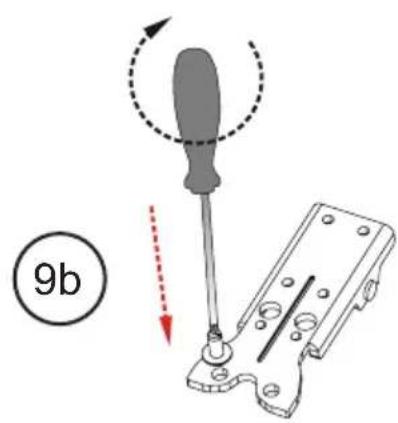

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models with handle on the side of the door or without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORE CALLING AFTER-SALES SERVICE

Errors

Your appliance will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.

ERROR TYPE MEANING WHY WHAT TO DO
SR "Failure" Warning	Warning	There is/are some part(s) out of order or there is a failure in the cooling process.	Call a service agent for assistance as soon as possible.
LF	Freezer compartment is not cold enough	This warning especially appears if there has been a power failure for a long period or when the refrigerator is operated for the first time.	1. Use food within a short time period.Do not freeze foods that has thawed.2. Set the freezer temperature to colder values or set the Super Freeze until the compartment gets to normal temperature.3. Do not put fresh food in the appliance until the fault has cleared.
LC	Refrigerator compartment is not cold enough	This warning especially appears if there has been a power failure for a long period or when the refrigerator is operated for the first time. Ideal temperature for the refrigerator compartment is +4°C. If you see this warning, your foods are at risk of spoiling.	1. Set the refrigerator temperature to colder values or set the Super Cooling mode until the compartment reaches normal temperature.2. Open the door as little as possible until the fault clears.
LF and LC	"Not cold enough" Warning	This is a combination of the LF and LC error types.	You will see this failure when first starting the appliance. It will clear after the compartments reach normal temperature.
HC	Refrigerator compartment too cold	The food will start to freeze because the temperature is too cold.	1. Check if the Super Cooling mode is switched on.2. Decrease the refrigerator temperature values.
LOPO "Low voltage" Warning		This is seen when the power supply becomes lower than 170 V.	This not a failure. This prevents any damage to the compressor. This warning will clear after the voltage reaches the required level.

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

Your appliance is not operating

Check if:

• There is power
• The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown
• The socket is defective. To check this, plug another working appliance into the

same socket.

The appliance performs poorly

Check if:

• The appliance is overloaded
- The appliance door is closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

Your appliance is operating noisily Normal noises

Cracking noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In some models during normal operation of the system due to the circulation of air.

The edges of the appliance in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

There is a build-up of humidity inside the appliance

Check if:

• All food is packed properly. Containers must be dry before being placed in the appliance.
• The appliance door is opened frequently. Humidity of the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
  • The door joints are broken or torn
• Your appliance is on a level surface.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean your appliance according to chapter cleaning and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment if available. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.

4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the different temperature compartments (such as the crisper and chiller if available) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICALDATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate, the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMERCAREAND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to: www.cylinda.se

-bed & breakfast-lignende miljøer;

-catering og lignende anvendelsesområder uden for detailhandlen.

1.2 Installationsadvarsler

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Illustration showing three different hand positions: a keyboard, a keyboard with curved arrows indicating rotation, and hands holding a pencil with a crossed-out black symbol (no text or labels)

3.6.2 Fryseboksen

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a structural frame with vertical and horizontal beams, labeled (Fig. 2) (no text or symbols on the diagram itself)

Line drawing of a bottled water bottle mounted on a shelf, labeled (Fig. 1) at bottom (no text or symbols on the diagram itself)

Diagram of a shelving unit with shelves and fixtures, showing an upward arrow indicating motion (no text or symbols present)

Diagram of two coiled heat exchangers with heating elements (no text or labels)

Illustration showing three different hand positions: a keyboard, a grid with curved arrows indicating rotation, and a hand holding a cross (no text or symbols)

3.6.2 Pakastelokero

Technical line drawing of a structural bracket with labeled component 'Kuva 1' (no other text or symbols)

Technical diagram of a structural frame with vertical dimension and label 'Kuva 2' (no readable text or symbols beyond label)

Line drawing of a water bottle on shelves with a label 'Kuva 1' at the bottom (no other text or symbols)

Diagram of a storage shelf with arrows indicating movement, labeled 'Kuva 2' (no text or symbols on the diagram itself)

5 VASKING OG VEDLIKEHOLD....125

5.1 Avising 125

6 FRAKT OG FLYTTING....126

1.2 Monteringsadvarsler

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Illustration showing three hand gestures: a keyboard, a curved arrow indicating rotation, and a crossed-out hand holding a cup (no text or symbols)

3.6.2 Fryseboksen

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Technical line drawing of a structural frame with a vertical double-headed arrow indicating compression or displacement (no text or symbols)

Diagram of a bottled water bottle mounted on a shelf with attached compartments (no text or symbols)

Diagram of a shelving unit with shelves and fixtures, showing an upward arrow indicating motion (no text or symbols present)

4 OPPBEVARING AV MAT

4.1 Kjøleskapsdelen

5 VASKING OG VEDLIKEHOLD

Line drawing of a double refrigerator with open doors and shelves (no text or symbols)

Diagram of a mechanical tool or bracket assembly with a screwdriver and directional arrow indicating movement (no text or symbols)

Diagram of a door frame with two hands giving thumbs-up gestures, showing red arrows indicating movement or force direction (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating motion or force direction (no text or symbols present)

Diagram of a refrigerator with a screwdriver inserted, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical frame assembly with two hands operating a lock mechanism (no text or symbols present)

Technical diagram of a mechanical assembly with a screwdriver and red motion arrows indicating movement (no text or symbols)

Diagram showing two hands operating a ladder with red dashed arrows indicating motion, labeled with number 11 (no text or symbols on the diagram itself)

Diagram showing two rectangular panels with blue and red arrows indicating direction, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a door frame with a highlighted section and directional arrows (no text or symbols)

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Line drawing of a double-door refrigerator with open doors and internal compartments (no text or symbols)

NO

Service: Kontakt butikken der du kjøpte produktet så de kan henvise deg til lokal service Oppgi: Produkttype, Serienummer, Kjøpsdato, Problembeskrivelse, Navn og adresse, Telefonnummer

DK

Service: Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number

Contact us: www.cylinda.se
