Product Type	Hot Air Fryer
Brand	Hyundai
Model	CHN-FA5TB
Power Supply	220-240V ~ 50/60Hz
Power Consumption	1400W
Temperature Range	65°C – 200°C (adjustable)
Defrost Temperature Range	30°C – 80°C
Timer Range	1 – 90 minutes
Preset Programs	8 functions: Fries, Steak, Shrimp, Chicken, Wings, Bake, Fish, Defrost
Basket Capacity	Approximately 5.5 L (max fill 3/4)
Control Type	Touch panel with digital display
Basket Material	Non-stick coated, dishwasher safe
Grid/Rack Material	Non-stick coated, dishwasher safe
Safety Features	Auto shut-off, overheat protection, cool-touch handle
Cord Length	Short power cord (approx. 0.8 m)
Cleaning	Basket and rack dishwasher safe; wipe exterior with damp cloth
Usage Environment	Household and similar (kitchens, offices, hotels)
Dimensions (approx.)	30 cm x 30 cm x 35 cm (estimated)
Weight (approx.)	4.5 kg
Accessories Included	Basket, grid/rack, user manual

Frequently Asked Questions - CHN-FA5TB HYUNDAI

Can I use oil in the air fryer?

No, the air fryer works with hot air. Do not fill the basket with oil or fat. However, you can lightly brush oil on foods for crispiness.

Why does my air fryer produce white smoke?

White smoke is usually caused by greasy ingredients or leftover grease in the basket. Clean the basket thoroughly after each use. It is normal and does not affect performance.

How do I clean the air fryer?

Allow the appliance to cool completely. Clean the basket and grid with hot water, mild detergent, and a non-abrasive sponge. They are dishwasher safe. Wipe the exterior with a damp cloth.

Can I put metal utensils in the basket?

No, avoid metal utensils as they can damage the non-stick coating. Use silicone, wooden, or plastic utensils.

Why are my fries not crispy?

Ensure you use fresh potatoes and rinse off starch. Cut sticks smaller, add a little oil, and don't overcrowd the basket. Preheat the appliance for 3 minutes if needed.

How much food can I put in the basket?

Do not fill the basket more than 3/4 full. Overfilling can cause uneven cooking. Refer to the food table for recommended amounts.

What does the preset 'Defrost' function do?

The Defrost function runs at a low temperature (60°C default, adjustable 30-80°C) for 20 minutes to gently thaw frozen foods.

Why does the appliance turn off during cooking?

The timer may have expired or the appliance may have overheated. Check that the vents are not blocked. If the problem persists, contact service.

Can I cook frozen food directly?

Yes, you can cook frozen foods like fries, nuggets, or fish fingers. Adjust time and temperature according to the food table. Shake halfway for even cooking.

How do I preheat the air fryer?

Select a function (e.g., Fries) and set the timer to 3 minutes. Press START to run empty. Then add your ingredients and adjust time as needed.

USER MANUAL CHN-FA5TB HYUNDAI

FRIGGITRICE AD ARIA CHN-FA5TB

MANUALE D'USO E MANUTENZIONE

GENJINE PRODUCT OF HYUNDAI CORPORATION

Blue line drawing of a stylized air fryer with a digital display showing 60.0 (no text or symbols on the device itself)

Read the instructions for use carefully and keep this manual for future reference.

IMPORTANT SAFETY INSTRUCTIONS

The use of electrical appliances requires compliance with some fundamental rules, such as:

1) Read this instruction manual carefully. Use the product only for the purposes for which it was designed. Make sure that the appliance is connected to a socket with adequate power supply, check the power and voltage required by the device on the data label. Make sure the outlet is grounded. Do not use the appliance by connecting it to a socket with multiple connections. This can cause a short circuit.

2) Do not touch the hot surfaces of the appliance. Do not move the air fryer when in use.

3) Close supervision is necessary if the appliance is used in the presence of children. Keep the product and its power cord out of the reach of children under 8 years of age. Keep out of reach of animals during use. This product can be used by children aged 8 and over and by people with reduce physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they have received instructions for safe use of the appliance and have understood the related dangers. Make sure that children do not play with the appliance. Cleaning and maintenance operations must not be performed by children unless they are at least 8 years old and are supervised.

4) To protect against the risk of electric shock, avoid contact of the product with water or other liquids. Do not place the product where it can fall or get wet with water or other liquid. Never immerse the cord, plug, or lid with control controls in water or any other liquid.

5) Do not let the cord hang from the table or work surface or come into contact with hot surfaces. If this happens, disconnect the plug and check the integrity of the cable. Place the appliance on a non-inclined, safe and stable work surface, do not place it near the edge of the work surface. Always make sure that both the air fryer and loose cords are out of the reach of children.

6) Do not use the appliance if the cable or plug are damaged. Regularly check that the cable and plug are in good condition. If the power cable is damaged, it must be replaced by the manufacturer or its technical assistance service or in any case

by a person with similar qualifications, in order to prevent any risk.

7) When operating the air fryer, maintain at least 10 inches of clear space on all sides of the air fryer to allow for proper air circulation. Do not block the vents.

8) Switch off the appliance and disconnect the cable from the mains, when the air fryer is not in use and before proceeding with any cleaning and maintenance operation.

9) To remove the plug from the power socket, never pull the cable, but use the plug.

10) Extreme care must be taken when removing or moving a container containing hot oil or other hot liquids from the air fryer.

11) Do not cover the internal parts and the air fryer basket with aluminum foil. This could cause the air fryer to overheat.

12) Use extreme caution when removing the basket from inside the air fryer.

13) Do not clean the appliance with metal sponges, for cleaning follow the instructions in the "CLEANING AND MAINTENANCE" paragraph. Leave to cool before inserting or disconnecting parts of the device and before cleaning.

14) Never leave the appliance unattended during use.

15) Food that is too bulky or metal utensils must not be inserted into the appliance, they could cause a fire or risk of electric shock.

16) Do not place any objects on top of the air fryer, do not cover the air fryer with flammable material during operation, as it may cause fire. Do not use any accessories other than those recommended by the manufacturer, unsuitable tools or accessories could catch fire, cause a short circuit or cause personal injury. Do not place the appliance near flammable materials (fabrics, curtains...)

17) Extreme caution should be exercised when using utensils whose composition is other than metal or glass.

18) Do not place any of the following materials in the air fryer: cardboard, plastic, paper.

19) When the product is not in use, do not store anything in the air fryer except the accessories provided with and/or recommended by the manufacturer.

20) Always wear protective and insulating gloves when inserting or removing objects from the hot air fryer.

21) Do not use the appliance for purposes other than those indicated in this manual. Any other use is to be considered improper and therefore dangerous.

22) This appliance has been designed for HOUSEHOLD use only,

but may be used in staff cooking areas, in shops, offices and other workplaces, on farms, by clients in hotels, motels, bed and breakfasts and other professional environments and similar places.

23) Do not disassemble the product, attempt to repair or change the electrical plug in any way. Always contact the authorized service center for technical assistance.

24) This appliance must not be operated by means of an external timer or separate remote control.

25) The temperature of the door and other accessible surfaces can be high during use.

26) Do not place the device on or near an electric or gas burner, electric or microwave oven.

27) During frying, steam with high temperature may come out. Keep your hands and face away from steam and hot air when removing the container from the appliance.

28) During operation, the surface of the appliance can become very hot.

29) If the product emits smoke, unplug it immediately. Once the smoke has cleared, remove the basket from the fryer.

30) Before handling or cleaning the appliance, allow it to cool down for 30 minutes.

31) The product must not be powered by external timers or separate remote-controlled systems.

Power cord

a) A short power cord is provided to reduce the risk of snagging or tripping if the cord is too long.

b) Longer extension cords are available that can be used with care when using them.

c) If using a longer extension cord:

1) The electrical power indicated on the cordset or extension cord must be at least equal to the electrical power of the appliance;

2) The cord should be routed so that it doesn't hang over the countertop or table where it may being pulled by children or where it is possible to stumble unintentionally

PRODUCT DESCRIPTION

A. Grid
(to be used inside the basket)
B. Basket
C. Handle
D. Settings Panel
E. Air intake
F. Power cord

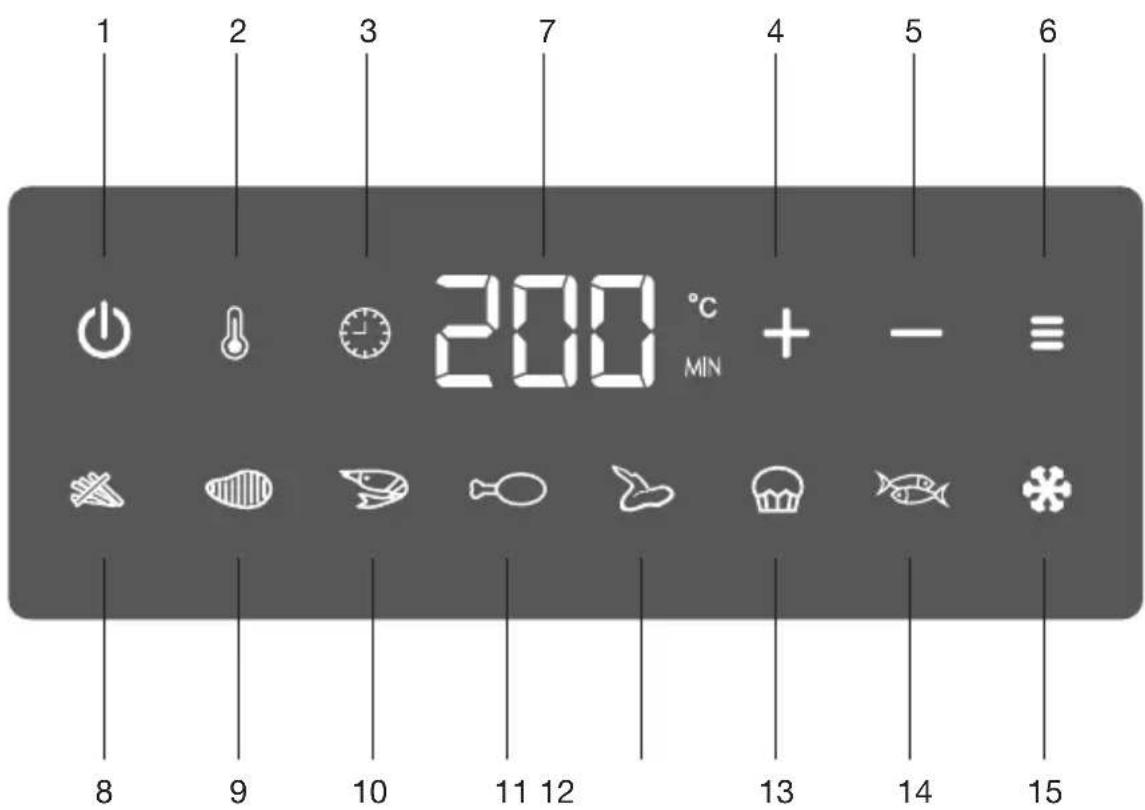

PANEL

1. ON/OFF: After connecting the device, press this icon to turn on the fryer. Once you have chosen the functions, press this icon again to start the programme. It is also possible to cancel cooking by pressing this icon during the process.
2. Temperature adjustment: When you need to adjust the cooking temperature, press this icon and then press "+" or "-" to set the desired temperature.

3. Cooking time adjustment: When it is necessary to adjust the cooking time, press this icon and then press "+" or "-" to set the desired cooking time.

4. “+”: Increase the cooking temperature or time.

5. “-”: Decreases the cooking temperature or time.

6. Menu: Press this icon to select functions 8 to 15.

7. Numerical display: Shows cooking time and temperature alternately.

8. 8-15. Preset Functions: See below for the default cooking time and temperature setting for each function. You can adjust the cooking time or temperature according to the amount of food.

Function	Default cooking time	Default cooking temperature	Adjustable temperature range	Adjustable time range
8) Fries 15 mins 200°C 65°C-200°C	1min-90mins
9) Steak 25 mins 180°C 65°C-200°C	1min-90mins
10) Shrimp 12 mins 160°C 65°C-200°C	1min-90mins
11) Chicken 20 mins 185°C 65°C-200°C	1min-90mins
12) Wings 15 mins 200°C 65°C-200°C	1min-90mins
13) Bake 25 mins 160°C 65°C-200°C	1min-90mins
14) Fish 15 mins 165°C 65°C-200°C	1min-90mins
15) Defrost 20 mins 60°C 30°C-80°C	1min-90mins

First use

1) Remove all packing material.
2) Remove any stickers or labels from the appliance.
3) Thoroughly clean the appliance before first use. (See 'Cleaning')

Preparation for use

1. Place the appliance on a stable, horizontal, flat and heat-resistant surface. Note: Do not place anything on or to the sides of the appliance. This could interrupt the airflow and affect the cooking result.

Warning: do not place the appliance on non-heat resistant surfaces.

1. Insert the rack into the basket.

Warning: do not fill the basket with oil or other liquids.

1. Warning: The air fryer may emit a slight harmless odor the first time you use it, which will disappear after a few minutes. This is because a protective oil has been applied to protect the parts from possible friction during transport.

Use of the appliance

This is an air fryer that works with hot air. Do not fill the basket with frying oil or fat.

1. Insert the plug into the wall socket.
2. Carefully pull the basket out of the air fryer and remove the rack inside.
3. Place the ingredients on the rack in the basket.

Note: The air fryer is suitable for a variety of ingredients. Refer to the food chart for the right amounts and preparation time.

Note: Do not overfill the basket or exceed the amount indicated in the food table, as this may affect the quality of the final result.

Note: If you want to prepare several ingredients at the same time, make sure you check the preparation time required for the different ingredients before you start preparing them at the same time.

1. Put the basket back into the air fryer.

Warning: do not touch the basket during and immediately after use, as it gets very hot. It is possible to hold the basket only by the handle.

1. Press the ON/OFF button to turn on the fryer, then press the MENU button to choose the function you need, set the cooking timer and temperature if needed.

2. Press the ON/OFF button to start cooking.

Note: add 3 minutes to the preparation time when the appliance is cold. If desired, the appliance can also be preheated without ingredients inside. If so, choose the 1st function and set the time to 3 minutes and start.

Note: The display will show the remaining cooking time.

1. Some ingredients require mixing halfway through the preparation time. To mix the ingredients, pull the basket out of the appliance by holding it by the handle and shake the ingredients. Then put the basket back into the fryer.

Warning: do not touch the basket during this action as it is very hot.

Note: Excess oil from ingredients collects at the bottom of the basket.

1. When the fryer beeps, the set preparation time is over.

Note: If preparing several batches of fatty ingredients (e.g. chicken wings, sausages or hamburgers), be sure to remove excess oil from the grill with a paper towel and from the bottom of the frying pan after each batch.

Be careful as they get very hot during use.

Note: You can also switch off the appliance manually. To do this, press the START button to cancel.

1. Remove the basket from the appliance and place it on a heat resistant surface.

2. Check if the ingredients are ready.

If the ingredients are not ready yet, simply replace the basket and cook for a few more minutes.

Note: After hot air cooking, the basket, rack, housing and ingredients are hot. some steam may come out, but this is normal.

1. Empty the basket into a bowl or onto a plate.

Tip: To remove large or crumbly ingredients, use a pair of tongs to lift the ingredients out of the basket. When one batch of ingredients is ready, the air fryer is immediately ready to prepare another batch.

Table of foods

This table below is helpful in selecting the basic settings for the ingredients.

Note: keep in mind that these settings are indicative. Because ingredients differ in origin, size, shape, and brand, we cannot guarantee the best setting for the ingredients.

Note: Add 3 minutes to the prep time when starting to cook while the fryer is still cold.

	Amount (g)	Time (min.)	Temperature (°C)	Remark
Potato & fries
Frozen French fries	300-500 15	-20 200		Shake during cooking
Fresh French fries	300-500 20-30	180		Shake during cooking
Potato gratin	300 20-30 200			Shake during cooking
Meat & Poultry
Steak 100-500 10-20	20 200			Turn over during cooking
Pork chops	10-20 200			Turn over during cooking
Hamburger	10-15 180
Meat & Poultry
Sausage roll 100-500	10-15 200
Chicken wings/drumsticks	100-500 15	-25 200		Turn over during cooking
Chicken breast 100	-500 15-20 200			Turn over during cooking
Snacks
Spring rolls 100-500	8-15 200			Use oven-ready.Turn over during cooking
Frozen chicken nuggets	100-500 8-15 200			Use oven-ready.Turn over during cooking
Frozen fish fingers	100-500 8-15 200			Use oven-ready.Turn over during cooking
Frozen bread crumbed cheese snacks	100-500 8-15 200			Use oven-ready.Turn over during cooking
Stuffed vegetables	100-500 8-15 160
Baking
Cake 400 20-25 160	Use baking tin
Quiche 500 20-25 180				Use baking tin/oven dish
Muffins 400 15-20 160	Use baking tin
Sweet snacks	500 15-20 160			Use baking tin/oven dish

Suggestions

• A smaller amount of food requires a slightly shorter preparation time, a larger amount of food requires a slightly longer preparation time.
• It is recommended not to fill the air fryer basket more than 34 of its capacity. The maximum amount of ingredients that can be prepared depends on the type of food you want to prepare.
• Shaking smaller ingredients halfway through the preparation time optimizes the final result and can help avoid uneven cooking of the ingredients.
• Prepared packaged snacks can be cooked quickly and easily. Prepackaged dough also requires a shorter preparation time than homemade dough.
• Insert a roasting pan or dish into the air fryer basket if you are cooking a pie or quiche, or if you are cooking flaky foods or filled ingredients.
• You can also use the air fryer to heat ingredients by setting the temperature to 150^ for up to 10 minutes.
• It is advisable to wait a few minutes for the machine to cool down when it is necessary to start another cooking. Keep warming no more than 1 hour.
• If using oven-ready snacks, do not add oil as they are usually pre-fried and become golden and crispy when prepared in the air fryer.
• If they are not crispy and remain pale, check the following:

A. The amount of ingredients: Put small batches of ingredients into the basket. Cover the bottom of the basket with a single layer. Smaller batches are fried more evenly.

B. The preparation time: If you have not preheated the appliance before inserting the food, make sure you add an extra 3 minutes to the preparation time when setting the timer.

C. Most foods need the indicated prep time to get fully cooked.

D. If some foods such as snacks pop when cooked in the air fryer, choose a shorter preparation time.

Cleaning and maintenance

Warning: allow the basket, the grill and the interior of the appliance to cool down completely before starting to clean. The basket and the grill are made with a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the finish.

Clean the appliance after each use. Remove the oil and fat from the bottom of the pan after each use to avoid smoke.

1) Switch off the machine, remove the plug from the wall socket and let the appliance cool down for 15 minutes.

Tip: Remove the basket to allow the fryer to cool more quickly.

2) Clean the outside of the appliance with a damp cloth.

3) Clean the basket and the grill with hot water, a little washing-up liquid and a non-abrasive sponge. Note: the basket and rack are dishwasher safe.

Tip: If food scraps are stuck to the basket or rack, you can soak them in hot water with dish soap for 10-15 minutes. Soaking will loosen food residue and make it easier to remove. The quality of your detergent determines how easy it is to remove food and grease residues. Be sure to use a dish soap that dissolves oil and grease. If there are grease stains on the basket or rack and you have not been able to remove them with hot water and dish soap, use a liquid degreaser. Tip: You can use a degreasing liquid to remove residual dirt.

4) Clean the inside of the appliance with hot water and a non-abrasive sponge. Any other maintenance must be performed by an authorized service centre.

Storage

1) Unplug the appliance and let it cool down.

2) Make sure all parts are clean and dry before storing the appliance.

Disposal

Do not throw the appliance with normal household waste when it is used up, but hand it over to an official collection point for recycling. In this way, you help to preserve the environment.

Problem Possible cause Solution
The air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not press START.	Press the START button after selecting the menu, to start cooking.
	Several appliances are connected to one socket.	Try a different socket and check the fuses. The air fryer has a power of 1400W.
The outside of the appliance becomes hot during use.	The outside of the appliance becomes hot because the heat inside radiates to the outsidewalls.	This is normal. But the handles, panel that you need to touch during use will still stay cool enough to touch.
		The fry pot, rack and the inside of the fryer will always become hot when the appliance is switched on to ensure the food is properly cooked. The fry pot and rack are always too hot to touch.
The ingredients fried with the air fryer are not done	The amount of ingredients in the fry pot is too big.	Put smaller batches of ingredients in the fry pot. Smaller batches are fried more evenly.
	The set temperature is too low.	Adjust the temperature according to the required temperature setting (see ‘food table’).
	The preparation time is too short.	Adjust the cooking time according to the required preparation time (see ‘food table’).
The ingredients are fried unevenly in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See ‘food table’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
I cannot slide the potinto the appliance properly.	There are too much ingredients in the pot.	Do not fill the pot beyond 3⁄4 of its capacity.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pot. The oil produces white smoke and the fry pot may heat up more than usual. This does not effect the appliance or the end result.
	The fry pot still contains grease residues from previous use.	White smoke is caused by grease heating up in the pot . make sure you clean the pan properly after each use.
Fresh fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Problem Possible cause Solution
Fresh fries are not crispy when they come out of the air fryer	The crispiness of the fries depends on the amount of oil and water in the fries.	Put smaller batches of ingredients in the fry pot. Smaller batches are fried more evenly.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

RATING LABEL

HYUNDAI

The product is made conforming with all the applicable European regulations

Read carefully the user manual

Food contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) “ The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

REV. 09.2023

MADE IN CHINA

Email: [e-mail]

Sito Web: www.hyundai-electronics.it
