Product Type	Portable Air Conditioner
Model	EPAC29C
Brand	Esatto
Cooling Capacity	9000 BTU/h
Coverage Area	Up to 250 sq. ft.
Dimensions (W x D x H)	13.4 x 11.8 x 28.3 in
Weight	58 lbs
Power Supply	115 V, 60 Hz
Power Consumption	880 W
Energy Efficiency Ratio (EER)	10.2
Noise Level	52 dB (Low), 56 dB (High)
Airflow	250 CFM
Refrigerant	R-410A
Modes	Cool, Fan, Dehumidify
Fan Speeds	2 (Low/High)
Thermostat	Adjustable, 62-86°F
Timer	1-24 hours
Remote Control	Included
Castors	Yes, for easy mobility
Filter Type	Washable mesh filter
Filter Cleaning	Every 2 weeks
Water Removal	Self-evaporation or continuous drain
Window Kit	Included (up to 48 in)
Certifications	ETL, Energy Star

Frequently Asked Questions - EPAC29C Esatto

How do I install the Esatto EPAC29C portable air conditioner?

Installation is straightforward. Place the unit near a window and use the included window kit to exhaust hot air outside. Ensure the exhaust hose is straight and not kinked. For detailed steps, refer to the manual.

Does the EPAC29C require a window for operation?

Yes, it requires a window to vent hot air. The unit comes with a window kit that fits most sliding windows up to 48 inches.

How often should I clean the filter?

Clean the washable mesh filter every 2 weeks under normal use. Remove the filter, vacuum or rinse with water, and let it dry completely before reinserting.

Can I use the air conditioner without a window?

No, the unit must vent hot air outdoors. Without proper venting, the air conditioner cannot cool effectively and may overheat.

How do I drain water from the EPAC29C?

The unit uses self-evaporation technology in most modes. In high humidity, it may collect water. Use the continuous drain hose (included) to drain automatically, or manually drain by removing the bottom plug.

What is the recommended room size for this air conditioner?

The EPAC29C is designed for rooms up to 250 sq. ft. (about 20 x 12 ft). For best performance, avoid direct sunlight and close windows and doors.

Does the remote control require batteries?

Yes, the remote control uses 2 AAA batteries (not included).

Why is the air conditioner not cooling?

Check if the filter is clean, the exhaust hose is properly connected, the window kit is sealed, and the set temperature is lower than room temperature. Also ensure the unit is in Cool mode.

Can I leave the air conditioner on overnight?

Yes, the unit has a programmable timer (1-24 hours) and adjustable thermostat. It's safe to use while sleeping, but ensure the area is well-ventilated with the window kit installed.

How do I obtain replacement parts or accessories?

Contact Esatto customer service for replacement filters, remote controls, or window kits. Visit the Esatto website or call their support line for ordering.

USER MANUAL EPAC29C Esatto

Exactly what you need

Online:

esatto.house

Esatto

User Manual

Welcome

Residentia Group

Head Office

165 Barkly Avenue

Burnley Victoria

Australia 3121

ACN

600 546 656

Online

residentia.group

Postage

PO Box 6077

Collingwood North

VIC Australia 3066

Telephone

1300 11 4357

Email

[e-mail]

Congratulations on purchasing your air conditioner. The Esatto brand is proudly distributed within Australia by Residentia Group Pty Ltd.

Please refer to the warranty card at the rear of this manual for information regarding your product's parts and labour warranty, or visit us online at: www.residentiagroup.com.au

At Residentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about your unit such as the various temperature guides or importantly taking care of the appliance, our Support Team are here to help.

You can use our online Support Centre at anytime by visiting:

→ http://support.residentiagroup.com.au

Or you can contact us via phone by dialling: 1300 11 HELP (4357).

It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance.

Again, thank you for choosing an Esatto appliance and we look forward to being of service to you.

Kind Regards,

The Residentia Team

esatto.house

Esatto

Contents

Page 5

Specifications

Page 6

Your Remote

Control

Page 8

LED Display

Page 9

Remote Operation

Esatto

User Manual

This page is intentionally left blank

Specifications

Model	RG57H(B)/BG(C)E; RG57H1(B)/BG(C)E; RG57H2(B)/BG(C)EF; RG57H3(B)/BG(C)EFU1; RG57H3(B)/BG(C)EF; RG57H1(B)/BG(C)E-M; RG57H(B)/BG(C)EU1; RG57H4(B)/BG(C)EFU1; RG57H(B)/BG(C)E-M; RG57H(B)/BG(C)EU1-M; RG57H3(B)/BG(C)EFU1-M; RG57H1(B)/BG(C)EU1-M; RG57H5(B)/BG(C)CEU1; RG57H5(B)/BG(C)CE; RG57H1(B)/BG(C)EU1; RG57H2(B)/BG(C)EFU1; RG57H3(B)/BG(C)EF; RG57H4(B)/BG(C)EF; RG57H2(B)/BG(C)EF-M; RG57H2(B)/BG(C)EFU1-M; RG57H4(B)/BG(C)EFU-B; RG57H4(B)/BGCEF-B; RG57J2(B)/BGCE(U1)
Rated Voltage	3.0V(Dry batteries R03/LR03×2)
Signal Receiving Range	8m
Environment	-5°C~60 C(23 F~140 F)

RG57H(B)/BG(C)E
RG57H(B)/BG(C)EU1
RG57H(B)/BG(C)EU1-M
RG57H(B)/BG(C)E-M

RG57H1(B)/BG(C)E;
RG57H1(B)/BG(C)E-M
RG57H1(B)/BG(C)EU1-M
RG57H1(B)/BG(C)EU1

RG57H2(B)/BG(C)EF
RG57H2(B)/BG(C)EF-M
RG57H2(B)/BG(C)EFU1
RG57H2(B)/BG(C)EFU1-M

RG57H3(B)/BG(C)EF
RG57H3(B)/BG(C)EFU1
RG57H3(B)/BG(C)EFU1-M
RG57H3(B)/BG(C)EF-M

RG57H4(B)/BG(C)EFU1
RG57H4(B)/BG(C)EF
RG57H4(B)/BG(C)EFU1-B
RG57H4(B)/BG(C)EF-B

RG57H5(B)/BG(C)E
RG57H5(B)/BG(C)EU1

RG57J2(B)/BGCEU1
RG57J2(B)/BGCE

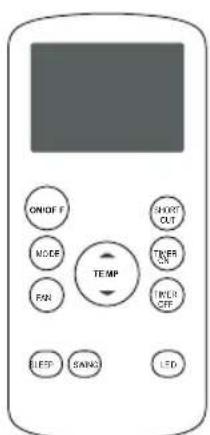

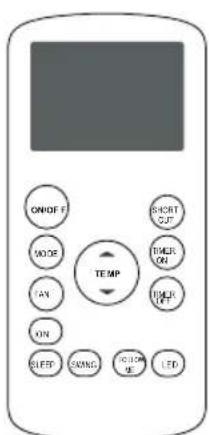

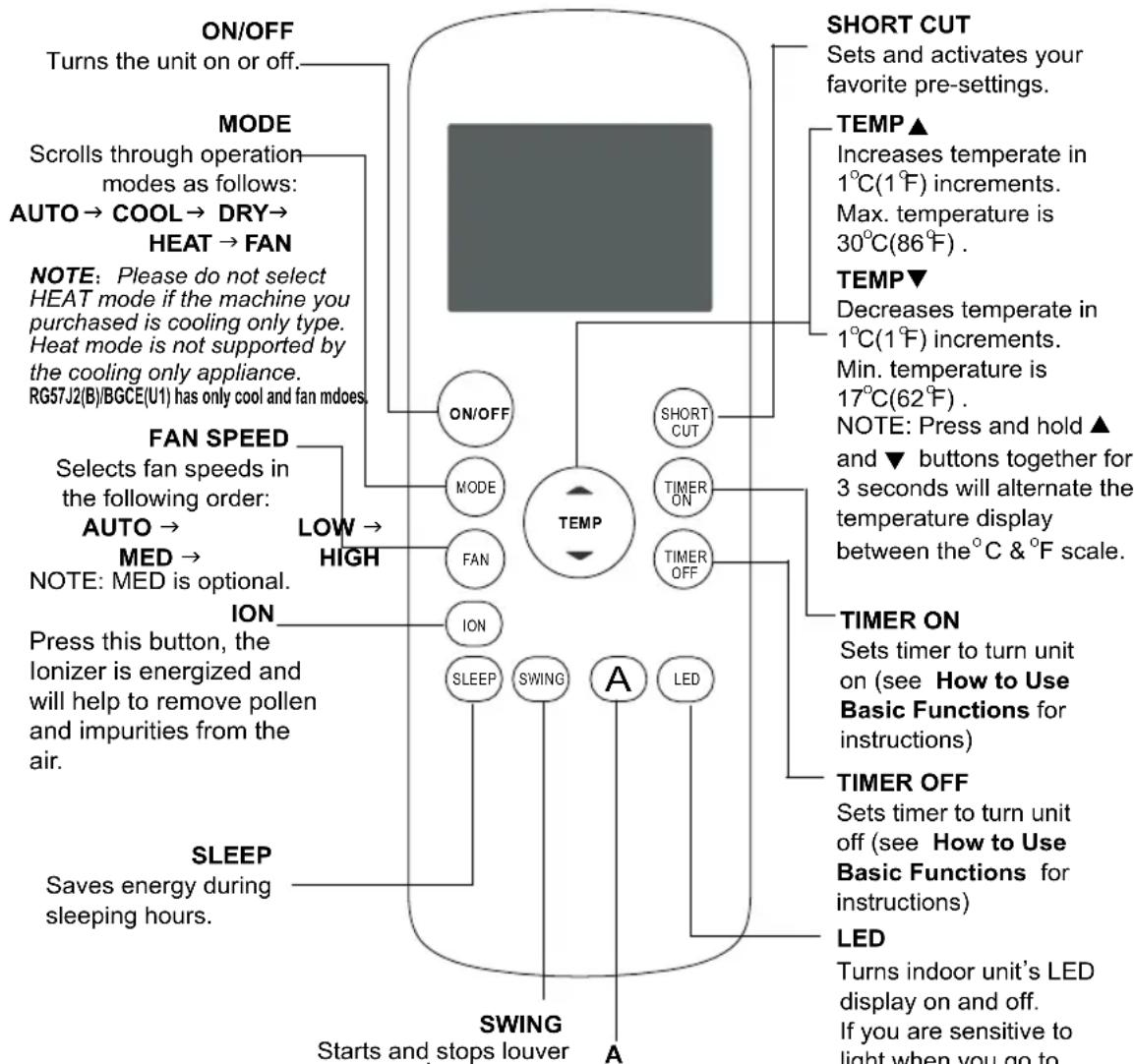

Your Remote Control

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

A: FOLLOW ME

Temperature sensing and room temperature display button.

A: ECO

Used to enter the energy efficient mode. This feature is available under cool mode only.

SHORT CUT

Sets and activates your favorite pre-settings.

TEMP ▲

Increases temperate in 1^ C( 1^ F) increments. Max. temperature is 30^ C( 86^ F).

TEMP▼

Decreases temperate in 1^ C( 1^ F) increments. Min. temperature is 17^ C( 62^ F). NOTE: Press and hold ▲ and ▼ buttons together for 3 seconds will alternate the temperature display between the ^ C & ^ F scale.

TIMER ON

Sets timer to turn unit on (see How to Use Basic Functions for instructions)

TIMER OFF

Sets timer to turn unit off (see How to Use Basic Functions for instructions)

LED

Turns indoor unit's LED display on and off. If you are sensitive to light when you go to sleep, you can press the LED button to turn off the LED display on the unit. Press the button again to turn it back on.

NOTE:

Swing, Ion, Follow me, ECO and Med fan speed features are optional.

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.
• If the unit does not have a particular function, pressing that function's button on the remote control will have no effect.
• When there are wide differences between "Remote control Illustration" and "USER'S MANUAL" on function description, the description of "USER'S MANUAL" shall prevail.

Inserting and Replacing Batteries

Your air conditioning unit comes with two AAA batteries. Put the batteries in the remote control before use.

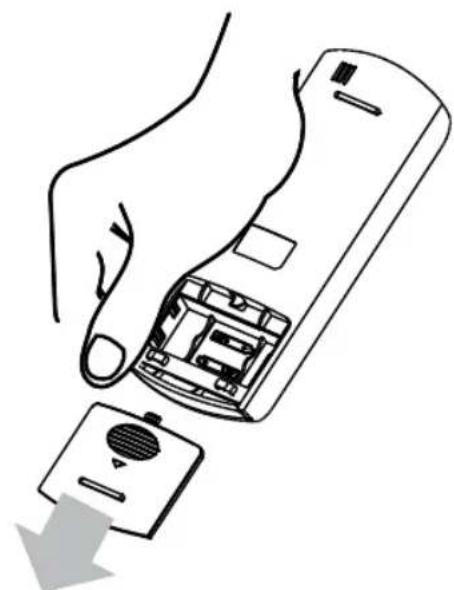

1. Slide the back cover from the remote Control downward, exposing the battery compartment.

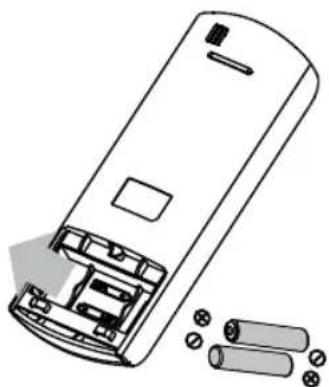

2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

• Do not mix old and new batteries, or batteries of different types.
• Do not leave batteries in the remote control if you don't plan on using the device for more than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.

• The remote control must be used within 8 meters of the unit.
• The unit will beep when remote signal is received.
• Curtains, other materials and direct sunlight can interfere with the infrared signal receiver.
• Remove batteries if the remote will not be used more than 2 months.

Line drawing of a hand holding a remote control device with a button and arrow indicating action (no text or symbols)

Line drawing of a remote control casing with battery pack and external components (no text or symbols)

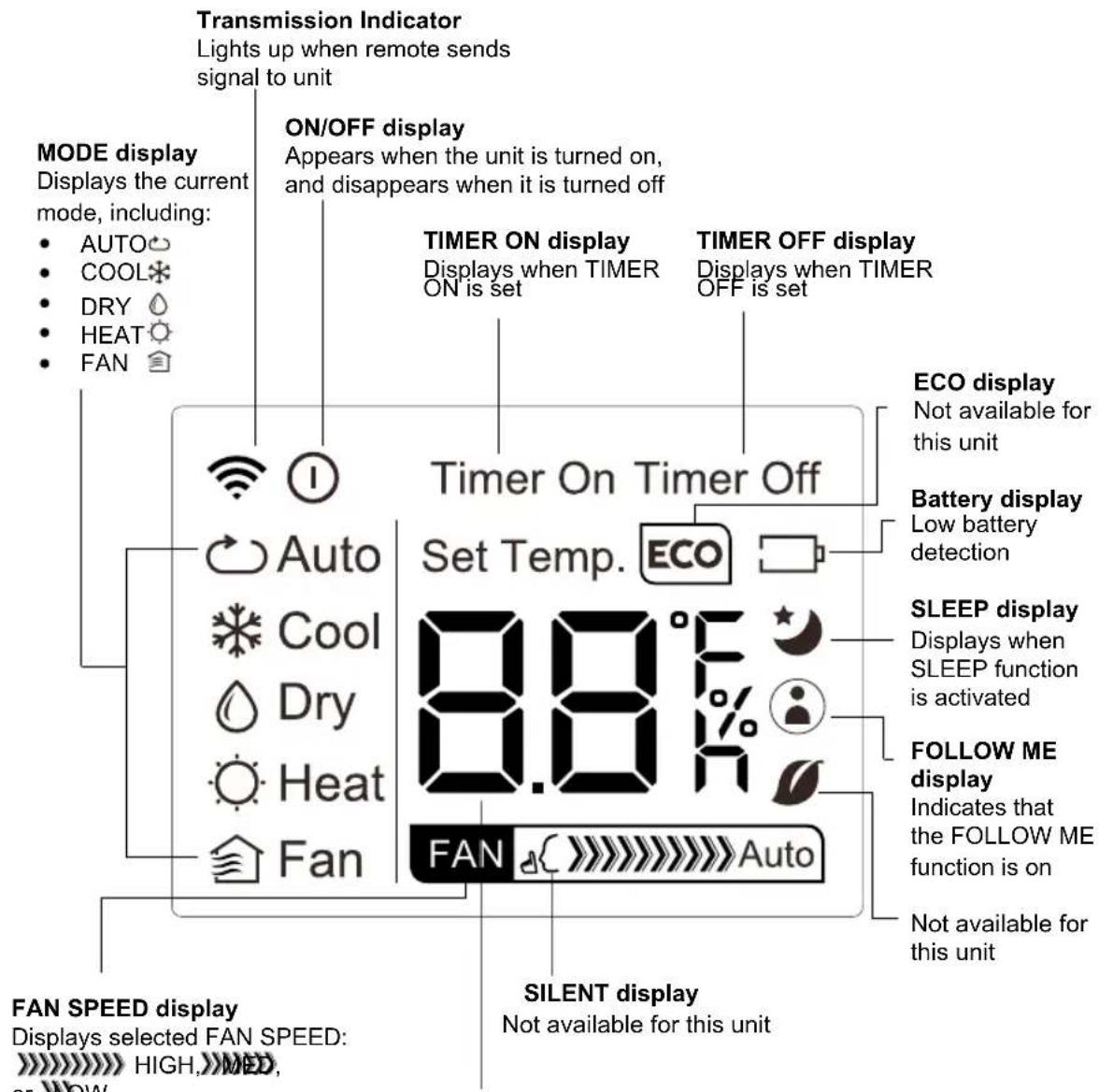

LED Display

Temperature/Timer display

Displays the set temperature by default, or timer setting when using TIMER ON/OFF functions

• Temperature range: 17-30°C(62 F-86 F)
• Timer setting range: 0-24 hours

This display is blank when operating in FAN mode.

Remote Operation

SETTING TEMPERATURE

The operating temperature range for units is 17-30 ^ C(62 F-86 F). You can increase or decrease the set tmeperature in 1 C(1 F) ^ increments.

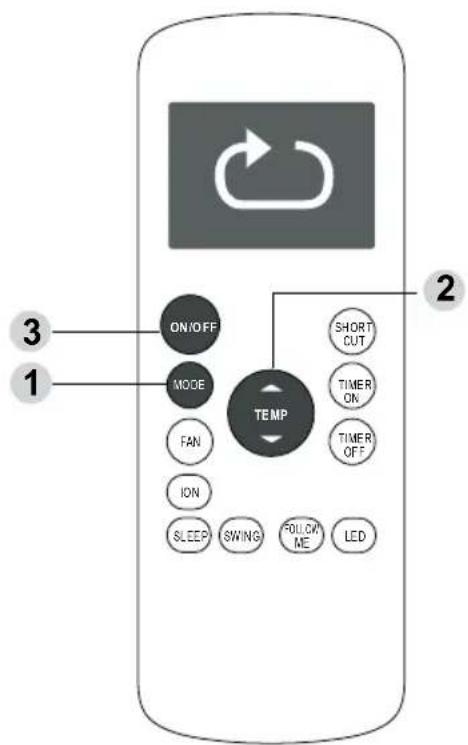

AUTO operation

In AUTO mode, the unit will automatically select the COOL, FAN, HEAT or DRY mode based on the set temperature.

1. Press the MODE button to select Auto mode.
2. Set your desired temperature using the
   Temp ▲ or Temp ▼ button.
3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can t be set in Auto mode.

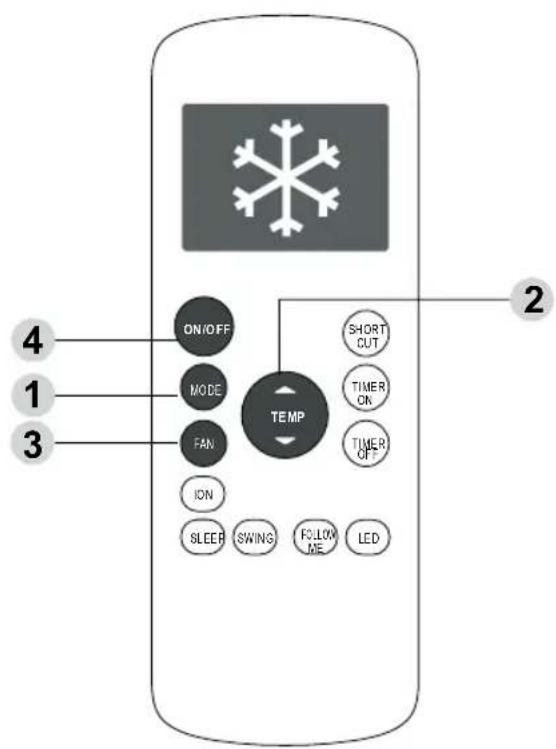

COOL operation

1. Press the MODE button to select COOL mode.
2. Set your desired temperature using the Temp ▲ or Temp ▼ button.
3. Press the FAN button to select the fan speed: AUTO, LOW, MED, or HIGH.
4. Press the ON/OFF button to start the unit.

Remote Operation (Continued)

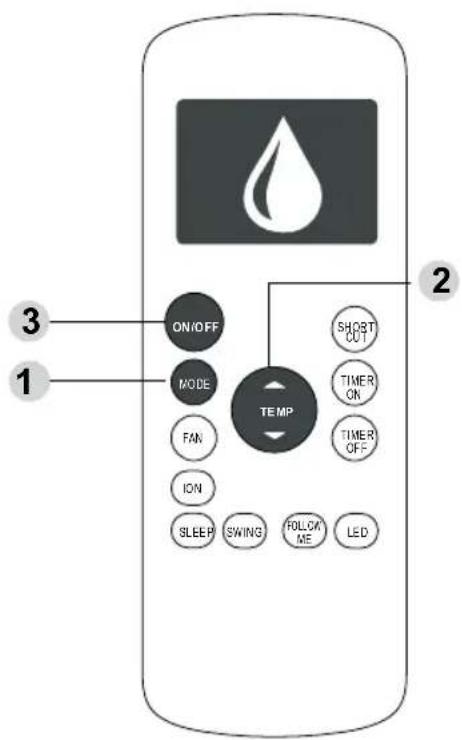

DRY operation(dehumidifying)

1. Press the MODE button to select DRY mode.
2. Set your desired temperature using the Temp ▲ or Temp ▼ button.
3. Press the ON/OFFbutton to start the unit.

NOTE: FAN SPEED can t'be changed in DRY mode.

FAN operation

1. Press the MODE button to select FAN mode.
2. Press FAN button to select the fan speed: AUTO, LOW, MED or HIGH.
3. Press the ON/OFFbutton to start the unit.

NOTE: You can't set temperature in FAN mode. As a result, your remote control s LCD screen will not display temperature.

HEAT operation

1. Press the MODE button to select HEAT mode.
2. Set your desired temperature using the Temp ▲ or Temp ▼button.
3. Press the FAN button to select the fan speed: AUTO, LOW, MED, or HIGH.
4. Press the ON/OFF button to start the unit.

NOTE: As outdoor temperature drops, the performance of your unit's HEAT function may be affected. In such instances, we recommend using this air conditioner in conjunction with other heating appliance.

Remote Operation (Continued)

Your air conditioning unit has two timer-related functions:

TIMER ON- sets the amount of timer after which the unit will automatically turn on. TIMER OFF- sets the amount of time after which the unit will automatically turn off.

TIMER ON function

The TIMER ON function allows you to set a period of time after which the unit will automatically turn on, such as when you come home from work.

1. Press the TIMER ON button. By default, the last time period that you set and an "h" (indicating hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn on. For example, if you set TIMER ON for 2 hours, "will appear on the screen, and the unit will turn on after 2 hours.

2. Press the TIMER ON button repeatedly to set the time when you want the unit to turn on.

3. Wait 2 seconds, then the TIMER ON function will be activated. The digital display on your remote control will then return to the temperature display.

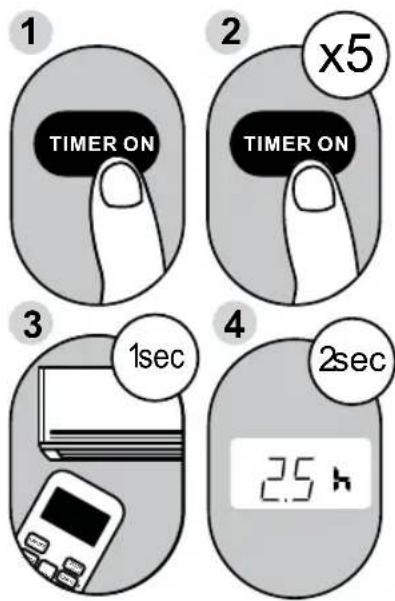

Example: Setting unit to turn on after 2.5 hours.

TIMER OFF function

The TIMER OFF function allows you to set a period of time after which the unit will automatically turn off, such as when you wake up.

1. Press the TIMER OFF button. By default, the last time period that you set and an "h" (indicating hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn off. For example, if you set TIMER OFF for 2 hours, "will appear on the screen, and the unit will turn off after 2 hours.

2. Press the TIMER OFF button repeatedly to set the time when you want the unit to turn off.

3. Wait 2 seconds, then the TIMER OFF function will be activated. The digital display on your remote control will then return to the temperature display.

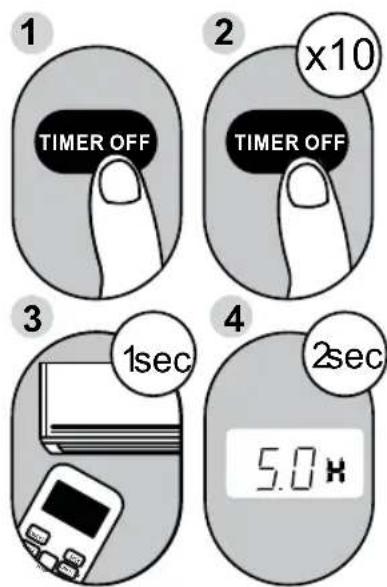

Example: Setting unit to turn off after 5 hours.

NOTE: When setting the TIMER ON or TIMER OFF functions, up to 10 hours, the time will increase in 30 minute increments with each press. After 10 hours and up to 24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours.

You can turn off either function by setting its timer to "0.0h"

Continue to press TIMER ON or TIMER OFF until desired time is reached.

Remote Operation (Continued)

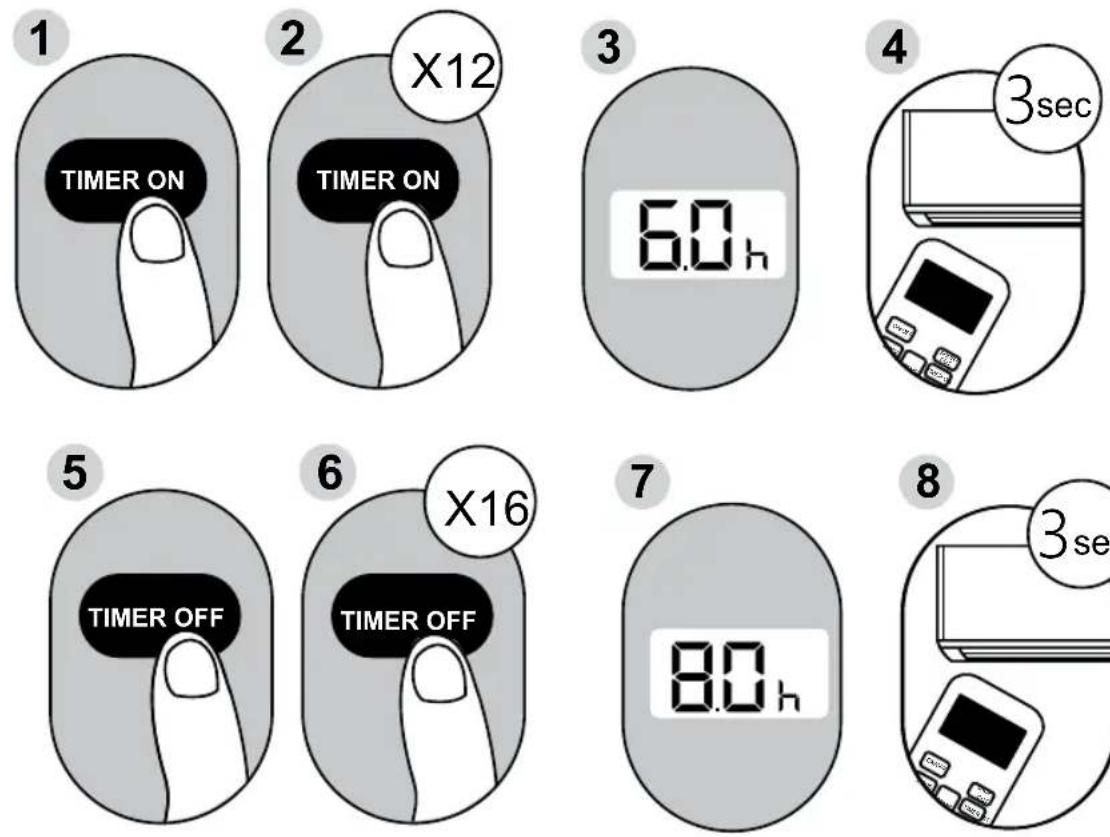

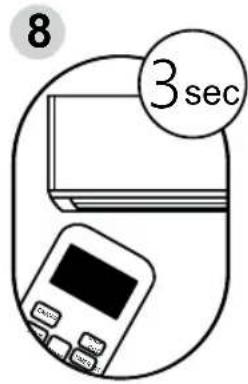

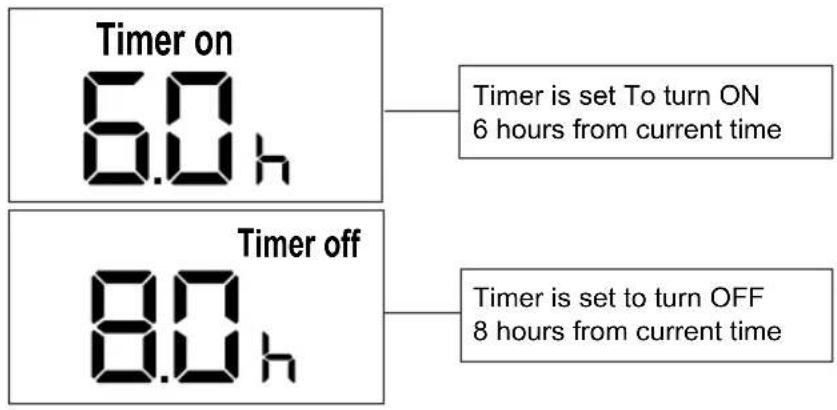

Setting both TIMER ON and TIMER OFF at the same time

Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically turn off at 9:00 PM.

Do the following:

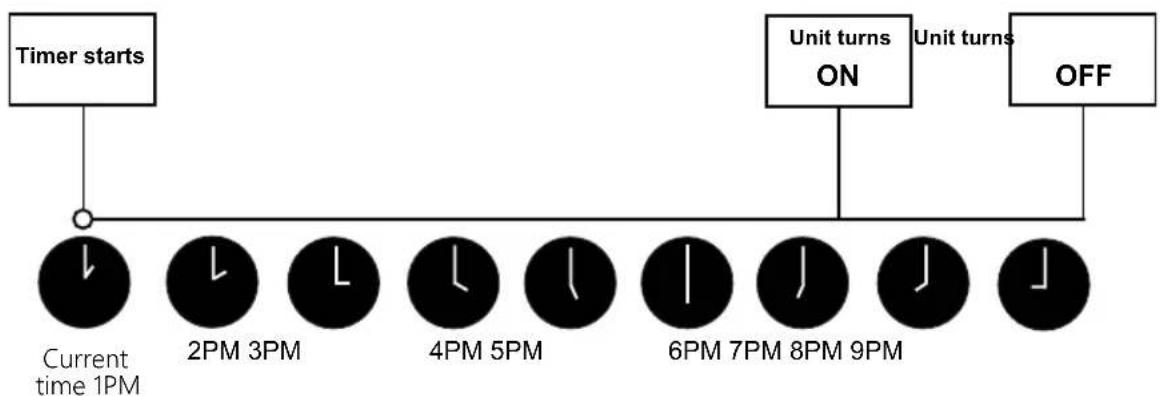

Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below)

Your remote display

Remote Operation (Continued)

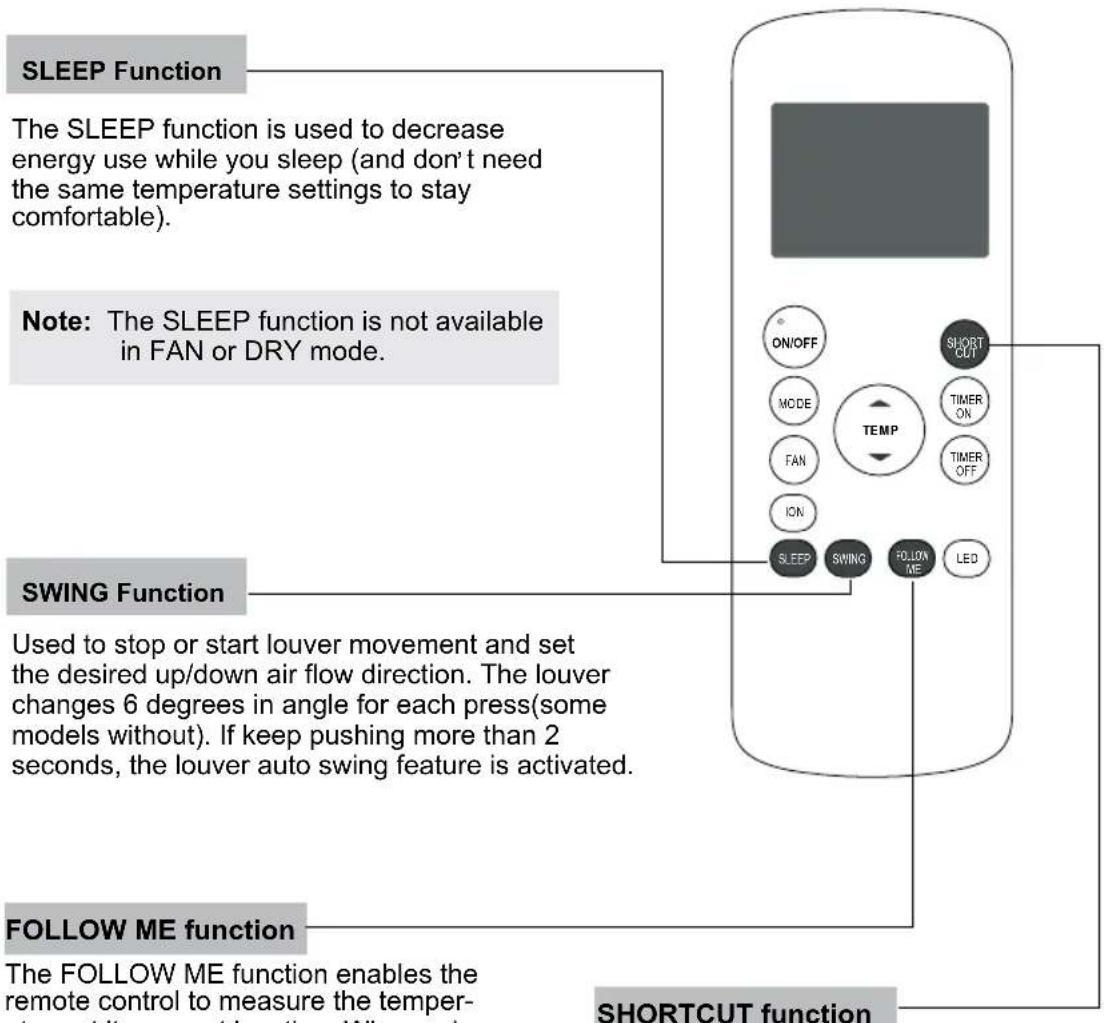


ature at its current location. When using AUTO, COOL, or HEAT functions, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to optimize the temperature around you and ensure maximum comfort.

1. Press FOLLOW ME button to activate function. The remote control will send temperature signal to the unit every three minutes.

2. Press FOLLOW ME button again to turn off this function.

3. Used to restore the current settings or resume previous settings.

4. Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).
5. If pushing more than 2 seconds, the system will automatically restore the current operation settings including operating mode, setting temperature, fan speed level and sleep feature(if activated).

NOTE:

-Buttons design is based on typical model and might be slightly different from the actual one you purchased, the actual shape shall prevail.

-All the functions described are accomplished by the unit, if the unit has no this feature, there is no corresponding operation happened when press the relative button on the remote controller.

-When there are wide differences between Remote controller Illustration and "USERS MANUAL" on function description, the description on USERS MANUAL shall prevail.

-The device could comply with the local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

-This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the party responsible for compliance could void suers authority to operate the equipment.

NOTE:

Esatto

User Manual

This page is intentionally left blank

esatto.house

Esatto

This page is intentionally left blank

Esatto Appliances Exactly what you need
