| Product Type | Condenser Tumble Dryer |
| Model | GT77823WHF12 |
| Brand | Grundig |
| Energy Efficiency Class | A++ |
| Capacity | 8 kg |
| Dimensions (H x W x D) | 85 cm x 60 cm x 60 cm |
| Weight | 45 kg |
| Power Supply | 230 V ~ 50 Hz |
| Rated Power | 2800 W |
| Noise Level | 65 dB(A) |
| Drying Programs | Cotton, Synthetics, Delicates, Mix, Wool, Shirts, Jeans, Sports, Quick 40', Extra Dry, Cupboard Dry, Iron Dry |
| Sensor Drying | Yes |
| Reverse Tumbling | Yes |
| Anti-Crease Function | Yes, up to 2 hours |
| Delay Start | Yes, up to 24 hours |
| Child Lock | Yes |
| Lint Filter | Yes, clean after each cycle |
| Condenser Cleaning | Yes, periodic cleaning required |
| Water Tank | Yes, capacity 5 L |
| Drum Light | Yes |
| Spare Parts Availability | Drum belt, heating element, door hinge, control board, pump |
| Repairability Index | 8.0 / 10 |
Frequently Asked Questions - GT77823WHF12 GRUNDIG

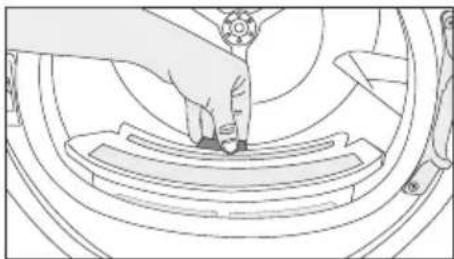

How do I clean the lint filter?
Open the door, pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush. Wash the filter under running water if needed, then dry it completely before reinstalling. Clean after every cycle for optimal performance.
Why is my dryer not drying properly?
Check if the lint filter is clogged. Ensure the condenser is clean and the water tank is not full. Also verify that the load size is not too large and that you selected the appropriate drying program. Clean the condenser periodically as described in the manual.
How do I clean the condenser?
Remove the condenser unit from the bottom compartment of the dryer. Rinse it under running water to remove fluff and debris. Allow it to dry completely before reinserting. It is recommended to clean the condenser every month or after 100 cycles.
What does the child lock do and how do I activate it?
The child lock prevents accidental changes to the program during operation. To activate, press and hold the Child Lock button (usually a key icon) for 3 seconds. A lock symbol appears on the display. Repeat to deactivate.
How do I replace the door hinge?
To replace a damaged door hinge, you need to remove the door panel. Unscrew the hinges from the door and the dryer body. Install the new hinge in reverse order. It is recommended to consult the user manual for detailed steps or contact a qualified technician.
What is the maximum load capacity for cotton programs?
The maximum load for cotton programs is 8 kg. Overloading can reduce drying efficiency and cause uneven drying or damage to the machine.
How do I use the delay start feature?
Select your drying program, then press the Delay Start button. Use the +/- buttons to set the delay time (up to 24 hours). Press Start to confirm. The dryer will begin the cycle after the set delay.
What should I do if the dryer stops mid-cycle?
Check if the water tank is full or if the lint filter is blocked. Also ensure the door is properly closed. If the problem persists, check for error codes on the display and consult the troubleshooting section in the manual.
Can I dry wool or delicate items?
Yes, the dryer has specific programs for Wool and Delicates. Use these programs with lower temperature and gentle tumbling. Always check garment care labels before drying.
How do I access spare parts for this model?
Spare parts such as drum belt, heating element, door hinge, control board, and pump are available from authorized Grundig dealers or online parts stores. Use the model number GT77823WHF12 to ensure compatibility.
