Product Type	Front-Load Washing Machine
Brand	Panasonic
Model	NA-V10FX2
Capacity	7.5 kg (Standard)

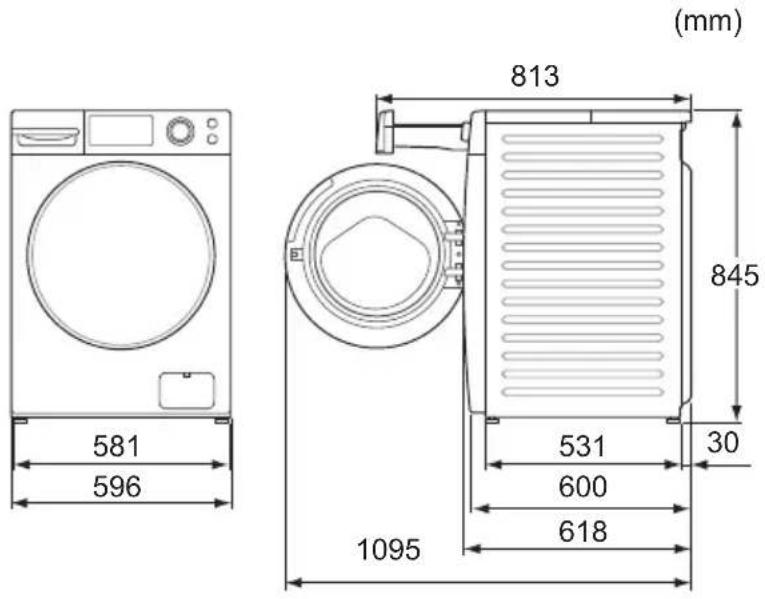

Dimensions (H x W x D)	85 x 59.5 x 59.5 cm
Weight	Approx. 68 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W (Heating) / 500 W (Wash)
Water Consumption	Approx. 70 L per cycle
Spin Speed	Max 1200 rpm
Number of Programs	14 (including Cotton, Synthetics, Delicates, etc.)
Functions	Delay Start, Quick Wash, Pre-Wash, Rinse Hold
Display	Digital LED with Program Status
Noise Level (Wash/Spin)	54 dB / 74 dB
Energy Efficiency Class	B (Estimated)
Door Type	Transparent Glass with Child Lock
Maintenance	Clean filter every 5 cycles; check drain hose
Safety Features	Overflow protection, unbalanced load detection, auto shut-off
Spare Parts & Repairability	Available: main board, drum, belt, filter, door seal, pump

Frequently Asked Questions - NA-V10FX2 PANASONIC

How do I install the Panasonic NA-V10FX2 washing machine?

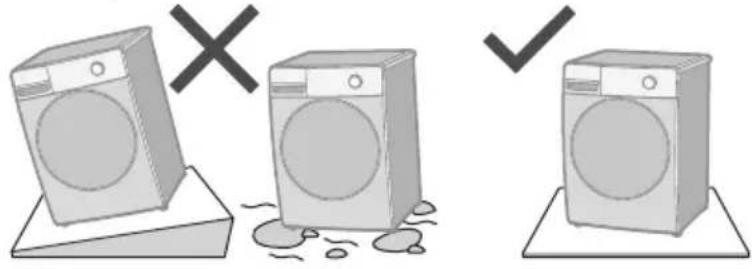

Ensure the machine is on a level surface. Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Plug the machine into a grounded outlet. Level the feet and remove transit bolts before first use.

What is the maximum load capacity for this model?

The maximum load capacity is 7.5 kg for cotton items. For delicate fabrics, reduce the load to avoid damage.

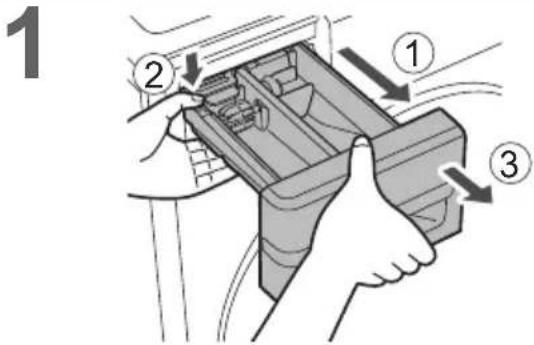

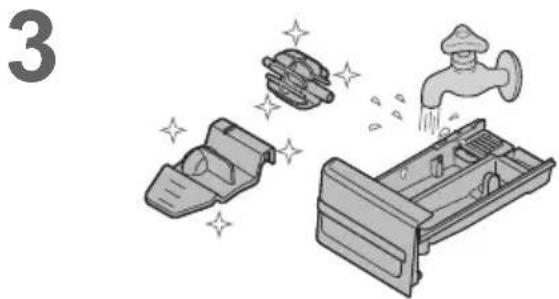

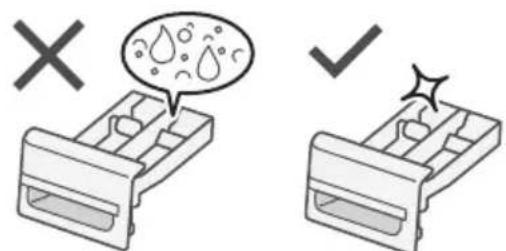

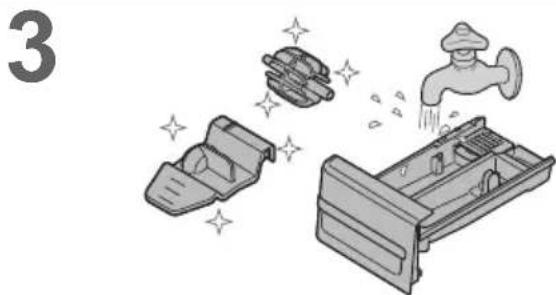

How do I clean the detergent drawer?

Pull out the drawer, press the release tab to remove it. Rinse with warm water and a soft brush. Wipe dry and reinsert.

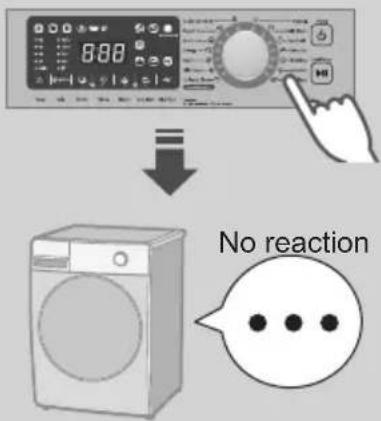

What should I do if the machine doesn't start?

Check if the power cord is plugged in, the door is closed properly, and the water supply is turned on. Also ensure the child lock is not activated.

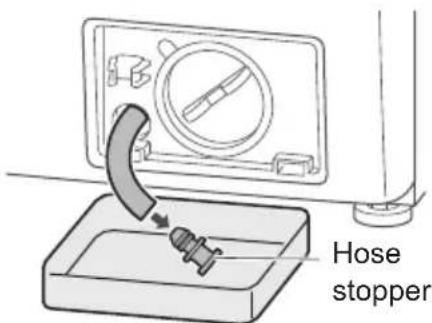

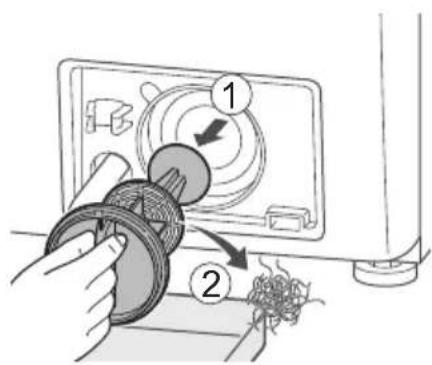

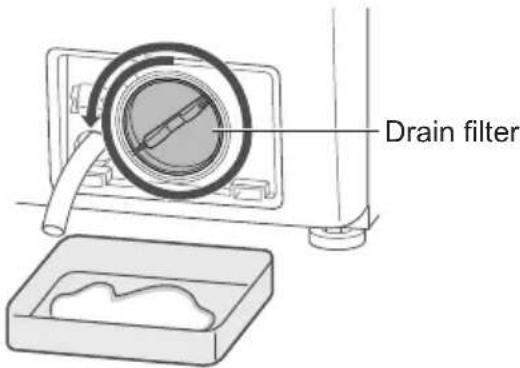

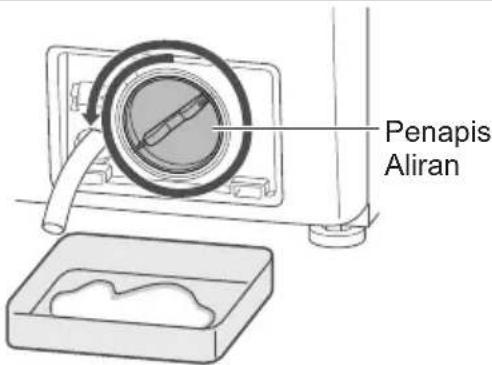

How often should I clean the drain filter?

Clean the drain filter every 5 cycles to prevent blockages. Remove the lower panel, unscrew the filter, clean it under running water, and replace.

Can I use liquid detergent with this machine?

Yes, you can use liquid detergent. Pour it into the main wash compartment (usually marked with II). Avoid overfilling.

How do I run a quick wash program?

Select the 'Quick Wash' program on the dial. It runs for approximately 15-30 minutes at 30°C. Suitable for lightly soiled clothes.

What does the 'Child Lock' function do?

The child lock prevents accidental pressing of buttons during operation. Activate it by pressing and holding the 'Child Lock' button for 3 seconds until the indicator lights up.

Why is there water leaking from the machine?

Check if the water inlet hose is properly connected. Ensure the drain hose is not blocked or kinked. Tighten the door seal if loose.

Where can I find spare parts for my Panasonic NA-V10FX2?

Spare parts are available through authorized Panasonic service centers and online retailers. Common parts include the drum belt, door seal, pump, and filter.

USER MANUAL NA-V10FX2 PANASONIC

Operating & Installation Instructions

Washing Machine (Household Use)

Model No.

NA-V11FX2 NA-V10FX2 NA-V90FX2 NA-V11FG2 NA-V10FG2

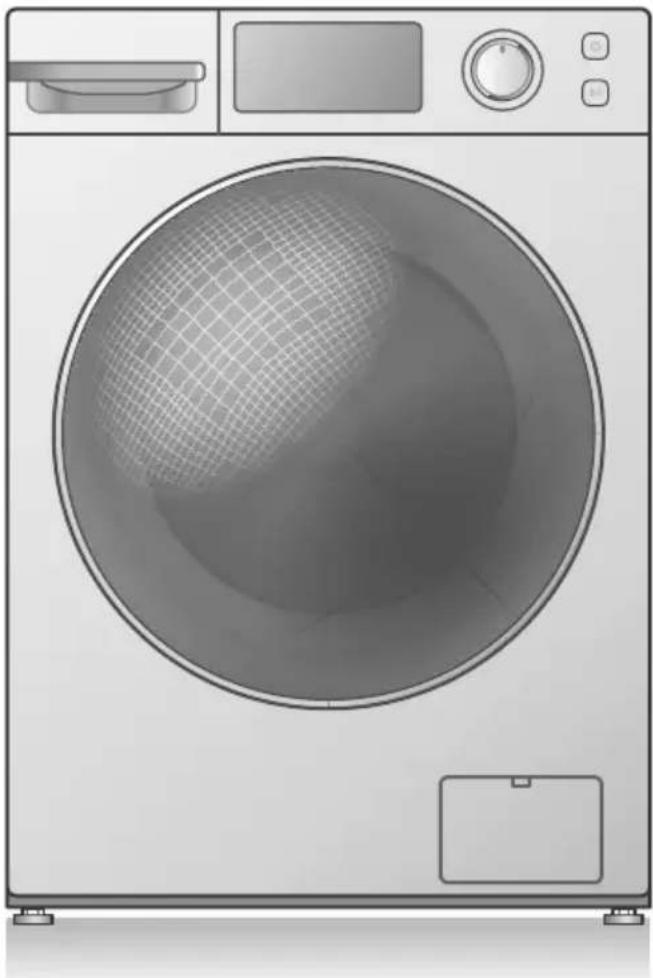

Illustration of a front-loading washing machine with a mesh spherical vent and control panel (no text or symbols)

EN

Contents

Safety Precautions		2
Checking Your Washing Machine		6
Before Washing		7
Control Panel		8
Detergent		10
Washing		12
Program List		14
Details of Programs		16
Washing Tips		18
Changing Program Settings		20
Changing Appliance Settings		26

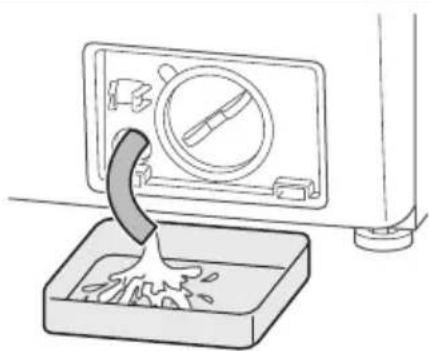

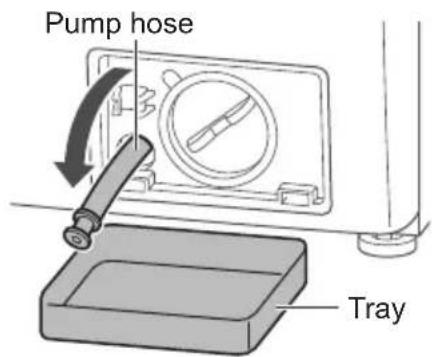

Maintenance		27
Troubleshooting		31
Error Display		37

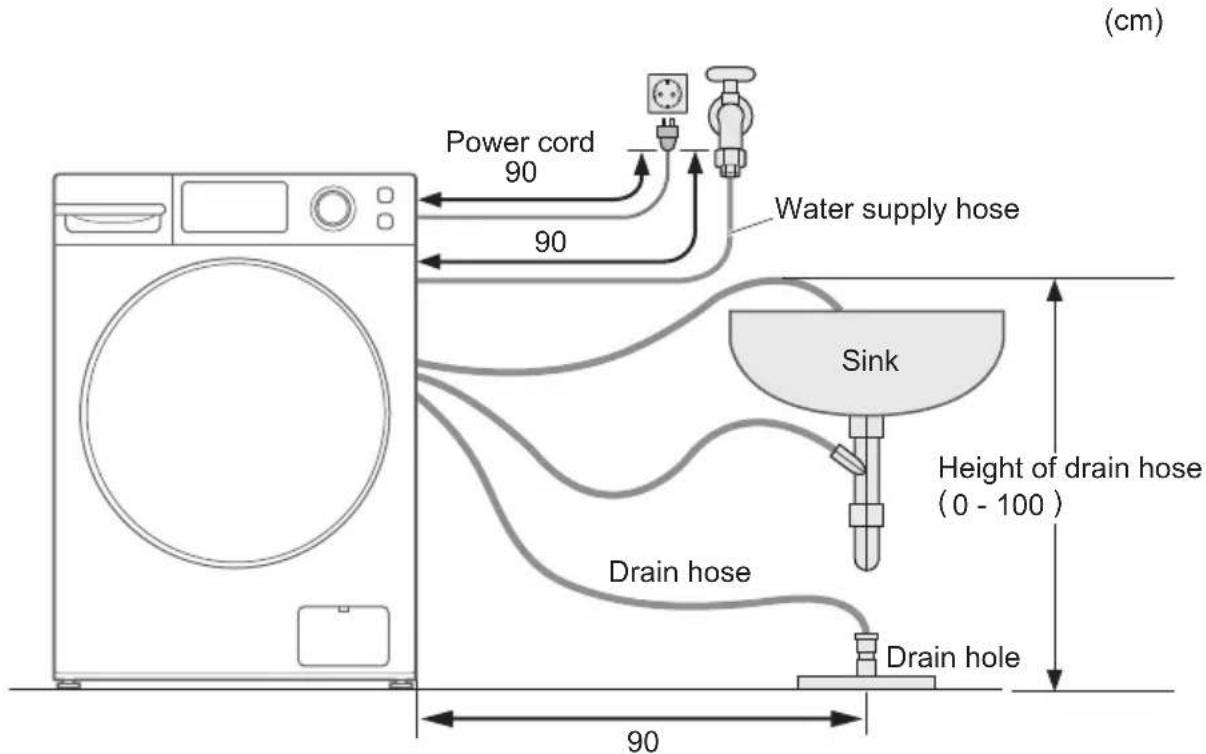

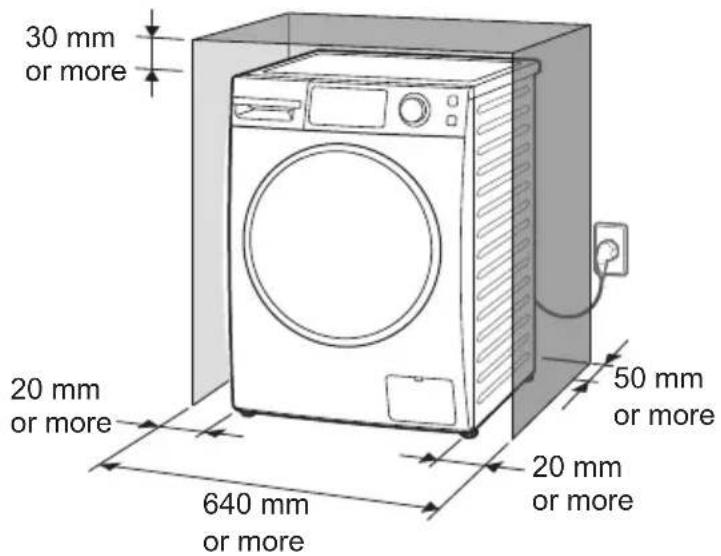

Installation	Choosing the Right Location	38

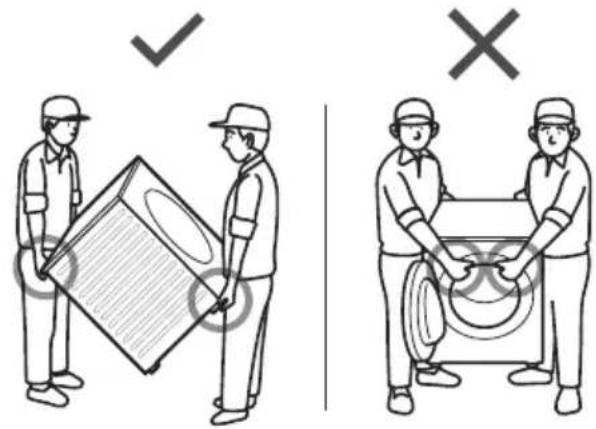

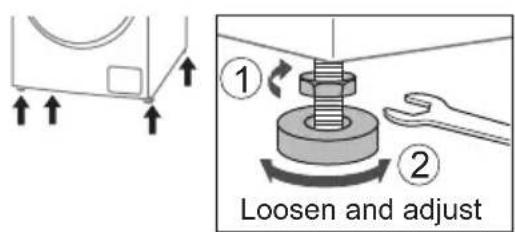

	Moving and Installing	39

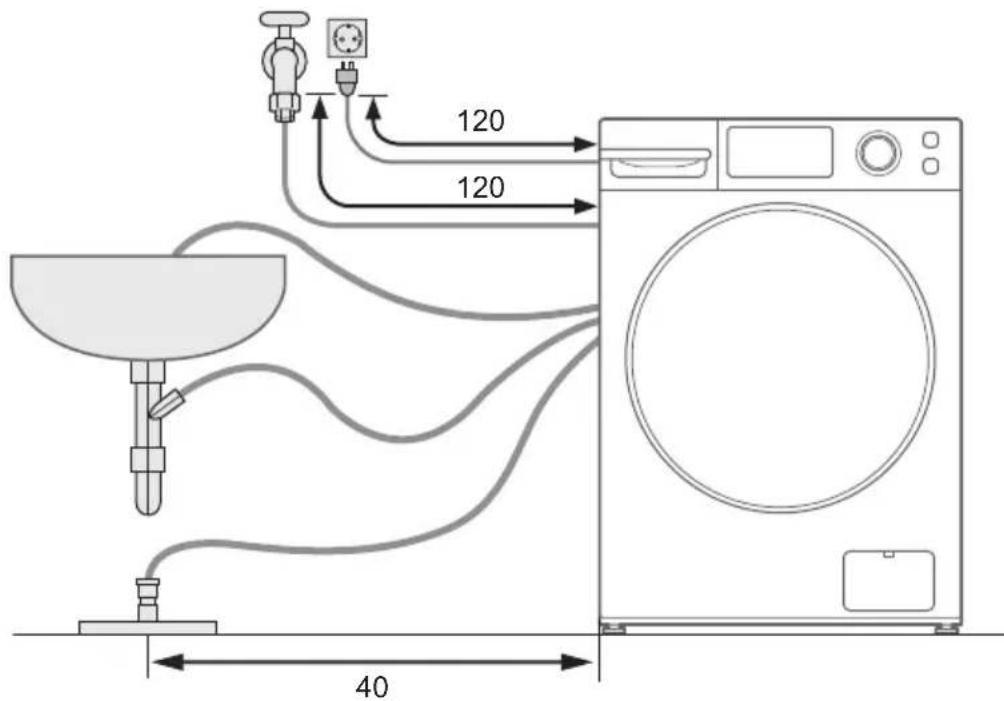

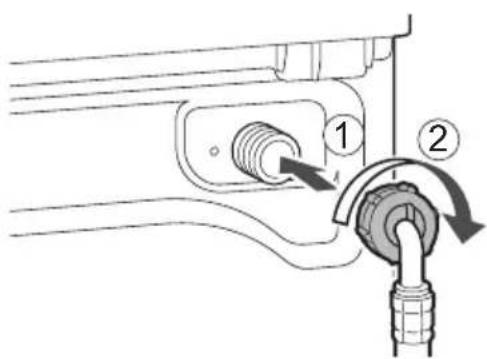

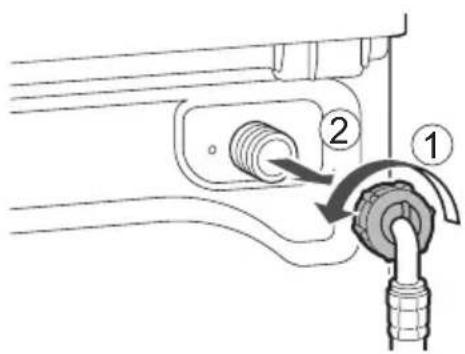

	Connecting the Hoses	41
	Test Run	43
Specifications		44

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Safety Precautions

WARNING

May cause serious injury or death

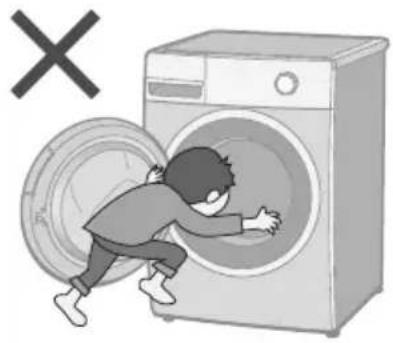

Children must not use it alone.

Illustration of a person opening a washing machine with a large circular component nearby (no text or symbols)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.

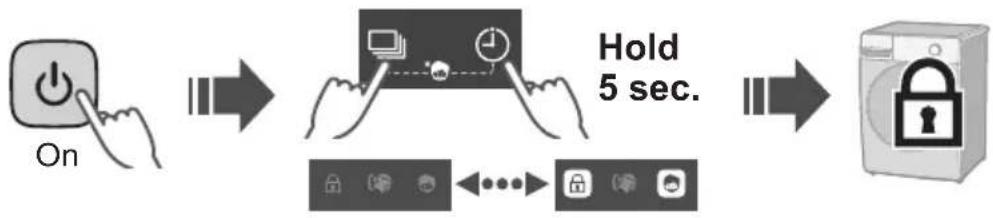

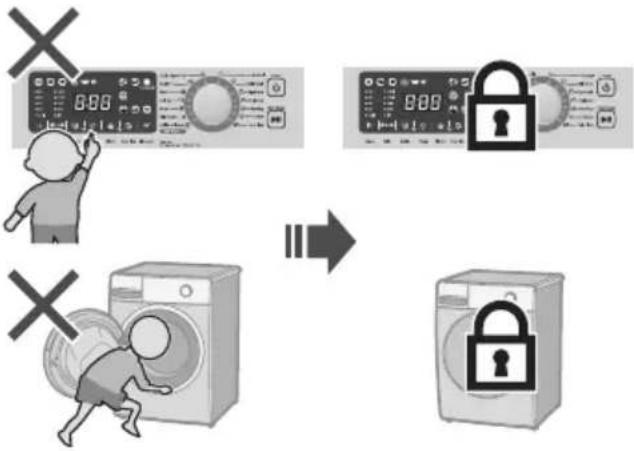

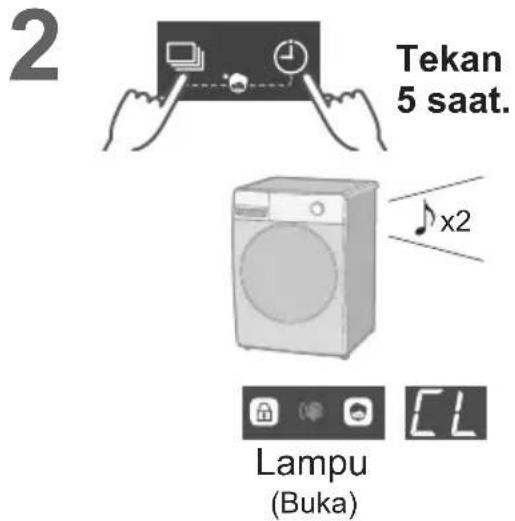

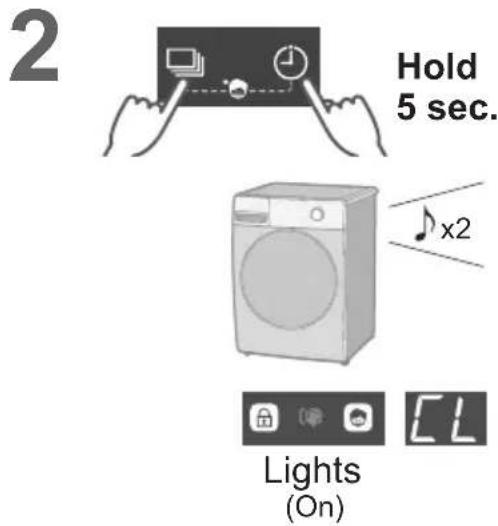

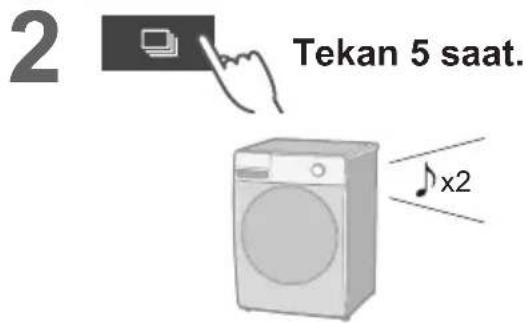

Setting the Child Lock. (P. 26)

May cause fire or electric shock

Do not touch it with wet hands.

Illustration of a hand holding a water droplet with a 'X' symbol above, no text or symbols present

Do not hold or pull on the cord.

Hand holding a wall-mounted device with a bulb, accompanied by a 'X' symbol and an arrow indicating direction (no text or labels present)

Do not use.

Fully insert it.

Two identical diagrams showing a hand holding a device with a cross mark above and a checkmark below (no text or symbols)

Do not use.

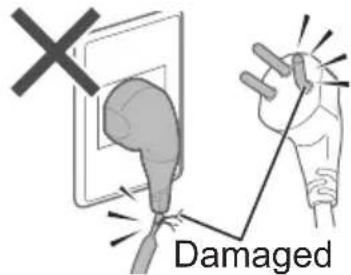

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

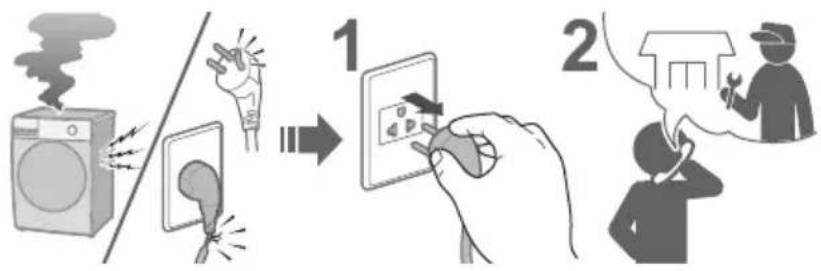

In case of failure or damaged power cord, stop use and ask the electrical technician.

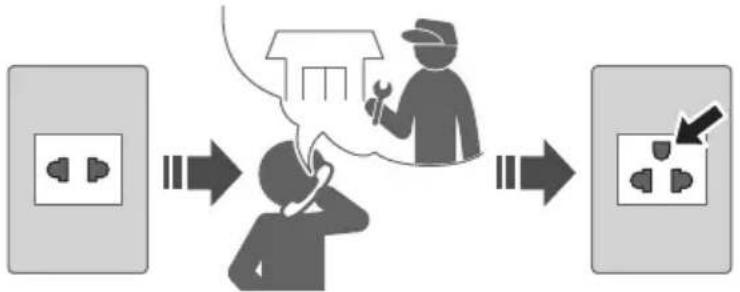

Securely insert the ground prong. Ask the electrical technician for a new socket.


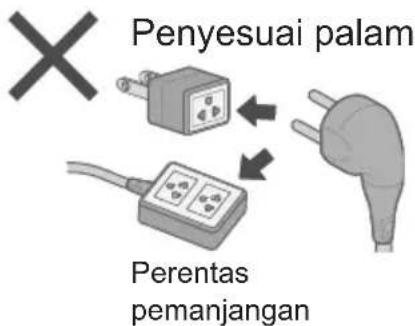

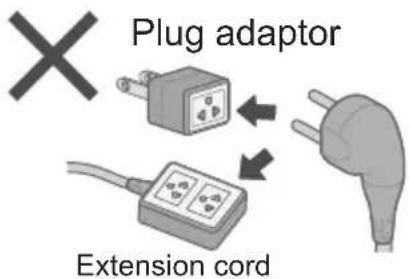

Use a socket appropriate for this appliance.

e.g.)

- The plug shape, socket shape and rating requirement vary with the region.

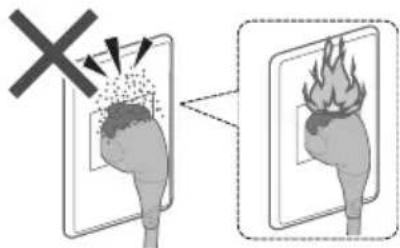

Accumulated dust may cause fire.

Wipe the power plug periodically.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Keep away from flammable materials.

May cause failure

Do not disassemble, repair or modify it by yourself.

Illustration of a washing machine with a person emitting waste from a pipe (no text or symbols)

Safety Precautions (continued)

CAUTION

May cause injury

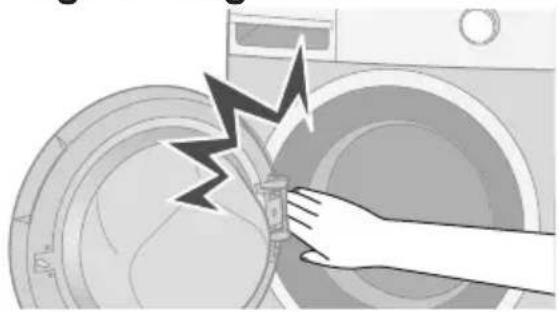

Be careful not to get your fingers caught.

Illustration of a hand pressing down on a washing machine with a warning symbol (no text or symbols present)

Do not climb on the appliance.

Illustration of a washing machine with legs and feet on top, marked with an 'X' symbol (no text or labels)

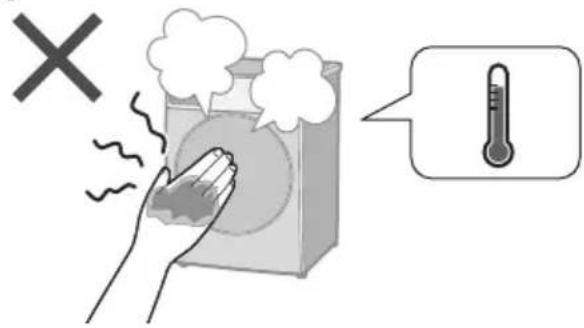

Do not touch when it is hot.

May cause water leakage

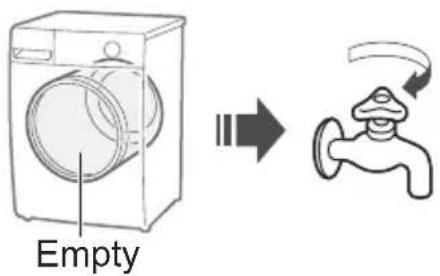

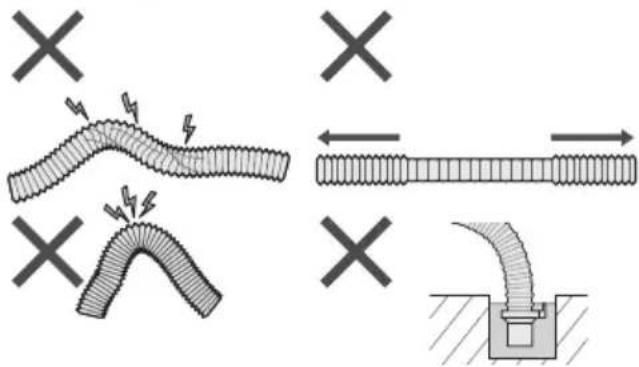

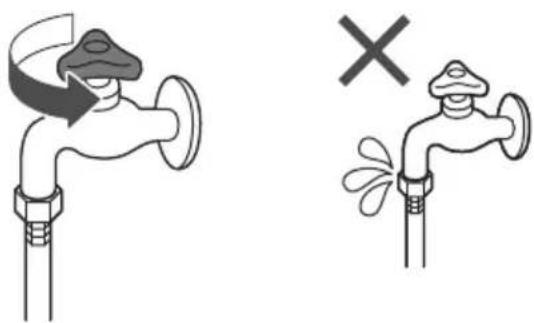

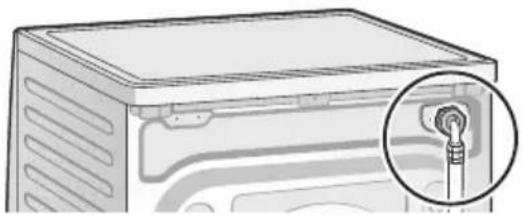

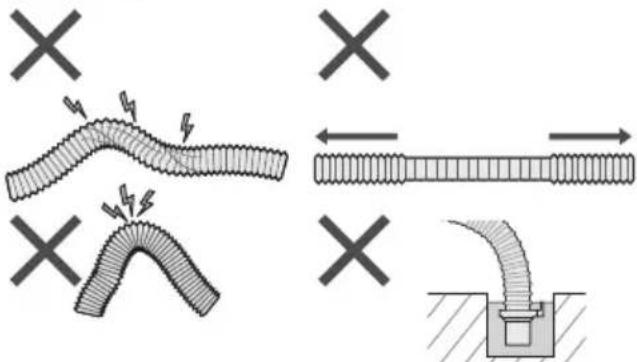

Turn off the water faucet. Use new hose-sets.

Illustration showing a washing machine, shower, and faucet with decorative sparkles (no text or symbols)

Simple line drawing of a cord with sparkles around it (no text or symbols)

- New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum mass of dry cloth and pressure of tap water, see P. 44.

May cause failure

Keep away from heat and direct sunlight.

Illustration of a washing machine emitting light rays toward a sun, with a 'X' symbol in the background (no text or symbols on the main image)

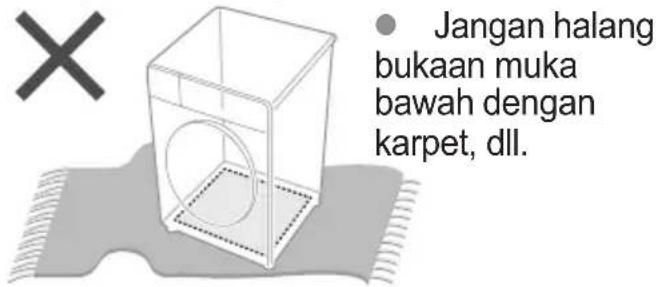

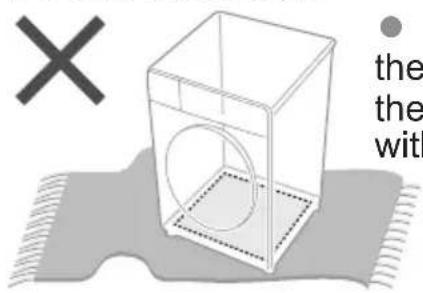

Do not obstruct.

- Do not obstruct the openings of the bottom face with carpet, etc.

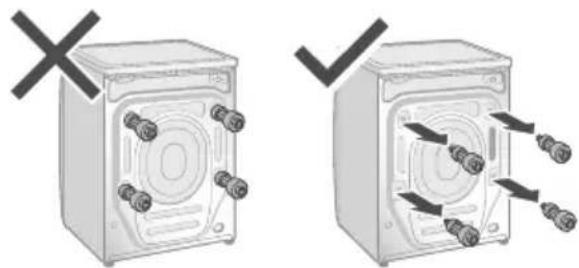

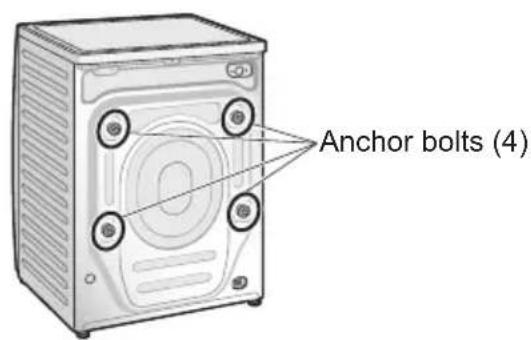

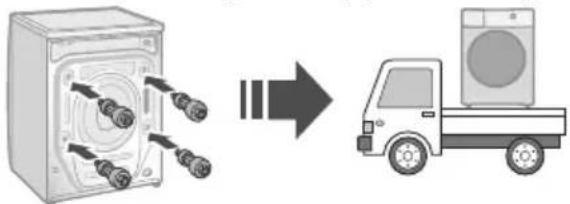

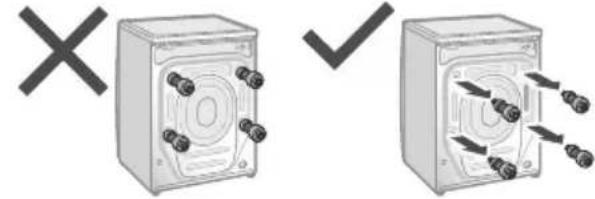

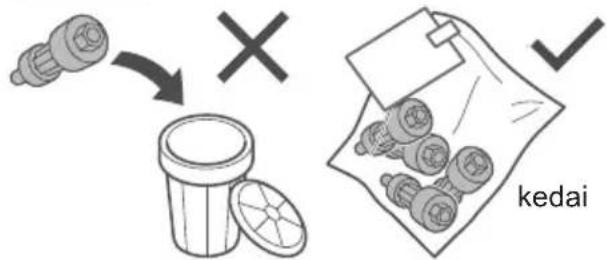

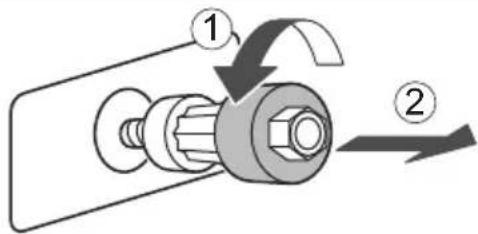

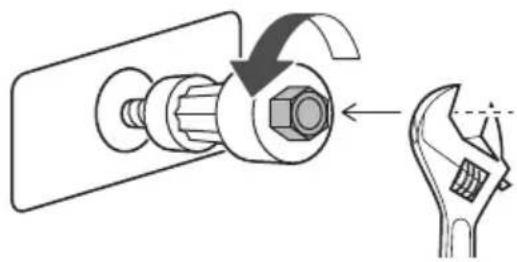

Remove anchor bolts before operation.

Two identical diagrams showing a device with multiple connectors and a switch, marked with X and ✓ symbols (no text or labels present)

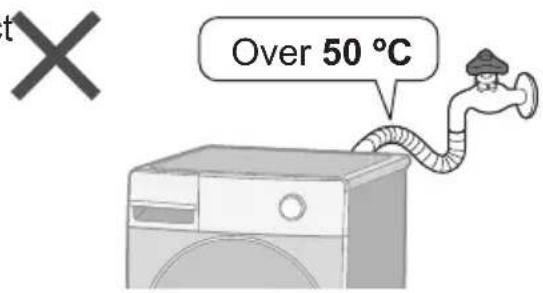

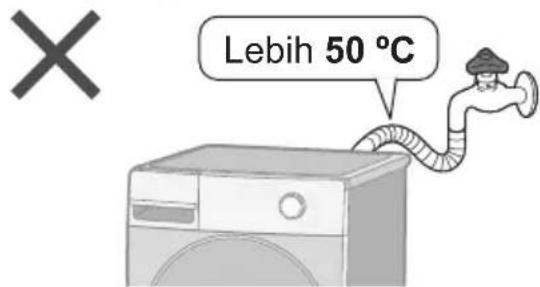

Do not use hot water.

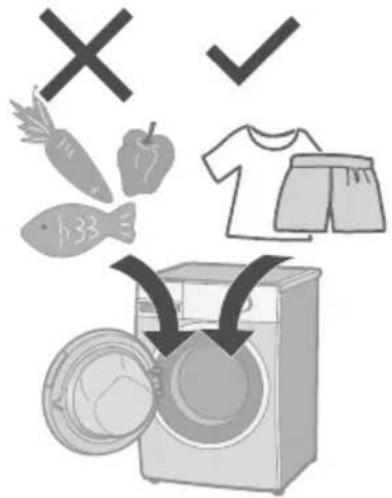

For machine-washable items only.

- This appliance is intended to be used in household.

This appliance is not intended to be used in applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

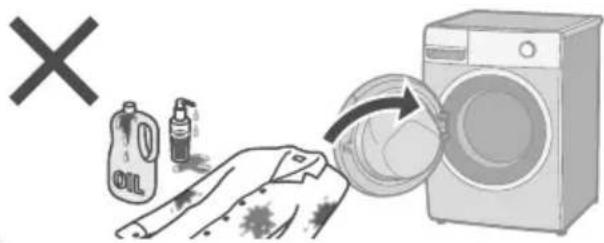

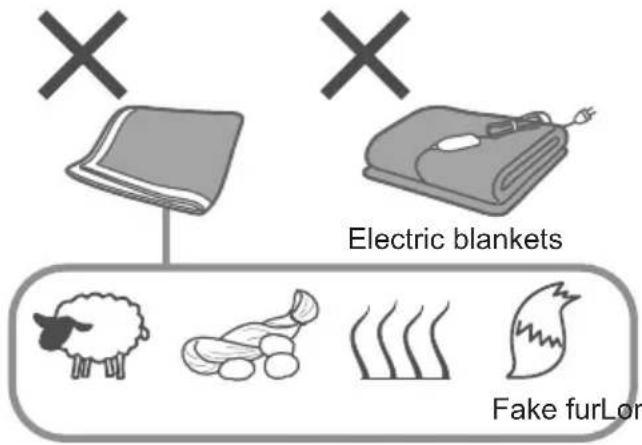

Do not wash excessively oily clothes.

Checking Your Washing Machine

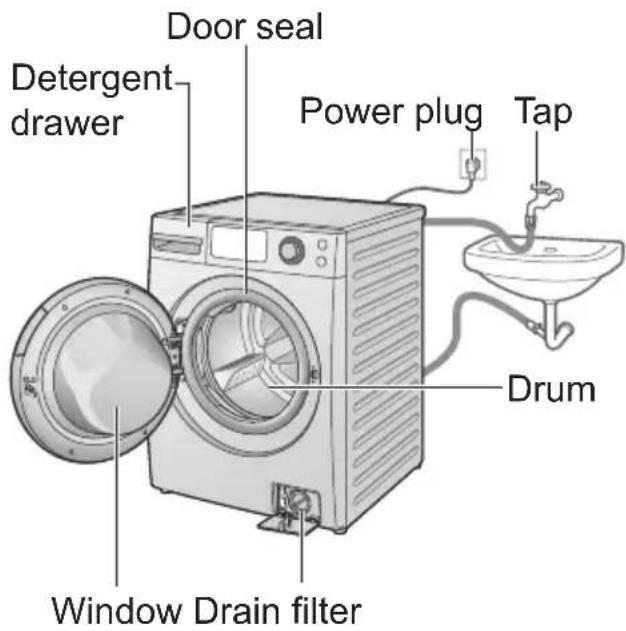

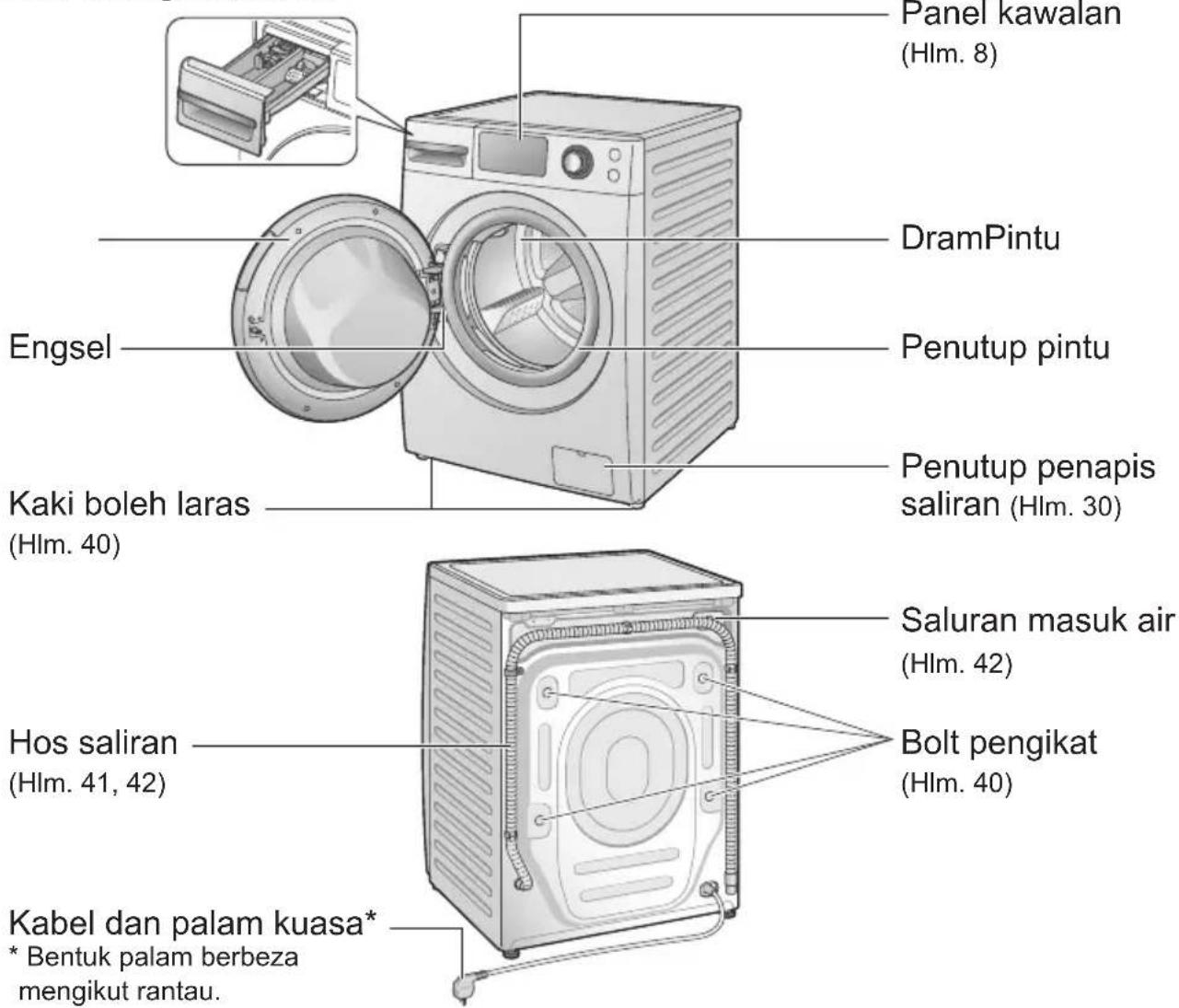

Part names

Detergent drawer (P. 10)

Accessories

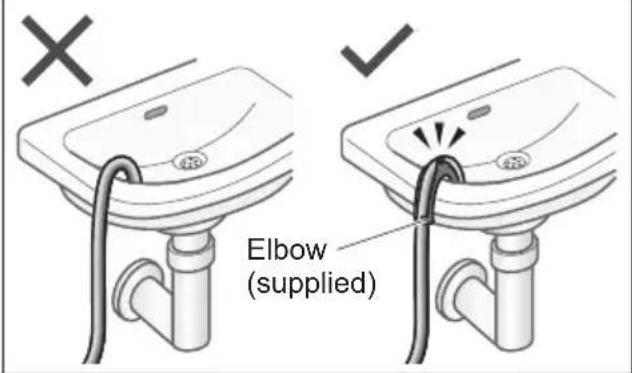

□ Elbow (1) (P. 42)

□ Cover caps (4) (P. 40)

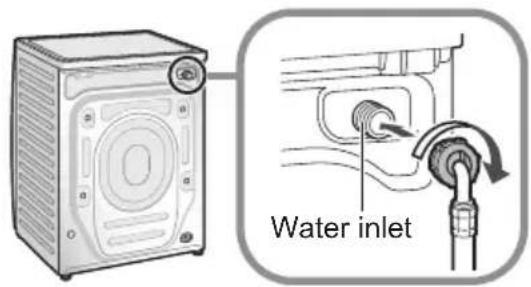

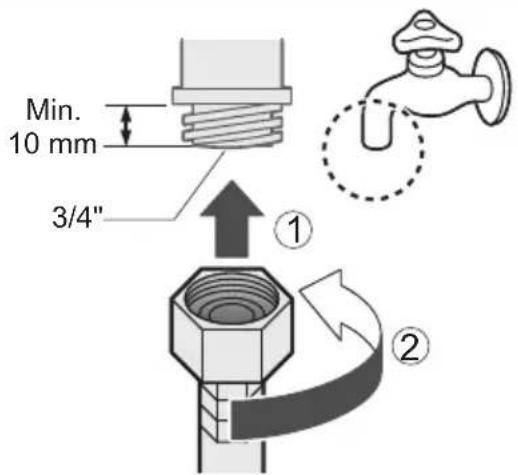

□ Water supply hose (1) (P. 41, 42)

Illustration of a coiled tube with two connectors (no text or symbols)

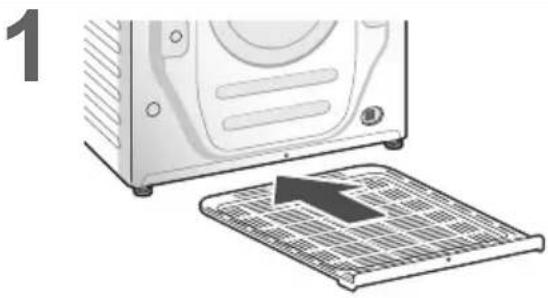

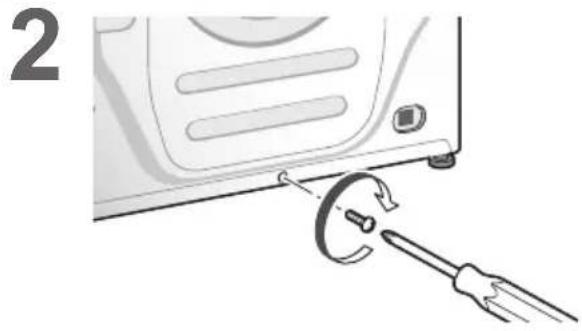

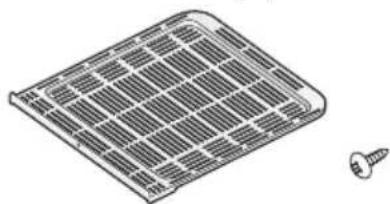

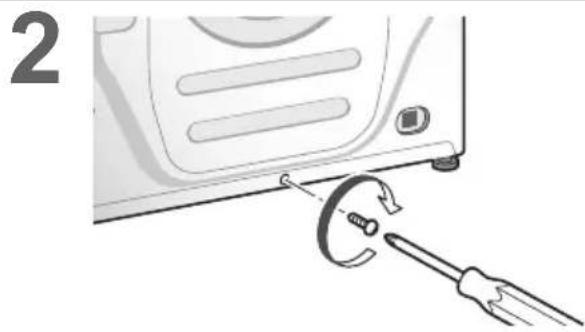

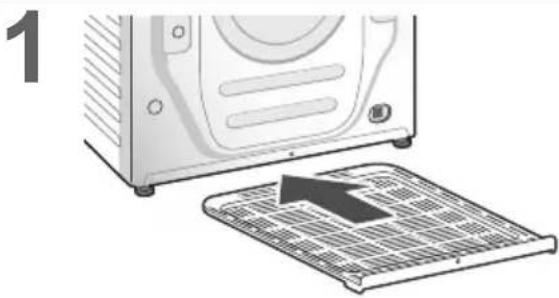

☐ Bottom cover (1) /Screw (1) (P. 39)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Before Washing

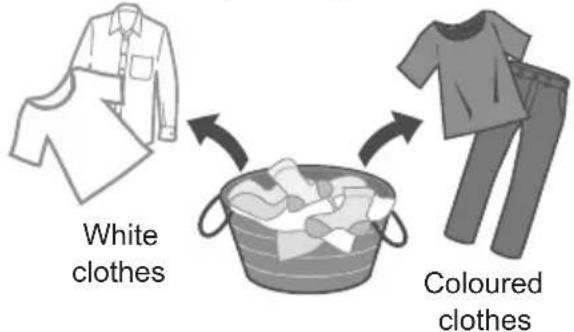

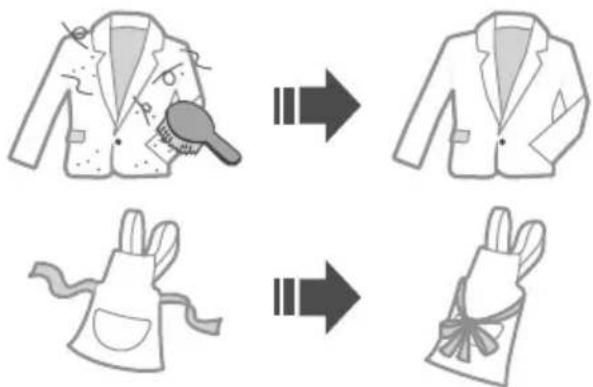

Preparing laundry

Before put clothes in drum

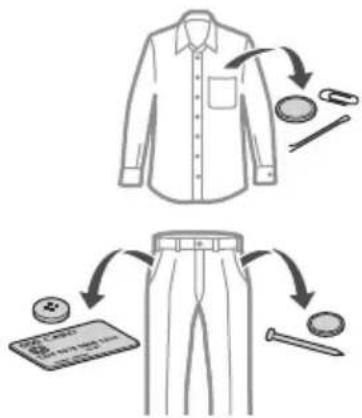

- Remove foreign objects.

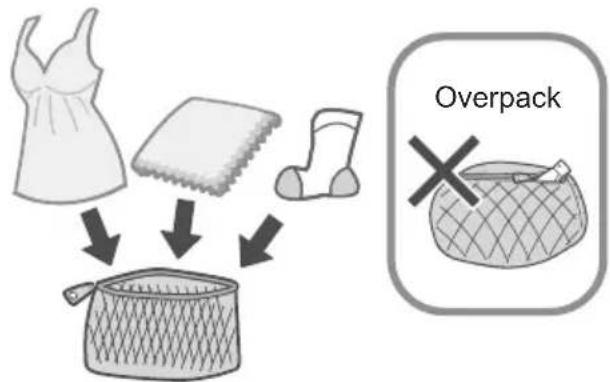

- Use laundry nets for delicates and small items.

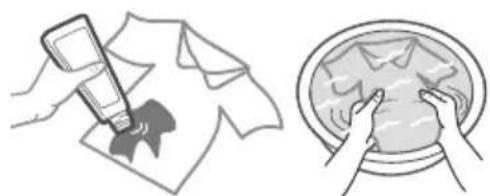

Pre-laundry check

Illustration of a jacket being folded, showing front and back views (no text or symbols)

Paper diapers

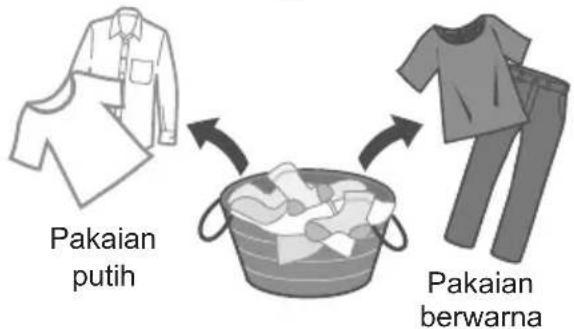

- Observe care labels.

- Wash separately.

- Pretreat for heavily stains.

Illustration showing a hand applying adhesive to a patterned fabric and a hand holding a bag with a circular inset (no text or symbols)

NOTE

- “Mud / Oily Sauce / Collar & Sleeve” programs (P. 15) are recommended for removing stains.

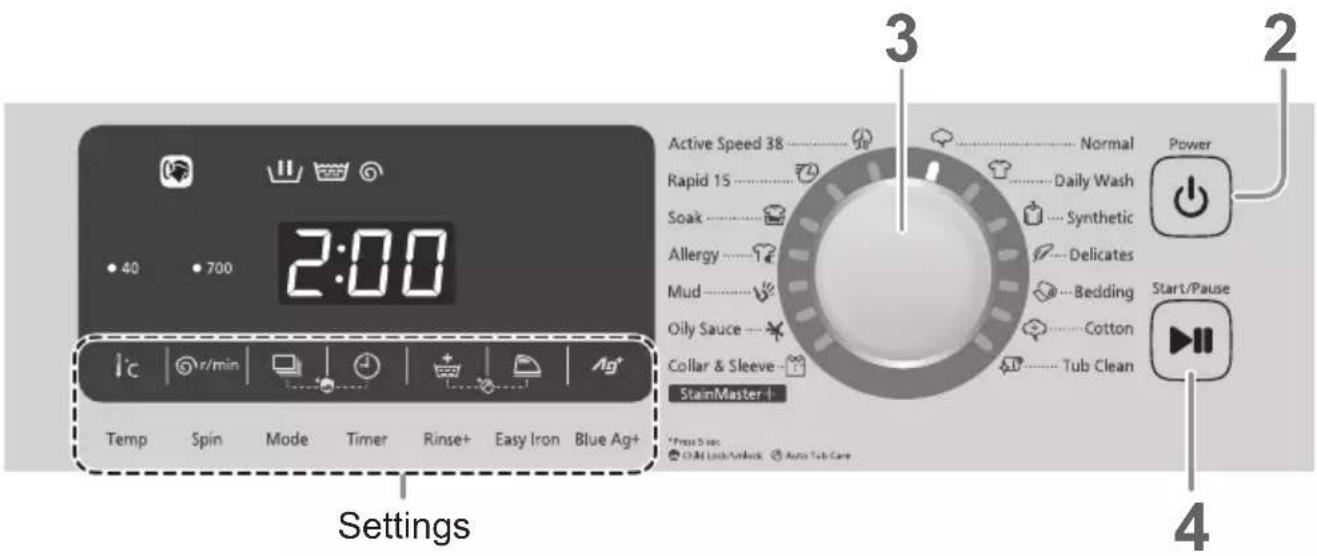

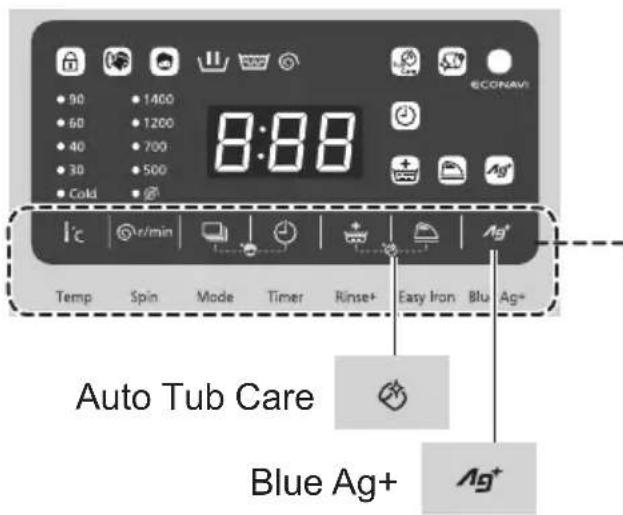

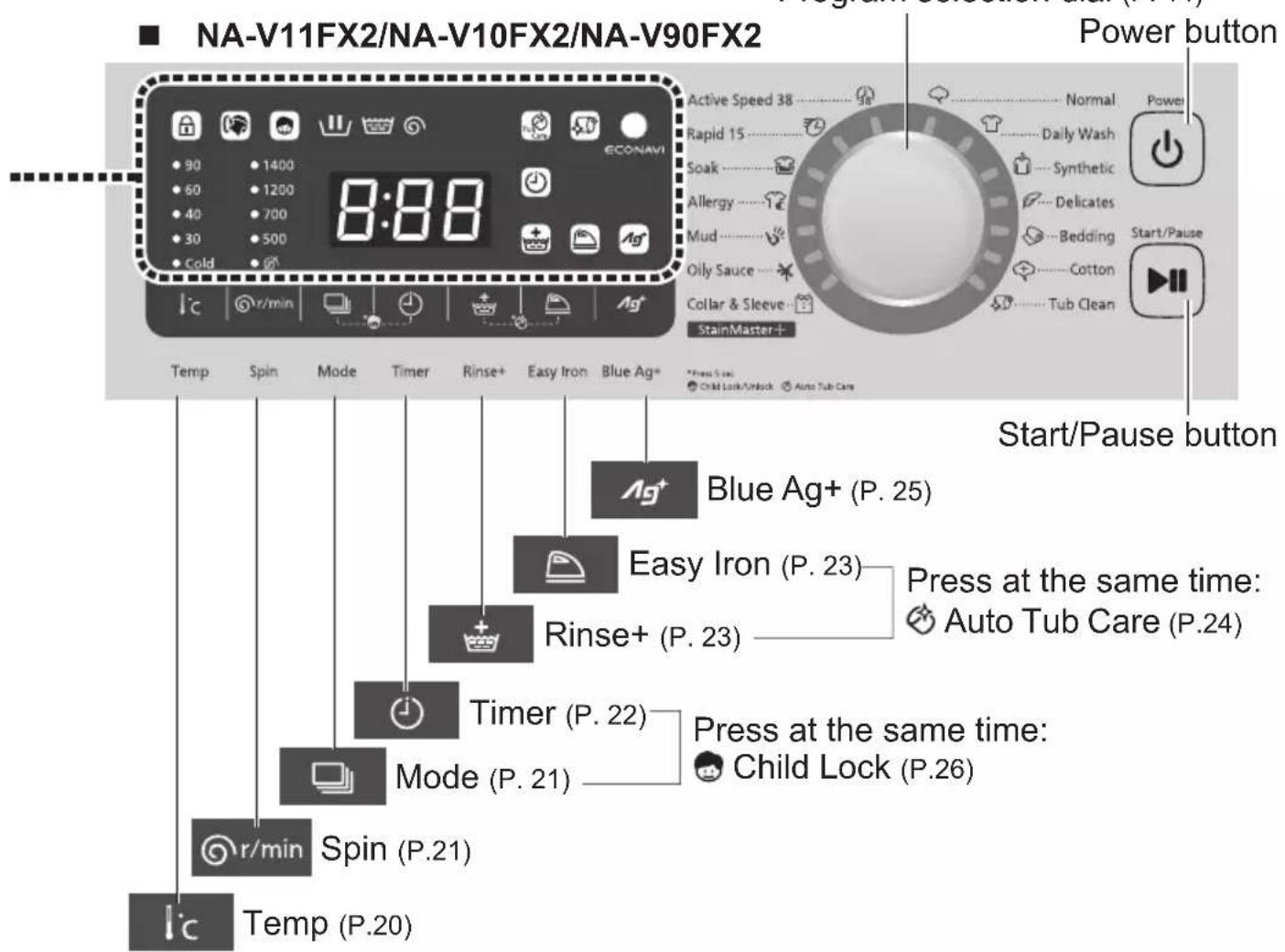

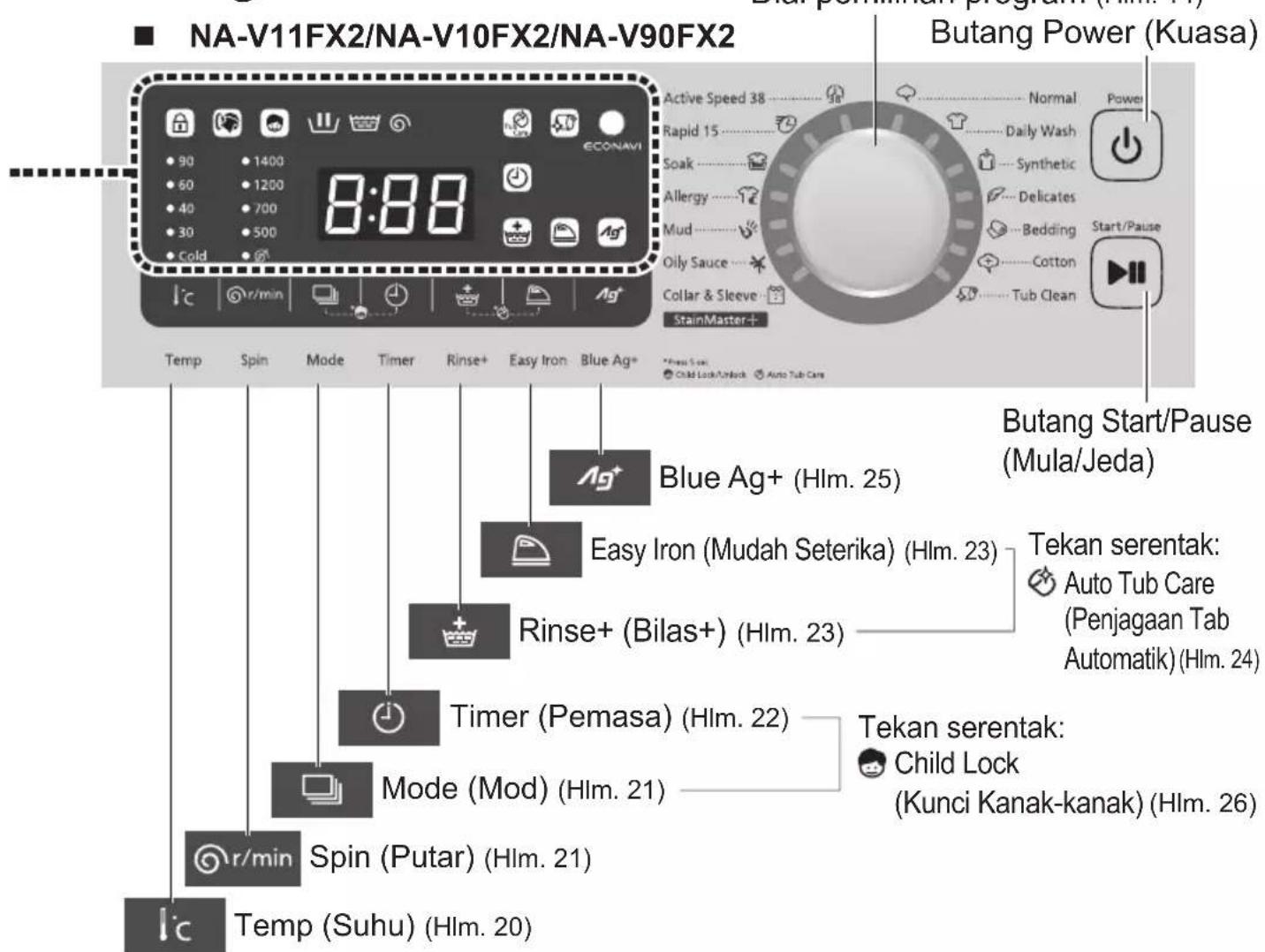

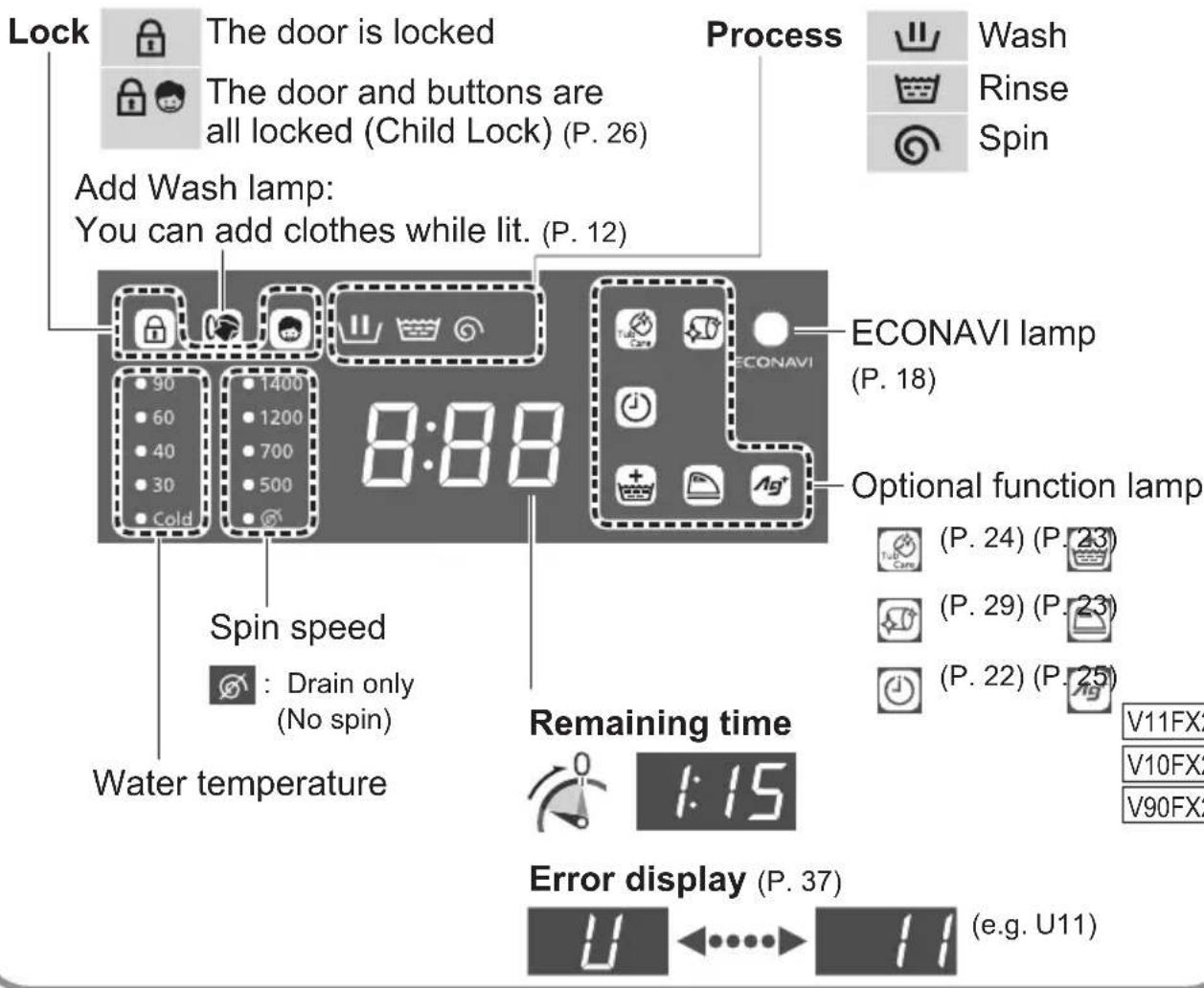

Control Panel

Images in these instructions are of the NA-V11FX2, unless otherwise indicated.

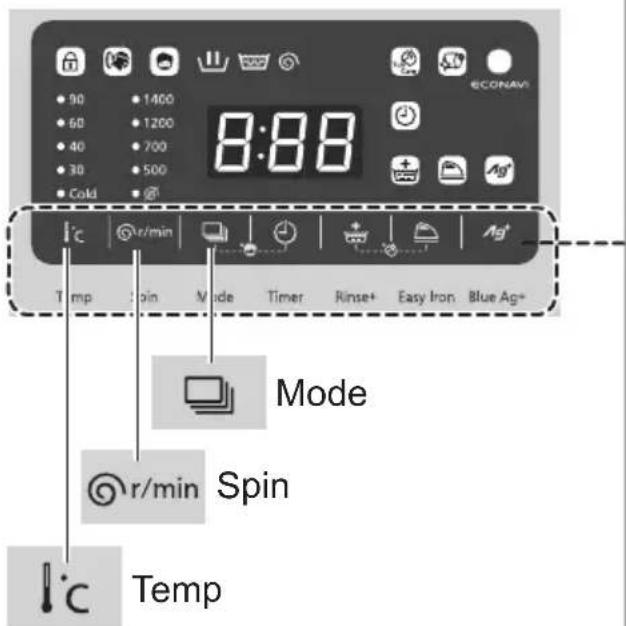

Display

■ NA-V11FG2/NA-V10FG2

Control buttons

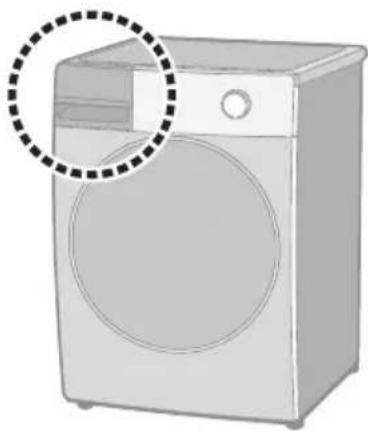

Touch operation

Operation buttons are capacitive (Except for ☐)

- If water, detergent or softener gets on, turn off and wipe off with a towel etc. immediately. (Cause of malfunction)

NOTE

- Turn off → back on

- No operation → auto power off

Auto Power off

In case of a power failure

When the power recovers, operation resumes from where it stopped. (Auto Restart)

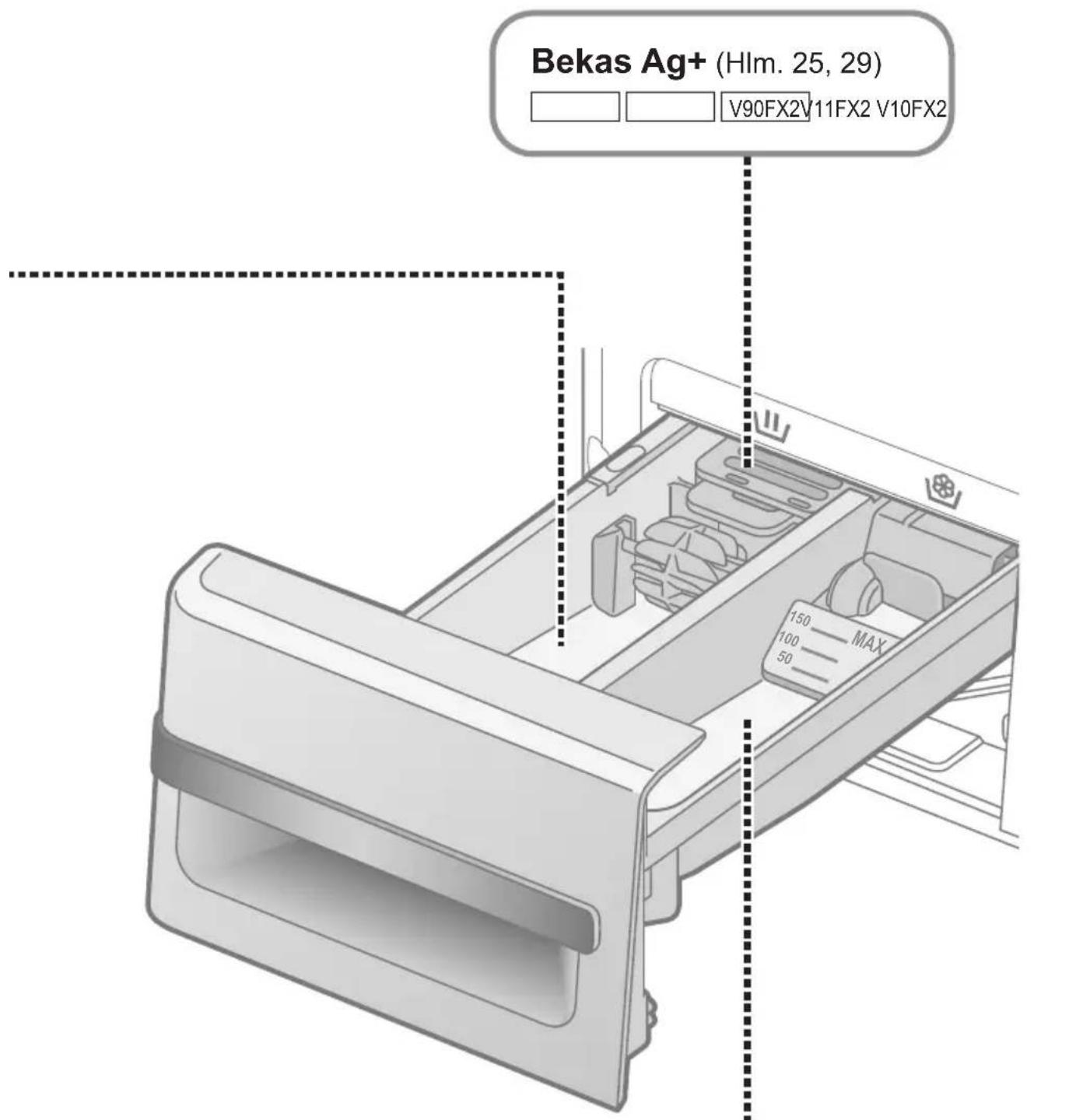

Detergent

Detergent

Use a low foam detergent.

● To prevent powder detergent from remaining in the detergent drawer:

Wet Dry

Illustration showing a bag pouring granular material into a container, and a hand holding a container with a whisk (no text or symbols)

Lumps Powder

- Follow the instructions on each package.

Detergent

Powder detergent Liquid detergent

Illustration of a bag with granular powder and a brush applying powder (no text or symbols)

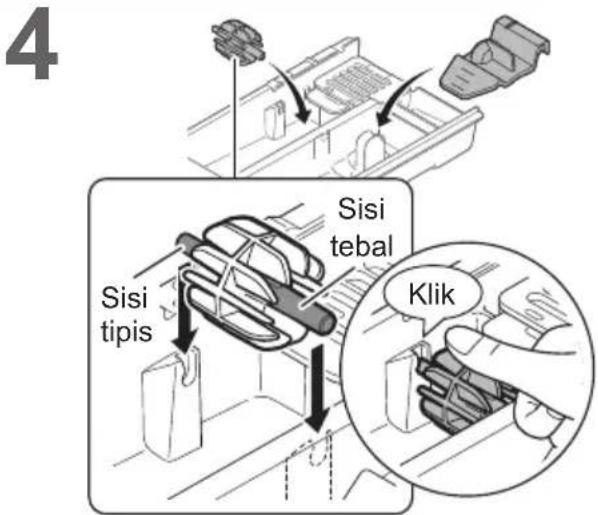

Bleach

Fabric softener

Hand holding a spoon inside a drawer with food being inserted (no text or symbols visible)

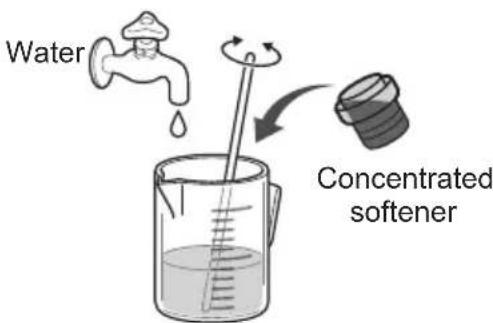

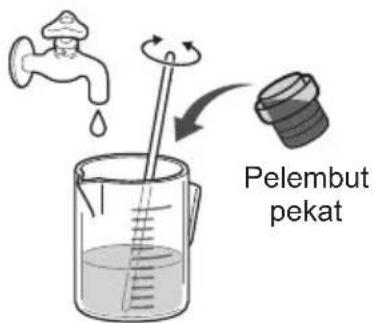

Separated or solidified softeners

Illustration of a washing machine with a circular inset highlighting the front portion (no text or symbols)

NOTE

Illustration of a washing machine with a checkmark and speech bubble (no text or symbols on the machine itself)

Fabric softener

Max. 150 ml

Washing

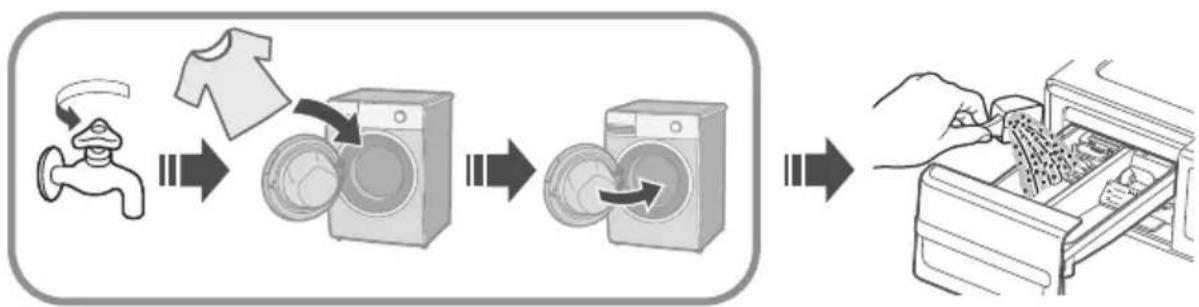

Basic Method

NOTE

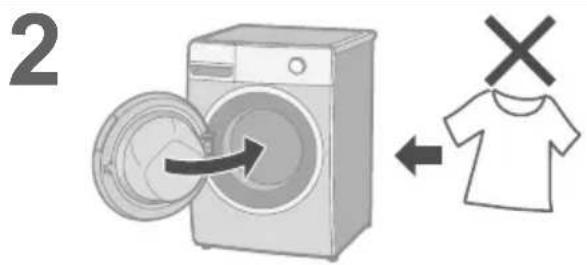

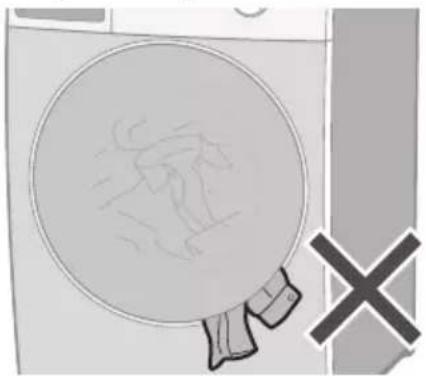

■ Do not let laundry get caught in the door.

Simple line drawing of a washing machine with a magnifying glass and a cross symbol (no text or labels)

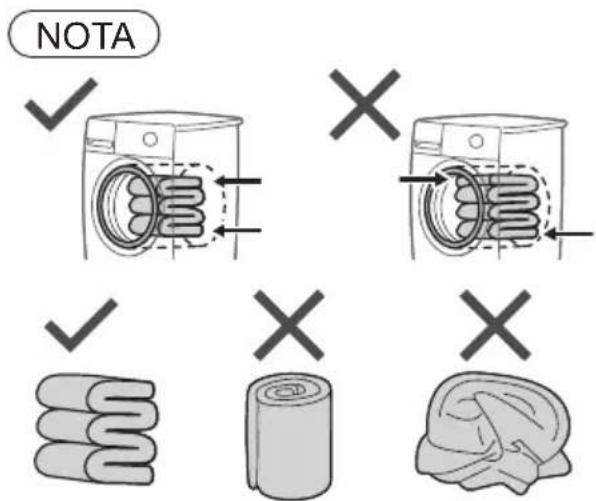

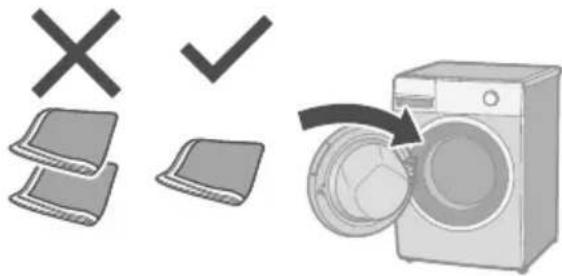

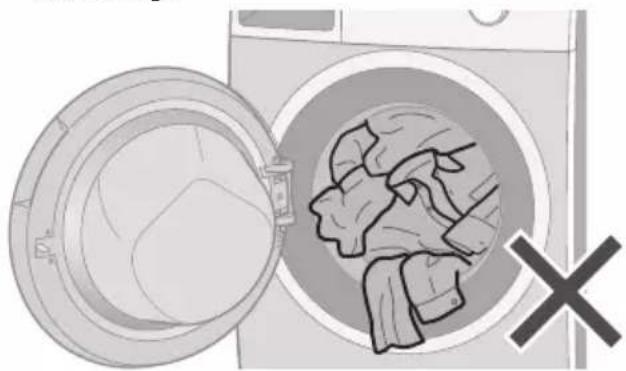

■ Do not overfill the drum with laundry.

Illustration of a washing machine with a door open and a close-up of clothes inside, no text or symbols present.

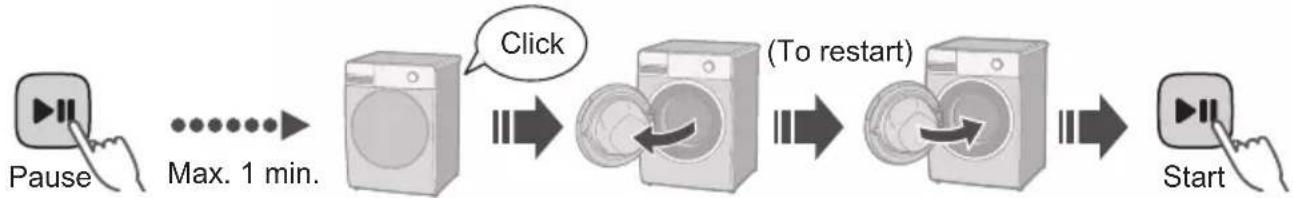

■ To open the door during operation

(You can add clothes when 📄it.)

NOTE

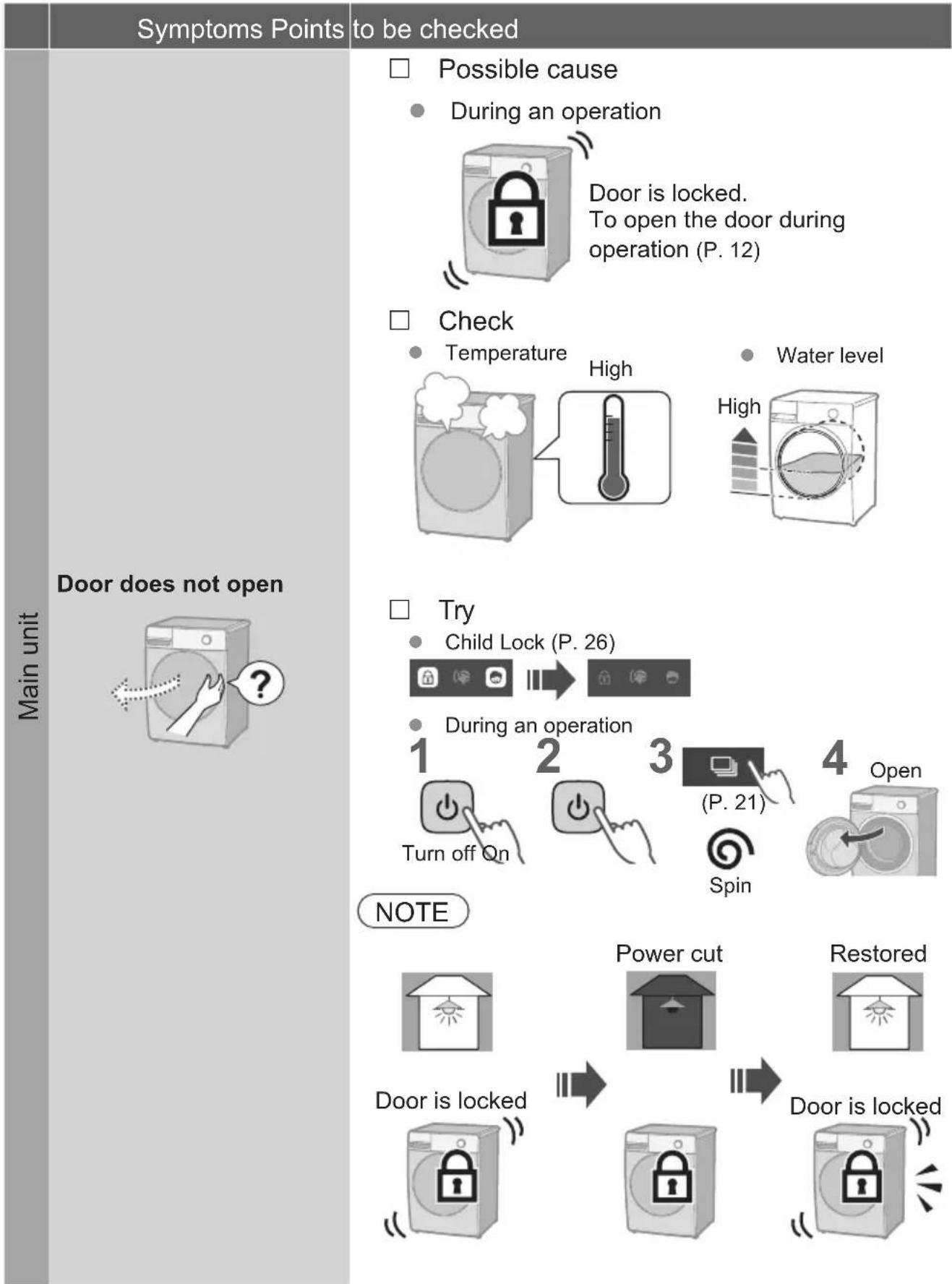

- Door does not open (P. 32)

1


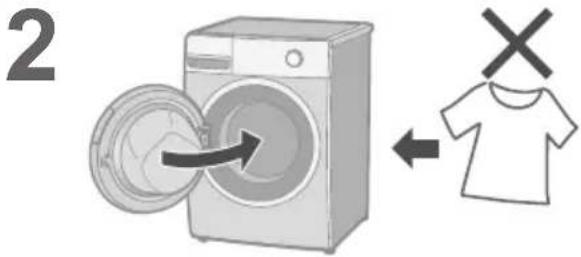

2

3

Select a program.
(P. 14)
■ Changing the settings.

4

Measures the amount of laundry

Except programs that do not weigh (P. 14)

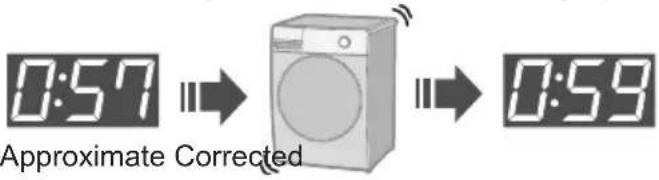

Displays the time required (recalculated)

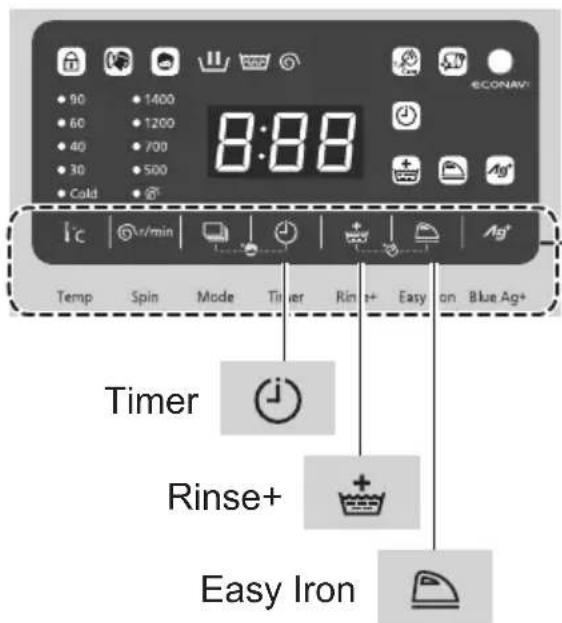

Settings

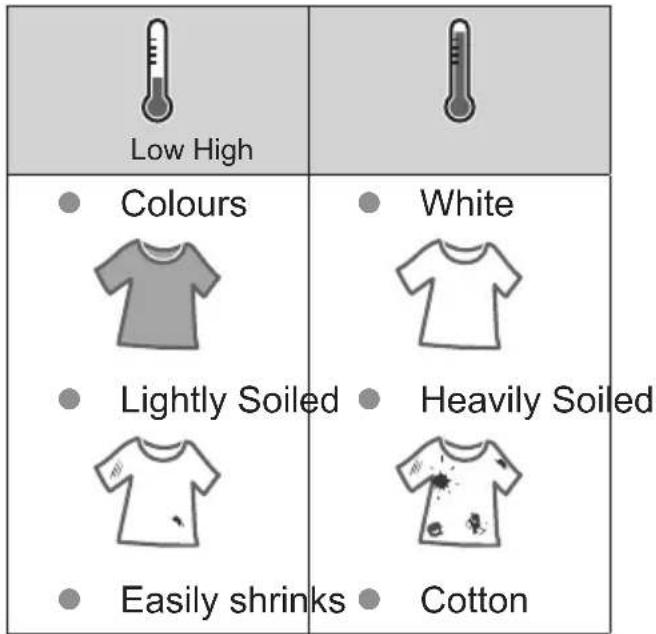

Temp (P. 20)

Spin (P.21)

Mode (P.21)

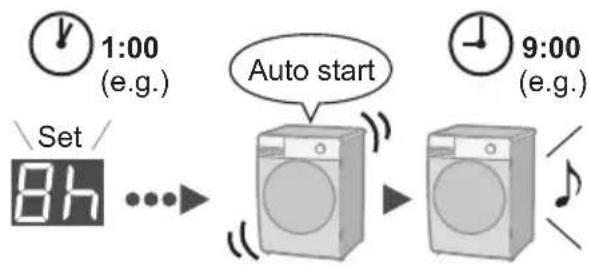

Timer (P.22)

Rinse+ (P. 23)

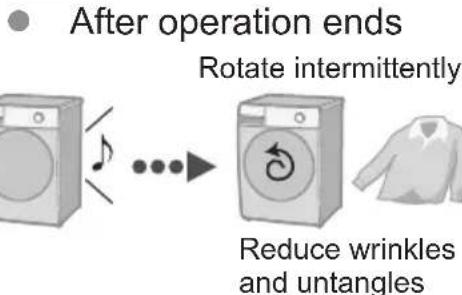

Easy Iron (P. 23)

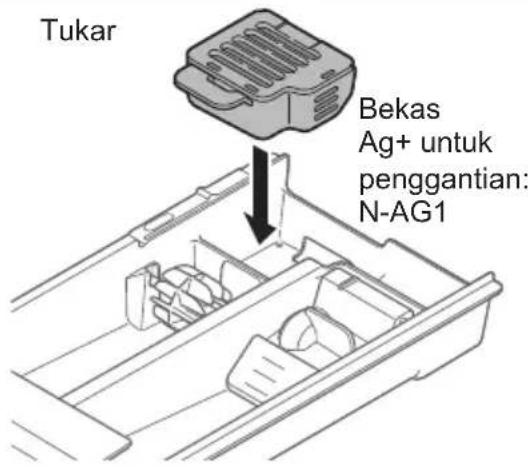

Blue Ag+

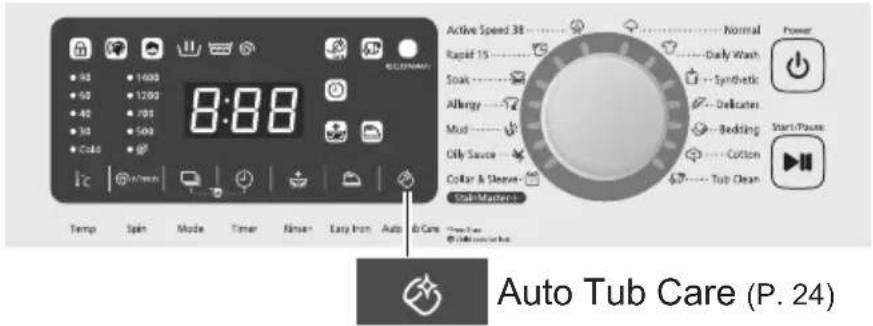

Auto Tub Care (P. 24)

5

Illustration of a washing machine with a door open, transforming into a shirt and a garment (no text or symbols)

Program List

Program Description		Max load (kg)			Total time
		V11FX2/V11FG2	V10FX2/V10FG2	V90FX2
Normal	Everyday clothes	11.0 10.0 9.0 2:30
Daily Wash	Everyday clothes (Quicker than “Normal” program)	11.0 10.0 9.0 1:30
[BT57] Synthetic	Chemical fibres	5.0 1:05
Delicates	Washing gently	2.0 0:50

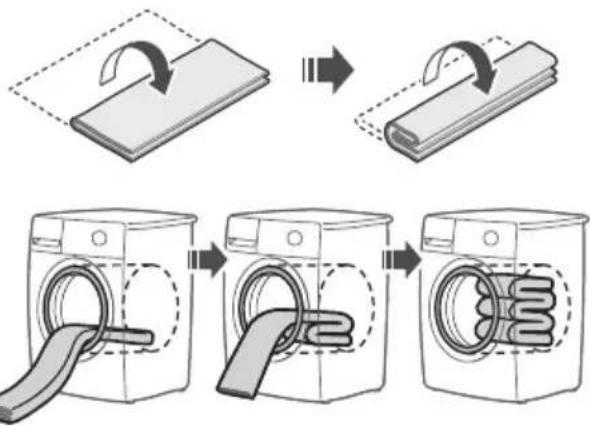

[CSZD] Bedding	Large items	3.0 1:30
Cotton	Gentle wash with extra time	11.0 10.0 9.0 3:00
Tub Clean	Cleaning the drum.	None 3:45

• Total time is approximate (When the standard water supply rate is 15 L / min). For each program's default water temperature.
• Programs that the load is not weighed after pressing "Start/Pause": Synthetic, Deliates, Bedding, Rapid 15

Program Description		Max load (kg)			Total time
		V11FX2/V11FG2	V10FX2/V10FG2	V90FX2
Active Speed 38	Small loads	5.0 0:38
Rapid 15	Small loads of lightly soiled	2.0 0:15
Soak	Heavily-soiled clothes	5.0 2:00
Allergy	For ticks and pollen	11.0 10.0 9.0 3:15
Mud		11.0 10.0 9.0 3:20
Oily Sauce		11.0 10.0 9.0 3:00
Collar & Sleeve		11.0 10.0 9.0 3:10

Details of Programs

Settings Program		Auto setting
		Temp (°C)	Spin (r/min)
	Normal	40 1200
	Daily Wash	40 1200
	Synthetic	30 700
	Delicates	30 500
	Bedding	Cold 700
	Cotton	60 1400
	Tub Clean	40 1200
	Active Speed 38	40 1200
	Rapid 15	Cold	1200
	Soak	40 1200
	Allergy	90 1200
	Mud	40 1200
[S2CT]	Oily Sauce	40 1200
	Collar & Sleeve	40 1200

NOTE

• For normally soiled laundry at the rated capacity, we recommend using the "Cotton, 60 °C, 1400 r/min" which is tested in accordance with IEC 60456 for the energy and water efficiency aspects.
• Actual water temperature may differ from the declared cycle temperature.
• The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and amount of load, degree of soiling, utilized detergent, fluctuations in the main electricity supply and chosen additional options.

functions
e Timer Rinse+					Easy Iron	Blue Ag+	Auto Tub Care
Cold, 30, 40, 60	500, 700, 1200, 1400	√	√	√	√	√
Cold, 30, 40, 60	500, 700, 1200, 1400	√	√	√	√	√
Cold, 30, 40	500, 700, 1200	√	√	√	√	√
Cold, 30, 40	500	√	-	√	-	√	-
Cold, 30	500, 700	√	√	√		√	-
Cold, 30, 40, 60	500, 700, 1200, 1400	√	√	√	√	√
40	1200	-	-	-	--	-
Cold, 30, 40	500, 700, 1200, 1400	√	√	-	√	√	√
Cold	500, 700, 1200	-	√	-	--	-
Cold, 30, 40	500, 700, 1200, 1400	√	√	√	√	√
60, 90	500, 700, 1200	-	√	√	√	-	√
40	500, 700, 1200, 1400	√	√	√	√	√
40	500, 700, 1200, 1400	√	√	√	√	√
40	500, 700, 1200, 1400	√	√	√	√	√

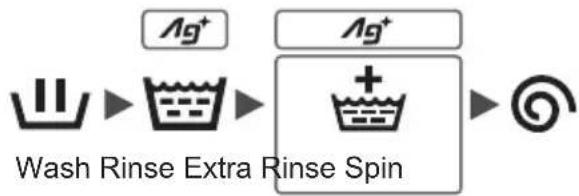

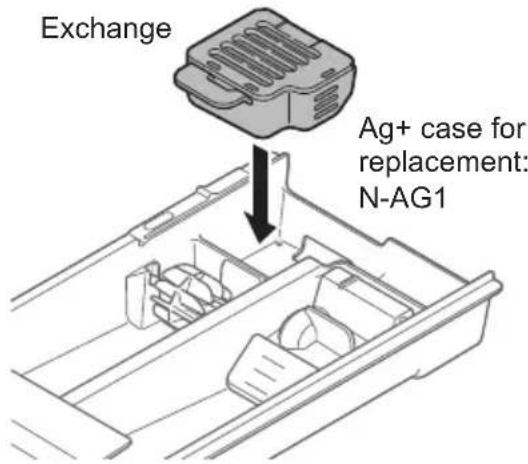

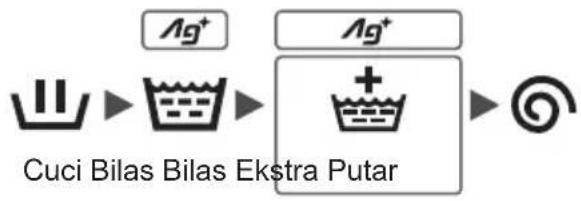

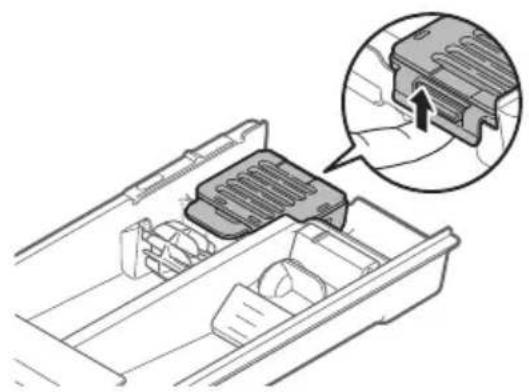

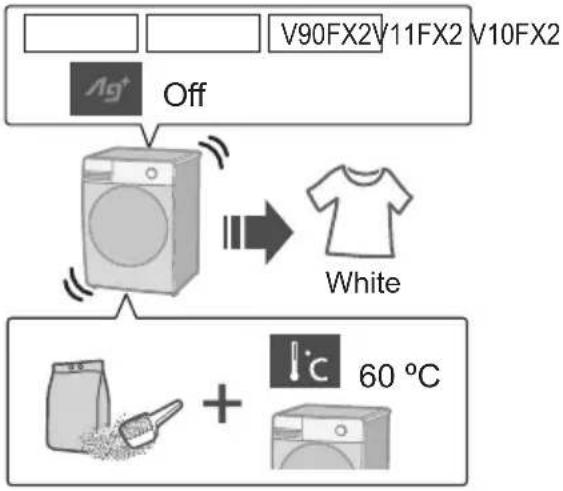

Blue Ag+:
V11FX2 / V10FX2 / V90FX2

Washing Tips

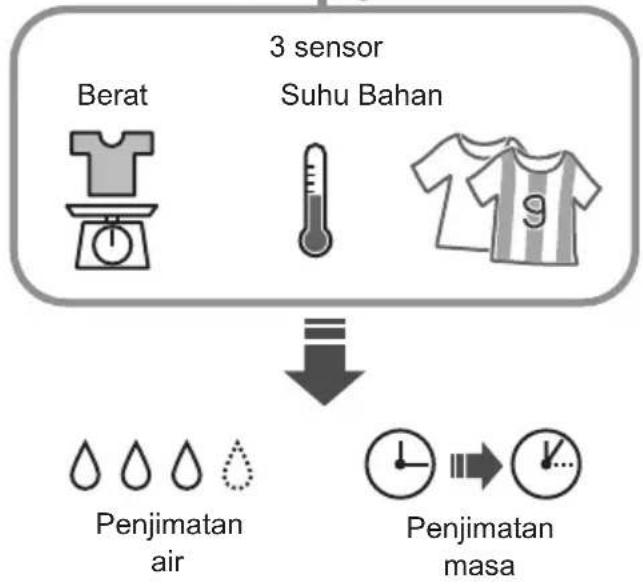

ECONAVI

- “Normal” program only

3 sensors

Weight Temperature Material

Time savingWater saving

Delicates

■ When washing
- To rinse fully, use the "Rinse+" function. (P. 23)

NOTE

Bleach

Liquid detergent for delicates

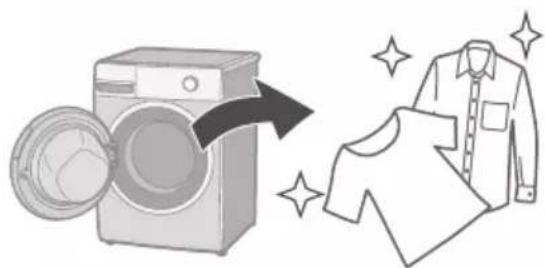

■ After operation ends

Take out immediately

Illustration of a washing machine with an open refrigerator (no text or symbols)

■ Lamp indications

Detecting

ECONAVI enabled

ECONAVI disabled

Bedding

■ Washable items

(Wash)

(Handwash)

100 % cotton or 100 % synthetic

Simple line drawing of a bed with a checkmark indicating completion (no text or symbols)

Sheets, bedspreads, undersheets

Blankets

■ Not washable items

■ Putting blankets into the drum

NOTE

NOTE

Changing Program Settings

■ Preparing

• Sort the laundry and put it into the drum. (P. 7)
• Add the detergent. (P. 10)

1

2

(P. 14)

3

Change the program's settings.

● Available options and setting ranges are different depending on the program. (P. 16)
- An alarm sounds if you select an option that is unavailable.

4

!c Temp

Change the washing temperature.

Two thermometer illustrations with gradient shading, no text or symbols present

Low High

Setting guide

3

r/min Spin

Change the spin speed.

Low High

Setting guide

Low	High
● To reduce wrinkling	● To dry more thoroughly

3 r/min (P. 17)

■ To change the setting while washing

Mode

Select a combination of wash, rinse and spin.

(e.g.)

Wash SpinRinse

3

*1	Wash
*2	Rinse
*2	Spin
	Wash and rinse
	Wash and spin
*2	Rinse and spin

*1 Water is drained after wash process.
*2 Drains first if there is water in the drum.

Changing Program Settings (continued)

■ Preparing

• Sort the laundry and put it into the drum. (P. 7)
• Add the detergent. (P. 10)

1

2

(P. 14)

3

Change the program's settings.

● Available options and setting ranges are different depending on the program. (P. 16)
- An alarm sounds if you select an option that is unavailable.

4

Timer

Set how many hours later to finish operation. (Up to 24 hours)

3

Press or hold

(e.g.)

■ To check a preset time

■ To cancel settings

(All settings are cancelled)

NOTE

All indications turn off except

Not available: P. 17

Rinse+

Add an extra rinse.

Easy Iron

Gentle spindry (at 700 r/min or less) makes ironing easier.

3

Goes out (Off)

Lights (On)

3

Goes out (Off)

Lights (On)

■ To change the setting while washing

1

2

3

NOTE

* WASH programs: Up to 30 min.

(To take out the laundry during operation)

Changing Program Settings (continued)

■ Preparing

• Sort the laundry and put it into the drum. (P. 7)
• Add the detergent. (P. 10)

1

2

(P. 14)

3

Change the program's settings.

● Available options and setting ranges are different depending on the program. (P. 16)
- An alarm sounds if you select an option that is unavailable.

4

Auto Tub Care

Add tub cleaning process.

Line drawing of a washing machine with a circular button and decorative ring (no text or symbols)

3

V90FX2V11FX2 V10FX2

Hold 5 sec.

V11FG2 V10FG2

NOTE

• The setting is memorized.

Ag+ Blue Ag+

V90FX2V11FX2 V10FX2

Bacteria elimination function (Max. 3 kg).

3

■ Service life for Ag+ case

• “Blue Ag+” works for about 300 to 350 times (for about 7 years if used once a week).
• Replace the case when the contents are decreased.

- Replace

→ (P. 29)

Wash without "Ag+"

NOTE

- Do not use the water for other purposes.

• The kind of clothes, detergent, softener, and water hardness may affect the result.
• Stop use if itchy, etc.

Changing Appliance Settings

Setting the Child Lock

■ To cancel:

Same procedure ♪ x4

Goes out (Off)

Cancelling the buzzer

■ To reset:

Same procedure ♪x4

Maintenance

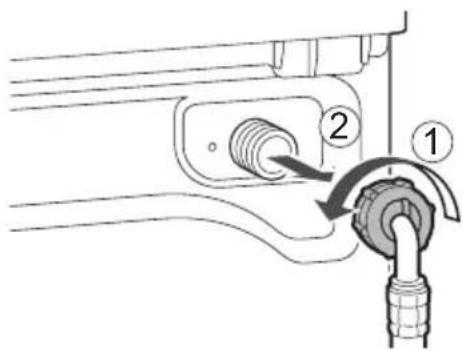

Water supply filter

If water does not flow smoothly

Diagram of a computer tower with an inset close-up showing a cable inserted into the base (no text or symbols present)

1

6

2

7

Illustration of a hand holding a small cylindrical object with a textured surface, possibly a tool or device (no text or symbols visible)

3

8

Diagram showing a coiled pipe with mesh insulation and a separate cylindrical component (no text or symbols)

4

9

5

Maintenance (continued)

Appliance

Illustration of a washing machine with a hand cleaning it, surrounded by sparkles (no text or symbols)

Door seal For heavy soil

Illustration of a hand placing a paper into a circular container with arrows indicating rotation (no text or symbols)

NOTE

Illustration of a person washing a washing machine with a hose, no text or symbols present

• Do not use gritty cleaners or thinners, or products containing alcohol or paraffin oil.

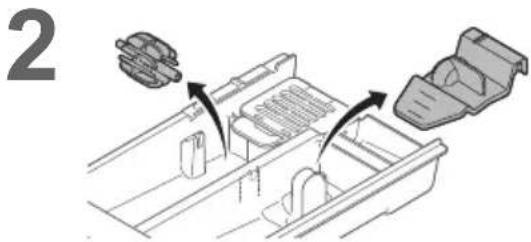

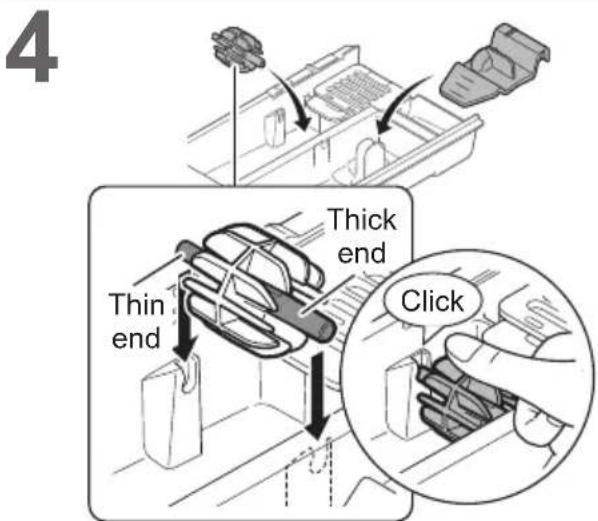

Detergent drawer

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols present)

Illustration of a cleaning machine with components and water spray (no text or symbols)

Diagram showing a device being inserted into a container with an arrow indicating direction (no text or symbols)

If the contents are decreased

■ Change Ag+ case

V90FX2V11FX2 V10FX2

1

Technical line drawing of a mechanical component with an inset magnified view showing internal structure (no text or symbols)

2

NOTE

• You cannot open Ag+ case.

Drum

Once a month or if flashes

1

2
Whitening bleach (chlorine bleach)

3

4

5

NOTE

- If the "Tub Clean" program is not run, the indicator goes off when other program is run 3 times.

Maintenance (continued)

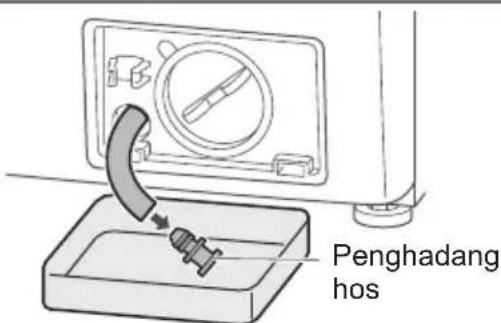

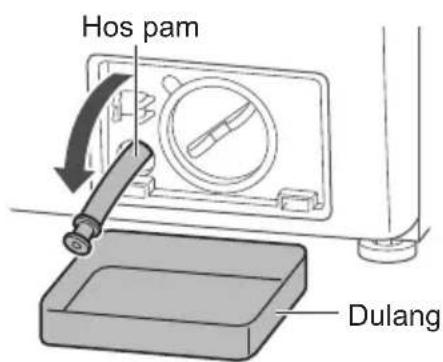

Drain filter

Be sure to drain water in the drum before this procedure.

CAUTION

Hot water
(possibly scalding water)

1

2

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

3

4

5

Line drawing of a kitchen sink with a door and brush, no text or symbols present

6

7

8

Replace
1

Hand placing a circular component into a device with a handle (no visible text or symbols)

3

2 Until it is in place

4

Troubleshooting

	Symptoms Points to be checked
Main unit	Touch the buttons	Possible causeDuring an operationTryChild Lock (P. 26)
	No operation	CheckPower cutTimerTryClose the door.Turn on.Unplug and insert again.(30 sec.)Press "Start".Turn the breaker on.

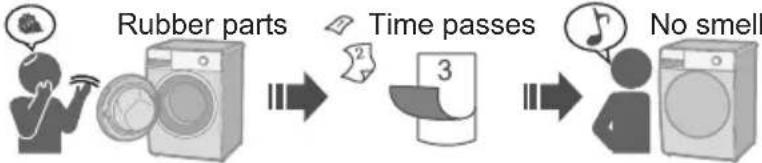

	Odour of rubber	Possible causeTryTub Clean (P. 29)

Troubleshooting (continued)

	Symptoms Points to be checked
Wash	During a wash Water drainage	Possible causeExcess foam Foam detection functionFoam Auto drainage
Rinse/Spin	During the spin process Stop Rotates several times	Possible causeUnevennessEvennessAuto correct Stop Auto correctTryToo light Add 1 or 2Bath towards
	After washingFoam or water	Try
	Spin changes to rinseRinseSpin	Possible causeIf clothes are uneven, this appliances automatica corrects unevenness using the rinse process.

Troubleshooting (continued)

	Symptoms Points to be checked
Detergent and foam	After washing	□ Check (P.1)
		□ Possible causeThe amount of foam varies.Temperature Water level Water softness
	Not enough	□ CheckPowder detergent Too little detergent Low foam detergent Heavily soiled Load too large
	Too much	□ CheckToo much detergent[AZZZ]
Laundry	If the laundry yellowsYellow	□ Try
Time	During a washDisplayed timeChanges	□ Possible cause● Remaining time is corrected during operation.● If the settings changed● If clothes are uneven→ The remaining time may increase.
Noise	During water drainage	□ Possible cause● This is normal.The drain pump is working.
	Sound of fan rotating	□ Possible cause● This is normal.The fan cools electric parts.

Troubleshooting (continued)

	Symptoms Points to be checked
Noise	Unusual noise (or vibration)	□ Check ● Metal items ● Anchor bolts (P. 40) ● Slope or an unstable surface ● Adjust 4 feet 40)
Others	Power cut Breaker Off	□ Check ● When the power recovers, operation resumes from where it stopped. On

Error Display

Error Display Points to be checked
Unable to drain	1 Check	2	3
				30)
Door is open	1	2 Start
Unable to spin	1 Check	2	3
		Unstable or inclined Stable	Too much Reduce	Too little AddUneven Even
Unable to supply water	1 Check	2	3
	Water outage	Turned off	Water supply P. 27)
Unable to spin			rgent
	1	2	3

Choosing the Right Location

Make sure to ask a service person for installation.

■ Do not install the appliance by yourself.
■ Follow this installation method. If you do not, Panasonic will not be liable for any accidents or damages.

Appliance dimensions

■ Set-in installation

- Do not let the metallic portions of the appliance come into contact with metal sinks or other appliances.

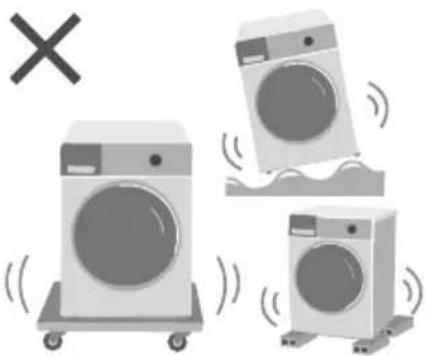

Check the location.

Illustration of a washing machine with raindrops and a 'X' symbol (no text or labels)

Illustration of a washing machine and a bathtub with a crossed-out X symbol (no text or labels)

Illustration of three washing machines with a 'X' symbol above, no text or symbols present

Moving and Installing

Carrying the appliance

Do not do it alone.

Installation of bottom cover

Illustration of a microwave oven with a cooling rack and an arrow indicating airflow direction (no text or symbols)

Diagram showing a switch inserted into a device with a circular component, labeled with number 2 (no text or symbols on the diagram itself)

Moving and Installing (continued)

Removing the anchor bolts

1

Diagram showing a wrench being inserted into a socket, with no text or symbols present.

2

3

NOTE

■ Moving the appliance again

Diagram showing a washing machine with attached sensors and a truck carrying a washing machine (no text or symbols)

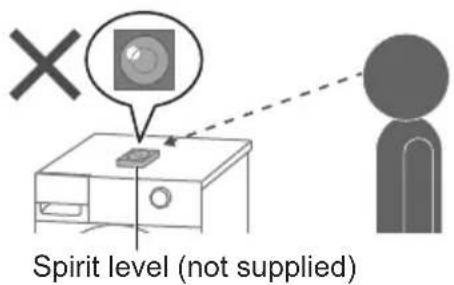

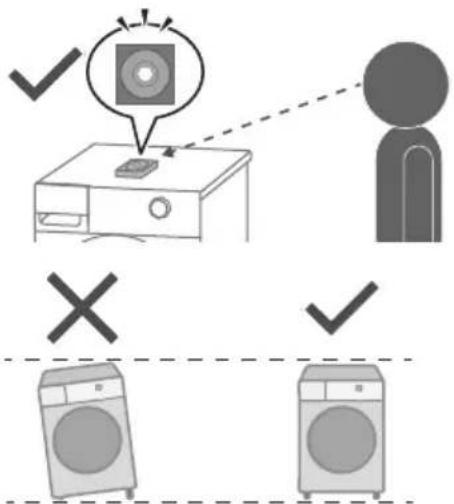

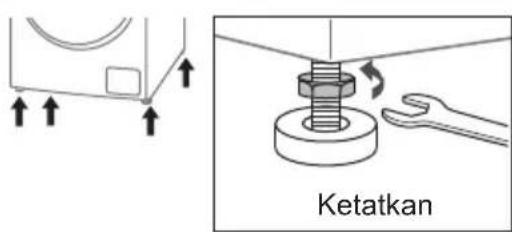

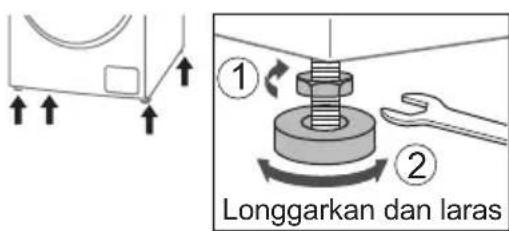

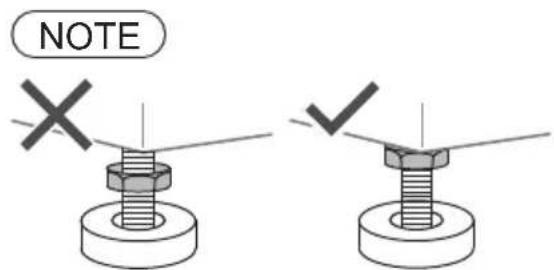

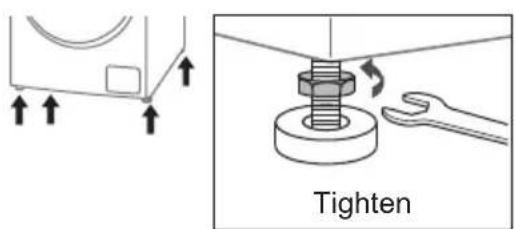

Levelling the appliance

1

2

3

4

Connecting the Hoses

Connect the hoses properly to prevent water leaks.

Maximum connection distances for hoses and the power cord

Right side connection

Left side connection

(cm)

Connecting the Hoses (continued)

Water supply hose

Drain hose

■ Connecting the water supply hose

■ Draining to a sink or wash basin

CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

1

2

3

Diagram of a faucet with a valve and handle, showing airflow direction (no text or symbols)

×

Simple line drawing of a faucet with water splashing (no text or symbols)

NOTICE

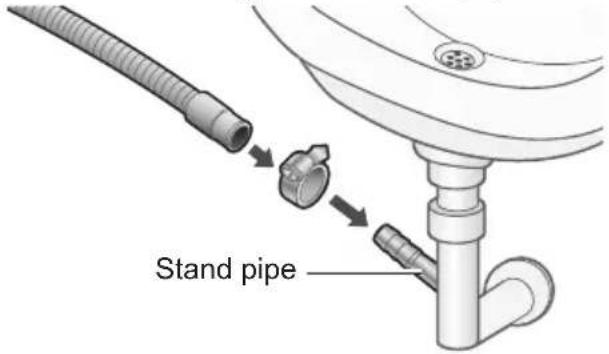

■ Draining to a stand pipe

■ Draining to a drain hole

Illustration of a threaded rod inserted into a rectangular plate (no text or symbols)

NOTE

Test Run

Checking after test run

Problem Causes and Measures
Water leaks	Connect the water supply hose properly
	Min. 10 mm3/4"12
	Remove the anchor bolts (P. 40)	Install stably
Error display	See P. 37.

Specifications

	V11FX2 V11FG2 V10FX2 V10FG2 V90FX2
Rated voltage (V) 220 - 240
Rated frequency (Hz) 50
Maximum energy rated power input (W)	1740 - 2000
Maximum spin speed (r/min) 1400
Product dimensions (W x D x H) (mm)	596 × 600 × 845
Product weight (kg) 73
Maximum mass of dry cloth (Wash) (kg)	11.0 10.0 9.0
Pressure of tap water (MPa) 0.01 - 1

Panasonic®

Arahan Pengendalian &

Pemasangan

Mesin Basuh

(Penggunaan Rumah)

No. Model

NA-V11FX2 NA-V10FX2 NA-V90FX2

NA-V11FG2 NA-V10FG2

Illustration of a front-loading washing machine with a mesh spherical vent and control panel (no text or symbols)

MY

Kandungan

Illustration of a person opening a washing machine with a large circular component nearby (no text or symbols)

Illustration of a hand holding a water droplet with a 'X' symbol above, indicating an environmental or safety hazard (no text or symbols on the diagram itself)

Jangan pegang atau tarik kabel.

Jangan guna.

Illustration of a hand inserting a plug into an electrical outlet with a black X symbol above (no text or labels)

Simple line drawing of a plug inserted into a socket (no text or symbols)

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Illustration of a washing machine with a person holding a tool, no text or symbols present

Illustration of a hand pressing down on a washing machine with a warning symbol (no text or symbols present)

Illustration of a washing machine with legs and feet standing on top, marked with an 'X' symbol (no text or labels present)

Jangan sentuh semasa ia panas.

Illustration showing a washing machine with a T-shirt and a faucet, both without any text or symbols.

Simple line drawing of a cord with sparkles around it (no text or symbols)

Illustration of a washing machine emitting light rays from a sun, with a 'X' symbol in the background (no text or symbols on the main image)

Jangan halang.

Two identical diagrams showing a device with connectors and directional arrows, no text or symbols present.

Jangan gunakan air panas.

Memeriksa Mesin Basuh Anda

Nama alat

Laci detergen (Hlm. 10)

Illustration of a coiled tube with two connectors (no text or symbols)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Sebelum Mencuci

Menyediakan pakaian

Illustration of a jacket being folded, showing front and back views (no text or symbols)

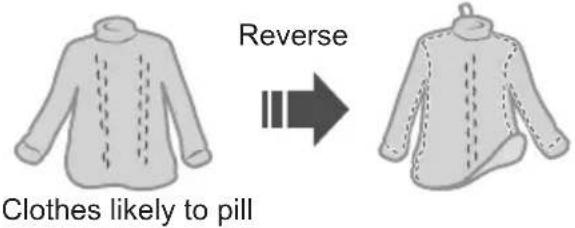

Simple line drawing of a long-sleeve sweater with dashed stitching lines (no text or symbols)

Berbalik

Illustration of a white shirt with button details and a gray hoodie (no text or symbols)

Simple line drawing of a knitted sleeve with dashed stitching (no text or symbols)

Pakaian mungkin menggosok

Lampin kertas

- Patuhi label penjagaan.

Cuci berasingan.

Illustration showing two hand-drawn scenes: a hand applying paint to a fabric with a brush, and hands cleaning a circular plate with a bag (no text or symbols)

NOTA

Auto Tub Care
(Penjagaan Tab Automatik) (Hlm. 24)

Butang Kawalan

Operasi sentuh

Basah Kering

Illustration showing a bag pouring granular material into a container and a hand holding a small container (no text or symbols)

Ketulan

Serbuk

Pelembut kain

Line drawing of a hand using a tool to clean or store items inside a refrigerator (no text or symbols)

Air

Detergen
Detergen serbuk Detergen cecair

Illustration of a bag with granular powder and a brush applying granular material (no text or symbols)

Peluntur

Illustration of a single washing machine with a circular dial and handle, shown without any text or symbols.

NOTA

Illustration of a washing machine with a checkmark and speech bubble (no text or symbols on the device itself)

Pelembut kain

Maks. 150 ml

Mencuci

Kaedah Asas

NOTA

■ Jangan biarkan pakaian tersangkut di pintu.

Simple line drawing of a washing machine with a magnifying glass highlighting the air gap (no text or symbols)

Illustration of a washing machine with a lid open and a hand inside, showing a close-up of clothes being cleaned (no text or symbols)

■ Buka pintu semasa operasi

Illustration of a washing machine transforming into a shirt, with decorative stars and sparkles (no text or symbols)

Tetapan

Temp
(Suhu)
(Hlm. 20)

Spin
(Putar)
(Hlm. 21)

Mode
(Mod)
(Hlm. 21)

Timer
(Pemasa)
(Hlm. 22)

Rinse+ (Bilas+)
(Hlm. 23)

Easy Iron (Mudah
Seterika)
(Hlm. 23)

Blue Ag+
V11FX2
V10FX2
V90FX2
(Hlm. 25)

Auto Tub Care
(Penjagaan Tab
Automatik) (Hlm. 24)

Senarai Program

Program Huraian		Muatan maks (kg)			Masa keseluruhan
		V11FX2/V11FG2	V10FX2/V10FG1	V90FX2
Normal(Biasa)	Pakaian harian	11.0	10.0 9.0	2:30
Daily Wash(Cucian Harian)	Pakaian harian (Lebih pantas daripada program “Normal (Biasa)”)	11.0	10.0 9.0	1:30
Synthetic(Sintetik)	Serat kimia	5.0 1:05
Delicates(Mudah rosak)	Mencuci dengan	2.0 0:50
Bedding(Cadar)	Item besar	3.0 1:30
Cotton(Kapas)	Cucian lembut dengan masa tambahan	11.0	10.0 9.0	3:00
Tub Clean(Cucian Tab)	Mencuci dram.	Tiada 3:45

Program "Normal (Biasa)" sahaja

Delicates (Mudah rosak)

Mengubah Tetapan Proses

■ Menyediakan

3

Mengurangkan kedutan dan kekusutan

* Program CUCIAN: Sehingga 30 min.

Line drawing of a washing machine with a circular dial and decorative patterns (no text or symbols)

3

V90FX2V11FX2 V10FX2

Illustration of two hands holding a card with icons, no text or symbols present

Tekan 5 saat.

V11FG2 V10FG2

Padam (Tutup)

Lampu (Buka)

NOTA

- Tetapan diingati.

Ag+ Blue Ag+

V90FX2V11FX2 V10FX2

Fungsi membunuh bakteria (Maks. 3 kg).

3

Mengubah Tetapan Mesin

■ Untuk batalkan:

Prosedur yang sama

Padam (Tutup)

Membatakan pembaz

Diagram of a computer tower with an inset close-up showing a cable inserted into the base panel (no text or symbols present)

1

6

2

7

Illustration of a hand holding a small object with a mesh-like pattern, possibly a tool or device (no text or symbols visible)

3

8

Diagram of a pipe fitting with a mesh component inserted, showing a close-up view (no text or symbols)

4

9

5

Illustration of a hand cleaning a washing machine with a cloth, surrounded by sparkles (no text or symbols)

Hand placing a cloth into a circular container with arrows indicating rotation (no text or symbols)

Illustration of a person washing a washing machine with a hose, no text or symbols present

Diagram of a mechanical assembly with two components, one showing a curved arrow and the other a straight arrow (no text or symbols present)

Illustration of a car interior with components and a faucet, no text or symbols present

Diagram showing a device being inserted into a container with a lightning bolt (no text or symbols)

Jika kandungan berkurangan

■ Tukar bekas Ag+

V90FX2V11FX2 V10FX2

1

Technical line drawing of a mechanical component with an inset showing a close-up view of a gear-like structure (no text or symbols present)

2

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

3

4

5

Line drawing of a kitchen sink with a plate and a door, no text or symbols present

6

7

8
Tukar

1

Illustration of a hand inserting a circular component into a wall-mounted device (no text or symbols visible)

3

Illustration of a hand washing a washing machine with a question mark indicating a question (no text or symbols present)

Illustration of a washing machine with a padlock symbol on top, surrounded by sound waves (no text or symbols)

Pintu dikunci

Buka pintu semasa

operasi (Hlm. 12)

□ Periksa

Suhu

Paras air

□ Cuba

Illustration of a washing machine with raindrops and a 'X' symbol (no text or labels)

Illustration of a washing machine and bathtub with a crossed-out 'X' symbol (no text or labels)

Illustration of three washing machines with a 'X' symbol above, no text or symbols present

Pemasangan penutup bawah

Illustration of a kitchen appliance with a grater and a tray, no text or symbols present

Close-up of a kitchen appliance with a tool inserted, showing a hook and screwdriver (no text or symbols visible)

Diagram showing a wrench turning a mechanical component with an adjustable handle (no text or symbols present)

2

3

NOTA

Meratakan mesin

1

Timbang air (tidak dibekalkan)

2

3

4

NOTA

Two diagrams showing a bolt and nut assembly with cross marks, no text or symbols present

Menyambung Hos

3

Hos saliran

Illustration of a threaded rod inserted into a flat surface (no text or symbols)

NOTA

Memandu Uji
