DK - Original brugsanvisning

GB - Original instructions

Warning symbols 2

Illustrations 3

1. Safety.... 11

2. Identification of the machine and components ..... 11

3. Unpacking and assembly 11

4. Battery....12

5. Charger 12

6. Use....13

7. Clothing 13

8. Tips and advices 13

9. Replacement the trimmer cord 13

10. Maintenance.... 13

11. Storage.... 13

12. Specifications 13

13. Warranty terms and conditions.... 14

14. Troubleshooting 19

EC Declaration of conformity.... 20

Spare parts

Spare part drawings for the specific product can be found on our website www.texas.dk If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer.

1. Safety

How to read the manual

Please read this instruction manual carefully, especially the safety warnings marked with the symbol:

When using the product, the safety instructions must be closely followed. Read this manual carefully before starting the machine. Make sure that you know how to stop and switch off the engine in case of accident. All instructions regarding safety and maintenance of the machine are for your own safety.

The warnings, precautions and instructions given in this manual, cannot cover all situations that the product can be placed in. The user must therefore present common sense and caution when using the product.

Safety in the work area

• Only use the product in clean and well lit areas
• Do not use the product in areas with explosive danger or where there is flammable fluids, gas or dust present.
• The person that uses the machine is responsible to other persons in the work area. Never use the machine when others, especially children or animals are near.
• This machine is an electric product. It is therefore important, that it ever comes in contact with water or is used in wet surroundings.

Use and maintenance of the product

• This machine must not be used for other work than as described in this manual.

• Only use original spare parts. Mounting of non-approved parts may lead to increased risk and are therefore not legal. Any liability is renounced for accidents or other damage that has happened due to the use of unauthorised parts.

• Before using the machine, the dealer or other qualified person should instruct you in the use of the machine.

• Minors may not work the machine.
• The machine may only be lent to people who know how to work the machine. This manual should follow the machine under all circumstances.
• The machine may only be used by persons who are rested, well and fit. If the work is tiring, frequent brakes should be made. Do not use the machine under influence of alcohol.
• Always check before start, that all bolts and nuts are tighthened.
• Always wear eye protection when using the machine.
• Keep the trimmer head clean and free from wrapped grass or weed.
• Keep children and other persons at a distance of at least 5 metres from the work area.
• The battery should always be removed when:
• maintenance is made.
• the machine is left unattended
• During transport, the main switch must be switched off.

2. Identification of the machine and components

See Fig. 1 + 2

1. Battery pack*
2. Operating handle
3. Safety lock
4. Harness hook
5. Front handle
6. Shaft
7. Safety hood
8. On/off switch
9. Speed switch
10. Lock

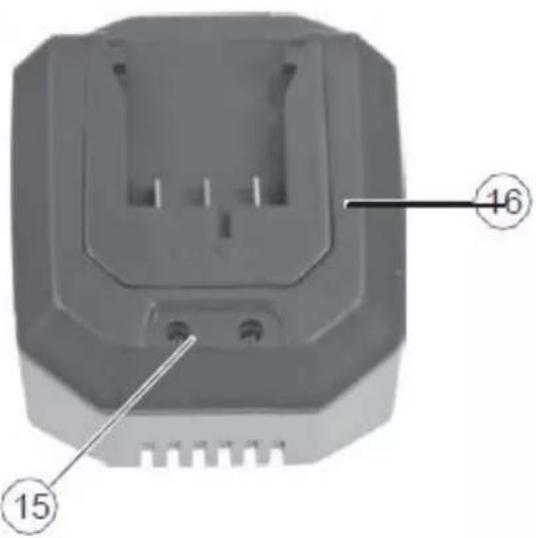

11. Wing screw

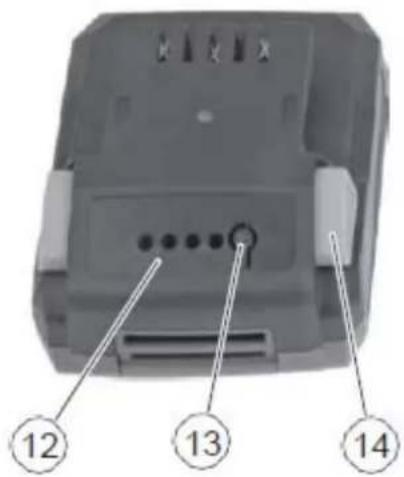

12. Display for remaining capacity
13. Push button for capacity display
14. Battery lock button
15. Control lights
16. Battery charger*

*Battery/charger are not included for solo machines

3. Unpacking and assembly

1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices, if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.
5. Plug in the battery, by pushing it down until you hear a click

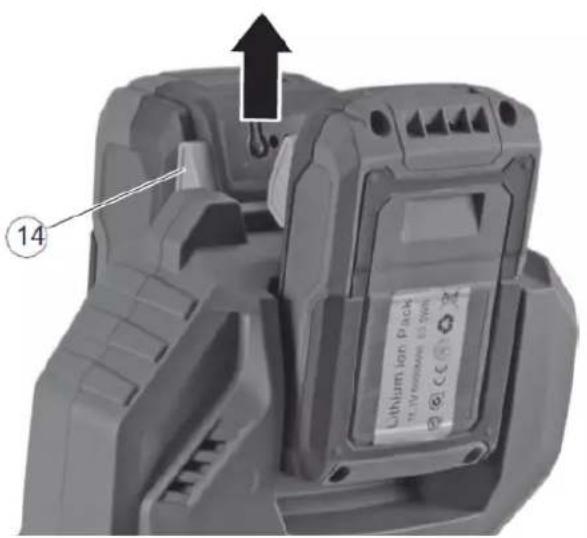

6. Remove the battery by push down the battery lock buttons and pull up NOTE: Always remove the battery before assembly and maintenance.

Fitting the safety guard. See Fig. 3

Turn the grass trimmer upside down. Mount the protective hood on the motor head, then fix the safety guard with screws (17) Remove the cover for the cutting blade which is mounted on the safety hood.

This guard is intended to prevent loose objects from being thrown towards the operator. The guard also protects the operator from accidental contact with the trimmer head.

Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.

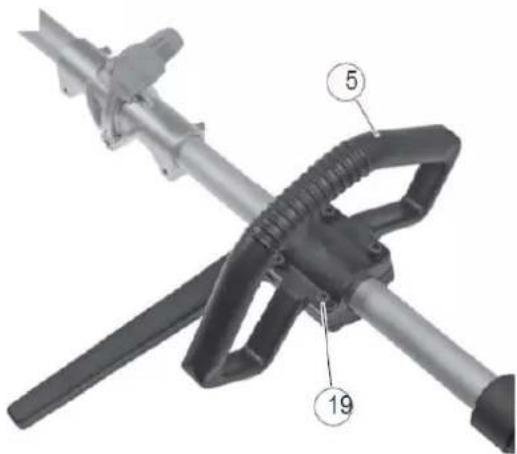

Mounting the front handle. See Fig 4

Screw the front handle (5) onto the upper shaft tube with the screws (19).

Attach harness. See Fig 5

Click the harness strap eyelet (20) into the harness hook (4) as shown in the picture.

Attaching and removing a blade. See Fig. 6+7

Remove the blade transport guard, Place the blade (21) on the inner flange. Note the running direction! Fit the outer flange (22). Put the pressure plate (23) on. Hold the lock (10) down. Tighten the nut (24). Caution: left-hand thread!

Attaching the trimmer head. See Fig. 8

Hold down the lock (10) and put the trimmer head (25) on the drive shaft, screw it by hand counterclockwise Caution: left-hand thread.

4. Battery

*Battery are not included for solo machines

Warning: Do not try to disassemble, short circuit or put it to extreme heat or fire, as it can cause serious inquiry and permanent damage to the battery!

The battery pack is not fully charged when delivered.

Charging

• Only use the original charger with art. no. 90063242 or 90063241
• Before the battery is being used the first time, it is recommended to fully charge it first.

LED lights	Battery Pack
All LEDs are lit Fully charged (75-100%).
LED 1, LED 2, LED 3 are lit.	The battery pack is 50%-75% charged
LED 1, LED 2 are lit.	The battery pack is 25%-50% charged.
LED 1 are lit	The battery pack is 0%-25% charged
LED 1 flashes	The battery pack is empty. Charge the battery.

Note: The indicator lights is only indicative indications, and is not accurate power indications.

Important: To protect the battery from total discharge, the machine will stop, when the battery is nearly empty.

The machine must not be started up again after automatic shutdown, as it can damage the battery. The battery must be recharges before the work can continue.

5. Charger

A full charge takes around 60 min for 2.0 Ah batteri and 120 min for 4.0 Ah battery.

• Only use the original charger.
• Do not try to charge other type of batteries in the charger, other than the original batteries with art. no. 90063245 (2.0 Ah) or 90063246 (4.0 Ah).
• Keep the charger in a dry and warm environment (10-25 degrees C) and only use it indoor. It should be connected to a normal 230V AC socket.
• Before the battery is being used the first time, it is recommended to charge it fully.
• The surface of the battery can become warm during charging. This is normal.
• Do not cover battery or charger during charging. Allow free ventilation of air.

Insert the battery into the slots of the charger and slide it into place until it locks. See Fig. 10

Status
	Charging
	Fully charged
	Evaluate
	Defective

Important: The charger will stop, when the battery is full. However, it is not recommended to leave the battery in charger for more than 24 hours. It is recommended to drain the battery completely and fully charge it whenever possible, as it can increase the health of the battery. But partial charge will not damage the battery.

To remove the battery from the charger, press the sidebuttons down and pull the battery out.

Before winter storage, the battery should be fully charged and kept warm at 10-20 degrees C. Charge it every 3 months. Make sure to keep ventilation holes clean and free from dirt.

Store the charger indoor between 5-25 degrees C.

6. Use

Important! Use both batteries at the same time!

In order to operate the machine, both batteries must be installed. Therefore, ensure that both batteries are fully charged before use. The machine cannot run if one battery is removed or almost drained of power.

Before use, make sure that the battery is fitted properly with the battery lock in place and fully charged.

To start the machine first press the safety lock (3) and then the on/off switch (8). Set the desired speed with the speed switch (9). Stop the machine by releasing the on/off switch.

7. Clothing

When using the machine, wear tight-fitting work clothes, strong working gloves, hearing protectors, safety goggles and boots with non-skid soles

8. Tips and advices

Trimming.

Hold the trimmer head just above the ground at an angle. It is the end of the line that does the work. Let the line work at its own pace. Never press the line into the area to be cut.

Cutting.

The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the line parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool.

Do not allow the trimmer head to constantly come into contact with the ground during normal cutting, as this can cause damage and wear to the trimmer head.

Pruning with 3-tooth blade.

Used for coarser weeds, such as thistles and nettles.

9. Replacement the trimmer cord

Follow the procedure as shown in Fig.14

1. Press on each side of the line compartment. The lid may now be removed.

2. Dismount the roll simply by pulling it. Leave the spring on the spool. Remove any bits of line.

3. Take 3-4 meters of new line and place it double in a loop.

4. Fit the loop in the middle of the spool and wind the nylon lines around the spool in each groove without twisting the line. Follow the direction of the arrows from bottom of the spool. Do not overfill the spool!

5. Mount the line compartment in reverse order. First, fit the spring into its position. Then place the line in the two metal mortises of the line compartment.

6. Mount the lid. Ensure that it is fitted securely. Cut of excess nylon line.

10. Maintenance

Before any service and maintenance is done, the power must be disconnected, it means the battery removed from the tool.

• Remove the battery before you clean and store the machine.
• Clean the housing and other parts with a soft brush and a moist cloth. Never use aggressive cleansers or solvents.
• Prevent water from getting into the machine.

11. Storage

Store the trimmer dry and unavailable for children. It is recommended not to let it rest on the trimmer head. Hang it on a wall in the handle.

12. Specifications

Model BCX 2020
Battery type Lithium Ion
Battery voltage 2 x 20V
Capacity 2 x 2Ah / 2 x 4Ah
Cutting width 25,5/35 cm
Engine effect 6000 min	-1
Net weight (tool only) 3.9 kg

13. Warranty terms and conditions

The warranty period is 2 years for private end users in EU countries. Products sold for commercial use, only have a warranty period of 1 year.

The warranty covers material and/or fabrication faults.

Restrictions and requirements

Normal wear and replacement of wearing parts are NOT covered by the warranty.

Wearing parts, which are NOT covered for more than 12 months:

• Cutting guard, nyolon head/line and blade
- Battery: If the battery is not stored correct (frost-free and recharged every 3 months), the durability is only guaranteed for 6 months.

The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance
  • Structural changes
• Exposure to unusual external conditions
• If the machine has been improperly used or overloaded
• Use of unoriginal spare parts.
• Other conditions where Texas cannot be held responsible.

Whether a case is a warranty claim or not is determined in each case by an authorized service center. Your receipt is your warranty note, why it should always be kept safe.

REMEMBER: The purchase of spare parts as well as any request for warranty repair, art. number (e.g. 90063XXX), year and serial number should always be informed.

* We reserve the right to change the conditions and accept no liability for any misprints.

Symptom Possible causes Possible solution
Device does not work	Battery not slotted in correctly?	Slot battery into place
	Battery pack discharged?	Charging the battery pack
	Battery pack defective?Is the device defective?	Contact Texas customer service or service workshop

14. Fehlersuche

2006/42/EC - 2014/30/EU - 2000/14/EC amended by 2005/88/EC

Johnny Lolk Managing Director

Responsible for documentation

Johnny Lolk
