WGCXT1RJKB - Computer Adapter HAGER - Free user manual and instructions

Product Type	Data and Telephone Outlet (RJ45/RJ11)
Brand	Hager
Model	WGCXT1RJKB
Application	Local area network data transmission and telephone
Installation	Flush-mounted in standard wall boxes (min depth 35 mm)
RJ45 Category	Cat.5e, Cat.6, Cat.6A
RJ11 Compliance	YD/T 577
Transmission Bandwidth	Up to 500 MHz
Voltage Proof	1000 V DC or AC peak
Current Rating	0.75 A
Insulation Resistance	≥ 500 MΩ at 100 V DC
Signal Contact Resistance	≤ 20 mΩ
Connection Type	IDC terminals
Conductor Diameter	0.41-0.64 mm (AWG 26-22)
Color Codes	TIA/EIA 568-B.2 (A and B)
Protection	Dust protection slider on each jack
Safety	Installation by qualified electrician; indoor use only
Environmental	Indoor, dry areas, no drip or spray water
Compliance Standards	IEC 60603-7, ISO/IEC 11801, TIA/EIA 568-B.2
Compatible Frames	Hager Muse and Inspire

Frequently Asked Questions - WGCXT1RJKB HAGER

What is the function of the Hager WGCXT1RJKB?

The Hager WGCXT1RJKB is a data and telephone outlet used for data transmission in local area networks and telephone applications. It features RJ45 and RJ11 jacks with dust protection sliders.

Can this outlet be used outdoors?

No, the device is only suitable for indoor use in dry areas with no drip or spray water. Outdoor installation is not permitted.

How should the WGCXT1RJKB be installed?

Installation must be performed by a qualified electrician following local regulations. The device is designed for flush-mounted installation in standard wall boxes with a minimum depth of 35 mm.

What is the difference between Cat.5e, Cat.6, and Cat.6A for this outlet?

The modules differ in transmission bandwidth: Cat.5e supports up to 100 MHz, Cat.6 up to 250 MHz, and Cat.6A up to 500 MHz. All are unshielded (UTP) and comply with ISO/IEC 11801 standards.

How do I connect the RJ45 module?

Strip 30 mm of cable jacket, position wire pairs according to TIA/EIA 568-B color code (A or B), and terminate each pair one at a time using IDC terminals. Replace the cover plate after wiring.

How do I connect the RJ11 telephone module?

Strip 10 mm of cable jacket and position the first pair according to the RJ11 pin assignment (pins 2-5). Terminate using IDC terminals and replace the cover plate.

What tools are needed for installation?

You will need a flat-blade screwdriver to remove the frame and cover plates, and a suitable IDC termination tool for connecting wires.

Is the WGCXT1RJKB compatible with existing wall boxes?

Yes, it is designed for standard wall boxes with a recommended depth of at least 35 mm. It fits both Hager Muse and Inspire frames.

What color coding standards are used?

The RJ45 outlets follow TIA/EIA 568-B.2 color codes (A and B). The RJ11 module uses a specific pin assignment (blue/white, white/blue, white/red, red/white).

How can I test the installation?

After wiring and installation, perform a functional test for each data or telephone outlet using a suitable tester to ensure proper connectivity and signal transmission.

USER MANUAL WGCXT1RJKB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

The RJ45 outlets are used for data transmission in local area networks. The RJ11 outlets are designed for telephone and data applications. Each jack is equipped with a dust protection slider.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

RJ45 outlets

Voltage proof (contact-to-contact): 1000 V DC or AC peak

Current rating: 0.75 A

Insulation resistance: ≥ 500 M Ω at 100 V DC

Signal contact resistance: ≤ 20 mΩ

Type of connection: IDC terminals

Design: according to IEC 60603-7

Colour code A and B: according to TIA/EIA 568-B.2

RJ45 Cat.5e modules

Transmission bandwidth: max. 100 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.5e, unshielded (UTP): according to ISO/IEC 11801

RJ45 Cat.6 modules

Transmission bandwidth: max. 250 MHz

Conductor ∅ (solid): 0.51 ... 0.64 mm (AWG 24-22)

Cat.6, unshielded (UTP): according to ISO/IEC 11801, 2nd edition

RJ45 Cat.6A modules

Transmission bandwidth: max. 500 MHz

Conductor ∅ (solid): 0.41 ... 0.64 mm (AWG 26-22)

Cat.6A, unshielded (UTP): according to ISO/IEC 11801, edition 2.2

RJ11 outlet

Compliance: YD/T 577

Information for electricians

Installation and electrical connection

Preparing the device for installation

(for example "RJ11 + RJ45 outlet")

1A

Hager Muse

Hager Inspire1B

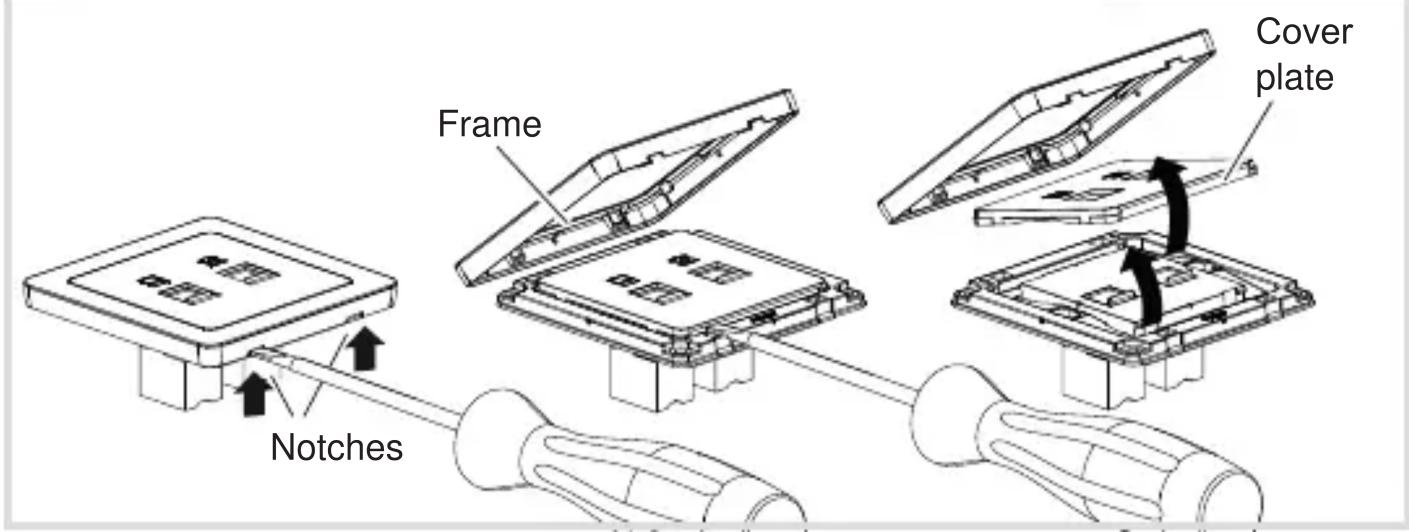

• Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1A/1B).
  ■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the RJ45 data module

■ Remove the cover plate of the data module with a flat-blade screwdriver.

2A

• Strip 30 mm of cable jacket (2A).
  ■ Position and terminate first pair according to colour code A or B:

RJ45 pin assignment TIA/EIA 568B TIA/EIA 568A

	1 white/orange white/green
	2 orange green
	3 white/green white/orange
	4 blue blue
	5 white/blue white/blue
	6 green orange
	7 white/brown white/brown
	8 brown brown

As with the first pair position and terminate each subsequent pair one at a time until termination is complete.
- Fix the cover plate back to the module.

Connecting the RJ11 telephone module

3A

• Strip 10 mm of cable jacket (3A).
  ■ Position first pair according to colour code:

RJ11 pin assignment

	2 blue/white
	3 white/blue
	4 white/red
	5 red/white

- Fix the cover plate back to the module.

Checking of the installation:

A functional test of the installation should be made for each data or telephone outlet.

Installing the device into the wall box

(for example "RJ11 + RJ45 outlet")

4

Technical diagram of a mechanical assembly with a bracket and tool, showing no text or symbols

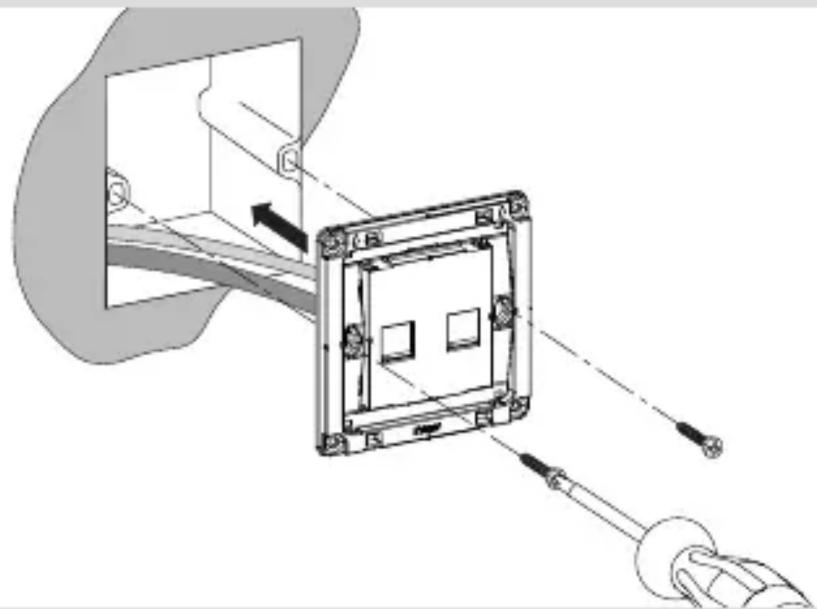

■ After wiring, fix the device with the two screws attached into the wall box (4).

Assembling the covers

(for example "RJ11 + RJ45 outlet")

5A

Hager Muse

5B

Hager Inspire

■ Hager Muse: Snap the frame onto the device (5A).

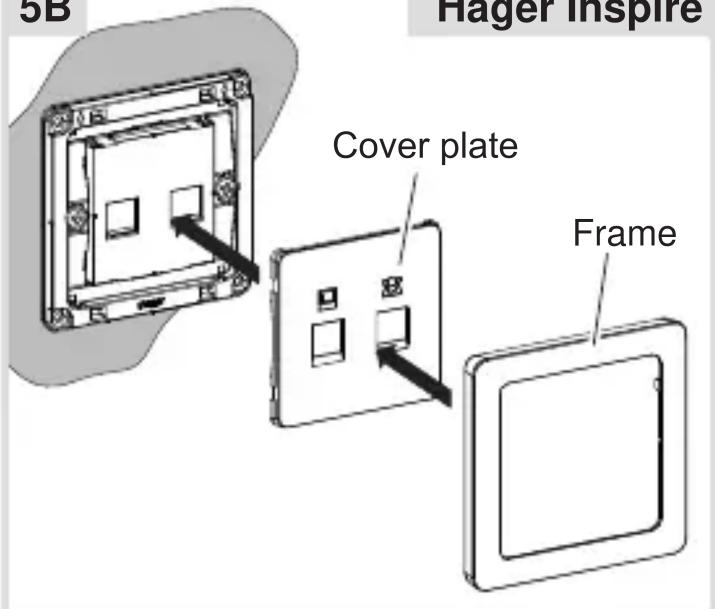

■ Hager Inspire: Place the cover plate in the correct position and fix with frame (5B).

2-5gang frames are available for multiple combinations.
