WGCXBP1AS - Electrical accessory HAGER - Free user manual and instructions

Product Type	Blind Cover for Electrical Installations
Brand	Hager
Model	WGCXBP1AS
Series	Hager Muse, Hager Inspire
Dimensions	Approx. 81 mm x 81 mm (single-gang)
Weight	Approx. 50 g
Installation Type	Flush-mounted in standard wall boxes
Protection Rating	IP20 (indoor, no dripping water)
Material	Plastic
Color	White (typical)
Operating Temperature	-20°C to +40°C
Main Function	Cover unused openings for electrical devices
Mounting Method	Screw fixing to wall box with two included screws
Frame Removal	Using flat-blade screwdriver at notches
Maintenance	Wipe with a dry cloth; do not use abrasive cleaners
Safety Instructions	Installation only by qualified electrician; disconnect power before working
Compatible Frames	Hager Muse and Hager Inspire, 2-5 gang frames available
Accessories Included	Two fixing screws
Spare Parts Availability	Frames and cover plates sold separately
Certifications	VDE, CE (typical)
Warranty	2 years (typical)

Frequently Asked Questions - WGCXBP1AS HAGER

What is the Hager WGCXBP1AS used for?

It is a blind cover used to cover unused openings for electrical installations, providing a flush and clean finish. It fits into standard wall boxes and is part of the Hager Muse and Hager Inspire series.

Can I install the WGCXBP1AS outdoors?

No, it is designed for indoor use only in areas with no drip or spray water. It has an IP20 rating, meaning it is not protected against moisture.

How do I install the blind cover?

First, disconnect power. Remove the frame by carefully loosening it at the notches with a flat-blade screwdriver. For Hager Inspire, also remove the cover plate. Fix the device to the wall box with the two provided screws. Then snap the frame back on (Muse) or place the cover plate and fix with the frame (Inspire).

Does the WGCXBP1AS come with screws?

Yes, it includes two screws for fixing the device to the wall box.

Can I use this cover with multiple gangs?

Yes, the blind cover is compatible with 2-5 gang frames available separately, allowing multiple covers to be combined.

What tools are needed for installation?

You will need a flat-blade screwdriver to remove the frame and a screwdriver (likely Phillips) to tighten the fixing screws.

How should I clean the blind cover?

Clean it with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents as they may damage the surface.

Is the WGCXBP1AS compatible with other Hager series?

It is specifically designed for Hager Muse and Hager Inspire series frames. It may not be compatible with other series due to differences in frame design.

Can I paint the blind cover?

Painting is not recommended as it may affect the fit and finish. The cover is typically white; for different colors, consider purchasing a colored version or using Hager's color covers.

What is the depth required for the wall box?

The device is designed for standard flush-mounted wall boxes. Typical wall box depth is around 40-60 mm, but ensure the box allows the cover to sit flush with the wall surface.

USER MANUAL WGCXBP1AS HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Blind cover for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes.
• Only suitable for use in indoor areas with no drip and no spray water.

Information for electricians Installation

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1A

Hager Muse

Hager Inspire1B

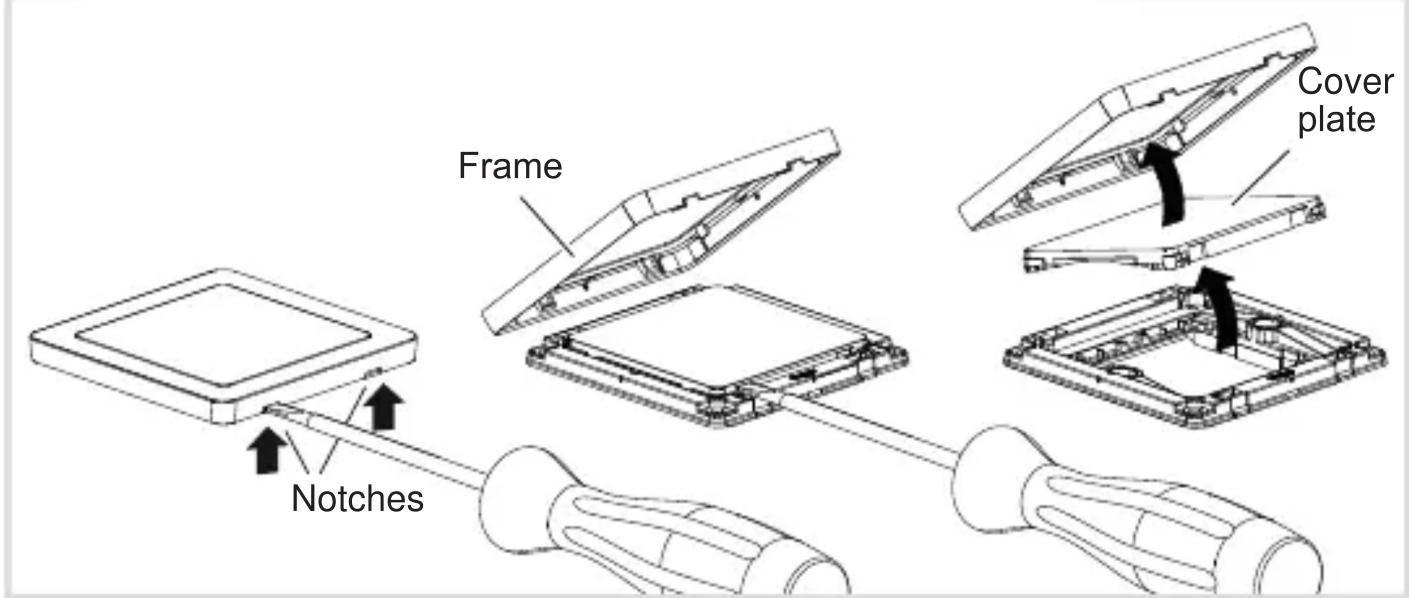

• Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1A/1B).
  ■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Installing the device into the wall box

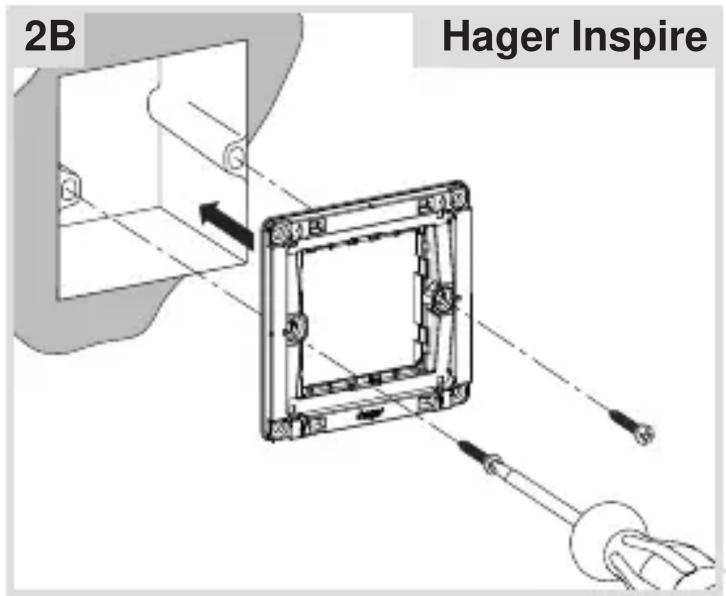

• Fix the device with the two screws attached into the wall box (2A/2B).

Assembling the covers

■ Hager Muse: Snap the frame onto the device (3A).
■ Hager Inspire: Place the cover plate in the correct position and fix with frame (3B).

2-5gang frames are available for multiple combinations.
