HGT85112DE - Freezer Hanseatic - Free user manual and instructions

Product Type	Chest Freezer (Convertible Fridge/Freezer)
Model	HGT85112DE
Dimensions (Height × Width × Depth)	845 mm × 1120 mm × 700 mm
Net Weight	42 kg
Power Supply	220 – 240 V ~, 50 Hz, 1.45 A
Rated Power	155 W
Refrigerant	R600a (isobutane), 66 g
Climate Class	SN-N-ST-T (ambient +10 °C to +43 °C)
Temperature Range (Fridge Mode)	+2 °C to +6 °C
Temperature Range (Freezer Mode)	-14 °C to -25 °C
Number of Drawers	4
Ice Scraper Included	Yes
Super Freeze Function	Yes (automatic switch-off after 52 hours)
Interior Light	LED (non-replaceable)
Control Panel Lock	Yes (auto-lock after 30 seconds)

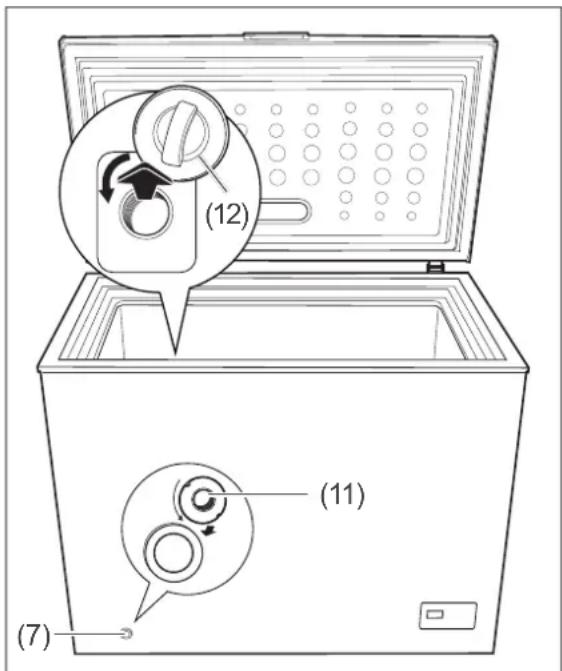

Condensate Drain	Yes (exterior and interior stoppers)
Defrosting Method	Manual (with ice scraper)
Lid Seal	Adjustable (hair dryer method)

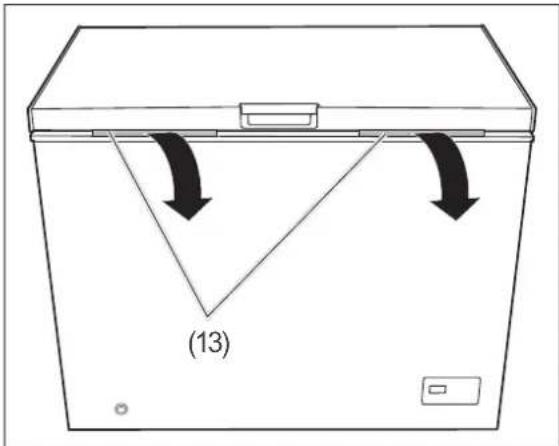

Transport Safety Devices	Yes (removable, keep for later)
Energy Efficiency Class (Light)	G

Frequently Asked Questions - HGT85112DE Hanseatic

Can I use this chest freezer as a fridge?

Yes, the HGT85112DE is convertible. Press the 'Fridge' button to select fridge mode with temperatures from +2 °C to +6 °C. Press 'Freezer' to switch back to freezer mode.

How do I activate Super Freeze mode?

Press the 'Super Freeze' button (marked with an asterisk). The display shows 'SF'. It automatically deactivates after 52 hours. You cannot use Super Freeze when the appliance is in fridge mode.

What should I do if the lid seal is not tight?

Check the seal regularly using a thin piece of paper. If the paper slides through easily, warm the seal with a hair dryer and gently pull it to restore a tight fit. Clean dirty seals only with clean water.

How often should I defrost the freezer?

Defrost when the ice layer exceeds 5 mm. Activate Super Freeze 3 hours before cleaning to keep food cold. Remove drawers, open the condensate drain, and use the included ice scraper. Do not use mechanical devices or defrosting sprays.

What type of refrigerant does this appliance use?

It uses R600a (isobutane), which is environmentally friendly but flammable. The refrigerant charge is 66 g. Ensure the installation room is at least 7.4 m³ to avoid flammable gas accumulation in case of a leak.

Can I replace the interior LED light?

No, the LED light is not replaceable. It is a maintenance-free type. If it fails, contact the service department. Do not remove the light cover.

What is the maximum freezing capacity?

The maximum freezing capacity is specified on the type plate. For best results, freeze no more than the stated amount in 24 hours. If freezing more, activate Super Freeze two hours beforehand and avoid contact with already frozen food.

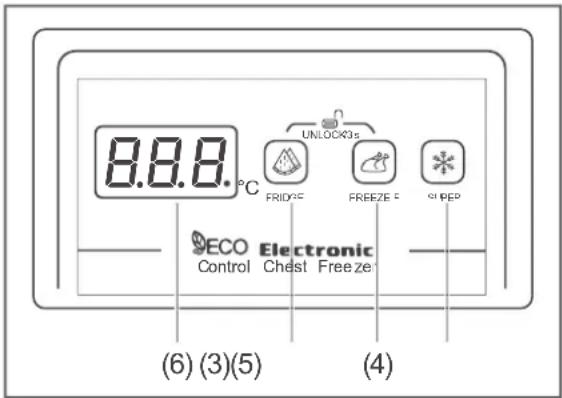

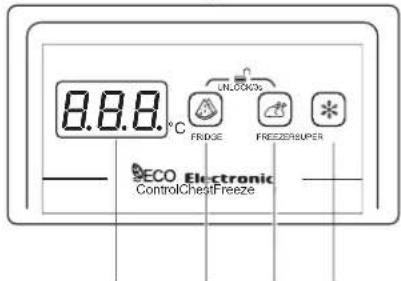

How do I unlock the control panel?

The panel locks automatically after 30 seconds of inactivity. To unlock, press and hold the 'Fridge' and 'Freezer' buttons simultaneously for three seconds. The display will stop flashing.

Can I store explosive substances or aerosol cans?

No, do not store explosive substances such as aerosol cans with flammable propellants. They can form ignitable gas-air mixtures. Also avoid storing glass or metal containers with liquids to prevent bursting.

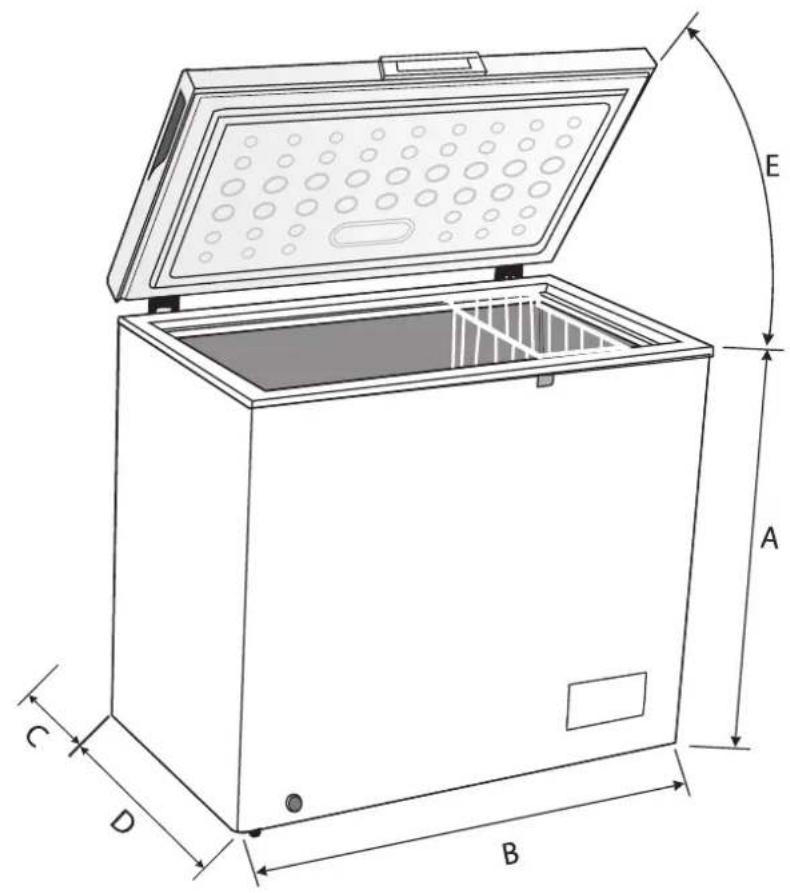

What are the required clearances for installation?

Maintain at least 70 cm above the appliance and 20 cm behind and on the sides. The room must have a minimum volume of 7.4 m³. The floor must be level and strong enough to support the loaded weight.

USER MANUAL HGT85112DE Hanseatic

Line drawing of a rectangular box with a lid and two small square buttons at the bottom (no text or symbols)

Gebrauchsanleitung

Kühl-/Gefriertruhe

Inhaltsverzeichnis

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Line drawing of a bucket and a tool (no text or symbols)

3× Körbe (Modell HGT85102CE)

4× Körbe (Modell HGT85112DE)

1× Eiskratzer

Line drawing of a rectangular container with a flared top and label (8) on the side (no text or symbols on the container itself)

Bedienung

Bevor Sie beginnen

Line drawing of a rectangular box with a lid and two small square buttons at the bottom (no text or symbols)

User manual

Fridge/freezer

Table of contents

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions reliably and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on the first use from page EN-22.

Explanation of terms and symbols ... EN-3

Explanation of terms ..... EN-3

Explanation of symbols ..... EN-3

Definitions...... EN-3

For your safety ..... EN-4

Intended use..... EN-4

Safety notices EN-4

Delivery EN-10

Package contents ..... EN-10

Check the delivery ..... EN-10

First steps EN-10

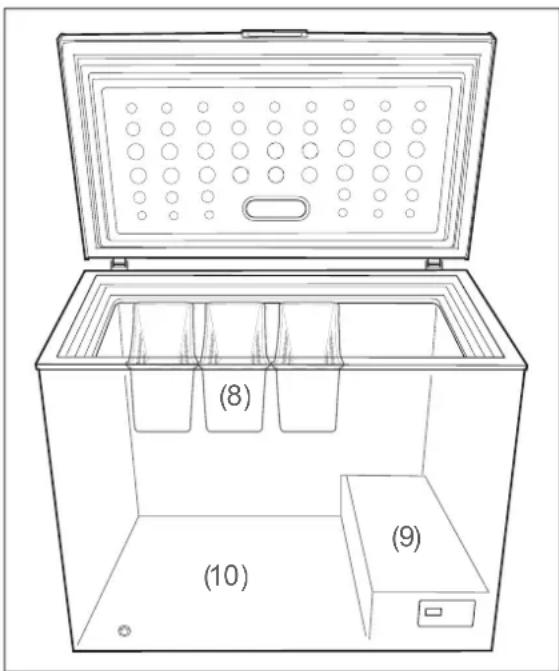

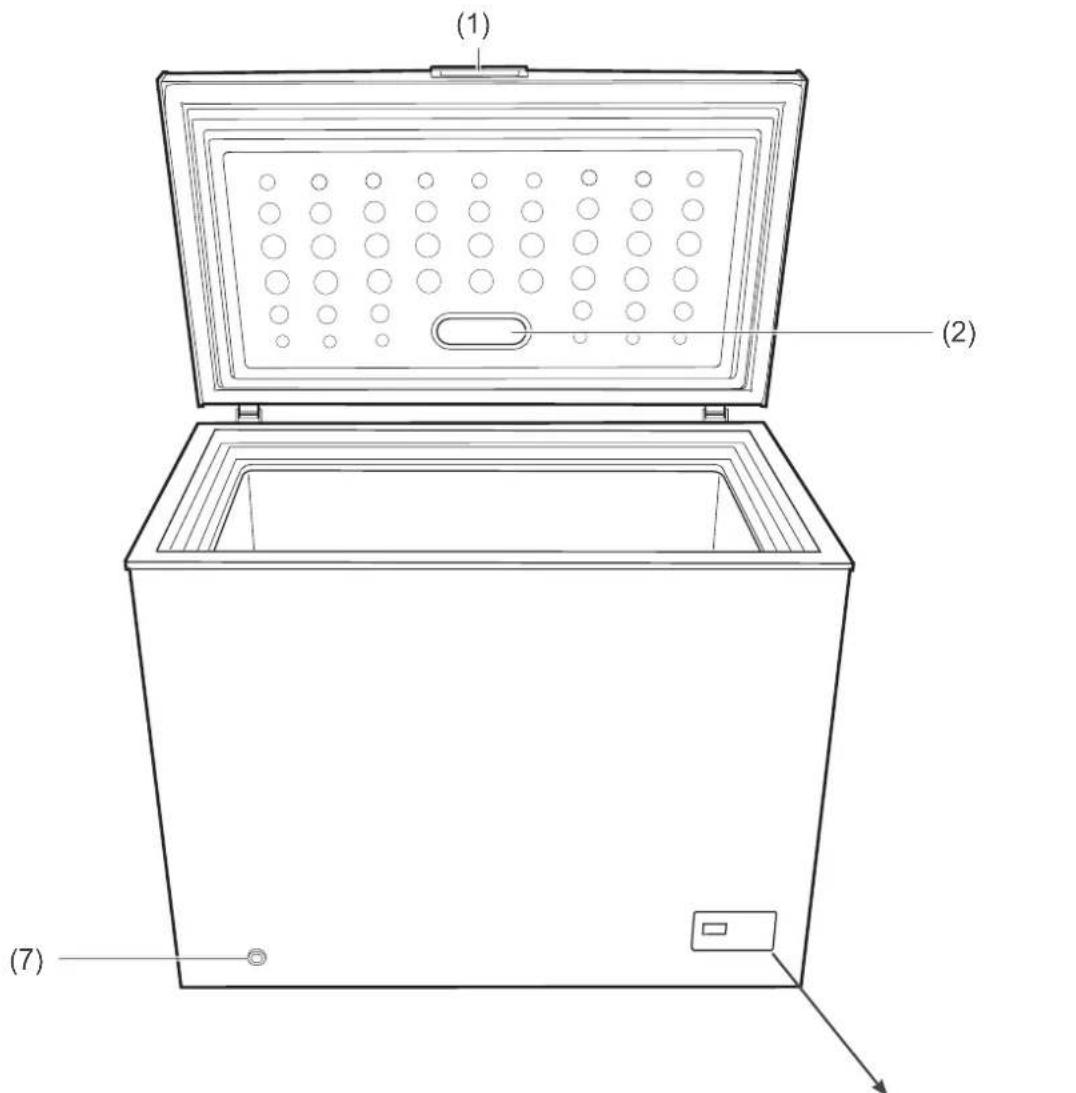

Appliance components and

operating elements .....EN-11

Operation EN-12

Before getting started ..... EN-12

Switching the appliance on and off EN-12

Setting the mode and temperature EN-12

Chilling food EN-14

Filling the interior of the appliance . EN-14

Maintaining quality ..... EN-15

Freezing food/Storing frozen food . . EN-16

Freezing food EN-16

Maximum freezing capacity ..... EN-17

Preparing ice cubes ..... EN-17

Tips for freezing ..... EN-17

Care and maintenance ..... EN-19

Checking and cleaning the lid seal EN-19

Cleaning the exterior ..... EN-19

Defrosting and cleaning the inside of the appliance ..... EN-19

Interior light ..... EN-21

First use EN-22

Transport EN-22

Unpacking EN-22

Suitable location ..... EN-22

Positioning.... EN-24

Basic cleaning EN-24

Connecting the appliance to electricity ..... EN-24

Troubleshooting table ..... EN-26

Service EN-28

Advice, complaints and orders . . . . EN-28

Repairs and spare parts ..... EN-28

Disposal and waste prevention ..... EN-29

Disposing of old electrical devices in an environmentally-friendly manner .... EN-29

Waste prevention EN-29

Our contribution to protecting the ozone layer ..... EN-29

Product fiche concerning

Regulation (EU) No. 1060/2010 .... EN-30

Technical specifications ..... EN-30

HGT85102CE 68065226 ..... EN-30

HGT85112DE 21087052 ..... EN-31

Explanation of terms and symbols

Explanation of terms

The following terms can be found in this user manual.

WARNING

This term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This term warns against possible damage to property.

Definitions

“Food” refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

"Food to be frozen" means fresh, room-temperature food to be frozen throughout as quickly as possible – for best results "flash-frozen".

"Deep-frozen food" means food which has already been frozen and for which the cool chain should not be broken.

Explanation of symbols

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

"4 star" symbol: Freezer at -18^ or colder

For your safety

Intended use

The purpose of this appliance is to

– chill fresh food,
– store ordinary commercially available deep-frozen food,
– freeze fresh food from room temperature and make ice cubes.

This appliance is designed for use at ambient temperatures of +10 °C to +43 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This appliance is not designed for use as a built-in appliance.

The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people are at an increased risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision..

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it
– shows visible signs of damage, e.g. the supply cord is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our Service Department (see "Service" on page EN-28).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the type plate.

■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must, therefore, be connected to an easi-

ly accessible socket so that it can be quickly disconnected from the power supply in the event of a breakdown.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-28).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep the supply cord away from naked flames and hot surfaces.

■ Always pull on the mains plug and not the mains cable.

■ Never touch the mains plug with wet hands.

■ Never immerse the supply cord or plug in water or any other liquids.

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact

our Service Department (see "Service" on page EN-28) as required.

■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the cover from the interior light. Do not attempt to replace the interior lighting. Please contact our Service Department (see “Service” on page EN-28) as required.
■ Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
■ Connection to a timer or a separate remote control system for remote monitoring and control is not permitted.

Risks associated with using refrigerants

! WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fins or tubes on a refrigerator are damaged before it is disposed of properly.
■ To prevent the formation of a fl am- mable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of re- frigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fi re.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fi re.

■ Do not use any electric heating equipment, knives or devices with an open flame such as a candle.

■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks when dealing with fridge-freezers

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Type plate").

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ Pay attention to the star classifi cations in the freezer and the resulting storage periods for freezer products.

■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).

If there is a power failure, the frozen food may remain sufficiently cold for some time (see “storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.

■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.

■ Use only potable water to make ice cubes.

Risk of injury from frozen goods! Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

Improper handling of the appliance may result in injury. Water expands when frozen and can burst the container.

■ Do not store glass or metal containers containing water, lemonade, beer, etc.

! NOTICE

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Do not position the appliance directly against the wall and observe the minimum distances (see “First use” on page EN-22).

Risk of damage

! NOTICE

Risk of damage to property!

If the cooling unit has been transported vertically, lubricant from the compressor may get into the cooling circuit.

■ If possible, transport the appliance only in a horizontal position.

- Keep the appliance in a horizontal position for two hours before turning it on. During this time the lubricant will flow back into the compressor.

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ Place the appliance only on a level and firm surface that can support the weight of the appliance when it is filled.
■ Do not use sharp or pointed objects to unpack it.
■ When cleaning, please note:

• Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
• Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
  – Use only soft cloths for cleaning.

Delivery

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Line drawing of a bucket and a spatula (no text or symbols)

The type plate is on the appliance's exterior.

Package contents

1× Fridge/freezer
3× Drawers (model HGT85102CE)
4× Drawers (model HGT85112DE)
1× Ice scraper

Check the delivery

1. Move the appliance to a suitable place and unpack it (see "First use" on page EN-22).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Department (see page EN-28).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

First steps

- Please read Chapter "First use" on page EN-22 and follow the instructions in it.

Appliance components and operating elements

(1) Lid handle
(2) Light
(3) "Super Freeze" * button
(4) "Freezer" 📋 button
(5) "Fridge" 🔊 button
(6) Indicator
(7) Exterior condensate drain
(8) Drawer

(6)(3) (5) (4)

Line drawing of a rectangular container with a flared top and label (8) on the side (no text or symbols on the container itself)

Operation

Before getting started

• Read chapter "For your safety" from page EN-4 and observe all safety notices.
• Set up and connect the appliance as described in chapter "First use" from page EN-22.

Switching the appliance on and off

Switching on

1. To switch the appliance on, insert the mains plug into a socket (see "Connecting the appliance to electricity" on page EN-24).
   The indicator (6) will switch on.

2. If the appliance makes unusual noises, check that it is on a solid base and remove any objects that are on top of the appliance.

Switching off

1. To switch the appliance off completely, pull out the mains plug.
   The indicator (6) will go out.
2. If the appliance is switched off, leave the lid open slightly to avoid mould formation.

Setting the mode and temperature

The appliance can be used as either a fridge or a freezer. The control panel can be used to select the appliance mode.

Using the appliance as a fridge

• To use the appliance as a fridge, press the ▲Fridge" button (5).
• To set the temperature, press the "Fridge" button (5) repeatedly.
  You can set the temperature to between +2 °C and +6 °C.

Using the appliance as a freezer

• To use the appliance as a freezer, press the Freezer" button (4).
• To set the temperature, repeatedly press the 🔗 "Freezer" button (4).
  You can set the temperature to between -14^ and -25^ .

"Super" mode

If you want to store a large amount of frozen food at the same time, in this mode the storage temperature will be reached more quickly and the food therefore frozen faster.

• To activate the "Super" mode, press the * "Super Freeze" button (3).
  “SF” will appear on the display (6).
• To deactivate the "Super" mode, press the * "Super Freeze" button (3) again.

If the appliance is not manually deactivated, the "Super" mode will automatically switch off after 52 hours, and the appliance will then switch on the previously set temperature.

The "Super" mode cannot be switched on if you have been using the appliance as a fridge.

If the appliance is set to the "Super" mode, it is not possible to switch directly to refrigeration mode.

Deactivating button lock

The appliance automatically self-locks if no button is pressed for 30 seconds.

If a button is pressed in the locked state, the display flashes and two acoustic warning signals will sound.

- To switch off the button lock, press and hold the ⏻ “Fridge” (5) and ⚪ Freezer” (4) buttons simultaneously for three seconds.

Chilling food

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Filling the interior of the appliance

• Use the drawers (8) to make the most efficient use of your appliance.
• A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.
• If you use the appliance as a fridge, set the temperature to +6 °C and fill the interior such that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.
• The following tips show you how you can store foods in your appliance to keep them in the best possible condition over the longest possible time. This will mean that you avoid food waste:
• Place spreadable butter and cheese in a drawer (8) in the upper interior area. This is where the temperature is warmest.
• Store cooked and baked food in a drawer (8) in the upper interior area.
• Store fresh fruit and vegetables in a drawer (8) in the upper interior area.

• Store preserves, jars and eggs in the central interior area (9).

• Place drinks cartons and bottles in the lower interior area (10).

• Place fresh meat, game, poultry, bacon, sausage and raw fish in the lower interior area (10). This is where the temperature is lowest.

• Only store strong alcohol standing upright and tightly closed.

• Allow hot food to cool before placing it inside the appliance.

The temperatures within the appliance and therefore its energy consumption may rise if the lid is frequently opened or kept open for long periods, or if the ambient temperature exceeds the stipulated minimum or maximum levels (see "Intended use" on page EN-4).

Maintaining quality

• To maintain the flavour and freshness of food inside the appliance, package all food to be cooled before placing it inside the appliance. Use special plastic containers for food or customary films.
• Place the food

– inside the appliance in a way that allows air to circulate freely.
– not touching the wall. Otherwise, it may freeze onto the wall.

Freezing food/Storing frozen food

WARNING

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the interior appliance walls are at a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Never put ice cubes or ice lollies straight into your mouth after taking them out of the appliance.

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mix-turess.
■ Do not freeze any fi zzy drinks; water expands when frozen.
■ Do not store glass or metal containers of liquid. The containers could break.
■ Only freeze high-proof alcohol that is tightly sealed.

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door

open to prevent mould developing within the appliance.

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers. Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
■ After a possible power failure, check whether the stored foodstuffs are still edible. The maximum storage time in the event of a malfunction can be found on the type plate of the appliance.
■ Consume thawed and defrosted foods immediately, do not refreeze.

- Follow the instructions in this chapter to store your food over the longest possible time in the best possible way.

Freezing food

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results "flash-frozen". If not cooled quickly enough, the food will be "frost-bitten", i.e. the structure will be destroyed. A constant storage

temperature of -18^ is needed to maintain the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will help to avoid food waste.

Setting the temperature in the freezer to -18 ^ ensures that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

Maximum freezing capacity

Details of the freezing capacity of your appliance can be found on the type plate of your appliance.

- Adhere to the maximum freezing capacity if possible.

Up to the maximum specified freezing capacity

If you adhere to the maximum freezing capacity, the food will freeze at the fastest rate. The temperature in the freezer briefly rises after placing fresh goods inside. After 12 hours, the goods are frozen to the core.

About the maximum specified freezing capacity

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food cannot be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods. Set the temperature to the lowest setting ( -25^ ) two hours beforehand.

Preparing ice cubes

• Fill an ice cube container to the 3/4 level with fresh drinking water and place it inside the appliance.
• The ice cubes are best removed by bending the ice cube container slightly or holding it under running water for a short while.

Tips for freezing

To maintain the taste and nutritional value of your frozen foods and to make sure your appliance does not use too much electricity and the interior does not need to be defrosted unnecessarily often, please note:

• Frozen food requires a constant storage temperature of -18^ .
• A temperature setting that is too high can reduce the shelf life of your food. This leads to greater food waste.
• Only freeze good quality food that has been prepared, split into portions and packaged as appropriate for its properties.
• Freeze meat, poultry and fish raw, or prepared into portions suitable for use at home, and defrost them later in the fridge. Make sure that meat, for example, is not immersed in its own thawing liquid.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more durable.

• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the inside of the appliance.
  – To make sure frozen food does not dry out, take on a strange taste or leak, use robust packaging material that is impermeable to air and liquids, is not too stiff and can be closed easily and labelled.

• Observe the manufacturer's instructions when storing processed frozen foods.

• You should also freeze meals in portion sizes if possible. Small portions are quicker to freeze to the core. It is also more economical to freeze several small portions than to throw away the remainder of a larger portion.
  – Adhere to the recommended storage times and temperatures.
• When storing fresh food, make sure that it does not come into contact with food that is already frozen, as this food may defrost.
• Make sure that frozen food does not come into contact with the rear wall of the freezer, as it could end up freezing to the wall.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling out the mains plug, always take hold of the mains plug itself and never the mains cable.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage to property!

The surfaces and appliance parts can become damaged through unsuitable handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

■ Cover seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

■ Only use soft cloths.

Checking and cleaning the lid seal

The lid seal must be checked regularly to prevent warm air from entering the appliance.

1. To test them, clamp a thin piece of paper in various places between the lid seal and frame of the appliance. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Clean dirty seals with clean water only.

Cleaning the exterior

- Use only light pH-neutral soapy water for cleaning the exterior walls.

Defrosting and cleaning the inside of the appliance

WARNING

Danger of explosion!

Improper handling of the appliance may lead to defl agration/explosion!

■ Never use defrosting sprays. They can generate explosive gases.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ Defrost the appliance in a timely manner before it forms a layer of ice and frost of more than 5 mm. Excessive ice formation increases power consumption and the lid may no longer close tightly.

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Preparation

- Activate the “Super” mode at least three hours before cleaning. This way, the frozen food gets a cold reserve and does not defrost as quickly.

Defrosting

If possible, defrost the appliance in winter when the outside temperature is low. You can then store the food on the balcony (or similar) while defrosting.

Alternatively, you can wrap up the frozen food in a thick layer of newspaper and store it in a cool room or insulated bag.

1. Disconnect the mains plug from the socket.
2. Remove the frozen food and ensure that your food stays adequately cooled.
3. Remove the drawers (8). Clean them with warm, fresh water.

1. Twist the exterior stopper of the (7) condensate drain (11) until the arrow is pointing down, and then pull it out slightly. There is an outlet opening where the arrow is positioned.
2. Place a bowl or cloth in front of the condensate drain (7) to catch any emerging water.
3. Unscrew the interior stopper of the (7) condensate drain (12).
4. Place a bowl of hot, but not boiling, water in the appliance interior. This will accelerate the defrosting process.
5. Carefully scrape off any stubborn ice with a plastic ice scraper.
6. Leave the lid open during the defrosting. The defrosting time depends on the thickness of the ice layer. Experience suggests that cleaning can be started after about one hour.

Cleaning

1. Wipe the interior with warm rinsing water. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
2. Only clean the door seal with clean water; it is sensitive to oil and fat.
3. Rub everything completely dry, including the lid seal, and allow to air briefly.
4. Screw the stoppers (12) and (11) for the condensate drain (7) back in.
5. Re-insert the drawers (8) and put the food back into the inside of the appliance.
6. Re-insert the mains plug in the socket and either activate the "Super" mode, as described in the section "Super" mode on page EN-13, or put the temperature setting to +2 °C, as described in the section "Using the appliance as a fridge" on page EN-12.
7. As soon as the lowest refrigeration temperature (+2 °C) or the lowest freezing

temperature ( -25 ^ ) is reached, put the temperature settings back to the usual values.

Interior light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the cover from the interior light.
■ Do not replace the interior light.

Maintenance-free LEDs are used to light the appliance. The LEDs are not replaceable.

If the interior light does not work, please contact our Service department (see page EN-28).

First use

Transport

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person when moving the appliance.

NOTICE

Risk of damage to property!

If the appliance is tilted, lubricant from the compressor may get into the cooling circuit.

■ Do not tilt the appliance more than 45^ .
- Allow the appliance to stand for approx. two hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

Unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm.

■ Do not allow children to play with the packaging fi lm.

NOTICE

Risk of damage to property!

The housing can be damaged if the packaging is carelessly removed.

■ Do not use sharp or pointed objects to unpack it.

1. Remove all parts of the packaging, plastic profiles, tape and foam padding.

1. Remove the transport safety devices (13) and save them for later use. They help prevent door seals from being pushed together too much during transport.
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Department (see page EN-28).

Suitable location

• To prevent an ignitable gas-air mixture from forming in the event of a leakage in the refrigeration circuit, the installation site must have a volume of at least 7.4 ~m^3 .
• The following minimum distances must be observed for the installation location: -70 cm above;
• 20 cm behind and on the sides.
• The surface must be level and firm enough to support the appliance's weight when fully laden.
• Always ensure that the ambient temperature for the location remains in the specified range (see "Climate classes" in the product data sheet at the end of this user manual). Otherwise, this can then lead to an increase in temperature inside the freezer.

Minimum distances and room size

Space required according to the appliance dimensions:

Model HGT85102CE

A: 780 ~mm B: 1026 ~mm
C: 50 mm D: 616 mm
E: 85°

Model HGT85112DE

A: 780 ~mm B: 1120 ~mm
C: 50 mm D: 700 mm
E: 85°

• Suitable locations are dry, well-ventilated areas that are as cool as possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

Positioning

WARNING

Health hazard!

Spurting refrigerant can damage the eyes.

If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

NOTICE

Risk of damage to property!

Insuffi cient air circulation may lead to overheating and cause damage to the appliance.

■ To ensure adequate air circulation, do not close the ventilation openings in the appliance housing.
- Observe minimum distances (see "Suitable location" on page EN-22).

1. Place the appliance on a level and solid surface.

2. The appliance is equipped with screw feet on the left side. They can be used to accommodate for an uneven surface.

- Tilt the appliance slightly and screw/un-screw the screw feet.

Basic cleaning

Wipe the interior with vinegar water before using the appliance for the first time. Then wipe it out with clean water and dry all of the parts off afterwards.

Connecting the appliance to electricity

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.
■ Connection to a timer or a separate remote control system for remote monitoring and control is not permitted.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

1. Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz). The indicator lights up.

2. Wait three to four hours before setting in food to be frozen. With a very high ambient temperature – for example in the summer – you should wait more than four hours before storing food.

You will find all additional important information about operation from page EN-12.

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see "Freezing food/Storing frozen food" on page EN-16). Climate category means that the appliance is intended for operation at the specified ambient temperature.

Zone description	Code	Definition
Extended temperate zone S	N This refrigerator is designed for use at ambient temperatures of +10 °C to +32 °C.
Temperate zone N This refrigerator is designed for use at ambient temperatures of +16 °C to +32 °C.
Subtropical zone ST This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.
Tropical zone T This refrigerator is designed for use at ambient temperatures of +16 °C to +43 °C.

If the room temperature drops significantly below this, the unit will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, light off.	No electricity to socket. Check the socket with another appliance. Check the fuse.
	Mains plug is loose. Check the tightness of the mains plug.
	Desired temperature has been reached.	Further cooling not required. When the inside temperature increases, the compressor automatically switches on again.
Appliance cools too strongly.	Temperature has been set too low.	Select a higher setting (see “Freezing food/ Storing frozen food” on page EN-16).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting (see “Freezing food/ Storing frozen food” on page EN-16).
	Lid not tightly closed or lid seal is not completely tight.	See “Checking and cleaning the lid seals” on page EN-19.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Too many goods frozen. Please observe the maximum freezer capacity (see “Freezing capacity in kg/24h” in the data sheet at the end of this user manual).
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate class (see “Climate classes” in the product data sheet at the end of this user manual).
	Compressor seems defective.	Switch on the “Super Freeze” mode. If the compressor does not switch on within an hour, please contact our Service department (see page EN-28).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that	it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from non-compliance with this manual unfortunately cannot be acknowledged.

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
hanseatic Fridge/freezer	White HGT85102CE 68065226
	White HGT85112DE 21087052

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a problem cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our Service Department regarding this.

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Contact our Technical Service:

Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Disposal and waste prevention

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Refrigerating appliances, which contain refrigerants and gases in the cooling systems and insulation, must be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a refrigerating appliance are damaged.

Risk of suffocation!

Children can become trapped in the appliance which has been thrown away and suffocate.

■ Make sure that children cannot suffocate inside the chest freezer (e.g. unscrew and remove the lid) when you dispose of the appliance.

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our Service department if your product is faulty.

More information can be found in the brochure “Waste Prevention Programme of the German Government with the Involvement of the Federal States”.

Our contribution to protecting the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product fiche concerning Regulation (EU) No. 1060/2010

The product fiche for your device is available online.

Go to https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier of your device can be found under Technical specifications.

Technical specifications

HGT85102CE 68065226

Item number 68065226
Name of appliance Chest Freezer
Model identifier HGT85102CE
Device measurements (Height × Width × Depth)	845 mm × 1026 mm × 616 mm
Unloaded weight 38 kg
Refrigerant	R600a
Filling capacity refrigerant 59 g
Foaming agent cyclopentane
Rated power 100 W
Supply voltage / frequency / rated current 220 - 240 V ~	/ 50 Hz / 0,7 A
Protection class I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.

This product contains a light source of energy efficiency class G.

HGT85112DE 21087052

Item number 21087052
Name of appliance Chest Freezer
Model identifier HGT85112DE
Device measurements (Height × Width × Depth)	845 mm × 1120 mm × 700 mm
Unloaded weight 42 kg
Refrigerant	R600a
Filling capacity refrigerant 66 g
Foaming agent cyclopentane
Rated power 155 W
Supply voltage / frequency / rated current 220 - 240 V ~	/ 50 Hz / 1,45 A
Protection class I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.

This product contains a light source of energy efficiency class G.
