Important information

Safety information

This manual describes installation and service procedures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is an original manual. It may not be translated without the approval of NIBE.

Rights to make any design or technical modifications are reserved.

©NIBE 2023.

Caution

You need the product's serial number for servicing and support.

yRecovery

Leave the disposal of the packaging to the installer who installed the product or to special waste stations.

When disposing of the product, its constituent materials and components, e.g. compressors, fans, circulation pumps and circuit boards, must be disposed of at a special waste station or dealer who provides this type of service.

To access the separate components, refer to the section

If the supply cable is damaged, only NIBE that shows the construction of the product. No special tools its service representative or similar author are required for access.

ised person may replace it to prevent any improper disposal of the product by the user results in administrative penalties in accordance with current legislation.

Symbols

Explanation of symbols that may be present in this manual.

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about what you should consider when installing or servicing the installation.

TIP

This symbol indicates tips on how to facilitate using the product.

Serial number

The serial number can be found at the top, to the left of the ventilation connection for exhaust air.

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person. In addition, ll in the page for the installation data in the User Manual.

√				DateSignatu
Electricity (page 12)
	Connections
	Main voltage
	Fuses property
	Earth circuit-breaker

S

Delivery and handling

Transport and storage

ERS 30 should be transported and stored in the dry.

Compatible products

S1155

S1255

• SMO S40• VVM S320

• VVM S325

Removing the covers

1. Open the Iter cover as illustrated.

Diagram of a door handle with internal components and an arrow indicating direction (no text or symbols)

1. Pull out the Iters.

Technical diagram of a mechanical assembly with two directional arrows indicating movement (no text or symbols present)

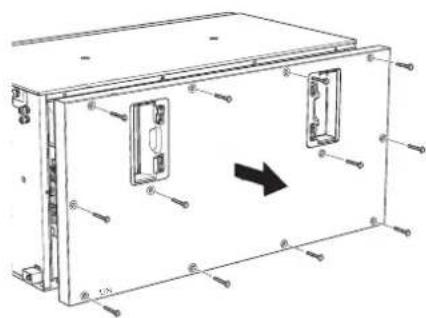

1. Unscrew the screws as illustrated and pull out the front panel.

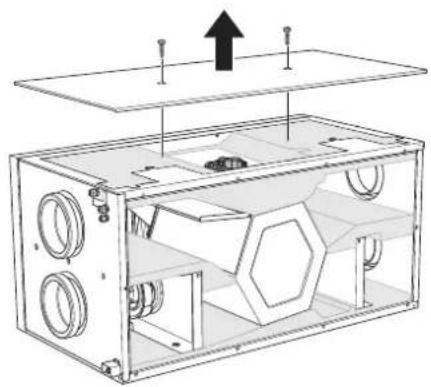

1. Unscrew both of the screws at the top and lift o the top panel.

Technical line drawing of an open industrial enclosure with internal components and mounting fixtures (no text or symbols)

Assembly

ERS 30 must be placed on a stable surface to minimise the risk of vibrations.

• Wherever the unit is located, any joists that back onto a sound-sensitive room should be fitted with soundproofing.
• Condensation water comes from the HRV unit. A condensation outlet with a water seal must be installed and routed to an internal drain.
• The HRV unit's installation area always has to have a temperature of at least -25^ircC and max. 50^ircC .

INSTALLATION AREA

Leave a free space of 600 mm in front of the product.

NOTE

Ensure that there is sucient space (300 mm) for connecting ventilation ducts.

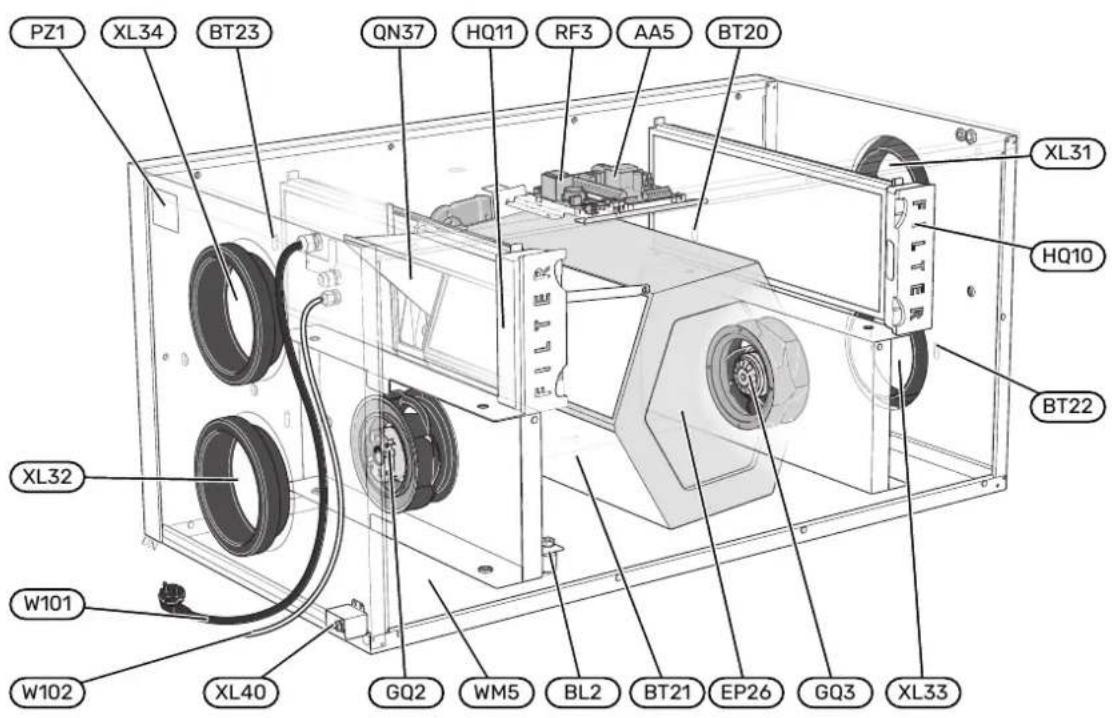

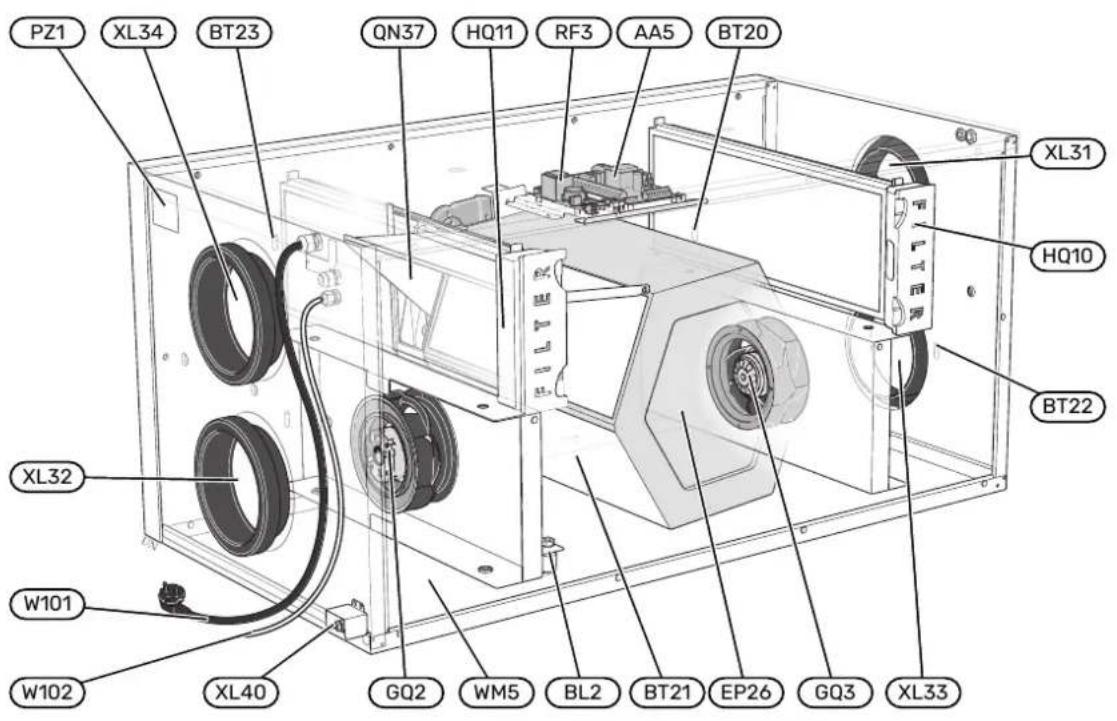

Design of the HRV unit

S

Pipe connections

Ventilation connection, exhaust airXL31

Ventilation connection, extract airXL32

Ventilation connection, supply airXL33

Ventilation connection, outdoor airXL34

Condensation water drainXL40

Sensors etc.

Level monitorBL2

Temperature sensor, exhaust airBT20

Temperature sensor, extract airBT21

Temperature sensor, supply airBT22

Temperature sensor, outdoor airBT23

Electrical components

Accessory cardAA5

EMC cardRF3

Cord with connection plugW101

Communication cableW102

Ventilation

EP26 Heat exchanger

GQ2 Exhaust air fan

GQ3 Supply air fan

HQ10 Exhaust air Iter

HQ11 Supply air Iter

Bypass damperQN37

Miscellaneous

PZ1 Type plate

WM5 Condensation water trough

Designations according to standard EN 81346-2.

Ventilation connections

Condensation water drain

ERS 30 can produce several litres of condensation water per day. It is therefore important that the condensation outlet is correctly executed and the HRV unit installed horizontally.

Check that the water seal is airtight and rmly in position. The connection must be made so that the user can check and top up the water seal, without opening ERS 30.

The connection for the condensation outlet measures 015 mm.

If the HRV unit will be installed in a cold area, the condensation water drain pipe must be insulated so the condensation water in the pipe does not freeze. It is also recommended that the water seal is mounted in a warm area to guarantee that the water in the water seal does not freeze. If it cannot be guaranteed that insulation will protect the condensation water drain pipe against frost, a thermostat-controlled heating cable must be installed around the condensation water drain pipe. The installation from the water seal to the drain must be carried out with a requisite slope of at least 1%.

CLEANINGTHECONDENSATIONWATER DRAIN

Condensation forms when ERS 30 is working. This condensation is led off and collected in the condensation water drain. Apart from water, a certain amount of dust and particles also collect there.

Check regularly that the condensation water drain and any oor drains are not blocked; water must be able to run through freely. Clean, if necessary.

NOTE

During operation, negative pressure arises in the HRV unit, which means that a water column of at least 100 mm must be guaranteed in the water seal.

General ventilation connectionsAdjusting ventilation

• Ventilation installation must be carried out in accordance to obtain the necessary air exchange in every room of the building, the exhaust air valve and the supply air inlet as well as the fans in the HRV unit must be correctly positioned and adjusted.
• Provision must be made for inspection and cleaning of the duct.
• The air duct system must be a minimum of air tightness class B. Immediately after installation adjust the ventilation so that it is set according to the projected value of the house.
• To prevent fan noise being transferred to the ventilation devices, install silencers in suitable locations in the duct system. Incorrect adjustment of the ventilation may lead to reduced installation eciency and thus poorer operating economy, a poorer indoor climate and moisture damage in the building.
  • The extract air and outdoor air ducts are insulated using diusion-proof material along their entire lengths. Outdoor air Exhaust air
• Ensure that the condensation insulation is fully sealed at any joints and/or at lead-in nipples, silencers, roof cowls or similar.
• The air must be routed to the outdoor air duct through an outer wall grille in the facade. The outer wall grille must be installed so that it is protected from the weather and must be designed so that no rainwater and/or snow can penetrate the facade or follow the air into the duct.
• When positioning the outdoor air and extract air hood/grille, bear in mind that the two air ows must not short circuit to prevent the extract air from being drawn into ERS 30 again.
• A duct in a masonry chimney stack must not be used for extract air or outdoor air.

EXHAUST AIR DUCT /KITCHEN FAN

Exhaust air duct (kitchen fan) must not be connected to ERS 30.

To prevent cooking odours from being led to the ERS 30, the distance between the kitchen fan and the exhaust air valve must be taken into consideration. The distance must not be less than 1.5 m, but may vary between dierent installations.

Always use a kitchen fan when cooking.

Ventilation ow

Connect ERS 30 so that all the exhaust air, except kitchen duct air (kitchen fan), passes through the heat exchanger (EP26) in the product.

The ventilation flow must comply with the applicable national standards.

The supply air ow must be lower than the exhaust air ow to prevent over pressure in the house.

Set the ventilation capacity in the main product's menu system (menu 7.1.4 - "Ventilation").

Electrical connection

NOTE

All electrical connections must be carried out an authorised electrician.

Electrical installation and wiring must be carried out in accordance with national provisions.

ERS 30 must not be powered during installation

Connecting to main product

CONNECTING TO THE HEAT PUMP

ERS 30 contains an accessory board (AA5) that connects directly to the main product's PCB (terminal block AA2-X30).

The communication cable (W102) is connected to the accessory board (AA5) from the factory.

If several accessories are to be connected, or are already installed, the boards are connected in series.

NOTE

If the supply cable is damaged, only NIBE, its service representative or similar authorised person may replace it to prevent any danger and damage.

Because there can be different connections for accessories with accessory board (AA5), you should always read the instructions in the manual for the accessory that is to be installed.

• To prevent interference, sensor cables to external connections must not be laid close to high voltage cables.
• The minimum area of communication and sensor cables to external connections must be 0.5 mm² up to 50 m , example EKKX, LiYY or equivalent.

For electrical wiring diagram, see page 22.

Overview accessory board (AA5)

Supply

ERS 30 is connected to a earthed single-phase wall socket or a permanent installation. For permanent installations,

ERS 30 must be preceded by a circuit breaker with at least a 3 mm breaking gap.

CONNECTING TO CONTROL MODULE

DIP SWITCH

ERS 30 contains an accessory board (AA5) that connects The DIP switch (S2) on the accessory board (AA5) must be directly to the control module on its joint board (terminabet as follows.

block AA100-X9).

You can have up to 8 ERS 30 in the same installation, each

The communication cable (W102) is connected to the accessRS 30 is given a unique setting.

ory board (AA5) from the factory.

If several accessories are to be connected, or are already installed, the boards are connected in series.

Because there can be different connections for accessories with accessory board (AA5), you should always read the instructions in the manual for the accessory that is to be installed.

ERS 30 no. 1

ERS 30 no. 2

ERS 30 no. 3

ERS 30 no. 4

ERS 30 no. 5

ERS 30 no. 6

ERS 30 no. 7

ERS 30 no. 8

Commissioning and adjusting

Preparations

• Check the miniature circuit-breaker (FC1) in the main product. It may have tripped during transportation.
• Check that the air Iters are clean, they can become dirty after installation.

Filling

- Check that there is water in the water seal, fill if necessary.

Start-up and inspection

SETTING THE VENTILATION

The ventilation must be set according to applicable standards. Adjust the supply air ow to guarantee a negative F: pressure.

The settings are made in menu 7.1.4.

Even if ventilation is roughly set at installation it is important that a ventilation adjustment is ordered and permitted.

Caution

An incorrectly set ventilation flow can damage the house and may also increase energy consumption.

NOTE

Order a ventilation adjustment to complete the setting.

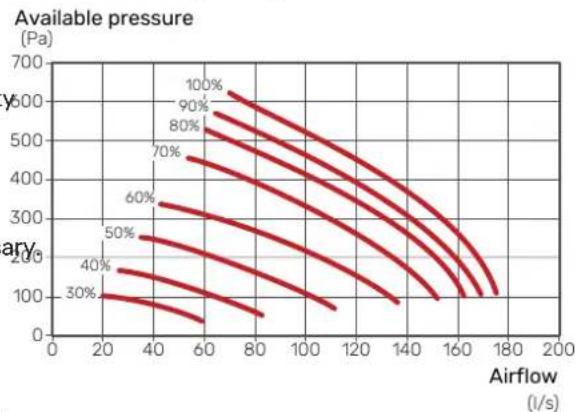

Ventilation capacity

Fan rating

¹ The diagram shows the power consumption per fan.

Activating ERS 30

Activating ERS 30 can be performed via the start guide The fan speed is shown in brackets (in percent) after each directly in the menu system. speed alternative.

The main product's software must be the latest version.

Also see the Installer Manual for the main product

Start guide

The start guide appears upon rst start-up after heat pur installation, but is also found in menu 7.7.

Menu system

If you do not make all settings via the start guide or need to change any of the settings, this can be done in the mem here, you can activate night cooling. When the temperature system. in the house is high, and the outdoor temperature is lower,

MENU 7.2.1 -ADD/REMOVE ACCESSORIES

Activating/deactivating of accessories.

Select "ERS S10/20/30 1" - "ERS S10/20/30 8".

Night cooling

Setting range: on/o

Start temp exhaust air

Setting range: 20 - 30 °C

_p Min. di. ind. temp. - outd. temp.

Setting range: 3 - 10 °C

Night cooling during heating

Setting range: on/o

MENU 7.2.11 - VENT. HEAT EXCHANGER (ERS) start temp exhaust air: Here, you set the exhaust air tem-

Lowest extract air temp.

Setting range: 0 - 10 °C

Product

Setting range: ERS10, ERS20/ERS30

Action level monitor

Setting range: Level monitor/Blocked/O

Min. di. ind. temp. - outd. temp.: If the temperature dience is greater than the set value for "Min. di. ind. temp. - outd. temp.", and the exhaust air temperature is higher than the set value for "Start temp exhaust air", the ventilation operates at speed 4 until one of these conditions is no longer valid.

Night cooling during heating: It is possible to have night cooling during the time heating is permitted.

MENU 1.2.5 - FAN RETURN TIME

Lowest extract air temp.: Set the lowest extract air temper-

ature to prevent the build-up of ice on the heat exchange

Action level monitor: ERS 30 has a built-in level monitor the fans stop when the input is interrupted. When "Level monitor" is selected, the product issues an alert when input is interrupted; when "Blocked" is selected, text is played instead in operating info.

MENU 1.2.1 - FAN SPEED

Alternatives: normal and speed 1 - speed 4

The ventilation in the accommodation can be temporarily increased or reduced here.

When you have selected a new speed a clock starts a down. When the time has counted down the ventilation speed returns to the normal setting.

If necessary, the dierent return times can be changed in menu 1.2.5.

er speed 1 - speed 4

Setting range: 1 - 24 h

Here, you select the return time for the temporary change of ventilation speed (speed 1 - speed 4), regardless of whether the speed has been changed in menu 1.2.1 - "Fan speed", via the home screen or via myUplink.

Return time is the time it takes before the temporary ventilation speed returns to normal speed.

MENU 1.2.6 - FILTER CLEANING INTERVAL

Months between Iter cleaning

Setting range: 1 - 24 months

The filters in ERS 30 are of a type that should not be cleaned; they have to be replaced instead. These must be replaced regularly, although how often depends on factors such as the amount of particles in the ventilation air. Test to nd out what is most appropriate for your installation.

Set the interval for the reminder in this menu.

The menu shows the time remaining until the next reminder and you can also reset active reminders.

MENU 1.2.7 - VENTILATION RECOVERY

Temp stop of heat recovery

Setting range: 5 - 30 °C

Min. di. ind. temp. - outd. temp.

Setting range: 2 - 10 °C

Recovery stop during heating

Setting range: on/o

Cooling recovery

Setting range: on/o

St temp sup air cooled by exh air

Setting range: -20.0 - 41.0 °C

Min di outd and exhaust air

Setting range: 3.0 - 10.0 °C

When there is no heating demand, and the outdoor temperature is approaching the indoor temperature, heat recover is stopped to prevent the house from being heated furth

Caution

"St temp sup air cooled by exh air" cannot be lower than "Stop heating" in menu 7.1.10.2 - "Auto mode setting".

Min di outd and exhaust air: Here, you set the temperatul dierence between outdoor air and exhaust air that is required in order for cooling recovery to start.

MENU 7.1.4.1 - FAN SPEED, EXHAUST AIR

Fan speed

"Normal" and "Fan speed 1" - "Fan speed 4"

Setting range: 0 - 100%

Set the speed for the ve dierent selectable speeds for the fan here.

MENU 7.1.4.2 - FAN SPEED, SUPPLY AIR

Fan speed

"Normal" and "Fan speed 1" - "Fan speed 4"

Setting range: 0 - 100%

Set the speed for the ve dierent selectable speeds for the fan here.

Caution

Only the heat recovery is stopped, not the ventilation.

aMENU 6.2 - SCHEDULING

In this menu, you schedule repeated changes of ventilation.

Temp stop of heat recovery: Here, you set the outside perature at which ventilation recovery is to stop.

Min. di. ind. temp. - outd. temp.: Here, you set the tature dience between the indoor air and the outdoor air that is required in order for ventilation recovery to start.

Caution

A schedule repeats according to the selected setting (e.g. every Monday) until you go into the menu and switch it o.

Recovery stop during heating: Stopping ventilation recov during the time heating is permitted is possible.

Cooling recovery: When there is no heating demand, ventilation recovery is stopped to prevent the house from being heated further. When it is warm indoors and even warmer outdoors, ERS 30 can be used to prevent the house from heating up more than necessary. During cooling recovery, the cooler air from the house is used to cool the incoming air.

"Cooling recovery" is started when the exhaust air temperature is a certain number of degrees below the outdoor temperature and it is warm outside.

St temp sup air cooled by exh air: Here, you set the outdoor temperature at which cooling recovery will start.

MENU 7.4 - SELECTABLE IN/OUTPUTS

Select here whether you want to activate fan speed for the relevant AUX input.

Disturbances in comfort

In most cases, the main product notes a malfunction (a - Check and clean the exhaust air devices.

malfunction can lead to disturbance in comfort) and indic-Fan speed in forced mode.

ates this with alarms and shows action instructions in the display.

Enter the main product's menu 1.2.1 and select "Normal".

Troubleshooting

- External switch for changing the fan speed activated.

If the operational interference is not shown in the display

- Check any external switches.

the following tips can be used:

- Silencers not correctly installed.

- Check the silencers.

BASIC ACTIONS

Start by checking the following items:

• That the main product is running and that the supply cable to ERS 30 is connected.
• Group and main fuses of the accommodation.
  • The property's earth circuit breaker.
• The main product's fuses.
• The main product's temperature limiter.

LOW OR A LACK OF VENTILATION

• Level monitor (BL2) tripped.
- Checking the condensation water drain and water seal.
- The exhaust air Iter (HQ10) and/or the supply air Iter (HQ11) is clogged.
- Replace the Iters.
• The ventilation is not adjusted.
- Order/implement ventilation adjustment.
- Closed, too much choke or blocked ventilation device.
- Check and clean the ventilation devices.
• Fan speed in reduced mode.
- Enter the main product's menu 1.2.1 and select "Normal".
- External switch for changing the fan speed activated.
- Check any external switches.
- Fan running slow because of low incoming outdoor air temperature.
- Check the function and settings for the electrical air heater (EAH 20) if installed.

HIGH OR DISTRACTING VENTILATION

• The exhaust air Iter (HQ10) and/or the supply air Iter (HQ11) is clogged.
• Replace the Iters.
• The ventilation is not adjusted.
• Order/implement ventilation adjustment.
• Closed, too much choke or blocked ventilation device.

Accessories

Detailed information about the accessories and complete accessories list available at nibe.eu.

Not all accessories are available on all markets.

ELECTRICAL AIR HEATER EAH 20

In cold weather, EAH heats the incoming outdoor air slightly to prevent the condensation in ERS 30 from freezing to form ice. EAH should be used in houses where the outdoor temperature can be continuously lower than -5°C.

Technical data

Dimensions

Technical line drawing of a rectangular structure with two vertical supports and three circular features, dimensioned as 590 units (no text or symbols)

Technical specifications

		ERS 30Type
Electrical data
		230 V - 50HzVSupply
		10AFuse
		2 x 170WDriving po
		IP X1BEnclosure cla
Ventilation
		Coarse 65%Filter type
		ePM1 55%Filter type,
Noise
w(A)1		55dB(A)Sound po
P(A)2		47dB(A)Sound pre
Pipe connections
		160mmVentilation
	mmCondensation water d5ain θ
Dimensions and weight
Working temperature range for incoming air	°C	Min. -25 max. 40
Eciency class 3		A
Length, supply cable	m	2.4
Length, communication cable	m	2.0
	mmWidth	1,280
	mmHeight	585
	mmDepth	700
Weight	kg	56
Part No.		066 241

voltage
wer fan
exhaust a
supply air
wer level (
ssure leve
θ
1 127 l/s (457 kWh) at 50 Pa
2 93 l/s (335 m/h) at 50 Pa
3 Scale for eciency class: A+ to G.

Dry temperature eciency according to EN 308

Temperature efficiency
(%)

Outdoor air: 5 °C Exhaust air 25 °C RH exhaust air: <27.7 %

Energy labelling

		NIBESupplier
		ERS 30-600Model
Specific energy consumption (SEC)	kWh/(m2year)	Average: -35.6Cold: -71.6Warm: -12.3
Energy eciency class		A
		RVU, BidirectionalDeclared typology
		Variable speed driveType of drive
		RecuperativeType of heat recovery system
		79Thermal eciency of heat recovery
	m3/hMax	mum air ow rate 655
ow rate		340WElectric power input of the fan drive
		55dBSound power level (LWA)
Reference ow rate	3/s	0.127m
	Reference	pressure dience 50Pa
Specific power input (SPI)	W/m3/h	0.32
Control factor and control typology		Clock control (0.85)
	%External leakage rates	Internal: 2.7External: 1.8
Information about Iter warning		See user manual.
Information about supply/exhaust grilles in the facade		See the "Ventilation connections" section.
Information about pre-/disassembly		See the "Recovery" section.This installer manual can also be accessed at nibe.eu.
The annual electricity consumption	kWh/year	337
Annual heating saved, kWh primary energy per year	kWh prim/year	Average: 4,332Cold: 8,474Warm: 1,959

at maximum

S

Electrical circuit diagram

F-series

Table of Contents

2411 Important information 3820 Techr

24Safety information 38Dimension

24Symbols 39Technical

24Serial number ____ 40Energy la

24Recovery 41Electrical

25Inspection of the installation 43Contact

2612 Delivery and handling

26Transport and storage

26Compatible products

26Removing the covers

27Assembly

2813 Design of the HRV unit

29Pipe connections

29Sensors etc.

29Electrical components

29Ventilation

29Miscellaneous

3014 Ventilation connections

30Condensation water drain

31General ventilation connections

31Ventilation ow

31Adjusting ventilation

31Ventilation connections

3215 Electrical connection

32Overview accessory board (AA5)

32Supply

32Connecting to main product

3416 Commissioning and adjusting

34Preparations

34Filling

34Start-up and inspection

3517 Activating ERS 30

35Start guide

35Menu system

3618 Disturbances in comfort

36Troubleshooting

3719 Accessories

Important information

Safety information

This manual describes installation and service procedures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is an original manual. It may not be translated without the approval of NIBE.

Rights to make any design or technical modifications are reserved.

©NIBE 2023.

Caution

You need the product's serial number for servicing and support.

Recovery

Leave the disposal of the packaging to the installer who installed the product or to special waste stations.

When disposing of the product, its constituent materials and components, e.g. compressors, fans, circulation pumps and circuit boards, must be disposed of at a special waste station or dealer who provides this type of service.

To access the separate components, refer to the section that shows the construction of the product. No special tools are required for access.

Improper disposal of the product by the user results in administrative penalties in accordance with current legislation.

If the supply cable is damaged, only NIBE that shows the construction of the product. No special tools its service representative or similar author are required for access.

ised person may replace it to prevent any improper disposal of the product by the user results in ad- danger and damage. administrative penalties in accordance with current legislation.

Symbols

Explanation of symbols that may be present in this manual.

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about what you should consider when installing or servicing the installation.

TIP

This symbol indicates tips on how to facilitate using the product.

Serial number

The serial number can be found at the top, to the left of the ventilation connection for exhaust air.

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person. In addition, ll in the page for the installation data in the User Manual.

√				DateSignatu
Electricity (page 32)
	Connections
	Main voltage
	Fuses property
	Earth circuit-breaker

F

Delivery and handling

Transport and storage

ERS 30 should be transported and stored in the dry.

Compatible products

• SMO 40• VVM 310

F1145
F1155
• VVM 320
F1245
VVM 325
F1255
VVM 500
F1345
F1355

Removing the covers

1. Open the Iter cover as illustrated.

Diagram of a door handle mechanism with no visible text or symbols

1. Pull out the Iters.

Technical diagram of a mechanical assembly with two directional arrows indicating movement (no text or symbols present)

1. Unscrew the screws as illustrated and pull out the front panel.

1. Unscrew both of the screws at the top and lift o the top panel.

Technical line drawing of an open industrial machine casing with internal components and mounting points (no text or symbols)

Assembly

ERS 30 must be placed on a stable surface to minimise the risk of vibrations.

• Wherever the unit is located, any joists that back onto a sound-sensitive room should be fitted with soundproofing.
• Condensation water comes from the HRV unit. A condensation outlet with a water seal must be installed and routed to an internal drain.
• The HRV unit's installation area always has to have a temperature of at least -25^ircC and max. 50^ircC .

INSTALLATION AREA

Leave a free space of 600 mm in front of the product.

NOTE

Ensure that there is sucient space (300 mm) for connecting ventilation ducts.

Design of the HRV unit

Pipe connections

Ventilation connection, exhaust airXL31

Ventilation connection, extract airXL32

Ventilation connection, supply airXL33

Ventilation connection, outdoor airXL34

Condensation water drainXL40

Sensors etc.

Level monitorBL2

Temperature sensor, exhaust airBT20

Temperature sensor, extract airBT21

Temperature sensor, supply airBT22

Temperature sensor, outdoor airBT23

Electrical components

Accessory cardAA5

EMC cardRF3

Cord with connection plugW101

Communication cableW102

Ventilation

EP26 Heat exchanger

GQ2 Exhaust air fan

GQ3 Supply air fan

HQ10 Exhaust air Iter

HQ11 Supply air Iter

Bypass damperQN37

Miscellaneous

PZ1 Type plate

WM5 Condensation water trough

Designations according to standard EN 81346-2.

Ventilation connections

Condensation water drain

ERS 30 can produce several litres of condensation water per day. It is therefore important that the condensation outlet is correctly executed and the HRV unit installed horizontally.

Check that the water seal is airtight and rmly in position. The connection must be made so that the user can check and top up the water seal, without opening ERS 30.

The connection for the condensation outlet measures 015 mm.

If the HRV unit will be installed in a cold area, the condensation water drain pipe must be insulated so the condensation water in the pipe does not freeze. It is also recommended that the water seal is mounted in a warm area to guarantee that the water in the water seal does not freeze. If it cannot be guaranteed that insulation will protect the condensation water drain pipe against frost, a thermostat-controlled heating cable must be installed around the condensation water drain pipe. The installation from the water seal to the drain must be carried out with a requisite slope of at least 1%.

CLEANINGTHECONDENSATIONWATER DRAIN

Condensation forms when ERS 30 is working. This condensation is led off and collected in the condensation water drain. Apart from water, a certain amount of dust and particles also collect there.

Check regularly that the condensation water drain and any oor drains are not blocked; water must be able to run through freely. Clean, if necessary.

NOTE

During operation, negative pressure arises in the HRV unit, which means that a water column of at least 100 mm must be guaranteed in the water seal.

General ventilation connectionsAdjusting ventilation

• Ventilation installation must be carried out in accordance to obtain the necessary air exchange in every room of the building, the exhaust air valve and the supply air inlet as well as the fans in the HRV unit must be correctly positioned and adjusted.
• Provision must be made for inspection and cleaning of the duct.
• The air duct system must be a minimum of air tightness class B. Immediately after installation adjust the ventilation so that it is set according to the projected value of the house.
• To prevent fan noise being transferred to the ventilation devices, install silencers in suitable locations in the duct system. Incorrect adjustment of the ventilation may lead to reduced installation eciency and thus poorer operating economy, a poorer indoor climate and moisture damage in the building.
  • The extract air and outdoor air ducts are insulated using diusion-proof material along their entire lengths. Outdoor air Exhaust air
• Ensure that the condensation insulation is fully sealed at any joints and/or at lead-in nipples, silencers, roof cowls or similar.
• The air must be routed to the outdoor air duct through an outer wall grille in the facade. The outer wall grille must be installed so that it is protected from the weather and must be designed so that no rainwater and/or snow can penetrate the facade or follow the air into the duct.
• When positioning the outdoor air and extract air hood/grille, bear in mind that the two air ows must not short circuit to prevent the extract air from being drawn into ERS 30 again.
• A duct in a masonry chimney stack must not be used for extract air or outdoor air.

EXHAUST AIR DUCT /KITCHEN FAN

Exhaust air duct (kitchen fan) must not be connected to ERS 30.

To prevent cooking odours from being led to the ERS 30, the distance between the kitchen fan and the exhaust air valve must be taken into consideration. The distance must not be less than 1.5 m, but may vary between dierent installations.

Always use a kitchen fan when cooking.

Ventilation ow

Connect ERS 30 so that all the exhaust air, except kitchen duct air (kitchen fan), passes through the heat exchanger (EP26) in the product.

The ventilation flow must comply with the applicable national standards.

The supply air ow must be lower than the exhaust air ow to prevent over pressure in the house.

Set the ventilation capacity in the main product's menu system (menu 5.1.5).

Electrical connection

NOTE

All electrical connections must be carried out an authorised electrician.

Electrical installation and wiring must be carried out in accordance with national provisions.

ERS 30 must not be powered during installation

NOTE

If the supply cable is damaged, only NIBE, its vice representative or similar authorised person may replace it to prevent any danger and dam

Connecting to main product

CONNECTING TO THE HEAT PUMP

ERS 30 contains an accessory board (AA5) that connects directly to the main product's input board (terminal block AA3-X4).

The communication cable (W102) is connected to the accessory board (AA5) from the factory.

If several accessories are to be connected, or are already installed, the boards are connected in series.

ser- Because there can be different connections for accessories with accessory board (AA5), you should always read the instructions in the manual for the accessory that is to be installed.

Main product

• To prevent interference, sensor cables to external connections must not be laid close to high voltage cables.
- The minimum area of communication and sensor cables to external connections must be 0.5 mm ² up to 50 m, example EKKX, LiYY or equivalent.

For electrical wiring diagram, see page 41.

F1145/F1155

F1245/F1255 VVM
225/310/320/325/500

Overview accessory board (AA5)

Supply

ERS 30 is connected to a earthed single-phase wall socket or a permanent installation. For permanent installations, ERS 30 must be preceded by a circuit breaker with at least a 3 mm breaking gap.
CONNECTING TO CONTROL MODULE

DIP SWITCH

ERS 30 contains an accessory board (AA5) that connects The DIP switch (S2) on the accessory board (AA5) must be directly to the control module on its accessory board (teset as follows.

You can have up to 8 ERS 30 in the same installation, each

The communication cable (W102) is connected to the accessRS 30 is given a unique setting.

ory board (AA5) from the factory.

If several accessories are to be connected, or are already installed, the boards are connected in series.

Because there can be different connections for accessories with accessory board (AA5), you should always read the instructions in the manual for the accessory that is to be installed.

ERS 30 no.1

ERS 30 no. 2

ERS 30 no. 3

ERS 30 no. 4

ERS 30 no. 5

ERS 30 no. 6

ERS 30 no. 7

ERS 30 no. 8

Commissioning and adjusting

Preparations

• Check the miniature circuit-breaker (FC1) in the main product. It may have tripped during transportation.
• Check that the air Iters are clean, they can become dirty after installation.

Filling

- Check that there is water in the water seal, fill if necessary.

Start-up and inspection

SETTING THE VENTILATION

The ventilation must be set according to applicable standards. Adjust the supply air ow to guarantee a negative F: pressure.

The settings are made in menus 5.1.5 and 5.1.6.

Even if ventilation is roughly set at installation it is important that a ventilation adjustment is ordered and permitted.

Caution

An incorrectly set ventilation flow can damage the house and may also increase energy consumption.

NOTE

Order a ventilation adjustment to complete the setting.

Ventilation capacity

Fan rating

¹ The diagram shows the power consumption per fan.

Activating ERS 30

Activating ERS 30 can be performed via the start guide lowest extract air temp.: Set the minimum extract air temperature in the menu system.

Caution

Also see the Installer Manual for the main product bypass at excess temperature: If a room sensor is installed, perature to prevent the build-up of ice on the heat exchanger. The supply air fan speed reduces, if the extract air temperature (BT21) is lower than the set value.

bypass at excess temperature: If a room sensor is installed, you set the over-temperature at which the bypass damper (QN37) will open here.

Start guide

The start guide appears upon rst start-up after heat pump bypass during heating: Activate whether the bypass damper installation, but is also found in menu 5.7. (QN37) will also be allowed to open during heat production.

Menu system

If you do not make all settings via the start guide or need to (ON37) will open here.

change any of the settings, this can be done in the menu. product: Here, you set which ERS model is installed. system.

MENU 5.2.4 -SYSTEM SETTINGS

Activating/deactivating of accessories.

Select: "exhaust/supply air module".

MENY5.3.12-EXHAUST/SUPPLY AIRMODULE

months btwn Iter alarms

Setting range: 1 - 24

Default value: 3

action level monitor: ERS 30 has a built-in level monitor; therefore, select "level monitor" in the menu. When the input is interrupted, the installation issues an alert and the fans stop until the input is open.

TIP

When ERS 30 is activated, the other ventilation menus will also light up.

lowest extract air temp.

Setting range: 0 - 10 °C

Default value: 5 °C

bypass at excess temperature

Setting range: 2 - 10 °C

Default value: 4 °C

bypass during heating

Setting range: on/o

Factory setting: o

cut-out val. exh. air temp.

Setting range: 5 - 30 °C

Default value: 25 °C

product

Setting range: ERS S10, ERS 20/ERS 30

Factory setting: ERS 20 / ERS 30

action level monitor

Setting range: o, blocked, level monitor

Default value: level monitor

months btwn Iter alarms: Set how often the Iter alarm is to be displayed.

Disturbances in comfort

In most cases, the main product notes a malfunction (a - Check and clean the exhaust air devices.

malfunction can lead to disturbance in comfort) and indic-Fan speed in forced mode.

ates this with alarms and shows action instructions in the display. - Enter the main product's menu 1.2 and select "normal".

Troubleshooting

If the operational interference is not shown in the display

the following tips can be used:

- External switch for changing the fan speed activated.

- Check any external switches.

- Silencers not correctly installed.

- Check the silencers.

BASIC ACTIONS

Start by checking the following items:

• That the main product is running and that the supply cable to ERS 30 is connected.
• Group and main fuses of the accommodation.
  • The property's earth circuit breaker.
• The main product's fuses.
• The main product's temperature limiter.

LOW OR A LACK OF VENTILATION

• Level monitor (BL2) tripped.
- Checking the condensation water drain and water seal.
- The exhaust air Iter (HQ10) and/or the supply air Iter (HQ11) is clogged.
- Replace the Iters.

• The ventilation is not adjusted.
- Order/implement ventilation adjustment.
- Closed, too much choke or blocked ventilation device. - Check and clean the ventilation devices.

• Fan speed in reduced mode.
- Enter the main product's menu 1.2 and select "normal".

- External switch for changing the fan speed activated. - Check any external switches.

- Fan running slow because of low incoming outdoor air temperature.

- Check the function and settings for the electrical air heater (EAH 20) if installed.

HIGH OR DISTRACTING VENTILATION

- The exhaust air Iter (HQ10) and/or the supply air Iter (HQ11) is clogged.

- Replace the Iters.

• The ventilation is not adjusted.
- Order/implement ventilation adjustment.
- Closed, too much choke or blocked ventilation device.

Accessories

Detailed information about the accessories and complete accessories list available at nibe.eu.

Not all accessories are available on all markets.

ELECTRICAL AIR HEATER EAH 20

In cold weather, EAH heats the incoming outdoor air slightly to prevent the condensation in ERS 30 from freezing to form ice. EAH should be used in houses where the outdoor temperature can be continuously lower than -5°C.

EAH 20-1800

(300-1800 W)

Part no. 067 603

Technical data

Dimensions

F

Technical line drawing of a rectangular structure with three circular holes and side supports, dimensioned as 590 units (no text or symbols)

Technical specifications

		ERS 30Type
Electrical data
		230 V - 50HzVSupply
		10AFuse
		2 x 170WDriving po
		IP X1BEnclosure cla
Ventilation
		Coarse 65%Filter type
		ePM1 55%Filter type,
Noise
w(A)1		55dB(A)Sound po
P(A)2		47dB(A)Sound pre
Pipe connections
		160mmVentilation
	mmCondensation water d5ain θ
Dimensions and weight
Working temperature range for incoming air	°C	Min. -25 max. 40
Eciency class 3		A
Length, supply cable	m	2.4
Length, communication cable	m	2.0
	mmWidth	1,280
	mmHeight	585
	mmDepth	700
Weight	kg	56
Part No.		066 241

voltage

ver fan

exhaust a

supply air

ver level (

ssure leve

3

F

1 127 l/s (457 kWh) at 50 Pa

2 93 l/s (335 m/h) at 50 Pa

3 Scale for eciency class: A+ to G.

Dry temperature eciency according to EN 308

Temperature efficiency
(%)

Outdoor air: 5 °C Exhaust air 25 °C RH exhaust air: <27.7 %

Energy labelling

		NIBESupplier
		ERS 30-600Model
Specific energy consumption (SEC)	kWh/(m2year)	Average: -35.6Cold: -71.6Warm: -12.3
Energy eciency class		A
		RVU, BidirectionalDeclared typology
		Variable speed driveType of drive
		RecuperativeType of heat recovery system
		79Thermal eciency of heat recovery
	m3/hMax	mum air ow rate 655
ow rate		340WElectric power input of the fan drive
		55dBSound power level (LWA)
Reference ow rate	3/s	0.127m
	Reference	pressure dience 50Pa
Specific power input (SPI)	W/m3/h	0.32
Control factor and control typology		Clock control (0.85)
	%External leakage rates	Internal: 2.7External: 1.8
Information about Iter warning		See user manual.
Information about supply/exhaust grilles in the facade		See the "Ventilation connections" section.
Information about pre-/disassembly		See the "Recovery" section.This installer manual can also be accessed at nibe.eu.
The annual electricity consumption	kWh/year	337
Annual heating saved, kWh primary energy per year	kWhprim/year	Average: 4,332Cold: 8,474Warm: 1,959

Electrical circuit diagram

Item register

A

Accessories, 18, 37

Adjusting ventilation, 11, 31

Assembly, 7, 27

C

Commissioning and adjusting, 14, 34

Filling and venting, 14, 34

Preparations, 14, 34

Condensation outlet, 10, 30

Cleaning, 10, 30

D

Delivery and handling, 6, 26

Assembly, 7, 27

Installation area, 7, 27

Removing the covers, 6, 26

Transport and storage, 6, 26

Design of the HRV unit, 8, 28

Dimensions and ventilation connections, 11, 31

Disturbances in comfort, 17, 36

Troubleshooting, 17, 36

E

Electrical connection, 12, 32

Connecting to main product, 12, 32

DIP switch, 13, 33

Energy labelling, 21, 40

Exhaust air duct, 11, 31

F

Filling and venting, 14, 34

G

General ventilation connections, 11, 31

|

Important information, 4, 24

Recycling, 4, 24

Inspection of the installation, 5, 25

Installation area, 7, 27

M

Menu system, 15, 35

P

Pipe and ventilation connections

Exhaust air duct, 11, 31

Program settings, 15, 35

R

Recycling, 4, 24

Removing the covers, 6, 26

s

Safety information

Inspection of the installation, 5, 25

Serial number, 4, 24

Start guide, 15, 35

Start-up and inspection

Setting the ventilation, 14, 34

T

The design of the exhaust air module

List of components, 9, 29

Transport and storage, 6, 26

Troubleshooting, 17, 36

V

Ventilation connections, 10, 30

Adjusting ventilation, 11, 31

Condensation outlet, 10, 30

Dimensions and ventilation connections, 11, 31

General ventilation connections, 11, 31

Ventilation ows, 11, 31

Ventilation ow, 11, 31

Contact information

DENMARKCZECH REPUBLICAUSTRIA

NIBE Energy Systems France SAS

Zone industrielle RD 28

NIBE Energy Systems Ltd

3C Broom Business Park,

Bridge Way, S41 9QG Chestereld

Tel: [phone]

[e-mail]

nibe.co.uk

NIBE-BIAWAR Sp. z o.o.

Al. Jana Pawla II 57, 15-703 BialystoBox 14

Tel: [phone] Hannabadsvägen 5, 285 21 MarkarydTel. [phone]

biawar.com.pl Tel: +46 (0)

Tel: [phone] [e-mail]

[e-mail] nibe.ch

nibe.se

For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.

NIBE Energy Systems

Hannabadsvägen 5

Box 14

SE-285 21 Markaryd

[e-mail]

nibe.eu

This is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication's approval.

NIBE Energy Systems makes reservations for any factual or printing errors in this publication
